Hyperpolarized 13 C MRI: A novel approach for probing cerebral metabolism in health and neurological disease

Abstract

Cerebral metabolism is tightly regulated and fundamental for healthy neurological function. There is increasing evidence that alterations in this metabolism may be a precursor and early biomarker of later stage disease processes. Proton magnetic resonance spectroscopy (¹H-MRS) is a powerful tool to non-invasively assess tissue metabolites and has many applications for studying the normal and diseased brain. However, the technique has limitations including low spatial and temporal resolution, difficulties in discriminating overlapping peaks, and challenges in assessing metabolic flux rather than steady-state concentrations. Hyperpolarized carbon-13 magnetic resonance imaging is an emerging clinical technique that may overcome some of these spatial and temporal limitations, providing novel insights into neurometabolism in both health and in pathological processes such as glioma, stroke and multiple sclerosis. This review will explore the growing body of pre-clinical data that demonstrates a potential role for the technique in assessing metabolism in the central nervous system. There are now a number of clinical studies being undertaken in this area and this review will present the emerging clinical data as well as the potential future applications of hyperpolarized ¹³C magnetic resonance imaging in the brain, in both clinical and pre-clinical studies.

Keywords

MRI hyperpolarization neurology neuro-oncology metabolism

Introduction: metabolic studies of the brain using proton and carbon-13 MR spectroscopy

Proton Magnetic Resonance Spectroscopy (¹H-MRS) is a non-invasive technique to probe in vivo metabolism that has been applied in a number of neurological diseases such as brain tumors, multiple sclerosis (MS), traumatic brain injury (TBI), stroke, and dementia.^1–5 However, the millimolar concentration of most metabolites in human tissues results in a relatively low signal-to-noise ratio (SNR), therefore limiting the spatial and temporal resolution that can be achieved within a clinically acceptable scan time.⁶ Metabolites that are commonly probed with ¹H-MRS include choline, creatine, N-acetyl aspartate, and lactate (markers of cellular proliferation, mitochondrial metabolism, neuronal integrity, and glycolytic metabolism, respectively). However, other metabolites such as glutamate, glutamine, myo-inositol, and hypotaurine (which are involved in neurotransmission, amino acid metabolism and act as osmolytes; concentrations of these molecules vary depending on cellular composition and can be used to help distinguish tumor subtypes⁷) are more challenging to quantify due to overlapping peaks on the ¹H-MRS spectrum at conventional clinical (1.5–3 T) field strengths.⁶ Although the spatial distribution of these metabolites can be imaged with MR spectroscopic imaging techniques, this is usually at low spatial resolution (approximately 3–8 mL single voxel volume⁸) and is time consuming. The metabolite concentrations derived from ¹H-MRS usually reflect steady-state tissue concentrations, which although important, do not reflect enzymatic flux or exchange which is complementary additional information.

Carbon-13-MRS (¹³C-MRS) has also been utilized to non-invasively probe cerebral metabolic pathways such as the tricarboxylic acid (TCA) cycle, in both health and disease in a more detailed manner through the injection of ¹³C-labelled endogenous tracers such as glucose, whereby incorporation and metabolism of the ¹³C label can be followed dynamically, allowing metabolic pathways to be deconvolved in ways which complement the detection of steady-state metabolic pool sizes.^9–13 However, despite the ¹³C enrichment of the injected molecule and the negligible ¹³C signal from unlabelled background metabolites, the SNR is still very low, which is partly due to the less favorable magnetic properties of ¹³C compared to ¹H (i.e. a lower gyromagnetic ratio and typically long nuclear T₁). This also restricts the achievable spatial and temporal resolutions of the technique and limits the technique to the research setting. Metabolic imaging of endogenous ¹³C metabolites is currently challenging at clinical field strengths; however, the increasing number of high field MR systems at 7 T or above offers the potential of using ¹³C-MRS for thermal experiments in humans.^14,15

Dynamic nuclear polarization or hyperpolarized carbon-13 MRI

Dynamic nuclear polarization (DNP) has been used to overcome the limitations of ¹³C-MRS by providing a temporary increase in SNR of between 10,000 and 100,000-fold, allowing the uptake and metabolic conversion of physiologically relevant substrates to be imaged.^16–20 This advance has opened up the potential of the technique to image tissue metabolism in real-time at high resolution (2–4 s temporal resolution and with ∼8 mL voxel volume²¹) and also offers the possibility of using it as a clinical tool to stratify patients based on their metabolic phenotype and detect changes in metabolism in response to treatment. Early clinical studies have focused on the use of hyperpolarized pyruvate to probe both glycolysis and TCA metabolism for oncological, renal, and cardiac metabolism.^22–31 This review explores the application of ¹³C-MRI to cerebral imaging and its future potential in the clinic.

Requirements for clinical hyperpolarized studies

Clinical hyperpolarized ¹³C-MRI requires a dedicated sterile facility to fill pharmacy kits (a small sterile vial containing pyruvate, a syringe with water to dissolve the pyruvate and buffer to neutralize the solution as shown in Figure 1 ³²). The filled kit then undergoes hyperpolarization using a commercial clinical system (SPINlab, GE Healthcare, see Figure 2) and is quality checked for parameters such as pH, temperature and polarization level, before intravenous injection over 5–6 s (∼5 ml/s) of ∼250 mmol/L hyperpolarized ¹³C-pyruvate at 0.4 ml/kg body weight. ∼250 mmol/L has been widely used for the initial clinical studies based on the concentration of neat pyruvic acid and the volume of heated water required to dissolve this rapidly and this concentration has shown a good toxicity profile. This produces an approximate intravascular concentration of ∼1–2 mmol/L after injection but a tissue concentration which is an order of magnitude smaller (∼0.1 mmol/L) and similar to the physiological concentration of endogenous pyruvate.³³ Lower doses may be possible in future but produce lower signal, because signal varies linearly with the amount of the injected tracer. Imaging the ¹³C-labelled metabolites is undertaken using dedicated MRI coils and sequences which acquire rapid images of the injected substrate and the metabolites that form from it in real time.^21,34–40 Imaging must be performed rapidly, as the increased polarization is transient and decays with the T₁ of the labelled ¹³C (less than one minute in blood), and is therefore a limitation for in vivo measurements of slow enzymatic reactions.

Figure 1.

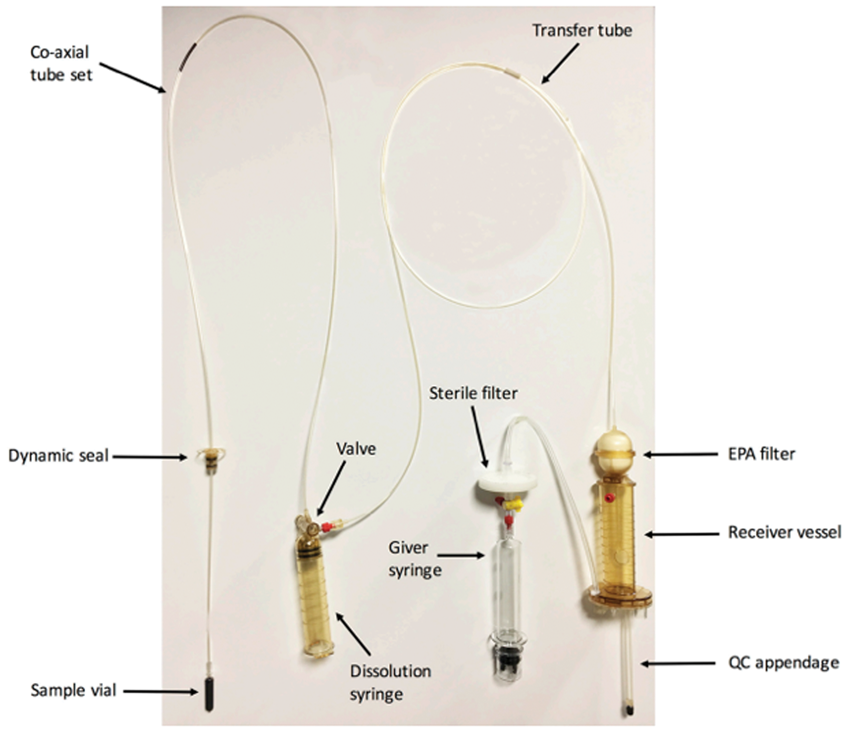

A sterile fluid path for clinical studies. The fluid path contains pyruvate (in sample vial), water for injection (dissolution syringe), and a neutralization medium (held in the receiver vessel). The filter on the receiver vessel removes the electron paramagnetic agent (EPA) prior to quality control (QC). Figure adapted from Park et al.²¹

Figure 2.

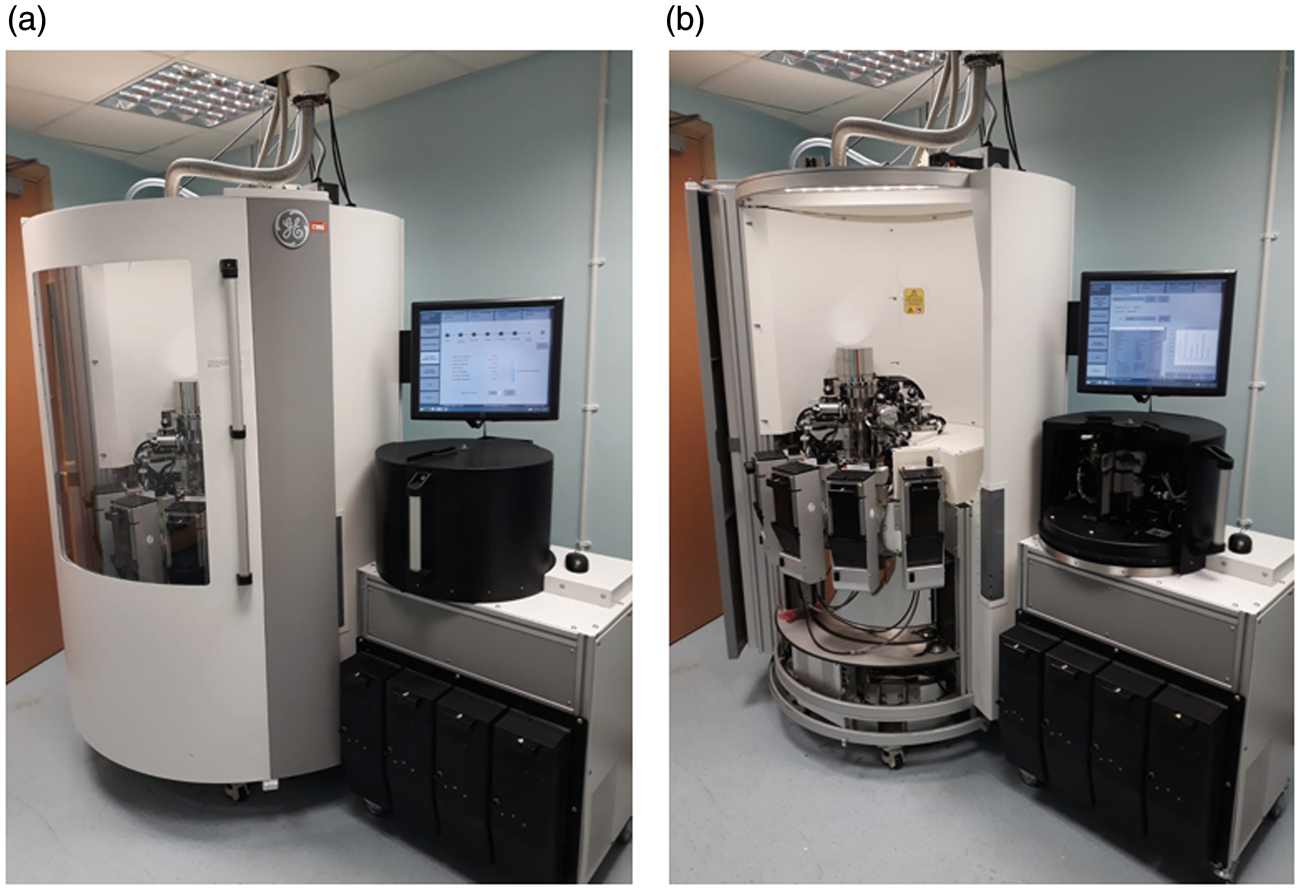

The clinical “SPINlab” hyperpolariser system exterior (a) and interior (b). The Quality Control (QC) unit is shown on the right of each image, and the hyperpolarizer on the left. The system is sited next to a clinical scanner with a hatch in the wall for the delivery of the hyperpolarized sample; this will be placed into a syringe driver and injected into the patient.

Cellular localization and quantification of cerebral pyruvate metabolism

Metabolism can be quantified by modelling the dynamics of signal acquired from the substrate (e.g. pyruvate) and its products (e.g. lactate or bicarbonate) to infer enzymatic activity.⁴¹ Pyruvate resides at the junction of several important biochemical pathways such as the exchange to lactate in the cytosol, catalyzed by the enzyme lactate dehydrogenase (LDH), or the irreversible conversion to carbon dioxide, catalyzed by the mitochondrial enzyme pyruvate dehydrogenase (PDH). The labelled carbon dioxide subsequently exchanges with the bicarbonate pool, catalyzed very rapidly by the enzyme carbonic anhydrase (CA); this bicarbonate is more easily detectable due to its higher abundance at physiological pH.^42,43 A confounder for the measurements of PDH flux is an alternative route of CO₂ fixation by pyruvate carboxylase (PC), which if significant, could lead to an inaccurate estimation of PDH enzymatic activity using hyperpolarized pyruvate.⁴⁴ Therefore, imaging of hyperpolarized pyruvate metabolism can simultaneously probe both cytosolic and mitochondrial metabolism. Many pathological processes can result in alterations in cerebral metabolism. For example, necrosis,⁴⁵ inflammatory cell activation,⁴⁶ and breakdown of the blood–brain barrier⁴⁷ may result in elevated lactate in the CNS, either due to increased transport of pyruvate (as in the case of BBB disruption) or lactate formation (secondary to increased enzymatic exchange). Discussion of these effects in multiple sclerosis, stroke, traumatic brain injury, and brain tumors is found below.

Commonly, the term k_PL (the apparent exchange rate constant for pyruvate conversion to lactate) or the lactate-to-pyruvate ratio (Lac:Pyr or LP) is used as a measure of glycolytic activity in the cytosol.⁴¹ In contrast, the term k_PB (the apparent rate constant of the irreversible conversion of pyruvate to bicarbonate) or the bicarbonate-to-pyruvate ratio (Bic:Pyr or BP) are used as a measure of mitochondrial TCA cycle activity.

Hyperpolarized ¹³ C-MRI of the healthy and diseased brain

There have been a number of pre-clinical studies assessing the metabolism of hyperpolarized ¹³C substrates in the healthy and pathological brain, including traumatic brain injury, neuro-oncology, multiple sclerosis, and stroke. Detection of metabolic changes with hyperpolarized MRS is dependent on the magnitude of these alterations present in the pathological state to be assessed, and small or transient changes may remain undetectable.

Metabolism in the healthy brain

The normal brain has a high basal metabolic rate and a reliance upon glucose oxidation.⁴⁸ Initial hyperpolarized ¹³C-MRI studies have investigated the metabolism of hyperpolarized [1-¹³C]pyruvate and [2-¹³C]pyruvate in healthy anaesthetized rodent and macaque brains.^49–52 These studies have demonstrated the anaerobic metabolism of ¹³C-pyruvate to ¹³C-lactate in the brain parenchyma, catalyzed by cytosolic LDH, as well as the formation of ¹³C-bicarbonate secondary to mitochondrial PDH and oxidative metabolism. The latter has been supported by the alternative approach of using [2-¹³C]pyruvate,⁵³ which has shown the formation of TCA intermediates. Compared to other metabolically active organs, the apparent rate of metabolism of hyperpolarized pyruvate in the brain is comparatively low (∼0.003 s⁻¹) compared to liver and kidney (∼0.02 and 0.025 s⁻¹ respectively),^51,54 which may reflect a limitation of pyruvate transport across the blood–brain barrier (BBB). Studies performed with hyperpolarized [1-¹³C]ethyl-pyruvate, a lipophilic analogue of pyruvate, have revealed enhanced diffusion-facilitated transport across the BBB and subsequent hydrolysis to pyruvate followed by exchange to lactate, demonstrating that BBB transport of pyruvate may be rate limiting in some species.^47,55,56 There is evidence that the detection of [1-¹³C]pyruvate metabolism in the anaesthetized porcine brain may to some extent be limited by BBB transport⁴⁷ (Figure 3). Furthermore, studies have also assessed the difference in pyruvate to lactate exchange before and after transient opening of the BBB with both mannitol and focused ultrasound, demonstrating elevated exchange after permeabilization.^47,57

Figure 3.

Metabolic imaging of the porcine brain. Imaging of the naïve porcine brain following injection of hyperpolarized ¹³C-pyruvate. (a) ¹³C-pyruvate signal is demonstrated in the vasculature. However, no ¹³C-lactate signal (b) is seen in the brain parenchyma and therefore no significant metabolism is demonstrated on the kinetic rate constant map (c) (k_PL in s⁻¹; calculated only in the brain region). After the introduction of mannitol, both ¹³C-pyruvate (d) and ¹³C-lactate (e) are seen in the brain parenchyma as demonstrated on the calculated kinetic rate constant map (f). Figure adapted from Miller et al.⁴⁷

Further pre-clinical healthy brain studies have demonstrated metabolism with other tracers such as [1-¹³C]lactate to measure MCT1 and LDHA activity, [1-¹³C]glutamine to measure IDH mutation status, and ketoisocaproic acid (KIC) to probe leucine metabolism.^56,58,59 A further tracer of interest in brain studies could be [1,4-¹³C₂]fumarate, which may inform upon cellular necrosis through exchange to malate.⁶⁰ Further probes that may be used in future clinical work have been reviewed elsewhere.⁶¹

Transport of ¹³C pyruvate across the anaesthetized blood–brain barrier

Some degree of controversy exists surrounding the rate of transport and metabolism of pyruvate under differing anaesthetic regimes, with initial work suggesting that the quantities of hyperpolarized ¹³C-bicarbonate and ¹³C-lactate detected after the injection of hyperpolarized [1-¹³C]pyruvate are, to some extent, dependent upon the anaesthetic regimen used.⁵⁸ In addition to alterations in transport, anaesthesia may also lead to metabolic shifts: in the heart, increasing the concentration of inhaled isoflurane has been shown to shift cardiac metabolism towards glycolysis, increasing the detected lactate-to-pyruvate ratio and decreasing the signal from bicarbonate.⁶² As patients are usually imaged awake, this could influence comparisons between pre-clinical and human results: for example, the low bicarbonate signal detected in the anesthetized brain may be explained by a shift towards glycolysis driven by anaesthesia.⁵⁸

Imaging the healthy human brain with hyperpolarized ¹³C-MRI and comparison to ¹⁸F-FDG PET

Initial clinical studies of healthy brain metabolism have shown the rapid delivery and metabolism of pyruvate to bicarbonate, as well as exchange to lactate in the normal brain parenchyma.^63–65 A recent study of the healthy brain quantified the metabolism of pyruvate in both white and grey matter, with results revealing significantly increased ¹³C-pyruvate, ¹³C-lactate, and ¹³C-bicarbonate in grey matter compared to white matter, which in part may be due to the higher perfusion in the former.⁶³ However, this regional variation is also likely to relate to real alterations in tissue metabolism as there is increased ¹⁸F-FDG uptake on PET in grey matter compared to white matter, which is less dependent on speed of perfusion.⁶⁶

In comparison to hyperpolarized ¹³C-MRI measurements of pyruvate metabolism, ¹⁸F-FDG PET provides a highly sensitive measure of glucose metabolism, particularly the transport and phosphorylation of the FDG glucose analogue by GLUT-1 and hexokinase respectively. However, as PET measures the accumulation of radiolabel, it is unable to discriminate between the injected radiolabelled tracer and downstream metabolic products or their distribution in the cellular or extracellular spaces. Despite the significant increase in SNR afforded by hyperpolarization, it remains significantly less sensitive to the detection of metabolites than PET and in general this means a lower spatial resolution. However, the major strength of HP MRS over PET is the ability to discriminate the injected substrate from its metabolic product or products, allowing a quantitative measure of enzymatic activity. Moreover, although the spatial resolution of HP MRS is insufficient to discriminate between intracellular and extracellular metabolites, as the formation of hyperpolarized lactate is intracellular, its presence indicates that intracellular metabolism has occurred even if that lactate has been exported to the extracellular space. Another important distinction between the two techniques is the timescale of metabolism that is being assessed as HP MRS detects pyruvate metabolism over seconds to minutes due to the short half-life, whereas PET assesses FDG accumulation over minutes to hours; therefore, the two methods are measuring metabolism on very different timescales. Therefore, the two techniques are highly complementary.

Quantitative modelling has shown that there are regional variations in ¹³C-pyruvate metabolism across the brain with lower k_PL in deep white matter compared to the brainstem and basal ganglia. Interestingly, steady state lactate is not commonly detected in the resting healthy adult brain using ¹H-MRS and the difference between this finding and the significant ¹³C-lactate signal demonstrated with hyperpolarized ¹³C-MRI may be partly explained by the fact that the latter probes dynamic changes in lactate labelling following the injection of a supraphysiological bolus of pyruvate. Indeed, it may be that the static pool of lactate measured by ¹H-MRS is relatively small due to the rapid transport and metabolism of pyruvate in neurons. A further study focusing on the use of [2-¹³C]pyruvate in the healthy brain has been recently undertaken, with results showing the formation of TCA intermediates dynamically in the parenchyma, particularly glutamate.⁶⁷ Example hyperpolarized ¹³C images from healthy volunteers are seen in Figures 4 and 5.

Figure 4.

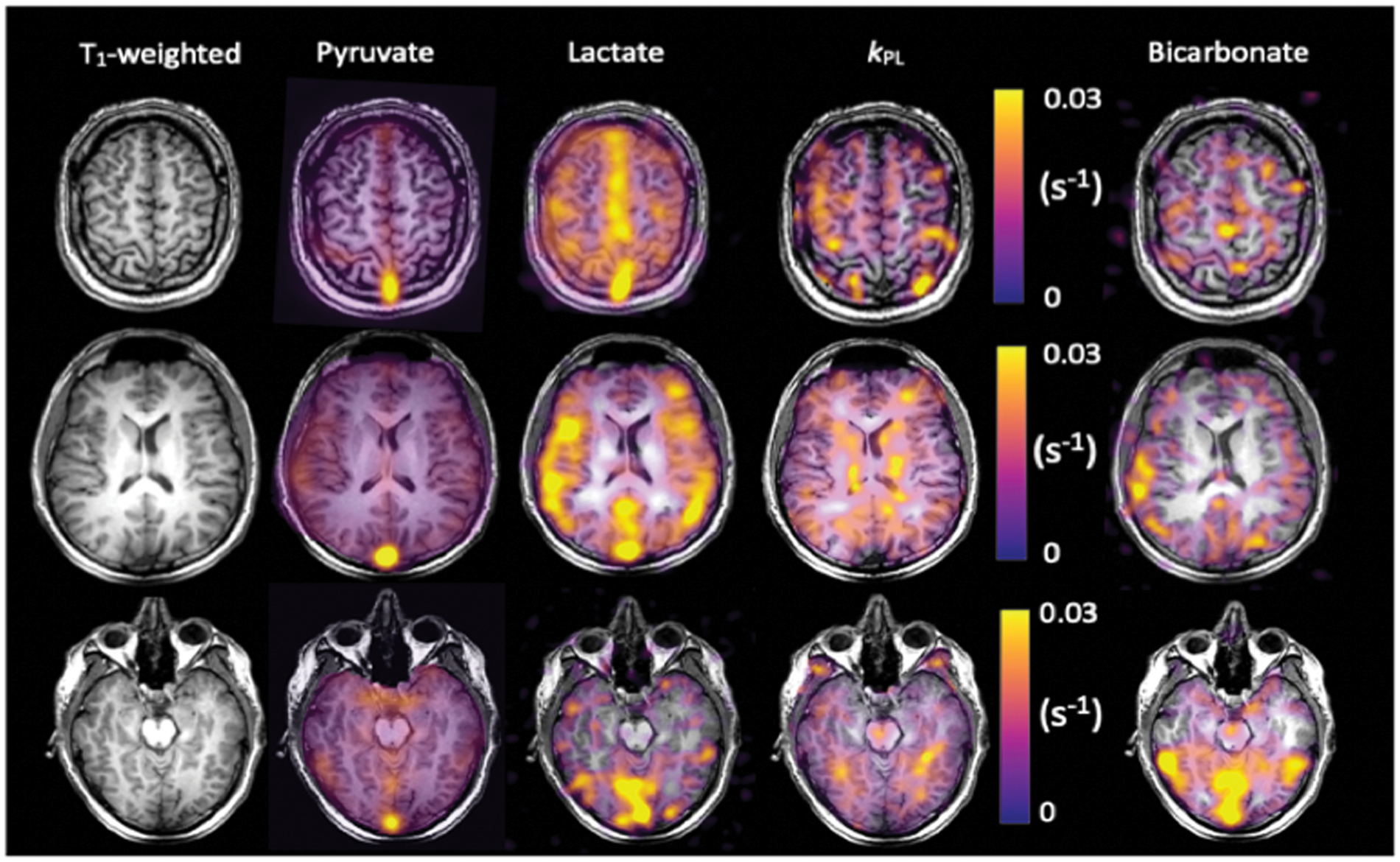

¹³C imaging demonstrating metabolite distribution in the healthy human brain. Example summed images from the brain of a healthy volunteer demonstrating ¹³C-pyruvate, ¹³C-lactate, and ¹³C-bicarbonate signal from three axial slices: superior, central and inferior. The T₁-weighted images have also been shown, as have the quantitative maps of the exchange of pyruvate to lactate (k_PL in s⁻¹).⁶³

Figure 5.

Resolution of ¹³C imaging of the normal human brain. (a) Proton anatomical imaging. IDEAL spiral Chemical Shift Images (CSI) are shown at the acquired spatial resolution to demonstrate the difference in SNR between: (b) pyruvate; (c) lactate; and (d) bicarbonate. ¹³C images are normalized to the metabolite peak signal in the slice. Imaging parameters: field of view = 240 mm, matrix size = 40 × 40, slice thickness = 30 mm. Adapted from Grist et al.⁶³

Further studies with larger cohorts of healthy volunteers at higher spatial resolutions may elucidate other regional differences in the metabolism of the healthy brain, allowing for a better understanding of normal cerebral physiology, as well as providing a baseline for comparison to pathological tissue.

Imaging the diseased brain with hyperpolarized ¹³ C-MRI

There are a number of neurological conditions which could benefit from the application of hyperpolarized ¹³C-MRI to understand alterations in neurological metabolism due to cerebral insult and therapeutic response. This review will discuss neuro-oncology, multiple sclerosis (MS), traumatic brain injury (TBI) and stroke. Elevation in tissue lactate is a common feature in all of these conditions which raises the potential for the use of hyperpolarized ¹³C-MRI as a tool to probe metabolism in many neurological conditions.

Brain tumors

Several early studies using hyperpolarized [1-¹³C]pyruvate as a probe for pre-clinical models of brain tumors have demonstrated increased lactate in implanted cerebral tumors, both orthotopic xenograft models in immunocompromised animals and implanted rodent-derived cell cultures in immunocompetent animals.^68–70 Lactate labelling has been shown to correlate with the histological aggressiveness of the tumor and a reduction in lactate labelling has been shown to correspond to therapy response, as chemotherapeutic agents such as temozolomide may have a metabolic effect before a reduction in tumor volume.^56,71 Several studies assessing HP ¹³C-MRS to detect therapeutic response in neuro-oncology have been undertaken, with reductions in the lactate signal observed following successful therapies, such as anti-VEGF,⁷² telozolomide,⁷³ dichloroacetate,⁷⁴ and radiotherapy.⁷⁵ Therefore, the use of hyperpolarized ¹³C-MRI may be a valuable tool in the monitoring of neuro-oncological disease before and after chemotherapy and radiotherapy. The isocitrate dehydrogenase-1 (IDH-1) mutant status of glioma has been shown to correlate with the metabolism of hyperpolarized [1-¹³C]alpha-ketoglutarate and its subsequent conversion through the branched-chain amino acid transaminase BCAT1 to [1-¹³C]glutamate, with the latter being significantly lower in mutant IDH1 cells and tumors.⁷⁶ Such reactions form a specific readout of the tumor metabolome and are more challenging to assess with conventional in vivo non-invasive methods, such as proton spectroscopy.⁷⁷ Therefore, this offers a promising target for non-invasively phenotyping tumors with hyperpolarized ¹³C-MRI.

Initial human studies have assessed the feasibility of using hyperpolarized [1-¹³C]pyruvate to probe brain tumor metabolism.^21,78 In keeping with the many pre-clinical studies in this field, this work has shown that there is significant conversion of pyruvate to lactate in a diverse range of tumors such as high grade glioma,⁷⁵ oligodendroglioma⁷⁹ and melanoma metastases.⁷⁹ However, there is a high degree of variation in lactate labelling between tumors, reflecting the complex heterogeneity of human tumors in comparison to animal models.^21,78 This preliminary evidence provides some initial evidence for the potential role for the technique in studying brain tumors and future work will address the significance of the technique.

Multiple sclerosis

Multiple Sclerosis (MS) is characterized by inflammation of the central nervous system, leading to inflammatory demyelination of neurons and oligodendrocyte death, and subsequently elevated metabolic demands on neurons caused by a toxic elevation of extracellular ions such as calcium and sodium.⁸⁰ Preclinically, hyperpolarized ¹³C-MRS has been used to characterize a cuprizone model of MS, which reproducibly develops inflammatory lesions that attract proinflammatory mononuclear phagocytes, particularly in the corpus callosum, similar to the human disorder.⁸¹ An elevated lactate signal was demonstrated within MS lesions that were histologically confirmed to be rich in mononuclear phagocytes. Moreover, these activated proinflammatory mononuclear phagocytes had elevated pyruvate dehydrogenase kinase 1 (PDK1), responsible for inhibition of the oxidation of pyruvate by mitochondrial PDH, leading to increased metabolism to lactate in the cytosol. As well as furthering our understanding of lesional metabolism, hyperpolarized ¹³C-MRI could provide key insights into the viability of normal appearing tissue in the MS brain, through the assessment of lactate exchange and bicarbonate metabolism in normal appearing white and grey matter.

Traumatic brain injury

Acute TBI produces characteristic metabolic changes in the brain, both locally and remote to the site of injury, with elevated lactate detected with ¹H-MRS.^82,83 As TBI is known to actively inhibit PDH activity and initiate mitochondrial dysfunction within 4 h after injury,⁸⁴ hyperpolarized pyruvate may potentially form a useful metric for understanding and quantifying the degree of injury sustained.⁸⁵ TBI is a major cause of death and long-term disability, characterized by cognitive and memory impairment, mood disorders and neurodegenerative diseases.

Non-invasively detecting the spatial distribution of this metabolic dysregulation is challenging with conventional MRS and consequently invasive measures have been used to characterize this heterogeneity.⁸⁶ Initial preclinical results with hyperpolarized [1-¹³C]pyruvate have shown regional alterations in lactate and bicarbonate formation after TBI, reporting a ∼24% decrease in oxidative metabolism at the injury site and a concomitant increase in lactate production.⁸⁵ Interestingly, there is some evidence that pyruvate or ethyl-pyruvate administration alone may be neuroprotective following TBI in the rat, albeit at higher doses than are typically used for hyperpolarized imaging experiments.⁸⁷

Stroke

Hyperpolarized ¹³C-MRI may have a significant role in understanding the development and response of the ischemic penumbra in stroke. A pre-clinical endothelin-1-induced ischaemic stroke model has been used to assess the metabolic alterations following acute ischaemic stroke in rats.⁴⁹ The results showed an increase in total lactate production in the ischemic penumbra compared to the contralateral brain, which can partly be attributed to increased pyruvate supply and partly to LDH-mediated lactate formation. It is known that ischemia is a gradual process characterized by an intermediate stage in which the metabolic activity of the penumbral tissue is impaired but the damage is reversible and there is therefore the potential for complete functional recovery if blood flow is restored.⁴ Currently, the ischemic penumbra is identified by the mismatch between perfusion and diffusion on MRI; however, as the penumbra has a high rate of glucose extraction characterized by anaerobic glycolysis and subsequent elevated lactate production, this could be detected through the altered metabolism of hyperpolarized ¹³C-pyruvate.⁸⁸ Indeed, invasive studies have shown that a measurement of metabolic activity in the penumbra may be more sensitive than conventional imaging approaches when estimating penumbral viability.⁸⁹ Therefore, since hyperpolarized ¹³C-MRI can identify and quantify the dynamic production of lactate, it may be used to better visualize and characterize the penumbra, in a non-invasive fashion. However, studies focusing on longitudinal measurements of penumbral metabolism are required to understand the true potential of hyperpolarized¹³C-MRI to detect early response of the penumbra to treatment.

Concluding remarks

In conclusion, hyperpolarized ¹³C-MRI provides a highly sensitive technique to directly and non-invasively probe the dynamics of tissue metabolism in vivo and offers the possibility to undertake novel in vivo biological explorations of neurological disease. The temporal and spatial resolution of conventional proton MR spectroscopy has been limited by low signal-to-noise, but the very significant increase in signal afforded by hyperpolarized ¹³C-MRI has allowed the cerebral metabolism of ¹³C-pyruvate to be probed in real time. The technique has applications in a wide spectrum of diseases where metabolic status is impaired, reprogrammed or jeopardised. This method has revealed new insights into cerebral metabolism and offers a novel approach to study neurological disease, in particular the interplay between aerobic and anaerobic metabolism as seen in diseases as diverse as stroke, multiple sclerosis and brain tumors.
