Adult-induced genetic ablation distinguishes PDGFB roles in blood-brain barrier maintenance and development

Experimental animals

Endothelial-specific tamoxifen-inducible Pdgfb knock-out mice (referred to as Pdgfb^iECKO) were obtained by crossing Pdgfb^{flox/flox 20} or Pdgfb^{flox/− 4,20} mice with endothelial specific Cdh5(PAC)-CreERT2 mice. ²³ For all experiments, Cre negative mice with either Pdgfb^flox/flox or Pdgfb^flox/+ genotypes and/or C57BL6 mice are referred to as controls (Ctrl). Gene deletion was induced by daily tamoxifen (cat. #T5648, Sigma-Aldrich) administration (100 μl of a 20 mg/ml solution in 90% corn oil (cat. #C8267, Sigma-Aldrich) and 10% ethanol) by oral gavage for 5 consecutive days at approximately 2 months of age. To minimize potential confounders, all animals within each experiment were treated with the same batch of Tamoxifen. Mice were sacrificed for brain analysis after 2 weeks (1 litter, Ctrl n = 4, Pdgfb^iECKO n = 5) and approximately 2 months (7 litters, Ctrl n = 21, Pdgfb^iECKO n = 25) after induction (referred to as “young” mice) or approximately 10 (5 litters, Ctrl n = 15, Pdgfb^iECKO n = 14) and 16 months (1 litter, Ctrl n = 1, Pdgfb^iECKO n = 4) after induction (referred to as “old” mice). Two of the control animals in 16 months after induction group died before analysis, leaving us with only one littermate control for the comparison. For retinal analysis mice were taken at approximately 2 months (1 litter, Ctrl n = 3, Pdgfb^iECKO n = 4) and 16 months (1 litter, Ctrl n = 1, Pdgfb^iECKO n = 2) after induction. In addition, we analyzed non-induced mice (2 litters, Cre negative n = 6, Cre positive n = 6) to rule out the possibility of genetic background influencing the phenotype. For RNA in situ analysis 3-months-old C57BL/6 (n = 3) mice were used.

Animal housing, as well as the experiments performed, were in accordance with Swedish legislation and were approved by the Uppsala Committee on the Ethics of Animal Experiments (permit numbers C224/12, C115/15, C111515/16). Experiments have been reported in compliance with the ARRIVE 2.0 guidelines. ²⁴ All efforts were made to minimize animal suffering. Both male and female mice were used in the experiments, and the studied phenotypes did not differ between sexes. All mice were back-crossed at least 10 generations to C57BL/6 background. No animals were excluded from the analyses. All quantifications were carried out with the investigator blinded to genotype.

In situ RNA hybridization

In situ RNA hybridization was performed using RNAscope technology (ACDBio) following the manufacturer’s protocol with minor modifications as previously reported. ¹⁸ The fluorescent signal was captured using a Leica TCS SP8 confocal microscope (Leica Microsystems). The following RNAscope probes from ACDBio were used: Pdgfb (#424651), Pecam1 (#316721) and Tubb3 (#423391). All images presented are 2D maximum intensity projections of ∼4 µm z-stacks. According to the ACDBio, each mRNA molecule hybridized to a probe appears as a separate small fluorescent dot.

Microvasculature isolation and quantitative PCR

After perfusion with Hank’s Balanced Salt Solution (HBSS, #14025092, Life Technologies), one hemisphere of the brain was used for microvasculature isolation and qPCR and the other hemisphere was used for additional experiments (BBB integrity assessment, immunofluorescence stainings). The chopped tissue was incubated with 0.5 mg/ml of collagenase type 2 (#C6885, Sigma) in Dulbecco’s Modified Eagle’s Medium (DMEM, #31885-023, Life Technologies) for 10 minutes at 37°C. The suspension was neutralized with DMEM with 20% fetal bovine serum (FBS, #10500-064, Life Technologies) and filtered through a 70 μm mesh (#352350, BD Biosciences). After centrifugation, the pellet was resuspended in DMEM with 0.5 mg/ml heparin (#H3393-100KU, Sigma-Aldrich) to prevent coagulation. The cell suspension was incubated with sheep anti-rat magnetic Dynabeads (#11035, Life Technologies) bound to rat anti-mouse PECAM1 antibody (#AF3628, BD Pharmingen) for 60 minutes at 4°C. Afterwards, the microvascular fragments were collected with a DynaMag-2 magnet and washed with DMEM containing 0.5 mg/ml of heparin and lysed in RLT buffer. RNA was extracted with the RNeasy Plus micro kit (#74034, Qiagen). cDNA was synthesized using iScript RT Supermix (#170-8841, BioRad) and quantified using Taqman assays (Applied Biosystems). The probes used are summarized in Suppl. Table 1, as well as the number of litters and animals analyzed. The expression levels of all genes were normalized to endogenous gene expression levels of Gapdh.

Immunofluorescence stainings

Mice were perfused transcardially under full anesthesia (Hypnorm-Midazolam or Ketamine-Xylazine mixture) with HBSS, followed by 4% buffered formaldehyde (Formalin, #2178, Histolab). Brains and retinas were removed and post-fixed in formalin for 4 and 2 h, respectively, at 4°C. Fifty to seventy-five μm brain sagittal vibratome sections and retinas were incubated in blocking/permeabilization solution (1% bovine serum albumin (BSA), 0.75% TritonX-100 (#T8787, Sigma-Aldrich)), 5% normal donkey serum (# 017-000-121, Jackson ImmunoResearch) in PBS) overnight at 4°C, followed by incubation in primary antibody solution for 48–72 h at 4°C, and subsequently in secondary antibody solution overnight at 4°C. Sections were mounted in Prolong Gold anti-fade reagent (#P36930, Thermo Fischer Scientific). A detailed list of the primary antibodies used for this study can be seen in Suppl. Table 2. Secondary antibodies from donkey for multiple labelling conjugated with the appropriate fluorescent dyes were from ThermoScientific or Jackson ImmunoResearch. As a negative control the sections were incubated with secondary antibodies only. Cell nuclei were visualized with Hoechst 33342 (Hoecsht, #H3570, ThermoFisher). Image processing was done using Fiji, Adobe Photoshop 2020 (21.2.3), and Adobe Illustrator 2020 (24.3). All immunofluorescence images were taken with Leica TCS SP8 and presented as maximum intensity projections of confocal z-stacks.

Quantification of pericyte coverage, endothelial cell number and length

From cerebral cortex, two 60–75 µm-thick vibratome sections per mouse, five 10.17 µm-thick z-stacks per section and four 6.78 µm z-stacks for each vascular plexus in half a retina were obtained with a Leica TCS SP8 and 40x objective. The sections were co-immunolabeled with PECAM1, ANPEP, ERG and the nuclei were visualized with Hoechst. Pericyte coverage was quantified as previously reported. ²⁵ In the brain, all the ERG+ cells per field were counted as well as all the ANPEP+ cell bodies colocalizing with Hoechst. The ratio of ERG+ cells over ANPEP+ cell was considered as the EC/PC ratio per each field.

To study regional differences in pericyte coverage, three 10.17 µm-thick z-stacks from one section were obtained. The analysis was done in the hippocampus, thalamus, midbrain, cerebellar center and corpus callosum. Furthermore, for the pericyte longitudinal coverage analysis and vascular length from the midbrain, two litters of old mice (Pdgfb^iECKO n = 8, Ctrl n = 3) were included. In this case, five z-stacks per section from two sections were used for the analysis.

Analysis of apoptosis

At 2 weeks after induction, two 30 µm-thick sagittal vibratome sections per mouse brain were collected and stained for cleaved-CASPASE3 in combination with ANPEP and PECAM1. Hoechst was used to localize the nuclei. All cleaved-CASPASE3 positive cells present on each section were captured and counted with a Leica TCS SP8 and 63x objective. Co-immunolabeling of PECAM1 and ANPEP together with cleaved-CASPASE3 positive cells allowed the localization of apoptotic endothelial cells and pericytes or VSMC, respectively. All cleaved-CASPASE3 positive cells that did not co-localize with either PECAM1 or ANPEP were considered as “other cell type” of apoptotic cells. Representative images are presented as maximum intensity projections of confocal z-stacks.

Blood-brain barrier and retina integrity assessment

Blood-brain barrier integrity analyses with Alexa Fluor 555 cadaverine (#A30677, Life Technologies, 11 μg/g body weight) were carried out as previously. ¹⁵ Results were expressed as fold change of the controls.

For blood-retina barrier integrity assessment, Alexa Fluor 555 cadaverine injected mice were perfused 2 h after tracer administration first with HBSS then followed by 4% buffered formaldehyde. The retinas were dissected and post-fixed in 4% buffered formaldehyde for 2 h, at 4°C and analyzed with Leica TCS SP8.

TMR-Dextran hotspot leakage quantification

70 kDa Dextran conjugated to tetramethylrhodamine (125 µg/g body weight) (TMR, #D1818, ThermoFisher) was injected intravenously into the tail vein of tamoxifen-induced 12-month-old mice 16 h before sacrifice. 60–65 µm-thick vibratome brain sections were co-immunostained for PECAM1, CLDN5 and CDH5. Two sections per mouse were analyzed and all the present 70 kDa TMR-Dextran hotspots were imaged and counted with a Leica TCS SP8 and 63x objective. Representative images are presented as maximum intensity projections of confocal z-stacks.

Statistical analysis

GraphPad Prism v5.01 was used for all the statistical analysis. Data is presented as geometrical mean ± geometrical SD. When zero values are present, the data is presented as mean ± SD. Shapiro-Wilk and Kolmogorov-Smirnov test were used to study normality, when there were no zero values or n was greater than 1. For normally distributed data with two group comparisons two-tailed, unpaired student’s t test was performed. For unevenly distributed data, the non-parametric Mann Whitney U test was used. For multiple comparisons with normally distributed data, Tukey’s multiple comparison test was used, whereas for unevenly distributed data, the nonparametric Kruskal-Wallis multiple comparison test was used. For all tests, P ≤ 0.05 was considered statistically significant. For group size determination, no formal prior power calculations were performed. The practical circumstances determined the number of mice in each experiment. For all the images included across the manuscript, the most representative examples reflecting the typical phenotype were selected.

Pdgfb gene deletion efficiency in adult Pdgfb^iECKO mice

Previous work has established that Pdgfb is expressed by endothelial cells in the developing vasculature, ⁷ in particular in tip cells of angiogenic sprouts and in developing arterial endothelial cells.^6,26 More recent single-cell RNA sequencing data show that endothelial Pdgfb expression is maintained in the adult mouse brain, and that endothelial cells are the major site of Pdgfb expression in this organ. However, Pdgfb expression was also found to a lower extent in VSMC, microglia and certain type of neurons.^18,19 Single-cell RNA sequencing data further suggests that endothelial Pdgfb expression occurs at similar levels in arteries, capillaries and veins. ¹⁸ Due to a lack of reliable anti-PDGFB antibodies we performed RNA in situ hybridization experiments on adult mouse brains, which confirmed co-expression of Pdgfb with the endothelial cell marker Pecam1 mRNA in vascular structures (Suppl. Fig. 1A), as well as Pdgfb and the neuronal marker Tubb3 in certain neurons (Suppl. Fig. 1B).

OPEN IN VIEWER

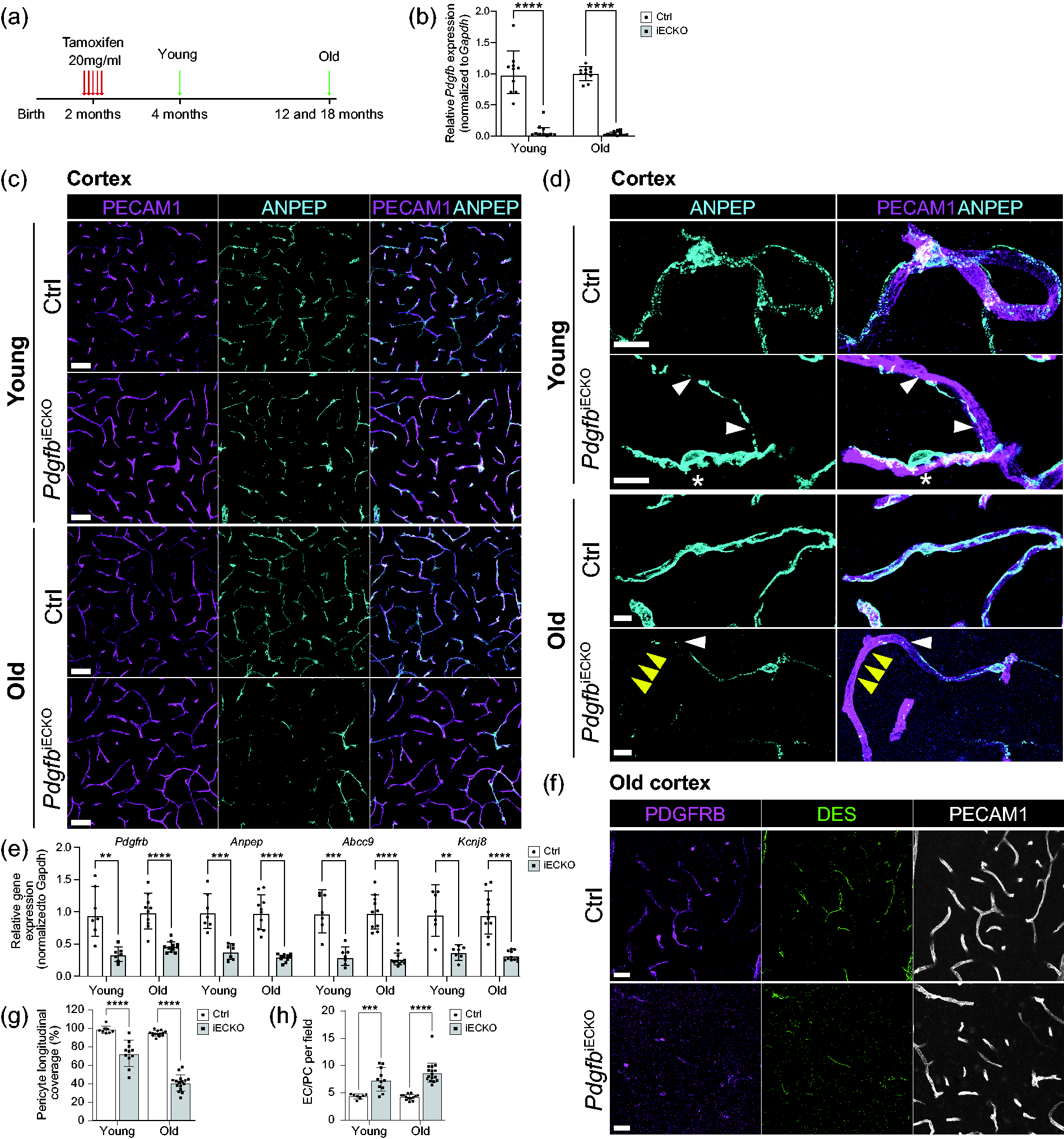

Figure 1.

Experimental scheme, gene deletion efficiencies and assessment of pericytes in adult-induced Pdgfb^iECKO and littermate controls. (a) Endothelial-specific Pdgfb deletion was accomplished by Tamoxifen administration for 5 days at 2 months of age. All analyzes were performed at 4 months of age for the “young” age and at 12- and 18-months for the “old” age. (b) qPCR analysis of Pdgfb mRNA expression on freshly isolated brain microvascular fragments. Pdgfb mRNA expression was normalized to endogenous Gapdh levels. In young mice, 8% of Pdgfb expression remained in Pdgfb^iECKO mice (n = 10). In old mice, 4% of Pdgfb expression remained in Pdgfb^iECKO mice (Pdgfb^iECKO n = 11, Ctrl n = 10). (c) Representative overview images of mural cells from the cortex of young and old mice. Co-immunolabeling of PECAM1 (magenta) and ANPEP (cyan). Scale bars 50 µm. (d) Representative high magnification images to visualize pericyte morphology in young and old Pdgfb^iECKO and controls. Co-immunolabeling of PECAM1 (magenta) and ANPEP (cyan). White arrowheads indicate fragmented pericyte processes. Asterisk indicates pericytes with altered cell bodies and distinct foot processes in Pdgfb^iECKO. Yellow arrowheads indicate shorter processes leaving part of the vasculature uncovered in Pdgfb^iECKO. Scale bars 10 µm. (e) qPCR analysis on the mural cell genes Pdgfrb and Anpep and the pericyte genes Abcc9 and Kcnj8 performed on freshly isolated brain microvascular fragments from young and old mice (for litter and n number see Supplementary Table 1). The genes of interest were normalized to endogenous Gapdh levels and are presented as relative gene expression to Ctrl samples. (f) Representative overview images from the cortex of old mice. Co-immunolabeling of PDGFRB (magenta), DES (green) and PECAM1 (white). Scale bars 25 µm. (g) The skeletal length of PECAM1 positive capillaries and ANPEP positive pericytes in Pdgfb^iECKO and controls was measured and plotted as the percentage of pericyte longitudinal length over blood vessel length. Three litters were analyzed for pericyte coverage in the cortex of young mice (Pdgfb^iECKO n = 11, Ctrl n = 8) and five litters were analyzed for coverage in the cortex of old mice (Pdgfb^iECKO n = 16, Ctrl n = 13). (h) Quantification of endothelial cell (ERG⁺) to pericyte (ANPEP⁺, DAPI⁺) ratio per field in young (Pdgfb^iECKO n = 11, Ctrl n = 8) and old mice (Pdgfb^iECKO n = 16, Ctrl n = 13). b, g and h-Old, normality tests revealed that the data was unevenly distributed so nonparametric Mann-Whitney U test was used to evaluate significance. e and h-Young, the significance of evenly distributed data was evaluated using unpaired 2-tailed t test with Welch’s correction. e, Gene expression comparison between young and old Pdgfb^iECKO mice was not significant for neither of the four genes. Data is presented as geometric mean with geometric SD. **p < 0.01, ***p = 0.001, ****p < 0.0001, ns = not significant.

In order to gain insights into the role of endothelium-derived PDGFB in the adult quiescent brain vasculature, we created endothelial-specific Pdgfb knock-out mice using a tamoxifen-inducible strategy by crossing either Pdgfb^{flox/flox, 20} Pdgfb^flox/+ or Pdgfb^{flox/− 7} mice with Cdh5-CreERT2 mice. ²³ This breeding strategy gave rise to litters including Cre-positive Pdgfb^flox/flox or Pdgfb^flox/- mice, which were collectively used as conditional endothelial cell PDGFB knock-outs (Pdgfb^iECKO), as well as Cre-negative Pdgfb^flox/flox or Pdgfb^flox/+ pups, which were collectively used as littermate controls (Ctrl). Pdgfb^iECKO and control mice were administered tamoxifen once per day for five consecutive days at 2-months of age and sacrificed at 4-months of age (referred to as young age), or 12- or 18-months of age (collectively referred to as old age) (Figure 1(a)). Quantitative PCR analysis of microvascular fragments revealed a substantial reduction in Pdgfb transcript levels in both young (8% remaining, Figure 1(b)) and old Pdgfb^iECKO mice (4% remaining, Figure 1(b)) compared with controls.

Analysis of 2-months-old Cre-positive and Cre-negative mice without tamoxifen induction showed no difference in pericyte longitudinal coverage (Suppl. Fig. 1C, D), endothelial cell:pericyte ratio (Suppl. Fig. 1E), vascular length (Suppl. Fig. 1F) or total number of ERG+ endothelial cells per field (Suppl. Fig. 1G). Additionally, we did not detect any active angiogenesis by staining for tip cell marker MCAM¹⁵ together with PECAM1, which indicates that the brain vasculature is largely quiescent at 2 months of age (Suppl. Fig. 1H).

Endothelium-derived PDGFB is necessary for maintenance of pericyte coverage in adult mouse brain vasculature

Reduced density of mural cells is a well-characterized consequence of Pdgfb deletion in the developing vasculature.^{6,7,10,12,15,22} To assess if inducible ablation of endothelium-derived Pdgfb has an effect on brain mural cell coverage after the brain vasculature is fully developed in adults, we investigated capillary pericyte coverage in control and Pdgfb^iECKO mice at both young and old age. Low magnification images revealed a substantial loss of ANPEP-positive pericytes in Pdgfb^iECKO mice compared with controls already at 4 months of age (2 months after Pdgfb deletion), and this became more pronounced in 12- and 18-months-old mice (Figure 1(c)). At high magnification, the pericyte processes in Pdgfb^iECKO mice appeared thinner, partly detached and with discontinuous ANPEP staining (Figure 1(d), white arrowheads). Pericytes in Pdgfb^iECKO mice extended shorter processes compared with control mice, leaving stretches of the vasculature uncovered (Figure 1(d), yellow arrowheads). In addition, we observed pericytes with altered cell body morphology and shorter foot-like cytoplasmic processes, which were not seen in control animals (Figure 1(d), asterisk).

Quantitative PCR analysis of isolated microvascular fragments showed significant reduction of several known pericyte markers, including Pdgfrb (34% remaining), Anpep (38%), Abcc9 (31%) and Kcnj8 (37%) in Pdgfb^iECKO when compared with littermate controls in 4-months-old mice (Figure 1(e)) and these markers were also decreased in old Pdgfb^iECKO mice when compared with controls (Pdgfrb (45%), Anpep (29%), Abcc9 (27%) and Kcnj8 (32%)) (Figure 1(e)). Immunofluorescence staining using anti-desmin (DES) and anti-PDGFRB antibodies confirmed that the pericyte markers expression in Pdgfb^iECKO were reduced overall (Figure 1(f)).

Quantification of longitudinal capillary coverage by ANPEP-positive pericytes showed a significant reduction in pericyte coverage in the cerebral cortex with 4-month-old Pdgfb^iECKO mice (74% coverage remaining) which was further reduced in 12-and 18-month-old mice (43% coverage remaining) when compared with controls (100%) (Figure 1(g)). Quantification of endothelial cell (EC) (ERG⁺, Hoechst⁺) to pericyte (PC) ratio (ANPEP⁺, Hoechst⁺) demonstrated increase from controls (which had 4 EC per 1 PC) in both 4-month-old (7 EC per 1 PC) and 12- and 18-month-old Pdgfb^iECKO mice (8 EC per 1 PC) (Figure 1(h)). In the 18-month-old litter, two of the control animals died before analysis, leaving us with only one littermate control for the comparison. In order to appreciate if there is further pericyte reduction in the 18-month-old litter, we quantified pericytes separately in 12- and 18-month-old brains. Pericyte longitudinal coverage was slightly decreased in 18-month-old mice (33% coverage remaining) compared to 12-month-old Pdgfb^iECKO mice (44% coverage remaining) (Suppl. Fig. 2A), however the EC/PC ratio (8 EC per 1 PC) remained the same at both ages (Suppl. Fig. 2B). Total vascular length (Suppl. Fig. 2C) and total ERG+ endothelial cell numbers per field remained unaltered at all studied ages (Suppl. Fig. 2D). Additionally, we did not observe any obvious vessel dilation in Pdgfb^iECKO brains (Figure 1(c), (d) and (f)), an otherwise characteristic vascular phenotype observed in mouse models with developmental pericyte loss.^6,7,10,15 There was also no regional difference in pericyte coverage, in EC/PC ratio or EC number per field (Suppl. Fig. 2E, F, G), however there was a reduction in vascular density in the cortex of 12-month-old Pdgfb^iECKO mice when compared to controls (Suppl. Fig. 2H).

OPEN IN VIEWER

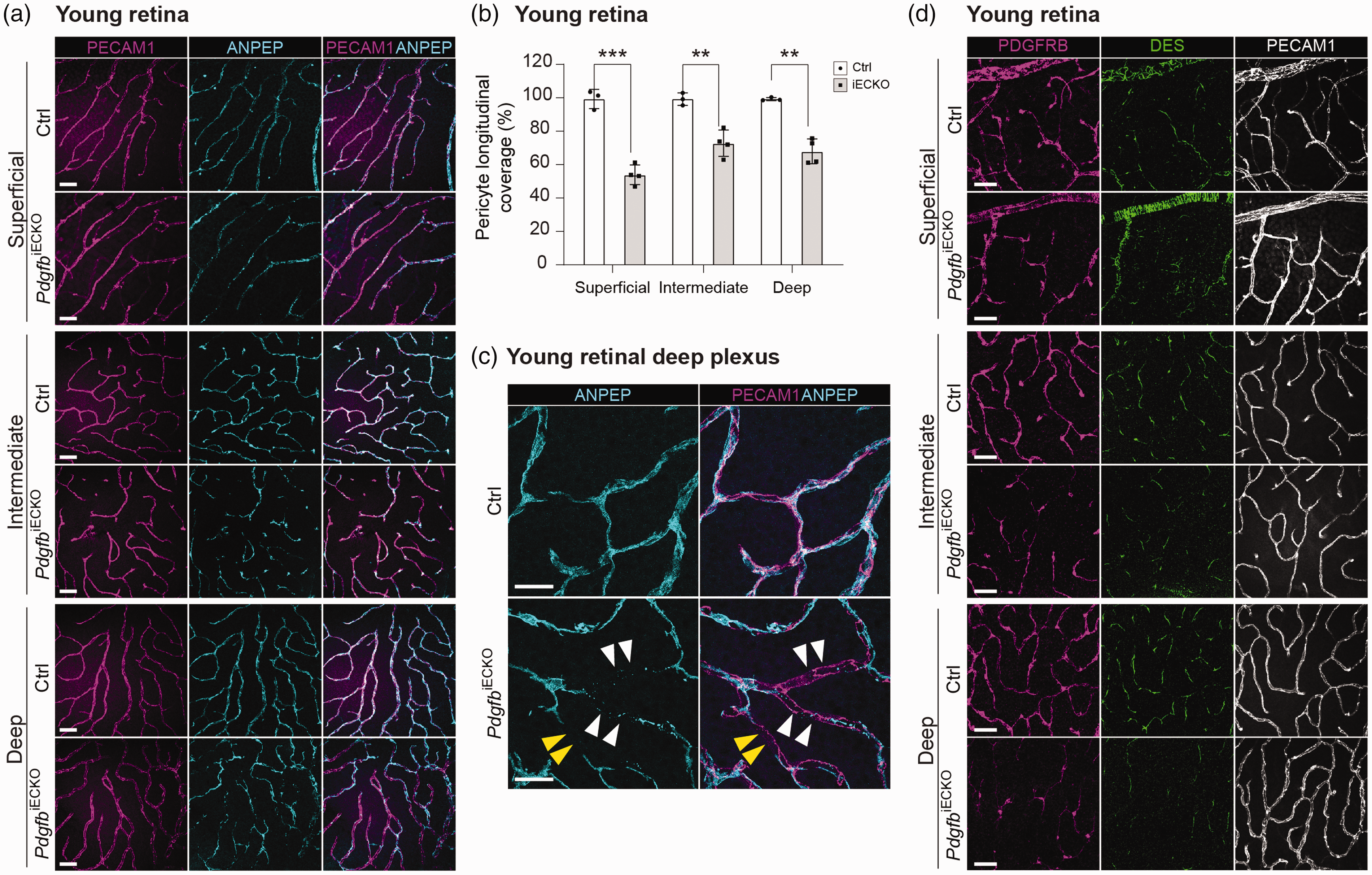

Figure 2.

Assessment of pericytes in adult-induced Pdgfb^iECKO and littermate control retinas (a) Representative overview images of mural cells from the retinal plexuses of young mice. Co-immunolabeling of PECAM1 (magenta) and ANPEP (cyan). Scale bars 50 µm. (b) The skeletal length of PECAM1 positive capillaries and ANPEP positive pericytes in Pdgfb^iECKO and control plexuses were measured and plotted as the percentage of pericyte longitudinal length over blood vessel length (Pdgfb^iECKO n = 4, Ctrl n = 3). (c) Representative high magnification images to visualize pericyte morphology in young Pdgfb^iECKO and controls. Co-immunolabeling of PECAM1 (magenta) and ANPEP (cyan). White arrowheads indicate fragmented pericyte processes. Yellow arrowheads indicate shorter processes leaving part of the vasculature uncovered in Pdgfb^iECKO. Scale bars 25 µm. (d) Representative overview images from young mice. Co-immunolabeling of PDGFRB (magenta), DES (green) and PECAM1 (white). Scale bars 50 µm.

Similar to brain, retinal vasculature showed decrease in longitudinal coverage of ANPEP-positive pericytes in all three vascular plexuses in 4-month-old mice (Figure 2(a)). The largest loss was observed and quantified in superficial vascular plexus (54% coverage remaining), whereas the intermediate and deep plexuses showed a lower degree of pericyte loss (73 and 71% coverage remaining, respectively), which was similar in magnitude to the brain (Figure 2(b)). The total length of retinal vasculature (Suppl. Fig. 2I) and total ERG+ endothelial cell numbers per field were comparable in mutants and controls in all three plexuses (Suppl. Fig. 2 J). Observation at high magnification revealed that pericyte processes in retinas of Pdgfb^iECKO mice were thinner, partly detached and displayed discontinuous ANPEP staining (Figure 2(c)), which resembled the mutant brain pericyte phenotype. Also the pericyte markers DES and PDGFRB were reduced in the 4-months-old retinas (Figure 2(d)). Analysis of 18-month-old control (n = 1) and Pdgfb^iECKO (n = 2) retinas showed further loss of pericyte coverage without any obvious vascular dilation when compared to 4-month-old retinas (Suppl. Fig. 2 K), again similar to the observations in brain.

Next, the Pdgfb^iECKO mice were analyzed 2 weeks after tamoxifen induction (Suppl. Fig. 3 A) in order to examine whether there was any pericyte loss shortly after Pdgfb gene deletion, and if pericyte death could be recorded. Anti-ANPEP immunostaining showed a slight (12%) but significant decrease in pericyte longitudinal coverage (Suppl. Fig. 3B, white arrowhead, C). However, there was no significant difference in EC/PC ratio (Suppl. Fig. 3D), vascular length (Suppl. Fig. 3E) or total number of ERG+ endothelial cells per field (Suppl. Fig. 3F). Staining for the apoptotic cell marker Cleaved-CASPASE3 showed that very few cells were undergoing apoptosis at this time in both Pdgfb^iECKO and littermate control brains (Suppl. Fig. 3H). A small number of these were positive for PECAM1, indicating that they were endothelial cells (Suppl. Fig. 3G, white asterisk and H), and even fewer were perivascular cells (Suppl. Fig. 3G, white arrowhead and H). These observations suggest that PDGFB is important for the maintenance of pericyte coverage during vascular homeostasis in the adult brain, and further that pericyte degeneration following Pdgfb ablation is a slow process. While we failed to observe increased apoptotic pericytes by staining for Cleaved-CASPASE3, we cannot exclude the possibility that pericyte apoptosis takes place but remains too asynchronous and/or fast to be captured using immunohistochemical detection.

OPEN IN VIEWER

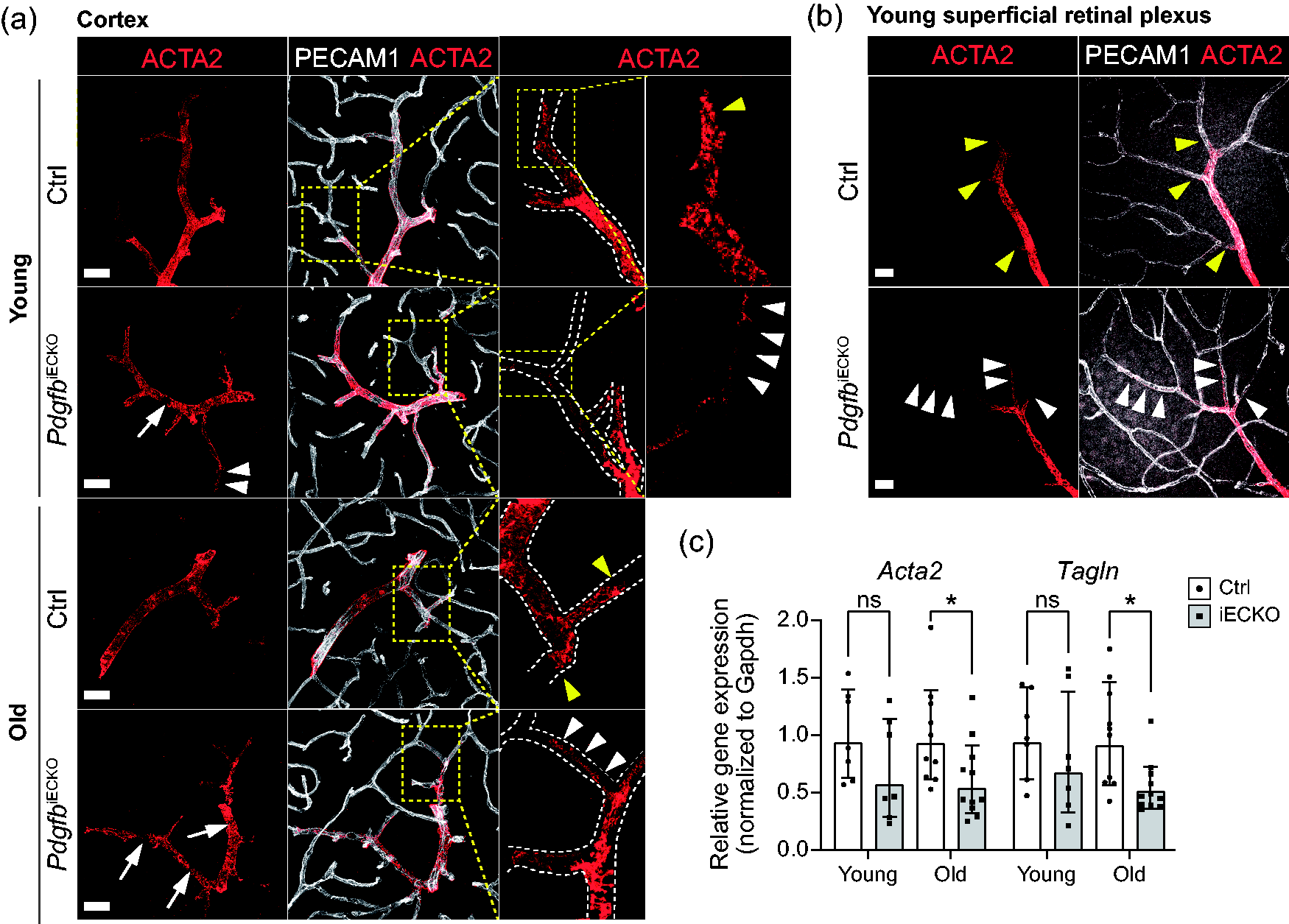

Figure 3.

Assessment of arteriolar VSMCs (aaVSMCs) in adult-induced Pdgfb^iECKO and littermate controls. (a) Representative images of aaVSMC in young (Pdgfb^iECKO n = 4, Ctrl n = 2) and old mice (n = 3): co-immunolabeling of ACTA2 (red) and PECAM1 (white). Scale bars 30 µm. Dashed inserts are magnified for detailed visualization of ACTA2 expression and aaVSMC morphology. (b) Representative images of aaVSMC in young retinas (Pdgfb^iECKO n = 4, Ctrl n = 3): co-immunolabeling of ACTA2 (red) and PECAM1 (white). Scale bars 25 µm. In a and b, white arrows indicate patchy loss of ACTA2 expression leaving small, empty gaps of aaVSMC coverage along the vasculature. Yellow arrowheads indicate ACTA2 positive terminal aaVSMC at the branching arterioles in Ctrl samples, where they appeared to end sharply while in Pdgfb^iECKO they were stretched out and elongated (white arrowheads). (c) qPCR analysis on the mural cell genes Acta2 and Tagln performed on freshly isolated brain microvascular fragments (for litter and n number see Supplementary Table 1). The genes of interest were normalized to endogenous Gapdh levels and they are presented as relative gene expression to Ctrl samples. c-Old (Tagln), Normality tests revealed that the data was unevenly distributed so nonparametric Mann-Whitney U test was used to evaluate significance. c-Young (Acta2, Tagln) and c-Old (Acta2), The significance of evenly distributed data was evaluated using unpaired 2-tailed t test with Welch’s correction. *p < 0.05, **p < 0.01, ***p < 0.001 and ****p < 0.0001, two-tailed student’s t-test. Data is presented as geometric mean with geometric SD.

In contrast to pericyte coverage, arteriolar VSMC coverage was only moderately affected in Pdgfb^iECKO mice when compared to littermate controls (Figure 3(a) to (c)). Immunofluorescence staining with ACTA2 antibodies showed even vascular coverage by VSMC in brain and retina of control mice, while it was slightly irregular in shape and sparser in the Pdgfb^iECKO mice (Figure 3(a) and (b)). More specifically, there was an occasional patchy loss of expression of ACTA2 in Pdgfb^iECKO mice, leaving gaps in the ACTA2 staining, similar to but less extensive than what has previously be reported for Notch3 knockouts ²⁷ (Figure 3(a) and (b), white arrows). Upon closer examination of both brain and retina, we found that while ACTA2 staining terminates bluntly at points of arteriolar-capillary transition in control mice (Figure 3(a) and (b), yellow arrowheads) the VSMCs stretched out and assumed an elongated pericyte-like morphology at these sites in Pdgfb^iECKO mice (Figure 3(a) and (b), white arrowheads). qPCR of the VSMC markers Acta2 and Tagln showed a significant reduction in brains of old mice (Acta2 (61% remaining) and Tagln (55% remaining)), whereas the difference was not significant in young mice (Figure 3(c)).

Effects of adult loss of pericytes on the mouse brain vasculature

Previous analyses have shown that developmental loss of pericytes, as occurs in constitutive Pdgfb mutants including Pdgfb^ret/ret and other adult-viable Pdgfb loss-of-function mouse models, has a number of different consequences for brain vascular structure and function.^{9,10,13–15,28,29} These include the formation of a sparser network of wider capillaries, the specific reduction in the expression of certain BBB transporters, upregulated endothelial expression of growth factors and pro-inflammatory molecules, activation of angiogenic sprouting, the occurrence of two distinct modes of BBB impairment, i.e. increased transcytosis and hotspot leakage via disturbed endothelial junctions, and the progressive formation of microvascular-associated calcifications in deep brain regions modeling the human genetic disease PFBC. Although all of the mentioned abnormalities have been documented in adult Pdgfb^ret/ret mice, it is not clear whether some or all of them reflect defective vascular development rather than a role for pericytes in adult vascular homeostasis. We therefore studied the vascular consequences of adult-inducible pericyte loss in Pdgfb^iECKO mice. As shown above (Figures 1 to 3), the general capillary rarefaction and dilation, which hallmarks the Pdgfb^ret/ret brain vasculature, were not reproduced in Pdgfb^iECKO mice, and they therefore likely reflect a critical role for pericytes during developmental brain vascular morphogenesis.

We next analyzed the expression of the capillary-venous-specific transporters transferrin receptor C (TFRC) and solute carrier family 16 member 1 (SLC16A1), which are both strongly downregulated in Pdgfb^ret/ret mouse brain vasculature. ¹⁵ Here, ACE2 antibody was used for visualizing the pericytes. ¹⁸ We found that both transporters retained normal levels and distribution of expression in Pdgfb^iECKO capillaries and venules (negative in arterioles, Figure 4(a) and (b), asterisks) devoid of pericytes even in old mice (Figure 4(a) and (b), white arrowheads). This suggests that there is also no change in the endothelial arterio-venous zonation in Pdgfb^iECKO, although more detailed analyses of endothelial gene expression will be required for a definitive conclusion. Also, adherens (CDH5) and tight (CLDN5) junctions showed overall normal expression patterns in vascular stretches devoid of pericytes in Pdgfb^iECKO mice (Figure 4(c)), which is similar to the overall picture of Pdgfb^ret/ret mouse brain vasculature. ¹⁵ However, we found that mRNA levels for three growth factors/regulators, Fgfbp1, Bmp6 and Angpt2, which are all strongly upregulated in Pdgfb^ret/ret brain endothelial cells, ¹⁵ were also upregulated in the Pdgfb^iECKO brain endothelium compared with littermate controls at both young and old age (Figure 4(d)). Immunofluorescence stainings further showed that capillary stretches without pericyte contact had increased ANGPT2 expression both in cortex (Figure 4(e)) (white arrowheads and inset) and hippocampus (Figure 4(f)) (white arrowheads and inset ii) in old Pdgfb^iECKO brains. We were not able to confirm the increased ANGPT2 expression by immunofluorescence in young Pdgfb^iECKO brains. On the other hand, leukocyte adhesion molecule, ICAM1 protein, was upregulated in capillaries of both young and old brains and young retinas (Figure 4(g) and Suppl. Fig. 4).

OPEN IN VIEWER

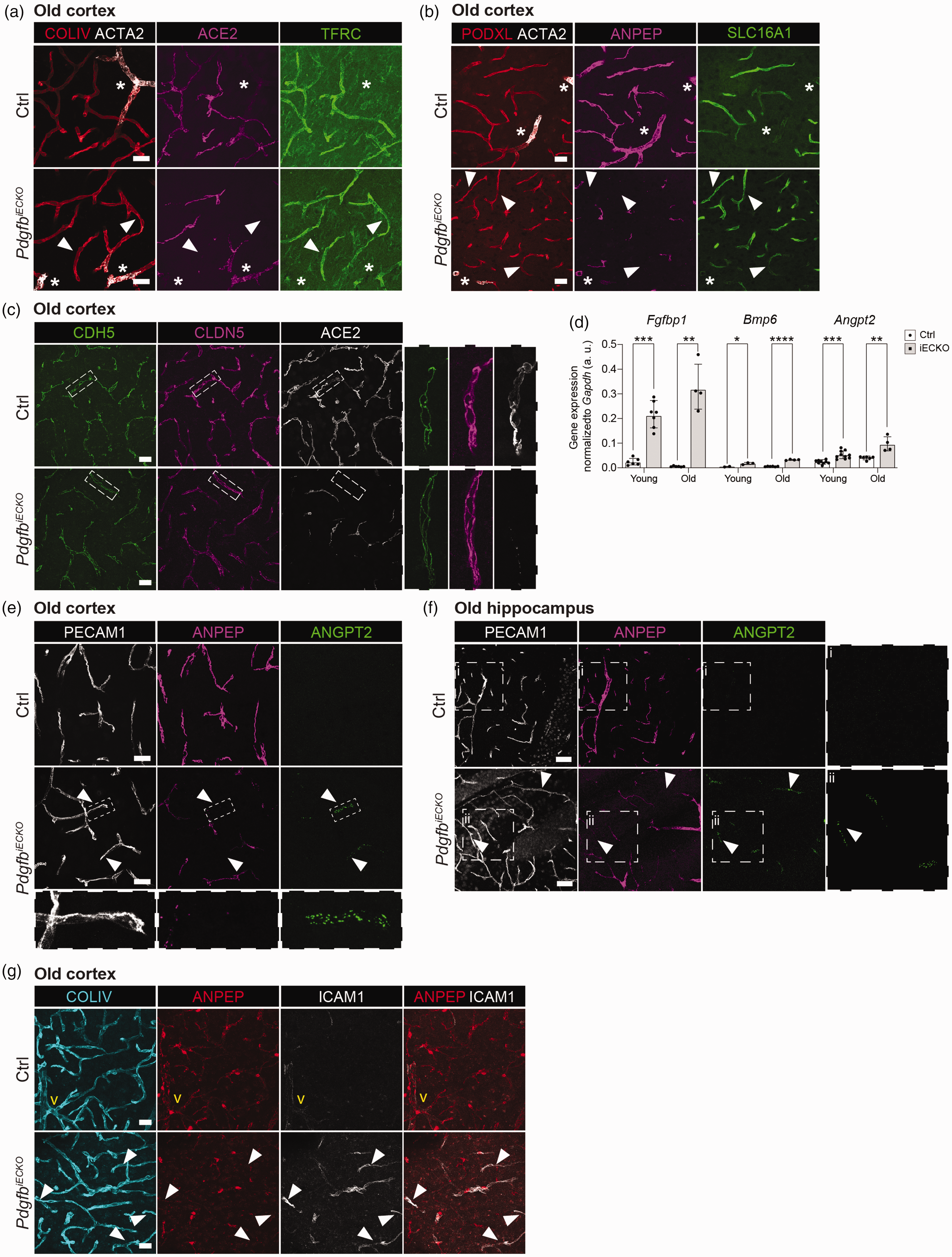

Figure 4.

Characterization of endothelial cell response to pericyte loss in adult-induced Pdgfb^iECKO. (a) Representative images from the cortex of old Pdgfb^iECKO (n = 7) and littermate controls (n = 6). Co-immunolabeling of COLIV (red), ACTA2 (white), ACE2 (magenta) and TFRC (green). Scale bars 25 µm. (b) Representative images from the cortex of old Pdgfb^iECKO (n = 7) and littermate controls (n = 6). Co-immunolabeling of PODXL (red), ACTA2 (white), ANPEP (magenta) and SLC16A1 (green). Arrowheads mark capillaries without pericyte contact. Asterisks mark ACTA2+ arteries/arterioles. Scale bars 25 µm. (c) Representative images from the cortex of old Pdgfb^iECKO (n = 7) and littermate controls (n = 6). Co-immunolabeling of CDH5 (green), CLDN5 (magenta) and ACE2 (white) positive pericytes. Scale bars 25 µm. Dashed insets are magnified for detailed visualization of junctions. (d) qPCR analysis on the endothelial cell genes Fgfbp1, Bmp6 and Angpt2 performed on freshly isolated brain microvascular fragments in young and old mice (for litter and n number see Supplementary Table 1). The genes of interest were normalized to endogenous Gapdh levels (ΔCq) and these are presented as arbitrary units (a. u.). For old (Angpt2), normality tests revealed that the data was unevenly distributed so nonparametric Mann-Whitney U test was used to evaluate significance. For young (Angpt2, Fgfbp1 and Bmp6) and old (Fgfbp1 and Bmp6), the significance of evenly distributed data was evaluated using unpaired 2-tailed t test with Welch’s correction. *p < 0.05, **p < 0.01, ***p < 0.001 and ****p < 0.0001. Data is presented as geometric mean with geometric SD. (e, f) Representative images from the cortex (E) and hippocampus (F) of old Pdgfb^iECKO and littermate controls. Co-immunolabeling of PECAM1 (white) and ANGPT2 (green) and ANPEP (magenta). Arrowheads mark capillaries with ANGPT2 expression and without pericyte contact. In (e) dashed inset shows a magnified ANGPT2+ vessel lacking ANPEP expression in the Pdgfb^iECKO. n = 9, scale bar 10 µm. In (f), zoomed image of ANGPT2 marker expression in a Ctrl (i) and Pdgfb^iECKO mouse hippocampus (ii). Pdgfb^iECKO (n = 2) and littermate controls (n = 3). Scale bars 50 µm. (g) Representative images from the cortex of old Pdgfb^iECKO (n = 10) and littermate controls (n = 9). Co-immunolabeling of COLIV (cyan) and ANPEP (red) and ICAM1 (white). Arrowheads mark capillaries with ICAM1 expression and without pericyte contact. In yellow, the vein is marked as “v”. Scale bars 25 µm.

Pdgfb loss-of-function models with developmental pericyte hypoplasia show increased BBB permeability for different molecular weight tracers, which correlates with the degree of pericyte-deficiency in the particular model.^10,15 In order to assess whether adult-induced pericyte loss causes vascular permeability in Pdgfb^iECKO mice, we measured intravenously injected Alexa Fluor 555 Cadaverine (1 kDa) accumulation in the brain after 2 h circulation, a protocol that readily detects BBB leakage in Pdgfb^ret/ret mice (with 25% longitudinal pericyte coverage).^10,15 Using this protocol, we detected a significant increase in BBB permeability in old Pdgfb^iECKO mice compared to their littermate controls (Figure 5(a)). Although we noticed a similar trend also in young Pdgfb^iECKO mice, this difference was not statistically significant (Figure 5(a)). We could not detect Alexa Fluor 555 Cadaverine leakage in any of the 4-month-old retinal plexuses (Figure 5(b)). To assess if hotspot BBB leakage sites occurred in old Pdgfb^iECKO mice similar to the situation in Pdgfb^ret/ret mice, we systemically injected 70 kDa tetramethylrhodamine-dextran (TMR-dextran) and analyzed the mice after 16 h of tracer circulation. Macroscopical fluorescence analysis did not reveal any increased permeability (Figure 5(c)), unlike the situation in Pdgfb^ret/ret mice. ¹⁵ However, by assessing the presence of extravascular TMR-dextran hotspots in the brain sections together with endothelial and pericyte markers (PECAM1 and ANPEP, respectively), we detected hotspots in the different regions of old Pdgfb^iECKO mouse brains (Figure 5(d)) albeit at lower abundance compared to Pdgfb^ret/ret mice. ¹⁵ Vascular stretches associated with TMR-dextran leakage were invariably dilated and devoid of pericytes (Figure 5(d)) and surrounded by activated microglia (Figure 5(e)). We found approximately 4 hotspots per section in the Pdgfb^iECKO mice while <1 was detected in the controls (Figure 5(f)). For comparison, Pdgfb^ret/ret brains displayed approximately 50 hotspots per section. ¹⁵ As in Pdgfb^ret/ret brains, the TMR-dextran hotspots in Pdgfb^iECKO mouse brains showed abnormal distribution of the junctional proteins CDH5 and CLDN5 (Figure 5(g)), decreased SLC16A1 and TFRC expression (Figure 5(h)), increased ICAM1 expression (Figure 5(l)) and undetectable ANGPT2 (Figure 5(j)). Taken together, we observed similar, albeit less extensive, BBB abnormalities in old Pdgfb^iECKO mouse brains as in Pdgfb^ret/ret mice.

OPEN IN VIEWER

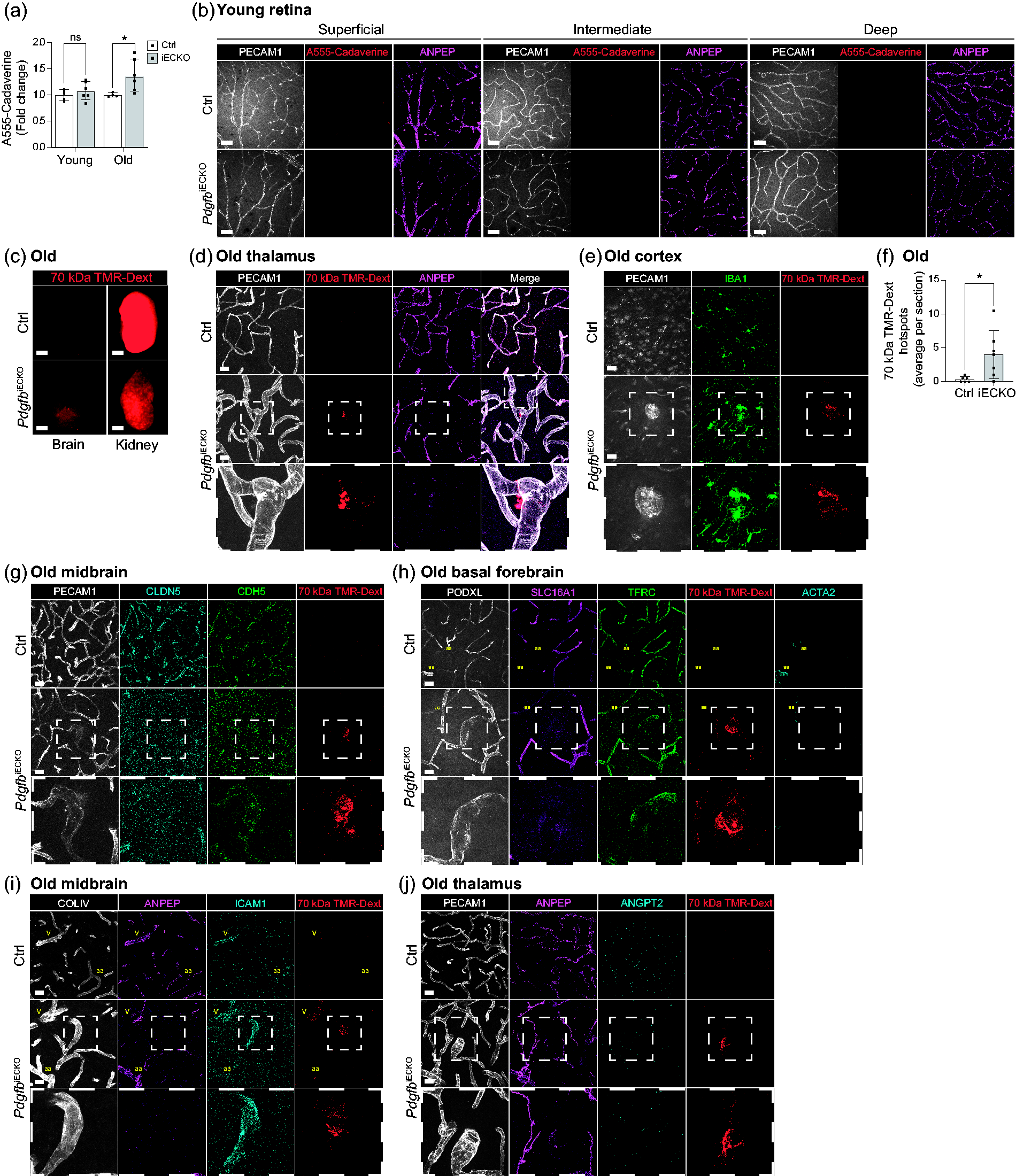

Figure 5.

Analysis of blood-brain and blood-retina barrier permeability in adult-induced Pdgfb^iECKO compared to littermate controls. (a) Quantification of 1 kDa Alexa Fluor 555 cadaverine permeability in young (2 independent experiments, Pdgfb^iECKO n = 6, Ctrl n = 5) and old (2 independent experiments Pdgfb^iECKO n = 6, Ctrl n = 3) mice after 2 h circulation. Y-axis shows the fold change in permeability in relation to controls. The significance was evaluated using unpaired 2-tailed t test with Welch’s correction. *p < 0.05, ns= not significant. Data is presented as geometric mean with geometric SD. (b) Representative images of 1 kDa Alexa Fluor 555 cadaverine tracer permeability in young (Pdgfb^iECKO n = 4, Ctrl n = 3) retinal plexuses after 2 h circulation. Co-immunolabeling of PECAM1 (white), ANPEP (magenta), tracer (red) did not show any vascular leakage. Scale bars 50 µm. (c) Representative images of whole brains and kidneys after overnight circulation of 70 kDa TMR-dextran in old mice (two litters, Pdgfb^iECKO n = 7, Ctrl n = 6). Scale bars 2 mm. (d) Representative images of the leakage in old mice. Co-immunolabeling of PECAM1 (white), ANPEP (magenta), 70 kDa TMR-dextran (red) in thalamus. Dashed inset shows a 70 kDa TMR-dextran hotspot on an enlarged capillary lacking pericyte contact (two litters, Pdgfb^iECKO n = 7, Ctrl n = 6). Scale bars 25 µm. (e) Representative images of the cerebral cortex of old mice. Co-immunolabeling of PECAM1 (white), IBA1 (green) and 70 kDa TMR-dextran (red). Dashed inset shows a 70 kDa TMR-dextran hotspot on an enlarged capillary surrounded by activated microglia (IBA1+ cells) (two litters, Pdgfb^iECKO n = 7, Ctrl n = 6). Scale bars 25 µm. (f) Quantification of extravascular 70 kDa TMR-Dextran hotspots in old mice (two litters, Pdgfb^iECKO n = 7, Ctrl n = 6). Y-axis shows the average number of hotspots detected per brain sections from each mouse. The significance was evaluated using unpaired 2-tailed t test with Welch’s correction. *p < 0.05. Data is presented as mean ± SD. (g) Representative images of the midbrain of aged mice. Co-immunolabeling of PECAM1 (white), CLDN5 (cyan), CDH5 (green) and 70 kDa TMR-dextran (red). Dashed inset shows a 70 kDa TMR-dextran hotspot on an enlarged capillary with disturbed junctional expression (two litters, Pdgfb^iECKO n = 7, Ctrl n = 6). Scale bars 25 µm. (h) Representative images of the basal forebrain of old mice. Co-immunolabeling of PODXL (white), SLC16A1 (magenta), TFRC (green), ACTA2 (cyan), and 70 kDa TMR-dextran (red). The arterioles are marked as “aa” in yellow. Dashed inset shows a 70 kDa TMR-dextran hotspot on an enlarged capillary with decreased expression of the endothelial proteins SLC16A1 and TFRC (two litters, Pdgfb^iECKO n = 7, Ctrl n = 6). Scale bars 25 µm. (i) Representative images of the midbrain of old mice. Co-immunolabeling of COLIV (White), ANPEP (magenta), ICAM1 (cyan) and 70 kDa TMR-dextran (red). In yellow, the arterioles are marked as “aa” and the veins as “v”. Dashed inset shows a 70 kDa TMR-dextran hotspot on an enlarged capillary lacking pericyte contact with unusual expression of ICAM1 (two litters, Pdgfb^iECKO n = 7, Ctrl n = 6). Scale bars 25 µm. (j) Representative images of the thalamus of old mice. Co-immunolabeling of COLIV (White), ANPEP (magenta), ANGPT2 (cyan) and 70 kDa TMR-dextran (red). Dashed inset shows a 70 kDa TMR-dextran hotspot on an enlarged capillary lacking pericyte contact with no expression of ANGPT2 (two litters, Pdgfb^iECKO n = 7, Ctrl n = 6). Scale bars 25 µm.

Finally, since mice hypomorphic for Pdgfb and humans haploinsufficient for PDGFB develop vessel-associated calcifications in the brain, ⁹ we asked if adult-onset deletion of Pdgfb triggers capillary calcification. We performed immunohistochemical analysis of vessel-associated calcifications by staining for three different proteins that selectively accumulate in calcifications, amyloid precursor protein (APP), amyloid precursor like protein-2 (APLP2) and osteopontin (SPP1)^{13,, 28} in old control and Pdgfb^iECKO mice. Four to six 75 µm-thick sagittal sections were analyzed per mouse, with sections chosen to include both outer cortex and deep brain regions in the analysis, the latter known to harbor abundant calcifications in Pdgfb^ret/ret mice. In altogether 16 Pdgfb^iECKO and 12 control mice, we detected only a single calcification in one of the 12-months-old Pdgfb^iECKO mice (Suppl. Fig. 5A). Analysis of two additional 12-months-old control and Pdgfb^iECKO mice using various histochemical stains, including Alizarin Red, did not reveal any signs of vessel-associated calcification (data not shown). Presence of osteopontin (SPP1) has been noticed in small non-calcified vessel-associated nodules in Pdgfb^ret/ret brain thalamus and midbrain regions. ²⁸ While we could identify rare small SPP1 positive nodules associated with the vasculature in the thalamus and midbrain regions, these were found both in control and Pdgfb^iECKO brains (Suppl. Fig. 5B). We also could not detect any calcifications at hotspot leakage sites (Suppl. Fig. 5 C). Based on these observations, we conclude that loss of Pdgfb must take place during development in order for vascular calcifications to develop, at least at a size and abundance detectable by our current protocols.
