Capillary transit time heterogeneity inhibits cerebral oxygen metabolism in patients with reduced cerebrovascular reserve capacity from steno-occlusive disease

Abstract

The healthy cerebral perfusion demonstrates a homogenous distribution of capillary transit times. A disruption of this homogeneity may inhibit the extraction of oxygen. A high degree of capillary transit time heterogeneity (CTH) describes that some capillaries have very low blood flows, while others have excessively high blood flows and consequently short transit times. Very short transit times could hinder the oxygen extraction due to insufficient time for diffusion of oxygen into the tissue. CTH could be a consequence of cerebral vessel disease. We examined whether patients with cerebral steno-occlusive vessel disease demonstrate high CTH and if elevation of cerebral blood flow (CBF) by administration of acetazolamide (ACZ) increases the cerebral metabolic rate of oxygen (CMRO₂), or if some patients demonstrate reduced CMRO₂ related to detrimental CTH. Thirty-four patients and thirty-one healthy controls participated. Global CBF and CMRO₂ were acquired using phase-contrast MRI. Regional brain maps of CTH were acquired using dynamic contrast-enhanced MRI. Patients with impaired cerebrovascular reserve capacity demonstrated elevated CTH and a significant reduction of CMRO₂ after administration of ACZ, which could be related to high CTH. Impaired oxygen extraction from CTH could be a contributing part of the declining brain health observed in patients with cerebral vessel disease.

Keywords

Cerebral blood flow cerebral hemodynamics cerebrovascular disease oxygen extraction fraction (OEF)small vessel disease

Introduction

Pre-cerebral and cerebral artery stenosis and occlusion can cause severe neurological symptoms and increase the risk for stroke and neurodegenerative disease.^1–6 Severe stenosis or occlusion reduce cerebral blood flow (CBF), cerebral perfusion pressure and cerebral hemodynamic in the regions of the brain supplied by the affected arteries. In early disease stages the impaired perfusion is counteracted by increasing the arteriovenous oxygen extraction (A-V.O₂) in order to maintain adequate cerebral metabolic rate of oxygen (CMRO₂), but over time the oxygen metabolism is also reduced in the affected brain regions.⁷ Reduced CBF and increased A-V.O₂ correlate with increased risk of stroke.^2,3,8 In addition to reduced resting CBF, the cerebrovascular reserve capacity (CVR) induced by vasodilation stimulation may also be impaired, which similarly is associated with significant higher risks of stroke and neurodegenerative disease.^4–6,9–11

Normalizing CBF and CVR by carotid endarterectomy or carotid angioplasty has demonstrated mixed results where some patients improve the oxygen metabolism but other patients have no effect, indicating that normalizing CBF may not necessarily translate to higher oxygen metabolism.^12–14 A possible reason for a missing improvement could be due to disruption of the microperfusion from cerebral vessel disease resulting in an uneven distribution of blood flow and transit times in the capillaries, a phenomenon called capillary transit time heterogeneity (CTH).^15–18 A high CTH describes that in some capillaries the blood flow is inadequately low and with long transit times, whereas other capillaries have very high blood flows and consequently short transit times. Short transit times will reduce the oxygen extraction fraction as there is less time for the oxygen to diffuse into the surrounding tissue, as described by the Crone-Renkin single capillary flow-diffusion model.¹⁹ Thus, in situations with high CTH, both the low perfusion in some capillaries and very high perfusion in other capillaries could have a negative effect on the oxygen delivery to the tissue. High CTH impairing the cerebral oxygen metabolism has been suggested as a disease mechanism and could potentially play a causal role in the development of neurodegenerative disease.^20–23 A high CTH could lower the oxygen availability to the brain tissue, which then could reach a level below the metabolic requirements.²³ An insufficient energy supply leads to neuronal damage, cell death, apoptosis and brain atrophy.^24–26

A consequence of the CTH model is also that during severely elevated CTH, an increase in CBF could, paradoxically, reduce the delivery of oxygen to the tissue as the oxygen extraction in many capillaries would become critically low.²⁰ Studies have demonstrated higher CTH in patients with carotid steno-occlusive disease and neurodegenerative disease,^22,27,28 however a direct validation relating CTH to impaired oxygen metabolism has not been provided.

In the present study we tested the CTH model by examining the oxygen metabolism and CTH in patients with precerebral large vessel disease and impaired cerebral hemodynamic. We acquired regional brain maps of CTH (rCTH) and CBF (rCBF) using dynamic contrast-enhanced (DCE) MRI technique, and additionally measured the effect on global CMRO₂ (gCMRO₂) from elevation of CBF by administration of acetazolamide (ACZ). A high CTH, as previously observed in patients with carotid steno-occlusive disease,^27,28 is likely due to these patients also having varying degree of cerebral small vessel disease.²⁹ We therefore additionally assessed the patients’ white matter hyperintensities (WMH) burden and Fazekas score as indicators of cerebral small vessel disease from structural MRI images.³⁰ Using this setup we could examine: (1) if patients with intact CVR demonstrate an increase in gCMRO₂ following ACZ administration, (2) if patients with impaired CVR demonstrate unaffected, or even decreasing, gCMRO₂ from ACZ administration, (3) whether a failure to increase gCMRO₂ when elevating CBF can be related to abnormally high rCTH or rCBF steal phenomena, (4) if rCTH correlates with the WMH burden or Fazekas score and if rCTH is higher in WMH compared to normal-appearing white matter (NAWM).

A correlation between CTH and inhibited oxygen metabolism could be a reason why normalizing CBF does not necessarily improve the cerebral oxygen metabolism in patients with steno-occlusive disease. A high CTH could be a pathophysiologically contributing factor leading to declining brain health and atrophy as often observed in this patient group.

Methods

Thirty-four patients with ischemic stroke or transient ischemic attack (TIA) and relevant stenosis or occlusion of the pre-cerebral arteries (common carotid artery (CCA), internal carotid artery (ICA), middle cerebral artery (MCA) or vertebral artery (VA)) were included (17 females, mean age: 68.6 years, age range: 37.2–89.4 years). The patients were recruited from the stroke unit at the Department of Neurology, Rigshospitalet, after a standard protocolled stroke work-up, including neurological examination, acute CT or MRI scan, 48 hours telemetry or Holter, and assessment of the pre-cerebral and cerebral artery stenosis grade by carotid ultrasound imaging and CT angiography. The grading of stenosis or occlusion were based on Doppler velocity criteria.³¹ The degree of atherosclerosis was graded by a visual plaque score from 0 to 3, with 2 and 3 being moderate and severe atherosclerosis, respectively.³²

The CVR status of the patients were evaluated using Single-Photon Emission Computed Tomography (SPECT) imaging or arterial spin labelling (ASL) MRI technique. All patients gave informed consent prior to participation. Patients without the cognitive abilities to give consent and patients with other known brain diseases or short (months) life expectancies were not included in the study. Descriptions of each patient is provided in Table 1. Thirty-one young healthy controls were additionally examined (13 females, mean age: 23.5 years, age range: 18.1–30.4 years). The study was approved by the Capital Region of Denmark’s Committee on Health Research Ethics (H-15003926) and conducted in accordance with the Declaration of Helsinki. The experiment setup is summarised in Figure 1.

Table 1.

Summary of patients included in the study.

Pt. #	Gender	Age	Grading of pre-cerebral artery stenosis or occlusion		Cerebrovascular reserve capacity impairments	WMH burden [%]	Fazekas score
Pt. #	Gender	Age	Occlusion	Stenosis	Cerebrovascular reserve capacity impairments	WMH burden [%]	Periventricular WM	Deep WM
1	M	78	Right ICA		Intact	6.62	3	2
2	F	68	Right ICA, left VA		Right hemisphere	1.36	3	3
3	F	55	Right MCA		Bilateral parietal lope	3.05	3	3
4	M	70	Left ICA	Right ICA, right VA	Intact	0.84	1	1
5	M	69	Right CCA		Right hemisphere	0.80	1	1
6	F	71		Bilateral ICA	Right frontal and temporal lope	1.40	1	1
7^a	F	64	Left MCA		Left parietal lope and frontal lope	17.3	1	2
8	F	73	Left CCA	Right CCA	Left parietal lope Steal phenomenon	3.63	1	2
9	F	65	Left ICA		Intact	3.60	3	2
10	M	65		Bilateral ICA	Intact	0.25	1	1
11	M	72	Left ICA		Left hemisphere. Steal phenomenon.	5.03	2	2
12	F	37	Normal blood flow, moderate atherosclerosis		Intact	0.70	1	1
13	M	67		Bilateral ICA	Intact	7.46	3	2
14	F	62		Right ICA	Right hemisphere	2.46	1	1
15	M	77	Left ICA	Right ICA	Left hemisphere	6.77	2	1
16	F	74	Right ICA	Left ICA	Intact	0.66	1	1
17^a	F	76		Bilateral ICA	Intact	6.18	2	2
18	F	66	Normal blood flow, moderate atherosclerosis		Intact	0.59	1	1
19^b	M	70		Right ICA	Intact	3.98	2	2
20	F	89		Bilateral ICA	Intact	6.67	2	1
21	F	68		Bilateral ICA	Intact	2.11	1	1
22^a	M	78	Normal blood flow, severe atherosclerosis		Intact	3.92	2	2
23	F	60	Normal blood flow, moderate atherosclerosis		Intact	0.03	0	0
24	M	56	Normal blood flow, moderate atherosclerosis		Intact	3.70	2	1
25	M	57	Right ICA	Left ICA	Left frontal and parietal lope	7.83	1	1
26	F	87	Normal blood flow, moderate atherosclerosis		Intact	5.13	2	2
27	M	62	Left ICA	Right ICA	Left hemisphere	4.15	1	1
28	F	64	Normal blood flow, moderate atherosclerosis		Intact	0.70	1	1
29	M	79		Bilateral ICA	Intact	3.46	2	1
30	M	52	Right CCA		Right parietal lope and frontal lope	8.51	1	1
31^b	M	75		Bilateral ICA	Right hemisphere Steal phenomenon	13.9	1	1
32^b	M	79		Right ICA	Intact	17.98	3	3
33	M	75	Right ICA	Left ICA	Right hemisphere Steal phenomenon	5.93	1	1
34	F	71	Right ICA	Left ICA, bilateral VA	Right hemisphere Steal phenomenon	3.01	1	1

In total 34 patients participated in the study. Patients had stroke or transient ischemic attack and were included due to symptoms related to pre-cerebral artery steno-occlusive disease. Possible pre-cerebral artery occlusion or stenosis were examined by carotid ultrasound imaging as part of the clinical evaluation before participating in the study. Cerebrovascular reserve capacity (CVR) was evaluated by SPECT imaging or arterial spin labelling MRI technique. In total, 15 patients had reduced CVR and 19 had intact CVR. CCA: common carotid artery; ICA: internal carotid artery; MCA: middle cerebral artery; VA: vertebral artery; WM: white matter; WMH: white matter hyperintensities.

^aFor these three patients, measurements of gCMRO₂ were omitted due to technical difficulties or insufficient data quality.

^bFor these three patients, dynamic contrast enhanced (DCE) MRI were not acquired as administration of the MRI contrast agent was not possible.

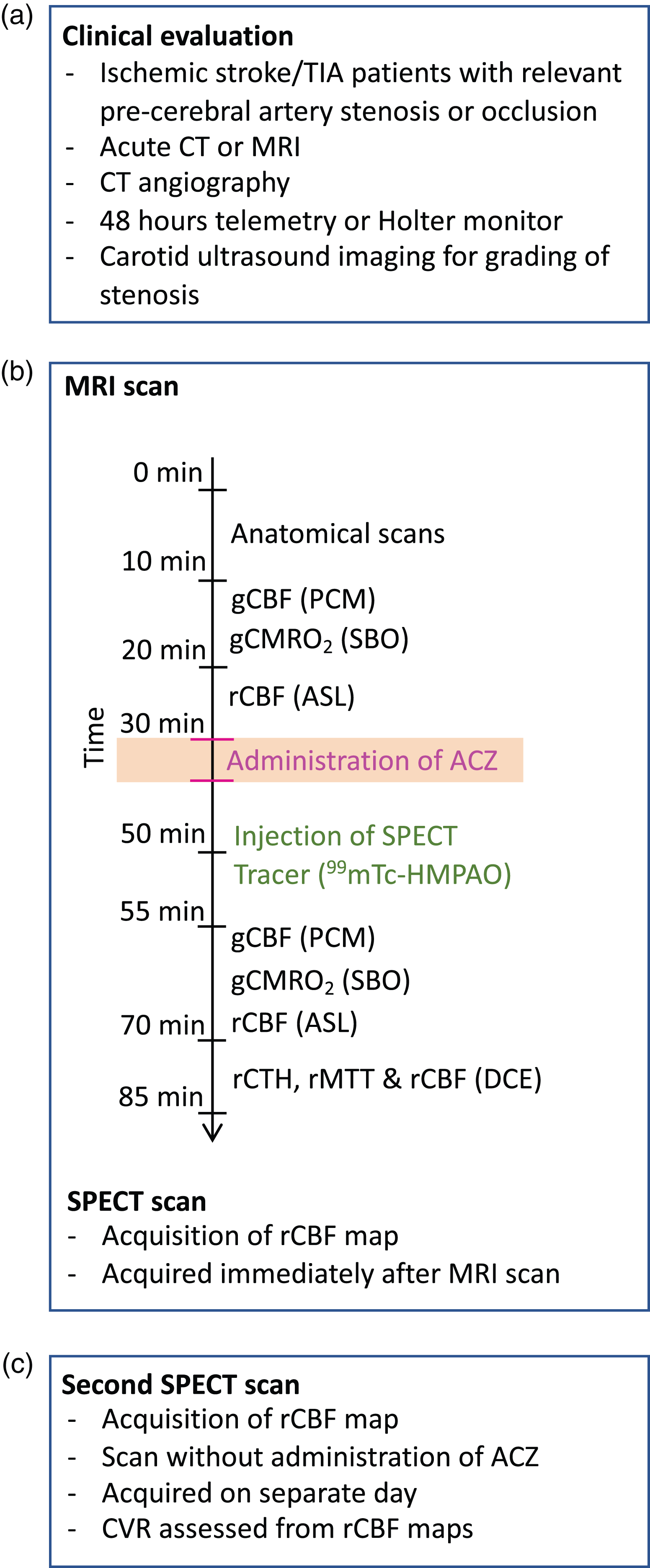

Figure 1.

Experiment setup. (a) Patient were recruited based on a clinical evolution when visiting the hospital due to neurological symptoms. Grade of pre-cerebral carotid artery stenosis/occlusion were assessed by ultrasound imaging and/or CT angiography. (b) The participants were MRI scanned from which global cerebral blood flow (gCBF) and metabolic rate of oxygen (gCMRO₂) metrics at rest and after administration of ACZ were acquired using phase contrast mapping (PCM) and susceptibility-based oximetry (SBO) MRI sequences. In a subset of the patients (n = 7), the cerebrovascular reserve capacity (CVR) status was evaluated by measuring rCBF maps using an arterial spin labelling (ASL) MRI sequence acquired before and after administration of ACZ. Brain maps of capillary transit time heterogeneity (rCTH), cerebral blood flow (rCBF), mean transit times (rMTT) and cerebral blood volume (rCBV) were obtained in the end of the MRI-session using dynamic contrast-enhanced (DCE) MRI technique. The patients were single-photon emission computed tomography (SPECT) scanned immediately after the MRI-scan for assessment of cerebrovascular reserve capacity (CVR) and (c) The patients underwent a second SPECT scan without prior administration of ACZ on a separate day to measure resting perfusion maps as part of the calculated of CVR.

MRI protocol

To assess CTH and the effect of ACZ administration on gCMRO₂ the participants underwent an MRI-scan. The MRI scans were performed on a Philips 3T Achieva MRI scanner (Philips Medical Systems, Best, The Netherlands) using a 32-channel phased array head coil. From the MRI-scan, measurements of gCBF, gA-V.O₂, and gCMRO₂ were obtained using phase contrast-mapping (PCM) and susceptibility-based oximetry (SBO) MRI techniques.^33–35 Baseline measurements were initially acquired, whereafter the participants received an ACZ injection while lying in the MRI-scanner and measurements of gCBF, gA-V.O₂ and gCMRO₂ were hereafter repeated. The MRI measurements after ACZ administration were initiated approximately 20 minutes after end of injection. At the end of the MRI scan, approximately 35 minutes after ACZ administration, DCE MRI was used to acquire regional maps of rCBF, rCTH, mean transit times (rMTT) and cerebral blood volume (rCBV). Structural images were acquired in addition to the physiology measurements.

In a subset of the patients (n = 7) the CVR status was evaluated using MRI ASL technique. From the ASL sequence rCBF maps were acquired before and after administration of ACZ in the MRI-session.

The scanner was updated approximately halfway through the project to a dSTREAM architecture, which slightly altered some of the sequence parameters in the MRI protocol. The changes are noted in the description of each MRI sequence.

The timing of the MRI-scan is shown in Figure 1.

Global cerebral blood flow

Using PCM MRI the blood velocity and cross-sectional areas of the feeding cerebral arteries (carotids and basilar arteries) were obtained from which gCBF could be calculated. Blood velocity weighted phase-contrast maps were acquired using a turbo field echo sequence (10 repeated measures, 1 imaging plane, field of view (FOV) = 240 × 240 mm², slice thickness = 8 mm, voxel size = 0.75 × 0.75 × 8 mm³, echo time (TE) = 7.5 ms, repetition time (TR) = 12.4 ms, flip angle = 10°, non-gated, velocity encoding (VENC) = 100 cm/s).^33,34 Two measurements were acquired. The first measurement with an imaging plane placed orthogonal to the carotid arteries and the second measurement with an imaging slice placed orthogonal to the basilar artery. This ensured that the imaging planes could be placed correctly orthogonal on the respective arteries to minimize partial volume contamination in the measurements.^36,37 The blood flows in the cerebral feeding arteries were calculated by multiplying the mean blood velocity by the cross-sectional area from regions of interest (ROIs) defining each vessel. The global mean CBF was calculated by normalizing the total cerebral blood flow to the brain weight. Brain weight was calculated from the structural MRI images and assuming a brain density of 1.05 g/ml.³⁸

Cerebral metabolic rate of oxygen

Using the SBO MRI technique the venous oxygen saturation (S_vO₂) of the blood leaving the brain was measured.³⁵ The technique utilizes that the magnetic susceptibility of the blood can be related to the deoxyhemoglobin concentration. With additional measurements of arterial oxygen saturation (S_aO₂) from pulse oximetry, gA-V.O₂ could be calculated by subtracting S_vO₂ from S_aO₂ (equation (1)).

{gA-V.O}_{2} = S_{a} O_{2} - S_{v} O_{2}

(1)

Using the Fick’s principle, gCMRO₂ could then be calculated by equation (2).

gCMR O_{2} = [Hgb] \cdot gCBF \cdot {gA-V.O}_{2}

(2)

The hemoglobin concentration (Hgb) was assumed 9.1 mmol/l for all subjects. The imaging plane for the SBO sequence was placed orthogonal to the sagittal sinus to measure on the blood immediately leaving the brain. Magnetic susceptibility-weighted maps were generated by a dual–echo gradient echo sequence (20 repeated measures, 1 imaging plane, FOV = 224 ×176 mm², voxel size = 0.5 × 0.5 × 8 mm³, TR = 27.5 ms, TE1 = 7.0 ms, TE2 = 20.3 ms, flip angle = 30°, before the scanner update and adjusted to FOV = 220 ×180 mm², voxel size = 0.69 × 0.69 × 8 mm³, TR =23.1 ms, TE1 = 8.0 ms, TE2 = 17.7 ms, Flip angle = 30°, SENSE factor = 2 after the scanner update). By subtracting phase value maps from the two echoes, susceptibility-weighted maps were calculated. Aliased phase values in the sagittal sinus and the immediately surrounding tissue were manually corrected. By use of intravascular susceptibility values from the sagittal sinus and susceptibility values from the immediately surrounding brain tissue the oxygen saturation can be calculated.³⁵ An in-depth discussion of the sequence and postprocessing has been provided previously.³⁹ The technique has been validated against oxygen saturation measurements from blood samples acquired by catheter from the jugular vein during MRI-scanning.⁴⁰ The technique was validated at rest and during hyperperfused conditions.⁴⁰

Regional cerebral blood flow and capillary transit time heterogeneity

Brain maps of rCTH were obtained using the DCE MRI technique.^28,41 The method utilizes that the presence of MRI contrast agent (CA) in the blood changes the T₁ relaxation of the acquired MRI-signal. By acquiring dynamic measurement of T₁-weigthed images during the CA bolus passage through the brain, CBF and transit times can be calculated using kinetic modelling. A 2D saturation recovery gradient recalled sequence was used both for an initial T₁ measurement and for the subsequent dynamic imaging (300–500 repeated measures, 5 slices, time resolution = 1.25 s, FOV = 230 × 182 × 40 mm³, acquired voxel size = 2.4 × 3.0 × 8 mm³, reconstructed voxel size = 0.9 × 0.9 × 8 mm³, TR = 3.95 ms, TE = 1.92 ms, flip angle = 30°, centric phase ordering, SENSE factor = 2 before the scanner update and adjusted to 350 repeated measures, time resolution = 1.25 s, TE = 1.97 ms after the scanner update). The T₁ weighted images were acquired after application of a non-selective saturation pre-pulse with a saturation time delay (TD). The initial T₁ measurement was performed by varying the TD value (120 ms, 300 ms, 600 ms, 1 s, 2 s, 4 s, 10 s). The dynamic measurements of the CA bolus passage were acquired using a fixed TD of 120 ms. The most caudal slice was, independently of the other slices, placed orthogonally to the internal carotid artery (ICA) based on an MRI angiogram in order to obtain an arterial input function (AIF) of the CA concentration immediately before entering the brain. The remaining four slices were placed with the corpus collosum approximately being the center of the acquisition. The gadolinium based Gadovist (Bayer HealthCare Pharmaceuticals, Berlin, Germany) was used as CA in a solution of 1.0 mmol/ml. Two boluses of CA were administrated with initiations at measurement number 15 and 70 of the dynamic imaging.²⁸ For each bolus the dose CA was 0.045 mmol/kg injected with 3 ml/s followed by 20 ml saline using an automatic CA injector (Medrad Spectris Solaris MR injector system, Pennsylvania, USA). The MR signal during the bolus passage was converted to CA concentration as a single point resolved T₁ determination using the initial T₁ measurement and assuming a fast water exchange regime.²⁴ All tracer kinetic modeling was done in the concentration domain. The CA concentration (C_t) in the acquired MRI-images was modelled in each voxel as the convolution between the AIF and the residue impulse function (RIF) of the tissue scaled by blood flow (F) as demonstrated in equation (3).

C_{t} (t) = AIF (t) ⨂ F RIF (t)

= F \int_{0}^{t} AIF (τ) R I F (t - τ) d τ

(3)

The pixels in the center of the ICA were used to measure the AIF. The AIF was further scaled with a venous outflow curve obtained from the sagittal sinus in order to reduce the partial volume effect. The AIF was time shifted to local tissue curves to ensure synchronicity. This was achieved pixelwise by taking an initial short segment of the AIF and tissue curve and applying a simple deconvolution using a monoexponential residue impulse as kernel, from which the time offset could be acquired.

The distribution of transit times (h), also called the frequency function, was defined as the fraction of CA leaving the tissue as a function of time, which can be related to RIF as demonstrated in equation (4).

RIF (t) = 1 - \int_{0}^{t} h (τ) d τ

(4)

A gamma function distribution was used to describe h, corresponding to the classical distribution of frequency function of transit times.⁴² CTH was then calculated as the standard deviation of h (equation (5)).

CTH = std (h (t))

(5)

MTT was calculated as the integral of RIF(t) (equation (6)).

MTT = \int_{0}^{\infty} RIF (t) d t

(6)

Blood flow and blood volume was modelled separately by use of Tikhonov’s generalized singular value decomposition as previously described.⁴¹ Thus, the kinetic modelling resulted in the calculation of parameters maps describing rCBF, rCBV, rMTT and rCTH.

The ratio between rCTH and rMTT (rCTH/rMTT), often called the relative transit-time heterogeneity, was additionally calculated. In a normal healthy cerebral microvascular network, CTH will be affected in parallel with changes of MTT.⁴³ For example a reduction in MTT from increased CBF would also reduce CTH. However, in tissue with capillary flow disturbances CTH will likely not change with a same degree as MTT, which will result in a high rCTH to rMTT ratio. The rCTH to rMTT ratio could therefore be a better descriptor of microvascular distribution disturbances than CTH alone, as the ratio considers a possible effect from differences in MTT.⁴³

In-depth description of the method and calculation of CTH has been published previously.²⁸

The calculated parameter maps were co-registered to the individual anatomical images using image header information. The anatomical maps were co-registered to standard MNI space by first applying a linear affine transformation and hereafter non-linearly warping using the FSL software package.⁴⁴ The linear and non-linear transformations of the anatomical images to MNI space were then applied to the parameter maps. Mean values from ROIs defining the vascular territories for the middle carotid arteries (MCA), anterior carotid arteries (ACA) and posterior carotid arteries (PCA) were extracted from the parameter maps.^45,46 In patient with impaired CVR, values were extracted from the affected areas corresponding to the vascular territories. Values from the contralateral regions were extracted as measurement of CVR in intact regions. If the whole hemisphere were affected the average values from all ROIs in the hemisphere were used in the further analysis. For patients with intact CVR, and in the control subjects, the average values of all the vascular territory ROIs were acquired and used in the further analysis.

Examples of rCTH, rCBF, rMTT and rCBV maps calculated from the DCE analyses with indication of the vascular territory ROIs are shown in Figure 2.

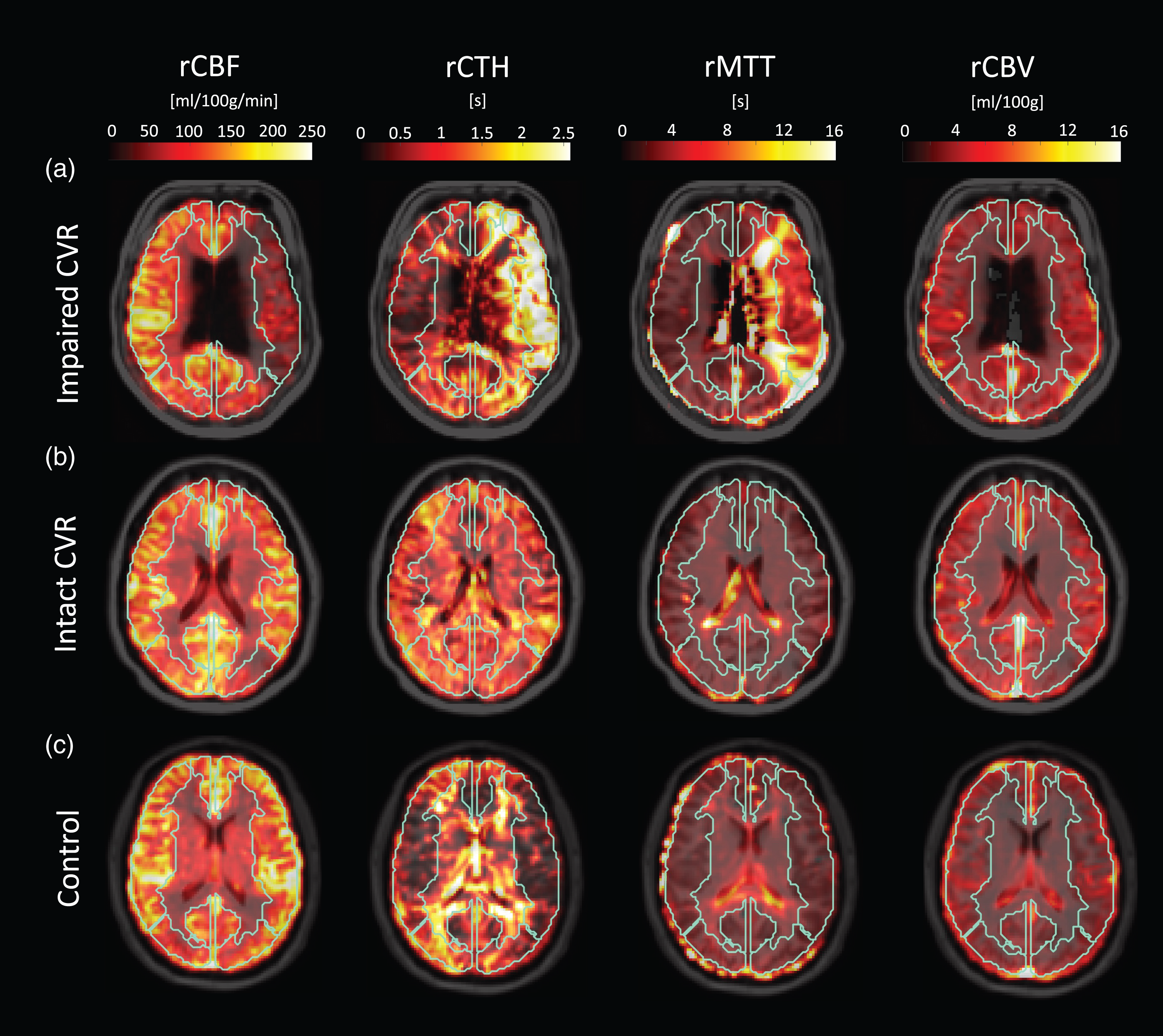

Figure 2.

Example of parameter maps acquired by dynamic contrast-enhanced (DCE) MRI. Examples of brain maps demonstrating cerebral blood flow (rCBF), capillary transit time heterogeneity (rCTH), mean transit time (rMTT) and cerebral blood volume (rCBV) in a patient with impaired cerebrovascular reserve capacity (CVR) (A), a patient with intact CVR (B) and a healthy control subject (C) are shown. The data were measured approximately 35 minutes after administration of acetazolamide (ACZ). The regions of interests approximately defining the vascular territories of middle carotid artery (MCA), anterior carotid artery (ACA) and posterior carotid artery (PCA) are demonstrated by the blue lines. In the patient with impaired CVR a reduced rCBF, elevated rCTH and high rMTT in the affected brain hemisphere are clearly visible.

Anatomical imaging and white matter hyperintensities

High-resolution anatomical images were measured with a 3D T1-weigthed turbo field echo sequence (150 slices, FOV = 241 × 180 × 165 mm³, voxel size = 1.09 ×0.81 × 1.1 mm³, TR = 6.9 ms, TE = 2.78 ms, flip angle = 9° before scanner update and adjusted to 257 slices, FOV = 256 × 256 × 180 mm³, voxel size =0.67 × 0.67 × 0.7 mm³, TR = 11.3 ms, TE = 5.7 ms, flip angle = 8° degrees after scanner update). The images were segmented for grey matter, white matter, and cerebrospinal fluid (CSF) using the FSL-functions BET and FAST (FMRIB Software Library, Oxford University).⁴⁴ A brain mask covering the cerebrum, cerebellum, and brainstem was created to obtain the total brain volume.

A fluid attenuated inversion recovery (FLAIR) sequence were used to acquire brain images for assessment of the WMH burden of the patients (31 slices, FOV = 230 × 154 × 183 mm³, voxel size = 0.45 × 0.45 × 4 mm³, TR = 11000 ms, TE = 125 ms, flip angle = 90°, inversion time (TI) = 2800 ms before scanner update and adjusted to 28 slices, FOV = 230 ×139 × 182 mm³, voxel size = 0.60 × 0.60 × 4 mm³, TR =11000 ms, TE = 125 ms, flip angle = 90° degrees after scanner update). A white matter hyperintensities (WMH) mask were created by manual delineation using the FLAIR images. The global WMH burden were calculated as the ratio between WMH volume and total white matter volume. A Fazekas score was additionally obtained for the participants.³⁰ The combined Fazekas score of periventricular white matter hyperintensities and deep white matter hyperintensities was used resulting in a grading from 0 to 6. Global WMH burden and Fazekas score from each patient is noted in Table 1.

Cerebrovascular reserve capacity

As part of the clinical evaluations the patients underwent examination of CVR by SPECT scanning using technetium-99m hexamethylpropyleneamine oxime (⁹⁹mTc-HMPAO) as tracer. From the SPECT data rCBF maps could be calculated in a semi-quantitative manner (EXINI brain; EXINI diagnostics AB, Lund, Sweden).^47,48 Two SPECTS scans were obtained. The first SPECT scan was acquired immediately after the MRI scan. The ⁹⁹mTc-HMPAO-tracer was administered, while the subject was lying in the MRI-scanner, approximately 20 minutes after administration of ACZ. The ACZ dose were determined based on the participant weight (<40 kg = 0.5 g, 40–50 kg = 0.75 g, 50–65 kg =1.0 g, 65–80 = 1.25 g, >80 kg = 1.5 g) and injected into a superficial cubital vein in a saline solution over a period of 5 minutes. A second SPECT scan without administration of ACZ was performed on a subsequent day. From the resting rCBF data acquired without ACZ and the measurement after elevation of rCBF from administration of ACZ, CVR maps could be calculated using EXINI brain software.^47,48 A minority of patients (n = 7) did not undergo SPECT scanning, instead the ASL imaging from the MRI scans were used to calculate rCBF maps from which the CVR status could be determined. The ASL CBF maps were measured using a 2D sequence with a pseudo-continuous arterial spin labelling scheme (pcASL) and image acquisition at seven different TI (12 slices; FOV = 220 × 220 × 78 mm³, voxel size = 3.4 × 3.4 ×6 mm³, TR = 300 ms, TE = 10.79 ms, flip angle = 40°, labelling duration = 1650 ms, TIs =100 ms, 400 ms, 700 ms, 1000 ms, 1300 ms, 1600 ms and 1900 ms). The ASL sequence was acquired at baseline and after administration of ACZ. The ASL data was analysed using the function Oxford ASL as part of the FSL software package (FMRIB Software Library, Functional Magnetic Resonance Imaging of the Brain Centre, Department of Clinical Neurology, University of Oxford, Oxford, UK).^44,49

Classification of CVR was evaluated by experienced medical doctors as part of the clinical evaluation of the patients. Patients were classified into normal CVR or impaired CVR groups and the affected brain regions were found (Table 1). Some patients demonstrated a CBF steal phenomenon, where ACZ administration causes a focal decrease in CBF in the vascular territories supplied by a stenotic or occluded artery. This phenomenon is a result of the vessel in the affected region already being maximal dilated and a reduction in perfusion pressure in the remaining more normally perfused regions of brain following ACZ administration.^50–52 A steal phenomenon from ACZ administration could potentially affect the oxygen metabolism if the perfusion in these regions become critically low. The presence of CBF steal phenomena is noted in Table 1.

Statistics

The postprocessing of the MRI-data was blinded to the subject’s group (patient or control) and measurement (baseline measurement or measurement after ACZ administration). Generally, values are noted as mean ± standard deviation throughout the paper. P-values less than 0.05 were considered significant. Normal distribution of the parameters was confirmed with the Shapiro-Wilk normality test before entering the statistical models when necessary.

The effect from ACZ administration on gCBF, gA-V.O₂ and gCMRO₂ were tested using paired Students’ t-test (Figure 3). Differences in baseline gCBF, gA-V.O₂ and gCMRO₂ between the patients and controls were assessed by unpaired Students’ t-tests (Figure 3). Correlations between changes in gCBF and gCMRO₂ from administration of ACZ were examined by linear mixed model with gCMRO₂ as response variable, gCBF as the fixed effect and subject identification as random effect (Figure 4). Differences in rCBF, rCTH, rMTT, rCTH/rMTT and rCBV between CVR-impaired regions and CVR-intact regions were tested using paired Students’ t-tests (Figure 5a–e). Differences in rCTH, rCBF, rMTT, rCTH/rMTT and rCBV between patients and controls were tested using unpaired Students’ t-tests (Figure 5a–e). To test whether a possible reduction in gCMRO₂ from ACZ administration (Δ_ACZ.gCMRO₂) could be correlated to high CTH or low CBF (possible from CBF steal phenomenon) a linear regression model with rCTH and rCBF as regressors and Δ_ACZ.gCMRO₂ as dependent variable were used (equation (7)).

Δ_{ACZ} . gCMR O_{2} = β_{1} \cdot rCTH + β_{2} \cdot rCBF

(7)

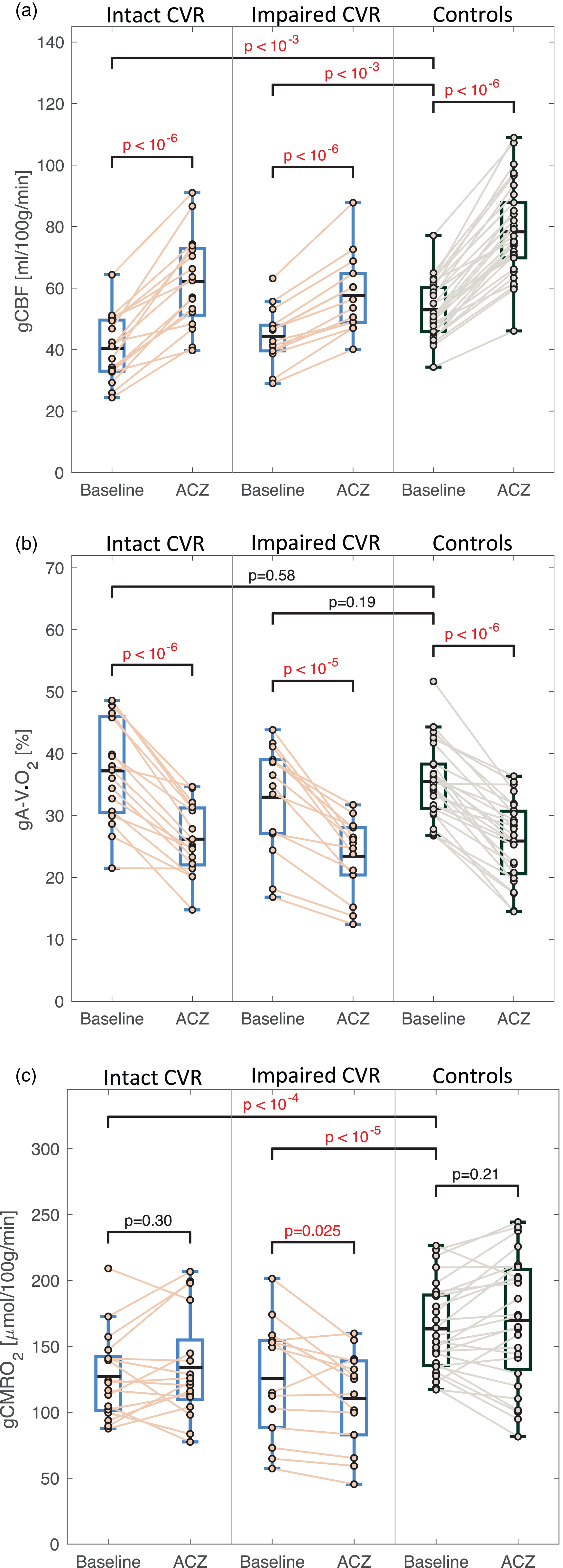

Figure 3.

Boxplots demonstrating (a) global cerebral blood flow (gCBF), (b) arteriovenous oxygen extraction (gA-V.O₂) and (c) cerebral metabolic rate of oxygen (gCMRO₂) at baseline and after acetazolamide (ACZ) administration. Each panel demonstrate values for patients with intact cerebrovascular reserve capacity (CVR) (a), for patients with impaired CVR (b) and for healthy control subjects (c). Administration of ACZ significantly increased gCBF and reduced gA-V.O₂ as expected. Patients with impaired CVR had a significant reduction in gCMRO₂ after administration of ACZ.

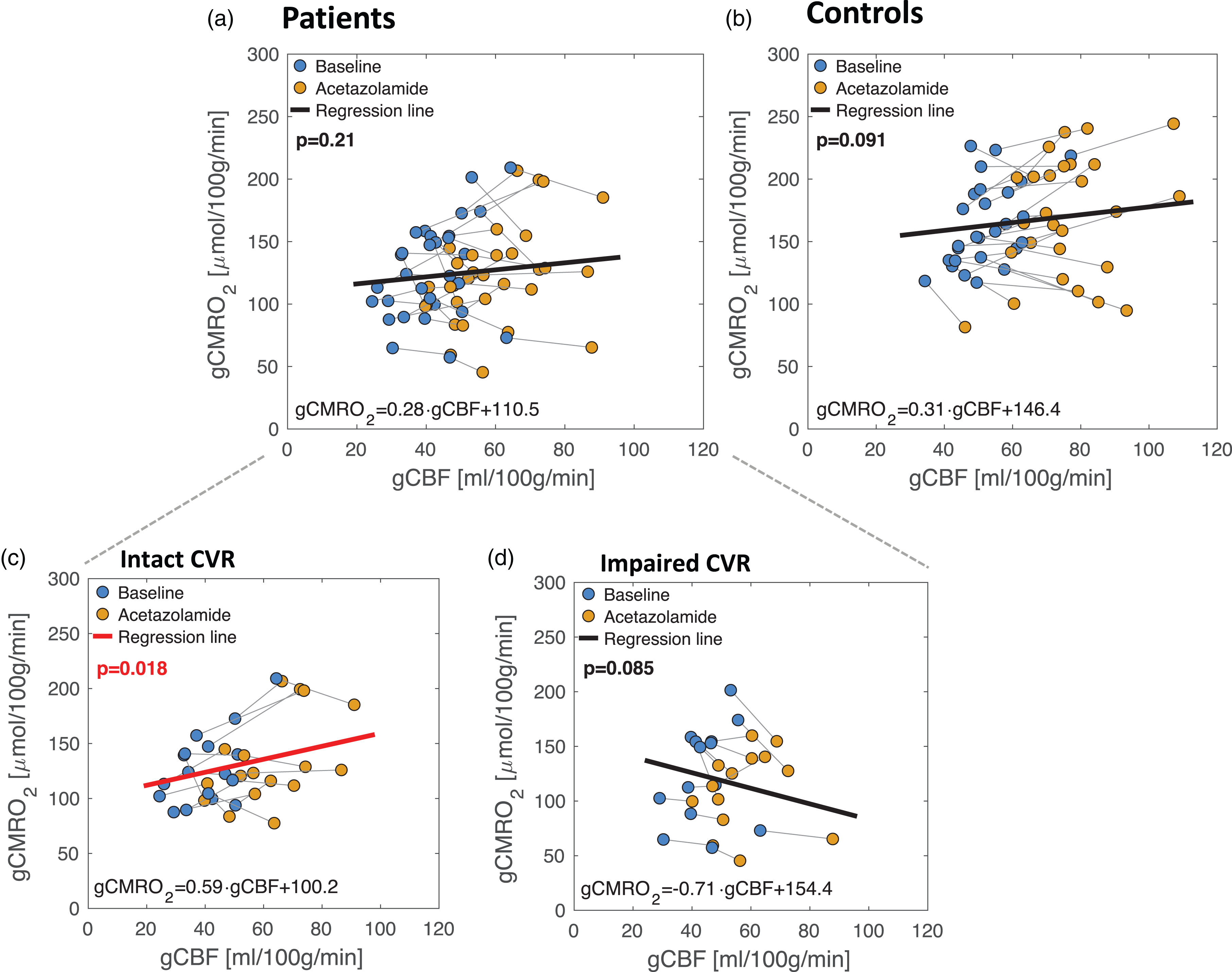

Figure 4.

Correlations between global cerebral blood flow (gCBF) and global cerebral metabolic rate of oxygen (gCMRO₂) at resting and after administration of acetazolamide (ACZ) in patients and healthy controls. (a) Overall, patients with carotid steno-occlusive disease demonstrated no correlation between change in gCBF and change in gCMRO₂ from ACZ administration. (b) Similarly, the gCMRO₂ was unaffected from elevated CBF in control subjects. (c) If the patients were split into CVR-impaired and CVR-intact patients a significant positive correlation is observed between change in gCMRO₂ and gCBF in the patients with intact CVR and (d) In the group with impaired CVR there was a tendency for a decreased in gCMRO₂ for increasing gCBF, however the correlation was not significant.

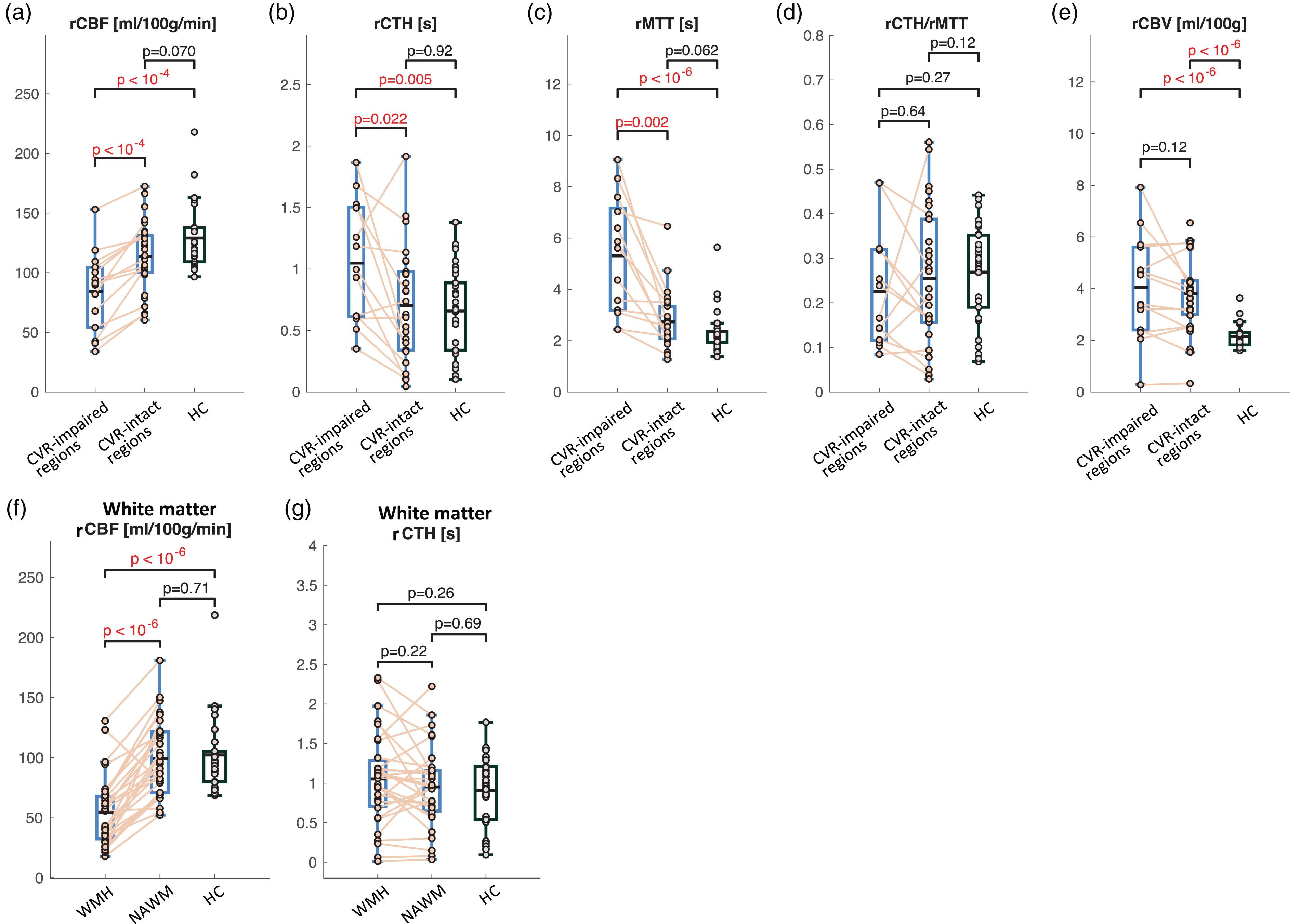

Figure 5.

Boxplot of regional cerebral blood flow (rCBF), capillary transit time heterogeneity (rCTH), mean transit time (rMTT), rCTH to rMTT ratio (rCTH/rMTT) and cerebral blood volume (rCBV). The parameters were acquired using dynamic contrast-enhanced (DCE) MRI. (a) rCBF was significantly reduced in regions with impaired cerebrovascular reserve capacity (CVR) compared to CVR-intact regions and healthy controls (HC), as expected. Both rCTH (b) and rMTT (c) were significantly higher in CVR-impaired regions compared to CVR-intact regions and compared to HC. (d) rCTH/rMTT was not significantly different between CVR impaired and CVR intact regions or healthy controls. (e) rCBV were significantly higher in patients (both CVR-impaired and CVR-intact regions) compared to HC. (f) rCTH was not significantly different in white matter hyperintensities (WMH) compared to normal appearing white matter (NAWM) or white matter in HC and (g) rCBF was significantly lower in WMH compared to NAWM and compared to white matter of healthy controls.

Two models were calculated: A model with rCTH and rCBF values from CVR-intact regions and a model with rCTH and rCBF values from CVR-impaired regions. Partial regression plot demonstrating the correlations between Δ_ACZ.gCMRO₂ and rCTH or rCBF are shown in Figure 6. We additionally calculated a model with rCTH/rMTT instead of rCTH as the regressor, which similarly is demonstrated in Figure 6. We further tested whether the model including both rCTH and rCBF as regressors performed significantly better than a model with only rCBF as a single regressor using F-test statistics of the models.

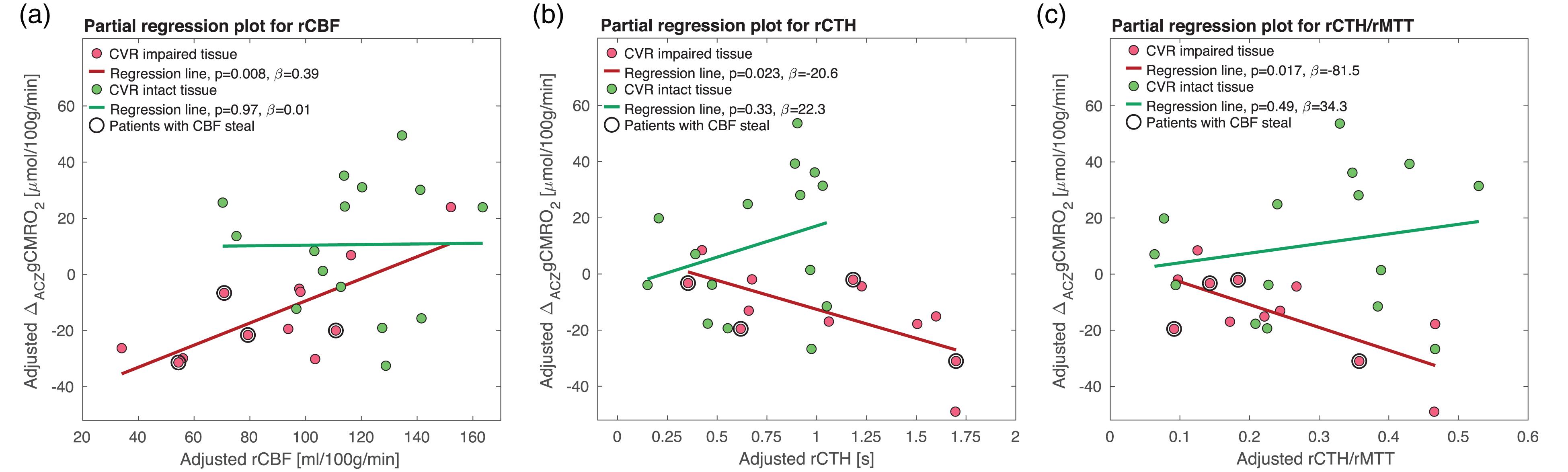

Figure 6.

Correlations between (a) cerebral blood flow (rCBF), (b) capillary transit time heterogeneity (rCTH) and (c) rCTH to mean transit time (rMTT) ratio (rCTH/rMTT) and change in cerebral metabolic rate of oxygen (Δ_ACZgCMRO₂) from administration of acetazolamide (ACZ). Brain regions with impaired cerebrovascular reserve capacity (CVR) demonstrate a significant negative correlation between rCTH and Δ_ACZgCMRO₂. In contrast, CTH in CVR-intact regions did not correlate with Δ_ACZgCMRO₂. Similar significant correlations were observed for rCTH/rMTT and Δ_ACZgCMRO₂. Low rCBF in CVR-impaired regions also correlated significantly with decreasing Δ_ACZgCMRO_2. Overall, these results suggests that both low rCBF and high rCTH in CVR-impaired tissue contribute to an inhibit oxygen metabolism.

Lastly, we examined for correlations between rCTH and white matter alterations by correlating WMH burden and Fazekas score to white matter rCTH using linear regression models. We further tested for differences in rCTH and rCBF in regions classified as WMH compared to NAWM using paired Students’ t-tests and for differences in white matter rCTH and rCBF in patients compared to the control group using unpaired Student’s t-tests (Figure 5f and g).

Results

Attrition and missing data

In one patient measurement of gCMRO₂ failed due to ghosting artefacts on the MRI images. In two more patients, measurement of gCMRO₂ were omitted due to technical difficulties at the time of the MRI-scan making the technique unavailable. Two healthy controls subjects had a bifurcation of the sagittal sinus making the measurement of S_vO₂ and thereby calculation of gCMRO₂ unreliable.⁵³ These measurements were removed from the further analysis. For three patients DCE-MRI were not acquired as administration of the MRI contrast agent were not possible for these patients.

Cerebrovascular reserve capacity

Out of the 34 patients who participated in the study, 15 (44%) had impaired CVR and the remaining 19 (56%) patients had intact CVR (Table 1). Five of the patients with impaired CVR demonstrated a steal phenomenon in the affected hemisphere. Two of these patients only demonstrated a minor steal phenomenon (∼5% reduction in CBF) and the remaining a more pronounced effect.

Cerebral blood flow and oxygen metabolism

Boxplots of gCBF, gA-V.O₂ and gCMRO₂ at baseline and after administration of ACZ for each group are shown in Figure 3. Administration of ACZ increased gCBF and reduced gA-V.O₂ in all groups (p < 10⁻⁵), as expected. gCMRO₂ was significantly reduced in the patient group with impaired CVR (p = 0.025) but unaffected in the other groups. The correlations between change in gCBF and gCMRO₂ from ACZ administration are demonstrated in Figure 4. We observed a significant positive correlation demonstrating increase in gCMRO₂ with increasing CBF in the patient group with intact CVR ( $β = 0.59 \frac{μ mol O_{2}}{ml blood},$ p = 0.018). There were no correlations in the group with impaired CVR (p = 0.085) or the control group (p = 0.091). Overall, these results demonstrate that in the patients with intact CVR the oxygen metabolism is increased by elevating CBF.

Capillary transit time heterogeneity

Possible causes for a reduced gCMRO₂ after ACZ administration could be a high CTH impairing oxygen extraction or presence of CBF-steal phenomenon critically reducing the perfusion. We examined these possibilities by acquiring regional maps of rCTH and rCBF after administration of ACZ (examples of calculated maps are shown in Figure 2). Boxplots of rCBF, rCTH, rMTT, rCTH/rMTT and rCBV in CVR-impaired regions, CVR-intact regions and in healthy controls are shown in Figure 5(a–e). CVR-impaired regions had significantly reduced rCBF compared to CVR-intact regions (p < 10⁻⁴) and controls (p < 10⁻⁴), as expected. rCTH and rMTT were significantly higher in CVR-impaired regions compared to CVR-intact regions (p = 0.022 for rCTH and p = 0.002 for rMTT) and compared to controls (p = 0.005 for rCTH and p < 10⁻⁶ for rMTT). rCTH/rMTT was not significantly different between CVR-impaired regions compared to CVR-intact regions (p = 0.64) or healthy controls (p = 0.27). rCBV was significantly higher in patients compared to control subjects (p < 10⁻⁴), but no differences were observed between CVR-intact and CVR-impaired regions (p = 0.12). Overall, these results demonstrate that in CVR-impaired regions, in addition to a reduced perfusion, the capillary transit times are abnormally distributed demonstrated by higher CTH.

We hereafter examined whether the abnormal rCBF or rCTH could explain the change in gCMRO₂ from ACZ administration (Δ_ACZ.gCMRO₂) by linear regression models with both rCBF and rCTH as regressors. Partial regression plots demonstrating the correlations from the models are shown in Figure 6. We observed a significant negative correlation (p = 0.023) between Δ_ACZ.gCMRO₂ and rCTH in CVR-impaired regions, but no correlation for rCTH in CVR-intact regions. Similarly, low rCBF in CVR-impaired regions correlated with decreasing Δ_ACZgCMRO₂ (p = 0.008). We hereafter tested whether the model including both rCTH and rCBF as regressors were significantly better than a model with only rCBF as regressor using F-test statistics. We observed a significant (p = 0.026) better model when rCTH were included, further substantiating the observation that high rCTH contributes to an impaired oxygen metabolism. Lastly, we examined a model with rCTH/rMTT instead of rCTH and similarly found a significant correlation between high rCTH/rMTT in CVR-impaired regions and decreasing Δ_ACZ.gCMRO₂ (p = 0.017). There was no correlation between rCTH and Δ_ACZ.gCMRO₂ in the healthy control group (p > 0.26) (not shown). Overall, these results indicate that both high rCTH and low rCBF contributes to an impaired oxygen metabolism.

Lastly, we examined whether the presence of WMH was associated with high rCTH. We did not observe higher CTH in WMH compared to NAWM or white matter of healthy controls (Figure 5(e)) and did not find any correlations with WMH burden (p = 0.11) or Fazekas score (p = 0.83). CBF were, however, significantly reduced (p < 10⁻⁶) in WMH compared to NAWM and compared to white matter of healthy controls (Figure 5(f)). These results suggest that the white matter alteration observed in the patients can primarily be related to hypoperfusion and not abnormal CTH.

Discussion

In the present study we observed a paradoxical reduction in gCMRO₂ when the cerebral perfusion is elevated by administration of ACZ in some patients with impaired CVR. The reduction in oxygen consumption could be related to high rCTH, high rCTH to MTT ratio and low rCBF in CVR-impaired regions. The correlation between high CTH and reduced gCMRO₂ is in line with the CTH theory suggesting that disruption of the microperfusion causing uneven distribution of capillary flow and transit times could limit the cerebral extraction of oxygen.¹⁵ When CBF is elevated by ACZ administration the uneven distribution may be further aggravated causing a reduction in the oxygen extraction and oxygen consumption, as has been hypothesized based on mathematical models.^15,20 In the CVR-impaired regions, the stenosis or occlusion of the upstream cerebral arteries inhibits perfusion to the affected area. Additionally, small vessel disease in the affected region could further limit the CVR due to reduced or missing vasomotor function in the arterioles and capillaries from endothelial damages.^54,55 Dysfunctions of the small vessels are likely also the cause for the high CTH in these regions. The CVR-impaired tissue is in state of hypoperfusion causing local hypoxia and hypometabolism. This environment will, in addition to harming neurons and glia cells, also damage the vessel endothelia, vascular smooth muscle cells and pericytes. Damages to the endothelium cells and pericytes will hinder the vasomotor skill of the capillaries. Additionally, ischemic damage or necrosis of pericytes can cause a state of permanent pericyte and capillary constriction.⁵⁶ Overall, these damages can cause dysfunction of the perfusion modulation in the capillary bed which will cause an uneven distribution of flow and transit times, as demonstrated by the high CTH. The higher CTH we observed in the patients is in line with two prior studies which similarly found higher CTH in patients with steno-occlusive disease^27,57 and that treatment by carotid artery stenting reduces CTH in the affected brain regions.⁵⁷ Furthermore, it has been shown based on estimation of the maximal oxygen extraction from the CTH hypothesis, that the oxygen extraction level observed in brain regions affected by carotid occlusion is better explained when taking the elevated CTH into account than just the hypoperfusion alone.²³

However, these studies did not measure if the patients demonstrate an inhibited oxygen consumption and if elevated flow further reduces the oxygen consumption in accordance with the CTH theory. In present study we demonstrate that the higher CTH seen in CVR-impaired patients indeed has a harmful effect on the cerebral oxygen metabolism. High CTH could therefore be a contributing part to the declining brain health and neurodegeneration observed in patients with cerebral and precerebral large and small vessel disease, as these patients demonstrate both hypoperfusion and impaired oxygen extraction causing detrimental metabolic inadequacies. High CTH could also be a reason why normalizing CBF by endarterectomy or carotid angioplasty in some patients does not improve the oxygen metabolism.

In addition to the effect from rCTH, we also observed a significant positive correlation between rCBF in CVR-impaired regions and change in gCMRO₂ after ACZ administration from the regression model (equation (7)). This correlation indicates that having a high rCBF has a beneficial effect on maintaining CMRO₂ independent from the rCTH level. On contrast, if the patient has a low rCBF, which might be aggravated from a CBF steal phenomenon, the perfusion is inadequate to maintain CMRO₂. The reduction in CMRO₂ observed in some patients is therefore a combination of low rCBF and an elevated rCTH.

When examining the white matter of the patients we observed reduced perfusion in WMH compared to NAWM, but no differences were observed for CTH. These results suggest that inhibition of oxygen metabolism from CTH primarily is affecting grey matter structures and damages to white matter is from inadequate perfusion. Grey matter has a higher metabolism and oxygen extraction compared to white matter,⁵⁸ which suggest that an inhibition of the oxygen extraction will affect grey matter more severely. These observations are somewhat in contrast to Dalby et al.⁵⁹ who observed higher CTH in WMH compared to NAWM and Kaczmars et al.²⁷ who observed higher CTH in both white matter and grey matter in patients with asymptomatically carotid stenosis. A possible explanation for the discrepancy could be that the patient examined in our study have more severe hemodynamic deficits with some patients demonstrating full occlusion of the cerebral arteries and consequently hypoperfusion and CVR impairments. The severe hypoperfusion and CVR impairment could dominate the alteration of white matter structures observe in our study.

In contrast to the patients with impaired CVR, in the group with intact CVR we observed a significant increase in gCMRO₂ with increasing CBF from ACZ administration. This increase in gCMRO₂ suggests that these patients can have a beneficial effect on the cerebral metabolism from elevated CBF if CTH is not pathologically elevated. In these patients the cerebral vessels are not fully dilated at their normal resting condition and there exist and CBF reserve capacity that can be recruited through stimulated vasodilation. However, we still observed that the resting CBF is reduced compared to healthy controls. A potential cause for the hypoperfusion could be due to the initiation of different adaptive processes for the brain to function under less perfusion and oxygen availability.^60–62 A potential mechanism could be to reduce the oxygen demand by apoptosis, which over time becomes an irreversible reduction of brain cells and function.^63,64 Early treatment normalizing CBF could potentially stop these mechanisms and help to maintain oxygen metabolism and avoid severe cell death and atrophy.

Strength and limitation

The main limitation of the study is that we only acquired global values of gCMRO₂. Patient with impaired CVR demonstrate asymmetrical regional limitations corresponding to the carotid disease lateralization. The effect on gCMRO₂ observed in this group is most likely driven by disruptions in the affected region. This also corresponds that abnormal CTH is only observed in the affected side. By regional measurement of CMRO₂ this could be elucidated. New MRI techniques are under development for regional acquisition of quantitative OEF and gCMRO₂, however these methods are not yet validated or widely available.⁶⁵ Hopefully these methods can be applied in future studies.

Another limitation is that the control group is not age-matched but consists of younger individuals. However, as we do not observe any differences of rCTH in CVR-intact tissue in the patient group compared to controls we do not expect that an older control group would demonstrate different values. An older age matched control group would then not affect the conclusion of the study.

A main strength of the experiment was that we acquired both measurement of rCTH and the gCMRO₂ response to elevated CBF in a single MRI scan session. Measurements of oxygen saturation in the sagittal sinus for CMRO₂ calculation by SBO MRI technique have been validated against blood samples acquired by catheter from the jugular vein during MRI-scanning.⁴⁰ The validation was performed both at rest and during hyperperfused conditions.⁴⁰ Global CBF measured using PCM MRI and regional CBF by ASL technique has been validated in animal models and humans against ¹⁵O-water PET imaging as accepted gold standard reference.^34,66–69

Conclusion

In this study we observed reduced oxygen metabolism in response to elevated CBF from ACZ administration in some patients with impaired CVR from steno-occlusive cerebral artery disease. The impaired oxygen metabolism could be related to uneven distribution of capillary microperfusion characterized by CTH and to low perfusion in the affected brain regions. A high CTH could be a contributing factor to the declining brain health and higher risk of neurodegenerative disease observed in patients with carotid stenosis or occlusion. We further observed that patient with intact CVR did not demonstrate abnormal CTH and that these patients had a beneficial effect on the oxygen metabolism from increased perfusion.
