CCL5 mediated astrocyte-T cell interaction disrupts blood-brain barrier in mice after hemorrhagic stroke

Animal experiments

Experimental animal studies were performed in accordance with the Animal Research: Reporting in Vivo Experiments (ARRIVE) guidelines. All animal experiments were conducted in accordance with Bioethics/2012022, Shanghai Jiao Tong University, Shanghai, China. Protocols were approved by Institutional Animal Care and Use Committee (IACUC) of Shanghai Jiao Tong University. This study used age- and sex-matched mice. Adult C57BL/6J mice (22–25 g, 8–10 weeks) were purchased from Vital River Laboratories (Vital River Laboratories, Beijing, China). Self-bred astrocytes specific knockout CCL5 mice (Aldh1l1^{CreERT 2 +/−}: CCL5^f/f mice, 22–25 g, 10–12 weeks) were used. The transgenic mice were live, fertile, and normal-sized, without showing serious physical or behavioral abnormalities. Mice were housed in standard facilities with 12 h light-dark cycles with free access to food and water. The ambient humidity was controlled within 20∼50%, and the temperature was maintained at 21∼25°C. The wild-type mice used in the study were male, while the transgenic mice were both male and female, as detailed in figure legends. A total of 65 wild-type mice were used, and 11 mice were excluded due to death or surgery failure. A total of 200 transgenic mice were used. After excluding dead mice and failed models, 167 transgenic mice were used, including 92 male mice and 75 female mice. The number of mice in each group for neurobehavioral testing was 9–14, and the number of mice in each group was 3–8 in other experiments (specified in figure legends). Mice were randomly divided into groups for the experiments. Statistical data were obtained and analyzed in a double-blind manner.

Generation of Aldh1l1^CreERT2+/−: CCL5^f/f mice

To generate Aldh1l1^CreERT2+/−: CCL5^f/f mice, loxp floxed CCL5 mice (purchased from GemPharmatech Co., Ltd, Jiangsu, China) were mated with Aldh1l1^{CreERT 2 +/−} mice (a gift from Dr. Won-Suk Chung, Korea Advanced Institute of Science & Technology), and PCR was used to identify the genotype of the mice. Mice were used for experiments when they reach 10–12 weeks of age. Tamoxifen (Sigma-Aldrich, MO, USA) was dissolved in 95% corn oil at a final concentration of 10 mg/mL. Intraperitoneal injections of tamoxifen or corn oil into the experimental group or control group were started 2 weeks before experiments, once a day (0.075 mg/g body weight) for 5 consecutive days.

Collagenase-induced intracerebral hemorrhage model

The intracerebral hemorrhage (ICH) mouse model was induced following the procedure as previously described.^{18 –20} Mice were anesthetized with 3% isoflurane mixed with 30% O₂/70% N₂, and 1.5% isoflurane mixed with 30% O₂/70% N₂ to maintain anesthesia by isoflurane gasifier (RWD Life Science Co., Shenzhen, China). The mouse head was then fixed on a stereotaxic instrument (RWD Life Science Co.) and ICH was performed using collagenase IV (Sigma-Aldrich). A small hole was drilled with a 29-gauge needle at 2 mm lateral to the midline and 0.5 mm anterior to the posterior fontanel. Then a 29-gauge needle containing collagenase IV was pushed to 3.5 mm of the right striatum. Each mouse was injected with 0.04 U collagenase IV dissolved in 2 μL 1X PBS using a micro-infusion pump (RWD Life Science Co.) at a speed of 0.4 μL/min. After surgery, animals were allowed to regain consciousness on a 37 °C heating pad (RWD Life Science Co.).

Tissue collection

Under anesthesia, the mice were perfused with 1X PBS. And then the brain was quickly removed and placed on a cold dissection mold. The brain was cut into a 2 mm-thick slice before and behind the center of the injection site.

For western blot, the ipsilateral striatum isolated from the brain slice was transferred into cold protein lysis buffer (RIPA, PMSF, protease cocktail inhibitor and phosphatase inhibitor). Two small magnetic beads were placed into each sample tube and ground in a tissue grinder with shaking at 60 Hz for 45 sec. Lysates were centrifuged at 12,000 g for 20 min to obtain the supernatant.

For real time PCR, the ipsilateral striatum isolated from the brain slice was transferred into cold TRIzol reagent (Invitrogen, Waltham, MA). Two small magnetic beads were placed into each sample tube and ground in a tissue grinder with shaking at 60 Hz for 45 sec. Lysates were centrifuged at 12,000 g for 20 min to obtain the supernatant. The cell samples could be directly centrifuged to obtain the supernatant without the addition of small magnetic beads for grinding.

To collect brain slices, mice were perfused with 1X PBS and 4% paraformaldehyde (PFA, Sinopharm Chemical Reagent Co. Shanghai, China) under anesthesia, followed by immediate removal of the mouse brain. Brain sample was fixed in 4% PFA for 2 h, fully dehydrated in 30% sucrose solution until it sank, and then snap-frozen at −80°C in isopentane. Brains were embedded in optimal cutting temperature (OCT) compound (Fisher HealthCare, Waltham, MA) for frozen sectioning. Brain tissue slices were collected from anterior commissure to hippocampus.

Western blot

Protein concentration of brain was determined by bicinchoninic acid (BCA) kit (Meilunbio, Dalian, China). The protein was denatured with instant protein loading buffer (EpiZyme, Shanghai, China) followed by boiling for 5 min. Equal amounts of protein from different samples were loaded on a 7.5%–12.5% (W/V) sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE) for electrophoresis. It was then transferred to a polyvinylidene fluoride (PVDF) membrane (Millipore, Burlington, MA). After that, membranes were blocked with protein-free rapid blocking buffer (EpiZyme) for 15 min at room temperature (RT), followed by incubation with the primary antibodies overnight at 4 °C. The following primary antibodies were used: CCL5 (1:800, sc-373984, Santa Cruz, Dallas, TX), ZO-1 (1:1000, 61-7300, Invitrogen), Perforin 1 (1:1000, sc-136994, Santa Cruz), Granzyme B (1:1000, sc-8022, Santa Cruz), and β-actin (1:5000, 66009, Invitrogen). Next day, the membrane was incubated with horseradish peroxidase (HRP)-conjugated secondary antibodies for 1 h at RT. The blots were imaged by incubation with the solution in the Enhanced Chemiluminescence Kit (ECL, Pierce Waltham, MA). Results were analyzed using Image J software (NIH, Bethesda, MD, RRID: SCR_003070).

Real-time PCR analysis

Brain samples were dissolved in TRIzol reagent and RNA was extracted with chloroform, and then precipitated with isopropanol. Finally, the RNA pellet was washed with 75% alcohol. RNA concentration was examined using a spectrophotometer (NanoDrop 1000, Thermo Fisher, Waltham, MA). Single-stranded cDNA was subsequently synthesized by the Universal cDNA Synthesis Kit (Qiagen Hilden, Germany) for 1 h at 42 °C, followed by 5 min at 95 °C. RNA expression was tested by a fast RT-PCR system (7900 HT, ABI, Foster City, CA) using Hieff qPCR SYBR Green Master Mix (Yeasen Biotech, Shanghai, China) under the following cyclic conditions: 95 °C for 5 min followed by 40 cycles of 95 °C for 10 s and 60 °C for 30 sec, then 95 °C for 15 sec, 60 °C for 15 sec and 95 °C for 15 sec. GAPDH was used as the control for tissues. Table 1 listed primer sequences for real-time PCR analysis. Quantification was performed using the comparative CT method (2^−ΔΔCT), and all data were normalized to GAPDH expression.

OPEN IN VIEWER

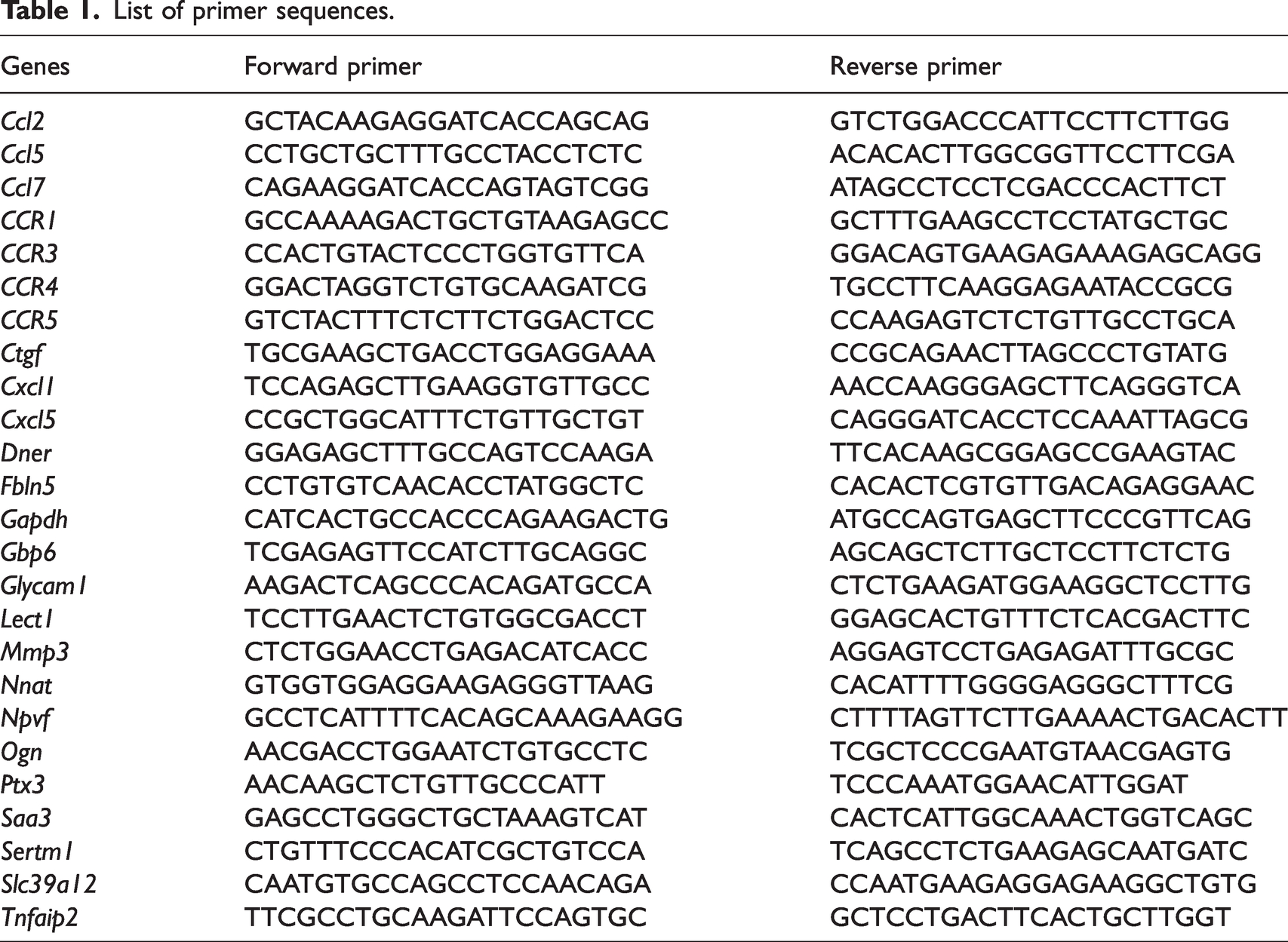

Table 1.

List of primer sequences.

Genes	Forward primer	Reverse primer
Ccl2	GCTACAAGAGGATCACCAGCAG	GTCTGGACCCATTCCTTCTTGG
Ccl5	CCTGCTGCTTTGCCTACCTCTC	ACACACTTGGCGGTTCCTTCGA
Ccl7	CAGAAGGATCACCAGTAGTCGG	ATAGCCTCCTCGACCCACTTCT
CCR1	GCCAAAAGACTGCTGTAAGAGCC	GCTTTGAAGCCTCCTATGCTGC
CCR3	CCACTGTACTCCCTGGTGTTCA	GGACAGTGAAGAGAAAGAGCAGG
CCR4	GGACTAGGTCTGTGCAAGATCG	TGCCTTCAAGGAGAATACCGCG
CCR5	GTCTACTTTCTCTTCTGGACTCC	CCAAGAGTCTCTGTTGCCTGCA
Ctgf	TGCGAAGCTGACCTGGAGGAAA	CCGCAGAACTTAGCCCTGTATG
Cxcl1	TCCAGAGCTTGAAGGTGTTGCC	AACCAAGGGAGCTTCAGGGTCA
Cxcl5	CCGCTGGCATTTCTGTTGCTGT	CAGGGATCACCTCCAAATTAGCG
Dner	GGAGAGCTTTGCCAGTCCAAGA	TTCACAAGCGGAGCCGAAGTAC
Fbln5	CCTGTGTCAACACCTATGGCTC	CACACTCGTGTTGACAGAGGAAC
Gapdh	CATCACTGCCACCCAGAAGACTG	ATGCCAGTGAGCTTCCCGTTCAG
Gbp6	TCGAGAGTTCCATCTTGCAGGC	AGCAGCTCTTGCTCCTTCTCTG
Glycam1	AAGACTCAGCCCACAGATGCCA	CTCTGAAGATGGAAGGCTCCTTG
Lect1	TCCTTGAACTCTGTGGCGACCT	GGAGCACTGTTTCTCACGACTTC
Mmp3	CTCTGGAACCTGAGACATCACC	AGGAGTCCTGAGAGATTTGCGC
Nnat	GTGGTGGAGGAAGAGGGTTAAG	CACATTTTGGGGAGGGCTTTCG
Npvf	GCCTCATTTTCACAGCAAAGAAGG	CTTTTAGTTCTTGAAAACTGACACTT
Ogn	AACGACCTGGAATCTGTGCCTC	TCGCTCCCGAATGTAACGAGTG
Ptx3	AACAAGCTCTGTTGCCCATT	TCCCAAATGGAACATTGGAT
Saa3	GAGCCTGGGCTGCTAAAGTCAT	CACTCATTGGCAAACTGGTCAGC
Sertm1	CTGTTTCCCACATCGCTGTCCA	TCAGCCTCTGAAGAGCAATGATC
Slc39a12	CAATGTGCCAGCCTCCAACAGA	CCAATGAAGAGGAGAAGGCTGTG
Tnfaip2	TTCGCCTGCAAGATTCCAGTGC	GCTCCTGACTTCACTGCTTGGT

Immunofluorescence staining (IF) and RNAscope in situ hybridization

Brain sections or cells were fixed with 4% PFA for 10 min and washed in 1X PBS buffer for 5 min X 3 times, followed by treatment with 0.3% Triton X-100 (Sigma-Aldrich) for 10 min. Then they were blocked with 1% bovine serum albumin (BSA, Gbico, Waltham, MA) for 60 min at RT and then incubated with primary antibodies overnight at 4 °C. The following antibodies were used: mouse anti-CCL5 (1:200, sc-373984, Santa Cruz), rabbit anti-GFAP (1:200, AB5804, Millipore), rabbit anti-Iba-1 (1:200, 019-19741, WAKO, Osaka, Japan), rabbit anti-NeuN (1:200, abn78, Millipore), goat anti-CD31 (1:200, AF3628, R&D, Minneapolis, MN), rabbit anti-ZO-1 (1:200, 61-7300, Invitrogen), rabbit anti-Occludin (AF7644, Beyotime, Jiangsu, China), rat anti-CD4 (1:200, ab269348, Abcam, Cambridge, UK), and rabbit anti-CD8 (1:200, ab217344, Abcam). Next day, after rinsing with 1X PBS buffer for 10 min X 3 times, brain sections or cells were incubated with the fluorescent conjugated secondary antibodies for 1 h at RT. Then they were washed again in 1X PBS buffer for 15 min X 3 times. The slides were mounted with anti-fluorescence quencher medium containing DAPI (Beyotime). Fluorescence images were collected at 40X or 63X magnification using inverted confocal laser-scanning systems (Leica, Wetzlar, Germany). Four fields were imaged in peri-lesion areas in each slice, and four slices with 200 μm intersegment were counted for each mouse brain.

RNAscope was performed according to the supplier's protocol (Advance Cell Diagnostics (ACD), Hayward, CA). In short, the slides were subjected to serially gradient dehydration at RT, and incubated with HybEz™ hybridization system (ACD). The slides were incubated with RNAscope hydrogen peroxide at RT for 10 min, and then incubated with RNAscope protease III at 40 °C for 30 min. Custom mouse CCL5 RNAscope probe, negative and positive control probes were designed and purchased from ACD.

Evans blue (EB) injection and immunoglobulin G (IgG) leakage measurement

BBB permeability was assessed by measuring the extravasation of EB and IgG. Under anesthesia, EB solution (Sigma-Aldrich, 2% EB dye in saline, 4 mL/kg) was slowly injected into the left jugular vein of mice at 3 days of hemorrhagic stroke. ²¹ The mice were sacrificed via cardiac perfusion after 2 h of EB circulation. Both brain hemispheres were weighed, and then EB was extracted by homogenizing the tissue samples with 1 mL of 50% trichloroacetic acid solution, centrifuge at 21,000 g for 20 min and the supernatant was diluted with 100% ethanol at a ratio of 1:3. The amount of EB was quantified at 610 nm using a spectrophotometer (Bio-Tek, Winooski, VT).

IgG staining was performed to check for IgG leakage according to the supplier's protocol. In brief, the brain slides were blow-dried at RT for 10 min after removal from −80°C. This was followed by fixation with 4% PFA for 5 min, then treated with 0.3% Triton X-100 for another 10 min, and subsequent blocking with 0.3% hydrogen peroxide in methanol for 30 min. Nonspecific staining was first reduced by incubation with super blocking solution for 5 min, then incubated with HRP-labeled IgG antibody (Absin, Shanghai, China) for 10 min each. Immunoreactivity was then observed using DAB staining (Vector Labs, Burlingame, CA). Brain sections were counterstained with hematoxylin and rinsed with running water for 1 h. After dehydration by ethanol, brain sections were sealed with neutral resin. IgG images were collected using bright-field microscopy (Leica). The mean integrated optical density (IOD) of IgG was quantified using the immunohistochemistry Image Analysis toolbox of Image J software (NIH). For each mouse, four sections with 200 μm intersegment were evaluated and imaged at 4 fields in each section in the peri-hemorrhagic region.

Neurobehavioral tests

Neurobehavioral tests were performed according to a previously described procedure at 1, 3, 7, and 14 days after hemorrhagic stroke by an investigator blinded to experimental design and treatment.^22,23 The tests included modified neurological severity score (mNSS), elevated body swing test (EBST), rotarod test and grid walking test. mNSS consisted of a combination of motor, reflex, and balance tests. Severity scores ranged from 0 to 14, with 0 indicating normal and higher scores indicating more severe injury. ²²

EBST was used to assess asymmetric motor behavior. The mouse tail was lifted about 10 cm away from the platform, and the direction and frequency of the mouse head deviation from the vertical axis were recorded, 20 times in total. The results were calculated as the number of total turns divided by the number of turns to the left.

Rotarod test was used to assess balance, grip strength, and sensorimotor coordination. Mice were required to train for 3 consecutive days prior to surgery, with a slow increase in speed from 20 to 40 rpm/min in 5 min. After surgery, mice were tested at the indicated time points, 35 rpm/min for 5 min. 3 trials were performed for each mouse, and the time the mouse remained on the accelerated rotarod was recorded.

Grid walking test was used to assess impairments in descending motor control. The device consisted of a wire grid floor 32 cm/20 cm/50 cm (length/width/height) with 1 cm openings. Each mouse was placed individually in the center of the grid, allowed to freely explore the enclosure for 5 min, and behavior was recorded by a camera placed below. After viewing the images, the total number of limbs walking and the number of placement faults (foot faults) were counted. A fault was defined as a step where the paw was detached from the wire. The foot fault index was calculated as [(cont. faults-ipsi. faults)/total steps] ×100.

TdT-mediated dUTP nick end labeling (TUNEL) staining

The procedure of primary antibody staining in mouse brain or cells was consistent with the procedure of immunofluorescence staining. The following antibodies were used: goat anti-CD31 (1:200, AF3628, R&D), and rabbit anti-NeuN (1:200, abn78, Millipore). Next day, brain sections or cells were incubated for 1 h at RT with TUNEL reagent (Meilunbio) containing terminal deoxynucleotidyl transferase, fluorescent dUTP isothiocyanate, and fluorescent conjugated secondary antibodies. The slices were mounted with an anti-fluorescence quencher medium containing DAPI. Fluorescence images were collected at 40X magnification using inverted confocal laser-scanning systems (Leica). Four fields were imaged in peri-lesion areas in each slice, and four slices with 200 μm intersegment were counted for each mouse brain.

Flow cytometry and RT-PCR of CCR1, CCR3, CCR4, and CCR5 in CD4⁺ and CD8⁺ T cells

Neural Tissue Dissociation Kit-Papain (Miltenyi Biotec; San Diego, CA) was used to obtain the single-cell suspensions according to the supplier's protocol. In brief, mice were perfused with cold 1X DPBS buffer (Meilunbio), and the ipsilateral brain was harvested and mechanically homogenized. After thoroughly mixing the minced material with the lyase mixture, the mixture was placed on the machine and incubated at 37 °C for 22 min. After debris removal and red blood cell lysis using Debris Removal Solution (Miltenyi Biotec) and Red Blood Cell Lysis Solution (Miltenyi Biotec), single-cell suspensions were incubated with flow antibodies at 4 °C for 30 min. The following antibodies were used: Percp-cy5.5 anti-mouse CD45 (103132, Biolegend, San Diego, CA), APC anti-mouse CD4 (100411, Biolegend), FITC-anti mouse CD8 (100705, Biolegend), APC anti-mouse/human CD11b (101211, Biolegend), Brilliant Violet 421 anti-mouse CD11c (117329, Biolegend), PE anti-mouse Ly-6C (127606, Biolegend), FITC anti-mouse Ly-6G (128007, Biolegend) and Fixable Viability Stain 510 (564406, Biolegend). Multicolor flow cytometry was performed on flow cytometer (FACS Aria SORP, BD, San Jose, CA). The data were analyzed by fluorescence-activated cell sorting using Flowjo software. Set up the gate according to the control sample. CD4⁺ T cells, CD8⁺ T cells and CD45⁺CD4⁻/CD8⁻ cells were collected and the expressions of CCR1, CCR3, CCR4, and CCR5 on these cells were analyzed using Real time PCR.

Extraction of CD8⁺ T cells

EasySep Mouse CD8⁺ T Cell Isolation Kit (StemCell, Vancouver, Canada) was used to extract CD8⁺ T cells according to the supplier's protocol. In brief, spleens and lymph nodes were isolated from mice at 3 days after ICH. After transferring the cell suspension to a flow tube (Corning Incorporated, Corning, NY), 50 μL/mL Isolation Cocktail was added and incubated for 10 min at RT. The RapidSpheres™ (125 μL/mL) were vortexed for 30 sec in advance and incubated at RT for 5 min. The recommended medium was added to achieve a volume of 2.5 mL and the cells were incubated in the magnet for 2.5 min to obtain CD8⁺ T cells. Repeat this step 3 times. Finally, purified enriched CD8⁺ T cells were transferred into new tubes, counted and used for subsequent experiments.

Co-culture of bEnd.3 cells and T cells

bEnd.3 was obtained from Chinese Academy of Sciences stem cell bank. CD8⁺ T cells were obtained from spleen and inguinal lymph nodes of mice at 3 days after ICH. bEnd.3 cells were cultured under Dulbecco’s modified eagle medium (DMEM, HyClone, Logan, UT) supplemented with 10% (V/V) fetal bovine serum (FBS, Gibco, Carlsbad, NM) and 1% penicillin-streptomycin antibiotics (Gibco). When bEnd.3 cells and CD8⁺ T cells were co-cultured in the RPMI 1640 medium (Gibco) containing 10% FBS, 1% penicillin-streptomycin antibiotics, 2 mM glutamine, and 0.004% mercaptoethanol. bEnd.3 cells were seeded in 10 cm dishes. When cells were 80% confluent, they were digested and seeded into coverslips in 24-well plates, and CD8⁺ T cells were added to a transwell chamber (Millipore). To inhibit the activity of perforin/granzyme in CD8⁺ T cells, 0.2 mM EGTA (Shanghai Yuanye Bio-Technology Co., Ltd., Shanghai, China) was used to treat CD8⁺ T cells.

Viability of bEnd.3 cells was determined by CCK-8 assay (Meilunbio). After 24 h co-culture, CD8⁺ T cells and chambers were removed, and the medium was discarded. After washing with 1X PBS buffer, the medium containing 10% CCK-8 was added. After 30 min of incubation in the incubator, the medium was transferred to 96-well plates. Absorbance was measured at 450 nm using a microplate reader. Cells could be stored at 4 °C for 2 weeks after fixation with 4% PFA and used for TUNEL staining.

Statistical analysis

Sample sizes for animal studies were determined by a two-sided power analysis for the primary parameter with mean differences and standard deviations based on similar previously published results (power = 80%, a = 0.05).^24,25 All statistics were performed using Prism GraphPad 9 (GraphPad Software, San Diego, CA). Results were presented as mean±standard deviation (SD). The Kolmogorov-Smirnov normality test was initially performed on all datasets. For normally distributed continuous variables, comparisons between two groups were conducted by the two-tailed Student’s test (equal variances) or Welch’s t test (unequal variances), and comparing more than two groups with one independent variable was conducted by one-way analysis of variance (ANOVA) with Dunnett’s multiple comparisons test (all groups compared with a control group, equal variances) or with Tukey’s multiple comparisons test (comparisons between all groups, equal variances), or by Brown-Forsythe and Welch ANOVA tests with Dunnett T3 test (unequal variances). When comparing more than two groups with two independent variables, two-way ANOVA with Bonferroni multiple comparisons test was used. For continuous variables with non-normal distributions, the two-tailed Mann-Whitney test was used. In all analyses, p < 0.05 was considered statistically significant.

CCL5 was markedly increased in reactive astrocytes

Our previous transcriptomic study showed that many chemokines including CCL5, CCL7, CXCL5 etc. were upregulated in IL-1α, TNFα and C1q induced reactive astrocytes. ¹⁷ RT-PCR analysis verified these up-regulated and down-regulated genes (Figure 1(a) and (b)), which is consistent with previous findings that human fetal astrocytes secrete large amounts of CCL5 protein upon activation with IL-1β ²⁶ and that human astrocytoma cell lines, primary human and rat astrocytes all produce CCL5 upon incubation with TNFα/IL-1β. ²⁷

OPEN IN VIEWER

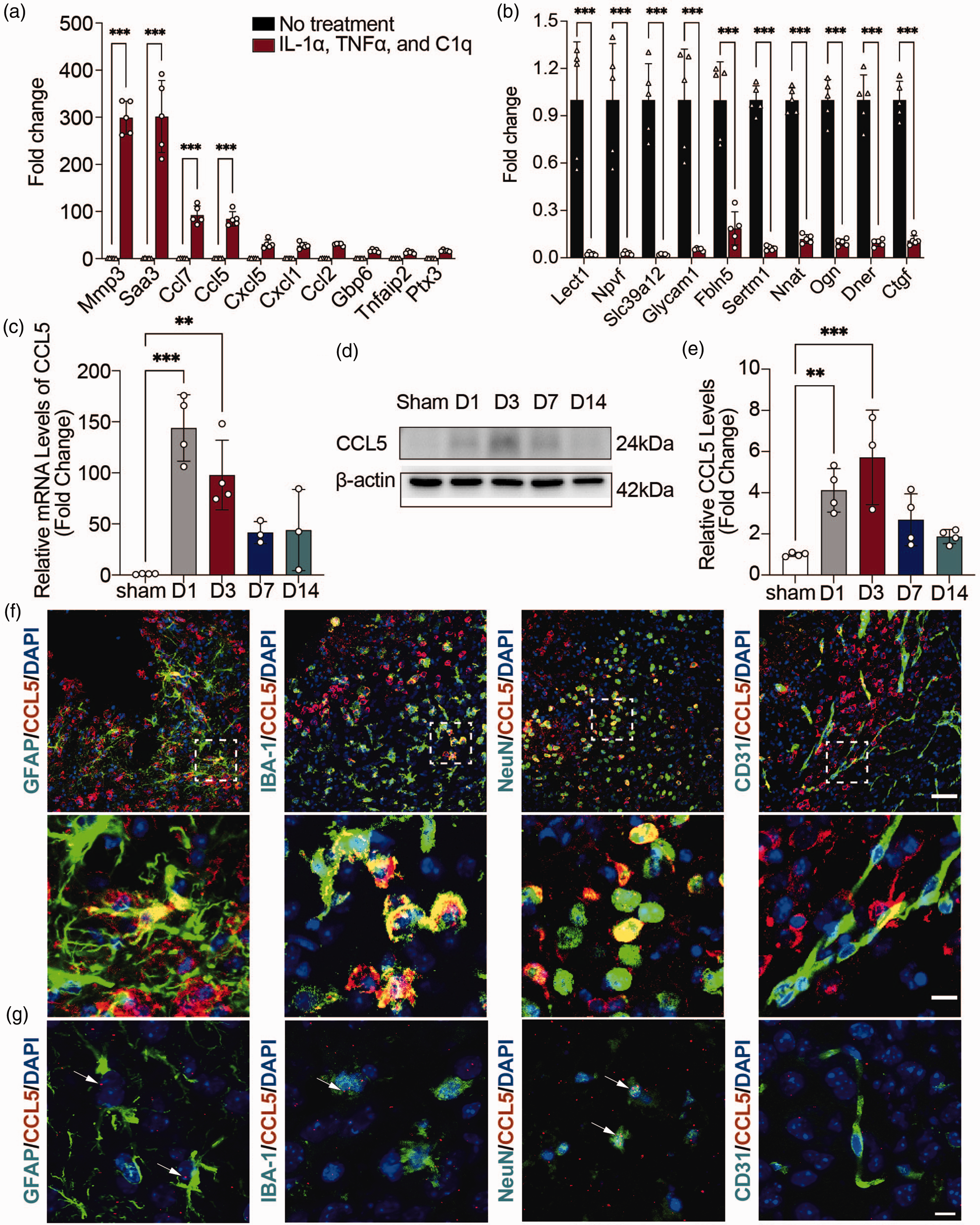

Figure 1.

CCL5 levels increased markedly in reactive astrocytes. (a, b) RT-PCR analysis of 10 upregulated (a) and downregulated (b) genes between reactive astrocytes and resting astrocytes. n = 5 biologically independent primary astrocytes cultures. GAPDH was used as an internal control. Two-way ANOVA with Bonferroni multiple comparisons test. (c) RT-PCR analysis of CCL5 mRNA expression levels in the hemorrhagic perifocal area at 1, 3, 7, and 14 days after ICH. n = 4 mice in Sham/D1/D3 groups (all male), n = 3 mice in D7 and D14 groups (all male). GAPDH was used as an internal control. One-way ANOVA with Dunnett’s multiple comparisons test. (d) Representative immunoblots of CCL5 protein expression levels in the hemorrhagic perifocal area at 1, 3, 7, and 14 days after ICH. (e) Quantification of CCL5 protein expression levels in the hemorrhagic perifocal area at 1, 3, 7, and 14 days after ICH. n = 4 mice in Sham/D1/D7/D14 groups (all male), n = 3 mice in D3 group (all male). β-actin was used as an internal control. One-way ANOVA with Dunnett’s multiple comparisons test. (f) Representative immunostaining images of CCL5 (red) with astrocytes (GFAP, green), microglia (Iba-1, green), neurons (NeuN, green), and ECs (CD31, green) in the hemorrhagic perifocal area at day 3 of ICH. Above scale bar = 50 μm, below scale bar = 10 μm and (g) Representative RNAscope images of CCL5 mRNA (red) with astrocytes (GFAP, green), microglia (Iba-1, green), neurons (NeuN, green), and ECs (CD31, green) in the hemorrhagic perifocal area at day 3 of ICH. Scale bar = 10 μm. Arrows indicated the colocalization of astrocytes, microglia, and neurons with CCL5 mRNA, respectively. All data are presented as mean ± SD. **p < 0.01, ***p < 0.001.

CCL5 is an important chemokine and plays a critical role in mediating immune cell migration.^{27 –29} Thus, we focused on investigating the role of CCL5 in mediating astrocyte-immune cell interaction. We first examined the expression of CCL5 at different time points after ICH. The results of RT-PCR and western blot showed that CCL5 was highly expressed in the brain at 1 and 3 days after hemorrhagic stroke (Figure 1(c) to (e)). To determine the cellular source of CCL5, immunofluorescence staining was performed. Co-staining of CCL5/GFAP, CCL5/NeuN, CCL5/Iba-1 and CCL5/CD31 revealed that CCL5 was expressed in astrocytes, neurons and microglia, but not in endothelial cells (Figure 1(f)). Subsequently, we utilized the RNAscope in situ hybridization combined with immunohistochemistry to further clarify the cellular localization of CCL5. Positive control and negative control were shown in Suppl. Fig. 1. The results showed CCL5 mRNA signal in GFAP⁺ astrocytes, IBA-1⁺ microglia, and Neun+ neurons, but not in endothelial cells (Figure 1(g)), which is consistent with immunostaining results.

Knockout of CCL5 in astrocytes reduced CD8⁺ T cells infiltration into hemorrhagic stroke brain

To investigate if astrocytic CCL5 induces the infiltration of peripheral immune cells to the brain, CCL5 was specifically knockout in astrocytes (Aldh1l1^CreERT2+/−: CCL5^f/f) and hemorrhagic stroke was induced (Suppl. Fig. 2A). Both RT-PCR and western blot results showed that the expression of CCL5 was decreased in Aldh1l1^CreERT2+/−: CCL5^f/f mice treated with tamoxifen, compared with oil-treated Aldh1l1^CreERT2+/−: CCL5^f/f mice (Suppl. Figs. 2B, C, D).

We then analyzed the number of different immune cells in the hemorrhagic hemisphere of Aldh1l1^CreERT2+/−: CCL5^f/f mice treated with tamoxifen (Tam ICH) or oil (Oil ICH), as well as Aldh1l1^CreERT2+/−: CCL5^f/f sham mice treated with tamoxifen (Tam Sham) or oil (Oil Sham) by flow cytometry. Flow cytometry results showed the number of CD8⁺ T cells (Figure 2(a)), CD4⁺ T cells (Figure 2(b)), dendritic cells (Suppl. Fig. 3A), monocytes (Suppl. Fig. 3B) and neutrophils (Suppl. Fig. 3B) in Oil Sham mice, Tam Sham mice, Oil ICH mice and Tam ICH mice. CD4⁺ T cells and CD8⁺ T cells were gated according to the fluorescence intensity of CD45, and then according to CD3, CD4 and CD8 fluorescence intensity, respectively (Suppl. Fig. 4A). Dendritic cells, monocytes, and neutrophils were gated according to the fluorescence intensity of CD45 and CD11b staining, then according to the fluorescence intensity of CD11c, and finally according to the fluorescence intensity of Ly6C and Ly6G for further analysis (Suppl. Fig. 4B). As shown in Figure 2(c) and (d), minimal CD8⁺ and CD4⁺ T cells were found in both Oil Sham and Tam Sham mice. After hemorrhagic stroke, the number of CD8⁺ T cells was reduced in Tam ICH mice compared with Oil ICH mice (Figure 2(c)), while the number of CD4⁺ T cells was comparable between Tam ICH mice and Oil ICH mice (Figure 2(d)). Similarly, there were no significant changes in other immune cells after ICH (Suppl. Figs. 3C, D, E, F). We also used unbiased method tSNE to quantify infiltrating T cells and myeloid cells in hemorrhagic stroke brain. Our results showed that the number of CD8⁺ T cells was reduced in Tam ICH mice (Suppl. Figs. 5A, B, C) compared with Oil ICH mice, while no difference in myeloid cells (Suppl. Figs. 5D, E, F).

OPEN IN VIEWER

Figure 2.

Knockout CCL5 in astrocytes reduced CD8⁺ T infiltration. (a, b) Representative flow cytometry pseudocolor dot plots showed gating strategy of CD8⁺ T cells (CD3⁺ CD8⁺) (a) and CD4⁺ T cells (CD3⁺ CD4⁺) (b) in Aldh1l1^CreERT2+/−: CCL5^f/f sham mice treated with oil (Oil Sham) or tamoxifen (Tam Sham), Aldh1l1^CreERT2+/−: CCL5^f/f hemorrhagic stroke mice treated with oil (Oil ICH) or tamoxifen (Tam ICH). (c, d) The count of CD8⁺ T cells (CD3⁺ CD8⁺) (c) and CD4⁺ T cells (CD3⁺ CD4⁺) (d) per 10000 cells in Oil Sham, Tam Sham, Oil ICH and Tam ICH groups. n = 3 mice in Oil Sham group and Tam Sham group (1 female, 2 male), n = 4 mice in Oil ICH group (1 female, 3 male), n = 4 mice in Tam ICH group (2 female, 2 male). One-way ANOVA with Tukey’s multiple comparisons test. (e) Representative immunostaining images of CD8⁺ T cells (red) in the hemorrhagic perifocal area at day 3 of ICH. Arrowheads indicate CD8⁺ T cells. The number of CD8⁺ T cells in Oil ICH and Tam ICH groups in the hemorrhagic perifocal area at day 3 of ICH. n = 4 mice per group (all male). Two-sided, unpaired Student’s test and (f) Representative immunostaining images of CD4⁺ T cells (green) in the hemorrhagic perifocal area at day 3 of ICH. Scale bar = 50 μm. Arrowheads indicate CD4⁺ T cells. The number of CD4⁺ T cells in Oil ICH and Tam ICH groups in the hemorrhagic perifocal area at day 3 of ICH. n = 4 mice per group (all male). Two-sided, Mann-Whitney test. All data are presented as mean ± SD. *p < 0.05, ns, no significance.

We further verified the infiltration of CD8⁺ T and CD4⁺ T cells in the injured site of brain by immunofluorescence staining (Figure 2(e) and (f)). Statistical results of immunofluorescence staining showed that the number of CD8⁺ T cells in the injury site was reduced in Tam ICH mice compared with Oil ICH mice (Figure 2(e)), while no significant change of the number of CD4⁺ T cells between Tam ICH and Oil ICH group (Figure 2(f)), which was consistent with the flow cytometry results. We also detected the expression of CCL5 receptors including CCR1, CCR3, CCR4 and CCR5 on CD4⁺ and CD8⁺ T cells through RT-PCR. The results showed that the expression of CCL5 receptors CCR5 and CCR1, but not CCR3 and CCR4 in CD8⁺ T cells was significantly higher than that in CD4⁺ T cells (Suppl. Fig. 6). This may explain different effects of astrocytic CCL5 in mediating the migration of CD4⁺ and CD8⁺ T cells (Suppl. Fig. 6).

Knockout of CCL5 in astrocytes attenuated BBB disruption and neurobehavioral deficits

To determine the role of astrocyte-derived CCL5 in regulating BBB integrity and neural function of mice after hemorrhagic stroke, we performed a variety of histological and neurobehavioral tests (Figure 3(a)). EB quantitative results showed that extravasation of EB was evident after ICH, whereas extravasation of EB was reduced in Tam ICH mice compared with Oil ICH mice (Figure 3(b)). We also examined IgG leakage to assess BBB integrity at day 3 after ICH. The location where IgG staining was taken is shown in the Suppl. Fig. 7. The results showed that IgG leakage was reduced in Tam ICH mice compared with Oil ICH mice (Figure 3(c)). Knockout of CCL5 in astrocytes reduced the loss of tight junction proteins ZO-1 and Occludin, as demonstrated by western blot analysis (Figure 3(d)) and immunofluorescence staining (Figure 3(e) and (f)). These results suggested that knockout of astrocytic CCL5 significantly alleviated BBB disruption in mice after hemorrhagic stroke.

OPEN IN VIEWER

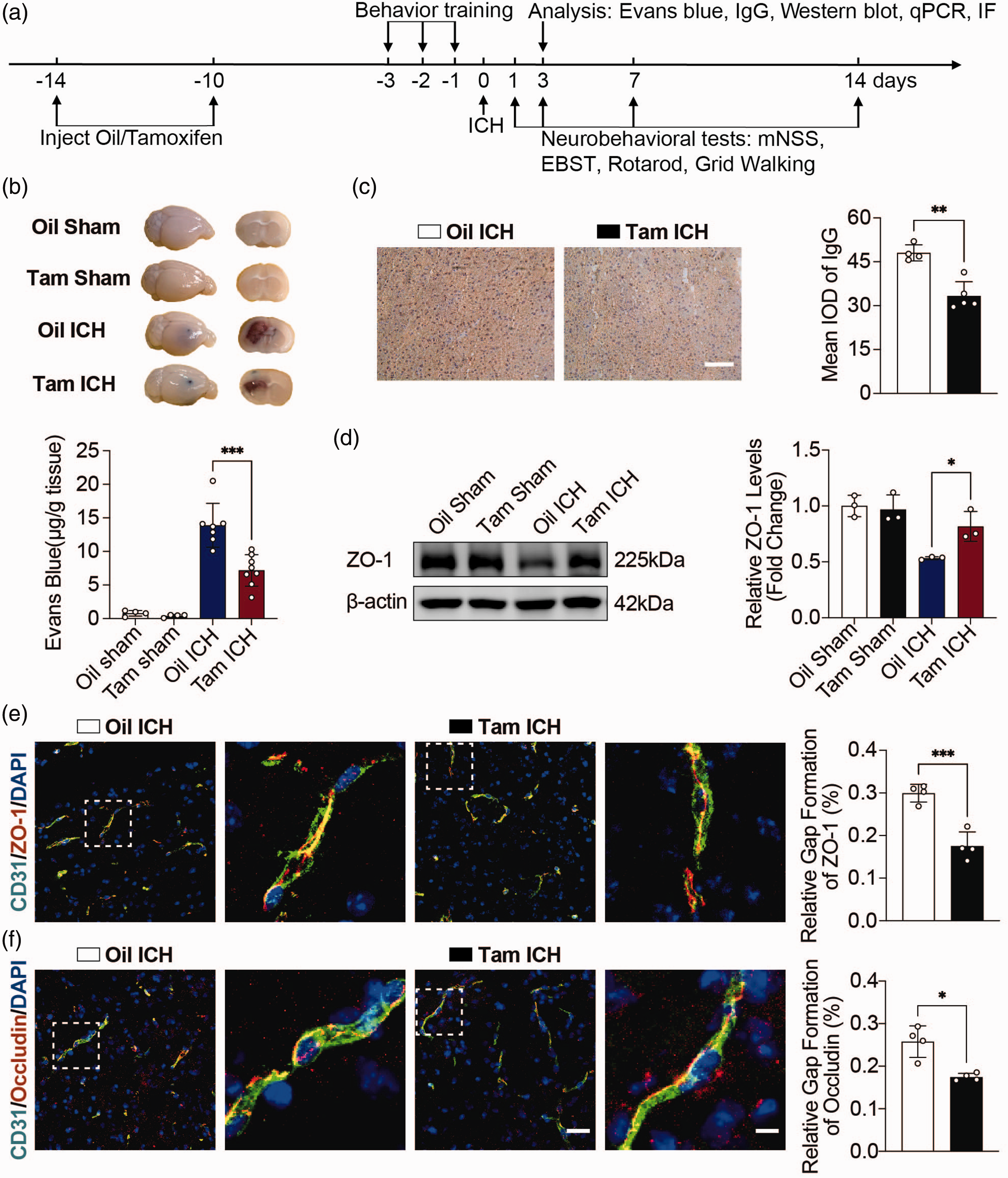

Figure 3.

Knockout CCL5 in astrocytes attenuated BBB damage. (a) Schematic diagram of the experimental design. mNSS, modified neurologic severity score; EBST, elevated body swing test; IF, immunofluorescent staining; IgG, immunoglobulin G. (b) Representative perfused whole brains and 2 mm brain sections after EB injection in Oil Sham, Tam Sham, Oil ICH and Tam ICH groups. Quantification of extravasated EB from brains after EB injection in Oil Sham, Tam Sham, Oil ICH and Tam ICH groups. n = 4 mice in Oil Sham and Tam Sham groups (1 female, 3 male), n = 7 mice in Oil ICH group (2 female, 5 male), n = 8 mice in Tam ICH group (2 female, 6 male). One-way ANOVA with Tukey’s multiple comparisons test. (c) Representative immunostaining images of IgG leakage in the hemorrhagic perifocal area at day 3 of ICH in Oil ICH and Tam ICH groups. Scale bar = 100 μm. Semi-quantification of IgG intensity in the hemorrhagic perifocal area at day 3 of ICH in Oil ICH and Tam ICH groups. n = 4 mice in Oil ICH group (2 female, 2 male), n = 5 mice in Tam ICH group (2 female, 3 male). Two-sided, unpaired Student’s test. (d) Representative immunoblots of ZO-1 protein expression levels in the hemorrhagic perifocal area at day 3 of ICH in Oil Sham, Tam Sham, Oil ICH and Tam ICH groups. Quantification of ZO-1 protein expression levels in the hemorrhagic perifocal area at day 3 of ICH in Oil Sham, Tam Sham, Oil ICH and Tam ICH groups. n = 3 mice per group (2 female, 1 male). β-actin was used as an internal control. One-way ANOVA with Tukey’s multiple comparisons test. (e) Representative immunostaining images of CD31 (green) and ZO-1 (red) in the hemorrhagic perifocal area at day 3 of ICH in Oil ICH and Tam ICH groups. Semi-quantification of gap length of ZO-1 in the hemorrhagic perifocal area at day 3 of ICH in Oil ICH and Tam ICH groups. n = 4 mice per group (2 female, 2 male). Two-sided, unpaired Student’s test and (f) Representative immunostaining images of CD31 (green) and Occludin (red) in the hemorrhagic perifocal area at day 3 of ICH in Oil ICH and Tam ICH groups. Left scale bar = 50 μm, right scale bar = 10 μm. Semi-quantification of gap length of Occludin in the hemorrhagic perifocal area at day 3 of ICH in Oil ICH and Tam ICH groups. n = 4 mice per group (Oil ICH group all male, Tam ICH group 1 female, 3 male). Two-sided, Welch’s t test. All data are presented as mean ± SD. *p < 0.05, **p < 0.01, ***p < 0.001.

To assess the effects of astrocytic CCL5 on the neurobehavior recovery of hemorrhagic stroke mice, we performed mNSS, EBST, rotarod test and grid walking test. We found that at 3, 7, and 14 days after ICH, Tam ICH mice had lower mNSS scores and better behavior in EBST compared with Oil ICH mice (Figure 4(a) and (b)). In addition, rotarod test showed that conditional knockout of CCL5 in astrocytes improved neurobehavioral recovery at 7 and 14 days after ICH compared with Oil ICH group (Figure 4(c)). Moreover, the Tam ICH group has better performance in grid walking test on 3^rd day of ICH compared with the Oil ICH group (Figure 4(d)). Taken together, these results showed that CCL5 knockout in astrocytes alleviated BBB disruption and improved neurobehavioral outcomes in hemorrhagic stroke mice.

OPEN IN VIEWER

Figure 4.

Knockout CCL5 in astrocytes improved neurobehavioral recovery in mice after ICH. (a–d) Neurobehavioral outcomes of Tam Sham, Oil Sham, Tam ICH and Oil ICH groups were assessed by four neurobehavioral tests including mNSS (a), EBST (b), rotarod test (c), and grid walking test (d). mNSS (a), EBST (b), rotarod test (c), n = 14 mice in Oil Sham, Oil ICH and Tam ICH groups (7 female, 7 male), n = 13 mice in Tam Sham group (7 female, 6 male). Grid walking test (d), n = 12 mice in Oil Sham and Tam Sham groups (6 female, 6 male), n = 9 mice in Oil ICH and Tam ICH groups (3 female, 6 male). Two-way ANOVA with Bonferroni multiple comparisons test. All data are presented as mean ± SD. *p < 0.05, **p < 0.01, ***p < 0.001.

We also examined neuronal apoptosis at 3 days after ICH by TUNEL staining. The experimental results showed that the number of apoptotic neurons in the astrocyte-specific CCL5 knockout mice was reduced compared with the control mice (Suppl. Figs. 8A, B), suggesting that specific knockout of astrocytic CCL5 had neuroprotective effects.

CD8⁺ T cells aggravated brain injury by inducing apoptosis of ECs in hemorrhagic stroke mice

Our above findings suggested that astrocytic CCL5 mediated the infiltration of CD8⁺ T cells into hemorrhagic brain, and inhibition of this process attenuated BBB disruption, leading us to hypothesize that CD8⁺ T cells may modulate BBB integrity after hemorrhagic stroke. TUNEL staining results showed that apoptosis of ECs was reduced in astrocytic CCL5 knockout mice compared with the control group (Figure 5(a)). Interestingly, transplantation of CD8⁺ T cells into Tam ICH mice but not Tam Sham mice increased apoptosis of ECs (Figure 5(b) and (c)), EB leakage (Figure 5(d)) and IgG leakage (Figure 5(e) and (f)), suggesting that CD8⁺ T cells disrupted BBB by inducing apoptosis of ECs.

OPEN IN VIEWER

Figure 5.

CD8⁺ T cells transplantation aggravated apoptosis of ECs. (a) Representative immunostaining images of CD31 (green) with TUNEL (red) in the hemorrhagic perifocal area at day 3 of ICH in Oil ICH and Tam ICH groups. Scale bar = 50 μm. Arrowheads indicate the colocalization of CD31 with TUNEL. Number of apoptotic ECs in the hemorrhagic perifocal area at day 3 of ICH in Oil ICH and Tam ICH groups. n = 4 mice per group (all male). Two-sided, Welch’s t test. (b) Representative immunostaining images of CD31 (green) with TUNEL (red) in the hemorrhagic perifocal area at day 3 of ICH in Tam Sham + CD8⁺ T, Tam ICH, and Tam ICH + CD8⁺ T groups. Scale bar = 50 μm. Arrowheads indicate the colocalization of CD31 with TUNEL. (c) Number of apoptotic ECs in the hemorrhagic perifocal area at day 3 of ICH in Tam Sham + CD8⁺ T, Tam ICH, and Tam ICH + CD8⁺ T groups. n = 4 mice per group (2 female, 2 male). One-way ANOVA with Tukey’s multiple comparisons test. (d) Representative perfused whole brains and 2 mm brain sections after EB injection in Tam Sham, Tam Sham + CD8⁺ T, Tam ICH and Tam ICH + CD8⁺ T groups. Quantification of extravasated EB from brains after EB injection in Tam Sham, Tam Sham + CD8⁺ T, Tam ICH, and Tam ICH + CD8⁺ T groups. n = 4 mice in Tam Sham and Tam Sham + CD8⁺ T groups (3 female, 1 male), n = 5 mice in Tam ICH group (3 female, 2 male), n =5 mice in Tam ICH + CD8⁺ T group (2 female, 3 male). One-way ANOVA with Tukey’s multiple comparisons test and (e) Representative immunostaining images of IgG leakage in the hemorrhagic perifocal area in Tam Sham, Tam Sham + CD8⁺ T, Tam ICH, and Tam ICH + CD8⁺ T groups. Scale bar = 100 μm. F. Semi-quantification of IgG intensity in the hemorrhagic perifocal area in Tam Sham, Tam Sham + CD8⁺ T, Tam ICH, and Tam ICH + CD8⁺ T groups. n = 4 mice per group (2 female, 2 male). One-way ANOVA with Tukey’s multiple comparisons test. All data are presented as mean ± SD. *p < 0.05, **p < 0.01, ***p < 0.001.

CD8⁺ T cells induce apoptosis of ECs via perforin and granzyme B

It is well documented that CD8⁺ T cells induce cell death through perforin and granzyme. ³⁰ Western blot showed that perforin and granzyme B were increased in hemorrhagic stroke mice, and decreased in astrocytic CCL5 knockout mice compared with the control group (Figure 6(a) to (c)).

OPEN IN VIEWER

Figure 6.

Inhibition of perforin reduced apoptosis of ECs. (a) Representative immunoblots of Perforin and Granzyme B protein expression levels in the hemorrhagic perifocal area in Oil Sham, Tam Sham, Oil ICH and Tam ICH groups. (b, c) Quantification of Perforin (b) and Granzyme B (c) protein expression levels in the hemorrhagic perifocal area in Oil Sham, Tam Sham, Oil ICH and Tam ICH groups. n = 3 mice per group (2 female, 1 male). β-actin was used as an internal control. One-way ANOVA with Tukey’s multiple comparisons test. (d) Statistics of bEnd.3 cells viability by CCK8 in Control, CD8⁺ T, CD8⁺ T + EGTA, and EGTA groups. n = 4 biologically independent bEnd.3 cell cultures. One-way ANOVA with Tukey’s multiple comparisons test. (e) Representative immunostaining images of CD31 (green) with TUNEL (red) in Control, CD8⁺ T, CD8⁺ T + EGTA, and EGTA groups. Scale bar = 50 μm. Arrowheads indicate the colocalization of CD31 with TUNEL and (f) Number of apoptotic bEnd.3 cells in Control, CD8⁺ T, CD8⁺ T + EGTA, and EGTA groups. n = 4 biologically independent bEnd.3 cell cultures. One-way ANOVA with Tukey’s multiple comparisons test. All data are presented as mean ± SD. *p < 0.05, **p < 0.01, ***p < 0.001.

Ca²⁺ chelator EGTA, a perforin inhibitor, can inhibit perforin to protect cells viability. ³¹ bEnd.3 cells were treated with 0, 0.05, 0.1, 0.2, 0.4, 0.5, 1, and 2 mM EGTA for 24 h, respectively, and the viability of bEnd.3 cells was tested by CCK-8. CCK-8 results showed that the viability of bEnd.3 cells was still up to 94.7% when the EGTA concentration was 0.2 mM. However, when the EGTA concentration was higher than 0.2 mM, the viability of bEnd.3 cells was significantly reduced (Suppl. Fig. 9A). Therefore, we chose 0.2 mM EGTA for further study.

To investigate the effects of CD8⁺ T cells on the viability of bEnd.3 cells in vitro, CD8⁺ T cells isolated from hemorrhagic stroke mice were co-cultured with bEnd.3 cells using transwell. bEnd.3 cells and CD8⁺ T cells were co-cultured at cell ratios of 1:2, 1:5, 1:10 and 1:20 for 24 h and 48 h, respectively. CCK-8 results showed that both CD8⁺ T and bEnd.3 cells were in the best condition when the cell ratio was 1:5 and co-cultured for 24 h (Suppl. Fig. 9B). Therefore, 1:5 cell ratio and 24 h co-culture were selected as the optimal cell ratio and time. CD8⁺ T cells and bEnd.3 cells were subsequently co-cultured for 24 h in the presence or absence of EGTA. CCK-8 results showed that CD8⁺ T cells decreased the viability of bEnd.3 cells, while EGTA inhibited the effect of perforin and promoted the viability of bEnd.3 cells (Figure 6(d)). TUNEL staining also showed that CD8⁺ T cells induced apoptosis of bEnd.3 cells, while EGTA inhibited the effect of perforin, which reduced the apoptosis of bEnd.3 cells (Figure 6(e) and (f)).
