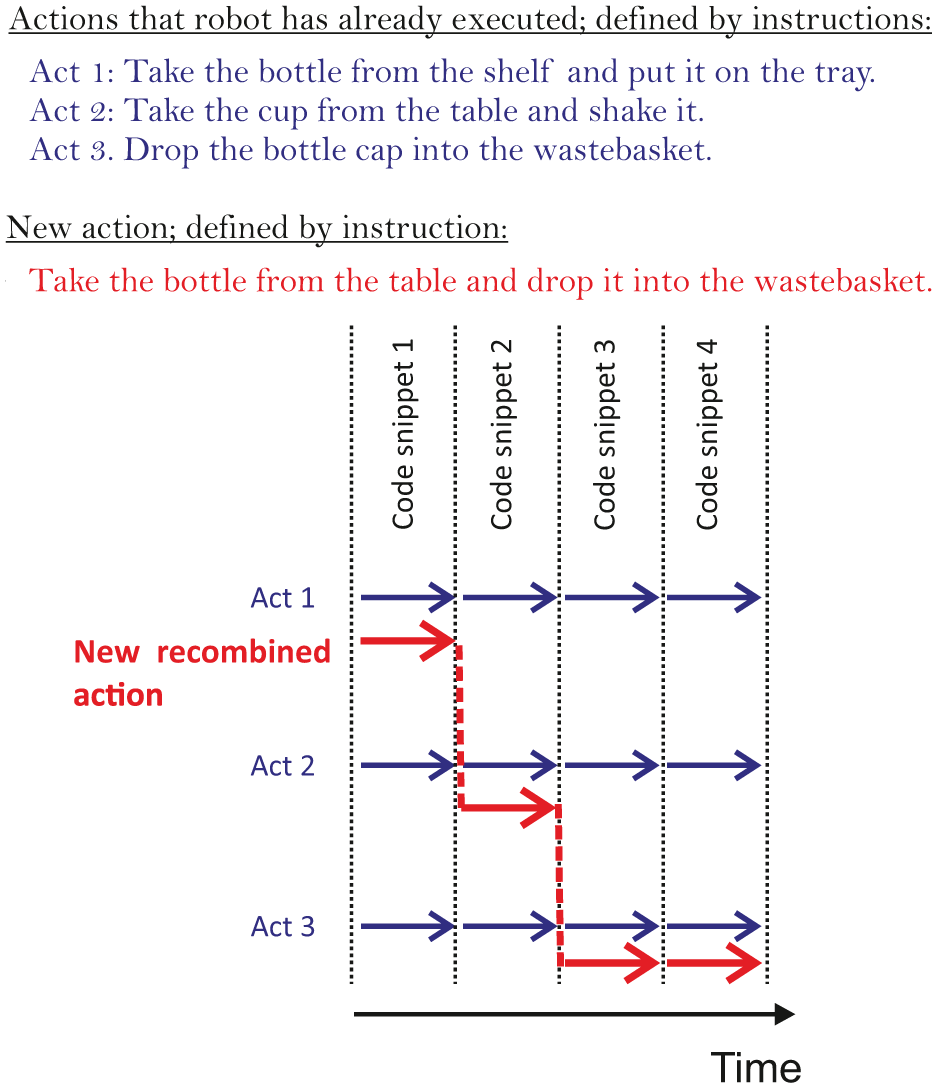

Cut & recombine: reuse of robot action components based on simple language instructions

3.1. Action temporal structure

We perform temporal action chunking at two different hierarchical levels: semantic event chain level and movement primitive level (see Figure 4 for visualization of those levels).

OPEN IN VIEWER

Fig. 4.

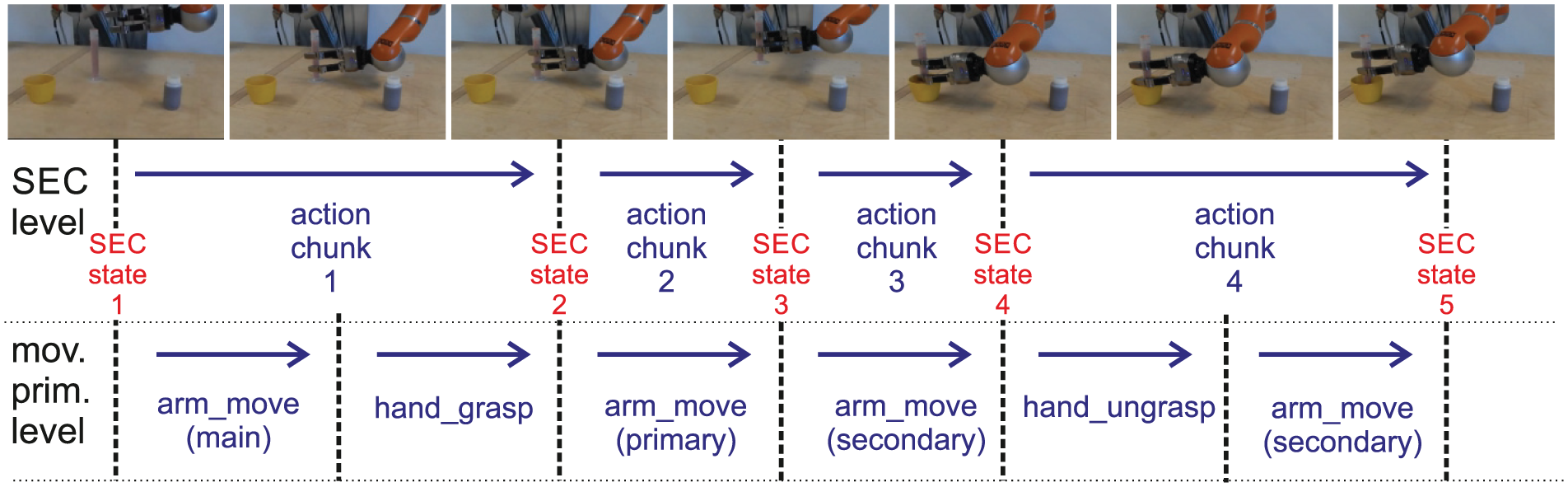

Temporal action structuring at two different hierarchical levels: semantic event chain (SEC) and movement primitives (mov. prim.). Video frames are taken for the instruction “Place the measuring beaker into a pot.” The SEC states (one to five) for this action are specified in more detail in Table 2. The full movement primitive sequence (here it was truncated at the ends for visualization purposes) is also given in the same table. The so-called object denominators are shown in parentheses under the movement primitives; this is explained in Subsection 4.2.

3.2. Object roles

To make the action model independent of specific objects, we define objects based on the roles that they play in the action. These roles are determined by the types of change in object relations during the manipulation. An action starts and ends with the manipulator not touching or holding anything. From this, we get the following roles in our model:

In addition, we introduce supports: main support, primary support, and secondary support, for the main, primary, and secondary objects, respectively. At the start, the relations of objects and their corresponding supports are touching ( T ). In every action, we have at least the manipulator and the main object. The existence of other object roles depends on the action. For example, in the action defined by the instruction “Push the bottle away from the tray”, the main object is the bottle and the primary object is the tray, while in the instruction “Pick the bottle from the shelf and place it on the tray”, three object roles have to be defined: the main object is the bottle, the primary object the shelf, and the secondary object the tray.

3.3. Action granularity

As mentioned, in our framework, the start and end of an action are clearly defined: an action starts and ends with a free manipulator, which means that the manipulator does not touch any other object. Between these two states, the manipulator approaches the main object, touches it, and performs the action. The reasoning behind defining atomic actions in this way is discussed at great length by Wörgötter et al. (2013). One advantage is that in this way we can divide a long demonstration into smaller meaningful actions in a reproducible way. We can also execute a long task by sequencing several smaller actions. In addition, such an action definition enables well-defined instruction-to-action mappings to be made, as described next.

3.4. Language link

We execute instructions, which are formulated using so-called “robotic action words”. These are action words that describe actions for which action templates exist in the action template library and, thus, are robot-executable in our system. The list of these actions is provided in Table 1. We also define as robotic action words the verbs defining parts of the action, such as pick up, fetch, and grasp. The central requirement for an instruction is that only action words from the robotic action list (or synonyms) are used, e.g., “Pick up the bottle and place it on the tray”, “Shake the bottle”, and “Shake the bottle and place it on the tray” would all be valid instructions within our requirements. We do not compile instructions if they are given using action words for which the property “robotic” is false (outside the list). E.g. “Throw away the empty bottle” has an action word throw away that is not in the “robotic action list” and thus would not be compiled. Such an instruction, alternatively, can be expressed using robotic action words, e.g. “Drop the empty bottle into the wastebasket”; if the wastebasket has a lid, the task can be extended into a sequence of instructions: “Put the wastebasket lid on the table”,“Drop the empty bottle into the wastebasket”, and “Put the wastebasket lid on the wastebasket”.

OPEN IN VIEWER

Table 1.

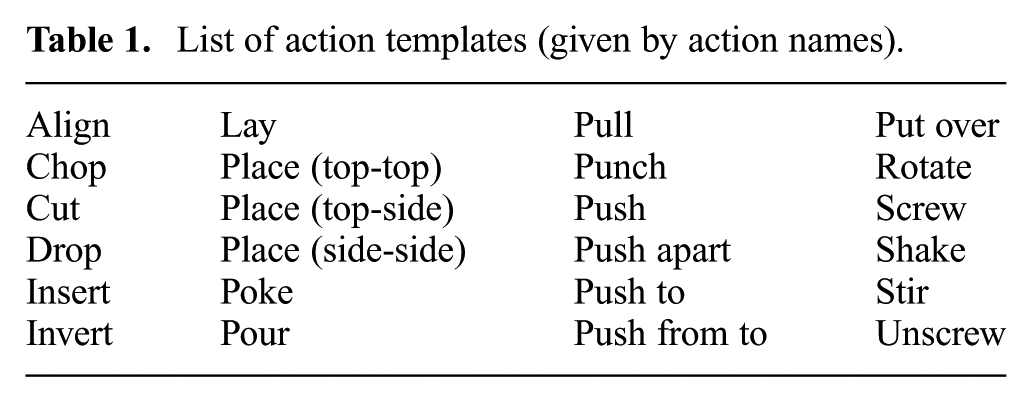

List of action templates (given by action names).

Align	Lay	Pull	Put over
Chop	Place (top-top)	Punch	Rotate
Cut	Place (top-side)	Push	Screw
Drop	Place (side-side)	Push apart	Shake
Insert	Poke	Push to	Stir
Invert	Pour	Push from to	Unscrew

As shown in these examples, we allow more than one robotic action word to be mentioned in the instruction. To resolve this ambiguity, we define the action word property “central”. This is the action word based on which the action template is chosen for execution. Thus, this action word must not be omitted in the instruction. In the examples containing two action words, “Pick up the bottle and place it on the tray” and “Shake the bottle and place it on the tray”, the central action words are place (first instruction) and shake (second instruction), respectively. The remaining action words in the instruction, we call “supportive”. The action words that do not have separate action templates ( pick or grasp ) are always supportive, while the action word place plays the role of the central action word in the first instruction but the role of the supportive action word in the second instruction.

ADTs are only labeled with respect to the central action word in the instruction. The central and supportive action words are distinguished in the instruction parsing procedure, as described in Section 5.1.

4.1. Data structure 1: instruction ontology

To form the instruction ontology, we use WordNet (Miller et al., 1990) subsets separately for action words and object names. In this study, we are mainly interested in WordNet synsets, that is, groups of synonym words, which allow us to resolve synonymy in the instructions (e.g., we want action words put and place in the instructions to be treated as the same word). The WordNet subset for action words was formed manually (by choosing robotic-action-compatible verb senses), based on the action template names existing in the action template library (see Table 1) and expanded by action names extracted from a set of sample instructions. Sample instructions were obtained using video transcriptions, either readily provided on the Internet (eleven videos) or transcribed by a small group of human participants (four videos transcribed by three participants). The video transcripts were needed to discover frequently used alternative formulations for descriptions of actions from the action template library, e.g. the action word insert into in a robotic sense is a synonym of insert, but this relation is not provided in WordNet. We used a combination of videos from robotic assembly of small parts and chemical laboratory operations. By using such a combination, we could cover the range of most frequent everyday actions (e.g., place, insert, and turn were shown in the industrial assembly videos, while pour, shake, screw, unscrew, and invert were typical for the chemical experiment videos). We added the earlier described binary-valued action properties “robotic”, “central”, and “supportive” to the action words in the ontology. Finally, the ontology was fine-tuned using the a sample of 250 instructions from a set of 500 instructions that we had created for evaluating our procedures in this study. The instructions were created by a group of three people who knew the language limitations for instructing the robot but did not have knowledge of the inner workings of the symbolic processing employed in this study.

For the object ontology, object names were taken from the sample instruction sets. Here again, the appropriate senses of nouns were chosen and WordNet subsets corresponding to those senses were extracted. All in all, we were working with an ontology having 67 action classes (113 action names, when considering synonyms) and 305 object classes. While these numbers seem small, it should be noted that for manipulation on a table top in the kitchen, chemical laboratory, or small industrial assembly not many more actions exist. Object classes can be easily extended to give many more actions; however, these were not yet needed for our experiments.

Action and object names in the ontology were linked to the ADTs. We organized this link by providing metadata for the ADTs contained in the database. Metadata introduce the relation between the ADT file name and the following set of names: central action and main, primary, and secondary objects in the ADT. This allows tracking back of which ADTs are associated to a given action or object name appearing in the instruction ontology.

4.2. Data structure 2: action templates

Action templates are abstract action encodings following the action model described in Section 3. One action template represents one action (and its synonyms). Action templates are based on the action library developed by Aein et al. (2013). In our work, we used 24 action templates from the manipulation action ontology presented by Wörgötter et al. (2013) (see Table 1). Note, as discussed next, that these action templates form rigorous scaffolds for the different actions, to allow allocation (and recombination of) snippets.

In an action template, we provide a sequence of SEC-based action chunks and a sequence of movement primitives in each SEC-defined chunk, based on abstract object roles (main, primary, secondary, etc.). An example of an action template for the action place is given in Table 2 (note that we label actions according to the central action word; thus, for consistency, we will be using action name place instead of the more frequently used pick & place). Let us explain the notation in the table in detail.

OPEN IN VIEWER

Table 2.

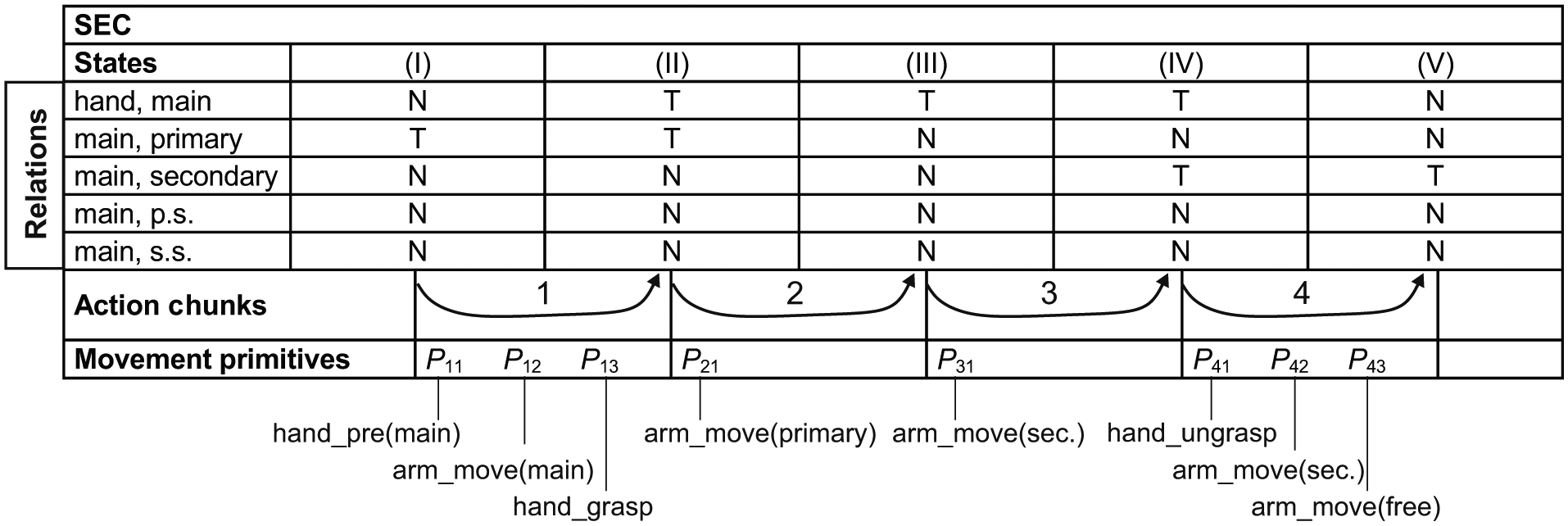

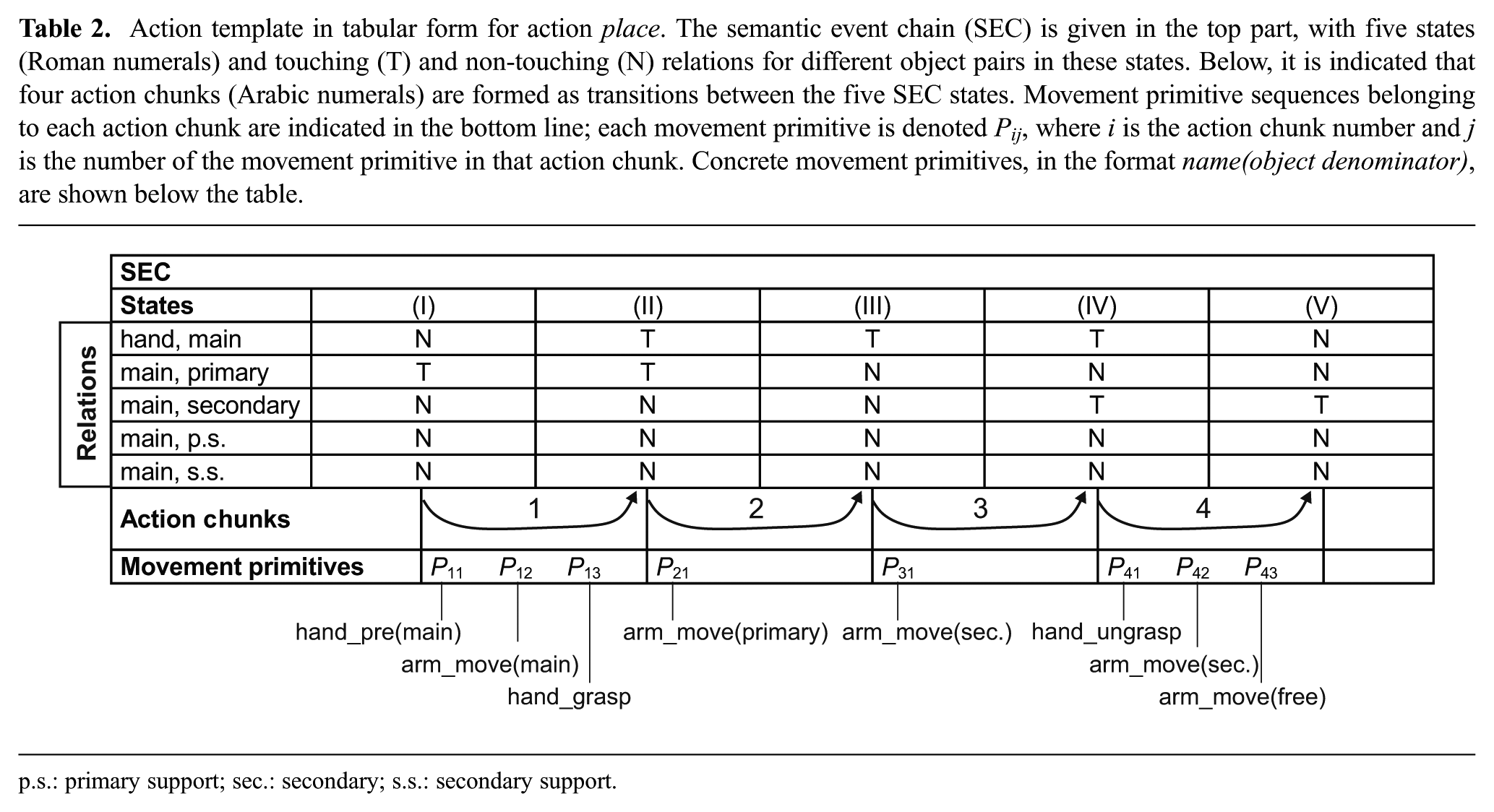

Action template in tabular form for action place. The semantic event chain (SEC) is given in the top part, with five states (Roman numerals) and touching (T) and non-touching (N) relations for different object pairs in these states. Below, it is indicated that four action chunks (Arabic numerals) are formed as transitions between the five SEC states. Movement primitive sequences belonging to each action chunk are indicated in the bottom line; each movement primitive is denoted P ij , where i is the action chunk number and j is the number of the movement primitive in that action chunk. Concrete movement primitives, in the format name(object denominator), are shown below the table.

p.s.: primary support; sec.: secondary; s.s.: secondary support.

In the upper part of the table, the SEC information is provided: that is, information of touching (T) and un-touching (or non-touching, N) of object pairs throughout the action. The leftmost column shows the object pairs for which the SEC relations are calculated. Objects are given in an abstract way, according to their roles. All other columns show a single SEC state each, where the transitions between two SEC states are the action chunks.

Beneath each SEC column in the table, we show the sequence of movement primitives required to perform the action chunk. We indicate the sequence of movement primitives by labels ( P 11 , P 12 , P 13 , etc.), and below we specify the movement primitive name and the object denominator indicated in the brackets.

In the action template, we only consider movement primitives at the symbolic level (i.e., only movement primitive names are given, where the movement primitive set that we used is indicated in Table 3). For real execution, all movement primitives must have control level parameters, as indicated in the second column in Table 3. These control level details are not indicated in the action template. Note that the movement primitive list we are using is quite standard, as arm-hand systems often use a similar movement primitive list (Aksoy et al., 2016; Manschitz et al., 2014; Stenmark et al., 2015).

OPEN IN VIEWER

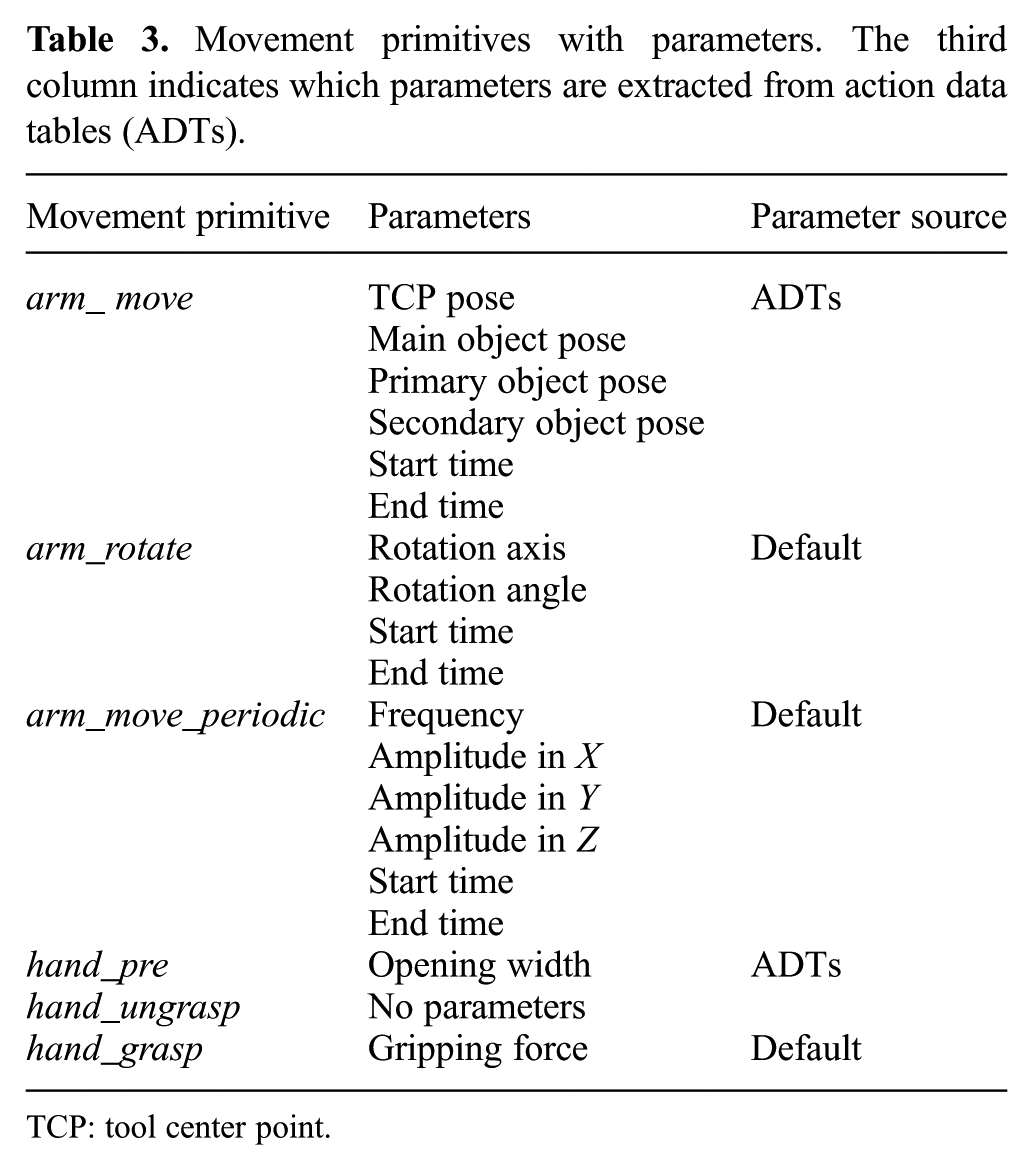

Table 3.

Movement primitives with parameters. The third column indicates which parameters are extracted from action data tables (ADTs).

Movement primitive	Parameters	Parameter source
arm_ move	TCP pose	ADTs
	Main object pose
	Primary object pose
	Secondary object pose
	Start time
	End time
arm_rotate	Rotation axis	Default
	Rotation angle
	Start time
	End time
arm_move_periodic	Frequency	Default
	Amplitude in X
	Amplitude in Y
	Amplitude in Z
	Start time
	End time
hand_pre	Opening width	ADTs
hand_ungrasp	No parameters
hand_grasp	Gripping force	Default

TCP: tool center point.

The object denominators (main, primary, secondary, or free, given in Table 2 in parentheses) are provided for movement primitives arm_move and hand_pre, where the latter is the pre-shaping of the hand. Object denominators specify which objects are to be dealt with by a certain movement primitive and are used to enable linking to the actual objects, as given in existing ADTs. Thus, for example, in the action template, the object denominator main provides information that the robot arm movement has to be interpreted with respect to the main (and not any other) object.

The relational meanings of the object denominators primary and secondary are given in Table 4. We also use the object denominator free, which specifies that the movement primitive is independent of objects in the scene. In the context of the movement primitive hand_pre, we used an object denominator to declare pre-grasp width; see the last line in Table 4. Some movement primitives in our setting (e.g., hand_grasp and hand_ungrasp) are parameter-free and thus require no object denominators.

OPEN IN VIEWER

Table 4.

Relations expressed by object denominators.

Object denominator	ADT information to be reused
main in arm_move	Relation between TCP and main
	object
primary in arm_move	Relation between main and
	primary object
secondary in arm_move	Relation between main and
	secondary object
free in arm_move	Movement is object-independent
main in hand_pre	Pre-grasp width, defined by
	main object

ADT: action data table; TCP: tool center point.

4.3. Data Structure 3: Action Data Tables(ADTs)

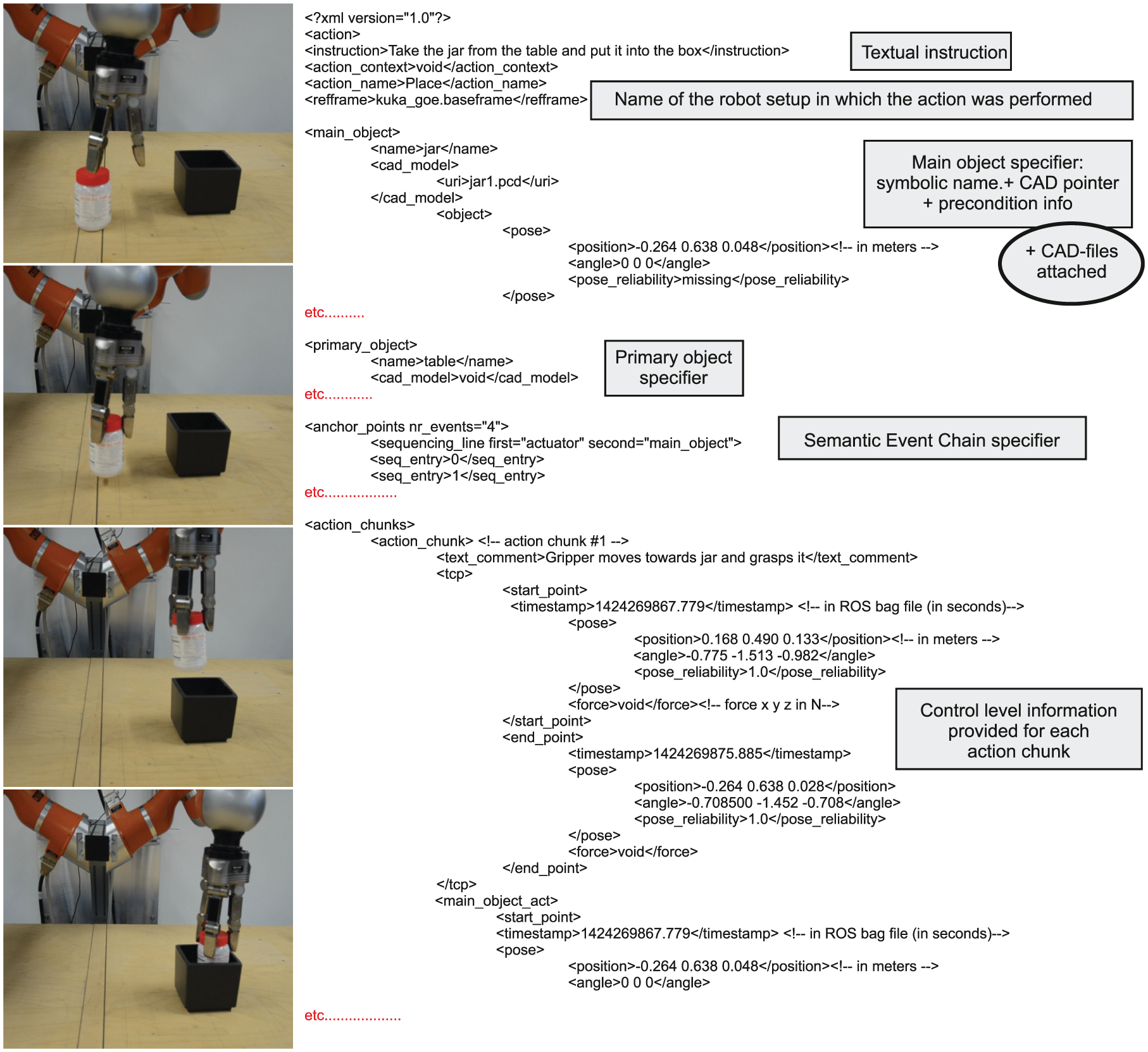

The ADT is a data structure that provides control level information as well as the symbolic-to-control link. An ADT consists of a header and body and is coded in XML. In the ADT header, the following items are provided:

In the ADT body, action chunk and movement primitive information is provided at control level. The ADT body is structured on the basis of action templates and keeps the following information for each action chunk:

All information in the ADT is given in absolute coordinates. Thus, ADT information can only be reused directly in the same setup. To adapt to different setups, relative information between different entities represented in the ADT must be extracted. This can be achieved via coordinate transforms.

5.1. Symbolic processing

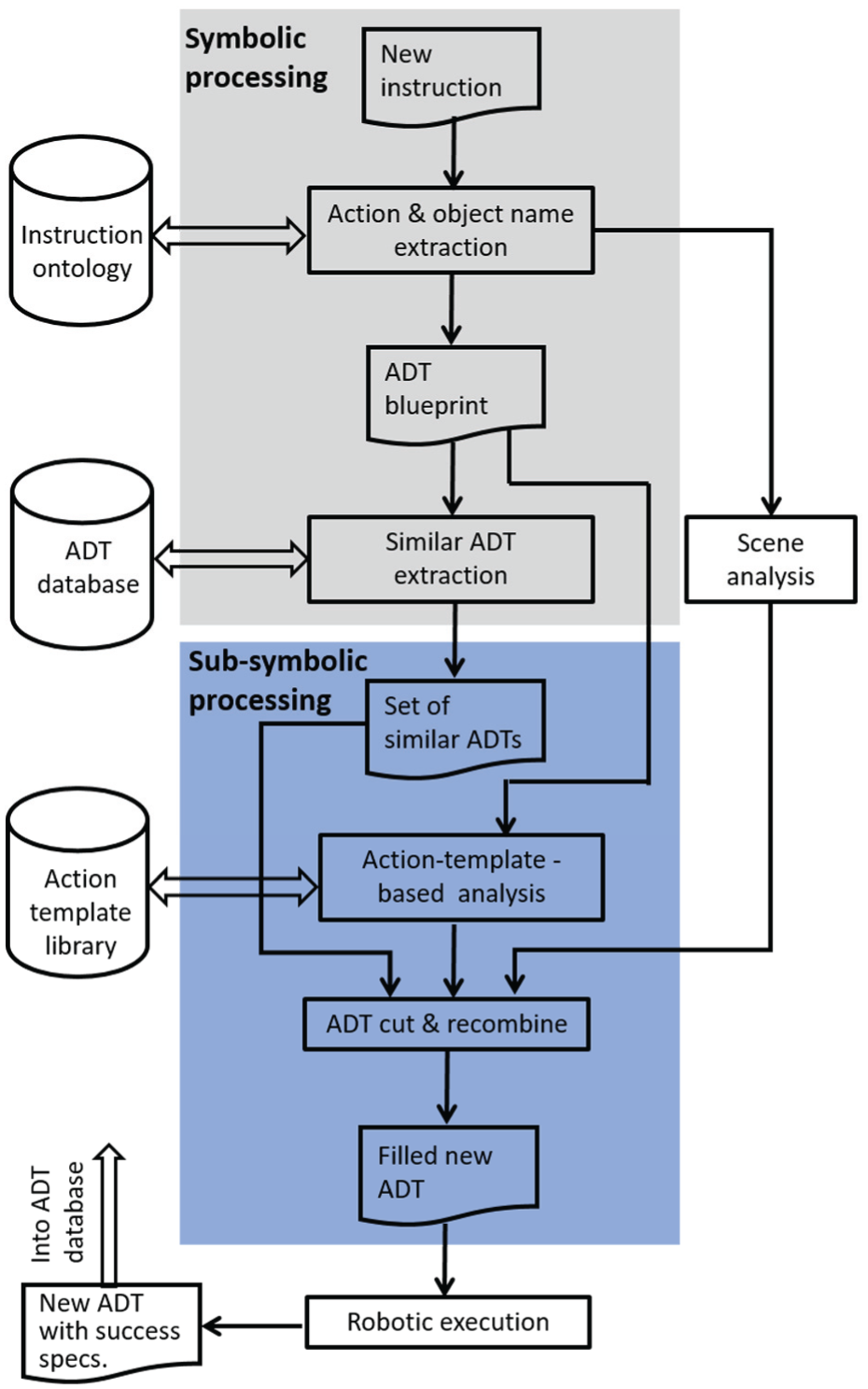

The symbolic processing has two parts: (1) parsing the provided instruction for action and object name and role extraction and (2) finding similar existing ADTs according to the extracted action and object names.

Action and object name extraction is based on instruction syntactic analysis. Syntactic annotation is performed using the Stanford Parser (de Marneffe and Manning, 2008). Parsing errors are corrected using a dictionary of predefined syntactic roles, which are extracted from a reference set. Parsing errors occur because the Stanford Parser is not adapted to instruction parsing. Obtained dependency tree nodes are then analyzed by matching them with Semgrex patterns (Chambers et al., 2007): head-dependent relations are recognized using predefined regular expressions.

To parse a syntactic dependency tree, we use the modified Breadth First Search (BFS) algorithm, which includes static combinational logic blocks (Nivre and Nilsson, 2005). We assume that a parsed sentence is a directed acyclic graph of words. Each word, depending on its syntactic role, activates a set of logic rules, which are then used to process further tree nodes. The sequence of rule execution is important and proceeds down the rooted tree. First, we identify the central action, then the main object, and, finally, the primary and secondary objects. Our algorithm performs the following steps:

OPEN IN VIEWER

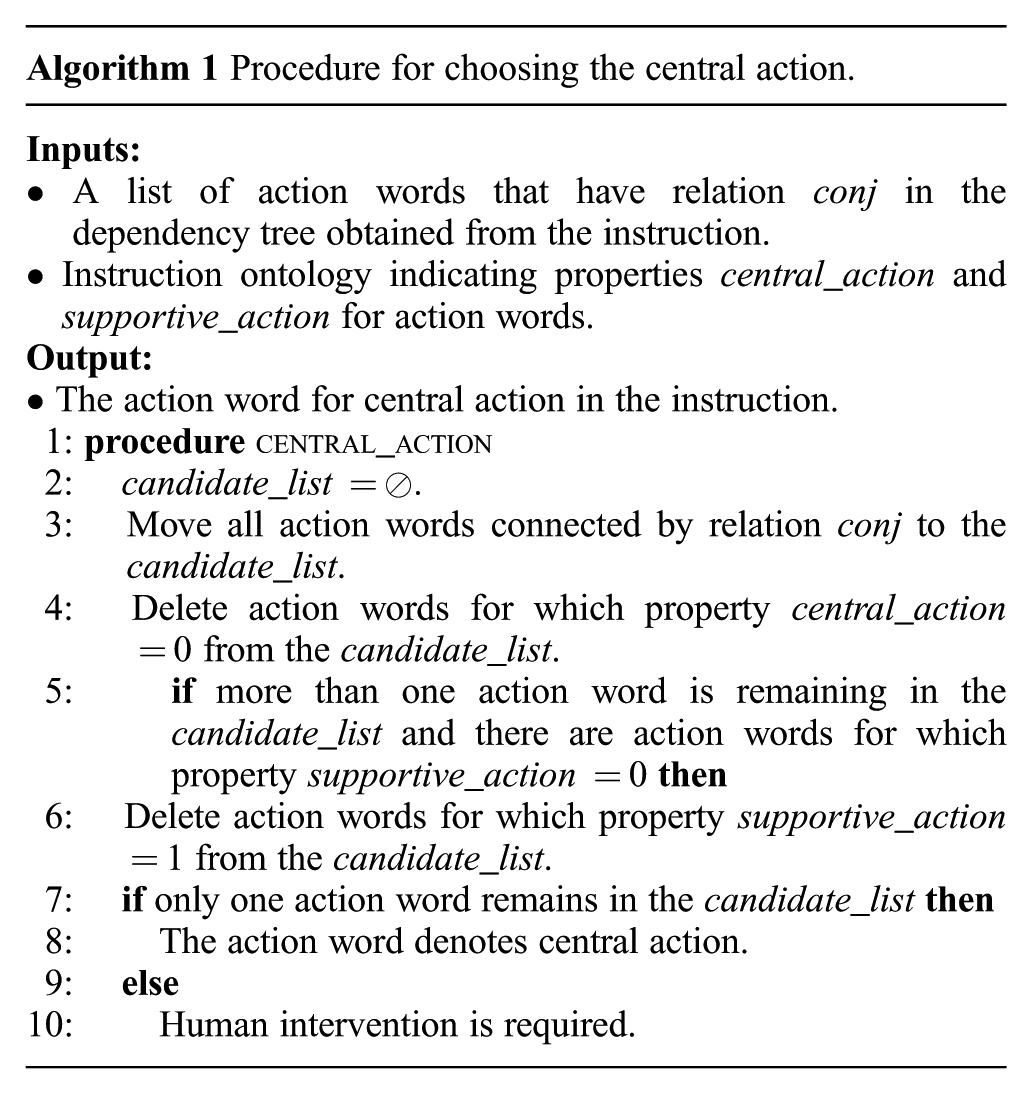

Algorithm 1 Procedure for choosing the central action.
Inputs:
• A list of action words that have relation conj in the dependency tree obtained from the instruction.
• Instruction ontology indicating properties central_action and supportive_action for action words.
Output:
• The action word for central action in the instruction.
1: procedure Central_action
2:  candidate_list = ø.
3:  Move all action words connected by relation conj to the candidate_list.
4:  Delete action words for which property central_action = 0 from the candidate_list.
5:   if more than one action word is remaining in the candidate_list and there are action words for which property supportive_action = 0 then
6:  Delete action words for which property supportive_action = 1 from the candidate_list.
7:  if only one action word remains in the candidate_list then
8:   The action word denotes central action.
9:  else
10:   Human intervention is required.

After extracting action and object names, we record them in the otherwise empty ADT, in this way producing an ADT blueprint. In addition, based on the extracted names, a set of ADTs is extracted from the database, where at least one of the symbolic names matches. These are candidate ADTs for extracting control information in the sub-symbolic processing phase.

5.2. Sub-symbolic processing

Here, we recombine information from existing ADTs into a new ADT for a new instruction. Two stages of processing are used:

The action template usage in the algorithm is twofold. First, an appropriate action template is used to extract the movement primitive sequence required for execution of the new instruction. Second, abstract movement primitive replacement lists are formed based on action templates. Searching for concrete control details (snippets in the existing ADTs) is then based on those lists.

Here, we show by an example what is meant by movement primitive sequence extraction and then proceed to a detailed description of the action-template-based analysis. For example, for the instruction “Drop the bottle into the wastebasket”, we would use the action template for the action drop (Table 5), where the following movement primitive sequence is given: hand_pre(main), arm_move(main), hand_grasp, arm_move(prim.), arm_move(sec.), hand_ungrasp, arm_move(free). Object denominators are shown in the parentheses. The movement primitives without object denominators (here, hand_grasp and hand_ungrasp) are parameter-free, thus, no information from previous execution is needed. The movement primitives with object denominators (all others) require snippet extraction from the existing ADTs; a detailed explanation of this procedure is given next.

OPEN IN VIEWER

Table 5.

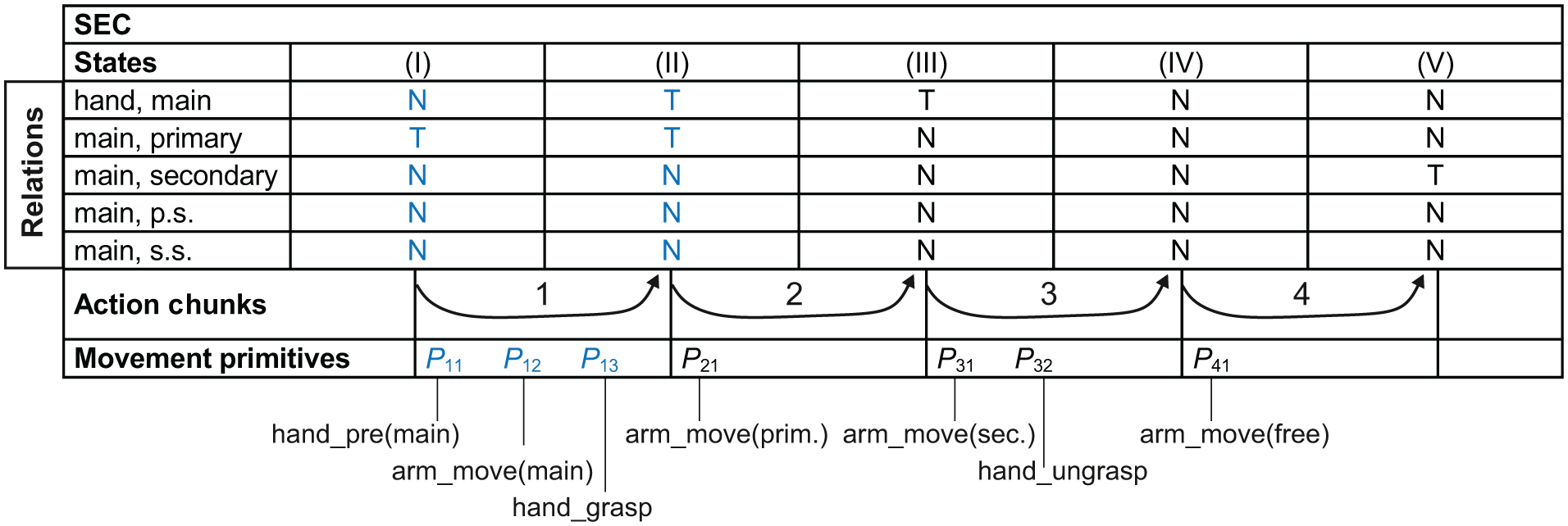

Action template in tabular form for action drop with the neighborhood of movement primitive P 12 indicated in blue. Table reads as follows: in the top part, the semantic event chain (SEC) is given with five states (Roman numerals) and touching (T) and non-touching (N) relations shown for different object pairs in these states. Below, it is indicated that four action chunks (Arabic numerals) are formed as transitions between the five SEC states. In the bottom line, movement primitive sequences for each action chunk are indicated; each movement primitive is denoted P ij , where i is the action chunk number and j is the number of the movement primitive in that action chunk. Concrete movement primitives in the format name(object denominator) are shown below the table.

prim.: primary; p.s.: primary support; sec.: secondary; s.s.: secondary support.

5.2.1. Action-template-based analysis

This analysis is based on the similarity of so-called neighborhoods of movement primitives within different actions. Specifically, we consider the self-inclusive temporal neighborhood, both at the level of the movement primitive sequence and at the higher hierarchical level of semantic event chain states. ² An example of the neighborhood of a movement primitive P 12 is given in Table 5 using blue font. The exact procedure of the neighborhood definition is given in the appendix.

We assume that a movement primitive of one action can be replaced by the movement primitive of the same or a different action where the neighborhoods of the movement primitives match. Let us show by an example that reuse of movement primitives from a different action is also viable. Let us assume that we have an ADT for the instruction “Place the bottle on the shelf” (the action template for place is provided in Table 2) and that the new instruction is “Drop the bottle into the wastebasket” (the action template in Table 5). One can observe that the emphasized neighborhood of movement primitive arm_move(main) for the action drop (Table 5) corresponds to the neighborhood of the analogous movement primitive arm_move(main) in the action template for the action place. Thus, we include the movement primitive arm_move(main) from action place in the replacement list of the movement primitive arm_move(main) for the action drop. This corresponds to human judgment that one can most probably approach the bottle with the arm for dropping it the same way as the bottle has been approached for the place action.

Now we will proceed to the algorithmic details of formation of the movement primitive list for potential use in a new ADT. The algorithmic procedure is shown in Figure 5. The procedure is as follows:

First, we extract a set of all possible movement primitive neighborhoods from the action template library (Figure 5(a)).

Then we extract the action template indicated in the ADT blueprint by the central action name and extract movement primitives in a sequence from that template (Figure 5(b)).

For each of the movement primitives in the action template for the new action, we extract the neighborhood.

Finally, we search the entire extracted set of neighborhoods for matches with the neighborhood of the new action movement primitive (right side of Figure 5).

OPEN IN VIEWER

Fig. 5.

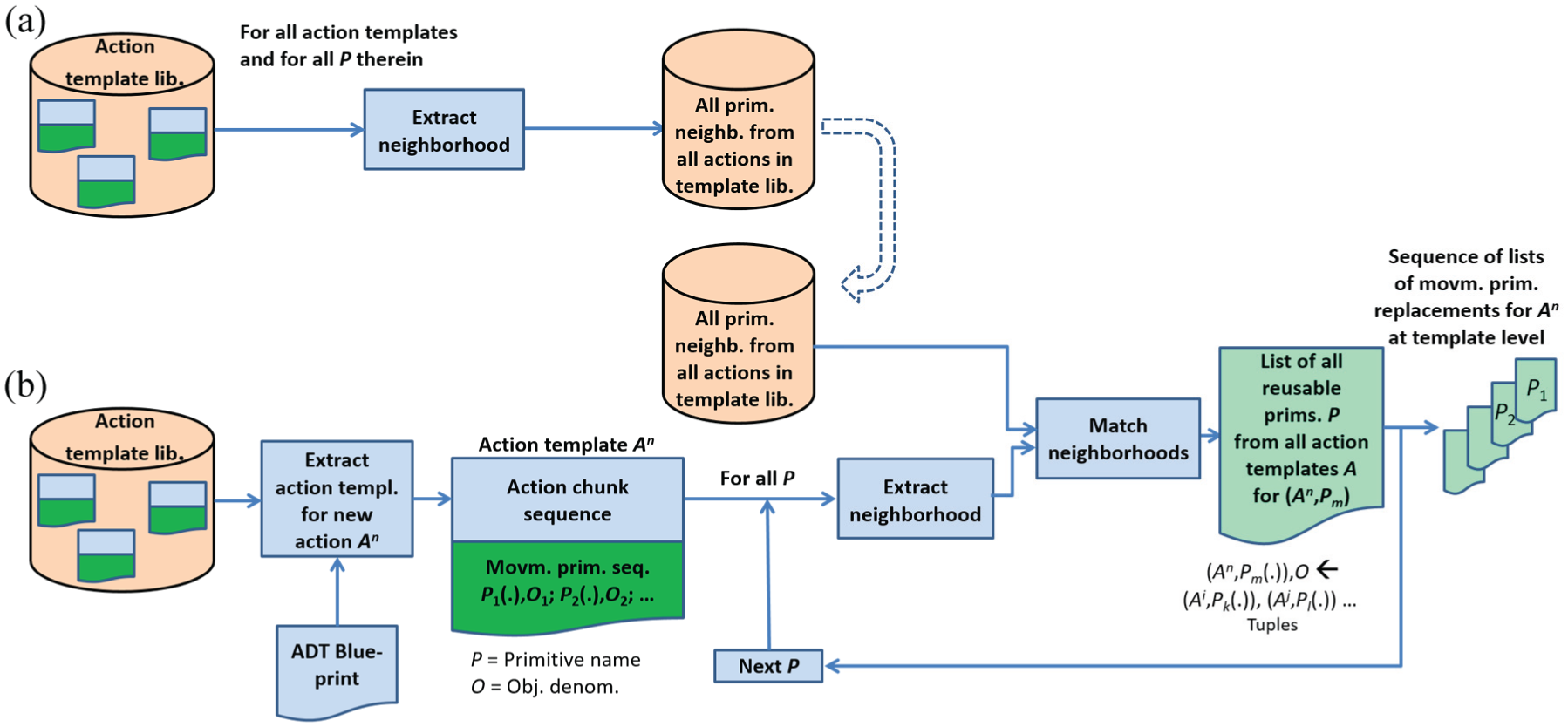

Action-template-based replacement list formation. (a) Extraction of movement primitive neighborhoods from all action templates. (b) Movement primitive replacement list formation procedure. The inputs are the ADT blueprint, the action template library, and the set of all movement primitive neighborhoods extracted in part (a). The output is the sequence of lists of movement primitive replacements indicated on the right. The notation P 1 ( . ) , P 2 ( . ) , P m ( . ) means symbolic movement primitive names without concrete parameters. Movement primitives here are labeled by a single index (as opposed to the double-index used elsewhere in the paper) to simplify the notation. A n labels the new action. The object denominator O for A n is saved together with the replacement list.

In this way, we make a list of possible replacements for each movement primitive of the new action. An example of the result of this procedure is given in Table 6, where the replacement list for the movement primitive drop ( 1 , 2 ) is shown. Pairs of indexes indicate: (number of the action chunk, number of movement primitive in the action chunk). Clearly, the movement primitive can be replaced by the same movement primitive from the same action drop, but it can also be replaced by movement primitives from actions insert, lay, place, etc. We make such replacement lists for all movement primitives requiring replacements in the new action, as shown on the right side of Figure 5.

OPEN IN VIEWER

Table 6.

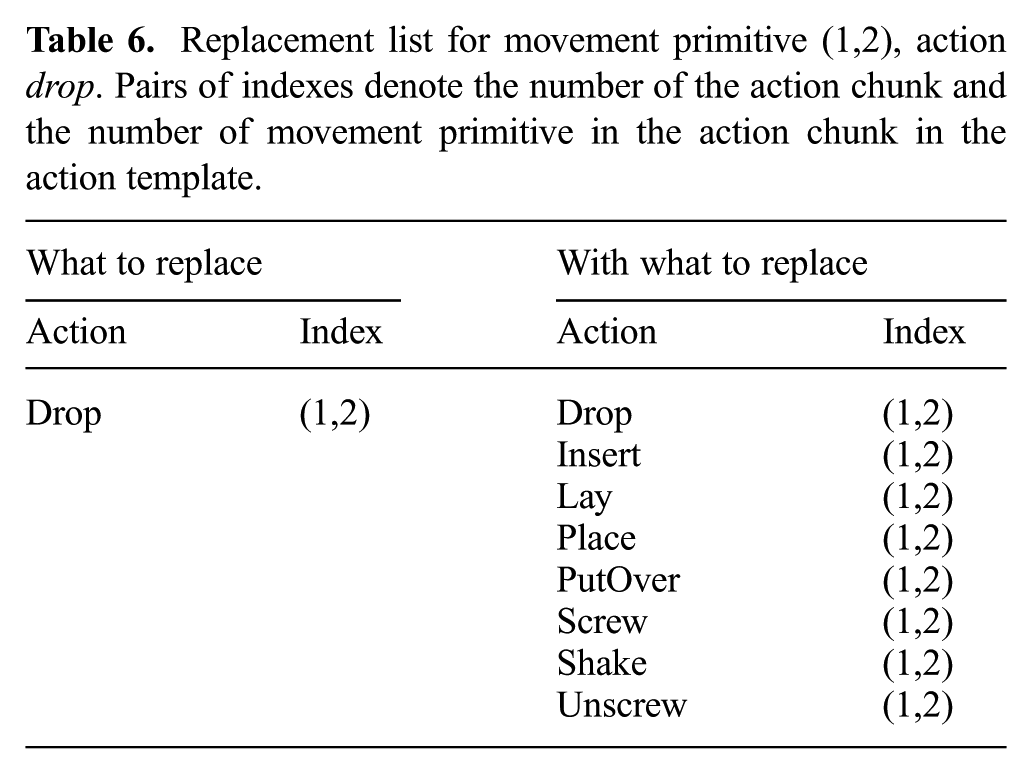

Replacement list for movement primitive (1,2), action drop. Pairs of indexes denote the number of the action chunk and the number of movement primitive in the action chunk in the action template.

What to replace		With what to replace
Action	Index	Action	Index
Drop	(1,2)	Drop	(1,2)
		Insert	(1,2)
		Lay	(1,2)
		Place	(1,2)
		PutOver	(1,2)
		Screw	(1,2)
		Shake	(1,2)
		Unscrew	(1,2)

5.2.2. Cutting and recombining snippets from ADTs

In this step, we cut appropriate snippets with control parameters from existing ADTs and recombine them to obtain an executable ADT for the new action. A snippet in our formalism essentially corresponds to a parametrized movement primitive. We search for snippets in the ADTs based on the replacement lists made in the action-template-based analysis step.

While we only considered action names in the action-template-based analysis, here we also take object names into account. We make the assumption that for movement primitives from the same replacement list performed with similar objects, the movement will be similar. Note that as we are talking about generalization here, we only require that this assumption holds in most cases; we do not expect to achieve full 100% performance.

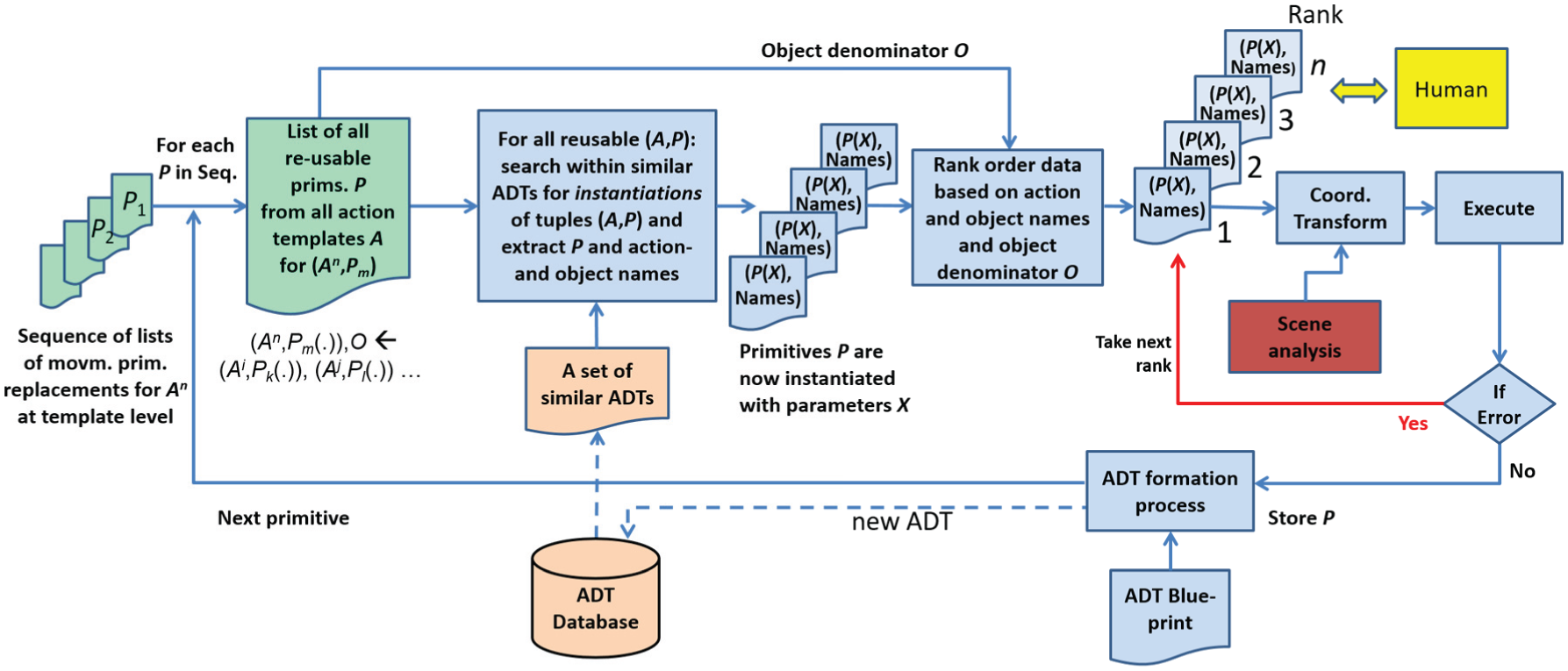

The algorithm is specified in Figure 6. The input to the algorithm is the sequence of replacement lists (see output from the previous algorithmic procedure, Figure 5, right side). We analyze one list at a time. For each possible replacement of a movement primitive in the list, we search for instantiations in a set of similar ADTs. We cut out the discovered instantiations of these movement primitives from the ADTs and save them, together with symbolic action and object names (also obtained from ADTs). In this way, we obtain a set of different ADT snippets: candidates for replacement of one movement primitive in the new instruction. We use symbolic names to rank the extracted snippets. The ranking rules are provided in Table 7. We use different ranking rules, given different object denominators. The reasoning behind this is the following: if one performs a movement with respect to some role of objects (e.g., main, primary, or secondary), the corresponding object becomes more important in the ranking. Otherwise (when comparing objects that are not indicated in the object denominator), we consider the main object more important than primary and secondary objects.

OPEN IN VIEWER

Fig. 6.

Cutting and recombining snippets of action data tables (ADTs) based on replacement lists. Inputs are replacement lists (on the right) and a set of similar ADTs, as well as ADT blueprints formed in the symbolic processing stage. The output is robotic execution of the new instruction and the finished ADT for the performed execution. The notation P ( X ) means movement primitive instantiated with control parameters. Other notation comes from Figure 5.

OPEN IN VIEWER

Table 7.

Rank orders for movement primitive replacement with different object denominators, showing which symbolic items have to match in order to achieve the rank, for three different cases.

	Case 1	Case 2	Case 3
Rank	Object denominator main	Object denominator primary	Object denominator secondary
1	all	all	all
2	act.+main+sec.	act.+main+prim.	act.+main+sec.
3	act.+main+prim.	act.+prim.+sec	act.+prim.+sec.
4	act.+main	act.+prim	act.+sec.
5	main+prim.+sec.	main+prim.+sec.	main+prim.+ sec.
6	main+prim.	main+prim.	main+sec.
7	main+sec.	act.+main	act.+main
8	main	act+sec.	act.+prim.

act: central action name; main: main object name; prim.: primary object name; sec.: secondary object name

In addition to symbolic-name-based ranking, we have implemented a hybrid ranking procedure, taking both symbolic and sub-symbolic similarity of ADTs into consideration. To evaluate the sub-symbolic similarity, we have compared the bounding boxes (in a real scene compared with in an ADT) of the object given in the movement primitive denominator (main, primary, or secondary). This allows object size and aspect ratio to be compared, where the latter is a shape-related parameter. To obtain the hybrid measure, we re-implemented the symbolic ranking given in Table 7 on the basis of a weighting procedure, thus obtaining the similarity value S symb in the interval [ 0 , 1 ] . To compare object bounding boxes, we use the intersection over union (IoU) measure to obtain another value S box in the interval [ 0 , 1 ] (for details on both measures see the appendix). We define the hybrid similarity measure S h by applying the weighted average of S symb and S box

S h = θ S box + ( 1 − θ ) S symb

(1)

where θ is the weight in the interval [ 0 , 1 ] ; we show results for the complete interval of θ values in the Section 6 (see Figure 8 in that section). We rank the snippets according to S h .

From here on, one can now concatenate the (top-ranked) snippets for each movement primitive required in the execution of the new instruction and form the new ADT, as discussed next.

6.1. Symbolic processing

We have used a set of 500 instructions of five different levels of complexity (100 instructions for each level) and analyzed them using the parser described in Section 5.1. The five complexity levels are:

We used half of the instruction set (50 in each category) to tune the instruction ontology (as described in Section 4.1) and the symbolic processing procedure (as described in Section 5.1). The other half was used for testing. Test results are shown in Table 8.

OPEN IN VIEWER

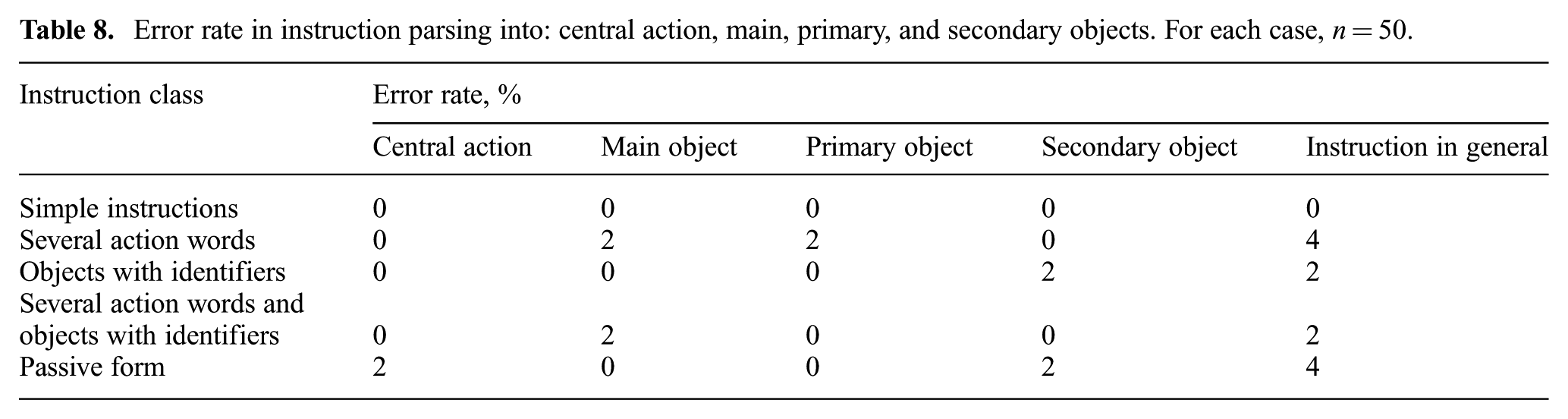

Table 8.

Error rate in instruction parsing into: central action, main, primary, and secondary objects. For each case, n = 50 .

Instruction class	Error rate, %
	Central action	Main object	Primary object	Secondary object	Instruction in general
Simple instructions	0	0	0	0	0
Several action words	0	2	2	0	4
Objects with identifiers	0	0	0	2	2
Several action words and
objects with identifiers	0	2	0	0	2
Passive form	2	0	0	2	4

Within the assumed reduced instruction language complexity, these results show that the symbolic processing procedure produces only isolated mistakes.

6.2. Sub-symbolic processing

We have investigated the cut & recombine approach by performing on a robot a test set of ten instructions that the robot had not executed before. The instructions are presented in the first column of Table 9. For execution we used a KUKA LWR robot arm with Schunk SDH2 gripper. First we used the symbolic-name-based snippet ranking procedure as described in Table 7 and further extended the study with the hybrid ranking procedure.

OPEN IN VIEWER

Table 9.

Success rate of the recombined actions as well comparison to the success in case of using “object-independent” actions for 10 instructions. Where not indicated differently in the Remarks column, all the first hits in the ranked movement primitive lists were used. The same instruction was executed with three to ten different object–position combinations, as indicated by the number behind the slash in columns 3 and 4.

New instruction	Action data tables used in recombination	Successfulcut & recombine	Successfulbaseline	Remarks
	(given in the form of instructions)
Rotate cup on table.	(1) Rotate rotor axle.	10/10	–
Take jar and placein box.	(1) Place jar in pot.	10/10	9/10	In compiled version, box was slightly pushed twice.
Take spoon from bowl	(1) Take spoon from bowl and	9/10	–
and insert into jar.	drop into box.
	(2) Insert knife into jar.
Take cup from table	(1) Put rotor cap over rotor axle.	9/10	–
and put over fixture.
Lay jar on tray.	(1) Put jar into pot.	6/7	–	Snippet ranked third was
	(2) Take bottle from tray and lay			chosen by expert for
	on table.			“lay” movement.
Shake measuring beakerand put it on tray.	(1) Take measuring beaker fromtable and put on tray.	4/5	0/5	Large improvement with respect to baseline.
	(2) Take jar from tray, shake, and
	put on table.
Unscrew lid fromthermal mug.	(1) Unscrew lid from jar.	2/3	2/3	One of two equally ranked snippets had to be chosen.
Drop bottle intowastebasket.	(1) Take bottle from tray anddrop into box.	6/10	0/10	Large improvement with respect to baseline.
	(2) Drop rotor cap into box.
	(3) Drop bottle cap into wastebasket.
Push bottle awayfrom jar.	(1) Push bottle away from box.(2) Push cup away from jar.	6/10	6/10	For reliable execution this action needs two object denominators.
Invert a jar.	(1) Pick jar and place into pot.	3/6	-
	(2) Invert bottle cap.

Note that the performed analysis is strictly feed-forward. Hence, no error correction mechanisms or reactive control policies were added, because we wanted to analyze how the cut & recombine approach performs on its own.

To make a comparison with a baseline method, we have performed a subset of these test instructions using an object-independent action library (Aein et al., 2013). This is also a feed-forward method, which, however, does not consider object properties. By contrast, in the cut & recombine approach, we reuse ADT snippets based on both action and object similarity. Unlike this, in the baseline method (Aein et al., 2013), each individual action is defined using one set of parameters tuned by trial-and-error for kitchen-sized objects (cups, bowls, bread, fruits, etc.). For example, the grasp primitive in this library uses a wide pre-grasp in order to increase the success of grasping most of the mentioned objects in uncluttered scenes. To give another example, to lift the main object in the place action, a specific fixed lifting height of 15 cm is used. Thus, the comparison of cut & recombine with the object-independent approach allows us to determine whether taking objects into account increases the success of robotic execution.

As discussed, the basis for our experiments was a database of 28 ADTs for 10 different actions performed with different objects (twelve different main, nine primary, and eleven secondary objects), see Table 10.

OPEN IN VIEWER

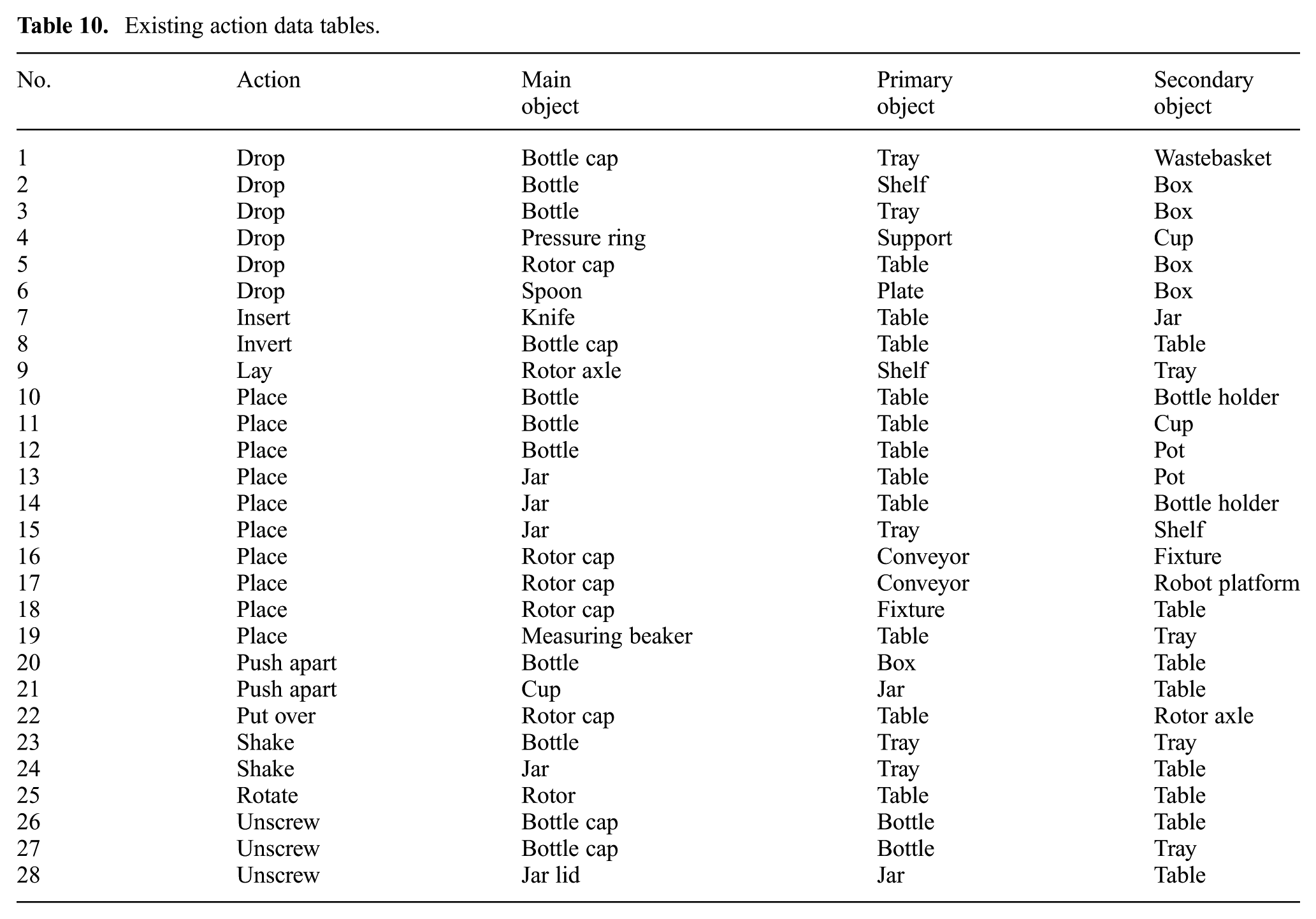

Table 10.

Existing action data tables.

No.	Action	Main	Primary	Secondary
		object	object	object
1	Drop	Bottle cap	Tray	Wastebasket
2	Drop	Bottle	Shelf	Box
3	Drop	Bottle	Tray	Box
4	Drop	Pressure ring	Support	Cup
5	Drop	Rotor cap	Table	Box
6	Drop	Spoon	Plate	Box
7	Insert	Knife	Table	Jar
8	Invert	Bottle cap	Table	Table
9	Lay	Rotor axle	Shelf	Tray
10	Place	Bottle	Table	Bottle holder
11	Place	Bottle	Table	Cup
12	Place	Bottle	Table	Pot
13	Place	Jar	Table	Pot
14	Place	Jar	Table	Bottle holder
15	Place	Jar	Tray	Shelf
16	Place	Rotor cap	Conveyor	Fixture
17	Place	Rotor cap	Conveyor	Robot platform
18	Place	Rotor cap	Fixture	Table
19	Place	Measuring beaker	Table	Tray
20	Push apart	Bottle	Box	Table
21	Push apart	Cup	Jar	Table
22	Put over	Rotor cap	Table	Rotor axle
23	Shake	Bottle	Tray	Tray
24	Shake	Jar	Tray	Table
25	Rotate	Rotor	Table	Table
26	Unscrew	Bottle cap	Bottle	Table
27	Unscrew	Bottle cap	Bottle	Tray
28	Unscrew	Jar lid	Jar	Table

The instructions for the test set were chosen so that similar actions and similar objects could be found in the ADT database, but in different combinations. Also, we included some examples where the object mentioned in the new instruction was never dealt with before, to investigate whether generalization could work in those situations, too.

To obtain statistics on execution success, we performed the same instruction with different object combinations and different object placements in the scene (see object sets used in different actions in Figure 7). Our target was ten different object or placement settings for each instruction, however, if only a single object type was mentioned in the instruction, we performed the instruction only as many times as we had different objects (e.g., we had only five different measuring beakers and only three different thermos mugs). With these object choices, we tried to push our algorithm to the limits, using considerably larger and smaller objects than in the execution examples in the ADTs, but we did not use objects or object configurations where it was clear in advance that the algorithm would not be able to handle the situation at all (e.g., objects differing in size by orders of magnitude as compared with the examples or objects touching each other when the example objects were standing separately).

OPEN IN VIEWER

Fig. 7.

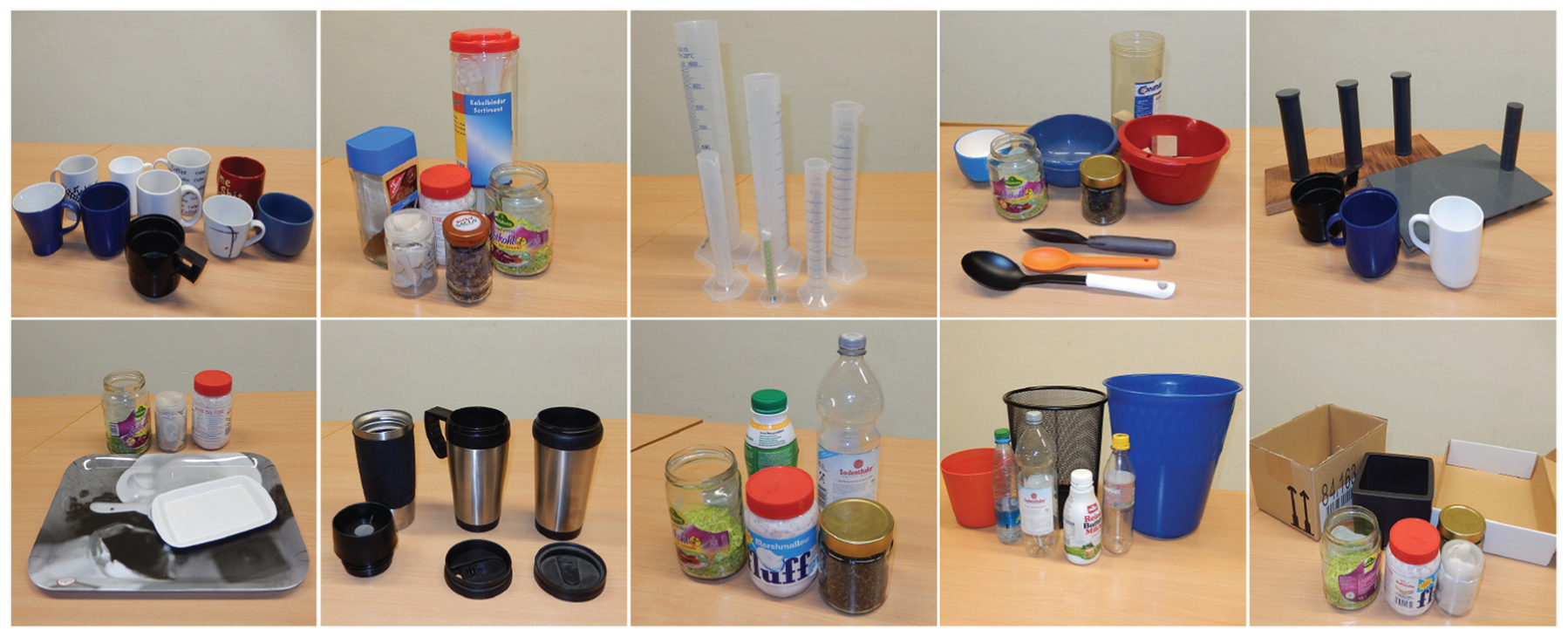

Object sets used in the experiments.

The results for the cut & recombine approach are shown in columns two and three in Table 9. Column two shows from which ADTs information was recombined (for ease of reading, ADTs are given in form of instructions). In column three, we show how many trials were successful; the overall numbers of performed trials are given behind the slash.

As column two shows, in four out of ten cases, the sub-symbolic processing has chosen to perform new actions using snippets from a single ADT (without recombination), but in the remaining cases snippets from several different ADTs were recombined. On five occasions, the new ADT was recombined using snippets from two ADTs; one case occurred where the new ADT was recombined from three different ADTs.

Instructions in the table are sorted from most successful to least successful (column 3). For two instructions, the success rate was 100%, for another five instructions, errors happened only once, and there were three instructions where errors happened in a systematic way (the three last rows in Table 9).

Example videos for successful and unsuccessful executions can be found on the website. ³

Next, all results will be discussed in some detail to allow the reader to judge performance and to show that simple error correction methods would almost always suffice to resolve the remaining errors of the feed-forward cut & recombine approach.

The two instructions that were 100% successful were “Rotate cup on table”, and “Take jar and place it in box”. The reuse and execution success of those instructions are analyzed in more detail next:

The five instructions where incorrect execution only happened once were “Take spoon from bowl and insert into jar”, “Take cup from table and put it over fixture”, “Lay jar on table”, “Shake measuring beaker and put it on tray”, and “Unscrew lid from thermal mug”. Individually, those executions are analyzed next:

Several systematic errors occurred in three cases: “Drop bottle into trash basket”,“Push bottle away from jar”, and “Invert a jar”. The reasons for this are given in detail next:

For five out of ten instructions, we could make comparisons with execution based on the object-independent action library (baseline method). Note that we only made comparisons in cases for which the corresponding action was already available in the object-independent action library prior to this study. We did not expand the library by developing new actions specifically for comparison with our current work, as the library uses heuristic approaches and new actions would thus have come out biased toward the examples used in the current work, possibly leading to excessively favorable comparisons.

In the comparison with the baseline we twice saw substantial improvement by using our cut & recombine approach (for the instructions “Shake measuring beaker and put it on tray”, and “Drop bottle into wastebasket”), and similar performance three times. Note that an improvement was not achieved in all cases, because the object-independent action library already performed well on some of our objects. This is because the library was tuned for performing table-top manipulations with a wide set of objects, including a subset of the objects that we used in our experiments. However, in those cases where object-specific handling was needed, large improvements were achieved when using ADT recombination. In the case of shaking the measuring beaker, the improvement came from object- specific reaching and grasping from one side, as indicated in the first of the recombined ADTs, where the grasp from the top inscribed in object-independent actions for the measuring beaker was completely unusable. For dropping an object into a wastebasket, the existing ADT gave an example similar to how a human being would perform the action: dropping from relatively high above. This allowed for variability in trash basket and bottle sizes. By contrast, the action in the object-independent library was defined as dropping with approaching the small container tightly, which was not similar to a trash-dropping situation and never worked.

It is also interesting to note that there was only one case (pushing the bottle away from the jar), which pointed to a possible problem of the cut & recombine approach for this given case. (We had only used one object denominator per movement primitive but two object denominators are needed to define pushing away.) All other cases of error can be corrected by feedback error correction mechanisms. Thus, it seems that, for most of the existing table-top operation, the framework is already relatively complete and useful.

We had only a six out of ten (60%) success rate in the execution of the command “Drop bottle into wastebasket”, based on the symbolic-name-based snippet ranking procedure. As the errors mainly happened because of incorrect object sizes in the selected ADTs, for this command, we repeated the experiments using the hybrid ranking procedure described in equation (1). In this case, we had different sets of movement primitives (extracted from different sets of ADTs) for the same command but different scene instantiations, depending on the size and aspect ratio of the presented objects. As some errors in the original execution of the command came from the robot not being able to grasp a large bottle, we had to introduce a new ADT, as there were no examples in the original set of ADTs presented in Table 10 on manipulating large enough objects with the denominator “main”. We added an ADT for the command “Take a bottle from a tray and drop it into the box” (ADT No. 29), but this time with a larger bottle than that in ADT No. 3 (Table 10).

To evaluate the performance of the hybrid ranking procedure, we changed the weight θ in equation (1) in the interval [ 0 , 1 ] and investigated how the composition of the movement primitives and the success rate of execution changed. The proportion of changed movement primitives over the entire pool of 10 scene instantiations (× 4 movement primitives per instantiation) with θ in the interval [ 0 , 1 ] is provided in Figure 8(a). One can see that the percentage of changed movement primitives increases with θ and reaches 60% when θ = 1 (only object size matters). The execution success rate as a function of θ is provided in Figure 8(b). For pure symbolic ranking, we have a 60% success rate. When combining symbolic and sub-symbolic information in the ranking procedure, the success rate increases and reaches 100% for a wide range of parameters θ . When ranking is based on object size alone, the success rate is 50%.

OPEN IN VIEWER

Fig. 8.

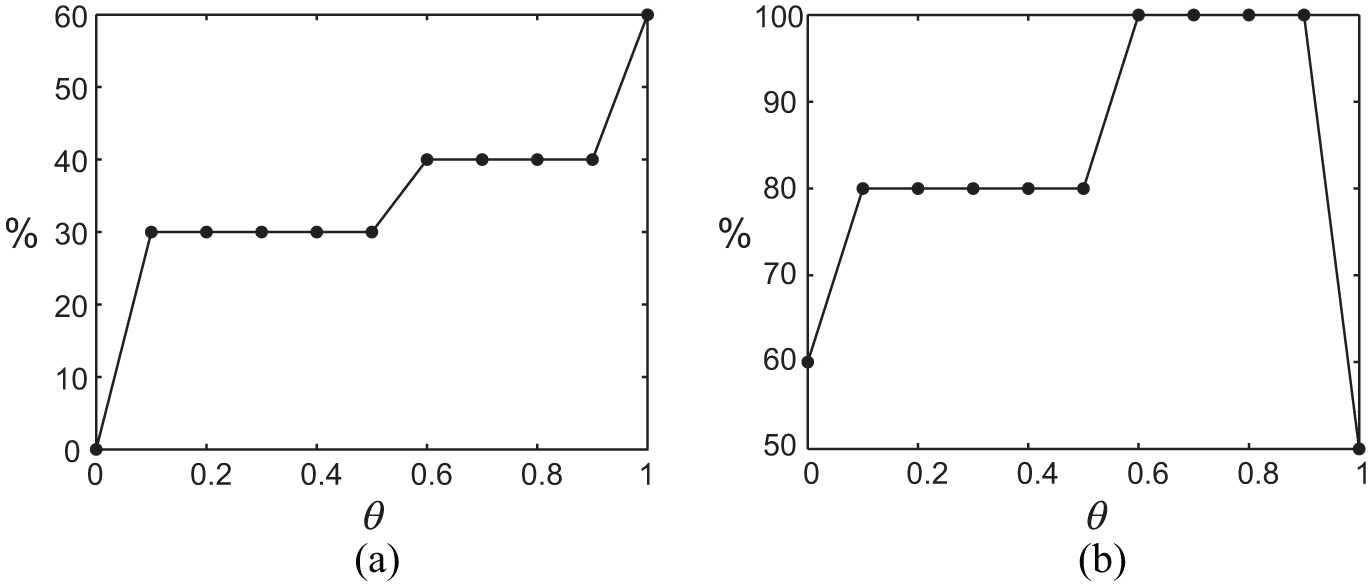

Performance evaluation using a hybrid ranking procedure. (a) Percentage of movement primitives replaced using the hybrid procedure as compared with movement primitive composition obtained using symbolic-name-based ranking procedure. Results are given for different weights θ (equation (1)), indicating the influence of the sub-symbolic counterpart in ranking. (b) Execution success as a function of θ .

Example movies for θ = 0 . 7 showing successful executions in two cases: a large bottle and a small (short) bottle, where grasps were unsuccessful in our previous approach, can be found on our website. ⁴ Now the large bottle is grasped successfully, because of a wider pre-grasp and the small bottle is grasped differently, namely, from above. This grasp comes from a different ADT, now ranked highest using the hybrid similarity measure.

Clearly, the performance of the cut & recombine approach largely depends on the existing ADT database. If the ADT database were different, the results would most probably be different too. The interplay between the new instruction and the ADT database is quite complex, already, given the 28 ADTs (29 in the second part of the study), we could not predict what our algorithm would choose to recombine. Thus, the situations we have provided were not staged.

Summarizing, the results show the general possibility of ADT snippet recombination and ADT-based action transfer. There are cases where usage of object-dependent ADTs brings substantial improvement in comparison with object-independent actions, as defined in our baseline method. The observed deficiencies in our transfer procedures, such as an insufficient number of object denominators in the case of the push-away action, indicate a path for improving our framework.

7.1. Parametric considerations

There are several entities on which the results of our procedure depend. One important entity is the neighborhood of movement primitives. We parametrize the neighborhood by its “width”, which in our study is defined by a pair of parameters: the number of neighboring SEC states and the number of neighboring movement primitives included in the neighborhood. The “width” influences how many other movement primitives from other actions are allowed to replace movement primitives of the new action. When one considers a “wider” neighborhood, fewer hits are found in different actions, and vice versa. In our study, we set the neighborhood (see Algorithm 2 in the appendix) by expert review of the suggested replacement lists and choosing the most suitable widths. End-performance-based evaluation of different neighborhoods is also possible, but in this study it was not performed because this requires a lot of effort.

Another set of parameters is associated with the replacement ranking rules, based on action and object names. We have heuristically chosen the ranking order, based on the assumption that the object on which the movement primitive depends (i.e., the one that stands in the object denominator) is more important than the other objects.

Finally, ADT interpretation plays an important role. Currently, we are only considering object positions defined by the center of the object bounding box as well as pair-wise object relations (TCP to main object, main to primary object, and main to secondary object). More detailed interpretations, where object size is taken into account or relations between more than two objects in the scene are considered, would form alternative methods, which were not yet considered.

7.2. Comparison with the state of the art

Our approach is related to a group of studies attempting to bridge the gap between natural language and robotic action (Bollini et al., 2013; Lisca et al., 2015; Misra et al., 2016; Tellex et al., 2011). We, in fact, address a question that is slightly narrower: programming robots by instruction, which puts limitations on the language provided to the robots. We use language only as a means to define an instruction and analyze only instructions indicating “robotic actions” (the actions for which we have made a formal action description). We forbid essential omissions in instructing: all actions within the defined granularity must be spelled out explicitly. These constraints allow us to achieve a relatively lightweight approach, as compared with the previously mentioned systems attempting full natural language complexity. Next, we will compare our work with those approaches in more detail.

Misra et al. (2016) investigate the translation of natural language instructions into a sequence of predefined robot-executable routines. They use an energy function that encompasses natural language evidence as well as environmental evidence and attempt to find the maximum likelihood solution based on learning examples. The approach (unlike ours) requires many learning examples and is firmly based on a set of predefined robot-executable routines. Changing the sample of those routines or changing the domain would require extensive relearning, while our approach works by adding new action templates and new execution examples to the existing database as needed and can thus be re-adapted to a new domain in a continuous manner. In addition, our approach processes language and sub-symbolic entities in two different processing steps, thus making the method easier for a human operator to understand and access. Moreover, our approach suggests strict structuring of robotic actions, defining granularity and a two-level hierarchical composition, while the approach of Misra et al. (2016) uses an inconsistent sample of robot-executable routines at different levels of granularity (e.g., compare MoveTo (simple) and Open-Close doors (complicated), an example taken from Table 2 in Misra et al. (2016)). Our more structured view of robot executables could be advantageous in this (and similar) data-driven approaches. It is, however, clear that our approach cannot handle some of the aspects that are central to the approach of Misra et al. (2016). We do not handle missing instructions and we do not reason about object states, both of which requires general-purpose commonsense knowledge, which is not in the center of our study.

A group of approaches exist for handling strongly task-specific natural language instructions. One example is presented by Lisca et al. (2015), who analyze how to transform natural language instructions for chemical experiments into robot control programs. These authors address much more complicated instructions than those in our study (an example being “Neutralize 75 ml of hydrochloric acid”.). This, however, requires extensive hand design, which is supplemented by training of a Markov logic network based on datasets collected specifically for the developed core structure. By comparison, in our approach, we only design the action template for each action, as shown in Table 2 for action place. (Note that the SEC in the table is not hand-designed but denotes an objective sequence of touches and un-touches of objects throughout manipulation.) Plans for actual robotic action in Lisca et al. (2015) (e.g., aspirating a pipette and pipetting in the “neutralization” action) are manually linked during the design of the core structure. Automated inference processes, which are emphasized in this study, are possible only after hand design and learning steps have been accomplished. A similar approach was applied for executing cooking recipes, specifically, pancake making, by Nyga and Beetz (2012). Reuse of previous action components, which lies at the center of our study, is not addressed in the cited studies. There, the data structure for a different instruction must be hand-designed essentially from scratch.

Another example closely related to the domain is the cooking robot developed by Bollini et al. (2013), who specifically address the execution of baking recipes. Translation of natural language instructions for baking is done based on hand-annotated mapping of natural language recipes into so-called cooking primitives and then mapping those primitives into robotic actions. For example, the cooking primitive “bake” is mapped into a long sequence of robot-executable primitives of operating the oven, such as opening and closing doors, inserting a dish into the oven, and so on. In this study again, instructions are given at a higher level than in our study but with the need for substantial hand design and learning based on human-annotated examples. Reuse of structures in this framework is not foreseen. In our approach, the robot is instructed at a lower level, that is, immediately indicating robotic actions. In this way, we overcome the requirements for complicated hand-designed structures as well as the difficulties of changing domains, as the number of actions, at the granularity we are at, is limited (see Wörgötter et al. (2013) for discussion). We still, however, manage to introduce reuse of previously executed action details.

One domain, which is easier to describe using natural language, is navigation. There one can find more straightforward grounding of natural language instructions in real-world geometry; thus this domain can be tackled quite successfully (Artzi and Zettlemoyer, 2013; Guadarrama et al., 2013; Kollar et al., 2014; Matuszek et al., 2013; Rosenthal et al., 2016; Tellex et al., 2011; Walter et al., 2014; Williams et al., 2017). Navigation can be supplemented by, for example, “pick and place” or “point” actions, where geometrical considerations define actions up to trajectory precision (Guadarrama et al., 2013; Tellex et al., 2011). Kollar et al. (2014) analyze a wider set of verbs, referring to more complicated actions like “follow”, “meet”, or “bring’; however, those verbs are still groundable through path description. We are working in the manipulation domain, going beyond strongly geometry-bound actions, which require richer grounding approaches. We have chosen example-based reuse of action components instead of building more rigorous world (or path) models, which is the approach used in the cited studies.

When instructing a robot using natural language, dialog systems can help resolve ambiguities in the instructions. Work in this direction exists (Gemignani et al., 2015; Perzylo et al., 2015; She et al., 2014; Thomason et al., 2015).Though we do not address the issues of disambiguating instructions through dialog, we have met, in our work, many of the difficulties indicated by Perzylo et al. (2015), such as difficulties in disambiguating verb senses. We also resolve these questions by querying the user, e.g. when the algorithm cannot determine the central action in our framework.

A natural language interface is a convenience but not absolutely necessary to employ our suggested sub-symbolic recombination procedure. For example, robot programming on predefined action blocks (Alexandrova et al., 2015; Schlette et al., 2014) or skills (Bøgh et al., 2012; Steinmetz and Weitschat, 2016; Stenmark et al., 2015) could also be used as an interface. All the cited approaches are also designed to help non-experts to program robots. Stampfer and Schlegel (2014) and Wächter et al. (2016) go further and define reusable state charts for easier humanoid robot programming, where the state chart defines an action as a branching structure of states. However, in all these approaches, the user is expected to parametrize predefined blocks (or state charts) from scratch and reuse is addressed only in a limited way. For example, Alexandrova et al. (2015) suggest generalization to different numbers of objects by embedding the predefined blocks in loops or adjusting a block developed for grasping to different size of objects by readjusting thresholds. Wächter et al. (2016) show a use-case of transferring a state chart to a different robot. Stenmark et al. (2015) talk about skill reuse, but only in the sense of reparametrization of the previously developed skill by a user, without providing an explicit framework for choosing the skills for reuse. By contrast, our study addresses the reuse of previous examples of execution based not only on action but also on object similarity, with the aim to reduce the user’s parametrization effort.

At the other end of the spectrum of robot programming stands objectcentric programming, where the scene appearance is used to derive robot code. In objectcentric programming, geometric and relational properties play a central role in defining the action (Angerer et al., 2009; Hart et al., 2015; Huang et al., 2015; Perzylo et al., 2016). We adhere to this approach at the low (movement primitive) level, reusing relations between, for example, main and primary or main and secondary objects, instead of planning an action from scratch, as suggested in the cited studies.

An intermediate approach with constrained natural language use in robot programming was analyzed by Stenmark and Nugues (2013). In this approach, only verbs corresponding to skills are allowed; thus language is not fully natural, similar to our approach (we, however, also handle synonymy). The cited approach allows fewer actions and does not address our question of how to best parametrize skills based on previous execution examples. Instead, a skill sequence with default parameter values is given to a programmer for parameter adjustment.

Alternative studies do exist that emphasize data collection from robotic experiments in both industry-oriented (Björkelund et al., 2011; Persson et al., 2010) and service robotics domains (Beetz et al., 2016; Ovchinnikova et al., 2015; Riazuelo et al., 2015; Tenorth and Beetz, 2013; Tenorth et al., 2013; Winkler et al., 2014). In the following, we will discuss how the mentioned approaches relate to our study. Persson et al. (2010) and Björkelund et al. (2011) mainly address the question of how to convert code adhering to the emerging industrial standard AutomationML (Drath et al., 2008) into RDF representations allowing reasoning (Miller, 1998) and accumulate data adhering to Semantic Web standards (Shadbolt et al., 2006). These initial efforts are followed by limited reuse attempts (Stenmark and Nugues, 2013; Stenmark et al., 2015), but not in a Semantic Web context. Persson et al. (2010) and Björkelund et al. (2011) had already found that the desired conversion into RDF structures has obstacles; in industry the code is currently mainly accumulated in AutomationML formats. AutomationML, however, does not target the specificity of defining reusable robotic actions or action fragments, as in our study, but rather targets standardized coding conventions, such that code is easily reusable by another programmer.

Another group of studies addresses the question of accumulating robotic knowledge in service applications (Beetz et al., 2016; Bozcuoğlu et al., 2018; Riazuelo et al., 2015; Tenorth and Beetz, 2013; Tenorth et al., 2013; Winkler et al., 2014). This line was started with the RoboEarth project to create a “World-Wide Web for Robots” (Waibel et al., 2011). There the reuse of knowledge was investigated from a very wide perspective, where the aim was to accumulate “all” information required for the robot: action recipes (tasks), actions, object models, environment maps, algorithms that were used for creating accumulated data, robot capabilities required to perform actions, and so on (Tenorth and Beetz, 2013; Tenorth et al., 2013; Winkler et al., 2014). Owing to its complexity, this approach can no longer be transferred to the users as a collection of algorithmic ideas, but only as a program package; indeed, it is released as an open-source ROS package. However, again because of complexity and the large amount of special knowledge required for each example, only a few application examples with full functionality of the RoboEarh system have been demonstrated so far. We propose a less powerful but more accessible approach of storing and reusing robot experience. For example, we do not handle the issues of robot capabilities and just talk about table-top manipulations with a “standard” arm-hand system. We require the robot to be instructed at a much lower level, as compared with the task level (e.g., “Serve a drink”) given by Tenorth et al. (2013). However, we do not require complex high-level knowledge from the robot about tasks existing in the (human) world. Also, our approach appears more compact and more rigorously hierarchically structured. Thus, the two approaches are very different and there can be no single answer as to which approach is more applicable, as this depends on the task and circumstances.

Follow-ups of these studies do not suggest using the entire system, but rather parts of it, specifically by means of cloud services for the robotic community (Beetz et al., 2016; Riazuelo et al., 2015). However, none of these studies looks at the same aspects as we do. Riazuelo et al. (2015) concentrate on robots reusing knowledge about similar environments, for example, hospital rooms, and how to find objects in those rooms. Here geometric considerations are primarily used to adapt existing knowledge to the new situation and robotic manipulations are only considered in connection with discovered object positions. A similar question of memorizing common object locations is addressed by Ovchinnikova et al. (2015). Beetz et al. (2016) do indeed talk about manipulation data reuse, but for a different purpose than in our study. They offer to use the collected data for the analysis (in a sense of reconsideration) of previously performed experiments, for example, through creating datasets for analyzing errors in perception algorithms. Similar aims (error analysis and statistics) are indicated in a previous study (Niemueller et al., 2012). In none of these studies do the suggestions for data reuse go into the direction of “programming” new instructions based on previous programs of similar instructions. Conversely, we are specifically suggesting a framework for data reuse for new instruction coding and execution.

Possibly the most closely related work is that of Bozcuoğlu et al. (2018), who use episodic memories in addition to domain knowledge. A number of robot execution examples are collected and grasps and, to some degree, trajectories are transferred to a different setting. This study, however, concentrates on a single (though difficult) action: opening hinged containers (specifically, refrigerators). Knowledge transfer rules are fully adapted to hinge-joint doors with elongated handles but do not generalize to other actions or objects.

Another quickly growing field where robot experiences are implicitly reused concerns deep learning on visuomotor data (Finn and Levine, 2017; Ku et al., 2017a; Levine et al., 2018). While Finn and Levine (2017) and Levine et al. (2018) learn to predict the consequences of pushing and grasping motions in an end-to-end manner, Ku et al. (2017a) use a more structured approach by associating selected convolutional neural network features obtained from scene analysis to robot actions. All mentioned approaches, though not requiring much human supervision, are tuned to solving specific situations: performing pushing to a predefined location (Finn and Levine, 2017), grasping of objects residing in front of a robot (Levine et al., 2018), and grasping of a power drill (including pushing or dragging when required) (Ku et al., 2017a). Thus, though promising, these approaches show for less action variety than the approach used in our study. The end-to-end learning approaches (Finn and Levine, 2017; Levine et al., 2018), though able to handle a large variety of objects, are, however, much more expensive in terms of robot experience than our approach. Moreover, they are not easy to extend (e.g., if one needs not grasping as such, but grasping for insertion of an object into a narrow container, this would require full retraining). By contrast, our system only needs a few relevant examples for extension to a new task.

Finally, one could claim that examples of previous robot experience are not needed, as better methods are being developed for motion (Latombe, 2012; Sucan et al., 2012) and grasp (Alterovitz et al., 2016; Bohg et al., 2014; Lippiello et al., 2013; Vahrenkamp et al., 2012; Vezzani et al., 2017) planning. However, reusing previous experience of similar tasks can constrain planning in a useful way; thus, such approaches can be used together with planning.

To compare our study with different approaches discussed above in a more rigorous manner, we have compiled Table 11, which indicates the properties of 20 representative studies.

OPEN IN VIEWER

Table 11.

Comparison of different studies.

	Task	Evaluation procedure	Instruction format	Knowledge acquisition	Amount of data used to set up the system	Domain restriction	Number of different actions in evaluation	Number of different objects in evaluation	Handling of missing instructions/object info	Reuse of motioncontrol parameters	Reuse of motion from different actions	Object-specific reuse of motion components	Rule system for action component reuse	Human-comprehensible format	Extensions to the system
Björkelund et al, 2011	Manip.	None (1)	Coding	Programg.	Not defined	N	3 (41)	Not specified	N/N	Manual	N	Manual	N	Y (74)	Manual
Tellex et al, 2011	Navig. & pick & place	Simulat. (2)	Nat. language	Learning (10)	Medium (16)	Y (30)	2 (42)	3 classes (59)	N/N	N	N	N	N	N	Retraining
Bøgh et al, 2012	Mobile manip.	Robot prelim.	Demo.	Programg.	Medium (17)	N	2 (43)	2 (60)	N/N	N	N	N	N	Y	Manual
Bollini et al, 2013	Mobile manip.	Mostly simulat. (3)	Nat. language	Learning (11)	Medium (18)	Y (31)	3/9 (44)	1 class (61)	N/N	N	N	N	N	N	Retraining
Guadarrama et al, 2013	Visual perception & manip.	Robot (4)	Nat. language	Learning (12)	Medium (19)	Y (32)	5 (45)	50 classes	N/N	N	N	N	N	N	Retraining
Tenorth et al, 2013 ; Tenorth & Beetz, 2013	Mobile manip.	Robot (PoC) (5)	Task command	Many exter. sources (13)	Large (20)	Y (33)	1 task (46)	3 (62)	N/Y	N	N	N	Y (69)	Y (75)	Redefinition of several components
Stenmark & Nugues, 2013	Manip.	Robot (PoC)	Finite language	Programg.	Not defined	N	4 (47)	3 (63)	Y (68)/N	Grasp reuse	N	Grasp reuse	N (70)	Y	Manual
Kollar et al, 2014	Navig.	Simulat. & robot	Nat. language	Learning (14)	Small (21)	Y (34)	5 (48)	Not specified	N/N	N	N	N	N	N	Retraining
Schlette et al, 2014	Manip.	Simulat. (PoC)	Visual blocks	Programg., macronizing	Not applicable	N	3 (49)	Object indep.	N/N	Manual	N	N	N	Y	Manual
Lisca et al, 2015	Manip.	Robot (PoC)	Nat. language	Learning & data bases (15)	Not indicated	Y (35)	2 (50)	One set (64)	N/Y	N	N	N	N (71)	Y (75)	Redefinition & retraining
Alexandrova et al, 2015	Navig., manip. & act. percep.	Robot (PoC)	Visual blocks	Programg., macronizing	Small (22)	N	6 (51)	4 (65)	N/N	Manual	N	Manual	N	Y	Manual
Stenmarket al, 2015	Manip.	Robot (PoC)	GUI or coding	Programg.	Not defined	N	1 task (52)	2 (66)	N/N	Manual	N	CAD models	N	Y	Manual
Perzylo et al, 2016	Manip.	Robot (PoC)	Object-centered GUI	Programg.	Not indicated	N	2 tasks (53)	Not specified	N/N	Manual	N	CAD models	N	Y	Manual
Wächter et al, 2016	Mobile manip.	Robot (PoC)	GUI or coding	Programg.	Small (23)	N	3 tasks (54)	Not specified	N/N	Manual	N	N	N	Y	Manual
Misra et al, 2016	Mobile manip.	mostly simulat. (6)	Nat. language	Learning	Medium (24)	Y (36)	5/13 (55)	Multiple (no. not given)	Y/Y	N	N	N	Y (72)	N	Retraining
Ku et al, 2017	Manip.	Robot	None (8)	Deep learning	Small (25)	Y (37)	3 (56)	Power drill	N/N	Implicit	N	One object only	N	N	Retraining of CNN
Finn & Levine, 2017	Pushing	Robot	Location pointer only	Deep learning	Large (26)	Y (38)	1 (38)	Many	N/N	Implicit	N	N	N	N	Retraining of CNN
Levine et al, 2018	Grasping	Robot	None (9)	Deep learning	Large (27)	Y (39)	1 (57)	Many	N/N	Implicit	N	N	N	N	Retraining of CNN
Bozcuoglu et al, 2018	Mobile manip.	Robot (7)	Not defined	Partial learning & ext. sources	Small (28)	Y (40)	2 (40)	1 (67)	N/N	Partial	N	Y	Y (73)	Y (75)	Redefinition & retraining
Our	Manip.	Robot	Simple nat. language	Learning from prev. executions	Small (29)	N	10 (58)	45	N/N	Y	Y	Y	Y	Y	Acquisition of new ADTs

ADT: action data table; CNN: convolutional neural network; PoC: proof of concept.

⁽¹⁾Architectural framework (no experiments). ⁽²⁾Evaluation with the help of user study (Amazon Mechanical Turk). ⁽³⁾Quantitative evaluation in simulation, PoC on robot. ⁽⁴⁾Quantitative on AI subcomponents of the system and then on test set by using robot. ⁽⁵⁾PoC on robot + quantitative evaluation of perception subsystem. ⁽⁶⁾Quantitative evaluation on dataset obtained from simulation, PoC on robot. ⁽⁷⁾One robotic task with a statistical evaluation and another for PoC. ⁽⁸⁾Always grasping the drill by the handle. ⁽⁹⁾Always grasping for bin picking. ⁽¹⁰⁾Based on manually (Amazon Mechanical Turk) labeled dataset and WordNet, Flickr image co-occurrence statistics. ⁽¹¹⁾Based on manually labeled dataset. ⁽¹²⁾Spatial preposition labeling collected via Amazon Mechanical Turk using 3D virtual environment datasets. ⁽¹³⁾Domain-specific ontologies, general ontologies, object models, environment maps, Prolog-based structures. ⁽¹⁴⁾Manually created dataset: natural language commands mapped into “persons behavior when performing those commands in virtual environment”, object co-occurrence statistics from image database. ⁽¹⁵⁾Wordnet, Framenet, Wikihow. ⁽¹⁶⁾22 videos × 45 subjects × (on average) 13 commands, for training of the model around 1000 phrases were found to be required. ⁽¹⁷⁾Skill set defined based on 566 industrial tasks. ⁽¹⁸⁾60 cooking recipes with formally specified ingredients and manually annotated robot instructions for each recipe. ⁽¹⁹⁾290 utterances for training (210 for testing), 4000 labeled images for object classification (80 per class). ⁽²⁰⁾Large amount of different types of knowledge, hard to define numerically. ⁽²¹⁾50 natural language commands × one or more scenarios and some compound natural language commands. ⁽²²⁾One demonstration for each task. ⁽²³⁾14 skills are ready for transfer to other robots. ⁽²⁴⁾300 different cooking task executions in simulation. ⁽²⁵⁾8 action sequences and CNN learning set derived from those sequences. ⁽²⁶⁾50,000 pushing attempts. ⁽²⁷⁾2,898,410 images, 800,000 grasp attempts. ⁽²⁸⁾58 executions. ⁽²⁹⁾29 ADTs. ⁽³⁰⁾Forklift operation. ⁽³¹⁾One cooking sequence: pouring several components, mixing, and scraping for emptying. ⁽³²⁾Manipulations based on spatial relations between objects. ⁽³³⁾Demonstration example is very specific (drink-serving in hospital room). ⁽³⁴⁾Navigation domain. ⁽³⁵⁾Neutralization and pipette usage. ⁽³⁶⁾Five cooking tasks. ⁽³⁷⁾Power drill handling. ⁽³⁸⁾Pushing. ⁽³⁹⁾Bin picking. ⁽⁴⁰⁾Navigating toward fridge and opening door with hinged joint. ⁽⁴¹⁾Grasping, mounting, moving. ⁽⁴²⁾Move, lift and varieties (go back, pick up, pull parallel). ⁽⁴³⁾Pick up and empty (the container). ⁽⁴⁴⁾3 tasks on making different dishes, 9 lower-level actions: locating, grasping, lifting, moving, pouring, shaking, mixing, scraping, baking. ⁽⁴⁵⁾Pick up, point to, point at, place at, move to. ⁽⁴⁶⁾Serving drink to patient. ⁽⁴⁷⁾Take, insert, put, calibrate. ⁽⁴⁸⁾Bring, meet, avoid, follow, go. ⁽⁴⁹⁾Move, glue, grip. ⁽⁵⁰⁾Neutralization and pipetting. ⁽⁵¹⁾Put in box and stack, open and close drawer, push, grasp. ⁽⁵²⁾Inserting switch in box. ⁽⁵³⁾Number of actions unclear. Tasks are: assembly of gearbox and picking and placing wooden panels. ⁽⁵⁴⁾Three tasks of varying complexity: cloning of state chart group for placing objects using another robot; transferring waving motion to another robot; grasping of unknown object using visual servoing. ⁽⁵⁵⁾5 cooking tasks; 13 low-level robot commands. ⁽⁵⁶⁾Drag, turn, grasp. ⁽⁵⁷⁾Grasping. ⁽⁵⁸⁾Rotate, place, insert, put over, lay, shake, unscrew, drop, push away, invert. ⁽⁵⁹⁾Trucks, trailers, and pallets. ⁽⁶⁰⁾Box and feeder. ⁽⁶¹⁾Only bowls. ⁽⁶²⁾Bed, cabinet, drink bottle. ⁽⁶³⁾Printed circuit board, fixture, shield. ⁽⁶⁴⁾Chemical lab equipment (holders, tubes, pipettes). ⁽⁶⁵⁾Blocks and paper cups, drawer, bottle: 3–5 different scenarios for each experiment. ⁽⁶⁶⁾Switch and box. ⁽⁶⁷⁾Fridge door opening in two different labs. ⁽⁶⁸⁾Missing skills in known assembly sequences will be suggested. ⁽⁶⁹⁾Many (general) Prolog rules. ⁽⁷⁰⁾Only rudimentary mapping objects by names. ⁽⁷¹⁾Rule systems employed, but for action parametrization, not for reuse. ⁽⁷²⁾Heuristic energy function used. ⁽⁷³⁾Knowledge adaptation rules. ⁽⁷⁴⁾Only at coding level. ⁽⁷⁵⁾Through additional read-out procedures.

All studies in Table 11 describe large robotic systems supported by different knowledge acquisition components, including learning using neural networks, using external (Internet) resources, and programming reusable components. Some of these systems are specifically designed only for a certain task, like grasping (in a bin-picking setting), opening hinged doors, or performing well-defined cooking sequences (Bollini et al., 2013; Bozcuoğlu et al., 2018; Levine et al., 2018), leading to a high degree of domain restriction. By contrast, our approach is, in principle, not domain restricted and ADTs could also be developed for different tasks from the here-demonstrated manipulation domain. Our study also differs from the group of domain-unlimited approaches, which are mostly made for manual reuse of previously defined control structures (Alexandrova et al., 2015; Schlette et al., 2014; Stenmark et al., 2015; Wächter et al., 2016): we specifically consider how to find and combine reusable components in an automated way.

Only a few systems have been rigorously (statistically) evaluated on a robot and many studies perform simulations, sometimes paired with proof-of-concept (PoC) robotic experiments. Furthermore, most studies use very few objects and actions (fewer than 10 each), whereas our evaluation used 10 actions and 45 objects. Generally, studies that use manual (human-programmed or human-guided) approaches for knowledge acquisition can cope with small amounts of data for setting up their system, whereas (semi-)automatic approaches (e.g., deep learning) usually rely on large databases. Our approach starts with few data and offers lifelong automatic extension, not found in any of the other automatic systems. Several methods are very strong in handling symbolic information (for example handling missing information in an instruction), which we do not attempt with our system to keep the data requirement low. Conversely, none of the approaches is able to automatically recombine sub-symbolic information from different objects or actions, which is a unique feature of the here-presented method. This analysis shows that many different approaches currently exist, which, owing to their specificities, are not easy to compare. In addition, quantitative comparative evaluation is impossible, due to their complexity and their domain restrictions.

7.3. Future work

While this study has proven that the principle of cutting and recombining ADT snippets to obtain execution information for new instructions works as such, more work is needed to define ways of using information in the case of a much larger ADT database. When the same or a similar action is performed with similar objects in several contexts, much more context information can be used in addition to that used in this study. In this way, we could find more appropriate snippets and approach a stage where the robot can operate with very little human interference.

One could raise the question of whether the method would scale. We argue that it is possible to develop a good indexing system, which would allow appropriate examples to be chosen quickly from large execution transcript databases. The development of such indexing systems very much depends on further developments of the theory of robotic actions, to which we have contributed in our earlier works (Aksoy et al., 2011;Wörgötter et al., 2013) as well as here (specifically, by defining action templates as important action structuring elements, as well as in initial attempts to define ranking rules for action snippet similarity). However, more elaborate systems for action similarity evaluation and action knowledge transfer could be introduced for an extended ADT treatment. Using deep neural network features for sub-symbolic information representation as, for example, introduced by Ku et al. (2017a,b) may be promising.

Currently, our work only addresses parametrization and reuse in feed-forward action representations. Introducing feedback and error correction schemes is another branch of continuation for this work.

In addition, a more advanced structure and use of the instruction ontology should be considered. First, similar instructions can be ranked, including not only synonymy but also distances in the ontology tree, especially for objects. Object properties, as well as object part considerations can also be handled through the ontology; this then needs to be treated in ADT-based processing, as well. Concerning the action counterpart of the ontology, one could keep instruction sequence information, which would allow the system to treat cases of missing instructions statistically based on information from previous instruction sequences accumulating in the ontology over time. This would release the constraints on instructing the robot.

Finally, to evaluate the work of such a system in practice, research on human interaction with the system would be required. Human ability to formulate instructions in a sufficiently precise manner, human abilities to choose appropriate snippets from the ranked lists, and different human comfort factors in working with the system will have to be investigated and evaluated in future work.

In summary, we believe that this study is one of the first attempts to provide a more rigorously structured action scaffold for action-code reuse. It rests on intrinsic action properties (the SEC events) not needing potentially arbitrary human definitions. This might make such a structure more “universally agreeable”. Thus, we see the continuation of structuring efforts of action components as one of the most important future efforts to arrive at transferable and reusable robotics code.
