An efficient leg with series–parallel and biarticular compliant actuation: design optimization,modeling,and control of the eLeg

Abstract

We present the development, modeling, and control of a three-degree-of-freedom compliantly actuated leg called the eLeg, which employs both series- and parallel-elastic actuation as well as a bio-inspired biarticular tendon. The leg can be reconfigured to use three distinct actuation configurations, to directly compare with a state-of-the-art series-elastic actuation scheme. Critical actuation design parameters are derived through optimization. A rigorous modeling approach is presented using the concept of power flows, which are also used to demonstrate the ability to transfer mechanical power between ankle and knee joints using the biarticular tendon. The design principles and control strategies were verified both in simulation and experiment. Notably, the experimental data demonstrate significant improvements of 65–75% in electrical energy consumption compared with a state-of-the-art series-elastic actuator configuration.

Keywords

Compliant joint/mechanism series–parallel compliant actuation biarticulation force control

1. Introduction

Considerable advances have been made in the field of robotic actuation over the past two decades. At the heart of this advance has been the increased use of compliance, both in series between actuator drives and their outputs, as well as in parallel to actuation drives. Similar to biological systems, the use of non-stiff actuation allows for energy storage and release during different stages of the motion.

The most widely adopted concept has been series compliance, known as series-elastic actuation, pioneered by Pratt and Williamson (1995). It has been well demonstrated that this concept can improve energy efficiency (Paluska and Herr, 2006; Velasco et al., 2013), torque control performance and stability (Calanca et al., 2015; Robinson et al., 1999; Roozing et al., 2017; Vallery et al., 2008), physical robustness, and interaction safety. In field robotics, where environments are uncertain and unexpected collisions common, the physical robustness and interaction safety of series-elastic actuators (SEAs) is highly beneficial (Hutter et al., 2016; Negrello et al., 2015; Paine et al., 2015).

The addition of compliant elements in parallel to main actuation branches, known as parallel-elastic actuation, has seen less adoption than series-elastic actuation. However, its benefits have been demonstrated repeatedly, in test bench setups (Haeufle et al., 2012; Mathijssen et al., 2015, 2016; Mettin et al., 2010; Plooij et al., 2016), hopping robots (Liu et al., 2015), bipedal walkers (Mazumdar et al., 2016; Yang et al., 2008), and humanoids (Shirata et al., 2007). Other fields of application are exoskeletons (Toxiri et al., 2018) and prostheses, where parallel compliance has been utilized in prosthetic ankles (Au et al., 2009; Flynn, 2015; Jimenez-Fabian et al., 2017; Realmuto et al., 2015) and knees (Pfeifer et al., 2015; Rouse et al., 2013), to reduce the motor torque required to produce the desired deflection-torque profiles. A common problem with parallel compliance is that during some phases of the motion the parallel element’s generated torque is not well aligned with the desired torque. The result can be that the main actuation drive has to work against the parallel compliance in order to obtain the desired joint torque. To solve this issue, many works employ unidirectional elements (Au et al., 2009; Jimenez-Fabian et al., 2017; Mazumdar et al., 2016; Mettin et al., 2010; Realmuto et al., 2015), clutches/switches (Haeufle et al., 2012; Liu et al., 2015; Plooij et al., 2016; Rouse et al., 2013), or secondary pretension motors (Mathijssen et al., 2015; Roozing et al., 2016, 2015), to engage and disengage parallel elements at desired instants.

Some works have compared SEAs and parallel-elastic actuators (PEAs), mainly in torque and power requirements. Cyclic hoppers were considered by Velasco et al. (2013) and Yesilevskiy et al. (2015), and exoskeleton actuation was considered by Wang et al. (2011). Grimmer et al. (2012) showed that combining SEA+PEA can yield further benefits. In general, the varied results suggest that whether SEAs or PEAs yield the largest benefit in terms of energy consumption depends on the application (Verstraten, 2016). Specifically, exploiting the use of motions that coincide with the system’s natural frequency appears to be suitable for the energy-efficient application of SEAs, as evidenced by the results on hoppers. However, this approach inherently limits the energy-efficient operation to those frequencies. On the other hand, PEAs are well suited for potential energy balancing of systems, such as those under gravitational load (Roozing et al., 2016, 2015).

Biarticular muscles commonly found in biological systems span multiple joints. Examples in humans are the rectus femoris and hamstrings, spanning the hip and knee joints as an antagonistic pair, the biceps, and the gastrocnemius muscle, spanning the knee and ankle joints. In biomechanics such muscles have been identified to transfer mechanical power between joints (Prilutsky and Zatsiorsky, 1994; Schenau, 1989). This principle has been used as a basis for biarticulated robotic actuators. Klein and Lewis (2009) experimentally demonstrated the transfer of mechanical power between joints in a leg that models all nine major sagittal muscle groups in the human lower limb. This was also demonstrated in a foot–ankle prosthesis in Flynn (2015). Iida et al. (2008) and Niiyama et al. (2007) used biarticulation in walking and jumping, respectively. Salvucci et al. (2014) showed how biarticulation can improve the end-effector force ellipsoid. The recently introduced compliant bipedal walker of Loeffl et al. (2016) also includes a biarticular tendon spanning ankle and knee.

In Roozing et al. (2015) the authors proposed an alternative mechanical structure which combines a high-power SEA with a parallel energy storage branch. Contrary to most PEA designs, the secondary branch is not passive but employs a secondary motor that allows to adjust the pretension. Using a distributed controller integrating both branches for energy efficient operation, the authors experimentally verified its effectiveness on a 1-DoF leg, demonstrating a 65% reduction in electrical power consumption when compared with conventional SEAs.

Based on generalizations of the concept, design optimization, and control in Roozing et al. (2016), the recent works Roozing et al. (2018) and Ren et al. (2018) presented the novel design of the eLeg: a three-degree-of-freedom (3-DoF) leg with series and parallel compliant actuation, both with monoarticulated and biarticulated actuation configurations. Figure 1 shows the prototype in its monoarticulated configuration. Preliminary experiments on the realized prototype demonstrated its potential, with significant energy-efficiency improvements of up to 60%, along with significantly reduced torque requirements on the main actuators. This work builds upon these previous works, significantly contributing by:

analyzing the results of the design optimization procedure in depth, indicating the relative strengths of monoarticulated and biarticulated configurations; most notably, we show the beneficial effects of coupling introduced by the biarticular tendon;

presenting extensive simulations of the three actuation configurations that show the baseline comparative performance of the different actuation configurations; furthermore, they provide a basis to choose control gain of a recently developed gradient-descent-based control method (Roozing, 2018), governing the adjustment of the parallel tendons; we leverage a recently proposed modeling approach using the concept of power ports, used to model the energy flow between actuators and robot;

application of the gradient-descent-based control method to an updated hardware prototype, and presenting new experimental data that demonstrate further energy-efficiency improvement over previous results.

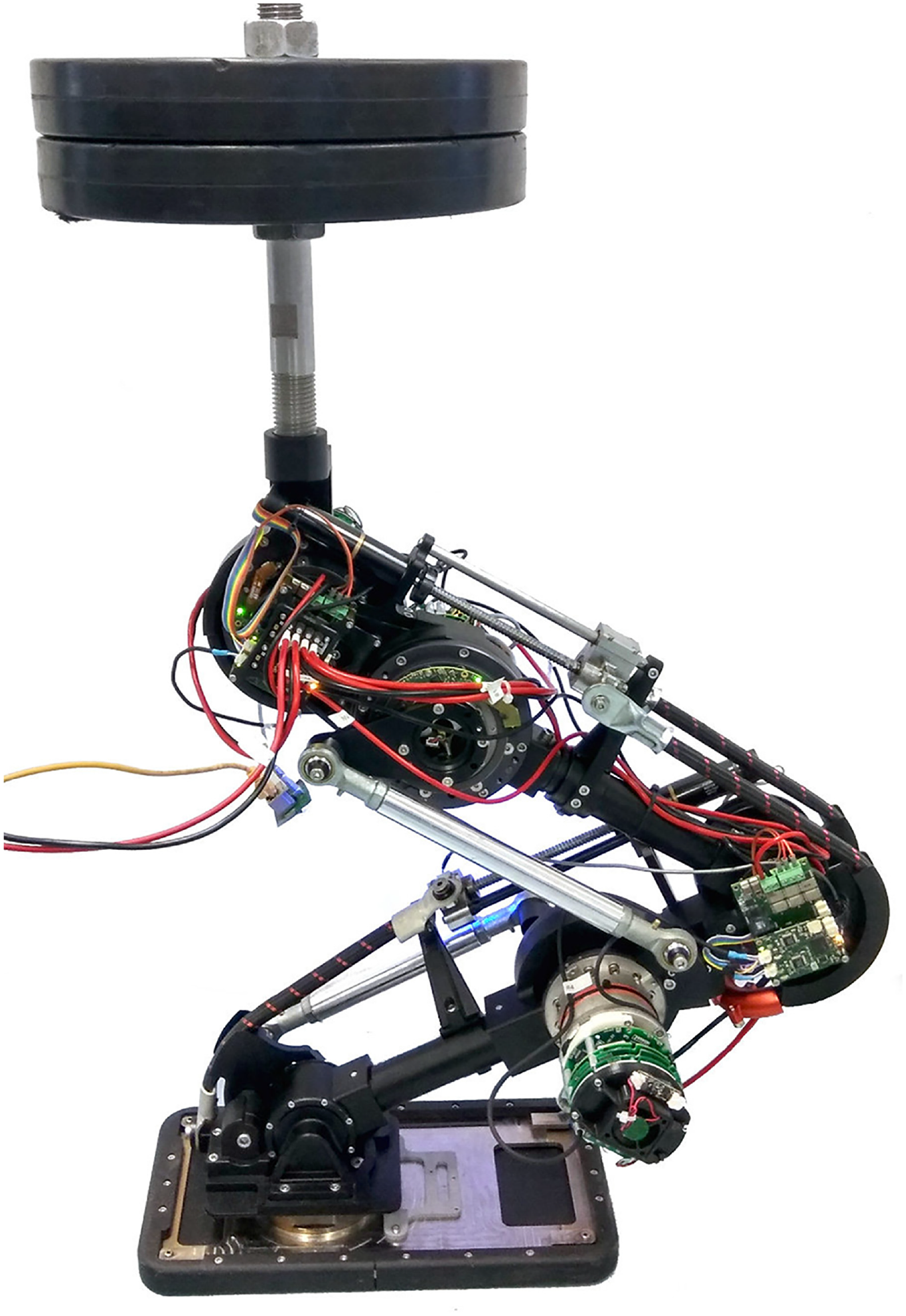

Fig. 1.

The 3-DoF eLeg prototype in monoarticulated configuration.

This paper is structured as follows. Section 2 outlines the previously mentioned series–parallel actuation concept, followed by the chosen actuation configurations and realized 3-DoF leg design in Section 3. Section 4 elaborates on the modular modeling of both leg and actuators. Section 5 discusses actuation design optimization and applies it to the proposed design, followed by strategies for both leg- and actuator-level control in Section 6. Simulation and experimental studies are presented and data are analyzed in Sections 7 and 8. Finally, Section 9 concludes the work and suggests future directions.

2. Series and parallel compliant actuation

The main components of our series–parallel actuation concept are shown in Figure 2. It consists of two parallel compliant actuation branches, with very different stiffness and power properties. Hence, we refer to this concept as asymmetric compliant actuation (ACA) (Roozing et al., 2016, 2015).

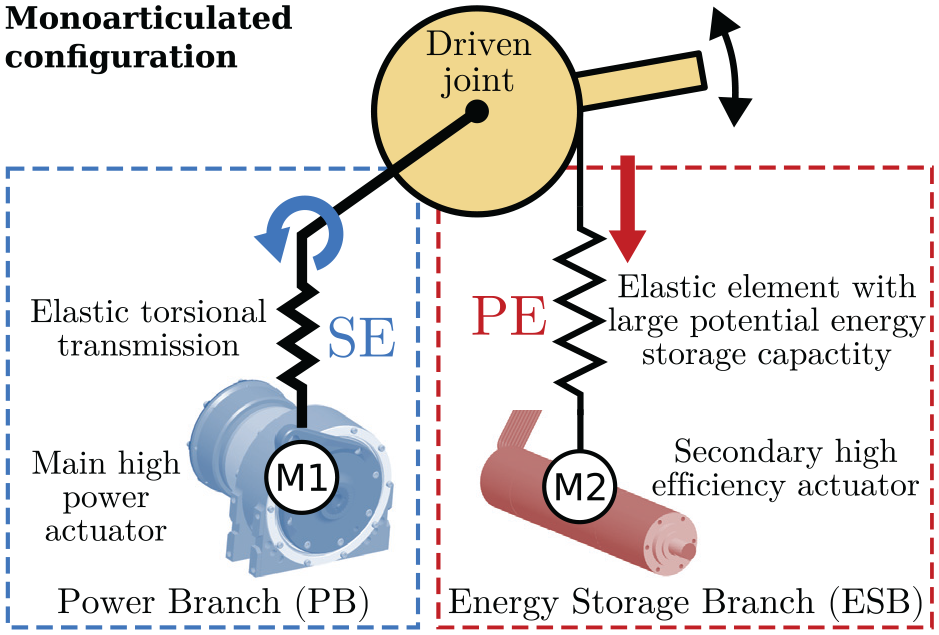

Fig. 2.

The series–parallel actuation concept we refer to as asymmetric compliant actuation (ACA), shown in monoarticulated configuration.

The first branch, referred to as the power branch (PB), is a rotary SEA consisting of a high-power electric motor M1 in series with an elastic element SE. The second branch, referred to as the energy storage branch (ESB), comprises a highly efficient lower-power motor M2 with high reduction linear transmission. In the monoarticulated configuration shown in Figure 2, motor M2 is coupled to the driven joint through a linear unidirectional series-elastic element PE and pulley. The elastic element PE differs from SE in its significantly lower stiffness and much larger energy storage capacity.

Figure 3 shows the ACA concept in biarticulated configuration, where the ESB tendon spans a free pulley on a second (denoted as spanned) joint before driving the first. In this configuration the elongation of elastic element PE becomes a function of the configuration of both joints, and the ESB provides torque to both joints. Selection of the pulley radii ratio and stiffness value allows to shape the torque profile as a function of both joint configurations and pretension position of motor M2. This fact will be used in the optimization of actuation design parameters of the 3-DoF leg in Section 5. The right-hand side of Figure 3 shows the human gastrocnemius muscle, which is an example of biarticulation in the musculoskeletal system, spanning the ankle and knee joints.¹

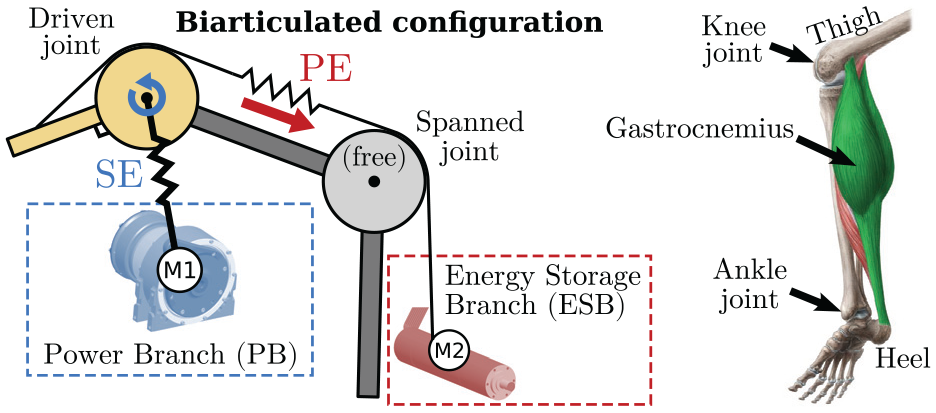

Fig. 3.

Left: ACA, shown in biarticulated configuration. Right: Human gastrocnemius muscle, spanning ankle, and knee joints.

3. Semi-anthropomorphic leg design

For the design of the 3-DoF leg presented in this work inspiration was taken from the human lower limb. To achieve this, the dimensions and mass distribution of the human limb were investigated, and compared with those of existing humanoid designs. Target specifications for dimensions and segment mass were set as given in Table 1. We opted for a scale slightly under average human size, and aimed for mass not exceeding the human limb. The result is a semi-anthropomorphic design corresponding to a ≈1.50 m humanoid.

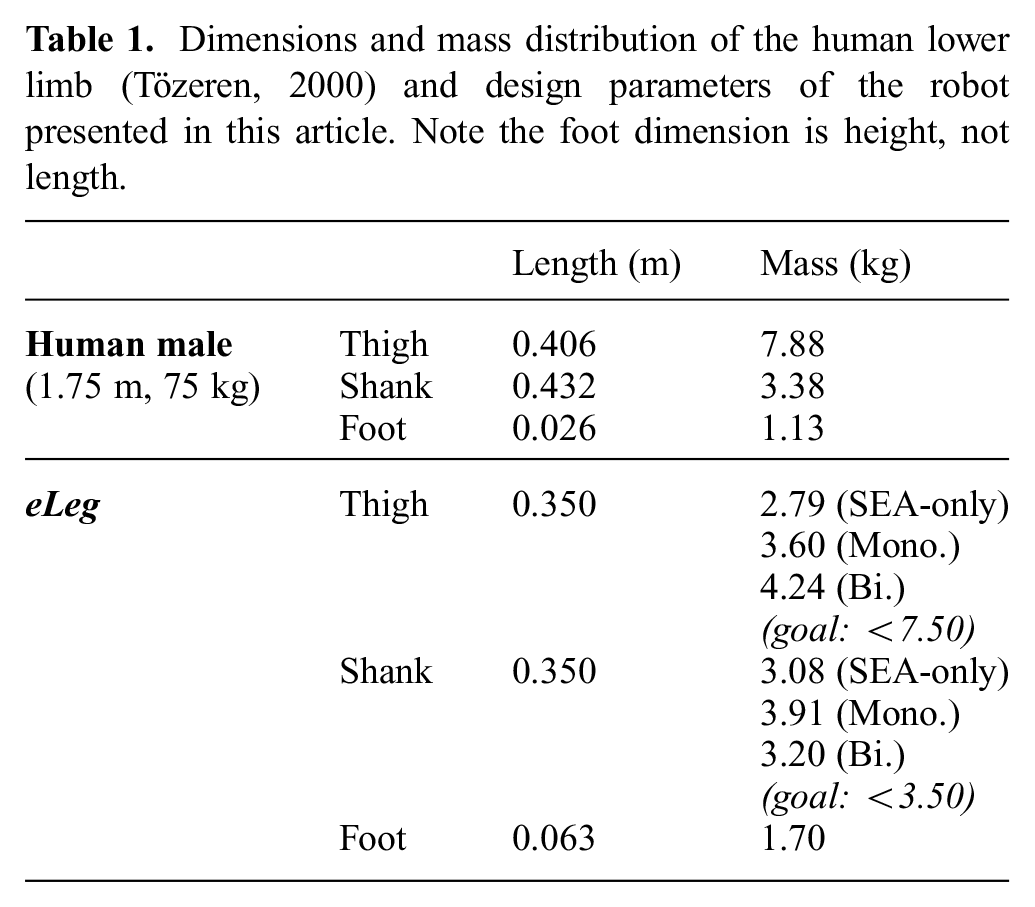

Table 1.

Dimensions and mass distribution of the human lower limb (Tözeren, 2000) and design parameters of the robot presented in this article. Note the foot dimension is height, not length.

		Length (m)	Mass (kg)
Human male	Thigh	0.406	7.88
(1.75 m, 75 kg)	Shank	0.432	3.38
	Foot	0.026	1.13
eLeg	Thigh	0.350	2.79 (SEA-only)
			3.60 (Mono.)
			4.24 (Bi.)
			(goal: <7.50)
	Shank	0.350	3.08 (SEA-only)
			3.91 (Mono.)
			3.20 (Bi.)
			(goal: <3.50)
	Foot	0.063	1.70

Figure 4 displays the resulting design in CAD for all three actuation configurations, featuring three actuated DoFs: ankle, knee, and hip, respectively. The joints are driven by SEAs, which for the knee and ankle are mounted above the joints and transmit their forces through four bar linkages, and are shown in light blue. This decreases the leg’s moment of inertia with respect to the hip joint. The four-bar linkages are composed of the SEA output flange, the two leg segments that form the driven joint, and a connection rod. The trunk is loaded with a weight representative of a humanoid robot in two-legged stance. The ankle and knee pulleys are integrated structural components, shown in light gray in Figure 4. Three actuation configurations are considered, to show both the potential of our proposed actuation concept as well as investigate the effectiveness of biarticulated actuation arrangements. The leg is designed such that the actuation configurations are rapidly interchangeable, to allow for comparison. As per Figure 4, the three configurations are as follows.

SEA-only: In the first configuration all joints are driven exclusively by SEAs, to serve as a baseline actuation arrangement, which is common in most state-of-the-art articulated robot designs.

Monoarticulated: In the second configuration the ankle and knee joints are augmented with the secondary parallel actuation branch (ESB) discussed in Section 2. Figure 4 shows the ESB motors and structural components in red, and the elastic elements in green. The ankle ESB tendon mimics the ankle extensor muscles in the calf. Similarly, the knee ESB tendon is modeled after the large vastus knee extensor muscles, applying force to extend the knee.

Biarticulated: The third configuration again features two joints with parallel actuation branches, however in this case one of the ESBs is biarticulated: the ESB for the ankle spans the knee joint and is driven by a motor on the back of the thigh. This tendon spanning both the knee and ankle joints is functionally similar to the gastrocnemius muscle in humans, which allows power transfer from the knee to the ankle joint upon extension. The free pulley that routes this tendon along the knee joint is shown in dark gray in Figure 4.

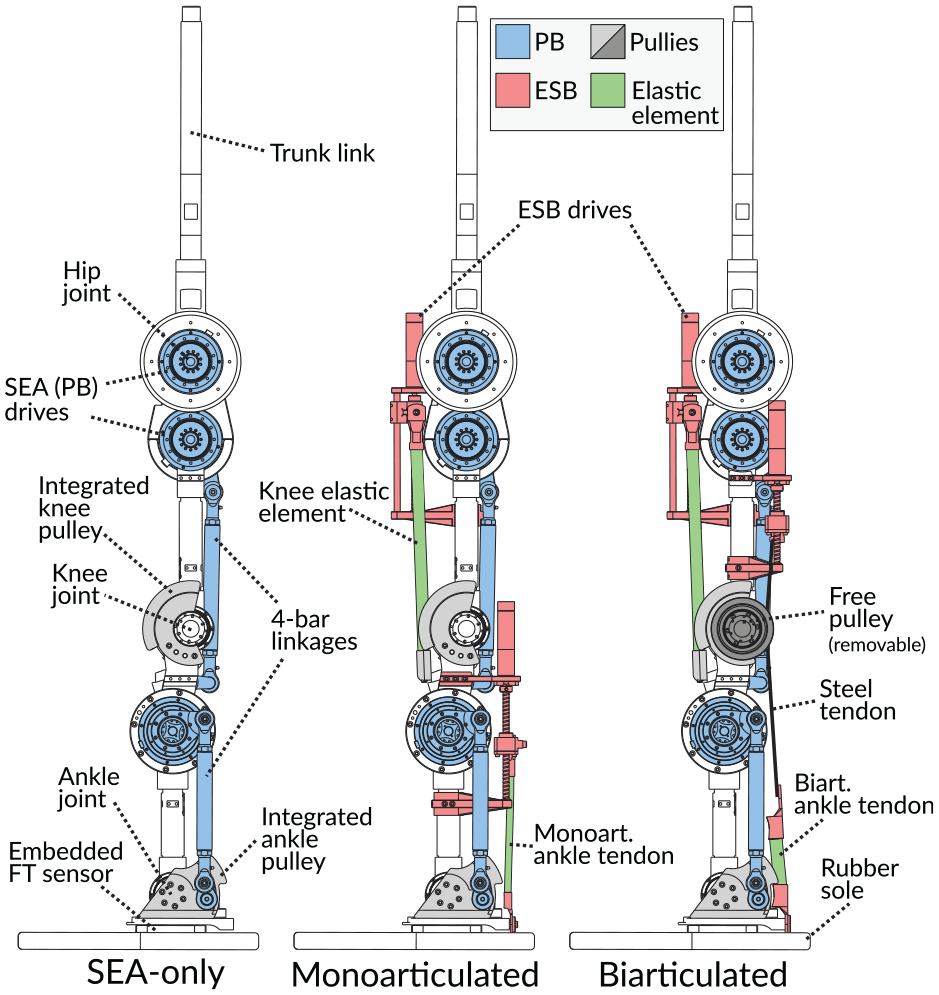

Fig. 4.

CAD: SEA-only, monoarticulated, and biarticulated configurations, respectively.

As main actuation drives, three identical medium-sized SEAs (Baccelliere et al., 2017) are used, which can provide peak torques up to 127 Nm. Conversely, the ESBs are driven by small high gear ratio motors with ball screws, of which the nuts are instrumented with strain gauges for direct linear force measurement. Figure 1 shows the realized prototype in monoarticulated configuration loaded with 20 kg at the trunk link. For more details, on the hardware implementation, we refer the reader to Roozing et al. (2018) and Ren et al. (2018).

4. Modeling

In this section we proceed with modeling the leg in its various actuation arrangements. For greater flexibility, we opt for a modular approach, modeling the leg and actuators separately, connected through a power port formulation. This allows for quick rearrangement of the actuation configuration.

4. Leg modeling

The leg is modeled consisting of four planar links, with masses $m_{1}, m_{2}, m_{3}, m_{4}$ and rotational inertiae $J_{1}, J_{2}, J_{3}, J_{4}$ , respectively, connected by actuated ankle, knee, and hip joints (Figure 5). We assume their center of mass (CoM) to be located on the line connecting the proximal and distal joints, at $r_{1}, r_{2}, r_{3}, r_{4}$ from the proximal joint (except for the foot owing to the floating base). The joints are denoted $q_{1}, q_{2}, q_{3}$ , with torques $τ_{1}, τ_{2}, τ_{3}$ , respectively. The model includes a free floating base consisting of the position $x_{1}, y_{1}$ and rotation $θ_{1}$ of the CoM of the foot, which allows a realistic model of the ground reaction forces (GRFs) to be included. The dynamic equations of the system are derived using the Euler–Lagrange formulism with generalized coordinates $q \in Q \subset ℜ^{N}$ with $N = 6$ , as in Figure 5:

q = {[x_{1}, y_{1}, θ_{1}, q_{1}, q_{2}, q_{3}]}^{T}

(1)

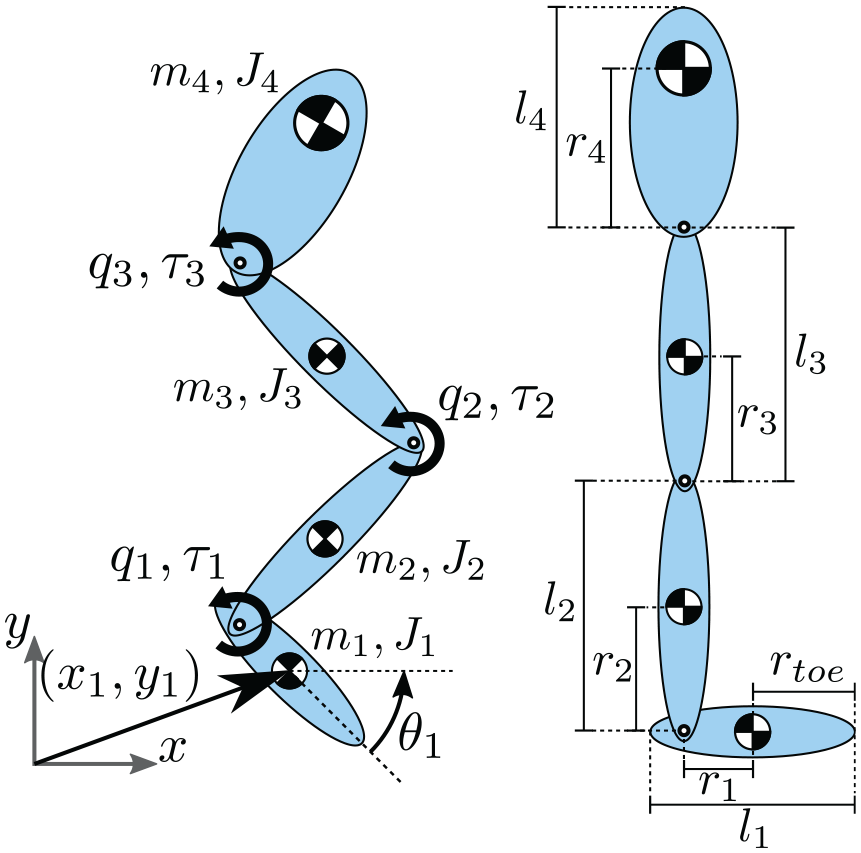

Fig. 5.

Leg model with floating base. The straight configuration on the right corresponds to $q = 0$ .

leading to the dynamics

M (q) \overset{\cdot\cdot}{q} = τ + G (q) - C (q, \overset{\cdot}{q}) \overset{\cdot}{q} - D \overset{\cdot}{q} + J_{grf}^{T} F_{grf}

(2)

where the damping matrix $D = diag (0, 0, 0, d_{1}, d_{2}, d_{3})$ denotes joint friction, $τ = {[0, 0, 0, τ_{1}, τ_{2}, τ_{3}]}^{T}$ denotes generalized actuation forces, $G (q)$ denotes the generalized gravitational forces, $C (q, \overset{\cdot}{q})$ denotes the Coriolis matrix, and $M (q)$ denotes the generalized inertia matrix. Throughout this article, $[.]^{T}$ denotes the matrix transpose.

The GRFs in generalized coordinates are given by $J_{grf}^{T} F_{grf}$ , where $J_{grf}$ denotes the heel and toe Jacobian, because for a flat foot on flat ground the GRFs can be described as two linear forces while still allowing the foot to rotate when leaning more onto either heel or toe, owing to finite stiffness of the rubber sole. Furthermore, it directly allows for only either the heel or toe to be in contact, e.g., when jumping. As such, $F_{grf} \in ℜ^{4}$ is given by spring–dampers in the vertical direction. In the horizontal direction it is given by Coulomb and viscous friction, proportional to the vertical forces:

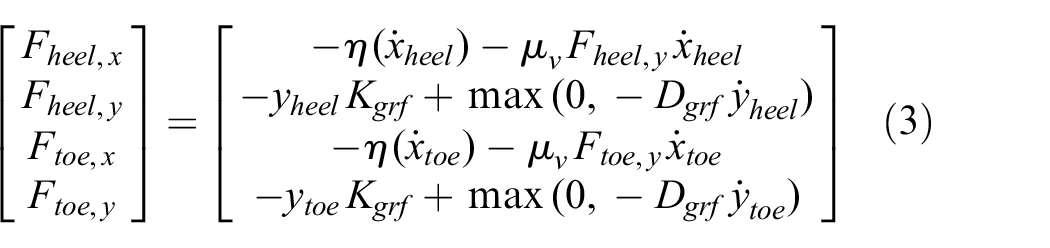

[\begin{matrix} F_{heel, x} \\ F_{heel, y} \\ F_{toe, x} \\ F_{toe, y} \end{matrix}] = [\begin{matrix} - η ({\overset{\cdot}{x}}_{heel}) - μ_{v} F_{heel, y} {\overset{\cdot}{x}}_{heel} \\ - y_{heel} K_{grf} + max (0, - D_{grf} {\overset{\cdot}{y}}_{heel}) \\ - η ({\overset{\cdot}{x}}_{toe}) - μ_{v} F_{toe, y} {\overset{\cdot}{x}}_{toe} \\ - y_{toe} K_{grf} + max (0, - D_{grf} {\overset{\cdot}{y}}_{toe}) \end{matrix}]

(3)

where the required parameters are estimated based on the used foot sole material and its thickness, and are given by $η (\overset{\cdot}{x}) = μ_{c} \tanh (500 \overset{\cdot}{x})$ N,² $μ_{c} = 50$ N, $μ_{v} = 0.5$ s/m, $K_{grf} = 3 \times 10^{5}$ N/m, and $D_{grf} = 1 \times 10^{3}$ Ns/m. Furthermore, when $y_{heel} > 0$ the first two elements of $F_{grf}$ are set to zero, and similarly for the last two elements when $y_{toe} > 0$ . While the simple ground model (3) may not perfectly capture the real-world interactions, it is sufficiently representative for the currently considered energy efficiency experiments where the foot remains static and peak GRFs are small.

4.2. Actuation modeling

We proceed with the modeling of the actuation units that drive each of the leg joints. The model in monoarticulated configuration is shown in Figure 6, driving a single joint with configuration q and applied torque $τ$ . The model consists of two motor rotor inertiae $I_{m 1}$ and $I_{m 2}$ for the PB (M1) and ESB (M2) motors, respectively, which experience viscous friction with coefficients $d_{m 1}$ and $d_{m 2}$ . The PB motor M1 also experiences Coulomb friction $d_{cm 1}$ ; Coulomb friction in the ESB motor and gearbox is not modeled as it is generally very small compared with the force delivered on the tendon. A second source of friction in the ESB drivetrains is the ball screws; although they are generally highly efficient, as load increases so does friction. However, owing to the load dependence this is currently neglected from the model. Motor M1 is coupled to the torsional transmission through a harmonic drive with ratio $r_{m 1}$ . The torsional element is modeled as a spring–damper with stiffness $k_{PB}$ and damping $d_{PB}$ , such that the torque $τ_{PB}$ applied by the PB on the joint is given by

τ_{PB} = k_{PB} Δ_{PB} + d_{PB} {\overset{\cdot}{Δ}}_{PB}

(4)

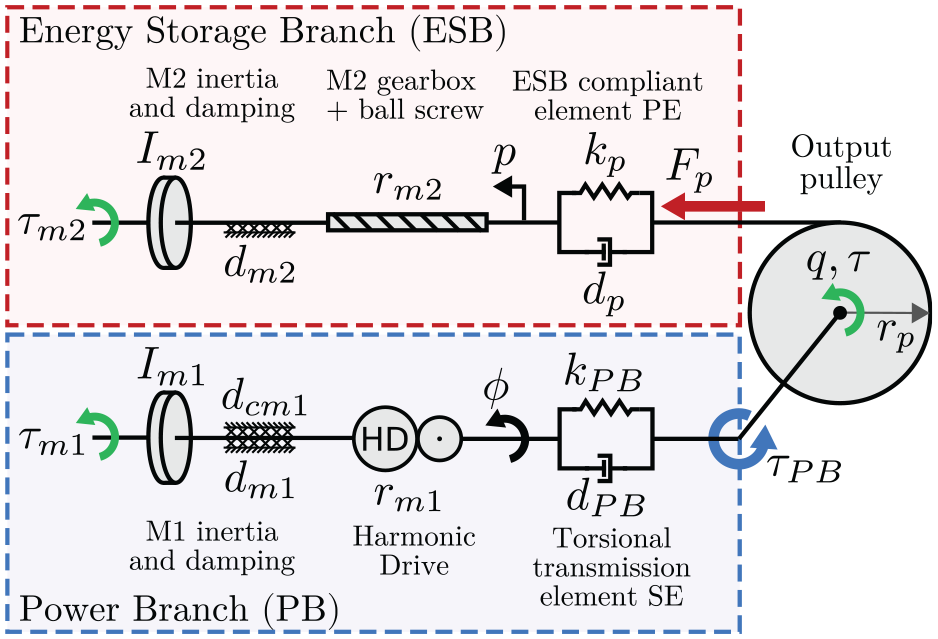

Fig. 6.

Actuator model, in monoarticulated configuration.

where $Δ_{PB} = ϕ - q$ denotes the deflection of the element.

Motor M2 is coupled to the ESB compliance through a gearbox and ball screw with combined ratio $r_{m 2}$ , giving the linear pretension position p. The compliant element is modeled as a spring–damper with stiffness $k_{p}$ and damping $d_{p}$ , respectively. The elongation $Δ_{p}$ of the ESB elastic element is given by $Δ_{p} = p - r_{p} q$ , where $r_{p}$ denotes the pulley radius. As the element is of a rubber-type material, it only applies elastic force under extension:

F_{p} = {\begin{matrix} k_{p} Δ_{p} + d_{p} {\overset{\cdot}{Δ}}_{p} & Δ_{p} > 0 \\ d_{p} {\overset{\cdot}{Δ}}_{p} & otherwise \end{matrix}

(5)

and the torque generated by the ESB on joint i resulting from the linear force $F_{p}$ through the pulley is equal to $τ_{p} = r_{p} F_{p}$ . The output torque applied to the joint is the sum of the torque provided by both branches:

τ = τ_{PB} + r_{p} F_{p}

(6)

When the actuator is in biarticular configuration as in Figure 3, and we denote the driven joint as joint i and the spanned joint as joint j, then the elongation of the ESB elastic element is given by

Δ_{p} = p - r_{p, i} q_{i} - r_{p, j} q_{j}

(7)

and the resulting net torque applied to each joint becomes

\begin{matrix} τ_{i} = τ_{PB} + r_{p, i} F_{p} \\ τ_{j} = r_{p, j} F_{p} \end{matrix}

(8)

where $r_{p, i}$ and $r_{p, j}$ denote the pulleys of joints i and j.

4.2.1. Power ports

To enable modularity and reconfigurability of the leg and actuator models, we formulate the leg–actuator interconnections using power ports, consisting of sets of power conjugate variables $〈 {\overset{\cdot}{q}}_{°}, τ_{°} 〉$ corresponding to each leg DoF. For each actuation configuration in Figure 4, we formulate an ESB actuation topology matrix $T \in ℜ^{M \times N}$ with $M = 3$ actuators and $N = 6$ leg DoFs, which fully describes the location and articulation of all three EBSs. For the mth actuator, the corresponding row $t^{m} \in ℜ^{6}$ , $m \in {1, 2, 3}$ from T maps the velocities $\overset{\cdot}{q}$ of the leg DoFs to the change in deformation of the ESB elastic element of that actuator.³

{\overset{\cdot}{Δ}}_{p}^{m} = {\overset{\cdot}{p}}^{m} + t^{m} \overset{\cdot}{q}

(9)

and similarly maps back the linear force (5) produced by the element to ESB torque $τ_{p}^{m} \in ℜ^{6}$ acting on the leg DoFs:

τ_{p}^{m} = - {(t^{m})}^{T} F_{p}^{m}

(10)

thus completing the formulation of a six-dimensional power port with power conjugate variables $〈 τ_{p}^{m}, \overset{\cdot}{q} 〉$ for ESB tendon m. For monoarticulated tendons $t^{m}$ will have one non-zero element, two for biarticular tendons, and so forth. For each of the three configurations shown in Figure 4, T is given by

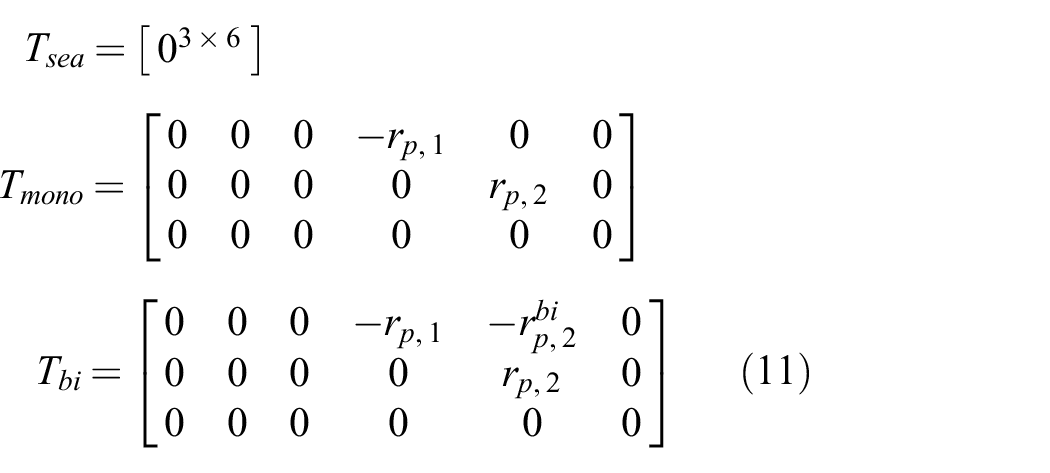

\begin{matrix} T_{sea} = [\begin{matrix} 0^{3 \times 6} \end{matrix}] \\ T_{mono} = [\begin{matrix} 0 & 0 & 0 & - r_{p, 1} & 0 & 0 \\ 0 & 0 & 0 & 0 & r_{p, 2} & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 \end{matrix}] \\ T_{bi} = [\begin{matrix} 0 & 0 & 0 & - r_{p, 1} & - r_{p, 2}^{bi} & 0 \\ 0 & 0 & 0 & 0 & r_{p, 2} & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 \end{matrix}] \end{matrix}

(11)

where $T_{sea}$ , $T_{mono}$ , and $T_{bi}$ denote the SEA-only, monoarticulated, and biarticulated configurations, respectively, and $r_{p, °}^{°} \in ℜ$ denote the pulley radii that will be designed through optimization in Section 5. Note the first three columns are always zero owing to the floating base DoFs. We employ the same mapping method for the PBs, in which case there is one non-zero element per row which is unity:

T_{PB} = [\begin{matrix} 0^{3 \times 3} & - I^{3 \times 3} \end{matrix}]

(12)

and $t_{PB}^{m}$ denotes the mth row. Here $T_{PB}$ is equal for all three actuation configurations, as their articulation does not change. Using the presented formulation, changing between actuation configurations is reduced to setting $T \in {T_{sea}, T_{mono}, T_{bi}}$ and changing actuator parameters (e.g., tendon stiffness) if necessary, a simple change of parameters rather than model structure. The change in PB and ESB elastic element elongations are now given as

\begin{matrix} {\overset{\cdot}{Δ}}_{PB} = \overset{\cdot}{ϕ} + T_{PB} \overset{\cdot}{q} \in ℜ^{M} \\ {\overset{\cdot}{Δ}}_{p} = \overset{\cdot}{p} + T \overset{\cdot}{q} \in ℜ^{M} \end{matrix}

(13)

Conversely, the produced forces are given by

\begin{matrix} τ_{PB} = - T_{PB}^{T} F_{PB} \in ℜ^{N} \\ τ_{p} = - T^{T} F_{p} \in ℜ^{N} \end{matrix}

(14)

where $F_{PB}, F_{p} \in ℜ^{M}$ denote the vectors of series-elastic torques (4) and unidirectional tendon forces (5), respectively. The net generalized actuation torques $τ$ in (2) are by the sum of PB and ESB contributions as $τ = τ_{PB} + τ_{p}$ . Hence, the actuation topology matrices T and $T_{PB}$ map leg joint velocities to changes in elastic elongations (flows, cf. (13)) and elastic element forces to generalized joint torques (efforts, cf. (14)). Thus, they map the power flows out of the elastic elements into the robot dynamics and vice versa:

〈 - F_{PB}, T_{PB} \overset{\cdot}{q} 〉 + 〈 - F_{p}, T \overset{\cdot}{q} 〉 = 〈 τ, \overset{\cdot}{q} 〉

(15)

The pair $〈 τ, \overset{\cdot}{q} 〉$ completely describes the six-dimensional mechanical power flow between the actuation and robot dynamics. This is shown graphically in Figure 7, using Bond graph notation, where transformers (TF) show the mapping.

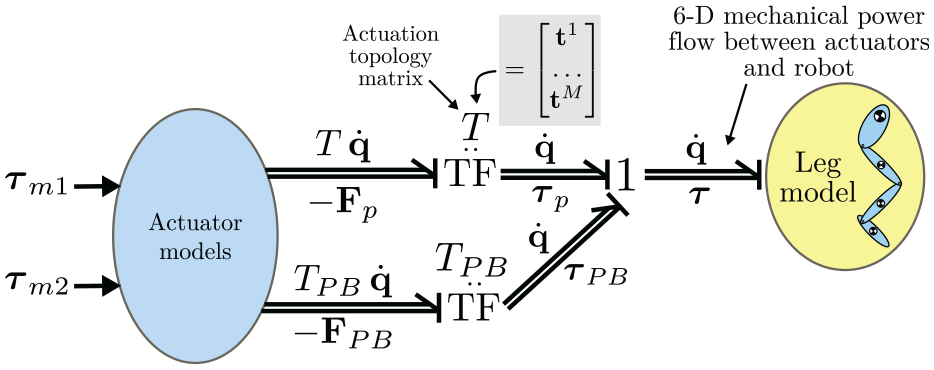

Fig. 7.

Actuator–leg power flows, shown in Bond graph notation.

We close the discussion on power ports with a brief example of mechanical power transfer from knee to ankle joint using the biarticulated tendon ( $m = 1$ ). Consider $T = T_{bi}$ , and assume $F_{p}^{1} > 0$ , i.e., the tendon is under tension. Further consider ${\overset{\cdot}{q}}_{1} > 0$ and ${\overset{\cdot}{q}}_{2} < 0$ , i.e., ankle and knee extending, such as when coming out of a squat. The tendon’s power on the leg is given by $τ_{p}^{1} \overset{\cdot}{q} = - t^{1} F_{p}^{1} \overset{\cdot}{q}$ , with the ankle and knee components given by

\begin{matrix} P_{bi, ankle} = r_{p, 1} {\overset{\cdot}{q}}_{1} F_{p}^{1} > 0 \\ P_{bi, knee} = r_{p, 2}^{bi} {\overset{\cdot}{q}}_{2} F_{p}^{1} < 0 \end{matrix}

Hence, the biarticulated tendon absorbs power at the knee, and delivers positive power at the ankle joint. By conceptualizing the connection between actuation and rigid-body dynamics as flows of mechanical power, actuation synergies that concern multiple joints are easily recognized, by inspecting the actuation topology matrix T.

4.2.2. Actuator dynamics

The actuator model inputs, shown in green in Figure 6 for the monoarticulated case, are the two motor torques $τ_{m 1}$ and $τ_{m 2}$ , together with the leg motion $\overset{\cdot}{q}$ , resulting from the leg dynamics described in Section 4.1. For M actuators the dynamics are given by a set of first-order nonlinear differential equations:

{\overset{\cdot}{x}}_{a} = f (x_{a}, τ_{m 1}, τ_{m 2}) + Z \overset{\cdot}{q}

(16)

with the state vector

x_{a} = {[\overset{\cdot}{ϕ}, \overset{\cdot}{p}, Δ_{PB}, Δ_{p}, ϕ, p]}^{T} \in ℜ^{6 M}

(17)

Here $f$ describes the actuator dynamics for $\overset{\cdot}{q} = 0$ , i.e., fixed actuator output:

f (x_{a}, τ_{m 1}, τ_{m 2}) = A x_{a} + B {[\begin{matrix} τ_{m 1} \\ τ_{m 2} \end{matrix}]}^{T} + n (x_{a}),

(18)

where $A, B$ describe the linear dynamics of Figure 6 in state-space, and $n$ describes remaining nonlinear dynamics (e.g., spring unidirectionality and Coulomb friction). $Z \overset{\cdot}{q}$ describes the actuator state derivatives generated by leg motion, with Z given by

Z = [\begin{matrix} \frac{- d_{PB} T_{PB}}{I_{m 1} r_{m 1}^{2}} \\ \frac{- d_{p} T}{I_{m 2} r_{m 2}^{2}} \\ T_{PB} \\ T \\ 0^{2 \times N} \end{matrix}]

(19)

where the first two rows can be observed to generate motor rotor forces following from internal damping in the elastic elements, and the third and fourth rows map leg joint velocities to changes in elastic element elongations (cf. (13)). Hence, a change of T and $T_{PB}$ and, thus, Z is sufficient to change actuation configurations, leaving the actuator models themselves intact.⁴

4.2.3. Electrical dynamics and power

Note that (17) does not include states for motor winding current. As the time constants of the motor electrical dynamics are very small compared with the overall system dynamics, they are neglected for simplicity and simulation speed by neglecting the series inductance.

The resulting model consists of a series connection of voltage source, winding resistance, and gyrator element that interfaces with the mechanical domain. The winding currents $i_{m 1}, i_{m 2}$ of the PB and ESB motors, respectively, follow from the electromotive torque of both motors $τ_{m 1}, τ_{m 2}$ (cf. Figure 6) through the torque constants $κ_{1}, κ_{2}$ :

i_{m 1} = κ_{1}^{- 1} τ_{m 1}, i_{m 2} = κ_{2}^{- 1} τ_{m 2}

(20)

Motor terminal voltage is computed through the series winding resistance $R_{m 1}, R_{m 2}$ for each motor, summed with the back-EMF voltage produced by non-zero rotor velocities:

\begin{matrix} v_{m 1} = R_{m 1} i_{m 1} + κ_{1} r_{m 1} {\overset{\cdot}{ϕ}}_{1} \\ v_{m 2} = R_{m 2} i_{m 2} + κ_{2} r_{m 2} \overset{\cdot}{p} \end{matrix}

(21)

Lastly, the instantaneous power of both motors follows as

P_{m 1} = v_{m 1} i_{m 1}, P_{m 2} = v_{m 2} i_{m 2}

(22)

The static relations above allow energy consumption to be measured in simulation, and the voltage and current limitations found in the real system to be applied. In experiment, direct measurements of winding currents together with (21) and (22) are used to compute electrical power.

4.3. Losses and efficiency

Considering the terms in (22), we observe that either minimizing current (and, thus, delivered torque) or voltage (that is, motion and/or torque) minimizes the electrical power consumption, with the $i^{2} R$ term lost to heating. In the mechanical domain, losses occur owing to bearing and gearbox friction, increasing quadratically with gear ratio. In a multi-motor setup, minimizing energy consumption means both minimizing individual losses and motor utilization.

Now, consider the ACA concept and model shown in Figures 2 and 6. Assuming the motion to be executed by the robot is given and non-cyclic (i.e., no resonance), the motion of the SEA motor is also given. Hence, minimizing its torque minimizes its energy consumption. This means that if the ESBs can be designed and controlled such that most of the required torque is provided by them, while at the same time the ESB motor is moving as little as possible, the electrical energy efficiency of the entire system is maximized.

Using knowledge of how the required joint torques evolve as function of their positions, one can optimize the stiffness and pulley radii of the parallel ESB tendons to approximate these torques as close as possible. The remainder can then be provided by the SEAs. The next section discusses the optimization procedure and its results in detail.

5. Optimization of design parameters

In an articulated robot, the loading on each joint in general depends on the configuration of all other joints. Hence, optimization of the design parameters needs to simultaneously consider all ESB tendons and a subset of the entire joint workspace. We optimize the ESB design parameters using the method proposed in Roozing et al. (2016). The optimization procedure considers pulley radii $r_{p, °}^{°}$ , elastic element stiffness values $k_{p, °}$ , and pretension positions $p_{°}$ as optimization variables.

Given the three actuation configurations described in Section 3, the relevant ESB design parameters for both the monoarticulated and biarticulated configurations are shown in Figure 8. While each ESB tendon has three (four for biarticulated) parameters, one of the parameters can be freely chosen, owing to a linear dependency between parameters (e.g., an increase in stiffness is exactly offset by a reduction in pulley ratio and pretension). Hence, the ankle and knee pulleys $r_{p, 1}$ and $r_{p, 2}$ are structurally integrated components, chosen identical for both configurations without loss of optimality.

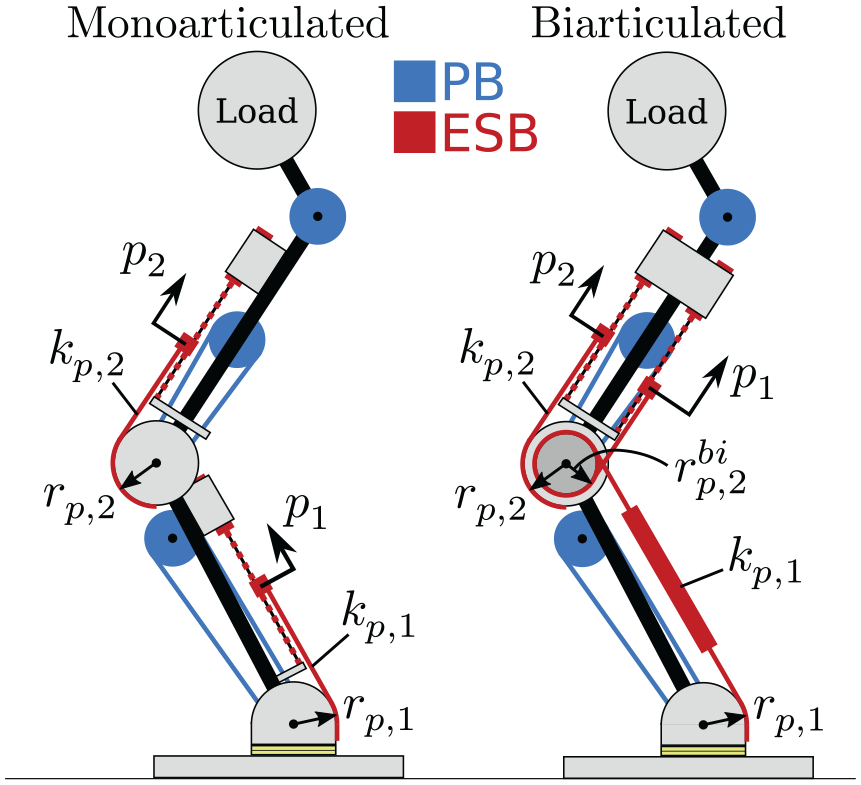

Fig. 8.

ESB parameters for monoarticulated and biarticulated configurations.

5.1. Optimized ESB design parameters

For optimization of the ESB design parameters we choose leg poses as a subset of the joint workspace that keeps the center of pressure (CoP) within the foot support polygon, with the floating base $x_{1} = y_{1} = θ_{1} = 0$ , i.e., all statically stable standing configurations on flat ground, and respecting joint limits. We set the configuration of the hip joint $q_{3}$ such that the trunk is vertical in each pose: $q_{3} = - (q_{1} + q_{2})$ . The resulting configurations in $q_{1}, q_{2}$ joint space and Cartesian space are shown in Figure 9. On the left plot, the dashed black lines denote the joint limits, and the blue line shows $q_{2} = - 2 q_{1}$ , a straight-down squat (where the hip remains exactly over the ankle). The right plot shows corresponding Cartesian coordinates of the hip, and vertical dashed lines show foot support polygon limits.

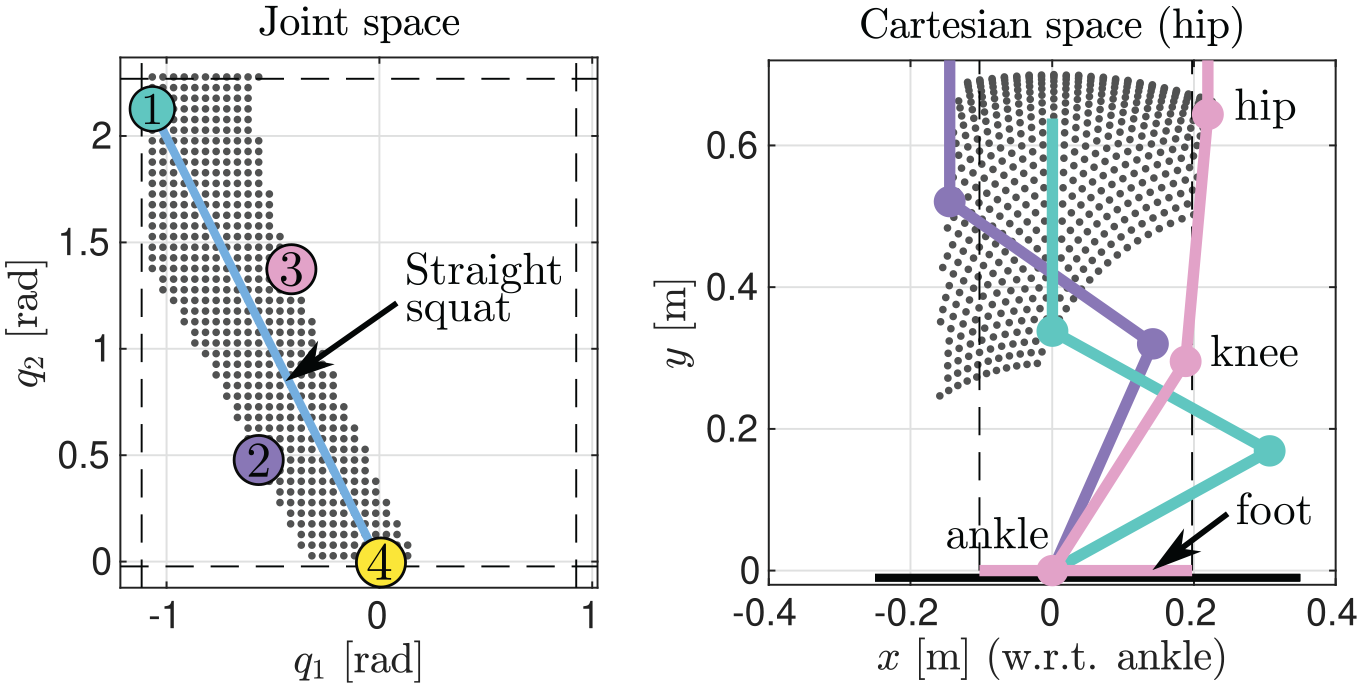

Fig. 9.

Optimization joint workspace for $(q_{1}, q_{2})$ . The right plot shows corresponding Cartesian coordinates of the hip with respect to the ankle joint.

For a visual interpretation of the leg configurations, Figure 9 shows four numbered poses:

deepest straight down squat, where the ankle reaches its joint limit;

a forward leaning posture, with the knee nearly fully extended, and CoP at the edge of the support polygon;

a backward leaning posture, with the hip behind the foot, and CoP at the edge of the support polygon;

straight leg configuration (not shown visually).

The shaded colored leg figures in the right plot of Figure 9 show the leg poses corresponding to the numbered configurations in the left plot.

The optimized ESB design parameters are listed in Table 2. Note that while optimal values of pretension positions $p_{1}, p_{2}$ are derived for each case, our design is not restricted to static pretension positions like most PEAs: The secondary motor M2 allows to continuously vary the pretension position to obtain task-specific optimal energy efficiency. In Table 2 a significantly higher optimal stiffness of the ankle tendon can be observed in the biarticulated configuration compared to the monoarticulated case. This originates from the fact that as the leg squats down and the ankle flexes, the knee also flexes, which reduces the net elongation of the tendon. The smaller elongation warrants a higher stiffness to produce the desired ankle torque.

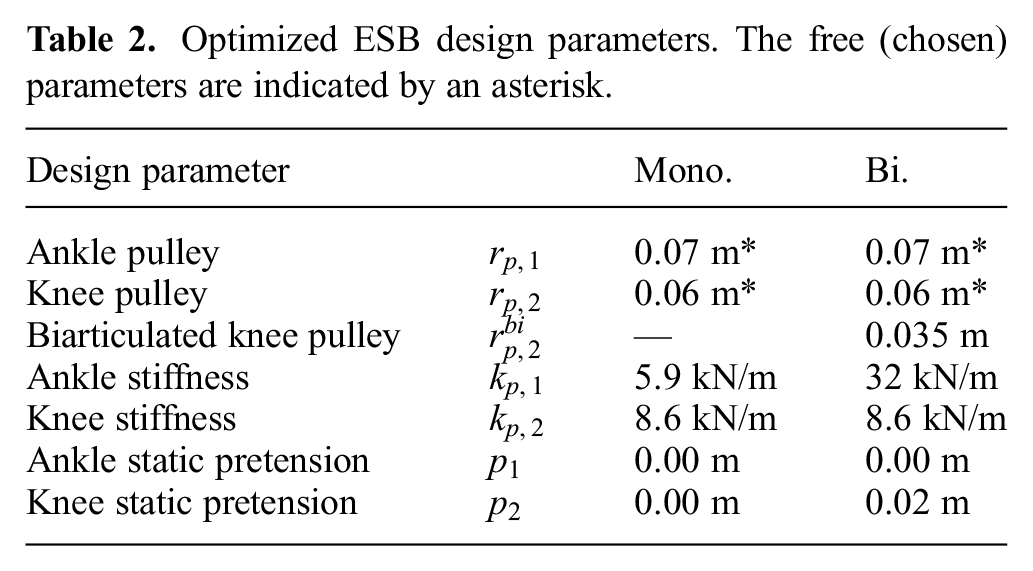

Table 2.

Optimized ESB design parameters. The free (chosen) parameters are indicated by an asterisk.

Design parameter		Mono.	Bi.
Ankle pulley	$r_{p, 1}$	0.07 m*	0.07 m*
Knee pulley	$r_{p, 2}$	0.06 m*	0.06 m*
Biarticulated knee pulley	$r_{p, 2}^{bi}$	—	0.035 m
Ankle stiffness	$k_{p, 1}$	5.9 kN/m	32 kN/m
Knee stiffness	$k_{p, 2}$	8.6 kN/m	8.6 kN/m
Ankle static pretension	$p_{1}$	0.00 m	0.00 m
Knee static pretension	$p_{2}$	0.00 m	0.02 m

Figure 10 shows the corresponding optimized ESB torque landscapes over $(q_{1}, q_{2})$ for both the monoarticulated (top) and biarticulated (bottom) cases, respectively. The ankle joint for both cases is shown in green (Figure 10(a) and (c)), and knee joint for both cases is shown in red (Figure 10(b) and (d)). The subset of workspace that is optimized over is shown in gray on the ground plane (compare Figure 9), and the blue line again shows a straight-down squat (where the hip remains exactly over the ankle). Its projection on the torque surface plot is shown as a blue dashed line. Black dashed lines indicate configurations in which the ankle tendon goes into or out of slack. For comparison, Figure 10(c) shows the same four poses also shown in Figure 9.

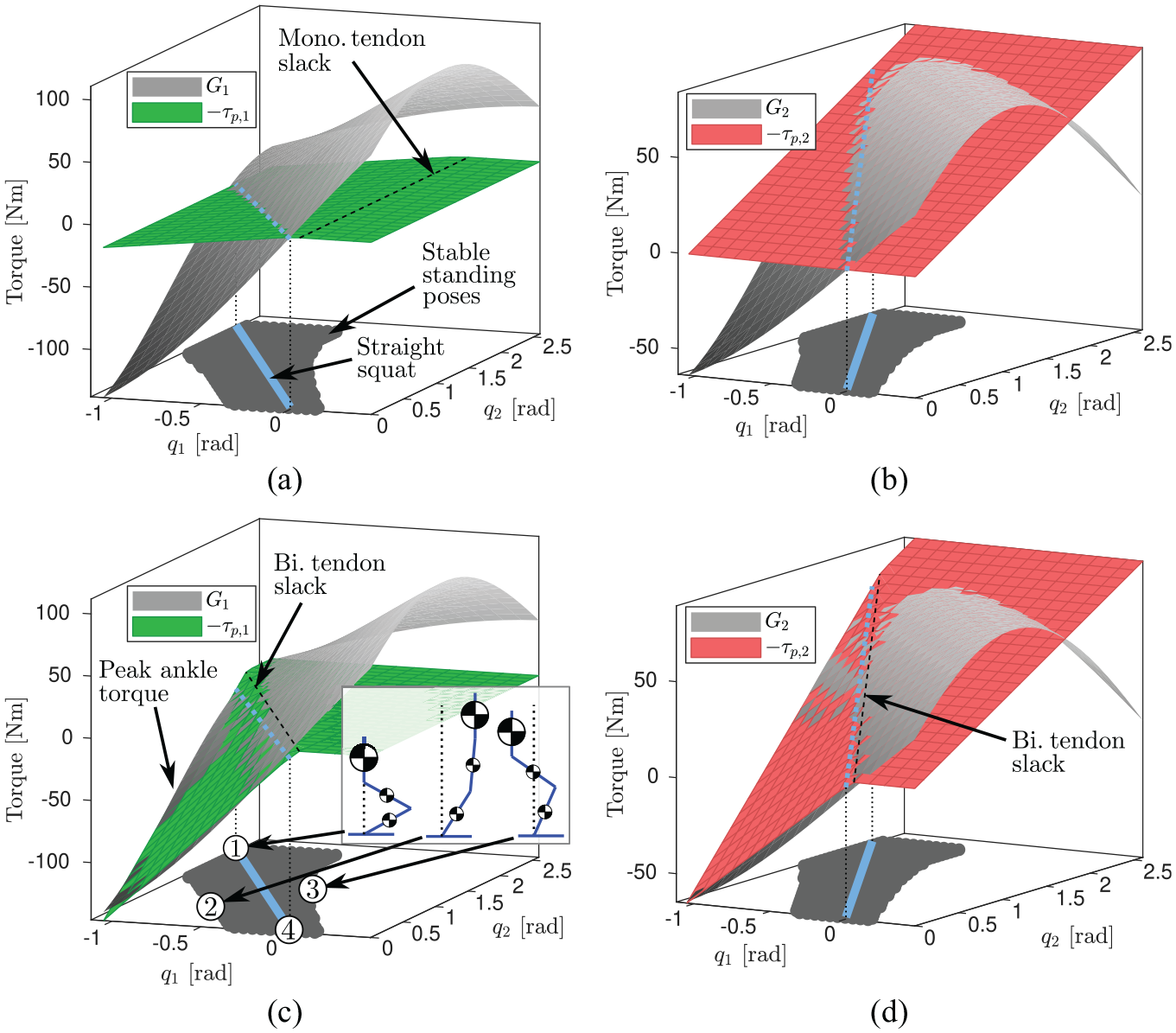

Fig. 10.

ESB torques for optimized design parameters. Ankle joint shown in green, and knee joint shown in red: (a) monoarticulated ankle joint; (b) monoarticulated knee joint; (c) biarticulated ankle joint; (d) biarticulated knee joint. The $(q_{1}, q_{2})$ joint workspace that is optimized on (Figure 9) is shown in gray on the ground plane together with a blue line showing a straight-down squat (where the hip remains exactly above the ankle). Its projection on the torque surface plot is shown as blue dashed line. Here $G_{1}$ , $G_{2}$ denote gravitational loading, and $τ_{p, 1}$ , $τ_{p, 2}$ denote net ESB torques on the ankle and knee, respectively. Black dashed lines indicate where the monoarticulated or biarticulated ankle tendon goes into slack.

Note the ankle torque in the monoarticulated configuration (Figure 10(a)) is independent of knee angle $q_{2}$ , which is an inherent property of monoarticulated tendons. Likewise, the knee torque is independent of ankle angle $q_{1}$ (Figure 10(b)). Conversely, the coupling created by the biarticulated tendon results in both ankle and knee torques being a function of both angles (when the tendon is not in slack; Figure 10(c) and (d)).

As the objective is for the ESB tendons to match the gravitational load as close a possible, one would like the colored planes to match the gray planes as close as possible. Considering the monoarticulated configuration (Figure 10(a) and (b)), accurate torque generation is achieved when close to straight-down squatting configurations (i.e., the blue lines). However, the configuration tends to undercompensate or overcompensate for configurations outside this line (e.g., poses 2 and 3), although generally by less than the absolute torque required, meaning there is still a reduction in torque required from the main actuators. In the biarticulated configuration (Figure 10(c) and (d)), the biarticulated coupling significantly more accurately compensates for loading over the workspace when $q_{2} < - 2 q_{1}$ , that is, when the hip joint is in front of the ankle joint (e.g., pose 2). When the hip joint is behind the ankle joint (e.g., pose 3), the tendon is mostly in slack (black dashed lines).

A large ankle torque is produced by the biarticulated tendon when the knee extends ( $q_{2} \to 0$ ) and the ankle flexes ( $q_{1} < 0$ ) simultaneously (e.g., pose 2), indicated by “peak ankle torque” in the bottom left of Figure 10(c). This illustrates the functional similarity to the human gastrocnemius muscle, which is activated to produce powerful ankle push-off torque when the knee approaches full extension during walking, running, or jumping. Such a relation cannot be achieved by monoarticulated tendons and as such illustrates a clear benefit of multiarticulation, for example in legged robots, where it may allow the use of smaller or no ankle actuators, while still producing significant ankle push-off torque through biarticulated mechanical power transfer from the knee joint.

6. Control strategy

For high-level control of the leg, the employed strategy is partly based on Roozing et al. (2016, 2015) in terms of how the desired torque is distributed between the branches; however, control of the parallel ESBs was replaced by a more recent gradient-descent-based control scheme. An overview of the resulting scheme is shown in Figure 11. The joint variables are controlled independently using impedance control with gravity compensation, and the desired generalized torques $τ^{*} = {[0, 0, 0, τ_{1}^{*}, τ_{2}^{*}, τ_{3}^{*}]}^{T}$ in (2) are given by

τ_{i}^{*} = - G_{i} (q) + K_{q, i} [e_{q, i} + D_{q, i} {\overset{\cdot}{e}}_{q, i}], i \in {1, 2, 3}

(23)

where $e_{q, i} = q_{i}^{*} - q_{i} \in ℜ$ denote joint variable errors, $G_{i}$ denote model-based gravitational torques and $K_{q, i}, D_{q, i} \in ℜ$ denote the stiffness and damping parameters for joint i.

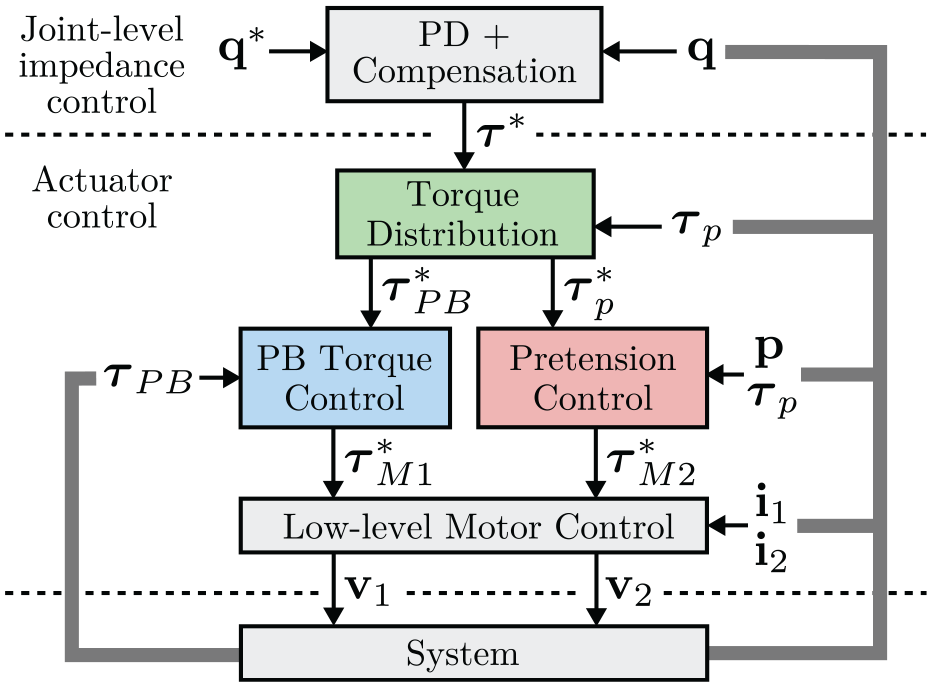

Fig. 11.

Control architecture.

The actuator control is designed to be agnostic with respect to the high-level control loop. For example, desired joint torques can also result from advanced whole-body control schemes.⁵ Indeed, the actuator control strategy tracks the desired joint torques, and attempts to do so in an energy-efficient manner.

6.1. Torque distribution

Owing to their design of high gear ratio and high compliance, together with nonlinearity and hysteresis in the rubber elastic elements, the torque tracking bandwidth of the ESBs is inherently limited by design. Hence, to achieve precise and high-bandwidth torque tracking at the joints, we leverage the excellent torque tracking capabilities of the SEAs. Given desired net joint torques $τ^{*}$ , the reference PB torques $τ_{PB}^{*}$ are calculated as the difference between the desired joint torques and measured net ESB torque:

τ_{PB}^{*} = τ^{*} - τ_{p}

(24)

such that given $τ_{PB} \to τ_{PB}^{*}$ we have $τ_{PB} + τ_{p} = τ \to τ^{*}$ . The SEAs employed in the PBs achieve torque tracking based on control of the deflection of an elastic element, using a strategy which is outside the scope of this article. Conversely, the desired ESB torques are computed as $τ_{p}^{*} = τ^{*}$ , i.e., the ESBs try to provide the full desired torque on the system, within the constraints of unidirectionality and pretension range.

6.2. ESB pretension control

We briefly summarise the gradient-descent-based pretension control strategy developed in Roozing (2018). Owing to the coupling created by multi-articulated tendons, control of the tendons needs to be considered for all tendons simultaneously. Utilizing the actuation topology matrix T, we compute what change in pretension of all tendons leads to the largest reduction in torque tracking error. We start by defining the ESB torque tracking error:

e_{p} = τ_{p}^{*} - τ_{p} \in ℜ^{N}

(25)

As the objective is to minimize energy consumption of the overall system, and motor power is statically quadratic with generated torque, the squared $l_{2}$ norm of the torque tracking error is a useful error measure. Computing the squared $l_{2}$ -norm of $e_{p}$ , i.e., $∥ e_{p} ∥_{2}^{2}$ , and using the chain rule and $\nabla ∥ e_{p} ∥_{2}^{2} = 2 e_{p}$ , we compute the gradient with respect to $p$ :

\begin{matrix} \nabla_{p} ∥ e_{p} ∥_{2}^{2} = (\nabla_{p} e_{p}) \nabla ∥ e_{p} ∥_{2}^{2} \\ = 2 {(T^{T} K_{p})}^{T} (τ_{p}^{*} - τ_{p}) \end{matrix}

(26)

where $K_{p}$ denotes the diagonal matrix of tendon stiffness values. Now, setting the rate of change of $p$ as

\overset{\cdot}{p} = - γ_{e} \nabla_{p} ∥ e ∥_{2}^{2}

(27)

where $γ_{e} > 0$ is a constant control gain parameter, ensures asymptotic convergence of $e_{p}$ owing to global convexity of the squared $l_{2}$ error measure, given $\overset{\cdot}{q} = 0$ . The condition $\overset{\cdot}{q} = 0$ for asymptotic convergence stems from the fact that, in general, as the joint moves the elastic element elongation will change, which may be faster than the pretension is adjusted.⁶

In addition to global asymptotic convergence, the control strategy above has the benefit that it does not require an accurate model of the elongation–torque relations of the elastic elements (which as noted before have nonlinear and hysteric properties), or even a measurement of the elongation of the elements. Only the topology matrix T and approximate stiffness values $K_{p}$ are required, together with measurements of generated linear forces $τ_{p}$ , which are obtained through strain gauges measuring linear tendon forces $F_{p}$ . For practical and safe implementation, we implement the velocity references (27) in a low-level position control loop on the hardware, which also ensures the available ball screw range is respected.

7. Simulation study

The effectiveness of the design optimization methods and control strategies were first investigated in simulation. During the development of the platform, a significant number of simulations were performed, to assess viable actuation configurations and support other design decisions, as well as assess performance benefits. We provide some of these results and point out key features.

In many existing works, demonstrations of improved energy efficiency using actuation compliance were the result of carefully chosen resonances or motions close to the natural dynamics of the system. In our case, however, to demonstrate validity and more general applicability of the proposed methods and the resulting leg design, we generate a 140 second motion profile containing a series of different poses, transitions, and a period of cyclic elliptical squatting, shown in Figure 12.

Fig. 12.

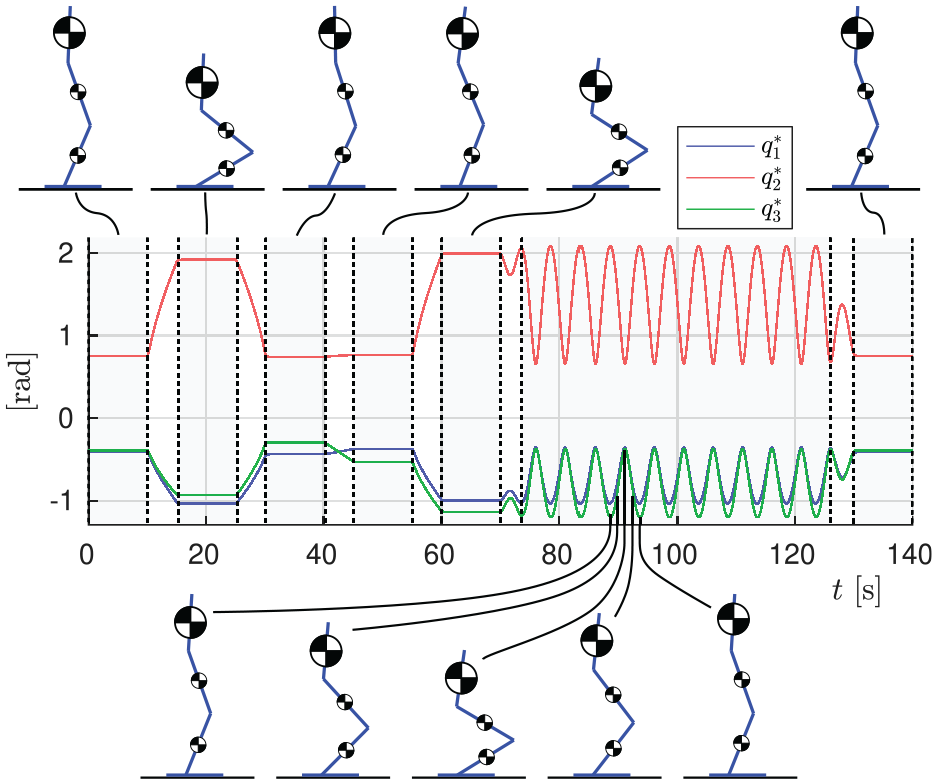

The 140 s motion profile used in simulation and experiment.

In the physical hardware prototype, current control loops are implemented on DSPs with bandwidth of several hundred Hertz. Hence, as explained in Section 4.2, they are omitted in simulation to improve simulation speed, and the electromotive torques are converted into equivalent currents using torque constants. Limitations of the real system, including current and voltage saturation, joint limits, etc., are also implemented in simulation.

7.1. Choosing gradient descent gain $γ_{e}$

Choice of the gradient descent gain $γ_{e}$ will influence the energy efficiency of the system. Choosing it too small will result in the parallel elasticity not adjusting rapidly enough, causing the SEAs to expend significant amounts of energy to provide the correct torque to the joints. Conversely, choosing it too large will cause the ESB motors to move very rapidly to adjust pretension, causing significant energy to be consumed by the ESB motors.

To approximate the optimal value, we vary $γ_{e}$ on the range $[10^{- 8}, 10^{- 6}]$ in a series of simulations, for both the monoarticulated and biarticulated configurations, and compare total energy consumption. The results are shown in Figure 13. It can be seen the optimal value is $γ_{e} \approx 1 \times 10^{- 7} \dots 2 \times 10^{- 7}$ for both configurations, and we choose $γ_{e} = 2 \times 10^{- 7}$ .

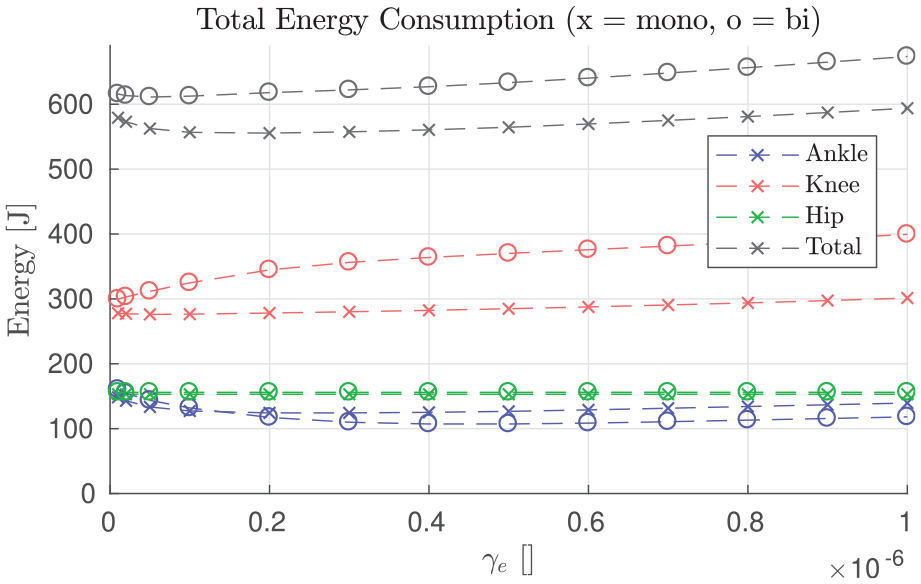

Fig. 13.

Energy consumption over gradient descent gain $γ_{e}$ .

7.2. Results

Simulation results for the motion profile of Figure 12 are shown in Figure 14 for all three configurations. Torques are denoted with subscript representing joint number, and superscript mono and bi denoting contributions from either mono- or biarticular tendons. The joint torque plots (Figure 14(a)–(i)) show that compared with SEA-only, the SEA torque requirements for the ankle and knee are reduced significantly. For example, knee SEA torque was reduced from approximately 35 Nm mean and 55 Nm peak in the SEA-only case (Figure 14(d)), to 0 Nm mean and <5 Nm peak in the monoarticulated and biarticulated cases (Figure 14(e)–(f)). Ankle torque is generally lower but experiences similar reductions.

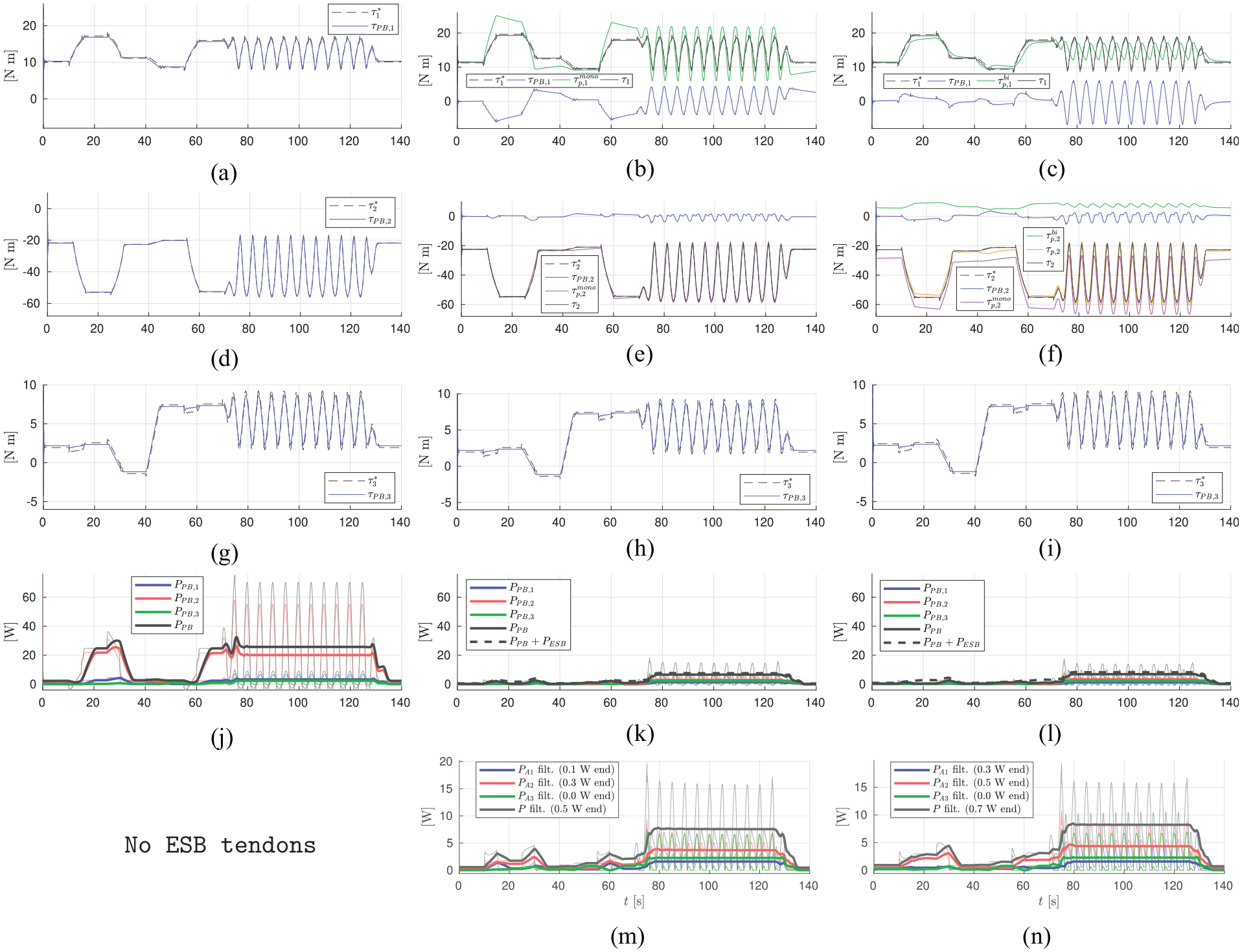

Fig. 14.

Simulation results. Left column: without ESB (SEA-only); middle column: monoarticulated configuration; right column: biarticulated configuration. Horizontal axes denote time in seconds, and thick (dashed) lines denote 5 second averages of positive (delivered) power. (a) No ESB: ankle ( $q_{1}$ ) torques. (b) Monoarticulated: ankle ( $q_{1}$ ) torques. (c) Biarticulated: ankle ( $q_{1}$ ) torques. (d) No ESB: knee ( $q_{2}$ ) torques. (e) Monoarticulated: knee ( $q_{2}$ ) torques. (f) Biarticulated: knee ( $q_{2}$ ) torques. (g) No ESB: hip ( $q_{3}$ ) torques. (h) Monoarticulated: hip ( $q_{3}$ ) torques. (i) Biarticulated: hip ( $q_{3}$ ) torques. (j) No ESB: PB electrical power. (k) Monoarticulated: PB electrical power. (l) Biarticulated: PB electrical power. (m) Monoarticulated: pretension positions. (n) Biarticulated: pretension positions.

Correspondingly, electrical energy consumption over 140 s is reduced from 1,965 J (no ESB) to 556 J (mono.) and 620 J (bi.), or improvements of 72% and 68% respectively, for the monoarticulated and biarticulated configurations. Hence, the benefits of the ESB motors and tendons greatly offset the additional mass and secondary motor power consumption. Note the monoarticulated case is slightly more efficient than the biarticulated case; this is because the chosen motion profile keeps the heavy trunk load close to the neutral position above the ankle joint, which favors the monoarticulated case as the coupling between the ankle and knee torque requirements in the configuration space is not as pronounced. Lastly, as shown in Figure 14(j)–(l), peak electrical power is reduced from >70 to <20 W.

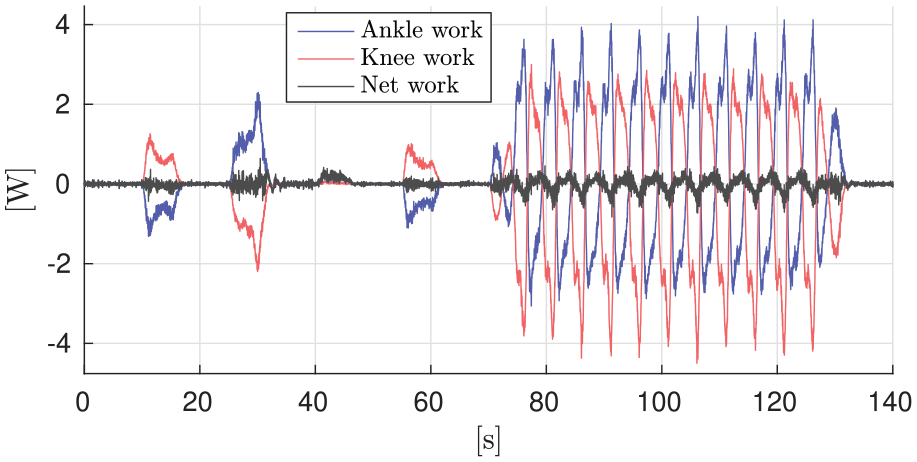

Next we analyze the power flow in and out of the biarticular tendon. Figure 15 shows the work done by the tendon on the ankle and knee joints, as well as the net work. Interestingly, relatively little net work is done; nearly all positive work done at one joint is provided by negative work done on the other joint. This indicates the tendon transfers mechanical power from knee to ankle or vice versa. Hence, the biarticular tendon performs a function identical to that of the biological gastrocnemius muscle.

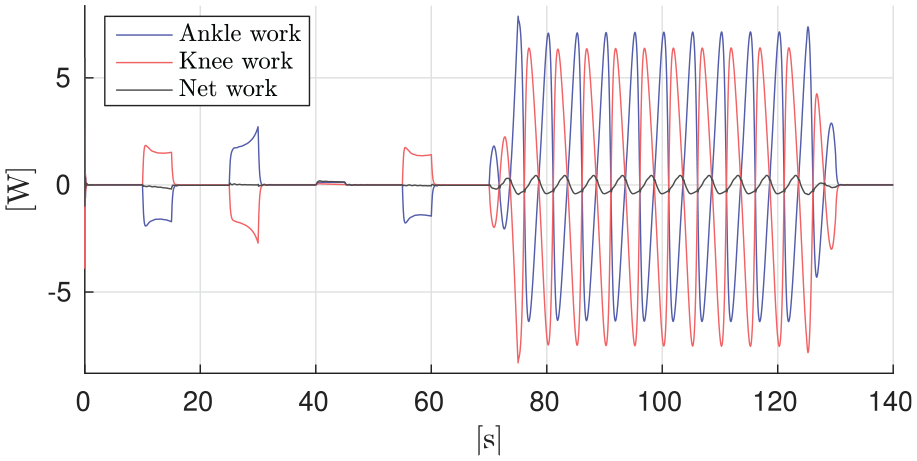

Fig. 15.

Mechanical power flow of the biarticulated ankle tendon in simulation.

8. Experimental results

Following the promising simulation results, we performed a series of experiments on the hardware prototype to validate the design principles, design optimization, and control strategies in practice. As in simulation, all three actuation configurations are compared: SEA-only (no ESBs), monoarticulated, and biarticulated configuration. We use the same 140 s motion profile as in simulation, and $γ_{e} = 2 \times 10^{- 7}$ as was determined in Section 7.1.

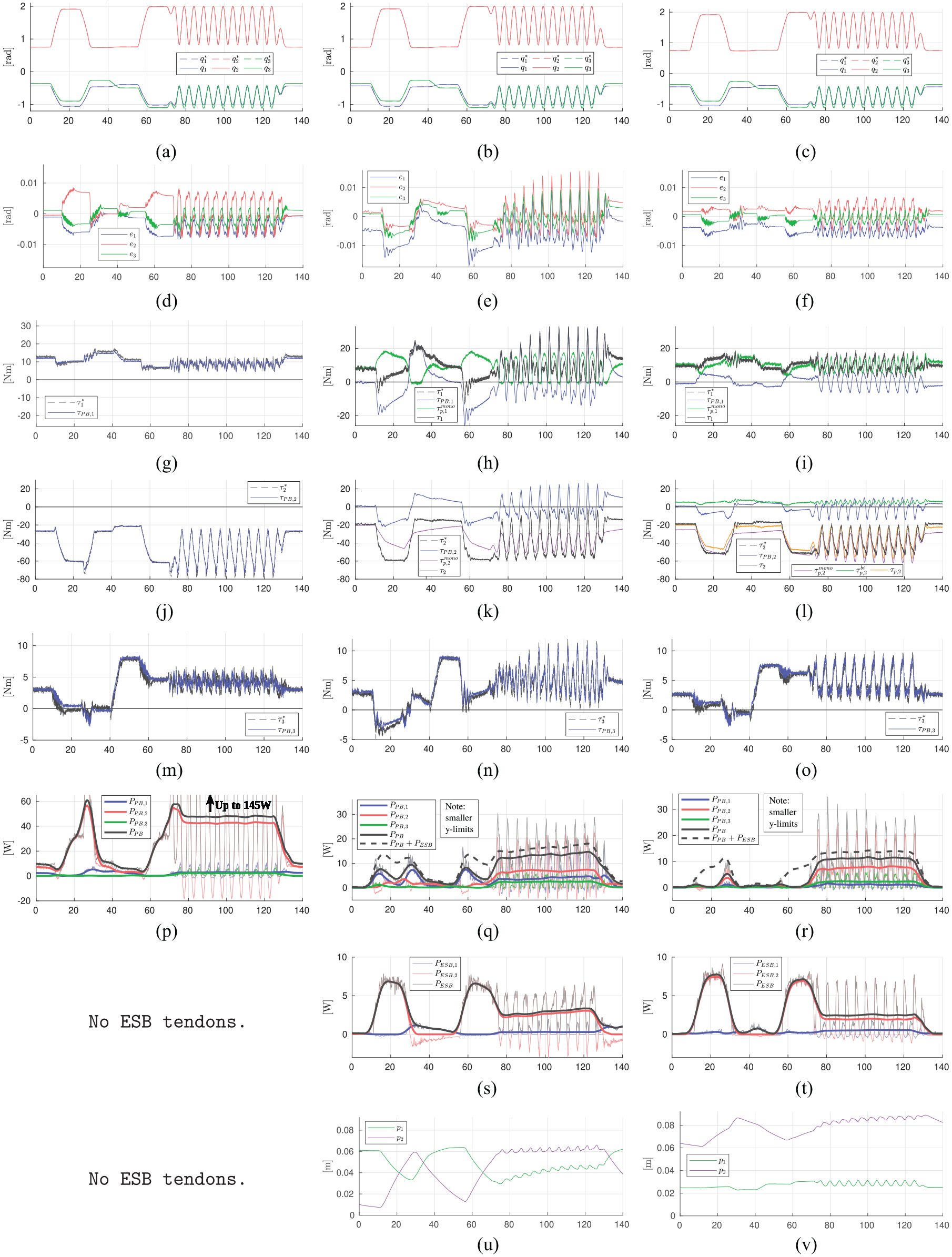

The experimental results are shown in Figure 17, showing joint tracking (errors), joint torques, power consumption for both branches, and pretension positions. The thick (dashed) lines in Figure 17(p)–(t) denote electrical power trends, averaged over 5 s. Considering these results and comparing the different actuation configurations, a number of phenomena can be observed.

Comparing ankle torques for the monoarticulated and biarticulated configurations (Figure 17(h) and (i)), one observes significantly better alignment between generated ESB torque and desired net ankle torque following from the coupling created by biarticulation, which improves tracking and reduces PB torque required on the ankle joint. At the same time, far smaller pretension adjustments are required from the ESB motor ( $p_{1}$ in Figure 17(u) and (v)). This is a clear benefit of the optimized biarticular tendon (see, e.g., Figure 1(c)).

As for knee torques, both augmented configurations provide comparable net ESB torques, resulting in the respective PB torques being $τ_{PB, 2} \approx 0$ Nm mean, compared with ≈50 Nm mean without ESBs. This means that on average the SEA is not expending energy on compensating for gravity. The biarticulated configuration requires the smallest PB torques overall.

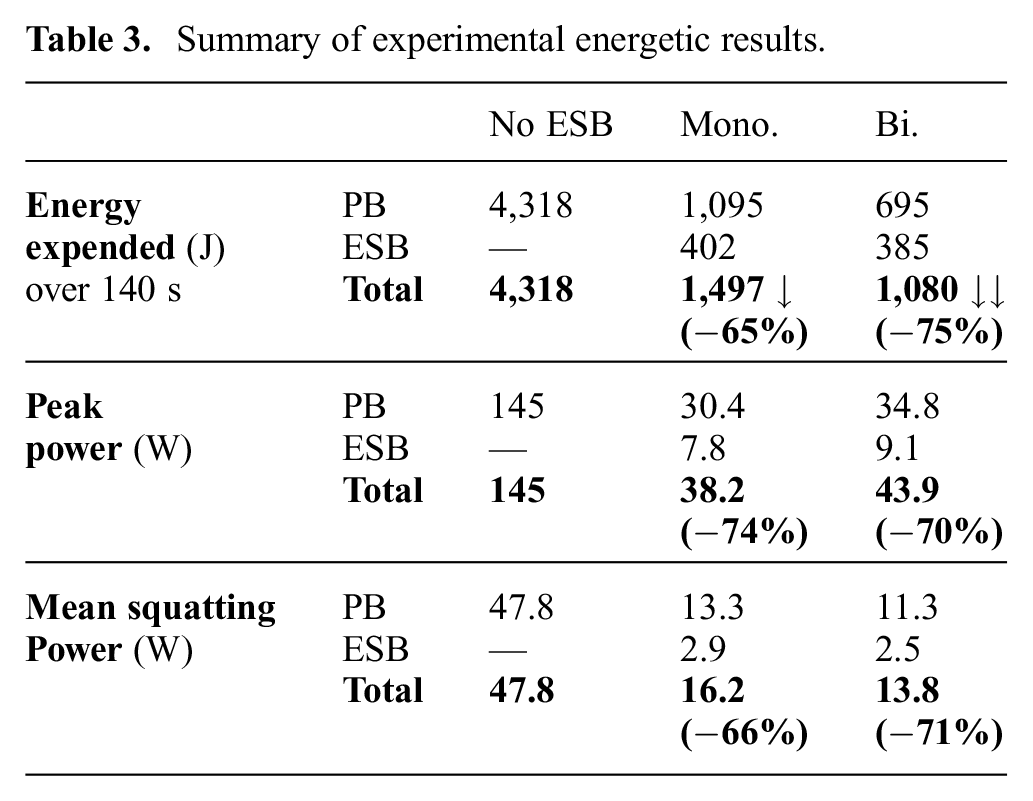

Figure 17(p)–(r) show PB and total (PB+ESB) electrical power. Compared with the SEA-only configuration, the electrical power consumption of the system is greatly reduced in both the monoarticulated and biarticulated cases, over the entire period of 140 s. In addition, the required peak power also reduces from 145 to <45 W for both.

The gradient-descent-based controller is effective, adjusting pretension of the ESB tendons such that the required SEA torques are driven to zero (mean) in all cases, despite not using an accurate model of the force-elongation profiles.

Comparing the experimental results with the simulation results presented in Section 7 for each of the actuation configurations, it is clear the overall patterns are replicated. For example, the addition of the ESBs significantly reduces energy consumption by comparable amounts, and brings the required torque contribution from the SEAs to zero mean. However, a number of differences can be observed, that mainly result from shortcomings in the hardware implementation:

The tracking errors that arise from imperfect gravity compensation and finite controlled joint impedance, combined with residual compliance and play⁷ in the SEA four-bar mechanisms for ankle and knee, result in some differences between the simulated and experimentally executed motions. This leads to differences in required net joint torque to execute those motions. In particular, in the SEA-only case (left columns in Figures 14 and 17), the knee torque when squatting is approximately 20–30% larger owing to the leg ending up in a deeper squat than intended and the trunk load being further from the knee joint. Furthermore, a brief peak of required torque can be observed as the joint changes direction, which is likely due to the four-bar mechanism generating high (Coulomb) friction when approaching singularity. As power consumption is statically quadratic with torque (see (21) and (22)), these differences increase the knee energy consumption by a factor of 1.5–2 compared with simulation.

The energetic performance increase of the monoarticulated case compared with SEA-only is slightly smaller (65%) than in simulation (72%). This appears to originate from the ankle tendon going into slack during some parts of the motion, creating tracking error spikes. Conversely, the biarticulated case performs better (75%) than expected from simulation (68%), relative to the SEA-only configuration. This is attributed to the experimental motion containing larger horizontal movement of the CoM, which as mentioned before favors the biarticulated configuration.

The power of the ESB motors, shown in 17(s)–(t), is larger than expected from simulation. The main reason is that the optimized linear tendon stiffness values are not replicated exactly by the hardware,⁸ which leads to an increase of torque to be provided by the SEAs and larger ESB motor movements, which have a significant affect on the energy consumption. In particular, the knee ESB elastic element can be seen to be too compliant; this causes the ESB motor to make relatively large adjustments to pretension (compare $p_{2}$ in Figure 17(u)–(v) with Figure 14(m)–(n)), which increases its power consumption significantly. This difference underlines the need for optimization of design parameters to achieve high performance of the system. A further difference is the aforementioned neglect of loading-dependent friction in the ESB ball screws in the simulation model, which incurs additional losses in the experiments.

Analyzing the power flow through the biarticular tendon in experiment in Figure 16, we observe a similar pattern as in simulation. While the magnitude of power is smaller due to lower tension in the tendon, the function of transferring mechanical power between ankle and knee joints is very well replicated.

Fig. 16.

Mechanical power flow of the biarticulated ankle tendon in experiment.

Fig. 17.

Experimental results. Left column: without ESB (SEA-only), middle column: monoarticulated configuration, right column: biarticulated configuration. Horizontal axes denote time in seconds, and thick (dashed) lines denote 5 second averages of positive (delivered) power. (a) No ESB: joint tracking. (b) Monoarticulated: joint tracking. (c) Biarticulated: joint tracking. (d) No ESB: joint tracking errors. (e) Monoarticulated: joint tracking errors. (f) Biarticulated: joint tracking errors. (g) No ESB: ankle ( $q_{1}$ ) torques. (h) Monoarticulated: ankle ( $q_{1}$ ) torques. (i) Biarticulated: ankle ( $q_{1}$ ) torques. (j) No ESB: knee ( $q_{2}$ ) torques. (k) Monoarticulated: knee ( $q_{2}$ ) torques. (l) Biarticulated: knee ( $q_{2}$ ) torques. (m) No ESB: hip ( $q_{3}$ ) torques. (n) Monoarticulated: hip ( $q_{3}$ ) torques. (o) Biarticulated: hip ( $q_{3}$ ) torques. (p) No ESB: PB electrical power. (q) Monoarticulated: PB electrical power. (r) Biarticulated: PB electrical power. (s) Monoarticulated: ESB electrical power. (t) Biarticulated: ESB electrical power. (u) Monoarticulated: ESB pretension positions. (v) Biarticulated: ESB pretension positions.

8.1. Energetic results

A summary of the energetic results is given in Table 3. The monoarticulated and biarticulated configurations consume 65 % and 75 % less electrical energy, respectively, than the SEA-only configuration over this 140 s period, which is in good agreement with expectations based on the simulation results (which predicted 72 % and 68 % improvements, respectively). Furthermore, peak electrical power requirements are significantly reduced by 74% and 70%, respectively. Lastly, the final rows of Table 3 show the mean power during cyclic squatting from 80 to 120 s, which show 66% and 71% less energy consumption, respectively. In contrast, initial squatting experiments in Roozing et al. (2018) showed 53% and 60% improvement (albeit with a slightly different squatting trajectory requiring less power). The difference is mainly attributed to on-line adjustment of ESB pretension that brings the SEA torques to zero mean.

Table 3.

Summary of experimental energetic results.

		No ESB	Mono.	Bi.
Energy	PB	4,318	1,095	695
expended (J)	ESB	—	402	385
over 140 s	Total	4,318	1,497↓	1,080↓↓
			(−65%)	(−75%)
Peak	PB	145	30.4	34.8
power (W)	ESB	—	7.8	9.1
	Total	145	38.2	43.9
			(−74%)	(−70%)
Mean squatting	PB	47.8	13.3	11.3
Power (W)	ESB	—	2.9	2.5
	Total	47.8	16.2	13.8
			(−66%)	(−71%)

8.2. Discussion

We close the experiments section with a discussion on the concept of ESBs and articulated elastic tendons in general. As demonstrated by the experiments, the addition of ESBs significantly reduces the torque requirements and energy consumption of the main SEAs, significantly offsetting their additional mass, energy use, and added complexity. This reduction in requirements allows us to design systems that use smaller, lighter, more efficient main actuators, as well as downscaled power electronics, further improving overall energy efficiency. This is particularly interesting for the more distal joints (e.g., wrists, ankles) of articulated robots, where placing large actuators at those joints significantly increases limb inertia with respect to the body, which is one reason why walking with fully actuated legged robots is such a challenging task.

The current ESB concept focuses on using adjustable pretension for adjustability of the parallel elastic tendons. While undeniably effective, it may be worth exploring variation of the transmission ratio, e.g., by profiled cams and/or actively controllable transmission ratio in the sense of variable stiffness mechanisms.

Biarticulation provides an additional degree of design freedom in the torque generated by such elastic tendons. Our results showed that this additional design freedom allows the torque requirements of the system to be more closely matched. Considering its high usage in legs in nature and results on our biarticular leg configuration, biarticulation appears to be particularly useful for legged robots. Despite only incorporating a single biarticulated tendon in the current prototype, we believe that future articulated robot designs should further incorporate such concepts by considering also the other biarticular muscles seen in biological systems.

Notably, the biological function of mechanical power transfer between joints by the biarticular tendon was replicated both in simulation and experiment. This indicates that biarticular tendons may be used more extensively in robotic systems to provide the explosive dynamic capabilities they have been shown to be a key element for in biological systems. In fact, initial experiments with jumping on the eLeg have shown promising results in this area.

9. Conclusions and future work

This work has presented the development, modeling, and control of a 3-DoF compliantly actuated leg called the eLeg, which employs both series- and parallel-elastic actuation as well as a bio-inspired biarticular tendon. The leg can be reconfigured to use three distinct actuation configurations, which allows a direct comparison of our concepts with a state-of-the-art actuation configuration. An elaborate modeling approach was presented for this unique design, which was the foundation for its design parameter optimization and control strategies.

The design principles and control strategies have been verified both in simulation and experiment. A simulation study has been presented that indicates energy efficiency increases of 72% and 68% for the monoarticular and biarticular configurations, respectively, when compared with a state-of-the-art SEA configuration. Furthermore, peak torque and power requirements were reduced significantly. Similarly, experimental results demonstrate improvements of 65–75% in electrical energy efficiency. Hence, we believe this concept can contribute significantly to the energy autonomy of robots.

However, while the efficiency improvements agree with expectations based on simulation results, differences observed between the simulation and experimental results point to potential directions for future improvement, particularly in the hardware implementation. Specifically, the optimized tendon stiffness values were not replicated exactly in the hardware, leading to a loss in potential performance. Second, the nonlinear behavior of the used rubber-type elastic elements should be accounted for in the design and its optimization. Finally, play and friction in the four-bar linkage transmissions should be improved. In addition to these hardware refinements, future work should focus on further generalization of the concepts of optimized compliant series–parallel and multi-articulated actuation structures, as well as explosive motions and novel control strategies.

Footnotes

Acknowledgements

This work was performed while Wesley Roozing was with Istituto Italiano di Tecnologia.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by European Commission projects CENTAURO (grant number 644839) and CogIMon (grant number 644727).

ORCID iD

Wesley Roozing

Notes

References

Weber

Herr

(2009) Powered ankle–foot prosthesis improves walking metabolic economy. IEEE Transactions on Robotics 25(1): 51–66.

Baccelliere

Kashiri

Muratore

, et al. (2017) Development of a human size and strength compliant bi-manual platform for realistic heavy manipulation tasks. In: IEEE/RSJ International Conference on Intelligent Robots and Systems, pp. 5594–5601.

Calanca

Muradore

Fiorini

(2015) A review of algorithms for compliant control of stiff and fixed-compliance robots. IEEE/ASME Transactions on Mechatronics 21(2): 613–624.

Flynn

Geeroms

Jimenez-Fabian

, et al. (2015) Ankle-knee prosthesis with active ankle and energy transfer: Development of the CYBERLEGs Alpha-Prosthesis. Robotics and Autonomous Systems 73: 4–15.

Grimmer

Eslamy

Gliech

Seyfarth

(2012) A comparison of parallel and series elastic elements in an actuator for mimicking human ankle joint in walking and running. In: 2012 IEEE International Conference on Robotics and Automation (ICRA). IEEE, pp. 2463–2470.

Haeufle

DFB

Taylor

Schmitt

Geyer

(2012) A clutched parallel elastic actuator concept: towards energy efficient powered legs in prosthetics and robotics. In: 2012 4th IEEE RAS & EMBS International Conference on Biomedical Robotics and Biomechatronics (BioRob). IEEE, pp. 1614–1619.

Hutter

Gehring

Jud

, et al. (2016) ANYmal - a highly mobile and dynamic quadrupedal robot. In: 2016 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS). IEEE, pp. 38–44.

Iida

Rummel

Seyfarth

(2008) Bipedal walking and running with spring-like biarticular muscles. Journal of Biomechanics 41(3): 656–667.

Jimenez-Fabian

Geeroms

Flynn

Vanderborght

Lefeber

(2017) Reduction of the torque requirements of an active ankle prosthesis using a parallel spring. Robotics and Autonomous Systems 92: 187–196.

10.

Klein

Lewis

(2009) A robot leg based on mammalian muscle architecture. In: 2009 IEEE International Conference on Robotics and Biomimetics (ROBIO). IEEE, pp. 2521–2526.

11.

Liu

Rossi

Poulakakis

(2015) SPEAR: A monopedal robot with switchable parallel elastic actuation. In: 2015 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS). IEEE, pp. 5142–5147.

12.

Loeffl

Werner

Lakatos

, et al. (2016) The DLR c-runner: Concept, design and experiments. In: 2016 IEEE-RAS 16th International Conference on Humanoid Robots (Humanoids). IEEE, pp. 758–765.

13.

Mathijssen

Lefeber

Vanderborght

(2015) Variable recruitment of parallel elastic elements: Series-parallel elastic actuators (SPEA) with dephased mutilated gears. IEEE/ASME Transactions on Mechatronics 20(2): 594–602.

14.

Mathijssen

Verstraten

Brackx

, et al. (2016) + SPEA introduction: Drastic actuator energy requirement reduction by symbiosis of parallel motors, springs and locking mechanisms. In: 2016 IEEE International Conference on Robotics and Automation (ICRA). IEEE, pp. 676–681.

15.

Mazumdar

Spencer

Hobart

, et al. (2016) Parallel elastic elements improve energy efficiency on the STEPPR bipedal walking robot. IEEE/ASME Transactions on Mechatronics 22(2): 898–908.

16.

Mettin

La Hera

Freidovich

Shiriaev

(2010) Parallel elastic actuators as a control tool for preplanned trajectories of underactuated mechanical systems. The International Journal of Robotics Research 29(9): 1186–1198.

17.

Negrello

Garabini

Catalano

, et al. (2015) A modular compliant actuator for emerging high performance and fall-resilient humanoids. In: 2015 14th IEEE-RAS International Conference on Humanoid Robots (Humanoids). IEEE, pp. 414–420.

18.

Niiyama

Nagakubo

Kuniyoshi

(2007) Mowgli: A bipedal jumping and landing robot with an artificial musculoskeletal system. In: 2007 IEEE International Conference on Robotics and Automation. IEEE, pp. 2546–2551.

19.

Paine

Mehling

Holley

, et al. (2015) A decoupled dynamics approach for torque control of series elastic robots: Actuator control for the NASA-JSC Valkyrie humanoid robot. Journal of Field Robotics 32(3): 378–396.

20.

Paluska

Herr

(2006) The effect of series elasticity on actuator power and work output: Implications for robotic and prosthetic joint design. Robotics and Autonomous Systems 54(8): 667–673.

21.

Pfeifer

Pagel

Riener

Vallery

(2015) Actuator with angle-dependent elasticity for biomimetic transfemoral prostheses. IEEE/ASME Transactions on Mechatronics 20(3): 1384–1394.

22.

Plooij

Wisse

Vallery

(2016) Reducing the energy consumption of robots using the bidirectional clutched parallel elastic actuator. IEEE Transactions on Robotics 32(6): 1512–1523.

23.

Pratt

Williamson

(1995) Series elastic actuators. In: Human Robot Interaction and Cooperative Robots, Proceedings 1995 IEEE/RSJ International Conference on Intelligent Robots and Systems, Vol. 1. IEEE, pp. 399–406.

24.

Prilutsky

Zatsiorsky

(1994) Tendon action of two-joint muscles: Transfer of mechanical energy between joints during jumping, landing, and running. Journal of Biomechanics 27(1): 25–34.

25.

Realmuto

Klute

Devasia

(2015) Nonlinear passive cam-based springs for powered ankle prostheses. Journal of Medical Devices 9(1): 011007.

26.

Ren

Roozing

Tsagarakis

(2018) The eleg: A novel efficient leg prototype powered by adjustable parallel compliant actuation principles. In: 2018 IEEE International Conference on Humanoid Robots. IEEE.

27.

Robinson

Pratt

Paluska

Pratt

(1999) Series elastic actuator development for a biomimetic walking robot. In: Proceedings 1999 IEEE/ASME International Conference on Advanced Intelligent Mechatronics. IEEE, pp. 561–568.

28.

Roozing

(2018) Modeling and control of adjustable articulated parallel compliant actuation arrangements in articulated robots. Frontiers in Robotics and AI 5: 00004.

29.

Roozing

Caldwell

Tsagarakis

(2016) Design optimisation and control of compliant actuation arrangements in articulated robots for improved energy efficiency. IEEE Robotics and Automation Letters 1(2): 1110–1117.

30.

Roozing

Medrano-Cerda

Caldwell

Tsagarakis

(2015) Development and control of a compliant asymmetric antagonistic actuator for energy efficient mobility. IEEE/ASME Transactions on Mechatronics 21(2): 1080–1091.

31.

Roozing

Malzahn

Kashiri

Caldwell

Tsagarakis

(2017) On the stiffness selection for torque-controlled series-elastic actuators. IEEE Robotics and Automation Letters 2(4): 2255–2262.

32.

Roozing

Ren

Tsagarakis

(2018) Design of a novel 3-DoF leg with series and parallel compliant actuation for energy efficient articulated robots. In: 2018 IEEE International Conference on Robotics and Automation (ICRA). IEEE, pp. 1–8.

33.

Rouse

Mooney

Martinez-Villalpando

Herr

(2013) Clutchable series-elastic actuator: Design of a robotic knee prosthesis for minimum energy consumption. In: 2013 IEEE International Conference on Rehabilitation Robotics (ICORR). IEEE, pp. 1–6.

34.

Salvucci

Kimura

Koseki

Hori

(2014) Comparing approaches for actuator redundancy resolution in biarticularly-actuated robot arms. IEEE/ASME Transactions on Mechatronics 19(2): 765–776.

35.

Schenau

GJVI

(1989) From rotation to translation: constraints on multi-joint movements and the unique action of bi-articular muscles. Human Movement Science 8(4): 301–337.

36.

Shirata

Konno

Uchiyama

(2007) Design and evaluation of a gravity compensation mechanism for a humanoid robot. In: IEEE/RSJ International Conference on Intelligent Robots and Systems, 2007 (IROS 2007). IEEE, pp. 3635–3640.

37.

Toxiri

Calanca

Ortiz

Fiorini

Caldwell

(2018) A parallel-elastic actuator for a torque-controlled back-support exoskeleton. IEEE Robotics and Automation Letters 3(1): 492–499.

38.

Tözeren

(2000) Human Body Dynamics: Classical Mechanics and Human Movement. New York: Springer.

39.

Vallery

Veneman

van Asseldonk

Ekkelenkamp

Buss

van Der Kooij

(2008) Compliant actuation of rehabilitation robots. IEEE Robotics and Automation Magazine 15(3): 60–69.

40.

Velasco

Gasparri

Garabini

Malagia

Salaris

Bicchi

(2013) Soft-actuators in cyclic motion: Analytical optimization of stiffness and pre-load. In: 13th IEEE-RAS International Conference on Humanoid Robots (Humanoids), pp. 354–361.

41.

Verstraten

Beckerle

Furnémont

, et al. (2016) Series and Parallel Elastic Actuation: Impact of natural dynamics on power and energy consumption. Mechanism and Machine Theory 102: 232–246.

42.

Wang

van Dijk

van der Kooij

(2011) Spring uses in exoskeleton actuation design. In: 2011 IEEE International Conference on Rehabilitation Robotics (ICORR). IEEE, pp. 1–6.

43.

Yang

Westervelt

Schmiedeler

Bockbrader

(2008) Design and control of a planar bipedal robot ERNIE with parallel knee compliance. Autonomous Robots 25(4): 317–330.

44.

Yesilevskiy

Remy

(2015) A comparison of series and parallel elasticity in a monoped hopper. In: 2015 IEEE International Conference on Robotics and Automation (ICRA). IEEE, pp. 1036–1041.

An efficient leg with series–parallel and biarticular compliant actuation: design optimization,modeling,and control of the eLeg

Abstract

Keywords

1. Introduction

2. Series and parallel compliant actuation

3. Semi-anthropomorphic leg design

4. Modeling

4. Leg modeling

4.2. Actuation modeling

4.2.1. Power ports

4.2.2. Actuator dynamics

4.2.3. Electrical dynamics and power

4.3. Losses and efficiency

5. Optimization of design parameters

5.1. Optimized ESB design parameters

6. Control strategy

6.1. Torque distribution

6.2. ESB pretension control

7. Simulation study

7.1. Choosing gradient descent gain γ e

7.2. Results

8. Experimental results

8.1. Energetic results

8.2. Discussion

9. Conclusions and future work

Footnotes

Acknowledgements

Funding

ORCID iD

Notes

References

7.1. Choosing gradient descent gain $γ_{e}$
