How to train your robot with deep reinforcement learning: lessons we have learned

3.1.1. Guided policy search

Guided policy search methods (Levine et al., 2016) were among the first deep RL methods that could be tractably applied to learn individual neural network skills for image-based manipulation tasks. The basic principle behind these methods is that the neural network policy is “guided” by another RL method, typically a model-based RL algorithm. The neural network policy is referred to as a global policy, and is trained to perform the task successfully from raw sensory observations and under moderate variability in the initial conditions. For example, as shown in Figure 1, the global policy might be required to put the red shape into the shape sorting cube at different positions. This requires the policy to implicitly determine the position of the hole. However, this is not supervised directly, but instead the perception mechanism is learned end-to-end together with control. Supervision is provided from multiple individual model-based learners that learn separate local policies to insert the shape into the hole at a specific position. In the case of the experiment illustrated in Figure 1, nine local policies were trained for nine different cube positions, and a single global policy was then trained to perform the task from images. Typically, the local policies do not use deep RL, and do not use image inputs. They instead use observations that reflect the low-dimensional, “true” state of the system, such as the position of the shape-sorting cube in the previous example, in order to learn more efficiently. Local policies can be trained with model-based methods such as LQR-FLM (Levine and Abbeel, 2014; Levine et al., 2016), which uses linear quadratic regulator (LQR) with fitted time-varying linear models, or model-free techniques such as PI2 (Chebotar et al., 2017a,b).

OPEN IN VIEWER

Fig. 1.

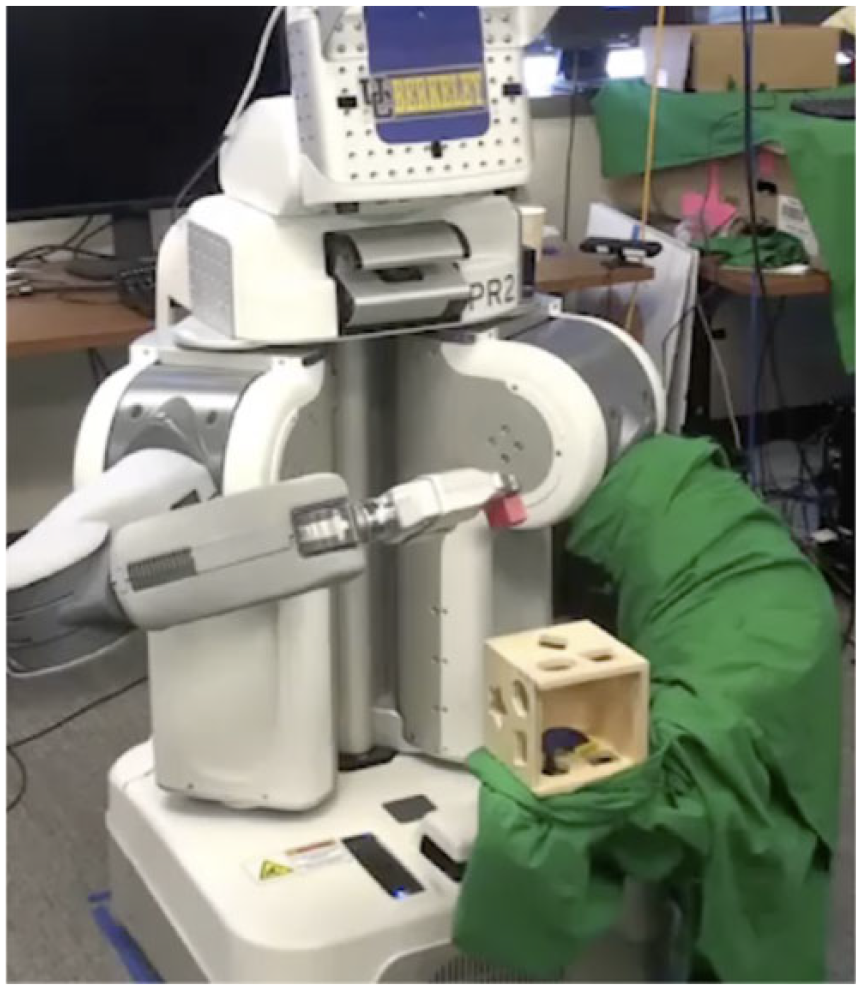

A PR2 learns to place a red trapezoid block into a shape-sorting cube. With Levine et al. (2016), it learns local policies for each initial position of the cube, which can be reset automatically using the robot’s left arm. The local policies are distilled into a global policy that takes images as input, rather than the cube’s location.

A full theoretical treatment of the guided policy search algorithm is outside the scope of this article, and we refer the reader to prior work on this topic (Levine and Abbeel, 2014; Levine et al., 2016; Levine and Koltun, 2013).

An important point of discussion for this article, however, is the set of assumptions underlying guided policy search methods. Typically, such methods assume that the local policies can be optimized with simple, “shallow” RL methods, such as LQR-FLM or PI2. This assumption is reasonable for robotic manipulation tasks trained in laboratory settings, but can prove difficult in (1) open-world environments where the low-level state of the system cannot be effectively measured and in (2) settings where resetting the environment poses a challenge. For example, in the experiment in Figure 1, the robot is holding the cube in its left arm during training, so that the position of the cube can be provided to the low-level policies and so that the robot can automatically reposition the cube into different positions deterministically. We discuss these challenges in more detail in Sections 4.12 and 4.2.3.

Nonetheless, for learning individual robotic skills, guided policy search methods have been applied widely and to a broad range of behaviors, ranging from inserting objects into containers and putting caps on bottles (Levine et al., 2016), opening doors (Chebotar et al., 2017b), and shooting hockey pucks (Chebotar et al., 2017a). In most cases, guided policy search methods are very efficient in terms of the number of samples, particularly as compared to model-free RL algorithms, since the model-based local policy learners can acquire the local solutions quickly and efficiently. Image-based tasks can typically be learned in a few hundred trials, corresponding to 2–3 hours of real-world training, including all resets and network training time (Chebotar et al., 2017a; Levine et al., 2016).

3.1.2. Model-free skill learning

Model-free RL algorithms lift some of the limitations of guided policy search, such as the need to decompose a task into multiple distinct and repeatable initial states or the need for a model-based optimizer that typically operates on a low-dimensional state representation, but at the cost of a substantial increase in the required number of samples. For example, the Lego block stacking experiment reported by Haarnoja et al. (2018a) required a little over 2 hours of interaction, whereas comparable Lego block stacking experiments reported by Levine et al. (2015) required about 10 minutes of training. The gap in training time tends to close a bit when we consider tasks with more variability: guided policy search generally requires a linear increase in the number of samples with more initial states, whereas model-free algorithms can better integrate experience from multiple initial states and goals, typically with sub-linear increase in sample requirements. As model-free methods generally do not require a lower-dimensional state for model-based trajectory optimization, they can also be applied to tasks that can only be defined on images, without an explicit representation learning phase.

Although there is a long history of model-free RL in robotics (Daniel et al., 2013; Ijspeert et al., 2002; Kober et al., 2013; Konidaris et al., 2012; Manschitz et al., 2014; Peters et al., 2010; Peters and Schaal, 2008), modern model-free deep RL algorithms have been used more recently for tasks such as door opening (Gu et al., 2017) and assembly and stacking of objects (Haarnoja et al., 2018a) with low-dimensional state observations. These methods were generally based on off-policy actor–critic designs, such as DDPG or NAF (Gu et al., 2016; Lillicrap et al., 2015), soft Q-learning (Haarnoja et al., 2018a,b), and soft actor–critic (SAC; Haarnoja et al., 2019). An illustration of some of these tasks is shown in Figure 2. From our experiences, we generally found that simple manipulation tasks, such as opening doors and stacking Lego blocks, either with a single position or some variation in position, can be learned in 2–4 hours of interaction, with either torque control or end-effector position control. Incorporating demonstration data and other sources of supervision can further accelerate some of these methods (Riedmiller et al., 2018; Večcerík et al., 2017). Section 4.2 describes other techniques to make those approaches more sample efficient.

OPEN IN VIEWER

Fig. 2.

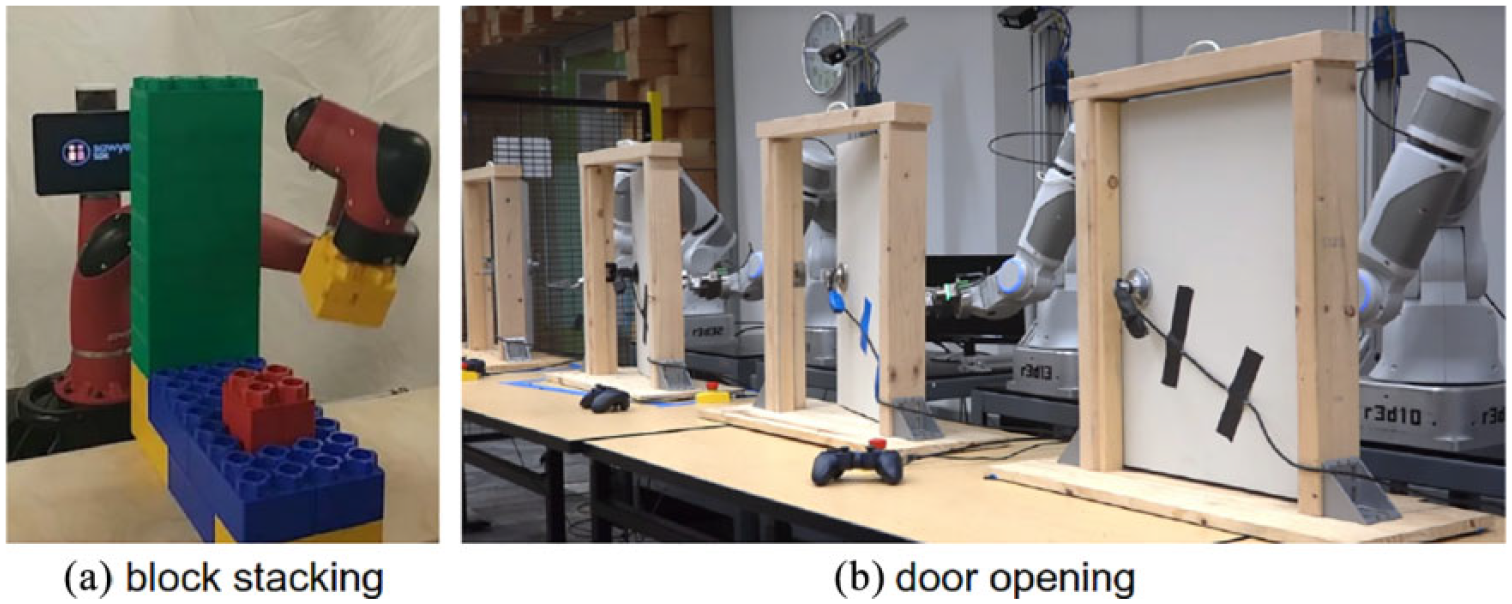

Examples of model-free-based algorithms learning skills in a few hours from low-dimensional state observations: (a) learning to stack Lego blocks with Haarnoja et al. (2018a); (b) learning door opening with Gu et al. (2017).

Although most model-free deep RL algorithms that have been applied to learn manipulation skills directly from real-world data have used off-policy algorithms based on Q-learning (Gu et al., 2017; Haarnoja et al., 2018a) or actor–critic designs (Haarnoja et al., 2018b), on-policy policy gradient algorithms have also been used. Although standard configurations of these methods can require around 10 times the number of samples as off-policy algorithms, on-policy methods such as TRPO (Schulman et al., 2015), NPG (Kakade, 2002), and PPO (Schulman et al., 2017) can be tuned to only be two or three times less efficient than off-policy algorithms in some tasks (Peng et al., 2019). In some cases, this increased sample requirement may be justified by ease of use, better stability, and better robustness to suboptimal hyperparameter settings. On-policy policy gradient algorithms have been used to learn tasks such as peg insertion (Lee et al., 2019), targeted throwing Ghadirzadeh et al. (2017), and dexterous manipulation (Zhu et al., 2019) directly on real-world hardware, and can be further accelerated with example demonstrations (Zhu et al., 2019).

Although, in principle, model-free deep RL algorithms should excel at learning directly from raw image observations, in practice this is a particularly difficult training regime, and good real-world results with model-free deep RL learning directly from raw image observations have only been obtained recently, with accompanying improvements in the efficiency and stability of off-policy model-free RL methods (Fujimoto et al., 2018; Haarnoja et al., 2019, 2018b). The SAC algorithm can learn tasks in the real world directly from images (Haarnoja et al., 2019; Singh et al., 2019), and several other recent works have studied real-world learning from images (Schoettler et al., 2019; Schwab et al., 2019).

All of these experiments were conducted in relatively constrained laboratory environments, and although the learned skills use raw image observations, they generally have limited robustness to realistic visual perturbations and can only handle the specific objects on which they are trained. We discuss in Section 3.2 how image-based deep RL can be scaled up to enable meaningful generalization. Furthermore, a major challenge in learning from raw image observations in the real world is the problem of reward specification: if the robot needs to learn from raw image observations, it also needs to evaluate the reward function from raw image observations, which itself can require a hand-designed perception system, partly defeating the purpose of learning from images in the first place, or otherwise require extensive instrumentation of the environment (Zhu et al., 2019). We discuss this challenge further in Section 4.9.

3.1.3. Learning predictive models for multiple skills with visual foresight

Although there are situations where a single skill is all a robot will need to perform, it is not sufficient for general-purpose robots where learning each skill from scratch is impractical. In such cases, there is a great deal of knowledge that can be shared across tasks to speed up learning. In this section, we discuss one particular case study of scalable multi-task learning of vision-based manipulation skills, with a focus on tasks that require pushing or picking and placing objects. Unlike in the previous section, if our goal is to learn many tasks with many objects, a challenge discussed in detail in Section 4.5, it will be most practical to learn from data that can be collected at scale, without human supervision or even a human attending the robot. As a result, it becomes imperative to remove assumptions such as regular resets of the environment or a carefully instrumented environment for measuring reward.

Motivated by these challenges, the visual foresight approach (Ebert et al., 2018; Finn and Levine, 2017) leverages large batches of off-policy, autonomously collected experience to train an action-conditioned video prediction model, and then uses this model to plan to accomplish tasks. The key intuition of this approach is that knowledge learned about physics and dynamics can be shared across tasks and largely decoupled from goal-centric knowledge. These models are trained using streams of robot experience, consisting of the observed camera images and actions taken, without assumptions about reward information. After training, a human provides a goal, by providing an image of the goal or by indicating that an object corresponding to a specified pixel should be moved to a desired position. Then, the robot performs an optimization over action sequences in an effort to minimize the distance between the predicted future and the desired goal.

This algorithm has been used to complete object rearrangement tasks such as grasping an apple and putting it on a plate, reorienting a stapler, and pushing other objects into configurations (Ebert et al., 2018; Finn and Levine, 2017). Further, it has been used for visual reaching tasks (Byravan et al., 2018), object pushing and trajectory following tasks (Yen-Chen et al., 2020), for satisfying relative object positioning tasks (Xie et al., 2018), and for cloth manipulation tasks such as folding shorts, covering an object with a towel, and rearranging a sleeve of a shirt (Ebert et al., 2018). Importantly, each collection of tasks can be performed using a single learned model and planning approach, rather than having to retrain a policy for each individual task or object. This generalization precisely results from the algorithms ability to leverage broad, autonomously collected datasets with hundreds of objects, and the ability to train reusable, task-agnostic models from this data.

Despite these successes, there are a number of limitations and challenges that we highlight here. First, although the data collection process does not require human involvement, it uses a specialized set-up with the robot in front of a bin with tilted edges that ensure that objects not fall out, along with an action space that is constrained within the bin. This allows continuous, unattended data collection, discussed further in Section 4.7. Outside of laboratory settings, however, collecting data in unconstrained, open-world environments introduces a number of important challenges, which we discuss in Section 4.12. Second, inaccuracies in the model and reward function can be exploited by the planner, leading to inconsistencies in performance. We discuss these challenges in Sections 4.6 and 4.9. Finally, finding plans for complex tasks pose a challenging optimization problem for the planner, which can be addressed to some degree using demonstrations (for details, see Section 4.4). This has enabled the models to be used for tool use tasks such as sweeping trash into a dustpan, wiping objects off a plate with a sponge, and hooking out-of-reach objects with a hook (Xie et al., 2019).

4.2.1. Off-policy algorithms

On-policy algorithms such as policy gradient methods (Peters and Schaal, 2006; Schulman et al., 2015) have recently become popular owing to their stability and their ability to learn policies for a wide variety of tasks. Unfortunately, on-policy algorithms have the constraint to only use a sample coming from the latest policy that is being trained. This has the unfortunate consequence that the number of required data samples is equal and often larger to the number of training steps needed to train a model, which, in practice, can be millions of steps. Training an on-policy model may thus require several millions and sometimes billions of action executions in the real world, which is often prohibitive.

Off-policy methods do not assume that the samples are coming from the current trained policy. In practice, this means the samples can be reused multiple times across back-propagations, potentially hundreds or thousands of times, without any over-fitting in complex visual tasks. In Kalashnikov et al. (2018), up to 15 training steps of batch size 32 were done per collect step on real robots during a fine-tuning phase, which is equivalent to 480 gradient descents per collect step. Recently, SAC (Haarnoja et al., 2019), an off-policy method, was able to learn to walk on a quadruped robot, from scratch, with just 2 hours of real robot data coming from a single robot. Note that further increasing the ratio between the number of training steps and the number of collected samples may decrease the training performance owing to overfitting. The optimal ratio is often task dependent, policy dependent, or algorithm dependent, which is an important hyperparameter to tune.

4.2.2. Model-based algorithms

Model-based algorithms such as Draeger et al. (1995) choose the optimal action by leveraging a model of the environment. The agent may learn from the experience generated using this model instead of collected in the real environment. Thus, the amount of data required for model-based methods is usually much less than their model-free counterparts. For example, we leveraged such a technique to effectively learn to walk, from scratch, with only a few minutes of real robot data (Nagabandi et al., 2018; Yang et al., 2020). The downside is that these methods require to have access to such a model, which is often challenging to acquire in practice. We cover model-based techniques in more detail in Section 4.6.

4.2.3. Input remapping for high-dimensional observations

When learning from high-dimensional observations, e.g., image observations, learning visual representations can occupy substantial amount of training and sample complexity. One trick for addressing this challenge is via input remapping. In particular, when policies are trained in a laboratory environment, the true underlying state of the system may be observable during training, even when the policy to be learned must use vision. In these settings, one policy or multiple local policies can be efficiently learned without vision using privileged state information, and these policies can be distilled into a final policy that takes raw observations as input and is trained to produce the output of the non-vision policies. This trick has been successful in a number of settings including robotic manipulation from image pixels (Levine et al. 2016; Pinto et al. 2018), autonomous driving (Chen et al. 2020), and robotic locomotion from a history of proprioceptive sensor measurements (Lee et al. 2020b).

When the true states of objects cannot be measured and the local policies must themselves handle image observations, these observations can be first encoded into a lower-dimensional state space via an autoencoder, such as a spatial autoencoder that summarizes the image with a set of feature points in image space (Finn et al., 2016b): an example of such features are illustrated in Figure 6. Unsupervised feature learning methods such as autoencoders (Finn et al., 2016b; Ghadirzadeh et al., 2017), contrastive losses (Sermanet et al. 2018), and correspondence learning (Florence et al. 2018, 2019), provide a reasonable solution in cases where the inductive biases of the unsupervised algorithm effectively match the needs of the state representation.

4.2.4. Offline training

Image classifiers used by companies, such Facebook or Google, are trained on tens of million of labeled images (Kuznetsova et al., 2020), or pretrained on billions of images (Mahajan et al., 2018; Xie et al., 2020), to reach the level of quality required by certain products. Natural language processing (NLP) systems for machine translation, or speech recognition systems such as BERT (Devlin et al., 2019), also require billions of samples to generalize and have descent performance for real applications. In a way, supervised learning systems are also inefficient, but in many applications, the gains in generalization and performance that deep learning provides compensates for the cost of collecting such large amounts of data. Similarly, a general-purpose robot may also require a large volume of data to train on, unless significant improvements have been made in our learning algorithms. Offline training enable us to use all the data collected so far to train our policies, and thus, potentially scale to billions of real world samples.

Off-policy methods can leverage all the data collected in the past, across many experiments. In most RL benchmarks, off-policy methods are still collecting new data as the training happens. However, off-policy methods can also be trained without collecting any new data during the training phase; similar to supervised learning problems. We call this offline training, whereas other work may call it batch RL. In Section 3.2, we have shown that this mode of training allowed us to generalize grasping policies to unseen objects with just 500,000 trials. If we compare this dataset to the ImageNet dataset, which has about 1 million images, we can see that the amount of data to learn this complex robotic task from vision sensor, using RL, is in the same order of magnitude as learning to classify 1,000 types of objects. In both cases, the learned models have shown the ability to generalize to a wide variety of unseen object instances. There are challenges to stabilize offline training. The offline training can become unstable if the state–action distribution from the latest policy differs too much from the one that was used to collect the training data. Recent work just started to identify and address to some extent this specific problem (Agarwal et al., 2020; Fujimoto et al., 2019; Kumar et al., 2019).

An important technique to bypass the sample efficiency problem is to use simulators, which can generate realistic experience much faster than real time. Combining with sim-to-real transfer techniques, simulators allow us to learn policies that can be deployed in the real world with a minimal amount of real-world interaction. In the next section, we discuss the use of simulation.

4.3.1. Better simulation

Addressing Partial Observations In simulation, we can access the ground-truth state of the robot, which can significantly simplify the learning of tasks. In contrast, in the real-world, we are restricted to partial observations that are usually noisy and delayed, due to the limitation of onboard sensors. For example, it is difficult to precisely measure the root translation of a legged robot. To eliminate this difference, we can remove the inaccessible states during training (Tan et al. 2018), apply state estimation, add more sensors (e.g. Motion Capture) (Haarnoja et al. 2019) or learn to infer the missing information (e.g. reward) (Yang et al. 2019). On the other hand, if used properly, the groundtruth states in simulation can significantly speed up learning. Learning by cheating (Chen et al. 2020) first leveraged the ground-truth states to learn a privileged agent, and in the second stage, imitated this agent to remove the reliance on the privileged information.

4.3.2. Better simulation

The reality gap is caused by the discrepancy between the simulation and the real-world physics. This error has many sources, including incorrect physical parameters, unmodeled dynamics, and stochastic real environment. However, there is no general consensus about which of these sources plays a more important role. After a large number of experiments with legged robots, both in simulation and on real robots, we found that the actuator dynamics and the lack of latency modeling are the main causes of the model error. Developing accurate models for the actuator and latency significantly narrow the reality gap (Tan et al., 2018). We successfully deployed agile locomotion gaits that are learned in simulation to the real robot without the need for any data collected on the robot.

4.3.3. Domain randomization

The idea behind domain randomization is to randomly sample different simulation parameters while training the RL policy. This can include various dynamics parameters (Peng et al., 2018b; Tan et al., 2018) of the robot and the environment, as well as visual and rendering parameters such as textures and lighting (Sadeghi and Levine, 2017; Tobin et al., 2017). Similar to data augmentation methods in supervised learning, policies trained under such diverse conditions tend to be more robust to such variations, and can thus perform better in the real world.

4.3.4. Domain adaptation

The success of adversarial training methods such as generative adversarial networks (Goodfellow et al., 2014) have resulted in their application to several other problems, including sim-to-real transfer. Adapter networks have been trained that convert simulated images to look like their real-world counterparts, which can then be used to train policies in simulation (Bousmalis et al., 2018, 2017; James et al., 2017; Rao et al., 2020; Shrivastava et al., 2017). An alternative approach is that of James et al. (2019), which trains an adapter network to convert real-world images to canonical simulation images, allowing a policy trained only in simulation to be applied in the real world. Training of the real-to-sim adapter was achieved by using domain-randomized simulation images as a proxy for real-world images, removing the need for real-world data altogether. The resulting policy achieved 70% grasp success in the real world with the QT-Opt algorithm, with no real-world data, and reaches a success rate of 91% after fine-tuning on just 5,000 real-world grasps: a result which previously took over 500,000 grasps to achieve.

4.4.1. Initialization

A simple way to incorporate demonstrations to mitigate the exploration challenge is to pretrain a policy network with demonstrations via learning (also called behavioral cloning) (Bojarski et al., 2016). This approach has been used in a variety of prior robotic learning works (Daniel et al., 2013; Ijspeert et al., 2002; Manschitz et al., 2014; Peters and Schaal, 2008)

Although this approach is simple and often effective, it suffers from two major challenges. First, imitation learning effective guarantees on performance both in theory and in practice (Ross et al., 2011), and the resulting policies can suffer from “compounding errors,” where a small mistake throws the policy into an unexpected state, where it makes a bigger mistake. Second, the learned initialization can be easily forgotten by the RL. As it is common practice to begin RL with a high random exploration factor, RL can quickly decimate the pretrained policy, and end up in a state that is no better than random initialization. Note that some algorithms and policy representations are particularly amenable to initialization from demonstrations. For example, dynamic movement primitives (DMPs) can be initialized from demonstrations in a way that does not suffer from compounding errors (Schaal, 2006), whereas guided policy search can be initialized from demonstration by pretraining the local policies, which, in practice, tends to be a lot more stable than demonstration pretraining for standard policy gradient or actor–critic methods (Levine et al., 2015).

4.4.2. Data aggregation

Another technique for incorporating demonstrations in off-policy model-free RL is to add demonstration data to the data buffer for the off-policy algorithm. This method is often used with Q-learning or actor–critic style algorithms (Večerík et al., 2017; Wu et al., 2019). This can, in principle, mitigate the exploration challenge, because the algorithm is exposed to high-reward behavior, but tends to be problematic in practice, because commonly used approximate dynamic programming methods (i.e., value function estimation) need to see both good and bad experience to learn which actions are desirable. Therefore, when the demonstrations are much better than the agent’s own experience, the value function will typically learn that the demonstrated states are better, but might fail to learn which actions must be taken to reach those states. Therefore, this tends to be much more effective when combined with the next method.

4.4.3. Joint training

Instead of simply pretraining the policy with supervised learning, we can train it jointly, adding together the loss from the policy gradient objective with the loss for behavioral cloning (Hester et al., 2018; Johannink et al., 2019; Wu et al., 2019). This simple approach provides a much stronger signal to the learner, generally succeeding in staying close to the demonstrations, but at the cost of biasing policy learning: if the demonstrations are suboptimal, the behavioral cloning loss may prevent the RL algorithm from discovering a better policy.

4.4.4. Demonstrations in model-based RL

In model-based RL, demonstration data can also be aggregated with the agent’s experience to produce better models. However, in contrast to the model-free setting, for model-based RL this approach can be quite effective, because it would enable the learned model to capture correct dynamics in important parts of the state space. When combined with a good planning method, which can also use the demonstrations (e.g., as a proposal distribution), including demonstrations into the model training dataset can enable a robot to perform complex behaviors, such as using tools (Figure 7), which would be extremely difficult to discover automatically (Xie et al., 2019).

4.4.5. Scripted policies

In addition to demonstrations, we can also overcome the exploration challenge with a moderate amount of manual engineering, by designing “scripted” policies that can serve as initialization. Scripted policies can be incorporated into the learning process in much the same way as demonstrations, and can provide considerable benefit. In the QT-Opt grasping system (Figure 3), scripted policies are used to prepopulate the data buffer with a higher proportion of successful grasps than would be obtained with purely random actions. Although aggregating such data from a small number of demonstrations would have limited effectiveness, the advantage of a scripted policy is that it can be used to collect very large datasets. In the final QT-Opt experiment, the scripted policy was used to collect 200,000 grasp attempts, with a success rate around 15–30%. Although this success rate is much lower than the final policy, which succeeds 96% of the time, it was sufficient to bootstrap an effective vision-based grasping skill.

OPEN IN VIEWER

Fig. 3.

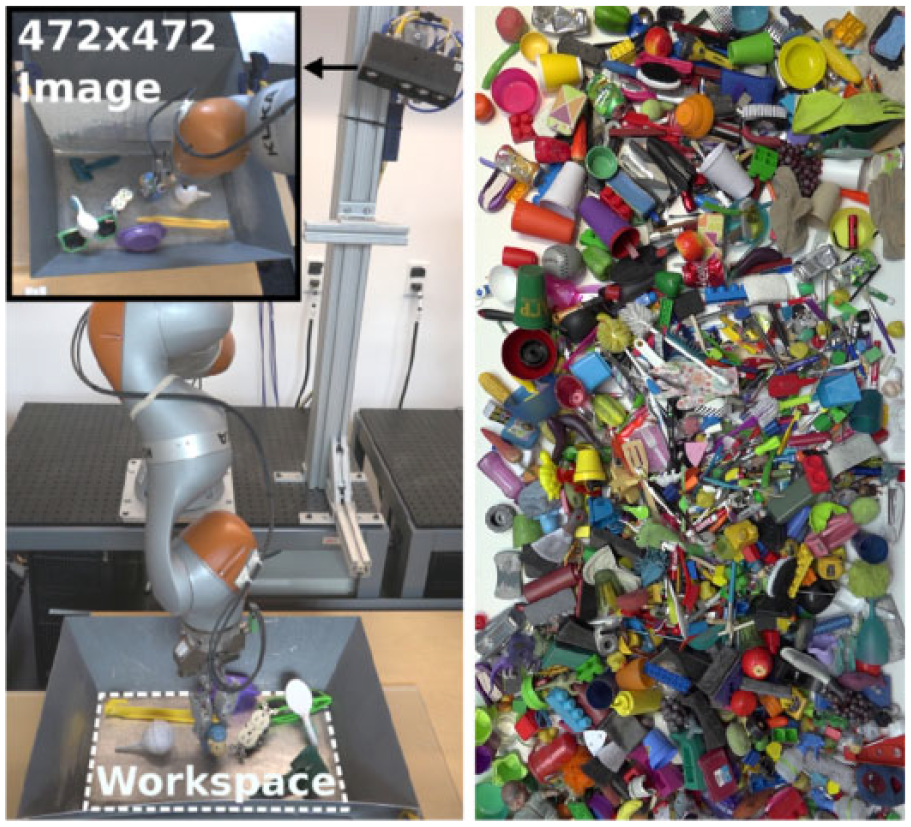

Close-up of our robot grasping set-up (left) and about 1,000 visually and physically diverse training objects (right). Each robot consists of a KUKA LBR IIWA arm with a two-finger gripper and an over-the-shoulder RGB camera.

OPEN IN VIEWER

Fig. 4.

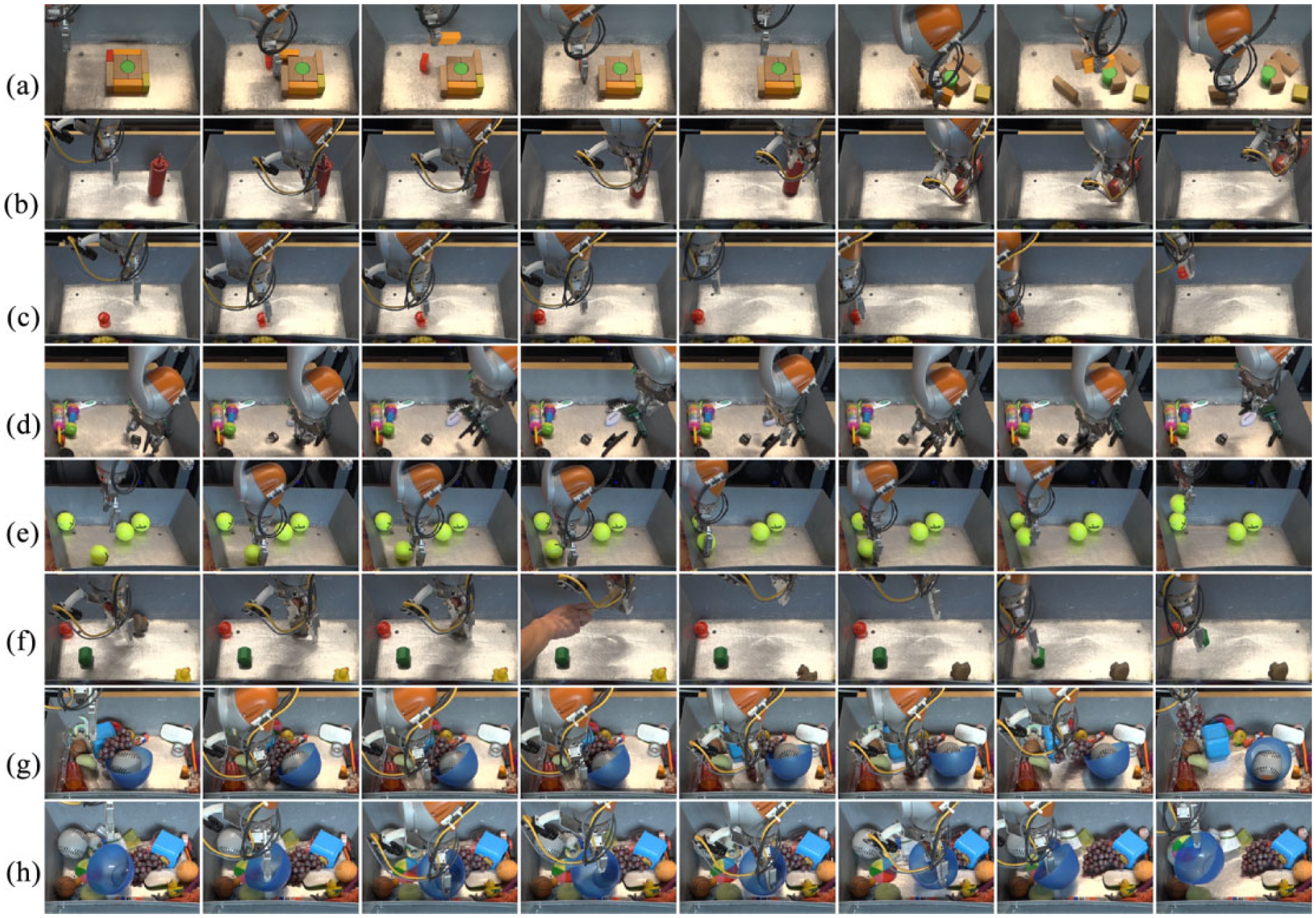

Eight grasps from the QT-Opt policy, illustrating some of the strategies discovered by our method: (a), (b) pregrasp manipulation; (c), (d) grasp readjustment; (e), (f) grasping dynamic objects and recovery from perturbations; and (g), (h) grasping in clutter.

OPEN IN VIEWER

Fig. 5.

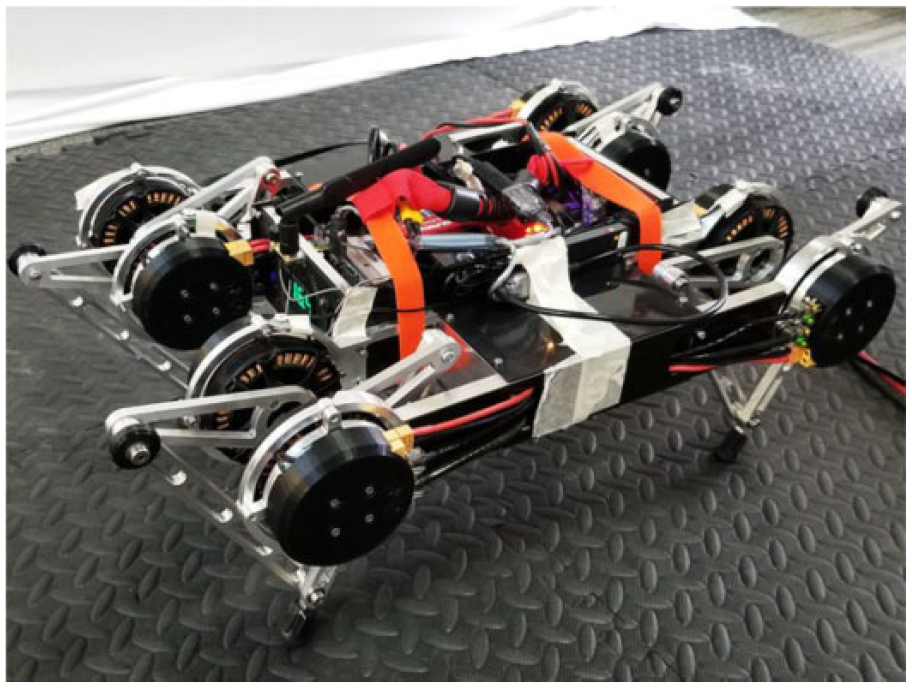

The Minitaur robot learns to walk from scratch using deep RL.

OPEN IN VIEWER

Fig. 6.

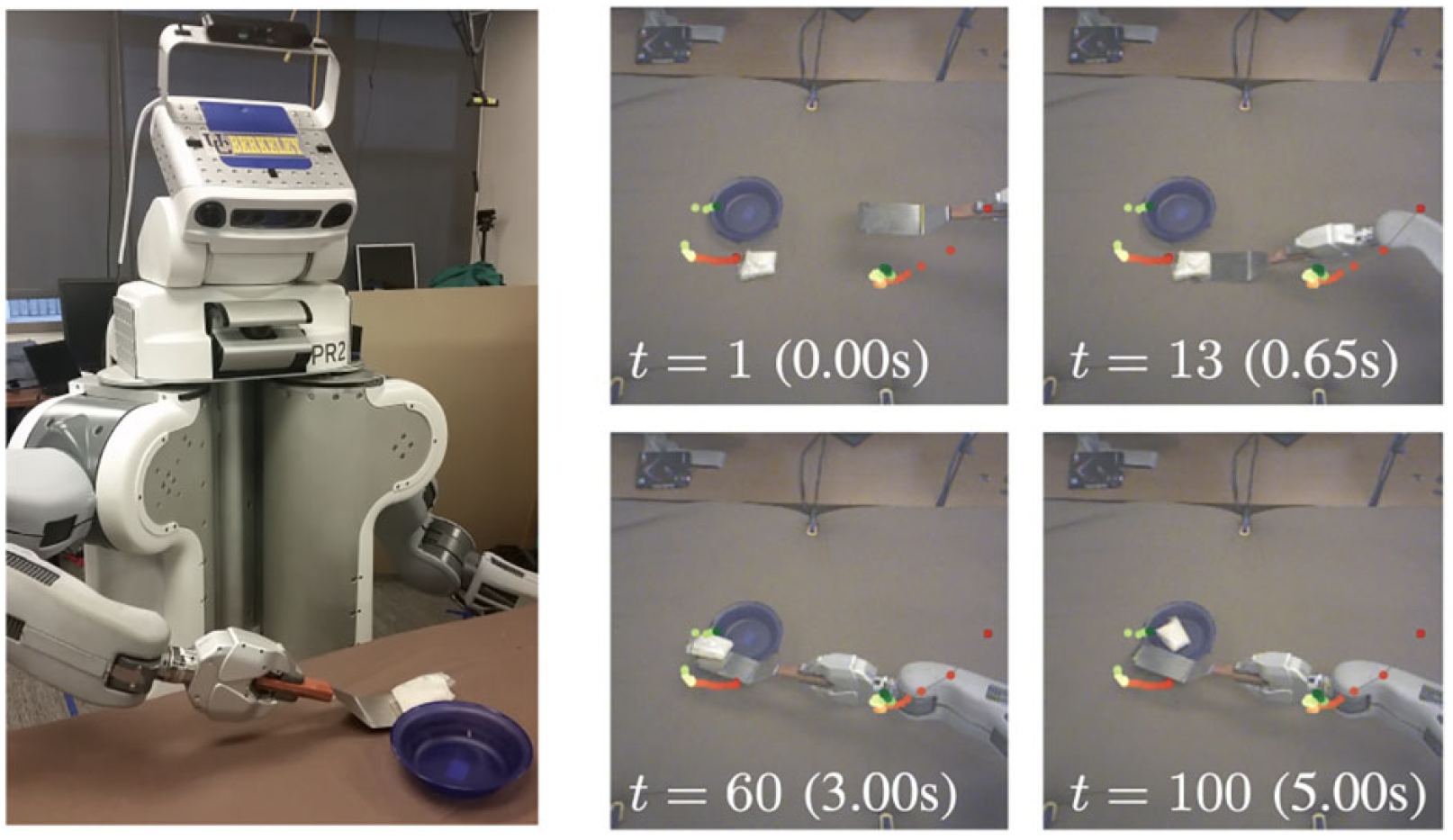

PR2 learning to scoop a bag of rice into a bowl with a spatula (left) using a learned visual state representation (right), using (Finn et al., 2016b). The feature points visualized on the right images were learned without supervision with an autoencoder.

OPEN IN VIEWER

Fig. 7.

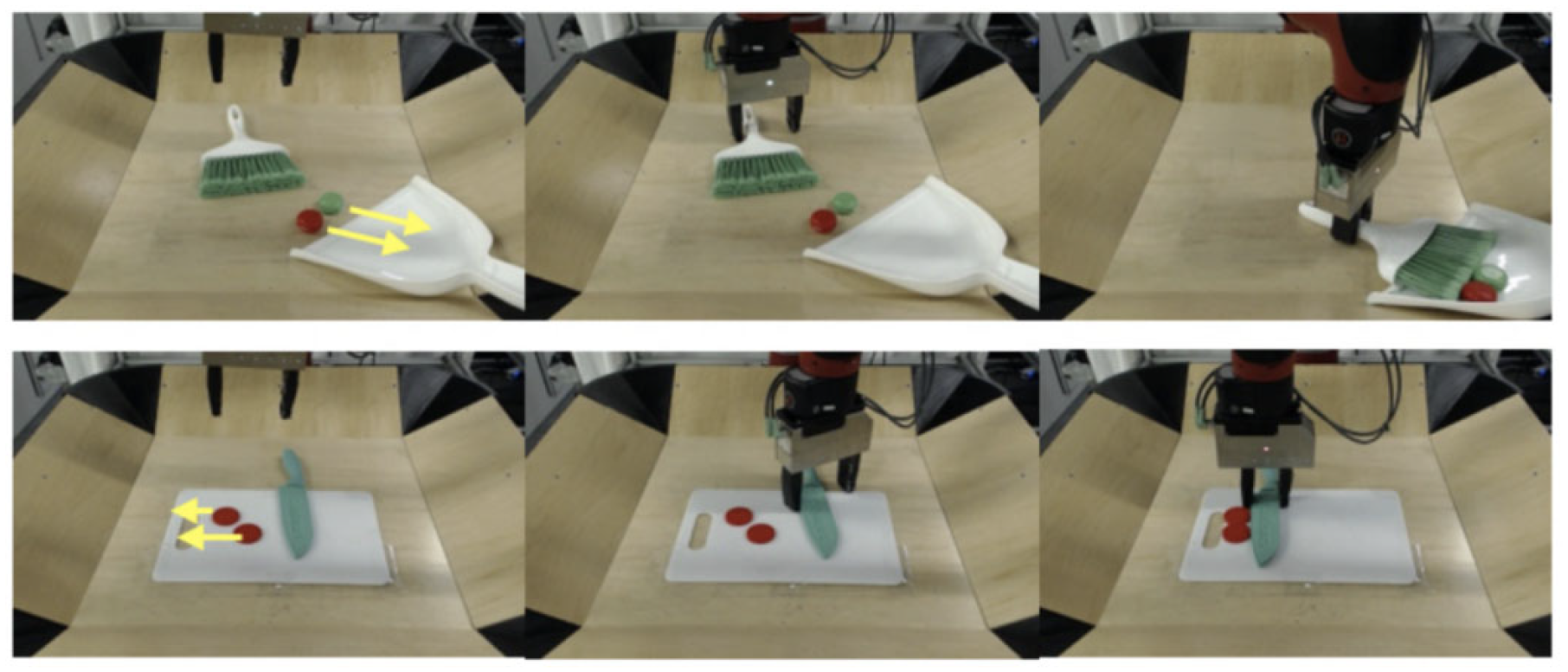

Using both unsupervised interaction and teleoperated demonstration data, the robot learns a visual dynamics model and action proposal model that enables it to perform new tasks with novel, previously unseen tools (using Xie et al., 2019). The task specification is shown on the left and the robot performing the task is shown on the right.

Another reason why we pre-populate the replay buffer only with a scripted policy is to help keep a ratio of successful and unsuccessful episodes close to 50%. This is motivated by techniques trying to re-balance equally each class when training a multi-class classifier as in Chawla et al. (2002). A poor performing policy doesn t generate good data to train a Q-function since it requires both good and bad attempts to be able to learn a good ranking of what a good or bad action is. At the beginning of the training, the policy is bad because the Q-function being learned hasn t converged yet. Such a policy only generates unsuccessful episodes which can t be used to train a good Q-function. This is why the policy is only used to generate data once it reached a certain amount of performance. Our rule of thumb is to only start using the trained policy for data collection once it has reached 20+% success.

Scripted policies can also be used in a “residual” RL framework, which serves a similar purpose as joint training with demonstrations. In residual RL (Johannink et al., 2019; Silver et al., 2018; Tan et al., 2018, the reinforcement learner learns a policy that is additively combined with the scripted policy, i.e., π final ( s ) = π scripted ( s ) + π learned ( s ) . The motivation is similar: unlike pure initialization, the residual approach always retains the scripted component. However, unlike joint training with demonstrations, residual RL can overcome the bias in the scripted policy by learning to “undo” π scripted ( s ) , and therefore can in principle still converge to the optimal policy.

4.4.6. Reward shaping

Shaping the reward function can also side-step exploration challenges by providing the RL algorithm with additional guidance for exploration. For example, for a reaching task, one can use the distance of the agent to the goal as a negative reward which will significantly speed up the exploration. We ve used this approach in several works for learning manipulation skills, such as door opening and peg insertion, where object location information is available during training (Gu et al. 2017; Levine et al. 2016). This approach is very effective for any tasks where the agent has to go to a specific know location, such as in navigation tasks Francis et al. (2020). However, we ve found in practice that such an approach can be difficult to scale to many diverse manipulation tasks. This is due to two factors. First, it can be very difficult to weight the shaping terms properly to avoid any greedy and unintentional sub-optimal behaviors. For example, to open the door, one may want to get close to the handle, but may require to take some distance from it to take a different approach with the gripper if the handle can t be moved with the current orientation. Such behavior would go against the shaping of the reward, and thus the reward shaping may make it impossible to discover such a behavior if its weight is too high. Second, and perhaps more importantly in real-world environments, such shaped reward functions require knowledge of the precise state of the environment, such as object locations relative to the robot. This is feasible in simulation but can be very challenging on real robots, where the only input may be an image. Once one wants to tackle multiple manipulation tasks, dealing with those variations may be difficult to program even in simulation, since the state configuration one has to deal with can grow exponentially. While we have discussed how the challenge of exploration can be side-stepped by employing demonstrations, scripted policies, and reward shaping, the study of exploration and curiosity in robotic learning still plays an important role. Indeed, we can regard those approaches as a means to parallelize research on robotic learning: if we aim to study perception, generalization, and complex tasks, we can avoid needing to solve exploration as a prerequisite.

4.5.1. Data diversity

Good data diversity that covers the space of generalization we care about is critical to have good performance with deep learning. Deep RL is no exception. In QT-Opt, we cared about generalization to the objects that were never seen during training. Thus, we made sure that during data collection, the agent would see more than 1,000 different object types. If we had only collected data with a small set of objects, we may not achieve the generalization capability that we need. It is the same analogy that we cannot expect a model trained on CIFAR (with 100 classes) to generalize as well as a model trained on ImageNet (with 1,000 classes). This is also true for robotics. If we want to generalize to any objects, we may need to collect data with thousands of them. If we want the policy to be agnostic to the robot arm geometry, we may need to train with thousands of arm variations, etc.

A lot of recent work has leveraged domain randomization in simulation to get good sim-to-real transfer, because they cared about generalization to a new environment. There is a tradeoff here as more environment diversity may cause the policies to have lower performance. Often this can be alleviated with larger and better neural network architectures. As an example, a larger and deeper than usual neural network was required in Kalashnikov et al. (2018) for the Q-function to deal with the large variety of objects and to achieve good performance on test objects.

4.5.2. Proper evaluation

To get good generalization, the entire system, including its hyperparameters, has to be tuned to optimize for it. This means that when we define the evaluation protocol, we have to be thoughtful to have two Markov decision processes (MDPs): one for training and a separate one for evaluation.

This separation of MDP has to be done based on what we care to generalize against: if we want a policy that can grasp new objects, we should have the training MDP with a different set of objects than the testing MDP, both in simulation and the real setup. If we care about generalizing to new robot dynamics, we should make sure to define our training MDP with different dynamics than our testing MDP.

4.7.1. Experiment design

The experimental set-up itself, i.e., how a particular robot is set up to tackle a specific task, is an important and often overlooked aspect of a successful experiment. Oftentimes the set-up has been carefully engineered or the task has been chosen such that the robot can reset the scene to facilitate unattended and potentially round-the-clock operation. For example, in (Pinto and Gupta 2016; Levine et al. 2018; Kalashnikov et al. 2018; Zeng et al. 2018; Cabi et al. 2019; Dasari et al. 2019), the workspaces are convex, the objects involved allow for safe interaction, and action-spaces are mostly restricted to topdown combined with either intrinsic compliance of the robot itself and/or a wrist mounted force-torque sensor to detect and stop unsafe motions. Ideally, the experimental set-up is as unconstrained as possible, but, in practice, is restricted to create a safe action space for the robot (see Section 4.11.1).

4.7.2. Facilitating continuous operation

Round-the-clock operation will stress the robot itself as well as the experimental set-up. Repeated potentially unintended contact of the robot with objects and environment will wear out any experimental set-up eventually and needs to be considered upfront. The challenge for long-running experiments is to increase the mean time between failure while ensuring that the data that is being collected is indeed useful for training. The former requires to understand the root cause for each intervention and develop failsafe redundancies. We discuss this challenge more in Section 4.12. Similarly, to ensure that the collected data is not compromised, adding sanity checks is recommended along with actually using the data early to train and retrain models. Despite simply acquiring more data faster, running experiments around-the-clock also ensures that robots are exposed to varying amounts of lighting conditions allowing us to train more robust policies. However, spot-checking the collected data is important as we noticed, for example, that the ceiling lights automatically turned off for parts of the night resulting in very dark images compromising the data.

4.7.3. Non-stationarity owing to environment changes

A learned policy will fail if environment aspects have significantly changed since training. For example, the lighting conditions may significantly shift at night if windows are present in the room, and evaluations done at night may have very different results if no data collection happened at that time. The underlying dynamics may have shifted significantly since training owing to hardware degradation. Hardware degradation, such as change of battery level, wear and tear, and hardware failure, are the major causes of dynamic changes. Traditional learning-based approaches, which have distinctive training and testing phases, assuming stationary distribution between phases, suffer from hardware degradation or environment changes not captured in the collection phase. In extreme cases of locomotion, a learned policy can stop working after merely a few weeks owing to significant robot dynamic changes. To address these challenges, learning algorithms need to adjust online (Yu et al., 2017), optimize for quick adaptation (Finn et al., 2017a; Yang et al., 2019), or learn in a lifelong fashion.

This can also have consequences for evaluation protocols where comparing two learned policies or even the same one at different times. We recently found that the best policy learned in Levine et al. (2018) was sensitive to a hardware degradation of the fingers, which caused a consistent performance drop of 5% in as little as 800 grasps executed on a single robot. One way to mitigate this is to use proper A/B testing protocols as described in Tang et al. (2010).

4.11.1. Designing safe action spaces

One simple way to avoid unsafe behaviors is to restrict the action space such that any action that a learned policy can take is safe. This is usually very restrictive and cannot be applied to all applications. However, there are many cases, particularly in semi-static environments and tasks, such as grasping and manipulation, where this is the right approach. Grasping objects in a bin is a very common task in logistics. In these settings, safety can typically be enforced by restricting the work space. For example, in Levine et al. (2018) and Kalashnikov et al. (2018), all actions are selected through sampling, and unsafe samples are rejected. This allows us to perform safety checks or add constraints to the action space. By using a geometric model of the robot and the world, we can reject actions that are outside the 3D volume above the bin, and reject actions that violate kinematic or geometric constraints. We can also enforce constraints on the velocity of the arm. Although this allows us to handle safety for parts of the robot and environment that can be modeled, it does not deal with anything that is unmodeled, such as objects in the scene that we might want to grasp or push aside before grasping. We can mitigate this issue by using a force-torque sensor at the end-effector to detect and stop motion when an impact occurs. From the point of view of the RL agent, this action appears to have a truncated effect. This combination of strategies can provide for a workable level of safety in a simple and effective way for tasks that are quasi-static in nature.

4.11.2. Smooth actions

Typically, exploration strategies are realized by adding random noise to the actions. Uncorrelated random noise injected in the action space for exploration can cause jerky motions, which may damage the gearbox and the actuators, and thus is unsafe to execute on the robot. Options for smoothing out jerky actions during exploration include: reward shaping by penalizing jerkiness of the motion, mimicking smooth reference trajectories (Peng et al., 2018a), learning an additive feedback together with a trajectory generator (Iscen et al., 2018), sampling temporal coherent noise (Haarnoja et al., 2019; Yang et al., 2020), or smoothing the action sequence with low-pass filters. All these techniques work well, although additional manual tuning or user-specified data may be required.

In the locomotion case study (Section 3.3), because the learning algorithm can freely explore the policy space, the converged gait may not be periodic, may be jerky or may use too much energy, which can damage the robot and its surroundings. They usually do not resemble the gaits of animals that we are familiar with in nature. Although it is possible to mitigate these problems by shaping the reward function, we find that a better alternative that requires less tuning is to incorporate a periodic and smooth trajectory generator into the learning process. We develop a novel neural network architecture, policies modulated trajectory generator (PMTG) (Iscen et al., 2018), which can effectively incorporate prior knowledge of locomotion and regularize the learned gait. PMTG subdivides the controller into an open-loop and a feedback component. The open-loop trajectory generator creates smooth and periodic leg motion, whereas the feedback policy, represented by a neural network, can be learned to modulate this trajectory generator, to change walking speed, direction, and style. As a result, the PMTG policies are safe to be deployed or directly learned on the real robot.

4.11.3. Recognizing unsafe situations

It is crucial to recognize that unsafe situations is about to happen, so that a recovering policy can be deployed to keep the robot safe, or to shutdown the robot completely. Heuristic-based approaches can be designed to recognize these unsafe states or actions by checking whether the action will cause collision, or whether the power and the torque exceed the limit. Performing these rule-based safety checks often require careful tuning and a rich set of onboard sensors. Furthermore, we can also employ learning to recognize unsafe situations. These approaches can use ensemble models to estimate uncertainty (Deisenroth and Rasmussen, 2011; Eysenbach et al., 2018) of certain predictions, which can be a good indicator whether any unsafe behavior may happen, or can directly learn the probability of future unsafe behaviors from experience (Gandhi et al. 2017; Srinivasan et al. 2020). Once a precarious situation is recognized, a recovering policy can be deployed to move the robot back to a safe state. The task policy, the recovering policy and the classifier for safety can all be learned simultaneously (Eysenbach et al., 2018; Thananjeyan et al., 2020). For example, in a locomotion task, when the robot is in a balance state, the task policy (walking) is executed and updated. When the robot is about to fall, which is predicted by the learned Q-function, the recovering policy (stand up) takes over. The data collected in this mode is used to update the recovering policy. We showed that learning them simultaneously can dramatically reduce the number of falls during training.

4.11.4. Constraining learned policies

One obvious way to avoid unsafe behaviors is to penalize unsafe actions each time they are taken. However, this can be hard in practice, as careful tuning is needed for the weights of this penalty term. A more effective alternative is to formulate safe RL as a constrained Markov decision process (C-MDP) (Altman, 1999). For example, TRPO (Schulman et al., 2015) ensures a stable learning using a Kullback–Leibler (KL) divergence constraint. More recently, Achiam et al. (2017) and Bohez et al. (2019) have also applied constraint-based optimization to model safety as a set of hard constraints. In our locomotion projects, we formulated a C-MDP that has inequality constraints on the roll and the pitch of the robot base, which constitutes a rough measure of balance. If the state of the robot stays within the constraints throughout the entire training process, the robot is guaranteed to stay upright. This minimizes the chance of falling when the robot is learning to walk. The constrained formulation usually performs better because as long as the constraints are met, no gradients is generated, and thus no interference can happen between the safety constraints and the reward objective. However, too stringent constraints will limit exploration and can lead to slow learning.

4.11.5. Robustness to unseen observations

Last, but not least, even if the training process is safe, the final learned policy can execute unexpected, and potentially unsafe, actions when encountering unseen observations. To improve the generalization of the policy to unseen situations, we adopted a robust control approach. We use domain randomization, which samples different physical parameters, or add perturbation forces, either randomly or adversarially (Pinto et al., 2017), to the robot during training, to force it to learn to react under a wide variety of observations. Before deploying the policy on the robots, we also perform extensive evaluations in simulation about the safety and the performance of the controller on untrained scenarios. Occasionally, the robot, which is trained to be robust and passed all the safety checks in simulation, can still misbehave in the real world. In these rare situations, the model-based or heuristic-based safety checks, such as self-collision detection, power/torque limit, or acceleration threshold, will trigger and shut down the robot.

4.12.1 Self-persistence

We define self-persistence as the ability for the robot to keep its full range of motion while performing a task. If the robot were to collide with itself, or the environment, and end up damaging itself, it may end up losing certain abilities, requiring human intervention. In Section 4.11, we provide a few strategies to improve self-persistence.

4.12.2 Task persistence

Task persistence is the capability of the robotic set-up to accomplish a range of tasks, repeatedly, in the case of grasping, hundreds of thousands of times to learn the task. Being able to retry a task is tightly coupled with the environment itself and is, to this day, still an unsolved problem for a large range of tasks.

Challenges can occur where the robot work space is limited, and thus objects required to accomplish a task may accidentally be thrown out of reach. In this case, we need to find exploration strategies that avoid ending up in such states, in a very limited data regime, to avoid human interventions that are needed every time such an unrecoverable state is encountered. In high-dimensional states, such as images, this becomes a challenging problem as even defining those states becomes a challenge on its own: how do we know from an image that an object has fallen off the bin?

Another class of challenges that we also put in this category is what is often called “environment reset.” In many cases, once the task is accomplished, changes in the environment may need to happen before another trial can be done. This is easy to do in simulation: just reset the state of the environment. In the real world, this can often be much harder to accomplish, as resetting the environment is a sequence of robotic tasks, which may be as hard or harder than the task we are trying to learn itself. An example is learning to screw the cap of a bottle again, we may have to unscrew it to be able to try to screw it again. Pouring or assembly tasks are also examples where resetting the environment may be as challenging or may require many steps to accomplish. Automating the whole process of environment reset is required if we want the robot to persist to learn the task. It becomes a challenge of identifying the right set of sub-tasks whose reset action we already learned how to do with a robot.

On occasion, some tasks are physically irreversible, such as welding two pieces of metal, cutting food with a knife, cutting paper with scissors, or writing with a marker. In those cases, other robots may have to bring new objects to the robot trying to learn those tasks, which may be much harder than trying to accomplish the task itself.

Solving task persistence remains mostly an open problem. Although guided policy search methods that can handle random initial states have been developed (Montgomery et al., 2017; Montgomery and Levine, 2016), they still rely on clustering the initial states into a discrete set of “similar” states, which may be impractical in some cases, such as the diverse grasping task discussed in Section 3.2 and the diverse pushing task in Section 3.1.3, where the “state” includes the positions and identities of all objects in the scene. Previous work such as that of Pinto and Gupta (2016) and Finn and Levine (2017) limited the task and action space to be within a bin, which helped keep objects in it by having raised side walls as well as tackled tasks that required a simple reset: just open the gripper above the bin and bring it back to a home position which can easily be scripted. Because task persistence was resolved to some extent, some of those work managed to collect millions of trials (Kalashnikov et al., 2018; Levine et al., 2018). Unfortunately, many tasks do not have these nice properties. For example, Chebotar et al. (2017a) leveraged a human to perform the reset by bringing the puck back to a position where the hockey stick could hit it again. Haarnoja et al. (2019) had to bring the legged robot back to its initial starting position every time the robot reached the end of the limited 5 m workspace. In both cases, task persistence was not achieved and humans were performing the reset procedure. This makes data collection hard to scale because (1) it was very time consuming for a human and (2) in both cases, they stopped because they started to feel back pain while performing the environment reset. As such, only a few hours of data, and less than 1,000 trials were performed.

More recently, work such as that of Eysenbach et al. (2018) tried to tackle this issue of task persistence by integrating environment reset as part of the learning procedure, in a task-agnostic way. However, this work only explored tasks which have a unique starting point, that can be reached from most states. This strategy is not always possible such as in self-driving cars, where going backward to come back to the starting point is generally not safe.
