Improving Real-Time Trend Estimates Using Local Parametrization of Polynomial Regression Filters

Abstract

This paper examines and compares real-time estimates of the trend-cycle component using moving averages constructed with local polynomial regression. It enables the reproduction of Henderson’s symmetric and Musgrave’s asymmetric filters used in the X-13ARIMA-SEATS seasonal adjustment algorithm. This paper proposes two extensions of local polynomial filters for real-time trend-cycle estimates: first including a timeliness criterion to minimize the phase shift; second with procedure for parametrizing asymmetric filters locally while they are generally parametrized globally, which can be suboptimal around turning points. An empirical comparison, based on simulated and real data, shows that modeling polynomial trends that are too complex introduces more revisions without reducing the phase shift, and that local parametrization reduces the delay in detecting turning points and reduces revisions. The results are reproducible and all the methods can be easily applied using the R package rjd3filters.

Keywords

time series trend-cycle seasonal adjustment turning points R statistical software

1. Introduction

Analysis of the economic cycle, and in particular the early detection of turning points, is a major topic in the analysis of economic outlook. To achieve this, economic indicators are generally seasonally adjusted. However, in order to improve their interpretability, it may be necessary to perform additional smoothing to reduce noise, thereby to analyze the trend-cycle component. By construction, trend-cycle extraction methods are closely related to seasonal adjustment methods, since they are generally applied to seasonally adjusted series.

A moving average, or linear filter, is a statistical method that consists of applying a rolling weighted mean to a times series: for each date $t$ it computes a weighted mean of $p$ past points and $q$ future points where $p, q \geq 0$ depends on the moving average. They are ubiquitous in business cycle extraction and seasonal adjustment methods. For example, the X-11 seasonal adjustment method (Ladiray and Quenneville 2011), used in X-13ARIMA-SEATS software (Monsell 2007), uses several moving averages to estimate the main components of a time series. Symmetric filters are applied to the center of the series and for trend-cycle extraction, the most popular symmetric filter is the Henderson (1916) moving average, which is used in the X-11 seasonal adjustment algorithm. However, for real-time estimates, due to the lack of future observations, all these methods must rely on asymmetric filters to estimate the most recent points. For example, for trend-cycle extraction, X-11 uses Henderson’s symmetric filter and Musgrave’s (1964) asymmetric filters on an extended series using an ARIMA model. Since the predicted values are linear combinations of past values, this amounts to applying asymmetric moving averages at the end of the series. If the classic asymmetric moving averages have good properties regarding the future revisions induced by the process (e.g., Pierce (1980) shows similar performances in terms of revisions of X-11 compared to theoretically superior procedure based on ARIMA forecast models), they create, by construction, phase shifts that impact the real-time estimation of turning points, introducing time delay in the detection.

In the last decades, numerous authors proposed methods for the construction of alternative moving averages to derive trend-cycle estimates. In particular, Wildi and McElroy (2019) put forth a model-based approach based on the mean squared error decomposition, while Proietti and Luati (2008), Dagum and Bianconcini (2008), and Grun-Rehomme et al. (2018) proposed non-parametric methods based, respectively, on local polynomial regression, Reproducing Kernel Hilbert Space (RKHS) theory, and minimizing of a weighted sum of moving average quality criteria. All of the aforementioned approaches encompass both Henderson’s symmetric filter and Musgrave’s asymmetric filters. More recently, Quartier-la-Tente (2024) conducted a comparative analysis of these methods by describing a general unifying framework to derive moving averages; Dagum and Bianconcini (2023) provided statistical tests to assess the main properties of the filters defined in terms of revisions and the detection of turning points.

The aim of this study is to propose two extensions to the Proietti and Luati (2008) class of filters in order to take account of two drawbacks of those methods: firstly adding, in the optimization process, a timeliness criterion to directly control the phase shift (i.e., the delay in detecting turning points); secondly calibrating asymmetric filters locally, while they are generally calibrated globally using assumptions that may be wrong locally. Those extensions are implemented in the statistical software R (R Core Team 2022) through the rjd3filters package (Palate and Quartier-la-Tente 2024) and can therefore be easily used. All the code associated to this paper is available at https://github.com/AQLT/joffstats2024.

In Section 2, we describe the general properties of moving averages and the associated quality criteria. This allows us to understand the foundations behind the construction of moving averages from local polynomial regressions, as well as those behind the two extensions proposed in this article (section 3). In Section 4, all these methods are compared empirically on simulated and real series.

2. Local Trend-Cycle Models and Moving Averages

The basic assumption used in time series decomposition methods is that the input observed time series, $y_{t}$ , can be decomposed into a signal component $μ_{t}$ and an erratic component $ε_{t}$ (called irregular):

f (y_{t}) = μ_{t} + ε_{t}

where $f$ denotes some appropriate transformation (usually logarithmic or no transformation). To simplify further notations, $y_{t}$ will denote the transformed observed series. The noise component $ε_{t}$ is usually assumed to be a white noise. Assuming that the input time series is seasonally adjusted (or without seasonality), the signal $μ_{t}$ represents the trend (sustained and systematic variations over a long period of time) and cycle (cyclical movements superimposed upon the long-term trend) components, here estimated jointly and called trend-cycle $T C_{t}$ . This component can be locally approximated by a polynomial degree (Section 3):

μ_{t} = \sum_{j = 0}^{d} β_{j} t^{j} + ξ_{t}

with $ξ_{t}$ a stochastic process uncorrelated with $ε_{t}$ . Even if some papers model $ξ_{t}$ and $ε_{t}$ separately (see e.g., Gray and Thomson 2002), a usual assumption, adopted in this paper, is to gather $ξ_{t}$ and $ε_{t}$ . Thus, the trend-cycle $T C_{t}$ is considered as deterministic and modeled as a polynomial trend of degree $d$ . The coefficients $(β_{0}, \dots, β_{d})$ can be estimated by weighted least squares. The estimate ${\hat{β}}_{0}$ provides the trend-cycle estimate $\hat{T C_{t}}$ and it can be shown that this equivalent to apply of moving average (Section 3). The goal of this paper is to present two new methods to separate the trend-cycle component from the noise component in real-time (i.e., when no future point is known), using moving averages build on local polynomial smoothing techniques.

Numerous papers describe the definition and the properties of moving averages and linear filters; see for example Ladiray (2018). In this Section we summarize some of the main results to understand the next sections.

Let $p$ and $f$ two integers, a moving average $M_{θ}$ is defined by a set of coefficients $θ = {(\begin{matrix} θ_{- p} & \dots & θ_{f} \end{matrix})}^{T}$ such that for all time series $y_{t}$ :

M_{θ} (y_{t}) = \sum_{k = - p}^{+ f} θ_{k} X_{t + k} .

$p + f + 1$ is called the moving average order.

When $p = f$ the moving average is said to be centered. If we also have $\forall k : θ_{- k} = θ_{k}$ , the moving average $M_{θ}$ is said to be symmetric. In this case, the quantity $h = p = f$ is called the bandwidth.

2.1. Gain and Phase Shift Functions

To interpret the notions of gain and phase shift, it is useful to illustrate the effects of moving averages on harmonic series $y_{t} = e^{- i ω t}$ with $ω \in [0, π]$ . The moving average $M_{θ}$ transforms $y_{t}$ into:

Y_{t} = M_{θ} y_{t} = \sum_{k = - p}^{+ f} θ_{k} e^{- i ω (t + k)} = (\sum_{k = - p}^{+ f} θ_{k} e^{- i ω k}) \cdot y_{t} .

The function $θ_{Γ} (ω) = \sum_{k = - p}^{+ f} θ_{k} e^{- i ω k}$ is called the transfer function or frequency response function. The frequency response function can alternatively be defined as $θ_{Γ} (ω) = \sum_{k = - p}^{+ f} θ_{k} e^{i ω k}$ or $θ_{Γ} (ω) = \sum_{k = - p}^{+ f} θ_{k} e^{2 π i ω k}$ . It can be rewritten as:

θ_{Γ} (ω) = ρ_{θ} (ω) e^{i θ_{φ} (ω)},

where $θ_{ρ} (ω) = G_{θ} (ω) = | Γ_{θ} (ω) |$ is the gain or amplitude function and $φ_{θ} (ω)$ is the phase shift or time shift function. We thus have:

\begin{matrix} ρ_{θ} (ω) = \sqrt{{(\sum_{k = - p}^{+ f} θ_{k} \cos (ω k))}^{2} + {(\sum_{k = - p}^{+ f} θ_{k} \sin (ω k))}^{2}} \\ \tan φ_{θ} (ω) = - \frac{\sum_{k = - p}^{+ f} θ_{k} \sin (ω k)}{\sum_{k = - p}^{+ f} θ_{k} \cos (ω k)} if \sum_{k = - p}^{+ f} θ_{k} \cos (ω k) \neq 0 \\ = 0 if \sum_{k = - p}^{+ f} θ_{k} \cos (ω k) = 0 . \end{matrix}

The phase shift is sometimes represented as $ϕ_{θ} (ω) = \frac{φ_{θ} (ω)}{ω}$ to measure it in number of periods. For all symmetric moving averages we have $φ_{θ} (ω) \equiv 0 (modulo π)$ .

To sum up, applying a moving average to a harmonic times series $(y_{t} = e^{- i ω t})$ affects it in two different ways:

by multiplying it by an amplitude coefficient $ρ_{θ} (ω)$ (gain);

by “shifting” it in time by $φ_{θ} (ω) / ω$ which directly affects the detection of turning points. When $φ_{θ} (ω) / ω < 0$ the time shift is negative: the turning point is detected with delay.

Fourier decomposition allows us to analyze any time series as a sum of harmonic series, and each component (trend, cycle, seasonal, irregular) is associated with a set of frequencies. With $ω = 2 π / s$ , the harmonic series of frequency $ω$ represents a series that repeats itself every $s$ periods. For example, for a monthly series ( $s = 12$ observations per year), seasonal movements are those that repeat every year: they are therefore associated with frequencies $2 π / 12$ (annual periodicity), $2 π / 12 \times 2 = 2 π / 6, \dots, 2 π / 12 \times 5$ . In this paper, we consider that the trend-cycle is associated with frequencies in the interval $[0, 2 π / 12]$ , that is, movements recurring at least every twelve months. Even if different frequencies are sometimes used (e.g., $[0, 2 π / 36]$ to consider only cycles of at least thirty-six months), this has no impact on the results of the study. The other frequencies, $[2 π / 12, π]$ are associated with the irregular component.

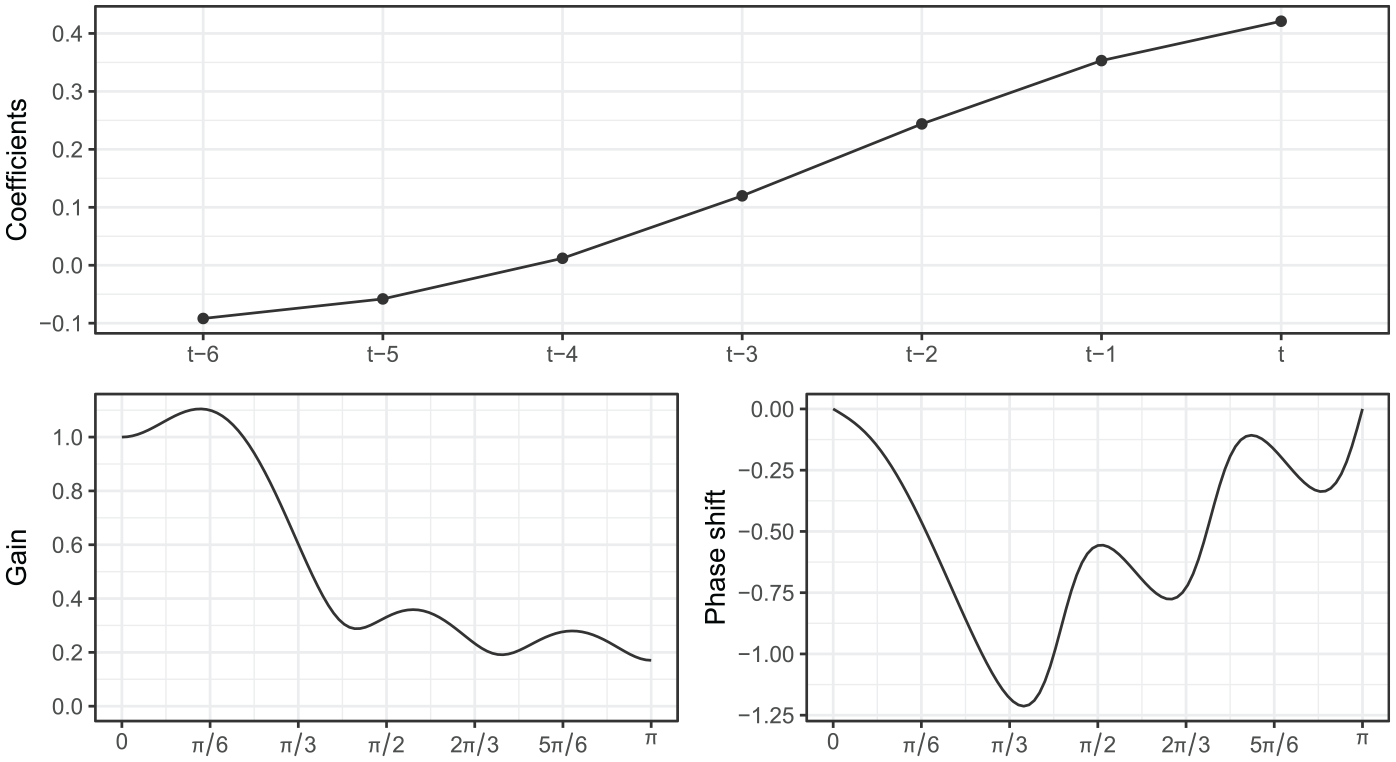

Figure 1 shows the gain and phase shift function for the asymmetric Musgrave filter (see Section 3.2) often used for real-time trend-cycle estimation (i.e., when no point in the future is known). The gain function is greater than 1 on the frequencies associated with the trend-cycle $([0, 2 π / 12])$ : this means that the trend-cycle is well preserved and that short cycles of one to two years $([2 π / 24, 2 π / 12])$ are even amplified. At other frequencies, the gain function is less than 1, but always positive: this means that the series smoothed by this moving average will always contain noise, even if it is attenuated. Analysis of the phase shift shows that the shorter the cycles, the greater the phase shift: this means that on series smoothed by this moving average, turning points could be detected at the wrong date.

Figure 1.

Coefficients, gain, and phase shift function for the Musgrave filter used in X-11 in real-time (last estimate) for monthly series when the bandwidth is 6.

Observed in Figure 1 that for monthly times series, twelve-month cycles (associated to the frequency $2 π / 12 = π / 6$ ) are amplified by 10% $(G_{θ} (π / 6) \approx 1.1)$ and associated turning points are detected with a delay of one months $(φ_{θ} (π / 6) / (π / 6) \approx - 1)$ . Eight-month cycles (associated to the irregular) are only reduced by 6% $(G_{θ} (π / 4) \approx 0.94)$ . Note that the Musgrave filter depends on a ratio denoted $I / C$ (see Section 3). In X-11, for monthly series, when the bandwidth is 6 (i.e., a symmetric Henderson filter of order 13 is used, what is used in most cases), the ratio is fixed to 3.5 and this value is used in this figure.

2.2. Desirable Properties of a Moving Average

To decompose a time series into a seasonal component, a trend-cycle and the irregular, the X-11 decomposition algorithm (used in X-13ARIMA-SEATS) uses a succession of moving averages, all with specific constraints.

In this paper, we assume that our initial series $y_{t}$ is seasonally adjusted and can be written as the sum of a trend-cycle, $T C_{t}$ , and an irregular (noise) component, $ε_{t}$ :

y_{t} = T C_{t} + ε_{t} .

The aim will be to build moving averages that best preserve the trend-cycle $(M_{θ} (T C_{t}) \approx T C_{t})$ .

Trend-cycles are generally modeled by local polynomial trends (see Section 3) and, in order to best preserve the trend-cycles, we thus design moving averages that preserve the polynomial trends. A moving average $M_{θ}$ preserves a function of time $f (t)$ if $\forall t, M_{θ} f (t) = f (t)$ .

For a moving average $M_{θ}$ , it can be shown that:

$M_{θ}$ preserves polynomials of degree $d$ if and only if:

\sum_{k = - p}^{+ f} θ_{k} = 1 (preserves constant) and \forall j \in {1, 2, \dots, d}, \sum_{k = - p}^{+ f} k^{j} θ_{k} = 0 .

If $M_{θ}$ is symmetric ( $p = f$ and $θ_{- k} = θ_{k}$ ) and preserves polynomials of degree $2 d$ then it also preserves polynomials of degree $2 d + 1$ .

2.3. Real-Time Estimation and Asymmetric Moving Average

For symmetric filters, the phase shift function is equal to 0 (modulo $π$ ). So there is no delay in detecting turning points. However, they cannot be used in the beginning and in the end of the time series because no past or future value can be used. Thus, for real-time estimation, it is needed to build asymmetric moving averages that approximate the symmetric moving average.

Several approaches can be used for real-time estimation:

Use asymmetric moving averages to take account of the lack of available data;

Apply symmetric filters to an extended forecast series (which is equivalent to using asymmetric moving averages, since forecasts are linear combinations of the past). This method seems to date back to De Forest (1877), which also suggests modeling a polynomial trend of degree 3 or less at the end of the period. A similar approach is used in the X-13ARIMA-SEATS seasonal adjustment method: the series is extended by one year (by default) with an ARIMA model to minimize the revisions associated to asymmetric filters. Since the final filter used for the seasonal adjustment extraction is much longer than one year (in most of the cases, for monthly series, the bandwidth is 78), the input series is just partially extended (and asymmetric filters are still used) to prevent instability over long periods (e.g., outliers or model shifts).

Conversely, the implicit forecasts of an asymmetric moving average can be deduced from a reference symmetric moving average. This allows us to judge the quality of real-time estimates of the trend-cycle and to anticipate future revisions when forecasts are far from expected evolutions.

Let us denote $v = (v_{- h}, \dots, v_{h})$ the reference symmetric moving average (used to compute the final estimates) and $w^{0}, \dots, w^{h - 1}$ a sequence of asymmetric moving averages used for the intermediate estimates. $w^{0} = (w_{- h}^{0}, \dots, w_{0}^{0})$ is used for estimation in real-time estimate (when zero point in the future is known), $w^{1} = (w_{- h}^{1}, \dots, w_{0}^{1}, w_{1}^{1})$ is used for estimation of the penultimate point (when only one in the future is known), and so on. Let $y_{t - h}, \dots, y_{t}$ be the observed series during the last $h$ periods (for which asymmetric moving averages are used to get the intermediate trend-cycle estimates for the dates $t - h$ to $t$ ). The implicit forecast $y_{t + 1}^{*}, \dots y_{t + h}^{*}$ induced by $w^{0}, \dots w^{h - 1}$ are the forecasts of the series $y_{t}$ for which the estimates of the symmetric filter applied to the extended series $y^{*} = (y_{t - h}, \dots, y_{t}, y_{t + 1}^{*}, \dots y_{t + h}^{*})$ produce the same estimates as the asymmetric filter applied to the series $y^{*}$ . This means:

\begin{matrix} \underset{smoothing by v of the extended series}{\underset{︸}{\sum_{i = - h}^{0} v_{i} y_{t + i} + \sum_{i = 1}^{h} v_{i} y_{t + i}^{*}}} = \underset{smoothing by w^{0} using 0 point after t}{\underset{︸}{\sum_{i = - h}^{0} w_{i}^{0} y_{t + i}}} \\ = \underset{smoothing by w^{1} using 1 point after t}{\underset{︸}{\sum_{i = - h}^{0} w_{i}^{1} y_{t + i} + w_{1}^{1} y_{t + 1}^{*}}} \\ = \underset{smoothing by w^{2} using 2 points after t}{\underset{︸}{\sum_{i = - h}^{0} w_{i}^{2} y_{t + i} + \sum_{i = 1}^{2} w_{i}^{2} y_{t + i}^{*}}} \\ = \dots \\ = \underset{smoothing by w^{h - 1} using h - 1 points after t}{\underset{︸}{\sum_{i = - h}^{0} w_{i}^{h - 1} y_{t + i} + \sum_{i = 1}^{h - 1} w_{i}^{h - 1} y_{t + i}^{*}}} \end{matrix}

For any integer $q$ between 0 and $h - 1$ , using for convention $w_{t}^{q} = 0$ if $t > q$ we then have:

\sum_{i = 1}^{h} (v_{i} - w_{i}^{q}) y_{i}^{*} = \sum_{i = - h}^{0} (w_{i}^{q} - v_{i}) y_{i} .

In matrix form, this is equivalent to solving:

(\begin{matrix} v_{1} & v_{2} & \dots & v_{h} \\ v_{1} - w_{1}^{1} & v_{2} & \dots & v_{h} \\ ⋮ & ⋮ & \dots & ⋮ \\ v_{1} - w_{1}^{h - 1} & v_{2} - w_{2}^{h - 1} & \dots & v_{h} \end{matrix}) (\begin{matrix} y_{1}^{*} \\ ⋮ \\ y_{h}^{*} \end{matrix}) = (\begin{matrix} w_{- h}^{0} - v_{- h} & w_{- (h - 1)}^{0} - v_{- (h - 1)} & \dots & w_{0}^{0} - v_{0} \\ w_{- h}^{1} - v_{- h} & w_{- (h - 1)}^{1} - v_{- (h - 1)} & \dots & w_{0}^{1} - v_{0} \\ ⋮ & ⋮ & \dots & ⋮ \\ w_{- h}^{h - 1} - v_{- h} & w_{- (h - 1)}^{h - 1} - v_{- (h - 1)} & \dots & w_{0}^{h - 1} - v_{0} \end{matrix}) (\begin{matrix} y_{- h} \\ ⋮ \\ y_{0} \end{matrix}) .

This is implemented in the rjd3filters::implicit_forecast() function.

As highlighted by Wildi and Schips (2004), extending the series through forecasting with an ARIMA model is equivalent to calculating asymmetric filters whose coefficients are optimized in relation to the one-step ahead forecast. In other words, the aim is to minimize the revisions between the first and last estimates (with the symmetric filter). However, the phase shift induced by the asymmetric filters is not controlled: we might prefer to have faster detection of turning points and a larger revision rather than just minimizing the revisions between the first and last estimates. Furthermore, since the coefficients of the symmetric filter (and therefore the weight associated with distant forecasts) decrease slowly, we should also be interested in the performance of multi-step ahead forecasting. This is why it may be necessary to define alternative criteria for judging the quality of asymmetric moving averages.

3. Non-Parametric Regression and Local Polynomial Regression

Many trend-cycle extraction methods are based on non-parametric regressions, which are particularly flexible because they do not assume any predetermined dependency in the predictors. In practice, local regressions can be used. More specifically, consider a set of points $(x_{t}, y_{t})_{1 \leq t \leq n}$ and we here consider that $x_{t} = t$ (no external regressor is used). Non-parametric regression involves assuming that there exists a function $μ$ , to be estimated, such that $y_{t} = μ (t) + ε_{t}$ with $ε_{t}$ an error term. According to Taylor’s theorem, for any date $t_{0}$ , if $μ$ is differentiable $d$ times, then:

\forall t, μ (t) = \underset{= T C_{t_{0}}}{\underset{︸}{μ (t_{0})}} + μ' (t_{0}) (t - t_{0}) + \dots + \frac{μ^{(d)} (t_{0})}{d!} (t - t_{0})^{d} + R_{d} (t),

(1)

where $R_{d}$ is a negligible residual term in the neighborhood of $t_{0}$ . In a neighborhood $h (t_{0})$ around $t_{0}$ , $μ$ can therefore be approximated by a polynomial of degree $d$ . The quantity $h (t_{0})$ is called the bandwidth. If $ε_{t}$ is white noise, we can estimate $μ (t_{0}) = T C_{t_{0}}$ by least squares using the observations which are in $[t_{0} - h (t_{0}), t_{0} + h (t_{0})]$ . In practice, this means assuming that the trend is locally polynomial. We also generally assume that the bandwidth is fixed over time: $h (t_{0}) = h .$ This is also what is assumed in the seasonal adjustment algorithm X-11 and what will be assumed in this paper.

Various estimation methods can be used to derive symmetric and asymmetric moving averages. For example, Gray and Thomson (1996) propose a complete statistical framework that makes it possible, in particular, to model the error in approximating the trend by local polynomials. However, as the specification of this error is generally complex, simpler models may be preferred, such as that of Proietti and Luati (2008). Dagum and Bianconcini (2008) propose a similar modeling of the trend-cycle but using the theory of Hilbert spaces with reproducing kernels for estimation, which has the particular advantage of facilitating the calculation of different moving averages at different time frequencies. See Quartier-la-Tente (2024) for a more detailed comparison of the different recent methods for trend-cycle extraction included in the rjd3filters package.

In this paper we will focus on Proietti and Luati (2008) approach. Subsection 3.1 and Section 3.2 describes their approach to build symmetric moving averages (used for the final estimates of the trend-cycle component) and asymmetric moving averages (used for real-time estimates). This paper proposed two extensions of their approach to build asymmetric moving averages: a first one adding a criteria to control the phase shift (Subsection 3.4), not used in the simulation (Section 4) but which could be used in future studied; a second one using a local parametrization of a parameter usually parametrized globally (Subsection 3.3), which is used in the simulation.

3.1. Symmetric Moving Averages and Local Polynomial Regression

Using Proietti and Luati’s (2008) framework, we assume that our time series $y_{t}$ can be decomposed into

y_{t} = T C_{t} + ε_{t},

where $T C_{t}$ is the trend-cycle and $ε_{t} ~^{i . i . d} N (0, σ^{2})$ is the noise (the series is therefore seasonally adjusted). Within a neighborhood $h$ of $t$ , the local trend $T C_{t}$ is approximated by a polynomial of degree $d$ , such that $T C_{t} \approx m_{t}$ with:

\forall j \in {- h, - h + 1, \dots, h}, y_{t + j} = m_{t + j} + ε_{t + j}, m_{t + j} = \sum_{i = 0}^{d} β_{i} j^{i} .

The problem of trend extraction is equivalent to estimating $m_{t} = T C_{t} = β_{0}$ (the constant in the previous formula).

In matrix notation:

\underset{y}{\underset{︸}{(\begin{matrix} y_{t - h} \\ y_{t - (h - 1)} \\ ⋮ \\ y_{t} \\ ⋮ \\ y_{t + (h - 1)} \\ y_{t + h} \end{matrix})}} = \underset{X}{\underset{︸}{(\begin{matrix} 1 & - h & h^{2} & \dots & {(- h)}^{d} \\ 1 & - (h - 1) & {(h - 1)}^{2} & \dots & {(- (h - 1))}^{d} \\ ⋮ & ⋮ & ⋮ & \dots & ⋮ \\ 1 & 0 & 0 & \dots & 0 \\ ⋮ & ⋮ & ⋮ & \dots & ⋮ \\ 1 & h - 1 & {(h - 1)}^{2} & \dots & {(h - 1)}^{d} \\ 1 & h & h^{2} & \dots & h^{d} \end{matrix})}} \underset{β}{\underset{︸}{(\begin{matrix} β_{0} \\ β_{1} \\ ⋮ \\ ⋮ \\ ⋮ \\ ⋮ \\ β_{d} \end{matrix})}} + \underset{ε}{\underset{︸}{(\begin{matrix} ε_{t - h} \\ ε_{t - (h - 1)} \\ ⋮ \\ ε_{t} \\ ⋮ \\ ε_{t + (h - 1)} \\ ε_{t + h} \end{matrix})}} .

(2)

Since $d + 1$ parameters are estimated with $β$ , we need at least $2 h + 1$ observations (thus $2 h \geq d$ ) and the estimation is made by weighted least squares (WLS), which is equivalent to minimizing the following objective function:

S ({\hat{β}}_{0}, \dots, {\hat{β}}_{d}) = \sum_{j = - h}^{h} κ_{j} (y_{t + j} - {\hat{β}}_{0} - {\hat{β}}_{1} j - \dots - {\hat{β}}_{d} j^{d})^{2} .

where $κ_{j}$ is a set of weights called a kernel. We have $κ_{j} \geq 0 : κ_{- j} = κ_{j}$ , and with $K = diag (κ_{- h}, \dots, κ_{h})$ , the estimate of $β$ can be written as $\hat{β} = (X^{T} KX)^{- 1} X^{T} Ky .$ With $e_{1} = {(\begin{matrix} 1 & 0 & \dots & 0 \end{matrix})}^{T}$ , the estimate of the trend is:

{\hat{m}}_{t} = {\hat{TC}}_{t} = e_{1} \hat{β} = θ^{T} y = \sum_{j = - h}^{h} θ_{j} y_{t - j} with θ = KX (X^{T} KX)^{- 1} e_{1} .

(3)

To conclude, the estimate of the trend ${\hat{TC}}_{t}$ can be obtained applying the symmetric filter $θ$ to $y_{t}$ ( $θ$ is symmetric due to the symmetry of the kernel weights $κ_{j}$ ). Moreover, since $X^{T} θ = e_{1}$ we have:

\sum_{j = - h}^{h} θ_{j} = 1, \forall r \in {1, 2, \dots, d} : \sum_{j = - h}^{h} j^{r} θ_{j} = 0 .

Hence, the filter $w$ preserves deterministic polynomials of order $d$ .

Regarding parameter selection, the general consensus is that the choice between different kernels is not crucial. See, for example, Cleveland and Loader (1996) or Loader (1999). The only desired constraints on the kernel are that it assigns greater weight to the central estimation $(κ_{0})$ and decreases toward 0 as it moves away from the central observation. The uniform kernel should therefore be avoided. It is then preferable to focus on two other parameters:

the degree of the polynomial, denoted by $d$ : if it is too small, there is a risk of biased estimates of the trend-cycle, and if it is too large, there is a risk of excessive variance in the estimates (due to over-adjustment);

the number of neighbors $2 h + 1$ (or the window $h$ ): if it is too small, then there will be too little data for the estimates (resulting in high variance in the estimates), and if it is too large, the polynomial approximation will probably be wrong, leading to biased estimates.

In this paper we will use the Henderson kernel:

κ_{j} = [1 - \frac{j^{2}}{{(h + 1)}^{2}}] [1 - \frac{j^{2}}{{(h + 2)}^{2}}] [1 - \frac{j^{2}}{{(h + 3)}^{2}}] .

However, several other kernels are available in rjd3filters.

3.2. Asymmetric Moving Averages and Local Polynomial Regression

As mentioned in Subsection 2.3, for real-time estimation, several approaches can be used:

Apply symmetric filters to the series extended by forecasting ${\hat{y}}_{n + l | n}, l \in {1, 2, \dots, h}$ .

Build an asymmetric filter by local polynomial approximation on the available observations ( $y_{t}$ for $t \in {n - h, n - h + 1, \dots, n}$ ).

Build asymmetric filters that minimize the mean squared error of revision under polynomial trend reproduction constraints.

Proietti and Luati (2008) show that the first two approaches are equivalent when forecasts are made by polynomial extrapolation of degree $d$ . They are also equivalent to the third approach under the same constraints as those of the symmetric filter. The third method is called direct asymmetric filtering (DAF). This method is used for real-time estimation in the STL seasonal adjustment method (Seasonal-Trend decomposition based on Loess, see Cleveland et al. (1990)). Although DAF filter estimates are unbiased, this is at the cost of greater variance in the estimates.

To solve the problem of the variance of real-time filter estimates, Proietti and Luati (2008) propose a general method for constructing asymmetric filters that allows a bias-variance trade-off. This is a generalization of Musgrave’s (1964) asymmetric filters (used in the X-11 seasonal adjustment algorithm).

Rewriting Equation (2):

y = (\begin{matrix} U & Z \end{matrix}) (\begin{matrix} γ \\ δ \end{matrix}) + ε, ε ~ N (0, D) .

(4)

where $[U, Z]$ is of full rank and forms a subset of the columns of $X .$ Defining the variance error as $D = σ^{2} K^{- 1}$ (to directly take into account the weights associated to the observations) and with $[U, Z] = X$ we thus find the model associated to symmetric filters. The objective is to find an asymmetric filter $v$ which uses $q$ points in the future and minimizes the mean square error of revision (to the symmetric filter $θ$ ) under certain (polynomial) constraints. The matrices $y$ , $U$ , $Z$ , and $θ$ are partitioned as follows:

y = (\begin{matrix} y_{p} \\ y_{f} \end{matrix}), U = (\begin{matrix} U_{p} \\ U_{f} \end{matrix}), Z = (\begin{matrix} Z_{p} \\ Z_{f} \end{matrix}), θ = (\begin{matrix} θ_{p} \\ θ_{f} \end{matrix}),

where $y_{p}$ is a matrix $(h + q + 1) \times 1$ which denotes the set of available observations (from $y_{t - h}$ to $y_{t + q}$ ) and $U$ , $Z$ , and $θ$ are partitioned in the same way. The constraints are defined as ${U_{p}}^{T} v = U^{T} θ$ : they represent the polynomial preservation constraints we want to impose on the asymmetric filter. $Z$ is then associated to the polynomial constraints of the symmetric filter not imposed on asymmetric filter. Proietti and Luati (2008) show that the problem is equivalent to finding $v$ which minimizes:

φ (v) = \underset{mean square revision error}{\underset{︸}{\underset{revision error variance}{\underset{︸}{{(v - θ_{p})}^{T} D_{p} (v - θ_{p}) + {θ_{f}}^{T} D_{f} θ_{f}}} + \underset{bia s^{2}}{\underset{︸}{{[δ^{T} ({Z_{p}}^{T} v - Z^{T} θ)]}^{2}}}}} + \underset{constraints}{\underset{︸}{2 l^{T} ({U_{p}}^{T} v - U^{T} θ)}} .

(5)

where $l$ is a vector of Lagrange multipliers.

When $U = X$ (and then $Z = 0$ ), the constraint is equivalent to preserving polynomials of degree $d$ and we find asymmetric direct filters (DAF) when $D = σ^{2} K^{- 1}$ .

When $U = {(\begin{matrix} 1 & \dots & 1 \end{matrix})}^{T}$ , $Z = {(\begin{matrix} - h & \dots & + h \end{matrix})}^{T}$ , $δ = δ_{1}$ , $D = σ^{2} I$ and when the symmetric filter is the Henderson filter, we find the asymmetric Musgrave filters. This filter assumes that, for real-time estimation, the data is generated by a linear process and that the asymmetric filters preserve the constants $(\sum v_{i} = \sum θ_{i} = 1)$ . These asymmetric filters depend on the ratio $| δ_{1} / σ |$ , which, assuming that the trend is linear and the bias constant, can be linked to the I-C ratio $R = \frac{\bar{I}}{\bar{C}} = \frac{\sum | I_{t} - I_{t - 1} |}{\sum | C_{t} - C_{t - 1} |}$ : $δ_{1} / σ = 2 / (R \sqrt{π})$ . This ratio is used in particular in X-11 to determine the length of the Henderson filter. For monthly data:

If the ratio is large $(3.5 < R)$ then a 23-term filter is used (to remove more noise) and the ratio $R = 4.5$ is used in X-11 to define the Musgrave filter.

If the ratio is small $(R < 1)$ a 9-term filter is used and the ratio $R = 1$ is used in X-11 to define the Musgrave filter.

Otherwise (most of the cases) a 13-term filter is used and the ratio $R = 3.5$ is used in X-11 to define the Musgrave filter.

When $U$ corresponds to the first $d^{*} + 1$ columns of $X$ , $d^{*} < d$ , the constraint is to reproduce polynomial trends of degree $d^{*}$ . This introduces bias but reduces the variance. Thus, Proietti and Luati (2008) proposes three classes of asymmetric filters:

Linear-Constant (LC): $y_{t}$ linear $(d = 1)$ and $v$ preserves constant signals $(d^{*} = 0)$ . We obtain Musgrave filters when the Henderson filter is used for the symmetric filter.

Quadratic-Linear (QL): $y_{t}$ quadratic $(d = 2)$ and $v$ preserves linear signals $(d^{*} = 1)$ .

Cubic-Quadratic (CQ): $y_{t}$ cubic $(d = 3)$ and $v$ preserves quadratic signals $(d^{*} = 2)$ .

Supplemental Material shows the coefficients, gain, and phase shift functions of the four asymmetric filters.

3.3. Extension with the Timeliness Criterion

One drawback of the approach of Proietti and Luati (2008) is the lack of control over the phase shift. However, it is possible to improve the modeling by incorporating in Equation (5) the timeliness criterion defined by Grun-Rehomme et al. (2018). This was proposed by Jean Palate, then coded in Java and integrated into rjd3filters.

To measure the phase shift between the input series and the filtered one, Grun-Rehomme et al. (2018) introduces a criterion, $T_{g}$ , called timeliness. When a moving average $v$ is applied, the level input signal is also altered by the gain function. That’s why the timeliness criterion depends on the gain and phase shift functions ( $ρ_{v}$ and $φ_{v}$ ), the link between both functions being made by a penalty function $f$ . The criterion measures phase shift for the frequencies in the interval $[ω_{1}, ω_{2}]$ :

T_{g} (v) = \int_{ω_{1}}^{ω_{2}} f (ρ_{v} (ω), φ_{v} (ω)) d ω

As mentioned in Section 2, in the case of trend-cycle extraction we can set $ω_{1} = 0$ and for monthly series $ω_{2} = 2 π / 12 .$ For the penalty function, the authors suggest $f : (ρ, φ) \to ρ^{2} \sin (φ)^{2}$ and show that in that case the criteria can be written in a quadratic form:

T_{g} (v) = v^{T} Tv

with $T = \int_{ω_{1}}^{ω_{2}} Si (ω) Si (ω)^{T} d ω$ and $Si (ω) = (\sin (p ω), \dots, \sin (f ω))$ if $v$ uses $p$ points in the past and $f$ points in the future.

Using the same notation as in Subsection 3.2, $θ$ represents the symmetric filter and $v$ the asymmetric filter. With $θ = {(\begin{matrix} {θ_{p}}^{T} & {θ_{f}}^{T} \end{matrix})}^{T}$ and $θ_{p}$ of the same length as $v$ , and $g = v - θ_{p}$ , the timeliness criterion can be expressed as:

T_{g} (v) = v^{T} Tv = g^{T} Tg + 2 {θ_{p}}^{T} Tg + {θ_{p}}^{T} T θ_{p} with T a symmetric matrix .

Furthermore, the objective function $φ$ of Equation (5) can be rewritten:

\begin{matrix} φ (v) = (v - θ_{p})^{T} D_{p} (v - θ_{p}) + {θ_{f}}^{T} D_{f} θ_{f} + [δ^{T} ({Z_{p}}^{T} v - Z^{T} θ)]^{2} + 2 l^{T} ({U_{p}}^{T} v - U^{T} θ) \\ = g^{T} Qg - 2 Pg + 2 l^{T} ({U_{p}}^{T} v - U^{T} θ) + c, \end{matrix}

with $Q = D_{p} + Z_{p} δ δ^{T} Z_{p}^{T}, P = θ_{f} Z_{f} δ δ^{T} {Z_{p}}^{T}$ and $c$ a constant independent of $v$ .

Adding the timeliness criterion:

\tilde{φ} (v) = g^{T} \tilde{Q} g - 2 \tilde{P} g + 2 l^{T} ({U_{p}}^{T} v - U^{T} θ) + \tilde{c},

where $\tilde{Q} = D_{p} + Z_{p} δ δ^{T} {Z_{p}}^{T} + α_{T} T$ , $α_{T}$ is the weight associated with the timeliness criterion, $\tilde{P} = θ_{f} Z_{f} δ δ^{T} {Z_{p}}^{T} - α_{T} θ_{p} T$ and $\tilde{c}$ a constant independent of $v$ .

With $α_{T} = 0$ we find $φ (v)$ . This extension therefore makes it possible to find all the symmetric and asymmetric filters presented in the previous section. It is implemented in the R function rjd3filters::lp_filter().

One drawback is that $T_{g} (v)$ is not normalized: the weight $α_{T}$ has no economic sense. It is then difficult to calibrate the value of $α_{T}$ since the value of $| δ / σ |$ must also be defined. Hence, in this paper we will not compare this extension to the other methods and we will focus on the local calibration of $| δ / σ |$ . However, in future studies, we could imagine a two-step calibration: fix the value of $| δ / σ |$ to find $α_{T}$ by cross-validation and then use this weight with a local parametrization of the ratio $| δ / σ |$ (as in Subsection 3.4).

3.4. Local Parametrization of Asymmetric Filters

Asymmetric filters are usually parametrized globally: $| δ / σ |$ is fixed using all the data (with the IC-ratio or a cross-validation criterion). However, we might prefer a local parametrization: a ratio $| δ / σ |$ which varies as a function of time. Indeed, although the overall parametrization is generally valid, assuming a constant value of the $| δ / σ |$ ratio for all asymmetric filters does not appear relevant for real-time estimation, especially during periods of economic downturn. For example, with the LC method, global parametrization means assuming that the slope of the trend is constant, whereas during economic downturns it tends toward 0 up around the turning point.

This is what is proposed in this article, with a local parametrization of the asymmetric filters by estimating $δ$ and $σ^{2}$ separately. Although this does not give an unbiased estimator of the ratio $| δ / σ |$ , it does allow the main evolutions to be captured, such as the decay toward 0 before a turning point and the growth after the turning point for the LC method. $σ^{2}$ and $δ$ are estimated as follows:

The variance $σ^{2}$ can be estimated using the observed data set and the symmetric filter $(θ_{- h}, \dots, θ_{h})$ . Indeed, as for example shown by Loader (1999), the variance $σ^{2}$ can be estimating using the normalized residual sum of squares:

{\hat{σ}}^{2} = \frac{1}{(n - 2 h) - 2 ν_{1} + ν_{2}} \sum_{t = h + 1}^{n - h} (y_{t} - {\hat{TC}}_{t})^{2} .

Since the symmetric filter is used, only $n - 2 h$ observations can be used to estimate $σ^{2}$ . $ν_{1}$ and $ν_{2}$ are two definitions of degrees of freedom of a local fit (generalization of the number of parameters of a parametric model). In the case of local polynomial smoothing, they can be linked to the coefficient of the associated filter: $ν_{1} = (n - 2 h) θ_{0}$ (number of observations multiplied by the central coefficient of the moving average) and $ν_{2} = (n - 2 h) \sum_{i = - h}^{h} θ_{i}^{2}$ (number of observations multiplied by the sum of squares of coefficients of the moving average). Thus, the variance can be estimated by:

{\hat{σ}}^{2} = \frac{1}{n - 2 h} \sum_{t = h + 1}^{n - h} \frac{{(y_{t} - {\hat{TC}}_{t})}^{2}}{1 - 2 θ_{0}^{2} + \sum_{i = - h}^{h} θ_{i}^{2}} .

This is implemented in the function rjd3filters::var_estimator(). This estimator assumes that ${\hat{TC}}_{t}$ is unbiased, so variance estimates intervals are usually computed at small bandwidths $(h)$ . In this paper we study monthly series with small bandwidth $(h = 6)$ , and the variance is estimated using local polynomial of degree 3 (Henderson filter), the biased of ${\hat{TC}}_{t}$ is thus already small and using smaller bandwidths have almost no impact on the estimates (see Supplemental Material).

The parameter $δ$ can be estimated by moving average from Equation (3). For example, for the LC method we can use the moving average $θ_{2} = KX (X^{T} KX)^{- 1} e_{2}$ to obtain a local estimate of the slope and for the QL method we can use $θ_{3} = KX (X^{T} KX)^{- 1} e_{3}$ to obtain a local estimate of the concavity. The DAF method then simply allows us to calculate the associated asymmetric moving averages.

To avoid unrealistic estimates of $| δ / σ | = 2 / (| R | \sqrt{π})$ in real-time, where $R$ is the I-C ratio defined in Subsection 3.2, the value of $| R |$ is truncated to a maximum of 12 (the higher value used in X-11 being 4.5), which slighly reduces revisions and phase shift.

For the construction of moving averages, the trend can be modeled as being locally of degree 2 or 3 (this has no impact on the final estimate of concavity). In this paper, we have chosen to model a trend of degree 2: this slightly reduces the phase shift (see Supplemental Material) but slightly increases the revisions linked to the first estimate of the trend-cycle. Figure 2 shows the moving averages used.

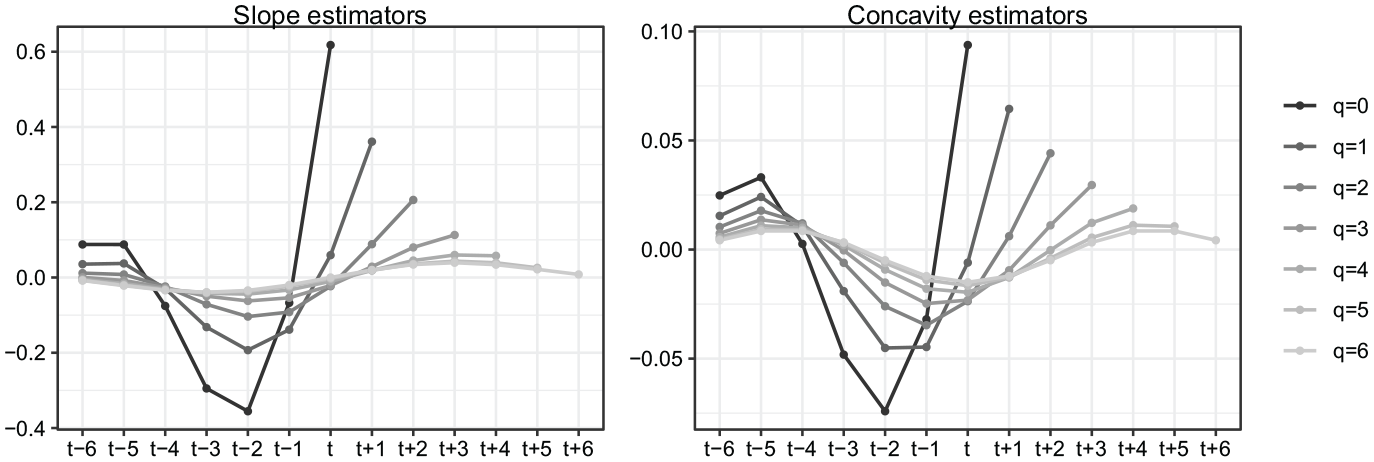

Figure 2.

Moving averages used for real-time estimation of slope and concavity.

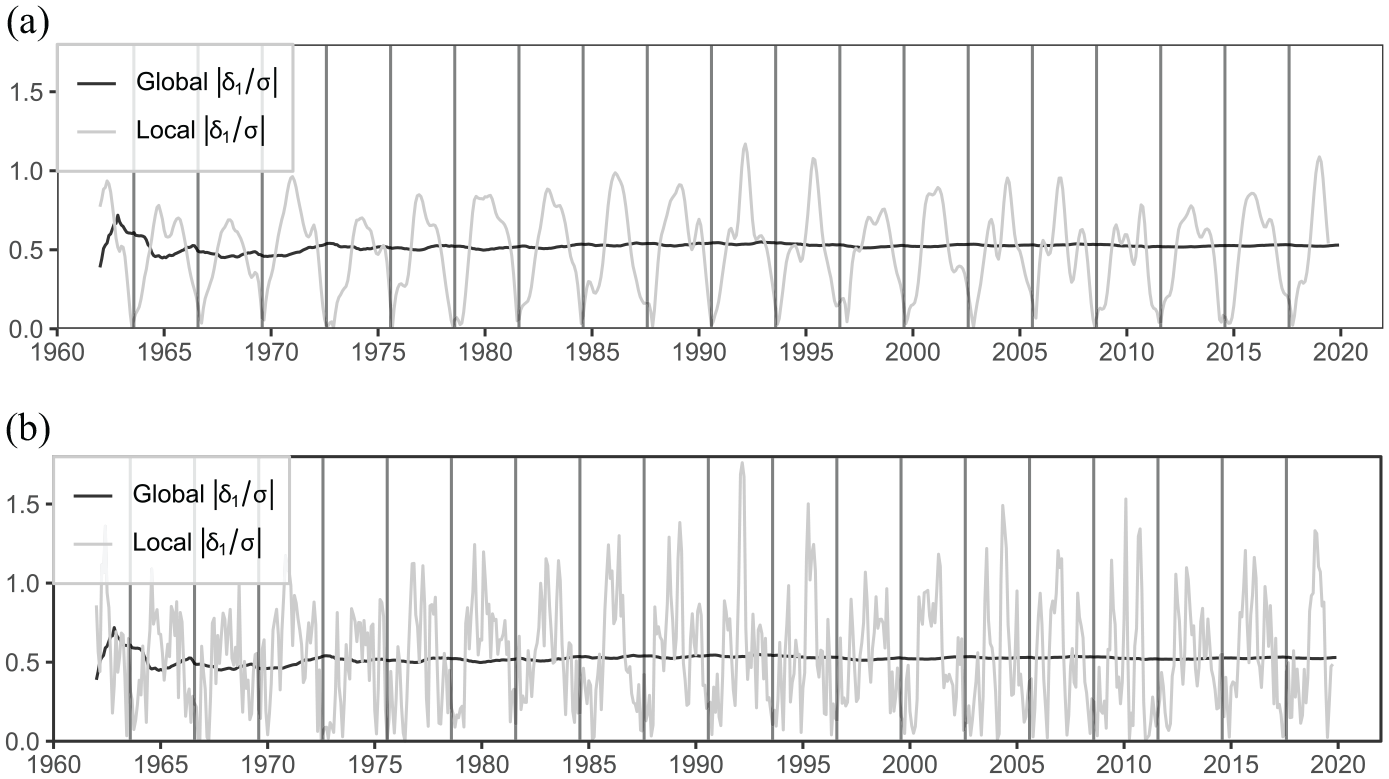

To distinguish the gain from the local parametrization of the noise associated to the real-time estimates of the slope and concavity, in the empirical applications of Section 4 we also compares the results to the final local parametrization obtained by estimating $δ$ using all the data (i.e., using the symmetric filters shown in Figure 2), while maintaining a real-time estimate of $σ^{2}$ . Figure 3 shows an example of the comparison of estimates of the ratio $| δ_{1} / σ |$ with a global estimator (IC ratio) and two local parametrizations:

Figure 3a: using a symmetric filter to estimate $δ_{1}$ (final local parametrization).

Figure 3b: using the asymmetric filter which need two points in the future to estimate $δ_{1}$ . This is closed to the real-time estimates since two points in the future are needed to detect a turning point.

The turning points are clearly detected by the local estimators (slope tends toward 0) when $| δ_{1} / σ |$ is estimated in the real-time. However, the real-time local estimates of $| δ_{1} / σ |$ are noisy: the variability of these estimates, used to build asymmetric filters, will then lead to another source of revisions in the intermediate estimates.

Figure 3.

Comparison of the estimates of $| δ_{1} / σ |$ with a local estimator and global estimator (with IC ratio) on a simulated series, the vertical lines being the simulated turning points: (a) symmetric moving average used for ${\hat{δ}}_{1}$ and (b) asymmetric moving average using two future points ( $q = 2$ ) for ${\hat{δ}}_{1}$ .

There is no function in rjd3filters to directly compute those moving averages but they can be easily computed using matrix computation formula and applied to the series using rjd3filters. See for example the file Simplified_example.R available at https://github.com/AQLT/joffstats2024.

4. Comparison of Different Methods

The different methods are compared on simulated and real data. For all series, a symmetric 13-term filter is used: we then assume than the bandwidth is fixed, as in the seasonal adjustment method X-11. A nearest neighbor bandwidth is also tested (13-term asymmetric filters: real-time filter uses observations between $y_{t - 12}$ and $y_{t}$ , the second asymmetric filters uses observations between $y_{t - 11}$ and $y_{t + 1}$ , etc.) but with no improvement in the results (see Supplemental Material). More complex methods to locally select bandwidth, like the one proposed by Fan and Gijbels (1992), were not tested. All the methods to create asymmetric filters are also compared with estimates obtained by extending the series with an ARIMA model, then applying a 13-term symmetric Henderson filter. The ARIMA model is determined automatically, using Hyndman and Khandakar (2008) algorithm (function forecast::auto.arima()) on the last twelve years, with no seasonal lag (the series being seasonally adjusted) and no external variables (such as external regressors for correction of atypical points). The performance of the different methods is judged on criteria relating to revisions (between two consecutive estimates and in relation to the final estimate) and the number of periods required to detect turning points.

4.1. Simulated Series

4.1.1. Methodology

Following a methodology close to that of Darne and Dagum (2009), nine monthly series are simulated between January 1960 and December 2020 with different levels of variability. Each simulated series $y_{t} = C_{t} + T_{t} + I_{t}$ can be written as the sum of three components:

the cycle $C_{t} = ρ [\cos (2 π t / λ) + \sin (2 π t / λ)]$ , $λ$ is fixed at 72 (six-year cycles, so there are nineteen detectable turning points);

the trend $T_{t} = T_{t - 1} + ν_{t}$ with $ν_{t} ~ N (0, σ_{ν}^{2})$ , $σ_{ν}$ being fixed at $0.08$ ;

and the irregular $I_{t} = e_{t}$ with $e_{t} ~ N (0, σ_{e}^{2})$ .

For the different simulations, we vary the parameters $ρ$ and $σ_{e}^{2}$ in order to obtain series with different signal-to-noise ratios (see Figure 4):

High signal-to-noise ratio (i.e., low I-C ratio and low variability): $σ_{e}^{2} = 0.2$ and $ρ = 3.0, 3.5$ , or $4.0$ (I-C ratio between 0.9 and 0.7);

Medium signal-to-noise ratio (i.e., medium I-C ratio and medium variability): $σ_{e}^{2} = 0.3$ and $ρ = 1.5, 2.0$ , or $3.0$ (I-C ratio between 2.3 and 1.4);

Low signal-to-noise ratio (i.e., high I-C ratio and high variability): $σ_{e}^{2} = 0.4$ and $ρ = 0.5, 0.7$ , or $1.0$ (I-C ratio between 8.9 and 5.2).

For each series and each date, the trend-cycle is estimated using the different methods presented in this paper Three quality criteria are computed:

The phase shift in the detection of turning points. In this paper, we focus on turning points associated to business cycle: it is defined as the succession of phases of economic recession and expansion, delimited by peaks (highest level of activity) and troughs (lowest level of activity), see for example Ferrara (2009) for a description of the different economic cycles. In this paper, following Zellner et al. (1991), we used an accepted definition for turning-points:

An upturn occurs when the economy moves from a phase of recession to a phase of expansion. This is the case at date $t$ when $T C_{t - 3} \geq T C_{t - 2} \geq T C_{t - 1} < T C_{t} \leq T C_{t + 1}$ .

A downturn occurs when the economy moves from a phase of expansion to a phase of recession. This is the case at date $t$ when $T C_{t - 3} \leq T C_{t - 2} \leq T C_{t - 1} > T C_{t} \geq T C_{t + 1}$ .

Let’s denote $T C_{t | t'}$ the estimate of the trend-cycle at date $t$ using the data up to date $t'$ . The phase shift is often defined as the number of months required to detect the right turning point: it would then be equal to 2 if, in the case of a downturn, $T C_{t - 3 | t + 1} \leq T C_{t - 2 | t + 1} \leq T C_{t - 1 | t + 1} > T C_{t | t + 1} \geq T C_{t + 1 | t + 1}$ (two observations, at dates $t$ and $t + 1$ , are needed to qualify the date $t$ as turning point). Note that, in that case, the phase shift could be equivalently set to 1 (only one observation after $t$ is needed to define $t$ as a turning point), without any difference on the comparison of the different methods.

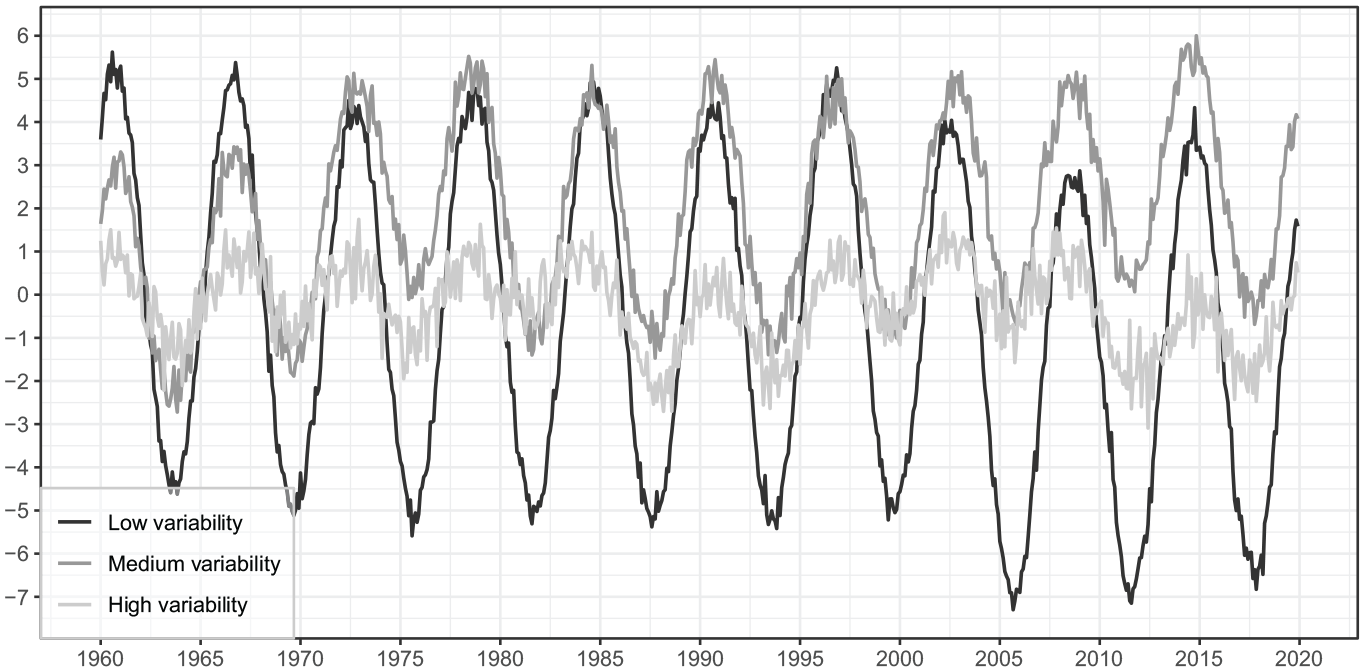

Figure 4.

Simulated series with low ( $σ_{e}^{2} = 0.2$ and $ρ = 3.55$ ), medium ( $σ_{e}^{2} = 0.3$ and $ρ = 2.0$ ), and high variability ( $σ_{e}^{2} = 0.4$ and $ρ = 1.0$ ).

In this paper we use a slightly modified criterion: the phase shift is defined as the number of months needed to detect the right turning point without any future revision. Thus, in the case of a downturn, the phase shift is two if $T C_{t - 3 | t + 1} \leq T C_{t - 2 | t + 1} \leq T C_{t - 1 | t + 1} > T C_{t | t + 1} \geq T C_{t + 1 | t + 1}$ and, for all dates $t'$ higher than $t + 1$ : $T C_{t - 3 | t'} \leq T C_{t - 2 | t'} \leq T C_{t - 1 | t'} > T C_{t | t'} \geq T C_{t + 1 | t'}$ . Since a 13-term Henderson filter is used for the final estimates of the trend-cycle, the phase shift is at most height (the final estimate of $T C_{t + 1}$ is compute at the date $t + 7$ ). This definition is used because it can happen that the right turning point is detected by asymmetric filters but is not detected by the final estimate using a symmetric filter (this is the case for forty-one reversal points out of the nine series with asymmetric Musgrave filters) or that there are revisions in successive estimates (this is the case for seven turning points out of the nine series with asymmetric Musgrave filters). Finally, relatively few turning points are detected at the right date with the final estimate. With the 13-term Henderson filter, eighteen are correctly detected in series with low variability (out of fifty-seven possible), eleven in series with medium variability and twelve in series with high variability.

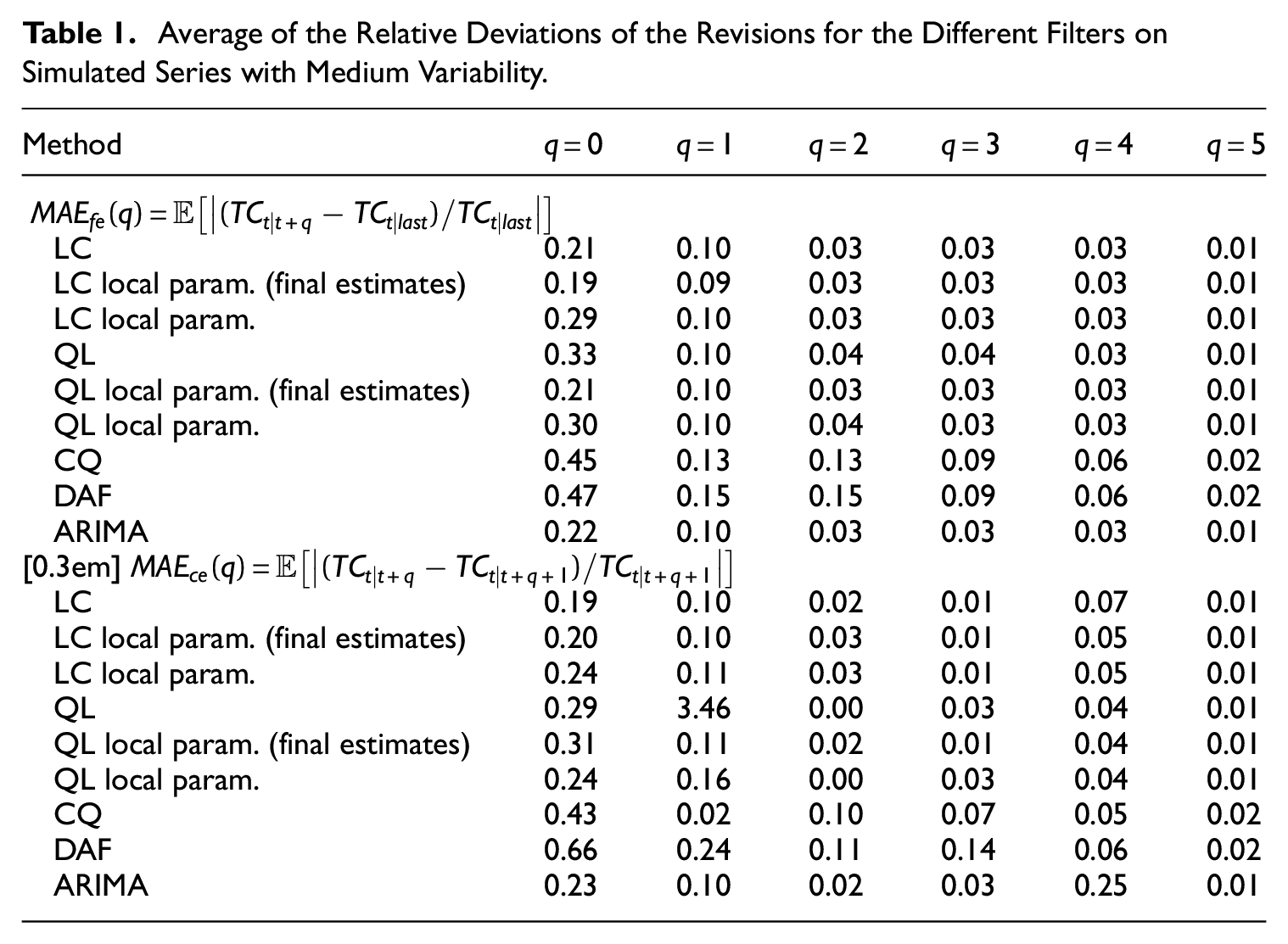

2. The average of the relative deviations between to the last estimate (comparison of the $q^{th}$ estimate and the last estimate):

MA E_{fe} (q) = E [| \frac{T C_{t | t + q} - T C_{t | last}}{T C_{t | last}} |] .

3. The average of the relative deviations between two consecutive estimates (the $q^{th}$ estimate and the $q + 1^{th}$ estimate):

MA E_{ce} (q) = E [| \frac{T C_{t | t + q} - T C_{t | t + q + 1}}{T C_{t | t + q + 1}} |] .

The simulated series are of length sixty years, which is often not realistic for economic time series. However, since all the methods are local, the results are not affected by the length of the series. The length of the series would only have an impact for the identification and the estimation of the ARIMA model. In this case, since the same data generating process is used during the sixty years, it could be relevant to identify the ARIMA model using all the data. Even if it would improve the results in term of phase shift (see Supplemental Material) we prefer to only use the last twelve years to identify and estimate the ARIMA model, to be closer to what would have been done with a real-time series.

4.2. Comparison

Figure 5 represents box plots of the phase shift: the box represents the interquartile range, the central horizontal line represents the median, the dots represents the outliers and the whisker represents the range of the data (if no outlier). For simulated series with medium variability (when a symmetric filter of length 13 is relevant), with the linear constant (LC) method, 50% of the turning point are detected with a phase shift of at most five months whereas when the LC filter is parametrized locally, 50% of the turning point are detected with a phase shift of at most four months. For the direct asymmetric filter (DAF), 25% of the turning are detected with a phase shift of at least seven months (compares to five for the LC method).

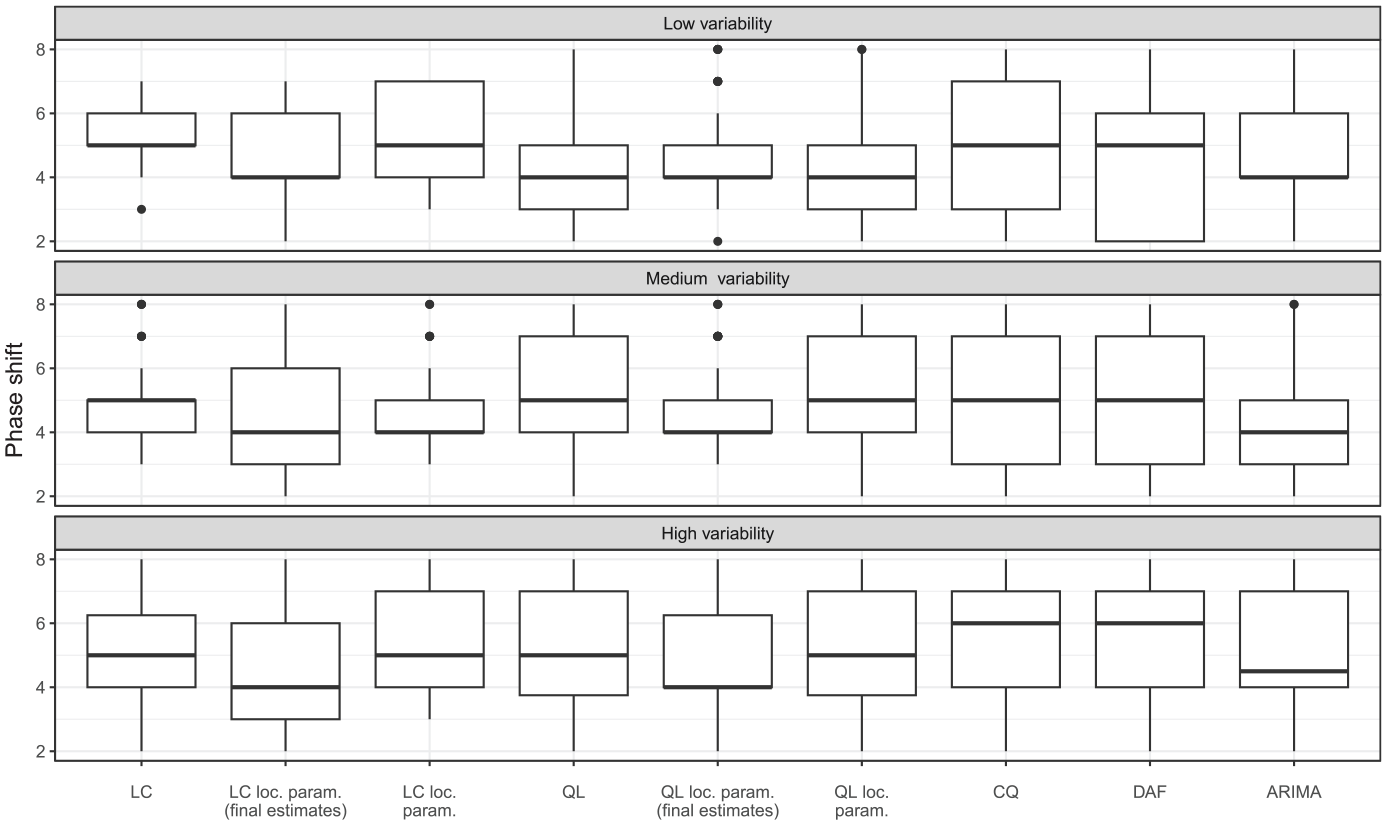

Figure 5.

Distribution of phase shift on simulated series.

Excluding for the moment the local parametrizations of the polynomial filters, the linear-constant polynomial filter (LC) seems to give the best results in terms of delay in the detection of turning points. Performance is relatively close to that obtained by extending the series using an ARIMA model. However, when variability is low, the LC filter seems to give poorer results and the quadratic-linear polynomial filter (QL) seems to give the best results.

For series with moderate variability, local parametrization of the LC and QL filters reduces the phase shift. For series with high variability, the phase shift is only reduced by using the final $\hat{δ}$ parameters: real-time estimates seem to add more variance. For series with low variability, performance seems to be slightly improved only with the LC filter.

Observe Table 1 the average of the relative deviations with medium variability. The estimates for $q = 0$ correspond to the first estimates of the trend-cycle (real-time estimates when zero point in the future is known), $q = 1$ correspond to the second estimates of the trend-cycle (when one point in the future is known). Since the final estimates are obtain using a symmetric filter of bandwidth 6, $q = 6$ corresponds to the final estimates of the trend-cycle (when six points in the future are known). $MA E_{fe} (0)$ compares the revision between the first estimate $(q = 0)$ and the last estimate $(q = 6)$ and $MA E_{ce} (0)$ compares the revision between the first estimate $(q = 0)$ and the second estimate $q = 1$ .

Table 1.

Average of the Relative Deviations of the Revisions for the Different Filters on Simulated Series with Medium Variability.

Method	$q = 0$	$q = 1$	$q = 2$	$q = 3$	$q = 4$	$q = 5$
$MA E_{fe} (q) = E [\| (T C_{t \| t + q} - T C_{t \| last}) / T C_{t \| last} \|]$
LC	0.21	0.10	0.03	0.03	0.03	0.01
LC local param. (final estimates)	0.19	0.09	0.03	0.03	0.03	0.01
LC local param.	0.29	0.10	0.03	0.03	0.03	0.01
QL	0.33	0.10	0.04	0.04	0.03	0.01
QL local param. (final estimates)	0.21	0.10	0.03	0.03	0.03	0.01
QL local param.	0.30	0.10	0.04	0.03	0.03	0.01
CQ	0.45	0.13	0.13	0.09	0.06	0.02
DAF	0.47	0.15	0.15	0.09	0.06	0.02
ARIMA	0.22	0.10	0.03	0.03	0.03	0.01
[0.3em] $MA E_{ce} (q) = E [\| (T C_{t \| t + q} - T C_{t \| t + q + 1}) / T C_{t \| t + q + 1} \|]$
LC	0.19	0.10	0.02	0.01	0.07	0.01
LC local param. (final estimates)	0.20	0.10	0.03	0.01	0.05	0.01
LC local param.	0.24	0.11	0.03	0.01	0.05	0.01
QL	0.29	3.46	0.00	0.03	0.04	0.01
QL local param. (final estimates)	0.31	0.11	0.02	0.01	0.04	0.01
QL local param.	0.24	0.16	0.00	0.03	0.04	0.01
CQ	0.43	0.02	0.10	0.07	0.05	0.02
DAF	0.66	0.24	0.11	0.14	0.06	0.02
ARIMA	0.23	0.10	0.02	0.03	0.25	0.01

In terms of revisions, the variability of the series has little effect on the respective performances of the different methods, but it does affect the orders of magnitude, which is why the results are presented only for series with medium variability. In general, LC filters always minimize revisions (with relatively small effect from the local parametrization of the filters) and revisions are greater with cubic-quadratic (CQ) and direct (DAF) polynomial filters.

For the QL filter, there is a large revision between the second and third estimates: this may be due to the fact that for the second estimate (when one point in the future is known), the QL filter assigns a greater weight to the estimate in $t + 1$ than to the estimate in $t$ , which creates a discontinuity. This revision is considerably reduced by parametrizing the filter locally. For polynomial filters other than the LC filter, the large revisions at the first estimate were to be expected given the coefficient curve: a very large weight is associated with the current observation and there is a strong discontinuity between the moving average used for real-time estimation (when no point in the future is known) and the other moving averages.

Extending the series using an ARIMA model gives revisions with the latest estimates of the same order of magnitude as the LC filter, but slightly larger revisions between consecutive estimates, particularly between the fourth and fifth estimates (as might be expected as highlighted in Subsection 2.3).

4.3. Real Series

The differences between the methods are also illustrated using an example from the FRED-MD database (McCracken and Ng 2016) containing economic series on the United States. This database facilitates the reproducibility of the results thanks to the availability of series published on past dates. The series studied correspond to the database published in November 2022. It is the level of employment in the United States (series CE160V, used in logarithm) around the February 2001 turning point, consistent with the monthly dating of the turning points. This turning point was chosen because it is particularly visible in the raw series (Figure 7) and this series was select because it is used for dating economic cycles. Studying the series up to January 2020, this series has a medium variability: a symmetric filter of thirteen terms is therefore appropriate.

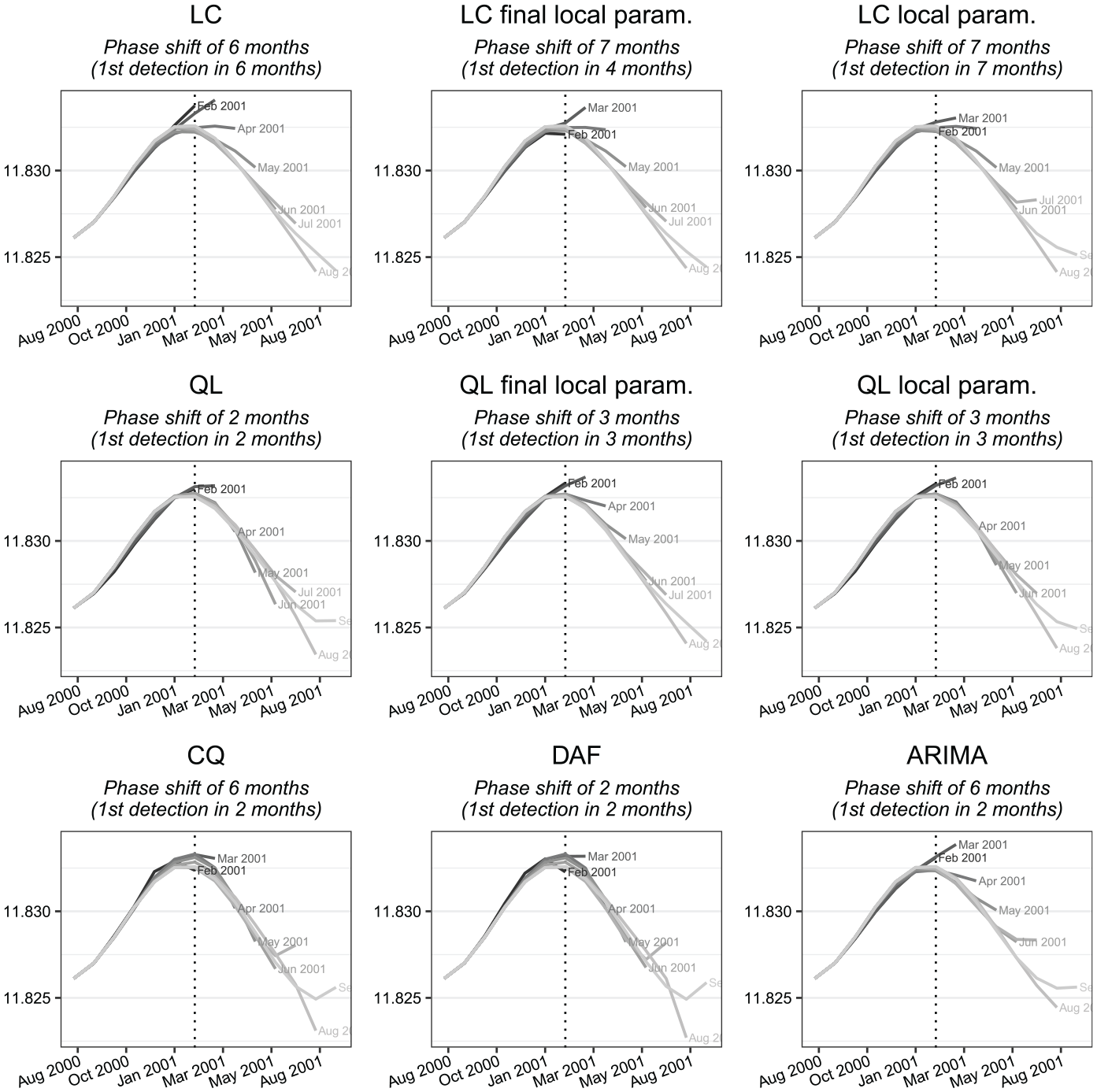

Figure 6 shows the successive estimates of the trend-cycle using the different methods studied. For this series, the phase shift is six months for the LC and CQ methods and the extension of the series by ARIMA. It is of two months for the other methods (QL, DAF). In this example, local parametrization does not reduce the phase shift, but it does reduce revisions. The QL and DAF polynomials lead to greater variability in the intermediate estimates, especially in February 2001.

Figure 6.

Successive estimates of the trend-cycle in US employment (in logarithms). The dotted vertical line corresponds to the date of the turning point (February 2001). The curve “Feb 2001” corresponds to the estimates of the trend-cycle using the data observed until February 2001. Since a 13-term Henderson filter is used for the final estimates, for the curve “Feb 2001” estimates from September 2001 to February 2001 are intermediate estimates.

The quality of the intermediate estimates can also be analyzed using the implicit forecasts of the different methods (Figure 7). As a reminder, these are forecasts of the raw series which, by applying the symmetric Henderson filter to the extended series, give the same estimates as the asymmetric moving averages. The forecasts of the ARIMA model are naive and do not take the turning point into account, unlike the other methods. Finally, local parametrization of the QL filter produces much more consistent forecasts.

Figure 7.

Implicit forecasts linked to successive estimates of the trend-cycle in US employment (in logarithms) using local polynomial methods. The dotted vertical line corresponds to the date of the turning point (February 2001). The curve “Mar 2001” corresponds to the implicit forecasts associated to the asymmetric filters used for the trend-cycle estimations using the data observed until March 2001.

4.4. Discussion

In the Section we discuss the applicability of the presented methods to other frequencies (Subsection 4.4.1) and some limits of the presented methods (e.g., sensitivity to outliers like COVID-19, Subsection 4.4.2).

4.4.1. Other Frequencies

In this paper, we focused on monthly series, but the methods presented can be applied to other frequencies. In general, for lower frequencies, the bandwidth of the symmetric filter reduced. For example, for quarterly series, X-11 uses a 5-term symmetric filter (in general) or 7-term symmetric filter for series with high variability. Mechanically, since fewer points are used, there will be less differences between methods in term of phase shift. For example, on simulated series the results are similar in terms of phase shift but revisions are reduced with local parametrization (see Supplemental Material).

Since X-13ARIMA-SEATS can only be applied for series with frequency lower than monthly, for higher frequencies (weekly, daily, etc.), there is no reference on the length of the filters to uses. The length of the filters can be determined using local polynomial methods, for example minimizing a statistic such as cross-validation (rjd3filters::cv()), CP (rjd3filters::cp()), or Rice’s T (rjd3filters::rt()), or with more complex methods as describe by Loader (1999), but it will surely be necessary to use higher bandwidth than for monthly series. The larger the window, the greater the bias in assuming that the trend is locally of degree 1: the LC method will then be certainly less appropriate than other methods (QL, CQ, or DAF). Moreover, since the bias is higher, the local parametrization of the filters will surely have more impact.

4.4.2. Outliers and COVID-19

In this article and in those associated to trend-cycle extraction techniques, the moving averages are applied and compared on series already seasonally adjusted or without seasonality (simulated series). The revisions and the phase shift are limited to eight months (when the symmetric filter is thirteen terms) and this has the advantage of isolating the impacts of the different filters from the other processes inherent in seasonal adjustment. There are, however, two drawbacks to this simplification:

The estimation of the seasonally-adjusted series depends on the method used to extract the trend-cycle. The choice of method used to estimate the trend-cycle can therefore have an impact well beyond six months (when a 13-term Henderson filter is used).

As moving averages are linear operators, they are sensitive to the presence of atypical points. Direct application of the methods can therefore lead to biased estimates, due to their presence, whereas seasonal adjustment methods (such as the X-13ARIMA-SEATS method) have a correction module for atypical points. Furthermore, as shown in particular by Dagum (1996), the final symmetric filter used by X-13ARIMA-SEATS to extract the trend-cycle (and therefore the one indirectly used when applying the methods to seasonally-adjusted series), reduces by just 38% cycles of length nine and ten months (generally associated with noise rather than the trend-cycle). The final asymmetric filters even amplify nine and ten-month cycles. This can result in the introduction of undesirable ripples, that is, the detection of false turning points. This problem is reduced by correcting atypical points and the Nonlinear Dagum Filter (NLDF) was defined in this perspective:

a. applying the X-11 atypical point correction algorithm (see e.g., Ladiray and Quenneville 2011, for a description) to the seasonally adjusted series, then extending it with an ARIMA model;

b. perform a new atypical point correction using a much stricter threshold and then apply the 13-term symmetric filter. Assuming a normal distribution, this amounts to modifying 48% of the irregular values.

The cascade linear filter (CLF), studied in particular in Dagum and Bianconcini (2023), corresponds to an approximation of the NLDF using a 13-term filter and when the forecasts are obtained from an ARIMA(0, 1, 1) model where $θ = 0.40$ .

Figures 8 and 9 show the successive estimates of the trend-cycle and the associated implicit forecast for the US employment during the COVID-19. First, we observe that while the real turning point is in April 2020, the 13-term Henderson filter produces final estimates of the trend-cycles, biased by the presence of a huge outlier, which lead to a turning point detected in June 2020. Second, as in 2001, the CQ and DAF methods lead to lots of variability in the intermediate estimates. For the QL method, the local parametrization seems to slightly reduce the revisions. For the LC method, local parametrization has little impact on the estimates of the trend-cycle but the associated implicit forecasts are not plausible: the final estimate of the slope is biased by the outlier. Third, the ARIMA model can lead to unrealistic forecasts.

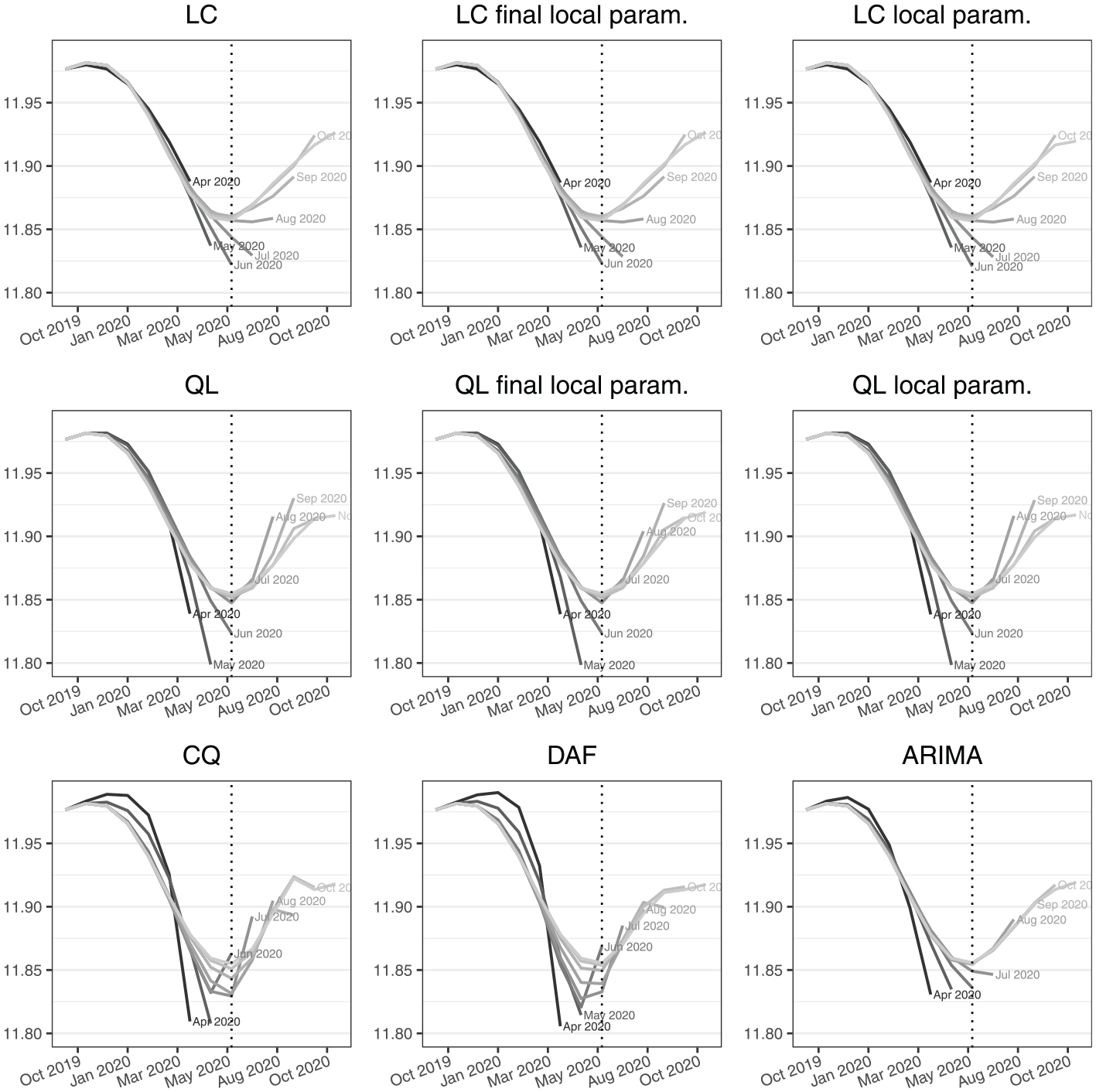

Figure 8.

Successive estimates of the trend-cycle in US employment (in logarithms) during the COVID-19.

Figure 9.

Implicit forecasts linked to successive estimates of the trend-cycle in US employment (in logarithms) using local polynomial methods during the COVID-19.

To sum up, trend-cycle estimates are biased by the presence of outliers which can also impact the detection of turning-points. Several approach could be used to limit their impact of to directly take them into account:

Adjustment of outliers prior to filtering, for example with a RegARIMA model or other correction modules like the one used in X-11.

Increase the bandwidth of the filter used to extract the trend-cycle (it will smooth the trend-cycle by giving less weights to the atypical points).

Since all the filters studied in this paper are equivalent to a local polynomial model, an external regressor can be added to the linear model to handle the outlier (the matrix $X$ would then be modified). In the case of an additive outlier, this is equivalent to setting to 0 the coefficient of the moving average associated to the date of the outlier (using $y_{t - h}$ to $y_{t + h}$ for the trend-cycle estimates, if the outlier is at the date $t$ the central coefficient is set to 0) and renormalize the sum of the coefficients to 1.

Use of robust methods to estimate the trend-cycle, such as robust local regressions or moving medians.

5. Conclusion

For business cycle analysis, most statisticians use trend-cycle extraction methods, either directly or indirectly. They are used, for example, to reduce the noise of an indicator in order to improve its analysis, and models, such as forecasting models, usually use seasonally adjusted series based on these methods.

This paper presents the R package rjd3filters, which implements several methods to build moving averages for real-time trend-cycle estimation. It also offers various functions for the theoretical analysis of moving averages (gain functions, phase shift, quality criteria, etc.) and judging the quality of the latest estimates (e.g., with implicit forecasts). It also makes it easy to combine moving averages and also to integrate custom moving averages into the X-11 seasonal adjustment algorithm (with the rjd3filters::x11plus_trend() function). rjd3filters thus facilitates research into the use of moving averages as part of real-time cycle trend estimation. This is the case, for example, with the local parametrization of Musgrave moving averages and other asymmetric moving averages linked to local polynomial regression, presented in this article.

By comparing the different methods, we can learn a few lessons about the construction of these moving averages.

During economic downturns, asymmetric filters used as an alternative to extending the series using the ARIMA model can reduce revisions to intermediate estimates of the trend-cycle and enable turning points to be detected more quickly.

At the end of the period, modeling polynomial trends of degree greater than 3 (cubic-quadratic, CQ, and direct, DAF) seems to introduce variance into the estimates (and therefore more revisions) without allowing faster detection of turning points. For real-time estimates of the trend-cycle, we can therefore restrict ourselves to methods modeling polynomial trends of degree 2 or less (linear-constant, LC, and quadratic-linear, QL). In addition, parametrizing polynomial filters locally as proposed in this paper enables turning points to be detected more quickly (especially for the QL filter). Even when the phase shift is not reduced, local parametrization is recommended because it reduces revisions and produces intermediate estimates that are more consistent with expected future trends. However, with these methods, the length of the filter used must be adapted to the variability of the series: if the filter used is too long (i.e., if the variability of the series is “low”), retaining polynomial trends of degree 1 or less (LC method) produces poorer results in terms of detecting turning points.

This study could be extended in many ways. One possible extension would be to look at the impact of filter length on the detection of turning points. Asymmetric filters are calibrated using indicators calculated for the estimation of symmetric filters (e.g., to automatically determine their length), whereas a local estimate might be preferable. Furthermore, we have only focused on monthly series with a 13-term symmetric filter, but the results may be different if the symmetric filter studied is longer or shorter and if we study series with other frequencies (weekly or daily, for example).

Another possibility could be to study the impact of atypical points: moving averages, like any linear operator, are highly sensitive to the presence of atypical points. To limit their impact, in X-11 a strong correction for atypical points is performed on the irregular component before applying the filters to extract the trend-cycle. This leads to examining the impact of these outliers on the estimation of the trend-cycle and turning points, and also to explore new types of asymmetric filters based on robust methods (such as robust local regressions or moving medians).

Supplemental Material

sj-pdf-1-jof-10.1177_0282423X241283207 – Supplemental material for Improving Real-Time Trend Estimates Using Local Parametrization of Polynomial Regression Filters

Supplemental material, sj-pdf-1-jof-10.1177_0282423X241283207 for Improving Real-Time Trend Estimates Using Local Parametrization of Polynomial Regression Filters by Alain Quartier-la-Tente in Journal of Official Statistics

Footnotes

Funding

The author received no financial support for the research, authorship, and/or publication of this article.

ORCID iD

Alain Quartier-la-Tente

Supplemental Material

Supplemental material for this article is available online.

Received: September 2023

Accepted: August 2024

References

Cleveland

R. B.

Cleveland

W. S.

McRae

J. E.

Terpenning

1990. “STL: A Seasonal-Trend Decomposition Procedure Based on Loess (with Discussion).”Journal of Official Statistics 6: 3–73. https://www.scb.se/contentassets/ca21efb41fee47d293bbee5bf7be7fb3/stl-a-seasonal-trend-decomposition-procedure-based-on-loess.pdf (accessed August, 2024).

Cleveland

W. S.

Loader

1996. “Smoothing by Local Regression: Principles and Methods.” In Statistical Theory and Computational Aspects of Smoothing. Proceedings of the COMPSTAT '94 Satellite Meeting held in Semmering, Austria, 27–28, August 1994, edited by Härdle

Schimek

M. G.

, 10–49. Springer. DOI: https://doi.org/10.1007/978-3-642-48425-4_2.

Dagum

E. B.

1996. “A New Method to Reduce Unwanted Ripples and Revisions in Trend-Cycle Estimates from X-11-ARIMA.”Survey Methodology 22: 77–84. https://www150.statcan.gc.Ca/n1/en/pub/12-001-x/1996001/article/14383-eng.pdf?st=UY9RsNkK (accessed August, 2024).

Dagum

E. B.

Bianconcini

2008. “The Henderson Smoother in Reproducing Kernel Hilbert Space.”Journal of Business & Economic Statistics 26: 536–45. DOI: https://doi.org/10.1198/073500107000000322.

Dagum

E. B.

Bianconcini

2023. “Monitoring the Direction of the Short-Term Trend of Economic Indicators.”Econometric Reviews 42 (5): 421–40. DOI: https://doi.org/10.1080/07474938.2023.2209008.

Darne

Dagum

E. B.

2009. “Performance of Short-Term Trend Predictors for Current Economic Analysis.”Economics Bulletin 29 (1): 79–89. http://www.accessecon.com/Pubs/EB/2009/Volume29/EB-09-V29-I1-P7.pdf (accessed August, 2024).

De Forest

E. L.

1877. “On Adjustment Formulas.”The Analyst 4 (3): 79–86. DOI: https://doi.org/10.2307/2636257.

Fan

Gijbels

1992. “Variable Bandwidth and Local Linear Regression Smoothers.”The Annals of Statistics 20: 2008–2036. DOI: https://doi.org/10.1214/aos/1176348890.

Ferrara

2009. “Characterization and Dating of Economic Cycles in the Euro Area” [in EN]. Revue économique 60 (3): 703–12. DOI: https://doi.org/10.3917/reco.603.0703.

10.

Gray

Thomson

1996. “Design of Moving-Average Trend Filters Using Fidelity and Smoothness Criteria.” In Athens Conference on Applied Probability and Time Series Analysis, edited by Robinson

P. M.

Rosenblatt

, 205–19. New York, NY: Springer New York. https://www.census.gov/library/working-papers/1996/adrm/rr96-01.html (accessed August, 2024).

11.

Gray

A. G.

Thomson

P. J.

2002. “On a Family of Finite Moving-Average Trend Filters for the Ends of Series.”Journal of Forecasting 21 (2): 125–49. DOI: https://doi.org/10.1002/for.817.

12.

Grun-Rehomme

Guggemos

Ladiray

2018. “Asymmetric Moving Averages Minimizing Phase Shift.” In Handbook on Seasonal Adjustment. https://ec.europa.eu/eurostat/web/products-manuals-and-guidelines/-/KS-GQ-18-001 (accessed August, 2024).

13.

Henderson

1916. “Note on Graduation by Adjusted Average.”Transactions of the Actuarial Society of America 17: 43–8.

14.

Hyndman

R. J.

Khandakar

2008. “Automatic Time Series Forecasting: The Forecast Package for R.”Journal of Statistical Software 27 (3): 1–22. DOI: https://doi.org/10.18637/jss.v027.i03.

15.

Ladiray

2018. “Moving Average Based Seasonal Adjustment.” In Handbook on Seasonal Adjustment. https://ec.europa.eu/eurostat/web/products-manuals-and-guidelines/-/KS-GQ-18-001 (accessed August, 2024).

16.

Ladiray

Quenneville

2011. Seasonal Adjustment with the X-11 Method. New York, NY: Springer. DOI: https://doi.org/10.1007/978-1-4613-0175-2.

17.

Loader

1999. Local Regression and Likelihood. New York, NY: Springer-Verlag. DOI: https://doi.org/10.1007/b98858.

18.

McCracken

M. W.

2016. “FRED-MD: A Monthly Database for Macroeconomic Research.”Journal of Business & Economic Statistics 34 (4): 574–89. DOI: https://doi.org/10.1080/07350015.2015.1086655.

19.

Monsell

B. C.

2007. “The X-13A-S Seasonal Adjustment Program.”Proceedings of the Federal Committee on Statistical Methodology Research Conference, Arlington, VA, USA, November 5–7, 515. https://nces.ed.gov/FCSM/pdf/2007FCSM_Monsell-II-B.pdf (accessed August, 2024).

20.

Musgrave

J. C.

1964. “A Set of End Weights to End All End Weights.”US Census Bureau [custodian]. https://www.census.gov/library/working-papers/1964/adrm/musgrave-01.html (accessed August, 2024).

21.

Palate

Quartier-la-Tente

2024. rjd3filters: Trend-Cycle Extraction with Linear Filters. R package version 2.1.0. https://github.com/rjdverse/rjd3filters (accessed August, 2024).

22.

Pierce

D. A.

1980. “Data Revisions with Moving Average Seasonal Adjustment Procedures.”Journal of Econometrics 14 (1): 95–114. DOI: https://doi.org/10.1016/0304-4076(80)90075-5.

23.

Proietti

Luati

2008. “Real Time Estimation in Local Polynomial Regression, with Application to Trend-Cycle Analysis.”Annals of Applied Statistics 2 (4): 1523–53. DOI: https://doi.org/10.1214/08-AOAS195.

24.

Quartier-la-Tente

2024. “Estimation en temps réel de la tendance cycle : apport de l’utilisation de moyennes mobiles asymétriques.”Document de travail méthodologique Insee, nos. M2024/01. https://github.com/InseeFrLab/DT-est-tr-tc (accessed August, 2024).

25.

R Core Team. 2022. R: A Language and Environment for Statistical Computing. Vienna, Austria: R Foundation for Statistical Computing. https://www.R-project.org/ (accessed August, 2024).

26.

Wildi

McElroy

T. S.

2019. “The Trilemma Between Accuracy, Timeliness and Smoothness in Real-Time Signal Extraction.”International Journal of Forecasting 35 (3): 1072–84. DOI: https://doi.org/10.1016/j.ijforecast.2019.03.008.

27.

Wildi

Schips

2004. “Signal Extraction: How (In)efficient Are Model-Based Approaches? An Empirical Study Based on TRAMO/SEATS and Census X-12-ARIMA.” KOF Working Papers 04-96, KOF Swiss Economic Institute, ETH Zurich, December. DOI: https://doi.org/10.3929/ethz-a-004957347.

28.

Zellner

Hong

Min

C.-k.

1991. “Forecasting Turning Points in International Output Growth Rates Using Bayesian Exponentially Weighted Autoregression, Time-Varying Parameter, and Pooling Techniques.”Journal of Econometrics 49 (1): 275–304. DOI: https://doi.org/10.1016/0304-4076(91)90016-7.

Supplementary Material

Please find the following supplemental material available below.

For Open Access articles published under a Creative Commons License, all supplemental material carries the same license as the article it is associated with.

For non-Open Access articles published, all supplemental material carries a non-exclusive license, and permission requests for re-use of supplemental material or any part of supplemental material shall be sent directly to the copyright owner as specified in the copyright notice associated with the article.

0.00 MB

0.34 MB
