Role of quantitative analysis of T2 relaxation time in differentiating benign from malignant breast lesions

Introduction

Breast cancer is a common cancer. ¹ Obtaining an accurate diagnosis is of considerable importance as it informs the choice of treatment and the prognostic outcomes of the disease. ² Magnetic resonance imaging (MRI) has a higher sensitivity for the diagnosis of breast cancer than mammography and ultrasound. ² Using a high-field, dedicated breast coil and contrast agent, both the spatial and temporal resolutions of breast MRI have been greatly improved, with a sensitivity of up to 88–100%. ² However, the background parenchymal enhancement may produce a high false-positive rate with breast dynamic contrast-enhanced (DCE) imaging.^2,3 The ‘breast imaging and reporting data system’ classification provides a detailed set of diagnostic criteria that are primarily based on morphology, enhancement pattern, dynamic curve, peripheral involvement, and distribution of lesions. ⁴ However, these criteria are somewhat subjective; thus, a correct diagnosis relies on an observer’s experience. Therefore, quantitative diagnostic criteria for breast cancer have been of interest to researchers.

Functional imaging has been widely employed in clinical practice. Diffusion-weighted imaging, spectroscopy, and perfusion are being increasingly used in breast MRI.^5–7 These methods can provide higher specificity than DCE-MRI.^5–7 However, spectroscopy and perfusion have greater scanning requirements.^5,7 Breast apparent diffusion coefficient measurement is simple, but its specificity is controversial due to significant overlap between benign and malignant lesions. ⁶

A study using T2-fast spin echo (FSE) sequences, showed that 87% of breast cancers were hypointense relative to the mammary glands and that 71% of fibroadenomas were hyperintense. ⁸ Thus, differentiation between breast cancer and fibroadenoma could be accomplished using T2-weighted imaging (T2-WI). ⁸ However, this differentiation relied on visual interpretation and it lacked quantitative standards. ⁸ Differences in the relaxation time of different tissues constitute the basis for MRI image contrast. MRI can measure the T2 relaxation time (transverse relaxation time) and the T1 relaxation time (longitudinal relaxation time). T2 maps the graphs that are based on the T2 relaxation time. In general, T2 maps and tissue T2 relaxation times are obtained by scans with long times of repetition (TR) and two or more times of echo (TE). Currently, T2 relaxation time plays an important role in imaging of the articular cartilage, prostate, liver and the nervous system.^9–12

This study used the T2 mapping method to measure T2 relaxation time in benign and malignant breast lesions to determine the potential role of this method in the differentiation of benign from malignant breast lesions.

Patients and methods

Results

The study included 67 patients with a mean ± SD age of 50.7 ± 17.3 years (all female; age range 26–74 years). Breast disease was confirmed by surgery and pathology in all patients: 21 were benign, including 10 patients with fibroadenoma, seven patients with intraductal papilloma, three patients with fibrocystic adenosis and one patient with phyllodes tumour; and 46 patients had malignant disease, including 28 patients with invasive ductal carcinoma, eight patients with invasive lobular carcinoma, two patients with medullary carcinoma, six patients with ductal carcinoma in situ and two patients with malignant phyllodes tumour.

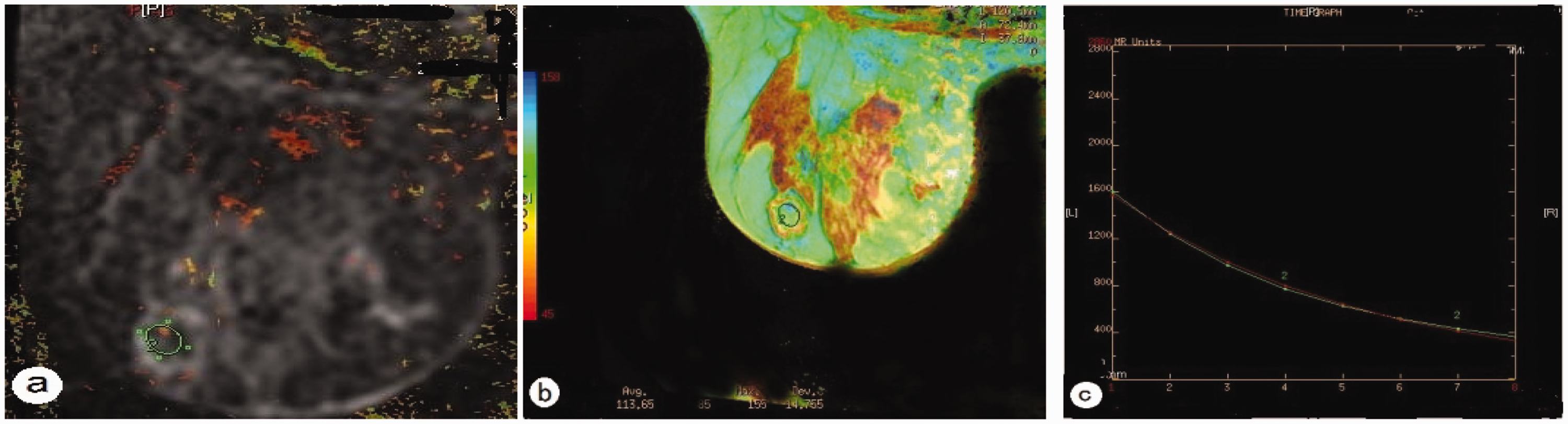

In the group of 21 benign lesions, the mean ± SD T2 relaxation time of the fibroadenomas was 92.53 ± 22.76 ms, that of the intraductal papillomas was 84.36 ±14.69 ms, that of the fibrocystic adenosis was 103.56 ± 4.17 ms (Figure 1), and that of the one benign was phyllodes tumour was 178.64 ms. The benign phyllodes tumour had a longer T2 relaxation time than the other benign lesions, but no statistical analysis was undertaken due to the small number of patients. There were no significant differences in the T2 relaxation times between the other types of benign lesions. In the group of 46 malignant lesions, the mean ± SD T2 relaxation time of invasive ductal carcinomas was 80.64 ± 10.16 ms (Figure 2), that of the invasive lobular carcinomas was 76.87 ± 14.01 ms, that of the ductal carcinomas in situ was 82.29 ±12.51 ms, that of the medullary carcinomas was 84.64 ± 3.75 ms, and that of the malignant phyllodes tumours was 133.81 ±7.35 ms (Figure 3). The T2 relaxation time of the malignant phyllodes tumours was longer than that of the other types of malignant lesions, but no statistical analysis was performed due to the small number of patients. No statistically significant differences existed in the T2 relaxation times between the various types of malignant lesions. OPEN IN VIEWER

OPEN IN VIEWER

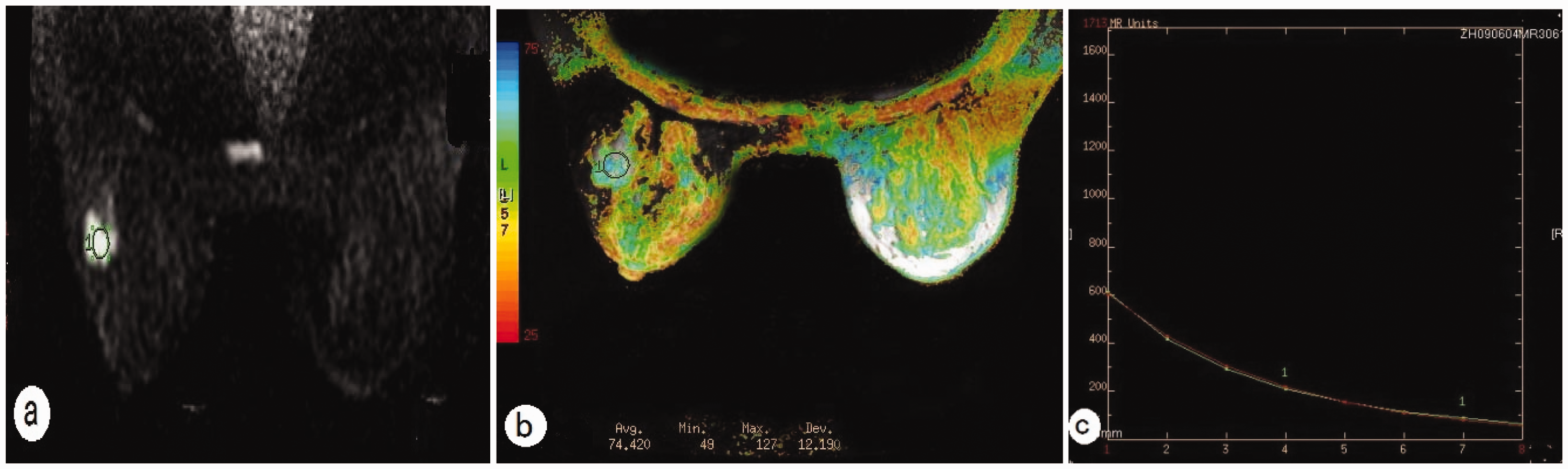

Figure 2.

Representative magnetic resonance imaging of a patient with an invasive ductal carcinoma: (a) diffusion weighted imaging shows a high signal of the lesion and regions of interest in the lesion (circle); (b) T2 colour map shows T2 relaxation time of 74.42 ms; (c) T2 relaxation time curve. The colour version of this figure is available at: http://imr.sagepub.com.

OPEN IN VIEWER

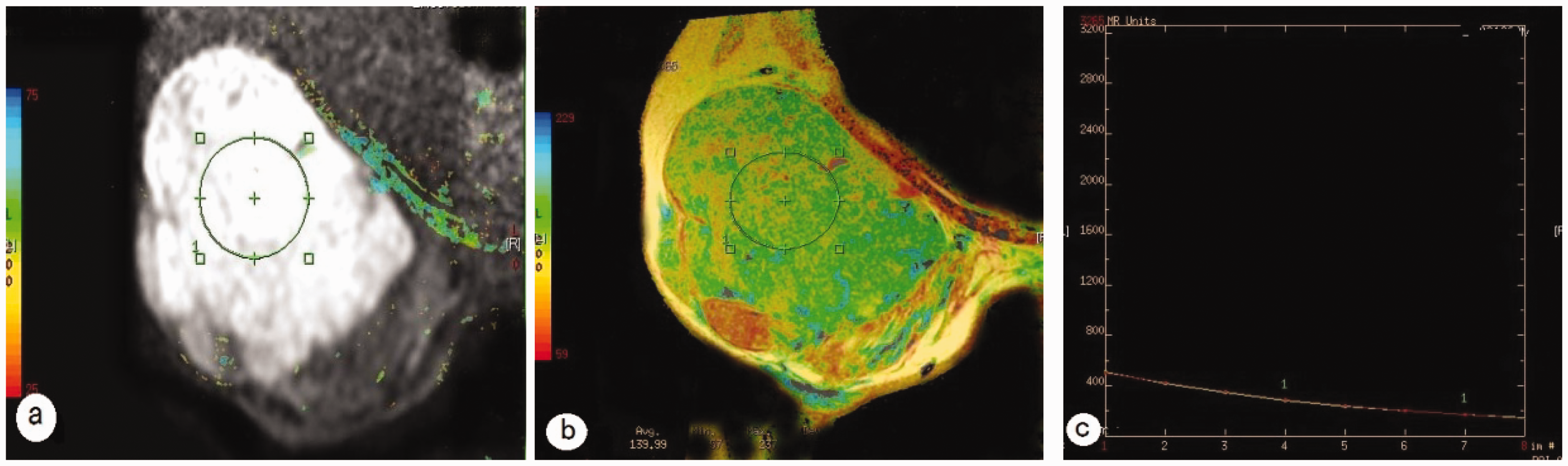

Figure 3.

Representative magnetic resonance imaging of a patient with a malignant phyllodes tumour: (a) diffusion weighted imaging shows a high signal of the lesion and regions of interest in the lesion (circle); (b) T2 colour map shows a T2 relaxation time of 139.99 ms; (c) T2 relaxation time curve. The colour version of this figure is available at: http://imr.sagepub.com.

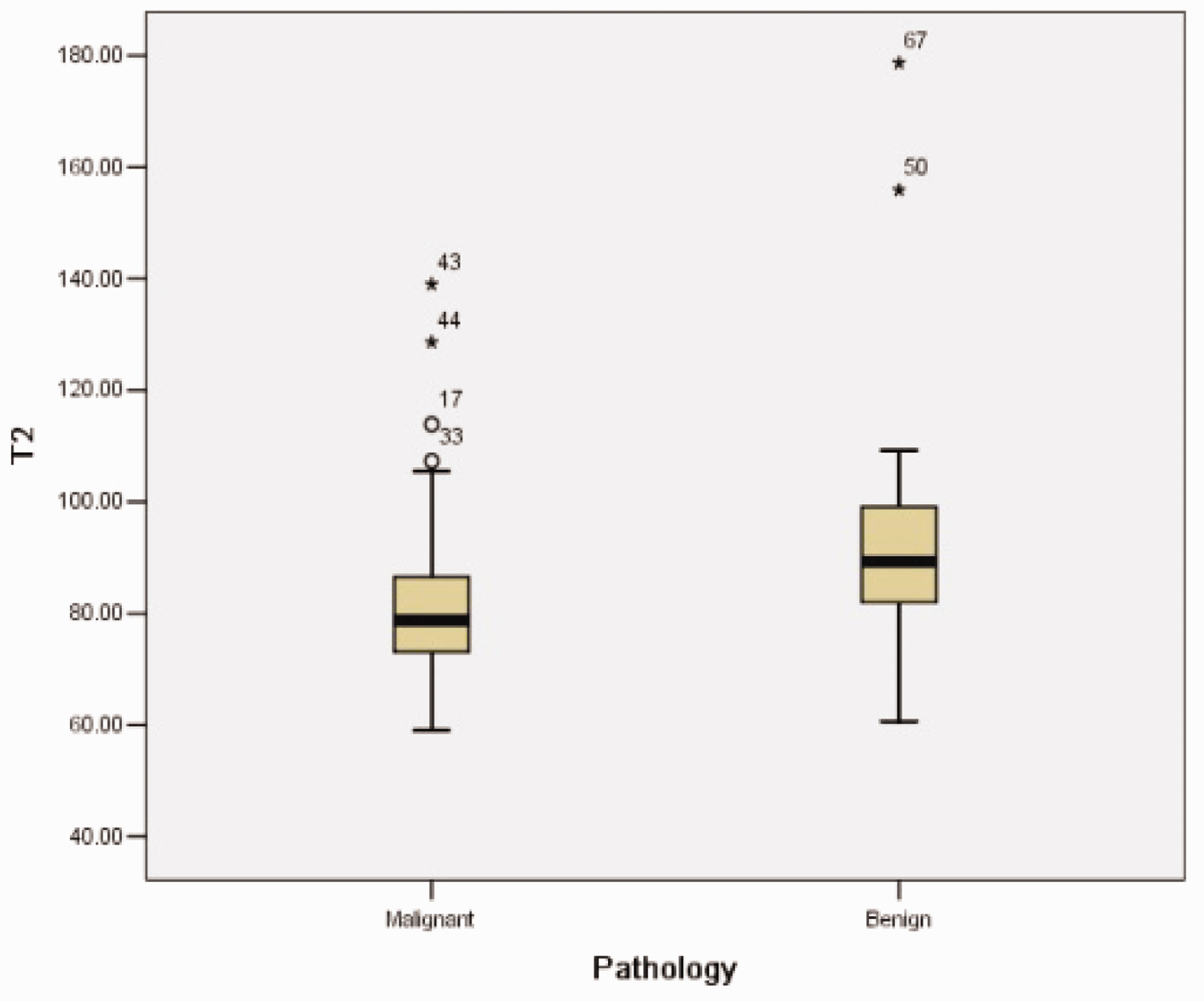

The mean ± SD T2 relaxation time of the 46 malignant lesions (82.69 ± 15.37 ms) was significantly lower compared with the 21 benign lesions (95.48 ± 26.51 ms; P = 0.015) (Figure 4). The area under the curve was 0.731 and the maximum Youden’s index was 0.444. Using a relaxation time of 79.52 ms as a cut-off between the benign and malignant breast lesions, a sensitivity of 85.7% and a specificity of 58.7% were obtained. OPEN IN VIEWER

Discussion

In addition to the effects of the main magnetic field strength, T2 relaxation time is affected by various factors depending on the intrinsic properties of the tissue and the environment, including tissue water content, random movement of water molecules and macromolecules, tissue fat content, the presence of paramagnetic particles and pH value.^13,14 Among these factors, tissue water content is the most important. Water in the body exists in two states: free and bound water. Free water molecules are smaller in size, with a spin frequency greater than the Larmor frequency, so its T1 and T2 relaxation times are longer. ¹³ In contrast, bound water is bound up with macromolecules, and its spin frequency is close to the Larmor frequency; thus, its T1 and T2 relaxation times are shorter than those of free water. In normal tissue, free water and bound water exist in dynamic equilibrium. However, in pathological conditions such as inflammation and oedema, bound water is released, and free water thus increases; as a result, the T1 and T2 relaxation times increase. ¹³ There is a linear relationship between T2 relaxation time and water content. ¹³ Prolongation of the T2 relaxation time indicates increased tissue water content.^15,16

Due to the difference in tissue content, there is a difference in the relaxation time of the lesions. Many studies have used this characteristic to diagnose diseases in the musculoskeletal system, cardiovascular diseases, prostate and brain.^9–12 As an important diagnostic tool in breast imaging, in addition to contrast enhancement and functional imaging, MRI currently uses contrast difference for lesion detection. This contrast difference is based on the different relaxation times of normal breast tissue and breast lesions. An early in vitro study found that there was a difference between the T2 relaxation times of benign and malignant breast lesions, which could be employed to differentiate them. ¹⁷ A previous study found that the T2 relaxation time could predict the response to neoadjuvant chemotherapy in breast cancer. ¹⁸

This present study found that the mean ±SD T2 relaxation time of the 46 malignant lesions was significantly lower than that of the 21 benign lesions (82.69 ± 15.37 ms versus 95.48 ± 26.51 ms, respectively; P =0.015). This difference could be attributed to increased tissue water content or interaction between alkaline metal cations and water in the pathological tissue.^17,19 We speculate that benign breast lesions grow slowly, their cell density is relatively less, the extracellular interstitium is less than in malignant lesions, and tissue free water is thus present in greater volumes. In malignant lesions, particularly invasive ductal carcinoma, the cancer cells are atypical and are larger in size with abundant cytoplasm, the solid components are more abundant, and the interstitium is infiltrated by lymphocytes and plasma cells. ²⁰ Necrosis is also common in malignant lesions, and necrotic material is released into the intercellular fluid. ²⁰ The above factors lead to a reduction of extracellular space; tissue free water is then decreased, which might account for the shorter T2 relaxation times in malignant lesions. ¹⁷

In this study, the two cases of malignant phyllodes tumours had a longer mean ± SD T2 relaxation time (133.81 ± 7.35 ms) than the overall mean ± SD of the malignant lesions (82.69 ± 15.37 ms). The T2 relaxation time of the one case of benign phyllodes tumour was 178.64 ms, which was longer than that of the other benign lesions. Phyllodes tumours are characterized by cystic changes and haemorrhage, which could be the reasons for the prolonged T2 relaxation times. ²¹

Although there was a significant difference between the T2 relaxation times in the benign and malignant lesions, the overlap between the two groups was quite considerable. The area under the ROC curve was 0.731 and Youden’s index was 0.444. As a result, using the T2 relaxation time to differentiate benign from malignant lesions was difficult. However, in comparing the two groups, this present study found that benign lesions generally had a longer T2 relaxation time compared with malignant lesions, which could be employed as an adjunct in the MRI diagnosis of breast cancer. Because of this overlap in T2 relaxation times between benign and malignant breast lesions, we would recommend that physicians do not only rely on dynamic features but that they use these in combination with morphological findings.

This present study had several limitations. First, the number of benign lesions was small. Secondly, some of the lesions were small, leaving the possibility of a partial volume effect of adjacent adipose tissue leading to greater measurement error. Thirdly, the majority of the patients had invasive ductal carcinomas. The other malignant lesions, such as phyllodes tumour and ductal carcinoma in situ, were relatively less common, and because the T2 relaxation time was related to the composition of the lesions, this difference could have resulted in some bias in the measurement of the T2 relaxation time.

In conclusion, there was a significant difference in the T2 relaxation times between benign and malignant breast lesions. The T2 relaxation times of benign lesions were longer than those of malignant lesions. However, differentiation between benign and malignant lesions based only on T2 relaxation times was difficult. Quantitative measurement of T2 relaxation times could provide an adjunct to MRI in the diagnosis of breast cancer.
