Relationship of relevant factors to P(v-a)CO 2 /C(a-v)O 2 ratio in critically ill patients

Abstract

Objective

This study investigated the factors related to the ratio of the venoarterial carbon dioxide tension difference [P(v-a)CO₂] to the arteriovenous oxygen content difference [C(a-v)O₂] (hereafter termed “Ratio”).

Methods

We retrospectively studied 1294 pairs of arterial and central venous blood gas measurements in 352 critically ill patients. A high Ratio was defined as > 1.68 based on published literature. Measurements were divided into four groups: Group I [P(v-a)CO₂ ≤ 6 mmHg/central venous oxygen saturation (ScvO₂) < 70%], Group II [P(v-a)CO₂ ≤ 6 mmHg/ScvO₂ ≥ 70%], Group III [P(v-a)CO₂ > 6 mmHg/ScvO₂ ≥ 70%], and Group IV [P(v-a)CO₂ > 6 mmHg/ScvO₂ < 70%].

Results

The Ratio’s strongest correlation was with P(v-a)CO₂ when compared with ScvO₂ and hemoglobin in all data. The P(v-a)CO₂ and ScvO₂ were significantly higher and the hemoglobin and arterial oxygen saturation were significantly lower in the high Ratio measurements (>1.68) than low Ratio measurements (≤1.68). The P(v-a)CO₂ was best for predicting a high Ratio. A P(v-a)CO₂ threshold of 7 mmHg was associated with a sensitivity of 41.77% and specificity of 90.62% for predicting a high Ratio.

Conclusions

A high P(v-a)CO₂ is the most relevant contributor to a high Ratio among all related factors in critically ill patients.

Keywords

intensive care unit

Introduction

The concept of an existing relationship between oxygen delivery (DO₂) and oxygen consumption (VO₂) has been the cornerstone of shock, and determining DO₂/VO₂ dependence is a key issue in shock resuscitation.^1,2 The ratio of the venoarterial carbon dioxide tension difference [P(v-a)CO₂] to the arteriovenous oxygen content difference [C(a-v)O₂] [i.e., the P(v-a)CO₂/C(a-v)O₂ ratio] has garnered much attention as a new marker that reflects the relationship between DO₂ and VO₂. The ratio between VO₂ and global carbon dioxide production (VCO₂) is lower in aerobic than anaerobic metabolism. First, a decrease in VO₂ accompanies a decrease in aerobically generated carbon dioxide in terms of tissue hypoxia. In a hypoxic cellular environment, however, anaerobic carbon dioxide generation increases as hydrogen ions generated by anaerobic sources of energy are buffered by bicarbonate.³ Hence, the ratio between VCO₂ and VO₂ becomes mismatched, and the amount of VCO₂ generation becomes greater than the amount of VO₂. Consequently, a rise in the respiratory quotient (VCO₂/VO₂ ratio) reflects the presence of global anaerobic metabolism.⁴

Many studies have shown that the P(v-a)CO₂/C(a-v)O₂ ratio reflects the lactate level, lactate evolution, and lactate clearance and is associated with prognosis.^5–12 Furthermore, a high C(v-a)CO₂/C(a-v)O₂ ratio is an independent risk factor for mortality in critically ill patients.^8,10 A P(v-a)CO₂/C(a-v)O₂ ratio cutoff of 1.68 is a better predictor of a ≥ 15% increase in VO₂ induced by an acute increase in DO₂ when compared with lactate and central venous oxygen saturation (ScvO₂).^11,12

The P(v-a)CO₂/C(a-v)O₂ ratio is calculated from several parameters based on a known formula that mainly involves ScvO₂, hemoglobin (Hb), arterial oxygen saturation (SaO₂), and P(v-a)CO₂.¹³ A theoretical mathematical relationship exists among these parameters. However, calculation of the P(v-a)CO₂/C(a-v)O₂ ratio may involve various combinations of relevant parameters depending on the clinical situation, which could cause a complicated inter-relationship between the P(v-a)CO₂/C(a-v)O₂ ratio and these related parameters. Therefore, a simple and rapid method for identification of a high P(v-a)CO₂/C(a-v)O₂ ratio would be of substantial benefit, and the factors contributing to a high P(v-a)CO₂/C(a-v)O₂ ratio are worthy of consideration in the clinical setting.

To our knowledge, the dependency of the P(v-a)CO₂/C(a-v)O₂ ratio on ScvO₂ and P(v-a)CO₂ has not been sufficiently explored in clinical practice. The present study was performed to determine the relationships of ScvO₂, Hb, SaO₂, and P(v-a)CO₂ with the P(v-a)CO₂/C(a-v)O₂ ratio; define the corresponding factors that contribute to a high P(v-a)CO₂/C(a-v)O₂ ratio (>1.68) according to the published literature in critically ill patients;⁹ and investigate the behavior of the P(v-a)CO₂/C(a-v)O₂ ratio in given settings based on specific cutoff values of P(v-a)CO₂ (6 mmHg) and ScvO₂ (70%) for tissue perfusion according to the published literature.^14–16

Patients and methods

Patients and data

The Institutional Research and Ethics Committee of the Peking Union Medical College Hospital approved this study. Because this retrospective study involved only the collection of clinical data, the Institutional Research and Ethics Committee waived the need to obtain consent.

The simultaneous arterial and central venous blood gas measurements that were obtained from critically ill patients during their first week of intensive care unit admission from July 2013 to December 2014 were retrospectively reviewed. The blood gas analysis data were stored in an electrical information system in our department. The attending intensivists decided on the placement of arterial and central venous catheters according to the severity of the patient’s condition. The P(v-a)CO₂/C(a-v)O₂ ratio has been considered a relevant marker of global anaerobic metabolism, and calculation of the P(v-a)CO₂/C(a-v)O₂ ratio was suggested during resuscitation in our department.

Standard measurement of the P(v-a)CO₂/C(a-v)O₂ ratio involves the following two steps. First, a central venous catheter is inserted via the jugular or subclavian vein, and placement of the central venous catheter in the superior vena cava is confirmed by chest radiography. Second, arterial and central venous blood gas samples are anaerobically collected in 3-mL heparinized syringes, which are analyzed using a bedside blood gas machine (GEM Premier 3000, model 5700; Instrumentation Laboratory, Bedford, MA, USA or ABL90; Radiometer, Copenhagen, Denmark). The same blood gas machine was used to measure both the arterial and central venous blood gas.

Study definitions

Pairs of arterial and central venous blood samples were used determine the following variables: arterial oxygen tension (PaO₂), arterial carbon dioxide tension (PaCO₂), central venous oxygen tension (PvO₂), central venous carbon dioxide tension (PvCO₂), SaO₂, and ScvO₂. The Hb and lactate concentrations were measured from the arterial blood. The arterial oxygen content (CaO₂), central venous oxygen content (CvO₂), C(a-v)O₂, P(v-a)CO₂, P(v-a)CO₂/C(a-v)O₂ ratio, and oxygen extraction percentage (EO₂) were defined as follows:

CaO₂ = (1.34 × SaO₂ × Hb) + (0.0031 × PaO₂)

CvO₂ = (1.34 × ScvO₂ × Hb) + (0.0031 × PvO₂)

C(a-v)O₂ = CaO₂ – CvO₂

P(v-a)CO₂ = PvCO₂ – PaCO₂

P(v-a)CO₂/C(a-v)O₂ ratio = (PvCO₂ – PaCO₂)/(CaO₂ – CvO₂)

EO₂ = (SaO₂ – SvO₂)/SaO₂

Moreover, a low and high P(v-a)CO₂/C(a-v)O₂ ratio was defined as ≤ 1.68 and > 1.68, respectively; a low and high P(v-a)CO₂ was defined as ≤ 6 and > 6 mmHg, respectively; and a low and high ScvO₂ was defined as < 70% and ≥ 70%, respectively.

Statistical analysis

Descriptive statistics for continuous variables were presented as mean ± standard deviation when the variables were normally distributed and as median and interquartile range (25%–75%) when the variables had a skewed distribution. The Mann–Whitney test was used to compare continuous variables between the groups, and the chi-squared test and Fisher’s exact test were used to compare categorical variables. Comparison of two continuous variables was performed using Spearman’s correlation. The areas under the receiver operating characteristic (ROC) curves were compared using the Hanley–McNeil test.¹⁷ The statistical analysis was performed using SPSS 13.0 (SPSS Inc., Chicago, IL, USA) and MedCalc 11.4.3.0 (MedCalc Software bvba, Ostend, Belgium). All statistical tests were two-sided, and a P-value of < 0.05 was considered statistically significant.

Results

In total, 1294 pairs of simultaneous arterial and central venous blood gas measurements in 352 patients were retrospectively selected for analysis (mean age, 59 years; range, 18–91 years; female, n = 163; male, n = 189). The study population comprised 96 postoperative patients, 236 patients with sepsis, and 20 patients with other diseases. The flow diagram in Figure 1 shows the data analysis of all the measurements.

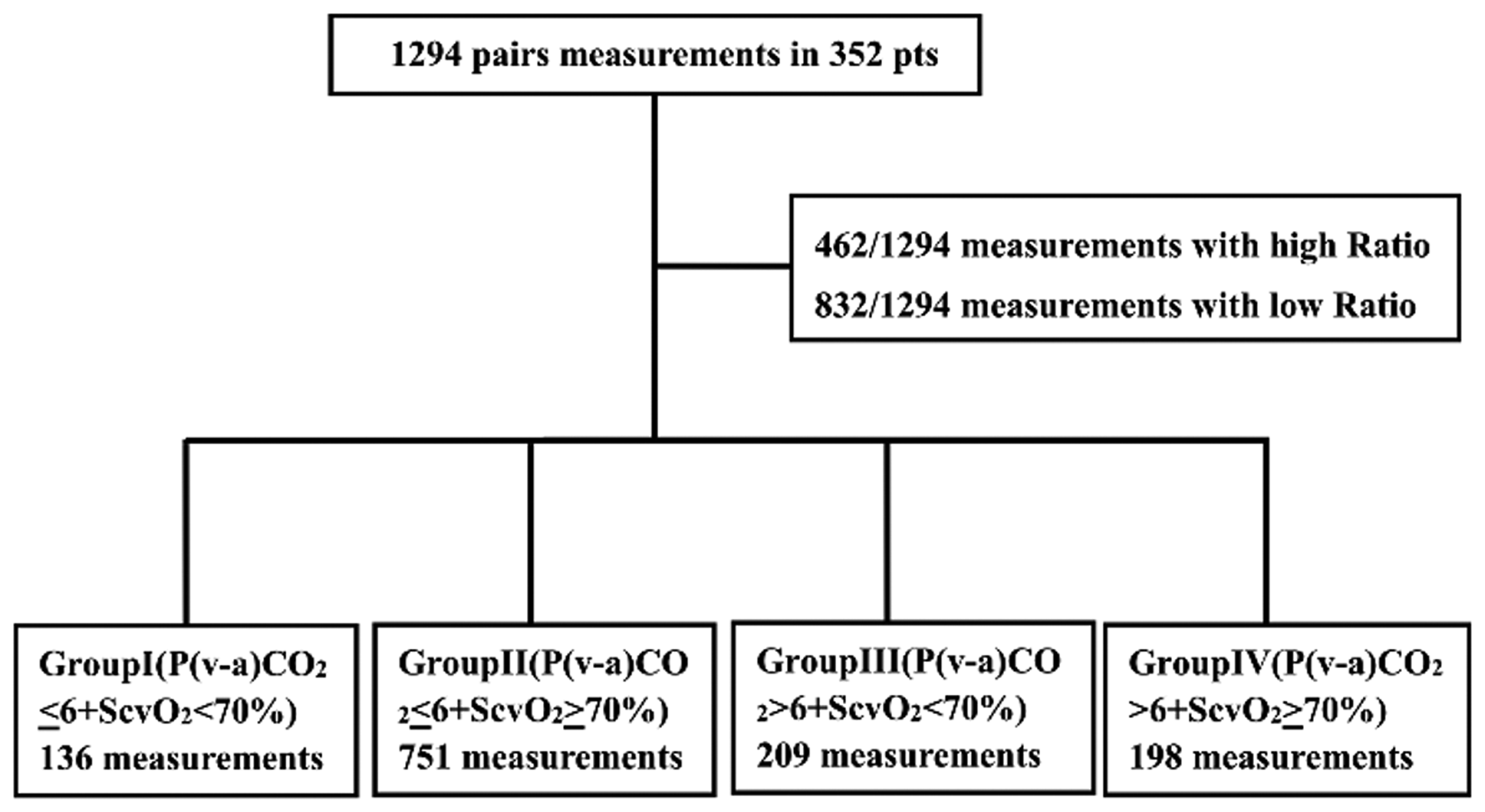

Figure 1.

Flow diagram.

Correlation between relevant parameters and P(v-a)CO₂/C(a-v)O₂ ratio in all measurements

The distribution of all data reflecting the P(v-a)CO₂/C(a-v)O₂ ratio measurements was skewed (median, 1.45; interquartile range, 0.93). There was a significant and strong correlation between P(v-a)CO₂ and P(v-a)CO₂/C(a-v)O₂ (r = 0.692, P < 0.0001) among the 1294 sets of measurements. Both the ScvO₂ (r = 0.104, P < 0.0001) and Hb (r = −0.159, P < 0.0001) were significantly correlated with P(v-a)CO₂/C(a-v)O₂, but these relationships were weak. However, P(v-a)CO₂/C(a-v)O₂, P(v-a)CO₂, and ScvO₂ were not significantly associated with the arterial lactate level.

Difference between high and low P(v-a)CO₂/C(a-v)O₂ measurements

Thirty-six percent (462/1294) of the measurements had a high P(v-a)CO₂/C(a-v)O₂ ratio (>1.68). There was a significantly higher P(v-a)CO₂ (P < 0.0001), lower Hb (P <0.0001), higher ScvO₂, (P < 0.0001), and lower SaO₂ (P = 0.045) among the high than low P(v-a)CO₂/C(a-v)O₂ ratio measurements (Figure 2(a)–(d)). However, there was no significant difference in lactate (2.7 ± 2.8 vs. 2.7 ± 3.3) between the low and high P(v-a)CO₂/C(a-v)O₂ ratio measurements.

Figure 2.

Difference in (a) hemoglobin, (b) P(v-a)CO₂, (c) ScvO₂, and (d) SaO₂ between high and low P(v-a)CO₂/C(a-v)O₂ ratio measurements. *P <0.05. P(v-a)CO₂, venoarterial carbon dioxide tension difference; ScvO₂, central venous oxygen saturation; SaO₂, arterial oxygen saturation; C(a-v)O₂, arteriovenous oxygen content difference.

The P(v-a)CO₂ (area under ROC curve, 0.793) was the best predictor of a high ratio (>1.68) and was significantly better than ScvO₂ (area under ROC curve, 0.62) and Hb (area under ROC curve, 0.606) (Figure 3). The areas under the curve of the related variables used to predict a high ratio are shown in Table 1. A P(v-a)CO₂ threshold of 7 mmHg was associated with a sensitivity of 41.77% and a specificity of 90.62% for predicting a high P(v-a)CO₂/C(a-v)O₂ ratio (>1.68).

Figure 3.

Receiving operating characteristic curves showing the ability of ScvO₂, P(v-a)CO₂, and hemoglobin to predict a high P(v-a)CO₂/C(a-v)O₂ ratio of >1.68. ScvO₂, central venous oxygen saturation; P(v-a)CO₂, venoarterial carbon dioxide tension difference; C(a-v)O₂, arteriovenous oxygen content difference.

Table 1.

Comparison of AUCs for predicting a high P(v-a)CO₂/C(a-v)O₂ ratio (>1.68) in all measurements.

Parameters	AUC	95% CI	Cutoff value	Sensitivity (%)	Specificity (%)
Hemoglobin	0.606	0.579–0.633	9.7 g/dL	53.70	64.30
P(v-a)CO₂	0.793*	0.769–0.814	7 mmHg	41.77	90.62
ScvO₂	0.620	0.468–0.762	79.6%	47.60	69.80
SaO₂	0.557	0.525–0.588	99%	42.90	69.20

AUC, area under the receiver operating characteristic curve; P(v-a)CO₂, venoarterial carbon dioxide tension difference; PaO₂, arterial oxygen tension; ScvO₂, central venous oxygen saturation; SaO₂, arterial oxygen saturation; CI, confidence interval. *P <0.05 for comparison of P(v-a)CO₂.

P(v-a)CO₂/C(a-v)O₂ in different groups based on ScvO₂ (70%) and P(v-a)CO₂ (6 mmHg)

Based on the cutoffs of ScvO₂ (70%) and P(v-a)CO₂ (6 mmHg), we assigned all measurements to four categories: Group I [P(v-a)CO₂ ≤ 6 mmHg and ScvO₂ < 70%], Group II [P(v-a)CO₂ ≤ 6 mmHg and ScvO₂ ≥ 70%], Group III [P(v-a)CO₂ > 6 mmHg and ScvO₂ ≥ 70%], and Group IV [P(v-a)CO₂ > 6 mmHg and ScvO₂ < 70%]. The characteristics of the P(v-a)CO₂/C(a-v)O₂ ratio in the different groups are shown in Table 2. Group I (n = 136) had the lowest P(v-a)CO₂/C(a-v)O₂ ratio (1.00 ± 0.46), and Group III (n = 209) had the highest P(v-a)CO₂/C(a-v)O₂ ratio [2.32 (1.9–3.4)]. Moreover, the lowest percentage of a high P(v-a)CO₂/C(a-v)O₂ ratio (>1.68) was present in Group I [5.8% (8/136)], and the highest percentage was present in Group III [84% (176/209)] (Figure 4). Group I had a significantly higher lactate level and lower Hb and SaO₂ than the other groups (P < 0.05), and Groups I and IV had a significantly higher EO₂ than the other groups (Figure 5).

Figure 4.

Percentages of a high P(v-a)CO₂/C(a-v)O₂ ratio (>1.68) in different groups based on the cutoffs of ScvO₂ (70%) and P(v-a)CO₂ (6 mmHg). *P <0.05. P(v-a)CO₂, venoarterial carbon dioxide tension difference; C(a-v)O₂, arteriovenous oxygen content difference; ScvO₂, central venous oxygen saturation.

Figure 5.

EO₂ in different groups based on the cutoffs of ScvO₂ (70%) and P(v-a)CO₂ (6 mmHg). *Group I vs. Groups II, III, and IV; P <0.05. Group IV vs. Groups II and III; P <0.05. EO₂, oxygen extraction percentage; ScvO₂, central venous oxygen saturation; P(v-a)CO₂, venoarterial carbon dioxide tension difference.

Table 2.

Related parameters in the different groups according to cutoffs of ScvO₂ (70%) and P(v-a)CO₂ (6 mmHg).

Parameters	Group I P(v-a)CO₂ ≤ 6 mmHg and ScvO₂ < 70% (n = 136)	Group II P(v-a)CO₂ ≤ 6 mmHg and ScvO₂ ≥ 70% (n = 751)	Group III P(v-a)CO₂ > 6 mmHg and ScvO₂ ≥ 70% (n = 209)	Group IV P(v-a)CO₂ > 6 mmHg and ScvO₂ < 70% (n = 198)
ScvO₂, %	66 (61–67)	80 (76–84)^a	78 ± 6^a	61 (54–67)^b,^c
P(v-a)CO₂, mmHg	4 (2–5)	3.9 (2–5)	8 (7–9.6)^a,^b	8 (7–10)^a,^b
Ratio index	1.00 ± 0.46	1.26 (0.87–1.7)^a,^c	2.32 (1.9–3.4)^a,^b	1.6 (1.4–1.9)^a,^c
Incidence of a high ratio	8 (5.8)	195 (25.9)^a,^c	176 (84.0)^a	83 (42.0)^a,c
Hemoglobin, g/dL	9.9 ± 2.2	10 (8.8–11.6)^a	11.1 ± 2.5^a	11 ± 2.8^a
Lactate, mmol/L	5 (3–6)	1.7 (1.1–2.8)^a	1.7 (1.1–2.8)^a	2.3 (1.3–4.2)^a
SaO₂, %	97 (93–99)	99 (97–100)^a	99 (98–100)^a	98 (95–100)^a
EO₂, %	34 ± 0.08	22 ± 0.08^a,^c	21 ± 0.06^a,^c	39 ± 0.09^a

Data are presented as median (interquartile range), mean ± standard deviation, or n (%).

ScvO₂, central venous oxygen saturation; P(v-a)CO₂, venoarterial carbon dioxide tension difference; SaO₂, arterial oxygen saturation; EO₂, oxygen extraction percentage.

P < 0.05 vs. Group I.

P < 0.05 vs. Group II.

P < 0.05 vs. Group III.

Discussion

This is the largest clinical study to date evaluating the correlation of ScvO₂ and P(v-a)CO₂ with the P(v-a)CO₂/C(a-v)O₂ ratio in critically ill patients. The most important finding of the present study is that the relationships of ScvO₂ and P(v-a)CO₂ with the P(v-a)CO₂/C(a-v)O₂ ratio were validated and that the characteristics of the P(v-a)CO₂/C(a-v)O₂ ratio were described in the real-world setting. These data are meaningful for interpretation of this ratio in clinical practice.

Factors contributing to a high P(v-a)CO₂/C(a-v)O₂ ratio (>1.68)

In the present study, P(v-a)CO₂/C(a-v)O₂ showed a significantly stronger relationship with P(v-a)CO₂ than ScvO₂, Hb, and SaO₂. Importantly, a high P(v-a)CO₂ is the most relevant factor contributing to the high P(v-a)CO₂/C(a-v)O₂ ratio among these related parameters. Therefore, the first priority might be to address the high P(v-a)CO₂ level to restore the P(v-a)CO₂/C(a-v)O₂ ratio in critically ill patients. It could be argued that the variations in these parameters would impact the relationship between the included parameters and the P(v-a)CO₂/C(a-v)O₂ ratio. Additionally, both the P(v-a)CO₂ and ScvO₂ measurements had an abnormal distribution, and the variation in the P(v-a)CO₂ and ScvO₂ might have been comparable in this large-sample study. Therefore, our study suggests that the priority should be paying close attention to P(v-a)CO₂ to correct the P(v-a)CO₂/C(a-v)O₂ ratio in critically ill patients. Further prospective studies are required to investigate the effects of variations of other related parameters on the P(v-a)CO₂/C(a-v)O₂ ratio.

Behavior of P(v-a)CO₂/C(a-v)O₂ ratio in present classification based on ScvO₂ and P(v-a)CO₂

ScvO₂ is a well-known marker that reflects whether DO₂ meets the demand of VO₂.¹⁸ Additionally, P(v-a)CO₂ functions as a global flow parameter that reflects whether the systemic flow meets the needs of tissue perfusion.^19,20 In Group I of the present study, the combination of low P(v-a)CO₂ and low ScvO₂ indicated that the global flow was sufficient but that DO₂ did not meet the demand of VO₂. This group had a significantly lower SaO₂ and Hb and higher EO₂ than the other groups. Both arterial hypoxia and hemodilution could contribute to low ScvO₂ resulting from insufficient DO₂ with a high EO₂ and low P(v-a)CO₂ from high compensatory cardiac output. Interestingly, Group I had the lowest P(v-a)CO₂/C(a-v)O₂ ratio (1.00 ± 0.46) and lowest percentage of a high P(v-a)CO₂/C(a-v)O₂ ratio [5.8% (8/136)]. Theoretically, using a low P(v-a)CO₂/C(a-v)O₂ ratio to reflect the absence of anaerobic metabolism should be done with caution in patients with low ScvO₂ together with low P(v-a)CO₂, who have special hemodilution and arterial blood hypoxemia conditions with high VO₂. A potential pathophysiologic mechanism is as follows. First, the cardiac output shows a compensatory increase to restore DO₂ under conditions of hypoxemia and/or hemodilution, which could cause a decrease in the P(v-a)CO₂ gap. Second, a low ScvO₂ commonly indicates an compensatory increase in the EO₂ because of high oxygen demand. Third, the P(v-a)CO₂ might further decrease in the presence of low ScvO₂ through the Haldane effect.²¹ Hence, in Group I of the present study, the “pseudo-normalization” of the P(v-a)CO₂/C(a-v)O₂ ratio might have been related to high cardiac output together with high VO₂.²² A recent experimental study also showed that the P(v-a)CO₂/C(a-v)O₂ ratio might be a misleading surrogate for anaerobic metabolism in the presence of hemodilution.²³ Further clinical studies are required to validate the meaning of the P(v-a)CO₂/C(a-v)O₂ ratio in the Group I condition.

Group II had high ScvO₂ and low P(v-a)CO₂. In this case, both global flow and DO₂ appeared to be adequate to meet tissue cell needs. Sepsis may have been a common cause of the results seen in Group II, especially given the hyperdynamic hemodynamic status after early resuscitation. Studies have supported that normal ScvO₂ does not exclude tissue hypoxia, and even high ScvO₂ has been associated with poor clinical outcomes.^24–28 Moreover, 25.9% (195/751) of the measurements had a high P(v-a)CO₂/C(a-v)O₂ ratio in Group II. In other words, normalization of both ScvO₂ and P(v-a)CO₂ could not totally exclude the independence of the presence of anaerobic metabolism. Here, we stress that a high P(v-a)CO₂/C(a-v)O₂ ratio cannot be simply taken as a marker of increased DO₂ to meet the tissue perfusion needs under conditions of high ScvO₂ and low P(v-a)CO₂. First, oxygen cannot be effectively transported into tissue cells through the microcirculation when there is a loss of coherence between the macro- and microcirculation.^29,30 Second, if a disassociation exists between cellular oxygen utilization and tissue perfusion, an increase in DO₂ would not help to correct the high P(v-a)CO₂/C(a-v)O₂ ratio. Further study is required to determine whether correction of the P(v-a)CO₂/C(a-v)O₂ ratio can improve tissue perfusion and/or the clinical outcome when ScvO₂ and P(v-a)CO₂ have been normalized.

Group III had a high P(v-a)CO₂ of > 6 mmHg and high ScvO₂ of ≥ 70%, indicating that the global flow might be insufficient for tissue perfusion, although the DO₂ had reached the threshold for the physiologic requirements. Eighty-four percent (176/209) of the measurements had a high P(v-a)CO₂/C(a-v)O₂ ratio (>1.68) in Group III, and a high P(v-a)CO₂/C(a-v)O₂ ratio indicates a high possibility of anaerobic metabolism. A high ScvO₂ might result from dysfunction of the microcirculation (shunting) and oxygen utilization.^26–28 Moreover, an elevated P(v-a)CO₂ is not only dependent on the effect of the global flow related to tissue hypoxia but is also dependent on the ability of the microcirculatory blood flow to clear the additional carbon dioxide even during normal/high global flow. Recent clinical research has shown that the P(v-a)CO₂ gap may also reflect alterations in the microcirculation in patients with septic shock.¹⁶ Therefore, we suggest that restoration of the P(v-a)CO₂/C(a-v)O₂ ratio should focus on both global flow and microcirculation flow in the Group III condition. Some might argue the lactate level was not higher in Group III and that lactate is always taken as a marker of anaerobic metabolism. However, the agreement between the P(v-a)CO₂/C(a-v)O₂ ratio and lactate level should not be interpreted as representative of anaerobic metabolism. Studies have shown the hyperlactatemia is not always of hypoxic origin in critically ill patients.^31–33

Group IV had a high P(v-a)CO₂ of > 6 mmHg and low ScvO₂ of < 70%, indicating that both global flow and DO₂ were insufficient for the body’s demand. Interestingly, only 42% (83/198) of the measurements had a high P(v-a)CO₂/C(a-v)O₂ ratio in Group IV. In contrast, 58% of the P(v-a)CO₂/C(a-v)O₂ ratio measurements were normal (≤1.68). In other words, among patients with high P(v-a)CO₂ and low ScvO₂, there might be a more than 50% possibility for the absence of anaerobic metabolism. Hence, calculation of the P(v-a)CO₂/C(a-v)O₂ ratio might also provide information that would help to avoid over-resuscitation in patients with a high P(v-a)CO₂ of > 6 mmHg and low ScvO₂ of < 70%. Moreover, low ScvO₂ and high P(v-a)CO₂ might result from a high VO₂ condition; in such cases, both the EO₂ and VCO₂ are increased. Our study also showed that Group IV had the highest EO₂. The potential clinical meaning of the P(v-a)CO₂/C(a-v)O₂ ratio in the four groups is summarized in Table 3.

Table 3.

Characteristics and potential meaning of the P(v-a)CO₂/C(a-v)O₂ ratio in the four groups.

Items	Group I Low P(v-a)CO₂ + low ScvO₂	Group II Low P(v-a)CO₂ + high ScvO₂	Group III High P(v-a)CO₂ + high ScvO₂	Group IV High P(v-a)CO₂ + low ScvO₂
Behavior of ratio	96% of the measurements of the ratio were normal with a low value	25% of the measurements of the ratio were abnormal with a high value	84% of the measurements of the ratio were abnormal with a high value	Almost 50% of the measurements of the ratio were abnormal with a high value
Global circulation	Sufficient global flow but insufficient DO₂ for the high oxygen demand	Insufficient global flow and DO₂	Sufficient DO₂ but insufficient global flow	Insufficient global flow and DO₂
Interpretation of ratio	The low ratio might not reliably reflect the absence of anaerobic metabolism	The high ratio reflects the presence of anaerobic metabolism, possibly secondary to mitochondrial dysfunction or microcirculation shunting	The high ratio reflects anaerobic metabolism secondary to poor microcirculatory perfusion and/or mitochondrial dysfunction	The high ratio reflects anaerobic metabolism secondary to low DO₂ and flow and/or high VO₂ with poor cardiac output
Potential etiology	Hemodilution and hypoxemia together with high EO₂ and oxygen demand	Sepsis, inflammation, ischemia–reperfusion	Sepsis, inflammation, ischemia–reperfusion	Hypovolemic shock, cardiac shock, obstructive shock
Therapy	Decrease oxygen demand with sedation, low temperature, or other; transfusion for hemodilution; negative fluid balance with volume overload; improve SaO₂ with increased FiO₂ and/or PEEP	Recruit microcirculation with vasodilators	Improve global flow using fluid therapy, inotropic therapy, or other; recruit microcirculation with vasodilators	Improve global flow and DO₂ using fluid therapy, inotropic therapy, or other; decrease oxygen demand with sedation, low temperature, or other

P(v-a)CO₂, venoarterial carbon dioxide tension difference; ScvO₂, central venous oxygen saturation; DO₂, oxygen delivery; VO₂, oxygen consumption; EO₂, oxygen extraction percentage; SaO₂, arterial oxygen saturation; FiO₂, fraction of inspired oxygen; PEEP, positive end-expiratory pressure.

Disassociation of lactate and P(v-a)CO₂/C(a-v)O₂ ratio

A significant relationship between lactate and the P(v-a)CO₂/C(a-v)O₂ ratio was not found in the present study. Moreover, there was no significant difference in the lactate level between low and high P(v-a)CO₂/C(a-v)O₂ ratio measurements. This result seems to oppose those of published studies,^4–7 and it should be interpreted with caution. The ability of the P(v-a)CO₂/C(a-v)O₂ ratio and lactate to reflect anaerobic metabolism was not questioned and/or compared in our study. Several factors could have confounded the relationship between lactate and the P(v-a)CO₂/C(a-v)O₂ ratio in the present study, such as the lactate clearance ability, washout effect, and stress factors. However, our study supports the notion that incoherence of lactate and the P(v-a)CO₂/C(a-v)O₂ ratio might be common in critically ill patients. We stress that attention should be paid to the disassociation of lactate and the P(v-a)CO₂/C(a-v)O₂ ratio in clinical practice. Traditionally, a high lactate level is always taken as a marker of anaerobic metabolism and an indicator of the need for resuscitation. This viewpoint has been challenging because high lactate cannot result from cellular hypoxia in the intensive care unit. A recent study showed that the P(v-a)CO₂/C(a-v)O₂ ratio can provide additional information on anaerobic metabolism when compared with the lactate level.⁹ Further study is required to validate how to combine lactate and the P(v-a)CO₂/C(a-v)O₂ ratio to identify cellular hypoxia and guide resuscitation.

In summary, the P(v-a)CO₂/C(a-v)O₂ ratio is a potential marker of global anaerobic metabolism that could provide additional information regarding the relationship of global DO₂/VO₂ when combined with ScvO₂ and P(v-a)CO₂ in clinical practice. The above-described findings could be of interest and should be considered in the application of the P(v-a)CO₂/C(a-v)O₂ ratio in clinical practice.

Limitations

Several limitations of this study should be acknowledged. First, this was a retrospective study, and we only focused on the relationships between relevant parameters and the P(v-a)CO₂/C(a-v)O₂ ratio. Validation of the P(v-a)CO₂/C(a-v)O₂ ratio as a marker of cellular hypoxia was not the aim of this study; therefore, information regarding prognosis, other tissue perfusion parameters, cellular hypoxia indicators, DO₂, and cardiac output are unavailable. Importantly, the most significant points of this study were demonstration of the profile of the P(v-a)CO₂/C(a-v)O₂ ratio and identification of the risk factors contributing to changes in parameters used in calculation of the ratio in clinical practice. Second, we acknowledge that some conclusions in this study are speculative according to reasonable pathophysiologic principles. Hence, further investigations are required to validate that hemodilution and hypoxemia with a high VO₂ result in pseudo-normalization of the P(v-a)CO₂/C(a-v)O₂ ratio. Third, the P(v-a)CO₂/C(a-v)O₂ ratio functions as a parameter to predict the response of an increase in DO₂ according to the concept of oxygen transport. The DO₂ challenge test is the related method used to evaluate DO₂/VO₂ dependence. The limitations of the global DO₂ challenge test must be taken into consideration; namely, the balance time of the DO₂ challenge and the mathematical coupling of data when using the P(v-a)CO₂/C(a-v)O₂ ratio.³⁴

Conclusion

The P(v-a)CO₂/C(a-v)O₂ ratio is always low in a low ScvO₂ + low P(v-a)CO₂ condition, and the P(v-a)CO₂/C(a-v)O₂ ratio is always high in a high ScvO₂ + low P(v-a)CO₂ condition. A high P(v-a)CO₂ is the most relevant factor that contributes to the high P(v-a)CO₂/C(a-v)O₂ ratio in critically ill patients. Before the P(v-a)CO₂/C(a-v)O₂ ratio is used for shock resuscitation in the clinical setting, further prospective studies are required to validate the P(v-a)CO₂/C(a-v)O₂ ratio in different clinical conditions.

Abbreviations

DO₂ = oxygen delivery; VO₂ = oxygen consumption; P(v-a)CO₂ = venoarterial carbon dioxide tension difference; C(a-v)O₂ = arteriovenous oxygen content difference; VCO₂ = global carbon dioxide production; C(v-a)CO₂ = venoarterial carbon dioxide content difference; ScvO₂ = central venous oxygen saturation; SaO₂ = arterial oxygen saturation; PaO₂ = arterial oxygen tension; PaCO₂ = arterial carbon dioxide tension; PvO₂ = central venous oxygen tension; PvCO₂ = central venous carbon dioxide tension; Hb = hemoglobin; CaO₂ = arterial oxygen content; CvO₂ = central venous oxygen content; EO₂ = oxygen extraction percentage.

Footnotes

Declaration of conflicting interest

The authors declare that there is no conflict of interest.

Funding

This work was supported by the Fundamental Research Funds for the Central Universities (No. 3332018010).

References

Shoemaker

Montgomery

Kaplan

, et al. Physiologic patterns in surviving and nonsurviving shock patients. Use of sequential cardiorespiratory variables in defining criteria for therapeutic goals and early warning of death. Arch Surg 1973; 106: 630–636.

Shoemaker

Appel

Kram

, et al. Prospective trial of supranormal values of survivors as therapeutic goals in high-risk surgical patients. Chest 1988; 94: 1176–1186.

Gutierrez

A mathematical model of tissue-blood carbon dioxide exchange during hypoxia.

Am J Respir Crit Care Med 2004; 169: 525–533.

Jakob

Groeneveld

Teboul

JL.

Venous-arterial CO₂ to arterial-venous O₂ difference ratio as a resuscitation target in shock states?

Intensive Care Med 2015; 41: 936–938.

Mekontso-Dessap

Castelain

Anguel

, et al. Combination of venoarterial PCO₂ difference with arteriovenous O₂ content difference to detect anaerobic metabolism in patients. Intensive Care Med 2002; 28: 272–277.

Mesquida

Saludes

Gruartmoner

, et al. Central venous-to-arterial carbon dioxide difference combined with arterial-to-venous oxygen content difference is associated with lactate evolution in the hemodynamic resuscitation process in early septic shock. Crit Care 2015; 19: 126.

Liu

Long

, et al. High central venous-to-arterial CO₂ difference/arterial-central venous O₂ difference ratio is associated with poor lactate clearance in septic patients after resuscitation. J Crit Care 2016; 31: 76–81.

Ospina-Tascón

Umaña

Bermúdez

, et al. Combination of arterial lactate levels and venous-arterial CO₂ to arterial-venous O₂ content difference ratio as markers of resuscitation in patients with septic shock. Intensive Care Med 2015; 41: 796–805.

Mallat

Lemyze

Meddour

, et al. Ratios of central venous-to-arterial carbon dioxide content or tension to arteriovenous oxygen content are better markers of global anaerobic metabolism than lactate in septic shock patients. Ann Intensive Care 2016; 6: 10.

10.

Long

Liu

, et al. The prognostic value of central venous-to-arterial CO2 difference/arterial-central venous O2 difference ratio in septic shock patients with central venous O2 saturation ≥ 80. Shock 2017; 48: 551–557.

11.

Shaban

Salahuddin

Kolko

, et al. The predictive ability of PV-ACO2 gap and PV-ACO2/CA-VO2 ratio in shock: a prospective, cohort study. Shock 2017; 47: 395–401.

12.

Monnet

Julien

Ait-Hamou

, et al. Lactate and venoarterial carbon dioxide difference/arterial-venous oxygen difference ratio, but not central venous oxygen saturation, predict increase in oxygen consumption in fluid responders. Crit Care Med 2013; 41: 1412–1420.

13.

Liu

Understanding the calculation of central venous-to-arterial CO2 difference/arterial-central venous O2 difference ratio. Shock 2017; 48: 690.

14.

Rivers

Nguyen

Havstad

, et al. Early goal directed therapy in the treatment of severe sepsis and septic shock. New England J Med 2001; 345: 1368–1377.

15.

Dres

Monnet

Teboul

JL.

Hemodynamic management of cardiovascular failure by using PCO(2) venous-arterial difference.

J Clin Monit Comput 2012; 26: 367–374.

16.

Ospina-Tascón

Umaña

Bermúdez

, et al. Can venous-to-arterial carbon dioxide differences reflect microcirculatory alterations in patients with septic shock? Intensive Care Med 2016; 42: 211–221.

17.

Hanley

McNeil

BJ.

The meaning and use of the area under a receiver operating characteristic (ROC) curve.

Radiology 1982; 43: 29–36.

18.

Bloos

Reinhart

Venous oximetry.

Intensive Care Med 2005; 31: 911–913.

19.

Raza

Schlichtig

Metabolic component of intestinal PCO₂ during dysoxia.

J Appl Physiol 2000; 89: 2422–2429.

20.

Mallat

Lemyze

Tronchon

, et al. Use of venous-to-arterial carbon dioxide tension difference to guide resuscitation therapy in septic shock. World J Crit Care Med 2016; 5: 47–56.

21.

Teboul

Scheeren

Understanding the Haldane effect.

Intensive Care Med 2017; 43: 91–93.

22.

Liu

DW.

The pseudo-normalization of the ratio index of the venous-to-arterial CO2 tension difference to the arterial-central venous O2 difference in hypoxemia combined with a high oxygen consumption condition.

J Crit Care 2017; 40: 305–306.

23.

Dubin

Ferrara

Kanoore Edul

, et al. Venoarterial PCO2-to-arteriovenous oxygen content difference ratio is a poor surrogate for anaerobic metabolism in hemodilution: an experimental study. Ann Intensive Care 2017; 7: 65.

24.

Liu

Long

, et al. The peripheral perfusion index and transcutaneous oxygen challenge test are predictive of mortality in septic patients after resuscitation. Crit Care 2013; 17: R116.

25.

Long

Liu

, et al. Clinical classification of tissue perfusion based on the central venous oxygen saturation and the peripheral perfusion index. Crit Care 2015; 19: 330.

26.

Textoris

Fouché

Wiramus

, et al. High central venous oxygen saturation in the latter stages of septic shock is associated with increased mortality. Crit Care 2011; 15: R176.

27.

Pope

Jones

Gaieski

, et al. Multicenter study of central venous oxygen saturation (ScvO(2)) as a predictor of mortality in patients with sepsis. Ann Emerg Med 2010; 55: 40–46.e1.

28.

Balzer

Sander

Simon

, et al. High central venous saturation after cardiac surgery is associated with increased organ failure and long-term mortality: an observational cross-sectional study. Crit Care 2015; 19: 168.

29.

Ince

Hemodynamic coherence and the rationale for monitoring the microcirculation.

Crit Care 2015; 19: S8.

30.

Ince

The rationale for microcirculatory-guided fluid therapy.

Curr Opin Crit Care 2014; 20: 301–308.

31.

James

Luchette

McCarter

, et al. Lactate is an unreliable indicator of tissue hypoxia in injury or sepsis. Lancet 1999; 354: 505–508.

32.

Levraut

Ciebiera

Chave

, et al. Mild hyperlactatemia in stable septic patients is due to impaired lactate clearance rather than overproduction. Am J Respir Crit Care Med 1998; 157: 1021–1026.

33.

Rimachi

Bruzzi de Carvahlo

Orellano-Jimenez

, et al. Lactate/pyruvate ratio as a marker of tissue hypoxia in circulatory and septic shock. Anaesth Intensive Care 2012; 40: 427–432.

34.

Vincent

DeBacker

Oxygen transport-the oxygen delivery controversy.

Intensive Care Med 2004; 30: 1990–1999.
