Primary closure with knotless barbed suture versus traditional T-tube drainage after laparoscopic common bile duct exploration: a single-center medium-term experience

Abstract

Objective

Primary closure of the common bile duct (CBD) after laparoscopic CBD exploration (LCBDE) is a technical challenge. The present study was performed to evaluate the safety and effectiveness of this surgical method.

Methods

This retrospective study of surgical efficacy and safety involved 79 patients who underwent primary CBD closure with a knotless unidirectional barbed suture or traditional T-tube drainage after LCBDE for CBD stones.

Results

The average suturing time, operation time, and postoperative hospital stay were significantly shorter in the primary closure group than T-tube group. There were no significant differences in the mean diameter of the CBD, number of stones, or incidence of postoperative complications between the two groups. No patients developed recurrence of CBD stones during the median follow-up of 21.5 months.

Conclusions

Keywords

Choledocholithiasis laparoscopic common bile duct exploration unidirectional barbed suture primary closure choledochoscopy common bile duct dilation T-tube drainage

Background

Stones in the common bile duct (CBD) are found in about 3% to 10% of patients with cholelithiasis.^1,2 Timely extraction of CBD stones is helpful to avoid potential complications such as hepatic dysfunction, acute cholangitis, and biliary pancreatitis. Although therapies for CBD stones have undergone various developmental stages and improvements, laparoscopic CBD exploration (LCBDE) is still the most common treatment. This is because it is a single and minimally invasive option that avoids the sequelae of endoscopic sphincterotomy, such as bleeding, perforation, and papillary stenosis.^3,4 Moreover, LCBDE is more cost-effective and requires a shorter postoperative hospital stay than endoscopic clearance of stones; however, its morbidity and mortality are comparable with those of endoscopic clearance.^5–8

In most cases, a T-tube is inserted during the LCBDE procedure to prevent postoperative stricture of the CBD and biliary leakage. Nevertheless, LCBDE with T-tube drainage is often associated with complications such as peritoneal or biliary infections that ascend through the drain, removal of the T-tube before the scheduled time, and inconvenience because of the prolonged T-tube placement.^9,10 Many systematic reviews have recently shown that primary closure of the CBD after LCBDE provides better short- and long-term outcomes than does T-tube drainage after LCBDE.^11–13

Laparoscopic closure of the CBD with intracorporeal suturing and knots is an incredibly difficult procedure to perform for most surgeons, especially for inexperienced surgeons. A barbed suture is a type of knotless unidirectional surgical suture that has numerous small barbs on its surface. Previous studies have demonstrated that barbed sutures can facilitate laparoscopic suturing because the barbs can penetrate the tissue and lock them into place. The efficacy and suitability of performing suturing with barbed sutures for various surgical procedures, including intestinal anastomoses, pancreatic procedures, and esophageal surgery, have recently been confirmed.^14–17

In this retrospective cohort study, we evaluated the efficacy and safety of performing primary closure with knotless barbed sutures following LCBDE and compared the perioperative and medium-term outcomes of this technique with those in patients who underwent LCBDE with traditional T-tube drainage.

Methods

Patient selection

The inclusion criteria were a CBD diameter of ≥8 mm as shown by magnetic resonance cholangiopancreatography (MRCP), preoperative confirmation of CBD stones using ultrasonography and MRCP, performance of all operations by the same attending surgeon, and complete medical records. Patients with a history of concomitant acute suppurative cholangitis, hepatolithiasis, Mirizzi syndrome, or bile duct or gallbladder carcinoma were excluded from the study.

Patients who underwent primary closure with knotless barbed sutures after LCBDE from November 2013 to June 2018 were retrospectively enrolled in the study. The study also included a control group of patients who underwent LCBDE with traditional T-tube drainage during the same period. This study was approved by the ethics committee of our university, and written informed consent was obtained from all patients. The medical data analyzed in this study included the patients’ demographics, clinical features, CBD stone characteristics, and surgical outcomes.

Operative techniques

All surgical procedures were performed by an attending surgeon using a standard procedure. Briefly, the patient was placed in the supine position and underwent general endotracheal anesthesia. The surgeon stood on the patient’s left side, and the assistant stood on the opposite side. A 10-mm trocar was inserted into the umbilical region, a 5-mm trocar was inserted into the right midclavicular region, and a 5-mm trocar was inserted in the right anterior axillary line. Additionally, a 10-mm trocar was inserted into the medial epigastric area for the flexible choledochoscope. After dissection of Calot’s triangle, the cystic duct was clipped with a 10-mm plastic clip (Weck® Hem-o-lock®; Teleflex Inc., Wayne, PA, USA) to prevent the passage of any gallbladder stones into the CBD during the procedure. The dissection was continued to expose the anterior surface of the CBD. An approximately 10- to 15-mm longitudinal incision was then made in the CBD using an endoscopic scissor, and the CBD stones were directly removed through this incision using atraumatic forceps, saline irrigation with suction (Figure 1(a)), or a wire basket under the flexible choledochoscope (CHF-V; Olympus, Tokyo, Japan). CBD clearance was confirmed by exploring the CBD downward to the entrance of the ampulla of Vater and upward to the bifurcation at the left and right hepatic ducts (Figure 1(b)). After removing the stones, the CBD was closed with a continuous suture using 4-0 knotless Stratafix™ (Ethicon Inc., Somerville, NJ, USA) (primary closure group), or a T-tube was placed in the CBD and closed with the same suture material and technique (T-tube drainage group). Stratafix™ is a unidirectional barbed suture and a monofilament synthetic absorbable wound closure device that can prevent loosening of the knots (Figure 1(c, d). A closed suction drain was then inserted through the lateral trocar (5 mm) and placed in Morison’s pouch at the end of the procedure in both groups.

Figure 1.

Surgical techniques of laparoscopic common bile duct (CBD) exploration using primary closure with knotless unidirectional barbed sutures and intraoperative choledochoscopy. (a) CBD stones were removed using forceful saline irrigation and suction through the choledochotomy. (b) CBD clearance was confirmed by intraoperative choledochoscopy. (c) The choledochotomy was closed by a single layer of continuous running 4-0 knotless unidirectional barbed suture. (d) The gallbladder was routinely resected after closure of the CBD.

Perioperative management and follow-up

Oral intake was routinely resumed 6 hours postoperatively. If the drainage fluid was <50 mL and contained no bile on postoperative day 2, the drain was removed. The T-tube was removed about 1 month postoperatively after confirming the absence of remnant stones or severe stricture of the CBD on a T-tube cholangiogram.

The first outpatient visit was scheduled at 2 weeks after the operation. Physical examinations, liver function tests, and abdominal ultrasonography were regularly carried out at the 3- or 6-month follow-up and whenever any abdominal symptoms developed during follow-up. Imaging studies such as MRCP or computed tomography were performed if there were any unusual findings.

Statistical analyses

Results are expressed as mean ± standard deviation and were analyzed using SPSS 21.0 statistical software (IBM Corp., Armonk, NY, USA). Patients who underwent primary closure of the CBD were compared with those who underwent T-tube drainage after LCBDE. Categorical variables were compared between the two groups using the χ² test or Fisher’s exact test, while measurement variables were compared using the t test or Mann–Whitney U test. A P value of <0.05 was considered statistically significant.

Results

This study included 79 patients with choledocholithiasis who underwent LCBDE with primary closure of the CBD (primary closure group, n = 38) or T-tube drainage (T-tube group, n = 41). The patients’ clinical characteristics are listed in Table 1. There were no significant differences in age (52.7 ± 11.6 vs. 50.9 ± 10.8 years) or weight (body mass index, 25.0 ± 2.8 vs. 25.2 ± 3.0 kg/m²) between the two groups. No significant differences in the average number or size of stones were observed between the two groups (1.5 ± 0.9 vs. 1.6 ± 0.8 and 7.8 ± 1.5 vs. 7.0 ± 1.4 mm, respectively). The mean diameter of the CBD was almost identical between the two groups (11.5 ± 2.1 vs. 11.4 ± 1.8 mm).

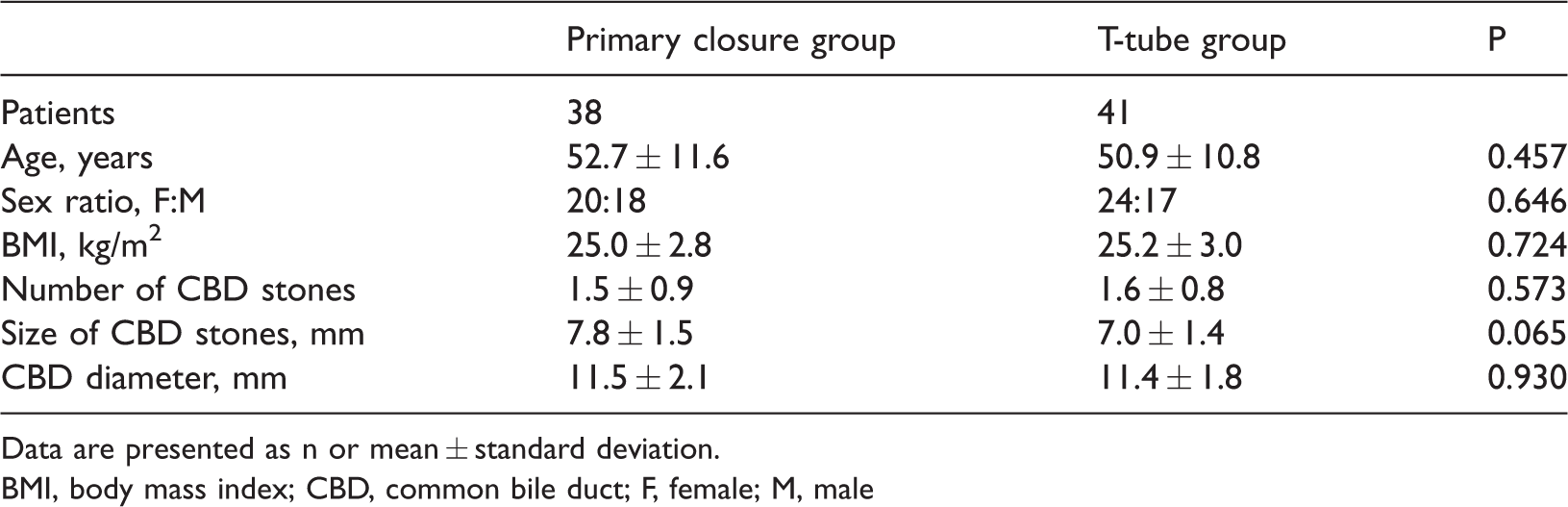

Table 1.

Patients’ demographic data.

	Primary closure group	T-tube group	P
Patients	38	41
Age, years	52.7 ± 11.6	50.9 ± 10.8	0.457
Sex ratio, F:M	20:18	24:17	0.646
BMI, kg/m²	25.0 ± 2.8	25.2 ± 3.0	0.724
Number of CBD stones	1.5 ± 0.9	1.6 ± 0.8	0.573
Size of CBD stones, mm	7.8 ± 1.5	7.0 ± 1.4	0.065
CBD diameter, mm	11.5 ± 2.1	11.4 ± 1.8	0.930

Data are presented as n or mean ± standard deviation.

BMI, body mass index; CBD, common bile duct; F, female; M, male

All surgical procedures were successfully performed without conversion to other procedures (Table 2). The average suturing time was significantly shorter in the primary closure group than in the T-tube group (9.8 ± 1.3 vs. 16.5 ± 2.4 minutes, P < 0.001). The average operating time and length of postoperative stay were significantly shorter in the primary closure group than in the T-tube group (95.6 ± 10.3 vs. 129.2 ±14.9 minutes and 4.8 ± 1.3 vs. 7.8 ± 2.5 days, respectively; P < 0.001 for both). There was no significant difference in the estimated blood loss volume between the two groups (28.0 ± 10.1 vs. 34.4 ± 18.5 mL), and no perioperative transfusions were required in either group. The CBD stones were successfully removed in all patients. The drainage volume was <50 mL/day and free of bile. Postoperative complications were observed in two patients in the primary closure group. One patient had biliary leakage and the other had abdominal blood oozing, but both patients recovered with conservative treatments. However, four patients in the T-tube group developed postoperative complications: two had abdominal blood oozing, one had an abdominal infection, and one had biliary leakage. All patients recovered without requiring reoperation.

Table 2.

Surgical outcomes.

	Primary closure group (n = 38)	T-tube group(n = 41)	P
CBD suturing time, minutes	9.8 ± 1.3	16.5 ± 2.4	<0.001
Operation time, minutes	95.6 ± 10.3	129.2 ± 14.9	<0.001
Estimated blood loss, mL	28.0 ± 10.1	34.4 ± 18.5	0.065
Perioperative transfusion, units	0	0
Postoperative stay, days	4.8 ± 1.3	7.8 ± 2.5	<0.001
Complications
Blood oozing	1 (2.6)	2 (4.9)	0.602
Bile leakage	1 (2.6)	1 (2.4)	0.957
Biliary stricture	1 (2.6)	0 (0.0)	0.296
Abdominal infection	0 (0.0)	1 (2.4)	0.333
Death	0 (0.0)	0 (0.0)
Recurrence of stones during follow-up	0 (0.0)	0 (0.0)

Data are presented as n, n (%), or mean ± standard deviation.

CBD, common bile duct

Bold P values are statistically significant.

The median follow-up period was 21.5 months (range, 6–47 months). During the follow-up period, MRCP imaging showed a mild bile duct stricture in one patient in the primary closure group (the diameter of the CBD was 6 mm after the operation) without any discomfort. In contrast, no bile duct strictures were found in the T-tube group.

Discussion

Cholelithiasis with concurrent CBD stones is a surgically managed disease that is generally treated with preoperative endoscopic retrograde cholangiopancreatography and sphincterotomy; it is then followed by laparoscopic cholecystectomy in most countries. With improvements in operative techniques and increased numbers of skilled professionals in laparoscopic surgery, many surgeons have performed single-session management of choledocholithiasis by laparoscopic cholecystectomy with LCBDE during the last two decades. In 2008, United Kingdom guidelines recommended LCBDE for treatment of CBD stones in patients undergoing laparoscopic cholecystectomy.¹⁸ The main advantage of LCBDE is that it treats the patient in one session for both problems instead of requiring a two-stage endoscopic–laparoscopic approach. Previous studies have shown a success rate of 88% to 100% for laparoscopic clearance of stones from the CBD, which is as effective as preoperative and postoperative endoscopic retrograde cholangiopancreatography with similar morbidity and mortality.^18,19 Choledochoscopy enables the complete clearance of stones and ensures that no residual stones are left before application of the primary suture. In the present study, the intraoperative flexible choledochoscope revealed a stone clearance rate of 100%. Moreover, previous studies have indicated the superiority of LCBDE in terms of its lower rate of postoperative complications, quicker recovery, shorter postoperative hospital stay, and lower medical costs compared with the two-stage procedure.^14,20 In the present study, the average postoperative time before discharge in the primary closure group was 4.8 days, which is slightly shorter than that in previous reports.^21,22 In addition, LCBDE has been more frequently recommended for younger patients; this procedure maintains both the structural and functional integrity of the sphincter of Oddi, which may be helpful to avoid bile juice regurgitation and reduce stone recurrence or the occurrence of cholangitis.²³

Exploration of the CBD is customarily followed by placement of a T-tube. However, use of the T-tube is associated with a high complication rate (10.5%–20.0%).²⁴ Such complications generally include disturbances of water and electrolyte metabolism, premature dislodgement, sepsis, localized pain, biliary leakage, biliary peritonitis, wound infection, and biliary stricture. The unidirectional barbed suture is a specialized suture that contains many diminutive and directional protrusions that can prevent slippage of the suture after passing through tissue. Additionally, the preset loop on one side of the suture makes placement of the first knot more convenient than when using the traditional method. The efficacy and safety of barbed sutures have been confirmed in various abdominal surgical operations, including intestinal anastomosis, transabdominal preperitoneal laparoscopic hernia repair, gastrojejunostomy, and laparoscopic or open choledocholithotomy.^14–17 In the present study, the average suturing time was 9.8 minutes and the average total procedure time for primary closure was 95.6 minutes. These times were obviously shorter than those in the T-tube group, indicating that intracorporeal suturing with barbed sutures is relatively easier to perform. However, the LCBDE procedure requires excellent laparoscopic skills, including suturing and knotting with laparoscopic instruments, which are indispensable in reducing biliary leakage and CBD stricture after the operation.

Bile duct stricture is a main concern for patients who have undergone LCBDE. Yi et al.²⁵ reported no bile duct strictures in patients who underwent T-tube or primary closure after LCBDE at a median follow-up of 48.8 months. In the present study, only a mild bile duct stricture occurred in one patient in the primary closure group. No abnormal liver function or discomfort occurred in this patient.

Many surgeons are concerned about postoperative biliary leakage after the primary closure following LCBDE. Several studies have compared postoperative biliary leakage after primary closure of the CBD with T-tube drainage and revealed no significant differences between these two surgical techniques. Lee and Yoon²⁶ performed primary closure of the CBD in 15 patients during choledochotomy and observed no biliary leakage in any patients; however, these patients required another endoscopic procedure to remove the endobiliary stent 1 month after surgery. In Mexico, Fernandaz et al.²⁷ also proved that the use of unidirectional knotless barbed suture was safe and feasible in LCBDE for primary CBD closure. In our study, mild biliary leakage was observed in only one patient in each group, and they recovered with no further complications after conservative treatments.

Conclusions

After LCBDE and intraoperative choledochoscopy, primary closure with knotless unidirectional barbed sutures is a safe and effective therapeutic option for patients with cholelithiasis and concurrent CBD stones; this is especially true when the CBD is dilated >8 mm. Because the sample size of this study was small, further trials with larger sample sizes may be necessary to verify the long-term effectiveness of this technique, such as calculi recurrence and biliary stricture.

Footnotes

Declaration of conflicting interest

The authors declare that there is no conflict of interest.

Funding

This research received no specific grant from any funding agency in the public, commercial, or not-for-profit sectors.

References

Chander

Vindal

Lal

, et al. Laparoscopic management of CBD stones: an Indian experience. Surg Endosc 2011; 25: 172–181.

Rosseland

Glomsaker

TB.

Asymptomatic common bile duct stones.

Eur J Gastroenterol Hepatol 2000; 12: 1171–1173.

Ryozawa

Itoi

Katanuma

, et al. Japan Gastroenterological Endoscopy Society guidelines for endoscopic sphincterotomy. Dig Endosc 2018; 30: 149–173.

Prat

Malak

Pelletier

, et al. Biliary symptoms and complications more than 8 years after endoscopic sphincterotomy for choledocholithiasis. Gastroenterology 1996; 110: 894–899.

Masci

Toti

Mariani

, et al. Complications of diagnostic and therapeutic ERCP: a prospective multicenter study. Am J Gastroenterol 2001; 96: 317–323.

Clayton

Connor

Alexakis

, et al. Meta-analysis of endoscopy and surgery versus surgery alone for common bile duct stones with the gallbladder in situ. Br J Surg 2006; 93: 1185–1191.

Martin

Vernon

Toouli

Surgical versus endoscopic treatment of bile duct stones.

Cochrane Database Syst Rev 2006; 19: CD003327.

Costi

Mazzeo

Tartamella

, et al. Cholecystocholedocholithiasis: a case-control study comparing the short- and long-term outcomes for a “laparoscopy first” attitude with the outcome for sequential treatment (systematic endoscopic sphincterotomy followed by laparoscopic cholecystectomy). Surg Endosc 2010; 24: 51–62.

Gurusamy

Samraj

Primary closure versus T-tube drainage after open common bile duct exploration.

Cochrane Database Syst Rev 2007; 24: CD005640.

10.

Wills

Gibson

Karihaloo

, et al. Complications of biliary T-tubes after choledochotomy. ANZ J Surg 2002; 72: 177–180.

11.

Ambreen

Shaikh

Jamal

, et al. Primary closure versus T-tube drainage after open choledochotomy. Asian J Surg 2009; 32: 21–25.

12.

Perez

Escalona

Jarufe

, et al. Prospective randomized study of T-tube versus biliary stent for common bile duct decompression after open choledocotomy. World J Surg 2005; 29: 869–872.

13.

Yang

Dong

, et al. Primary closure versus T-tube drainage in laparoscopic common bile duct exploration: a meta-analysis of randomized clinical trials. Langenbecks Arch Surg 2012; 397: 909–916.

14.

Milone

Di Minno

Galloro

, et al. Safety and efficacy of barbed suture for gastrointestinal suture: a prospective and randomized study on obese patients undergoing gastric bypass. J Laparoendosc Adv Surg Tech A 2013; 23: 756–759.

15.

Edil

Cooper

Makary

MA.

Laparoscopic pancreaticojejunostomy using a barbed suture: a novel technique.

J Laparoendosc Adv Surg Tech A 2014; 24: 887–891.

16.

Lee

Nomura

Tokuhara

, et al. Laparoscopic technique and initial experience with knotless, unidirectional barbed suture closure for staple-conserving, delta-shaped gastroduodenostomy after distal gastrectomy. J Am Coll Surg 2011; 213: 39–45.

17.

Yang

Hsiao

Lin

, et al. Laparoscopic percutaneous jejunostomy with intracorporeal V-loc jejunopexy in esophageal cancer. Surg Endosc 2017; 31: 2678–2686.

18.

Williams

Green

Beckingham

, et al. Guidelines on the management of common bile duct stones (CBDS). Gut 2008; 57: 1004–1021.

19.

Vidagany

del Pozo

Tomas

, et al. Eleven years of primary closure of common bile duct after choledochotomy for choledocholithiasis. Surg Endosc 2016; 30: 1975–1982.

20.

Rhodes

Sussman

Cohen

, et al. Randomised trial of laparoscopic exploration of common bile duct versus postoperative endoscopic retrograde cholangiography for common bile duct stones. Lancet 1998; 271: 159–161.

21.

Wen

Wan

, et al. Appropriate patient selection is essential for the success of primary closure after laparoscopic common bile duct exploration. Dig Dis Sci 2017; 62: 1321–1326.

22.

Podda

Polignano

Luhmann

, et al. Systematic review with meta-analysis of studies comparing primary duct closure and T-tube drainage after laparoscopic common bile duct exploration for choledocholithiasis. Surg Endosc 2016; 30: 845–861.

23.

Dong

Luo

, et al. Primary closure after laparoscopic common bile duct exploration versus T-tube. J Surg Res 2014; 189: 249–254.

24.

JPY

Tang

Siu

, et al. Primary closure versus T-tube drainage after laparoscopic choledochotomy for common bile duct stones. Hepato-Gastroenterol 2004; 51: 1605–1608.

25.

Hong

Min

, et al. Long-term outcome of primary closure after laparoscopic common bile duct exploration combined with choledochoscopy. Surg Laparosc Endosc Percutan Tech 2015; 25: 250–253.

26.

Lee

Yoon

YC.

Laparoscopic common bile duct exploration using V-Loc suture with insertion of endobiliary stent.

Surg Endosc 2016; 30: 2530–2534.

27.

Fernandez

Toriz

Hernandez

, et al. Knotless choledochorraphy with barbed suture, safe and feasible. Surg Endosc 2016; 30: 3630–3635.
