Medical decision analysis for personalized oncology at the patient bedside

The quantity/quality of life trade-off in curable cancer disease

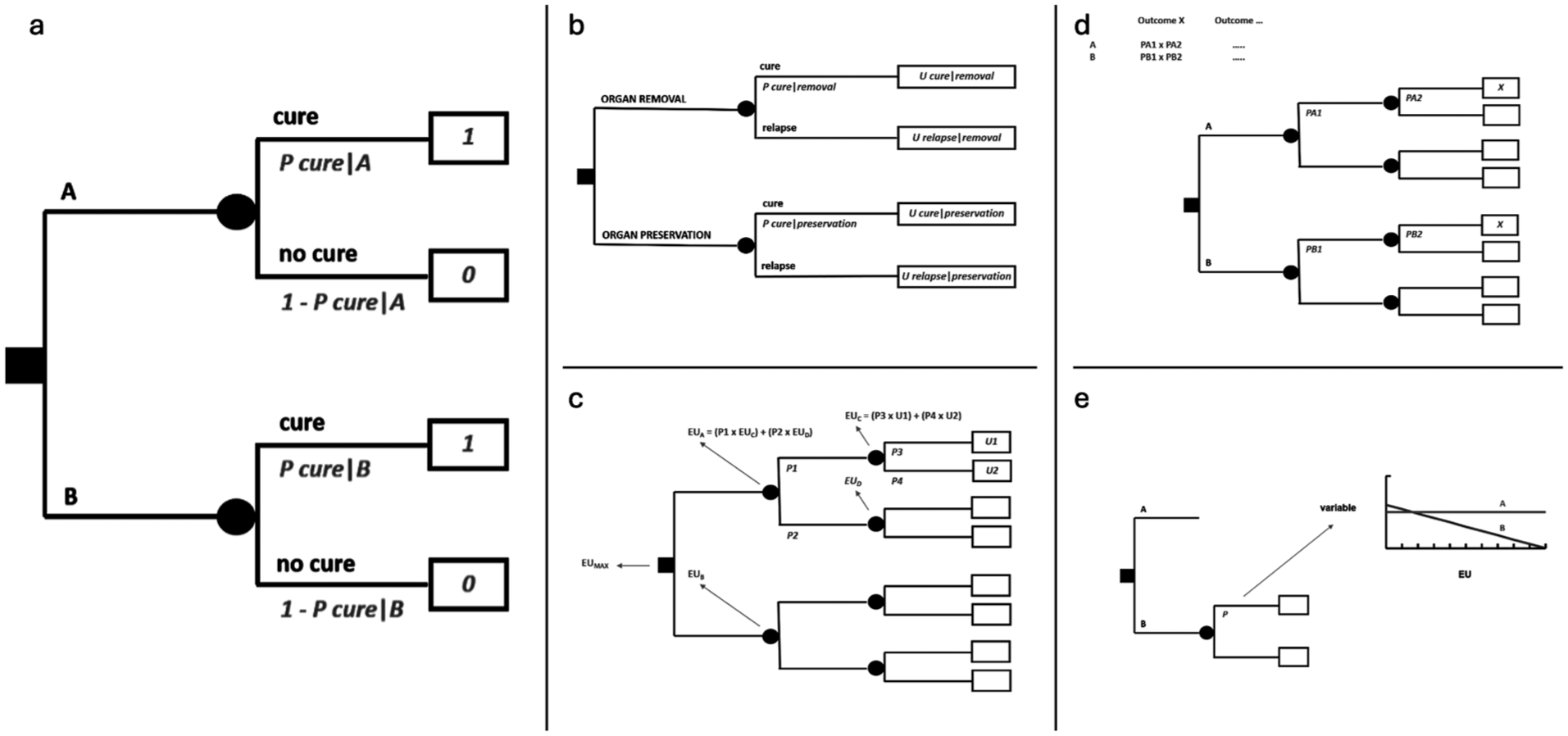

Cancer treatments may imply serious side effects, as well as long-term toxicities and sequelae. Sometimes, for example, surgical treatments may lead to organ/function loss. Figure 1b (see above) formalizes this scenario. The same scenario is represented in a slightly more complex fashion in Figure 2, which, in addition, factors in the risk of a local relapse after conservative surgery, assuming that it can be rescued in a proportion of cases by organ removal, at that point with a possibly different systemic risk.

OPEN IN VIEWER

Figure 2.

Expanded decision tree on a trade-off between quantity and quality of life.

A typical clinical scenario like this, for example, may regard a sarcoma patient in whom the local lesion is fairly advanced, so that conservative surgery is technically feasible but there are reasons for believing that local relapse may be higher than the threshold usually accepted. What may be difficult to elicit from available studies are the probabilities of local relapse, since clinical presentations may be highly diverse. It may also be difficult to elicit the impact of a rescued local relapse on the systemic risk, which in principle could go from zero to a “new” baseline risk, or even a higher one due to some degree of dedifferentiation for example.

Adjuvant/neoadjuvant treatments in curable cancer disease

“Adjuvant” treatments are very common in today’s oncology. In solid cancers, surgery may often be followed by a medical therapy, with the aim of eradicating occult micrometastases and thus increase chances of cure. Sometimes, medical therapy is placed before surgery (“neoadjuvant” therapy), but the aim is the same. In general, any treatment modality may serve as an adjuvant to another.

Figure 3a formalizes a decision between doing or not doing an adjuvant medical therapy after surgery. One option will be surgery alone, while the other will be adding adjuvant therapy to surgery. There will be a probability of cure with surgery alone and a relative reduction of the risk of relapse (1 - “P cure”) by doing adjuvant therapy. Assigning a utility of 1 to cure and 0 to relapse, the decision analysis will allow a simple risk analysis showing the absolute risk reduction. All this is conceptually important because it allows to obtain an absolute risk reduction in the individual patient depending on his/her specific baseline absolute risk. In fact, in the presence of a baseline absolute risk of 50% or 5%, the same relative risk reduction of 20%, will imply a completely different absolute risk reduction: 10% or 1%. Indeed, a mistake often made in patient information is to use relative, in spite of absolute, risk reductions.

OPEN IN VIEWER

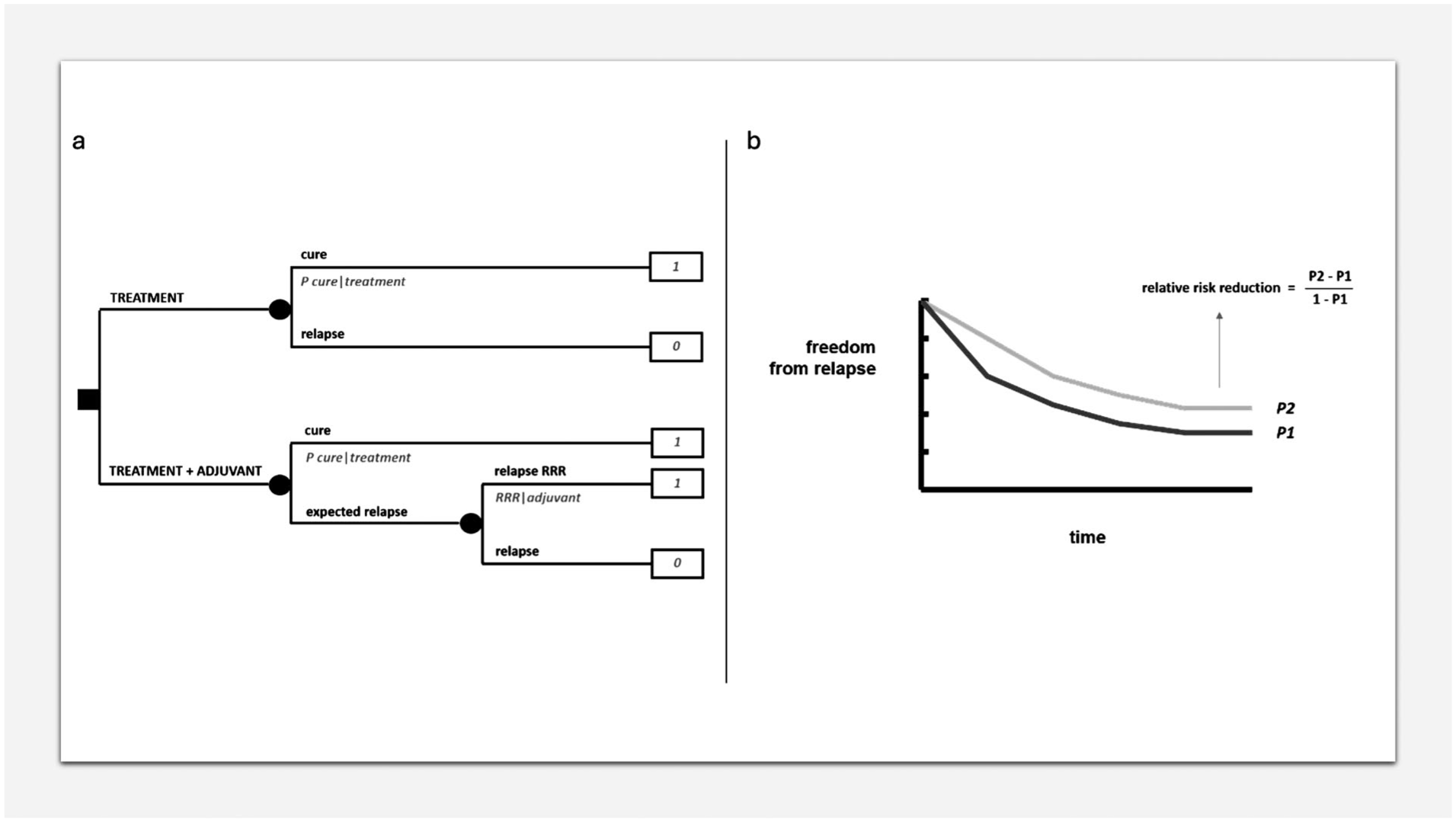

Figure 3.

MDA in adjuvant/neoadjuvant setting. (a) Decision tree on an adjuvant therapy. (b) Relative risk reduction.

The relative risk reduction can be calculated from a typical relapse-free survival curve of a clinical study comparing an adjuvant therapy with no adjuvant therapy, looking at the plateau of the two curves, as in Figure 3b. Of course, when exploiting such a relative risk reduction for different baseline risks, the assumption is that the same relative risk reduction will apply equally to all of them, which is far from a given and needs to be evaluated depending on the treatment and the disease.

On the other hand, as far as the baseline risk is concerned, this can be generally provided by prognostic nomograms, real-world case series, etc.

Of course, one could also incorporate a different utility value for the time spent on therapy, although usually the impact therefrom will be limited vis-à-vis chances of definitive cure.

Cytoreductive treatments

Sometimes a tumor is not amenable to potentially eradicating treatments, typically surgery, because of, for example, anatomical constraints. In these cases, a cytoreduction of a sufficient degree, as allowed by a medical therapy for example, can convert the tumor to a resectable state. Sometimes, the clinical choice may be about converting the tumor state not to surgical resectability as such, but to conservative surgery in spite of a mutilating one. This would lead to trying medical therapy. However, there may be fears that a surgical excision after cytoreduction entails lower chances of cure and/or that resectability is lost completely in case of progression of an insensitive tumor. Figure 4a provides a decision analysis modelling this clinical scenario, with a trade-off between quality of life (conservative treatment) and quantity of life (the extra-risk which may be in place, because of the conservative, in spite of a wider, excision after cytoreduction and/or the risk of interval progression). The model in Figure 4a assumes that there cannot be any local relapse after mutilating surgery, but of course this could be envisaged.

OPEN IN VIEWER

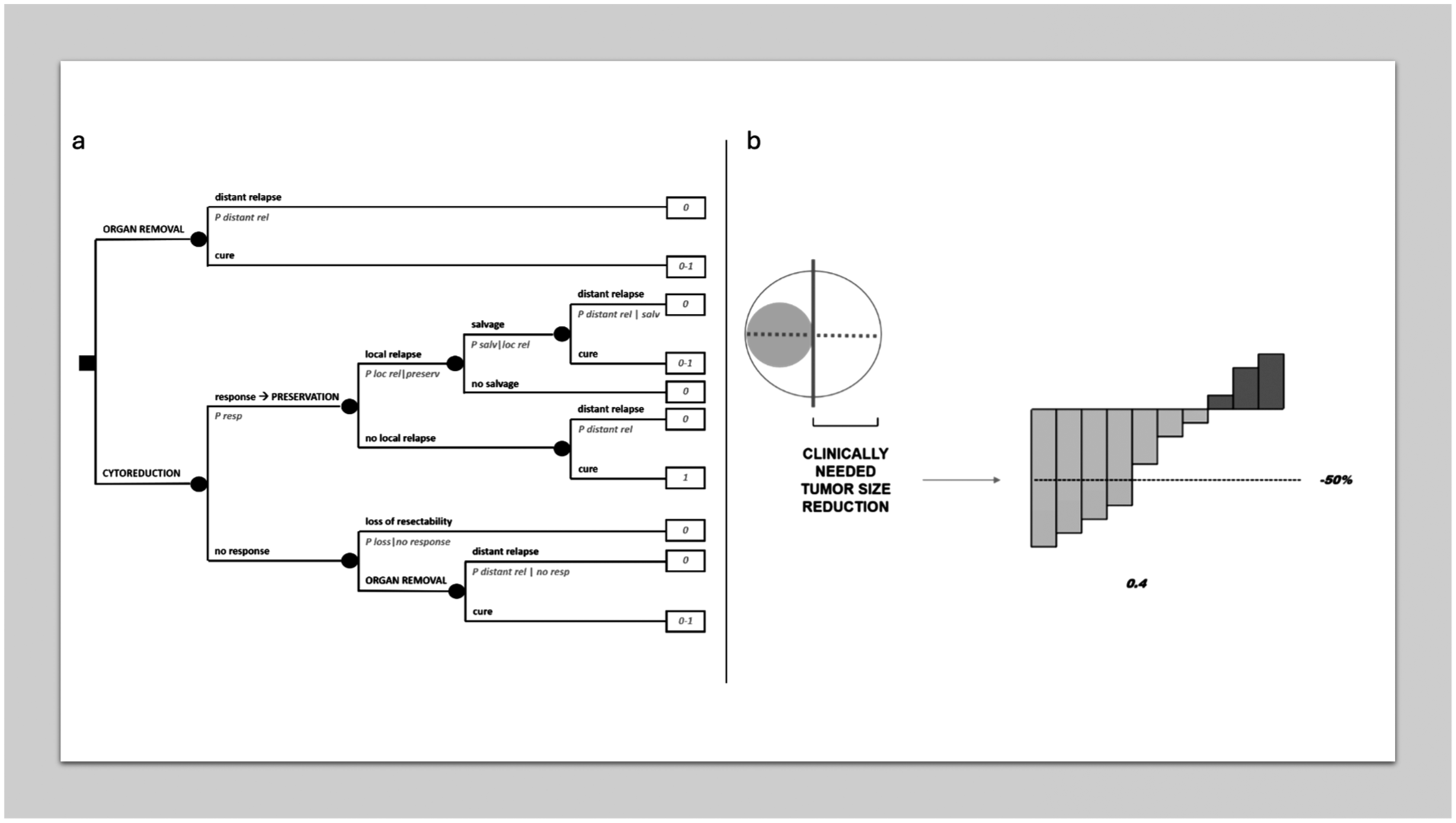

Figure 4.

MDA in cytoreductive treatment. (a) Decision tree on cytoreduction for conversion to conservative treatment. (b) Clinically relevant threshold of a tumor response.

Probabilities of achieving a cytoreduction of a sufficient degree to allow a resection, or a conservative one, may be drawn from waterfall plots often provided by clinical studies on medical therapies in cancer. For example, in the individual case it may be assumed radiologically that a 50% regression in the main tumor diameter is needed to overcome surgical constraints to resectability, and a published waterfall plot may then be exploited to draw the probability of achieving such a 50% regression (see Figure 4b, in which it would be = 0.4). Of course, there will always be a random error in measurements provided by waterfall plots. Then, these will be often available in the advanced disease setting, and the assumption will be that local disease behaves like an advanced disease. However, it is important to stress that the clinically meaningful threshold will not necessarily correspond to arbitrary thresholds used in clinical research, e.g. the RECIST criteria and the like.^20,21

More importantly, it may be difficult to quantify the risk of losing resectability in case of interval progression, although radiologically the surgeon may at least suppose that it is high, or low, or even nil. Obviously, the biological risk implied by surgical delay is much less easy to guess.

Active surveillance / watchful waiting

Some cancer presentations have an indolent natural history or at least are not due to evolve within patient’s expected life span. Thus, “active surveillance” or “watchful waiting” policies may be chosen in spite of any immediate treatment, which may carry significant side effects and/or sequelae. Prostatic cancer is a widely known example of this kind of scenario in oncology. Figure 5 models a decision between immediate treatment and active surveillance / watchful waiting, delaying treatment to when evolution, if any, becomes apparent. However, there may be the risk of some prognostic worsening if treatment is delayed, so that treatment becomes unfeasible at all. Thus, again, there may be a trade-off between quantity and quality of life.

OPEN IN VIEWER

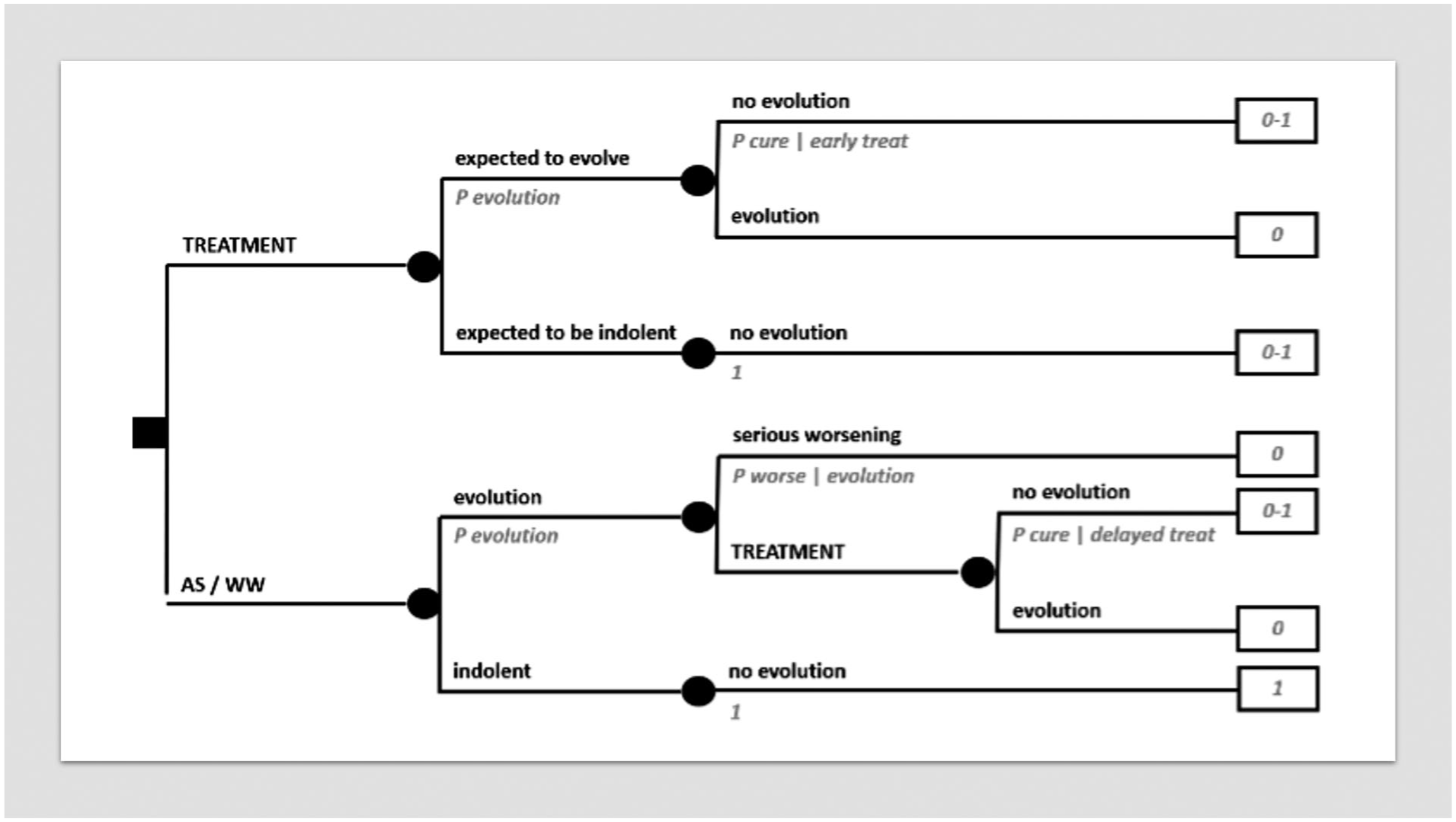

Figure 5.

Decision tree on active surveillance / watchful waiting.

The advanced disease

Advanced cancer disease may be curable in some settings, so that templates for localized curable disease may be applicable all the same.

More often, advanced disease implies metastatic spread to several organs and the lack of any treatment reasonably able to result in significant chances of cure. However, medical therapy is generally available, even with the option of several lines of medical treatment, which may be used in a step wise manner. In these cases, some kind of tumor response leading to a freedom from progression of some duration is a reasonable clinical target. In medical literature, it is often questioned to which extent tumor response and progression-free survival correlate with overall survival, giving rise to a relevant magnitude of the clinical benefit. ²² While this transcends the scope of this paper, often the problem may not be whether tumor response or absence of progression are clinically meaningful as such, but which is their duration. This said, a decision analysis as reproduced in Figure 6a may model a clinical decision in advanced cancer disease. A proportion of patients may be expected to gain some kind of what can be called a “clinical benefit” from treatment (often a medical therapy). In fact, using a median value of progression-free survival for all would fail to reflect the different experience of patients who actually “benefit” and of those who do not. Thus, the clinical benefit may be viewed as a tumor response of some degree, again not necessarily a tumor response meeting the threshold criteria used in clinical research, or it may be just an absence of progression. However, the clinician and the patient should agree, say, that in order to qualify for a clinically meaningful clinical benefit it should have a given duration. Thus, the tree simply makes a distinction between patients who “respond” in this sense and patients who do not. A choice may be to exploit freedom-from-progression curves, isolating the proportion of patients having an absence of progression for a meaningful time span, under the patient’s perspective, as in Figure 6b. This would dichotomize the progression-free survival curve, but of course the curve could also be broken down in more than two portions and be incorporated accordingly in the tree, i.e. with more than two branches, each with a probability and a time interval duration.

OPEN IN VIEWER

Figure 6.

MDA in advanced disease. (a) Decision tree on advanced disease. (b) Breaking down freedom from progression into discrete time spans.

The third option in Figure 6a corresponds to a decision as to whether “to treat or not to treat” at all (always recalling that not to treat will actually mean “best supportive care”, i.e. a treatment as well), since such a choice may be in place in some advanced cancer disease settings, especially when several lines of medical therapy have already been exploited. However, the decision-making is conceptually the same as above.

Cancer follow-up

Although the follow-up of potentially cured cancer patients today focuses on the broad spectrum of patient “survivorship” (especially incorporating all what determines long-term quality of life), and the efficacy of an early diagnosis of systemic relapse has been questioned in some tumors, many cancer patients who received potentially curative treatment undergo some kind of “regular” follow-up in clinical practice. Of course, the benefit of regular follow-up will depend on the extent to which making an earlier diagnosis of relapse impacts prognosis, and this should be demonstrated, vis-a-vis the drawbacks of intense diagnostic testing (in terms of side effects like radiation exposure, false positives, psychological distress and the like). Assuming there is a benefit, one may wonder which is the probability of picking up a relapse within a given follow-up window. Figure 7a represents a chance node combining the probability of relapse and the sensitivity and specificity of the diagnostic exam. The risk of relapse can be drawn easily from a relapse-free survival curve by selecting the planned follow-up window, as shown in Figure 7b. This could help tailor the intensity of follow-up to individual risks and preferences, though within the scope, often undefined, of the potential effectiveness of an early diagnosis of relapse.

OPEN IN VIEWER

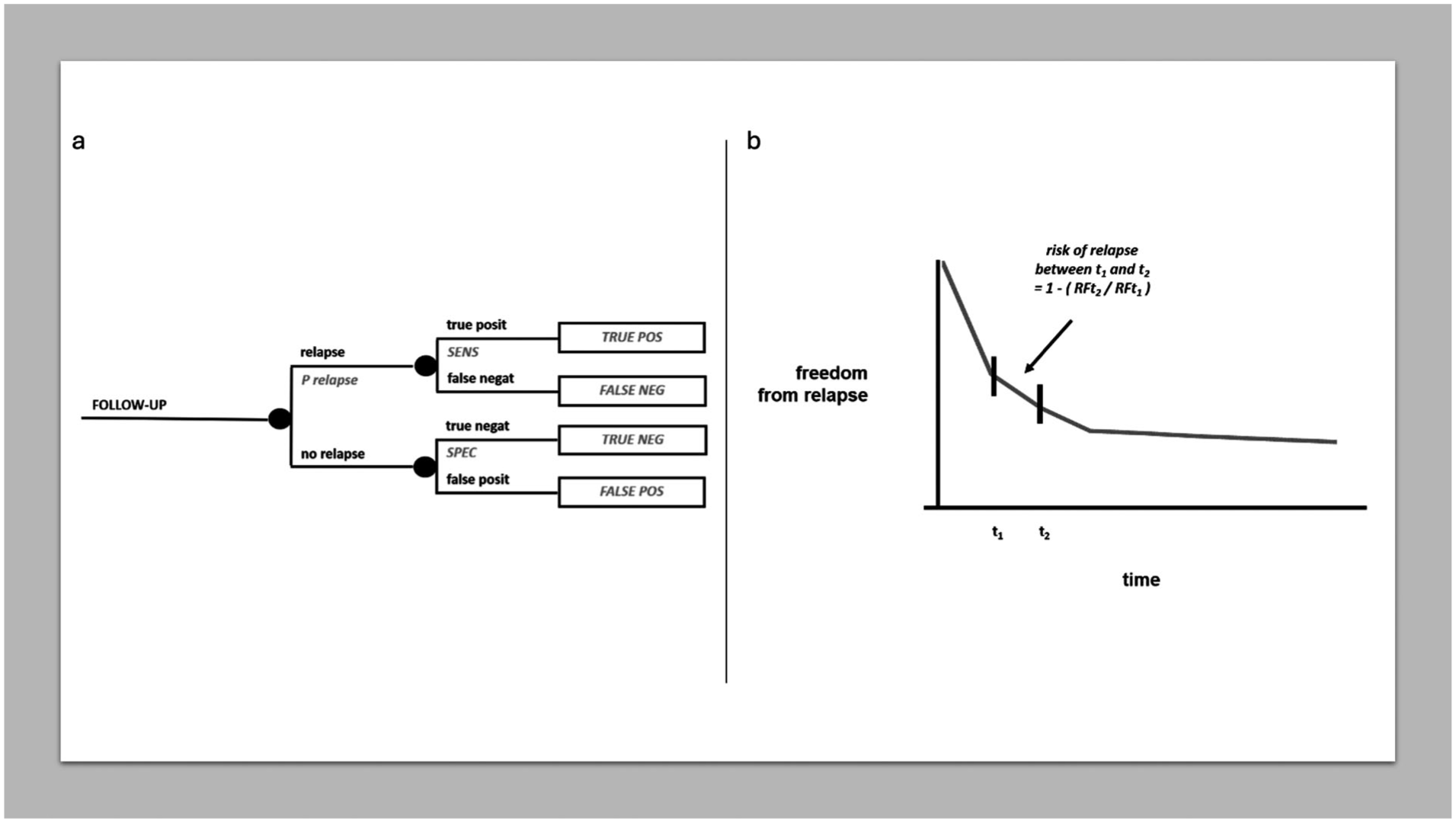

Figure 7.

MDA in follow-up. (a) Chance node on cancer follow-up. (b) Risk of relapse in a follow-up window of time.

Probabilities

Some specific difficulties in eliciting probabilities at the patient bedside have already been mentioned.

A general difficulty in principle is that medical statistics has been developed following a frequentist paradigm. Conceptually, clinical trials do not provide probability distributions of efficacy. On the other hand, the Bayesian process for drawing such probability distributions from clinical trials is conceptually clear. ²³ However, it implies a degree of subjectivity, which may be viewed as a limiting factor of all Bayesian approaches. Authors believe that this could be a reasonable price to pay at the patient bedside, where probabilities are needed. As a matter of fact, probabilities are extensively inferred by clinicians in their everyday practice from data about survival (including relapse-free and progression-free survival), tumor response, toxicity and quality of life, as reported in published studies. However, this is done empirically, in the lack of formal processes to adjust these probabilities given the variability of published studies, and their uncertainty is hardly incorporated. A special difficulty has to do with the reliability of subgroup analyses in clinical studies, which are meant to test hypotheses in the “average patient”. On the other hand, these groups are crucial to elicit probabilities specifically adapting to the individual case. Possibly, attempts could be made to complement state-of-the-art instruments, like clinical practice guidelines, with evidence-based probability distributions based on some kind of consensus within the community of experts.

This said, decision analysis at the patient bedside inevitably requires resorting to “subjective” probabilities. Practically speaking, physicians are often afraid of estimating subjective probabilities, because they feel that this would be methodologically unsound. Paradoxically, they are less afraid of making any clinical decision than to assign probabilities throughout a “formal” decision tree. It may be simple to argue that guessing a probability is much less of a commitment than making a definitive clinical decision, and that the latter will in any case be based on some kind of probabilistic reasoning, so that making it explicit can only improve the whole process. Methodological research on how to translate the results of available clinical trials into subjective probability distributions at the patient bedside could help. Medical education could try to refine the cognitive abilities of medical students in estimating sound subjective probabilities based on evidence, for example by using penalty scores and the like. ²⁴ The clinician should also come to terms with an inevitable degree of approximation (such that estimations may well be made, for example, by intervals of 0.05, save for very low probabilities, etc.). By accepting this, a physician may become more comfortable with guessing subjective probabilities and using them in MDA at the patient bedside.

Utilities

Eliciting a utility value from the individual patient through the standard-gamble method is not difficult. However, no patient would accept or refuse, for example, an amputation just because of a decision analysis maximizing expected utility, individually though utilities were elicited. More practically, a probabilistic decision analysis can provide him/her with a risk analysis. Then, the good physician will carefully accompany that patient through a difficult decision, making it a truly shared clinical decision. An expected utility analysis may be useful to the clinician as a control of the consistency of the decision shared with the patient, but our impression is that a risk analysis will be generally more useful to the patient than any utility analysis.

This said, it is hard to overestimate the conceptual importance of the notion of utility, as a value estimated by the single patient under risk. The concept should be stressed in medical education. The individual subjectivity of utilities in medical decision-making also represents a limiting factor of utility assessments made in clinical studies, since they will only reflect the “average patient” of such studies. In the end, this is a limitation of quality-of-life research in general, as far as individual clinical decision-making is concerned. ²⁵

Ethical considerations on bedside MDA

MDA is a powerful tool for the physician to improve the quality of medical decisions. However, it is the physician that builds the decision model. In a sense, it formalizes his/her clinical judgement, which may be appropriate or wrong. This is why it is always important to refer to existing “state of the art” (i.e. to clinical practice guidelines and the like). Operationally and ethically, this assures that clinical decision-making remains within the scope of standard of care.

MDA is also a powerful tool to improve patient-physician shared decision-making. This requires a competent patient. In the case of low health literacy, or, even worse, cognitive impairment and the like, shared decision-making is obviously difficult. However, this is also true when MDA is not used.

The scope of MDA at the patient bedside

One should always be aware that MDA does not discover new evidence, unlike clinical trials. In other words, one should always avoid the temptation to use the combination of probabilities gained here and there as a substitute for missing knowledge. The model of adjuvant trials is a good example. One needs a clinical trial on the effectiveness of an adjuvant treatment, and only then will be able to modulate the absolute risk reduction across different patients with a different baseline risk (though paying attention to the assumptions which this implies). On the other hand, it is true that, in the lack of knowledge, a clinical decision in the individual patient must be made “now”, so that MDA can help in any case at the individual patient bedside.

While, particularly in the area of oncology, we live at a time of what is called precision, or personalized, medicine, one must acknowledge that we lack a convincing clinical method to implement it. Certainly, clinical trials may be undertaken in more and more specific molecular subgroups of patients. However, evidence-based medicine will always be affected by the problem of the “average patient” of clinical trials. ²⁶ In principle, MDA may be viewed as a clinical method to personalize our decisions based on available evidence. There may be an apparent loss in “precision” in all this (paradoxically), but this is a reasonable price to pay at the patient bedside.

Obviously, the added value of MDA increases as long as the complexity of the decision increases. For example, the decision analysis on adjuvant therapies in Figure 3a underlies many tools often used every day by medical oncologists. However, such tools are available only for some cancers, generally not the rare ones. More important, any further variable pertaining to the single case would require a higher degree of personalization. For example, if a severe toxicity is expected from an adjuvant therapy in the single patient due to co-morbidities, it should be factored in. Figure 8 represents the same decision tree in Figure 3a with the inclusion of a potentially fatal toxicity (for obvious reasons, if it is an early death, it needs to be distinguished by risk analysis from delayed death, even when assigned the same utility of 0). This may clarify in principle how the basic templates provided in this paper can be enriched for those challenging decisions in which MDA is actually needed more, i.e. by adapting them to the variety of individual presentations. Although it is clear that MDA at the patient bedside will always entail a degree of simplification of patient’s complexity, its added value has to do with more or less complex decisions. It will be up to the clinician to model the decision problem to keep it as simple as possible while respecting its complexity. On the other hand, sometimes even a partial, non-quantitative, formalization of the decision problem by sketching a decision tree may substantially help the clinician to grasp the clinical problem and thereby to get straight to the final decision. In practice, however, this may make the difference between implementing, say, clinical practice guidelines prescribing to use adjuvant therapy and deciding not to use it in the single patient. In other words, MDA may lead the physician to rationally deviate from state of the art.

OPEN IN VIEWER

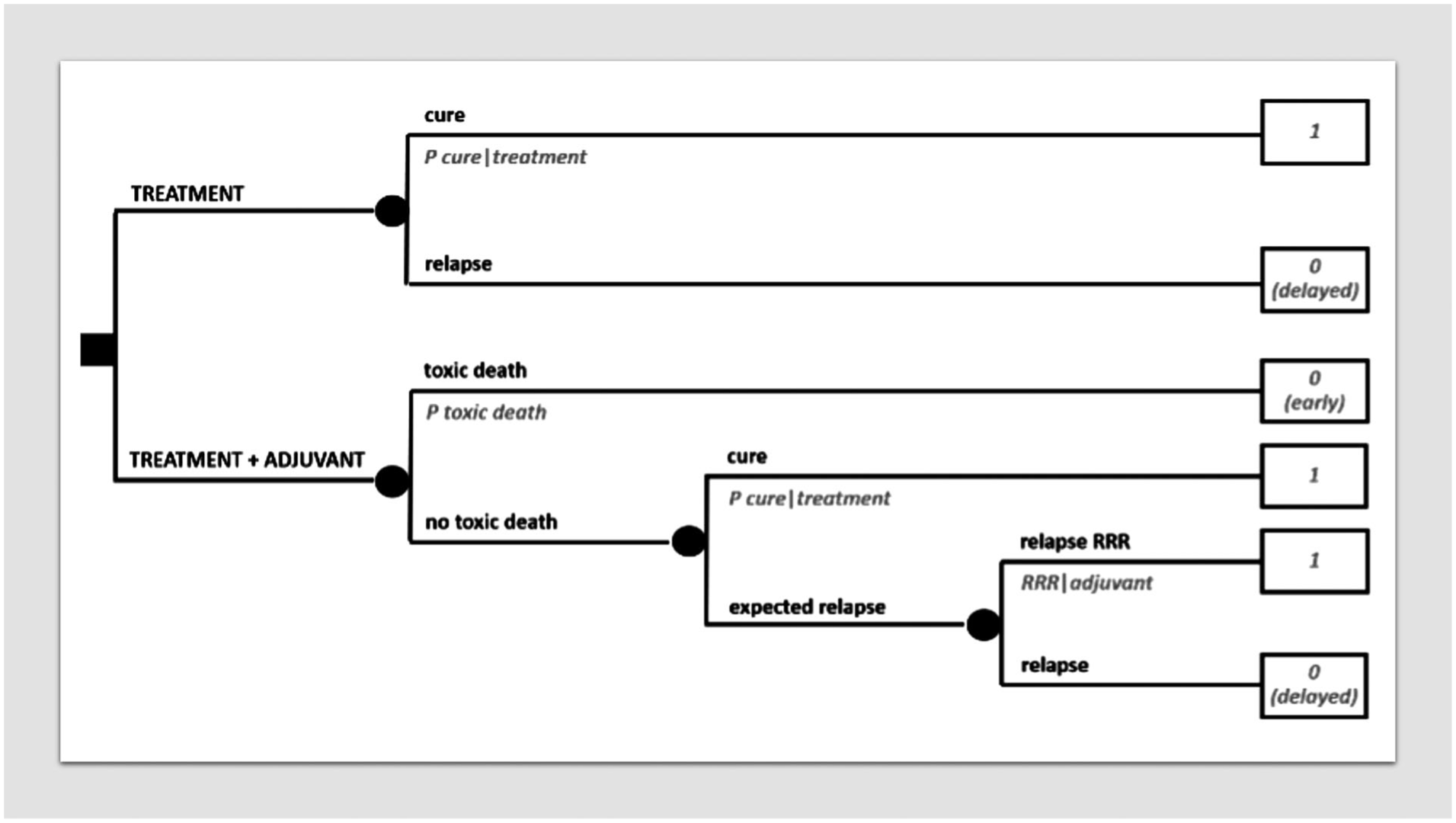

Figure 8.

Decision tree on adjuvant therapy incorporating a severe toxic risk.

If formal MDA is not needed when the number of variables is low, it is true that some confidence with its method will be useful even when mentally processing simple decisions. Likely, a physician with some knowledge of the principles of MDA will be more appropriate also in his/her intuitive clinical decision-making at the patient bedside. In other words, MDA may play a crucial role in medical education.

This said, one cannot underestimate that employing MDA at the patient bedside requires considerable time and commitment. This is why we stress the educational value of MDA, since a physician trained in MDA may be more able to rapidly get to a shared medical decision even without formally using the tool. On the other hand, software packages are available for MDA, though primarily conceived for health economics. ²⁷ Actually, we believe that there would be room for user-friendly software for medical decision-making. The incorporation of a decision-analytic logic in “clinical decision support systems” would probably help make decision analysis more available to less methodologically-skilled physicians also.

In conclusion, MDA is a rigorous, although simple, method to personalize medical decision-making at the patient bedside. Obviously, it does not build new evidence, but it may help make the most of available evidence. Again, it is just a tool to improve medical decision-making. It has a great potential in medical education to teach the method of clinical decision-making. It could also be useful in many medical decisions implying some complexity and/or a trade-off between quality and quantity of life. Hopefully, in the near future its use at the patient bedside could be fostered by means of clinical decision support systems, as long as these may choose to incorporate a decision-analytic, not just an algorithmic, logic.
