Role of Thymic Epithelial Cells in Lymphoid Depletion After Experimental Infection With the Noncytopathogenic BVDV1 Strain 7443

Materials and Methods

Experimental design was described by Raya et al ¹⁰ in 2012. Briefly, 10 Friesian calves, colostrum deprived, 8 to 12 weeks old, and clinically healthy, were obtained immediately after birth from a herd free of tuberculosis, brucellosis, bovine leucosis virus, and bovine herpesvirus-1. Antigen and antibody enzyme-linked immunosorbent assay (ELISA) was performed to confirm that they were free of BVDV. ¹⁰ Eight animals were inoculated (day 0) by intranasal instillation with 10 ml (5 ml per nostril) containing 10 ⁵ median tissue culture infective dose (TCID₅₀)/ml of ncp BVDV1 7443 (courtesy of the Institute für Virologie, TIHO, Hannover, Germany). Two control calves were housed in another barn with the same conditions, without contact with infected animals. They were inoculated by intranasal instillation of tissue culture medium and used as uninfected controls. ¹⁰ Animals were sedated with xylazine (Rompun 2% solution; Bayer Healthcare, Kiel, Germany) and euthanized in batches of 2 at 3, 6, 9, and 14 days postinoculation (dpi) by overdosing with thiopental-sodium (Thiovet; Vet Limited, Leyland, Lancashire, UK). Control calves were euthanized at 14 dpi. The experimental procedure was carried out in accordance with the Code of Practice for Housing and Care of Animals Used in Scientific Procedures, approved by the European Economic Community in 1986 (86/609/EEC amended by the directive 2003/65/EC). ¹⁰

At necropsy, 1 sample from a standardized region of the thoracic thymus was collected from each animal, fixed in 10% neutral buffered formalin, embedded in paraffin, sectioned, and processed for immunohistochemistry by the avidin-biotin-peroxidase complex method as described. ¹⁰ Details of primary antibodies used in this study, including dilutions and pretreatments, are summarized in Table 1. Mouse nonimmune serum was used in place of specific primary antibodies for negative controls. ¹⁰

OPEN IN VIEWER

Table 1.

Details of Immunohistochemical Methodology.

Primary Antibody	Antigen or Cell Detected	Dilution	Pretreatment
Monoclonal anti–human cytokeratin clone AE1/AE3a	Epithelial cells, thymic epithelial cells, Hassal’s corpuscles	1:100	Protease
Monoclonal anti–human Ki-67a	Proliferating cells	1:50	TC-microwave

^aDako, Glostrup, Denmark.

Positively labeled cells were counted in a blind manner in 20 areas of 0.2 mm² of cortex and medulla, respectively. ¹⁰ Identification of positive cells was based on their morphologic features and size. Values were given as the mean ± standard deviation. These values were evaluated for approximate normality of distribution by the Kolmogorov-Smirnov test. Differences between the means of control and inoculated animals were assessed by the Kruskal-Wallis test followed by the Mann-Whitney U nonparametric test (GraphPad Instat 3.05; GraphPad Software, San Diego, CA. P values less than .05 represented a statistically significant difference between inoculated and control animals.

For ultrastructural study, samples were processed as described ¹⁰ and examined with a Philips CM-10 transmission electron microscope (Philips, Eindhoven, The Netherlands).

Results

In the previous study, lymphoid depletion was observed in the thymic cortex from 6 dpi onward, with morphologic changes suggestive of apoptosis, confirmed by the terminal deoxynucleotidyl transferase dUTP nick end labeling (TUNEL) technique and by ultrastructural study. Virus infection was detected, from 6 to 14 dpi, in TECs, macrophages, and small numbers of lymphocytes. Lesions were more severe at 9 dpi, when the widest distribution and highest numbers of cells containing BVDV antigen were seen. ¹⁰

In this work, TECs were labeled with cytokeratin AE1/AE3 antibody (Figs. 1, 2). In control and inoculated animals at 3 dpi, cytokeratins showed strong expression in the cytoplasm of cells identified as TECs by their star shape, staining the stromal cell network. Strong staining was also observed in cells forming the Hassal’s corpuscles. From day 6, a significant decrease was noted in the number of TECs immunolabeled with this marker, both in the cortex and medulla, reaching the lowest number at 9 dpi. A slight increase in the number of marked cells was noted at 14 dpi (Fig. 5).

OPEN IN VIEWER

Figure 1. Thymus; uninfected control calf. Distribution of thymic epithelial cells labeled with AE1/AE3 antibody. Immunohistochemistry (IHC) with ABC method, counterstained with hematoxylin, 400×. Figure 2. Thymus; bovine viral diarrhea virus (BVDV)–infected calf, 6 days postinoculation (dpi). Note the decrease in thymic epithelial cells stained with AE1/AE3 antibody. IHC, counterstained with hematoxylin, 400×. Figure 3. Thymus; uninfected control calf. Distribution of proliferating cells labeled with Ki-67 antibody. IHC, counterstained with hematoxylin, 200×. Figure 4. Thymus; BVDV infected calf, 9 dpi. Proliferating cells are reduced in number in several thymic lobules. IHC, counterstained with hematoxylin, 200×.

OPEN IN VIEWER

Figure 5.

Number of cells (mean ± SD) immunolabeled with AE1/AE3 antibody in the thymic cortex and medulla of uninoculated control calves (UI) and calves inoculated with the noncytopathogenic bovine viral diarrhea virus type I strain 7443. dpi, days postinoculation. *P < .05 (between the inoculated group and controls).

OPEN IN VIEWER

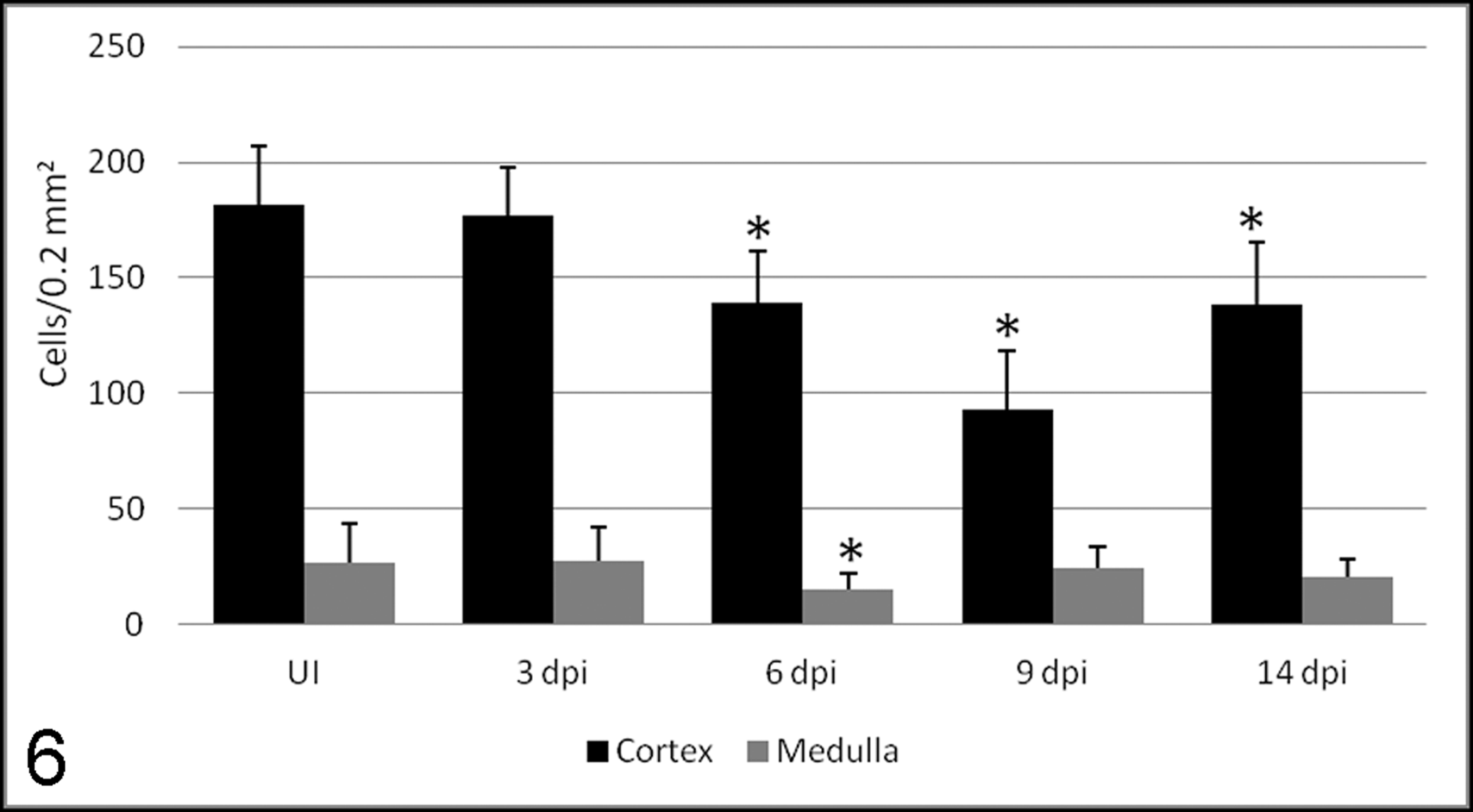

Figure 6.

Number of cells (mean ± SD) immunolabeled with Ki-67 antibody in the thymic cortex and medulla of uninoculated control calves (UI) and calves inoculated with the noncytopathogenic bovine viral diarrhea virus type I strain 7443. dpi, days postinoculation. *P < .05 (between the inoculated group and controls).

OPEN IN VIEWER

Figure 7. Thymic cortex; uninfected animal. Thymic epithelial cell showing in the cytoplasm numerous intermediate filaments and gap junctions. Transmission electron microscopy, 8900×. Figure 8. Thymic cortex; bovine viral diarrhea virus–infected calf, 6 days postinoculation. Thymic epithelial cell showing a loss of gap junctions and intermediate filaments and an intense vacuolization of the rough endoplasmic reticulum. Transmission electron microscopy, 11 500×.

Proliferation was detected by labeling for Ki-67 antigen both in control and inoculated animals (Figs. 3, 4). A moderate to strong nuclear staining reaction was present mainly in cells morphologically identified as lymphocytes, with a number of positive cells higher in the cortex than in the medulla. No statistically significant differences were observed among controls and animals euthanized at 3 dpi. A significant decrease in stained cells, mild at 6 and 14 dpi, was observed in the thymic cortex (Fig. 6). The decrease was severe at 9 dpi, coincident with the highest detection of viral antigen in TECs and macrophages ¹⁰ and the lowest cytokeratin staining in TECs.

On electron microscopy, cortical epithelial cells had elongated cytoplasmic processes connected by numerous gap junctions to adjacent cells with cytoplasmic filaments (Fig. 7). From 6 dpi, degenerative changes were apparent in TECs, particularly in the cortical zone. Cisternae of rough endoplasmic reticulum were dilated and cytoplasmic vacuoles were abundant, both containing moderately electron-dense granular material and pleomorphic membranous structures (Fig. 8). An increase in primary lysosomes and autophagosomes was also observed in these cells, together with a decrease in cytoplasmic filaments. Also, a clear reduction of lymphocyte density was seen mainly affecting the cortex.

Discussion

Our results show that thymic lymphoid depletion during BVDV1 infection is accompanied by immunohistochemical and ultrastructural changes in TECs and a decrease in proliferating lymphocytes.

TECs are target cells of BVDV. ^{1,5 –7,10} Our study shows a decrease in the number of TECs expressing cytokeratins coincident with ultrastructural changes, such as cytoplasmic vacuolization, from 6 dpi. The network of TECs plays a crucial role in differentiation and selection processes from immature to mature T cells. ⁸ This damage in TECs could cause an interference in lymphocyte maturation by 2 mechanisms.

TECs stimulate lymphocyte proliferation mainly through cytokine production such as interleukin-7. ⁸ The presence of viral antigen in TECs and the reduction in cytokeratin staining were coincident with the decrease in lymphocyte proliferation observed at 6 dpi, which could be related to a lower stimulus of TECs. This decrease in proliferating lymphocytes has also been observed during infection with a BVDV2 strain, although the number of Ki-67–positive cells was not scored in that work. ⁵

Cortical TECs are responsible for the positive selection of maturing lymphocytes, mediated by major histocompatibility complex-restricted T-cell receptors, which allow T cells to receive a protective signal. So, T lymphocytes are programmed to undergo apoptosis if they are not “rescued” by cortical epithelial cells. ⁸ Degenerative changes observed in TECs by ultrastructural study could have produced an interference with these processes and explain the increase in apoptosis observed in the thymic cortex in the first part of this work. ¹⁰

In summary, thymic lymphoid depletion during ncp BVDV1 infection is accompanied by a disturbance in TECs, which could decrease lymphocyte proliferation and increase apoptosis because of an interference with positive selection processes. More studies regarding cytokine production by TECs are necessaries to clarify this hypothesis.
