Management of a Skeletal Class II Malocclusion: An Indian Board of Orthodontics Case Report

Pre-treatment Assessment Details

Clinical Examination: Extraoral Features

Soft Tissue Assessment

Pre-treatment Occlusal Indices

Index of Orthodontic Treatment Needs (IOTN)

IOTN Dental Health Component:

Grade 4a

Increased overjet greater than 6 mm but less than or equal to 9 mm: Great need for treatment

IOTN aesthetic component:

Grade 9

Severe Need for treatment

General Radiographic Examination

Relevant Orthopantomogram (OPG) Findings: Figure 3

OPEN IN VIEWER Figure 3.

Orthopantomograms: (a) Pretreatment; (b) Post Twin Block; and (c) Post-treatment.

Pre-treatment: All permanent teeth are present except 15,25,35,45,17,27,37,47,18,12,28,38 and 48. Deciduous 5E,6E,7E,8E present. Root formation of canines is incomplete. No pathology seen. Lamina dura is intact and height of the interdental crest is normal.

Post twin block: In the post twin block panoramic radiograph, alveolar bone levels did not decrease compared to pre-treatment status, good root parallelism was achieved, interdental alveolar crest bone levels were horizontal and no significant root resorption was evident. The 17 and 27 was still erupting at this stage. All the third molars in all four quadrants had not erupted

Post-treatment: In the post-treatment panoramic radiograph, alveolar bone levels did not significantly decrease compared to pre-treatment status, good root parallelism was achieved, interdental alveolar crest bone levels were horizontal and no significant root resorption was evident. Lower third molars have not yet erupted.

Lateral Cephalogram

Pre-treatment Cephalometric Findings and Their Interpretation: Figure 4

OPEN IN VIEWER Figure 4.

Little Cephalograms (a) Pretreatment; (b) Post Twin Blog; and (c) Post-treatment.

Various cephalometric findings are described in Table 1.

OPEN IN VIEWER

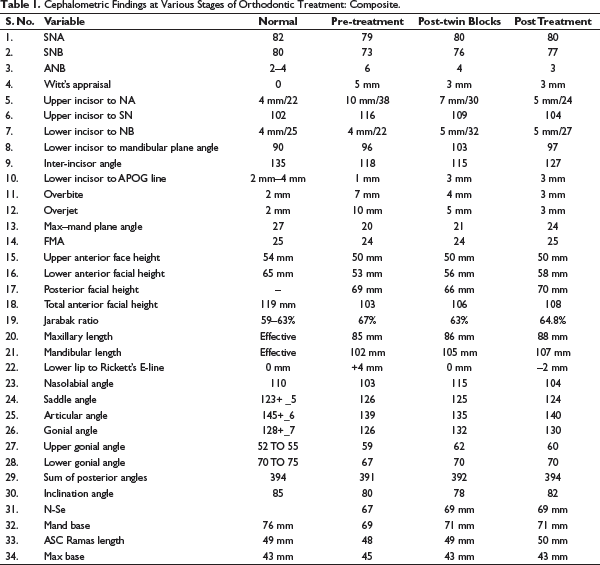

Table 1.

Cephalometric Findings at Various Stages of Orthodontic Treatment: Composite.

S. No.	Variable	Normal	Pre-treatment	Post-twin Blocks	Post Treatment
1.	SNA	82	79	80	80
2.	SNB	80	73	76	77
3.	ANB	2–4	6	4	3
4.	Witt’s appraisal	0	5 mm	3 mm	3 mm
5.	Upper incisor to NA	4 mm/22	10 mm/38	7 mm/30	5 mm/24
6.	Upper incisor to SN	102	116	109	104
7.	Lower incisor to NB	4 mm/25	4 mm/22	5 mm/32	5 mm/27
8.	Lower incisor to mandibular plane angle	90	96	103	97
9.	Inter-incisor angle	135	118	115	127
10.	Lower incisor to APOG line	2 mm–4 mm	1 mm	3 mm	3 mm
11.	Overbite	2 mm	7 mm	4 mm	3 mm
12.	Overjet	2 mm	10 mm	5 mm	3 mm
13.	Max–mand plane angle	27	20	21	24
14.	FMA	25	24	24	25
15.	Upper anterior face height	54 mm	50 mm	50 mm	50 mm
16.	Lower anterior facial height	65 mm	53 mm	56 mm	58 mm
17.	Posterior facial height	–	69 mm	66 mm	70 mm
18.	Total anterior facial height	119 mm	103	106	108
19.	Jarabak ratio	59–63%	67%	63%	64.8%
20.	Maxillary length	Effective	85 mm	86 mm	88 mm
21.	Mandibular length	Effective	102 mm	105 mm	107 mm
22.	Lower lip to Rickett’s E-line	0 mm	+4 mm	0 mm	–2 mm
23.	Nasolabial angle	110	103	115	104
24.	Saddle angle	123+ _5	126	125	124
25.	Articular angle	145+_6	139	135	140
26.	Gonial angle	128+_7	126	132	130
27.	Upper gonial angle	52 TO 55	59	62	60
28.	Lower gonial angle	70 TO 75	67	70	70
29.	Sum of posterior angles	394	391	392	394
30.	Inclination angle	85	80	78	82
31.	N-Se		67	69 mm	69 mm
32.	Mand base	76 mm	69	71 mm	71 mm
33.	ASC Ramas length	49 mm	48	49 mm	50 mm
34.	Max base	43 mm	45	43 mm	43 mm

The sagittal relationship was towards Class II malocclusion on account of retro positioned mandible. The upper incisors were placed forwardly and the inclinations were also severely increased. The overjet and overbite were increased. The lower lip was procumbent leading to a convex profile with potentially incompetent lips.

Diagnostic Summary

A.S, an 11-year-old female, the patient presented with an end on molar relation bilaterally on an underlying Class II skeletal base on account of a retro positioned mandible as confirmed with SNB of 73°. She had a normal mandibular plane angle, saddle angle, articular, lower gonial angle in a growing patient, she was in her CS3 stage of the CVMI index. She had upper and lower deciduous second molars present in all four quadrants. It was also noted that the upper midline had shifted to the right and the upper canines were partially erupted bilaterally. She had a convex profile with potentially incompetent lips.

Problem List

Aims and Objectives of Treatment

Treatment Plan

On examination of relevant records, it was found that AS had Class II end on molar bilaterally on a Class II skeletal base on account of retro positioned mandible and normal maxilla as revealed by her reduced SNB of 73°. She had a normal mandibular plane angle, saddle angle, articular, lower gonial angle in a growing patient with CS3 stage in the CVMI index all parameters contusive for growth modulation with functional appliance. Since she had a retro positioned mandible it was planned to treat with two-phase treatment, first being the myofunctional phase for correction of skeletal dysplasia and second being the fixed mechanotherapy phase to achieve a stable and harmonious occlusion with proper interdigitation of the buccal segment. The myofunctional of choice in her case was the Twin Block Appliance since twin block from day 1 will bring the mandible forward which will aid in fully expressing the remaining growth left in the patient. Twin Block Appliances will also be easy to trim in order to facilitate the exfoliation of deciduous and guide the permanent teeth into occlusion. In the fixed mechanotherapy phase, the appliance planned was .022 slot metal braces with MBT prescription in order to correct the increased upper inclination prescription will provide adequate torque and tip which will help in achieving stable results.

Appliance: Figure 5

OPEN IN VIEWER Figure 5.

Twin Blocks Photographs.

Phase 1: Twin Block Appliance

Phase 2: Maxillary and mandibular fixed appliances. The appliance used was 0.022’’slot, MBT prescription metal Pre-adjusted Edgewise Appliance.

Treatment Progress

Key Stages in Treatment Progress

Post-twin Block Cephalometric Findings and Their Interpretation

Post Twin Block there was a good amount of improvement seen in the position of mandible (SNB 77) and also there was improvement in the inclination of upper anterior teeth. The lower incisor had proclined a little but was well within the normal range. The soft tissue profile became straight with a remarkable change seen in the nasolabial angle and E-line.

Occlusal Features

Post Treatment Cephalometric Interpretation

The sagittal position of mandible and effective Mandibular length increased over the treatment period. Upper incisors inclination improved remarkably and lower incisors moved slightly forward leading to optimal overjet and overbite. Anterior crossbite was corrected. Nasolabial angle was average. The position of lower lip significantly improved during the treatment which helped in an improvement in facial profile, good maxillary incisor exposure, enhanced smile arch, smile esthetics, and improved facial balance Comparison of pre-treatment, post expansion, and posttreatment results showed a clinical improvement in soft tissue profile, normal overbite and overjet.

Results Achieved Include

The case was selected as per Category II of the IBO case requirements which is skeletal and dental Class II malocclusion with ANB angle greater than 5 degrees, case should exhibit efforts taken to correct the sagittal discrepancy non-surgically (with orthopedic and orthodontic treatment). The Twin Block Appliance facilitated the forward posturing of the mandible allowing it to express its full growth potential, thereby significantly improving the skeletal Class II jaw relationship and Class II molar relationships with significant orthopedic changes. The molar and incisor relationships were corrected partly by skeletal changes and partly by dentoalveolar changes. The functional aspects of the occlusion achieved were acceptable. The fixed appliance therapy helped in achieving good incisor inclinations and a well-balanced occlusion. We were able to achieve all the treatment objectives we had planned at the time of the start of treatment. The facial soft tissue features showed a substantial improvement, with appreciable improvement in profile convexity and lip competency.

Retention

The lower anterior was bonded with lingual retainer and removable wrap-around retainers for the upper and lower arches. She was advised full-time removable retainer wear for the first 10 to 12 months followed by part-time wear at night for the next 12 months and then it could be gradually weaned off.
