Influence of carbon on thermal deformation behaviour and deformation/diffusion mechanism of V-microalloyed steel by physical constitutive analysis

Abstract

Hot compression tests of low carbon (0.055C) and medium carbon (0.37C) V-microalloyed steels were carried out in the temperature of 900∼1100 C° and strain rate of 0.005∼10 s^–1. The influence of carbon on thermal deformation behaviour and deformation/diffusion mechanism of V-microalloyed steel was studied by three physical constitutive models based on creep theory. It is found that the increase of carbon content has softening effect at low strain rate, but hardening effect at high strain rate. Different carbon content may lead to changes in deformation/diffusion mechanism of V-microalloyed steel. The deformation mechanism of 0.37C steel is dislocation climb, while other deformation mechanism may appear in 0.055C steel. The diffusion mechanism of 0.055C steel is mainly lattice diffusion, while that of 0.37C steel is a synergistic mechanism of lattice diffusion and grain boundary diffusion. The accuracy analysis of the models is consistent with the inferred results of deformation/diffusion mechanism.

Keywords

V-microalloyed steel hot compression influence of carbon physical constitutive model deformation/diffusion mechanism

Introduction

V-microalloyed steel is widely used in petroleum, automobile and other machinery industries. Through controlled rolling, good comprehensive properties such as strength, toughness, formability and weldability can be obtained at a lower cost.¹ The flow stress is one of the basic properties of V-microalloyed steel during thermal deformation, which is important not only in the formulation of hot working process but also in the study of hot working theory. Therefore, it is of great significance to study the variation of flow stress and to establish the constitutive model of V-microalloyed steel during high temperature deformation.

Chemical composition is one of the most important factors affecting the flow stress of steels, and carbon is an essential element in V-microalloyed steel. However, most of the current research on the influence of carbon on hot flow stress is about plain carbon steels, few reports are focused on microalloyed steels, and no unified conclusion has been reached. Table 1 lists the results reported in the literature. The softening effect of carbon (reducing stress)^2–8 and hardening effect of carbon (increasing stress)^9,10 have been reported, while other studies have shown that the effect of carbon is variable (softening effect at high temperature and low strain rate, while hardening effect at low temperature and high strain rate)^11–15 or the effect of carbon is not observed.¹⁶

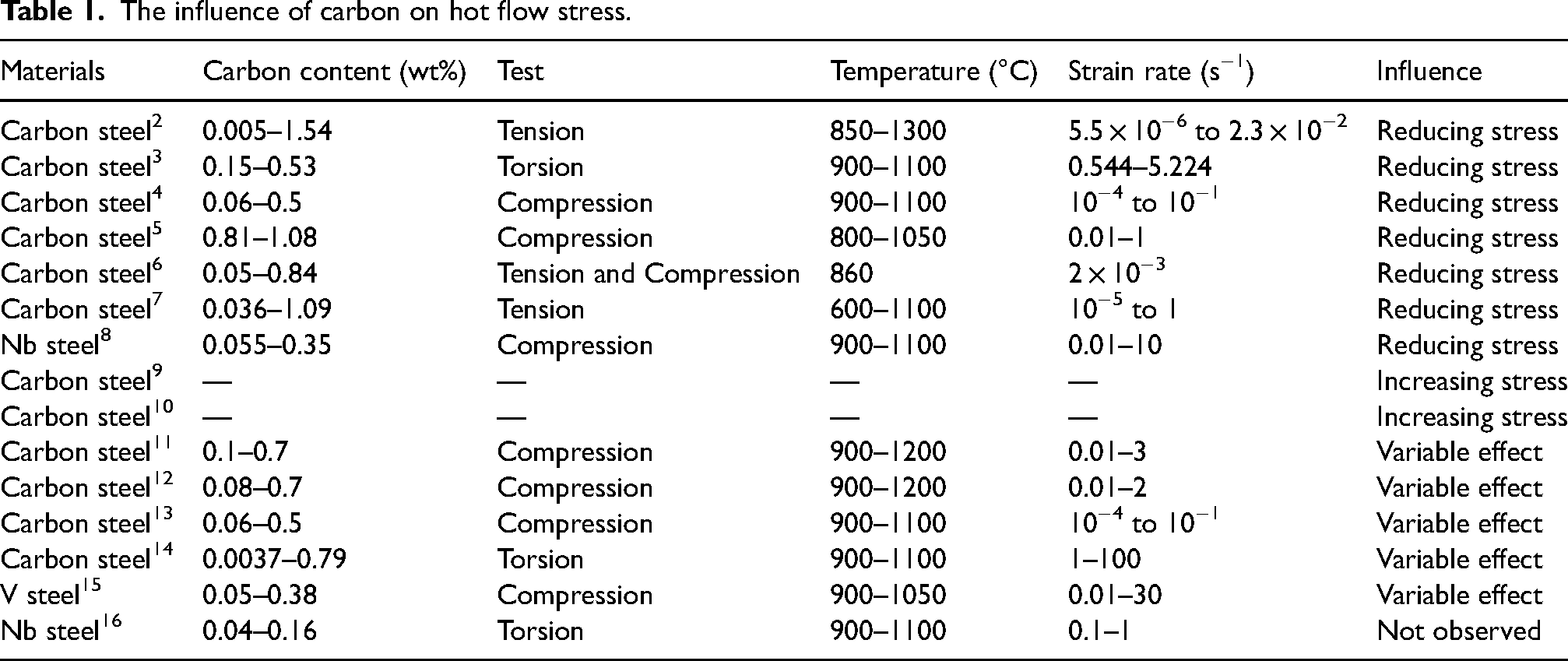

Table 1.

The influence of carbon on hot flow stress.

Materials	Carbon content (wt%)	Test	Temperature (°C)	Strain rate (s⁻¹)	Influence
Carbon steel²	0.005–1.54	Tension	850–1300	5.5 × 10⁻⁶ to 2.3 × 10⁻²	Reducing stress
Carbon steel³	0.15–0.53	Torsion	900–1100	0.544–5.224	Reducing stress
Carbon steel⁴	0.06–0.5	Compression	900–1100	10⁻⁴ to 10⁻¹	Reducing stress
Carbon steel⁵	0.81–1.08	Compression	800–1050	0.01–1	Reducing stress
Carbon steel⁶	0.05–0.84	Tension and Compression	860	2 × 10⁻³	Reducing stress
Carbon steel⁷	0.036–1.09	Tension	600–1100	10⁻⁵ to 1	Reducing stress
Nb steel⁸	0.055–0.35	Compression	900–1100	0.01–10	Reducing stress
Carbon steel⁹	—	—	—	—	Increasing stress
Carbon steel¹⁰	—	—	—	—	Increasing stress
Carbon steel¹¹	0.1–0.7	Compression	900–1200	0.01–3	Variable effect
Carbon steel¹²	0.08–0.7	Compression	900–1200	0.01–2	Variable effect
Carbon steel¹³	0.06–0.5	Compression	900–1100	10⁻⁴ to 10⁻¹	Variable effect
Carbon steel¹⁴	0.0037–0.79	Torsion	900–1100	1–100	Variable effect
V steel¹⁵	0.05–0.38	Compression	900–1050	0.01–30	Variable effect
Nb steel¹⁶	0.04–0.16	Torsion	900–1100	0.1–1	Not observed

The constitutive model generally includes phenomenological model and physical model. Table 2 lists some commonly used constitutive models, and the description of the material constants in the models can refer to the corresponding literature. The Arrhenius model¹⁷ and the Johnson–Cook (J–C) model¹⁸ have been successfully applied to describe the thermal deformation behaviour of various materials. However, as phenomenological models, they have little metallurgical meaning and cannot reflect the microstructure evolution. Therefore, different physical constitutive models have emerged, such as Zerillii–Armstrong (Z–A) model,¹⁹ model considering dynamic recrystallisation (DRX) and dynamic recovery (DRV) mechanism,^20,21 model considering dislocation density,²² etc. These models consider the microscopic mechanism of the material and contain quite a few material constants, so the calculation is relatively complicated. The physical constitutive model based on creep theory (Equation (1)) contains fewer material constants and has been successfully applied to stainless steel, plain carbon steel, aluminium alloy and magnesium alloy.^23–29 Moreover, related researches have shown that it can be used to analyse the deformation and diffusion mechanisms of materials.^30–33

\frac{\dot{ε}}{D (T)} = B {(\sinh (\frac{α σ}{E (T)}))}^{5}

(1)

where

\dot{ε}

is the strain rate (s⁻¹), σ is the flow stress (MPa), B and α are the material constants, D(T) and E(T) are the self-diffusion coefficient and Young's modulus at different temperatures, respectively.

Table 2.

Some of the commonly used constitutive models.

Constitutive models	Model descriptions	Main characteristics
Arrhenius model¹⁷	$\dot{ε} = A f (σ) \exp (\frac{- Q}{R T})$	Phenomenological models with little metallurgical significance
J–C model¹⁸	$σ = (A + B ε^{n}) (1 + C \ln \dot{ε} ) (1 - T ^{m})$
Z–A model¹⁹	$\begin{aligned} σ = C_{0} + C_{1} \exp (- C_{3} T + C_{4} T \ln \dot{ε}) + C_{5} ε^{n} for BCC \\ σ = C_{0} + C_{2} ε^{1 / 2} \exp (- C_{3} T + C_{4} T \ln \dot{ε}) for FCC \end{aligned}$	Physical models considering microscopic mechanism but with quite a few material constants
Model considering DRV and DRX mechanism^20,21	$\begin{aligned} σ = σ_{rec} = [σ_{sat}^{2} + (σ_{0}^{2} - σ_{sat}^{2}) e^{- Ω ε}]^{0.5} (ε \leq ε_{c}) \\ σ = σ_{rec} - (σ_{sat} - σ_{ss}) X_{drx} (ε \geq ε_{c}) \end{aligned}$
Model considering dislocation density²²	$Δ ρ_{i} = \frac{M}{b} \frac{\sqrt{ρ_{i}}}{k_{w}} Δ ε - f_{v} ρ_{i} Δ ε$ $Δ σ_{i} = \frac{d σ_{i}}{d ρ_{i}} Δ ρ_{i} = (\frac{1}{2} α M μ b ρ_{i}^{- 1 / 2}) Δ ρ_{i}$
Model based on creep theory²³	$\frac{\dot{ε}}{D (T)} = B {(\sinh (\frac{α σ}{E (T)}))}^{5}$	Physical model with fewer material constants

At present, the influence of carbon on thermal deformation behaviour of V-microalloyed steel based on physical constitutive analysis has not been reported, nor has the influence of carbon on deformation/diffusion mechanism of V-microalloyed steel been studied. In this paper, the peak stress constitutive models and strain compensation constitutive models of low carbon and medium carbon V-microalloyed steels are studied and the influence of carbon on deformation/diffusion mechanism is discussed.

Experimental materials and methods

Table 3 shows the chemical composition of V-microalloyed steels. The steels were melted and casted into 50 kg ingots in vacuum induction furnace, and the ingots were hot forged into bars with a diameter of 20 mm, then the steels were heated to 900 °C, held for 30 min followed by air-cooling in order to refine the grains and homogenise the microstructure.

Table 3.

The chemical composition of V-microalloyed steels (wt.%).

C	Mn	Si	V	N	P	S	Al	Fe
0.055	1.45	0.38	0.08	0.0073	0.0057	0.003	0.001	Bal.
0.37	1.46	0.38	0.089	0.0071	0.0058	0.0042	0.001	Bal.

The hot compression experiment of the experimental steels was carried out on a Gleeble-1500 thermal simulation testing machine, and the hot compression specimen was a cylinder of Ф8 × 15 mm. Before compression, the sample was heated to 1150 °C at a rate of 10 °C/s, kept for 5 min, and then cooled to the deformation temperature at a rate of 10 °C/s. The temperature range of thermal compression deformation was 900 to 1100 °C, with an interval of 50 °C, held at the deformation temperature for 30 s, and then the specimens were compressed to 60% engineering strain at strain rates of 0.01, 0.1, 1 and 10 s⁻¹, respectively. After compression, the specimens were water-cooled to room temperature immediately.

Results and discussion

The influence of carbon on stress and strain

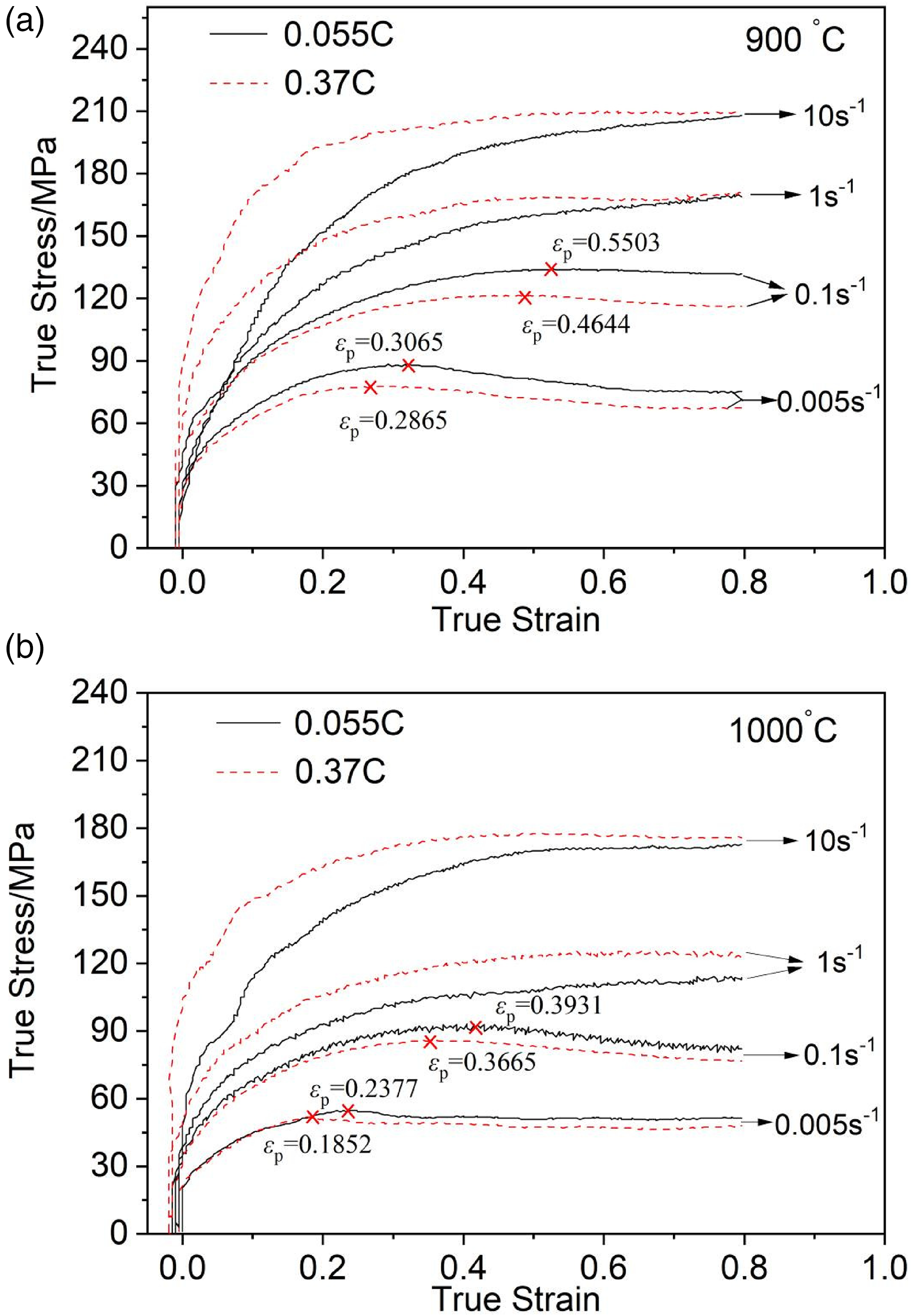

Figure 1 shows the hot compression stress–strain curves of 0.055C steel and 0.37C steel at 900 and 1000 °C with four different strain rates. At lower strain rates (0.005 and 0.1 s⁻¹), the stress rises to the peak and then softens to a stable state, and the shape of the curve is a DRX curve. At this time, 0.055C steel has higher flow stress than 0.37C steel. However, the peak value on the stress–strain curve disappears at higher strain rates (1 and 10 s⁻¹), and the curve is a DRV curve. In this case, 0.37C steel has higher flow stress than 0.055C steel. Therefore, it can be inferred that the influence of carbon on flow stress is variable, with softening effect at low strain rate and hardening effect at high strain rate.

Figure 1.

The stress–strain curves of V-microalloyed steels: (a) 900 °C; (b) 1000 °C.

The peak stress (σ_p) of 0.055C and 0.37C steels was calculated by selecting the curve with obvious unimodal DRX characteristics, and the results are shown in Table 4. The data clearly show that the peak stress increases with increasing strain rate and decreases with increasing deformation temperature, and 0.055C steel has higher peak stress than 0.37C steel when deformed under the same condition.

Table 4.

The peak stress of 0.055C steel and 0.37C steel (MPa).

T (°C) $\dot{ε}$ (s⁻¹)	900		950		1000		1050		1100
T (°C) $\dot{ε}$ (s⁻¹)	0.055C	0.37C	0.055C	0.37C	0.055C	0.37C	0.055C	0.37C	0.055C	0.37C
0.005	87.894	77.969	64.181	68.816	54.285	51.115	47.117	46.49	39.897	36.145
0.1	133.947	121.408	112.798	102.026	91.732	85.553	73.75	71.925	60.501	60.479
1	–	168.601	–	147.154	–	124.321	–	108.326	–	89.21

The peak strain (ε_p) is an important parameter, which can be used as a reference to predict whether DRX occurs. The curves at lower strain rates (0.005 and 0.1 s⁻¹) have obvious unimodal DRX characteristics, marking the peak points and peak strain values in Figure 1. It is seen that 0.055C steel has higher peak strain than 0.37C steel under the same condition, indicating that the increase of carbon content promotes the occurrence of DRX. Consistent with this, several works have also shown that the addition of interstitial atoms such as carbon and boron can promote the initiation of DRX.^34–36

As for the mechanism of carbon softening at lower strain rates, the current view is mainly related to diffusion. Sherby³⁷ suggested that the change in creep strength was related to the increase in iron self-diffusivity with increasing carbon content. The increase of self-diffusivity indicates that the bonds between atoms become weaker, and indeed, the austenite-iron lattice expands with the addition of carbon.³⁸ It is concluded that the hot deformation of carbon steel in γ phase is controlled by DRX process assisted by vacancy diffusion and σ_p decreases with the addition of carbon, the solution softening effect is caused by the increase of vacancy diffusivity and the enhancement of DRX process when carbon is added to γ phase.⁷ Carbon is an interstitial atom in iron and has a high diffusivity, so it has little effect on high temperature dislocation behaviour, but increasing carbon content increases carbon diffusivity in iron, which may reduce any dislocation drag effect.⁵ Wray¹ confirmed that the accelerated diffusion of iron in austenite led to a decrease in flow stress with increasing carbon content. Serajzadeh et al.¹² attributed the promoting effect of carbon on DRX to the increase of carbon diffusion rate in austenite. Due to the influence of carbon on lattice expansion, the self-diffusion rate of steel is increased, and thus the DRX rate and recovery rate in the diffusion control process are increased. Therefore, the increase of carbon content contributes to the diffusion process and promotes the DRX progress controlled by diffusion.

However, it can be seen from Figure 1 that when the strain rate increased to 1 and 10 s⁻¹, 0.37C steel has higher flow stress than 0.055C steel, indicating that carbon has hardening effect at higher strain rates. Under these conditions, the addition of carbon can reduce the stacking fault energy (SFE) of the material,³⁹ thus reducing the dislocation mobility and DRV rate, resulting in increased stress.

Physical constitutive model considering lattice diffusion mechanism

The self-diffusion coefficient and Young's modulus of the material can be written as:

D (T) = D_{0} \exp (\frac{- Q_{sd}}{R T})

(2)

E (T) = E_{0} (1 + \frac{T_{m}}{G_{0}} \frac{d G}{d T} \frac{(T - 300)}{T_{m}})

(3)

where T is temperature, R is universal gas constant, D₀ is self-diffusion constant, Q_sd is self-diffusion activation energy, G is shear modulus, E₀ and G₀ are Young's modulus and shear modulus at 300 K, and T_m is the melting point, respectively.

Usually, D(T) is set as the lattice diffusion coefficient. In this case, only the lattice diffusion mechanism of the material is considered, then:

D (T) = D_{L} (T) = D_{0, L} \exp (\frac{- Q_{L}}{R T})

(4)

where D_L(T) is lattice diffusion coefficient, D_0,L is lattice diffusion constant and Q_L is lattice diffusion activation energy.

Table 5 shows various parameters of γ-iron in the above equations,⁴⁰ γ-iron is similar to the V-microalloyed steels, so the γ-iron parameters are used to obtain D(T) and E(T).

D (T) = D_{L} (T) = 1.8 \times 10^{- 5} \exp (\frac{- 270, 000}{R T})

(5)

E (T) = 2.16 \times 10^{5} (1 - 0.91 \frac{(T - 300)}{1810})

(6)

Table 5.

Material parameters of γ-iron.⁴⁰

D_0,L/(m²/s)	Q_L/(kJ/mol)	E₀/(MPa)	T_m/(K)	$\frac{T_{m}}{G_{0}} \frac{d G}{d T}$
1.8 × 10⁻⁵	270	2.16 × 10⁵	1810	−0.91

Physical constitutive model including exponential 5

Equation (1) is a physical constitutive equation including exponential 5, and the unknown parameters B and α in Equation (1) need to be determined. Using the linear regression method, Equations (7) and (8) are introduced, and σ_p is selected for analysis.

\frac{\dot{ε}}{D (T)} = B_{1} {(\frac{σ_{p}}{E (T)})}^{{n^{'}}_{1}}

(7)

\frac{\dot{ε}}{D (T)} = B_{2} \exp (\frac{β^{'} σ_{p}}{E (T)})

(8)

where B₁, B₂,

n_{1}^{'}

and

β^{'}

are material constants.

According to the above two equations, $n_{1}^{'}$ can be considered as the slope of the line $\ln (\dot{ε} / D (T))$ versus $\ln (σ_{p} / E (T))$ , $β^{'}$ is the slope of the line $\ln (\dot{ε} / D (T))$ versus $σ_{p} / E (T)$ , so it is calculated by the linear regression method. Figure 2 shows the linear regression results of the experimental data. According to $α = β^{'} / n_{1}^{'}$ , the α values of 0.055C steel and 0.37C steel are 1424.787 and 1282.154, respectively.

Figure 2.

Experimental data and linear regression plots: (a) $\ln (\dot{ε} / D (T))$ v $\ln (σ_{p} / E (T))$ ; (b) $\ln (\dot{ε} / D (T))$ v $σ_{p} / E (T)$ .

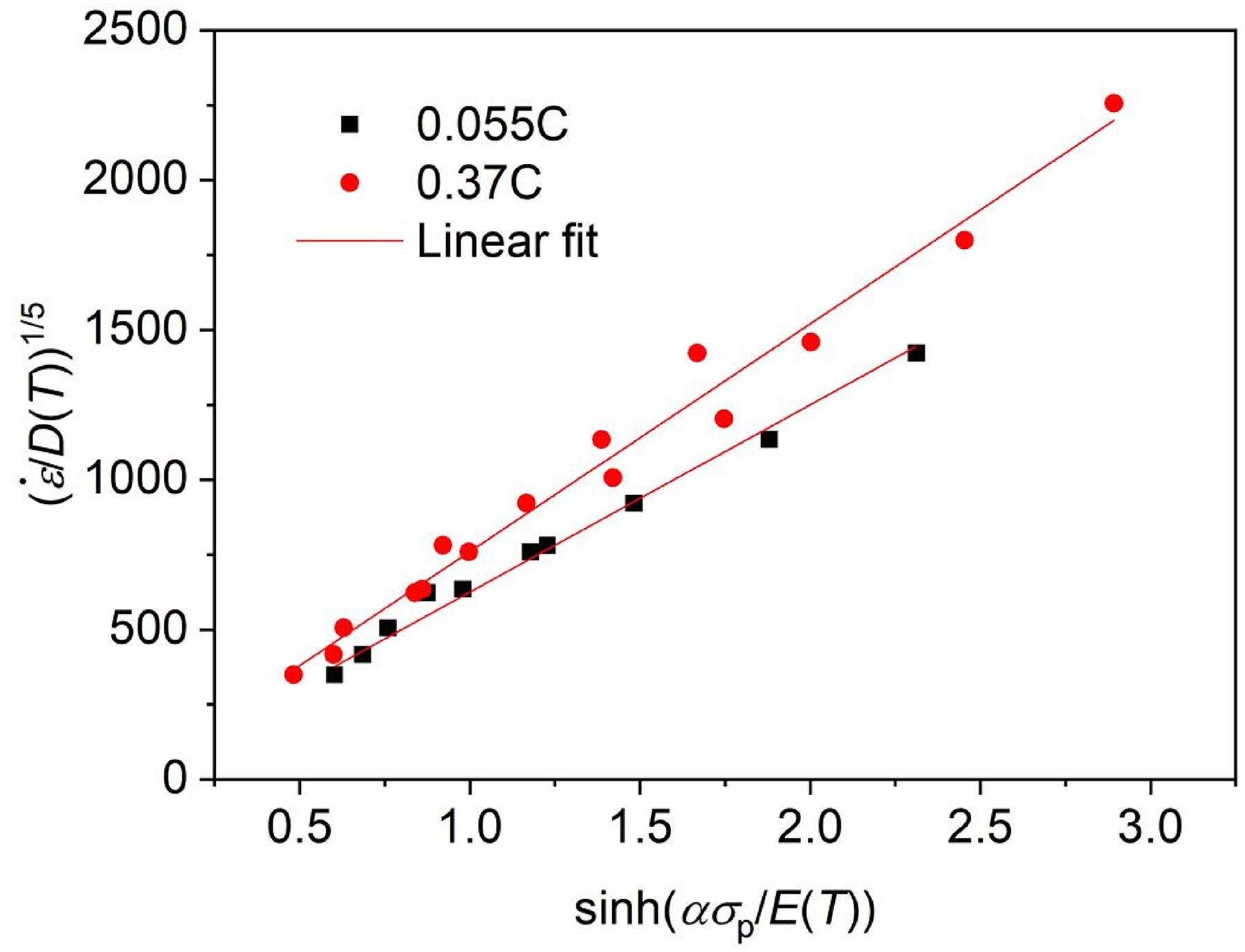

Transform Equation (1) into $(\dot{ε} / D (T))^{1 / 5} = B^{1 / 5} (\sinh (α σ / E (T)))$ , as a result, B^1/5 is regarded as the slope of the line $(\dot{ε} / D (T))^{1 / 5}$ versus $\sinh (α σ_{p} / E (T))$ , which can be fitted linearly, and the intercept of the fitted line is set to be 0, as shown in Figure 3. After analysis, B^1/5 = 625.1564 of 0.055C steel and B^1/5 = 760.1979 of 0.37C steel.

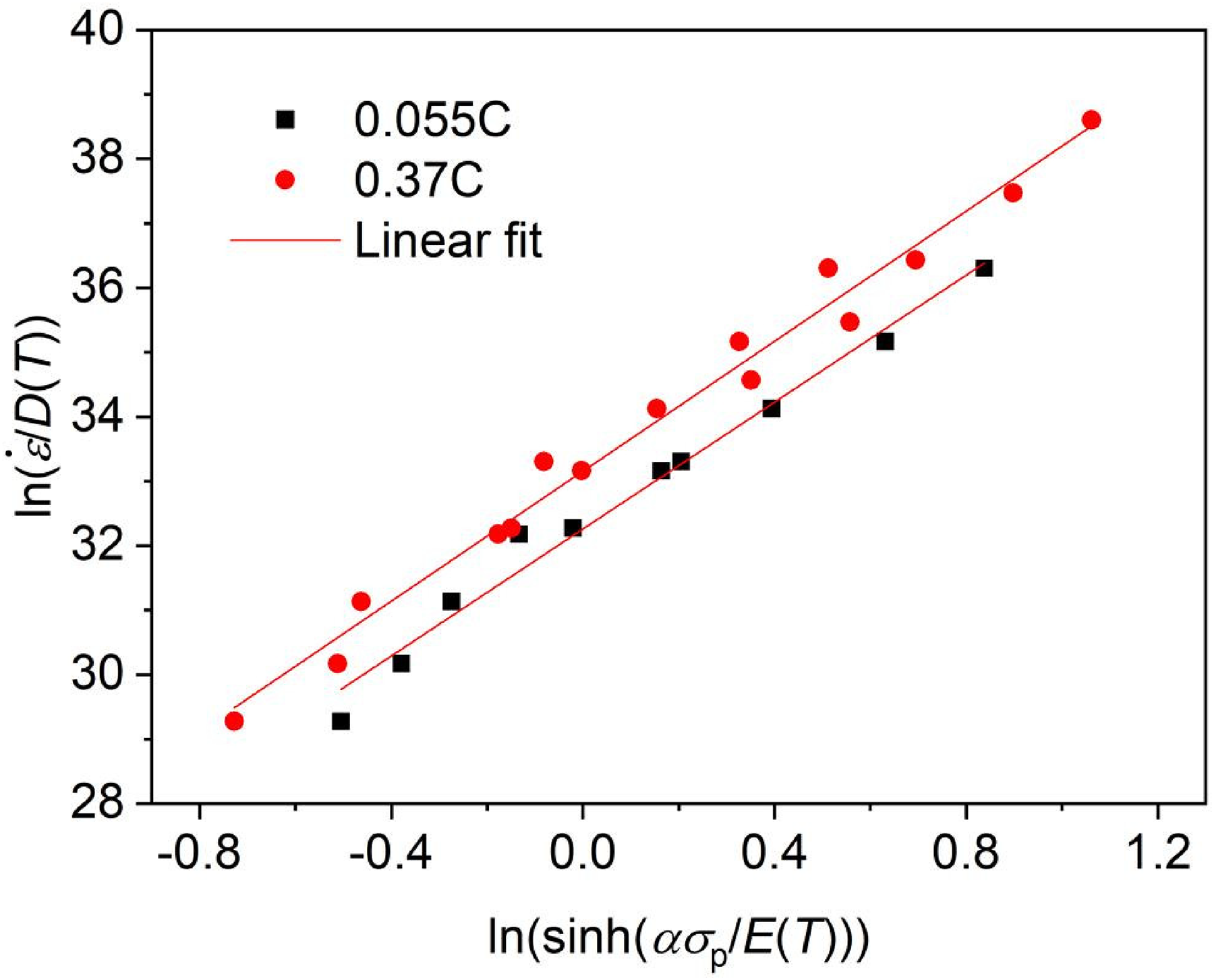

Figure 3.

Experimental data and linear regression plots: $(\dot{ε} / D (T))^{1 / 5}$ v $\sinh (α σ_{p} / E (T))$ .

The peak stress constitutive equations of the experimental steels are as follows:

0 .055 C steel : \dot{ε} \exp (\frac{270000}{R T}) = 9.54868 \times 1 0^{13} {(\sinh (\frac{1424.787 \times σ_{p}}{E (T)}))}^{5}

(9)

0 .37 C steel : \dot{ε} \exp (\frac{270000}{R T}) = 2.53883 \times 1 0^{14} {(\sinh (\frac{1282.154 \times σ_{p}}{E (T)}))}^{5}

(10)

Moreover, in order to investigate the ability of the physical constitutive equation to predict the stress–strain curve, it is necessary to establish the strain compensation constitutive equation. The method is to introduce true strain ε into the equation, select the stresses under 16 strains ranging from 0.05 to 0.8 with an interval of 0.05, and then determine the unknown parameters in the constitutive equation according to the linear regression method mentioned above. The relationship between the parameters α, lnB and the true strain ε is fitted by polynomials, and the sixth-order polynomial (Equation (11)) can well represent the relationship, as shown in Figure 4. The obtained coefficients of the polynomial function are listed in Table 6.

\begin{aligned} α (ε) = a_{0} + a_{1} ε + a_{2} ε^{2} + a_{3} ε^{3} + a_{4} ε^{4} + a_{5} ε^{5} + a_{6} ε^{6} \\ \ln B (ε) = b_{0} + b_{1} ε + b_{2} ε^{2} + b_{3} ε^{3} + b_{4} ε^{4} + b_{5} ε^{5} + b_{6} ε^{6} \end{aligned}

(11)

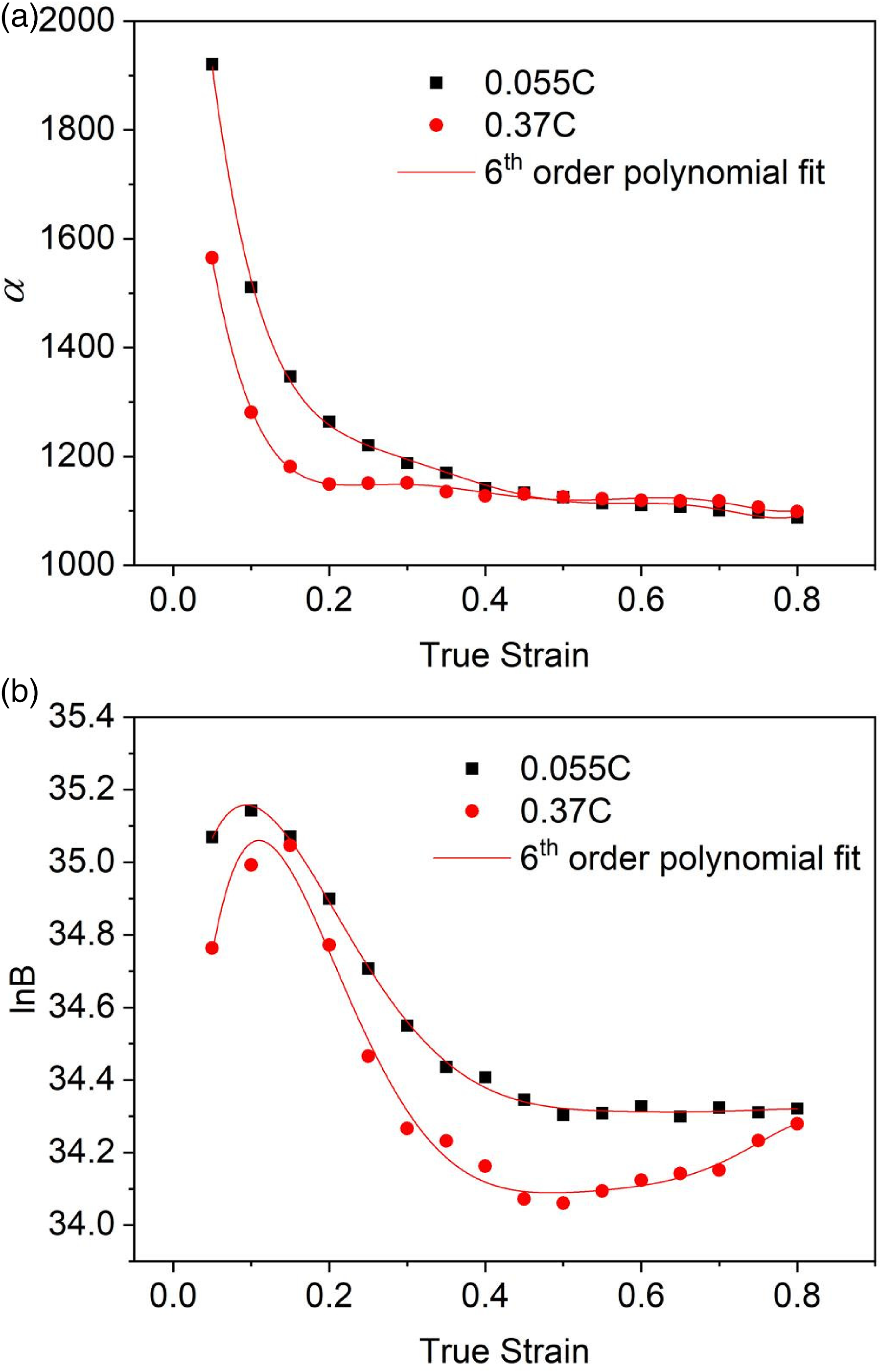

Figure 4.

Sixth-order polynomial fitting of (a)α, (b) lnB and ε.

Table 6.

Obtained coefficients in Equation (11).

α	0.055C steel	0.37C steel/	ln B	0.055C steel	0.37C steel
a ₀	2678.16068	2150.96845	b ₀	34.6261	33.70921
a ₁	−20348.38039	−16113.28326	b ₁	13.71968	31.265
a ₂	119387.56302	102290.94629	b ₂	−115.26131	−246.75315
a ₃	−370100.99426	−326983.46367	b ₃	362.40537	807.72044
a ₄	62054////////9.68536	554482.53542	b ₄	−561.07863	−1329.52662
a ₅	−530828.12602	−475688.18414	b ₅	431.32685	1092.32279
a ₆	181347.96541	162303.17062	b ₆	−131.93437	−356.40924

The physical constitutive equation of strain compensation is as follows:

σ = \frac{E (T)}{α (ε)} arcsinh (\exp (\frac{\ln (\dot{ε} / D (T)) - \ln B (ε)}{5}))

(12)

Physical constitutive model including exponential n

Since the physical constitutive equation including exponential 5 is only applicable to the case where the deformation mechanism is controlled by dislocation slide and climb,^24,25 if exponential 5 is changed to be n, Equation (13) can be obtained for comparative analysis.

\frac{\dot{ε}}{D (T)} = B^{'} {(\sinh (\frac{α σ}{E (T)}))}^{n}

(13)

where

B^{'}

and n are material constants.

Equation (13) is transformed into $\ln (\dot{ε} / D (T)) = \ln B^{'} + n \ln (\sinh (α σ / E (T)))$ , so n and $\ln B^{'}$ can be regarded as the slope and intercept of the line $\ln (\dot{ε} / D (T))$ versus $\ln (\sinh (α σ_{p} / E (T)))$ , respectively, and linear fitting is performed, as shown in Figure 5. After analysis, n = 4.924, $\ln B^{'} = 32.259$ of 0.055C steel, and n = 5.043, $\ln B^{'} = 33.156$ of 0.37C steel.

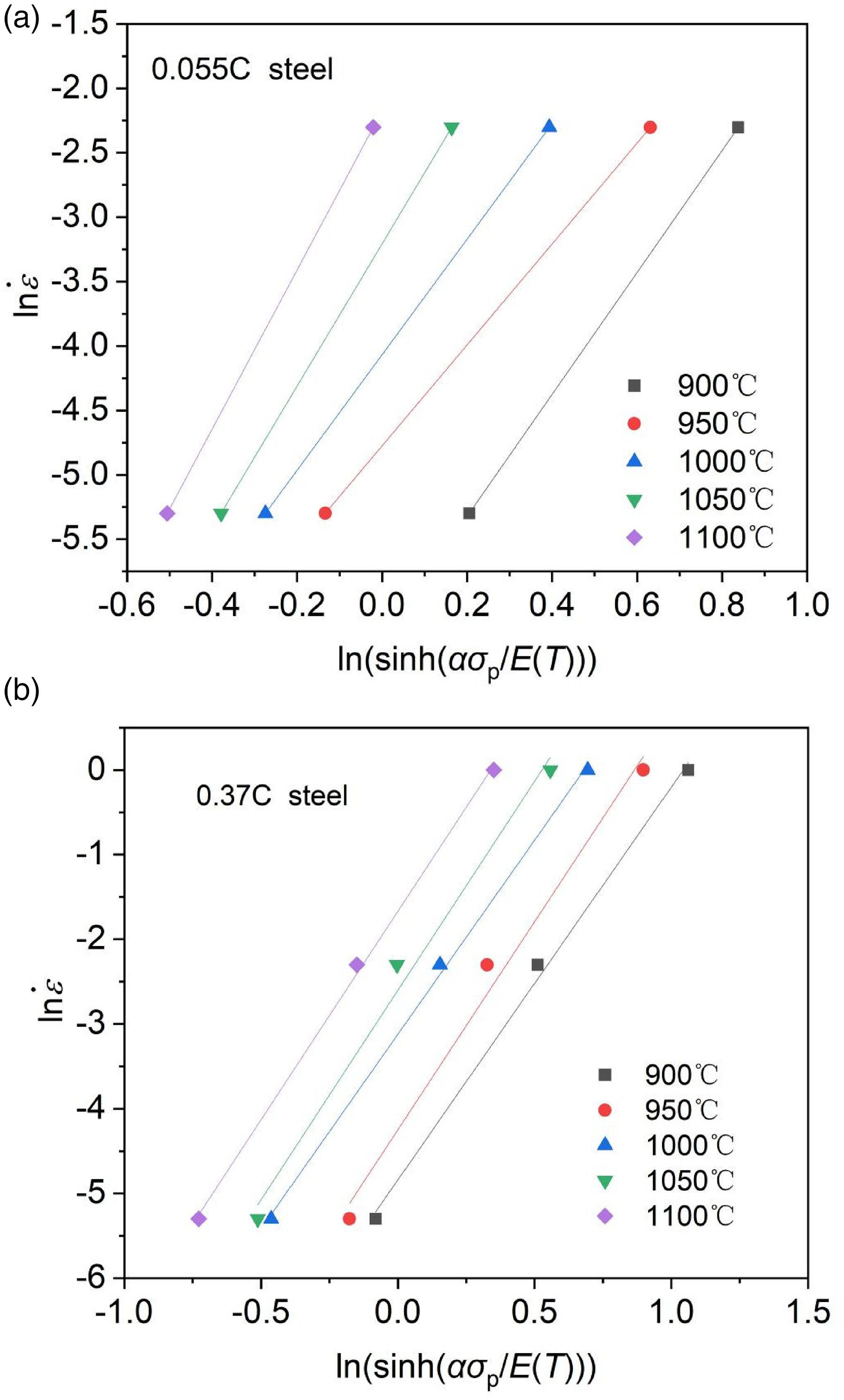

Figure 5.

Experimental data and linear regression plots: $\ln (\dot{ε} / D (T))$ v $\ln (\sinh (α σ_{p} / E (T)))$ .

The peak stress constitutive equations of the steels are as follows:

0 .055 C steel : \dot{ε} \exp (\frac{270, 000}{R T}) = 1.02234 \times 1 0^{14} {(\sinh (\frac{1424.787 \times σ_{p}}{E (T)}))}^{4.924}

(14)

0 .37 C steel : \dot{ε} \exp (\frac{270, 000}{R T}) = 2.50793 \times 1 0^{14} {(\sinh (\frac{1282.154 \times σ_{p}}{E (T)}))}^{5.043}

(15)

It can be seen that the n value (4.924 of 0.055C steel and 5.043 of 0.37C steel) is very close to the theoretical value 5 of creep exponential, indicating that Equation (1) is suitable for describing the peak stress of materials, which is consistent with the investigation of Mirzadeh et al.²³

Similarly, the constitutive equation of strain compensation was established by referring to the method described above. The relationship between material parameters n, $\ln B^{'}$ and ε at 16 different strains (0.05–0.8 with the interval of 0.05) was fitted by a sixth-order polynomial, as shown in Equation (16) and Figure 6. The obtained coefficients are shown in Table 7.

\begin{aligned} n (ε) = c_{0} + c_{1} ε + c_{2} ε^{2} + c_{3} ε^{3} + c_{4} ε^{4} + c_{5} ε^{5} + c_{6} ε^{6} \\ \ln B^{'} (ε) = d_{0} + d_{1} ε + d_{2} ε^{2} + d_{3} ε^{3} + d_{4} ε^{4} + d_{5} ε^{5} + d_{6} ε^{6} \end{aligned}

(16)

Figure 6.

Sixth-order polynomial fitting of (a) n, (b) ln $B^{'}$ and ε.

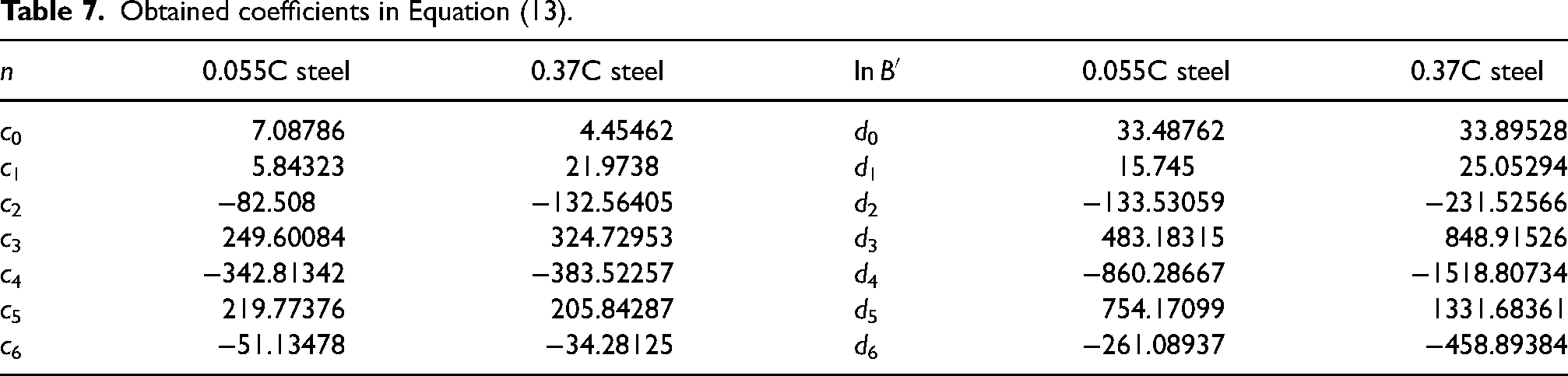

Table 7.

Obtained coefficients in Equation (13).

$n$	0.055C steel	0.37C steel	$\ln B^{'}$	0.055C steel	0.37C steel
c ₀	7.08786	4.45462	d ₀	33.48762	33.89528
c ₁	5.84323	21.9738	d ₁	15.745	25.05294
c ₂	−82.508	−132.56405	d ₂	−133.53059	−231.52566
c ₃	249.60084	324.72953	d ₃	483.18315	848.91526
c ₄	−342.81342	−383.52257	d ₄	−860.28667	−1518.80734
c ₅	219.77376	205.84287	d ₅	754.17099	1331.68361
c ₆	−51.13478	−34.28125	d ₆	−261.08937	−458.89384

The physical constitutive equation of strain compensation is as follows:

σ = \frac{E (T)}{α (ε)} arcsinh (\exp (\frac{\ln (\dot{ε} / D (T)) - \ln B^{'} (ε)}{n (ε)}))

(17)

Discussion on deformation mechanism

It can be seen from Figure 6(a) that the variation trend of the stress exponential n with the strain of the two steels is different. The n value of 0.37C steel is relatively close to 5 from 4.729 to 5.809, and the average value is 5.075. It is shown that the constitutive equation including a creep exponential of 5 can describe the hot flow behaviour of 0.37C steel well. While the n value of 0.055C steel was significantly higher than 5 at lower strain, with the increase of strain, n gradually decreases from 7.211 to 4.94, with an average value of 5.708. The results show that the equation including exponential 5 is not suitable for 0.055C steel over all the strain range.

The fluctuation of n value is related to the movement of crystal defects during deformation, so n value reflects the corresponding deformation mechanism. Table 8 shows the stress exponential n values and the corresponding deformation mechanisms.^41,42 The n value of 0.37C steel is close to 5, whereas the n value of 0.055C steel is higher seen from Figure 6(a), indicating that the main mechanism of 0.37C steel is dislocation climb. Generally, factors that increase the difficulty of deformation will lead to a higher value of n than the theoretical value of 5, the level of n value somehow reflects the difficulty of deformation. Some researchers have indicated that the softening mechanism of DRX can reduce the creep exponential n of some low SFE metals/alloys.²³ Combined with the stress–strain analysis of the experimental steels, the increase of carbon content promotes the occurrence of DRX and is conducive to thermal deformation, so the n value of 0.055C steel is higher. Moreover, the DRX volume fraction increases with the increase of strain, which indicates that the high DRX fraction contributes to the decrease of the exponential n value under large strain.

Table 8.

Stress exponential n values and corresponding deformation mechanisms.^41,42

Stress exponential n	Deformation mechanisms
2	Grain boundary sliding
3	Viscous glide of dislocation
5	Dislocation climbing
8 and above	Cross-slip of screw dislocation/constant substructure model

The higher value of n than the theoretical value of 5 may be caused by the following reasons. (1) The change of the thermal deformation mechanism. A more complex thermal deformation mechanism corresponds to a higher n value seen from Table 8. Studies^15,43 have shown that there are different thermal deformation mechanisms in V-microalloyed steel, such as dislocation climb, dislocation cross slip or partial dislocation collapse. The n value of 0.055C steel exceeds 5 at lower strains, which indicates that other thermal deformation mechanism may appear in the steel besides dislocation climb. (2) The role of dynamic precipitates. Some studies attributed n > 5 to the pinning and inhibition effect of precipitation on dislocation.^30–32,44 The deformation is most likely to be dominated by the joint mechanism of pinning and dislocation, and the source of pinning may be related to solute atoms and dynamic precipitates, so more energy is needed to activate dislocation motion.⁴⁴ At low deformation temperature, high volume fraction and fine precipitates can produce high strengthening effect and lead to n > 5. In addition, small precipitate can affect the creep rate, resulting in the creep rate control mechanism deviating from the climbing-controlled mechanism, thus increasing the creep exponential n.³⁰ It was found that the reason why the creep exponential was greater than 5 was related to the dynamic precipitates during thermal deformation of Al–Mg–Si alloy at low temperature, fine Si and AlMnFeSi particles hinder dislocation movement during deformation, resulting in a high creep exponential.³¹ Zhang et al.³² also indicated that n > 5 when the dislocation movement was limited by fine dynamic precipitates such as Mg₂Si and AlMnFeSi in 6A02 aluminium alloy.

For V-microalloyed steel, the solution temperatures of the main precipitated phases VC and VN can be calculated by using the following equations.⁴⁵ The results show that the solution temperature of VC in 0.055C steel is 774 °C, and that in 0.37C steel is 885 °C, both lower than the experimental temperatures. The solution temperature of VN in 0.055C steel is 983 °C, which is very close to its solution temperature of 989 °C in 0.37C steel. So there is no precipitation of VC in the whole temperature range, and there may be precipitation of VN in the lower deformation temperature (900–950 °C). Therefore, it is inferred that the difference of carbon content has no influence on the precipitation behaviour of the experimental steels, and the higher n value of 0.055C steel is not caused by precipitation but may be due to other deformation mechanism, which needs further study.

\lg [V] [C] = \frac{6.72 - 9500}{T}

(18)

\lg [V] [N] = \frac{3.40 - 8330}{T}

(19)

where [V] represents the mass percentage of soluble V, [C] represents the mass percentage of soluble C, and [N] represents the mass percentage of soluble N.

Comparative analysis of prediction accuracy

Generally, the accuracy of the constitutive model in predicting flow stress is verified by calculating the correlation coefficient (R) and the average absolute relative error (AARE) between the experimental value and the predicted value. The calculation formulas of R and AARE can refer to the relevant literature.¹⁹ Figure 7 shows the comparison of experimental values and predicted values. For 0.055C steel, the R value of Equation (12) including exponential 5 is 0.978 and AARE value is 9.96%, while the R value of Equation (17) including exponential n is increased to be 0.983 and AARE value is reduced to be 6.36%, indicating that Equation (17) has higher prediction accuracy than Equation (12). This is because other deformation mechanism may appear in 0.055C steel according to the above analysis, and the equation including exponential 5 is not suitable for 0.055C steel, so its accuracy is low. For 0.37C steel, the R value of Equation (12) is 0.985 and AARE value is 7.29%, while the R value of Equation (17) is 0.986 and AARE value is 6.41%. Therefore, the prediction accuracy of Equations (12) and (17) for the flow stress of 0.37C steel is similar. This is because the thermal deformation mechanism of 0.37C steel is inferred to be dislocation climb from the previous analysis, which conforms to the applicable conditions of the equation including exponential 5.

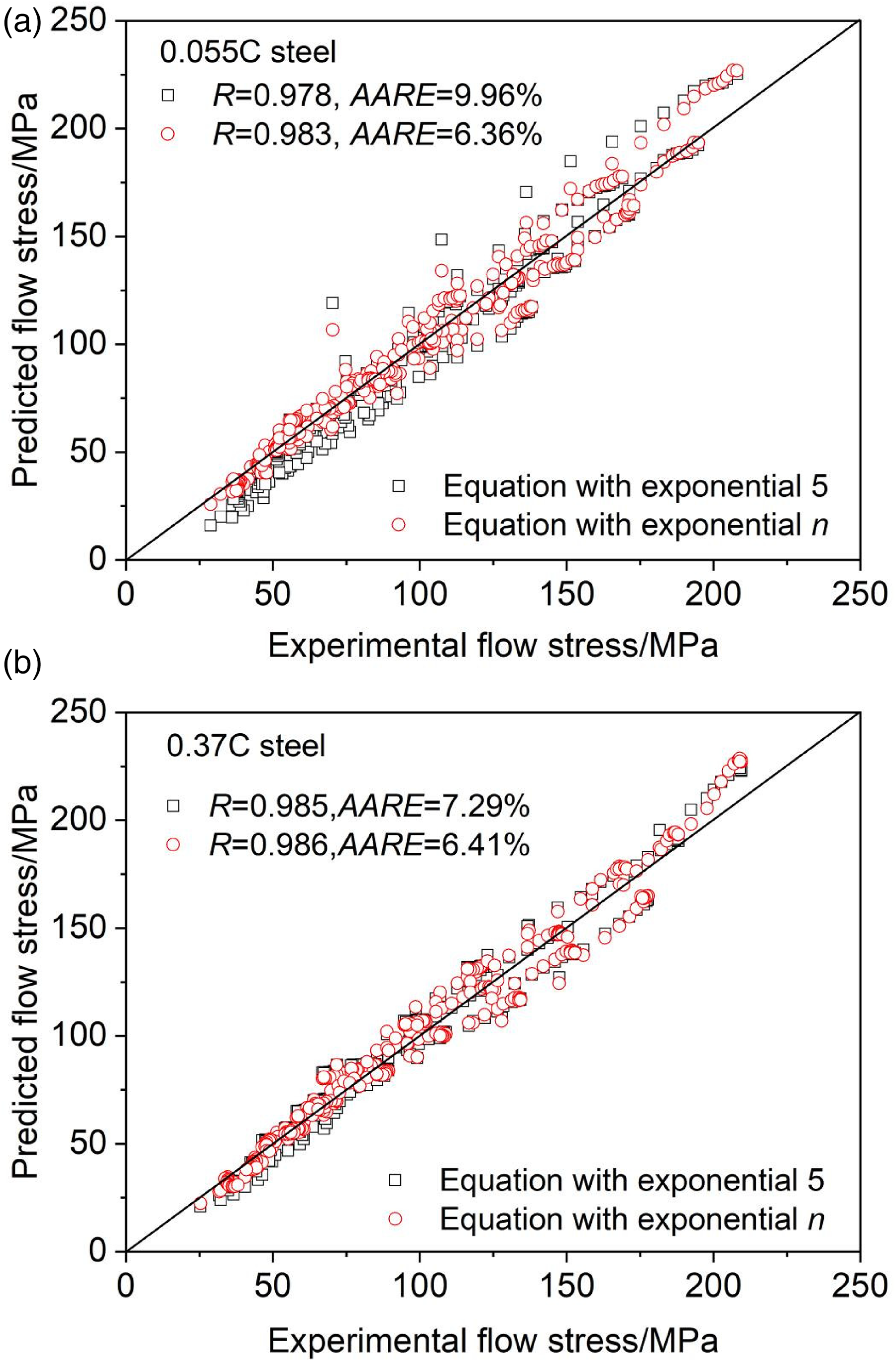

Figure 7.

Correlation between the measured and predicted flow stress: (a) 0.055C steel; (b) 0.37C steel.

Modified constitutive model considering the coupling effect of lattice diffusion and grain boundary diffusion

The above two constitutive models are based on the lattice diffusion mechanism. Actually, the diffusion mechanism includes lattice diffusion and grain boundary diffusion. Lattice diffusion tends to occur at higher deformation temperatures, while grain boundary diffusion usually occurs at lower deformation temperatures.^33,46 It is necessary to establish a modified constitutive model considering the coupling effect of the two diffusion mechanisms, as shown in Equation (20).

\frac{\dot{ε}}{D_{eff} (T)} = B^{″} {(\sinh (\frac{α σ}{E (T)}))}^{n}

(20)

D_{eff} (T) = k_{1} D_{L} (T) + k_{2} D_{GB} (T)

(21)

where B″, k₁, and k₂ are material constants, D_eff(T) is the effective diffusion coefficient, and D_GB(T) is the grain boundary diffusion coefficient, which can be expressed as follows according to the material parameters of γ-iron⁴⁰:

D_{GB} (T) = D_{0, GB} \exp (\frac{- Q_{GB}}{R T}) = 7.5 \times 10^{- 14} \exp (\frac{- 159, 000}{R T})

(22)

where D_0,GB is the grain boundary diffusion constant, Q_GB is the grain boundary diffusion activation energy.

Equation (23) can be obtained according to Equations (20) and (21).

\dot{ε} = (B^{″} k_{1} D_{L} (T) + B^{″} k_{2} D_{GB} (T)) {(\sinh (\frac{α σ}{E (T)}))}^{n} = (k_{1}^{'} D_{L} (T) + k_{2}^{'} D_{GB} (T)) {(\sinh (\frac{α σ}{E (T)}))}^{n}

(23)

where k₁′ and k₂′ are material constants (k₁′ = B″k₁, k₂′ = B″k₂).

Discussion on diffusion mechanism

The values of α and n in Equation (23) are the same as those in Equation (13) according to previous researches,^32,33,47 so only k₁′ and k₂′ need to be calculated. Taking the logarithm of Equation (23), we can obtain the equation $\ln \dot{ε} = \ln (k_{1}^{'} D_{L} (T) + k_{2}^{'} D_{GB} (T)) + n \ln (\sinh (α σ / E (T)))$ . Taking the peak stress as an example, linear fitting was performed for $\ln \dot{ε}$ versus ln(sinh(ασ_p/E(T))), and the intercept of the fitted line was the value of ln(k₁′D_L(T) + k₂′D_GB(T)) at different temperatures, as shown in Figure 8. The values of ln(k₁′D_L(T) + k₂′D_GB(T)) of 0.055C steel at 900–1100 °C are −6.26823, −4.77441, −4.06713, −3.20678, and −2.17355, respectively. Then, through binary linear regression with intercept 0 (f(x,y) = ax + by + 0), k₁′ and k₂′ can be obtained as 1.26379 × 10¹⁴ and −1.404 × 10¹⁷, respectively. The values of ln(k₁′D_L(T) + k₂′D_GB(T)) of 0.37C steel at 900–1100 °C are −4.84112, −4.24997, −3.12345, −2.60391, and −1.67129, respectively. Binary linear regression shows that k₁′ and k₂′ are 1.54449 × 10¹⁴ and 5.4624 × 10¹⁷, respectively.

Figure 8.

Experimental data and linear regression plots of ln $\dot{ε}$ v $\ln (\sinh (α σ_{p} / E (T)))$ : (a) 0.055C steel; (b) 0.37C steel.

By comparing k₁′D_L(T) and k₂′D_GB(T), the model can provide information on the transition of the diffusion mechanism at different temperatures during deformation. When k₁′D_L(T) > k₂′D_GB(T), the dominant diffusion mechanism is lattice diffusion. When k₁′D_L(T) < k₂′D_GB(T), grain boundary diffusion plays a dominant role. When k₁′D_L(T) ≈ k₂′D_GB(T), the contribution of lattice diffusion and grain boundary diffusion is approximately equal.

The results show that for 0.055C steel, k₂′ is negative, indicating that the diffusion mechanism of 0.055C steel is dominated by lattice diffusion. For 0.37C steel, the values of k₁′D_L(T) and k₂′D_GB(T) at different temperatures were calculated, as shown in Figure 9. It was found that at lower temperature (900–950 °C), the values of k₁′D_L(T) and k₂′D_GB(T) were relatively close, indicating that lattice diffusion and grain boundary diffusion work together. At higher temperature (1000–1100 °C), k₁′D_L(T) is greater than k₂′D_GB(T), and the higher the temperature, the greater the difference between them, indicating that the diffusion mechanism is dominated by lattice diffusion and grain boundary diffusion is supplemented. Therefore, the diffusion mechanism of 0.37C steel is a synergistic mechanism of lattice diffusion and grain boundary diffusion, and the higher the temperature, the greater the contribution of lattice diffusion.

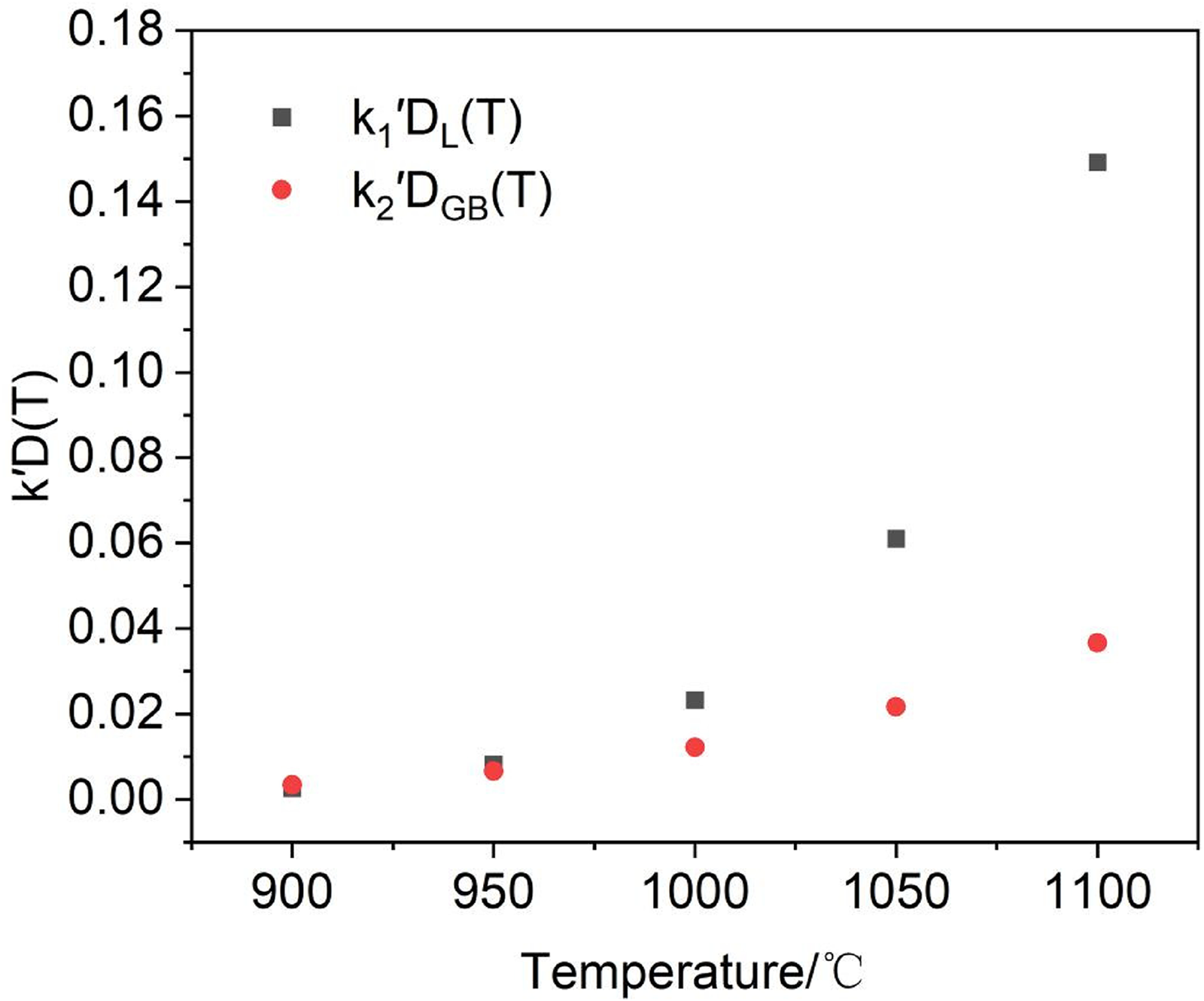

Figure 9.

k₁′dl(T) and k₂′D_GB(T) values of 0.37C steel at different temperatures.

According to the diffusion mechanism of 0.055C and 0.37C steel, it is inferred that the diffusion mechanism of steels changes with the increasing carbon content, from the lattice diffusion mechanism in low carbon steel to the synergistic mechanism of lattice diffusion and grain boundary diffusion in medium carbon steel. Therefore, increasing carbon content is not only beneficial to the diffusion process, but also contributes to the occurrence of grain boundary diffusion. The grain boundary diffusion is very fast and requires less activation energy than the lattice diffusion, which is conducive to the progress of plastic deformation.

Constitutive model of strain compensation

The k₁′ and k₂′ values under 16 different strains were obtained by referring to the method described above. The relationship between k₁′, k₂′, and ε can be accurately described by a sixth-order polynomial (Equation (24)), and the coefficients are shown in Table 9.

\begin{aligned} {k^{'}}_{1} (ε) = e_{0} + e_{1} ε + e_{2} ε^{2} + e_{3} ε^{3} + e_{4} ε^{4} + e_{5} ε^{5} + e_{6} ε^{6} \\ {k^{'}}_{2} (ε) = f_{0} + f_{1} ε + f_{2} ε^{2} + f_{3} ε^{3} + f_{4} ε^{4} + f_{5} ε^{5} + f_{6} ε^{6} \end{aligned}

(24)

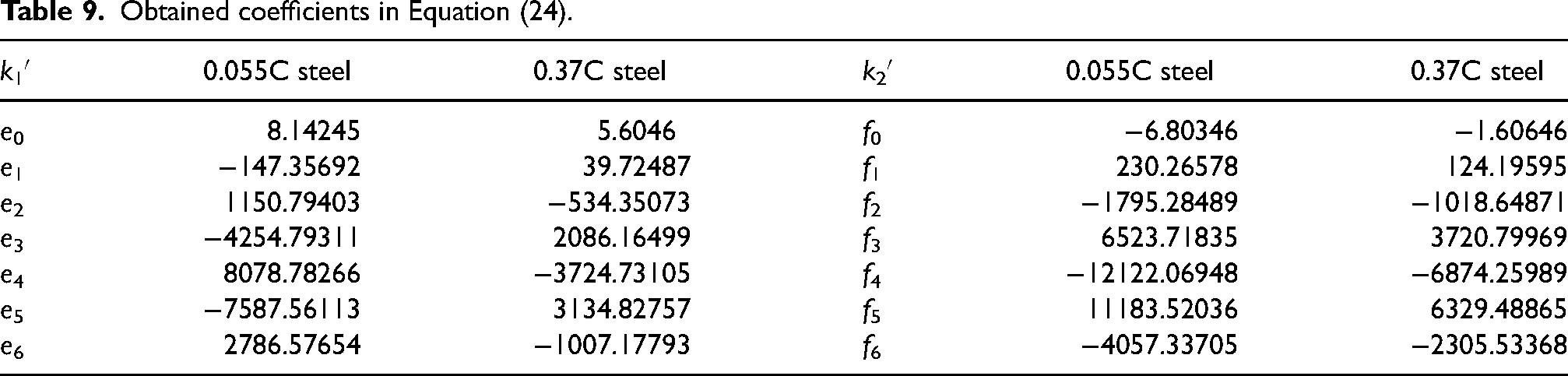

Table 9.

Obtained coefficients in Equation (24).

k₁′	0.055C steel	0.37C steel	k₂′	0.055C steel	0.37C steel
e ₀	8.14245	5.6046	f ₀	−6.80346	−1.60646
e ₁	−147.35692	39.72487	f ₁	230.26578	124.19595
e ₂	1150.79403	−534.35073	f ₂	−1795.28489	−1018.64871
e ₃	−4254.79311	2086.16499	f ₃	6523.71835	3720.79969
e ₄	8078.78266	−3724.73105	f ₄	−12122.06948	−6874.25989
e ₅	−7587.56113	3134.82757	f ₅	11183.52036	6329.48865
e ₆	2786.57654	−1007.17793	f ₆	−4057.33705	−2305.53368

Then the constitutive model of strain compensation can be expressed as:

\begin{aligned} σ = & \frac{E (T)}{α (ε)} \\ \times (\exp (\frac{\ln (\dot{ε}) - \ln ({k^{'}}_{1} (ε) D_{L} (T) + {k^{'}}_{2} (ε) D_{GB} (T))}{n (ε)})) \end{aligned}

(25)

Figure 10 shows the experimental stress value and the stress value predicted by Equation (25). The R and AARE values are 0.987 and 6.13% of 0.055C steel, and those of 0.37C steel are 0.995 and 4.06%. It can be found that the prediction accuracy of the modified model (Equation (25)) is close to that of the model considering only lattice diffusion (Equation (17)) for 0.055C steel, while the prediction accuracy of Equation (25) for 0.37C steel is significantly improved. This is consistent with the analysis of diffusion mechanism. The diffusion mechanism of 0.055C steel is mainly lattice diffusion, while that of 0.37C steel is the synergistic effect of lattice diffusion and grain boundary diffusion.

Figure 10.

Correlation between the measured and predicted flow stress by Equation (25).

The comparison between the predicted results of the three physical constitutive models and the measured results is shown in Figures 11 and 12. For 0.055C steel, the predicted results of Equation (17) are very close to the measured values, while the predicted results of Equation (12) under certain deformation conditions are significantly different from the measured values, the accuracy of Equation (17) is higher than that of Equation (12). The predicted values of Equation (17) is close to that of Equation (25), the accuracy of the two models is similar. This is because the diffusion mechanism of 0.055C steel is mainly lattice diffusion, so the prediction accuracy of Equation (17) only considering lattice diffusion is not much different from that of Equation (25) considering lattice diffusion and grain boundary diffusion comprehensively. For 0.37C steel, there are obvious errors between the measured and predicted values of Equations (12) and (17) at lower temperatures (below 1000 °C). This may be due to the fact that these two models do not consider the grain boundary diffusion, which is more likely to occur at lower temperatures. Equation (25) takes into account the coupling effects of the two diffusion mechanisms, and has better prediction accuracy under various conditions. As mentioned before for 0.37C steel, lattice diffusion and grain boundary diffusion have the same contribution at lower temperatures, and lattice diffusion is dominant and grain boundary diffusion is secondary at higher temperatures.

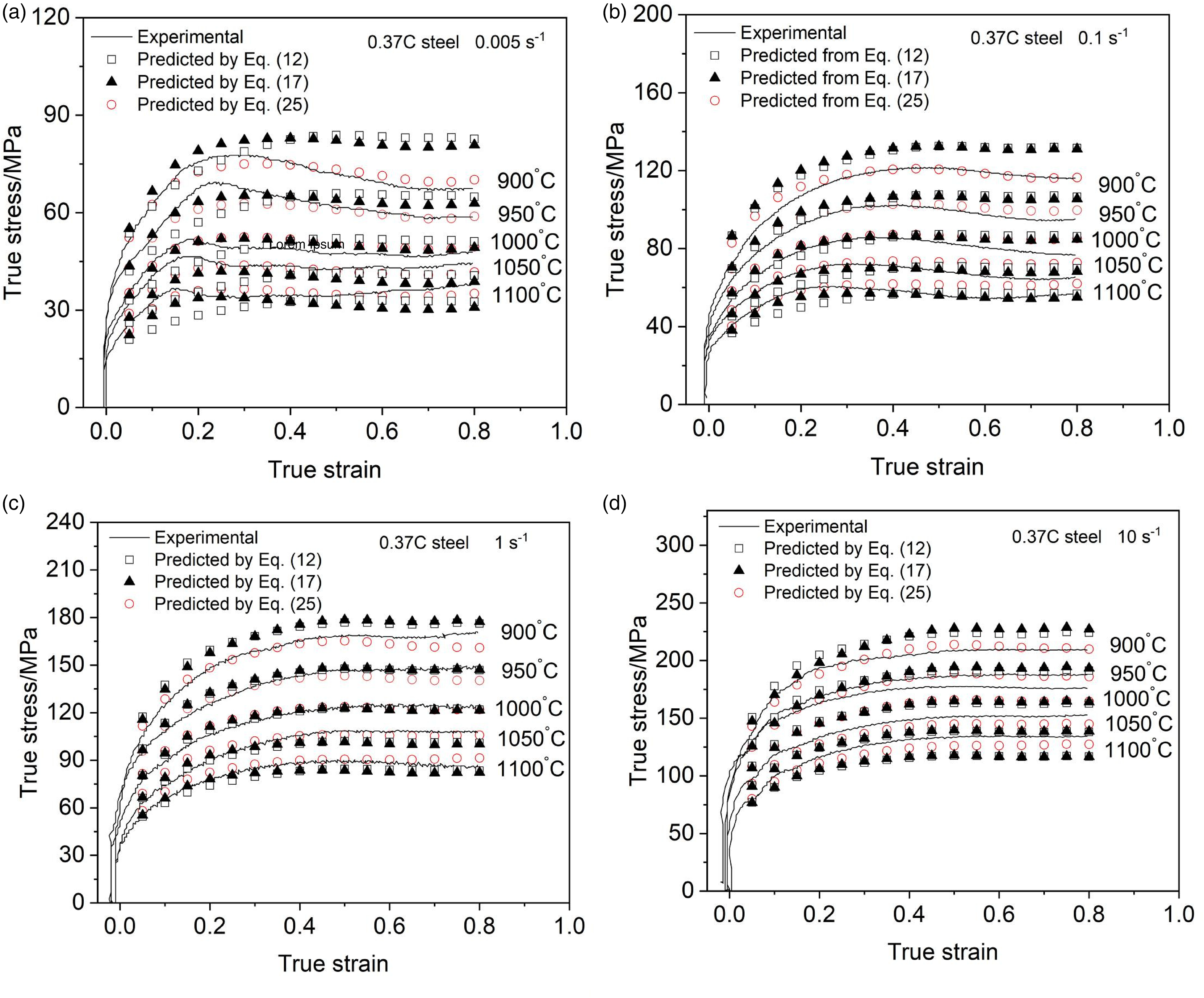

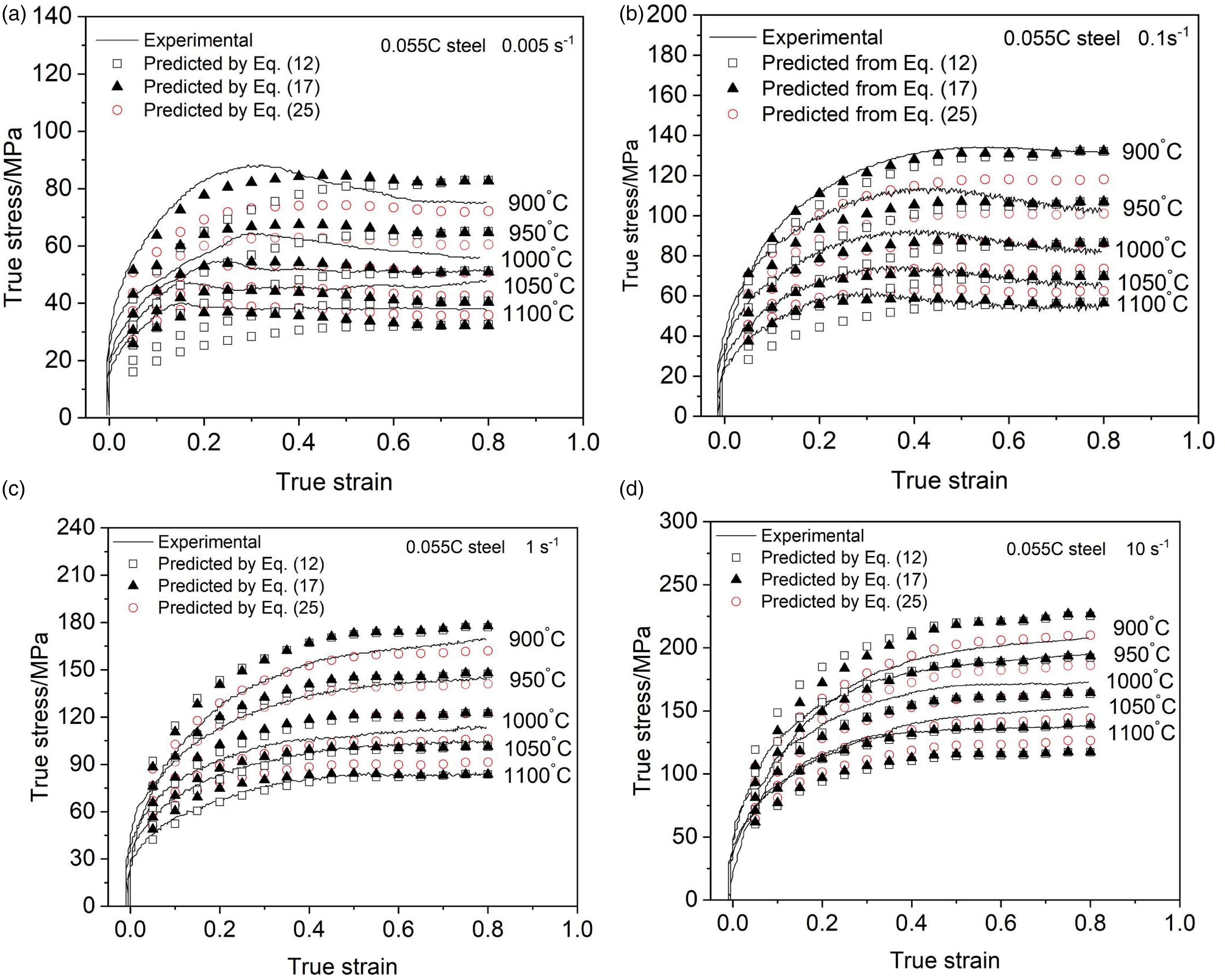

Figure 11.

Comparisons between predicted and measured flow stress of 0.055C steel: (a) 0.005 s⁻¹; (b) 0.1 s⁻¹; (c) 1 s⁻¹; (d) 10 s⁻¹.

Figure 12.

Comparisons between predicted and measured flow stress of 0.37C steel: (a) 0.005 s⁻¹; (b) 0.1 s⁻¹; (c) 1 s⁻¹; (d) 10 s⁻¹.

Conclusions

The influence of carbon on thermal deformation behaviour and deformation/diffusion mechanism of V-microalloyed steel was studied by physical constitutive analysis. The results are as follows:

Carbon has a softening effect at low strain rates, reducing flow stress and promoting the occurrence of DRX. And carbon has a hardening effect at high strain rates, increasing flow stress.

The thermal deformation mechanism of 0.37C steel is dislocation climb, while other deformation mechanism may appear in 0.055C steel.

For 0.055C steel, the R values of the models with exponential 5 and exponential n are 0.978 and 0.983, the AARE values are 9.96% and 6.36%, respectively. For 0.37C steel, the R values of the models are 0.985 and 0.986, the AARE values are 7.29% and 6.41%, respectively.

The diffusion mechanism of 0.055C steel is mainly lattice diffusion, while that of 0.37C steel is a synergistic mechanism of lattice diffusion and grain boundary diffusion.

For 0.055C steel, the accuracy of the modified model is R = 0.987, AARE = 6.13%. For 0.37C steel, the accuracy of the modified model is significantly improved with R = 0.995 and AARE = 4.06%.

Footnotes

List of symbols

Acknowledgements

This study was financially supported by the National Natural Science Foundation of China (51774006; U1860105), the Anhui Natural Science Foundation (2008085QE279; 1908085ME147) and Key Laboratory of Green Fabrication and Surface Technology of Advanced Metal Materials (GFST2022ZR05).

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The authors disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: The Anhui Natural Science Foundation (2008085QE279), Key Laboratory of Green Fabrication and Surface Technology of Advanced Metal Materials (GFST2022ZR05), the Anhui Natural Science Foundation (1908085ME147), National Natural Science Foundation of China (51774006; U1860105).

References

Bakkali El Hassani

Chenaoui

Dkiouak

, et al. Characterization of deformation stability of medium carbon microalloyed steel during hot forging using phenomenological and continuum criteria. J Mater Process Technol 2008; 199: 140–149.

Wray

. Effect of carbon content on the plastic flow of plain carbon steels at elevated temperatures. Metall Mater Trans A 1982; 13: 125–134.

Medina

Hernande

. General expression of the Zener-Hollomon parameter as a function of the chemical composition of low alloy and microalloyed steels. Acta Mater 1996; 44: 137–148.

Cabrera

Escobar

Prado

. Influence of carbon content on high temperature response of plain carbon steels. Ironmak Steelmak 2005; 32: 309–313.

Bae

Elwazri

Lee

, et al. Dynamic recrystallization behavior in hypereutectoid steels with different carbon content. ISIJ Int 2007; 47: 1633–1637.

Sakai

Zhou

Zhang

. Solid solution hardening and softening of austenite in plain carbon steel. Tetsu to Hagane 2009; 80: 557–561.

Sakai

Ohashi

. The effect of temperature strain rate and carbon content on hot deformation of carbon steels. Tetsu to Hagane 1981; 67: 2000–2009.

Wei

Deng

Zhou

, et al. A comparative study on hot deformation behaviors of niobium microalloyed low carbon and medium carbon steels by physical constitutive analysis. Steel Res Int 2022; 93: 2100784.

Misaka

Yoshimoto

. Formularization of mean resistance to deformation of plain carbon steels at elevated temperature. J Jpn Soc Technol Plast 1967; 8: 414–422.

10.

Shida

. Empirical formula of flow stress of carbon steels: resistance to deformation of carbon steels at elevated temperature. J Jpn Soc Technol Plast 1969; 10: 610–617.

11.

Serajzadeh

Taheri

. An investigation into the effect of carbon on the kinetics of dynamic restoration and flow behavior of carbon steels. Mech Mater 2003; 35: 653–660.

12.

Serajzadeh

Taheri

. An investigation on the effect of carbon and silicon on flow behavior of steel. Mater Des 2002; 23: 271–276.

13.

Escobar

Cabrera

Prado

. Effect of carbon content on plastic flow behaviour of plain carbon steels at elevated temperature. Mater Sci Technol 2003; 19: 1137–1147.

14.

Kong

Hodgson

Collinson

. Modelling the effect of carbon content on hot strength of steels using a modified artificial neural network. ISIJ Int 1998; 38: 1211–1129.

15.

Zhao

Liu

, et al. A comparative study on hot deformation behaviours of low-carbon and medium-carbon vanadium microalloyed steels. J Mater Res Technol 2020; 9: 11319–11331.

16.

Beladi

Hodgson

. Effect of carbon content on the recrystallization kinetics of Nb-steels. Script Mater 2007; 56: 1059–1062.

17.

Ardakani

Morakabati

Momeni

. Dynamic recrystallisation and constitutive equation in hot deformed AISI H10 tool steel. Ironmak Steelmak 2022; 49: 322–334.

18.

Aghajani Derazkola

Garcia

Murillo-Marrodán

, et al. Review on modeling and simulation of dynamic recrystallization of martensitic stainless steels during bulk hot deformation. J Mater Res Technol 2022; 18: 2993–3025.

19.

Trimble

Shipley

Lea

, et al. Constitutive analysis of biomedical grade Co-27Cr-5Mo alloy at high strain rates. Mater Sci Eng A 2017; 682: 466–474.

20.

Jonas

Quelennec

Jiang

, et al. The Avrami kinetics of dynamic recrystallization. Acta Mater 2009; 57: 2748–2756.

21.

Estrin

Mecking

. A unified phenomenological description of work hardening and creep based on one parameter models. Acta Metall 1984; 32: 57–70.

22.

Lin

Dong

Zhou

, et al. A unified constitutive model based on dislocation density for an Al-Zn-Mg-Cu alloy at time-variant hot deformation conditions. Mater Sci Eng A 2018; 718: 165–172.

23.

Mirzadeh

Cabrera

Najafizadeh

. Constitutive relationships for hot deformation of austenite. Acta Mater 2011; 59: 6441–6448.

24.

Cabrera

Jonas

Prado

. Flow behavior of medium carbon microalloyed steel under hot working conditions. Mater Sci Technol 1996; 12: 579–585.

25.

Cabrera

Al Omar

Prado

, et al. Modeling the flow behavior of a medium carbon microalloyed steel under hot working conditions. Metall Mater Trans A 1997; 28: 2233–2244.

26.

El-Wahabi

Cabrera

Prado

. Hot working of two AISI 304 steels: a comparative study. Mater Sci Eng A 2003; 343: 116–125.

27.

Wei

Liu

Xiao

, et al. Apparent and physical constitutive analyses for hot deformation of austenite in 35Mn2 steel. Acta Metall Sin 2013; 49: 731–738.

28.

Mirzadeh

. Constitutive description of 7075 aluminum alloy during hot deformation by apparent and physically-based approaches. J Mater Eng Perform 2015; 24: 1095–1099.

29.

Mirzadeh

. A comparative study on the hot flow stress of Mg-Al-Zn magnesium alloys using a simple physically-based approach. J Magnes Alloy 2014; 2: 225–229.

30.

Wang

Luo

Hou

, et al. Physically based constitutive analysis and microstructural evolution of AA7050 aluminum alloy during hot compression. Mater Des 2016; 107: 277–289.

31.

Liu

Pan

, et al. Microstructure evolution and physical-based diffusion constitutive analysis of Al-Mg-Si alloy during hot deformation. Mater Des 2019; 184: 108181.

32.

Zhang

Jiang

Wang

, et al. Hot deformation behavior and microstructure evolution of hot-extruded 6A02 aluminum alloy. Mater Charact 2022; 188: 111908.

33.

Shi

Wang

. Physically based constitutive modeling for Ti17 alloy with original basketweave microstructure in β forging: a comparison of three approaches. Mater Charact 2021; 181: 111455.

34.

Zhang

Sakai

. Effect of carbon content on static restoration of hot worked plain carbon steels. ISIJ Int 1995; 35: 210–216.

35.

López-Chipres

Mejía

Maldonado

, et al. Hot flow behavior of boron microalloyed steels. Mater Sci Eng A 2008; 480: 49–55.

36.

Mejia

Bedolla-Jacuinde

Maldonado

, et al. Determination of the critical conditions for the initiation of dynamic recrystallization in boron microalloyed steels. Mater Sci Eng A 2011; 528: 4133–4140.

37.

Sherby

. Factors affecting the high temperature strength of polcyrystalline solids. Acta Metall 1962; 10: 135–147.

38.

Ridley

Stuart

. Partial molar volumes from high-temperature lattice parameters of iron–carbon austenites. Metal Sci J 1970; 4: 219–222.

39.

Honeycombe

RWK

Bhadeshia

HKDH

. Steels: microstructure and properties. London: Edward Arnold, 1981.

40.

Frost

Ashby

. Deformation-mechanism maps: the plasticity and creep of metals and ceramics. Oxford: Pergamon Press, 1982.

41.

Sahoo

Panigrahi

. Deformation behavior and processing map development of AZ91 Mg alloy with and without addition of hybrid in-situ TiC+TiB2 reinforcement. J Alloys Compd 2019; 776: 865–882.

42.

Bembalge

Panigrahi

. Hot deformation behavior and processing map development of cryorolled AA6063 alloy under compression and tension. Int J Mech Sci 2021; 191: 106100.

43.

Zhao

Liu

. Rate-controlling mechanisms of hot deformation in a medium carbon vanadium microalloy steel. Mater Sci Eng A 2013; 559: 262–267.

44.

Wang

Zhao

, et al. Constitutive modeling, processing map establishment and microstructure analysis of spray deposited Al-Cu-Li alloy 2195. J Alloys Compd 2019; 779: 735–751.

45.

Gladman

Dulieu

Mcivor

. Structure-property relationships in high-strength microalloyed steels. New York: Union Carbide, 1977.

46.

Humphreys

Kalu

. Dislocation-particle interactions during high temperature deformation of two-phase aluminium alloys. Acta Metall 1987; 35: 2815–2829.

47.

Sun

Pan

Wang

, et al. Microstructural evolution and constitutive analysis combined with weight optimization method of Al-7.82Zn-1.96Mg-2.35Cu-0.11Zr alloy during hot deformation. J Alloys Compd 2018; 732: 902–914.
