Social media data as a proxy for hourly fine-scale electric power consumption estimation

The operation of modern power system relies on accurate forecasting of electric demand. Inaccurate load forecasting could have a negative impact on the power grid efficiency. Moreover, the uncertainty of renewable energy generation requires power engineers have a better understanding of the load profile. Similarly, hourly based building load forecasting information could enable the building operator to perform much efficient control and energy storage systems (Zhao and Magoulès, 2012). Forecasting the electric demand for a small area, such as a building, has been a well-known challenge (Hippert et al., 2001).

Conventional machine learning-based methods mainly rely on the temporal correlation of energy usage. Such methods work for large-scale load estimation but not for the building-level load forecasting, as less pattern could be detected in a smaller area. At the same time, scholars also employ nighttime light (NTL) satellite images to estimate electric consumption. However, the use of NTL image is still insufficient for load estimation. Spatially, popular NTL data with a coarse spatial resolution (e.g. 1-km DMSP OLS imagery, and 750-m VIIRS DNB imagery) are only suitable for electric consumption estimation at national, continental, or global level (Elvidge et al., 1997), and cannot provide the estimates at a finer scale. Temporally, an NTL image at one point in time is not applicable to estimate hourly electric consumption. New features beyond temporal information are needed to improve the performance of load forecasting.

To address these limitations, this study examined the performance of using new datasets with both higher spatial and temporal resolutions for modeling fine-scale electric consumption. Specifically, we employed geotagged tweets to estimate hourly electric consumption at the building level on the campus of State University of New York at Binghamton. All tweets posted between mid-January and mid-May (in accordance with 2015 Spring semester) were extracted by using Twitter API. The electric load consumption of each building on campus was retrieved from smart meters. Geotagged Twitter data were aggregated to each building and averaged to each hour of weekday. Weekend data were excluded when no class runs. Such processing steps were also applied to the electric consumption data. Figure 1 shows the spatial pattern of unique Twitter users and electric consumption of each building on campus at midnight and noon. It can be observed that academic buildings (larger ones at the center of each figure) have both higher amounts of electric consumption and unique Twitter users than student housing buildings (at the bottom and lower right of each figure), regardless of the hour of day. Besides, temporal change can be found with both variables in buildings on campus, but their patterns seem to be different in academic buildings and dormitory.

OPEN IN VIEWER

Figure 1.

Spatial distribution of electric power consumption and unique Twitter users on campus at different time of day. Twitter, created in March 2006, is an online social networking platform where users post and interact with each other through messages with limited characters (called tweets).

To further study their relationship, Figure 2 illustrates their comparison in four representative buildings at different time. Plots in the first column show the hourly pattern of two academic buildings. The electric consumption peak of academic buildings is approximately at noon, and the valley at approximately 4 am in the morning. This pattern also applies to the red curve of unique Twitter users, which is supported by a Pearson’s correlation coefficient of approximately 0.9. The second column shows the hourly patterns of two student housing buildings. Comparatively, the peak and valley of electric consumption and unique Twitter users in dormitory occur at midnight and 6 am in the morning, respectively. The Pearson’s correlation coefficient is approximately 0.8, which also suggests a high association between electric consumption and unique Twitter users in dormitory (P < 0.01 for correlation analysis above). While Twitter itself hardly contributes to power usage, more tweets imply a higher chance of more people in a building, and consequently, more heating, air conditioning, lighting, as well as other human activities may require more power.

OPEN IN VIEWER

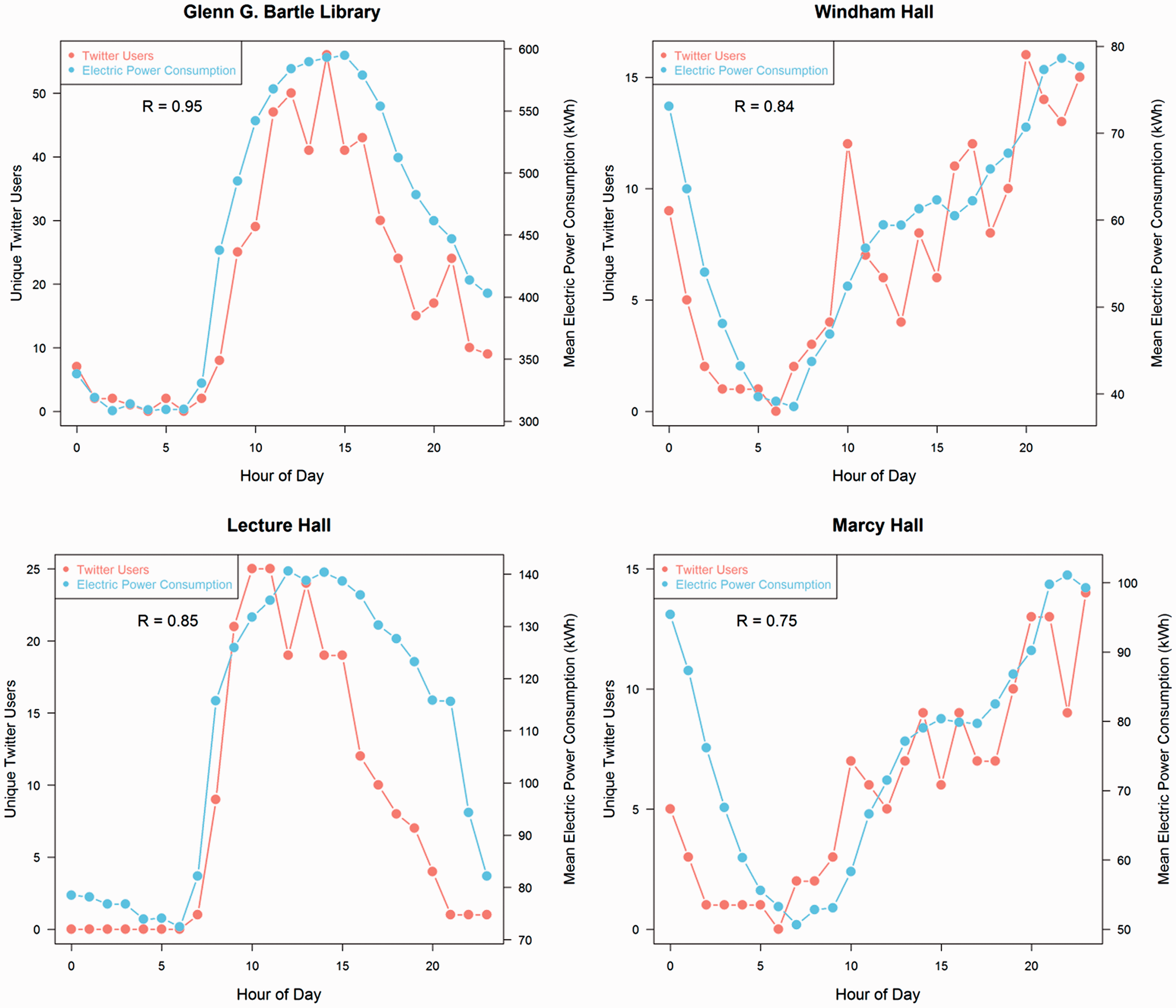

Figure 2.

Curves of the amount of unique tweet users (red) and average hourly electric power consumption (blue) in different buildings on campus. Left column shows curves of academic buildings, and right column shows those of dormitory.

Geotagged Twitter data have been widely used in a variety of spatial studies, such as urban vitality and human mobility (Shaw et al., 2016). However, rare studies placed an emphasis on hourly fine-scale electric power consumption. The essence of geotagged tweets is that such dataset can reflect human activity dynamics to some degree by considering human beings as sensors (Goodchild, 2007). This research shows the great potential of using Twitter data as a proxy of human activities to model hourly electric power consumption at the building level. While we performed our analysis on campus, the load patterns of those academic and business buildings tend to be similar to those of office buildings in central business area. More studies are warranted in the future to further examine the effectiveness of the proposed method in this research.
