The use of the ICF in the process of supplying assistive products: discussion paper based on the experience using a general Dutch prescription guideline

Abstract

For many people assistive products are important to perform daily activities and to participate in society. In the process of selecting the proper assistive product for a person, it is important to describe in a uniform and transparent way his/her present functioning and wishes with respect to functioning. To indicate how the ICF (the International Classification of Functioning, Disability and Health) can be used during the supply process, we have taken as a framework a general guideline describing this process. The guideline distinguishes seven steps in the supply process and for each step an inventory is made of the actions of the client, the actions of the care professional, the instruments used, the decisions made, the data generated, relevant classifications (including the ICF) to code these data, and the results for the client. It is the aim of this discussion paper to describe the role of the ICF in the prescription and supply of assistive products and to discuss the specific data in this process that can be classified using the ICF. Although the ICF is not perfect, it is a useful tool to code important data in the process of supplying assistive products.

Clinical relevance

Assistive products – used worldwide by millions of people – are used to maintain or enhance functioning, rather than to cure a disease.¹ As functioning can be classified with the International Classification of Functioning, Disability and Health (ICF), it can be expected that the use of ICF terminology in the supply process of assistive products will result in a better match between the characteristics of the person and the characteristics of the assistive product.

Keywords

Rehabilitation ICF prostheses assistive products

Introduction

For many people, assistive products are important to perform daily activities and to participate in society. In the process of selecting the proper assistive product for a person, it is important to describe in a uniform and transparent way their present functioning and wishes with respect to functioning. To indicate how the ICF (the International Classification of Functioning, Disability and Health²) can be used during the supply process, we have taken as a framework a general guideline³ describing this process. The guideline distinguishes seven steps in the supply process and for each step an inventory is made of the actions of the client, the actions of the care professional, the instruments used, the decisions made, the data generated, relevant classifications (including the ICF) to code these data, and the results for the client. It is the aim of this discussion paper to describe the role of the ICF in the prescription and supply of assistive products and to discuss the specific data in this process that can be classified using the ICF. Although the ICF is not perfect, it is a useful tool to code important data in the process of supplying assistive products.

Assistive products

There are many products that can help people with disability to enhance their quality of life. Examples are hearing aids, wheelchairs, Braille equipment, communication devices, software, urine collection systems, oxygen apparatus and mobile hoists. Some of these assistive products reduce impairments or compensate for impairments, such as aspirators or stimulators for pain relief. Other products help people to perform an activity (like canes and adapted computers) or to take over an activity (such as elevators) and to participate in society (e.g. adapted cars). Generally speaking, assistive products help people with disability to function better in daily life and to participate in society.⁴

There are many models and instruments for the selection and advisory process of assistive products in the rehabilitation field. In 2009, Bernd et al. reviewed the scientific literature; they found seven models and 15 instruments.⁵ Of the seven models, three are specific for assistive products and suitable for the selection process: the Matching Person and Technology Model (MPT),⁶ the framework for Modeling the Selection of Assistive Technology Devices,⁷ and the Human Activity Assistive Technology (HAAT) Model.⁸

Use of the ICF

The use of the ICF as a framework for the selection of assistive products is debated in the literature.⁵ Many authors stress the importance of the ICF, but there are also authors who are of the opinion that the ICF is not a suitable framework because it fails to meet the needs of the consumers,⁹ or because there is a lack of causal and temporal components.¹⁰

The aim of this paper is to discuss how the ICF can be partially used to classify relevant data in the process of supplying assistive products. As a framework for this discussion a general guideline for the supply process of assistive products, developed in the Netherlands, is used.

General guideline

Stimulated by both a change in financing the provision of assistive products in the Dutch healthcare system as well as a shift from care guided by the medical diagnosis to care guided by the (problems in) functioning of the client (as classified with the ICF), a basic guideline was developed to help clients and caregivers to make the right choices in the selection process of assistive products. The guideline was published in February 2010.²

The basic guideline follows the steps described earlier¹¹ for the provision of assistive products; the process starts with a person realizing that they have a problem and ends when, during the evaluation, it becomes clear that the person has a properly working assistive product (Figure 1). The steps are described in Table 1.

Figure 1.

The steps taken in the provision of assistive products.

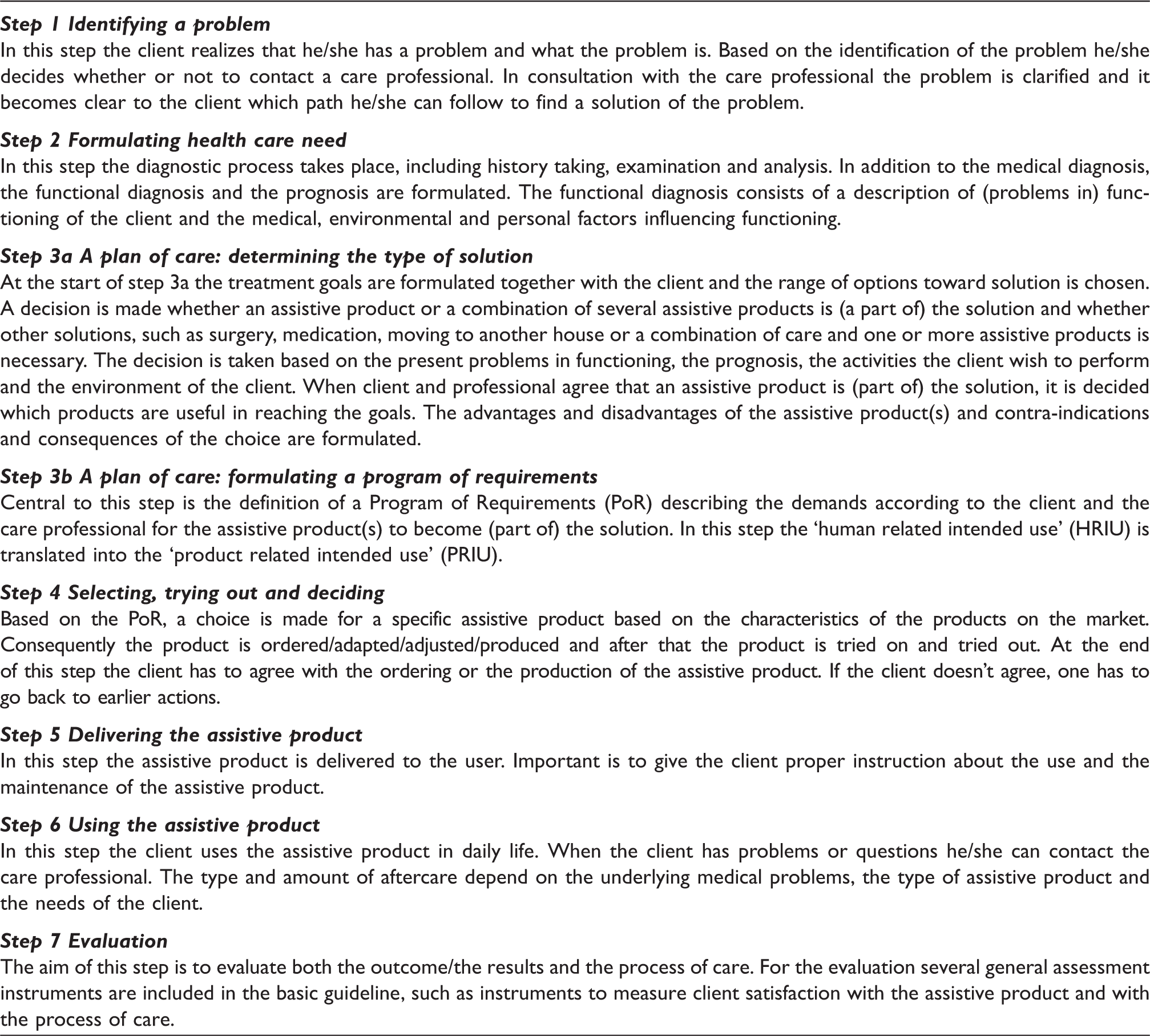

Table 1.

The steps of the general guideline describing the process of supplying assistive products.

Step 1 Identifying a problem

In this step the client realizes that he/she has a problem and what the problem is. Based on the identification of the problem he/she decides whether or not to contact a care professional. In consultation with the care professional the problem is clarified and it becomes clear to the client which path he/she can follow to find a solution of the problem.

Step 2 Formulating health care need

In this step the diagnostic process takes place, including history taking, examination and analysis. In addition to the medical diagnosis, the functional diagnosis and the prognosis are formulated. The functional diagnosis consists of a description of (problems in) functioning of the client and the medical, environmental and personal factors influencing functioning.

Step 3a A plan of care: determining the type of solution

At the start of step 3a the treatment goals are formulated together with the client and the range of options toward solution is chosen. A decision is made whether an assistive product or a combination of several assistive products is (a part of) the solution and whether other solutions, such as surgery, medication, moving to another house or a combination of care and one or more assistive products is necessary. The decision is taken based on the present problems in functioning, the prognosis, the activities the client wish to perform and the environment of the client. When client and professional agree that an assistive product is (part of) the solution, it is decided which products are useful in reaching the goals. The advantages and disadvantages of the assistive product(s) and contra-indications and consequences of the choice are formulated.

Step 3b A plan of care: formulating a program of requirements

Central to this step is the definition of a Program of Requirements (PoR) describing the demands according to the client and the care professional for the assistive product(s) to become (part of) the solution. In this step the ‘human related intended use’ (HRIU) is translated into the ‘product related intended use’ (PRIU).

Step 4 Selecting, trying out and deciding

Based on the PoR, a choice is made for a specific assistive product based on the characteristics of the products on the market. Consequently the product is ordered/adapted/adjusted/produced and after that the product is tried on and tried out. At the end of this step the client has to agree with the ordering or the production of the assistive product. If the client doesn’t agree, one has to go back to earlier actions.

Step 5 Delivering the assistive product

In this step the assistive product is delivered to the user. Important is to give the client proper instruction about the use and the maintenance of the assistive product.

Step 6 Using the assistive product

In this step the client uses the assistive product in daily life. When the client has problems or questions he/she can contact the care professional. The type and amount of aftercare depend on the underlying medical problems, the type of assistive product and the needs of the client.

Step 7 Evaluation

The aim of this step is to evaluate both the outcome/the results and the process of care. For the evaluation several general assessment instruments are included in the basic guideline, such as instruments to measure client satisfaction with the assistive product and with the process of care.

For each step the following items are described:

actions of the client system (the client system consists of the client themselves and, if relevant, other people, such as parents, a partner, and a legal representative);

actions of the care professional (such as a health professional (e.g. physician or an occupational therapist), or a producer or supplier of assistive products);

sources (such as legislation) and/or assessment or evaluation instruments used;

decisions of the client system and/or care professional;

data which are generated during the actions and which can be included in the healthcare record;

the results for the client system.

Coding assistive products

Although the ICF enables the coding of environmental factors (including assistive products), the categories in the list of environmental factors are very general. As an example, assistive products for daily living would be coded by the level three ICF category: e1151 ‘Assistive products and technology for personal use in daily living’. This category includes a wide range of products, like prosthetic and orthotic devices, neural prostheses, and environmental control units. For this reason it is recommended in the guideline to use Cliq (Classification with IQ), a further subdivision of the ISO 9999¹² (International Classification of Assistive products for persons with disability – Classification and terminology) based on functionality of the product (Table 2).

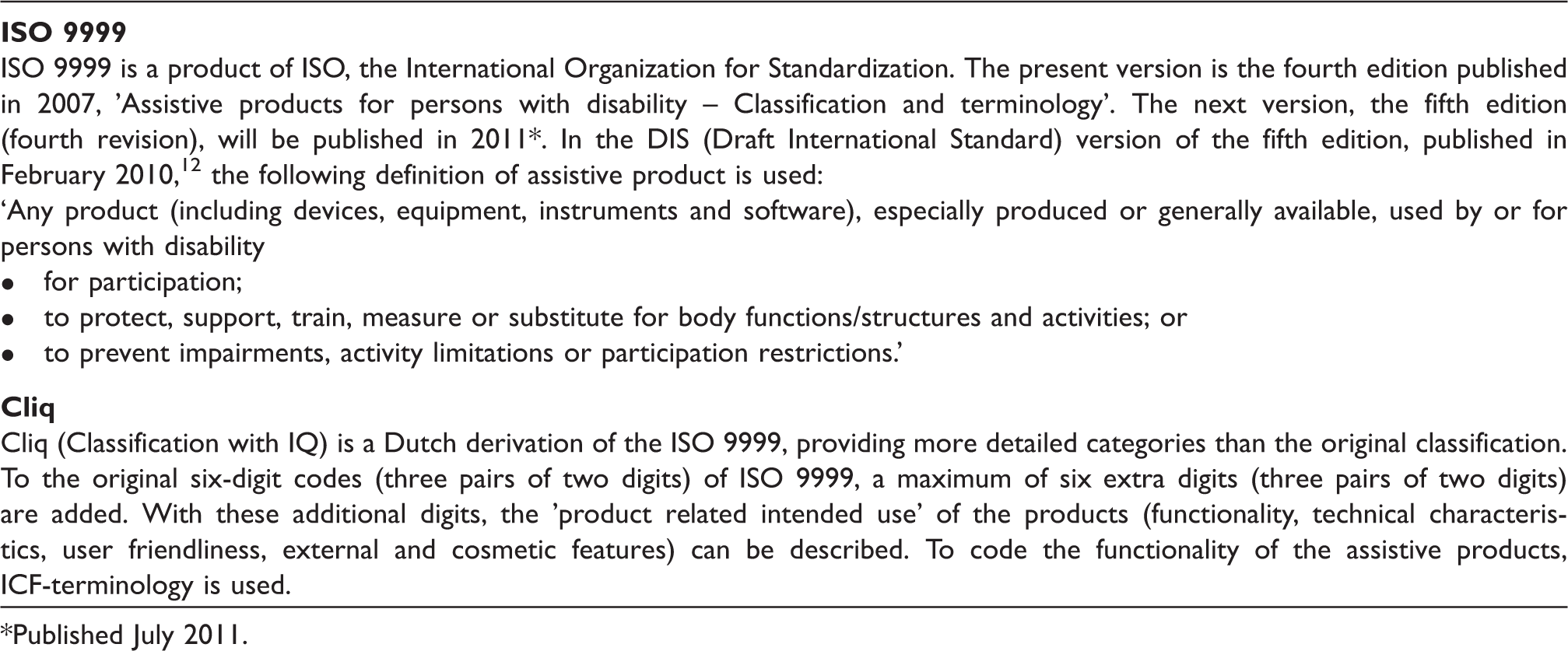

Table 2.

The ISO 9999 and the Cliq classification.

ISO 9999

ISO 9999 is a product of ISO, the International Organization for Standardization. The present version is the fourth edition published in 2007, 'Assistive products for persons with disability – Classification and terminology'. The next version, the fifth edition (fourth revision), will be published in 2011*. In the DIS (Draft International Standard) version of the fifth edition, published in February 2010,¹² the following definition of assistive product is used:

‘Any product (including devices, equipment, instruments and software), especially produced or generally available, used by or for persons with disability

• for participation;

• to protect, support, train, measure or substitute for body functions/structures and activities; or

• to prevent impairments, activity limitations or participation restrictions.’

Cliq

Cliq (Classification with IQ) is a Dutch derivation of the ISO 9999, providing more detailed categories than the original classification. To the original six-digit codes (three pairs of two digits) of ISO 9999, a maximum of six extra digits (three pairs of two digits) are added. With these additional digits, the 'product related intended use' of the products (functionality, technical characteristics, user friendliness, external and cosmetic features) can be described. To code the functionality of the assistive products, ICF-terminology is used.

Published July 2011.

Use of ICF and Cliq within the framework of the basic guideline

In this section, the most relevant data generated during the seven steps of the supply process (Figure 1 and Table 1) are described in more detail.

Request for help (step 1)

At the start of the process a multitude of reasons to contact a care professional is possible: problems on the level of body functions and structure (impairment in attention, pain, shortness of breath), activities (such as limitations in walking or communicating), participation (problems in work or in following education) or environmental factors (such as finding a proper assistive product or support of employer). These problems can be classified with the ICF.

Data gathered during history taking (step 2)

In history taking the care professional makes an entry of current (problems in) functioning (complaints) as indicated by the client, their wishes with respect to functioning, the client’s expectations with respect to functioning and the personal circumstances (such as living status, housing, work). All these data can be coded with the ICF.

Findings of care professional (step 2)

Based on a (physical) examination and several tests, a care professional can code their findings with respect to the present functioning of the client with the ICF.

Functional diagnosis (step 2)

In addition to the medical diagnosis, a care professional formulates a functional diagnosis at the end of the diagnostic process: their professional opinion about the functioning of the client and the (positive or negative) influence of medical, environmental and personal factors. With the exception of the medical and personal factors, the functional diagnosis can be coded with the ICF. The medical diagnosis and the medical factors can be classified with a ‘medical’ classification, like the ICD-10,¹³ the ICPC¹⁴ or the DSM-IV.¹⁵

General treatment goals (step 3a)

Goals for the treatment as a whole, including the use of assistive products, can be coded using the ICF. General goals are, for example, participation in work, independence in self-care or improving quality of life.

The human-related intended use (HRIU) (step 3a)

HRIU is the ‘intended use of the assistive product from the perspective of the user’; it indicates what the product should make possible or what the product has to do in the eyes of the user. In other words, HRIU is what a client wants, can and may do with the assistive product. ‘Wants’ is about the wishes of the client (I want to read the newspaper using this assistive product, I want to go to the toilet by myself). ‘Can’ is about the possibilities of the client (taking into account the clients’ problems) and ‘may’ indicates what is sensible from the perspective of the care professional. The HRIU can be coded with the ICF.

The product-related intended use (PRIU) (step 3b)

‘Product-related intended use' is a legal term that indicates ‘what the user can and may expect of the assistive product’. It encompasses the following characteristics of the product:

functionality: activities (indirectly participation) for which the assistive product can be used (such as standing and work) and functions and structures supported by the product (such as respiration and range of motion of a joint);

technical characteristics;

user friendliness;

external and cosmetic features (like color);

other characteristics.

The PRIU can be coded with the Cliq-classification (Table 2).

Experiences during use (step 6)

The experiences of the client in using the assistive products, including problems in using the assistive products, can be coded with the ICF.

Outcomes/results (step 7)

The results, in terms of changes in functioning of the client, and the goals reached can be classified using the ICF.

To summarize the results, the most important data in the selection and advisory process of assistive products – the functional diagnosis (formulated in step 2), the treatment goals (step 4), the HRIU (step 3) and the results (step 7) – can be coded using the ICF as presented in Figure 2. The PRIU and the characteristics of products on the market cannot be coded with the ICF but can be coded using the ISO 9999 or Cliq.

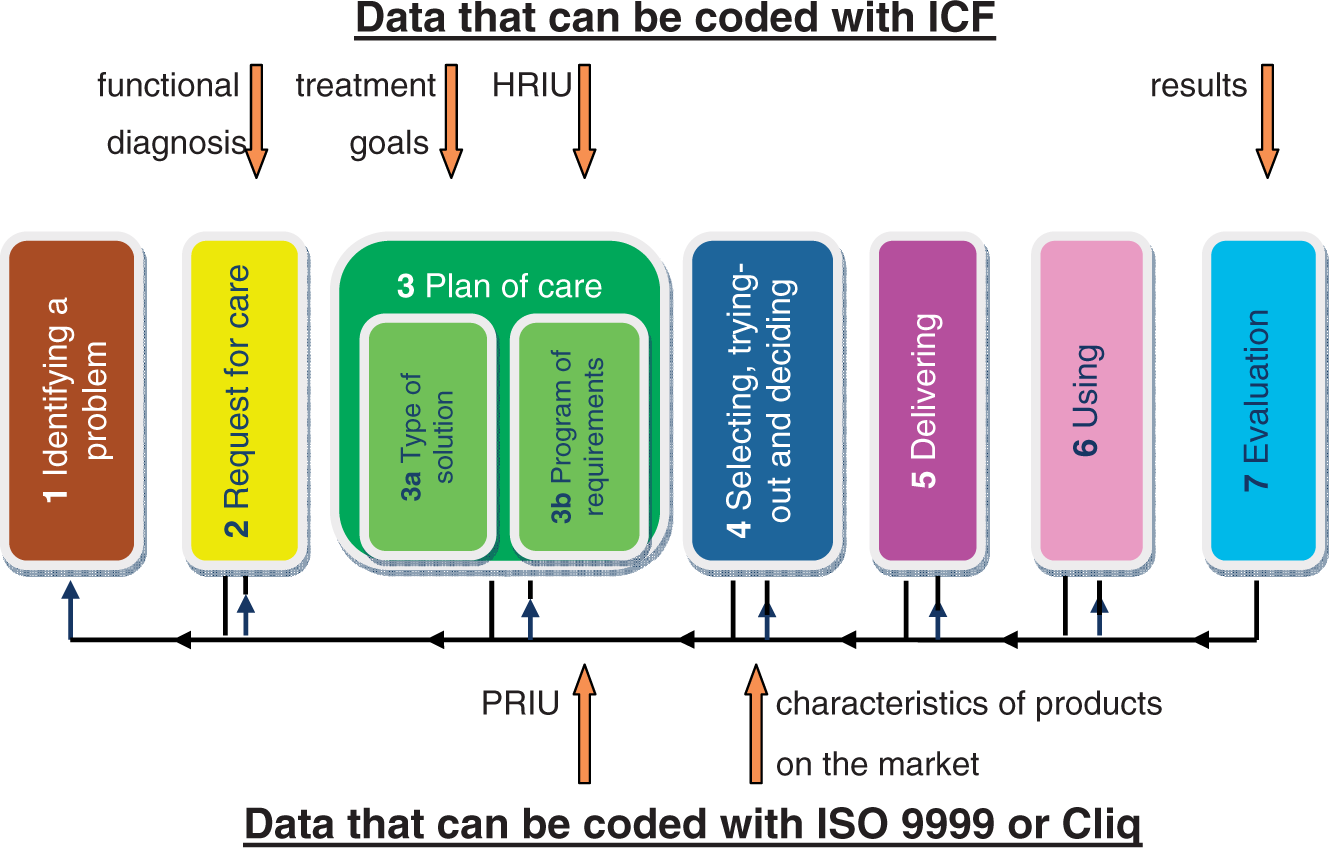

Figure 2.

The most important generated data classified with the ICF and with Cliq (a more detailed version of ISO 9999; see Table 1).

Discussion

As the functioning of the client is the starting point of the provision of assistive products, and clients must be provided with assistive products that help them in their daily functioning, the ICF is an important classification as it can be used to describe both the (problems in) functioning as well as the environmental factors influencing functioning.

To discuss the use of the ICF in the process of providing assistive products, we take the four challenges in using the ICF to quantify assistive technology interventions and outcomes formulated by Smith et al.⁹ as our starting point:

The subjective nature of coding while using the ICF, especially the qualifiers to code the severity of the problem.

We agree with Smith et al.⁹ that the present qualifier for severity just gives an indication; assessment instruments are needed to decide whether a problem is minor or severe.

Many ICF-codes are not specific enough to describe the function of assistive products.

We agree that this is true for many of the classes of ICF. A solution might be to make a clinical derivative of the ICF including more detailed classes.

The ICF does not consider qualifiers of performance such as safety or task/activity completion time.

There are several attempts to formulate new qualifiers, safety might be such a new qualifier. The time it takes to complete an activity can be integrated in the assessment instruments to code severity.

Problems in matching many of the assistive products with the ICF as it is unclear what the main function of these products is.

As an example for this fourth challenge Smith et al.⁹ use a universal cuff: should this be matched to the impairments in functions (such as muscle power), to impairments in structure related to movement or to limitations in activities or restrictions in participation in self-care or employment?

In fact this is not a problem of the ICF, but a problem in the ISO 9999. To meet this challenge a document with a mapping of all the subdivisions of the ISO 9999 to the ICF can be found on the website of the Dutch WHO Collaborating Centre.¹⁶ Moreover, attempts are made to harmonize Chapter 1 of the list of environmental factors of the ICF and the ISO 9999.¹⁷

Although we see the current problems of the ICF – such as lack of detail, a combined list of activities and participation, no list of personal factors (which are very important in selecting assistive products) – we think that the ICF is a useful tool on three levels:

on the most abstract level the basic ICF terms (like participation and disability) can be used in, for example, policy documents (such as documents on the reimbursement of assistive products for people with disability);

on a more detailed level the titles of the ICF classes can be used to describe characteristics of (groups of) clients, such as in clinical guidelines;

to aggregate data of groups of clients ICF-codes can be used, such as in electronic healthcare records and in epidemiological research.

With the use of the basic guideline, more specific protocols are developed in 2011, such as a protocol for people with walking problems and a protocol for persons with hearing problems. Already available is a protocol for orthopedic shoe technicians to provide proper footwear to persons referred to them by a physician (persons with more complicated problems).¹⁸ The protocol was published in June 2010.¹⁹

While in the basic guideline the classifications are only mentioned, in a specific protocol a selection can be made of relevant classes derived from this classifications. In Table 3, two examples are given from the protocol for shoe technicians: the functioning of the client on the level of activities and participation as expressed by the client themselves during history taking and the HRIU. The corresponding ICF codes are not visible on the screen.

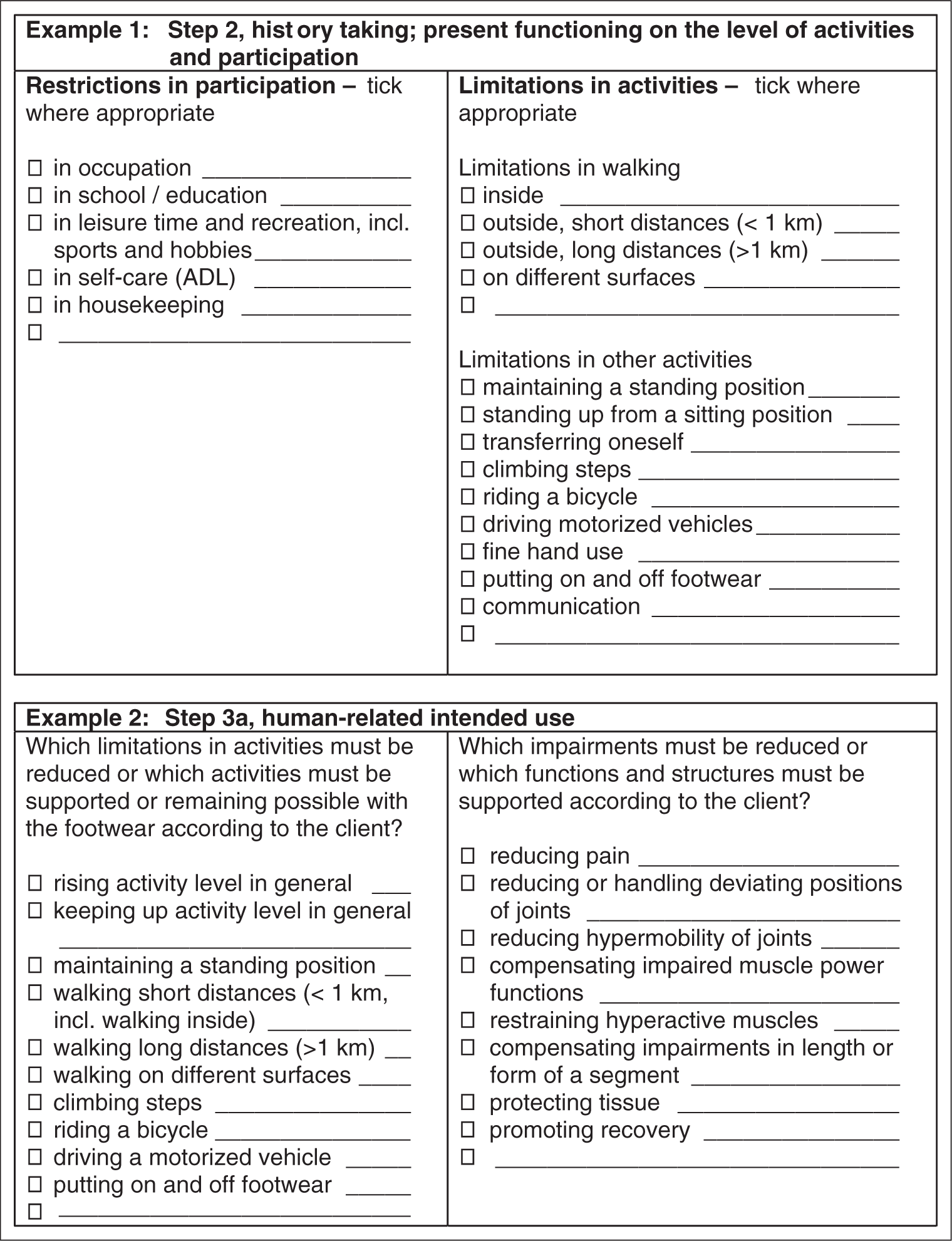

Table 3.

Two examples of data to be classified with the ICF from the Dutch protocol for shoe technicians.¹⁹

The basic guideline has been developed to make the process of supplying assistive products more transparent and to increase the chance that the selected assistive product really helps the individual to function better in daily life and to prevent mismatches as much as possible. However, a period of trying out is necessary as there are so many (objective and subjective) factors which determine whether or not a good match is reached between the characteristics of the client and the characteristics of the assistive product.

Conclusion

Although the ICF is not perfect – it lacks detail and there is no list of personal factors – it can be used to code important data in the process of providing assistive products to clients who have problems in functioning in daily life. These data are the functional diagnosis, the treatment goals, the HRIU, and the results/outcome of the process (changes in functioning due to the use of the assistive product provided). By using the ICF to describe the wishes and possibilities of the clients (HRIU), a better match is possible with the characteristics of the assistive product. Awaiting harmonization of Chapter 1 of the list of environmental factors of the ICF and the ISO 9999, it is advised to use the ISO 9999 or the Cliq classification to describe the characteristics of assistive products.

Footnotes

Funding

The development of the general guideline was funded by the Dutch Ministry of Health, Welfare and Sport.

References

World Health Organization. Medical devices: Managing the mismatch. An outcome of the Priority Medical Devices project Geneva: WHO, 2010.

World Health Organization. ICF International Classification of Functioning, Disability and Health Geneva: WHO, 2001.

Heerkens Y, Claus E, Hagedoren E, Jonker H, Muylkens J, Bougie Th, Ravensberg D van and Vreeswijk P. CG-Raad. Basisrichtlijn Hulpmiddelenzorg. Verslag van het Project Opstellen Richtlijnen voor Functiegerichte Aanspraak Hulpmiddelen. RiFA. Fase 1 opstellen van een basisrichtlijn. [Basic guideline for the provision of assistive products]. Utrecht: Chronisch Zieken en Gehandicapten Raad, 2010.

Heerkens YF, Bougie T and de Kleijn-de Vrankrijker MW. Classification and terminology of assistive products. In: Stone JH and Blouin M (eds) International Encyclopedia of Rehabilitation. Available online: http://cirrie.buffalo.edu/encyclopedia/article.php?id=265&language=en.

Bernd

Pijl

van der Witte

. Existing models and instruments for the selection of assistive technology in rehabilitation practice. Scand J Occupational Therapy 2009; 16: 146–158.

Scherer

Craddock

. Matching Person & Technology (MPT) assessment process. Technol Disabil 2002; 14: 125–131.

Fuhrer

Jutai

Scherer

Ruyter

. A framework for the conceptual modelling of assistive technology device outcomes. Disabil Rehabil 2003; 25: 1243–1251.

Cook

Hussey

. Assistive technologies, principles and practice 20022nd edn. St Louis, MO: Mosby.

Smith RO, Jansen CJ, Seitz J and Longenecker Rust K. ATOMS Project Technical Report: The ICF in the context of assistive technology (AT) interventions and outcome, 2006. Available online: www.r2d2.uwm.edu/atoms/archive/icf.html.

10.

Lenker JA and Jutai J. Assistive technology outcomes research and clinical practice: What role for ICF, 2002. Available at: www.cihi.ca/cihiweb/en/downloads/icf_jun02_papers_6A_e.pdf.

11.

Nictiz. Procesbeschrijving Hulpmiddelenzorg. [Description of the process of providing care related to assistive products.] Den Haag: Nationaal ICT Instituut in de Zorg, 2009.

12.

ISO. ISO 9999 Assistive products for persons with disability – Classification and terminology. Draft International Standard 20105th edn. Geneva: International Organization for Standardization.

13.

World Health Organization. ICD-10: International Statistical Classification of Diseases and Related Health Problems 199210th revision. Geneva: World Health Organization.

14.

Wonca International Classification Committee (WICC). ICPC-2 – English - International Classification of Primary Care 20052nd edn. Oxford: Oxford University Press.

15.

American Psychological Association. Diagnostic and Statistical Manual of Mental Disorders 19944th edn. Washington: APA.

16.

Bougie T and Heerkens Y. ISO 9999 with ICF – references. Working document. Delft: A combined action of NEN (Dutch Normalization Institute) and the Dutch WHO FIC Collaborating Centre, 2009. Available at: www.rivm.nl/who-fic/in/ISO9999withICFreferences.pdf.

17.

Kleijn-de Vrankrijker M de and Napel H ten. Harmonization of ICF Environmental Factors chapter 1 and ISO9999. Paper abstract WHO Meeting Toronto, Canada, October 2010.

18.

Heerkens Y, Beers C, Jansen R and Elferink F. Guidelines to assist orthopedic shoe technicians to provide patients with proper footwear. World Congress Orthopedic Shoe Technology. The Hague, 2009.

19.

Heerkens YF, Beers CBN, Jansen R, Verwaard R, Elferink FHM, Bougie Th and Postema K. Verslag van het Project Ontwikkeling van protocollen voet-/schoenvoorziening voor orthopedisch schoentechnische bedrijven en orthopedisch schoentechnici bij cliënten die zijn verwezen. [Report of the project ‘Development of guidelines to assist orthopedic shoe technicians to provide referred patients with proper footwear]. Amersfoort: NVOS Orthobanda/Dutch Institute of Allied Health Care, 2010.
