Foot clearance strategy for step-over-step stair climbing in transfemoral amputees

Background and aim

Stair ascent is a particularly challenging task for transfemoral amputees (TFAs). Able-bodied individuals generally use a traditional step-over-step (SOS) gait strategy, where one foot is placed on each stair during stair ambulation. ¹ However, these tasks are extremely difficult for the TFAs because of the missing biological knee joint. Consequently, TFAs routinely adjust their stair gait strategy, adopting instead a conservative step-to-step (STS) gait strategy, in which they must place both feet on the same step before ascending. ² A STS strategy not only influences efficiency and speed^1,3 but also looks uncosmetic. ⁴

In a previous study, unique compensatory strategies during the stance phase were observed in TFAs who can ascend stairs using a SOS strategy without an active artificial prosthetic knee joint or handrail use. ⁵ During the SOS stair ascent strategy, the prosthetic knee joints must flex to permit foot clearance of the stairs to avoid tripping.^6,7 However, there is very limited information regarding the compensatory strategy required to avoid tripping during the swing phase in TFAs. The aim of this clinical note was to describe kinematic features of foot clearance in a TFA who can ascend stairs using the SOS strategy.

Technique

Subjects

The study protocol was approved by the local ethical committee and is in accordance with the guidelines set out in the Declaration of Helsinki (1983). Four healthy able-bodied subjects (ABS) and two male TFAs (TF1 and TF2) volunteered for the investigation conducted at National Rehabilitation Center for Persons with Disabilities in Japan. (Table 1). TF1 routinely performed stair ascent in his daily life using the SOS strategy.

OPEN IN VIEWER

Table 1.

Subjects characteristics.

	ABS (n = 4)	TF1	TF2
Age (years)	27.8 ± 2.5	51	29
Height (m)	1.73 ± 0.06	1.75	1.68
Mass (kg)	65.8 ± 9.8	68.2	60.5
Amputated side	N/A	Right	Right
Amputation causation	N/A	Trauma	Trauma
Amputation time (years)	N/A	44	4
Residual limb length a (cm)	N/A	30.5	22.0
Prosthetic knee unit	N/A	3R45 (Otto Bock), single-axis, hydraulic swing-phase control	RHEO KNEE (Össur), single-axis, microprocessor swing- and stance-phase control
Prosthetic foot	N/A	C-Walk (Otto Bock)	Flex-foot (Össur)
Stair Assessment Index2b	N/A	13	7
		“Without rail or assistive devise, step-over-step pattern”	“With rail, skipping step pattern”

a

Length from greater trochanter to end of residual limb.

b

A 14-level scale for functional independence and stair climbing pattern.

Data collection and analyses

In the present study, kinematic data were collected at 60 Hz using a 12-camera motion analysis system (VICON 512; VICON, UK). Reflective markers were placed on the top edges of the second and third steps to mark the support surface. Markers were also placed on the participants’ first metatarsophalangeal joint or similar location of the prosthetic foot (Mt₁). The positional data of the reflective markers were low-pass filtered by a fourth-order zero-lag Butterworth filter with a cutoff frequency of 6 Hz.

During the swing phase, we determined the trajectories of the Mt₁ markers on the prosthetic foot of the TFA and the right foot of the ABS. Clearance height was defined as the vertical distance between the Mt₁ marker and the edge of the stair as the subject’s foot passed over the edge of steps 2 and 3 (Figure 1(a); CL_step2 and CL_step3, respectively). Data were averaged for five trials in both groups.

OPEN IN VIEWER

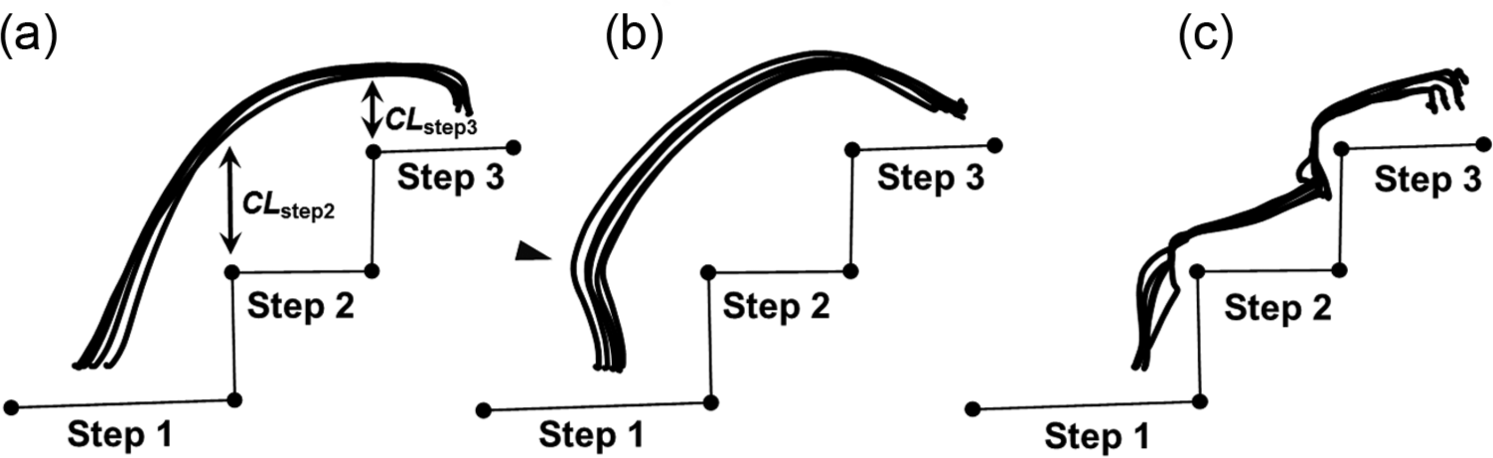

Figure 1.

Trajectories of the Mt₁ marker during the swing phase in (a) ABS, (b) TF1, and (c) TF2, respectively.

Results

The results from the study can be seen in Table 1 and Figures 1 and 2.

OPEN IN VIEWER

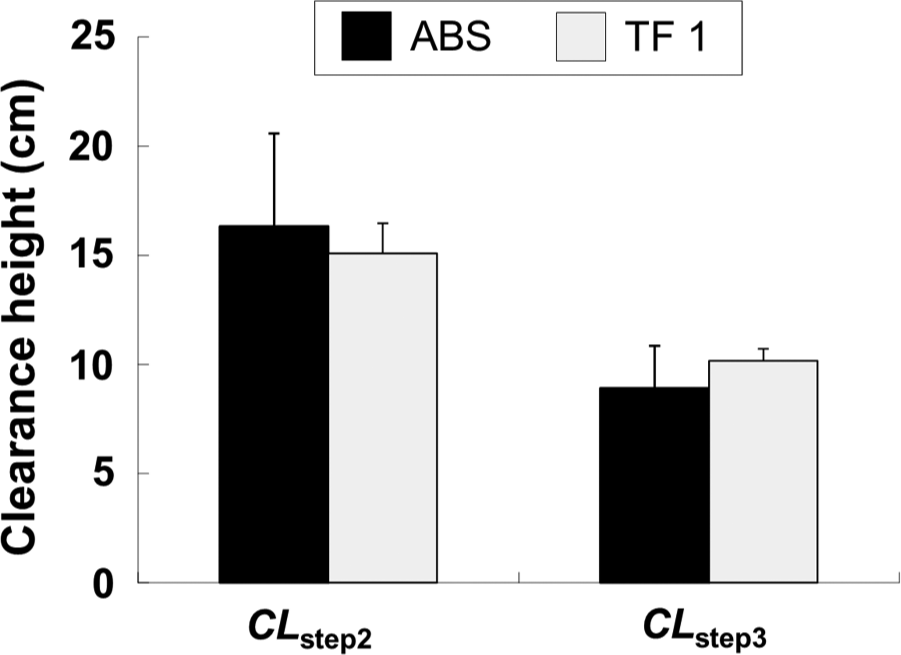

Figure 2.

Comparison of clearance height (CL_step2 and CL_step3) between ABS and TF1.

Discussion

The aim of the present study was to describe the kinematic features of foot clearance in a TFA who can ascend stairs using the SOS strategy. In this study, the Mt₁ marker in ABS depicted parabolic trajectories (Figure 1(a)), which were consistent with a previous study. ⁸ Interestingly, the Mt₁ marker trajectories of the TF1 moved backward in the early swing phase (arrowhead in Figure 1(b)) and the trajectory followed an off-centered parabolic arc. These movement strategies were not seen in TF2, where Mt₁ marker trajectory traced the stairs with tripping in each step (Figure 1(c)). As a consequence, the CL_step2 and CL_step3 of TF1 were similar to those of the ABS (Figure 2).

To our knowledge, this is the first study to evaluate foot clearance strategy during a SOS stair climbing strategy in TFA. The off-centered parabolic trajectory may be a compensatory movement strategy for ensuring foot clearance by the hip joint in a prosthetic leg. Byrne and Prentice ⁹ reported that a total knee arthroplasty patient was able to maintain toe clearance when overcoming obstacles by increasing hip flexor work during the elevation phase of swing. Furthermore, in our previous study, ⁵ TFAs who could climb stairs using the SOS strategy showed a greater hip flexion velocity in the prosthetic limb during the early swing phase compared to ABS, suggesting that the TFAs would intentionally flex their hip joints rapidly to replicate the knee joint in conjunction with the hip flexion. Hence, as corroborated by previous research, the present study showed that the combination of extension–flexion by the hip joint in the prosthetic leg during the early swing phase could be an effective compensatory strategy to achieve foot clearance during SOS stair climbing in TFAs.

It is noteworthy that TF1 used a passive, single-axis prosthetic knee joint (3R45; hydraulic, swing-phase control). As we previously reported, ⁵ a passive single-axis prosthetic knee joint may be an important factor for ascending stairs using the SOS pattern than multi-axis or microprocessor knee because it might increase voluntary control or affect the reaction of the knee when the body moves. Indeed, TF1 preferred to use a nonmicroprocessor knee mechanism rather than C-Leg because it gave them more voluntary knee control. ¹⁰ Similarly, another study ¹¹ found that, compared to a multi-axis knee, a single-axis knee component would be more versatile for an amputee who has the muscular ability to control the prosthesis and the endurance to maintain a high level of voluntary control for an extended period of time. The investigators suggested that for these individuals, a single-axis knee would allow them to initiate swing more easily. Therefore, a passive, single-axis prosthetic knee joint would be a reasonable mechanism for TF1 during stair climbing using the SOS strategy.

Despite the recent establishment of rehabilitation for stair descent using the SOS strategy, ¹² gait rehabilitation for stair ascent in TFA is not available. We have already reported that both (1) extending the prosthetic knee joint to prevent knee flexion generated by the body’s weight and (2) lifting the entire body in an upward direction using strong counter-movements and greater joint extension of the sound leg during the stance phase are important for SOS stair climbing in TFA. ⁵ In the present study, we showed that a backward extension and rapid flexion of the prosthetic leg during the early swing phase using the hip joint would also be an effective compensatory strategy to avoid tripping (Figure 1(b)). Therefore, our past and current findings suggest that a combination of these movements could be effective compensatory strategies for SOS stair climbing in TFA without an active artificial prosthetic knee joint or handrail use.

There are several concerns regarding the interpretation of the findings. First, due to the limited number of TFAs who can climb stairs in SOS strategy without an external aid, only one TFA was available for the present study. To verify the effectiveness of the compensatory strategies observed in this study and establish practical gait rehabilitation by the therapist, there should be multiple subjects in future research. Second, we could not determine the ground reaction force and joint kinetics due to the experimental setting. Third, in the present study, we could not identify how our TF1 acquired the compensatory movement over the past decade or so. Stair climbing using SOS strategy would depend on knee mechanism, patient ability, and combinations of both variables. Clearly, additional work is necessary to determine the mechanisms responsible for the SOS stair ascent pattern in TFAs.
