A numerical investigation of the effects of ice accretion on the aerodynamic and structural behavior of offshore wind turbine blade

Abstract

In recent years, several wind turbines have been installed in cold climate sites and are menaced by the icing phenomenon. This article focuses on two parts: the study of the aerodynamic and structural performances of wind turbines subject to atmospheric icing. Firstly, the aerodynamic analysis of NACA 4412 airfoil was obtained using QBlade software for a clean and iced profile. Finite element method (FEM) was employed using ABAQUS software to simulate the structural behavior of a wind turbine blade with 100 mm ice thickness. A comparative study of two composite materials and two blade positions were considered in this section. Hashin criterion was chosen to identify the failure modes and determine the most sensitive areas of the structure. It has been found that the aerodynamic and structural performance of the turbine were degraded when ice accumulated on the leading edge of the blade and changed the shape of its profile.

Keywords

Airfoil icing numerical analysis BEM Hashin criteria FEM composite wind turbine blade

Introduction

Wind turbines located in cold climate areas have interesting advantages related to increasing air density but have to maintain their operation under icing condition because of the important drop in the lift to drag ratios of iced surfaces (Han and Palacios, 2012; Jha et al., 2012). Icing phenomenon is initiated when a supercooled water droplet suspended in the air freeze upon contact with a surface that permits ice to form on the rotor blade (Liu et al., 2018), causing a severe effect on the aerodynamic performance, resulting in a 30% lift decrease coupled with a 50% improvement in drag (Zanon et al., 2018). Power losses resulting from ice accumulation can be strongly influenced by location, wind turbine dimensions and meteorological conditions (Stoyanov and Nixon, 2020). Reduction of airfoil performance due to ice accumulation must be well understood to satisfy safety standards. The icing and aerodynamic physics associated with the movement of the rotor in an icing area is a subject of growing attention (Brown, 2013).

Multiple studies in recent years have analyzed the impact of ice formation on the aerodynamic and structural behavior of offshore wind turbine blade. Jin and Virk (2019a) identified the effects of icing on the aerodynamic characteristics of DU96 wind turbine blade profiles. Numerical and experimental analyses were performed for glaze and rime ice conditions using respectively icing tunnel method and computational fluid dynamics (CFD). It proved a good agreement between them and showed that a deterioration of the aerodynamic performance of the blades is more important in case of glaze ice than the profile of rime ice. The same authors (Jin and Virk, 2019b) also examined the impact of ice accumulation on the aerodynamic performance of two different profiles in dry and wet ice conditions. The tests showed that the accumulation of ice is more complex for the S832 profile for wet ice conditions (15%–20%) and the S826 airfoil (5%–10%). While for dry ice conditions, ice formation is prolonged over the chord length to about 25% for each of the two profiles. Shu et al. (2018) addressed the problem of ice formation and analyzed the power characteristics of a 300 kW wind turbines in a natural icing area. Using the image processing method, it has been reported that severe structural damage is caused by the thickness of ice which increases strongly from the root to the center of the blade and then gradually until it reaches the tip of the geometry. Ibrahim et al. (2018) examined the effect of blade design on ice accumulation for all of NREL aerodynamic profiles, it was demonstrated that the thickness of the blade and its placement had a very important impact and that ice loads increased significantly with the thickness of the blades. They also reported that the loss of lift coefficient due to the accumulation of ice was between 10% and 65% and varied according to the shape of the accumulated ice. Lamraoui et al. (2014) were interested in the influence of atmospheric icing on wind turbine production. They found that under icing conditions, the greatest aerodynamic degradation was found in the external surface of the blade beginning at the radial position r/R = 0.8 toward its tip, resulting in a loss of power generation. The researchers added that the double-horn-shaped ice caused the greatest aerodynamic degradation and that 85% of the energy production was produced by the section situated at 60% of the blade to the tip. Using an ice accumulation prediction methodology combined with the Blade Element Momentum method, Yirtici et al. (2017) worked on optimizing the wind turbine blade profiles to minimize ice accumulation. It has been found that the aerodynamic performance of the iced blade has been considerably improved. It was also noted that the power drops decreased at all wind speeds up to 15 m/s and at higher ice exposition times. Homola et al. (2011) calculated power performance losses caused by ice formation on a 63 m long NREL wind turbine blade using the CFD and BEM method. Analyses were done on five different sections of the blade and found that its end (section E) accumulated the most ice because of the high wind speed, where the value of the efficiency of the local collection was 0.43 while at the center of the blade (section C) had a value of 0.13. Hudecz et al. (2013) operated an experimental and numerical analysis to visualize the effects of ice accretion on a section of the NACA 64-618 profile. They found that the coefficient of lift decreased and the coefficient of drag increased once the ice had formed. Ebrahimi et al. (2016) conducted experimental studies on an NLF-0414 profile under well-defined icing conditions to study the degradation of its aerodynamic performance. It was determined that the accumulation of double-horn ice strongly altered the aerodynamic characteristics of the profiles and that the size of the separation bubble on the top side increased with the angle of attack, in contrast to the one located at the bottom surface.

In the present work, a numerical investigation of the influence of ice formation on the aerodynamic and structural behavior of offshore wind turbine blade has been performed. To evaluate the change in aerodynamic characteristics of the ice profile, a numerical test was performed at different angles of attack using QBlade software and structural analysis is presented using ABAQUS software based on the Finite Element Method (FEM).

Aerodynamic performance analysis

Qblade software validation

The aerodynamics of the two-dimensional NACA 0012 profile was first studied, Figure 1. The calculation was performed using Qblade which is a free software dedicated for the simulation and conception of wind turbines and employs the Blade Element Momentum (BEM) theory to determine the lift and drag coefficient of the airfoil (Nachtane et al., 2019, 2020b). In our case, each test was executed at a constant Reynolds number of 10⁶ at a density of 1.225 kg/m³. The coefficients of lift and drag are obtained at multiple angles of attack and are compared with the CFD method conducted by Yilmaz et al. (2018) and the AERTS experimental facility of Brown (2013) for a NACA0012 profile.

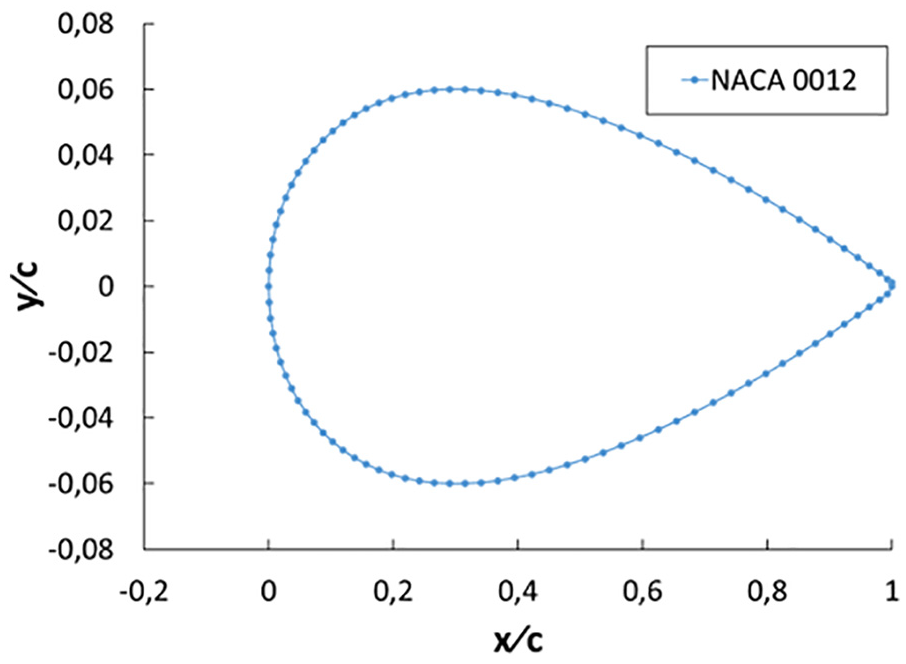

Figure 1.

NACA 0012 airfoil.

Figure 2 represents the graphical interpretation of the numerical and experimental results of lift and drag coefficients of the NACA 0012 profile as a function of the angle of attack (AoA). In all these tests, the aerodynamic coefficients are calculated for a unit chord length of the un-iced profile.

Figure 2.

Verification of Qblade code with experimental results and CFD for NACA0012 profile, Re = 10^6.

The lift curves extracted from Qblade correlate with the experimental and CFD data very well, in contrast to the coefficient of drag as indicated above the results obtained coincide more closely with the experimental data. The aerodynamic lift and drag increase with angle of attack. At 0-degree, Qblade lift coefficient is zero because the test model is using NACA 0012, which is symmetrical and the experimental value is 0.0993. However, the drag coefficient of Qblade and experimental values of NACA 0012 profile are 0.0053 and 0.0075, respectively. In general, it can be concluded that there is a good correlation between the numerical values obtained for the NACA 0012 airfoil and the experimental data, confirming the validity of the numerical solutions at the same Reynolds number.

Choice of the profile

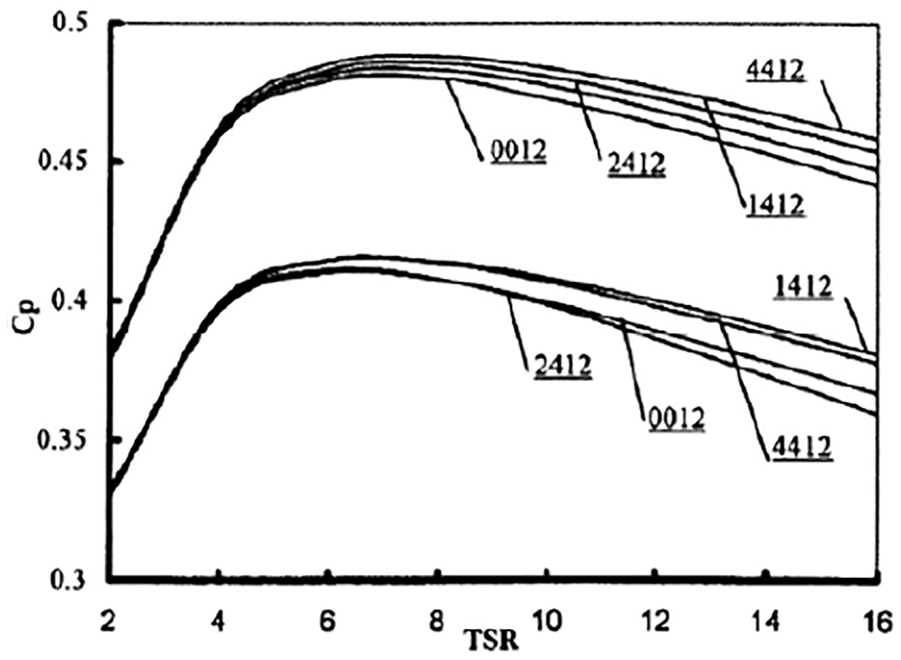

Figure 3 illustrates the change of the optimum power coefficient (C_P) as a function of the tip-speed ratio (TSR). It can be seen that the value of C_P rises quickly with TSR until it reaches its optimal value, after which it progressively reduces. It is found that NACA 4412 type blades deliver greater power output than the others, making it an ideal aerodynamic profile for wind turbine applications (Tarfaoui and Shah, 2013).

Figure 3.

Evolution of C_P as a function of TSR for a three-bladed rotor of NACA type with four digits.

Taking into account the icing phenomenon, the basic profile has been modified in two different forms (Ice1, Ice2) to study the impact of ice formation on the aerodynamic wind turbine blades performance. The shape of the airfoil is shown in Figure 4, where the basic profile has been assigned as “Clean” while the first iced profile on the leading edge is “Ice 1” and the second is named “Ice 2.”

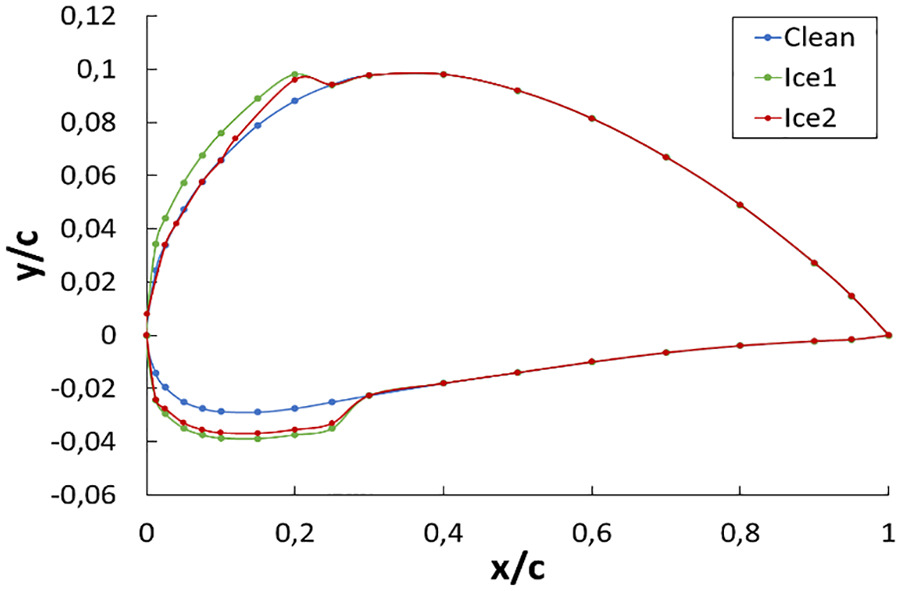

Figure 4.

Clean and accreted ice shapes of NACA 4412.

Geometric modeling of rotor

The tests models are based on a three-blade propeller, where the different sections for the wind turbine blade are listed in Table 1.

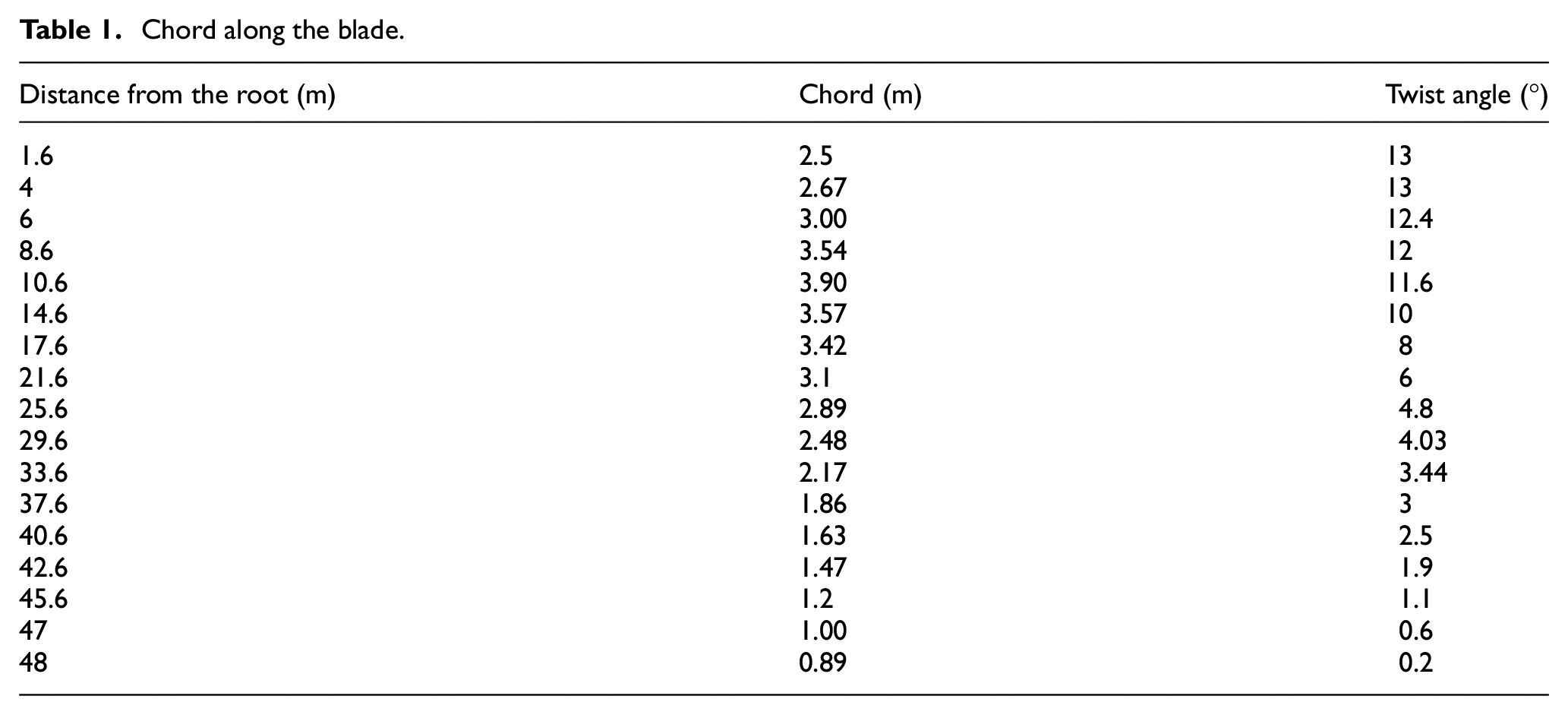

Table 1.

Chord along the blade.

Distance from the root (m)	Chord (m)	Twist angle (°)
1.6	2.5	13
4	2.67	13
6	3.00	12.4
8.6	3.54	12
10.6	3.90	11.6
14.6	3.57	10
17.6	3.42	8
21.6	3.1	6
25.6	2.89	4.8
29.6	2.48	4.03
33.6	2.17	3.44
37.6	1.86	3
40.6	1.63	2.5
42.6	1.47	1.9
45.6	1.2	1.1
47	1.00	0.6
48	0.89	0.2

Although the icing and non-icing profiles are the same for all the 18 sections of the turbine blade. Figure 5 shows that the radial sections are thin near the tip, while their thicknesses increase at a smaller radius to eventually turn circular at the blade root.

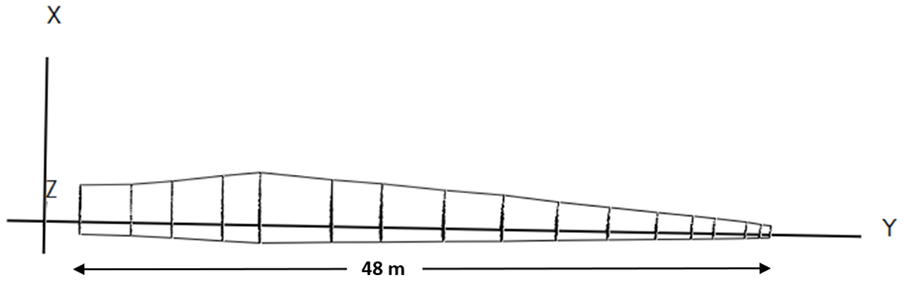

Figure 5.

Blade structure with clean NACA 4412 airfoil (XY-plane).

Aerodynamic characteristics of NACA 4412 profile

The NACA 4412 aerodynamic profile for a blade with and without ice is selected and analyzed for a Reynolds number equal to 10⁵ and wind speed of 25 m/s in the QBlade software. The aerodynamic coefficients are calculated at angles of attack starting from −6° to 20°. Figure 6 presents the lift and drag coefficient plots for clean and frozen NACA 4412 airfoils where ice accumulation is concentrated on the leading edge (Ice1 and Ice2). Iced shapes have a strong effect on the aerodynamic characteristics of the airfoil. It can be seen that for large angles of attack. The area enclosed between the lift coefficients of the iced and clean airfoils increases. While the distance between the drag coefficients curves decrease. It is also observed that lift and drag characteristics were both created even at a negative angle of attack.

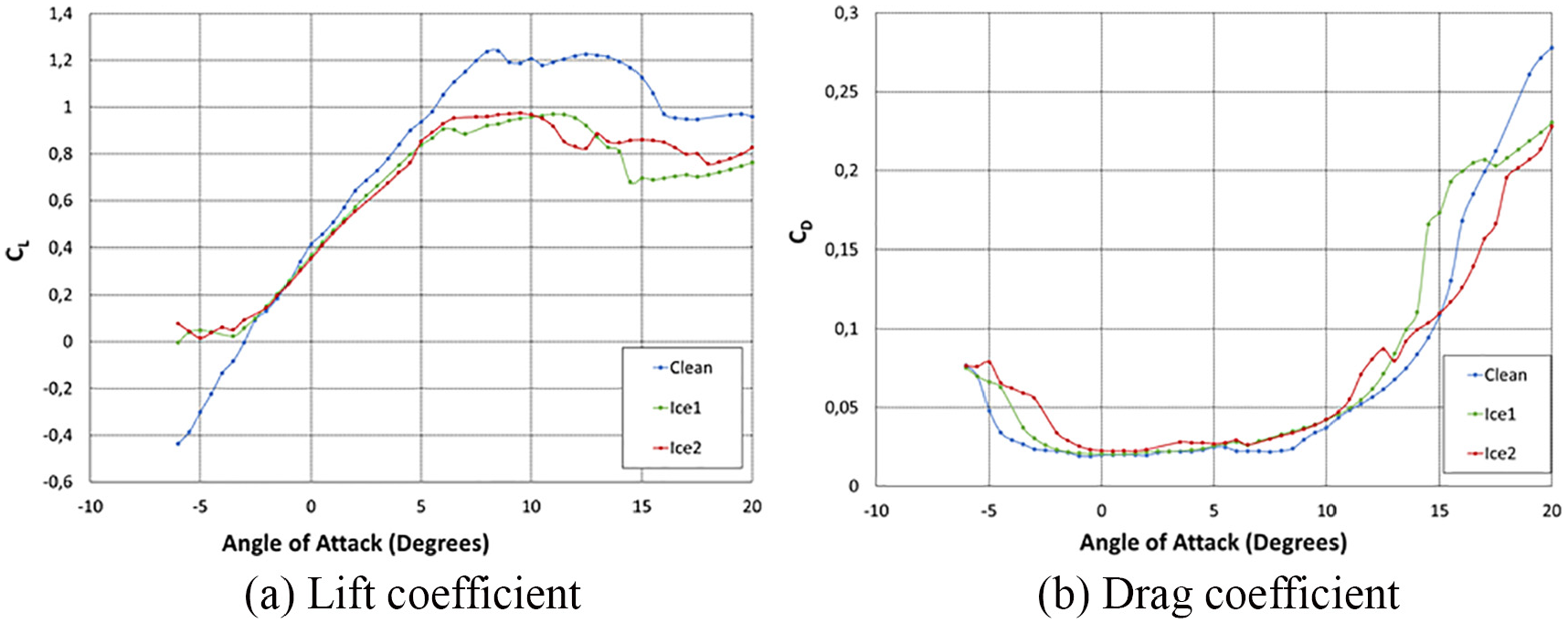

Figure 6.

Lift and drag coefficient versus angle of attack.

From Figure 7, the lift–drag ratio (C_L/C_D) of NACA 4412 airfoil suddenly decreases when ice forms on its leading edge. The clean profile showed the best performance with a value of 55.115 at an attack angle of 8° while for Ice 1 and Ice 2, the lift–drag ratios are respectively 31.934 and 34.624 at 6.5°.

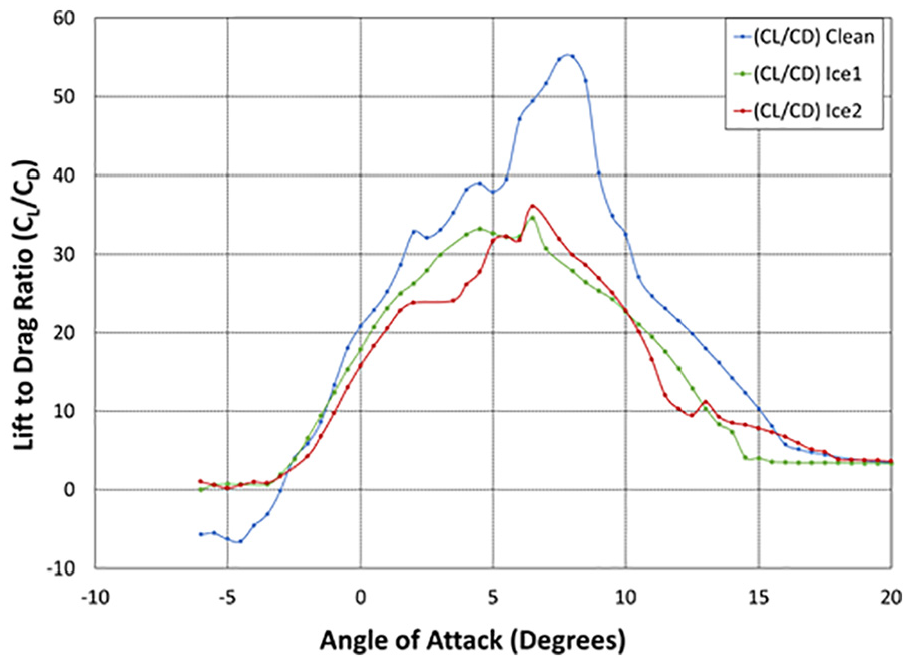

Figure 7.

Lift to drag ratio versus angle of attack.

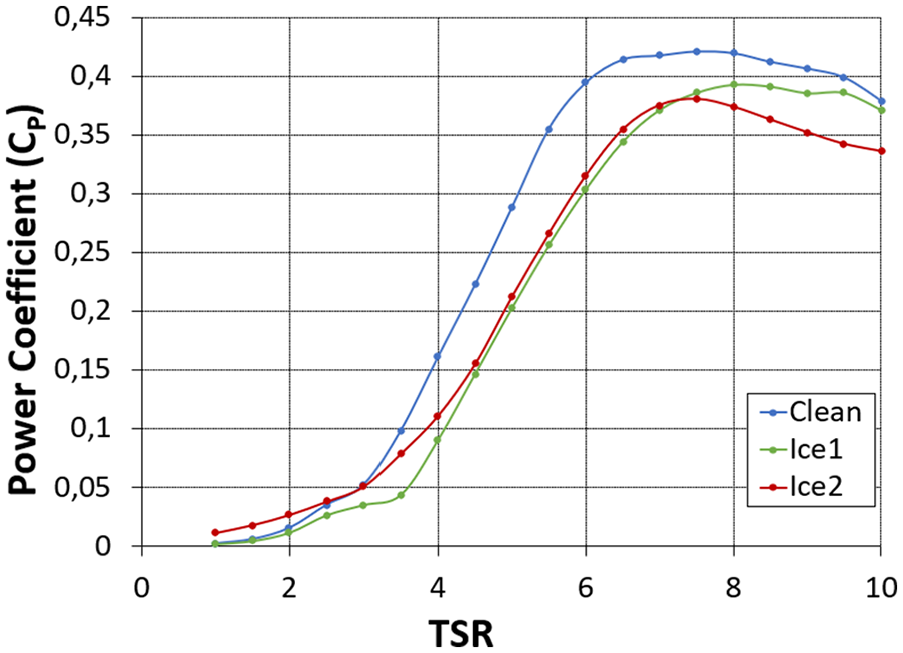

Figure 8 illustrates the evolution of the power coefficient according to the tip speed ratio. The maximum value of the power coefficient 0.421 was given by the clean profile for a tip speed ratio equal to 7.5. Concerning Ice 1 and Ice 2, the C_P values decrease and are quite close for a TSR varying between 4.5 and 7.

Figure 8.

Power coefficient versus tip speed ratio.

A comparison of the airfoil pressure curves was done at a Reynolds number of 10⁵. Figure 9 presents the pressure distribution coefficient on the lower and upper side of the clean and the two presentations of the frozen NACA 4412 profile as a function of position on the airfoil for an angle of attack (AoA) equal to 8.5°. On the top surface, the strong depression near the leading edge of the profile is evident, which is much less than the pressure on the bottom surface.

Figure 9.

Distribution of pressure coefficient of clean and iced NACA 4412 at AoA = 8.5° and Re = 10⁵.

It is visible that slight pressure ﬂuctuations are occurring on both Ice1 and Ice2 profiles. There is also seen a difference between the different curves because of the distribution of ice formed on the leading edge. The shape of the boundary layer of the different profiles is shown in Figure 10. It can be visualized that for the clean profile, the boundary layer separation point on the top surface of the airfoil is very near to the trailing edge. As opposed to the iced profiles, the thickness of the boundary layer is increasing which can engender catastrophic effects on the lifetime of the blade, causing the phenomenon of stall, vibration and fatigue.

Figure 10.

Boundary layer and the separation point for AoA = 8.5°.

Structural performances analysis

The formation of ice on the blade surface represents a major risk to its structural integrity. The distribution of ice along the structure is not homogenous. It is concentrated more precisely at the tip of the blade. Icing is responsible for the deterioration of the geometry due to the accumulation of ice which produces small fissures and premature delamination in the material of the wind turbine (Afzal and Virk, 2018).

Blade description

The considered model is a 48 m long of an industrial offshore wind turbine blade composed by a NACA 4412 profile with different chords, using conventional shell elements (Tarfaoui and Shah, 2013). Blade structure is made from composite fabrics reinforced with continuous fibers and are constructed from several parts as shown in Figure 11 (Fetfatsidis et al., 2012).

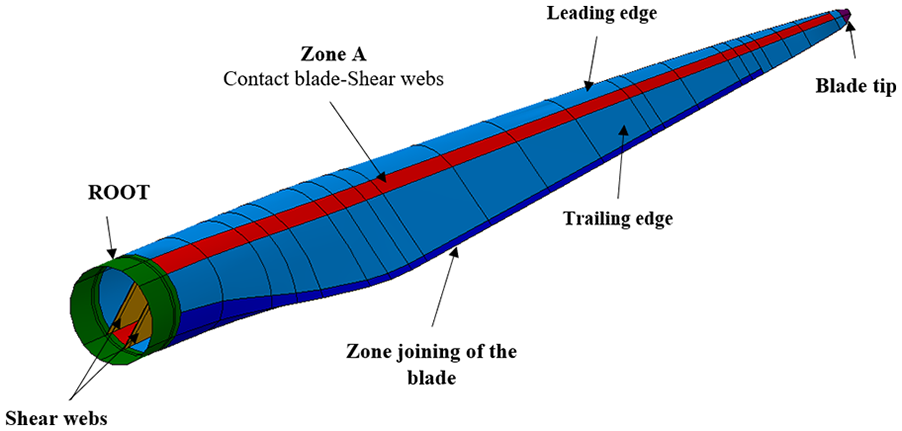

Figure 11.

Division of basic rotor blade geometry.

Mechanical properties description

The application of composite materials has progressed considerably, particularly in the construction of wind turbine blades (Rajad et al., 2018). High stiffness, excellent corrosion resistance and low weight justify the choice of these materials in our study (Nachtane et al., 2020a). The objective of this section is to analyze the behavior of the blade using Carbon and Glass fibers, whose properties are specified in Table 2.

Table 2.

Mechanical properties of the materials employed in the analysis of wind turbine blade.

Material property parameters	Carbon-epoxy (Gemi, 2018)	Glass-polyester (Nachtane et al., 2018)
ρ (kg/m³)	1600	1960
E ₁ (GPa)	147	48.16
E ₂ (GPa) = E₃ (GPa)	10.3	11.210
Nu₁₂ = Nu₁₃	0.27	0.270
Nu₂₃	0.54	0.096
G ₁₂ (GPa) = G₁₃ (GPa)	7	4.420
G ₂₃ (GPa)	3.7	9

FE model description and failure criterion

Finite element modeling

Three principal loads were applied at the same time using the ABAQUS software. A wind turbine in service subjected to all critical loads is represented in Figure 12, where the green and the violet arrows indicate respectively the centrifugal and aerodynamic force while a yellow arrow is the gravity load (Tarfaoui et al., 2018). The effect of ice is analyzed at three different locations and for a vertical blade pointing upwards and downwards, Table 3 and Figure 13.

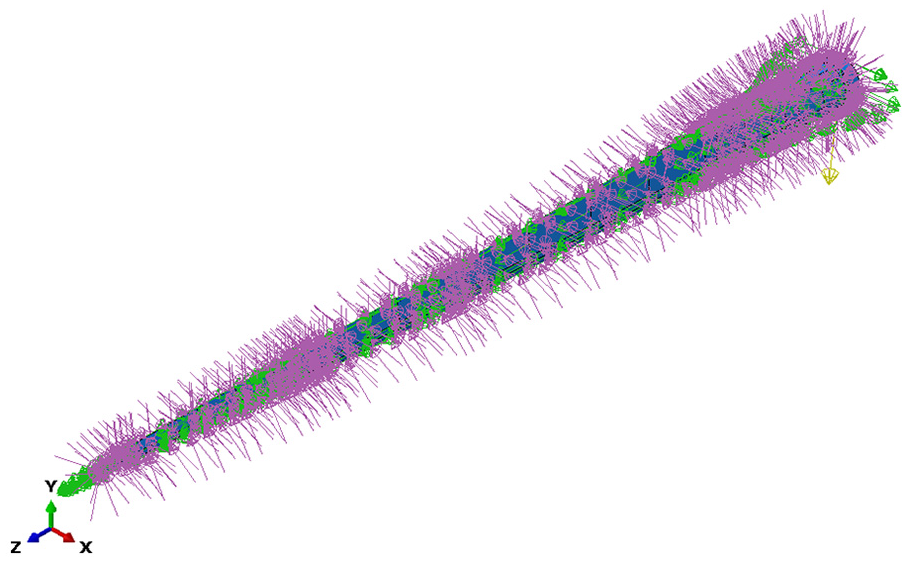

Figure 12.

Wind turbine blade under all loads.

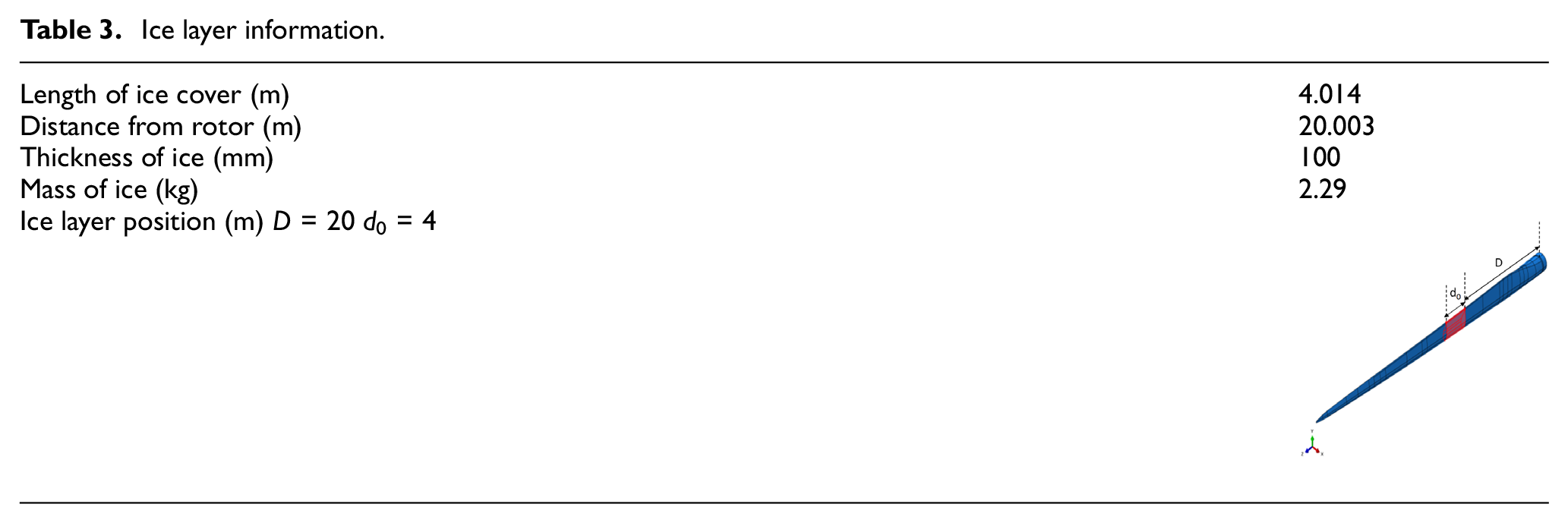

Table 3.

Ice layer information.

Length of ice cover (m)	4.014
Distance from rotor (m)	20.003
Thickness of ice (mm)	100
Mass of ice (kg)	2.29
Ice layer position (m) D = 20 d₀ = 4

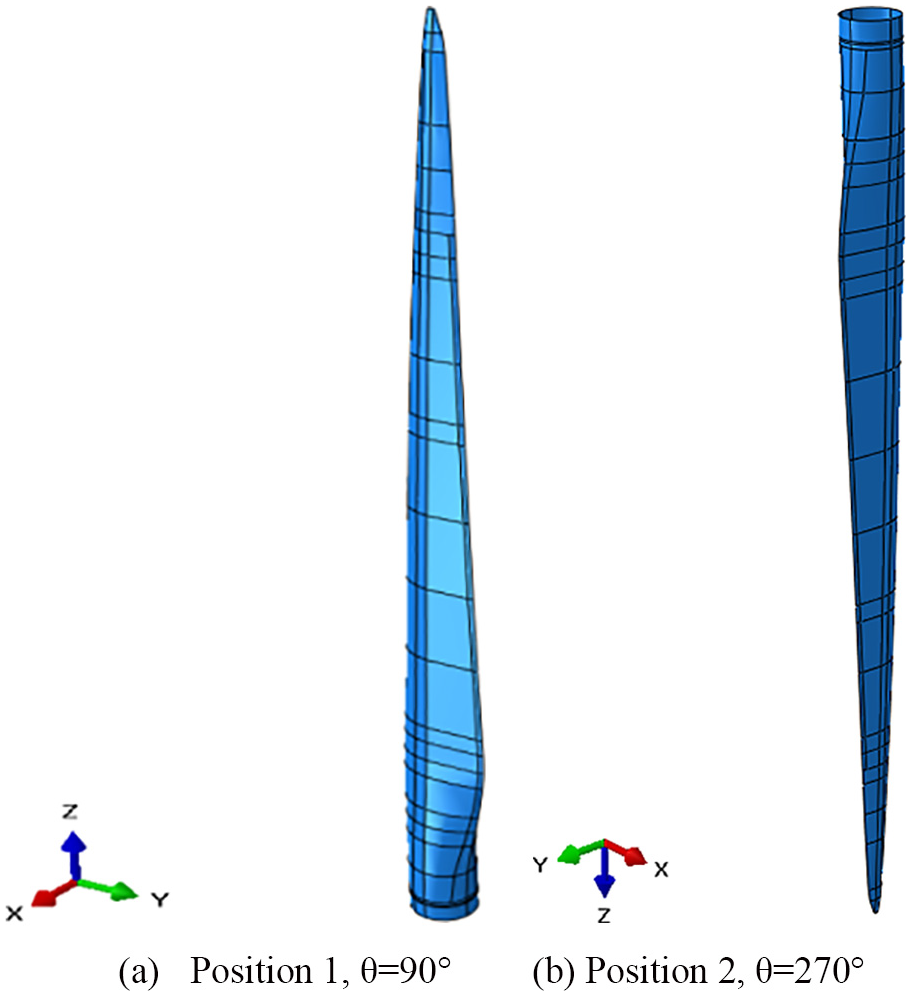

Figure 13.

Schematic of different blade angles for the stationary condition.

In our study, the results of the numerical study were performed by fixing the root of the rotor blade and leaving the tip free. To provide better analysis, the point at the blade tip is chosen as reference.

Hashin failure theory

To describe and detect different failure modes, damage surface is identified according to Hashin’s criteria which used to prevent the initiation of structural damage in unidirectional composites (Hassoon et al., 2017; Tarfaoui et al. 2019). Four typical failure modes are considered, namely the fiber tension/compression and matrix tension/compression (Yu et al., 2018). The damage started when one or more of all these mechanisms are equal to or greater than 1.0 according to the material strengths (Jared et al., 2017). Damage initiation criteria must be defined for the four modes and have the following general form, Table 4.

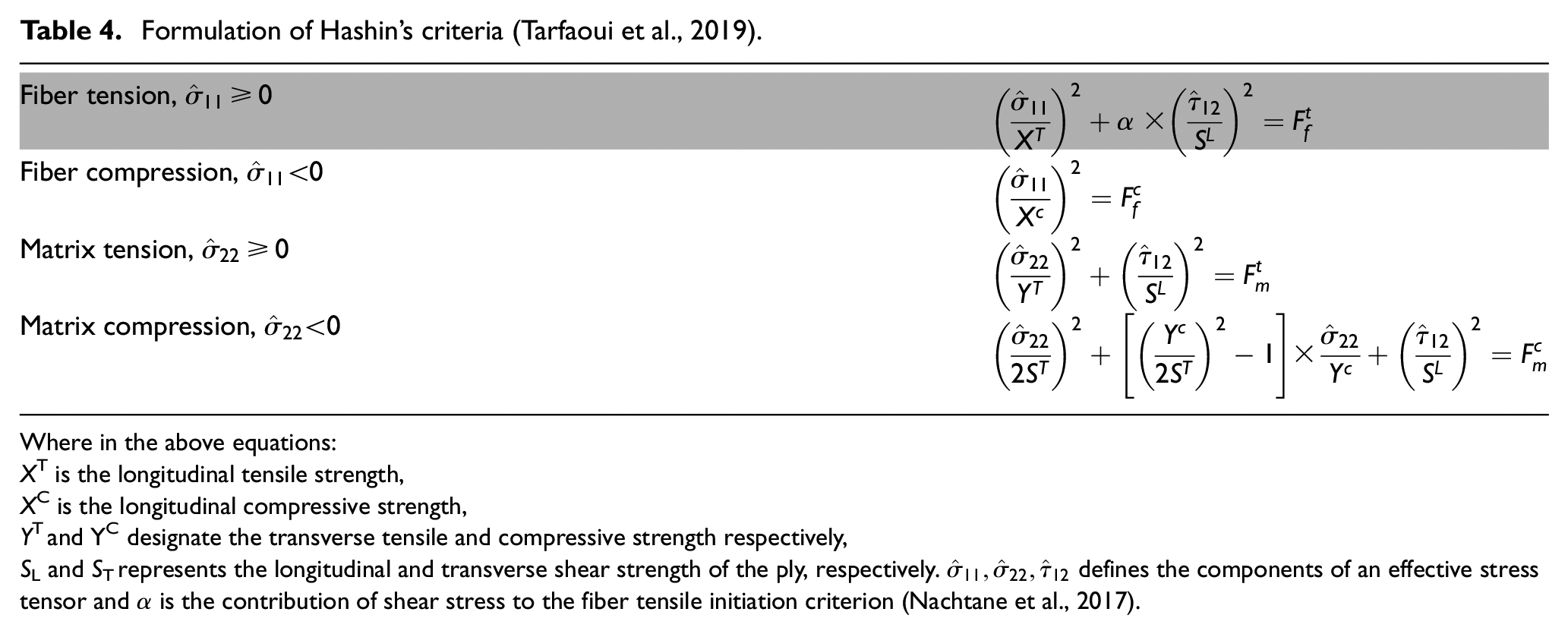

Table 4.

Formulation of Hashin’s criteria (Tarfaoui et al., 2019).

Fiber tension, ${\hat{σ}}_{11} \geq 0$	${(\frac{{\hat{σ}}_{11}}{X^{T}})}^{2} + α \times {(\frac{{\hat{τ}}_{12}}{S^{L}})}^{2} = F_{f}^{t}$
Fiber compression, ${\hat{σ}}_{11} < 0$	${(\frac{{\hat{σ}}_{11}}{X^{c}})}^{2} = F_{f}^{c}$
Matrix tension, ${\hat{σ}}_{22} \geq 0$	${(\frac{{\hat{σ}}_{22}}{Y^{T}})}^{2} + {(\frac{{\hat{τ}}_{12}}{S^{L}})}^{2} = F_{m}^{t}$
Matrix compression, ${\hat{σ}}_{22} < 0$	${(\frac{{\hat{σ}}_{22}}{2 S^{T}})}^{2} + [{(\frac{Y^{c}}{2 S^{T}})}^{2} - 1] \times \frac{{\hat{σ}}_{22}}{Y^{c}} + {(\frac{{\hat{τ}}_{12}}{S^{L}})}^{2} = F_{m}^{c}$

Where in the above equations:

X^T is the longitudinal tensile strength,

X^C is the longitudinal compressive strength,

Y^T and Y^C designate the transverse tensile and compressive strength respectively,

S _L and S_T represents the longitudinal and transverse shear strength of the ply, respectively. ${\hat{σ}}_{11}, {\hat{σ}}_{22}, {\hat{τ}}_{12}$ defines the components of an effective stress tensor and $α$ is the contribution of shear stress to the fiber tensile initiation criterion (Nachtane et al., 2017).

After the damage initiation criterion has been achieved, damage evolution equations are employed to predict the diminution of material stiffness coefficients resulting from the evolution of damage (Frappier, 2016). It can be illustrated for each mode in fiber and matrix in the form below:

d = \frac{δ_{eq}^{f} (δ_{eq} - δ_{eq}^{0})}{δ_{eq} (δ_{eq}^{f} - δ_{eq}^{0})}, δ_{eq}^{0} \leq δ_{eq} \leq δ_{eq}^{f}

(1)

$δ_{eq}^{0}$ represents the equivalent displacement at which the initiation criterion is achieved and $δ_{eq}^{f}$ correspond to the equivalent displacement at which the material is entirely damaged (d = 1; Lapczyk and Hurtado 2007).

Material effect

Various numerical simulations were executed to visualize the effect of composite materials on the behavior of an iced blade with a thickness of 100 mm, employing each time Carbon and Glass fibers, and also to see the effect of the hybrid Carbon-Glass (CGG) situated in section A of a Carbon blade as illustrated previously in Figure 11. Figure 14 represents the load-displacement curves for two different cases of an iced and un-iced blade. Position 1 is noted when the rotor is vertical pointing upwards (θ = 90°) and position 2 when it is vertical pointing downwards (θ = 270°).

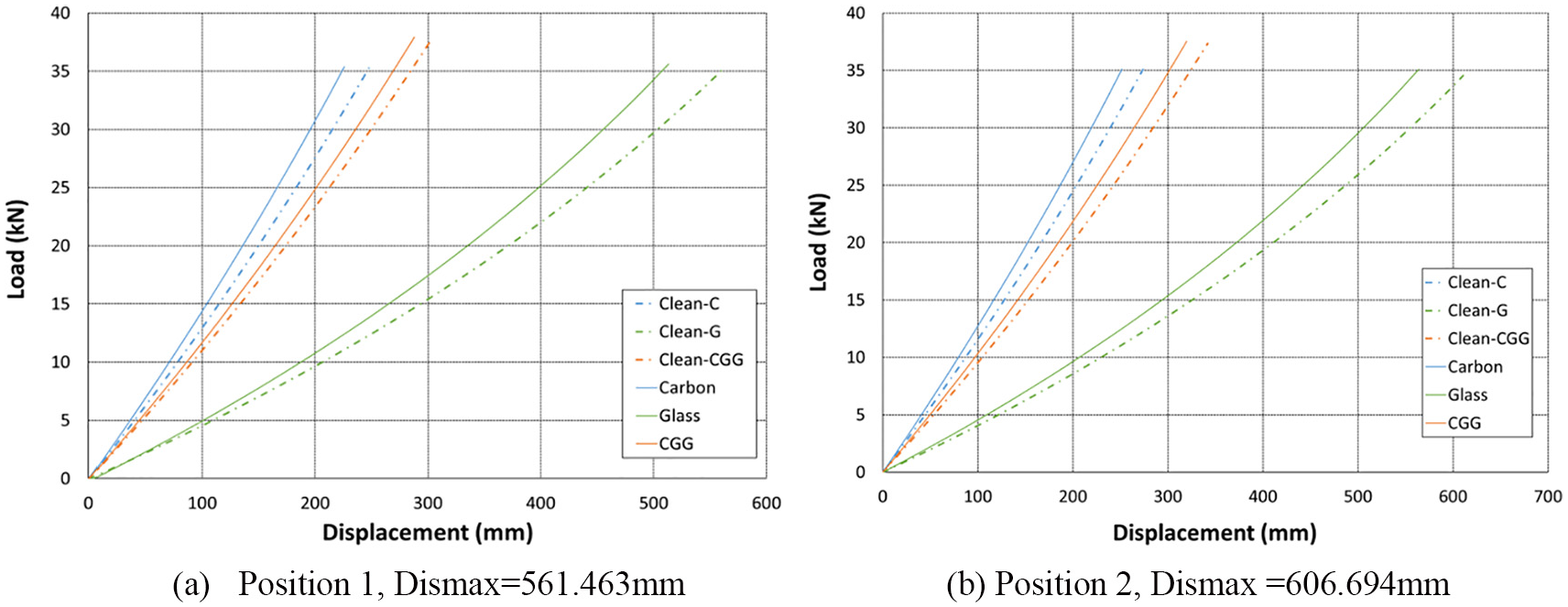

Figure 14.

Mechanical behavior of the clean and iced composite blade.

One noticed that the curves of Figure 14(a) and (b) have a similar shape and the same behavior. It can be observed that Carbon has usually low maximum displacement values in comparison with other materials caused by the supplementary weight of the ice layer added to the structure. 248.21 mm was detected for the carbon clean blade (Clean-C) and 225.94 mm for the iced blade at position 1 and 273.955 and 251.825 mm for, respectively, un-iced and iced rotor at position 2.

The maximum stiffness was varied depending on the material and the position of the blade. A structure in Carbon gives the highest value (1.565 × 10⁵ N/m), this is due to its high rigidity and strength when the ice accretion occurs on a vertical blade pointing upwards, Figure 15.

Figure 15.

Maximum stiffness of the iced composite blade for different materials.

Effect of the blade position

Two different positions were evaluated and compared in this section to determine the most restrictive position (which generates the most load on the blade and / or the wind turbine) of a composite blade considering an ice thickness of 100 mm using Carbon fibers, Glass fibers and the hybrid Carbon-Glass (CGG), Figure 16.

Figure 16.

Effect of the blade position for different materials.

According to Figure 16 and Table 5, it’s shown that the highest maximum displacement value (513.114 mm) and a maximum force equal to 35.7687 kN are generated by Glass fibers iced blade when the rotor tip is upward (position 1).

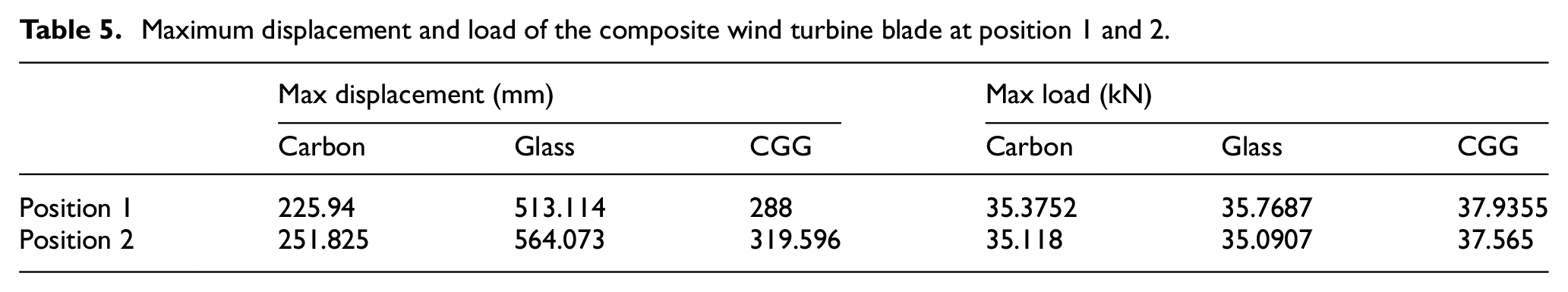

Table 5.

Maximum displacement and load of the composite wind turbine blade at position 1 and 2.

	Max displacement (mm)			Max load (kN)
	Carbon	Glass	CGG	Carbon	Glass	CGG
Position 1	225.94	513.114	288	35.3752	35.7687	37.9355
Position 2	251.825	564.073	319.596	35.118	35.0907	37.565

When the rotor tip is downward (position 2), the maximum displacement and maximum force are, respectively, 564.073 mm and 35.0907 kN.

It is then concluded that position 1 generates the least load/stress on the blade because it gives lower maximum displacement and higher maximum force despite the material changes.

From the detailed results of the numerical analysis in Table 6, it can be detected that HSNMTCRT has achieved a value of 1 for a Glass fibers material which means that damage has occurred. However, the other values of the criteria were in the order of 10⁻¹ to 10⁻³, indicating that the failure was not significant.

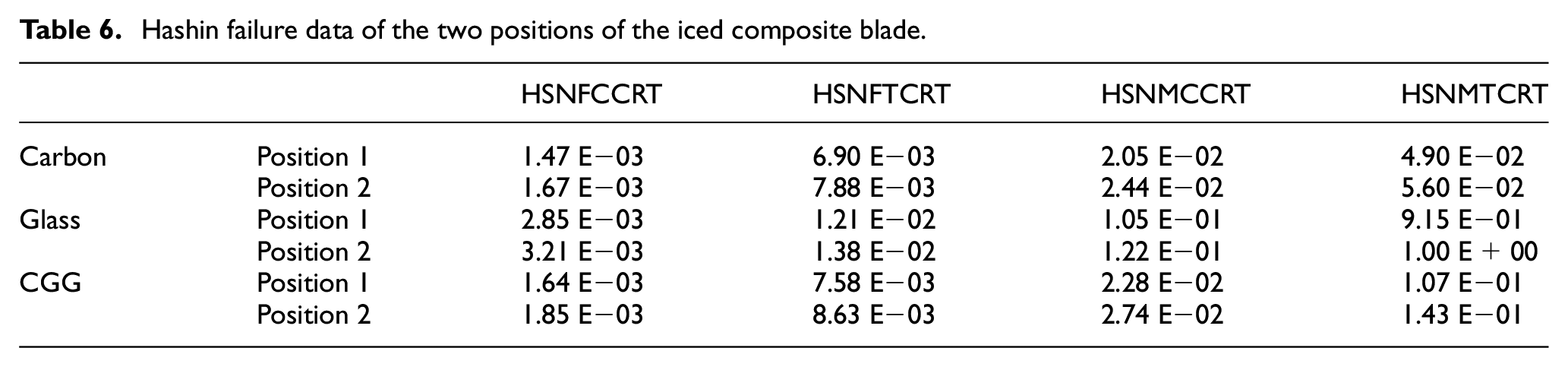

Table 6.

Hashin failure data of the two positions of the iced composite blade.

		HSNFCCRT	HSNFTCRT	HSNMCCRT	HSNMTCRT
Carbon	Position 1	1.47 E−03	6.90 E−03	2.05 E−02	4.90 E−02
	Position 2	1.67 E−03	7.88 E−03	2.44 E−02	5.60 E−02
Glass	Position 1	2.85 E−03	1.21 E−02	1.05 E−01	9.15 E−01
	Position 2	3.21 E−03	1.38 E−02	1.22 E−01	1.00 E+00
CGG	Position 1	1.64 E−03	7.58 E−03	2.28 E−02	1.07 E−01
	Position 2	1.85 E−03	8.63 E−03	2.74 E−02	1.43 E−01

A comparison of Tables 6 and 7 shows that the ice does not damage the blade due to its thin thickness of 100 mm and that the only damage appeared at the root region of the wind turbine composite blade which is represented by the red color in Figure 17 and indicates that the failure behavior is detected in this section. This is mainly attributed to transition in the thickness of the blade assembly section and the hub. Moreover, the adhesive element is responsible for the damages that appear in the bonding area of the spar with the lower or upper surface (intrados and extrados).

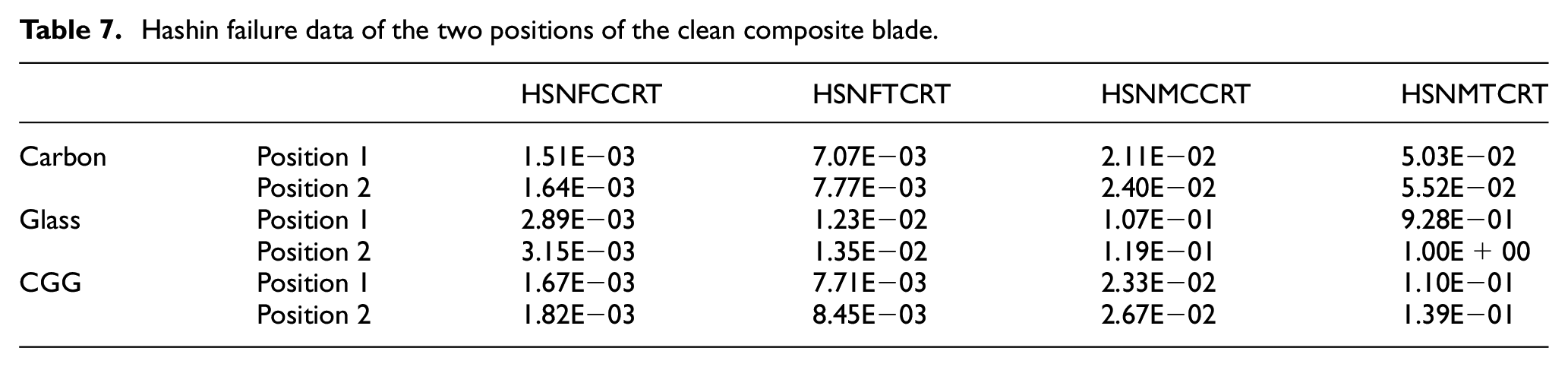

Table 7.

Hashin failure data of the two positions of the clean composite blade.

		HSNFCCRT	HSNFTCRT	HSNMCCRT	HSNMTCRT
Carbon	Position 1	1.51E−03	7.07E−03	2.11E−02	5.03E−02
	Position 2	1.64E−03	7.77E−03	2.40E−02	5.52E−02
Glass	Position 1	2.89E−03	1.23E−02	1.07E−01	9.28E−01
	Position 2	3.15E−03	1.35E−02	1.19E−01	1.00E+00
CGG	Position 1	1.67E−03	7.71E−03	2.33E−02	1.10E−01
	Position 2	1.82E−03	8.45E−03	2.67E−02	1.39E−01

Figure 17.

Hashin’s criterion of the iced composite glass blade, position 2.

Conclusion

The principal goal of this research is to study the aerodynamic and structural performance of offshore wind turbine blade subject to atmospheric icing conditions. Firstly, the aerodynamic analysis of NACA 4412 profile was obtained using QBlade software for a clean and ice-accreted two-dimensional profile. The results indicated that the presence of ice reduces the lift coefficient and increases the drag coefficient and subsequently leading to a diminution in power output. Then, the structural analysis of a wind turbine blade of 48 m in service with 100 mm ice thickness is investigated using a finite element analysis with ABAQUS software. Two composite materials and two different blade positions were considered in this section. As a result of the ice accumulation on the blade, Carbon fibers have been indicated as the most resistant material and Position 1 (θ = 90°) proves to be the best because it gives lower maximum displacement and higher maximum force regardless of material changes. Ice does not damage the blade due to its thin thickness of 100 mm. The sensitive zone for all failure criteria was in the blade root where the stresses were concentrated due to the thickness transitions and subsequently had to be reinforced.
