Ventilatory parameters measured during a physiological study of simulated powered air-purifying respirator failure in healthy volunteers

Abstract

Powered air-purifying respirators (PAPR) are a high level of respiratory personal protective equipment. Like all mechanical devices, they are vulnerable to failure. The precise physiological consequences of failure in live subjects have not previously been reported. We conducted an observational safety study simulating PAPR failure in a group of nine healthy volunteers, wearing loose-fitting hoods, who were observed for a period of ten minutes, or until they requested the experiment be aborted, with continuous monitoring of gas exchange. Relative to baseline, participants demonstrated median reductions in peripheral oxygen saturation of 3.5% (95% confidence interval (CI) –4% to –2%; P = 0.0039) and fraction of inspired oxygen of 0.045 (95% CI –0.05 to –0.04; P = 0.0039), and median increases in inspired partial pressure of carbon dioxide of 27 mmHg (95% CI 23.5–32 mmHg; P = 0.0039), end-tidal partial pressure of carbon dioxide of 11 mmHg (95% CI 7–16 mmHg; P = 0.0039) and minute ventilation of 30 l/min (95% CI 19.4–35.9 l/min; P = 0.0039). Median collateral entrainment of room air into the hood was 17.6 l/min (interquartile range 12.3–27.0 l/min). All subjects reported thermal discomfort, with two (22.2%) requesting early termination of the experiment. Whilst the degree of rebreathing in this experiment was not sufficient to cause dangerous physiological derangement, the degree of reported thermal discomfort combined with the consequences of entrainment of possibly contaminated air into the hood, pose a risk to wearers in the event of failure.

Keywords

COVID-19 health personnel personal protective devices personal protective equipment (PPE)respiratory function: dead space

Introduction

Emerging evidence regarding the novel beta-coronavirus, SARS-CoV-2, and the disease it causes, coronavirus disease 2019, suggests that infection may be transmitted via an airborne route.¹,² This in turn has highlighted requirements for an appropriate level of personal protective equipment (PPE) for the healthcare workers who treat these patients, particularly during aerosol-generating procedures.³ Generally speaking, airborne precautions imply a high level of protection for the oral and nasal mucosa, provided by an appropriate disposable or reusable facial covering that is capable of filtering 95% of particles measuring ≤5 μm (commonly described as an N95 or P2 respirator) or a partial, full-face or loose-fitting air-purifying respirator with a dedicated, positively pressured and filtered air supply.⁴ These latter devices are commonly grouped together as powered air-purifying respirators (PAPR).

PAPR have a number of postulated advantages over disposable N95 respirators.⁵ While they are more expensive as a single unit relative to other devices, PAPR do not require formal fit testing,⁴ are largely protected from supply-chain failure once obtained⁶ and are more comfortable when worn for extended periods.⁷ Simulation studies have demonstrated that relative to N95 respirators, PAPR do not compromise the ability of the wearer to manage a difficult airway⁸ or perform cardiopulmonary resuscitation safely.⁹

Like all devices, however, PAPR has an inherent, albeit low, risk of mechanical failure. Common advice from manufacturers in the event of device failure is to exit the contaminated area as quickly as possible. However, this may not always be feasible if the wearer is performing a time-critical clinical task, as (a) abandoning the task suddenly may put the patient at risk (i.e. after administering neuromuscular blockade but prior to intubation), and (b) based on our experience, it takes an experienced operator approximately five minutes to doff their PAPR and full PPE safely. The immediate respiratory consequences of attempting to persist with clinical tasks following such a failure are unknown. Accordingly, we undertook a prospective, observational safety study in healthy volunteers, where we continuously measured gas exchange and other respiratory parameters in a simulation of sudden complete PAPR failure, such as might be experienced if the battery supply to the motor unit were inadvertently disrupted. We hypothesised that such a simulated failure would result in either (a) progressive rebreathing of expired gas, with an associated risk of hypoxia (and hypercapnia), or (b) unacceptable entrainment of potentially contaminated air into the hood from the external environment.

Methods

Study design and participants

Approval was granted by the Austin Health Human Research Ethics Committee (HREC/63489/Austin-2020). All participants gave written consent prior to any study-related procedure. Potential participants were eligible for inclusion if they were medical or nursing members of the Austin Health Department of Anaesthesia Coronavirus Intubation Team and had received prior practical training in the safe use of PAPR. There were no specific exclusion criteria. An invitation to participate in the study was distributed electronically to all eligible participants. Those who responded positively were enrolled into the study until the predefined sample size was achieved, after which the study was closed to recruitment.

Equipment

Participants were asked to don the Austin Health Department of Anaesthesia Coronavirus Intubation Team standard PPE. This consisted of a Sundström SR700 PAPR fan unit and a SR530 loose-fitting PAPR hood (Sundström Safety Ab, Stockholm, Sweden), over which were worn a disposable polypropylene surgical gown and hood with inbuilt Perspex visor. A mouthpiece connected via a Pro-Tec® PF30S microbiological filter (Pall Corporation, Port Washington, NY, USA) to a Fleisch pneumotachograph was inserted under the hood, with sampling tubing connected to a pressure-flow transducer (Validyne Engineering, Northridge, CA, USA) for monitoring of minute ventilation, and a rapid gas analyser (Datex Capnomac Ultima; General Electric, Inc., Boston, MA, USA) for recording of tidal gas concentrations via standard sidestream gas sampling tubing. A nose clip was used to ensure that the mouthpiece would capture all inspired and expired gas. As the hood was loose-fitting, the sampling tubing resulted in minimal disruption of gas flow in and out of the hood and was considered to represent a negligible change in hood performance. A pulse oximeter was placed on the participant’s finger and connected to an anaesthesia machine (Maquet/Getinge Flow-i, Stockholm, Sweden) with integrated monitor (Philips IntelliVue MP70, Eindhoven, The Netherlands). The anaesthetic machine also served as an emergency source of oxygen and resuscitation equipment if required. All monitoring devices were interfaced for data download and storage in real time to a notebook computer (Apple Corp., Cupertino, CA, USA) running a custom-made programme constructed using LabVIEW 2011 software (National Instruments, Austin, TX, USA) via an analog-digital converter (USB 6009; National Instruments). A 20G intravenous cannula was placed in the cubital fossa to allow repeat sampling of venous blood at pre-specified timepoints during the study procedure.

Study procedure

Each study procedure was supervised by two members of the study team. Following correct application of monitoring, participants were asked to sit, and a three-minute period of rest (with the PAPR fan active) commenced to allow baseline steady-state conditions to be achieved. Venous blood was sampled during this period and stored on ice in a heparinised syringe for subsequent blood gas analysis. Recording of baseline respiratory flow rates, tidal gas concentrations and pulse oximetry was also commenced. Data were collected on patient characteristics, specifically age (years), weight (kg), height (cm) and sex. Recorded respiratory variables were pulse oximetry (SpO₂) (%), fraction of inspired oxygen (FiO₂), partial pressure of inspired CO₂ (PiCO₂; mmHg), partial pressure of end-expired CO₂ (PeCO₂; mmHg), expired minute ventilation ( $\dot{V}$ E; l/min) and heart rate (HR; beats/min). Data output from a sample experiment is shown in Figure 1.

Figure 1.

Example physiological variable output from a sample experiment over time. : partial pressure of CO₂ (mmHg); : minute ventilation (l/min); : peripheral oxygen saturation (%); : partial pressure of O₂ (mmHg); : heart rate (beats/min). T=0 and T=1 are shown by .

Following this period of rest, the participant was asked to deactivate the PAPR fan unit, and filtered gas flow into the hood ceased. The point of deactivation was defined as T = 0. Participants were asked every 60 seconds if they wished to continue the study procedure. Participants were required to respond immediately in the affirmative or the experiment was terminated. Recording of study parameters then continued until one of four criteria to end the experiment were satisfied: (a) SpO₂ fell below 90% for ten seconds, (b) SpO₂ fell below 88% at any point, (c) the participant failed to respond in the affirmative at any of the predefined assessments (as above) or otherwise indicated that they wished to terminate the test or (d) ten minutes had elapsed from T = 0.

The time at which the experiment termination criteria was achieved was defined as T = 1. Once T = 1 was reached, repeat venous blood sampling was performed, following which the PAPR fan unit was then reactivated. Respiratory data continued to be recorded until SpO₂ returned to baseline, defined as T = 2. Participants were allowed to return to work as soon as oxygenation and other vital signs were within normal limits and they felt able to do so.

The primary outcome was time to achieve a SpO₂ of <90%. Secondary outcomes were time to recovery of SpO₂ >95% after T = 1, minimum recorded FiO₂, maximum PiCO₂ and PeCO₂, change from baseline in $\dot{V}$ E, maximum collateral ventilation into the PAPR hood ( $\dot{V}$ IN) and change in partial pressure of venous CO2 (PvCO₂ mmHg) between T = 0 and T = 1. $\dot{V}$ IN was derived using the following mass balance equation:

\dot{V} I N = (\frac{7 \times \dot{V E}}{10}) (\frac{{F e C O}_{2}}{{FiCO}_{2}} - 1) .

Derivation of this equation on mass balance principles can be found as the Supplemental Material to this manuscript.

We did not undertake a formal sample-size calculation. A predetermined sample size of nine participants was used for the study. It was recognised that the confidence intervals (CI) for this small sample size could be relatively wide (standard error ±30% of the mean) if considerable inter-individual variance was present for certain variables. If the inter-individual variance was not large, then a wide CI would not be expected, irrespective of sample size. Regardless of what the observed variance might be, we expected the standard deviation (SD) and range of values encountered would be sufficient to indicate the limits of safety of the device during simulated fan failure.

Data are presented as mean (SD) or median (interquartile range (IQR)) for continuous variables, depending on normality. Statistical comparisons were performed for recorded physiological data between T = 0 and T = 1. Data were examined for normality. Parametric variables were analysed using the two-tailed Student’s t-test. Non-parametric variables were analysed using the Wilcoxon signed-rank test. The median of differences and their 95% confidence intervals were calculated using the Hodges–Lehmann estimator. Statistical analyses were performed using Stata v16.1 (StataCorp LLC, College Station, TX, USA).

Results

Descriptive data for all nine participants in the final study cohort are outlined in Table 1. One patient was not able to have a venous sampling performed at T = 1 due to cannula failure. There were no other missing data. The median age of the study cohort was 36 years (IQR 34–43 years), the median weight was 72 kg (IQR 61–88 kg) and the median height was 176 cm (IQR 167–183 cm).

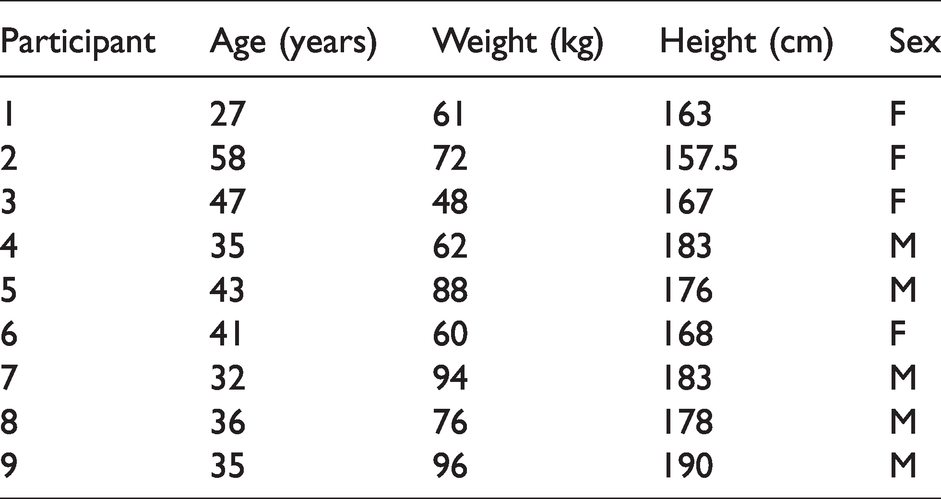

Table 1.

Description of participants.

Participant	Age (years)	Weight (kg)	Height (cm)	Sex
1	27	61	163	F
2	58	72	157.5	F
3	47	48	167	F
4	35	62	183	M
5	43	88	176	M
6	41	60	168	F
7	32	94	183	M
8	36	76	178	M
9	35	96	190	M

No participant achieved the primary endpoint of a SpO₂ of <90%.

Changes in physiological variables between baseline (T = 0) and peak/nadir values (generally correlating with T = 1) are outlined in Table 2. Statistically significant increases were noted in HR, $\dot{V}$ E, PeCO₂ and PiCO₂ (P = 0.004). The median changes in $\dot{V}$ E, PeCO₂ and PiCO₂ over the duration of the experiment for all participants are shown in Figure 2. A statistically significant increase was not recorded for PvCO₂ (P = 0.50). A statistically significant reduction was seen in SpO₂ (P = 0.004). P-values are the same for all statistically significant differences in variables due to the vagaries of the Wilcoxon signed-rank test in the setting of small numbers and similar physiological responses between participants.

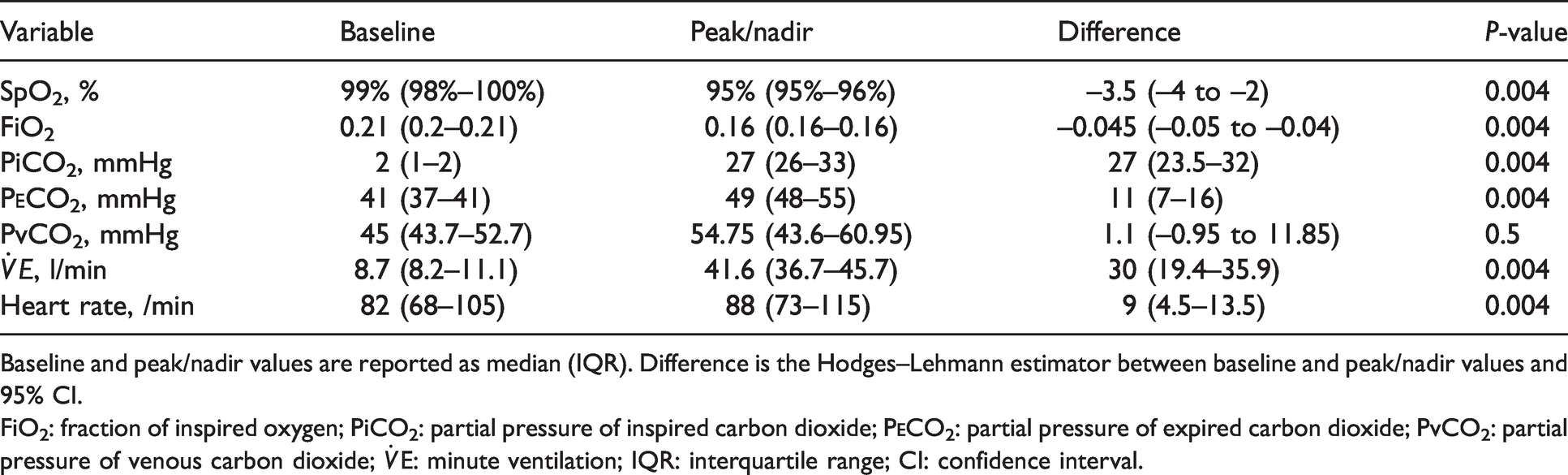

Table 2.

Physiological variables.

Variable	Baseline	Peak/nadir	Difference	P-value
SpO₂, %	99% (98%–100%)	95% (95%–96%)	–3.5 (–4 to –2)	0.004
FiO₂	0.21 (0.2–0.21)	0.16 (0.16–0.16)	–0.045 (–0.05 to –0.04)	0.004
PiCO₂, mmHg	2 (1–2)	27 (26–33)	27 (23.5–32)	0.004
PeCO₂, mmHg	41 (37–41)	49 (48–55)	11 (7–16)	0.004
PvCO₂, mmHg	45 (43.7–52.7)	54.75 (43.6–60.95)	1.1 (–0.95 to 11.85)	0.5
$\dot{V} E$ , l/min	8.7 (8.2–11.1)	41.6 (36.7–45.7)	30 (19.4–35.9)	0.004
Heart rate, /min	82 (68–105)	88 (73–115)	9 (4.5–13.5)	0.004

Baseline and peak/nadir values are reported as median (IQR). Difference is the Hodges–Lehmann estimator between baseline and peak/nadir values and 95% CI.

FiO₂: fraction of inspired oxygen; PiCO₂: partial pressure of inspired carbon dioxide; PeCO₂: partial pressure of expired carbon dioxide; PvCO₂: partial pressure of venous carbon dioxide; $\dot{V}$ E: minute ventilation; IQR: interquartile range; CI: confidence interval.

Figure 2.

Study population median (IQR) trends in minute ventilation over time (; : median; : IQR), and partial pressures of end-tidal CO₂ (; : median; : IQR) and inspired CO₂ (; : median; : IQR). IQR: interquartile range.

Importantly, no participant recorded increases or decreases in measured physiological values that were considered dangerous for the time period examined in this study (ten minutes). No experiment was terminated due to hypoxaemia. The median time to lowest SpO₂ after T = 0 was 245 seconds (IQR 151–317 seconds). SpO₂ recovered rapidly after reactivation of the PAPR fan, with a median recovery time of 36 seconds (IQR 34–43 seconds). Two (22%) participants terminated the test due to intolerable thermal discomfort. Both of these tests were ended at the six-minute mark. The remaining experiments ended at the planned ten-minute limit. However, significant thermal discomfort was reported by all participants, despite the experiments being conducted effectively at rest. The subjective experiences voiced directly by the study participants immediately after the experiment ended are outlined in Table 3. All participants believed their clinical performance would be impaired if they experienced a similar PAPR failure in a real-life situation.

Table 3.

Direct commentary from participants on the subjective experience of the described experiment.

• ‘Hot. Short of breath’.

• ‘Felt like I was in a storm – difficult to breath, dyspnoeic, hot and foggy. Felt like I needed to suck in more air’.

• ‘Hot. Really uncomfortable’.

• ‘Uncomfortable. If you actually had to perform a clinical task it would be very challenging and unpleasant’.

• ‘Hot. Unpleasant. Subjectively very breathless’.

• ‘Air hunger and unpleasant’.

• ‘Hot, but not too bad’.

• ‘I could feel air hunger, but that was compounded by the feeling of tight space and heat which was the most uncomfortable’.

• ‘Hot, unpleasant and muggy. I could live with that though – could probably intubate someone if I had to’.

Collateral ventilation entrained externally into the PAPR hood was derived from the equation outlined in the methods. Using this technique, median collateral ventilation at peak $\dot{V}$ E was 17.6 l/min (IQR 12.3–27.0 l/min).

Discussion

We conducted a prospective, observational safety study of simulated PAPR failure in a cohort of nine healthy volunteers. We found that such a simulated failure, with the participant at rest, was unlikely to result in sufficient rebreathing of expired gas (and associated hypoxaemia and/or hypercapnia) to incapacitate or harm the wearer. However, we did show a marked increase in minute ventilation over the course of the experiment, likely a due to multifactorial stimulation of the respiratory centre (reflective of hypercapnia, thermal distress and anxiety), which appeared to be supported by substantial collateral entrainment of room air from outside the hood. These findings imply that were the failure to occur in an aerosol-contaminated environment, entrainment of viral particles into the hood could theoretically lead to the inadvertent infection of the wearer. Additionally, thermal distress forced the early termination of the experiment in a minority of participants, and the remaining participants reported an increase in thermal distress sufficient to impair subjective clinical performance.

To our knowledge, few studies in the infection control or occupational health literature have attempted to examine the ventilatory consequences of sudden PAPR failure. In particular, collateral ventilation, and the associated risk of aerosol entrainment, has not previously been quantified in a live subject. A previous study using a manikin head and torso and a breathing simulator was undertaken by Bostock in 1985. The author demonstrated that at a simulated $\dot{V}$ E of 40 l/min, and using a sodium chloride aerosol generator to maintain an environmental aerosol concentration of 6 mg/m³, significant inward leakage of aerosols was detectable within 20 seconds of battery failure.¹⁰ In our experiment, performed in participants at rest, the median maximum $\dot{V}$ E exceeded that used by Bostock, and would presumably have been higher had the participants been engaged in simulated clinical tasks during the study procedure. While some rebreathing (as denoted by increases in FiCO₂ and reduction in FiO₂ over the course of the experiment) was demonstrated during the experiment, collateral inflow prevented the gas mixture within the hood from becoming dangerously hypoxic or hypercarbic. Whilst the physiological derangement seen in this experiment was not dangerous, we cannot exclude the possibility that a higher activity level for a longer period than we measured here might result in harm. In particular, the observed 400% increase in minute ventilation may be even higher if the clinician were engaged in more strenuous activity, or could result in exhaustion if the clinician attempted to function for a longer period with the PAPR deactivated.

The relative risk of wearer contamination in the event of sudden PAPR failure is unknown, although various factors could foreseeably increase this risk. These include high wearer $\dot{V}$ E (and thus collateral entrainment of room air, as demonstrated in this experiment), poor environmental ventilation¹¹ and relative atmospheric aerosol concentration.³,¹² Theoretically, the risk of wearer contamination in the event of sudden failure could be successfully mitigated through wearing an N95 respirator beneath the PAPR hood. Indeed, in a 2008 manikin study by Roberge et al., the combination of an N95 respirator beneath a loose-fitting PAPR hood provided a multiplicative protective effect (not merely summative) when the PAPR was active, and the combination of N95 in addition to deactivated PAPR offered greater protection against contamination than the deactivated PAPR alone.¹³ However, it should be noted that for this study, the N95 respirator was secured to the face of the manikin with hot ethylene vinyl acetate polymer hydrocarbon resin, and that this experiment would be difficult to replicate in a human subject. Additionally, given that the risk of sudden PAPR failure is unquantifiable but low, the drawbacks of such a combined approach must be carefully considered. These include increased breathing resistance, the need for fit testing of N95 respirators (effectively eliminating a key benefit of PAPR), communication difficulties and increased risk of contamination during doffing.¹⁴

Perceived thermal discomfort was reported by all participants in this study, and resulted in early termination of two of the experiments. A steady state was reached for PeCO₂ within three minutes in all subjects, but as shown by Figure 2, the relationship between $\dot{V}$ E and time was approximately linear, with no clear steady state reached within ten minutes. This implies that carbon dioxide generation and thus elimination continued to rise, presumably due to thermal distress and increased cardiac output.¹⁵,¹⁶ A statistically significant increase in PvCO₂ over this time was not observed, consistent with venous and body-tissue CO₂ buffering capacity.¹⁷

Increased thermal distress in the setting of simulated failure has been previously described for tight-fitting PAPR. In an observational study by Johnson et al., participants were asked to engage in physical activity (defined as 80–85% of maximum oxygen consumption $(\dot{V}$ O₂ peak)) whilst wearing a tight-fitting full-face PAPR with varying flow rates. The experiment was terminated when the subject reached a volitional fatigue limit. Relative to 100% PAPR flow, zero flow reduced the time for which the subject was able to exercise by 20%, decreased face thermal comfort and increased subjective anxiety (although this latter metric did not achieve statistical significance).¹⁸ As the entire head is covered in a loose-fitting PAPR, and heat loss through the exposure of other parts of the body surface is further limited by the long-sleeved isolation gowns commonly worn by clinicians as part of aerosol/contact precautions,³ it is unsurprising that participants in our studies reported substantial thermal discomfort.

We acknowledge some limitations. First, the derived mass balance equation for collateral inflow (Appendix 1) assumes steady-state gas exchange. Dynamic collateral flow could be derived (and has been in manikin studies) if the volume of the enclosed hood and the head of the participant were known. As not all of this information was available to us, we elected not to present data on change in collateral inflow over time, instead presenting maximum collateral inflow in isolation. We do not believe that not being able to derive dynamic collateral flow detracts much from our main findings, specifically that, based on these results and other simulation studies, PAPR failure results in rapid entrainment of external gas into the hood, and there is a risk of user contamination. Whilst it is not possible using this study protocol and a live subject to measure particulate count inside the hood, we note that some centres wear loose-fitting PAPR hoods, with the hood hem not covered by either an isolation gown or another layer of disposable PPE,¹⁹ and that entrainment of air into the hood from the external environment, unfiltered by additional PPE (a) could result in direct exposure of the wearer to infectious particles, and (b) based on the results of Bostock et al., such exposure could occur almost immediately after PAPR failure.¹⁰ Second, the study was performed with the participants at rest, and therefore would not be a direct representation of the physiological changes that would occur if the participants had been engaging in simulated clinical tasks. However, accurate measurement of gas exchange whilst the participant was engaging in physical activity was found to be unfeasible while we were developing the study protocol, and the central thesis of this study remains unchanged—that whilst physiological derangement was successfully limited by collateral inflow, subjective thermal distress was still reported in all participants, and it was felt that this degree of discomfort would substantially affect clinical performance. Finally, temperature inside the hood was not measured as part of the study, as thermal distress was not included in our hypothesis. Consequently (and unfortunately), we did not incorporate temperature measurement inside the hood into the study design. It is possible that many of the phenomena reported by the participants as thermal discomfort may have been due to acute hypercapnia, which is recognised to cause increased heart rate, cardiac output, dyspnoea and peripheral blood flow.²⁰ However, this is a moot point. Whatever the cause of the reported thermal discomfort—whether it be subjective (due to hypercapnia) or objective (due to an actual increase in temperature inside the hood)—it was reported by all participants. It is the subjective impression of thermal discomfort that impairs clinical performance, rather than an objective temperature.

In summary, we have undertaken a prospective, observational safety study of ventilatory parameters in a simulated model of unexpected complete PAPR failure in healthy volunteers at rest. While our results do not show that rebreathing sufficient to cause dangerous physiological derangement occurs under these test conditions, we have shown that the rebreathing of expired gas which does occur is offset by considerable collateral entrainment of room air, exposing the wearer to possible aerosol contamination. Additionally, a marked increase in subjective thermal distress is reported, sufficient to terminate the experiment in some participants and a self-evaluated deterioration in likely clinical performance by others. On the basis of these findings, we urge departments that have recently incorporated PAPR into their practice to develop protocols for wearers to follow in the event of sudden or anticipated PAPR failure, as well as defining criteria for potential exposure in the event of PAPR failure a priori to inform subsequent wearer furloughing if required.

Supplemental Material

sj-pdf-1-aic-10.1177_0310057X20978982 - Supplemental material for Ventilatory parameters measured during a physiological study of simulated powered air-purifying respirator failure in healthy volunteers

Supplemental material, sj-pdf-1-aic-10.1177_0310057X20978982 for Ventilatory parameters measured during a physiological study of simulated powered air-purifying respirator failure in healthy volunteers by Lachlan F Miles Philip J Peyton in Anaesthesia and Intensive Care

Footnotes

Acknowledgements

The authors would like to acknowledge the medical and nursing members of the Austin Health Department of Anaesthesia Coronavirus Intubation Team who volunteered to participate in this study.

Author contribution(s)

Lachlan F Miles: Conceptualization; Data curation; Formal analysis; Investigation; Methodology; Project administration; Writing-original draft; Writing-review & editing.

Timothy Makar: Conceptualization; Data curation; Formal analysis; Writing-review & editing.

Chad W Oughton: Data curation; Investigation; Writing-review & editing.

Philip J Peyton: Conceptualization; Data curation; Formal analysis; Investigation; Methodology; Resources; Software; Supervision; Writing-review & editing.

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship and/or publication of this article.

Funding

The authors received no financial support for the research, authorship and/or publication of this article.

ORCID iD

Lachlan F Miles

Philip J Peyton

Supplemental Material

Supplementary material for this article is available online.

References

Zhang

, et al. Identifying airborne transmission as the dominant route for the spread of COVID-19. Proc Natl Acad Sci U S A 2020; 117: 14857–14863.

Prateek

Doolan

De Silva

, et al. Airborne or droplet precautions for health workers treating COVID-19? J Infect Dis. Epub ahead of print 16 April 2020. DOI: 10.1093/infdis/jiaa189.

Cook

TM.

Personal protective equipment during the COVID-19 pandemic – a narrative review. Anaesthesia 2020; 75: 920–927.

Sreeramoju

Cadena

Airborne precautions and personal protective equipment: the powered air-purifying respirator-only approach. In: Bearman

Munoz-Price

Morgan

Murthy

(eds) Infection prevention: new perspectives and controversies. Cham, Switzerland: Springer, 2018, pp.285–291.

Tompkins

Kerchberger

JP.

Personal protective equipment for care of pandemic influenza patients: a training workshop for the powered air purifying respirator. Anesth Analg 2010; 111: 933–945.

Ranney

Griffeth

Jha

AK.

Critical supply shortages – the need for ventilators and personal protective equipment during the Covid-19 pandemic. N Engl J Med 2020; 382: e41.

Powell

Kim

J-H

Roberge

RJ.

Powered air-purifying respirator use in healthcare: Effects on thermal sensations and comfort. J Occup Environ Hyg 2017; 14: 947–954.

Schumacher

Arlidge

Dudley

, et al. The impact of respiratory protective equipment on difficult airway management: a randomised, crossover, simulation study. Anaesthesia 2020; 75: 1301–1306.

Park

Hwang

Lee

, et al. Are loose-fitting powered air-purifying respirators safe during chest compression? A simulation study. Am J Emerg Med. Epub ahead of print 31 March 2020. DOI: 10.1016/j.ajem.2020.03.054.

10.

Bostock

GJ.

An investigation into the performance of positive pressure powered dust hoods and blouses at low flow rates.

Ann Occup Hyg 1985; 29: 415–420.

11.

Somsen

Van Rijn

Kooij

, et al. Small droplet aerosols in poorly ventilated spaces and SARS-CoV-2 transmission. Lancet Respir Med 2020; 8: 658–659.

12.

Cook

El-Boghdadly

McGuire

, et al. Consensus guidelines for managing the airway in patients with COVID-19: guidelines from the Difficult Airway Society, the Association of Anaesthetists the Intensive Care Society, the Faculty of Intensive Care Medicine and the Royal College of Anaesthetists. Anaesthesia 2020; 75: 785–799.

13.

Roberge

Vojtko

Roberge

, et al. Wearing an N95 respirator concurrently with a powered air-purifying respirator: effect on protection factor. Respir Care 2008; 53: 1685–1690.

14.

Roberge

RJ.

Evaluation of the rationale for concurrent use of N95 filtering facepiece respirators with loose-fitting powered air-purifying respirators during aerosol-generating medical procedures. Am J Infect Control 2008; 36: 135–141.

15.

Peyton

PJ.

Continuous minimally invasive peri-operative monitoring of cardiac output by pulmonary capnotracking: comparison with thermodilution and transesophageal echocardiography. J Clin Monit Comput 2012; 26: 121–132.

16.

Peyton

Kozub

Performance of a second generation pulmonary capnotracking system for continuous monitoring of cardiac output. J Clin Monit Comput 2018; 32: 1057–1064.

17.

Loeppky

Icenogle

Caprihan

, et al. CO2 rebreathing model in COPD: blood-to-gas equilibration. Eur J Appl Physiol 2006; 98: 450–460.

18.

Johnson

Mackey

Scott

, et al. Exercise performance while wearing a tight-fitting powered air purifying respirator with limited flow. J Occup Environ Hyg 2005; 2: 368–373.

19.

Ahmad

Wade

Langdon

, et al. Awake tracheal intubation in a suspected COVID-19 patient with critical airway obstruction. Anaesth Rep 2020; 8: 28–31.

20.

Cullen

Eger

EI.

Cardiovascular effects of carbon dioxide in man. Anesthesiology 1970; 40: 345–349.
