Migraine therapeutics differentially modulate the CGRP pathway

Peptides, antibodies and inhibitors

Human αCGRP, amylin, adrenomedullin, intermedin and calcitonin were purchased from Bachem. Erenumab, a CGRP receptor monoclonal antibody (Amgen; lot 1093104), fremanezumab, a CGRP ligand monoclonal antibody (Teva Pharmaceuticals; lot E15204A001) and isotype control IgG2 antibody (prepared in-house) were used. For flow cytometry, the following antibodies were used: Anti-human IgG Fc APC (Biolegend), anti-human IgG Fc BV421 Biolegend), anti-HA.11 PE (Biolegend), Human c-Myc Alexa Fluor 647-conjugated Antibody (R&D systems) and anti-myc-FITC (Sigma). For imaging experiments, the following antibodies were used: Early endosomal marker (early endosomal antigen 1 (EEA1), Abcam), lysosomal marker (lysosomal-associated membrane protein 1 (LAMP1), Abcam), late endosome marker (Ras-related protein Rab11, Cell Signaling), goat anti-human 594 and goat anti-rabbit Alexa Fluor 647 (Invitrogen). The small molecule CGRP receptor antagonist telcagepant (MedChemExpress) was used.

Preparation of tagged human RAMPs, CALCR (CTR) and CALCRL (CLR) expression vectors

All reference human gene sequences were obtained from GenBank and used for plasmid constructions after editing to remove non-preferred restriction sites. DNA fragments coding fusion genes of human kappa leader sequence (amino acid sequence: MDMRVPAQLLGLLLLWLRGARC), c-myc tag (EQKLISEEDL) and mature peptide of human RAMP genes (RAMP1, GenBank Sequence ID NM_005855, amino acid 28-148; RAMP2, NM_005854, 36-175; RAMP3, NM_005856, 29-148) were synthesized by Integrated DNA Technologies, then cloned into pCMV6-A-Puro (OriGene). Human influenza hemagglutinin (HA)-tagged human CALCRL plasmid (pCMV3-SP-HA-CALCRL) was purchased from Sino Biological Inc. An expression vector of HA-tagged human CALCR gene was constructed by cloning a corresponding DNA fragment (coding a fusion gene of human kappa leader sequence, HA tag (YPYDVPDYA) and the mature peptide of human CALCR [GenBank ID NM_001742, amino acid 25-474], synthesized by Integrated DNA Technologies into pCMV6-A-Hygro plasmid (OriGene). A plasmid coding eGFP (pSF-CMV-eGFP) and its sequence information was obtained from Oxford Genetics Limited. DNA fragments encoding human kappa leader sequence, eGFP (amino acid 2-239), 6-mer amino acid linker (SGGGGS) and mature peptide of human CALCR (amino acid 25-474) or human CALCRL (GenBank ID NM_005795, amino acid 23-461) were synthesized by Integrated DNA Technologies, then cloned into pSF-CMV-eGFP to replace the existing eGFP with the synthesized fusion genes.

Cell culture, transient transfection and stable cell lines

HEK293S GnTI- cells were obtained from ATCC. HEK293S cells were cultured in 1:1 mixture of DMEM media (Corning) and Ham’s F12 media (Hyclone) supplemented with 10% heat-inactivated fetal bovine serum (Hyclone) and 1% penicillin streptomycin L-glutamine (Corning). Cells were maintained in a humidified incubator at 37°C, 5% CO₂. Cells were seeded at a density of 2 × 10⁴ cells per well in 96-well plates. Cells were transfected using the Amaxa nucleofection kit V (Lonza) for HEK293S cells according to the manufacturers’ instructions and were grown for an additional 24 to 48 h before further analysis. Equal quantities of CLR/CTR and RAMP plasmid DNA were used.

SK-N-MC cells were obtained from ATCC. Cells were cultured using EMEM media (ATCC) supplemented with 10% heat-inactivated fetal bovine serum (Hyclone) and 1% penicillin streptomycin L-glutamine (Corning). Cells were maintained in a humidified incubator at 37°C, 5% CO₂. Cells were seeded at 2 × 10⁴ cells per well in 96-well plates for cAMP assays.

N-term GFP-hCALCRL-puro or GFP-hCALCR-puro and N-term myc-hRAMP1-hygro were cloned into LakePharma proprietary expression vectors. HEKS293S were co-transfected with lipofectamine 3000 and plasmids and stable pools were generated after puromycin and hygromycin selection. Pools were FACS sorted by GFP expression and single cell clones were isolated. Intracellular RAMP1 and CALCRL/CALCR expression were monitored by respective c-myc staining and GFP expression via flow cytometry. Stable CGRP receptor (CLR-GFP/RAMP1-myc) HEK293S cells (henceforth referred to as HEK293S^CGRP) were maintained in DMEM:F12 at 1:1 supplemented with 10% FBS, 1× Penicillin Streptomycin L-glutamine, 0.5 µg/mL puromycin, and 100 µg/mL hygromycin. Stable AMY₁ receptor (CTR-GFP/RAMP1-myc) HEK293S cells (henceforth referred to as HEK293S^AMY1) were maintained in DMEM:F12 at 1:1 supplemented with 10% FBS, 1× penicillin streptomycin L-glutamine, 0.25 µg/mL puromycin, and 50 µg/mL hygromycin.

cAMP functional assay

Promega cAMP-Glo Max Assay was used to measure cAMP in a cell-based assay according to the manufacturer’s instruction. Briefly, adherent cells were plated at 1–2 × 10⁴ cells per well on 96-well plates. Cells were incubated overnight in a humidified incubator at 37°C, 5% CO₂. On the next day, peptide agonists and antagonist antibodies or small molecule inhibitor were diluted in complete induction buffer (PBS + 500 µM IBMX + 100 µM Ro 20-1724). IBMX (isobutyl-1-methylzanthine) and Ro 20-1724 (4-(3-butoxy-4-methoxy-benzyl) imidazolidone) were purchased from Sigma.

Ligands, antibodies (fremanezumab, erenumab or isotype control) and/or small molecule antagonist (telcagepant) were serially diluted and added to cells. Agonist peptides were made at 2× fixed concentrations with final concentrations close to their EC₈₀-EC₉₀ based on the peptide titration curves to ensure maximal cAMP production. Antibody/small molecule antagonist and peptide were added together at 1:1 ratio to make 1× concentration of each, incubated at room temperature for 15 min then the mixture was added to aspirated cells on the plates. For SK-N-MC cells, fixed concentrations of αCGRP (100 nM) and adrenomedullin/intermedin (1 µM) were used. Luminescence was measured using a Victor V3 plate reader. For pA₂ calculations, which provide a measure of the potency of an antagonist, amylin concentration-response curves were generated in the absence and presence of antagonist concentrations ranging from 100 nM to 1 µM. The pA₂ value is the negative logarithm of the concentration of an antagonist that produces a two-fold shift to the right of the agonist concentration-response curve. Antagonist concentrations were chosen based on titration experiments that determined a window where maximal response was still maintained.

Flow cytometry

All cell staining, washing and antibody dilutions for flow cytometry were done in cold staining buffer (SB): PBS + 2% heat inactivated FBS (Hyclone), 20 mM of HEPES (Lonza, 17–737F), 0.02% NaN₃ (Teknova), and 1 mM EDTA (Sigma). SK-N-MC or HEK293S^AMY1 cells were used at 1 × 10⁵ cells per well for flow cytometry staining in 96-well plates. Cells were incubated on ice for 20 min in serially diluted antibody preparations either in SB or SB containing ligand. Cells were incubated with secondary anti-human IgG Fc APC (Biolegend) antibody or anti-human IgG Fc BV421 (Biolegend) and Human c-Myc Alexa Fluor 647-conjugated antibody (R&D systems) for 20 min on ice. Cells were washed and resuspended in SB and then plates were assayed using a BD high throughput sampler connected to a BD FACSCelesta flow cytometer.

HEK293S cells transiently transfected with human CTR, CLR and human RAMP1-3 were also used for flow cytometry to determine the specificity of erenumab binding to different receptor combinations. CTR and CLR receptors were HA tagged whereas RAMP1-3 were myc tagged. Cells were transfected using Amaxa nucleofection kit V (Lonza) at 2 × 10⁶ cells per transfection reaction according to the manufacturer’s instructions. Transfected cells were cultured in 6-well plates overnight. The following day, cells were harvested and stained with anti-HA.11 PE (Biolegend), anti-myc-FITC (Sigma), and erenumab, fremanezumab or isotype control antibody. All antibodies were used at 1 µg per well except for anti-HA PE, which was used at 0.4 µg per well. Cells were incubated for 20 min on ice and then washed with SB. Anti-human IgG Fc BV421 (Biolegend) was used as secondary antibody to detect antibody staining. Cells were incubated for 20 min on ice and then washed with SB. Sytox Red (Molecular Probes) was used to distinguish live from dead cells. After the final staining step, cells were resuspended in SB and samples were analyzed using a BD FACSCelesta flow cytometer. Healthy cells were identified and gated using the size (forward scatter) and complexity (side scatter) parameters. The violet laser (405 nm), blue laser (488 nm), yellow-green laser (561 nm) and red laser (640 nm) were used to excite and detect BV421, GFP/FITC, PE and AF-647/APC/Sytox Red fluorophores respectively. Samples were analyzed using FlowJo software.

Live cell imaging of antibody internalization

Fremanezumab, erenumab and isotype control antibody were fluorescently labelled with the Lightning-link rapid Fluoprobes647H (Novus Biologicals) labeling kits according to the manufacturers’ instructions. HEK293S cells stably expressing human CGRP (CLR-GFP/RAMP1-myc) or AMY₁ (CTR-GFP/RAMP1-myc) receptors were seeded at 1.5 × 10⁴ cells onto PDL coated 96-well imaging plates (Greiner Screenstar) and incubated overnight at 37°C. The following day, cells were incubated with Hoescht (Invitrogen) in Hepes buffered HBSS for 30 min at 37°C to label nuclei. Antibodies (10 μg/ml) in warm Hepes buffered HBSS were added to the cells and imaged immediately on a 37°C pre-heated stage using an IN cell analyzer 6500HS (GE Healthcare) with a Nikon 40×/0.95 microscope objective. Three to four fields of view were captured per well every 2 mins for 30 min for four independent experiments. For presentation, images were colorized and merged in FIJI (National Institutes of Health, Bethesda, MD, USA).

Kinetic internalization assay

HEK293S cells stably expressing human CGRP or AMY₁ receptors were seeded in growth media at 3 × 10⁴ cells per well onto PDL coated 96-well ImageLock plates (Sartorius) and incubated overnight at 37°C. The following day media was replaced with warm imaging media (Fluobrite DMEM with glutamax) and serially diluted antibodies labelled with pH sensitive Zenon™ pHrodo™ iFL red human IgG labeling reagent (Thermo) were tested in duplicate according to manufacturer’s instructions. Plates were immediately placed in the Incucyte (Sartorius) at 37°C, 5% CO₂ and fluorescence images were captured for three fields of view per well every 15 min for 11 h.

Subcellular localization using immunocytochemistry

HEK293S^CGRP (CLR-GFP/RAMP1-myc) cells were incubated with 10 µg/ml erenumab, fremanezumab or isotype control antibodies, or 1 µM telcagepant or DMSO control for 1 h at 37°C in Hepes buffered HBSS. Cells were then washed, fixed for 5 min with 4% PFA and blocked in blocking buffer (150 mM NaCl, 50 mM Tris Base, 1% BSA, 100 mM lysine; pH 7.4) with 0.2% Triton X-100 for 1 h at room temperature. After PBS washes, subcellular markers anti-LAMP1, anti-EEA1 or anti-Rab11 were added and incubated overnight at 4°C. The next day after several washes, DAPI (ThermoScientific) and the secondary antibodies goat anti-human conjugated to Alexa 594 (to detect human antibodies fremanezumab, erenumab and isotype control) and goat anti-rabbit antibodies conjugated to 647 (to detect subcellular markers) were added in blocking buffer for 2 h at room temperature. Plates were then washed and confocal images were taken using an IN cell analyzer 6500HS (GE Healthcare) with a Nikon 40×/0.95 microscope objective. Images were colorized using the FIJI software (National Institutes of Health, Bethesda, MD, USA).

Data analysis

All statistical analysis and curve fitting were performed using GraphPad Prism 7 or 8 (GraphPad software, San Diego, CA, USA). For flow cytometry and cAMP assays, maximal signaling responses were determined and the data are expressed as a percentage of this maximal response in order to combine data from independent experiments. To define agonist or antagonist potency, pEC₅₀ or pIC₅₀ values were obtained by fitting a three or four parameter logistic equation to the concentration-response data. The comparison of fits analysis feature in GraphPad Prism 8 was used to determine statistical difference between concentration-response curves. In order to determine antagonist potency at the AMY₁ receptor, pA₂ values were calculated using the Gaddum/Schild EC₅₀ shift equation in GraphPad Prism. The hill slopes of the agonist concentration-response curves did not deviate significantly from 1 and were subsequently constrained to 1 for pA₂ value calculations. For statistical analysis, pA₂ values from individual experiments were combined and significant differences determined using one-way ANOVA and Bartlett’s post hoc test and unpaired two-tailed t tests.

For the kinetic internalization experiments, the integrated intensity of the fluorescent internalized “puncta” for each captured image at every measurement time point was calculated with a custom algorithm using Incucyte software. Puncta were defined as red fluorescent objects that were masked after background subtraction (top-hat method) with criteria for object size ≥10 µm² and mean intensity ≥0.32 red calibrated units (RCU). Area under the curve calculations were performed in GraphPad Prism 7 (GraphPad software, San Diego, CA, USA).

Statistical significance was defined as p < 0.05. Most data points represent mean ± SEM combined from n separate experiments except Figure 1(b), where data points represent mean ± SD. Each independent experiment was performed with duplicate or triplicate wells.

OPEN IN VIEWER

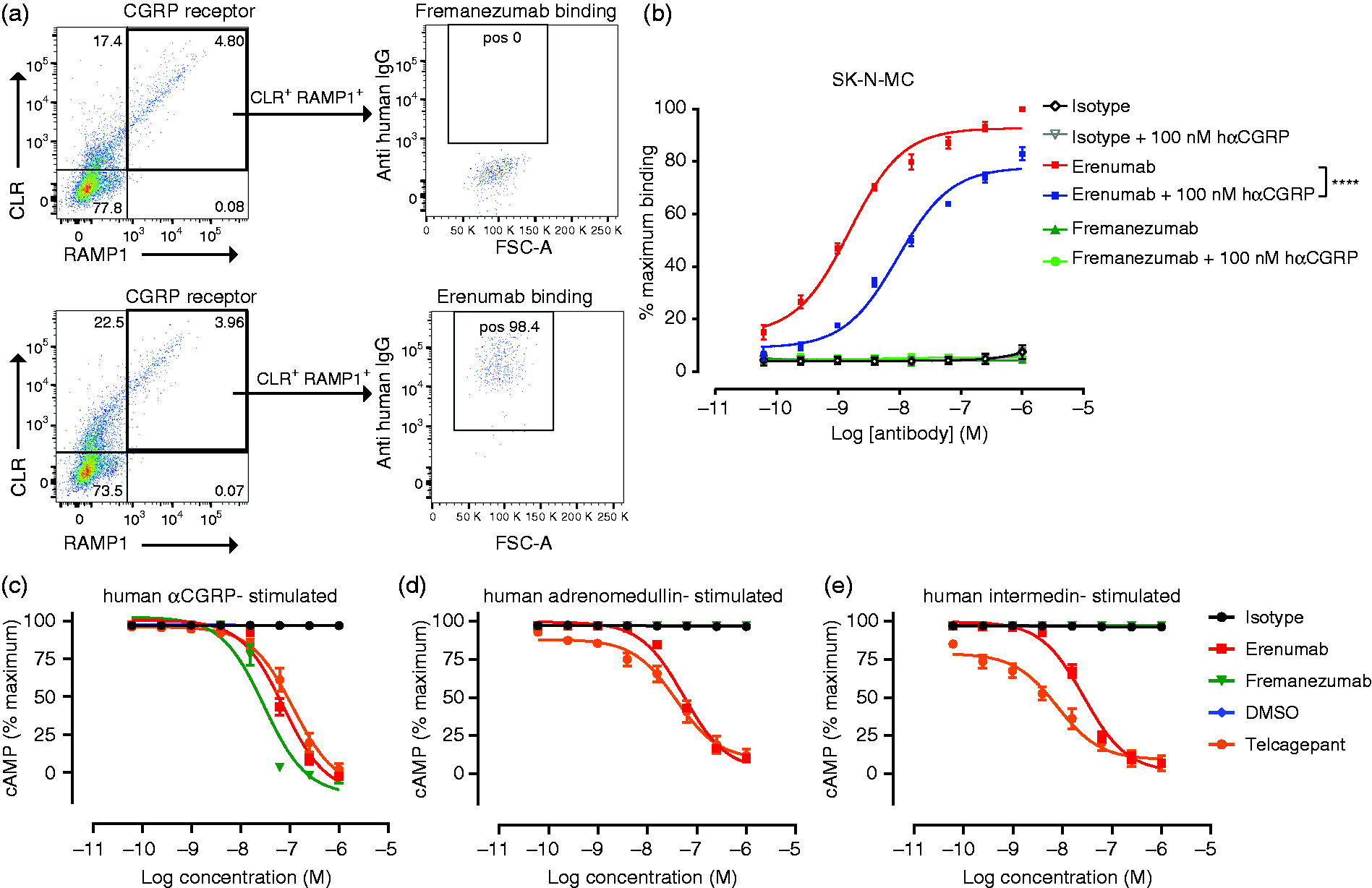

Figure 1.

Binding and signaling differences of CGRP pathway therapeutics at the CGRP receptor. (a) Flow cytometry surface binding assay shows that erenumab binds to ∼98% of human CGRP receptor (CLR/RAMP1) transiently transfected HEK293S cells while fremanezumab shows no binding to cells. Representative flow cytometry dot plots are shown from at least four independent experiments. (b) Antibody concentration-response curves from flow cytometry binding experiments plotted as a percentage of the maximal binding to SK-N-MC cells (expresses endogenous human CGRP receptor) in the absence and presence of hαCGRP (100 nM). The binding responses of isotype and fremanezumab (in the absence and presence of CGRP) are overlying. Data points represent the mean ± SD (n = 3). Comparison of fits for the erenumab binding curves in the absence and presence of CGRP showed that the shift was significantly different (****p < 0.0001). (c) Fremanezumab, erenumab and telcagepant antagonize hαCGRP-induced cAMP signaling in SK-N-MC cells. The binding curves of isotype and DMSO are overlying. Unlike fremanezumab which has no effect, erenumab and telcagepant antagonize human adrenomedullin-induced (d) and human intermedin-induced cAMP signaling (e) in SK-N-MC cells. The responses of fremanezumab, isotype and DMSO are overlying in (d) and (e). Data points represent the mean ± SEM (n = 4).

Erenumab, unlike fremanezumab, binds the CGRP receptor

To assess the cell binding capability of fremanezumab and erenumab to the human CGRP receptor, flow cytometry-based binding assays on HEK293S cells transiently expressing both CLR/RAMP1 (Figure 1) were performed. Erenumab bound to ∼98% of human CGRP receptor expressing cells while fremanezumab showed no binding (Figure 1(a)), illustrating an obvious difference between these two antibodies. Furthermore, a lack of binding of erenumab to transiently transfected human CLR alone, AM₁ (CLR/RAMP2) and AM₂ (CLR/RAMP3) receptor expressing HEK293S cells was observed (Supplemental Figure 1), confirming that RAMP1 is critical for erenumab binding to the CGRP receptor.

To explore the consequence of CGRP ligand presence to antibody binding on CGRP receptor expressing cells, concentration-response experiments were performed in SK-N-MC cells, which endogenously express the canonical human CGRP receptor. Binding of erenumab to SK-N-MC cells was observed both in the absence (pEC₅₀ 8.82 ± 0.06) and presence (pEC₅₀ 8.03 ± 0.06) of human αCGRP (100 nM). The observed reduction in binding of erenumab to SK-N-MC cells in the presence of CGRP may be due to competition for receptor binding and/or ligand-induced receptor downregulation. In comparison, neither fremanezumab nor isotype control antibody bound to SK-N-MC cells in the absence and presence of CGRP (Figure 1(a)) confirming a lack of binding to the CGRP receptor. Taken together, these results confirm that erenumab requires the presence of RAMP1 to bind to the canonical CGRP receptor. Consistent with the fact that fremanezumab targets a ligand and not a cellular target, this antibody does not bind to the CGRP receptor.

Erenumab and telcagepant affect multiple ligand signaling at the CGRP receptor

Three human ligands (αCGRP, adrenomedullin and intermedin) were found to increase cAMP accumulation in SK-N-MC cells, which express native human CGRP receptor (CLR/RAMP1) (16). To better define the activity of fremanezumab, erenumab and telcagepant at the CGRP receptor, we examined their ability to antagonize human αCGRP-, adrenomedullin- and intermedin-induced cAMP accumulation (Figure 1(c)–(e)). All three CGRP pathway agents antagonized human αCGRP-induced cAMP accumulation at native CGRP receptors in SK-N-MC cells (Figure 1(c); pIC₅₀ values of 7.52 ± 0.07, 7.13 ± 0.05 and 6.93 ± 0.08 for fremanezumab, erenumab and telcagepant, respectively). However, both erenumab and telcagepant antagonized human adrenomedullin-induced (Figure 1(d); pIC₅₀ values of 7.27 ± 0.04 and 7.43 ± 0.11, respectively) and human intermedin-induced (Figure 1(e); pIC₅₀ values of 7.57 ± 0.05 and 8.10 ± 0.13, respectively) cAMP accumulation in SK-N-MC cells. Fremanezumab had no effect on these ligands. Thus, while both erenumab and telcagepant antagonize CGRP, adrenomedullin and intermedin signaling through the CGRP receptor, fremanezumab only antagonizes CGRP ligand signaling and allows normal adrenomedullin and intermedin signaling to continue at the CGRP receptor.

Erenumab, unlike fremanezumab, is internalized at the CGRP receptor

To examine whether the CGRP ligand and receptor antibodies undergo internalization, live cell imaging was carried out in HEK293S^CGRP cells, which stably express the human CGRP receptor (CLR-GFP/RAMP1-myc). HEK293S^CGRP cells show high potency for CGRP and lower potency for intermedin and adrenomedullin (Supplemental Figure 2) as has been previously reported (1). As CLR is only trafficked to the plasma membrane when co-expressed with RAMP1 (10), we utilized plasma membrane CLR-GFP as a surrogate indicator for the surface CGRP receptor. The internalization of Alexa Fluor 647-labelled erenumab, fremanezumab and isotype control antibodies was visualized in the absence and presence of human αCGRP (100 nM). At time 0, CLR was found at the plasma membrane (Figure 2(d); green panel) and a loss of surface CLR with isotype-647 occurred within minutes of exposure to CGRP (Figure 2(d); white arrowheads). This is likely due to ligand-induced internalization and downregulation of the CGRP receptor. Fremanezumab-647 prevented reduction of CGRP receptor surface levels in the presence of CGRP presumably due to prevention of CGRP binding to the receptor (Figure 2(e); green panel) and did not bind or undergo internalization (Figure 2(b) and (e); red panel). In comparison, erenumab-647 bound to the surface of CGRP receptor expressing cells and internalization of erenumab visualized as fluorescent intracellular puncta were seen both in the absence (Figure 2(c); red panel) and presence (Figure 2(f); red panel) of CGRP. Areas of intracellular co-localization between CLR and erenumab during the time course (Figure 2(f); merged panel) suggests that erenumab may undergo internalization through receptor-mediated endocytosis. While a decrease in surface CLR with the isotype control antibody in the presence of CGRP was observed, both erenumab and fremanezumab treated cells showed retention of surface CLR. This suggests that both antibodies may reduce CGRP-induced receptor internalization albeit with different mechanisms.

OPEN IN VIEWER

Figure 2.

Live imaging of antibody internalization in CGRP receptor expressing cells. HEK293S^CGRP (CLR-GFP/RAMP1-myc) cells were imaged in the absence ((a)–(c)) and presence ((d)–(f)) of hαCGRP (100 nM) with Alexa Fluor 647 conjugated antibodies (red): isotype ((a),(d)), fremanezumab ((b),(e)) or erenumab ((c),(f)). As CLR is only expressed on the plasma membrane when co-expressed with RAMP1, surface CLR (green) was used as an indicator of the CGRP receptor on the plasma membrane. At 0 min, both in the absence and presence of hαCGRP, erenumab-647 binds to the plasma membrane. As time progresses, fluorescent intracellular puncta are visualized indicating internalization of erenumab-647 in the absence (c) and presence of CGRP (f). White arrows mark examples of co-localization between CLR and erenumab-647. Fremanezumab-647 is not internalized in the absence (b) and presence of CGRP (e). Both erenumab-647 and fremaneuzumab-647 appear to reduce CGRP-induced internalization of CLR (green panels; (e) and (f)) while decreases in surface CLR with hαCGRP are observed with the isotype-647 ((d), white arrowheads). Representative images are shown from four independent experiments. Scale bar, 5 µm.

To quantify internalized antibodies, live kinetic internalization assays were performed by conjugating erenumab, fremanezumab or isotype control to Zenon pHrodo Red, a fluorescently labelled Fab fragment that specifically recognizes the Fc fragment of human origin. The fluorescence intensity of pHrodo Red is very low at neutral or basic pH (outside the cell or on the cell surface), but increases in the acidic milieu of the endosomal and lysosomal lumen (when labelled “antibody-pHAb” is internalized). In HEK293S^CGRP cells, incubation with erenumab-pHAb resulted in visualization of fluorescent intracellular puncta (Figure 3(a)). The accumulation of erenumab-pHAb intracellular puncta increased over time (Figure 3(b)) and was concentration-dependent (Figure 3(c); pEC₅₀ value of 8.64 ± 0.36). Consistent with the live imaging results, no internalization with fremanezumab-pHAb or isotype-pHAb was observed either with time (Figure 3(b)) or antibody concentration (Figure 3(c)). Importantly, erenumab-pHAb was not internalized in control untransfected HEK293S cells that do not express the CGRP receptor (Figure 3(d)). Taken together with our prior data, this result strongly supports the finding that erenumab, unlike fremanezumab, undergoes internalization at the human CGRP receptor.

OPEN IN VIEWER

Figure 3.

Kinetic quantification of antibody internalization in CGRP receptor expressing cells. Antibody internalization was measured in live cells by labelling antibodies with Zenon pHrodo Red, a pH sensitive reagent that fluoresces in acidic compartments. (a) Representative images show punctate internalized erenumab-pHAb (10 nM) in HEK293S^CGRP cells at 11 h. White arrows mark examples of internalized fluorescent erenumab-pHAb puncta. Scale bar, 10 µm. (b) Time course graph of integrated puncta intensity shows robust internalization of erenumab-pHAb (10 nM) and no internalization of fremanezumab-pHAb or isotype-pHAb. *p < 0.0001 and ^#p < 0.0001 for erenumab-pHAb compared to isotype-pHAb and fremanezumab-pHAb, respectively, by repeated measures two-way ANOVA with a post hoc Dunnett’s test. The responses for isotype-pHAb and fremanezumab-pHAb are overlying. (c) Antibody concentration-response curves plotted as area under the curve graphs of puncta intensity. ***p < 0.001 and ^###p < 0.001 for erenumab-pHAb compared to isotype-pHAb and fremanezumab-pHAb, respectively, by one-way ANOVA with a post hoc Dunnett’s test. The responses for isotype-pHAb and fremanezumab-pHAb are overlying. (d) No internalization of erenumab-pHAb, fremanezumab-pHAb or isotype-pHAb was observed in untransfected HEK293S cells. The responses for erenumab-pHAb, fremanezumab-pHAb and isotype-pHAb, are overlying. Data points are mean ± SEM (n = 3).

Subcellular localization of the CGRP receptor and therapeutic agents

To compare the subcellular localization of therapeutic antibodies, HEK293S^CGRP (CLR-GFP/RAMP1-myc) cells were incubated for 1 h with 10 μg/ml unconjugated isotype control antibody, fremanezumab or erenumab in the absence and presence of CGRP and stained with markers of the early endosome (EEA1), recycling endosome (Rab11) or lysosome (LAMP1). Consistent with our previous findings, no internalization either in the absence or presence of CGRP was detected with the isotype control (Figure 4(a)–(c); panels a, d) or fremanezumab (Figure 4(a)–(c); panels b, e). Moderate co-localization between erenumab, CLR and putative early endosomes (Figure 4(a); panels c, f) and recycling endosomes (Figure 4(b); panels c, f) was observed, suggesting that the receptor antibody was trafficked to these organelles. This finding is consistent with previous observations that indicate that the CGRP receptor is trafficked to the early endosome (13,17,18). Some co-localization between erenumab, CLR and the lysosomal marker LAMP1 was also observed, suggesting that a proportion may also be targeted for lysosomal degradation (Figure 4(c); panels c, f).

OPEN IN VIEWER

Figure 4.

Subcellular localization of internalized antibodies and effect on CGRP receptor localization. HEK293S^CGRP (CLR-GFP/RAMP1-myc) cells were incubated with isotype control antibody, fremanezumab or erenumab for 1 hr at 37°C (in the absence and presence of 100 nM hαCGRP) stained with markers for the early endosome – EEA1 (a), recycling endosome – Rab11 (b) or lysosome – LAMP1 (c). Erenumab was internalized both in the absence (panel c) and presence of hαCGRP (panel f) and co-localized predominately in early endosomes ((a)c, f) and recycling endosomes ((b)c, f) with some lysosomal localization ((c)c, f). White arrows mark examples of co-localization between CLR, erenumab and the subcellular marker. No internalization of fremanezumab and isotype control was observed. Representative images from at least three independent experiments. Scale bar, 5 µm.

In addition, similar to previous findings, in the absence of CGRP, CLR was localized at the plasma membrane with isotype control antibody (Figure 4(a)–(c); panel a). However, in the presence of CGRP, downregulation of surface CLR is observed in cells incubated with the isotype control (Figure 4(a)–(c); panel d). This decrease in surface CLR with CGRP was not observed with fremanezumab (Figure 4(a)–(c); panel e), erenumab (Figure 4(a)–(c); panel f) and telcagepant (Figure S3(a)–(c); panel c). We speculate that through receptor binding, erenumab and telcagepant may reduce ligand-induced CGRP receptor downregulation. The effect with fremanezumab is likely due to preventing exogenous CGRP from binding the receptor. Taken together, these findings suggest that differing mechanisms underlie the ability of all three CGRP pathway therapeutic agents to decrease ligand-induced receptor downregulation.

Erenumab, unlike fremanezumab, binds the AMY₁ receptor

Due to the structural similarities between the cleft of the CGRP (CLR/RAMP1) and AMY₁ (CTR/RAMP1) receptors and the cross reactivity of gepants to both receptors (12,18–20), we hypothesized that erenumab may bind the AMY₁ receptor. Antibody binding to the AMY₁ receptor was measured in transiently transfected HEK293S (CTR-HA/RAMP1-myc) using a flow cytometry-based assay. Interestingly, erenumab bound ∼93% of human AMY₁ receptor cells (Figure 5(a)). Fremanezumab did not bind the AMY₁ receptor cells. We next tested whether erenumab bound to other CTR-based receptors. Erenumab did not bind to transiently transfected HEK293S cells expressing the human CTR, AMY₂ (CTR/RAMP2) or AMY₃ (CTR/RAMP3) receptors (Supplemental Figure 4). These results indicate that erenumab binds the human AMY₁ receptor and that RAMP1 is critical for its binding.

OPEN IN VIEWER

Figure 5.

Erenumab binds the AMY₁ (CTR/RAMP1) receptor and both erenumab and telcagepant affect amylin-induced signaling. (a) Erenumab binds to ∼93% of transiently transfected human AMY₁ receptor HEK293S cells while fremanezumab shows no binding. Representative flow cytometry dot plots are shown from at least four independent experiments. (b) Flow cytometry binding assays in HEK293S^AMY1 cells suggest competitive binding between erenumab and receptor ligands hαCGRP and amylin. The binding responses of isotype and fremanezumab (in the absence and presence of CGRP) are overlying. Data points represent the mean ± SEM (n = 3). Statistical analysis of curves by comparison of fits (*p < 0.05, **p < 0.01). (c) pA₂ values indicating antagonist potency of the test agents in amylin-induced cAMP signaling assays in HEK293S^AMY1 cells. Data points represent the mean ± SEM and the mean value is noted (n = 4). **p < 0.01, ***p < 0.001, ****p < 0.0001 by unpaired two-tailed t test.

To confirm erenumab binding to the AMY₁ receptor we generated a stable human AMY₁ receptor (CTR-GFP/RAMP1-myc) cell line (HEK293S^AMY1), which showed equipotent CGRP and amylin cAMP responses (Supplemental Figure 5). In line with the postulation that co-transfection of CTR and RAMP1 may result in two receptor populations being expressed on the plasma membrane, the CTR alone and CTR/RAMP1 (AMY₁) receptor (1), we observed potent calcitonin functional responses in these cells that suggests the presence of dual receptors (Supplemental Figure 5). The erenumab concentration curve in a flow cytometry binding assay with HEK293S^AMY1 cells clearly showed that erenumab bound to the AMY₁ receptor (Figure 5(b); pEC₅₀ value of 8.88 ± 0.17). A rightward shift in the erenumab binding curves was observed in the presence of saturating concentrations of either CGRP (pEC₅₀ value of 7.38 ± 0.31; **p < 0.01 vs. erenumab alone) or amylin (pEC₅₀ value of 8.19 ± 0.14; **p < 0.01 vs. erenumab alone). This suggests decreased binding of erenumab to the AMY₁ receptor in the presence of these ligands. Since the AMY₁ receptor does not show robust ligand-induced receptor downregulation (13), it is possible that erenumab competes with the ligand for receptor binding. Fremanezumab and isotype control did not bind to AMY₁ receptor cells either in the absence or presence of CGRP.

Erenumab and telcagepant affect amylin signaling at the AMY₁ receptor

To examine the activity of fremanezumab, erenumab and telcagepant at the AMY₁ receptor, we investigated their ability to antagonize amylin-induced cAMP signaling. From cAMP experiments, pA₂ values were determined from amylin concentration-response curves in the absence and presence of various antagonist concentrations. Both receptor binders, erenumab and telcagepant, were found to affect amylin signaling at the AMY₁ receptor (pA₂ values of 7.00 ± 0.04 and 6.59 ± 0.03, respectively). The effect of fremanezumab (pA₂ value of 5.72 ± 0.16) was similar to isotype and DMSO controls (pA₂ values of 5.42 ± 0.17 and 5.52 ± 0.07, respectively). This result indicates that amylin signaling at the AMY₁ receptor is only antagonized by the receptor binders. Although the HEK293S^AMY1 cells likely express both amylin-responsive calcitonin and AMY₁ receptors, the lack of binding of erenumab to calcitonin receptors (Supplemental Figure 4) suggests that the antagonism of amylin signaling occurs at the AMY₁ receptor. If this is the case, then the observed antagonism of amylin-signaling at the AMY₁ receptor by erenumab is possibly underestimated.

Erenumab, unlike fremanezumab, is internalized at the AMY₁ receptor

Similar to the imaging and trafficking studies performed with HEK293S^CGRP cells, the internalization of erenumab in HEK293S^AMY1 cells was also investigated. Live imaging experiments were carried out in HEK293S^AMY1 cells in the absence and presence of CGRP using fluorescently conjugated receptor/ligand antibodies. Human αCGRP did not reduce surface CTR with isotype-647 (Figure 6(d)) in line with findings of low levels of ligand-induced AMY₁ receptor internalization (13). Isotype-647 (Figure 6(a),(d)) and fremanezumab-647 (Figure 6(b),(e)) did not undergo internalization in AMY₁ receptor expressing cells in the absence or presence of CGRP; however, erenumab-647 was internalized under both conditions (Figure 6(c),(f)). The CTR is a functional receptor by itself and can be expressed on the cell surface without a requirement for RAMPs (21). Thus surface CTR potentially indicates the presence of both CTR and AMY₁ receptors.

OPEN IN VIEWER

Figure 6.

Live imaging of antibody internalization in AMY₁ receptor expressing cells. HEK293S^AMY1 cells (CTR-GFP/RAMP1-myc) were imaged immediately in the absence ((a)–(c)) and presence ((d)–(f)) of 100 nM hαCGRP with Alexa Fluor 647 conjugated antibody (red): Isotype ((a),(d)), fremanezumab ((b),(e)) or erenumab ((c),(f)). Both in the absence and presence of hαCGRP, erenumab-647 binds to the plasma membrane and is internalized ((c),(f)). White arrows mark examples of co-localization between CTR and erenumab-647. Neither isotype-647 ((a),(d)) nor fremanezumab-647 is internalized ((b),(e)). Representative images from four independent experiments. Scale bar, 5 µm.

Using kinetic quantification experiments of internalization in HEK293S^AMY1 cells, fluorescent intracellular puncta were observed in erenumab-pHAb treated wells (Figure 7(a)). Erenumab-pHAb internalization increased over time (Figure 7(b)), was concentration dependent (Figure 7(c); pEC₅₀ value of 8.05 ± 0.02) and did not occur in control untransfected HEK293S cells (Figure 3(d)). No internalization was detected with fremaneuzunab-pHAb or isotype-pHAb in HEK293S^AMY1 cells (Figure 7(b)–(c)). Taken together, these results confirm that erenumab not only binds the canonical CGRP receptor, but also binds and undergoes internalization at the related AMY₁ receptor. In contrast, fremanezumab does not bind to the AMY₁ receptor.

OPEN IN VIEWER

Figure 7.

Erenumab is internalized in AMY₁ receptor expressing cells. (a) Representative images show punctate internalized erenumab-pHAb in HEK293S^AMY1 cells. Scale bar, 10 µm. (b) Time course graph of integrated puncta intensity showed robust internalization of erenumab-pHAb (10 nM) in AMY₁ receptor cells compared to no internalization of fremanezumab-pHAb or isotype-pHAb. +p < 0.01, *p < 0.0001 compared to isotype-pHAb and ^$p < 0.05 and ^#p < 0.0001 compared to fremanezumab-pHAb by repeated measures two-way ANOVA with a post hoc Dunnett’s test. The responses for isotype-pHAb and fremanezumab-pHAb are overlying. (c) Antibody concentration-response curves plotted against area under the curve of puncta intensity. The responses for isotype-pHAb and fremanezumab-pHAb are overlying. Data points are mean ± SEM (n = 3); *p < 0.05 and ^#p < 0.05 erenumab-pHAb compared to isotype-pHAb and fremanezumab-pHAb, respectively, by one-way ANOVA with a post hoc Dunnett’s test.

Subcellular localization of the AMY₁ receptor and therapeutic antibodies

To determine the subcellular localization of internalized erenumab, we performed confocal imaging experiments in HEK293S^AMY1 cells. The localization of 10 μg/ml unconjugated erenumab, fremanezumab or isotype control antibody was investigated in the absence and presence of CGRP with markers of the early endosome (EEA1) or lysosome (LAMP1). Consistent with our live cell imaging experiments and a previous report (13), no change in surface CTR was observed with CGRP and isotype control antibody (Figure 8; compare green in panel a vs. panel d). No internalization in the absence and presence of CGRP was observed with either isotype control antibody (Figure 8 (a)–(b) a, d) or fremanezumab (Figure 8 (a)–(b) b, e). Both in the absence and presence of human αCGRP (100 nM), some areas of co-localization were observed between erenumab and putative early endosomes (Figure 8(a); panels c, f) and lysosomes (Figure 8(b); panels c, f). Taken together, our data indicate that erenumab binds and undergoes internalization at the AMY₁ receptor, as shown by its presence in putative early endosomes and lysosomes.

OPEN IN VIEWER

Figure 8.

Subcellular localization of erenumab in AMY₁ receptor cells. Representative images of HEK293S^AMY1 (CLR-GFP/RAMP1-myc) cells incubated with isotype control antibody, fremanezumab or erenumab for 1 h at 37°C (in the absence and presence of 100 nM hαCGRP) stained with early endosome marker EEA1 (a) or lysosomal marker LAMP1 (b). Erenumab was internalized both in the absence ((a)c, (b)c) and presence of hαCGRP ((a)e, (b)e) and co-localized in early endosomes ((a)c, (a)f) with some lysosomal localization ((b)c, (b)f). Fremanezumab and isotype control were not internalized. White arrows mark examples of co-localization between CTR, erenumab and the subcellular marker. Representative images from three independent experiments. Scale bar, 5 µm.
