Vehicle Dimensions Based Passenger Car Classification using Fuzzy and Non-Fuzzy Clustering Methods

Literature Review

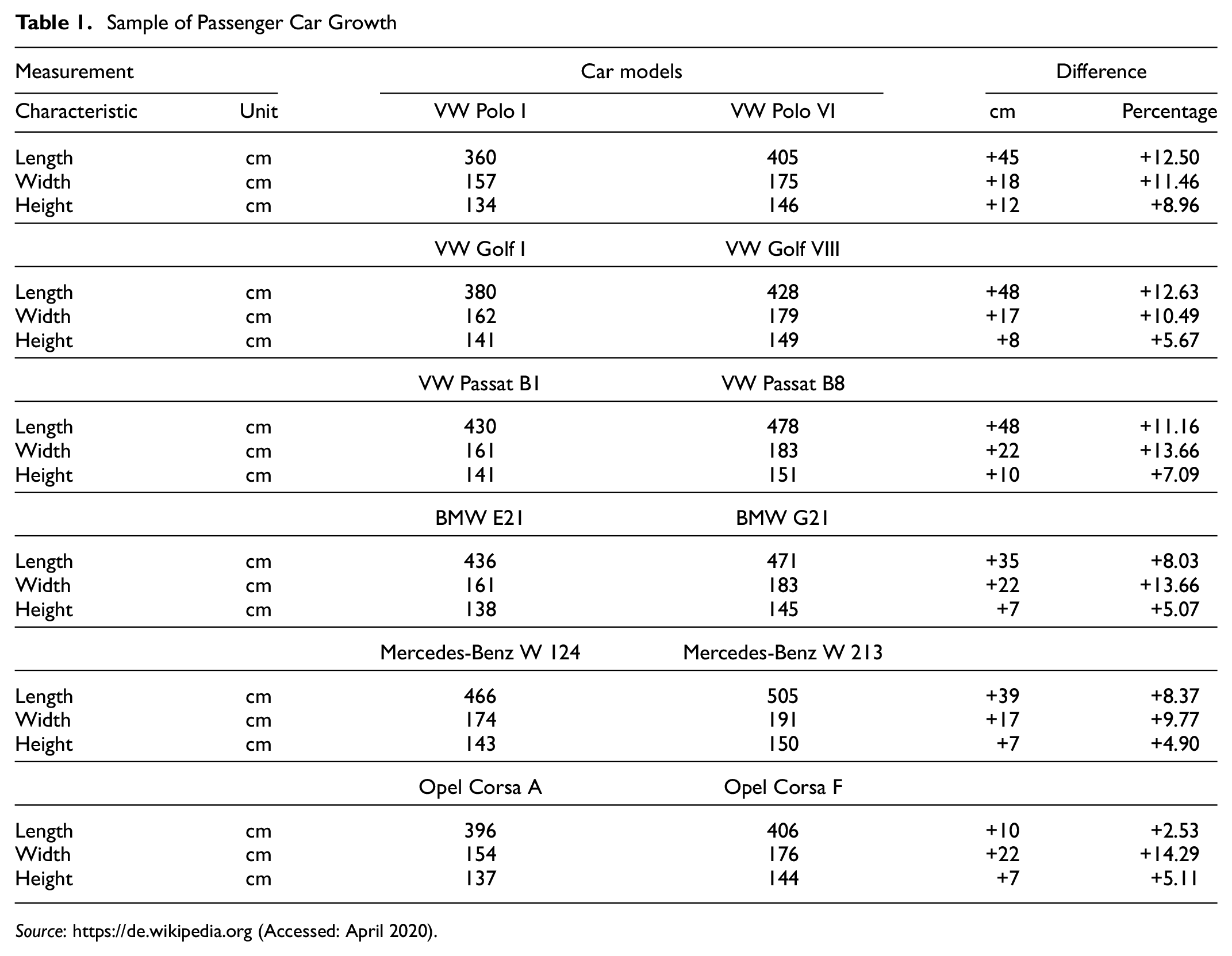

Numerous machine learning techniques including supervised (classification) and unsupervised (clustering) methods have been applied to the classification of vehicles ( 2 , 19–31). However, only a limited number of studies have used geometric measurements such as width, length, height, volume, angle size, and area for classification purposes ( 24 – 31 ). Among those using clustering techniques, Javadi et al. ( 24 ) classify vehicles into “private car,”“light trailer,”“lorry or bus,” and “heavy trailer,” using dimension and speed features that are fed into a FCM classifier. Their method reaches an accuracy of 96.5% on a data set with 400 vehicle images taken on a major highway. Yao et al. ( 25 ) proposed a vision-based method for axle-based vehicle classification using FCM clustering to identify and segment vehicle axle pixels of an image, resulting in a detection rate of 62.8%. Saraçoğlu and Nemati ( 26 ) proposed an FCM clustering algorithm based on the dimensions of every vehicle for image segmentation and the Support Vector Machine classification method to classify vehicles as “small vehicle,”“big vehicle,” and “others.” Moreover, other works have used supervised classification methods for the dimension-based classification of vehicles. For example, Zhang et al. ( 27 ) developed a length-based vehicle detection and classification system for truck data collection. They reported 97% accuracy for truck classification. Arunkumar et al. ( 28 ) designed a novel approach to classify vehicles into their brands using geometrical features and appearance-based attributes. Based on this, they are able classify the vehicles into different classes of models that belong to the same brand using a neural network classifier. Moussa ( 29 ) used geometric-based and appearance-based features in a supervised learning model (support vector network) for multi-class (small, medium, and large size) and intra-class (pickup, sport utility vehicle, and van) vehicle classification. Jiang et al. ( 30 ) combined several feature extraction methods with a support vector machine classifier to group the vehicles in six categories (large bus, car, motorcycle, minibus, truck, and van) and achieved a classification accuracy of 97.4%. Lastly, Cheung et al. ( 31 ) proposed a vehicle classification method based on magnetic sensors to classify vehicles into six types (passenger vehicle, SUV, van, bus, mini-trucks, truck). The algorithm achieved 60% accuracy without using vehicle length and 80% to 90% if length was used as a feature. All these works show that machine learning techniques can be successfully applied to classify vehicles based on their dimensions. However, most of them focused on grouping or classifying vehicles in classes that differ greatly in dimension and shape (e.g., trucks, buses, passenger cars, mopeds), while separating the more alike sub-classes within these categories (e.g., the passenger car sub-classes) may pose a greater challenge.

This study mainly focuses on partition-based clustering algorithms, which have the ability to explore underlying structures of clusters based on appropriate objective functions ( 32 – 34 ). Specifically, we implement and compare the two most commonly used partition-based clustering algorithms, namely KM and FCM. The FCM algorithm is capable of overcoming some of the problems faced with noise sensitivity defects and non-linear data clustering ( 35 – 37 ). Researchers have carried out multiple comparisons of these two methods. Velmurugun and Santhanam ( 32 ) have compared the clustering performance and effectiveness of KM and FCM clustering algorithms using different shapes of arbitrarily distributed data points and found mutual exclusion clusters. Joyti and Kumar ( 38 ) reported the performance between partition-based clustering algorithms based on time complexity. Gosh and Dubey ( 39 ) computed the performance and clustering accuracy of KM and FCM algorithms based on the efficiency of the clustering output and the computational time.

Methods

Clustering is an unsupervised data analysis technique with more flexibility in identifying groups of data, and that is generally more demanding than supervised approaches ( 40 – 43 ). Through clustering, we group a collection of similar objects into each defined cluster characteristic while we attribute dissimilar objects to other clusters. The partitioning, hierarchical, data density based, grid based and soft computing methods are some of the most frequently used clustering approaches in the literature ( 44 – 48 ). Each of these methods has specific clustering algorithms. Despite such diversity, partition-based clustering has been widely used by researchers. Therefore, in this study we focus on the partition approaches, specifically the KM and FCM clustering algorithms, and implement them using three different data sets containing the newly registered passenger cars, vehicle technical specification from the type approvals, and vehicle expert segmentation data set in Switzerland.

Non-Fuzzy Clustering Algorithm

K-means (KM) or hard C-means clustering is one of the most commonly used exclusive non-fuzzy clustering algorithms. This technique classifies data into crisp clusters, where each data point is assigned to exactly one cluster at any one time ( 49 ). The summation of degree of belongingness of a specific data point in a specific cluster is equal to 1 and is equal to 0 for all the remaining clusters. This method classifies the N data points into c (1 < c < N) clusters. The objective of the KM algorithm is to minimize an objective function (J) known as the squared error function and is given in Equation 1 as follows:

J ( X ; V ) = ∑ i = 1 c ∑ j = 1 c i D ij 2

(1)

where c_i represents the number of data points in the ith cluster and D is Euclidean distance function.

The KM algorithm comprises the following steps:

(1) Let X={x₁, x₂, x₃, …,x_n} be data set and, V={v₁, v₂, v₃, …, v_n} be the set of centroids.

(2) Fix the desired number of clusters (c) and place cluster centroids.

(3) Update the cluster centroid by:

v i = 1 c i ∑ i = 1 c i x i j ( 1 ≤ i ≤ c )

(2)

(4) Determining each data point to the cluster based on the minimum distance to the cluster centroids according to the Euclidean distance function.

D i j 2 = ‖ x i j − v i ‖ 2 ( 1 ≤ i ≤ c ) , ( 1 ≤ j ≤ c i )

(3)

where

x represents the set of data points,

v _i is vectors of center in ith cluster, and

‖x_ij-v_i‖ ² is Euclidean distance function calculated between x_ij and v _i .

(5) Recalculate the distance between each data point and newly obtained cluster centers.

(6) Repeat from step 3 until achieving convergence, that is, until the same points are assigned to each cluster in consecutive rounds.

Fuzzy C-Mean Clustering

Fuzzy C-means (FCM) as an overlapping clustering algorithm is one of the most popular fuzzy clustering methods ( 50 ). This technique is a soft clustering algorithm. By this, we mean that each data point has a probability of belonging to each cluster with partial membership values ranging from 0 to 1. The FCM algorithm is an iterative optimization that minimizes the objective function (J) defined as follows:

M i n J ( X ; U , V ) = ∑ k = 1 N ∑ i = 1 c μ k i m D k i A 2 ( 1 ≤ m < ∞ ) , ( 1 ≤ k ≤ N ) , ( 1 ≤ i ≤ c )

(4)

s . t . ∑ i = 1 c μ ki = 1

(5)

U = [ μ k i ] ∈ M F C M ( 0 ≤ μ k i ≤ 1 )

(6)

where

μ _ij represents the weighted squared errors function known as membership function;

m is a weighting exponent that determines the degree of fuzziness;

A is a positive and symmetric (n × n) weight matrix, and

U is a fuzzy partition matrix of the data set X into c clusters.

The description of the FCM algorithm performs in the following steps:

(1) Choose an initial membership matrix U⁰, c, m, and A randomly.

(2) Determine prototype vectors (v) of centroids by:

v i = ∑ j = 1 c i μ i j m x j ∑ j = 1 c i μ i j m ( 1 ≤ i ≤ c )

(7)

(3) Calculate membership (µ) values by:

μ i j = 1 ∑ k = 1 c ( D i j A D k j A ) 2 / ( m − 1 ) ( 1 ≤ i ≤ c ) , ( 1 ≤ j ≤ c i )

(8)

(4) Obtain the Euclidean distances (D) by:

D i j A 2 = ‖ x j − v i A 2 ‖ = ( x j − v i ) T A ( x j − v i ) ( 1 ≤ i ≤ c ) , ( 1 ≤ j ≤ c i )

(9)

where ‖ x j − v i A 2 ‖ denotes to the Euclidean distance function and it is computed in the A norm between jth data and ith cluster center.

(5) Compare and update U^(t+1) with U^(t) by using Equation 8, where t is the iteration number. If ‖U^(t+1)− U^(t)‖ < ε, where ε is the termination criterion between [0, 1], then stop, else repeat from step 2.

Results

The implementation of KM and FCM is done on the first registered passenger cars in Switzerland in 2018 in MATLAB version R2018a. As one of the essential input arguments of FCM the maximum number of iterations was set to 100, the convergence value was ε = 0.00001, and the weighting exponent was set to (m = 2).

The data set contains 367 unique samples classified into six different classes by experts. Each sample is characterized by equally weighted exterior and interior dimensions features as an attribute and all the samples are numbered 1 to 367. The samples from 1 to 18 are classified as micro class, those from 19 to 69 are classified as small class, those from 70 to 179 are classified as middle class, those from 180 to 263 are classified as upper middle class, those from 264 to 323 are classified as large class, and those from 324 to 367 are classified as luxury class.

The optimal number of clusters is determined by Elbow plot and silhouette analysis (Figure 2). However, to compare the the computational efficiency and accuracy of the results of the clustering algorithms with the expert segmentation, we also implemented the parallel classifiers with six clusters. If the assume the cluster value is lower than the optimal value, the algorithm will produce a result that does not capture the important aspects or the essence of the underlying data.

OPEN IN VIEWER

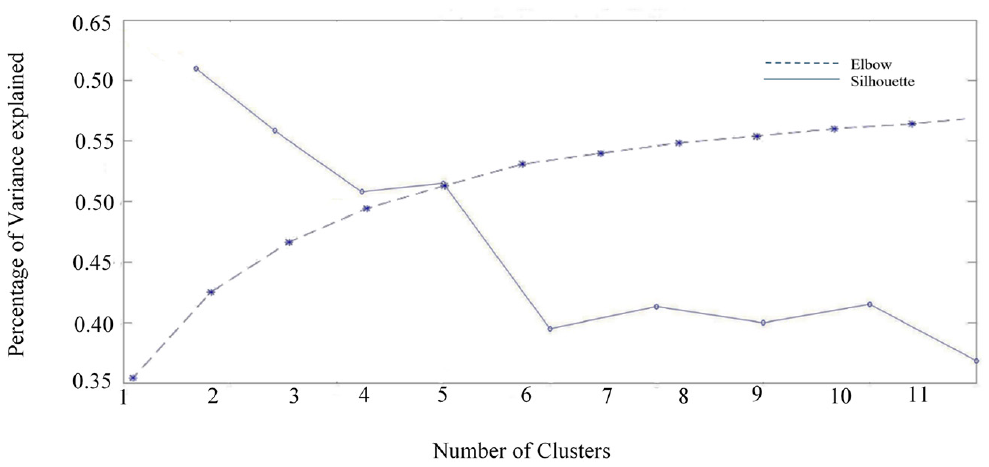

Figure 2.

Elbow method versus silhouette analysis plot for finding optimal number of clusters.

Primary analysis of the expert segmentation data set demonstrates that the height of the vehicles has an insignificant correlation with its class and does not provide more accurate categorization, particularly for big data analysis ( 56 ). Therefore, we characterize each vehicle by its exterior width and length (Figure 3).

OPEN IN VIEWER

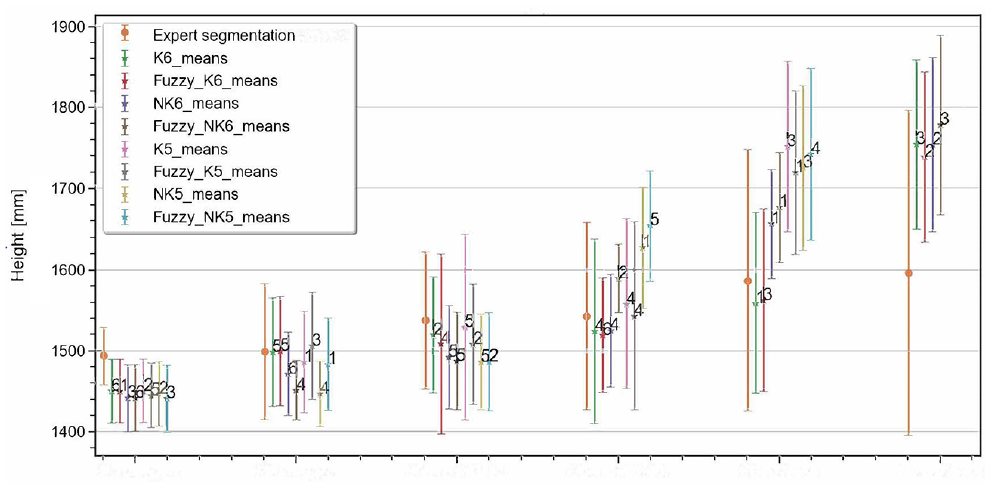

Figure 3.

Comparison of height mean and standard deviation scores of expert segmentation and proposed clustering methods.

KM generates six clusters: micro class containing one sample, small class containing 27 samples, middle class containing 51 samples, upper middle class containing 102 samples, large class containing 96 samples, and luxury class containing 90 samples. FCM generates six clusters corresponding to micro class containing 24 samples, small class containing 54 samples, middle class containing 97 samples, upper middle class containing 87 samples, large class containing 79 samples, and luxury class containing 26 samples. The proportion of vehicles classified differently than in the expert segmentation is 31% of the total sample for FCM and 76% for KM. (Figure 4, a and b ).

OPEN IN VIEWER

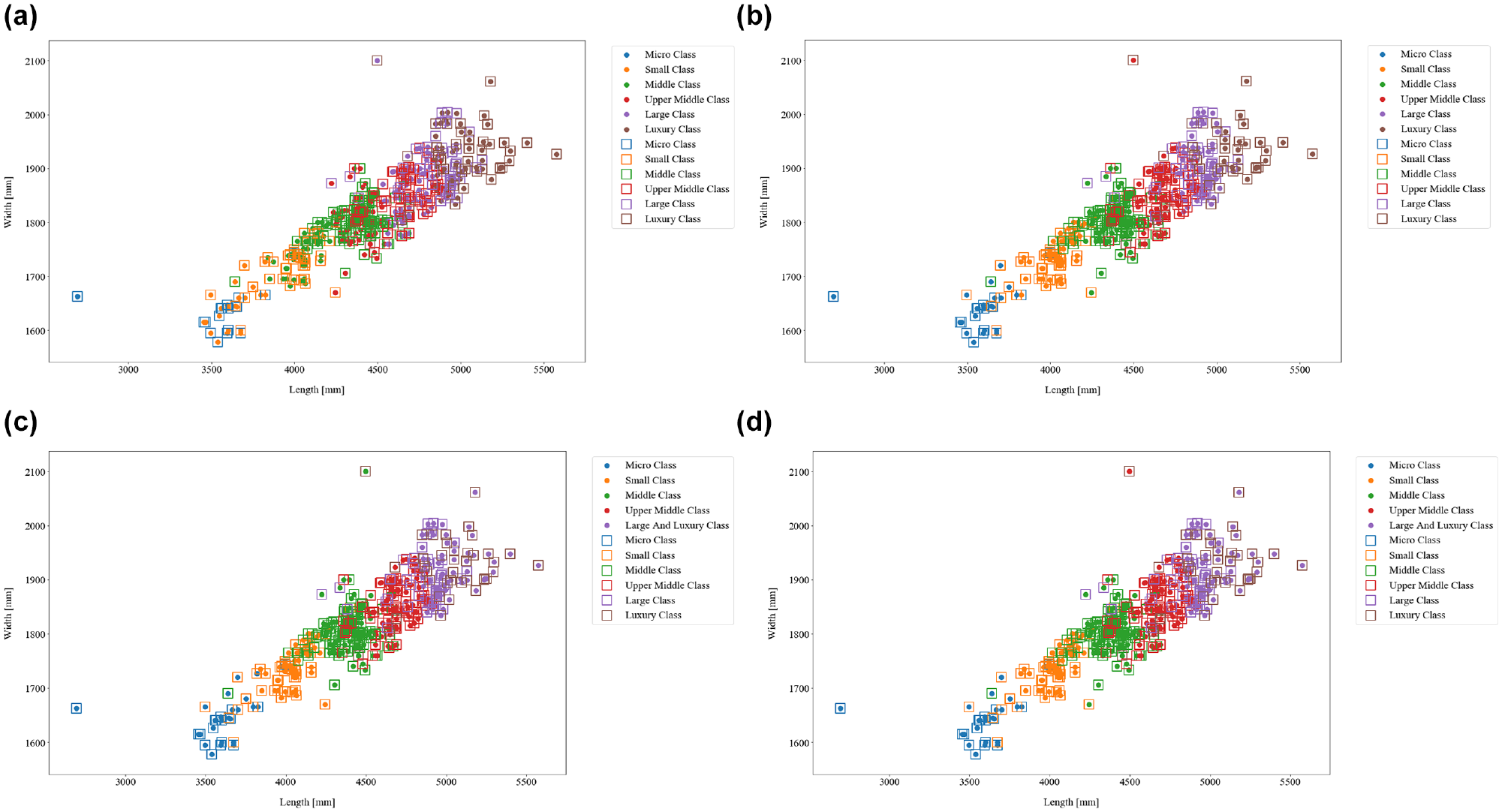

Figure 4.

Illustration of the K-means and Fuzzy C-means clustering results with five and six clusters. Each plot shows the partition obtained after specific iterations of the algorithms. The color of the points represents their assigned clusters. Rectangle markers indicate the categorization of the samples in the expert segmentation: (a) K-means (c = 6); (b) Fuzzy C-means (c = 6); (c) K-means (c = 5); and (d) Fuzzy C-means (c = 5).

The KM method generates five clusters: micro class containing 28 samples, small class containing 52 samples, middle class containing 104 samples, upper middle class containing 94 samples, large and luxury class containing 89 samples. FCM generates five clusters: micro class containing 25 samples, small class containing 54 samples, middle class containing 104 samples, upper middle class containing 95 samples, large and luxury class containing 89 samples. The percentage of vehicles classified differently than in the expert segmentation is 25% of the total sample in both FCM and KM (Figure 4, c and d ).

Table 3 presents for each clustering method the number of samples that are classified properly (true positive prediction) and improperly (false positive prediction) into the respected clusters of the data sets in comparison with the expert segmentation.

OPEN IN VIEWER

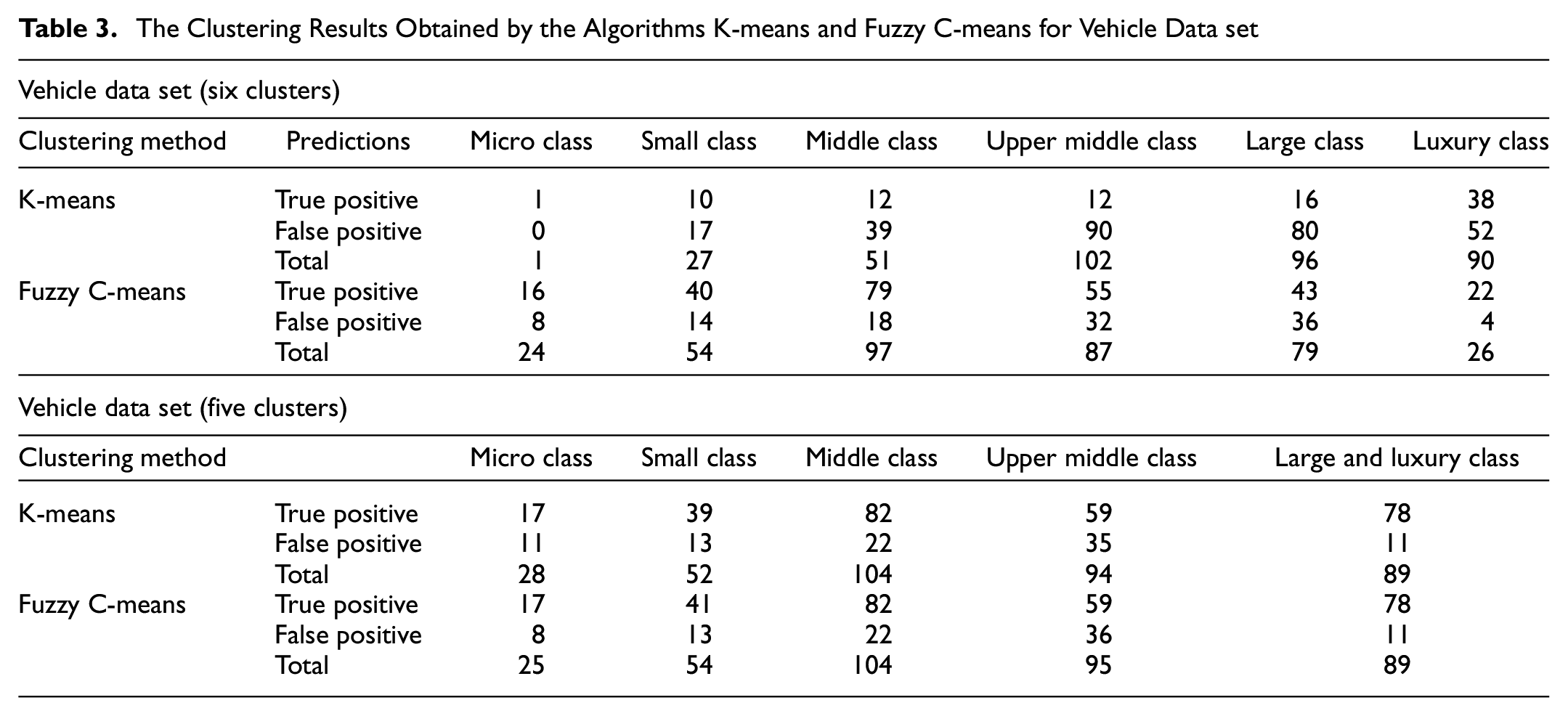

Table 3.

The Clustering Results Obtained by the Algorithms K-means and Fuzzy C-means for Vehicle Data set

Vehicle data set (six clusters)
Clustering method	Predictions	Micro class	Small class	Middle class	Upper middle class	Large class	Luxury class
K-means	True positive	1	10	12	12	16	38
	False positive	0	17	39	90	80	52
	Total	1	27	51	102	96	90
Fuzzy C-means	True positive	16	40	79	55	43	22
	False positive	8	14	18	32	36	4
	Total	24	54	97	87	79	26
Vehicle data set (five clusters)
Clustering method		Micro class	Small class	Middle class	Upper middle class	Large and luxury class
K-means	True positive	17	39	82	59	78
	False positive	11	13	22	35	11
	Total	28	52	104	94	89
Fuzzy C-means	True positive	17	41	82	59	78
	False positive	8	13	22	36	11
	Total	25	54	104	95	89

Discussion

If we take the expert segmentation as a reference, the six cluster solution of the KM algorithm only categorizes properly one out of 18 samples of the micro class group, and attributes the remaining 17 samples to the small and middle class categories. For FCM these frequencies are equal to 16 and two samples, respectively. Further, out of 51 samples of the small class category, KM classifies 10 samples equally and attributes the remaining 41 samples to the middle and upper middle class groups. For FCM these frequencies are equal to 40 and 11 samples, respectively. For the 110 samples in the middle class cluster, KM classifies 12 samples equally and assigns the remaining 98 samples to the upper middle and large class categories. For FCM these frequencies are equal to 79 and 31 samples, respectively. From the 84 samples in the upper middle class, KM classifies 12 samples equally and assigns the remaining 72 samples to the large class and luxury class categories. For FCM these frequencies are equal to 55 and 29 samples, respectively. Out of the 60 samples in the large class category, KM assigns 16 samples equally and attributes the remaining 44 samples to the upper middle class and luxury class categories. For FCM these frequencies are equal to 43 and 17 samples, respectively. From the remaining 44 samples that belong to the luxury class, KM assigns 38 samples equally and attributes the remaining six samples to the upper middle class and large class categories. For FCM these frequencies are equal to 22 and 22 samples, respectively.

Considering the solutions with five clusters, out of 18 samples of the micro class group, both KM and FCM classify 17 samples equally to the expert segmentation and attribute the remaining sample to the small class category. Further, out of 51 samples of the small class category, KM classifies 39 samples equally and attributes the remaining 12 samples to the micro class and middle class categories. For FCM these frequencies are equal to 41 and 10 samples, respectively. For the middle class cluster with 110 samples, both KM and FCM classify 82 samples equally and attribute the remaining 28 samples to the small class and upper middle class categories. For the upper middle class with 84 samples, both KM and FCM classify 59 samples equally and attribute the remaining 25 samples to the middle, large, and luxury classes. From the remaining 104 samples that belong to the merged category including the large and luxury class, both KM and FCM assign 78 samples to the merged category and assign the remaining 26 samples to the middle class and upper middle class categories.

To measure the similarity between actual (based on expert segmentation) and predicted classes in the clustering process, we compute the confusion matrix. The confusion matrix contains diagonal entries that represent equal categorization, and off-diagonal entries that represent unequal ones (Table 4).

OPEN IN VIEWER

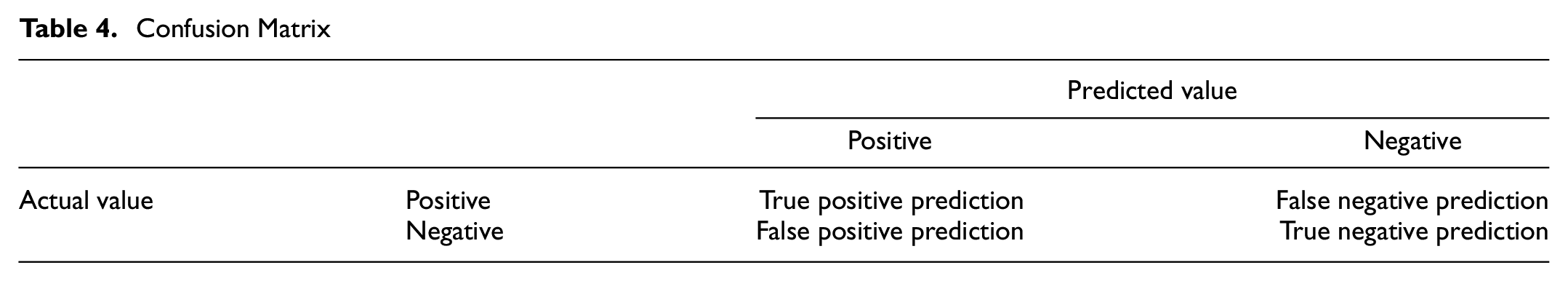

Table 4.

Confusion Matrix

		Predicted value
		Positive	Negative
Actual value	Positive	True positive prediction	False negative prediction
	Negative	False positive prediction	True negative prediction

The output of the confusion matrix serves to calculate performance measures such as True Positive Rate (TPR) and Positive Predictive Value (PPV) as given in the following.

TPR = TP ( TP + FN )

(10)

PPV = TP ( TP + FP )

(11)

Table 5 summarizes the confusion matrix of the detected results and the performance in two clustering methods. For the vehicle data set with six clusters, the algorithm FCM achieved the highest recognition accuracies for almost all classes (overall accuracy of 71% for FCM and 27% for KM). On the other hand, when we set the number of clusters to five, both algorithms achieve similar performance (79% for FCM and 78% for KM), and only for the small class category, FCM achieves a slightly higher performance than the KM algorithm (80.5% and 76.5%, respectively).

OPEN IN VIEWER

Table 5.

The Confusion Matrix of the Proposed K-Means and Fuzzy C-Means Clustering

Vehicle data set (six clusters)
Clustering method	Micro class (%)	Small class (%)	Middle class (%)	Upper middle class (%)	Large class (%)	Luxury class (%)	Clustering performance (%)
K-means	5.6	19.6	10.9	26.7	14.3	86.4	27
Fuzzy C-means	88.9	78.4	71.8	88.9	71.7	50	71
Vehicle data set (five clusters)
Clustering method	Micro class (%)	Small class	Middle class	Upper middle class	Large and luxury class		Clustering performance
K-means	94.4	76.5	74.5	70.2	75		78
Fuzzy C-means	94.4	80.5	74.5	70.2	75		79

Based on these results, FCM with five clusters is superior to KM with the same cluster number by only 1%, which implies that both KM and FCM clustering algorithms are practically applicable for passenger vehicle classification with high recognition accuracies. Figure 5 shows the overall performance of the KM and FCM algorithms.

OPEN IN VIEWER

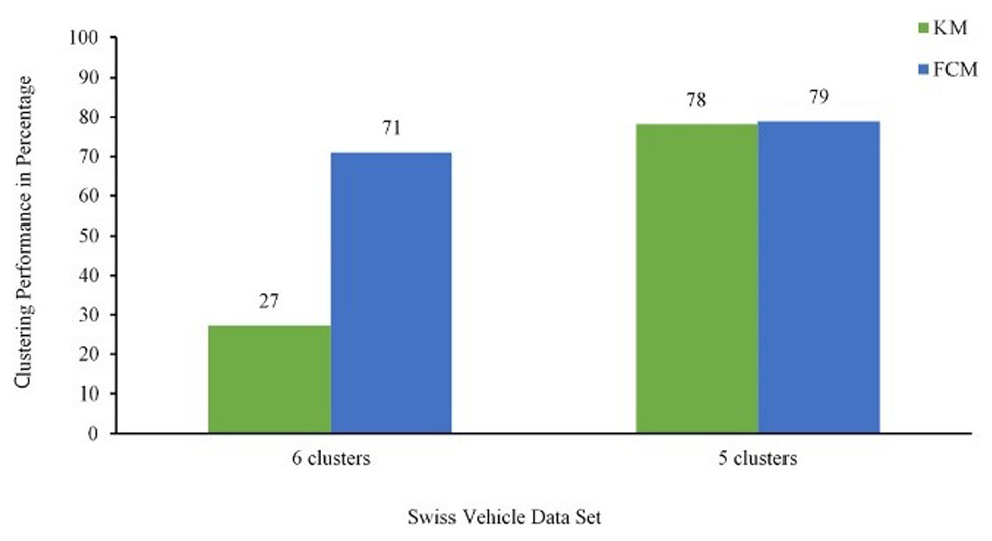

Figure 5.

Performance comparison between K-means (KM) and Fuzzy C-means (FCM) algorithms.

Table 6 presents the clustering results of the two methods evaluated and shows that the proposed FCM clustering outperforms the KM algorithm. The classifier accuracy of FCM algorithm with five clusters 79% and the PPV 75% are superior to other algorithms. This means that FCM can extract richer information from vehicle dimensions and obtain a more discriminative recognition rate than KM algorithm, particularly in the categories of micro class and small class. Moreover, initializations of the partition matrices using five clusters improve the accuracy of the results for both methods.

OPEN IN VIEWER

Table 6.

The Clustering Results using K-means and Fuzzy C-means Algorithms

Vehicle data set (six clusters)
Algorithm	TPR (%)	PPV (%)
K-means	27	38
Fuzzy C-means	71	71
Vehicle data set (five clusters)
K-means	78	73
Fuzzy C-means	79	75

Note: TPR = true positive rate; PPV = positive predictive value.

Conclusions

To summarize, we developed potential vehicle classification tools based on a scientific approach in contrast to the expertise approach to investigate high levels of vehicle classification. We propose KM and FCM clustering algorithms to partition a vehicle data set into several clusters using dimensions attributes. The vehicles from the same cluster have the most similar measured features, which could be distinguishable for those of other clusters. The proposed approach is able to classify vehicles in the micro, small, middle, upper middle, large, and luxury classes. We analyze and compare the performance of the two algorithms with a Swiss expert segmentation data set.

The experimental results showed that the soft clustering algorithm performed better than the hard algorithm. The performance of the FCM with five clusters was promising for different classes, with an average accuracy rate of 79% and an average PPV of 75%. The results show that the differences between the FCM results and the expert segmentation often arise from vehicles classified in different adjacent segments. Considering that the expert segmentation does not take into consideration the vehicle dimensions, these differences and the related decrease in the accuracy do not necessarily indicate a low classification performance.

Furthermore, we have shown that determining the dimension boundaries of each segment can enhance the consistency of expert-defined segmentations, particularly for vehicles from different classes with similar dimensions. The vehicle fleet composition will likely change in the near future for vehicle segments and vehicle dimensions because of the new carbon dioxide legislation. The proposed approach facilitates the accurate analysis of such changes enabling automated vehicle classification of large databases. Another important advantage of the clustering based mathematical segmentation is that it removes the subjectivity factors affecting expert-based segmentations, reducing classification errors and making databases from across the world comparable. Finally, the automatized clustering approach also reduces classification costs and training time.

A further area of potentially fruitful research would be to use the proposed method in combination with specific intra-class classifications and intra-cluster features to improve the clustering performance using semi-supervised deep learning algorithms especially for the vehicles with similar features to deal with the inter-class classification problem.
