Short aramid fiber reinforced thermotropic liquid crystalline polyester composites: Fabrication,thermal,and mechanical properties

We conducted a study to analyze the impact of short aramid fibers (AFs) on the melt-rheological behavior, thermal transition, thermal stability, and mechanical durability of thermotropic liquid crystal polyesters (TLCPs). By using different AF loading contents ranging from 3–15 wt%, we produced TLCP matrix composites through masterbatch-based melt-compounding and injection-molding. The SEM images and FT-IR spectra demonstrate that the AFs are dispersed in the TLCP matrix with a microfibrillar structure through good interfacial adhesion caused by specific intermolecular interactions between the TLCP and AFs. As a result, the complex viscosity, shear storage/loss moduli, and thermal transition (melt-crystallization, glass transition, and melting) temperatures of the composites increase with increasing AF filler content. However, the melt-crystallization and melting enthalpies increase only at low AF loading contents of 3–5 wt%. At high AF contents of 7–15wt%, the enthalpies decrease owing to the partial aggregation of AF fillers. The thermogravimetric analysis proves that the thermal stability of TLCP/AF composites improves when the AF filler is introduced. The dynamic mechanical analysis using the stepped isothermal method shows that the addition of 5 wt% AF to the TLCP leads to an approximately 150% improvement in elastic moduli and long-term mechanical durability at elevated temperatures.

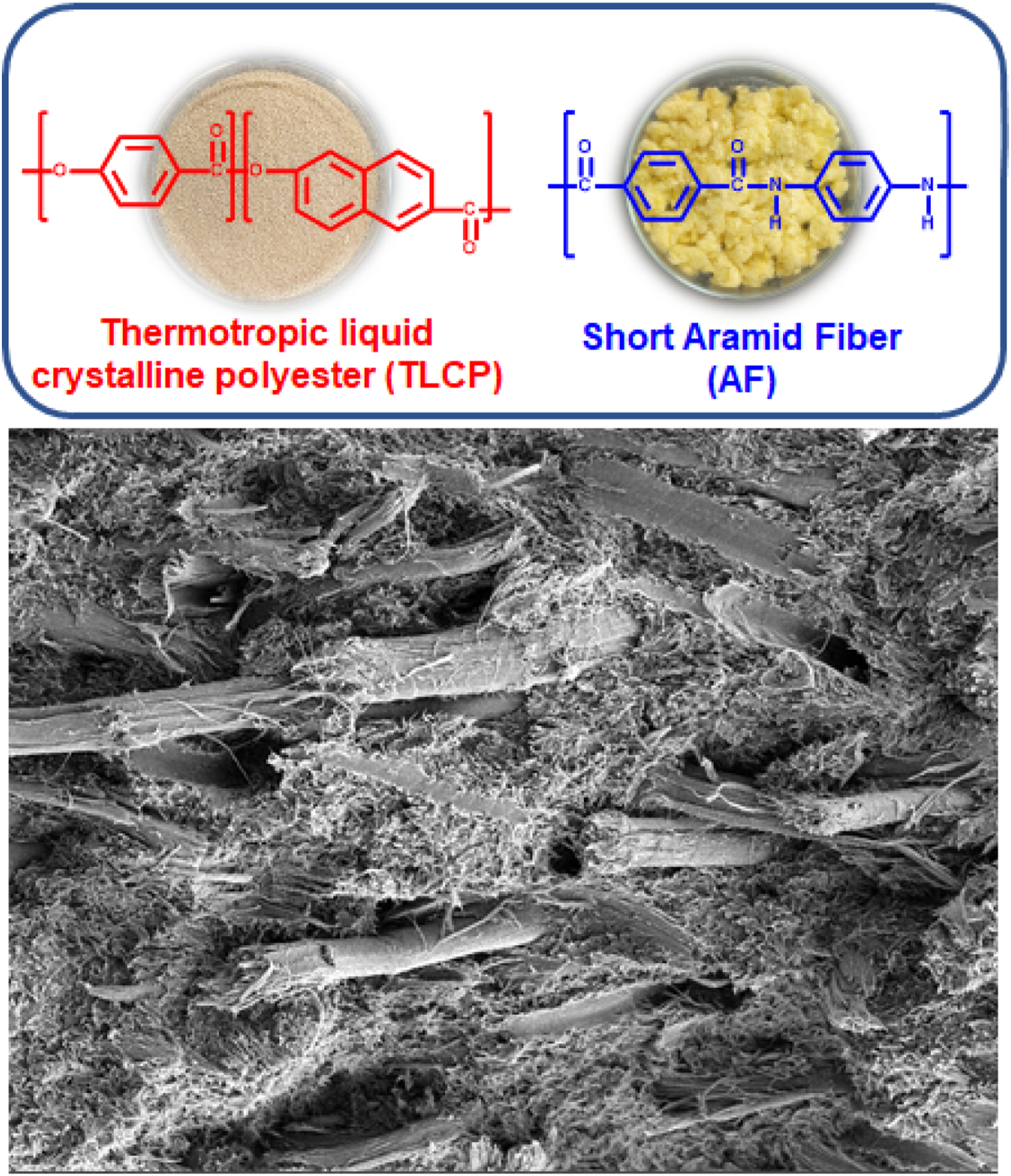

OPEN IN VIEWER Graphical Abstract
