Reinforcing mechanisms in compression of LDPE/HDPE foams by the incorporation of ethylene plasma-treated B 4 C

The role of the incorporation and ethylene plasma surface modification of B₄C to reinforce foams based on low-density (LDPE) and high-density (HDPE) polyethylene blends, under compression, is investigated herein. Characterization of B₄C was achieved through scanning electron microscopy (SEM), X-ray diffraction, and X-ray photoelectron spectroscopy. Composite foams, containing 0.5, 1.0, and 2.0 wt% of B₄C, were characterized by SEM, differential scanning calorimetry, and compression testing. The increase of C-C bonds and the disappearance of oxygen-containing functional groups upon surface treatment confirmed that ethylene polymerizes on B₄C forming strong chemical interactions. Both pristine and plasma-treated B₄C in LDPE/HDPE foams act as nucleation agents yielding smaller cell size (d), higher cell density (N _c ), and higher crystallinity (X _c ). The reinforcing mechanisms were analyzed considering N _c , X _c, and the B₄C-matrix interactions. The foams reinforced with 2.0 wt% of plasma-treated B₄C exhibited the highest improvements, with increments of ∼190% in the elastic modulus, 200% in the yielding strength, and 150% in the toughness at 50% of deformation, retaining the lightweight of the foams without B₄C. This study presents valuable insights for developing advanced lightweight foams with improved mechanical properties, particularly for applications in cushioning automotive components, consumer goods, and biomedical devices.

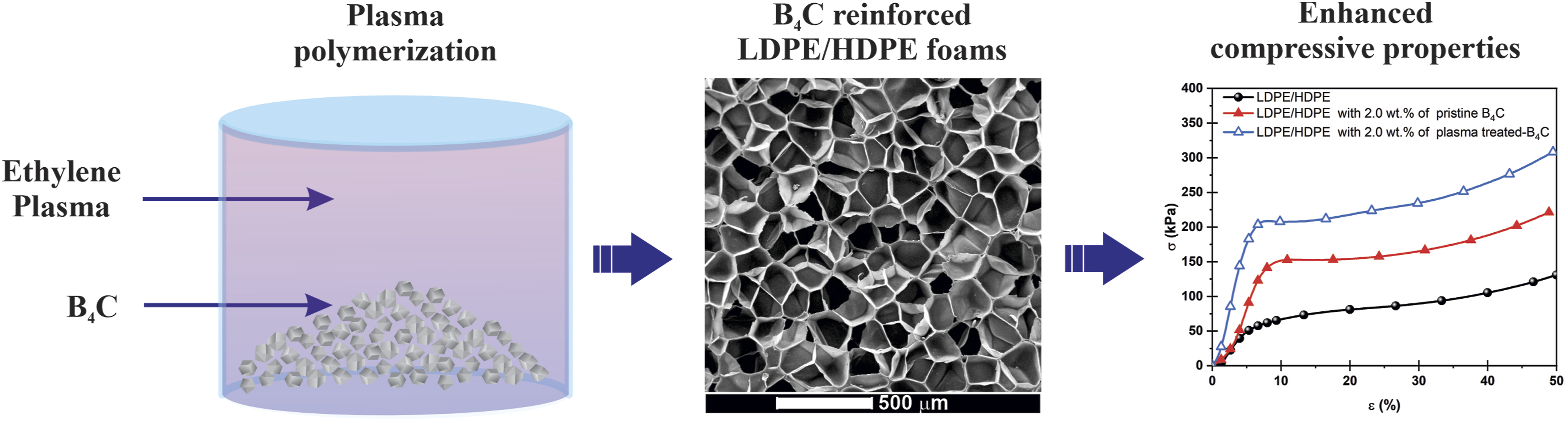

OPEN IN VIEWER Graphical Abstract
