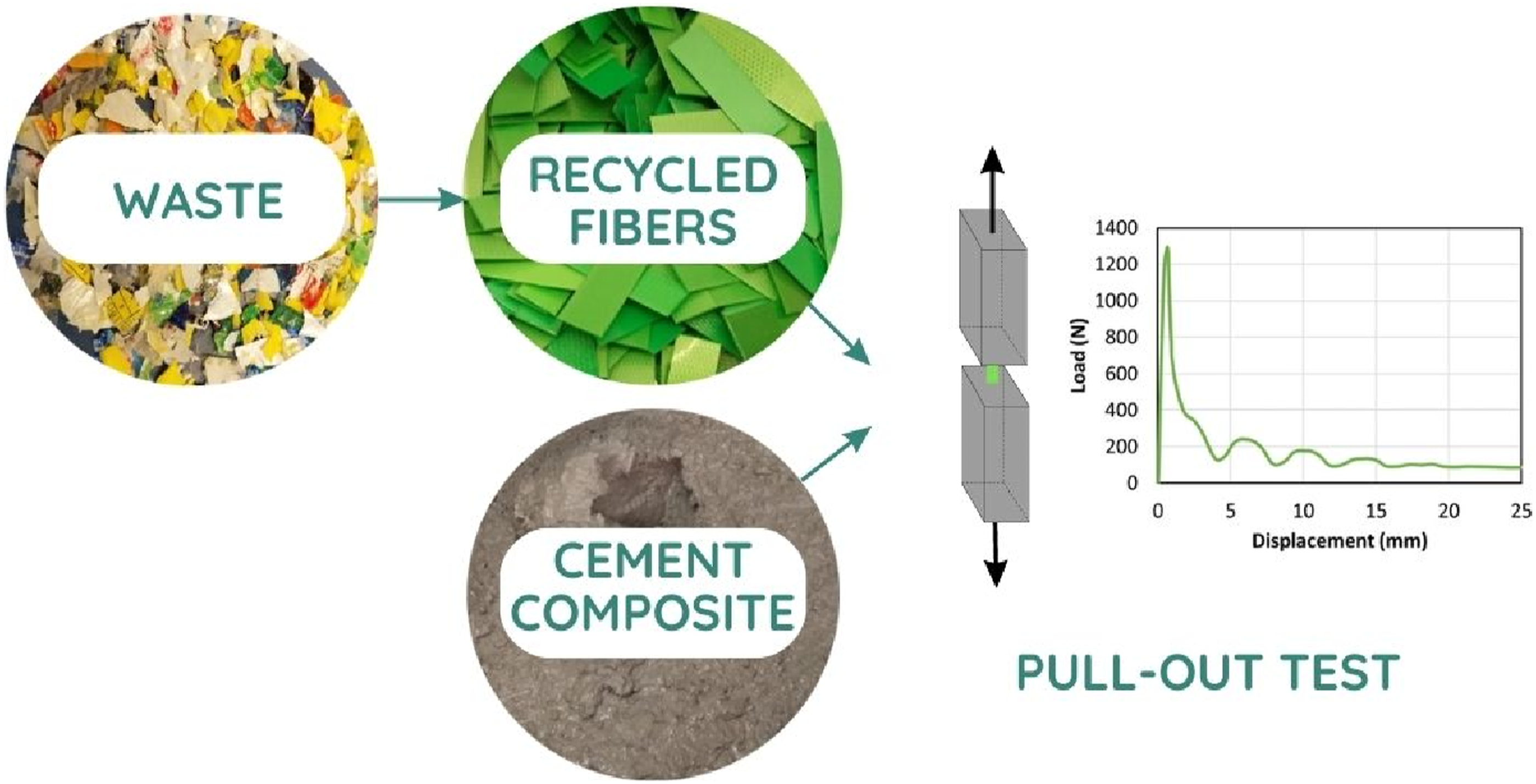

Recycled fibers are of interest to produce fiber reinforced cement composites while reducing some environmental impacts such as waste disposal and raw materials consumption. In this paper, four plastic and three steel fibers obtained from waste were studied. The aim of this article was to characterize their pull-out response. Recycled steel fibers were recovered from tires, while one plastic fiber was produced from straps and three fibers were fabricated from PET bottles with different shapes to compare the effects of geometry. Recycled steel fibers showed higher adhesion and strain energy density than plastic ones. The adhesion and elastic modulus of these recycled steel fibers are of interest for fiber reinforced mortar and concrete applications, while plastic fibers could contribute to improve cohesion and to mitigate shrinkage cracking at early ages.
LiewKMSojobiAOZhangLW. Green concrete: prospects and challenges. Construct Build Mater2017; 156: 1063–1095.
2.
MerliRPreziosiMAcamporaA, et al.Recycled fibers in reinforced concrete: a systematic literature review. J Clean Prod2020; 248: 119207.
3.
da SilvaTRde AzevedoARCecchinD, et al.Application of plastic wastes in construction materials: a review using the concept of life-cycle assessment in the context of recent research for future perspectives. Mater2021; 14(13): 3549.
4.
ShafeiBKazemianMDopkoM, et al.State-of-the-art review of capabilities and limitations of polymer and glass fibers used for fiber-reinforced concrete. Mater2021; 14(2): 409.
5.
EN 14889-2:2008. Fibres for concrete - Part 2: polymer fibres - definitions, specifications and conformity.
6.
AnandamurthyAGunaVIlangovanM, et al.A review of fibrous reinforcements of concrete. J Reinforc Plast Compos2017; 36(7): 519–552.
7.
YinSTuladharRShiF, et al.Use of macro plastic fibres in concrete: a review. Construct Build Mater2015; 93: 180–188.
8.
GuLOzbakkalogluT. Use of recycled plastics in concrete: a critical review. Waste Manage (Tucson, Ariz)2016; 51: 19–42.
9.
AhmedHUFarajRHHilalN, et al.Use of recycled fibers in concrete composites: a systematic comprehensive review. Compos Part B-Eng2021; 215: 108769.
10.
OchiTOkuboSFukuiK. Development of recycled PET fiber and its application as concrete-reinforcing fiber. Cement Concr Compos2007; 29(6): 448–455.
11.
KimJHParkCGLeeSW, et al.Effects of the geometry of recycled PET fiber reinforcement on shrinkage cracking of cement-based composites. Compos Part B-Eng2008; 39(3): 442–450.
12.
FotiD. Preliminary analysis of concrete reinforced with waste bottles PET fibers. Construct Build Mater2011; 25(4): 1906–1915.
13.
PelisserFMontedoORGleizePJ, et al.Mechanical properties of recycled PET fibers in concrete. Mater Res2012; 15: 679–686.
14.
FotiD. Use of recycled waste pet bottles fibers for the reinforcement of concrete. Compos Struct2013; 96: 396–404.
15.
MeddahMSBencheikhM. Properties of concrete reinforced with different kinds of industrial waste fibre materials. Construct Build Mater2009; 23(10): 3196–3205.
16.
GhernoutiYRabehiBBouzianiT, et al.Fresh and hardened properties of self-compacting concrete containing plastic bag waste fibers (WFSCC). Construct Build Mater2015; 82: 89–100.
17.
SpadeaSFarinaICarrafielloA, et al.Recycled nylon fibers as cement mortar reinforcement. Construct Build Mater2015; 80: 200–209.
18.
YinSTuladharRCollisterT, et al.Post-cracking performance of recycled polypropylene fibre in concrete. Construct Build Mater2015; 101: 1069–1077.
19.
KhalidFSIrwanJMIbrahimMW, et al.Splitting tensile and pullout behavior of synthetic wastes as fiber-reinforced concrete. Construct Build Mater2018; 171: 54–64.
20.
CentonzeGLeoneMAielloMA. Steel fibers from waste tires as reinforcement in concrete: a mechanical characterization. Construct Build Mater2012; 36: 46–57.
21.
TeklalFDjebbarAAllaouiS, et al.A review of analytical models to describe pull-out behavior–Fiber/matrix adhesion. Compos Struct2018; 201: 791–815.
22.
AielloMALeuzziFCentonzeG, et al.Use of steel fibres recovered from waste tyres as reinforcement in concrete: pull-out behaviour, compressive and flexural strength. Waste Manage (Tucson, Ariz)2009; 29(6): 1960–1970.
23.
IslaFALuccioniBMIsas PedrazaDR, et al.Arrancamiento de fibras de acero de matriz de Hormigon. Rev. Sul-Am. Eng. Estrut2015; 12(3): 40–65.
24.
DiFranciaCWardTCClausRO. The single-fibre pull-out test. 1: review and interpretation. Compos Part A-Appl S1996; 27(8): 597–612.
25.
GiaccioGMBossioMEMonettiDH, et al.Macrofibras sintéticas para el refuerzo de hormigón. In: II Jornadas de Investigación y Transferencia de la Facultad de Ingeniería (ITE), La Plata, 2013, pp. 330–335.
FotiD. Recycled waste PET for sustainable fiber-reinforced concrete. In: Use of recycled plastics in eco-efficient concrete. Woodhead Publishing, 2019, pp. 387–410.
28.
DengFDingXChiY, et al.The pull-out behavior of straight and hooked-end steel fiber from hybrid fiber reinforced cementitious composite: experimental study and analytical modelling. Compos Struct2018; 206: 693–712.
29.
SinghSShuklaABrownR. Pullout behavior of polypropylene fibers from cementitious matrix. Cement Concr Res2004; 34(10): 1919–1925.
30.
EsmaeiliJAndalibiKGencelO, et al.Pull-out and bond-slip performance of steel fibers with various ends shapes embedded in polymer-modified concrete. Construct Build Mater2021; 271: 121531.
31.
BorgRPBaldacchinoOFerraraL. Early age performance and mechanical characteristics of recycled PET fibre reinforced concrete. Construct Build Mater2016; 108: 29–47.
32.
AttiogbeEKSchaefSKeroboCO, et al.A new fiber for enhanced crack control. Concr Int2014; 36: 35–39.
33.
BreitenbücherRMeschkeGSongF, et al.Experimental, analytical and numerical analysis of the pullout behaviour of steel fibres considering different fibre types, inclinations and concrete strengths. Struct Concr2014; 15(2): 126–135.
34.
OhBHKimJCChoiYC. Fracture behavior of concrete members reinforced with structural synthetic fibers. Eng Fract Mech2007; 74(1-2): 243–257.
35.
KhatabHRMohammedSJHameedLA. Mechanical properties of concrete contain waste fibers of plastic straps. In: IOP conference series: materials science and engineering. IOP Publishing. 2019; 557(1): 012059.
36.
SiJHChenJBFengSY, et al.Experimental research on eccentric compression of reinforced concrete columns strengthened by prestressed PET straps and angle steel. Struct2021; 31: 1254–1264.
