Using ScratchJr to Foster Young Children’s Computational Thinking Competence: A Case Study in a Third-Grade Computer Class

Abstract

This study investigated young children’s computational thinking (CT) development by integrating ScratchJr into a programming curriculum. Twelve third graders (six males and six females) voluntarily participated in an experiment-based computer class conducted at a public elementary school in Taiwan. This study adopted a case study methodology to investigate research questions in one specific case (8-week CT educational training). A one-group quasi-experimental pretest and posttest design with the support of qualitative observation was used to examine four research topics: CT competence progress, programming behaviors in a CT framework, factors influencing CT competence, and learning responses to CT training. The quantitative results indicated that students immersing in weekly programming projects significantly improved in terms of their CT competence, which was mostly retained 1 month after completion of the class. The programming behaviors indicated that students’ CT concepts (sequence, event, and parallelism) and practice (testing and debugging as well as reusing and remixing) significantly improved. Moreover, parents’ active involvement in take-home assignments influenced students’ long-term CT competence retention. The qualitative results indicated that students enjoyed using tablet computers to learn ScratchJr programming and demonstrated various leaning behaviors in a three-stage instructional design model.

Keywords

computational thinking visual programming language case study learning to program programming behavior coding literacy

Introduction

ScratchJr is a newly developed visual programming language specifically designed for young children (under 8 years of age) to foster basic computational thinking (CT) competence (Strawhacker, Lee, & Bers, 2018). This programming tool (as an application) installed on tablet computers is a fundamental version of Scratch (Resnick et al., 2009). Scratch and ScratchJr share similar coding learning environments; however, ScratchJr does not include some advanced features such as variable creation and math computing. Although Falloon (2016) and Strawhacker et al. (2018) have demonstrated some learning benefits of ScratchJr for CT instruction, no scientific evidence regarding the effect of integrating ScratchJr into regular classes, particularly for CT competence development, is available.

This study reports findings regarding the use of ScratchJr for CT instruction in a computer class where elementary school students engaged in various programming activities over a single semester. A simplified version of the CT framework developed by Brennan and Resnick (2012) was used to document young children’s programming learning behaviors for further analysis. Instead of using large quantitative data for learning generalization, this study analyzed one case scenario where 12 third graders voluntarily participated in a semester-long educational experiment. The purpose of this study was to determine the instructional effectiveness of incorporating ScratchJr into a programming curriculum for elementary school students. Specifically, the four research objectives were to answer the following questions:

RQ1: What CT competence progress did the students make after one semester of instruction?

RQ2: Based on a single CT framework, what did the students’ programming learning behaviors look like?

RQ3: What potential background information (e.g., gender) influenced the students’ CT competence?

RQ4: What were young children’s learning responses to ScratchJr programming?

Educational Importance of CT Instruction

In her seminal paper, Wing (2006) defined CT as “solving problems, designing systems, and understanding human behavior by drawing on concepts fundamental to computer science” (p. 33). Wing (2008) further articulated that CT shares general analytical characteristics with mathematical thinking, engineering thinking, and scientific thinking. Since then, although discussions centered on defining CT have been controversial (e.g., Korkmaz, Cakir, & Ozden, 2017), the common core idea of CT training in schools is to empower students to think like a computer scientist or engineer and subsequently engage in a series of problem-solving learning tasks such as problem decomposition and pattern recognition (Barr & Stephenson, 2011).

In recent years, because of potential educational benefits, CT has been considered a required skill for digital citizens at several educational organizations. For example, the International Society for Technology in Education (2018) has incorporated CT into one of its learning standards, thereby forcing students to become computational thinkers for development of problem-solving strategies in a digital society. To follow this educational trend, countries worldwide have begun to promote coding as a CT training method in K-12 learning environments (e.g., micro:bit coding in U.K. schools; Schmidt, 2016). However, according to an educational technology report (The Horizon Report, 2017), considerable effort must be made by educators in developing innovative curricula when embracing coding for CT instruction.

Hsu, Chang, and Hung (2018) conducted a meta-analysis of CT studies from 2006 to 2017 and reported that many school teachers had adopted visual programming languages as coding tools for CT instruction. Through a systematic literature review, Lockwood and Mooney (2017) identified a similar trend involving visual programming languages; however, they reported that additional studies regarding CT instructional design are urgently needed. After an in-depth analysis of intervention studies, Lye and Koh (2014) found that all previous CT research focusing on visual programming languages had been implemented in after-school activities and suggested that future CT studies must investigate learning topics in naturalistic classroom settings. To respond to these research challenges, this study mainly used one visual programming language to deliver CT instruction in a regular computer class with a new instructional design approach at an elementary school.

CT Instruction Using Visual Programming Languages

Using visual programming languages to develop students’ CT skills is reportedly an effective learning strategy in elementary education (The Horizon Report, 2017). According to varied teaching aids, the methods for delivering CT instruction can be grouped into three categories: instruction with programming language only, instruction with programming language combined with educational robotics, and instruction with programming language combined with electronic devices. The first category focuses on CT instruction only and involves use of visual programming languages without the aid of any technological hardware. For example, Saez-Lopez, Roman-Gonzalez, and Vazquez-Cano (2016) evaluated the use of Scratch programming in an elementary school and reported that students improved their CT skills in problem-based learning activities. The second category advances students’ learning experiences through a combination of visual programming languages and educational robotics. For example, in Chou (2018a), elementary school students used Blockly programming to control mini robots. Direct qualitative observations revealed that programming design may foster students’ CT competence. The third category is similar to the second category but involves electronic devices rather than educational robotics. For instance, Chou (2018c) examined drone use by integrating Tynker programming in an after-school program and observed that elementary school students’ sequencing skills (one component of CT skills) were significantly enhanced. In this study, the first category (instruction with programming language only) was adopted to answer the research questions.

Although previous studies regarding varied CT instruction methods have yielded positive learning outcomes, whether students’ proficiency in CT skills covers problem-solving competencies that are transferable to other domains remains questionable (Millwood, Walsh, & Hooper, 2018). In the 1980s, use of the BASIC and LOGO programming languages for developing CT skills was heavily discussed. Pea and Kurland (1984) argued that the learning to code (CT skills) effects on wider thinking (knowledge transfer) still requires support from scientific evidence. Mayer, Dyck, and Vilberg (1986) contended that “there is no convincing evidence that learning a program (CT skills) enhances students’ general intellectual ability” (p. 609). They further suggested that learning to program benefits only students’ thinking skills directly related to programming languages already learned. However, in recent years, with the advent of visual programming languages, some studies have yielded promising results. In Lindh and Holgersson (2009), 1-year CT training through Lego robotics programming improved some elementary school students’ logical-thinking skills. Chou (2018b) reported that one-semester CT training through Arduino-based robotics programming may enhance elementary school students’ overall problem-solving skills. This study focused on students’ cognitive-thinking skills (i.e., CT skills) identified in ScratchJr programming learning rather than knowledge transfer to other subjects.

CT Framework and Instructional Model

Using Scratch programming as an instructional example, Brennan and Resnick (2012) developed a CT framework with three components, namely CT concepts, CT practice, and CT perspectives. This framework has been widely used to interpret young children’s programming works (Lye & Koh, 2014). In Brennan and Resnick’s framework, CT concepts refer to the fundamental concepts that students may learn in the coding process. These concepts include sequences, events, parallelism, conditionals, operators, and data. CT practice focuses on strategies that students use for coding and involves being incremental and iterative, testing and debugging, reusing and remixing, and abstracting and modularizing. CT perspectives are students’ “understandings of themselves, their relationships to others, and the technological world around them” (p. 10) when building codes. CT perspectives include expressing, connecting, and questioning. In this study, a simplified version of Brennan and Resnick’s CT framework was adopted to evaluate students’ programming behaviors because of the limited features in ScratchJr and the relatively low cognitive development of young children.

To meet instructional needs, previous studies have developed various models to deliver CT instruction to elementary school students. In Lee et al. (2011), the use–modify–create model was used to efficiently impart CT concepts to young children. The use concept involves borrowing someone’s idea. In the modify stage, students modify someone’s coding patterns, and then they subsequently develop a new CT project in the create stage. To follow engineering design principles, Chou (2018b) integrated a predesign, in-design, and postdesign model into a robot-programming curriculum. The predesign and in-design stages are similar to the use and modify stages in the model of Lee et al. The postdesign stage enables students to review and self-reflect on their CT projects. Chou (2018c) proposed a three-stage learning progression model (copy–Tynker–create) for a drone-programming curriculum. This model contains the necessary elements of the model of Lee et al. and differs only in terms of stage titles. This study is based on the model of Chou (2018c) and describes a new three-stage model to fit curriculum requirements.

CT Competence Measurement and Factors Influencing CT Competence

Various achievement tests have been designed to represent students’ CT competence. Many such tests solicit students’ problem-solving skills through well-structured programming questions that cover CT concepts and practice. Saez-Lopez et al. (2016) developed a visual block creative computing test to assess elementary students’ CT competence after the students had received Scratch instruction. In Chou (2018b), an achievement test from a national programming competition was used to measure elementary school students’ understanding of Scratch programming. Strawhacker et al. (2018) devised a battery of video-based programming tests that differed from traditional paper-based tests to assess young children’s CT competence after they had completed ScratchJr training. These tests require students to view programming questions in video clips and then provide answers on a structured answer sheet. This study employed the tests of Strawhacker et al. to observe students’ CT progress in a computer class.

Few related studies have analyzed the factors influencing young children’s CT competence in a programming class. Strawhacker et al. (2018) reported that different teaching styles affected students’ acquisition of programming knowledge in different manners. Chou (2018c) indicated that gender influenced young children’s programming patterns. However, findings from Longi (2016) regarding college students’ competence in learning programming may provide insight regarding the potential factors influencing CT competence. Through a systematic literature review, Longi summarized that two major factors, namely students’ background information and psychological characteristics, may predict students’ learning performance in programming courses. Students’ background information includes gender, prior programming learning experiences, and math skills. Psychological characteristics include any valid psychological measurements used to assess students’ learning styles, such as self-efficacy. In addition to the aforementioned two factors, Akinola and Nosiru (2014) found that lecturers’ teaching styles and attitudes played key roles in students’ programming performance. In this study, only background information was collected for further analysis; this information included that regarding gender, prior programming learning experiences, math skills, the assigned instructional group, and extent of parental involvement.

Research Methods

Research Design

Because the study focused on one specific case (8-week CT educational training) in school (Creswell, 2007), a case study methodology was adopted to investigate the research questions. According to Yin (2003), case study research might contain quantitative and qualitative elements. In this study, a one-group quasi-experimental pretest and posttest design with the support of qualitative observation was used to examine four research topics: (a) CT competence progress, (b) programming behaviors in a CT framework, (c) factors influencing CT competence, and (d) learning responses to CT training. Prior to the experiment, students were asked to complete a CT competence test (pretest) to assess their prior programming learning experiences. Subsequently, to facilitate the experimental process, a 2-week programming orientation course was conducted for the students to enable them to comprehend the fundamental knowledge of the visual programming language (i.e., the ScratchJr platform and programming blocks). During the 8-week experiment, the students had to complete eight CT projects in class as well as take-home written assignments. Upon completion of the experiment, the students received a CT competence posttest. The same CT competence test with different item numbers (delayed posttest) was administered to the students 4 weeks after the posttest had been completed. Figure 1 illustrates the research design of this study.

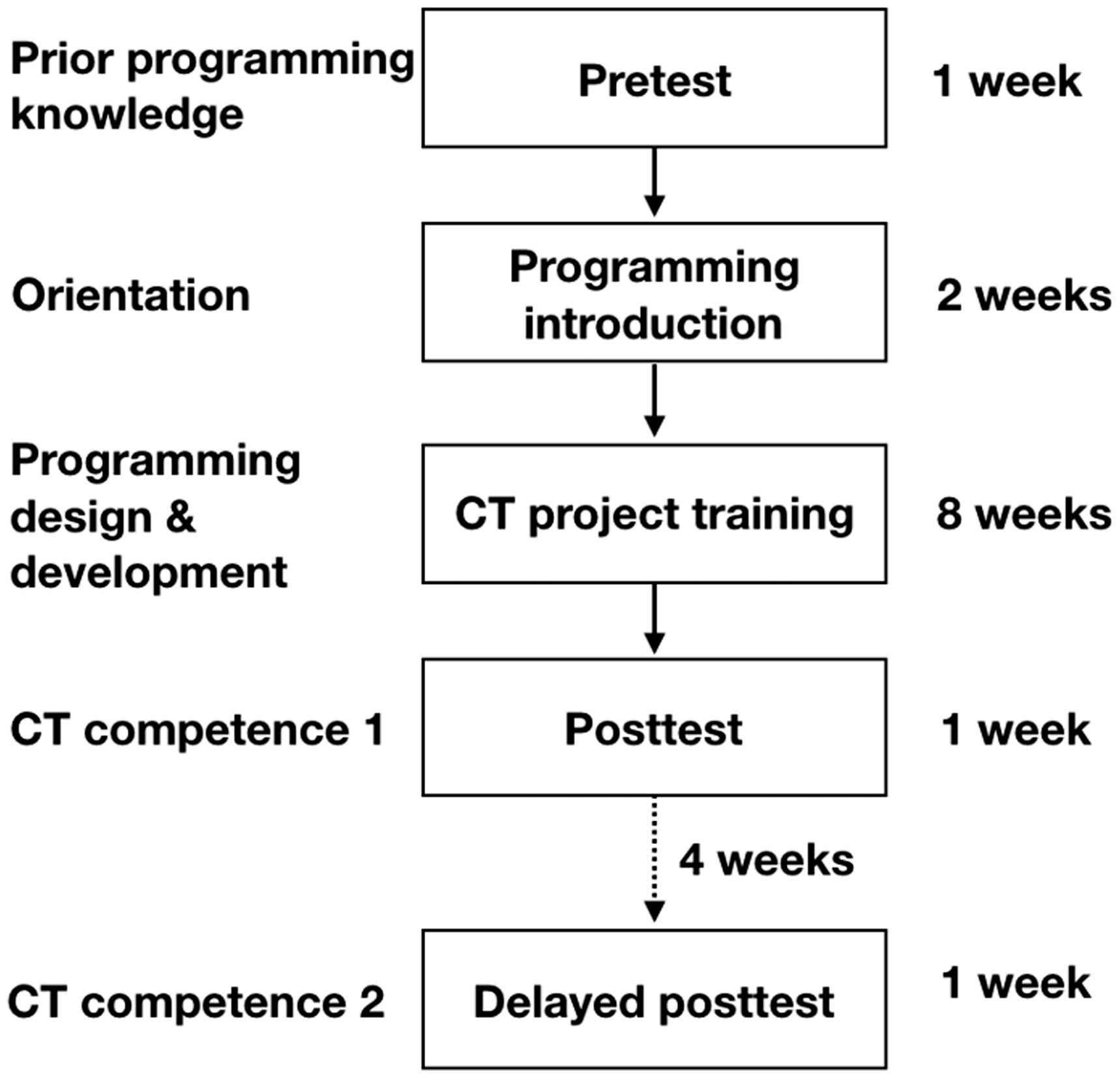

Figure 1.

Research design of this study. CT = computational thinking.

Research Participants

The principal researcher collaborated with a public elementary school in Taiwan that was attempting to promote programming learning among young children by creating an experiment-based computer class. Two students were randomly selected for this study from each of the six third-grade classes at the school. Thus, the class included 12 third graders (six males and six females). A small class was recruited because several programming behaviors of the students needed to be documented by the instructor. This semester-long study was implemented in a regular classroom, and the 12 students were randomly divided into three learning groups of equal-gender status. At the beginning of this study, none of the students had programming experience, and all were aged less than 8 years. Moreover, no tablet computers with ScratchJr were provided at the participants’ houses. Because one male student dropped out of the class during the semester, only 11 data sets were used for further analysis. Figure 2 depicts the learning environment in the computer class.

Figure 2.

A student learning to program in the classroom.

Research Instrument

ScratchJr on the tablet computer

In the weekly computer class, the students used ScratchJr to engage in CT learning activities. Each student was equipped with one small tablet computer (iPad mini). Students completed programming projects individually. Four students (two males and two females) formed the learning group. After the class, these students’ programming works were automatically saved on the tablet computers as weekly learning evidence.

CT competence test

The learning achievement test developed by Strawhacker et al. (2018) was used to measure the students’ CT competence. The test contains four categories: fixing the program, circling the blocks, matching the program, and reverse engineering. The first three categories involve multiple-choice questions, whereas the reverse engineering category requires the student to submit open responses. Irrespective of the type of question, each test item is accompanied by one short video clip that demonstrates a programming debugging process. This study adopted only the multiple-choice test items to achieve objective test scores. The score range of the test was 0 to 9. When the instructor administered the test, students were to carefully observe the video clips and circle the correct programming blocks printed on the paper. The high reliability and validity of the test is reported in Strawhacker et al.

Take-home assignments

In this study, weekly take-home assignments were developed for the students. The learning content was consistent with what students had learned in class. Each assignment was a written assignment with no requirement for ScratchJr use. However, one question in the assignment needed to be answered after an instructional video had been viewed. Figure 3 illustrates one of the weekly assignments.

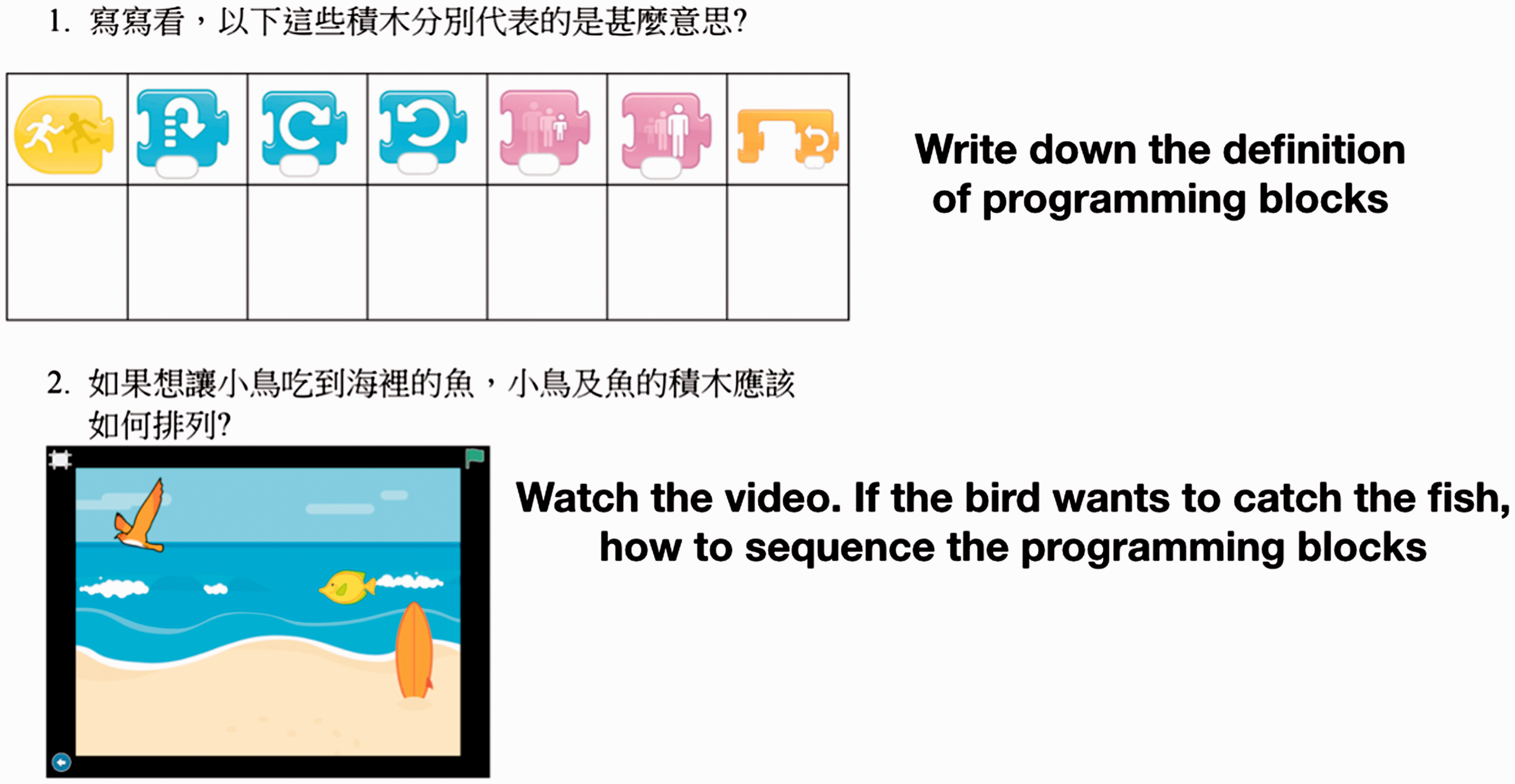

Figure 3.

Example of a take-home assignment.

Learning observation document

The instructor used a learning observation document to observe the students’ learning progress in class. The document contained three parts: CT concept, CT practice, and active learning. A detailed description of the document is provided in Tables 1 to 3. To achieve objective judgments, the principal researcher and the instructor collaboratively discussed weekly observation results. If controversial issues appeared in the discussion process, a triangulation method was used to examine data among students’ programming works, the researcher’s field observations (or video clips), and the instructor’s observation results.

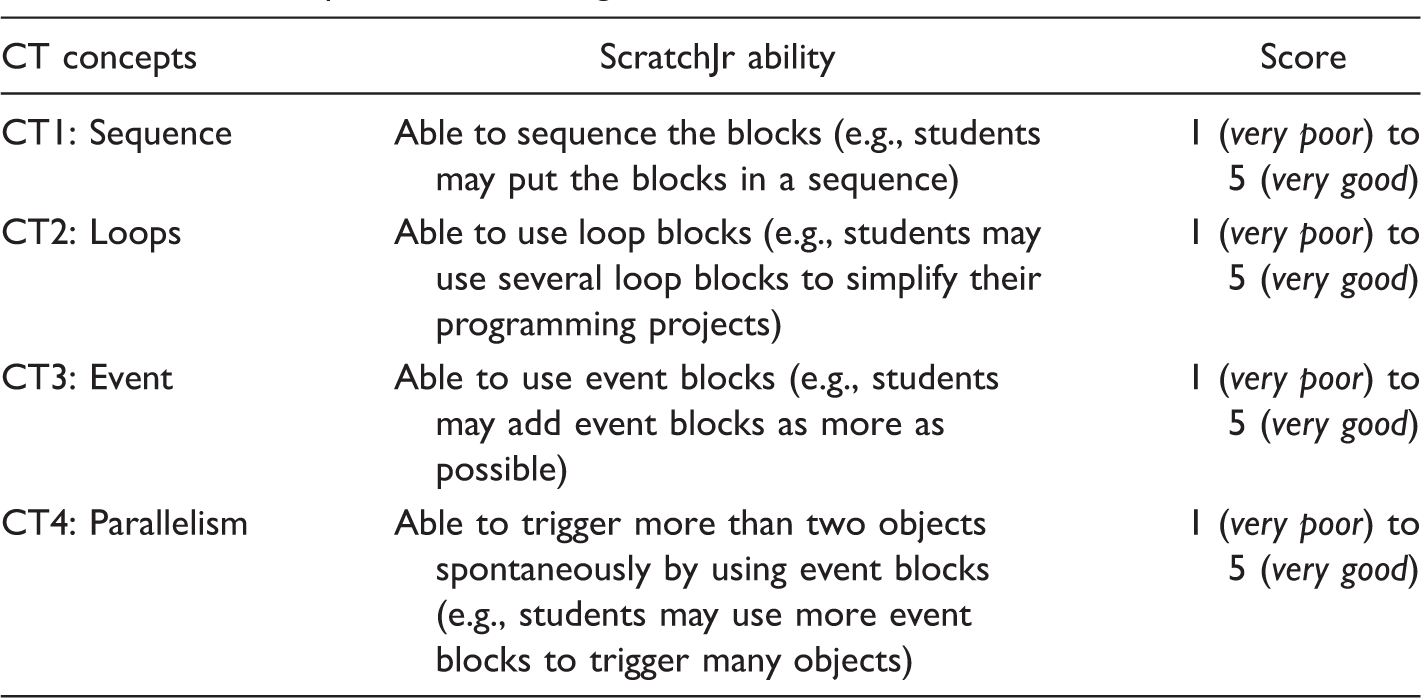

Table 1.

CT Concepts in the Learning Portfolio Document.

CT concepts	ScratchJr ability	Score
CT1: Sequence	Able to sequence the blocks (e.g., students may put the blocks in a sequence)	1 (very poor) to 5 (very good)
CT2: Loops	Able to use loop blocks (e.g., students may use several loop blocks to simplify their programming projects)	1 (very poor) to 5 (very good)
CT3: Event	Able to use event blocks (e.g., students may add event blocks as more as possible)	1 (very poor) to 5 (very good)
CT4: Parallelism	Able to trigger more than two objects spontaneously by using event blocks (e.g., students may use more event blocks to trigger many objects)	1 (very poor) to 5 (very good)

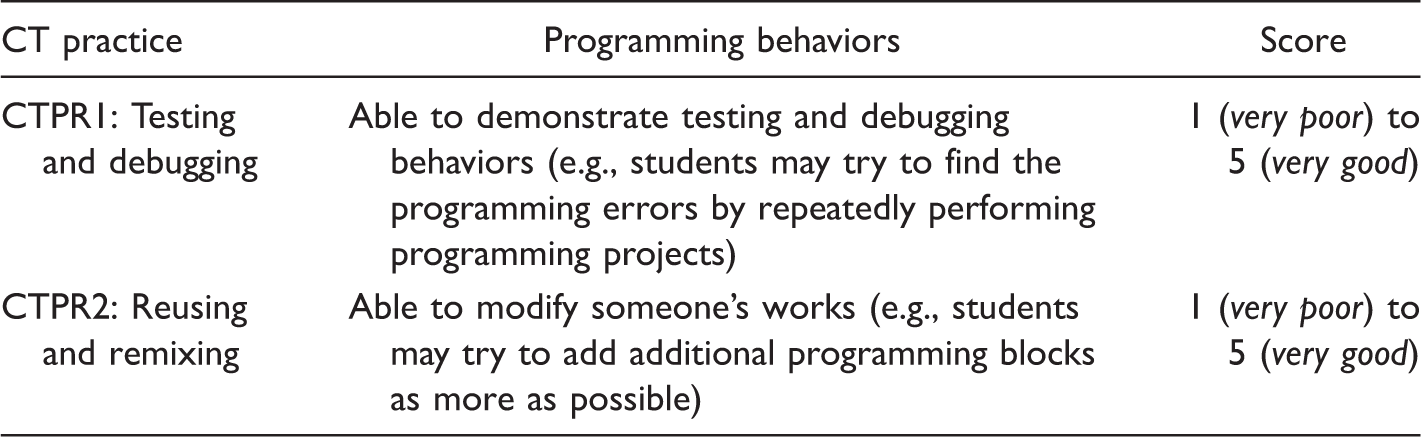

Table 2.

CT Practice in the Learning Portfolio Document.

CT practice	Programming behaviors	Score
CTPR1: Testing and debugging	Able to demonstrate testing and debugging behaviors (e.g., students may try to find the programming errors by repeatedly performing programming projects)	1 (very poor) to 5 (very good)
CTPR2: Reusing and remixing	Able to modify someone’s works (e.g., students may try to add additional programming blocks as more as possible)	1 (very poor) to 5 (very good)

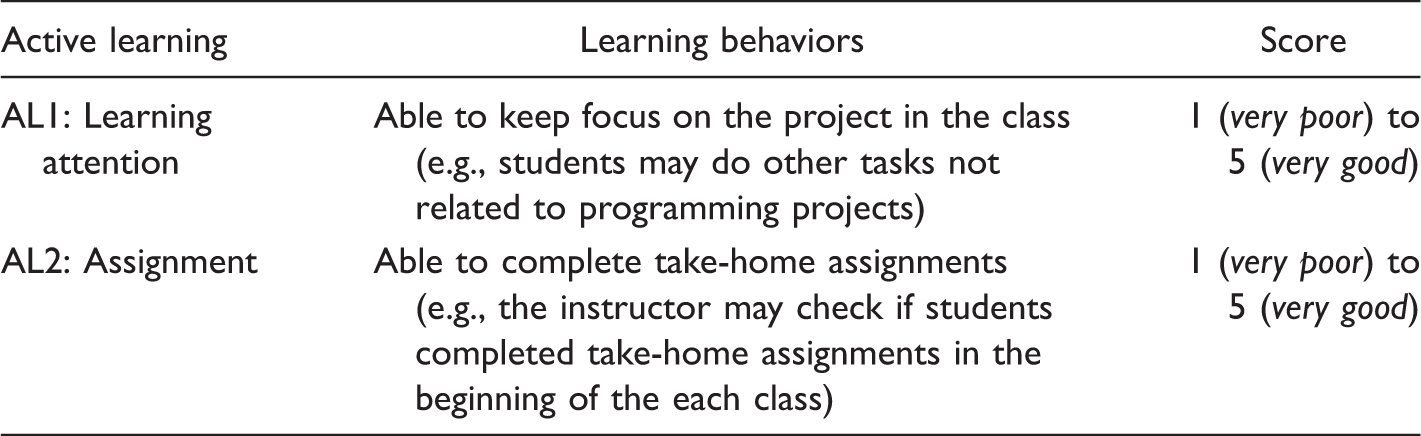

Table 3.

Active Learning in the Learning Portfolio Document.

Active learning	Learning behaviors	Score
AL1: Learning attention	Able to keep focus on the project in the class (e.g., students may do other tasks not related to programming projects)	1 (very poor) to 5 (very good)
AL2: Assignment	Able to complete take-home assignments (e.g., the instructor may check if students completed take-home assignments in the beginning of the each class)	1 (very poor) to 5 (very good)

Students’ background information

The students’ background information was collected, including information on the instructional group, gender, extent of parental involvement, and math skills. This information is presented in Table 4. When the students enrolled in the computer class, their parents were notified that they did not need to accompany their children during assignment writing. After completion of the class, the parents were asked about the extent of their assignment involvement through a telephone interview. The parents of two students reported that they had not been involved in their children’s assignments.

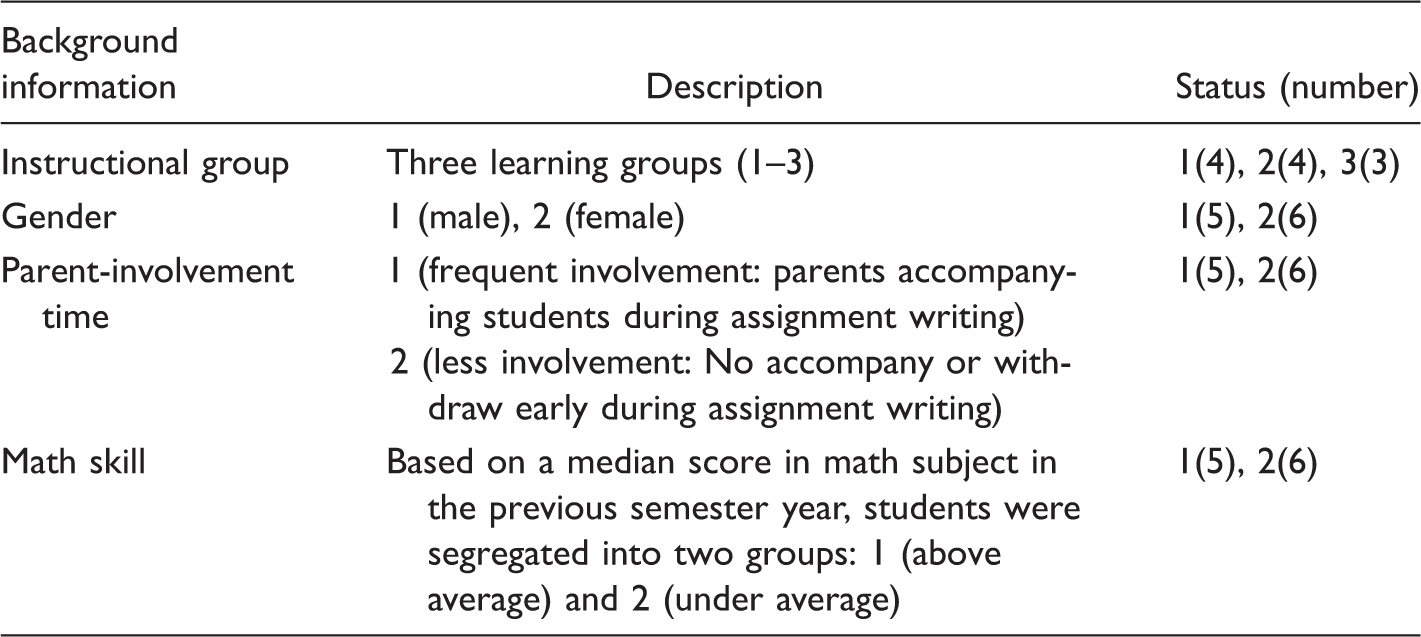

Table 4.

Students’ Background Information.

Background information	Description	Status (number)
Instructional group	Three learning groups (1–3)	1(4), 2(4), 3(3)
Gender	1 (male), 2 (female)	1(5), 2(6)
Parent-involvement time	1 (frequent involvement: parents accompanying students during assignment writing) 2 (less involvement: No accompany or withdraw early during assignment writing)	1(5), 2(6)
Math skill	Based on a median score in math subject in the previous semester year, students were segregated into two groups: 1 (above average) and 2 (under average)	1(5), 2(6)

Observation documents

The principal researcher conducted field observations to document student learning in class. Weekly observations were recorded in a journal. Moreover, the instructor summarized the weekly reflection notes after classes.

Instructional Design

Various simple and complex CT projects were developed for the educational experiments (see Appendix A). Only one instructor taught the weekly classes, each of which was scheduled as a 2-hour learning session (including a 20-minute break). A three-stage instructional model (Figure 4) was used to facilitate the students’ learning progress. In the review stage (approximately 20 minutes), the students discussed their take-home assignment. In the copy stage (approximately 40 minutes), the instructor imparted the project requirement and some programming skills. Subsequently, the students practiced programming examples from learning materials. In the modify stage (approximately 40 minutes), the students modified the programming examples by adding as many of their own ideas as possible. They were encouraged to incorporate all the CT concepts (sequence, loops, event, and parallelism) into their projects. During project development, the instructor observed the students’ performance by walking around the classroom and assisted the students when learning problems occurred.

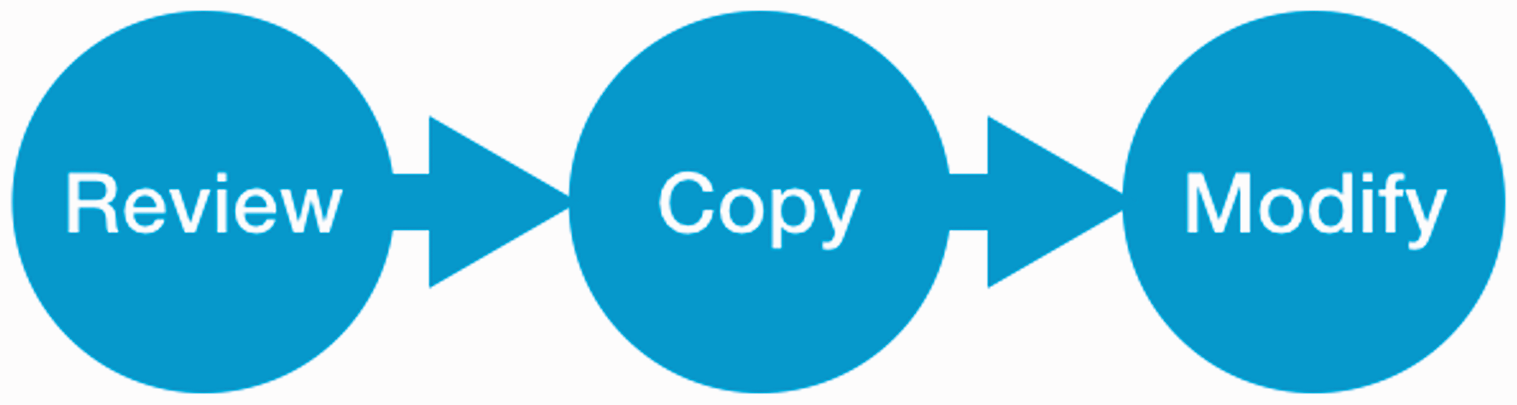

Figure 4.

Three-stage instructional model.

Data Analysis

Descriptive statistics, the t test, a one-way analysis of variance (ANOVA), Spearman correlation analysis, and partial correlation analysis were used to investigate three types of quantitative data: CT competence progress, coding learning behaviors, and factors influencing CT competence. The students’ responses were summarized in a qualitative format through the categorization of content analysis (Neuendorf, 2002). Moreover, a data triangulation method (Patton, 2002) was employed to confirm data consistency among the students’ levels of programming engagement, the instructor’s class observations, and the researcher’s observations (Figure 5).

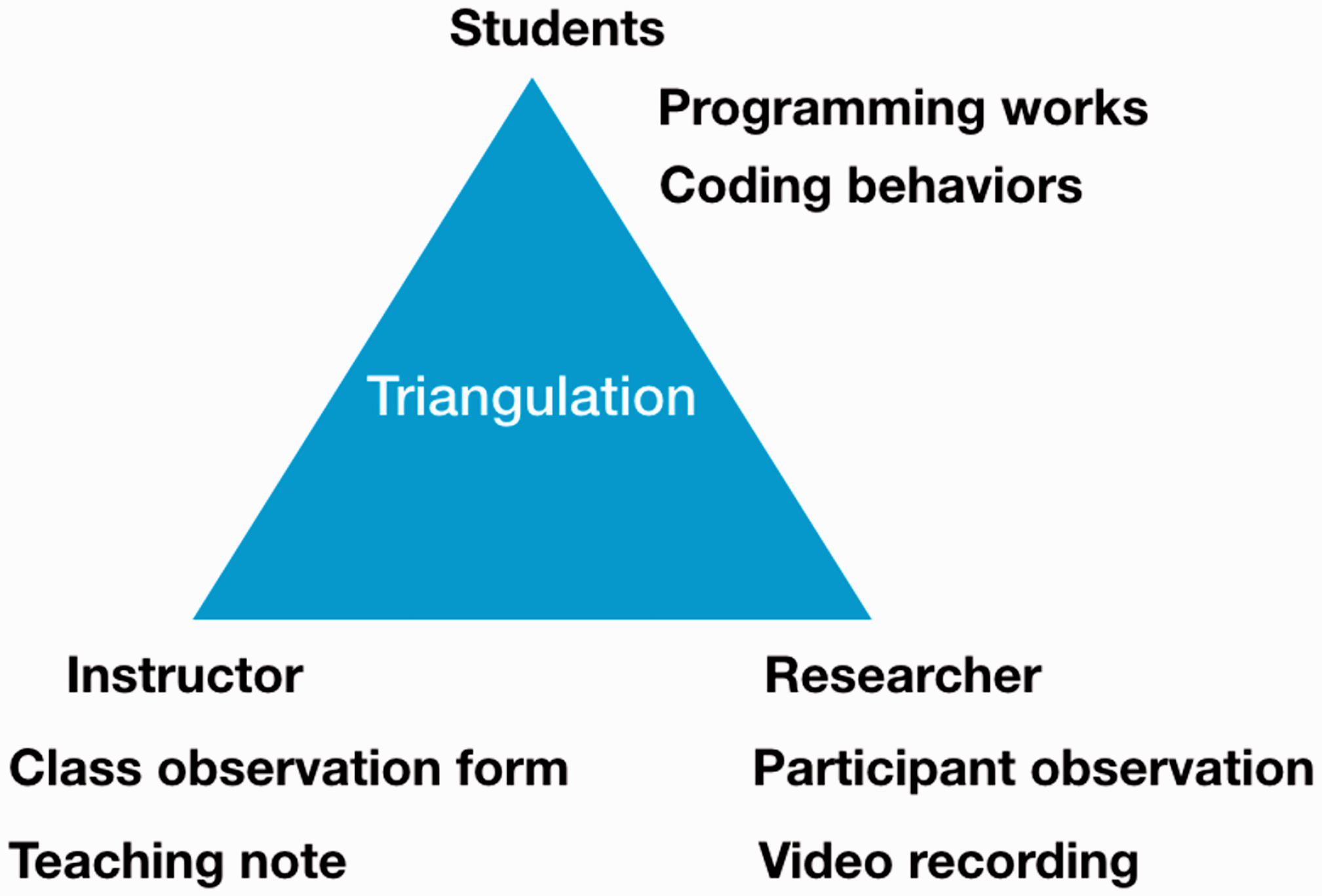

Figure 5.

Data triangulation in this study.

Results and Discussion

CT Competence Progress

The results of the t test are summarized in Table 5. The findings indicated that the students’ CT competence had significantly improved (t = 16.78, p < .01) upon completion of the 8-week educational training course but had significantly worsened (t = 2.78, p < .05) 1 month after completion of the experiment. However, from a mean difference (0.55) perspective, the students’ learning retention of CT knowledge did not decrease considerably.

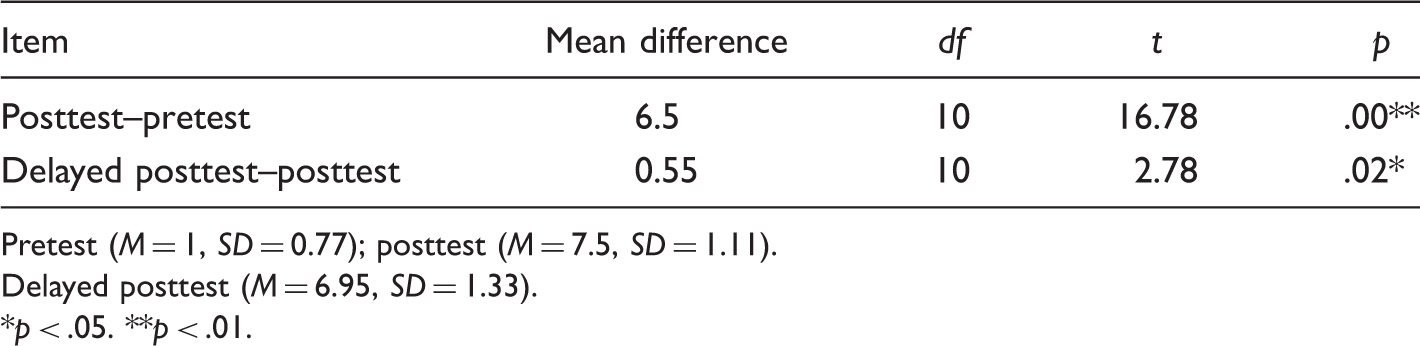

Table 5.

Results of the t Test.

Item	Mean difference	df	t	p
Posttest–pretest	6.5	10	16.78	.00**
Delayed posttest–posttest	0.55	10	2.78	.02*

Pretest (M = 1, SD = 0.77); posttest (M = 7.5, SD = 1.11).

Delayed posttest (M = 6.95, SD = 1.33).

*p < .05. **p < .01.

Programming Learning Behaviors

Table 6 presents the descriptive statistics and t test results for the CT concepts and practice. The findings revealed that the students demonstrated proficiency on the sequence (CT1/M = 4.78), event (CT3/M = 4.03), and parallelism (CT4/M = 4.08) concepts but did not exhibit good performance on the loops concept (CT2/M = 3.6). Moreover, the students’ coding behaviors for testing and debugging (CTPR1/M = 4.13) and for reusing and remixing (CTPR2/M = 4.31) exhibited adequate scores. This study used 3.5 as a comparative standard for further t test analysis. The findings indicated that the students’ CT concepts regarding sequence (t = 11.54, p < .01), event (t = 3.38, p < .05), and parallelism (t = 4.05, p < .01) and CT practice regarding testing and debugging (t = 3.05, p < .05) and reusing and remixing (t = 4.93, p < .01) significantly improved.

Table 6.

Descriptive Statistics and t Test Results for the CT Concepts and Practice.

Category	M	SD	t	df	p
CT1: Sequence	4.78	0.37	11.54	10	.00**
CT2: Loops	3.60	0.38	8.88	10	.40
CT3: Event	4.03	0.52	3.38	10	.01*
CT4: Parallelism	4.08	0.48	4.05	10	.00**
CTPR1: Testing and debugging	4.13	0.68	3.05	10	.01*
CTPR2: Reusing and remixing	4.31	0.54	4.93	10	.00**

*p < .05. **p < .01.

The students’ weekly progress in the CT concepts and practice is illustrated in Figures 6 and 7. The findings indicated that the students’ proficiency improved steadily for the sequence (CT1) concept. The students’ proficiency for the loops (CT2), event (CT3), and parallelism (CT4) concepts fluctuated considerably; however, high proficiency was achieved for these three concepts in the final 2 weeks of class. Although the students’ testing and debugging (CTPR1) and reusing and remixing (CTPR2) behaviors also fluctuated considerably, their weekly performance surpassed the upper-intermediate threshold (4).

Figure 6.

Learning progress of the CT concepts.

Figure 7.

Learning progress of the CT practice.

Spearman correlation analysis was performed to confirm the interrelationships between the CT concepts (summing up weekly scores), CT practice (summing up weekly scores), and project difficulty (determination by complexity of the block use in each project); the results are listed in Table 7. The findings indicated that CT1 (r = .84, p < .05), CT2 (r = .96, p < .01), and CT3 (r = .87, p < .05) positively correlated with project difficulty. Thus, when the project difficulty increased, the students’ CT concepts (sequence, loops, and event) improved.

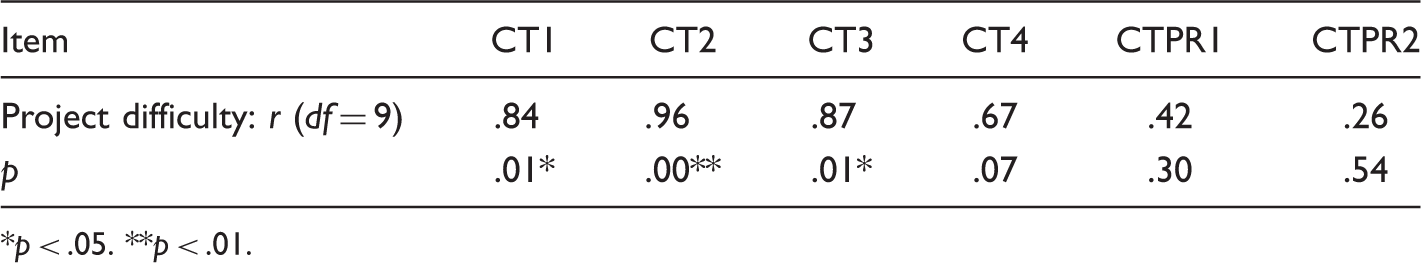

Table 7.

Results of Spearman Correlation Analysis.

Item	CT1	CT2	CT3	CT4	CTPR1	CTPR2
Project difficulty: r (df = 9)	.84	.96	.87	.67	.42	.26
p	.01*	.00**	.01*	.07	.30	.54

*p < .05. **p < .01.

Factors Influencing CT Competence

The results of the one-way ANOVA for the posttest and delayed posttest are summarized in Tables 8 and 9, respectively. The findings indicated that the students’ background information did not influence their CT competence after 8 weeks of CT training. However, in the delayed posttest, the extent of parental involvement exerted a significant influence (F = 7.74, p < .05). Moreover, partial correlation analysis was performed to confirm whether the students’ in-class learning behaviors influenced their CT competence. The results presented in Tables 10 and 11 indicate that no relationship between in-class learning behaviors and CT competence was observed after removal of the effect of the pretest.

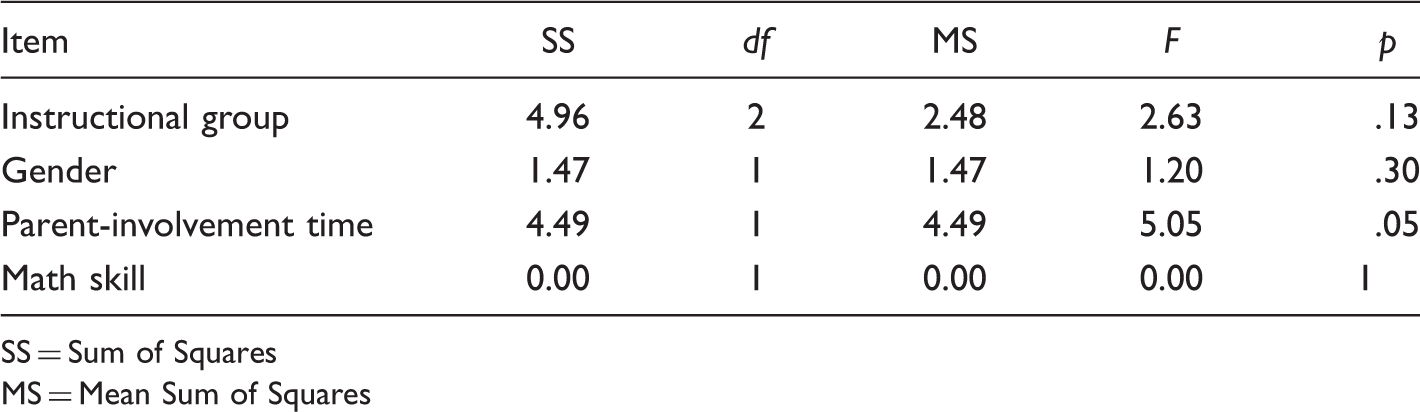

Table 8.

Results of the One-Way ANOVA for the Posttest.

Item	SS	df	MS	F	p
Instructional group	4.96	2	2.48	2.63	.13
Gender	1.47	1	1.47	1.20	.30
Parent-involvement time	4.49	1	4.49	5.05	.05
Math skill	0.00	1	0.00	0.00	1

SS = Sum of Squares MS = Mean Sum of Squares

Table 9.

Results of the One-Way ANOVA for the Delayed Posttest.

Item	SS	df	MS	F	p	Post hoc
Instructional group	4.56	2	2.28	1.39	.30	A > B
Gender	2.72	1	2.72	1.64	.23
Parent-involvement time	8.20	1	8.20	7.74	.02*
Math skill	0.03	1	0.03	0.01	.91

A (frequent involvement): M = 7.9, SD = 1.14; B (less involvement): M = 6.17, SD = 0.93. SS = Sum of Squares). MS = Mean Sum of Squares

Learning Responses to ScratchJr Programming

According to the results of content analysis, the qualitative data from the instructor and researcher were grouped into nine categories: group learning, programming language, tablet computer, in the review stage, in the copy stage, in the modify stage, CT concepts, CT practice, and learning focus. The representative quotations in the results are summarized in Table 12. Overall, the qualitative findings could serve as an additional resource to support the quantitative data.

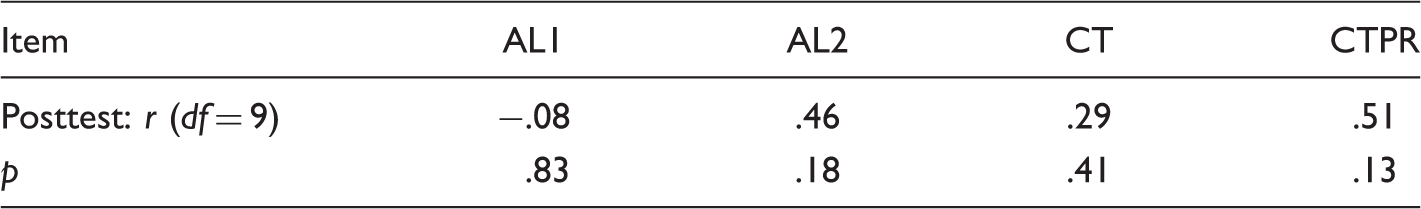

Table 10.

Results of Partial Correlation Analysis for the Posttest.

Item	AL1	AL2	CT	CTPR
Posttest: r (df = 9)	−.08	.46	.29	.51
p	.83	.18	.41	.13

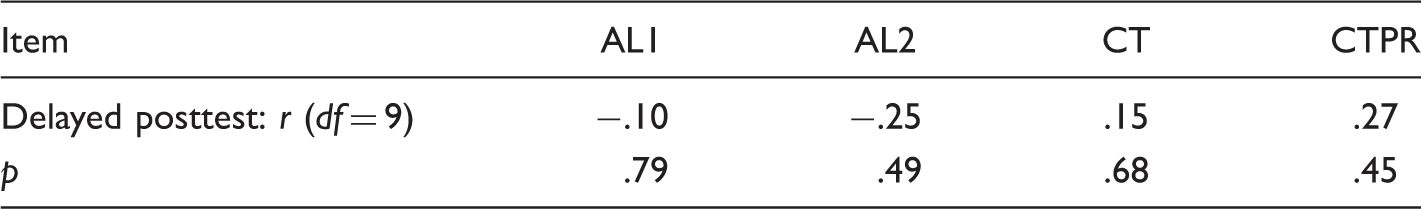

Table 11.

Results of Partial Correlation Analysis for the Delayed Posttest.

Item	AL1	AL2	CT	CTPR
Delayed posttest: r (df = 9)	−.10	−.25	.15	.27
p	.79	.49	.68	.45

Table 12.

Observation Results From the Instructor and Researcher.

Category	Representative quotations
Group learning	1. “When the students encountered problems, their first reaction was to seek help from their peers in the group rather than the instructor.” (Instructor note) 2. “The more skillful students in the group attempted to help those who were behind the project schedule.” (Researcher journal)
Programming language	1. “The students enjoyed ScratchJr programming. The easy-to-use interface attracted their attention.” (Instructor note) 2. “I asked some students in class. The students responded that ScratchJr programming was like playing a game. They felt so excited!” (Researcher journal) 3. “A few students complained about the limited range of features in ScratchJr because they wanted to create fancier projects.” (Researcher journal)
Tablet computer	1. “The students preferred the tablet computers to desktop computers perhaps because they could easily understand how to use them.” (Instructor note) 2. “I observed an advantage in using tablet computer programming. The students often carried their tablet computers around to discuss their work with peers.” (Researcher journal)
In the review stage	1. “Certain students often did not complete the assignments and often skipped the difficult ones.” (Instructor note) 2. “The students wanted me to accelerate the assignment discussion so that they could have additional time for programming.” (Instructor note) 3. “When the instructor discussed the assignment, most of the students seemed to lose focus because they wanted to play ScratchJr on their tablet computers.” (Researcher journal) 4. “A few students reported that their parents wanted them to demonstrate what they had learned in class. Some students reported that their parents monitored their assignment progress at all times.” (Researcher journal)
In the copy stage	1. “The students had no problems retaining what the instructor had taught them in class. They required only time to assemble the programming blocks.” (Instructor note) 2. “After receiving the weekly programming knowledge, the students were eager to practice programming examples.” (Researcher journal) 3. “Some skillful students challenged the main topic in the weekly schedule and attempted to express their creative ideas.” (Researcher journal)
In the modify stage	1. “The students did not add additional programming blocks if the instructor had not encouraged them to do so.” (Instructor note) 2. “Some of the students attempted to create complex works by adding many programming blocks. They showcased their works among various learning groups.” (Researcher journal) 3. “The students appeared content with the work they had completed if the instructor did not encourage them to modify their programming content or add new content.” (Researcher journal)
CT concepts	1. “The students were able to easily assemble programming blocks.” (Instructor note) 2. “The students did not like using loops blocks even though they understood the purpose of said blocks.” (Instructor note) 3. “The students enjoyed using the event and parallelism blocks to decorate their programming projects.”(Instructor note)
CT practice	1. “The students were able to easily modify their programming examples but required time to think about how to add additional blocks.” (Instructor note) 2. “The instructor provided instant support to students who encountered debugging troubles.” (Researcher journal) 3. “Several of the students helped their peers to find solutions to programming problems.” (Instructor note) 4. “The students were able to independently engage in the testing and debugging process. However, sometimes they did not obtain the results that they wanted.” (Researcher journal)
Learning focus	1. “If a student had felt unwell in a previous class, their negative emotions influenced their learning focus during project development.” (Instructor note) 2. “Some students often used other apps on their tablet computers, and a few often chatted with their peers. The instructor would notify them to return to the learning schedule.” (Researcher journal)

CT = computational thinking.

Regarding the information in Table 12, nine qualitative categories can be summarized into four themes: regular learning behaviors (group learning and learning focus), technology use (programming language and tablet computer), instructional model (review, copy, and modify stages), and CT learning behaviors (CT concepts and practice). In the first theme, although some students often lacked concentration in class, most of students exhibited a peer support for project development. The second theme states that most of students enjoyed using ScratchJr. in their tablet computers. In the third theme, a learning problem appeared in the review stage where several students disliked assignment discussion because no technological tools were used in the review stage. Few learning problems were identified in the copy and modify stages. However, continuous encouragement from the instructor was needed for a better programming project in the modify stage. The fourth theme demonstrates how students applied CT concepts and practice into their project development. Students could put CT concepts into practice, particularly for sequence, event and parallelism, but they disliked using loops blocks to build their projects. As for CT practice, most of students showed their active engagement in programming testing and debugging.

Overall Discussion

Response to RQ1

After the 2-week programming orientation course, the students began to incorporate what they had learned into various theme-based projects. The quantitative findings indicated that weekly ScratchJr training significantly improved the students’ CT competence. Thus, with the aid of the 2-week orientation course, the 8-week CT project training course efficiently fostered young children’s CT competence. These results are supported by those of Saez-Lopez et al. (2016) and Chou (2018b). In Saez-Lopez et al. (2016), elementary school students engaging in Scratch activities exhibited significant improvement on a programming (or CT) knowledge test. Moreover, in Chou (2018b), significant learning progress was identified on a Scratch achievement (or CT) test after elementary school students had immersed themselves in weekly educational robotics programming classes. However, 1 month after completion of the experiment, although students’ learning retention of CT knowledge had remained at an acceptance level, their CT competence had significantly worsened. A possible explanation was that a small sample size and small score range of the test led to the statistical significance.

Response to RQ2

During the 8-week CT project training course in this study, the students demonstrated diverse programming learning patterns for CT concepts. From a weekly progress perspective, the students exhibited higher competence in all the CT concepts (sequence, loops, event, and parallelism) in the final week of training than in the previous weeks, even though their competence in the CT concepts had fluctuated considerably over the preceding 7 weeks. Inferential statistics revealed that the students had improved significantly in all the CT concepts (except for loops). A possible reason for the weakness in the loops concept was identified in the instructor’s notes, which indicated that the students had not liked to loops blocks. This finding was in agreement with an observation of Chou (2018a, 2018c), that elementary school students had preferred not using loops blocks to design their programming works. One finding of this study was that most of the CT concepts (sequence, loops, and event) were significantly related to project difficulty. When the project difficulty increased, the students’ CT concepts sometimes improved; a reasonable explanation behind this phenomenon is that a more difficult project may promote the idea of using additional CT concepts.

The learning patterns of CT practice differed from those of CT concepts. The students’ weekly CT practice (testing and debugging as well as reusing and remixing) fluctuated considerably and was unrelated to project difficulty; however, the weekly CT practice remained at an upper-intermediate level from week to week. In addition, the inferential statistics indicated that the 8-week CT project training course significantly enhanced the students’ CT practice. These findings can be attributed to two factors, namely learning support provided by peers and the instructor and the learning process in the instructional design model. First, the qualitative data indicated that the students and instructor had formed a strong support network where the students were able to seek help during programming development. Such learning scaffolding (Donohue, 2015; Jonassen, 1999) indirectly strengthened the students’ willingness for programming testing and debugging. Second, the second stage (copy) in the instructional design model enabled the students to practice programming examples and further increase their understanding of reusing and remixing, which was a required element in the final stage (modify) of the instructional design model.

Response to RQ3

The results of the CT competence pretest indicated that the students had little programming knowledge upon their enrolment in the computer class. The starting points of programming learning for all students were almost the same. After the 8-week CT project training course, the inferential statistics indicated that the collected background information (instructional group, gender, extent of parental involvement, and math skills) did not influence the students’ CT competence. Because this study focused on elementary school students, the findings differed considerably from those of an adult learning study that identified effects of background information (e.g., gender, math skills) on programming (CT) competence (Longi, 2016). However, 1 month after project completion, the extent of parental involvement exerted a strong influence on the students’ CT competence. Thus, frequent parental involvement in assignments may strengthen students’ learning retention of CT knowledge. This result was interpreted through the qualitative data, which also indicated that students may pay more attention to assignments when in their parents’ company, and frequent parental involvement might reinforce students’ CT knowledge recall. Similar to background information, the students’ in-class learning behaviors (CT concepts, CT practice, and active learning) were also not related to their CT competence. A possible reason for this outcome is that the students’ in-class learning behaviors reflected only their learning status in weekly projects and did not indicate their CT competence.

Response to RQ4

The qualitative learning responses from the researcher and instructor indicated learning advantages of ScratchJr (software) and the tablet computers (hardware) in the computer class. Although a few students expressed displeasure regarding the limited range of features, the game-based interface of the ScratchJr platform enabled the students to easily explore potential programming features (Falloon, 2016; Strawhacker et al., 2018). Furthermore, the mobility of the tablet computers empowered the students to conduct their programming and discuss programming problems with their classmates (Chou & Feng, 2019). Regarding the instructional design model, the qualitative data indicated that the students seemed to lose learning interest in the first stage (review) because the review activity of take-home assignments was similar to the traditional educational format. After progressing to the second stage (copy), the students did not face any learning problems in practicing programming examples. However, in the final stage (modify), the students were well satisfied with their performance if the instructor did not prompt them to work further. Continual encouragement from the instructor was required for superior project development (Chou, 2018b).

Conclusion

Contributions of This Study

This study investigated how elementary school students used a visual programming language (ScratchJr) to develop their CT competence through various programming projects in an experiment-based computer class. The findings confirmed that an 8-week CT project training course significantly fostered young children’s CT competence. The students exhibited high retention of CT competence 1 month after completion of the programming curriculum. Furthermore, although different learning patterns appeared in weekly CT concepts and practice, the students’ overall CT concepts (except loops) and practice had significantly improved after programming project training. This study identified that the parent-involvement time in students’ assignment activities may play a key role in students’ retention of CT competence. In addition to the quantitative evidence, the qualitative findings proved that young children can enjoy using tablet computers to learn ScratchJr programming. The students exhibited various learning behaviors in the three-stage instructional design model. For example, several students did not pay attention to assignment discussion in the review stage; most of the students had no problems in copying the instructors’ programming examples in the copy stage; most of students need the instructor’s encouragement to add additional programming blocks in the modify stage.

Research Limitations and Suggestions for Future Studies

The results of the study may be difficult to generalize to other learning settings because the research design process had several limitations. First, this study recruited only a small number of students to minimize the teaching tasks of the instructor. Future studies may increase the number of students (e.g., 25) to further investigate the topic of this study. Second, this study focused on students’ programming learning progress during CT project development. Future studies may employ a content analysis approach to examine students’ programming works. Third, the proposed instructional design model forced the students to repeatedly modify programming examples. Further research could strive to determine whether encouraging students to develop new programming works benefits their learning. Fourth, the study only adopted one-group quasi-experimental pretest and posttest design. Future studies may set up a control group to provide a better research comparison. Fifth, the qualitative observation revealed that the take-home worksheets might demotivate student learning. Future studies may confirm the effect of the assignment on students’ CT competence development. Sixth, the study employed one specific learning achievement test (multiple-choice items) to measure students’ CT competences. Future studies may use or develop non-selected-response test items to assess young children’s CT competences. Different CT learning patterns may be obtained. Seventh, the parental involvement did have an effect on students’ CT competences in the study. To identify students’ intrinsic motivation, future studies may require students to complete worksheets before they go home. Finally, the collaborating elementary school in this study provided only third graders as participants; students’ ages may influence their cognitive development during programming training. Future studies could recruit children younger than those in this study for comparison of programming patterns based on age.

Instructional Implications

Because this study investigated the instructional effectiveness of ScratchJr integrated into a computer class in an elementary school, the findings may provide some practical suggestions for educators attempting to promote coding literacy among young children. First, learning interaction among peers may influence students’ debugging and testing abilities. Instructors could employ a range of collaborative learning strategies to facilitate students’ programming engagement. Second, classroom management problems such as students using other apps during computer classes may affect students’ learning focus. Instructors could design reward rubrics to prevent such problems. Finally, depending on the educational level of the students involved, the instructional design model proposed in this study could be modified to fit an expected course structure. For young children, instructors could remove the review process from the model to decrease students’ cognitive learning load.

Footnotes

Appendix A: Weekly CT Projects

Declaration of Conflicting Interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The authors disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This research was funded by Ministry of Science and Technology in Taiwan [grant number: MOST108-2511-H-024 -006 -MY3].

Pao-Nan Chou is an associate professor of Instructional Technology at National University of Tainan. He received his MEd and PhD in Learning Design and Technology from The Pennsylvania State University, USA. Chou’s research interests include emerging technologies in STEM education and K-5 maker education.
