Augmented Reality for Early Language Learning: A Systematic Review of Augmented Reality Application Design,Instructional Strategies,and Evaluation Outcomes

Types of AR

To overlay digital information onto physical objects, AR technologies must track objects in the physical world in real time. As such AR interfaces are often described based on the specific techniques used for tracking objects in the physical world. Several researchers classified AR interfaces into two levels based on their tracking techniques: (a) image-based AR including marker-based and markerless solutions that use image recognition techniques to track an object and its position and (b) location-based AR that uses position data to identify an object and its position (Cheng & Tsai, 2013; Koutromanos et al., 2015). AR applications can run on a computer-webcam system (Hornecker & Dünser, 2007), head-mounted display (Milgram et al., 1995), handheld display (Juan et al., 2010), or projector-camera system (Silva et al., 2013). We focused on all types of the AR interfaces in this review.

Reviews on Computer-Assisted Language Learning

Several narrative reviews ³ have been performed that focused on computational tools for literacy acquisition. Vernadakis et al. (2005) presented a narrative review to discuss the potential benefits of computer-assisted instruction on cognitive, emotional, linguistic, and literacy skills of preschool children in the classroom. This review indicated that GUI-based instruction could improve preschool children’s phonological awareness, word recognition, writing ability by increasing the children’s attention span with animated and interactive multimedia contents, and enabling children’s self-directed learning that best matched their own learning pace. The authors also pointed out that the role for teachers in the learning process is often overlooked. J. Yang (2013) reported a narrative review that focused on mobile-based pedagogical applications for language learning. The author categorized five main use scenarios with mobile technology in language learning, including Short Message Service, Microblogging, Ambient Intelligence and Augmented Reality, GPS, and Tablet Computing. Yang illustrated that the greatest advantage of mobile-based AR is its ability to provide digital overlay on the real world and support context-aware language learning.

Several reviews used a descriptive ⁴ or statistical approach ⁵ to systematically search, filter, and classify the empirical studies related to the use of computer-assisted tools in supporting language learning. Colwell and Hutchison (2015) presented a systematic review of 11 empirical studies on digital tools used in K-5 language arts classrooms published between 2000 and 2013. The review suggested a variety of digital tools (e.g., blog, iPad apps, online games) could be used together in the classroom to support children’s reading comprehension, discussion and collaborative learning. In addition to the general benefits (i.e., motivation, interaction, multimedia contents, collaboration) offered by the digital tools, the authors also advocated to integrate digital technology into teachers’ daily instruction. X. Yang et al. (2018) focused on computer-based reading instructions for K-12 learners and the associated underlying reading theories. This article examined 70 articles published between 2004 and 2015 in two journals on reading and literacy learning. The results revealed the primary learning focus with technology were vocabulary and reading comprehension acquisition, and the major functions of technology in language acquisition were to increase learners’ reading motivation, present them with multi-modal information, and promote their collaborative learning, based on the theories of Reading Motivation, Dual Coding, and Social Constructionism, respectively. Hung et al. (2018) presented a systematic review on empirical evidence on the use and impacts of digital games in language education. A total of 50 studies from 2007 to 2016 were systematically analyzed. The results suggested that digital games were often used in applications designed for second language learning, and immersive games (including characters and narratives) and tutorial games (learning through drills and practice) were the two most popular games genres in language learning domain. Zucker et al. (2009) conducted a meta-review to investigate the effects of ebooks on language development for elementary learners. This review included 23 studies published in the databases of PsycINFO, ERIC, and Web of Science between 1997 and 2007. The result suggested the potential benefits of ebooks’ hypermedia features (e.g., animations) in supporting young children’s short-term comprehension skills.

In summary, the aforementioned reviews revealed common strategies (i.e., multimedia contents, interaction, games, collaboration) of computational tools used for language acquisition and education along with their potential benefits (i.e., increasing attention, promoting motivation, and enabling learner-centered/collaborative learning) in supporting a variety of language learning activities (i.e., text comprehension, vocabulary, phonological awareness/speaking, listening reading, writing). A few reviews also discussed the challenges of designing and employing these computational tools in the context (i.e., considering the learning curve and specific requirements of teachers). However, the learning scenarios analyzed in these reviews were not specifically focused on early language learning stage or AR applications.

Reviews on AR Learning Technology

Several narrative reviews have emphasized AR technology for learning (not specific for language learning), and have primarily focused on the advantages, challenges, and effectiveness of using AR technology in general educational contexts. Wu et al. (2013) provided a comprehensive narrative review on AR’s affordances, instructional strategies, challenges, and future research directions. The authors summarized the main affordances of AR lie in its 3D visualizations which enable authentic, situated, collaborative, and immersive learning opportunities. They also brought up the issues of AR’s technical failure, the lack of instructional design, the inflexibility of the content updates, and the cognitive overload caused by the amount of information and the complexity of tasks the learners encountered. Radu (2014) presented a narrative review of 26 empirical studies comparing AR to non-AR applications for education. The author identified the positive impacts of educational AR technology on learning motivation, cognitive development (e.g., spatial ability, memory, attention), and learning strategy (e.g., collaboration) as well as negative impacts such as extra cognitive load, ineffective classroom integration, learner differences, and usability issues. The author constructed a heuristic questionnaire that provides the justifications for the use of AR applications in educational contexts for designers. Several considerations included whether the application makes concepts easier to understand, presents relevant educational information at the appropriate time and place, directs learner’s attention to important aspect, or enables learners to physically interact with educational materials.

Several systematic and meta-reviews were also conducted to the most frequently mentioned advantages and challenges of AR applications in supporting education and discuss the design implications for future AR applications. Bacca et al. (2014) synthesized research from 32 studies published from 2003 to 2013 in six journals in Educational Technology with high impact factors. The results showed that the top reported advantages of AR in educational settings included learning gains, motivation, interaction, collaboration and low costs. Commonly mentioned limitations included unstable tracking, too much attention on visual information, and inflexibility of the content updates. The authors also suggested future research to explore AR applications designed for personalized learning styles including learners with special needs as well as AR’s impact on learning effectiveness with larger population sizes. Akçayır and Akçayır (2017) presented a systematic review of 68 research articles on educational AR applications for K-12 learners published in the SSCI-indexed journals before 2016. The authors coded the advantages and challenges of using AR in educational settings and most of the results were consistent with those found in Bacca et al.’s study. The results showed that AR technology could promote learning outcomes and increase learning motivation by leveraging the use of well-integrated and relevant augmented visualizations that served as the learning guidance. Some noted challenges imposed by AR were usability issues such as unstable tracking quality. Koutromanos et al. (2015) reported a systematic review that focused on handheld AR games in the context of formal and informal educational environments. The authors analyzed seven articles between 2000 and 2014 in ScienceDirect and ERIC. The authors argued that games could encourage collaboration between learners, serve as a scaffolding for reading, and provide high levels of engagement. Li et al. (2017) focused on AR games for learning and presented a literature review of 26 papers published from 2010 to 2016. The authors identified the most commonly used game elements were quizzes and goal-setting, while the frequently used AR features were extra instructional materials and 3D models. The authors also provided five suggestions for designing AR games, including involving learners in the design process, using clearer learning objectives, identifying effects of AR features, studying the game mechanisms, and encouraging social interaction. Santos et al. (2014) investigated the design and evaluation of educational AR applications for K-12 learners. They conducted a meta-analysis review on 87 articles published in the IEEE Xplore Digital Library before 2012. The meta-analysis results showed the affordances of AR included real-world annotation, contextual visualization, and visual-haptic visualization.

To sum up, the aforementioned reviews discussed the general affordances and challenges of using AR in educational contexts. In addition to the common features and benefits shared with other computational approaches, the unique beneficial features of AR applications for learning in general seem to include 3D annotations and visualizations on the real world, visual-haptic interactions with physical learning materials, and context-aware (location-based) learning materials. Several common issues such as unstable tracking quality and inflexibility of content updates were also discussed. However, no reviews specifically examined the use of AR technology in supporting language learning, particularly in the foundational stage required for word decoding that is crucial for all types of language learners. We address this gap with this review research.

Paper Quality

Since the use of AR for language learning is a newly emerging field, and one of our research goals was to inform the design of AR language learning applications, all within-scope peer-reviewed research papers, including demonstration and extended abstract papers, were included in this review.

Manuscript Searching and Filtering Process

In this review article, we included English language peer-reviewed articles that were published between January 2010 and 2019. We decided to use online database searches as a primary literature collecting approach because this research area is emergent and its publication channels are still scattered. Seven well-known online research databases were used to find relevant literature sources based on previous research (Ibáñez & Delgado-Kloos, 2018). These databases are related to education and technology, including ACM Digital Library, ERIC, PsycINFO, IEEExplore, Web of Science Core Collection, ScienceDirect, and Springer Link.

Based on our research goal, two sets of keywords were developed: (a) technology-related keywords, including augmented reality, and AR; as well as (b) language-related keywords, including language, book, literacy, read, spell, speak, write, letter, alphabet, alphabetic, vocabulary, word, and English learning following from (Hung et al., 2018). These two sets of search terms were run in combination with Boolean operators, with the AND operator used between the sets and the OR operator used within the set. We conducted keyword and abstract searches across all seven databases. The last search was conducted on December 30, 2019. The search produced 1,247+ results from the aforementioned search terms and designated time period, including 302+ duplicates, which were deleted. This left us with 945 articles.

In the second round of the filtering process, we reviewed the title and/or abstract of all 945 papers based on the criteria listed in Table 1, in order to quickly filter and remove the unrelated ones. The title and/or abstract of the 945 articles were examined by the first author to determine whether they were suitable for the purposes of the study. One co-author independently reviewed approximately 20% of the articles (a total of 189 papers including 27 papers randomly selected from each database) to confirm the reliability of the selection. The intercode agreement rate for coding was 95.2%. Disagreements between the two coders were resolved through discussion and further review of the disputed studies. There were 138 papers left after the second-round selection.

OPEN IN VIEWER

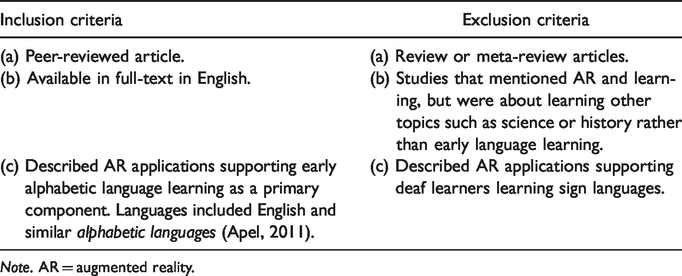

Table 1.

Inclusion and Exclusion Criteria.

Inclusion criteria	Exclusion criteria
(a) Peer-reviewed article.	(a) Review or meta-review articles.
(b) Available in full-text in English.	(b) Studies that mentioned AR and learning, but were about learning other topics such as science or history rather than early language learning.
(c) Described AR applications supporting early alphabetic language learning as a primary component. Languages included English and similar alphabetic languages (Apel, 2011).	(c) Described AR applications supporting deaf learners learning sign languages.

Note. AR = augmented reality.

In the third round, all remaining articles were read in their entirety in order to verify that these articles met the criteria in Table 1. The second author independently reviewed approximately 20% of the 138 articles. The intercode agreement was initially 93.5%, and this was brought to 100% after discussion. A total of 53 articles met the criteria for inclusion in the final review.

To collect as many papers as possible, we also across checked the references of previous systematic reviews and added seven articles that met our criteria. Therefore, there were a total of 53 papers included in our final review.

Developing Codes/Scheme

To code the studies in a systematic way, a coding scheme was developed (Tables 2 to 5). The coding scheme consisted of four clusters of categories (i.e., AR activities, AR design strategies, AR instructional strategies, and evaluation goals, methods and outcomes), with each including several main and sub-categories. The initial coding scheme was developed in accordance with previous theories and research on AR design and learning (Akçayır & Akçayır, 2017; Ibáñez & Delgado-Kloos, 2018; Wu et al., 2013; X. Yang et al., 2018) and the research questions of this study. During the systematic review process, some subcodes emerged and the coding schemes were refined in order to reflect the emerging information.

OPEN IN VIEWER

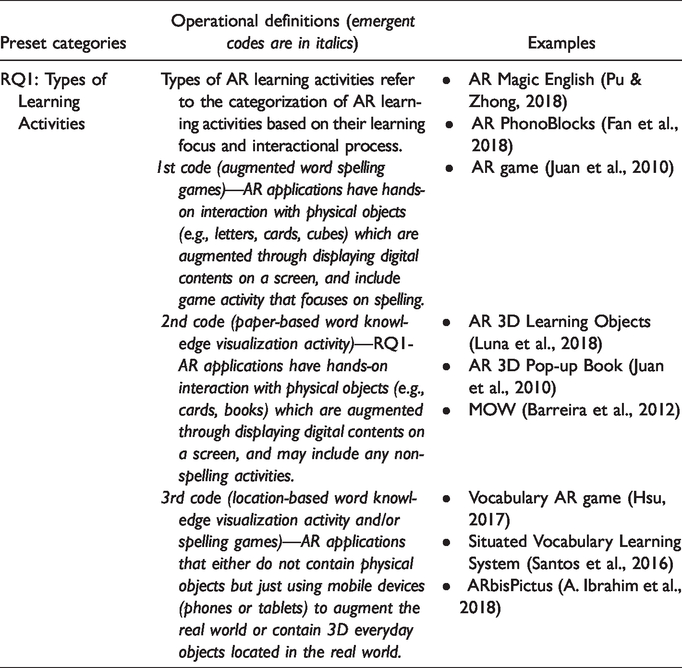

Table 2.

Coding Scheme for RQ1: Types of AR Learning Activities.

Preset categories	Operational definitions (emergent codes are in italics)	Examples
RQ1: Types of Learning Activities	Types of AR learning activities refer to the categorization of AR learning activities based on their learning focus and interactional process. 1st code (augmented word spelling games)—AR applications have hands-on interaction with physical objects (e.g., letters, cards, cubes) which are augmented through displaying digital contents on a screen, and include game activity that focuses on spelling.	• AR Magic English (Pu & Zhong, 2018) • AR PhonoBlocks (Fan et al., 2018) • AR game (Juan et al., 2010)
	2nd code (paper-based word knowledge visualization activity)—RQ1-AR applications have hands-on interaction with physical objects (e.g., cards, books) which are augmented through displaying digital contents on a screen, and may include any non-spelling activities.	• AR 3D Learning Objects (Luna et al., 2018) • AR 3D Pop-up Book (Juan et al., 2010) • MOW (Barreira et al., 2012)
	3rd code (location-based word knowledge visualization activity and/or spelling games)—AR applications that either do not contain physical objects but just using mobile devices (phones or tablets) to augment the real world or contain 3D everyday objects located in the real world.	• Vocabulary AR game (Hsu, 2017) • Situated Vocabulary Learning System (Santos et al., 2016) • ARbisPictus (A. Ibrahim et al., 2018)

The first coding category (AR activities) was to answer the RQ1 (What are the main kinds of activities in AR applications for early language learning?). We first wanted to know whether there were common learning activities with these AR applications. The second coding category (design strategies) focused on RQ2 (What are the main design strategies in the AR applications?). We aimed to understand if these AR applications shared similar design strategies. The third coding category (instructional strategies) focused on RQ3 (What are the main instructional strategies in the AR applications?). We focused on the instructional strategies and relevant background information involving instructional goals, instructional materials, and if the instruction was offered by teachers or not because these factors may influence the instructional strategy. The fourth coding category (evaluation goals, methods and outcomes) emphasized RQ4 (What are the main evaluation goals, methods and/or outcomes of the AR applications?). We investigated the evaluation goals, methods, and outcomes of the AR applications. We also examined the background information in terms of the evaluation scale (e.g., participant sample size) and context (e.g., study place such as school or lab), which may impact the choices of specific methods used in evaluations.

The analysis of the four clusters of coding themes not only allowed us to look for answers to each individual RQ but also enabled us to (a) look at areas of early language learning where combinations of design strategies and instructional strategies were shown through evaluations to be effective as positive exemplars, (b) look for potential design strategies and create new forms of AR applications that may be used in the school context to support a variety of early language learning activities, and (c) look at future research directions on the evaluation of promising design and instructional strategies within AR applications.

The selected articles were analyzed mainly using a qualitative content analysis method, which is a thematic analysis concentrating on the relationship between the articles’ content and the shared characteristics on certain themes (Elo & Kyngäs, 2008; Radu, 2014). We also provided complementary descriptive statistical analyses to identify the general trend (i.e., percentage) of the application of the strategies. Two of the authors of this article manually coded the studies separately according to the preset (and evolving) categories and codes.

Our specific coding process followed these seven steps: (a) scanned all the articles to get the general meaning of the whole; (b) selected each article to read and look for the most descriptive corpus sentences related to our preset categories/codes (e.g., we marked the sentences or keywords or rewrote the summary based on the description); (c) coded the text; (d) reread the article and listed the interesting content related to our topic but not in the preset codes, and then added them into the categories; (e) checked for discrepancy, and resolved them through discussion; (f) repeated the aforementioned process for coding the next five articles, repeated until the end; and (g) if any new codes emerged, the corresponding contents in the prior coded articles would be recoded and updated.

Overview of Reviewed Papers

There were a total of 53 papers reviewed from 2010 through 2019 (Online Appendix A). Approximately two thirds (n = 36) were published after 2015 and half (n = 26) were from IEEExplore database. Around 75% of the articles (n = 39) focused on research on mobile-based AR systems while 53% the articles (n = 28) defined their designs as games. The most preferred development tools were Unity and Vuforia plugin (n = 16). The learning languages in the studies were mostly English (n = 45). The learners in the studies were mostly primary school children (n = 23), followed by preschool children (n = 17). In the 45 English-focused articles, the 40 articles targeted learners learn English as a foreign language (EFL). Four articles discussed learners with special needs (two for Autism, one for dyslexia, and one for attention deficit hyperactivity disorder). More than half of the articles (n = 28) focused on studies to evaluate the learning effects of AR applications, affective outcomes, and/or usability testing; several (n = 11, 21%) focused on usability testing results; a few (n = 6, 11%) emphasized the investigation of affective outcomes; the rest (n = 8, 15%) presented AR prototype design without any studies for evaluation.

RQ1: Types of AR Activities

This section addresses our first research question. We identified 49 applications from the articles reviewed (since a few articles discussed the same AR application). The main activities in the AR applications could be broadly categorized into three main types (Table 2).

The first type focused on augmented word spelling games (n = 9, Figure 1, left). In this type, learners can (a) use physical 2D lettercards or 3D letters to construct a word, phrase or sentence, and view the associated digital letters, sounds, and models/animations of the word on the screen (Boonbrahm et al., 2015; Fan et al., 2018; Zhenming et al., 2017); or (b) place a 2D picture flashcard under a tablet to trigger several 2D digital letters on the display, and then reorder the digital letters through the direct dragging on the screen (Y. Chen et al., 2017; Pu & Zhong, 2018). For example, in the AR application presented by Boonbrahm et al. (2015), learners can mix letters to make a word; and if the word matches the name of the animal, that 3D animal will pop up and start doing some activity. In another application (Pu & Zhong, 2018), learners can place a picture card (e.g., a plane card) under the tablet, and the letters of the word (e.g., p, l, a, n, e) are randomly shown on the screen; learners need to drag the digital letters into the corresponding letter box to complete the word spelling.

OPEN IN VIEWER

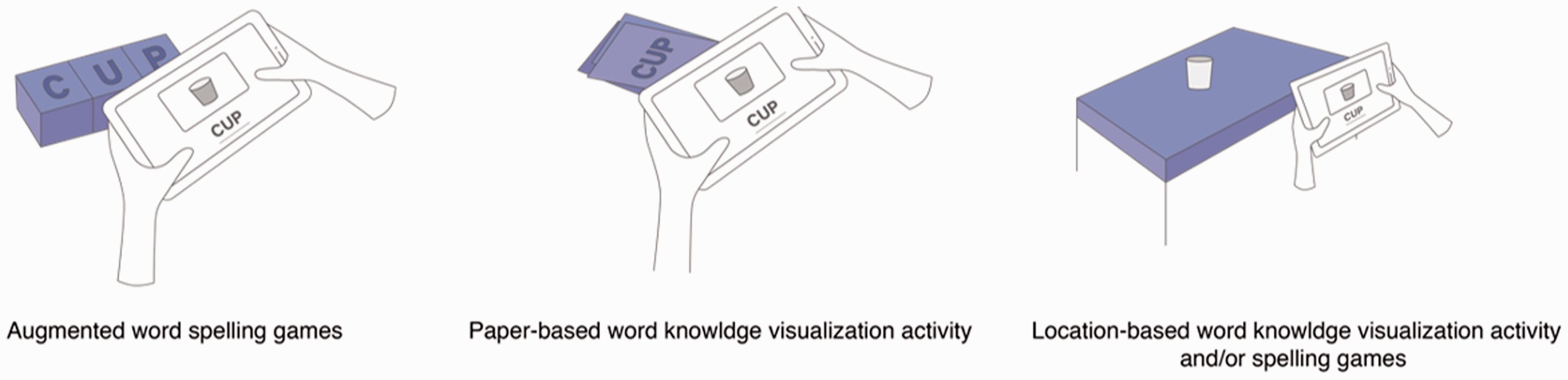

Figure 1.

Three Main Types of AR Learning Activities.

The second type, paper-based word knowledge visualization activity (n = 30, Figure 1, middle), emphasizes the visualization of extended language knowledge on 2D physical flashcards or books. This kind of application usually augments physical flashcards or books by displaying rich digital content such as 3D animations, video, 2D/3D letters, and/or audio on a display (Cieza & Lujan, 2018; Luna et al., 2018; Rambli et al., 2013). This multimedia content is used to explain the spelling, sounds, meanings, or other reverent knowledge of letters and words. For example, in the Word Worth Learning application (Luna et al., 2018), when learners place a picture card under a tablet, the associated 3D letters, sound, and 3D animation are shown on top of the card. A few applications of this kind also included several extended activities. Different to the first type focused on spelling, these activities were mainly about word-meaning association or word comprehension in text. In the AR applications in (Barreira et al., 2012; Chang et al., 2011), learners needed to correctly match a picture card with a word card; if the matching is correct, the augmented 3D object and 2D rewarding feedback text are shown on the screen. In the AR pop-up books, learners could press the augmented hotspots (e.g., “!” symbol) to listen to the animal sounds (Mahadzir & Phung, 2013) or the dialogues from the narrator (Vate-U-Lan, 2011).

The third type, location-based word knowledge visualization activity and/or spelling games (n = 10, Figure 1, right), contains similar activities with the previous two types. However, the activities in this kind are location-relevant. That is, augmented content is triggered by specific large-scale real-world scenes (e.g., desk surfaces or buildings; Ho et al., 2017; Lee et al., 2017), or small-scaled everyday objects placed in the environment (e.g., garbage can, table, cup; Hsu, 2017; A. Ibrahim et al., 2018; Santos et al., 2016). For example, in the UL-IAR application, learners received a set of real-time English quizzes in real-life contexts based on the GPS positioning function (Ho et al., 2017). In the ARbis Pictus, learners saw the augmented words on top of the 3D objects through a head-mounted display (A. Ibrahim et al., 2018).

RQ2: Design Strategies

We identified five main design strategies that were frequently used in AR design for early language learning (Table 3). They are related to: (a) 3D multimedia for letters, sounds, and meanings (n = 49, 100%); (b) hands-on interaction with physical letters, cards, or objects (n = 44, 90%); (c) gamification involving word building games (n = 27, 55%); (d) congruent spatial mappings between physical representations (usually inputs) and digital representations (usually outputs; n = 21, 43%); and (e) location-based features (n = 9, 18%).

OPEN IN VIEWER

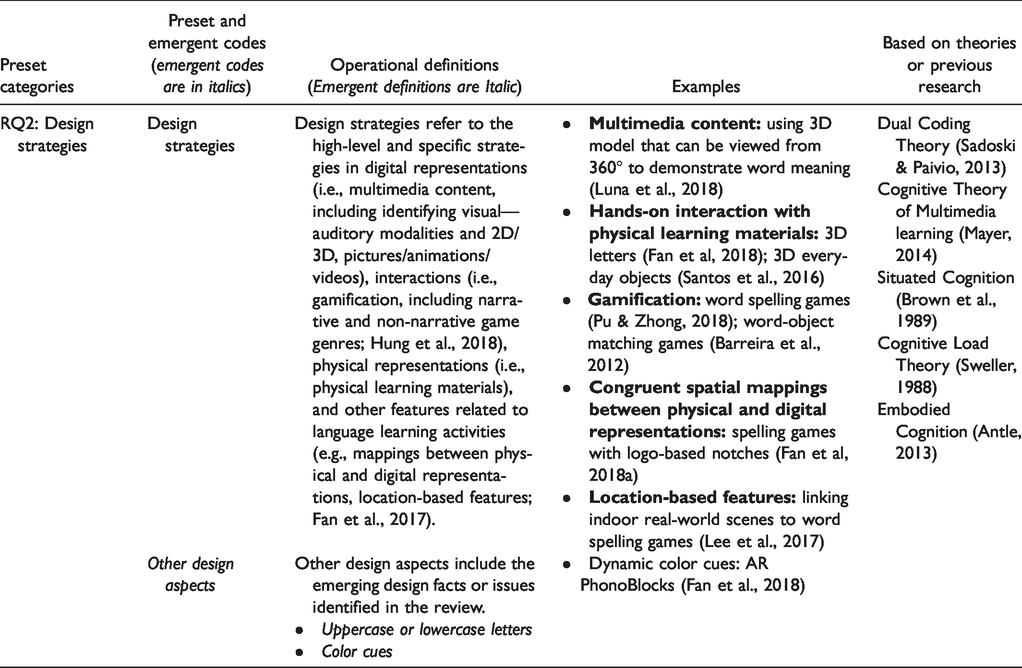

Table 3.

Coding Scheme for RQ2: Design Strategies and Features.

Preset categories	Preset and emergent codes (emergent codes are in italics)	Operational definitions (Emergent definitions are Italic)	Examples	Based on theories or previous research
RQ2: Design strategies	Design strategies	Design strategies refer to the high-level and specific strategies in digital representations (i.e., multimedia content, including identifying visual—auditory modalities and 2D/3D, pictures/animations/videos), interactions (i.e., gamification, including narrative and non-narrative game genres; Hung et al., 2018), physical representations (i.e., physical learning materials), and other features related to language learning activities (e.g., mappings between physical and digital representations, location-based features; Fan et al., 2017).	• Multimedia content: using 3D model that can be viewed from 360° to demonstrate word meaning (Luna et al., 2018) • Hands-on interaction with physical learning materials: 3D letters (Fan et al, 2018); 3D everyday objects (Santos et al., 2016) • Gamification: word spelling games (Pu & Zhong, 2018); word-object matching games (Barreira et al., 2012) • Congruent spatial mappings between physical and digital representations: spelling games with logo-based notches (Fan et al, 2018a) • Location-based features: linking indoor real-world scenes to word spelling games (Lee et al., 2017)	Dual Coding Theory (Sadoski & Paivio, 2013) Cognitive Theory of Multimedia learning (Mayer, 2014) Situated Cognition(Brown et al., 1989) Cognitive Load Theory (Sweller, 1988) Embodied Cognition (Antle, 2013)
	Other design aspects	Other design aspects include the emerging design facts or issues identified in the review. • Uppercase or lowercase letters • Color cues	• Dynamic color cues: AR PhonoBlocks (Fan et al., 2018)

We also noticed other design decisions. First, we found the various uses of uppercase and lowercase letters among digital content and physical representations in AR applications. Nine applications included uppercase letters, eight applications used lowercase letters, and five applications contained both uppercase and lowercase letters. Second, we found that most applications contained rich colors to attract learners’ interests. Two designs specifically used augmented color cues to promote children’s learning of the alphabetic principle (Fan et al., 2018) and sentence constructions (Fan et al, 2018a). Colors were used to attract children’s attention to the stable patterns of words or certain structures of sentences.

RQ3: AR Instructional Strategies

AR Instructional Strategies

Based on previous research (Ibáñez & Delgado-Kloos, 2018), the studies reviewed could be grouped into three categories: instruction through presentation (i.e., teacher-centered informal instruction), instruction through discovery (i.e., learner-centered comprehensive instruction), and collaborative learning (i.e., learner-centered group studies; Table 4). We categorized the articles mostly based on the descriptions of the practical use of the AR application (e.g., study procedure, application design, use scenario), which reflected both the built-in design features of the application as well as the intended use of the application in contexts.

OPEN IN VIEWER

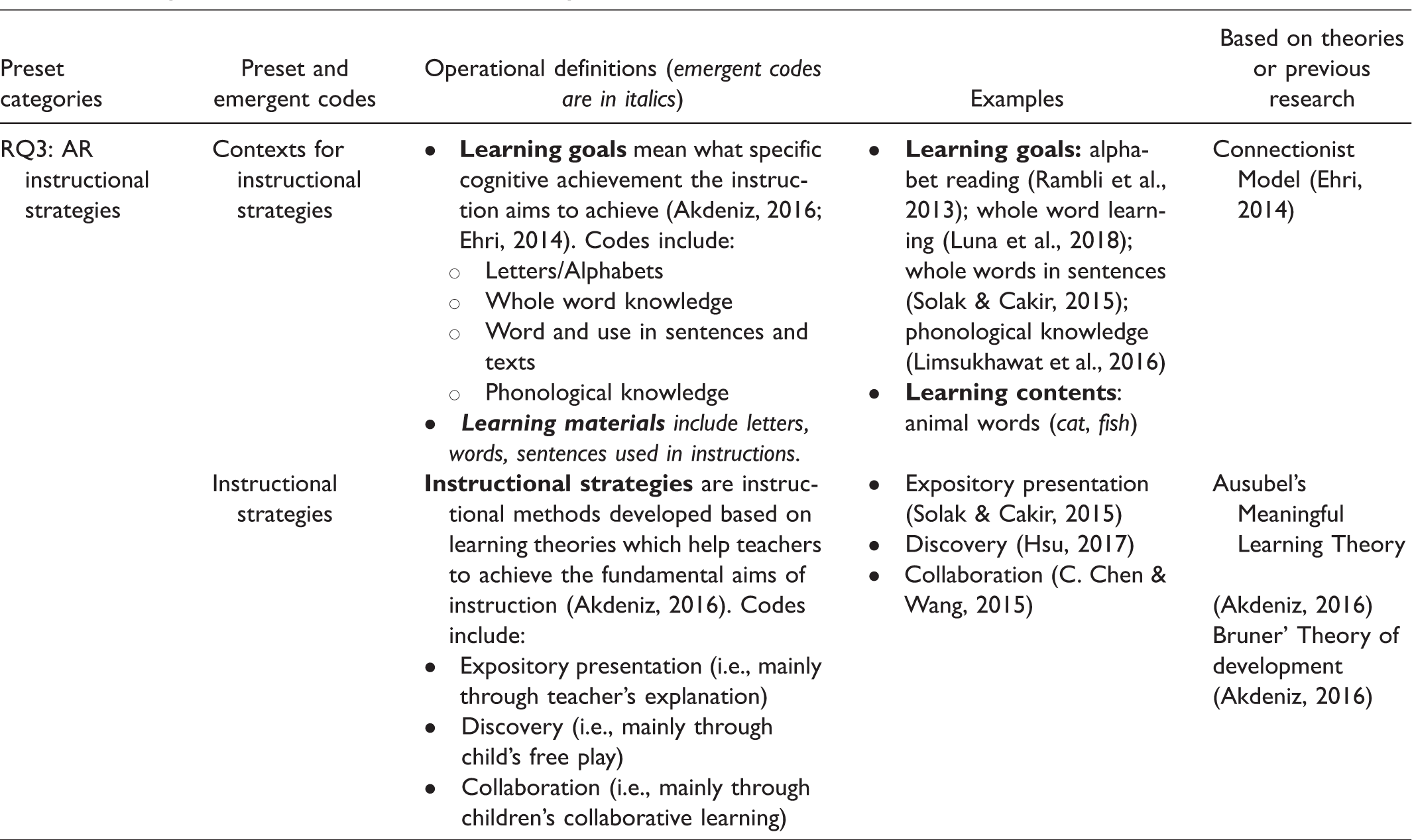

Table 4.

Coding Scheme for RQ3: Instructional Strategies.

Preset categories	Preset and emergent codes	Operational definitions (emergent codes are in italics)	Examples	Based on theories or previous research
RQ3: AR instructional strategies	Contexts for instructional strategies	• Learning goals mean what specific cognitive achievement the instruction aims to achieve (Akdeniz, 2016; Ehri, 2014). Codes include: ○ Letters/Alphabets○ Whole word knowledge○ Word and use in sentences and texts○ Phonological knowledge•  Learning materials include letters, words, sentences used in instructions.	• Learning goals: alphabet reading (Rambli et al., 2013); whole word learning (Luna et al., 2018); whole words in sentences (Solak & Cakir, 2015); phonological knowledge (Limsukhawat et al., 2016)• Learning contents: animal words (cat, fish)	Connectionist Model (Ehri, 2014)
	Instructional strategies	Instructional strategies are instructional methods developed based on learning theories which help teachers to achieve the fundamental aims of instruction (Akdeniz, 2016). Codes include: • Expository presentation (i.e., mainly through teacher's explanation)• Discovery (i.e., mainly through child's free play)• Collaboration (i.e., mainly through children’s collaborative learning)	• Expository presentation (Solak & Cakir, 2015)• Discovery (Hsu, 2017)• Collaboration (C. Chen & Wang, 2015)	Ausubel's Meaningful Learning Theory(Akdeniz, 2016) Bruner' Theory of development (Akdeniz, 2016)

The instruction through presentation strategy is based on Ausubel’s Meaningful Learning Theory, and it emphasizes that learning a subject should be presented first by advanced organizers (usually teachers) and then progressively differentiated in terms of details (Akdeniz, 2016). Presentation instructional strategy was used in 15 articles. More than half of the instructions (n = 9) were conducted in groups. A typical instructional process was that a teacher led the instruction and used the AR application for demonstration, and then learners had a chance to use the system to practice the learnt knowledge under the guidance of the teacher (Barreira et al., 2012; Silva et al., 2013; Solak & Cakir, 2015).

The instruction through discovery strategy is based on Bruner’s Theory of Development which assumes that a learner constructs his or her knowledge through discovering for themselves as opposed to being told (Akdeniz, 2016). Discovery instructional strategy was used in 35 articles. In these instructions, learners were given an AR application to conduct self-directed learning through a set of games or application guided reading activities. Learners received corresponding feedback/hints from the applications. Teachers/parents worked as the activity facilitator to ensure the activity went well (Hsu, 2017; Juan et al., 2010; Pu & Zhong, 2018; Rambli et al., 2013).

Collaborative learning is a form of small group instruction where learners work in a social setting to solve problems (Slavin, 1991). Collaborative learning was used in 15 articles, in which 13 also used discovery instructional strategy. In these learning activities, learners were often assigned tasks (e.g., discussing to answer the questions in pop-up books) and peer discussions were encouraged during the learning process (C. Chen & Wang, 2015; Vate-U-Lan, 2012; Zainuddin & Idrus, 2016).

RQ4: Evaluation Goals, Methods, and Outcomes

Evaluation Goals and Methods

Three main research purposes emerged from the studies reviewed (Table 5). First, the majority of the studies (n = 28) focused on investigating the effectiveness of AR applications (mainly learning gains). Second, a few studies (n = 6) targeted on exploring the affective aspects (mainly motivation). Third, several studies (n = 11) emphasized on the design and system usability evaluation.

OPEN IN VIEWER

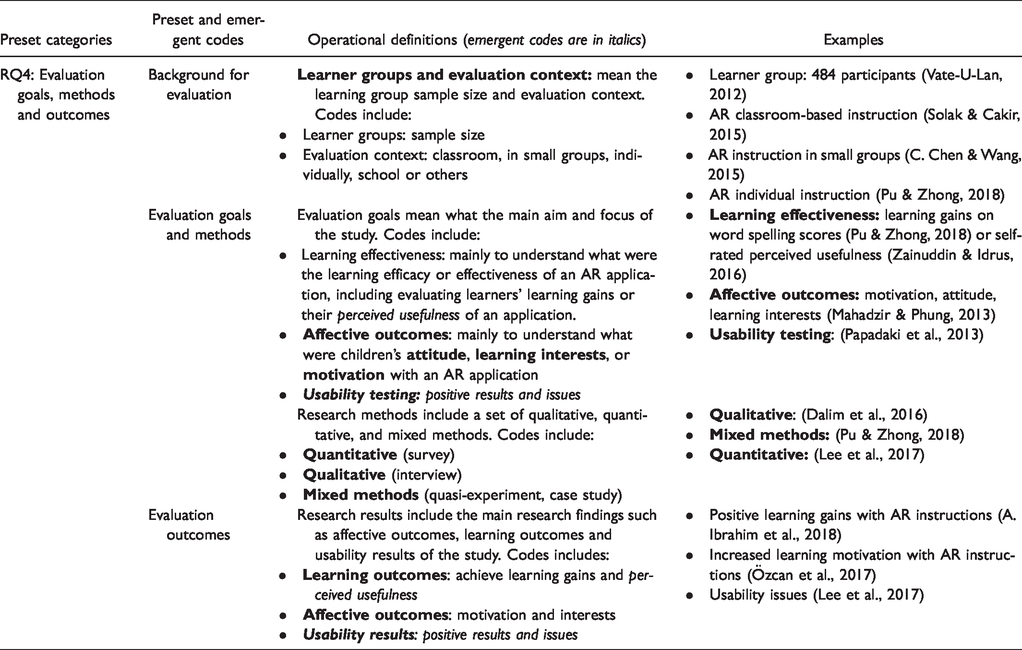

Table 5.

Coding Scheme for RQ4: Evaluation Methods and Outcomes.

Preset categories	Preset and emergent codes	Operational definitions (emergent codes are in italics)	Examples
RQ4: Evaluation goals, methods and outcomes	Background for evaluation	Learner groups and evaluation context: mean the learning group sample size and evaluation context. Codes include:• Learner groups: sample size• Evaluation context: classroom, in small groups, individually, school or others	• Learner group: 484 participants (Vate-U-Lan, 2012)• AR classroom-based instruction (Solak & Cakir, 2015)• AR instruction in small groups (C. Chen & Wang, 2015)• AR individual instruction (Pu & Zhong, 2018)
	Evaluation goals and methods	Evaluation goals mean what the main aim and focus of the study. Codes include:• Learning effectiveness: mainly to understand what were the learning efficacy or effectiveness of an AR application, including evaluating learners’ learning gains or their perceived usefulness of an application.• Affective outcomes: mainly to understand what were children’s attitude, learning interests, or motivation with an AR application•  Usability testing: positive results and issues	• Learning effectiveness: learning gains on word spelling scores (Pu & Zhong, 2018) or self-rated perceived usefulness (Zainuddin & Idrus, 2016)• Affective outcomes: motivation, attitude, learning interests (Mahadzir & Phung, 2013)• Usability testing: (Papadaki et al., 2013)
		Research methods include a set of qualitative, quantitative, and mixed methods. Codes include: • Quantitative (survey)• Qualitative (interview)• Mixed methods (quasi-experiment, case study)	• Qualitative: (Dalim et al., 2016)• Mixed methods: (Pu & Zhong, 2018) • Quantitative: (Lee et al., 2017)
	Evaluation outcomes	Research results include the main research findings such as affective outcomes, learning outcomes and usability results of the study. Codes includes:  • Learning outcomes: achieve learning gains and perceived usefulness• Affective outcomes: motivation and interests•  Usability results : positive results and issues	• Positive learning gains with AR instructions (A. Ibrahim et al., 2018)• Increased learning motivation with AR instructions (Özcan et al., 2017)• Usability issues (Lee et al., 2017)

More than half of the 45 studies with formal evaluations were quantitative studies (n = 21), followed by mixed-method studies (n = 20) and qualitative studies (n = 3). Four studies only discussed system testing methods such as heuristics and expert review. Quantitative studies were divided into quasi-experimental studies and experimental design studies. The most common experimental design (n = 20) was to compare learners’ learning achievements between the AR-based instruction and other comparative instructions (e.g., traditional instruction/a similar AR approach). In these studies, learners were usually assigned to either the AR-based instruction group or the traditional instruction group (between-subject design); Pretests and posttests on certain language-related tasks were administrated before and after the instruction to evaluate learners’ learning gains while the five-point Likert-type scale questionnaire mostly based on Keller’s ARCS Motivation Model (Song & Keller, 2001) was usually employed after AR usage to investigate learners’ motivation and/or perceived usefulness of the instructional methods. In seven studies, there were no matched control groups during the instructional process.

One third of the studies reviewed (n = 20) combined quantitative and qualitative research methods for a better understanding of the system effectiveness in supporting language acquisition. These studies usually used an experimental design to evaluate learners’ learning gains, while qualitative methods such as observations or interviews were also employed to provide complimentary data with the explanation of the quantitative results.

Three studies employed a qualitative research approach. One exploratory pilot study used interviews to assess the influence of an AR-based English learning app on undergraduate learners’ vocabulary learning motivation (Li et al., 2015). Two pilot studies used observations to understand children’s general use and learning experience with the system (Dalim et al., 2016; Tang et al., 2019).

Effective AR Design and Instructional Strategies

Although almost all the studies showed positive results of learning with AR applications, we noticed three main combined design and instructional strategies that seemed to be effective in supporting early language learning. This became clearer when we only examined the empirical studies that included a matched control group receiving a traditional instruction and used pre–post tests to evaluate learners’ learning gains (i.e., not learners’ self-reported perceived learning gains) in their research design (Table 6).

OPEN IN VIEWER

Table 6.

Combinations of AR Design and Instructional Strategies.

Types of learning activates	Multimedia contents	Hands-on with physical learning materials	Gamification	Instructional strategies
				Presentation strategy	Discovery strategy	Collaborative learning
Paper-based word visualization activity	x	X (2D flashcards)	xa (matching /puzzle games)	x		x
Location-based word visualization activity and/or spelling games	x	xa (3D everyday items)	x (collecting games)		x	x
Augmented spelling games	x	x (2D/3D letters)	x (drills and practice)	xa	x	x

^aOnly a small proportion of the applications in this category contains this particular feature.

First, the multimedia (and game) design strategies combined with the presentation strategy may support learners’ learning gains. For example, in the study presented by Safar et al. (2017), 42 kindergarten children in Kuwait either received an AR instruction or a traditional instruction with teachers for 20 minutes a week for 7 weeks. In the experimental group, an AR application that provides augmented 3D animations, sounds, and words on 2D flashcards was used as a research instrument (3D multimedia content). Teachers used this application as an instructional tool to teach the entire classroom of students the English alphabet (presentation strategy). The results demonstrated that the children in the AR group had a higher degree of interaction and better learning gains in alphabet tests compared to those in the control group. In another study, Portuguese children used an AR matching game called MOM to learn English in class (Barreira et al., 2012). The main activity in MOM was to correctly match a picture card to a word card, in order to view the augmented multimedia content, including 3D object, sound, and game feedback (3D multimedia contents and game). In the instructional process, the children first received an English class given by a teacher, and then started to use the AR application to practice the learnt words (presentation strategy). The evaluation results with 26 children (aged 7–9 years) showed that the children who used the MOM game had a superior English learning progress than those who received the traditional instruction. Positive AR learning gains were also found in a study with 60 young adults who learned Ottoman Turkish, the Turkish written in Arabic alphabetic (Özcan et al., 2017) and a study with 20 Chinese kindergarten children learning English words (Y. Chen et al., 2017).

Second, the design strategy of location-based learning contents combined with the discovery strategy seem to increase learners’ learning gains and learning motivation. For example, in a study that compared the word learning effectiveness between an AR instruction and traditional flashcard instruction, learners in the AR condition wore a Microsoft Hololens that enabled a self-exploration of the augmented word spelling on top of the 3D objects (e.g., book, pencil) located in the real-life environment and heard the word sound (N. Ibrahim & Ali, 2018). The results showed that AR was more effective in supporting short-term and long-term learning than the flashcard approach. Learners also felt that AR was more enjoyable than the flashcard approach. In another study with a hand-held AR application in learning German (Santos et al., 2016), the results showed that the location-based AR applications could lead to learners’ better retention of words and improve learners’ attention and satisfaction compared to the flashcard approach. Similarly, in a study with a hand-held AR Pokemon Go game in learning English prefix, root, and suffix knowledge outdoors, the results showed that AR group had significantly better performances than the control classroom group in learning attitudes, satisfactions, and achievements (Wu, 2019).

Third, the game design strategy combined with the discovery strategy may lead to better learning motivation but not better learning gains. In the study presented by (Pu & Zhong, 2018), eight 4- to 8-year-old Chinese children learned English words either by exploring an AR spelling game (discovery strategy) or playing with physical cards. The results demonstrated that although the AR group learners had more learning interests and less cognitive load compared to the traditional card group, their learning achievements were similar. In another similar study with 32 children (aged 5–6 years) either playing an AR spelling game or playing physical cards to learn Spanish, the results indicated no significant differences between the two groups about the perceived usefulness, although more children preferred to use the AR game to learn (Juan et al., 2010).

To sum up, in the first strategy, teachers play a dominant role in the instructional process, which may ensure the instruction quality. The AR application is mainly used as an instructional tool to help teachers to better illustrate language knowledge, with the annotations and visualizations of 3D multimedia content (Safar et al., 2017). According to the Meaningful Learning Theory, teacher-centered practice will be more effective in order to construct the link between learners’ previous knowledge and new information through deductive instructions, elaborate unclear points, highlight similarities and differences, and motivate learners to pay attention in the learning process (Akdeniz, 2016; Ausubel, 1963). Due to the importance of social interaction in learning, several apps reviewed even attempted to use an animated cartoon tutor to support children’s AR learning (Hsieh et al., 2014; Papadaki et al., 2013). This may be explained by Social Agency Theory that posits using verbal and visual cues in computational systems can foster the development of a partnership since learners would consider human–computer interaction as human–human interaction (Moreno et al., 2001) and trust the computer’s instructions.

In the second strategy, location-based applications usually require learners to explore a specific real-world context and construct the relation between the knowledge of words and sentences and the real world. Situated cognition argues that learning cannot be abstracted from the activity, context and culture from which the knowledge was developed (Brown et al., 1989).This is particularly obvious when learning languages that are heavily embedded in contexts and culture. The contextual visualization emphasizes learners’ active construction during the learning process, which may benefit children’s memorization of words when leveraging the use of the physical environment as the ubiquitous informational cues (Santos et al., 2014).

In the third strategy, learners mainly learn from games with scaffoldings and feedback. The game may promote learners’ learning motivation and enable them to learn from trial-and-error exploration. However, previous research has suggested no extra learning gains with such an approach in young children (Juan et al., 2010; Pu & Zhong, 2018). This may be because young children’s attention may not be always on the correct place without the explicit guidance (R. W. Chen & Chan, 2019). Admittedly, most studies only evaluated short-term learning gains with a small sample of participants with various ages and, with limited samples, we could not make a strong claim about the effectiveness of these strategies. Future research could be done to provide more empirical evidence about their effectiveness.

AR Design Considerations and Opportunities

Leveraging the Unique Affordances of AR in Supporting Early Language Learning

While many articles acknowledged that AR applications enabled multimedia content, allowed for game-based learning, and increased learners’ motivation, these benefits also existed in traditional GUIs (Vernadakis et al., 2005; X. Yang et al., 2018) or similarly TUIs (Fan et al., 2016). Therefore, it is necessary to revisit the question: What unique affordances do AR applications offer for early language learning?

Previous research has suggested many affordances of AR applications in general educational contexts (Radu, 2014; Santos et al., 2014; Wu et al., 2013). We reflected on their conclusions and related them to review results and identified five main unique AR affordances in supporting early language learning compared to other computational approaches. All five affordances distinguish AR applications from GUIs, but several affordances (A2–A5, Table 7) may also exist in TUIs. Despite this, the specific interactions and implementations in TUIs are different than in AR applications.

OPEN IN VIEWER

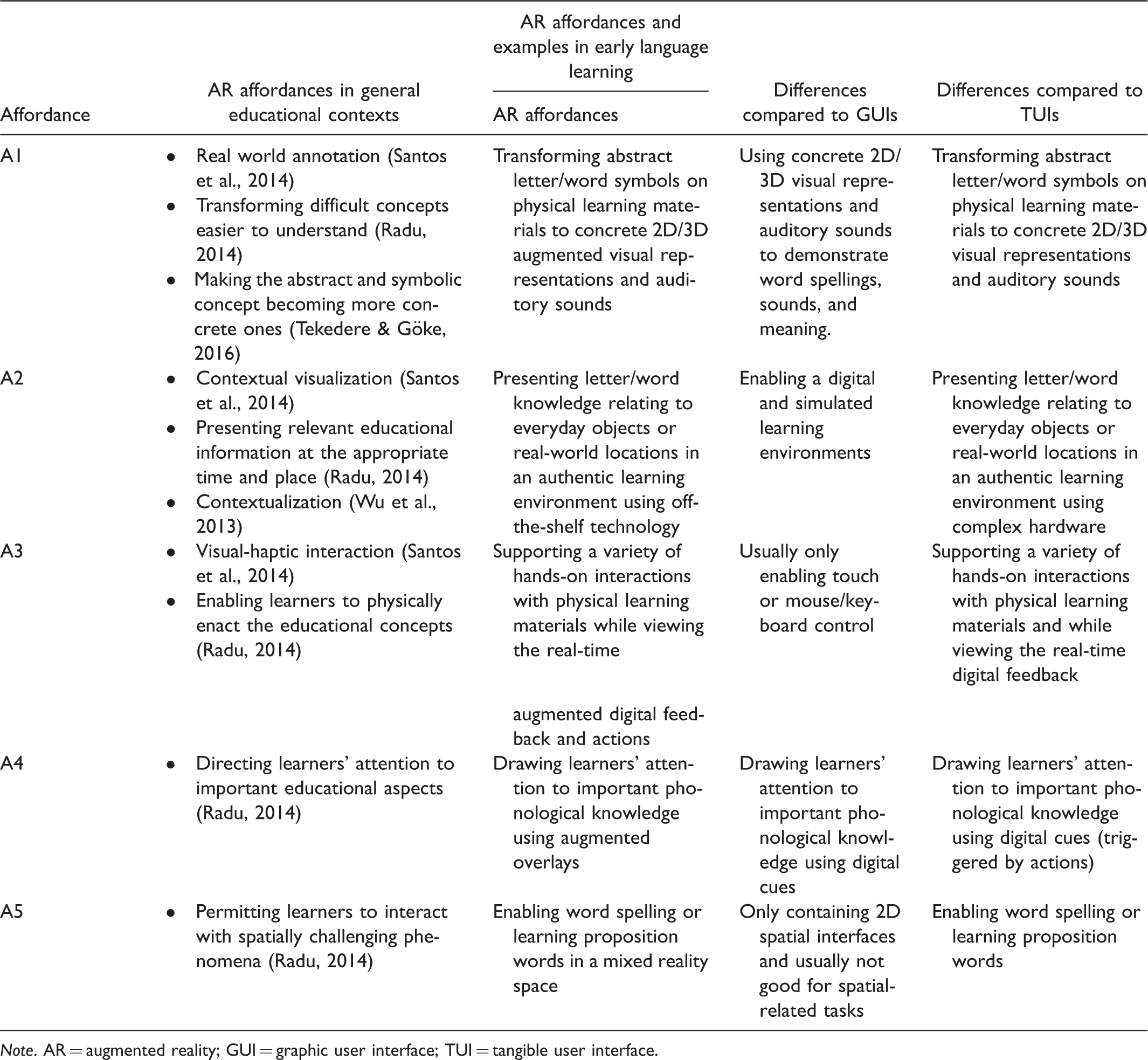

Table 7.

Unique Affordances of AR Interfaces Compared to GUIs and TUIs.

Affordance	AR affordances in general educational contexts	AR affordances and examples in early language learning	Differences compared to GUIs	Differences compared to TUIs
		AR affordances
A1	• Real world annotation (Santos et al., 2014) • Transforming difficult concepts easier to understand (Radu, 2014)• Making the abstract and symbolic concept becoming more concrete ones (Tekedere & Göke, 2016)	Transforming abstract letter/word symbols on physical learning materials to concrete 2D/3D augmented visual representations and auditory sounds	Using concrete 2D/3D visual representations and auditory sounds to demonstrate word spellings, sounds, and meaning.	Transforming abstract letter/word symbols on physical learning materials to concrete 2D/3D visual representations and auditory sounds
A2	• Contextual visualization (Santos et al., 2014)• Presenting relevant educational information at the appropriate time and place (Radu, 2014) • Contextualization (Wu et al., 2013)	Presenting letter/word knowledge relating to everyday objects or real-world locations in an authentic learning environment using off-the-shelf technology	Enabling a digital and simulated learning environments	Presenting letter/word knowledge relating to everyday objects or real-world locations in an authentic learning environment using complex hardware
A3	• Visual-haptic interaction (Santos et al., 2014)• Enabling learners to physically enact the educational concepts (Radu, 2014)	Supporting a variety of hands-on interactions with physical learning materials while viewing the real-time augmented digital feedback and actions	Usually only enabling touch or mouse/keyboard control	Supporting a variety of hands-on interactions with physical learning materials and while viewing the real-time digital feedback
A4	• Directing learners’ attention to important educational aspects (Radu, 2014)	Drawing learners’ attention to important phonological knowledge using augmented overlays	Drawing learners’ attention to important phonological knowledge using digital cues	Drawing learners’ attention to important phonological knowledge using digital cues (triggered by actions)
A5	• Permitting learners to interact with spatially challenging phenomena (Radu, 2014)	Enabling word spelling or learning proposition words in a mixed reality space	Only containing 2D spatial interfaces and usually not good for spatial-related tasks	Enabling word spelling or learning proposition words

Note. AR = augmented reality; GUI = graphic user interface; TUI = tangible user interface.

Transforming abstract language symbols on physical learning materials (e.g., letters, flashcards, objects) to concrete and vivid 2D/3D augmented visual representations and auditory sounds. Compared to multimedia content offered by GUIs (digital–digital), AR applications usually incorporate physical-digital correspondences. The interactions (e.g., grasping, lining up, rotating) on physical learning materials together with the concrete 3D augmented feedback may help learners to concentrate, to understand the abstract language meanings, and to relate the learnt language knowledge to everyday learning tools such as flashcards. The potential learning effects may be explained by the Connectionist Model which suggests using multiple cues (e.g., letters, sounds, pictures) may help with word memorization (Ehri, 2014). Although TUIs also incorporated physical representations, the associated digital contents are usually not directly augmented on top of the physical representations (if there are a few, e.g., Siftables (Hunter et al., 2010), they are not in 3D forms augmented in the reality). Learners may need additional cognitive resources to process the transformation between digital information and physical representations based on the Cognitive Load Theory (Price et al., 2008; Sweller, 1988).

Presenting language knowledge relating to everyday objects or real-world locations in an authentic learning environment. Situated cognition argues that knowledge cannot be abstracted from the situation from which it was learned (Brown et al., 1989). By teaching words in an authentic environment, learners may have a better chance to use the words in the real-life context. The environments may also serve as a cue to help learners better memorize the words when the connection is created between the two (since learners may unintentionally see certain everyday objects several times a day). TUIs can also associate digital information with physical objects, but they usually require complex hardware embedded with electronics.

Enabling a variety of hands-on interactions on virtual objects or physical learning materials with physical affordances (e.g., cubes with physical notches) while viewing real-time augmented feedback on actions through displays (e.g., seeing the word animation when certain cubes are placed in a sequential order). Embodied cognition emphasizes the importance of leveraging the meaningful perceptions and actions in learning (Antle, 2013). Learners may use multiple senses such as visual, auditory, tactile senses to construct concrete meanings of abstract concepts; they may also tend to use body actions (e.g., languages, gestures, movements) to interpret concepts based on metaphors. Physical learning materials contain rich multisensory information (e.g., letter shape, color, textures) that can act as explicit or implicit affordances to support learners’ language learning. Physical letter shapes with hard edges enable the letter-tracing activity which is suggested as important for at-risk learners (Dehaene, 2009; Kelly & Phillips, 2011). The manipulation of learning materials may also benefit learners in word comprehension by taking advantage of metaphors (Glenberg et al., 2007; Sylla et al., 2016). TUIs also enable hands-on interaction, but there are two differences compared to AR applications: (a) learners in AR applications can directly interact with either virtual objects or physical learning materials while interactions in most TUIs are directly on physical learning materials; and (b) learners in AR applications can view real-time feedback and hands-on actions simultaneously through the display while TUIs cannot.

Drawing learners’ attention to important phonological knowledge using augmented overlay. Mayer’s Cognitive Theory of Multimedia Learning suggests three main characteristics in the cognitive process of human beings: visual-auditory dual channels, limited capacity, and active processing (Mayer, 2014). The limited capacity mainly posits that learners are limited in the amount of information that can be processed; therefore, they need to select relevant information to ensure meaningful learning occurs. In addition to offering educational information, the augmented overlay can also serve as an attentional cue to better draw learners’ attention to language learning (e.g., by using colors or animations). Although GUIs and TUIs also enable this feature, GUIs do not associate the cues with physical actions (Kast et al., 2007) and TUIs may require complex hardware to achieve this (Antle et al., 2015).

Supporting word spelling or proposition word learning in both physical and digital space. ⁶ By leveraging the use of congruent spatial mappings between physical and digital space in AR applications, learners can perform spelling tasks in either physical space (e.g., letters on the table) or digital space (e.g., digital letters on the screen) by fully utilizing their embodied knowledge (e.g., left or right). This feature is particularly beneficial for learning proposition words when using head-mounted displays or handheld devices (not desktop computers) so that learners can directly see an augmented virtual object on the left or on the right of a certain real-world physical object and hear the associated sound or receive other digital feedback simultaneously. Despite the congruent spatial mappings, the associated digital virtual objects in TUIs are usually in a separated display (see representative examples of commercial tangible language learning applications with an iPad, Osmo ⁷ or Marbotics ⁸ ) rather than in a 3D mixed reality space.

The affordances first can be used to identify missing opportunities in the current design space. For example, our review showed a significant proportion of the AR applications utilized augmented content to visualize word information (A1) rather than to direct learners’ attention (A4); and fewer applications fully leveraged the contextual information (e.g., locations) to support language learning (A2). The affordances also can be used to provide justifications for future designs (A3). For example, the A1 to A2 may be particularly beneficial for EFL learners who do not have proficient oral skills and lack contextual knowledge of the language. The A3 to A4 could be used to help learners with attentional problems in language learning. The A5 may help learners to better leverage the use of embodied knowledge to learn syllable/word construction (e.g., physically placing letters in a sequential order, grouping letter pairs together or dividing syllables separately).

Future Evaluation Directions

Although the majority of the articles showed positive learning gains, most of studies only evaluated short-term learning gains on word memorizations with a particular AR application without any compared counterpart. Therefore, we suggest the potential research directions on the evaluation of associated learning effects with a specific design strategy and the long-term learning outcomes on both the memorization and the application of the language knowledge in applied contexts.
