Methylene diphenyl diisocyanate occupational exposure data in industry (1998–2020): A descriptive summary from an industrial hygiene perspective

Abstract

This paper provides an overview of airborne methylene diphenyl diisocyanate (MDI) concentrations in workplaces across North America and Europe. A total of 7649 samples were collected between 1998 and 2020 by producers of MDI during product stewardship activities at customer sites, primarily using validated OSHA or ISO sampling and analysis techniques. As would be expected from the low vapor pressure of MDI, 80% of the concentrations were less than 0.01 mg/m³ (1 ppb) and 93% were less than 0.05 mg/m³ (5 ppb). Respiratory protection is an integral part of Industrial Hygiene practices; therefore, its use was studied and summarized. While covering a variety of MDI applications, a large number of samples was obtained from composite wood manufacturing facilities, offering specific insight into potential exposures associated with different process sections and job types in this industry sector. Given the potential presence in industrial processes of MDI-containing dust or aerosols, future work should place increased emphasis on also investigating dermal exposure. The data reported in this paper provide valuable information for product stewardship and industrial hygiene purposes throughout the MDI-processing industry.

Keywords

Occupational exposure isocyanates methylene diphenyl diisocyanate (MDI)air monitoring composite wood polyurethane

Introduction

Methylene diphenyl diisocyanate (MDI) is a widely used monomer that is typically reacted with polyols to manufacture a wide range of polyurethane (PU) products. MDI is produced in various commercial grades. MDI is available in the market as monomeric MDI (mMDI, as a pure isomer or as mixtures of the isomers) or as a mixture of mMDI and higher homologues (MDI oligomers). Commercially, these mixtures are often called polymeric or oligomeric MDI, depending on the amount of mMDI in the mixture (see Spence and Plehiers, 2022). For simplicity, these mixtures will be grouped under the term “pMDI” in this work. Of the more than three billion pounds of MDI used in North America (CPI, 2022), less than 15% is mMDI, the remainder consists of various grades of pMDI. A detailed review of uses and applications is provided by CPI (2022). The majority (>80%) of mMDI is used in CASE (coatings, adhesives, sealants, and elastomers) applications. The majority of pMDI is used to produce rigid foams (sprayed and board insulation, ca. 60%) and composite wood products (binders, ca. 25%).

This paper summarizes mMDI concentrations compiled by the International Isocyanate Institute in industry workplaces in the Unites States, Canada, and Europe between 1998 and 2020. This data set updates a prior similar effort by Booth et al. (2009) (MDI) and complements a recent review for toluene diisocyanate (TDI) applications published by Sayles et al. (2022). The data set included 10 application types (Figure 1). For the subsequent analysis, the categories of CASE, reaction injection molding (RIM), and thermoplastic polyurethanes (TPU) were grouped together based on the similarity of the measured concentration profiles and the small number of samples in those categories. The category labeled as “Others” consisted mainly of data collected in isocyanate or prepolymer production plants (i.e., these do not manufacture PU). The category “Rigid Foam” covered both poured and sprayed foam applications, while “Binders” included a variety of composite wood products.

Figure 1.

Number of airborne MDI concentration measurements by application. RIM: reactive injection molding; TPU: thermoplastic polyurethanes.

Occupational exposure limits (OELs) for mMDI depend on the jurisdiction. In the US, OSHA (2022) has set a “ceiling” (i.e., not to be exceeded for any time period) permissible exposure limit of 0.20 mg/m³. ACGIH (1986) recommends an 8-h time-weighted average threshold limit value (TLV^®-TWA₈) of 0.051 mg/m³. Most European countries have set a TWA₈ value of 0.051 mg/m³ as well (range 2–10 ppb, 1 ppb = 0.0104 mg/m³ at 20°C). No OEL exists for the MDI oligomers; however, some countries (among others, the UK) use a limit based on total reactive isocyanate groups. IARC (1999) judged that there is inadequate evidence for a carcinogenicity classification of MDI. The main adverse health effect is the potential development of occupational asthma, as described for TDI by Sayles et al. (2022). Epidemiological information specifically related to MDI is limited: only two studies were noted in a recent review by Antoniou and Zeegers (2022). In this work, the focus is on airborne concentrations.

Because of the low vapor pressure of mMDI (<10⁻³ Pa, Spence and Plehiers, 2022), the presence of MDI aerosols (as suspended liquid droplets or coating the surface of dust particles) in addition to vapor in the workplace atmosphere cannot be excluded when the total concentration of mMDI exceeds 0.06 mg/m³ at 25°C. For pMDI, that threshold would even be lower. From that perspective, both inhalation and dermal exposure are possible and should be considered when selecting proper work gear and protective equipment.

The analysis reported in this paper was performed to (1) assess airborne mMDI concentrations in various work environments; (2) identify applications and/or areas with increased risk of exposure so that potential reductions can be investigated; (3) evaluate the use of respirators in workplaces using MDI; and (4) inform about Product Stewardship (PS) activities geared toward improving engineering control measures and/or use of personal protective equipment such as respirators.

Methods

Description of the data set

The data set was collected between 1998 and 2020 by Industrial Hygiene (IH) professionals of companies producing MDI during various PS activities at customer facilities. Samples were generally taken using validated methods that involve the derivatization of MDI during sampling by reaction with a secondary amine-containing reagent, either in impinger solution (HSE, 2015; NIOSH, 1994) or coated on a glass fiber substrate (ISO 17734-1:2013; OSHA, 1989, 2021) and were analyzed in accredited IH laboratories. Handheld direct-reading instruments or incompletely specified methods were used for <5% of the samples (see Supplemental Information, Table S-1). As previously mentioned, at concentrations exceeding 0.06 mg/m³, the potential presence of mMDI aerosols has to be considered (see Spence and Plehiers, 2022). The aforementioned validated analytical methods have been demonstrated to maintain their validity under such conditions (Hext et al., 2003).

It should be noted that the data set was collected for a variety of purposes related to practical implementation of PS programs. No randomized industry-wide sampling was conducted. As such, the results may tend toward higher exposures since such sampling is often performed to assess key areas or tasks of concern.

With few exceptions, the limit of quantification (LOQ) for the 3307 samples marked as not-detected (“ND”) was <0.01 mg/m³. Higher LOQs were limited to samples with short sampling times (<15 min) or some that were taken using handheld direct-reading (e.g., paper tape) devices. Of all samples taken, only 18 (0.2%, see Figure S-1, Supplemental Information) had an LOQ >0.02 mg/m³. Since ½ LOQ was used for classification (see Data processing), the potential impact of these samples on the main conclusions of this study was negligible (Supplemental Information).

For each sample in the database, the use of respiratory protective equipment (RPE) was confirmed (“Yes”), negated (“No”), or not reported. The percentage RPE use (%RPE) reported in the tables solely reflects those samples where the use of RPE was unequivocally confirmed (“Yes”). The type of RPE used was not recorded in the database. Figure S-2 (Supplemental Information) provides an overall summary of the reported use of RPE for the personal samples collected in this database.

Definition of sample types

Samples were grouped into personal and area samples. Area samples were collected in a fixed workplace location, typically to assess areas within a facility where increased exposure potential exists, and the effectiveness of engineering control measures such as ventilation.

Personal samples are typically collected in the breathing zone of workers and allow making individual or job-related exposure assessments. The sampling duration can range between minutes and several hours. Three types of personal samples were differentiated:

• Task-based samples were collected while performing a specific work operation. Sample duration was typically between 15 and 30 min.

• Short-term personal samples refer to samples for which a specific task was not identified and for which the sampling duration was less than or equal to 4 h (240 min).

• Long-term personal samples involved sampling durations greater than 4 h (240 min).

Data processing

All analyses were performed using the built-in functionality of MS Excel (Microsoft Corporation, Redmond, WA, USA) to calculate the range, arithmetic mean (average), and standard deviation, as well as the geometric mean (GM) and geometric standard deviation (GSD). Values less than the LOQ were included in the analysis as ½ LOQ. The Student t-test was used with a p < 0.05 criterion to evaluate whether distributions were statistically different or not.

For generating distributions, samples were classified into the following six concentration ranges based on the sum of the concentrations of MDI monomers¹ (x in mg/m³): x ≤ 0.01, 0.01 < x ≤ 0.02, 0.02 < x ≤ 0.05, 0.05 < x ≤ 0.10, 0.10 < x ≤ 0.20, and x>0.20. These values approximately correspond to boundaries chosen at 1, 2, 5, 10, and 20 ppb and agree well with common OEL values. When available, the concentration of MDI oligomers was compared with MDI monomer concentrations to obtain a better overview of overall exposure.

The database was analyzed by geographical region, period of sampling, sample type, and type of application. Further detail was investigated for the Binders (composite wood) applications by analyzing concentrations in relation to specific job positions or facility sections.

Results

The database contained a total of 7649 samples, 6797 from North American (NA) and 852 from European (EU) facilities (Table 1). The number of task-based samples was rather limited (260 or 3.4%). Of the many area samples (3015 or 39.4%), the vast majority (2665) was obtained by area monitoring in the Binders application (composite wood industry).

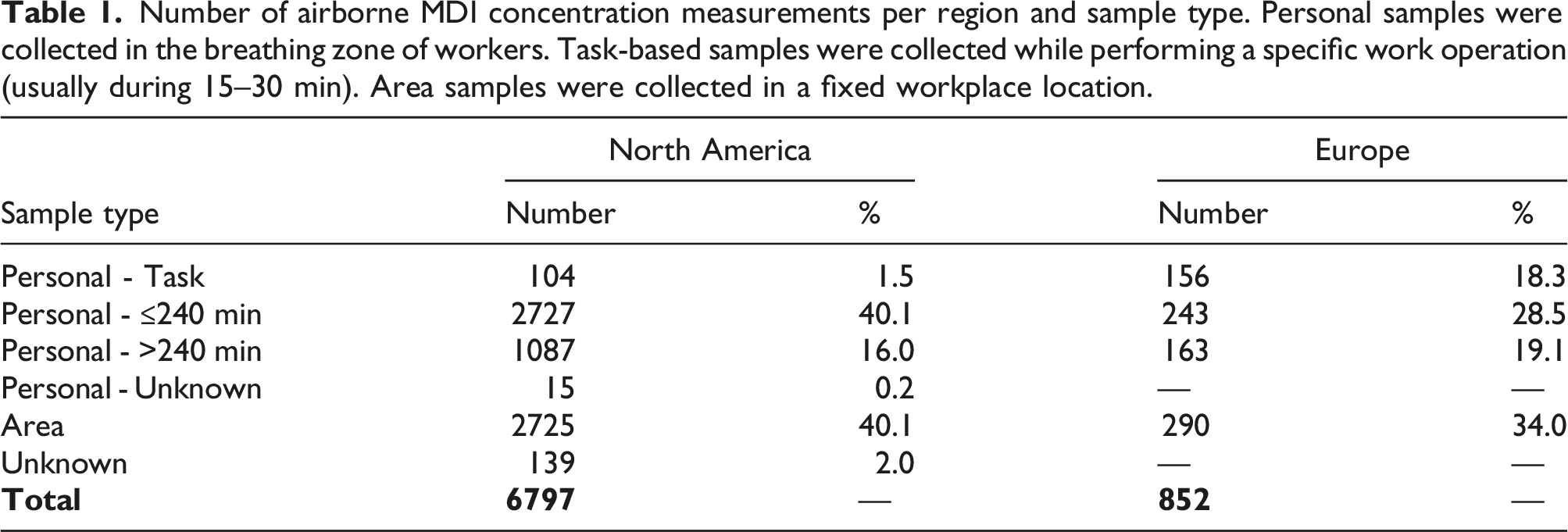

Table 1.

Number of airborne MDI concentration measurements per region and sample type. Personal samples were collected in the breathing zone of workers. Task-based samples were collected while performing a specific work operation (usually during 15–30 min). Area samples were collected in a fixed workplace location.

	North America		Europe
Sample type	Number	%	Number	%
Personal - Task	104	1.5	156	18.3
Personal - ≤240 min	2727	40.1	243	28.5
Personal - >240 min	1087	16.0	163	19.1
Personal - Unknown	15	0.2	—	—
Area	2725	40.1	290	34.0
Unknown	139	2.0	—	—
Total	6797	—	852	—

Summary by geographical region

Table 2, together with Figures S-3 and S-4 in the Supplemental Information, provides an overview of distributions and summary statistics of airborne MDI concentrations by geographical region. The average and standard deviation were 0.040 ± 0.337 mg/m³ in NA and 0.012 ± 0.051 mg/m³ in EU, respectively. The difference between the averages of the two regions was statistically significant (p <10⁻⁴), which was mainly attributable to measurements >0.05 mg/m³ (see Supplemental Information). The apparent difference in confirmed %RPE was attributable to the many area samples taken in NA. For personal samples, the difference in %RPE was not pronounced (data not shown). Median values and GM (approx. 0.002 mg/m³) were similar for both regions (42–43% of the samples were ND).

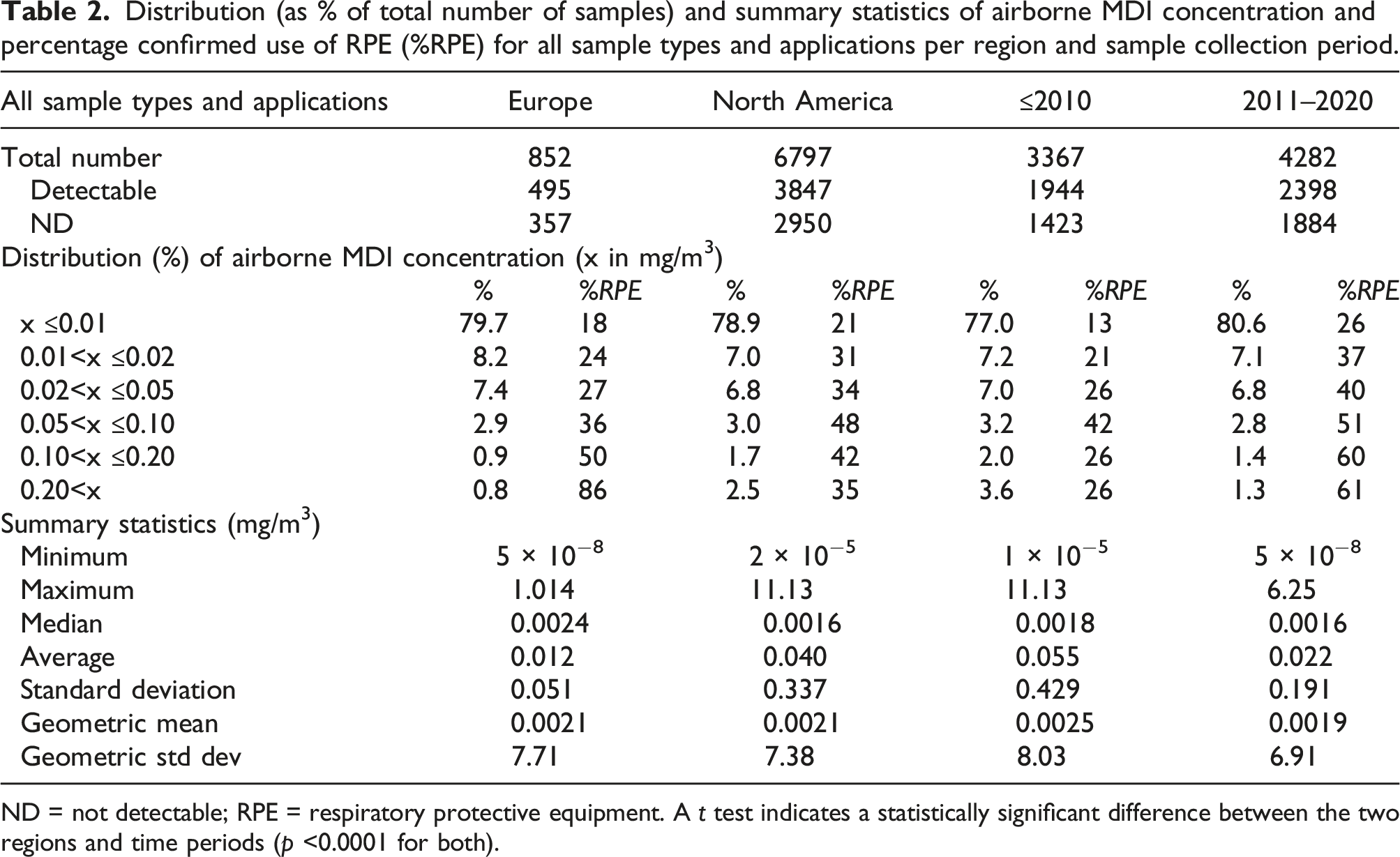

Table 2.

Distribution (as % of total number of samples) and summary statistics of airborne MDI concentration and percentage confirmed use of RPE (%RPE) for all sample types and applications per region and sample collection period.

All sample types and applications	Europe		North America		≤2010		2011–2020
Total number	852		6797		3367		4282
Detectable	495		3847		1944		2398
ND	357		2950		1423		1884
Distribution (%) of airborne MDI concentration (x in mg/m³)
	%	%RPE	%	%RPE	%	%RPE	%	%RPE
x ≤0.01	79.7	18	78.9	21	77.0	13	80.6	26
0.01<x ≤0.02	8.2	24	7.0	31	7.2	21	7.1	37
0.02<x ≤0.05	7.4	27	6.8	34	7.0	26	6.8	40
0.05<x ≤0.10	2.9	36	3.0	48	3.2	42	2.8	51
0.10<x ≤0.20	0.9	50	1.7	42	2.0	26	1.4	60
0.20<x	0.8	86	2.5	35	3.6	26	1.3	61
Summary statistics (mg/m³)
Minimum	5 × 10⁻⁸		2 × 10⁻⁵		1 × 10⁻⁵		5 × 10⁻⁸
Maximum	1.014		11.13		11.13		6.25
Median	0.0024		0.0016		0.0018		0.0016
Average	0.012		0.040		0.055		0.022
Standard deviation	0.051		0.337		0.429		0.191
Geometric mean	0.0021		0.0021		0.0025		0.0019
Geometric std dev	7.71		7.38		8.03		6.91

ND = not detectable; RPE = respiratory protective equipment. A t test indicates a statistically significant difference between the two regions and time periods (p <0.0001 for both).

Summary by time period

Table 2, together with Figures S-5 and S-6 in the Supplemental Information, provides an overview of the distributions and summary statistics of airborne MDI concentrations for samples taken prior to 2010 and during the period 2011–2020. The average and standard deviation were 0.055 ± 0.429 mg/m³ prior to 2010 and 0.022 ± 0.191 mg/m³ during the decade thereafter, respectively. The difference between the averages of the two periods was statistically significant (p < 10⁻⁴), which was mainly attributable to area samples >0.1 mg/m³ (see Supplemental Information). There is an important increase in confirmed use of RPE between the former and the latter period. This will be expanded upon in the Detailed overview of composite wood applications section. Median values and GM (approx. 0.002 mg/m3) were similar for both time periods (42–44% of samples were ND) and do not reflect the differences in the distributions.

Summary by sample type and concentration

Table 3 presents an overview of distributions and summary statistics across all applications of airborne MDI concentrations by sample type. Both the average concentration as well as the standard deviation decreased in the order task-based > short-term personal > long-term personal samples. While the confirmed use of RPE was high for task-based samples, it decreased as sample time increased.

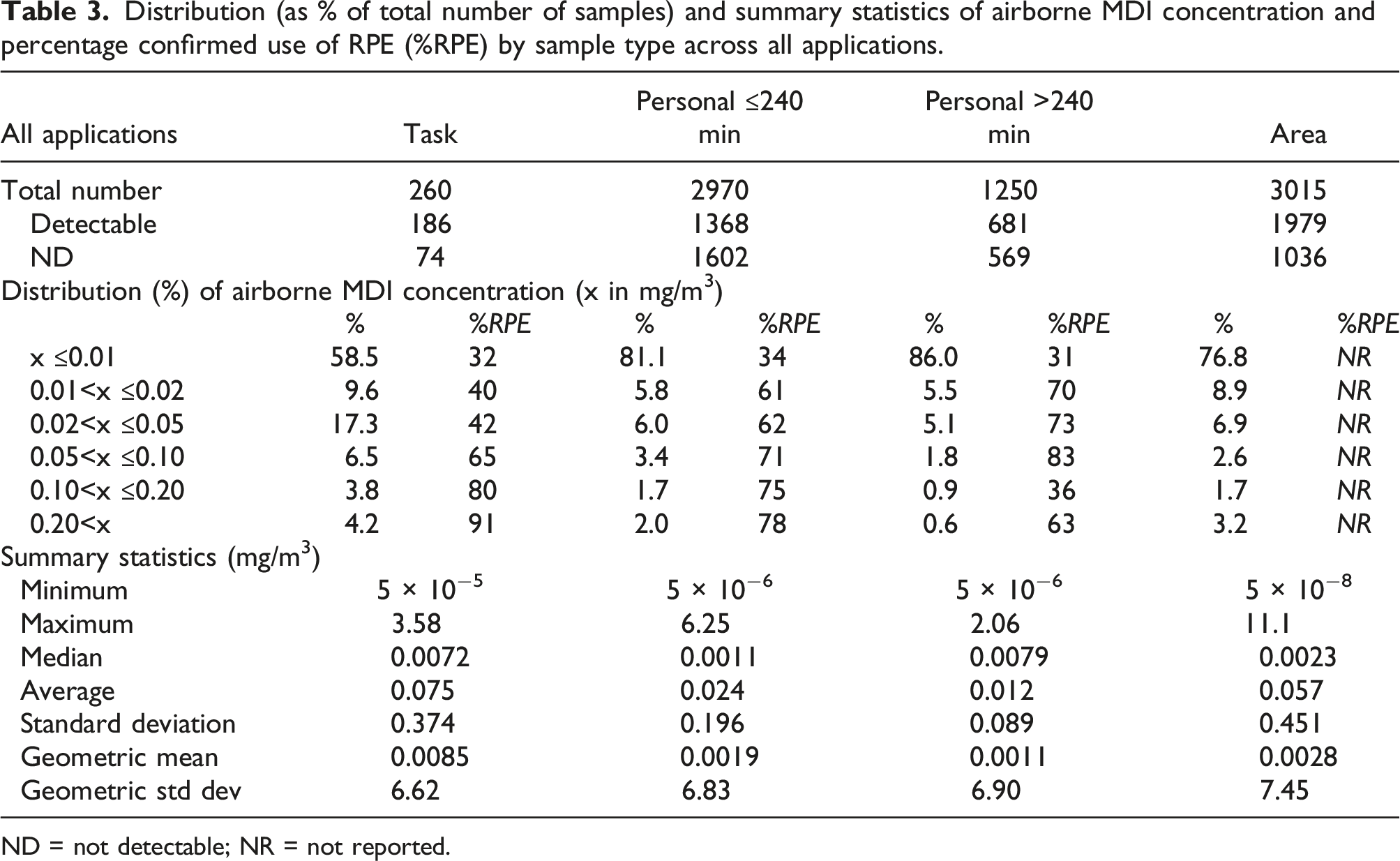

Table 3.

Distribution (as % of total number of samples) and summary statistics of airborne MDI concentration and percentage confirmed use of RPE (%RPE) by sample type across all applications.

All applications	Task		Personal ≤240 min		Personal >240 min		Area
Total number	260		2970		1250		3015
Detectable	186		1368		681		1979
ND	74		1602		569		1036
Distribution (%) of airborne MDI concentration (x in mg/m³)
	%	%RPE	%	%RPE	%	%RPE	%	%RPE
x ≤0.01	58.5	32	81.1	34	86.0	31	76.8	NR
0.01<x ≤0.02	9.6	40	5.8	61	5.5	70	8.9	NR
0.02<x ≤0.05	17.3	42	6.0	62	5.1	73	6.9	NR
0.05<x ≤0.10	6.5	65	3.4	71	1.8	83	2.6	NR
0.10<x ≤0.20	3.8	80	1.7	75	0.9	36	1.7	NR
0.20<x	4.2	91	2.0	78	0.6	63	3.2	NR
Summary statistics (mg/m³)
Minimum	5 × 10⁻⁵		5 × 10⁻⁶		5 × 10⁻⁶		5 × 10⁻⁸
Maximum	3.58		6.25		2.06		11.1
Median	0.0072		0.0011		0.0079		0.0023
Average	0.075		0.024		0.012		0.057
Standard deviation	0.374		0.196		0.089		0.451
Geometric mean	0.0085		0.0019		0.0011		0.0028
Geometric std dev	6.62		6.83		6.90		7.45

ND = not detectable; NR = not reported.

The area samples were mainly (88.4%) associated with the Binders application and will be discussed in the Detailed overview of composite wood applications section. Most of the area samples were static measurements (i.e., not on a person), which explains why the use of RPE was not reported in most cases.

Analysis of airborne concentrations exceeding 0.2 mg/m³

For 174 samples (2.3%), the measured MDI concentration exceeded 0.2 mg/m³. Thereof, 148 were in the Binders application, 19 in Rigid Foam, and 7 in Others:

• 97 were area samples (92 in Binders, nearly all of which were taken in the blending and forming sections of composite wood production facilities).

• 3 samples had no indication of sample type, but they were likely area samples according to comments reported (RPE usage was not reported).

• 11 were task-based samples (6 in spray foam applications and 5 in isocyanate and prepolymer production), all with confirmed use of RPE.

• 63 were other personal samples (53 in Binders, the majority of which were either taken in the blending and forming sections or during cleaning, and 9 in spray foam applications): 50 with confirmed use of RPE, 4 without RPE being used, and 9 for which use of RPE was not documented.

Analysis of concentration of MDI oligomers

The data set contained 1353 samples (17.7%) for which the concentrations of both MDI monomers (mMDI) and higher homologues (MDI oligomers, see Spence and Plehiers, 2022) were reported (i.e., neither “blank” [no value] nor “ND”). Figure 2 shows the histogram of the ratio of the MDI oligomers and mMDI concentrations. The average ratio was 0.589 with a standard deviation of 0.322. In 94.5% of cases, the ratio was ≤1. Figure S-7 (Supplemental Information) shows in an alternative way that—even though various grades² of MDI are used in the industry—the airborne concentrations of higher homologues and monomers were strongly correlated (R² = 0.97).

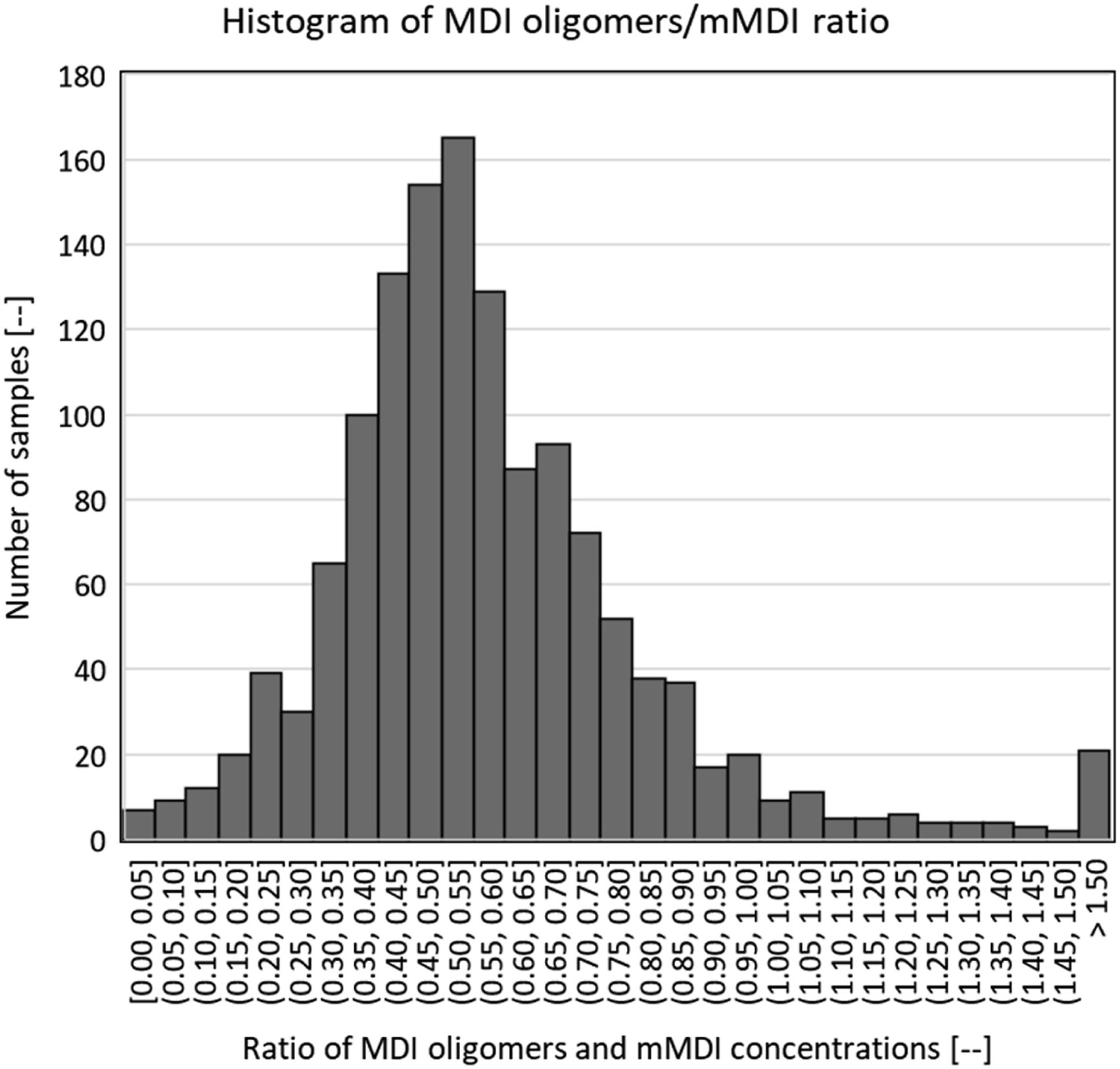

Figure 2.

Histogram of the ratio of concentrations of MDI oligomers to MDI monomers (mMDI); X-axis values indicate the high and low end of each ratio range.

Overview by type of application

Table 4 provides an overview of distributions and summary statistics of airborne MDI concentrations for all sample types for applications other than Binders. For this analysis, CASE applications were combined with RIM and TPU applications. Apart from one exceptionally high measurement, MDI concentrations were generally low for the flexible foam application, with 96.8% being less than 0.01 mg/m³. For CASE and similar applications, 90.1% of the measurements remained below 0.01 mg/m³, with 3.8% exceeding 0.05 mg/m³. For these two types of applications, the confirmed use of RPE was rather low. More elevated concentrations were noted in the “Other” (mainly isocyanate and prepolymer production) category and the Rigid Foam application. For the former, the average and standard deviation were 0.014 ± 0.045 mg/m³. The Rigid Foam group included applications involving spraying, which resulted in both a larger average and standard deviation of 0.029 ± 0.215 mg/m³. More regular use of RPE at higher exposure was observed for these applications. For the applications represented in Table 4, 51–79% of the samples were ND, whence the median and GM reflect detection limits rather than actual exposures.

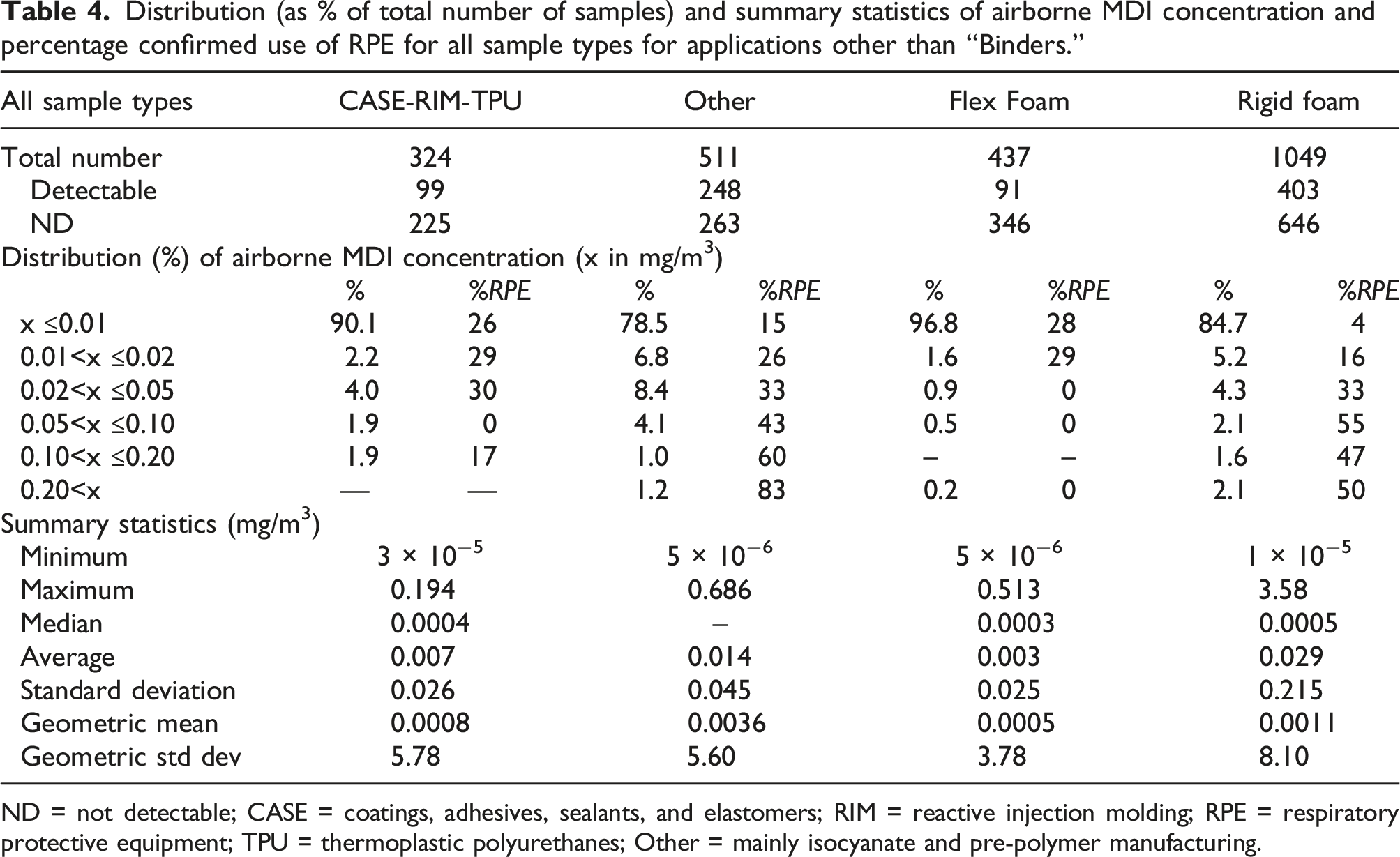

Table 4.

Distribution (as % of total number of samples) and summary statistics of airborne MDI concentration and percentage confirmed use of RPE for all sample types for applications other than “Binders.”

All sample types	CASE-RIM-TPU		Other		Flex Foam		Rigid foam
Total number	324		511		437		1049
Detectable	99		248		91		403
ND	225		263		346		646
Distribution (%) of airborne MDI concentration (x in mg/m³)
	%	%RPE	%	%RPE	%	%RPE	%	%RPE
x ≤0.01	90.1	26	78.5	15	96.8	28	84.7	4
0.01<x ≤0.02	2.2	29	6.8	26	1.6	29	5.2	16
0.02<x ≤0.05	4.0	30	8.4	33	0.9	0	4.3	33
0.05<x ≤0.10	1.9	0	4.1	43	0.5	0	2.1	55
0.10<x ≤0.20	1.9	17	1.0	60	--	--	1.6	47
0.20<x	—	—	1.2	83	0.2	0	2.1	50
Summary statistics (mg/m³)
Minimum	3 × 10⁻⁵		5 × 10⁻⁶		5 × 10⁻⁶		1 × 10⁻⁵
Maximum	0.194		0.686		0.513		3.58
Median	0.0004		--		0.0003		0.0005
Average	0.007		0.014		0.003		0.029
Standard deviation	0.026		0.045		0.025		0.215
Geometric mean	0.0008		0.0036		0.0005		0.0011
Geometric std dev	5.78		5.60		3.78		8.10

ND = not detectable; CASE = coatings, adhesives, sealants, and elastomers; RIM = reactive injection molding; RPE = respiratory protective equipment; TPU = thermoplastic polyurethanes; Other = mainly isocyanate and pre-polymer manufacturing.

Tables S-2 and S-3 (Supplemental Information) distinguish along sample types for the aforementioned applications. In some cases, the number of task-based samples was too small to perform a meaningful analysis. Across applications, task-based samples showed greater averages and standard deviations than other personal samples. In general, short-term personal samples showed greater averages and standard deviations than long-term samples. This is consistent with the observations made from Table 3. In the “Other” category, high concentrations during task-based sampling were no longer visible in the personal samples. For Rigid Foam, higher exposures were reflected in the personal samples, indicating that the specific task (spraying) occupied a larger portion of the work time.

While sprayed and non-sprayed rigid foam applications were not handled as separate categories, additional data entries (process and job descriptions as well as comments) allowed the authors to reasonably distinguish between the two. A brief summary is presented in Table S-4 (Supplemental Information). Non-sprayed applications (mostly insulation board) showed a low average and standard deviation of 0.007 ± 0.032 mg/m³; >90% of the readings were <0.01 mg/m³. Sprayed applications had an average and standard deviation of 0.115 ± 0.470 mg/m³; the percentage of readings <0.01 mg/m³ was approximately 65%.

Detailed overview of composite wood applications

Similar to Tables 3 and 4, Table 5 provides an overview of the distribution and summary statistics of airborne MDI concentrations for the personal samples for the Binders application. The distribution was broad, with 7.5% of the samples exceeding 0.05 mg/m³. The average and standard deviation were 0.028 ± 0.215 mg/m³. There was, however, an encouraging 83–85% of confirmed RPE use at these higher exposures. While the distributions and averages showed little evolution over time, the use of RPE at concentrations >0.05 mg/m³ has increased from approximately 70% prior to 2010 to almost 95% in the period between 2011 and 2020.

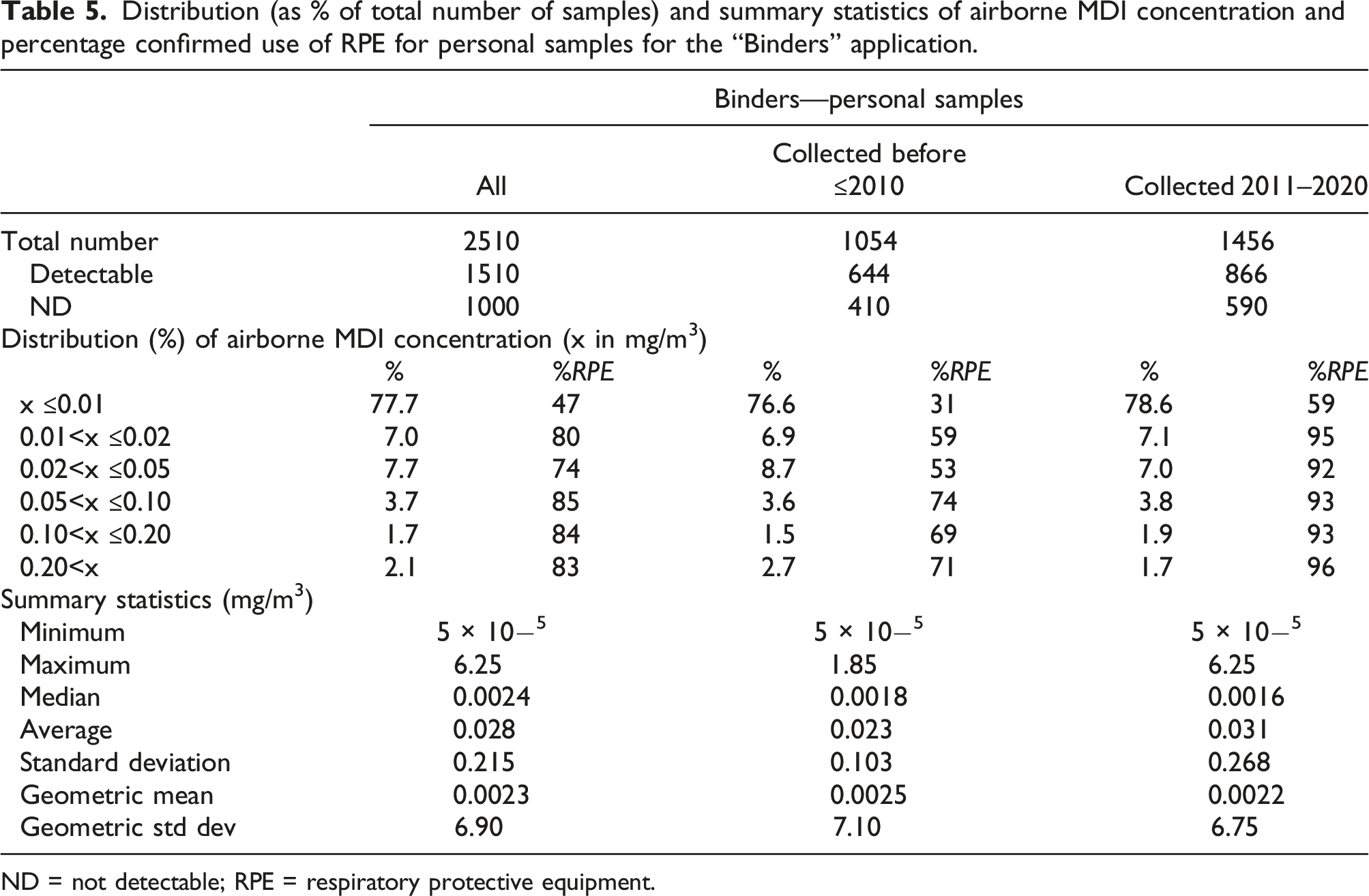

Table 5.

Distribution (as % of total number of samples) and summary statistics of airborne MDI concentration and percentage confirmed use of RPE for personal samples for the “Binders” application.

	Binders—personal samples
	All		Collected before ≤2010		Collected 2011–2020
Total number	2510		1054		1456
Detectable	1510		644		866
ND	1000		410		590
Distribution (%) of airborne MDI concentration (x in mg/m³)
	%	%RPE	%	%RPE	%	%RPE
x ≤0.01	77.7	47	76.6	31	78.6	59
0.01<x ≤0.02	7.0	80	6.9	59	7.1	95
0.02<x ≤0.05	7.7	74	8.7	53	7.0	92
0.05<x ≤0.10	3.7	85	3.6	74	3.8	93
0.10<x ≤0.20	1.7	84	1.5	69	1.9	93
0.20<x	2.1	83	2.7	71	1.7	96
Summary statistics (mg/m³)
Minimum	5 × 10−⁵		5 × 10−⁵		5 × 10−⁵
Maximum	6.25		1.85		6.25
Median	0.0024		0.0018		0.0016
Average	0.028		0.023		0.031
Standard deviation	0.215		0.103		0.268
Geometric mean	0.0023		0.0025		0.0022
Geometric std dev	6.90		7.10		6.75

ND = not detectable; RPE = respiratory protective equipment.

Table S-5 (Supplemental Information) provides a similar analysis by sample type for the Binders application. There were only 14 task-based samples, which were therefore not included in the analysis. There were many area samples: in most cases these were static samples for which RPE usage was not reported. The general trend toward lesser and more narrowly distributed exposure levels with increasing sampling time could be observed here as well. With approximately 40% of the personal samples reported as ND, median and GM again offer little insight into the exposure profiles.

Table 6 shows an analysis of the personal samples per job category for the Binders application. Of the 2497 personal samples, 2154 (86.3%) could be allocated to 3 job classes: operations, maintenance/cleaning, and lab/quality control (Lab/QA/QC). For operations personnel, the average MDI concentration and standard deviation were 0.022 ± 0.123 mg/m³. Both average and spread were greater for both the maintenance/cleaning (0.033 ± 0.286 mg/m³) and the lab/QA/QC (0.059 ± 0.414 mg/m³) categories, which are more frequently confronted with working on open systems. The awareness for, and expectation of, potentially high exposures led to a near-100% use of RPE at concentrations >0.05 mg/m³. It is worth noting that the use of RPE for personal samples was generally high for the Binders application.

Table 6.

Distribution (as % of total number of samples) and summary statistics of airborne MDI concentration and percentage confirmed use of RPE by job type for personal samples for the “Binders” application.

	Binders—personal samples
	Operation		Maintenance—cleaning		Lab/QA/QC
Total number	1269		653		232
Distribution (%) of airborne MDI concentration (x in mg/m³)
	%	%RPE	%	%RPE	%	%RPE
x ≤0.01	76.3	48	77.9	55	80.6	41
0.01<x ≤0.02	7.2	86	7.4	83	4.7	82
0.02<x ≤0.05	8.9	77	6.4	81	6.9	81
0.05<x ≤0.10	4.0	80	4.3	96	2.6	100
0.10<x ≤0.20	1.7	86	2.0	100	1.3	100
0.20<x	2.0	76	2.0	100	3.9	100
Summary statistics (mg/m³)
Minimum	9 × 10⁻⁵		8 × 10⁻⁵		5 × 10⁻⁵
Maximum	2.80		6.25		5.73
Average	0.022		0.033		0.059
Standard deviation	0.123		0.286		0.414
Geometric mean	0.0025		0.0024		0.0018
Geometric std dev	6.70		6.77		8.22

Table 7 summarizes the data for the area samples from generic process sections of typical composite wood production facilities (for a detailed description of the processes for the various types of composite wood products, see Vangronsveld et al., 2010). The generic steps include adding MDI to the wood (blending), forming the board (forming—orienting), pressing the board by applying heat and pressure, and finishing (cooling, sawing, and storing). Airborne MDI concentrations were highest in the blending (0.088 ± 0.407 mg/m³) and forming sections of the production lines (0.166 ± 0.951 mg/m³). Atmosphere concentrations in the press area were more tightly controlled. The potential effect of high temperatures in the press area was likely compensated for by enclosure of the equipment and better area and process equipment ventilation. Of note were regular occurrences of measurements >1 mg/m³ in the blending and forming areas that were, however, very unevenly spread among the types of product manufactured (Tables S-6 thru S-8, Supplemental Information). Airborne MDI concentrations generally increased in the sequence medium-density fiber board (MDF, Table S-6) < various particle board types (Table S-7) < oriented strand board/engineered lumber (OSB, Table S-8).

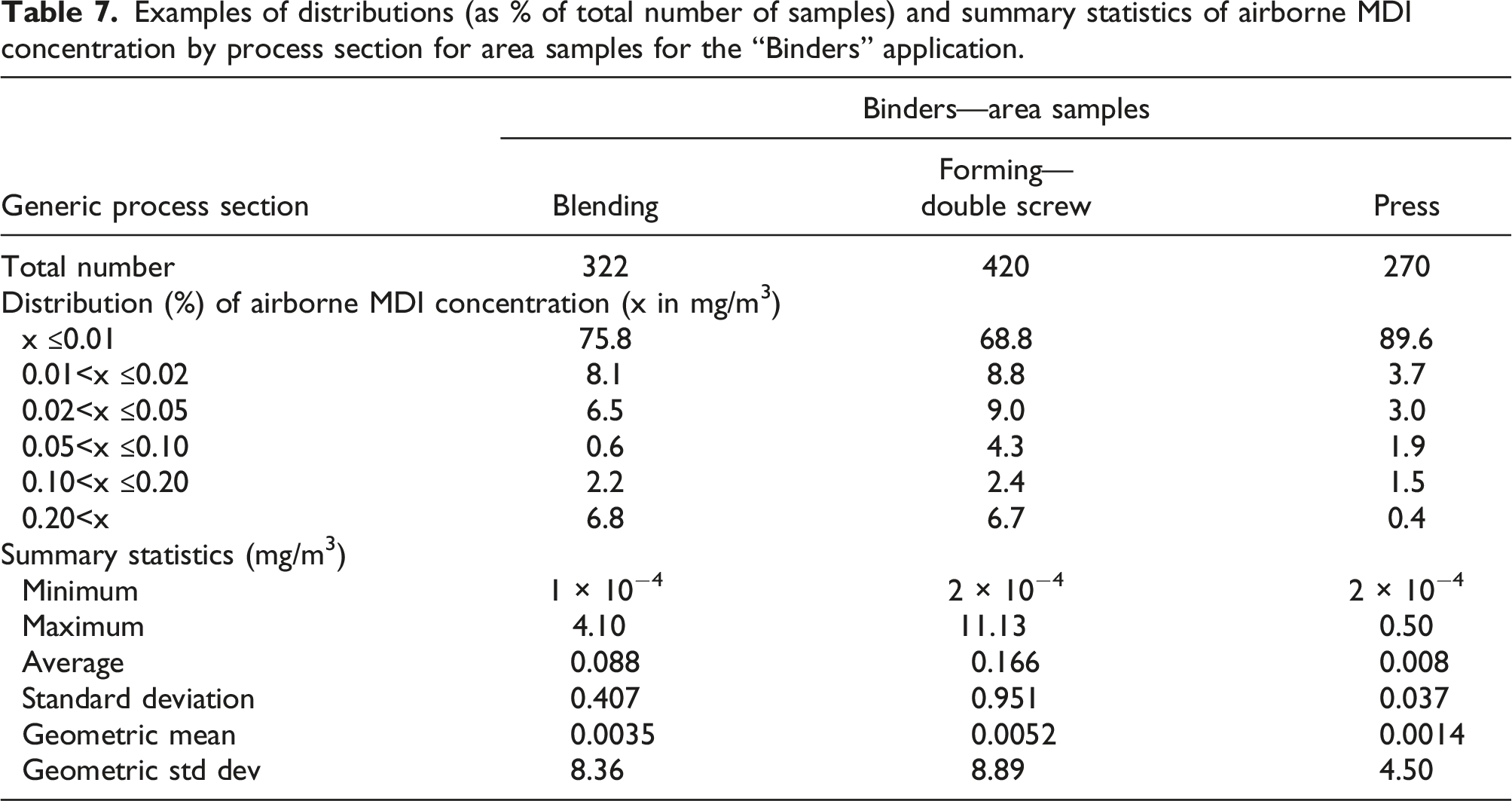

Table 7.

Examples of distributions (as % of total number of samples) and summary statistics of airborne MDI concentration by process section for area samples for the “Binders” application.

	Binders—area samples
Generic process section	Blending	Forming—double screw	Press
Total number	322	420	270
Distribution (%) of airborne MDI concentration (x in mg/m³)
x ≤0.01	75.8	68.8	89.6
0.01<x ≤0.02	8.1	8.8	3.7
0.02<x ≤0.05	6.5	9.0	3.0
0.05<x ≤0.10	0.6	4.3	1.9
0.10<x ≤0.20	2.2	2.4	1.5
0.20<x	6.8	6.7	0.4
Summary statistics (mg/m³)
Minimum	1 × 10⁻⁴	2 × 10⁻⁴	2 × 10⁻⁴
Maximum	4.10	11.13	0.50
Average	0.088	0.166	0.008
Standard deviation	0.407	0.951	0.037
Geometric mean	0.0035	0.0052	0.0014
Geometric std dev	8.36	8.89	4.50

Discussion

The analysis per geographical region indicated that airborne MDI concentrations were on average lower in the EU than NA while considerably more samples were taken in NA (Table 2). This difference likely reflects the different approaches to PS exposure monitoring programs in the two regions: the NA tends to be more “annual sampling plan” oriented while those in the EU more often are of a “periodic spot check” nature. Other potential explanations (e.g., process differences and level of engineering controls) could not be verified based on the available information.

Comparing samples taken during the past decade (2011–2020) with those taken during the preceding one (≤2010), a reduction of the average concentration was observed (Table 2). This was the result of a reduction in frequency of high concentrations in area samples. More importantly, RPE use has increased and in the Binders application has reached near-100% levels for concentrations exceeding 0.05 mg/m³. Regardless of this success, improvement potential still exists with regard to the use of RPE in other applications as well as to engineering control measures in the blending and forming sections of wood processing facilities.

Awareness for the potential of higher exposure during specific tasks is generally high, as expressed by the %RPE use for task-based samples in general (Table 3) as well as for specific job roles (Table 6). When analyzed by sample type, both the average concentration as well as the standard deviation decreased in the order task-based > short-term personal > long-term personal samples. This observation is consistent with the results of Sayles et al. (2022) who analyzed a similar database with TDI measurements. This is not a surprise, since task-based concentrations, which are often taken around anticipated higher exposure activities, are included in personal samples but not necessarily well-discernable because of time-weighting in personal samples of longer duration. Our database included many area samples, which could fulfill a similar role as task-based samples (e.g., for access control). For the detection of peak exposures, a combination of sample types is therefore required. Peak exposures demand attention since they may be related to the development of occupational asthma (Ott et al., 2000, 2003; Plehiers et al., 2020a, 2020b; Weil et al., 1981).

From a practical perspective, it could be noted that MDI oligomers can generally be assumed to be present at a level that is less than that of the monomers (Figure 2). In facilities that are processing pMDI, this may be helpful information to reduce the need for using more elaborate analysis protocols: it implies that MDI oligomer concentrations will be controlled to acceptable levels if MDI monomer concentrations are.

Given the frequent occurrence of high airborne MDI concentrations and of MDI oligomers in general (both of which are indicative of the presence of aerosols), as well as the presence of MDI-containing dust in composite wood manufacturing specifically (Vangronsveld et al., 2010), dermal exposure could be a source of concern (Bello et al., 2007; Karoly et al., 2004) and adequate skin coverage and/or biomonitoring may be advisable.

This work was intended as a follow-up to a previous analysis by Booth et al. (2009), who analyzed data collected between 1984 and 1999. A direct comparison per application is not possible since Booth et al. (2009) only reported distributions but no averages on a per-application basis. However, overall averages can be compared. The average of all personal and area samples (Booth et al., 2009: 0.014 ± 0.12 and 0.057 ± 0.32 mg/m³, respectively) seemingly has changed little (our analysis: 0.020 ± 0.172 and 0.057 ± 0.451 mg/m³). On the other hand, Booth et al. (2009) reported 113/734 (15.4%) and 345/2840 (11.2%) of the area samples to be > 0.05 mg/m³ for the Rigid Foam and Binders (equivalent to the combination of binders plus OSB in their summary) applications, respectively. Tables S-3 and S-5 (Supplemental Information) show that in our analysis, 2.5% and 8.1% of the area samples for the Rigid Foam and Binders applications exceeded 0.05 mg/m³, respectively.

Specifically for the Binders application, the results of this survey can also be compared with the data obtained by Karoly et al. (2004) in OSB manufacturing facilities. Several qualitative observations corresponded well between the two studies. The blending and forming areas showed high area sample readings, while tighter atmosphere control in the press area was achieved (Table 7), and cleaning and maintenance were identified as jobs with high exposure potential (Table 6). The fractions of area samples exceeding 0.05 mg/m³ were 8.2% (Karoly et al., 2004) and 9.2% (Table S-8, Supplemental Information) in this work. Both average values and standard deviations were greater in this work, for long-term personal samples (0.007 ± 0.035 vs 0.014 ± 0.086 mg/m³; Table S-5) as well as for area samples (0.024 ± 0.110 vs 0.082 ± 0.561 mg/m³; Table S-8). Overall, the two studies provide a consistent picture.

In addition, other literature references that reported airborne MDI concentrations in occupational settings are available. These data are summarized and compared with the results from this analysis in Table 8. The majority of the literature data could be sorted into the categories “Wood and general manufacturing,” “Sprayed applications,” and “Non-sprayed foam applications.” These categories compare with our Binders/Other, Rigid Foam, and Flex Foam applications, respectively. The airborne concentration ranges documented in this database correspond well with literature reports. It was noted before that CASE and Flex Foam applications showed low exposures (Table 4). The more elevated levels of MDI during spray applications are characteristic of the operation and are countered by the recommendation of suppliers to use RPE and body coveralls. As mentioned before, and in agreement with the results of Karoly et al. (2004), there appears to be potential to improve engineering control measures in the blending and forming sections of composite wood manufacturing facilities.

Table 8.

Summary of literature data on occupational exposure to MDI. Unless otherwise indicated, minimum and maximum values are given. “X” indicates that values were reported for that range in the reference. “This database” gives the values from the database used in the current work.

	Range of airborne concentration [mg/m³]
	<0.01	0.01–0.05	0.05–0.20	>0.20
Re ference
Adhesives
Kakooei et al.(2006) and Shahtaheri et al. (2005)	X	0.035 ‡
This database	<0.008
Wood and general manufacturing
Karoly et al. (2004)	0.0002	X	X	2.50
Song et al. (2006)	X	0.038 ‡	X	8.86
Vangronsveld et al. (2010)	X	0.024 #	0.14 $
Hon et al. (2017)	X	X	0.14 &
This database	X	0.028 ‡	X	6.25
Sprayed applications
Bilan et al. (1989)	X	X	X	1.32
Crespo and Galán (1999)		0.017	X	0.40
Lesage et al. (2007)			0.07	2.05
Schaal et al. (2017)	0.0013	X	X	1.11
Wood (2017)	0.0060	X	X	0.77
This database	X	0.018‡	X	3.58
Non-sprayed foam applications
Kääriä et al. (2001)	<0.0033
Sennbro et al. (2004)	<0.0078
Creely et al. (2006)	<0.0072
Säkkinen et al. (2011)	<0.0033
Tinnerberg et al. (2014)	<0.0004
Brzeznicki and Bonczarowska (2015)	X	<0.018
Swierczynska-Machura et al. (2015)	<0.0060	X
Yang (2016)	<0.0002
Rother and Schluter (2021)	X	<0.018 (I)
	X	<0.033 (H)
This database	X	<0.032	X	X

‡: average, #: recalculated average based on geometric mean (GM) and geometric standard deviation (GSD); $: estimated 97^th percentile based on GM and GSD, &: 95^th percentile, (I) IFA (German Institut für Arbeitsschutz) data, (H) HSE (UK Health and Safety Executive) data.

The design of this study was very similar to the recently published overview of TDI workplace concentrations by Sayles et al. (2022). Strengths and limitations were quite similar and can be summarized as follows. Strong elements were:

• the large number of samples taken in combination with the use of validated sampling, and analysis techniques provided an excellent overview of airborne concentrations in the MDI-processing industry;

• the evaluation of RPE usage constituted valuable information toward improving IH practices;

• the analysis offered insight into exposure potential associated with plant sections and job types in the composite wood manufacturing industry.

Limitations were as follows:

• The study was not a systematic exposure assessment based on randomized sampling across the industry;

• analyzing potential MDI aerosols can be challenging when using filter sampling techniques; while effects could largely be attenuated, an impact on reported values cannot be totally excluded;

• dermal exposure could not be investigated in this study and—given the potential presence of aerosols—should get more attention in future studies (see, e.g., Harari et al., 2022).

Conclusion

There were several key learnings of this study from an IH perspective. Because MDI has a low vapor pressure, a majority of the measured concentrations for most workplaces were below the LOQ, rendering median and GM concentrations insensitive indicators of exposure and demanding a high number of samples for a good exposure assessment. From a practical IH perspective, it was shown that the concentration of MDI oligomers correlated well with and was lower than that of the MDI monomers in 95% of the cases.

While the distributions and averages showed little evolution over time other than a reduction of large excursions, the confirmed use of RPE at concentrations >0.05 mg/m³ increased between 2011 and 2020 compared to the period prior to 2010. In particular in the composite wood industry, the awareness for, and expectation of, potentially high exposures led to a near-100% use of RPE at concentrations >0.05 mg/m³. It is worth noting that the use of RPE for personal samples was generally high in this industry sector, while improvement potential still exists for other sectors. In addition, a potential for improved engineering control of airborne MDI concentrations in the blending and forming sections of composite wood production facilities was identified. In the hierarchy of controls for workplace exposure reduction (CDC, 2015), such measures should take precedence over the use of RPE.

Finally, future IH exposure monitoring work could benefit from better documentation of RPE usage and of the type of respirator used. Together with the documentation of dermal exposure, this would enable a better assessment of overall net exposure and an improved correlation of exposure with health effects.

Supplemental Material

Supplemental Material - Methylene diphenyl diisocyanate occupational exposure data in industry (1998–2020): A descriptive summary from an industrial hygiene perspective

Supplemental Material for Methylene diphenyl diisocyanate occupational exposure data in industry (1998–2020): A descriptive summary from an industrial hygiene perspective by Mark W Spence, Patrick M Plehiers, Angel George, and Jeanne Hankett in Toxicology and Industrial Health.

Footnotes

Acknowledgments

The authors would like to acknowledge the contributions of Mark McKinney and Liz Hugel of BASF Corporation to the development of this manuscript.

Declaration of conflicting interests

Mark W Spence and Patrick M Plehiers are employed by the International Isocyanate Institute, Inc. The Institute is funded by producers of TDI and MDI. Angel George and Jeanne Hankett are employed by BASF Corporation, a producer of MDI.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: The work reported herein was funded by the International Isocyanate Institute, Inc. Any opinions expressed are those of the authors, not necessarily of the International Isocyanate Institute Inc. or its member companies.

Ethical approval

The work did not involve interaction with human study subjects and ethical approval was not required.

ORCID iDs

Mark W Spence

Patrick M Plehiers

Supplemental Material

Supplemental material for this article is available online.

Notes

References

ACGIH (American Conference of Governmental and Industrial Hygienists) (1986) Methylene Bisphenyl Isocyanate: TLV® Chemical Substances 8th Edition Documentation. Cincinnati, OH, USA: ACGIH. Available at: https://portal.acgih.org/s/store#/store/browse/detail/a154W00000BOavwQAD (accessed 28 November 2022).

Antoniou

Zeegers

(2022) The relationship between toluene diisocyanate exposure and respiratory health problems: a meta-analysis of epidemiological studies. Toxicology and Industrial Health 38(9): 595–605.

Bello

Herrick

Smith

, et al. (2007) Skin exposure to isocyanates: reasons for concern. Environmental Health Perspectives 115(3): 328–335.

Bilan

Hafladson

Mcvittie

(1989) Assessment of isocyanate exposure during the spray application of polyurethane foam. American Industrial Hygiene Association Journal 50(6): 303–306.

Booth

Cummings

Karoly

, et al. (2009) Measurements of airborne methylene diphenyl diisocyanate (MDI) concentration in the U.S. workplace. Journal of Occupational and Environmental Hygiene 6(4): 228–238.

Brzeznicki

Bonczarowska

(2015) Occupational exposure to selected isocyanates in polish industry. Medycyna Pracy 66(3): 291–301.

CDC (Centers for Disease Control) (2015) NIOSH Workplace Safety and Health Topics: Hierarchy of Controls. Atlanta, GA, USA: CDC. Available at: https://www.cdc.gov/niosh/topics/hierarchy/default.html (accessed 23 April 2023).

CPI (Center for the Polyurethane Industry) (2022) End-Use Market Survey on the Polyurethanes Industry in the United States, Canada and Mexico. Proprietary report available for purchase at: https://store.americanchemistry.com/products/2021-cpi-eums (accessed 28 November 2022).

Creely

Hughson

Cocker

, et al. (2006) Assessing isocyanate exposures in polyurethane industry sectors using biological and air monitoring methods. The Annals of Occupational Hygiene 50(6): 609–621.

10.

Crespo

Galán

(1999) Exposure to MDI during the process of insulating buildings with sprayed polyurethane foam. The Annals of Occupational Hygiene 43(6): 415–419.

11.

Harari

Bello

Woskie

, et al. (2022) Assessment of personal inhalation and skin exposures to polymeric methylene diphenyl diisocyanate during polyurethane fabric coating. Toxicology and Industrial Health 38(9): 622–635.

12.

Hext

Booth

Dharmarajan

, et al. (2003) A comparison of the sampling efficiencies of a range of atmosphere samplers when collecting polymeric diphenylmethane di-isocyanate (MDI) aerosols. Applied Occupational and Environmental Hygiene 18(5): 346–357.

13.

Hon

Peters

Jardine

, et al. (2017) Historical occupational isocyanate exposure levels in two Canadian provinces. Journal of Occupational and Environmental Hygiene 14(1): 1–8.

14.

HSE (HealthExecutive) (2015) Organic isocyanates in air. Buxton, Derbyshire, UK: HSE. Available at: https://www.hse.gov.uk/pubns/mdhs/pdfs/mdhs25-4.pdf (accessed 28 January 2023).

15.

IARC (International Agency for Research on Cancer) (1999) Monographs on the evaluation of carcinogenic risks to humans. Volume 71 Re-evaluation of some organic chemicals, hydrazine and hydrogen peroxide. Lyon, France: World Health Organization

16.

ISO 17734-1:2013 (2013) Determination Of Organonitrogen Compounds in Air Using Liquid Chromatography and Mass Spectrometry — Part 1: Isocyanates Using Dibutylamine Derivatives. Geneva, Switzerland: International Organization for Standardization.

17.

Kääriä

Hirvonen

Norppa

, et al (2001) Exposure to 4,4’-methylenediphenyl diisocyanate (MDI) during moulding of rigid polyurethane foam: determination of airborne MDI and urinary 4,4’-methylenedianiline (MDA). The Analyst 126(4): 476–479.

18.

Kakooei

Shahtaheri

Karbasi

(2006) Evaluation of workers’ exposure to methylene diphenyl diisocyanate (MDI) in an automobile manufacturing company, Iran. International Journal of Occupational Safety and Ergonomics 12(4): 443–449.

19.

Karoly

Flatley

Stevenson

, et al. (2004) Airborne concentrations of methylene diphenyl diisocyanate (MDI) in North American wood mills during the manufacturing of oriented strand board (OSB). Journal of Occupational and Environmental Hygiene 1(12): 789–798.

20.

Lesage

Stanley

Karoly

, et al. (2007) Airborne methylene diphenyl diisocyanate (MDI) concentrations associated with the application of polyurethane spray foam in residential construction. Journal of Occupational and Environmental Hygiene 4: 145–155.

21.

NIOSH (National Institute for Occupational Safety and Health) (1994) Isocyanates, monomeric. Cincinnati, OH, USA: NIOSH. Available at: https://www.cdc.gov/niosh/docs/2003-154/pdfs/5521.pdf (accessed 28 January 2023).

22.

OSHA (Occupational Safety and Health Administration) (1989) Methylene Bisphenyl Isocyanate (MDI). Sandy, UT, USA: OSHA. (accessed on 28 January 2023).

23.

OSHA (Occupational Safety and Health Administration) (2021) Organic Vapor Sampling Group 3 (OVSG-3): Diisocyanate Analytes Collected on Coated Glass Fiber Filters. Sandy, UT, USA: OSHA. Available at: https://www.osha.gov/sites/default/files/methods/5002.pdf (accessed 28 November 2022).

24.

OSHA (Occupational Safety and Health Administration) (2022) Methylene bisphenyl isocyanate (MDI; 4,4-diphenylmethane diisocyanate). Available at: https://www.osha.gov/chemicaldata/23 (accessed 28 November 2022).

25.

Ott

Diller

Jolly

(2003) Respiratory effects of toluene diisocyanate in the workplace: a discussion of exposure-response relationships. Critical Reviews in Toxicology 33(1): 1–59.

26.

Ott

Klees

Poche

(2000) Respiratory health surveillance in a toluene di-isocyanate production unit, 1967-97: clinical observations and lung function analyses. Occupational and Environmental Medicine 57(1): 43–52.

27.

Plehiers

Chappelle

Spence

(2020a) Practical learnings from an epidemiology study on TDI-related occupational asthma: Part I-Cumulative exposure is not a good indicator of risk. Toxicology and Industrial Health 36(11): 876–884.

28.

Plehiers

Chappelle

Spence

(2020b) Practical learnings from an epidemiology study on TDI-related occupational asthma: Part II-Exposure without respiratory protection to TWA-8 values indicative of peak events is a good indicator of risk. Toxicology and Industrial Health 36(11): 885–891.

29.

Rother

Schlüter

(2021) Occupational exposure to diisocyanates in the European Union. Annals of Work Exposures and Health 65(8): 893–907.

30.

Säkkinen

Tornaeus

Hesso

, et al. (2011) Protein adducts as biomarkers of exposure to aromatic diisocyanates in workers manufacturing polyurethane (PUR) foam. Journal of Environmental Monitoring 13(4): 957–965.

31.

Sayles

Finnegan

Pike

, et al (2022) Toluene diisocyanate occupational exposure data in the polyurethane industry (2005-2020): a descriptive summary from an industrial hygiene perspective. Toxicology and Industrial Health 38(9): 606–621.

32.

Schaal

Brazile

Finnie

, et al. (2017) Effects of known determinants on methylene bisphenyl isocyanate (MDI) concentration during spray-on truck bed-lining processes. Annals of Work Exposures and Health 61(7): 872–882.

33.

Sennbro

Lindh

Ostin

, et al. (2004) A survey of airborne isocyanate exposure in 13 Swedish polyurethane industries. The Annals of Occupational Hygiene 48(5): 405–414.

34.

Shahtaheri

Kakooei

Karbasi

(2005) Evaluation of workers’ exposure to methylene diphenyl diisocyanate in an automobile manufacturing company, Iran. Occupational and Environmental Medicine 62: e22.

35.

Song

, et al. (2006) [Relationship between contact concentration and urinary metabolites in workers exposed to methylenediphenyl diisocyanate]. Zhiye Yu Jiankang 22(21): 1795–1796. [title translated from Chinese].

36.

Spence

Plehiers

(2022) A brief overview of properties and reactions of diisocyanates. Toxicology and Industrial Health 38(9): 495–499.

37.

Swierczynska-Machura

Brzeznicki

Nowakowska-Swirta

, et al. (2015) Occupational exposure to diisocyanates in polyurethane foam factory workers. International Journal of Occupational Medicine and Environmental Health 28(6): 985–998.

38.

Tinnerberg

Broberg

Lindh

, et al. (2014) Biomarkers of exposure in monday morning urine samples as a long-term measure of exposure to aromatic diisocyanates. International Archives of Occupational and Environmental Health 87(4): 365–372.

39.

Vangronsveld

Berckmans

Verbinnen

, et al (2010) Isocyanate and total inhalable particulate air measurements in the European wood panel industry. International Journal of Hygiene and Environmental Health 213: 475–488.

40.

Weill

Butcher

Dharmarajan

, et al. (1981) Respiratory and Immunologic Evaluation of Isocyanate Exposure in a New Manufacturing Plant. NIOSH Technical Report Publication No. 81-125. Morgantown, WV, USA: National Institute of Occupational Safety and Health.

41.

Wood

(2017) Center for the Polyurethanes Industry summary of unpublished industrial hygiene studies related to the evaluation of emissions of spray polyurethane foam insulation. Journal of Occupational and Environmental Hygiene 14(9): 681–693.

42.

Yang

(2016) [Analysis of major occupational hazards in automobile seat foaming process]. Zhiye Weisheng Yu Yingji Jiuyuan 34(4): 312–313. [title translated from Chinese].

Supplementary Material

Please find the following supplemental material available below.

For Open Access articles published under a Creative Commons License, all supplemental material carries the same license as the article it is associated with.

For non-Open Access articles published, all supplemental material carries a non-exclusive license, and permission requests for re-use of supplemental material or any part of supplemental material shall be sent directly to the copyright owner as specified in the copyright notice associated with the article.

0.00 MB

0.39 MB

Methylene diphenyl diisocyanate occupational exposure data in industry (1998–2020): A descriptive summary from an industrial hygiene perspective

Abstract

Keywords

Introduction

Methods

Description of the data set

Definition of sample types

Data processing

Results

Summary by geographical region

Summary by time period

Summary by sample type and concentration

Analysis of airborne concentrations exceeding 0.2 mg/m3

Analysis of concentration of MDI oligomers

Overview by type of application

Detailed overview of composite wood applications

Discussion

Conclusion

Supplemental Material

Supplemental Material - Methylene diphenyl diisocyanate occupational exposure data in industry (1998–2020): A descriptive summary from an industrial hygiene perspective

Footnotes

Acknowledgments

Declaration of conflicting interests

Funding

Ethical approval

ORCID iDs

Supplemental Material

Notes

References

Supplementary Material

Analysis of airborne concentrations exceeding 0.2 mg/m³
