Effects of bisphenol A,bisphenol S,and tetramethyl bisphenol F on male fertility in Caenorhabditis elegans

Abstract

Research has shown that exposure to bisphenol A (BPA), a widely used plasticizer, can lead to meiotic errors, resulting in poor reproductive cell quality and infertility. Health-related concerns have prompted the search for BPA alternatives; however, evidence suggests that currently used BPA analogs, such as bisphenol S (BPS), may pose similar risks to human health. While the effects of BPA on female fertility are well documented, the impact of BPA exposure on sperm quality is poorly understood. To better understand the effects of bisphenol analogs on spermatogenesis, we synthesized a less investigated BPA analog, tetramethyl bisphenol F (TMBPF), and compared its reprotoxic potential to that of widely used BPA and BPS using C. elegans-based assays. We evaluated germ cell count, spermatid size, morphology, and activation in males treated with 0.5 mM ethanol-dissolved bisphenol analogs for 48 h as well as their cross-progeny number and viability. Our results indicated that all of the evaluated bisphenol analogs—BPA, BPS, and TMBPF—adversely affect male fertility to varying degrees. Whereas all three bisphenols reduced spermatid size, only BPA exposure resulted in impaired spermatid activation and significantly reduced brood size. In addition, a decrease in embryonic viability, suggestive of an increased incidence of sperm chromosomal aberrations, was observed following exposure to all of the tested bisphenols. Further investigation is necessary to fully elucidate the underlying mechanisms and implications of BPA, BPS, and TMBPF on spermatogenesis.

Keywords

Bisphenol A BPA analogs reprotoxicity meiosis male fertility

Introduction

Infertility affects an estimated 17.5% of reproductive-aged couples worldwide (Cox et al., 2022). Growing evidence indicates that bisphenol A (BPA), a known endocrine disruptor, not only interferes with hormone signaling but also negatively impacts the quality of reproductive cells (Machtinger and Orvieto, 2014; Matuszczak et al., 2019). Since the commercial potential of BPA was recognized in the 1950s, it has been extensively utilized in the production of epoxy resins and polycarbonates (Bilyeu et al., 2005). These polymers have found applications in a wide array of products ranging from food and drink packaging to clothing, electronics, and medical and safety devices (Guimarães et al., 2023). Although BPA has found great utility as a plasticizer, it may leach from damaged and heated plastics (Lopez-Cervantes, 2003), resulting in increased BPA exposure in the general population. Accumulating evidence from both animal and human studies indicates that BPA impairs meiotic fidelity, resulting in poor quality female reproductive cells (Machtinger and Orvieto, 2014; Matuszczak et al., 2019). Although BPA-related health concerns have prompted the search for safer alternatives, research has shown that the most frequently used commercial BPA alternative, bisphenol S (BPS), affects oocyte quality and overall female reproductive health in a similar fashion as BPA (OEHHA, 2023).

The primary route of exposure for both BPA and BPS is through the ingestion of food or beverages contaminated by leachate from packaging materials, while other routes include skin contact and inhalation of indoor dust (Ma et al., 2019). The presence of BPA and BPS has been confirmed in human blood and urine. Median urinary levels of BPA and BPS in the adult U.S. population are approximately 1.2 ng/mL (interquartile range: 0.6–2.5 ng/mL) and 0.4 ng/mL (0.1–0.9 ng/mL), respectively (Lehmler et al., 2018). BPA concentrations in human blood range from 0.5 ng/mL to 10.0 ng/mL, while BPS serum concentrations vary from 0.2 ng/mL (50th percentile) to 2.9 ng/mL (95th percentile) (OEHHA, 2023; Vandenberg et al., 2010). During pregnancy, BPA levels can be also detected in human reproductive and fetal tissues, with concentrations ranging from 0.2 ng/mL to 9.2 ng/mL in fetal plasma and from 1.0 ng/g to 104.9 ng/g in placental tissue (Schönfelder, 2002).

While the effects of BPA on female fertility are well documented, research on the impact of BPA exposure on sperm quality has yielded mixed results, with some studies indicating a significant association with poor semen quality, while others show no such correlation (Castellini et al., 2020; Matuszczak et al., 2019). Specifically, research conducted on animal models suggests that BPA might negatively impact male fertility by altering sperm morphology, decreasing sperm count and its motility (Cariati et al., 2019; Davis et al., 2023; Liu et al., 2021; Rahman et al., 2015). Evidence for the potential effects of BPA on human reproductive health largely comes from observational epidemiological studies (Castellini et al., 2020). Whereas some studies have reported a link between increased urinary BPA excretion and changes in sperm morphology, count, and/or motility (Chen et al., 2022; Li et al., 2011; Omran et al., 2018), other studies have shown no significant associations with any standard sperm quality parameters (Adoamnei et al., 2018; Benson et al., 2021). In addition, recent studies investigating the impact of BPS on male fertility have resulted in inconsistent findings (Benson et al., 2021; Chen et al., 2022; Davis et al., 2023). Given our limited understanding of the effects of bisphenol analogs on male fertility, more research is needed to fully elucidate their impact on spermatogenesis.

In this study, we used Caenorhabditis elegans to investigate and compare the male reproductive toxicity of BPA, BPS, and tetramethyl bisphenol F (TMBPF) (Figure 1). Whereas BPA and BPS are widely used in the plastics industry for a variety of commercial applications, TMBPF has recently emerged as a promising bisphenol alternative owing to its minimal in vitro estrogenic and androgenic endocrine activity, as well as its negligible effects on female and male reproductive organs in animal studies (Soto et al., 2017; Szafran et al., 2017; Maffini et al., 2020). Considering the implied lower toxicity of TMBPF, we investigated its effects on male meiosis and compared it to widely used bisphenol analogs, BPA and BPS.

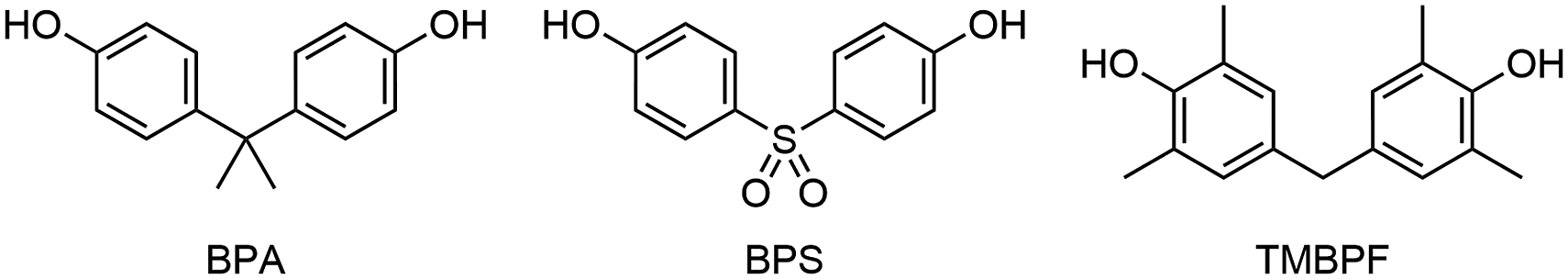

Figure 1.

Structures of BPA, BPS, and TMBPF. Abbreviations: BPA, bisphenol A; BPS, bisphenol S; TMBPF, tetramethyl bisphenol F.

Materials and methods

Synthesis and characterization of TMBPF

General methods

BPA, BPS, and all chemicals used in the synthesis of TMBPF were purchased from Sigma-Aldrich and used without further purification. Thin-layer chromatography (TLC) was performed on polyester-backed plates pre-coated with silica gel containing a fluorescent indicator (200 μm layer thickness and 5–17 μm particle size). Developed TLC plates were visualized using a shortwave UV lamp (254 nm). Nuclear magnetic resonance (NMR) data was recorded using a Varian Mercury 400 MHz spectrometer. Chemical shifts are reported in parts per million (ppm) and were referenced to the DMSO-d₆ solvent peak. High-resolution mass spectrometry data was recorded using a Thermo Orbitrap Exploris™ 120 mass spectrometer.

Synthetic methodology

The synthetic protocol used to prepare TMBPF was adapted from a previously published method (Singh et al., 2014). 2,6-Dimethylphenol (1.00 g, 8.19 mmol) was dissolved in petroleum ether (8.0 mL) in a round-bottomed flask containing a magnetic stir bar. An aqueous solution of formaldehyde (37% w/v, 1.40 mL, 13.7 mmol) and concentrated HCl (1.0 mL) were subsequently added to the reaction mixture, which was stirred at room temperature for 2.5 h. The reaction was quenched with 90 mL of distilled water and stirred for an additional 15 min. During this time, a white solid product precipitated from the reaction mixture. After cooling the reaction mixture overnight at −20°C to induce further precipitation, the white solid product was collected via suction filtration and analyzed using TLC (R_f = 0.35; 1:4 ethyl acetate/hexane eluent). The desired TMBPF product was afforded in 36% yield (0.383 g, 1.49 mmol) with no further purification required.

Characterization of TMBPF

¹H NMR (DMSO-d₆, 400 MHz): δ (ppm) 7.91 (s, 2H, OH), 6.69 (s, 4H, Ph), 3.55 (s, 2H, CH₂), 2.09 (s, 12H, CH₃); ¹³C{¹H} NMR (DMSO-d₆, 100 MHz): δ (ppm) 151.16, 132.49, 128.34, 123.98, 39.83, 16.71; HRMS (ESI) m/z: [M-H]^- calcd for C₁₇H₁₉O₂, 255.1391; found, 255.1390. This characterization data aligns well with previously published work (Deota et al., 2006; Liu et al., 2012).

C. elegans maintenance

C. elegans strains were maintained at 20°C on nematode growth medium (NGM) supplemented with Escherichia coli OP50 as a food source according to standard protocols (Stiernagle, 2006). The following strains were used in this study: DR466 [him-5(e1490) V] and CB4108 [fog-2(q71) V].

Bisphenol treatment

The bisphenols used in the study were dissolved in 100% ethanol. The animals were treated in a liquid medium containing M9 buffer, concentrated OP-50 (Parodi et al., 2015), and bisphenol analogs. The final concentration of bisphenols in the medium was 0.5 mM, while the final concentration of the vehicle, 100% ethanol, was 0.5%. The external concentration of 0.5 mM was selected because it was previously demonstrated that this concentration, following uptake in C. elegans, results in an internal concentration that approximates the levels of BPA and BPS found in human reproductive and fetal tissues (Chen et al., 2016). In all the experiments, 0.5% ethanol served as a control. The 48-h treatments were performed on L4-stage virgin male him-5 mutants synchronized by picking. All experiments were conducted at 20°C and were independently repeated at least three times, with 3–5 animals per trial.

Total brood size assay

Following exposure, three males were crossed with an L4-stage female fog-2 mutant. After a 24-h mating period, the fog-2 mutants were individually transferred onto NGM plates to lay eggs. To facilitate easy monitoring, the singled worms were moved to new NGM plates daily. The animals were observed for approximately 5 days, from the start of the egg-laying period until they stopped laying fertilized eggs. The total number of fertilized eggs and successfully hatched larvae were counted using a dissecting light microscope.

Germline staining assay

Following treatment, males were fixed in 5 μL of 90% aqueous ethanol on a glass slide. Once the ethanol evaporated, 5 μL of staining solution (1 mg/mL DAPI in 90% ethanol) was applied to the slide. The slide was then incubated in the dark for 5 min before a cover slip was placed and sealed with nail polish. Z-stacks of each germline were collected at 40X using a fluorescence microscope (All-in-One Fluorescence Microscope BZ-X800, Keyence, Japan), and the number of germline nuclei was counted using ImageJ software.

Sperm size assay

This assay was performed according to the published protocol (Hammerquist et al., 2021). Briefly, treated males were transferred into 15 μL of SM buffer containing dextrose on a microscope slide. The worms were dissected using 27-gauge needles and the released spermatids were covered with a cover slip, which was sealed with nail polish. The spermatid images were captured using a 100x objective and a DIC filter (All-in-One Fluorescence Microscope BZ-X800, Keyence, Japan). The diameter and cross-sectional area of the spermatids were measured using ImageJ software.

Spermatid activation assay

This assay was performed according to the published protocol (Hammerquist et al., 2021). Briefly, treated males were dissected in 15 μL of SM buffer containing bovine serum albumin (BSA) on a microscope slide. The released spermatids were exposed to 400 ng/µL pronase and incubated in a humid chamber for 10 min. The number of spermatids observed with a pseudopod was counted under a DIC microscope (All-in-One Fluorescence Microscope BZ-X800, Keyence, Japan). The rate of spermatid activation was calculated as the ratio of the number of sperm with a pseudopod to the total number of spermatids observed.

Data analysis

One-way ANOVA with Tukey’s post hoc test was used for parametric data, while a non-parametric Kruskal–Wallis test followed by Dunn’s multiple comparisons was performed to analyze data if ANOVA assumptions could not be met. A p-value less than 0.05 was considered statistically significant.

Results

Synthesis and characterization of TMBPF

TMBPF was prepared by adapting a published electrophilic aromatic substitution protocol involving 2,6-dimethylphenol, formaldehyde, and an acid catalyst (Figure 2) (Singh et al., 2014). The TMBPF product was characterized using ¹H and ¹³C{¹H} NMR spectroscopy and high-resolution mass spectrometry to ensure its high purity and identity prior to use in toxicity assays.

Figure 2.

Electrophilic aromatic substitution reaction used to prepare TMBPF. Abbreviation: TMBPF, tetramethyl bisphenol F.

Effect of BPA, BPS, and TMBPF exposure on brood size

To evaluate the effect of bisphenol analogs on male fertility, we first quantified the number of fertilized eggs laid by fog-2 females following mating with bisphenol-exposed him-5 males. As shown in Figure 3(A), although all bisphenol treatments resulted in a slightly reduced number of embryos, the differences were not statistically significant relative to the control (ethanol: 491.7 ± 15.6; BPA: 422.5 ± 21.0; BPS: 455.9 ± 20.7; and TMBPF 479.0 ± 21.6 fertilized eggs laid).

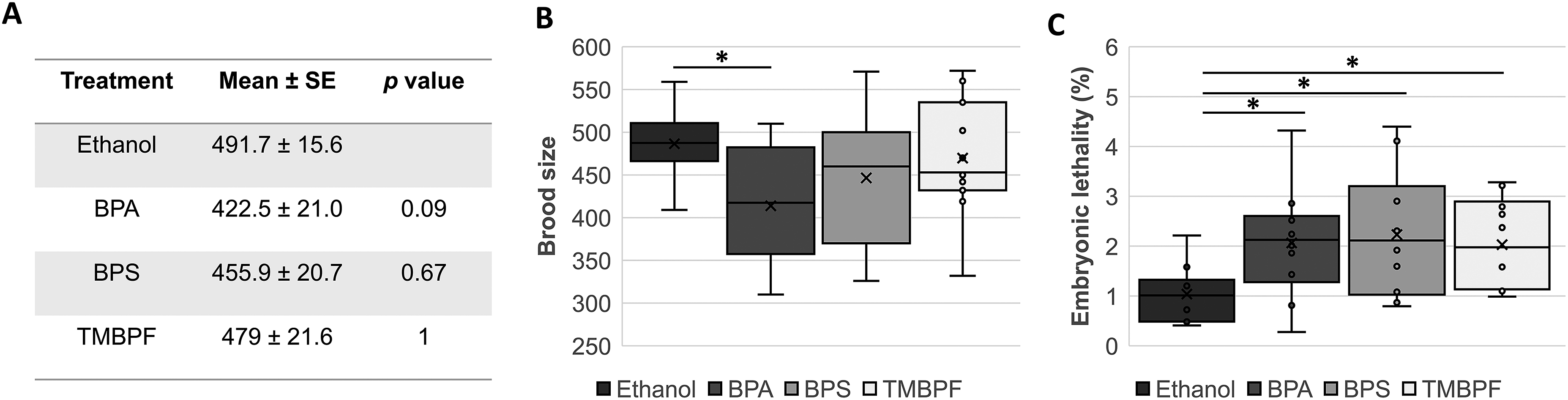

Figure 3.

Effect of bisphenols on fertility and embryonic lethality. (a) Number of fertilized eggs laid in each treatment group. (b) Brood size of him-5 males exposed to different bisphenol treatments. (c) Embryonic lethality observed among the progeny of him-5 males in each treatment group. The number of animals tested per treatment in each of the experiments was as follows: 10 in ethanol, 10 in BPA, 11 in BPS, and 11 in TMBPF. The p-value indicates the difference compared to the ethanol-treated control group. *p < .05. Abbreviations: BPA, bisphenol A; BPS, bisphenol S; TMBPF, tetramethyl bisphenol F.

To investigate the effect of bisphenol analogs on brood size, we observed the hatched larvae. As shown in Figure 3(B), all treatment groups exhibited a trend toward a reduced brood size. However, only BPA exposure resulted in a statistically significant decrease in the number of viable progeny (ethanol: 486.5 ± 15.2; BPA: 413.9 ± 20.8; BPS: 446.5 ± 21.3; and TMBPF 469.7 ± 20.9 viable offspring).

Given that embryonic lethality is indicative of meiotic defects and an increase in the incidence of chromosomal aberrations in embryos, we quantified the percentage of unhatched fertilized eggs. All treatment groups experienced a significant increase in embryonic lethality compared with the control (Figure 3(C)). The percentages of unhatched eggs were as follows: 1.1 ± 0.2% in ethanol-treated males, 1.5 ± 0.3% in BPA, 2.1 ± 0.4% in BPS, and 1.9 ± 0.3% in TMBPF treatment.

Assessment of germline nuclei number in males exposed to bisphenol treatments

To further investigate the decrease in brood size, we first assessed the germline size by comparing the total germline nuclei count of males exposed to different bisphenol treatments with that of ethanol-treated males. As shown in Figure 4, the overall germline sizes of the males exposed to BPA, BPS, and TMBPF were not significantly different from the control (ethanol: 277.2 ± 15.0 nuclei; BPA: 268.9 ± 8.5 nuclei; BPS: 285.1 ± 18.2 nuclei; and TMBPF: 255.6 ± 17.5 nuclei).

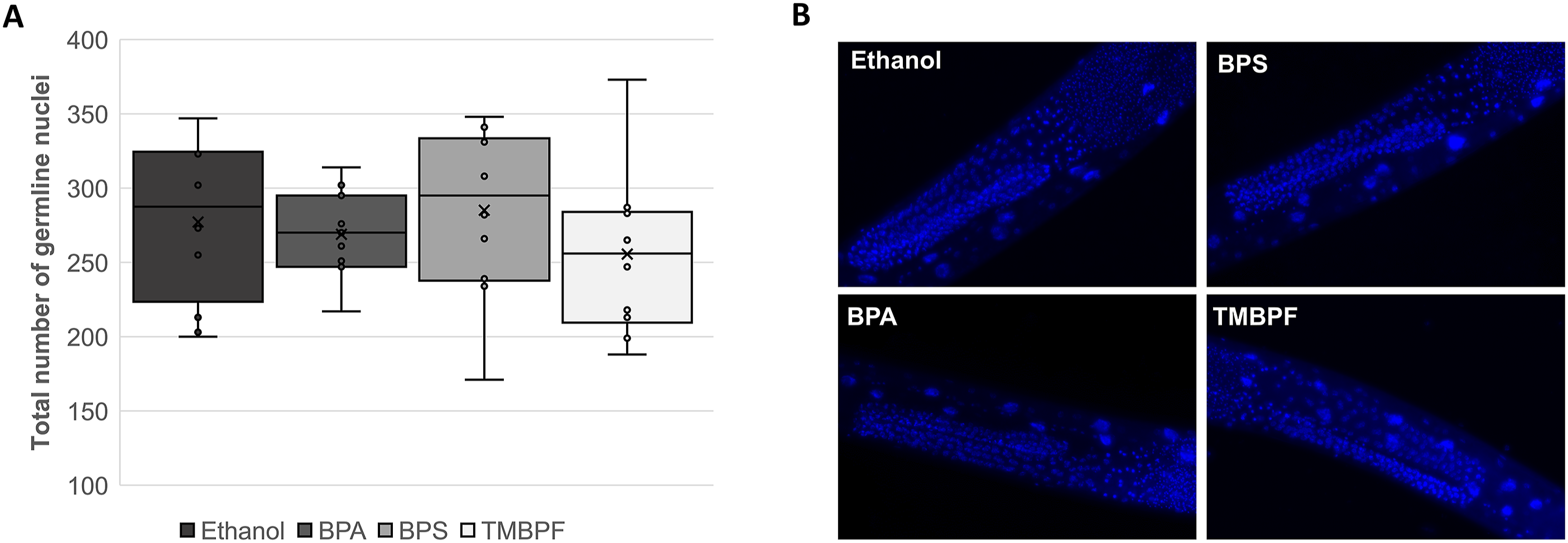

Figure 4.

Effect of bisphenol treatments on germline. (a) Total number of germline nuclei in him-5 males following different bisphenol treatments. The number of animals tested per treatment was as follows: 12 in ethanol, 11 in BPA, 10 in BPS, and 10 in TMBPF. (b) Representative germline images stained by DAPI in ethanol- and bisphenol-treated worms. Abbreviations: BPA, bisphenol A; BPS, bisphenol S; TMBPF, tetramethyl bisphenol F.

Effect of bisphenol treatments on spermatid size and morphology

To evaluate whether a reduced reproductive capacity was due to changes in sperm size and morphology, we measured spermatid diameter and cross-sectional area. As shown in Figure 5, control group males had an average spermatid diameter of 6.2 ± 0.03 µm and spermatid cross-sectional area of 28.06 ± 0.24 µm². While the spherical shape of spermatids was not affected by the treatments, all three bisphenol exposures significantly reduced the diameter of the spermatids (BPA: 5.9 ± 0.03 µm; BPS: 5.9 ± 0.03 µm; TMBPF: 5.9 ± 0.03 µm; p < .001) as well as the spermatid cross-sectional area in exposed males (BPA: 25.55 ± 0.29 µm²; BPS: 25.46 ± 0.26 µm²; TMBPF: 25.85 ± 0.23 µm²; p < .001).

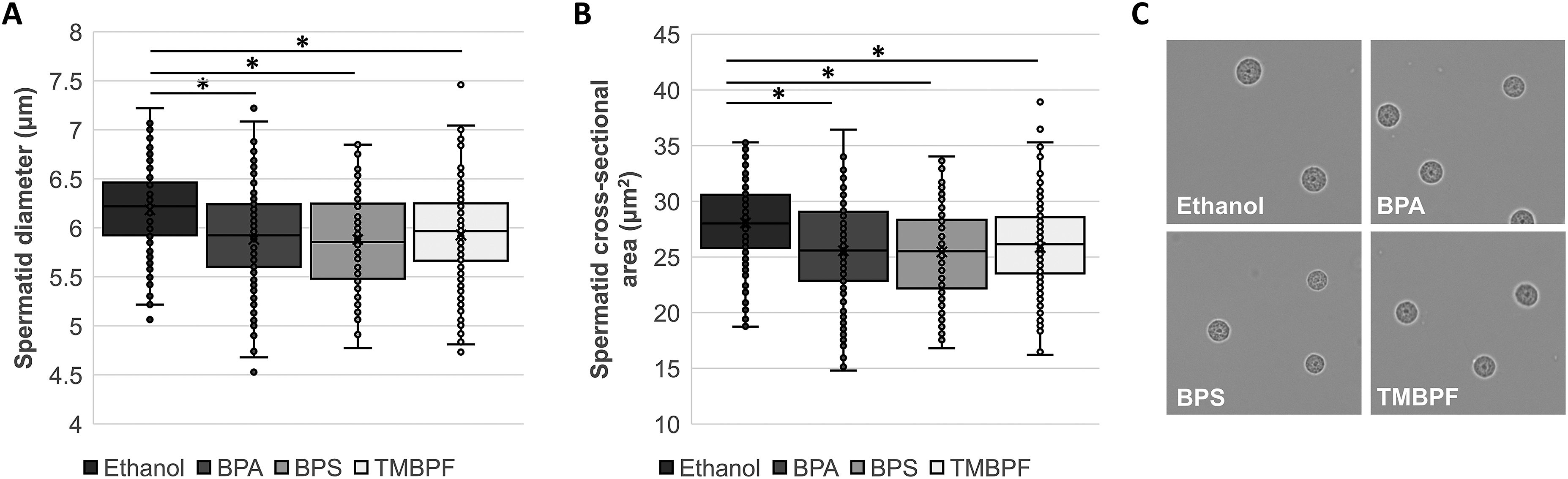

Figure 5.

Effect of bisphenol exposure on spermatid size. (a) Spermatid diameter in him-5 males exposed to bisphenol treatments. (b) Spermatid cross-sectional area in him-5 males exposed to bisphenol treatments. (c) Representative images of spermatids in him-5 worms following treatments. At least 200 spherical spermatids were scored per treatment in three independent trials. The p-value indicates the difference compared to the ethanol-treated control group. *p < .001.

Assessment of spermatid activation in males exposed to bisphenol treatments

To investigate sperm motility, we determined the rate of spermatid activation following exposure to the bisphenol treatments. As shown in Figure 6, we observed 96.96 ± 0.33% spermatid activation in ethanol-exposed worms, 89.10 ± 4.25% in BPA-exposed worms, 94.36 ± 1.76% in BPS-exposed worms, and 97.03 ± 0.48% following TMBPF treatment. A statistically significant reduction in the rate of spermatid activation was observed only in animals exposed to BPA (p < .05).

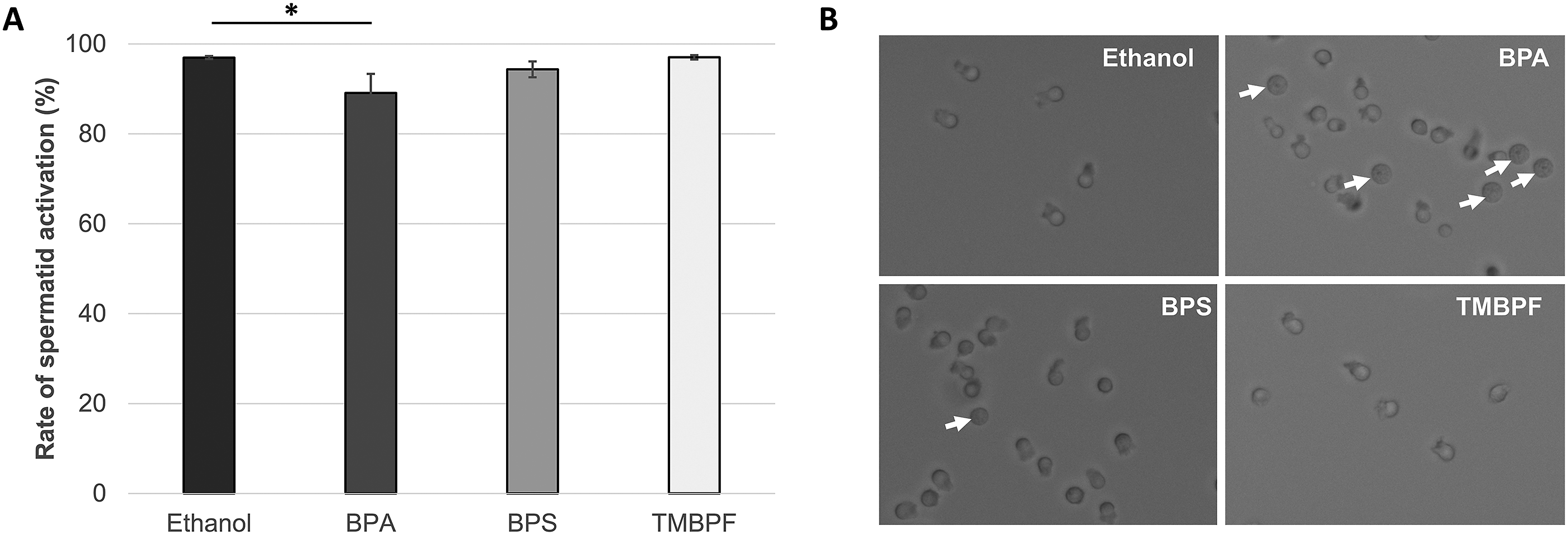

Figure 6.

Effect of bisphenol exposure on spermatid activation. (a) Rate of spermatid activation in him-5 males exposed to bisphenol treatments. (b) Representative images of spermatid activation in him-5 worms following treatments. At least 100 spermatids were scored per trial, with 4 replicates per treatment. Unactivated spermatids are indicated with white arrows. The data is presented as the mean ± standard error of the mean (SEM). The p-value indicates the difference compared to the ethanol-treated control group. *p < .05.

Discussion

Despite the growing body of evidence linking BPA with female infertility (Machtinger and Orvieto, 2014; Matuszczak et al., 2019), research on the impact of BPA exposure on male fertility shows inconsistent results requiring further investigation. Previous studies on animal models have shown that BPA exposure adversely affects sperm count, viability, and motility in animals such as mice, rats, and bulls (Cariati et al., 2019; Davis et al., 2023; Liu et al., 2021; Rahman et al., 2015). However, human studies have yielded mixed results, with some observing a negative impact on certain sperm quality parameters, while others finding no association (Adoamnei et al., 2018; Benson et al., 2021; Chen et al., 2022; Li et al., 2011; Omran et al., 2018).

In recent years, C. elegans, a model organism increasingly used in toxicology, has been shown to reliably predict the female reproductive toxicity potential of BPA and BPS in mammals (Allard and Colaiácovo, 2010; Chen et al., 2016; Hyun et al., 2021). C. elegans has also proven useful in studying the effects of environmental contaminants on spermatogenesis because of the high level of gene conservation with humans, temporal-spatial organization of the gonad, and easy visualization, isolation, and activation of spermatids (Li et al., 2016; Yin et al., 2021). Although C. elegans cannot replace more complex mammalian models, it is a valuable complementary tool for predicting the toxic potential of chemicals that may impact human health or the environment (Hunt et al., 2020). Therefore, to gain further insights into the effects of BPA analogs on spermatogenesis, in this study, we used C. elegans males to investigate and compare the reproductive toxicity of BPA, BPS, and TMBPF.

The number of offspring is often used as a sensitive endpoint marker to assess the reprotoxic potential of chemicals and predict defects in the reproductive capacity of C. elegans (Hunt, 2017). Previous studies evaluating the impact of BPA, BPS, and TMBPF on C. elegans hermaphrodites showed a significant decrease in the number of progeny in exposed animals (Chen et al., 2016; Hyun et al., 2021). However, since hermaphrodites generate both oocytes and sperm, these findings do not differentiate between the impact on oogenesis and spermatogenesis. In the present study, to gain a better understanding of the effects of bisphenols on spermatogenesis, we quantified outcross-progeny between bisphenol-treated males and unexposed mutant females. While the brood size of BPS-treated males was slightly decreased, we observed a significant reduction in the number of viable offspring in BPA-exposed males. The brood size of the TMBPF-exposed males was comparable to the control. Our findings suggest that the BPA-induced lower fecundity in C. elegans hermaphrodites, previously reported by our group and others, may be partially due to defects in spermatogenesis (Allard and Colaiácovo, 2010; Chen et al., 2016; Hyun et al., 2021; Roberts et al., 2022).

Although exposure to reproductive toxins can sometimes impact gonad size, in the present study, none of the evaluated bisphenol analogs significantly affected the total germ cell number. The reduction in gonad size previously reported to contribute to decreased reproductive capacity in BPA- and BPS-exposed C. elegans hermaphrodites was usually accompanied by an increased incidence of germline apoptosis during oogenesis (Allard and Colaiácovo, 2010; Chen et al., 2016). While germ cell apoptosis is a common occurrence during oogenesis in C. elegans, this process is not observed in males (Gumienny et al., 1999). Considering that germ cells do not undergo programmed cell death in C. elegans males, defective sperm may complete meiosis and participate in fertilization, potentially contributing to embryonic lethality. To investigate this possibility, we evaluated embryonic viability in the offspring of the bisphenol exposed males. All of the evaluated bisphenol derivatives—BPA, BPS, and TMBPF—caused a significant decrease in embryonic viability compared to the control, implying that bisphenol exposure may lead to sperm chromosomal abnormalities. Our findings are consistent with previous research in C. elegans hermaphrodites reporting that BPA and BPS exposure adversely affects embryonic survival (Allard and Colaiácovo, 2010; Chen et al., 2016). Previous studies in mammalian model organisms also showed an increased incidence of chromosomal aberrations in offspring following BPA exposure (Lombó et al., 2019; Rahman et al., 2015).

Given the observed reduced fecundity and increased embryonic lethality, we next assessed spermatid size, morphology, and activation. Spermatid size has been shown to affect sperm fertilization competence in C. elegans, with larger sperm moving much faster and thus having a higher chance of successful fertilization (LaMunyon and Ward, 1998). In the present study, we observed significantly smaller spermatids in males exposed to the bisphenol treatments than in the control group. Although the size of the spermatids was affected in all treatment groups, spermatid activation was significantly impaired only in males exposed to BPA. During spermatid activation, C. elegans converts non-motile spermatids into motile spermatozoa by extending a pseudopod, a structure that initiates motility and facilitates oocyte fertilization (Shimada et al., 2023). Our findings suggest that, unlike BPS and TMBPF, BPA exposure may significantly decrease the number of motile spermatozoa capable of reaching and fertilizing an oocyte due to impaired spermatid activation. These results are consistent with previous research in animal models, such as mice, rats, and bulls, where exposure to BPA and BPS was shown to negatively affect the motility of sperm (Davis et al., 2023; Liu et al., 2021; Rahman et al., 2015). Notably, increasing urinary levels of BPA and BPS in humans have also been associated with decreased sperm motility (Chen et al., 2022; Li et al., 2011; Omran et al., 2018).

Taken together, our findings indicated that exposure to BPA, BPS, and TMBPF at biologically relevant concentrations may have varying impacts on the reproductive health of male C. elegans. While exposure to BPA, BPS, and TMBPF may decrease spermatid size, only BPA had an adverse effect on spermatid activation and caused a significant decrease in the brood size. Furthermore, the decrease in embryonic viability following exposure to all three bisphenols suggests an increase in the incidence of chromosomal aberrations in male reproductive cells. Further investigation is necessary to fully elucidate the underlying mechanisms and implications of these reproductive effects.

Footnotes

Acknowledgments

The authors thank Dr Nicholas Peraino at Wayne State University for mass spectrometry service, which was supported by the National Institutes of Health under award number R01GM098285. We thank Dr Jim Woodworth at Lawrence Technological University for NMR spectroscopy support. C. elegans strains were provided by the Caenorhabditis Genetics Center (CGC), which is funded by the NIH Office of Research Infrastructure Programs (P40 OD010440).

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the National Institutes of Health (R01GM098285) and NIH Office of Research Infrastructure Programs (P40 OD010440). Research reported in this publication was also supported by the National Institute of Environmental Health Sciences of the National Institutes of Health under Award Number R15ES034520. The content is solely the responsibility of the authors and does not necessarily represent the official views of the National Institutes of Health.

Correction (March 2025):

Article updated; for further details please see DOI: .

ORCID iDs

Shannon C. Timmons

Aleksandra Kuzmanov

References

Adoamnei

Mendiola

Vela-Soria

, et al. (2018) Urinary bisphenol A concentrations are associated with reproductive parameters in young men. Environmental Research 161: 122–128.

Allard

Colaiácovo

(2010) Bisphenol A impairs the double-strand break repair machinery in the germline and causes chromosome abnormalities. Proceedings of the National Academy of Sciences 107: 20405–20410.

Benson

Gaml-Sørensen

Ernst

, et al. (2021) Urinary bisphenol A, F and S levels and semen quality in young adult Danish men. International Journal of Environmental Research and Public Health 18: 1742.

Bilyeu

Brostow

Menard

inventors; University of North Texas, assignee (2005) Halogen containing epoxy composition and their preparation. US patent, Vol. 20050228080.

Cariati

D’uonno

Borrillo

, et al. (2019) Bisphenol A: an emerging threat to male fertility. Reproductive Biology and Endocrinology 17: 6.

Castellini

Totaro

Parisi

, et al. (2020) Bisphenol A and male fertility: myths and realities. Frontiers in Endocrinology 11: 353.

Chen

Shu

Qiu

, et al. (2016) Exposure to the BPA-substitute bisphenol S causes unique alterations of germline function. PLoS Genetics 12: e1006223.

Chen

Liu

Zhang

, et al. (2022) Associations between urinary bisphenol A and its analogues and semen quality: a cross-sectional study among Chinese men from an infertility clinic. Environment International 161: 107132.

Cox

Thoma

Tchangalova

, et al. (2022) Infertility prevalence and the methods of estimation from 1990 to 2021: a systematic review and meta-analysis. Human Reproduction Open 2022: hoac051.

10.

Davis

Truong

Hickey

, et al. (2023) Quality of fresh and cryopreserved bovine sperm is reduced by BPA and BPF exposure. Reproduction and Fertility 4: e230018.

11.

Deota

Parmar

Valodkar

, et al. (2006) Oxidative acetylation of tetramethyl bisphenol‐F. Synthetic Communications 36: 673–678.

12.

Guimarães

AGC

Coutinho

Meyer

, et al. (2023) Human exposure to bisphenol A (BPA) through medical-hospital devices: a systematic review. Environmental Toxicology and Pharmacology 97: 104040.

13.

Gumienny

Lambie

Hartwieg

, et al. (1999) Genetic control of programmed cell death in the Caenorhabditis elegans hermaphrodite germline. Development 126: 1011–1022.

14.

Hammerquist

Yen

Curran

(2021) Analysis of Caenorhabditis elegans sperm number, size, activation, and mitochondrial content. Bio-Protocol 11: e4035.

15.

Hunt

(2017) The C. elegans model in toxicity testing. Journal of Applied Toxicology 37: 50–59.

16.

Hunt

Camacho

Sprando

(2020) Caenorhabditis elegans for predictive toxicology. Current Opinion in Toxicology 23: 23–28.

17.

Hyun

Rathor

Kim

, et al. (2021) Comparative toxicities of BPA, BPS, BPF, and TMBPF in the nematode Caenorhabditis elegans and mammalian fibroblast cells. Toxicology 461: 152924.

18.

LaMunyon

Ward

(1998) Larger sperm outcompete smaller sperm in the nematode Caenorhabditis elegans. Proceedings: Biological Science 265: 1997–2002.

19.

Lehmler

Liu

Gadogbe

, et al. (2018) Exposure to bisphenol A, bisphenol F, and bisphenol S in U.S. adults and children: the national health and nutrition examination survey 2013–2014. ACS Omega 3: 6523.

20.

Zhou

Miao

, et al. (2011) Urine bisphenol-A (BPA) level in relation to semen quality. Fertility and Sterility 95: 625–630.

21.

Zhang

, et al. (2016) The use of the nematode Caenorhabditis elegans to evaluate the adverse effects of epoxiconazole exposure on spermatogenesis. International Journal of Environmental Research and Public Health 13: 993.

22.

Liu

Zhang

Sun

, et al. (2012) Preparation, characterization and thermal properties of tetramethylbisphenol F epoxy resin and mixed systems. Polymer International 61: 565–570.

23.

Liu

Wang

Liu

(2021) Chronic exposure of BPA impairs male germ cell proliferation and induces lower sperm quality in male mice. Chemosphere 262: 127880.

24.

Lombó

Fernández-Díez

González-Rojo

, et al. (2019) Genetic and epigenetic alterations induced by bisphenol A exposure during different periods of spermatogenesis: from spermatozoa to the progeny. Scientific Reports 9: 18029.

25.

López-Cervantes

Paseiro-Losada

(2003) Determination of bisphenol A in, and its migration from, PVC stretch film used for food packaging. Food Additives & Contaminants 20: 596–606.

26.

Liu

, et al. (2019) The adverse health effects of bisphenol A and related toxicity mechanisms. Environmental Research 176: 108575.

27.

Machtinger

Orvieto

(2014) Bisphenol A, oocyte maturation, implantation, and IVF outcome: review of animal and human data. Reproductive BioMedicine Online 29: 404–410.

28.

Maffini

Canatsey

(2020) An expanded toxicological profile of tetramethyl bisphenol F (TMBPF), a precursor for a new food-contact metal packaging coating. Food and Chemical Toxicology 135: 110889.

29.

Matuszczak

Komarowska

Debek

, et al. (2019) The impact of bisphenol A on fertility, reproductive system, and development: a review of the literature. International Journal of Endocrinology 2019: 4068717.

30.

Office of Environmental Health Hazard Assessment (2023) Proposition 65. In: Evidence on the Female Reproductive Toxicity of Bisphenol S.

31.

Omran

Gaber

Mostafa

NAM

, et al. (2018) Potential hazards of bisphenol A exposure to semen quality and sperm DNA integrity among infertile men. Reproductive Toxicology 81: 188–195.

32.

Parodi

Damoiseaux

Allard

(2015) Comprehensive assessment of germline chemical toxicity using the nematode Caenorhabditis elegans. Journal of Visualized Experiments 22: 52445.

33.

Rahman

Kwon

Lee

, et al. (2015) Bisphenol-A affects male fertility via fertility-related proteins in spermatozoa. Scientific Reports 5: 9169.

34.

Roberts

Bowen

Zhou

, et al. (2022) Synthesis and reproductive toxicity of bisphenol A analogs with cyclic side chains in Caenorhabditis elegans. Toxicology and Industrial Health 38: 665–674.

35.

Schönfelder

Wittfoht

Hopp

, et al. (2002) Parent bisphenol A accumulation in the human maternal-fetal-placental unit. Environmental Health Perspectives 110: A703–A707.

36.

Shimada

Kanazawa-Takino

Nishimura

(2023) Spermiogenesis in Caenorhabditis elegans: an excellent model to explore the molecular basis for sperm activation. Biomolecules 13: 657.

37.

Singh

Chaudhari

Deota

(2014) Aromatics to bis-triquinane: a tandem oxidative dearomatization of bis-phenol, cycloaddition, photorearrangement and a rapid entry into carbocyclic framework of xeromphalinone E. Tetrahedron 70: 4485–4493.

38.

Soto

Schaeberle

Maier

, et al. (2017) Evidence of absence: estrogenicity assessment of a new food-contact coating and the bisphenol used in its synthesis. Environmental Science & Technology 51: 1718–1726.

39.

Stiernagle

(2006) Maintenance of C. elegans. WormBook, 1–11.

40.

Szafran

Stossi

Mancini

, et al. (2017) Characterizing properties of non-estrogenic substituted bisphenol analogs using high throughput microscopy and image analysis. PLoS One 12: e0180141.

41.

Vandenberg

Chahoud

Heindel

, et al. (2010) Urinary, circulating, and tissue biomonitoring studies indicate widespread exposure to bisphenol A. Environmental Health Perspectives 118: 1055–1070.

42.

Yin

Jian

Zhu

, et al. (2021) Male reproductive toxicity involved in spermatogenesis induced by perfluorooctane sulfonate and perfluorooctanoic acid in Caenorhabditis elegans. Environmental Science and Pollution Research 28: 1443–1453.
