The Circadian Clock,Light,and Cryptochrome Regulate Feeding and Metabolism in Drosophila

Locomotor Behavior Analysis

All studies were performed using Berlin-K wild-type flies and tim⁰¹ or cry⁰¹ mutants that had been crossed for at least 9 generations into the Berlin-K background. Stocks were maintained at 25 °C. Locomotor activity of adult males was assayed using the DAM-2 system (TriKinetics, Waltham, MA). Flies were entrained to 12 hours of light followed by 12 hours of darkness (12:12 LD) for 4 to 5 days, at approximately 80% relative humidity, and then transferred to constant darkness (DD) for some studies, as described. Analyses were performed using DAM software (TriKinetics) and Microsoft Excel (Redmond, WA).

Feeding Behavior Analysis

Newly emerged adult males were fed yeast paste made with 1% dextrose solution and entrained to 12:12 LD for 5 to 6 days prior to testing. In some cases, entrained flies were transferred to DD for multiple days, as described. At specified times, flies were transferred to vials containing yeast paste supplemented with 10⁸ counts/min/mL (final volume) α−³²P dCTP (PerkinElmer, Waltham, MA) and permitted to feed for 2 hours. Individual flies were immediately frozen in 0.65-mL tubes, and consumed radiation was measured by Cerenkov counting in a scintillation counter (Beckman Coulter, Brea, CA).

Metabolite Measurements

Newly emerged adult males were fed yeast paste made with 1% dextrose solution and entrained to 12:12 LD cycles for 5 to 6 days prior to testing. All DD measurements were made from flies during the second day of DD after LD entrainment. At specified times, flies were collected and frozen immediately before homogenizing individually in 100 µL of ice-cold 0.1% Tween-20. Homogenates were heat inactivated for 10 minutes at 70 °C prior to transfer to 96-well plates. Fractions of homogenates were used to assay total trehalose, glycogen, triacylglyceride, and protein levels, as described (Ruaud et al., 2010).

Statistical Analysis

All data sets were combined and subjected to the Anderson-Darling test for normal distribution. Where indicated, data failing the Anderson-Darling test were compared using the Mann-Whitney U test to determine significance. All other data sets were compared using Student’s t test. Correlation coefficients for pairwise comparisons were generated using the Spearman ρ test for comparison of nonnormally distributed data sets. These values were also calculated using linear regression analysis, revealing nearly identical significance. Comparison between correlation coefficients was performed using the Fisher z transformation. This test estimates the likelihood that variance between 2 variables from 2 independent populations would occur by chance based on the sample size and correlation coefficient.

The Circadian Clock and Cryptochrome Regulate Feeding Behavior

Wild-type Drosophila entrained to 12 hours of light followed by 12 hours of darkness (12:12 LD), and then shifted to constant darkness (DD), display characteristic early morning and late evening activity bouts in LD and recurring bouts of activity in DD, with a free-running rhythm of approximately 23 hours (Fig. 1A, top). As expected, this behavior is dependent on a functional clock, with flies that carry the tim⁰¹ timeless-null allele in the same genetic background as our wild-type strain displaying arrhythmic locomotor behavior in DD (Sehgal et al., 1994) (Fig. 1A, bottom). In order to monitor feeding behavior under these conditions, we developed an assay to quantify food uptake in large numbers of individual flies using a radioactive tracer and took measurements at 2-hour intervals. Using this approach, we confirmed that wild-type animals feed within the first few hours of daylight in LD (Xu et al., 2008). Our approach, however, also uncovered a late evening feeding bout in DD that appears to increase with time, revealing a previously unknown, light-dependent ultradian rhythm (Fig. 1B, top). An intact molecular clock is necessary for this rhythm because tim⁰¹ mutant flies do not feed with discernable regularity in DD, although their feeding behavior mimics that of wild-type flies in LD (Fig. 1B, bottom). There are, however, 2 significant increases in feeding behavior in tim⁰¹ mutant flies on the first day in DD, at CT 0 to 2, and at CT 16 to 18 (Fig. 1B, bottom). A similar result was observed by Xu et al. (2008) in animals that express a dominant-negative form of the clock gene. This clock-independent function may be due to a homeostatic response to starvation. Entraining wild-type flies to 12:12 LD and then restricting food after ZT 0 reveals that fasted flies will not feed in the middle of the day (ZT 4-6) but eat more than fed controls from ZT 2 to 4 and from ZT 6 to 12 (Suppl. Fig. S1). This demonstrates that flies will respond to food deprivation only during the early morning or late evening and suggests that feeding behavior is tightly regulated by circadian and homeostatic mechanisms, dependent upon light exposure and food availability. Taken together, our observations suggest that light signaling independent of the circadian clock normally suppresses evening feeding.

OPEN IN VIEWER

Figure 1.

An ultradian feeding rhythm is regulated by cryptochrome and light. Bars on top of each panel indicate light:dark (LD) (white/black) or dark:dark (DD) (gray/black) cycles, while zeitgeber time or circadian time in hours is shown at the bottom. (A) Locomotor activity of wild-type flies and tim⁰¹ arrhythmic mutants under 12:12 LD and DD conditions (n = 32 for each genotype). The number of beam breaks was summed into 30-minute bins and is presented as first quartile (light gray), median (black), and third quartile (dark gray) values. (B) Feeding behavior measured as radioactive counts consumed during 2-hour intervals for wild-type flies and tim⁰¹ mutants under 12:12 LD and DD conditions (n > 1700 for each genotype). Boxes depict the interquartile range for each time point, with the median indicated by a horizontal bar and the lighting condition represented by shading. (C) Feeding behavior of cry⁰¹ mutants under 12:12 LD conditions (n > 540). All data are compiled from 4 biologically independent experiments (*p < 0.01, Student’s t test).

The cryptochrome (CRY) photoreceptor is necessary for rapid clock entrainment and light-induced phase changes in locomotor activity and adult eclosion (Stanewsky et al., 1998). CRY is thought to affect these behaviors by directly resetting the molecular clock through light-mediated degradation of TIM (Busza et al., 2004). We hypothesized that CRY might be the light-signaling factor responsible for suppression of the evening feeding bout that emerges in DD. To test this, we measured LD feeding behavior in animals that carry the cry⁰¹ -null allele. Interestingly, these mutants not only display the early morning feeding bout that is seen in wild-type animals in LD, but they also display robust late evening feeding under these conditions, similar to wild-type flies in DD (Fig. 1C). This reveals that light activation of CRY inhibits feeding. In addition, the absence of a late day feeding bout in tim⁰¹ mutant animals in LD suggests that this unexpected role for CRY is independent of light-induced TIM degradation (Fig. 1B, bottom).

Major Forms of Energy Fluctuate in a Clock-Dependent Manner

Mammalian feeding behavior leads to predictable biochemical and physiological events that result in the proper uptake, metabolism, and storage of nutrients. A hallmark of this response is the rapid and significant increase in plasma glucose immediately following a meal. Although Drosophila have many of the analogous metabolic pathways and tissues necessary for this response (Baker and Thummel, 2007; Schlegel and Stainier, 2007), postprandial changes in metabolites have not been reported previously in this organism. The discrete, robust feeding bout seen in wild-type flies at 0 to 2 hours ZT provided us with an opportunity to determine if this response is conserved through evolution. Accordingly, animals were entrained to 12:12 LD for several days, after which single flies were collected at 2-hour time points, homogenized, and assayed for the predominant circulating form of sugar in flies, trehalose. Trehalose levels are lowest at ZT 2 and increase 80% approximately 4 hours after feeding (Fig. 2A, top). In addition, glycogen levels in these same animals increase >2-fold from ZT 0 to ZT 12, indicating that much of the consumed sugar is subsequently captured as stored energy (Fig. 2A, bottom). This glycogen is depleted during the remainder of the day, suggesting that it is used to support energetic needs during this time. Analysis of the data by ANOVA statistics followed by a post hoc least significant difference test confirms that glycogen levels are significantly higher early in the day and lower in late day (Suppl. Fig. S2A). The oscillation in glycogen concentration is dampened but persists in DD, suggesting that this is a clock-dependent process (Fig. 2B and Suppl. Fig. S2B). This is supported by the absence of a clear rhythm in tim⁰¹ flies under either LD or DD conditions (Fig. 2C and 2D). Although glycogen measurements fluctuate significantly in tim⁰¹ mutant flies, the entire data set fits best to a linear regression line, indicating there is no statistically significant peak and trough. In addition, no rhythmic changes are seen in protein levels in wild-type or tim⁰¹ flies or in triacylglycerol concentrations, similar to a previous report (Diangelo et al., 2011) (Fig. 3A–D). Significant changes were not seen in total levels of glycogen or trehalose in tim⁰¹ or cry⁰¹ mutant animals (Suppl. Fig. S3).

OPEN IN VIEWER

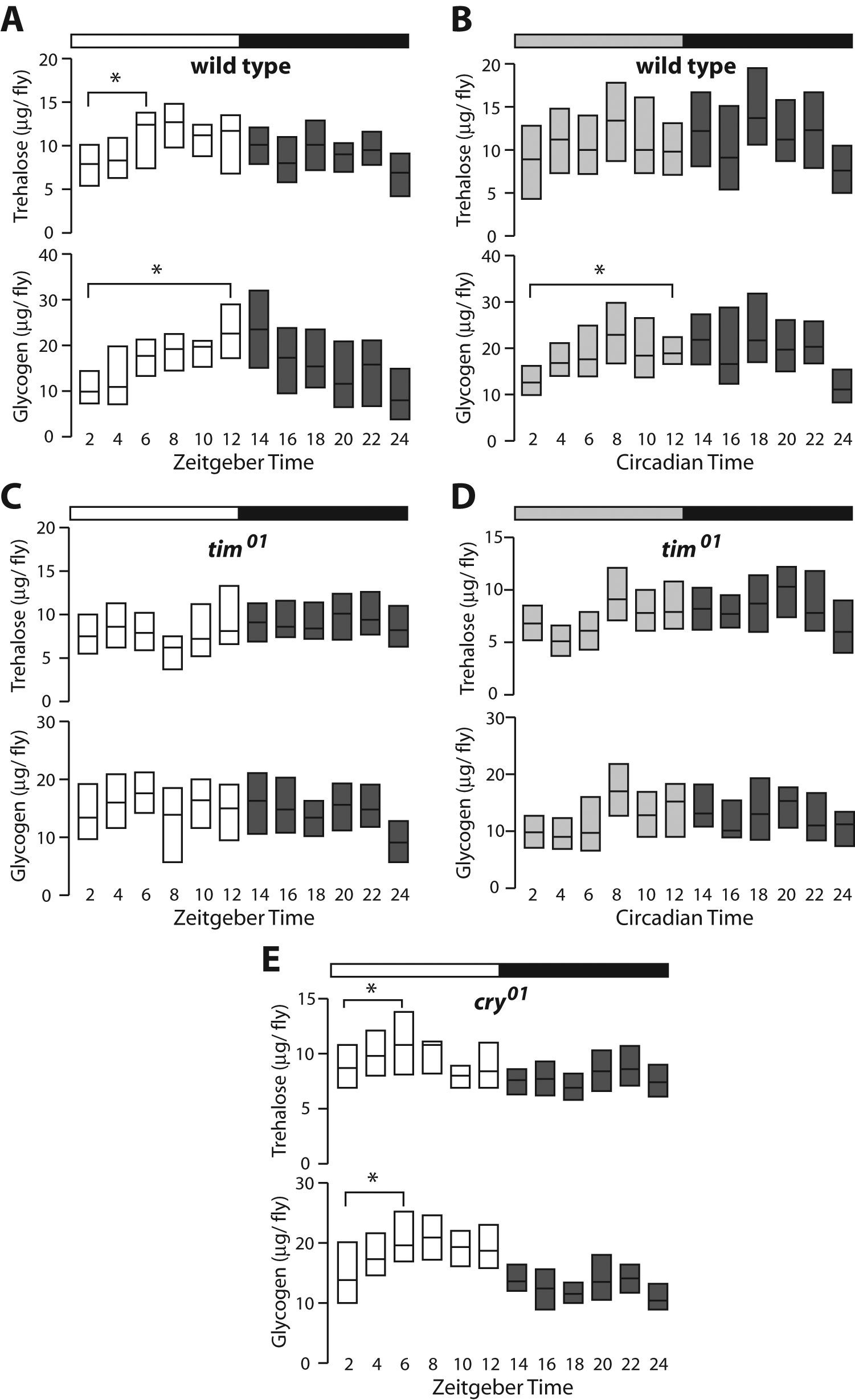

Figure 2.

Carbohydrate metabolism is regulated by the circadian clock and feeding. Bars on top of each panel indicate light:dark (LD) (white/black) or dark:dark (DD) (gray/black) cycles, while zeitgeber time or circadian time in hours is shown at the bottom. (A) Amount of trehalose (upper) and glycogen (lower) in 12:12 LD entrained individual wild-type flies (n > 540). (B) Trehalose and glycogen measurements from wild-type flies (n > 540) taken during the second day of DD following entrainment at 12:12 LD. (C) Trehalose and glycogen measurements from 12:12 LD entrained tim⁰¹ arrhythmic mutants (n > 540). (D) Trehalose and glycogen measurements from tim⁰¹ mutants (n > 540) during the second day of DD following entrainment at 12:12 LD. (E) Trehalose and glycogen measurements from 12:12 LD entrained cry⁰¹ mutants (n > 540). All data are compiled from 4 biologically independent experiments (*p < 0.01, Student’s t test).

OPEN IN VIEWER

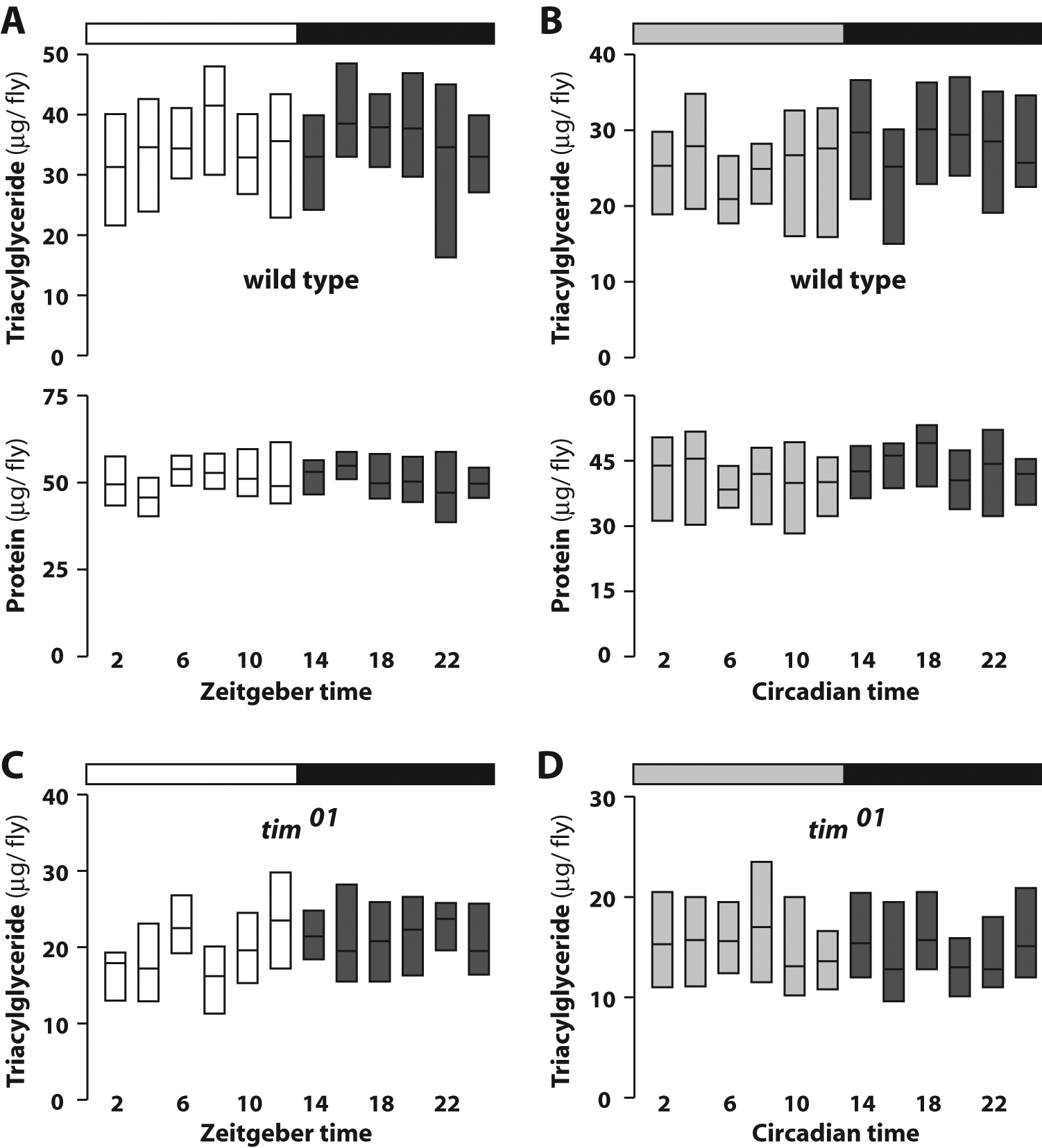

Figure 3.

Triacylglyceride and protein concentrations do not oscillate in wild-type flies or tim⁰¹ mutants. Bars on top of each panel indicate light:dark (LD) (white/black) or dark:dark (DD) (gray/black) cycles, while zeitgeber time or circadian time in hours is shown at the bottom. (A) Amount of triacylglyceride (upper) and protein (lower) in 12:12 LD entrained individual wild-type flies (n > 540). (B) Triacylglyceride and protein measurements in individual wild-type flies collected during the second day of DD following entrainment at 12:12 LD (n > 540). (C) Triacylglyceride measurements in 12:12 LD entrained tim⁰¹ arrhythmic mutants (n > 540). (D) Triacylglyceride measurements in tim⁰¹ mutants during the second day of DD following entrainment at 12:12 LD (n > 540).

After observing the dramatic influence of light and cry on feeding behavior, we hypothesized that circadian photoperception may contribute to metabolic homeostasis. This connection has not been explored previously, although many mammalian species undergo photoperiod-dependent changes in physiology (Morgan and Hazlerigg, 2008). We therefore measured basic metabolic parameters in cry⁰¹ mutants entrained to 12:12 LD conditions and observed rhythmic changes in trehalose and glycogen concentration, with peaks at ZT 4 to 6 (Fig. 2F). This is consistent with the presence of an intact neuronal circadian clock in cry⁰¹ flies (Dolezelova et al., 2007). Interestingly, however, glycogen levels peak earlier in cry⁰¹ mutants (Fig. 2E, bottom). This conclusion is supported by ANOVA analysis of the data (Suppl. Fig. S2C). These results indicate that CRY is necessary to set the phase of glycogen accumulation. The effect on glycogen may also explain the dampened peak seen in wild-type flies in DD (Fig. 2B), when CRY is not activated by light.

Mice carrying circadian mutations can display significantly altered fat storage and mobilization phenotypes (Green et al., 2008). To test if this level of control is conserved through evolution, we compared triacylglyceride levels obtained throughout the day under LD and DD conditions. We found these concentrations to be significantly reduced in tim⁰¹ mutants, consistent with the previously described role for the circadian clock in mammalian fat homeostasis (Turek et al., 2005) (Fig. 4). Unexpectedly, wild-type animals also display reduced triacylglyceride levels after 2 days of DD relative to LD cycles. cry⁰¹ mutants display a similar phenotype, indicating that both the circadian clock and light input into the clock are necessary for proper fat homeostasis. It is also possible that CRY plays a core clock role in peripheral tissues, as has been previously reported (Ivanchenko et al., 2001; Levine et al., 2002; Collins et al., 2006), and that clock disruption in these peripheral tissues is responsible for the observed phenotype.

OPEN IN VIEWER

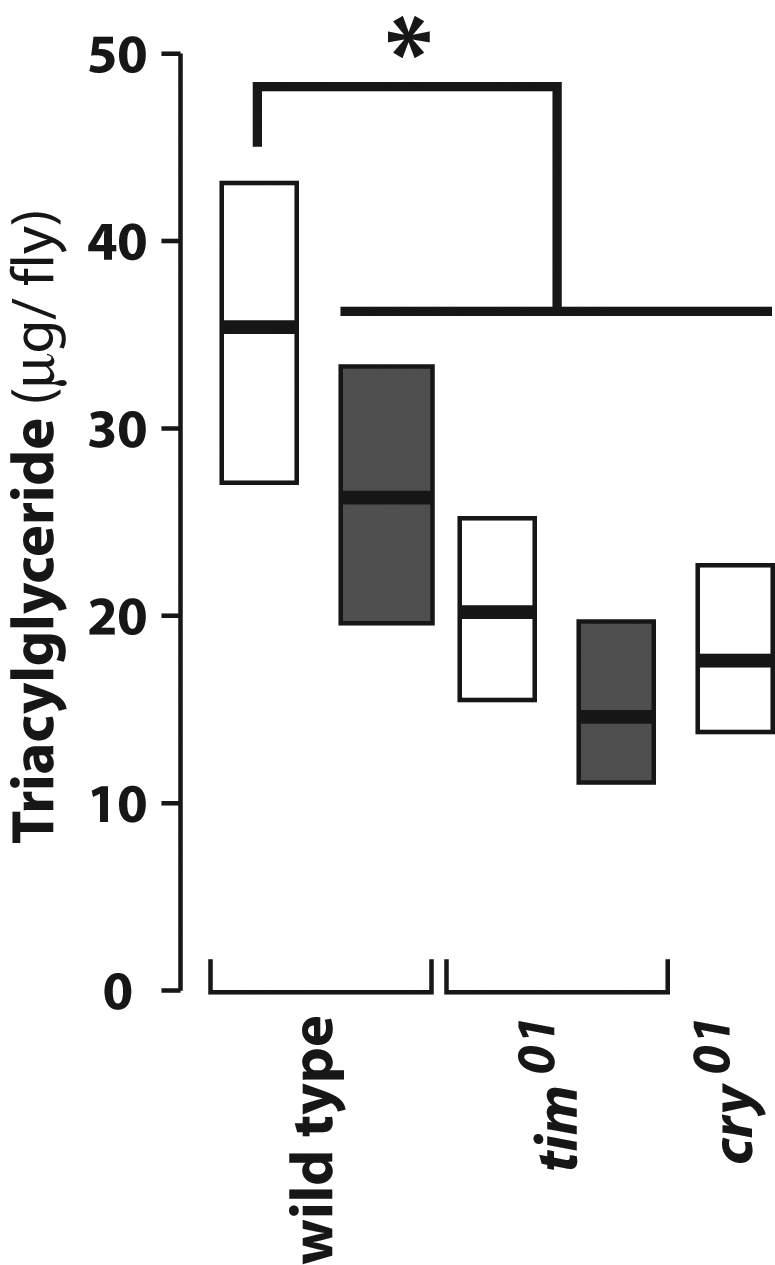

Figure 4.

Triacylglycerol levels are reduced in tim⁰¹ and cry⁰¹ mutants. The amounts of triacylglycerol were determined in animals of the specified genotype (bottom) collected during 12:12 LD (white boxes) or the second day of DD after entrainment to 12:12 LD (gray boxes). All data are compiled from 4 biologically independent experiments (*p < 0.01, Student’s t test; n > 540).

Metabolite Levels Are Coordinated in Individual Flies by the Circadian Clock

Homeostatic regulation normally maintains a proper balance between metabolite levels in animals. While examining the data from the above experiments, we noticed that metabolite levels appeared to be coordinated in wild-type flies in LD but not DD. This suggested that an analysis of metabolite coordination in wild-type and mutant flies might provide a means of assessing their state of metabolic homeostasis. Accordingly, we calculated correlations between all metabolite levels measured in this study. Indeed, wild-type individuals with the most protein, a proxy for overall size, also had the highest levels of stored fat when entrained to LD conditions (Fig. 5A). This correlation is lost in DD, when the population has a negative and small correlation between these 2 parameters (Fig. 5B). Interestingly, a comparison of all metabolite levels in wild-type flies revealed that each set has a significant reduction in correlation in DD compared to LD (Fig. 5C and Suppl. Fig. S4), suggesting a role for light signaling and the circadian clock in the maintenance of homeostasis. Arrhythmic tim⁰¹ mutant animals have lower correlations between all metabolites measured under LD conditions, defining a role for the circadian clock in this process (Fig. 5C). Metabolite correlations in tim⁰¹ mutants are also significantly reduced under DD conditions, with the exception of trehalose and glycogen (Fig. 5C and Suppl. Fig. S4). These data reveal that the circadian clock is necessary for proper homeostatic coordination of specific energy forms and that light signaling can affect these correlations independent of the circadian clock.

OPEN IN VIEWER

Figure 5.

Metabolic levels are coordinated in individual flies under 12:12 LD environmental conditions. (A) Scatter plot showing glycogen and protein concentrations in individual wild-type flies (n > 540) entrained under 12:12 LD conditions. Correlation was determined using Spearman ρ. (B) Scatter plot showing glycogen and protein concentrations during the second day of DD following entrainment at 12:12 LD (n > 540). (C) Plot depicting changes in Spearman correlation coefficients from LD (circle) to DD (square) conditions, comparing glycogen to triacylglycerol (TAG) (black), trehalose to TAG (gray), or trehalose to glycogen (white) in wild-type, tim⁰¹, or cry⁰¹ mutants (*p < 0.01, **p < 0.001, Fisher z transformation). See Supplementary Figure S2 for primary data.

A role for light in metabolite coordination suggests that this process may be regulated by the CRY photoreceptor. Consistent with this proposal, cry⁰¹ mutants raised under LD conditions had very low correlations between either trehalose or glycogen and stored fat (Fig. 5C and Suppl. Fig. S4). However, trehalose and glycogen levels are highly correlated (ρ = 0.67), suggesting that CRY is dispensable for this homeostatic process. This indicates that CRY, at least partially, mediates the storage and/or utilization of energy and is consistent with a critical role for light in maintaining metabolic homeostasis.

The Circadian Clock Regulates a Postprandial Response and Metabolite Coordination

The rapid and transient increase in circulating sugar concentrations following a meal is one of the best-characterized links between nutrition and metabolic homeostasis. Our studies have revealed that this classic postprandial response is conserved through evolution in Drosophila (Fig. 2A). We also observe a subsequent >2-fold increase in glycogen concentration, suggesting that circulating sugar is rapidly converted into stored energy. Arrhythmic flies do not display detectable periodicity in their levels of trehalose and glycogen under LD conditions, even though their feeding behavior is similar to wild-type. This indicates that the postprandial increases in circulating and stored carbohydrates are dependent upon a functional circadian clock. Similarly, no significant increases in trehalose or glycogen are seen in response to the late day feeding bout in either wild-type flies or cry⁰¹ mutants, demonstrating a lack of coordination between feeding and metabolism under these conditions (Figs. 1B and 1C and 2A and 2E). This loss of coupling between feeding behavior and metabolism has been reported in mammalian systems and is likely due to a disruption of the interactions between central and peripheral oscillators (Maury et al., 2010). Interestingly, measurements of glycogen levels in the livers of rabbits, rats, mice, and chickens have revealed daily approximately 2-fold increases with circadian periodicity, similar to the response we observe in flies (Forsgren, 1928; Bunning, 1973). Moreover, clock disruption specifically in mouse pancreatic β cells leads to hyperglycemia and diabetes without affecting activity or feeding rhythms (Marcheva et al., 2010). Taken together, these studies define the circadian clock as a central regulator of the normal postprandial response to dietary sugar uptake and the subsequent transient storage of this energy in the form of glycogen.

Although the complex biochemistry of carbohydrate metabolism makes it difficult to predict which gene or genes are responsible for the observed oscillation in glycogen levels, 2 candidates are promising. Shaggy is an ortholog of glycogen synthase kinase-3 (GSK-3), which inhibits glycogen synthesis by phosphorylating and inactivating glycogen synthase (Bourouis et al., 1990). Shaggy also regulates the speed of the circadian clock by phosphorylating Timeless protein and controlling its nuclear localization (Martinek et al., 2001). The direct connection of Shaggy with both clock function and glycogen homeostasis suggests that it may provide communication between these 2 systems. A second candidate, glycogen synthase 2, appears to be directly regulated by CLOCK in the rat liver (Doi et al., 2010), although its clock regulation remains unstudied in Drosophila.

Our approach of analyzing metabolite levels in individual animals also provided a unique opportunity to assess their coordination under LD and DD conditions and in different mutant backgrounds. We found highly significant pairwise correlations between trehalose, glycogen, and triacylglycerol levels in wild-type flies under LD conditions, reflecting the ability of these animals to maintain normal metabolic homeostasis. These correlations, however, are all reduced under DD conditions (Fig. 5C). They are also reduced in tim⁰¹ mutants under LD conditions, demonstrating that the critical role for the circadian clock in maintaining homeostasis is conserved through evolution (Green et al., 2008). Glycogen and trehalose coordination, however, appears distinct in several ways. First, it is the only metabolite comparison that displays an increased correlation in tim⁰¹ mutants when comparing LD and DD conditions (Fig. 5C). Second, even though wild-type flies in DD display a decrease in their glycogen and trehalose correlation, these metabolites remain highly coordinated in cry⁰¹ mutants. The high level of correlation between glycogen and triacylglycerol is also worth noting, given that glycogen is found predominantly in the muscle while triacylglycerol is primarily in the fat body, suggesting that the tissue-specific reserves of stored energy are coordinated by the circadian clock. It will be interesting in future studies to address the roles of peripheral clocks in these pathways.

Novel Roles for Cryptochrome

CRY is the primary molecule responsible for entraining the circadian clock to light and is necessary for clock function in some peripheral tissues (Ivanchenko et al., 2001; Levine et al., 2002; Collins et al., 2006). Although cry transcripts are most abundant during the day, CRY protein accumulates during the night, likely due to light-sensitive degradation (Stanewsky et al., 1998; Emery et al., 1998). Short pulses of light can either advance or delay behavior rhythms depending upon when they are administered and CRY activity (Stanewsky et al., 1998). CRY is thought to exert these effects through light-dependent degradation of Timeless protein (Busza et al., 2004), specifically within the oscillator neurons. Currently, TIM is the only known target of CRY, although CRY has recently been shown to have neuronal functions independent of the circadian clock (Fogle et al., 2011). Our studies have revealed new roles for CRY in the control of both feeding behavior and metabolism.

Late evening feeding is suppressed under normal LD conditions by light signaling through CRY (Fig. 1). Thus, animals lacking CRY feed in the evening similar to wild-type flies in DD. This result is unexpected because CRY functions are thought to be restricted to the early morning, when its protein levels are most abundant. In addition, Timeless protein does not provide a likely mechanism to explain the ability of CRY to suppress late day feeding because it is undetectable at this time (Hunter-Ensor et al., 1996). This is consistent with the absence of late evening feeding in tim⁰¹ mutants under LD conditions (Fig. 1B). Rather, we propose that CRY regulates feeding behavior through a distinct mechanism that remains to be identified.

Metabolic processes are also dependent on cry function, likely independent of the circadian clock. Animals lacking CRY can still be entrained to light cycles and retain wild-type circadian rhythms in locomotor activity, eclosion, and molecular oscillations of clock components (Dolezelova et al., 2007; Stanewsky et al., 1998). In spite of a functioning clock, however, we found a significant change in the phase of glycogen accumulation in cry⁰¹ flies. This indicates that CRY delays the accumulation and utilization of glycogen independent of traditional clock function. It is likely that peripheral tissues regulate this oscillation, and it is possible that CRY plays a timekeeping rather than time-setting role in this response, as it may in olfactory neurons (Krishnan et al., 2001). It will be interesting to determine the tissue specificity of CRY function to better understand its roles in regulating feeding behavior and carbohydrate homeostasis.

This study shows that CRY, light signaling, and clock function play central roles in controlling feeding behavior and metabolic homeostasis. Adult flies are capable of interpreting seasonal changes in photoperiod and respond with striking alterations in both the frequency and timing of feeding bouts. In addition, fundamental mechanisms of metabolic control, such as the postprandial response and metabolite correlations, are dependent on light signaling and clock function. These studies provide further evidence that key aspects of metabolic control are conserved between Drosophila and mammals and provide a foundation for exploiting the strengths of this model organism toward defining the mechanisms by which this regulation is achieved.
