A Kinetic Study of the Effects of Light on Circadian Rhythmicity of the frq Promoter of Neurospora crassa

Materials and Methods

Results

Analysis of a frq-luc Neurospora strain colonized on a sorbose medium yields detailed changes in amplitude and time resolution (Fig. 1). The free-running circadian waveform in constant darkness (DD) fits well to a cosine curve (red curve of Fig. 1). There are obvious growth, aging, and damping issues in cultures; therefore, cosine curves are fitted to allow for an exponential mesor (a rhythm-adjusted mean) and exponential amplitude in our least squares fitting algorithm. The fitting in Figure 1, in DD, yields a period of 22.2 h. It is well known that a circadian rhythm, including that of Neurospora, can be phase shifted by a pulse of light. At h 252, a 27-min light pulse is given that initially induces a large increase in the luciferase signal, reflecting an acute induction of the frq promoter, as previously described (Crosthwaite et al., 1995; Shrode et al., 2001; Chen et al., 2009). After the light perturbation, it takes about 20 h before a fittable cosine curve reappears corresponding to a 9.2-h phase advance (Fig. 1). Typically, a light pulse “reinvigorates” the rhythm, leading to more robustness and larger amplitude in comparison to continued exposure to constant dark.

OPEN IN VIEWER

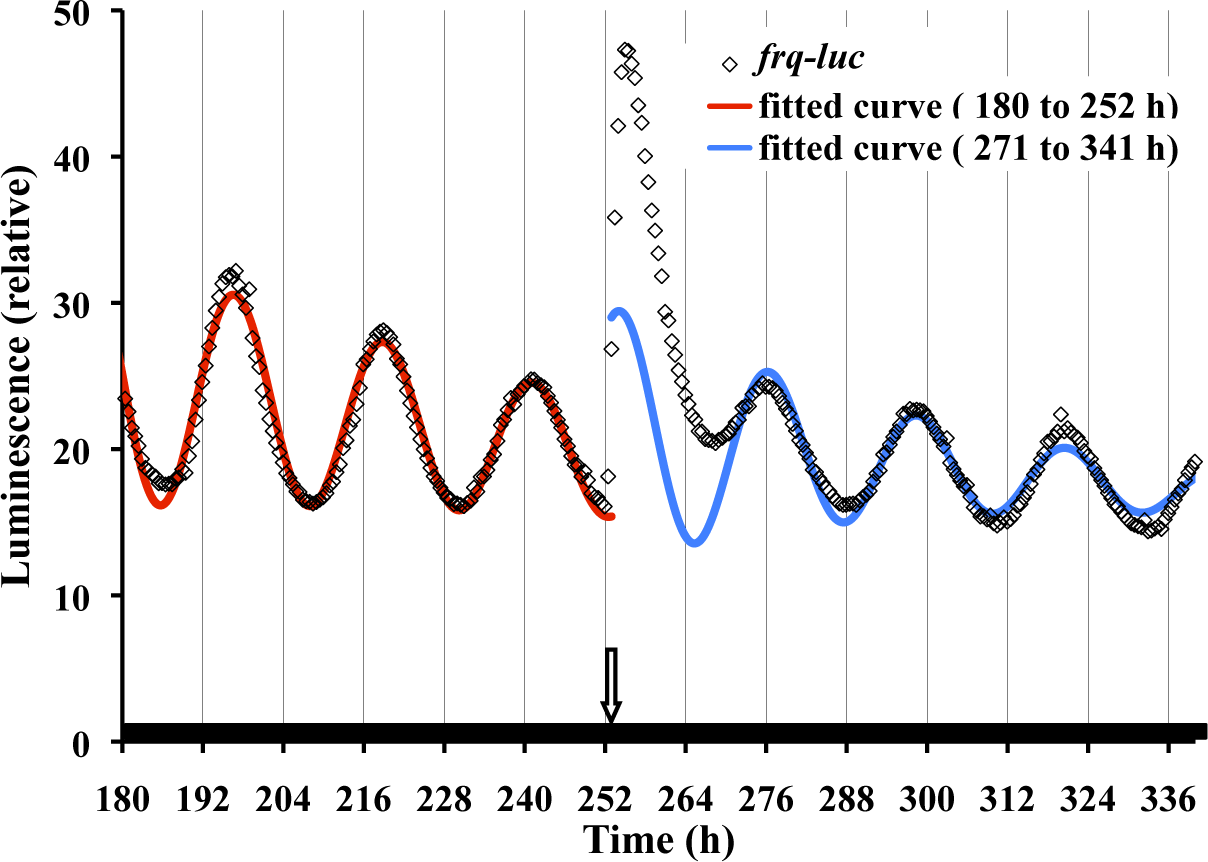

Figure 1.

Luciferase is a precise reporter of frq expression under free-running conditions. Neurospora frq-luc was inoculated onto FGS medium. Petri plates were placed in the measuring chamber at 25 °C at time 0 and exposed to 7 days of 12L:12D treatment, with the last light cycle ending at 156 h. At h 252, a 27-min light pulse was given, represented by a downward arrow. Light intensity at the culture surface was 1 µeinsteins sec^-1 m^-2 from 64 LEDs suspended about 5 cm over the plates. Data from h 180 to 252 were fitted with a cosine curve (red curve), allowing for an amplitude decay and mesor decay (see Materials and Methods). The fitted curve has an R² value of 0.97 and a period of 22.2 h. Data from h 271 to 341 are also fitted (blue curve), and for comparison reasons they are back-extrapolated to h 252. Individual datum points are shown in the figure but, for simplicity, are not shown in other figures.

An important method of studying circadian rhythms has been to apply a light pulse at different points of the circadian cycle and then determine the degree of phase shifting, thus ultimately producing a phase response curve (PRC) (Heintzen et al., 2001; Johnson et al., 2003). The level of phase shifting is very dependent upon the time within the circadian cycle at which the light pulse is applied. Sargent and Briggs (1967; see their Figs. 4 and 5) show the first published PRC of Neurospora, using a 45-min light pulse at different phases of the conidial banding circadian cycle. It is difficult to generate a phase response curve that only reflects Neurospora’s response to light, since incandescent and fluorescent lights also generate heat, and it is known that Neurospora circadian rhythmicity is very responsive to temperature changes (Gooch et al., 1994; Liu et al., 1998; Gooch et al., 2008). Therefore, we conducted a detailed phase resetting experiment with the frq-luc reporter in a highly controlled thermal environment and using LED lighting, which produces little heat and no measurable change in temperature in our system (Fig. 2A). Our goal was also to obtain highly precise phase response data over a 2-cycle period. This was achieved by using curve fitting on the resulting waveforms with data collected every 30 min over 48 h. Furthermore, we used a strain that directly reports the promoter activity of the core oscillatory feedback loop, thus avoiding the effects of acute light regulation on a hand of the clock such as the conidiation process. The result is seen in Figure 2A, whereas a more classic plotting of the PRC is shown in Supplemental Figure S1a and the same data are plotted as a phase transition curve (PTC) in Supplemental Figure S1b. Our data, obtained using 15-min light pulses, show very strong phase resetting known as type 0 (yielding averaged curves with a zero slope in a PTC plot; Winfree, 1980). When compared with a previously determined Neurospora light PRC (Dharmananda, 1980) and temperature PRC (Gooch et al., 2008), the curves are very similar (Suppl. Fig. S2).

OPEN IN VIEWER

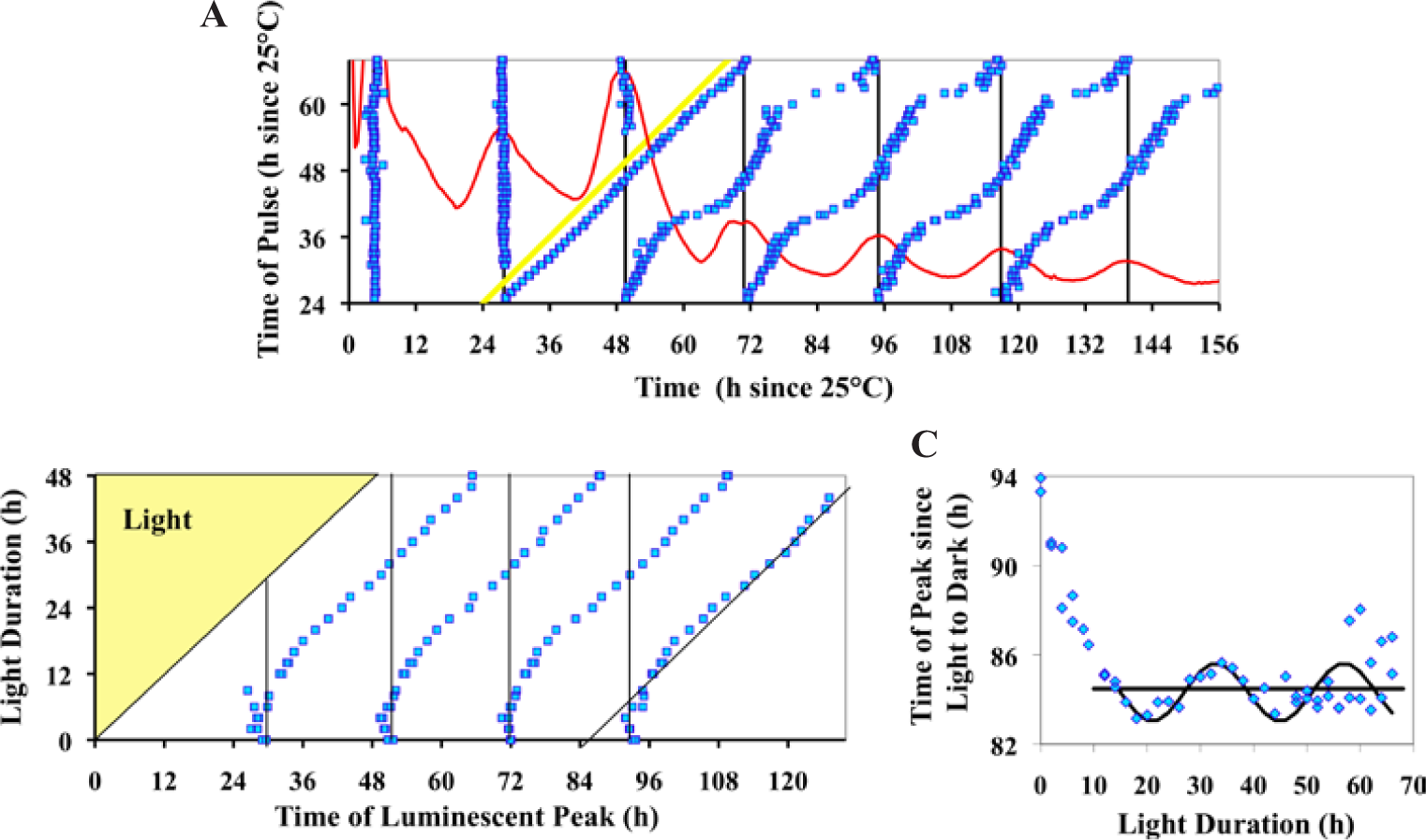

Figure 2.

Neurospora displays strong phase setting in response to light. (A) The frq-luc strain of Neurospora at different phases of the circadian cycle, was exposed to a single 15-min light pulse (0.029 µeinsteins sec^-1 m^-2) (see Materials and Methods). The time of the pulse, relative to the time the culture was placed into the measuring chamber, is shown by the yellow 45° line in the figure. Peak times of luminescence were determined before and after the pulse using cosine fitting, and the average times of the peak of 2 replicate plates were plotted. The first peak after the pulse is regarded as a light-induction effect followed by circadian rhythm peaks. The vertical dark lines represent the peak times of nonpulsed controls. The red curve is the relative luminescence of a nonpulsed control. (B) Phase resetting by light exposure of different durations provides evidence for rhythmicity in constant light. Cultures of the frq_CXB-luc strain of Neurospora were exposed to different durations of light (1 µeinsteins sec^-1 m^-2) (see Materials and Methods). Peak times of luminescence were determined as described in Figure 2A. The peak times are plotted relative to when light exposure started. The bottom row of data and vertical black lines represent cultures that received no light exposure. An average phase line is shown by the 45° black line (averaged for light duration h 6 to 48). Part C is a replot of the last peak of data relative to the time since the transition of light to dark.

Easily seeing strong type 0 phase resetting in these colonized FGS grown Neurospora was unexpected. Although many attempts have been made in this laboratory (V.G.) to observe type 0 phase resetting in Neurospora by measuring conidiation banding in race tubes using race tube medium under tightly controlled temperature conditions, we have always only observed weak type 1 resetting. At the suggestions of others, as well as after examining other publications, we have systematically tried (data not shown) (a) new wild-type bd strains from different laboratories and the Fungal Genetics Stock Center (Kansas City, MO); (b) different pHs; (c) different carbon sources and concentrations; (d) different nitrogen sources and concentrations; (e) different light spectra, intensities, and durations; (f) pulse application at different times after being in DD; and (g) and different media (such as Westergaard’s and FRIES). While conducting a similar experiment as shown in Figure 2A, we simultaneously ran the same frq-luc strain in classic race tubes and race tube medium. We analyzed the results both in the classic way of determining banding by conidia formation as well as by examining the luminescent waveforms from race tubes. The race tube cultures only showed weak phase resetting of type 1 (Suppl. Fig. S3), while the sorbose colonized cultures again reveled strong phase resetting of type 0 (Fig. 2A).

For Neurospora and other circadian systems, when given an extended bright light exposure followed by transfer to dark, the phase in DD tends to be set relative to the time of the transfer from light to dark. However, limit cycle modeling and experimentation have shown a slight oscillation (often referred to as a “wiggle”) in such data that is thought to represent circadian behavior that was occurring while in light (Saunders, 1976; Peterson, 1980; Johnson et al., 2003; Gooch, 2007). We performed such a phase release experiment using frq_CXB-luc to see if this system also demonstrates the wiggle (Fig. 2B). On average, the phase of the peak after transfer from extended light to dark is 18.6 h, and there is, indeed, an oscillation around this average phase line. The wiggle has a period of about 22 to 25 h and a peak to trough amplitude of about 2 h relative to this average phase line (Fig. 2C). These data suggest that the Neurospora clock oscillates with a greatly suppressed amplitude in light, as previously suggested (Elvin et al., 2005).

Using frq-luc and classic entraining conditions of 12L:12D, we observe in replicate cultures (Fig. 3) that the waveform of luciferase levels differs significantly from the cosine curve described under free-running conditions (compare with Fig. 1). After each lights-on event in the 12L:12D treatment, there is a dramatic increase in signal, consistent with the reported acute light induction of frq expression (Crosthwaite et al., 1995; Tan et al., 2004). Typically, the waveform during the light stage shows biphasic kinetics for frq-luc. While replicate plates within an experiment are very consistent (Fig. 3), the exact timing of the biphasic kinetics varies greatly from cycle to cycle and experiment to experiment. For example, the amplitude of the peak between h 144 and 156 of Figure 3 is substantially lower than the peak before or after. Such variability is reproducible in all of the replicate plates of an experiment (Fig. 3), but another experiment with the same protocol may show very different behavior (e.g., compare during 12L:12D between h 48 and 84 of Fig. 6A). Following lights-off on a 12L:12D treatment, there is always a dramatic decrease in signal after about a 30- to 60-min delay, consistent with prior biochemical data (Tan et al., 2004). Compared with the free-running rhythm in DD, the peak to trough amplitude of the entrained cycle is much larger (up to 4 times larger). A peak of luminescent signal is observable at about 18 to 19 h after the last lights-off, and the first established circadian trough is seen at 31 h (Fig. 3).

OPEN IN VIEWER

Figure 3.

Daily waveforms of frq expression are irregular during 12L:12D cycles. The same conditions exist as for Figure 1, except time zero represents established cultures being removed from the refrigerator and placed into the measuring chamber. Different lines represent replicate cultures.

To eliminate the signals associated with light induction kinetics, we switched to a frq_CXB-luc reporter, which lacks a functional pLRE. The behavior of frq_CXB-luc under 12L:12D treatment is compared with frq-luc in Figure 4. The frq_CXB-luc is entrained, but there is no discontinuity of kinetics at lights-on, and, in fact, the luminescent signal increases before lights-on. During the 12-h L phase, the luminescent signal increases to a peak after about 6 h and then drops with no observable biphasic kinetics. At each lights-off there is no discontinuity in kinetics of the dropping signal. Under free-running conditions of DD there is a 22-h free-running rhythm. The peaks and troughs match closely with the ultimate rhythm of the frq-luc strain in DD; however, the frq_CXB-luc strain tends to have higher amplitude and a more robust rhythm.

OPEN IN VIEWER

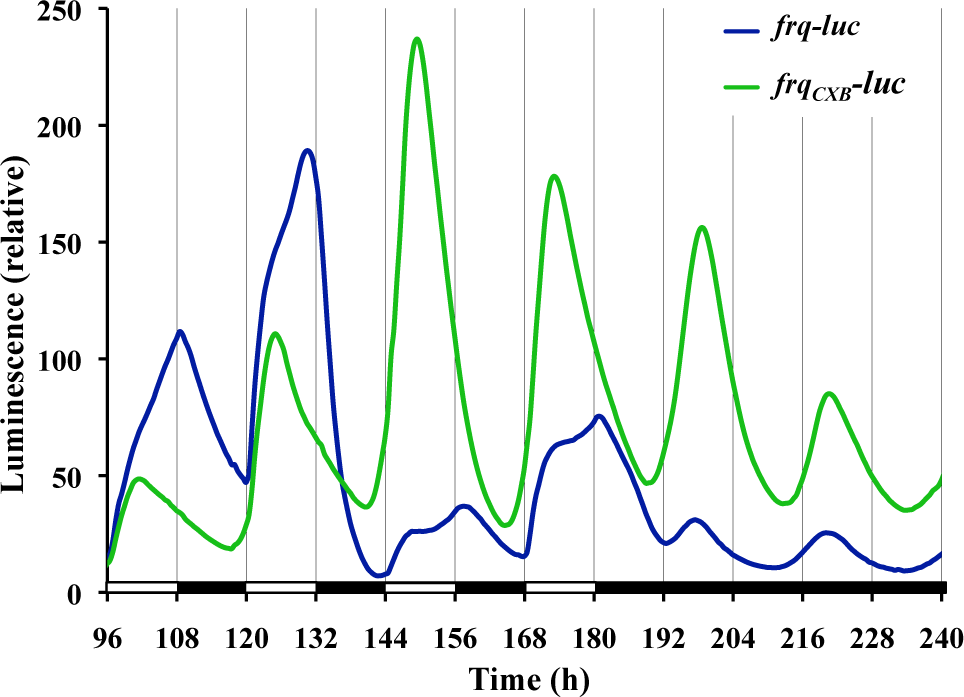

Figure 4.

Use of a reporter (frq_CXB-luc) lacking an acute light response allows separation of acute and circadian response of frq expression to light. The experimental run is the same as Figure 3. Each line is a typical trace of replicate cultures.

Knowing that a 15-min light pulse affects the phase (Fig. 1), we wanted to assess whether such a pulse every 24 h (a 1-pulse skeleton photoperiod of T = 24) would be strong enough to entrain the circadian clock and to what extent just a 15-min pulse of light per day would affect the waveform. For the data in Figure 5A, the first photoperiod light pulse was given in accordance with the time of lights-on of the previous 12L:12D treatment, while in Figure 5B the first light pulse correlated with the last lights-off of the previous 12L:12D treatment. In both cases frq-luc cultures show rapid light induction when the 15-min light pulse is initiated, and this is repeated every 24 h during the 4-day photoperiod treatment. It is not clear whether this repeated 24-h event is true circadian entrainment to 24 h or whether it is merely a repeated light induction response to each lights-on event. Once placed back into DD, a free-running rhythm of 22 h occurs. The absence of a functional pLRE removes the rapid light induction effect on frq expression (Fig. 5, frq_CXB-luc reporter). The data for the frq_CXB-luc reporter during the 4 cycles of photoperiod had a good fit to the damped cosine model and showed no deflections in response to the pulses. For both strains, a free-running rhythm of 22 h occurs once placed back into DD, with peaks occurring at about 24 and 46 h after the end of the last pulse, independent of when the photoperiod pulsing started. This phase is nearly the same as the unpulsed control if the photoperiod pulsing started 12 h after the lights-off of the 12L:12D treatment (Fig. 5A) but is 12 h out of phase of the unpulsed control if the pulsing started 24 h after lights-off (Fig. 5B). This latter result suggests that Neurospora weakly entrains to this skeleton photoperiod, a phenomenon that can be observed with both the frq-luc and frq_CXB-luc reporter strains. To make these phase adjustments, it is interesting to note that the frq_CXB-luc had a period of about 22 h during the T = 24 treatment of Figure 5A but a period of 25 h during the T = 24 treatment of Figure 5B, which started at a different phase.

OPEN IN VIEWER

Figure 5.

frq expression using a 24-h single pulse skeleton photoperiod shows acute circadian responses to light (T = 24). Cultures, as shown, were placed into the measuring chamber at time 0 and exposed for 7 days to 12L:12D light treatment. DD followed except for 4 events of 15-min light pulses that occurred every 24 h. Unpulsed control cultures did not receive the pulses, as they were sequestered into a dark can during the 15-min light treatment. Other conditions are as described in Figure 1. (A) Pulsing starts 12 h after lights-off of the 12L:12D treatment. Data for frq_CXB-luc were fitted from 162 h to 252 h to determine the period: pulsed, 22.1 h; not pulsed, 21.8 h. (B) Pulsing starts 24 h after lights-off of the 12L:12D treatment on a new experimental run. Data for frq_CXB-luc were fitted from 180 h to 264 h to determine the period: pulsed, 25.0 h; not pulsed, 22.0 h.

Instead of using an abrupt 12L:12D square wave pattern or a skeleton photoperiod pattern, we were interested in examining the effects of lighting with a timing of intensity changes more similar to a natural daily solar lighting cycle. The natural daily lighting pattern is complex and depends on latitude, longitude, air quality, shading, cloud formation, and other environmental factors (Bird and Hulstrom, 1981). We used a half sine wave pattern, which is an approximate representation of the natural solar timing. We used a 12L:12D format, and during the lighting phase the intensity was changed every minute according to a sine wave representation. The resulting entrained waveform of frq-luc (Fig. 6A) is very different from the high-amplitude angular and biphasic pattern seen using the 12L:12D square wave pattern. This waveform is also different than the cosine waveform seen under free-running DD conditions. There is a distinct increase in signal with the slightest initiation of light. The luminescent signal peaks at about the same time as the light treatment peaks. The subsequent drop in signal is slower than the initial rise. With lights-off, there is a slightly faster drop in signal. The solar wave pattern treatment yields a trough to peak amplitude about one third the magnitude of the amplitude of the 12L:12D square wave treatment.

OPEN IN VIEWER

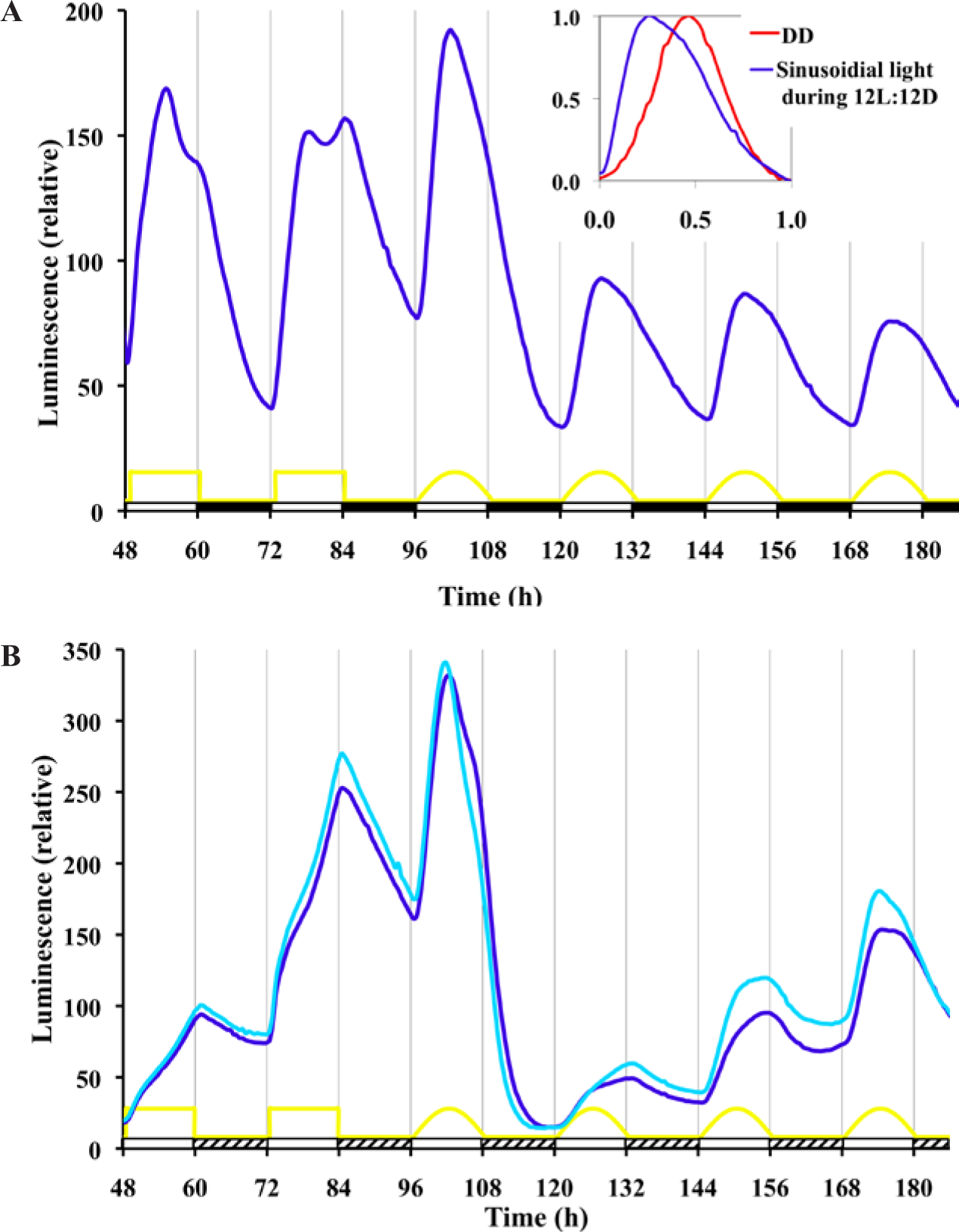

Figure 6.

Response to a quasi-natural sinusoidal pattern of light during 12L:12D treatment reveals very different waveforms of frq expression compared with LD square waves. (A) Cultures of frq-luc are treated with 4 days of square wave 12L:12D (1 µeinsteins sec^-1 m^-2) and then 4 days of 12 L:12D where the light phase follows a half sinusoidal pattern adjusted every minute (yellow curve). Other conditions are the same as Figure 1. Inset: For waveform comparison, a free-running trough to trough curve from Figure 1 (hour 208 to 230) is compared with a sinusoidal treated curve of this figure (hour 144 to 168). The time and amplitude are normalized to 1. (B) Exposure of Neurospora to twilight results in a unique waveform. The experimental setup is the same as part A, except a dim light intensity (hatched bar) is used (0.01 µeinsteins sec^-1 m^-2) in the place of darkness. The different curves represent replicate cultures.

In nature, night is never completely dark. The level of light at night varies due to many factors that are difficult to replicate under controlled laboratory conditions. Therefore, we ran square wave and solar pattern treatment experiments, but instead of 12 h of dark, we used 1/100 of the maximal intensity (0.01 µeinsteins sec^-1 m^-2) that we used during the light phase (1 µeinsteins sec^-1 m^-2). Neurospora has a 24-h response to this twilight situation (Fig. 6B); however, the response is quite different compared with the use of complete darkness. In particular, it seems to take a couple of days to reach a stable rhythm when given the sinusoidal light-twilight treatment. It is also interesting to note that a free-running rhythm persists in constant dim light (Suppl. Fig. S4) (more deeply explored in Gooch et al., 2014).

Discussion

The ability to collect data, in vivo, every 30 min allows us to compile 48 points every 24 h, therefore providing not only a detailed description of the waveform of frq gene expression but also a better understanding of the Neurospora circadian oscillator itself (Fig. 1). A damped cosine curve fits the data of Figure 1 with an R² value of 0.97. Light induction of the frq promoter occurs after a light pulse and peaks at about 3.3 h after the pulse. After about 20 h, the transient induction signal dissipates and the cosine free-running rhythm reestablishes itself with a new phase. The new phase depends on the point in the circadian cycle where the pulse is applied (Fig. 2A). Detailed phase response data show strong type 0 phase resetting. The light induction peak seen in Figure 2A, after lights-off, should not be regarded as independent of circadian behavior. Light induces a surge of nonphosphorylated FRQ protein that plays a major role in setting subsequent circadian phase in DD. It will not exactly set the phase, since the subsequent circadian activity will also depend on the state of the other circadian components at the time of the nonphosphorylated FRQ surge. The extent of phase resetting would also depend on the magnitude of FRQ production during light induction, which could depend on the point in the cycle that the light is applied. Thus, we tend to see a circadian peak of luciferase activity about 22.6 h after lights-off and about 19.3 h after the induction peak, but the exact peak depends on the duration, intensity, and phase of light application.

It is interesting that we were able to easily observe strong type 0 phase shifting using light pulses in sorbose colonized Neurospora while failing, despite many attempts, to do so using classic race tube medium (RTM) in race tubes. The difference is most likely either a component of the FGS medium or the colonization process itself. In FGS medium, growth is limited to a small fungal colony, in which conidiation happens early on in the process, in contrast to the race tube assay, where conidiation occurs actively while the growth front advances. When we have physically confined the growth of Neurospora while using RTM, nice circadian rhythms using the luciferase reporter are observed, yet we again fail to induce strong phase shifting (data not shown). Likewise, we transformed a colonized mutant (col-16) with the luciferase reporter and attempted to find strong phase shifting on RTM without success (data not shown). At this point, we do not know why the sorbose-colonized Neurospora seems to be more sensitized to light than dark-adapted Neurospora on RTM. It is known that VIVID (VVD) levels can modulate Neurospora’s response to light (Elvin et al., 2005; Chen et al., 2010a; Hunt et al., 2010; Malzahn et al., 2010). Whether these differences are due to extremely low levels of VVD when using FGS medium is something to consider. Nevertheless, it is important to highlight that media conditions (carbon sources) have been reported to modulate light responses, at least in the case of Trichoderma reesei (Friedl et al., 2008). Whether such a phenomenon also occurs in Neurospora, and its dependence on VVD, has not been explicitly studied.

The waveform induced by 12L:12D (Figs. 3, 4, and 6A) treatment is dramatically different than simply contracting, or expanding, the smooth waveform that we observe under free-running DD conditions (Fig. 1). The waveform induced by a light-dark cycle tends to be more angular, has much higher amplitude, shows peaks and troughs at different relative phases, and is inconsistent from cycle to cycle. It is likely that these characteristics are true for essentially all circadian rhythms and are predictable using limit cycle modeling (Johnson et al., 2003; Gooch, 2007). It is common practice to normalize the free-running DD cycle to 24 h (circadian time) and then extrapolate the peak and trough time to the time of maximum and minimum activity occurring for the organism in its natural environment (subjective day or subjective night). Such extrapolation is not justified, particularly when we know that lights-on or lights-off induces dramatic changes and that an entirely different cellular chemistry exists while lights are on. Furthermore, our 12L:12D treatments do not mimic nature since light does not suddenly appear at a constant level and then go off after 12 h. When we use solar timing in comparison to square wave lighting (Fig. 6A), we observe a distinctly less angular waveform with different relative phases (Boulos et al., 2002; Rieger et al., 2007; Rieger et al., 2012; Vanin et al., 2012). Laboratory settings are not a good approximation of natural conditions since in the natural environment the sun is intense (up to 2000 µeinsteins sec^-1 m^-2), there are daily temperature changes, and the temperature and light can have large variation due to clouds and weather conditions. It is not clear how these changes generate a specific circadian waveform, but it is clear that the waveform in nature is not simply a variation of the free-running circadian rhythm in DD, which compromises the use of the terms “subjective day/night” and “circadian time.” Recent studies in Drosophila have also highlighted the discrepancies of laboratory-based observations compared with what more closely occurs in nature, under progressive light and temperature fluctuations (Rieger et al., 2012; Vanin et al., 2012).

Using frq-luc, we observe biphasic kinetics during the light phase of 12L:12D treatment (e.g., Fig. 3). The biphasic nature is likely due to a combination of the light induction effects on the reporter frq promoter plus the circadian related feedback mechanisms. There is a drop in luminescent signal in response to lights-off (if the signal is already dropping at lights-off, then the signal subsequently drops faster), but the drop does not start until 30 to 60 min after lights-off (Fig. 3). The delay may be due, in part, to the decay time of luciferase mRNA after the promoter shutdown.

The rapid light induction seen with the frq-luc is dependent on the presence of the pLRE, as it can be confirmed by the use of the frq_CXB-luc reporter (see Figs. 4 and 5). The biphasic behavior of luciferase levels observed during the light phase of the 12L:12D treatment is only present in the frq-luc reporter, and not when using frq_CXB-luc (Fig. 4). Moreover, in the latter there is no clear discontinuity in kinetics with either lights-on or lights-off, yet the pattern is clearly conforming to the imposed 24-h cycle. In fact, the signal starts to increase 2 h before lights-on, which can only be attributed to Neurospora’s inherent circadian kinetics. The modification of the pLRE region of the frq promoter not only may be affecting the light responsiveness of the promoter but also may be reducing the responsiveness of this resected frq promoter to other feedback mechanisms.

We used a 15-min light pulse every 24 h (T = 24) to determine whether such a treatment could entrain the circadian cycle. Using frq-luc, there is an overt appearance of a perfectly entrained rhythm because of the surge of frq promoter activity after each light exposure. However, one might argue that this observation is merely a response to light-onset every 24 h and that there may be no effect on the inherent circadian mechanism, a phenomenon known as masking (Johnson et al., 2003). When we use the frq_CXB-luc reporter strain, which only tracks frq circadian regulation but not frq light-induction, there is no observable deflection in kinetics at each light intensity change, which suggests no instantaneous phase shifting. However, the period during our 4 days of T = 24 treatment creates a period of about 22 h in one case and 25 h in another case, depending on the starting phase of the treatment. These results suggest that this skeleton photoperiod treatment is inducing entrainment, but it takes a few days to adjust. This is consistent with previous observations (Remi et al., 2010) that phase adjustment during entrainment, under certain treatments, seems to involve a change in velocity of the clock (nonparametric) rather than instantaneous changes (parametric). However, Roenneberg et al. (2010) argued that using such biophysical concepts may not be the best approach in thinking about circadian entrainment.

It is useful to ask whether even cycles of 12L:12D induce conforming cycles of entrainment. Phase, amplitude, and waveform of Figures 3 and 4 during 12L:12D treatment are dramatically different than simply an expansion of the DD free-running cycle. Each lights-on event of 12L:12D will cause a surge of FRQ, but at this time the other oscillating components in Neurospora may be at different stages. This could explain why we observe somewhat different patterns and amplitude during each subsequent light phase of the 12L:12D treatment. With lights staying on, other events are initiated (e.g., VVD production) and unique lights-on feedback would be enacted. A complex set of biochemical/genetic feedback mechanisms occur in the presence of light (Yu et al., 2007), and thus it is not surprising that we see complex waveforms while lights are on. If entrainment has occurred, then once released into free-running conditions the phase of the free-running cycle should correspond to that of the entrained cycle. Since phase is normally determined by the peak or trough, and waveforms forming the peak and troughs during 12L:12D treatment are very different than those during free-running, it becomes awkward to compare phases.

In nature, night also creates an interesting circumstance. When we create a light-dark cycle in the laboratory, we usually use complete darkness for the “night phase” of the experiment. Complete darkness at night is unrealistic, since there is always some level of light from stars and the moon as well as consideration of light pollution from human activity. This laboratory (V.G.) and others (Roenneberg and Foster, 1997; Evans et al., 2007; Rieger et al., 2007; Malzahn et al., 2010) have shown that the circadian rhythms can be sensitive to very low levels of light, well within the range of moonlight intensities. In Figure 6B we attempted some level of simulation of nature by using dim light during the “night-phase” and discovered that this treatment led to yet another waveform different than if it were total darkness. Experiments have repeatedly shown that light and temperature dramatically affect Neurospora biochemistry of circadian components. In nature, we should not consider circadian output to follow a smooth pattern, but rather, we can expect complex patterns related to complex responses and feedback mechanisms.
