Meta-analysis of Diurnal Transcriptomics in Mouse Liver Reveals Low Repeatability of Rhythm Analyses

Data Collection

We searched the GEO repository using the GEOmetadb R package (Zhu et al., 2008) version 1.44.0 to identify mouse liver RNA-seq data containing references to the following terms: ZT, CT, zeitgeber, Bmal1, Cry1/2, Per1/2, Dbp, clock, constant conditions, entrain, darkness, circadian, or rhythm. The search was performed on GEO metadata collected 9 July 2021. The resulting accessions were assessed for the following: timeseries data of mouse liver samples; evenly spaced timepoints; at least 1 cycle of data; sampling interval of 6 h or faster; compatibility with our pipeline (excludes color-space data or datasets with large adapter sequences that did not align well); and at least 1 “control” condition. Control conditions were defined as meeting the following:

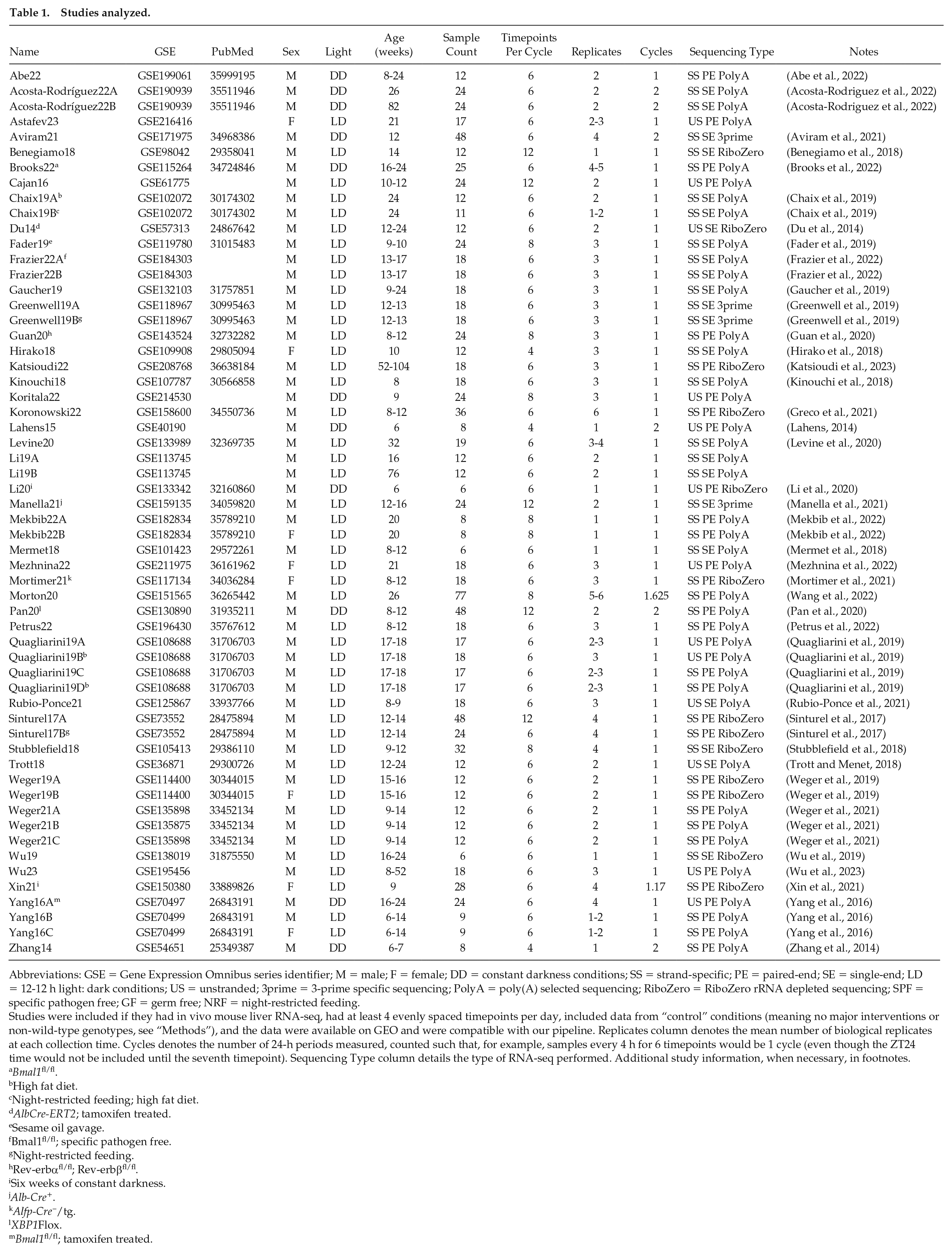

Some GEO records contain multiple matching experiments, such as 2 control timeseries for comparisons with 2 different genotypes. In such cases, the individual timeseries were treated as separate studies. Studies were labeled according to the first author and year of publication, or according to author and year made public on GEO if no publication was yet available.

RNA-Seq Data Processing

A snakemake (v7.24.2) pipeline was developed to reproducibly process the data (Mölder et al., 2021). Reads were downloaded as sra files and converted to fastq format using the efetch, prefetch, and fastq-dump commands from edirect (v15.3) and sratoolkit (v2.11.0). Starting from sequencing reads, we quantified all samples using Salmon (Patro et al., 2017) (v1.4.0) to the GRCm38.75 Mus musculus transcriptome with the -k 31 index option. Salmon was run with the -lA —softclip —softclipOverhangs —seqBias —gcBias —reduceGCMemory —biasSpeedSamp 10 —posBias -p options as well as -g to quantify at the gene-level.

This generated read count estimates and transcripts per million (TPM) counts for each of 40,614 genes or transcripts.

Quality Control

All data were manually inspected for consistent read depth and alignment statistics within each timeseries. Reported sex and tissue were confirmed by examining the expression of the sex-linked gene Xist and Alb, which is highly expressed in liver. Outlier data were identified by performing principal components analysis (PCA) on each timeseries individually and removing any samples that were at least 3 standard deviations from the mean in the first principal component. If any outliers were discarded, this process was repeated on the remaining samples until no more outliers were detected. In total, 14 samples were identified as outliers and removed from further analysis.

Rhythmicity Testing

JTK_CYCLE (Hughes et al., 2010) was run on each timeseries TPM data with 24-h periods using MetaCycle 1.2.0 (Wu et al., 2016). Benjamini-Hochberg q values were computed from JTK_CYCLE p values after first dropping any genes that had mean read depth less than 2 reads across all samples in the timeseries. Dropped genes were assigned q = 1. After this filtering, the mean study had 16,214 genes.

Since the default for JTK_CYCLE is to use 20- to 28-h periods, we also ran it with that setting to determine if non-24-h genes were detectable. We selected 6 studies which had 8 or more timepoints per day (to improve ability to identify period) and were under the most common conditions (male, LD, ad libitum feeding). For each pair of studies, we computed Cramer’s V and Spearman R statistics comparing JTK periods on the genes significant in both (q < 0.05). These showed low consistency, with medians of V = 0.10, R = 0.07, and no pair achieving higher than V = 0.19 or R = 0.18. To check for consistently low-period genes, we searched for genes with period less than 24 in at least 4 of these 6 studies and with no period 24 or greater (when q < 0.05). Only 13 genes were identified. However, 100 random permutations of the period values gave a median of 16 identified genes by the same criteria. Due to this observed inconsistency in non-24-h period estimates, reported results were exclusively from using the fixed 24-h period, which also matches best-practice recommendations (Hughes et al., 2017).

To account for a greater variety of timeseries shapes, we further ran the BooteJTK method (Hutchison et al., 2018), which allows for asymmetric waveforms. The command used was BooteJTK-CalcP.py -f {expression.tpm.txt} -p ref_files/period24.txt -s /ref_files/phases_00-22_by2.txt -a ref_files/asymmetries_02-22_by2.txt -z 25 -r {num_reps} -R -x OUT, and if the study had either irregular numbers of replicates per timepoint or just a single timepoint, then the eJTK (Hutchison et al., 2015) software was first run and BooteJTK was run with the additional options -U -J {ejtk_output}.

Comparison of Rhythms Across Studies

We ran the compareRhythms (Pelikan et al., 2022) method to test whether studies had differential rhythmicity. We used compareRhythms v1.0.1 in “voom” mode with a 24-h period on the quantified Salmon NumReads values. This reports 1 of 4 categories for each rhythmic gene as either loss, gain, same, or change in rhythmicity. In general, expression levels across 2 different studies are not comparable and so amplitudes are not comparable. We therefore were interested only in whether genes were rhythmic in both studies without regard for change in amplitude or phase, and so we grouped either “change” or “same” rhythmicity classifications as both meaning that the rhythm was present in both studies. We note that typically any comparison method such as compareRhythms would not be used to compare 2 timeseries acquired from entirely different experiments due to batch effects completely confounding the grouping. However, we are interested in measuring the size of the batch effects between these different studies and do not need to separate out batch effects from biological variation. In this way, the loss or gain of rhythmicity according to compareRhythms should be considered to include both batch effects and any actual biological variation.

Robustness Score

For each gene, we computed its robustness score as the number of timeseries in which it was identified as significantly rhythmic according to JTK_CYCLE p < 0.05. With 57 total timeseries, the average non-rhythmic gene is expected to have a robustness score of about 3. With 40,614 genes measured and conservatively assuming that all were non-rhythmic, we can calculate that the Bonferroni-corrected p value of getting even a single gene with robustness score at least 13 is 0.024, from the survival function of the binomial distribution with n = 57, p = 0.05. Therefore, all genes with at least robustness score 13 are assumed to be genuinely rhythmic (in at least some studies) at a family-wise error rate of less than 0.05.

PCAs

All PCAs were run on TPM data transformed by log (x + 0.01). PCA was run on the joined data from all timeseries to assess differences between studies. Furthermore, we ran PCA on each individual study to assess PCA performance as it would happen in any individual study. Finally, we ran a joint and individual variance estimate (JIVE; Lock et al., 2013) analysis, grouping within individual studies. We used 2 components of joint variation (as that typically is needed to capture the circular effect of time-of-day) and 1 component of individual variation in the JIVE analysis, to allow between-study variations.

SIMs

SIMs were run to fit timeseries data to a periodic spline with a random-effects model allowing each timeseries in the meta-analysis to have different amplitudes, phases, and mean values (mesors). The random-effects structure compensates for the expectation that different studies have different values while still prioritizing consistency between studies. Fit splines then identify the consistent shape of curves throughout the day across all studies. Periods were fixed to 24 h, although the spline may also fit ultradian rhythms at harmonic periods (such as 12- or 8-h periods). The R package assist (v3.1.7) was used with the snm function (Wang et al., 2003). The convergence condition was set to the “PRSS” method with convergence criterion prec.out = 0.05. Values for lambda parameter were restricted to 10⁻⁴ to 10³ to prevent overfitting that happened at the default settings (10⁻¹⁰ to 10³). The SIM model was fit to each gene that had non-zero values in at least one-third of all samples across all studies, after outlier removal described earlier.

The R² goodness-of-fit value was computed for each timeseries and each gene as (SS_total – SS_resd) / SS_total where SS_total and SS_resid are the squared sum of differences from the mean value and from the model fit of the data, respectively. Due to the existence of random effects in the model, this is not guaranteed to be positive, unlike the R² of a linear model. Nonetheless, larger values are indicative of better fits.

The fit for a gene was classified as rhythmic if it satisfied:

To estimate the false discovery rate of these criteria, a 1-shot permutation test was performed, where the data within each study had timepoint labels permuted randomly. Permutations were done independently in each gene, but due to computational costs, only a single permutation was taken for each gene. In the permuted data, there were only 15 genes satisfying the rhythmicity criteria while in the original data, there were 2712 such genes. Therefore, we estimate a false discovery rate of less than 0.01.

Fits were classified as either monomodal symmetric, monomodal asymmetric, or multimodal. Symmetry was assessed by comparing the fit curve with all its cyclic mirror images (one reflected about every quarter hour). If all mirror images contained some points of at least 2 standard errors (determined by the pstd variable) different from the original curve, then the gene was classified as asymmetric. Therefore, fits symmetric about even 1 point would not be identified. To identify multimodal genes, we looked for at least 2 distinct peaks, meaning 2 points at least 2 standard errors from zero and with at least 1 point below zero between them in both clockwise and counterclockwise directions.

Technical Factors Dominate Biology and Study Design

To assess the overall similarities of studies, we performed a PCA on the log-scaled transcripts per million (log TPM) expression values. These revealed that the largest differences between studies were driven by technical factors in the sequencing (Suppl. Fig. S1). In particular, the 3 timeseries which sequence only the 3’ end of the transcript were outliers. Similarly, RiboZero versus PolyA-selected libraries are clearly distinct. Smaller differences were observed between stranded versus unstranded sequencing and paired-end versus single-end sequencing. Differences from biological factors, such as male and female, were smaller than theses technical differences.

Phases of Core Clock Genes Are Consistent

Using the reported ZT/CT times for each study, we plotted time-course profiles of the TPM expression values of 7 core clock genes (Arntl, Cry1, Cry2, Per1, Per2, Nr1d1, and Clock) (Ko and Takahashi, 2006) for each study and found that the peaks and troughs for these genes are well aligned across all timeseries (Figure 1, Suppl. Fig. S2). While the amplitudes vary moderately, the plots reveal remarkable consistency in phase and period across all studies despite the differences in study designs.

OPEN IN VIEWER

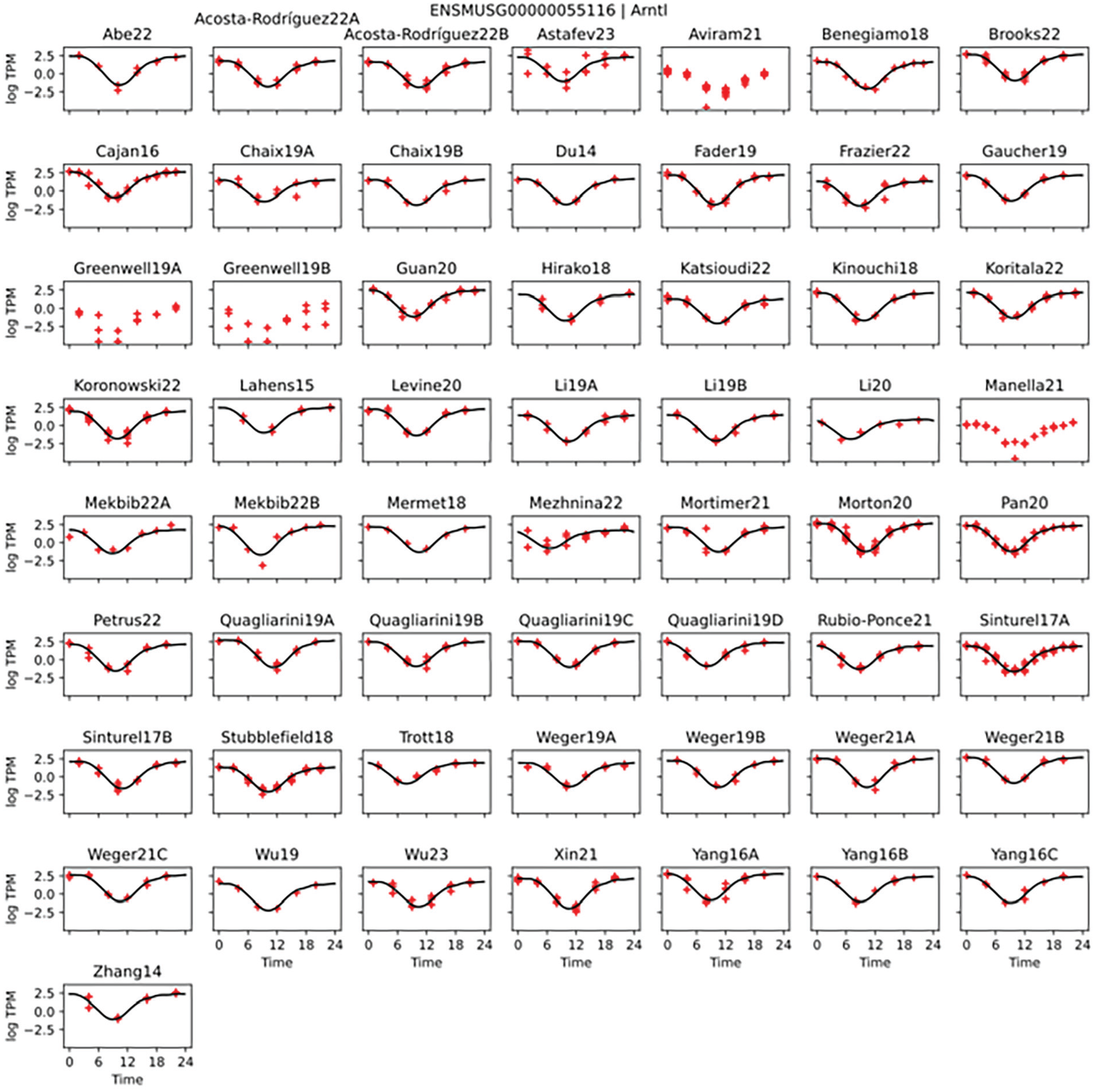

Figure 1.

Core clock genes are highly consistent. Data from 57 mouse liver RNA-seq circadian timeseries were processed. Arntl (Bmal1) gene quantified log transcripts per million (TPM) in red. Time 0 corresponds to lights on (ZT0) or to the equivalent CT0, depending on study. Shape-invariant models curve fit in black (with 4 studies excluded from the fits due to using an uncommon sequencing methodology). See other core clock genes in Supplementary Figure S2.

Single-study Analyses Have Low Consistency

We ran JTK_CYCLE (Hughes et al., 2010) (JTK) on each timeseries separately. We then compared the results of the datasets in several ways. First, we selected the significantly rhythmic genes at q < 0.05 identified by JTK and compared the overlaps of these lists between different studies (Figure 2) and likewise for BooteJTK significant genes (Suppl. Fig. S3). Differences of significant gene lists between studies was large for both JTK and BooteJTK. Gene lists were compared by their Jaccard index (i.e., the size of the intersection divided by the size of the union of significant genes in both datasets). The median Jaccard index was just 2% for JTK and 12% for BooteJTK; the highest indexes were 47% and 60% for JTK and BooteJTK, respectively.

OPEN IN VIEWER

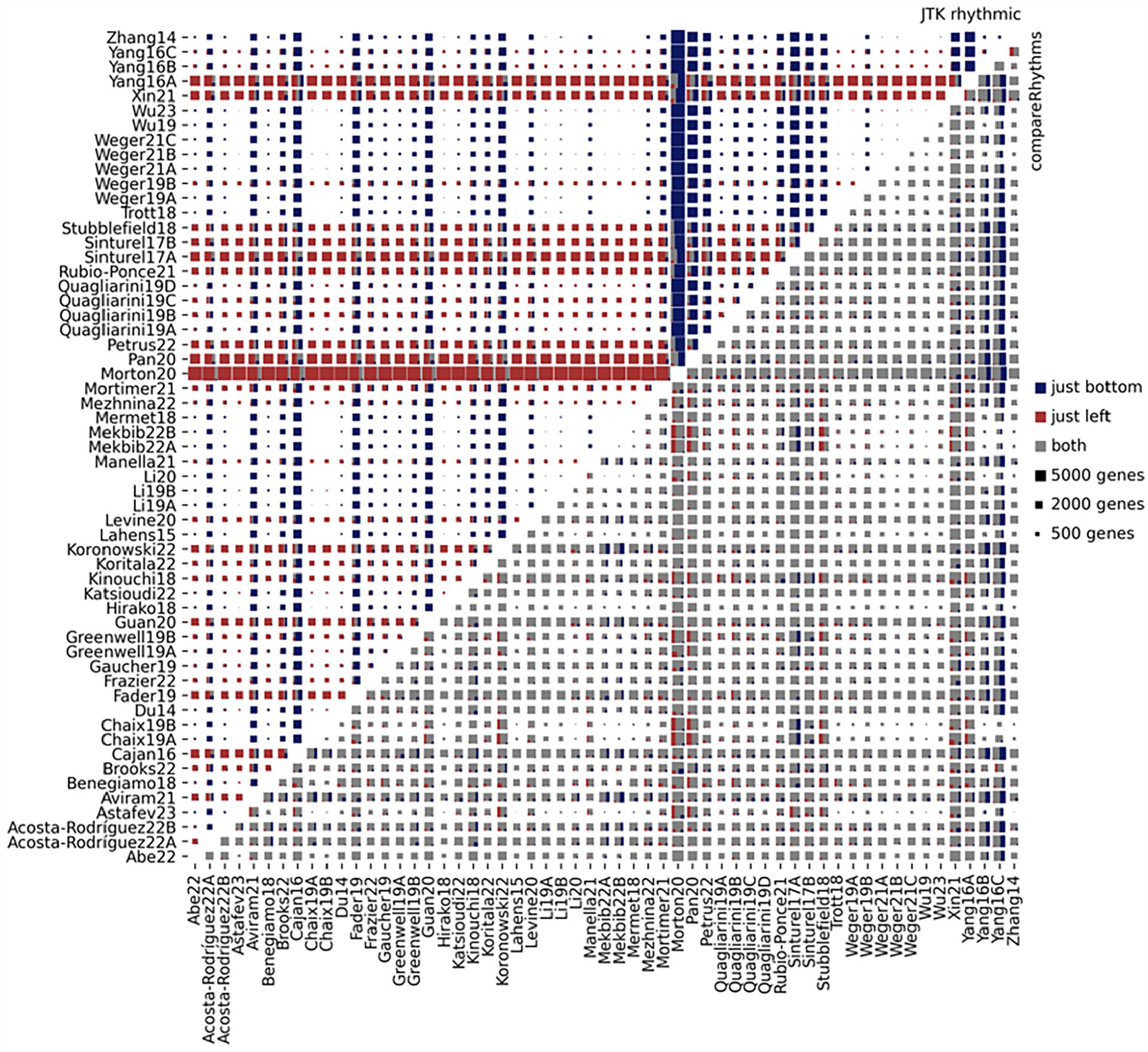

Figure 2.

Rhythmic gene overlaps in JTK and compareRhythms. Size of genes rhythmic common to both studies (in gray), unique in the row label study (red), or unique in the column label study (blue) shown for both JTK_CYCLE (above diagonal) and compareRhythms (below diagonal). JTK_CYLCE was run on each timeseries, and results were compared and genes significant at Benjamini-Hochberg q < 0.05 were considered rhythmic. Next, compareRhythm was run on every pair of studies which classified each gene as either loss, gain, change, or same rhythm between the 2 studies. Since expression values differ between studies making amplitude changes inestimable, we considered genes to be rhythmic in both studies (possibly of differing amplitudes or phases) if they were identified as either same or change.

Notably, sample size seemed to be more important for large overlap between studies than was study design. For example, 2 of the largest studies, Morton20 and Pan19, differ in lighting conditions (12-h LD and DD, respectively) but had the second highest JTK overlap of 47%. This emphasizes the importance of having enough samples to obtain repeatable results. Studies from the same laboratories showed only modestly higher agreement with each other than with other similar studies. Sample count was overall less important in the BooteJTK analysis where the highest overlap went to 2 studies (Quagliarini19A and Mezhnina22) that had only 18 and 17 samples and differed in the sex of the mice studied.

In contrast, the compareRhythms analysis directly compares the datasets and found relatively low levels of identifiable genes with rhythm in one study but not the other study (Figure 2). The Jaccard index from compareRhythms had a median of 89%, and many studies achieved 100% matches (no genes identified as loss or gain of rhythm between the 2 studies). This indicates that although the identified list of q < 0.05 genes from any study has low replicability, the evidence of genuinely distinct rhythmicity across studies is more limited.

To identify the genes consistently identified as rhythmic across studies, we employed a simple voting-counting metric. We defined the robustness score of a gene as the number of studies in which it was identified to be significantly rhythmic according to JTK (Figure 3a) at p < 0.05, out of a maximum possible score of 57. We identified 5222 genes with a robustness score of at least 13, which has a p < 0.05 chance of giving even 1 false positive gene, see “Methods.” Moreover, 525 genes reached a robustness score of 35 or more and therefore exhibit rhythmic behavior across many studies, see Supplementary Table S1. High robustness genes cluster around ZT0 and ZT12 in acrophase (Figure 3b).

OPEN IN VIEWER

Figure 3.

Robustness of genes. JTK_CYCLE results were summarized across all studies to identify genes that were highly consistent. The robustness score was computed as the number of studies in which the genes had JTK_CYCLE p value under 0.05. Correcting for the number of studies and genes, robustness scores of 13 or higher have p < 0.05 if the gene is not rhythmic in any study. (a) Number of genes by robustness score. (b) Plot of robustness score by mean (across studies in which JTK_CYCLE p < 0.05) phase for each gene. Genes with the highest robustness scores cluster in phase near ZT0/ZT24 or ZT12.

Phase Distribution Consistency

We next compared consistency of the distribution of phases of identified rhythmic genes. These distributions are routinely used to summarize overall activity in the transcriptome. However, these showed remarkable inconsistency across studies (Figure 4, Suppl. Fig. S4). While many studies showed preferential clustering of phases near particular times of day, the locations of these clusters differed substantially between studies. These differences are not explained by factors such as 12-h LD versus DD conditions; for example, Morton20 and Sinturel17A have the same conditions, large sample sizes, and moderately high overlap in identified rhythmic genes, but have almost opposite peaks in their phase distributions. However, when a single set of rhythmic genes is chosen for all studies, then the phase distributions are considerably more consistent, with all showing a peak near ZT12 (Suppl. Fig. S5). In contrast to phase, amplitude distributions were more consistent across studies (Suppl. Fig. S6).

OPEN IN VIEWER

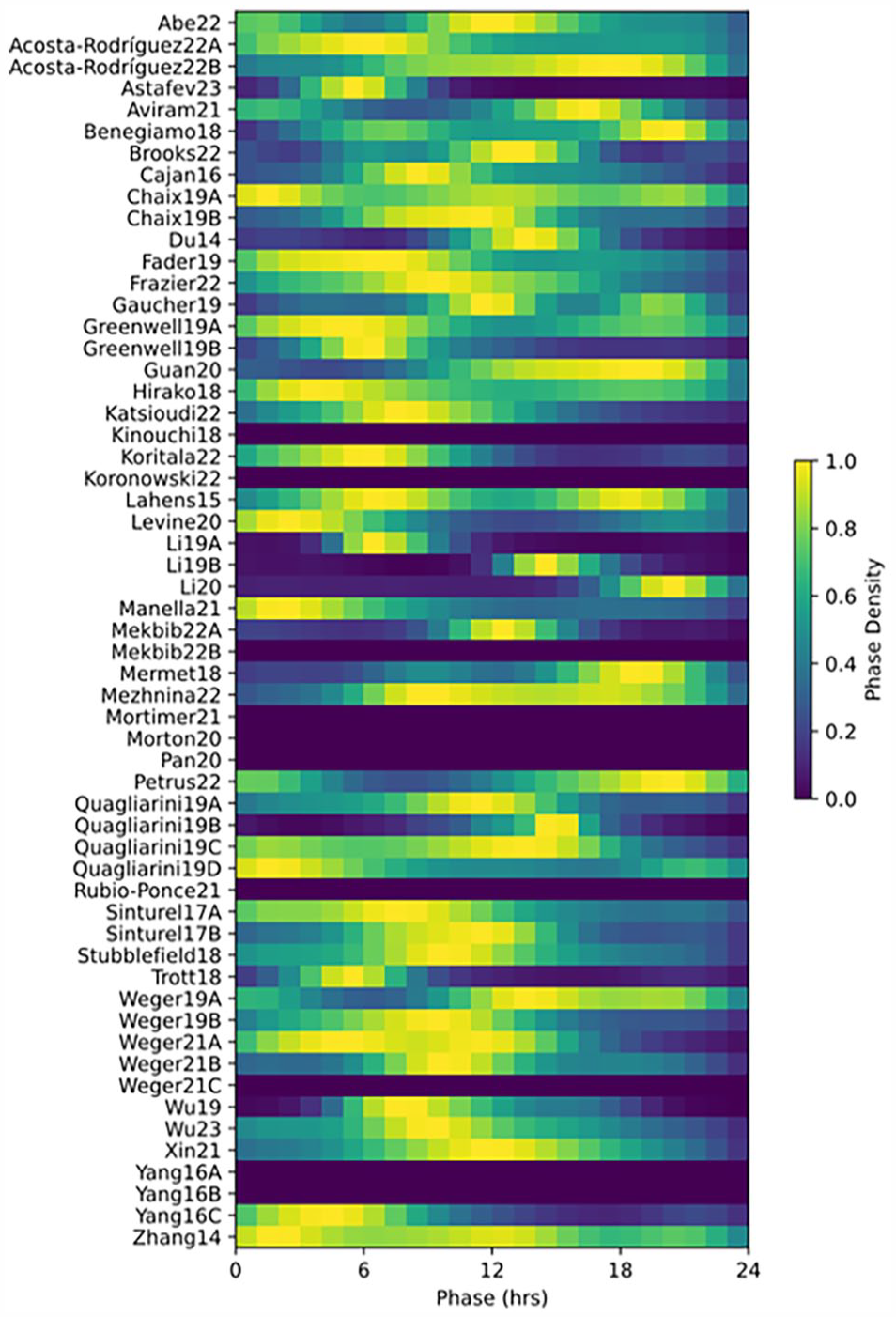

Figure 4.

Consistency of phase distributions. JTK_CYLCE was run on each timeseries, and results were compared. Distributions of phases among genes identified rhythmic by JTK (at a Benjamini-Hochberg Q value < 0.05), showing notable inconsistency between studies. Distributions are normalized to peak 1, with the total number of genes identified as rhythmic shown in separate column. Phase distributions skipped in studies with fewer than 10 rhythmic genes.

Joint PCA (JIVE) Identifies Consistent Rhythmicity Across Studies

To examine consistent factors of variance across the studies, a JIVE analysis was performed (Lock et al., 2013). While PCA on aggregated data from multiple studies identifies variance primarily between studies (Suppl. Fig. S1a), JIVE divides the within-studies variance into a joint component (common to all studies) and individual components (distinct for each study). JIVE does this by finding n + m principal components to capture as much variance of each study as possible, where the first n components are the joint components and are the same for all studies, while the last m are individual components and are allowed to be different for each study. Specifying n = 2 and m = 1, we found that the joint variance components capture the rhythmicity in factors that cleanly and consistently separate timepoints across all studies, see Figure 5. These 2 joint variance components together account for 8.3% of the within-study variance. In contrast, PCA run on individual studies gives inconsistent results, see Supplementary Figure S7.

OPEN IN VIEWER

Figure 5.

Joint and individual variation estimation (JIVE) reveals consistent rhythmicity across studies. A JIVE analysis was used to determined loadings of genes that have consistently high variance within each study (regardless of between-study differences). The identified 2 joint variance components are plotted in each timeseries, showing consistent separation by time-of-day. All plots use the same gene loadings.

SIMs Reveal the Shape of the Transcriptome Rhythms

SIMs fit a flexible curve to multiple independently measured studies, assuming there is a consistent shape across studies (Wang et al., 2003). Moreover, they allow for random-effects modeling by allowing each measured study to have differences in phase, amplitude, and mid-level (mesor). Applying this to our dataset allows the pooling of information from all studies to determine more accurately the underlying consistent shape of the rhythms within each study. We identified 2712 significantly rhythmic shapes (see “Methods”). Core clock genes were well-identified (Figure 1a, Suppl. Fig. S2).

To visualize the overall spectrum of diurnal profiles, we normalized all SIM fits to have amplitude 1 (max to min) and to peak at the same time. This allows us to consider profile shapes without considering amplitude or phase. These normalized shapes were sampled every 15 min, yielding, for each rhythmic gene, a vector of 96 values each ranging from 0 to 1. To group similar shapes together, a t-SNE dimension-reduction was performed on these normalized shapes, and the results were plotted (Suppl. Fig. S8a). Genes with significant fits were classified to either as monomodal with symmetric (n = 1349) or asymmetric (n = 1291) peaks, or as multimodal (n = 72). This emphasizes the diversity of profiles present in the transcriptome, although the most common shapes are similar to the classic cosine curve.

Genes With High Variability in Phase

Next, we considered the set of rhythmic genes which displayed the largest variability in their phases between studies. We hypothesized that these genes will be sensitive to external factors. Using the identified rhythmic SIM fits, the mean variability in phase was 1.11 h, see Supplementary Figure S8b, determined by transforming the SIM phi value to hours by an inverse logistic function to approximate the standard deviation of phases. We identified 187 genes with at least 2 h phase variability. Pathway analysis identified no pathways enriched for high phase variability.

Consistent Non-rhythmic Genes

We searched for genes that were consistent across studies and time by requiring that for each gene, the mean TPM was at least 1, the standard deviation was at most half the mean TPM, and that JTK_CYCLE q value was at least 0.05, as well as not having a rhythmic SIM fit. We chose these criteria to require high expression, low variance, and no detectable time-of-day dependence. A total of 98 genes met these criteria, see Supplementary Table S2. These genes represent candidate lists of “housekeeping” genes that repeatedly have minimal time varying across a wide selection of studies and have high expression values. The commonly used housekeeping gene Gapdh was not on the list, due to having standard deviation of TPM over half of its mean TPM in 3 studies, as well as being significantly rhythmic by JTK in 4 studies (and close to significant in several others). This demonstrates that these criteria are stringent and identify only highly consistent genes in mouse liver samples and may be useful as reference non-cyclic genes.
