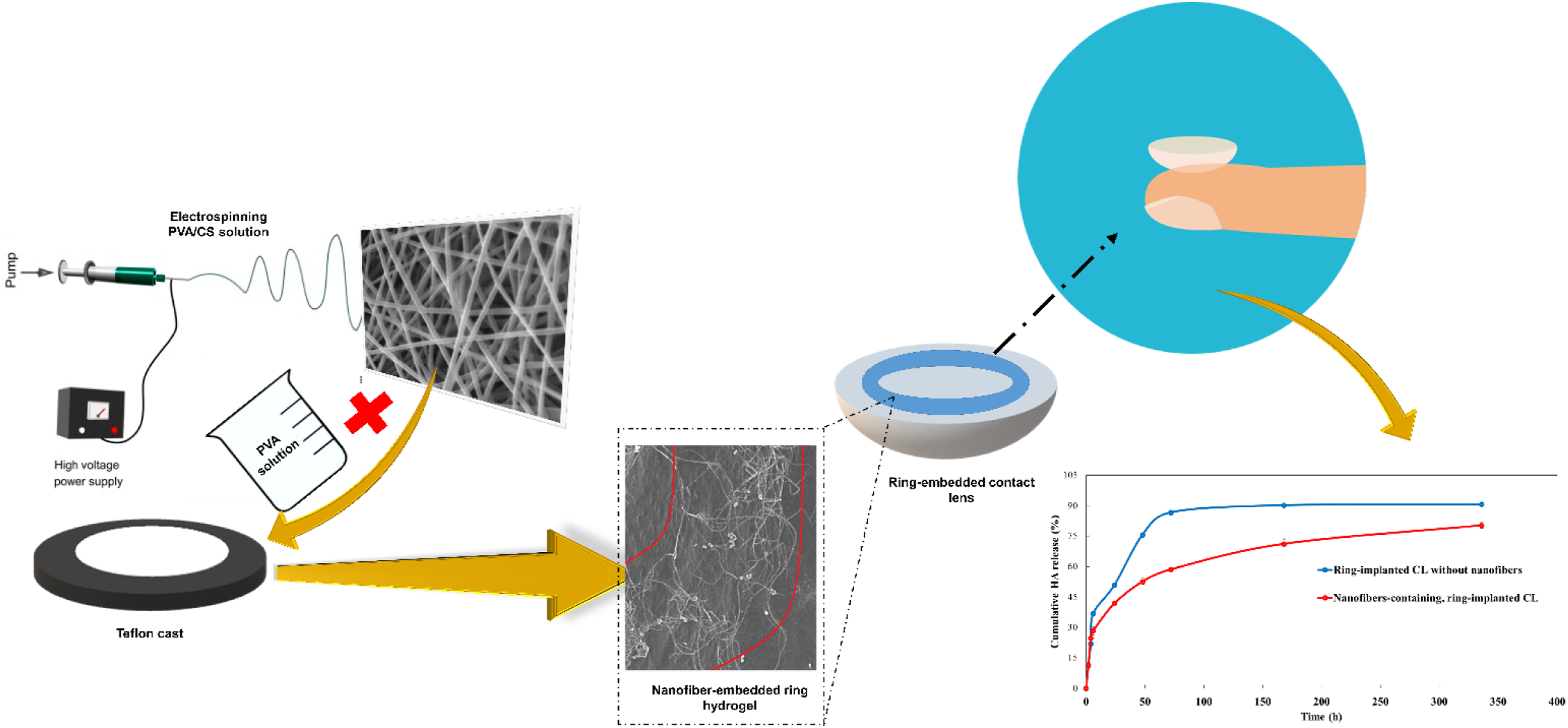

Dry eye syndrome, as a persist corneal epithelial defect (PED), is an inconvenient ocular disorder that is generally treated by high-dosage, conventional eye drops. Addressing low efficacy and rather restricted bioavailability of the conventional eye drops, drug-eluting contact lenses (CLs) are widely used as alternatives in ophthalmic drug delivery applications. In the present study, a nanofiber-containing ring implant poly (vinyl alcohol) (PVA) hydrogel is designed as a carrier for hyaluronic acid (HA) delivery. hyaluronic acid is physically encapsulated in a nanofiber-containing ring-shaped hydrogel with a 2 mm width that is implanted in the final CLs hydrogel. The designed CL has 59% porosity, 275% swelling ratio and undergoes no weight loss at physiological conditions in14 days. In-vitro release studies were performed on the CLs with and without nanofibers. The results showed that nanofiber incorporation in the designed CL was highly influential in decreasing burst release and supported sustained release of HA over 14 days. In addition, nanofiber incorporation in the designed system strengthened the lens, and the young modulus of the PVA hydrogel increased from 6 to 10 kPa. Cell viability study also revealed no cell cytotoxicity and cell attachment. Overall, the study demonstrated the effective role of nanofibers in the physical strengthening of the CL. Also, the designed system holds promise as a potential candidate for HA delivery over an extended period for treating dry eye syndrome.
McFarlaneB. Dry eye syndrome. Aust J Pharm2013; 94(1123): 68–71.
2.
BarabinoSLabetoulleMRolandoM, et al.Understanding symptoms and quality of life in patients with dry eye syndrome. Ocul Surf2016; 14(3): 365–376.
3.
LuY.QiJ. Oral delivery of liposomes. Ther Deliv2015; 6: 1239–1241.
4.
MehuysEDelaeyCChristiaensT, et al.Eye drop technique and patient-reported problems in a real-world population of eye drop users. Eye2020; 34(8): 1392–1398.
5.
AliMByrneME. Controlled release of high molecular weight hyaluronic acid from molecularly imprinted hydrogel contact lenses. Pharm Res2009; 26(3): 714–726.
6.
KalamMA. Development of chitosan nanoparticles coated with hyaluronic acid for topical ocular delivery of dexamethasone. Int J Biol Macromole Dev Chit Nanop Coated Hyalur Acid Topical Ocul Deliv Dexame2016; 89: 127–136.
7.
LimPRidgesRJacobsDS, et al.Treatment of persistent corneal epithelial defect with overnight wear of a prosthetic device for the ocular surface. Am J Ophthalmol2013; 156(6): 1095–1101.
8.
VaidyanathanUHoppingGCLiuHY, et al.Persistent corneal epithelial defects: a review article. Med Hypothesis, Discov Innov Ophthalmol J2019; 8(3): 163–176.
9.
HuangCZhangXLiY, et al.Hyaluronic acid and graphene oxide loaded silicon contact lens for corneal epithelial healing. J Biomater Sci Polym Ed2020; 0(0): 000–013.
10.
WeiNXuXHuangC, et al.Hyaluronic acid-pluronic®F127-laden soft contact lenses for corneal epithelial healing: in vitro and in vivo studies. AAPS Pharm Sci Tech2020; 21(5): 1–7.
11.
MaulviFAShaikhAALakdawalaDH, et al.Design and optimization of a novel implantation technology in contact lenses for the treatment of dry eye syndrome: in vitro and in vivo evaluation. Acta Biomater2017; 53: 211–221.
12.
MaulviFAChoksiHHDesaiAR, et al.pH triggered controlled drug delivery from contact lenses: addressing the challenges of drug leaching during sterilization and storage. Colloids Surf B Biointerfaces2017; 157: 72–82.
13.
DesaiARMaulviFAPandyaMM, et al.Co-delivery of timolol and hyaluronic acid from semi-circular ring-implanted contact lenses for the treatment of glaucoma: in vitro and in vivo evaluation. Biomater Sci2018; 6(6): 1580–1591.
14.
MaulviFASoniTGShahDO. Extended release of hyaluronic acid from hydrogel contact lenses for dry eye syndrome. J Biomater Sci Polym Ed2015; 26(15): 1035–1050.
15.
YonSHHChaWIIkadaY, et al.Poly (vinyl alcohol) hydrogels as soft contact lens material. J Biomater Sci Polym Ed1994; 5(5): 397–406.
YamaguchiHNakamuraK. “Swelling and mechanical properties poly(vinyl alcohol) hydrogels”. International Journal of Pharmaceutics1990; 58: 135–142.
18.
ZhouZLongDHsuCC, et al.Nanofiber-reinforced decellularized amniotic membrane improves limbal stem cell transplantation in a rabbit model of corneal epithelial defect. Acta Biomater2019; 97: 310–320.
19.
ChenYSuiLFangH, et al.Superior mechanical enhancement of epoxy composites reinforced by polyimide nanofibers via a vacuum-assisted hot-pressing. Compos Sci Technol2019; 174: 20–26.
20.
BakhshandehHSoleimaniMHosseiniSS, et al.Poly (epsilon-caprolactone) nanofibrous ring surrounding a polyvinyl alcohol hydrogel for the development of a biocompatible two-part artificial cornea. Int J Nanomedicine2011; 6: 1509–1515.
21.
ZhouYYangDNieJ. Electrospinning of chitosan/poly (Vinyl Alcohol)/acrylic acid aqueous solutions. J. Appl. Polym. Sci.2006; 102: 5692–5697.
22.
JeunJPJeonYKNhoYC, et al.Effects of gamma irradiation on the thermal and mechanical properties of chitosan/PVA nanofibrous mats. J Ind Eng Chem2009; 15(3): 430–433.
23.
AkbariEImaniRShokrollahiP, et al.Preparation of nanoparticle-containing ring-implanted poly(Vinyl Alcohol) contact lens for sustained release of hyaluronic acid. Macromol Biosci2021; 21(7): 2100043.
24.
DesaiA R. Co-delivery of timolol and hyaluronic acid from semi-circular ring-implanted contact lenses for the treatment of glaucoma: In vitro and in vivo evaluation. Biomater. Sci2018; 6(6): 1580–1591.
25.
ChenYWangQ. Establishment of CTAB Turbidimetric method to determine hyaluronic acid content in fermentation broth. Carbohydr Polym2009; 78(1): 178–181.
26.
OueslatiNLeblancPHarscoat-SchiavoC, et al.CTAB turbidimetric method for assaying hyaluronic acid in complex environments and under cross-linked form. Carbohydr Polym2014; 112: 102–108.
27.
SubriziAdel AmoEMKorzhikov-VlakhV, et al.Design principles of ocular drug delivery systems: importance of drug payload, release rate, and material properties. Drug Discov Today2019; 24(8): 1446–1457.
28.
YusongPYanCQianqianS, et al.Study on mechanical and optical properties of poly (vinyl alcohol) hydrogel used as soft contact lens Study on mechanical and optical properties of poly. In: vinyl alcohol hydrogel used as soft contact lens. Materials Technology2016; 31(5): 266–273.
29.
SiafakaPIYağcilarAP. New Era of ocular drug delivery systems based on contact lenses. FABAD Journal of Pharmaceutical Sciences; 2020; 45(2), pp. 161–174.
30.
OliveiraASSeidiORibeiroN, et al.Tribomechanical comparison between PVA hydrogels obtained using different processing conditions and human cartilage. Materials (Basel)2019; 12: 3413–3420.
31.
HuangXBrazelCS. On the importance and mechanisms of burst release in matrix-controlled drug delivery systems. J Control Release2001; 73(2–3): 121–136.
32.
HenninkWEVan NostrumCF. “Novel crosslinking methods to design hydrogels ☆”. Adv Drug Deliv Rev2012; 64: 223–236.
33.
YokoyamaFMasadaIShimamuraK, et al.Morphology and structure of highly elastic poly(vinyl alcohol) hydrogel prepared by repeated freezing-and-melting. Colloid Polym Sci1986; 264(7): 595–601.
34.
KimJConwayAChauhanA. Extended delivery of ophthalmic drugs by silicone hydrogel contact lenses. Biomaterials2008; 29: 2259–2269.
35.
JungHJChauhanA. Temperature sensitive contact lenses for triggered ophthalmic drug delivery. Biomaterials2012; 33(7): 2289–2300.
36.
ZhangJBiRHodgeW, et al.A nanocomposite contact lens for the delivery of hydrophilic protein drugs. J Mater Chem B2013; 1(35): 4388–4395.
37.
KimSHOpdahlAMarmoC, et al.AFM and SFG studies of pHEMA-based hydrogel contact lens surfaces in saline solution: adhesion, friction, and the presence of non-crosslinked polymer chains at the surface. Biomaterials2002; 23(7): 1657–1666.
38.
HickeyASPeppasNA. Solute diffusion in poly(vinyl alcohol)/poly(acrylic acid) composite membranes prepared by freezing/thawing techniques. Polymer (Guildf)1997; 38(24): 5931–5936.
39.
KassahunSKKiflieZShinDW, et al.Optimization of sol-gel synthesis parameters in the preparation of N-doped TiO2 using surface response methodology. J Sol-gel Sci Technol2017; 82(2): 322–334.
40.
AsvarZMirzaeiEAzarpiraN, et al.Evaluation of electrospinning parameters on the tensile strength and suture retention strength of polycaprolactone nanofibrous scaffolds through surface response methodology. J Mech Behav Biomed Mater2017; 75: 369–378.
JeongBBaeYHKimSW. Drug release from biodegradable injectable thermosensitive hydrogel of PEG – PLGA – PEG triblock copolymers. J Control Release2000; 63: 155–163.
43.
GuptaSWebsterTJSinhaA. Evolution of PVA gels prepared without crosslinking agents as a cell adhesive surface. J Mater Sci Mater Med2011; 22(7): 1763–1772.
44.
PaipitakKPornpraTMongkontalangP, et al.Characterization of PVA-chitosan nanofibers prepared by electrospinning. Proced Eng2011; 8: 101–105.
45.
MiraftabMSaifullahANÇayA. Physical stabilisation of electrospun poly(vinyl alcohol) nanofibres: comparative study on methanol and heat-based crosslinking. J Mater Sci2015; 50(4): 1943–1957.
46.
YaoLHaasTWGuiseppi-ElieA, et al.Electrospinning and stabilization of fully hydrolyzed poly(vinyl alcohol) fibers. Chem Mater2003; 15(9): 1860–1864.
47.
HobzovaRHribJSircJ, et al.Embedding of bacterial cellulose nanofibers within PHEMA hydrogel matrices: tunable stiffness composites with potential for biomedical applications. J Nanomater2018; 2018: 1–11.
48.
SinghviGSinghM. Review: in-vitro drug release characterization models, II. I. Int J Pharm Stud Res2011; 2(1): 77–84.
49.
SciencesH. kinetic modeling drug release controlled drug delivery systems. Review2010; 67(3): 217–223.
50.
van EssenTHvan ZijlLPossemiersT, et al.Biocompatibility of a fish scale-derived artificial cornea: cytotoxicity, cellular adhesion and phenotype, and in vivo immunogenicity. Biomaterials2016; 81: 36–45.
51.
GuptaSWebsterTJ. Evolution of PVA gels prepared without crosslinking agents as a cell adhesive surface. Journal of Materials Science: Materials in Medicine2011; 22(7): 1763–1772.
