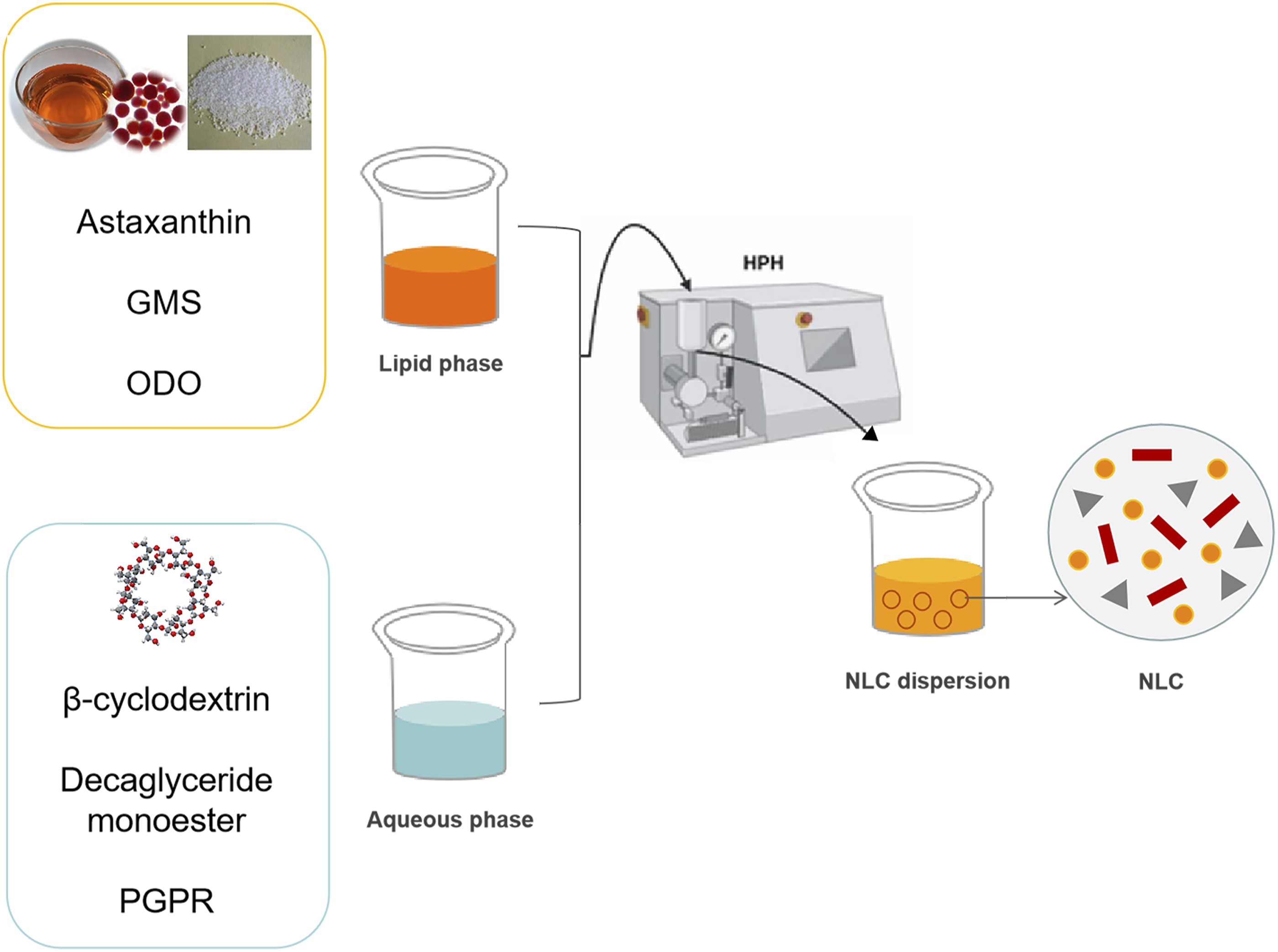

The purpose of this study was to evaluate the astaxanthin-loaded nanostructured lipid carriers (ASX-NLC) prepared using a high-pressure homogenization transport system for local application of astaxanthin. Dynamic light scattering (DLS) and X-ray diffraction (XRD) were used to study the effect of microencapsulation on the properties of ASX-NLC. The mean size of ASX-NLC was about 108.43 ± 0.26 nm and PdI was 0.176 ± 0.002. The ASX-NLC had high encapsulation efficiency which was 95.69 ± 0.13%. Good light stability and temperature stability were shown at the ASX-NLC, indicating that the preparation process was feasible. The 2,2-diphenyl-1-pyridylohydrazinyl (DPPH) scavenging test showed that ASX-NLC could still play an antioxidant role. In vitro release studies showed that compared with an astaxanthin ethanol solution, an ASX-NLC could maintain astaxanthin release more effectively. In vitro permeation studies showed that ASX-NLC could increase astaxanthin retention in the skin. In conclusion, ASX-NLC could significantly enhance astaxanthin accumulation during dermal applications. The research results have important reference significance for local skin applications and provide a basis for the development of nanostructured lipid carriers. ASX-NLC might be suitable carriers for the local application of astaxanthin.
Rodriguez-ConcepcionMAvalosJBonetML, et al.A global perspective on carotenoids: Metabolism, biotechnology, and benefits for nutrition and health. Prog Lipid Res2018; 70: 62–93. DOI: 10.1016/j.plipres.2018.04.004
2.
Delgado-VargasFJimenezARParedes-LopezO. Natural pigments: carotenoids, anthocyanins, and betalains-characteristics, biosynthesis, processing, and stability. Crit Rev Food Sci Nutr2000; 40: 173–289. DOI: 10.1080/10408690091189257
3.
FiedorJBurdaK. Potential role of carotenoids as antioxidants in human health and disease. Nutrients2014; 6: 466–488. DOI: 10.3390/nu6020466
4.
ZhaoTYanXSunL, et al.Research progress on extraction, biological activities and delivery systems of natural astaxanthin. Trends Food Sci Tech2019; 91: 354–361. DOI: 10.1016/j.tifs.2019.07.014
5.
ZhangWWangJWangJ, et al.Attached cultivation of Haematococcus pluvialis for astaxanthin production. Bioresour Technol2014; 158: 329–335. DOI: 10.1016/j.biortech.2014.02.044
6.
KoyandeAKChewKWManickamS, et al.Emerging algal nanotechnology for high-value compounds: A direction to future food production. Trends Food Sci Tech2021; 116: 290–302. DOI: 10.1016/j.tifs.2021.07.026
7.
LiuLLiJCaiX, et al.Dietary supplementation of astaxanthin is superior to its combination with Lactococcus lactis in improving the growth performance, antioxidant capacity, immunity and disease resistance of white shrimp (Litopenaeus vannamei). Aquacult Rep2022; 24: 101124. DOI: 10.1016/j.aqrep.2022.101124
8.
RoohbakhshAKarimiGIranshahiM. Carotenoids in the treatment of diabetes mellitus and its complications: A mechanistic review. Biomed Pharmacother2017; 91: 31–42. DOI: 10.1016/j.biopha.2017.04.057
9.
AwuchiCGMoryaSDendeghTA, et al.Nanoencapsulation of food bioactive constituents and its associated processes: A revisit. Bioresource Technology Reports2022; 19: 101088. DOI: 10.1016/j.biteb.2022.101088
10.
JiangXXieZWadeNM, et al.Using response surfaces to explore the interactive effect of dietary astaxanthin and β-carotene on growth and antioxidant capability of juvenile Chinese mitten crab, Eriocheir sinensis. Aquaculture2022; 555: 738196. DOI: 10.1016/j.aquaculture.2022.738196
11.
LuQLiHZouY, et al.Astaxanthin as a microalgal metabolite for aquaculture: A review on the synthetic mechanisms, production techniques, and practical application. Algal Res2021; 54: 102178. DOI: 10.1016/j.algal.2020.102178
12.
GeSJiaRLiQ, et al.Pickering emulsion stabilized by zein/Adzuki bean seed coat polyphenol nanoparticles to enhance the stability and bioaccessibility of astaxanthin. J Funct l Foods2022; 88: 104867. DOI: 10.1016/j.jff.2021.104867
13.
Martinez-AlvarezOCalvoMMGomez-EstacaJ. Recent Advances in Astaxanthin Micro/Nanoencapsulation to Improve Its Stability and Functionality as a Food Ingredient. Mar Drugs2020; 18: 406. DOI: 10.3390/md18080406
14.
ZhouLLiKDuanX, et al.Bioactive compounds in microalgae and their potential health benefits. Food Biosci2022; 49: 101932. DOI: 10.1016/j.fbio.2022.101932
15.
NguyenVHThuyVNVanTV, et al.Nanostructured lipid carriers and their potential applications for versatile drug delivery via oral administration. OpenNano2022; 8: 100064. DOI: 10.1016/j.onano.2022.100064
16.
AkhavanSAssadpourEKatouzianI, et al.Lipid nano scale cargos for the protection and delivery of food bioactive ingredients and nutraceuticals. Trends Food Sci Tech2018; 74: 132–146. DOI: 10.1016/j.tifs.2018.02.001
17.
VieiraMVDernerRBLemos-SennaE. Preparation and characterization of Haematococcus pluvialis carotenoid-loaded PLGA nanocapsules in a gel system with antioxidant properties for topical application. J Drug Deliv Sci Technol2021; 61: 102099. DOI: 10.1016/j.jddst.2020.102099
18.
ZhuJZhuangPLuanL, et al.Preparation and characterization of novel nanocarriers containing krill oil for food application. J Funct Foods2015; 19: 902–912. DOI: 10.1016/j.jff.2015.06.017
19.
ShenQQuekSY. Microencapsulation of astaxanthin with blends of milk protein and fiber by spray drying. J Food Eng2014; 123: 165–171. DOI: 10.1016/j.jfoodeng.2013.09.002
20.
NakagawaSOhmuraRToshimaS, et al.Changes in polyphenols, anthocyanins, and DPPH radical-scavenging activities in sweetpotato (Ipomoea batatas L.) during tuber growth. Sci Hortic2021; 284: 110100. DOI: 10.1016/j.scienta.2021.110100
21.
PuJGengJBaiB. Effect of the chromium ion diffusion in polyacrylamide/chromium acetate gelation system with surrounding water on gelation behavior. J Petrol Sci Eng2018; 171: 1067–1076. DOI: 10.1016/j.petrol.2018.08.014
22.
AlkradJAAssafSMHussein-Al-AliSH, et al.Microemulsions as nanocarriers for oral and transdermal administration of enoxaparin. J Drug Deliv Sci Technol2022; 70: 103248. DOI: 10.1016/j.jddst.2022.103248
23.
AmasyaGOzturkCAksuB, et al.QbD based formulation optimization of semi-solid lipid nanoparticles as nano-cosmeceuticals. J Drug Deliv Sci Technol2021; 66: 102737. DOI: 10.1016/j.jddst.2021.102737
24.
Ag SeleciDBongartzRDoganLE, et al.Biofunctional quantum dots as fluorescence probe for cell-specific targeting. Colloids Surf, B2014; 114: 96–103. DOI: 10.1016/j.colsurfb.2013.09.033
25.
LacatusuIMitreaEBadeaN, et al.Lipid nanoparticles based on omega-3 fatty acids as effective carriers for lutein delivery. Preparation and In vitro characterization studies. J Funct Foods2013; 5: 1260–1269. DOI: 10.1016/j.jff.2013.04.010
26.
MoralesEBurgos-DíazCZúñigaRN, et al.Influence of O/W emulsion interfacial ionic membranes on the encapsulation efficiency and storage stability of powder microencapsulated astaxanthin. Food Bioprod Process2021; 126: 143–154. DOI: 10.1016/j.fbp.2020.12.014
27.
HuangJWangQLiT, et al.Nanostructured lipid carrier (NLC) as a strategy for encapsulation of quercetin and linseed oil: Preparation and In vitro characterization studies. J Food Eng2017; 215: 1–12. DOI: 10.1016/j.jfoodeng.2017.07.002
28.
ZhengMFalkeborgMZhengY, et al.Formulation and characterization of nanostructured lipid carriers containing a mixed lipids core. Colloid Surface2013; 430: 76–84. DOI: 10.1016/j.colsurfa.2013.03.070
29.
LiuC-HWuC-T. Optimization of nanostructured lipid carriers for lutein delivery. Colloid Surface2010; 353: 149–156. DOI: 10.1016/j.colsurfa.2009.11.006
30.
Mardani-GhahfarokhiAFarhooshR. Antioxidant activity and mechanism of inhibitory action of gentisic and alpha-resorcylic acids. Sci Rep2020; 10: 19487. DOI: 10.1038/s41598-020-76620-2
31.
TianLZhangSYiJ, et al.Factors impacting the antioxidant/prooxidant activity of tea polyphenols on lipids and proteins in oil-in-water emulsions. Lwt2022; 156: 113024. DOI: 10.1016/j.lwt.2021.113024
32.
BudilartoESKamal-EldinA. The supramolecular chemistry of lipid oxidation and antioxidation in bulk oils. Eur J Lipid Sci Technol2015; 117: 1095–1137. DOI: 10.1002/ejlt.201400200
33.
SunRXiaQ. Nanostructured lipid carriers incorporated in alginate hydrogel: Enhanced stability and modified behavior in gastrointestinal tract. Colloid Surface2019; 574: 197–206. DOI: 10.1016/j.colsurfa.2019.04.082
34.
GuLYSunRWangWJ, et al.Nanostructured lipid carriers for the encapsulation of phloretin: preparation and in vitro characterization studies. Chem Phys Lipids2022; 242: 105150. DOI: 10.1016/j.chemphyslip.2021.105150
35.
SolísACBentoDNunesS, et al.Rethinking transdermal drug delivery using PVA-NLC based films. Polymer2021; 230: 124032. DOI: 10.1016/j.polymer.2021.124032
36.
EphremEElaissariHGreige-GergesH. Improvement of skin whitening agents efficiency through encapsulation: Current state of knowledge. Int J Pharm2017; 526(1–2): 50–68. DOI: 10.1016/j.ijpharm.2017.04.020
37.
SahuTRatreYKChauhanS, et al.Nanotechnology based drug delivery system: Current strategies and emerging therapeutic potential for medical science. J Drug Deliv Sci Technol2021; 63: 102487. DOI: 10.1016/j.jddst.2021.102487
38.
WuBLiYLiY, et al.Pickering emulsions-chitosan hydrogel beads carrier system for loading of resveratrol: Formulation approach and characterization studies. React Funct Polym2021; 169: 105074. DOI: 10.1016/j.reactfunctpolym.2021.105074
39.
SoutoEBFangueiroJFFernandesAR, et al.Physicochemical and biopharmaceutical aspects influencing skin permeation and role of SLN and NLC for skin drug delivery. Heliyon2022; 8: e08938. DOI: 10.1016/j.heliyon.2022.e08938
40.
DavidBNathalieASilviaC, et al.Skin sensitisation--moving forward with non-animal testing strategies for regulatory purposes in the EU. Regul Toxicol Pharm2013; 67: 531–535. DOI: 10.1016/j.yrtph.2013.10.002
