Green composites from kapok husk and recycled polypropylene

Abstract

The present work was developed to utilize kapok husk (KH) as filler in recycled polypropylene (rPP) green composites. Stearic acid (SA) was used as surface modifier in rPP/KH composites. It was found that the modified KH with SA was reduced the stabilization torque of composites. The addition of KH in rPP decreased the tensile strength and elongation at break but increased tensile modulus of composites. The modified KH with SA improved the tensile strength, tensile modulus, crystallinity, and thermal stability of composites. The scanning electron microscopic micrograph provd that the interfacial interaction and adhesion was improved by SA modification.

Keywords

Kapok husk recycled polypropylene composites stearic acid surface modifier

Introduction

In recent years, green composites have garnered interest among researchers and industries due to today’s environmental issues and economic factor as well as the accumulation of agricultural waste and by-product. Many agricultural waste and by-product such as coconut shell,^1

–4 palm oil empty fruit bunch,⁵ groundnut shell,⁶ palm kernel shell,⁷ pineapple leaf,⁸ cocoa pod husk,^9,10 and corn cob^11
–13 have utilized as filler in composite materials. Kapok (Ceiba pentandra) tree is heavily cultivated in Malaysia country purposely to obtain the kapok cotton and seed.¹⁴ In the kapok industry, kapok cotton is used to fill pillows and mattress as well as the kapok seeds are processed to obtain seed oil, which has similar properties to cotton seeds oil.^14,15 However, kapok husk (KH) became one of the by-products in kapok cotton industry.¹⁴ During harvesting of kapok pod (as shown in Figure 1), the KH become waste after removing the kapok cotton and seeds. Commonly, the KH is readily abundant and do not have any economic value. Therefore, KH has a potential use as inexpensive filler in thermoplastic materials. The utilization of KH in thermoplastic can also reduce the waste of kapok industry.

Figure 1.

Dried kapok pod.

Nowadays, various combinations of agricultural waste and thermoplastic material have been successfully made into commercial products. In Malaysia, a series eco-tableware was made from rice husk-filled thermoplastic eco-composites by Melsom Biodegradable Enterprise, Malaysia.⁴ In our previous research, coconut shell powder or corn cob was incorporated with polylactic acid to produce eco-packaging product³ and eco-tableware.¹¹ However, the incompatibility between natural filler and thermoplastic material was a major issue in processing of natural filler-filled thermoplastic composites. The interface incompatibility between hydrophilic nature of the natural filler and hydrophobic nature of thermoplastic was hardly to produce good properties of composites. Usually, unmodified natural filler has poor dispersion, wettability, and adhesion with thermoplastic material. In general, the good performance composites can be achieved by filler modification via alkaline treatment,^16
–18 esterification,^{1,3,9,13,19
–21} silane treatment,^2,22,23 use of maleated polymer,^10,24

–27 and other chemical.^4,11 Besides, fatty acid and its derivative can be also used as green coupling agent in natural filler treatment as it acts asa coupling effect on the natural filler-based composites. Some studies claimed that the use of stearic acid (SA) as coupling agent was able to improve the properties of sisal fiber^28,29 or coconut coil-³⁰ reinforced composites.

In this research, the KH was combined with recycled polypropylene (rPP) to produce green composites. The SA was used to modify KH in order to promote the dispersion as well as enhance the properties of rPP/KH eco-composites. The effect of SA modification on tensile, thermal and morphology properties of rPP/KH composites have been investigated.

Methodology

Materials

The KH was obtained from Kapok Plantation, Perlis, Malaysia. The KH was dried in oven at 80°C for 24 h. Then, KH was crushed and ground into fine powder. The average particle size of KH was 28 µm, which is analyzed by Malvem Particle Size Analyzer Instrument (Malaysia). The density of KH was 1.148 g cm⁻³. The rPP was supplied by Toray Plastics Sdn. Bhd (Malaysia). The SA and ethanol were supplied by Sigma Aldrich (Penang, Malaysia).

Filler modification

The SA was dissolved in ethanol with amount of 3% (w/v). The KH powder was added in SA solution and stirred with mechanical stirrer for 1 h and soaked it for overnight. The modified KH was filtered and dried in oven at 80°C for 24 h.

Preparation of composites samples

The rPP/KH composites were prepared by using Brabender^® Plastrograph (Germany) internal mixer with counterrotating mode at 180°C and 50 r min⁻¹ of rotor speed. The rPP/KH composites were mixed according to formulation in Table 1. Firstly, the rPP was transferred into mixing chamber for 2 min until it fully melted. After that, KH was added to melted rPP and mixed for 6 min. The total mixing time was 8 min. All formulated rPP/KH composites were molded into sheet form with 1 mm thickness using compression molding model GT 7014A at 180°C. The compression sequences involved preheat compound for 4 min, compression under pressure at 9.81 MPa for 1 min, and cooling under same pressure for 5 min. The rPP/KH composites sheet was cut into tensile bar by using dumbbell cutter. Figure 2(a) and (b) shows the rPP/CPH composites in form of sheet and tensile bar. The dimension of the tensile bar was referring to ASTM D638 type IV.³¹

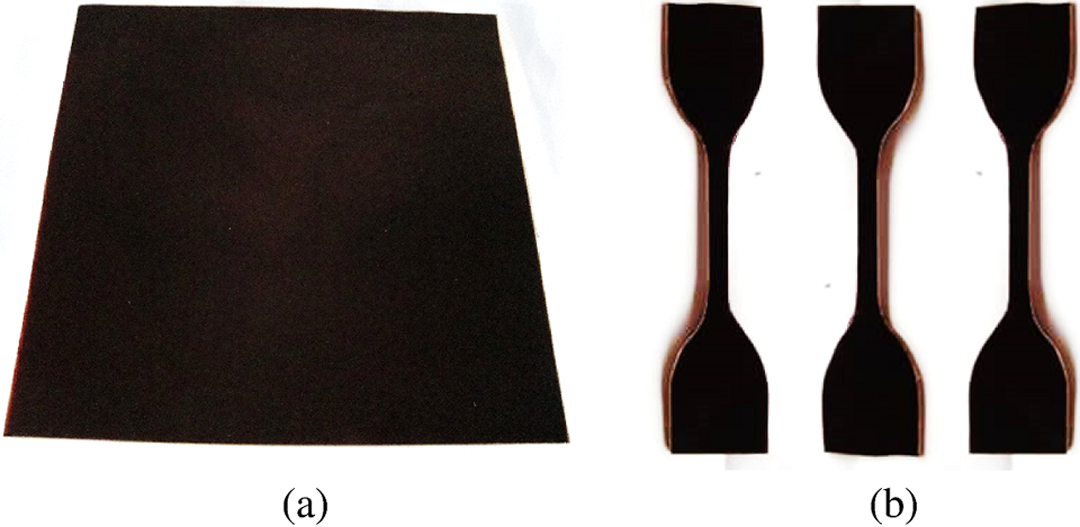

Figure 2.

rPP/KH composites in (a) sheet form and (b) tensile bar. rPP: recycled polypropylene; KH: kapok husk.

Table 1.

Formulation of unmodified and modified rPP/KH composites.

Materials	Unmodified rPP/KH	Modified rPP/KH
rPP (wt%)	100, 90, 80, 70, 60	100, 90, 80, 70, 60
KH (wt%)	0, 10, 20, 30, 40	0, 10, 20, 30, 40

rPP: recycled polypropylene; KH: kapok husk.

Processing torque measurement

The processing torque was measured during the compounding of composites using Brabender Plastrograph internal mixer. The torque changes of compound with the time were recorded and torques versus time curves were plotted by computer. The torque values at the end of processing time were taken as stabilization torque.

Tensile testing

Tensile testing was performed using an Instron machine model 5566 (USA) according to ASTM D638 standard.³¹ The test was carried out at 23 ± 2°C. A crosshead speed of 30 mm min⁻¹ was used and the loading was 50 kN.

Morphology analysis

The tensile fracture surface of rPP/KH composites was analyzed using a scanning electron microscope (model JEOL JSM-6460 LA, Japan). The samples were coated with a thin layer of palladium for conductive purpose before analyzed.

FTIR spectroscopy

Fourier transform infrared (FTIR) analysis was conducted using FTIR spectroscopy, Perkin Elmer, Waltham, Massachusetts, USA, model Paragon 1000, which equipped with an attenuated total reflectance (ATF) device. FTIR was used to determine the functional chemical groups of unmodified and modified KH. The samples were recorded with 16 scans in the wavelength range 600–4000 cm⁻¹ with resolution of 4 cm⁻¹.

DSC analysis

Differential scanning calorimetry (DSC) analysis was carried out using DSC Q10, Research Instrument (USA). The sample was cut into small pieces and placed into closed aluminum pan with sample weight in range 7 ± 2 mg. The specimen was heated from 30°C to 200°C with a heating rate of 10°C min⁻¹ under nitrogen atmosphere. The nitrogen gas flow rate was 50 ml min⁻¹. The degree of crystallinity of composite (X_c) can be evaluated from DSC data by using equation (1).

X_{c} = \frac{Δ H_{f}}{Δ H_{f}^{0}} \times 100,

where ΔH_f is the heat fusion of the rPP composites, and $Δ H_{f}^{0}$ is the heat fusion for 100% crystalline PP $(Δ H_{f}^{0} = 209 J g^{- 1})$ .⁴

The crystallinity of PP matrix (X_rPP) was calculated using following equation (2), where W_{f rPP} is the weight fraction of rPP matrix.

X_{r P P} = \frac{X_{c}}{W_{f r P P}}

Thermogravimetric analysis

Thermogravimetric analysis (TGA) was evaluated using TGA Pyris Diamond PerkinElmer apparatus. The sample was about 7 ± 2 mg in weight and was placed into platinum crucible. Then, the sample was heated from 30°C to 700°C at a heating rate of 10°C min⁻¹ under nitrogen atmosphere with the nitrogen flow rate of 50 ml min⁻¹.

Results and discussion

Processing torque

Figure 3 shows the processing torque versus times curves for the unmodified and modified rPP/KH composites with different filler content. The first processing torque increased rapidly due to the shearing action from the solid rPP pellets. The processing torque was followed by a gradual reduced indicates the decrease of viscosity as rPP pellets molten by the high temperature and continuous shear. The second torque development can be found at time after 2 min. This caused by the addition of the KH into molten rPP. The processing torque decreased gradually and the stabilization torque achieved after the rPP/CH in homogenized mixture. The similar trend on processing torque was also found in previous study.^9,10 From Figure 4, the stabilization torque was increased with the increasing of KH content. This due to the fact of the presence of dispersive resistance from KH particles increased the viscosity of rPP especially at high filler content. However, the stabilization torque of modified rPP/KH composites lowers as compared to unmodified rPP/KH composites. This is because the modified KH shows lower dispersive resistance due to the SA attached on the filler surface separated each KH particles from agglomeration and promoted the organophilic behavior to KH particles (as shown in Figure 5). The unmodified KH was easily to agglomerate to each other through the hydrogen bonding and contributed high dispersive resistance. Therefore, modified KH was well dispersed in molten rPP, resulting in modified rPP/KH composites with lower viscosity than unmodified rPP/KH composites.

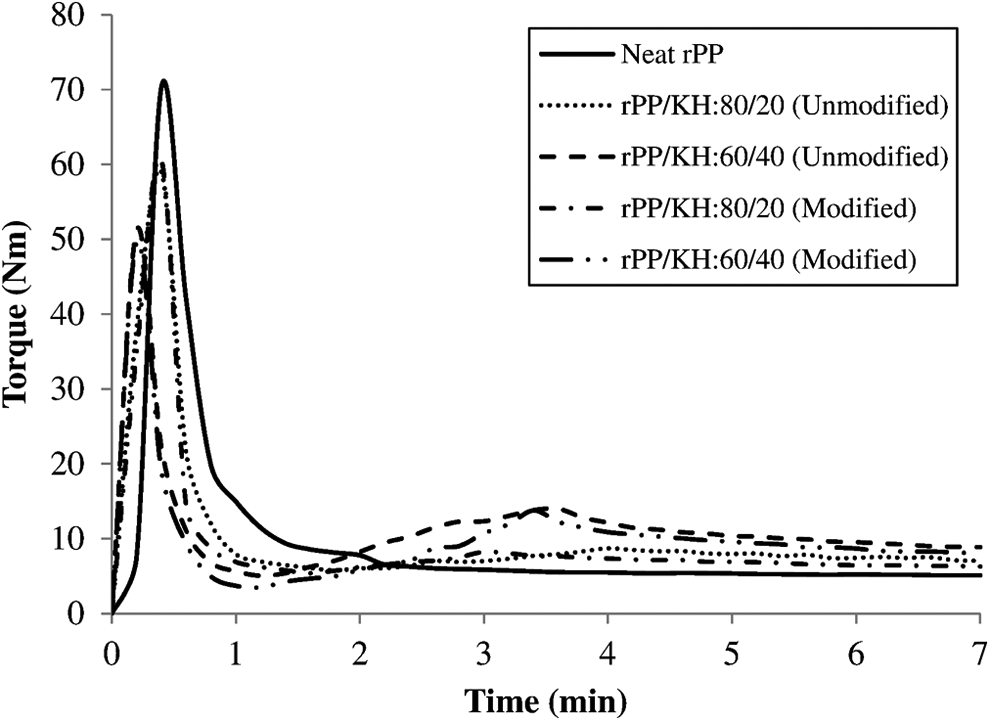

Figure 3.

Processing torque versus time curves of unmodified and modified rPP/KH composites with different filler content. rPP: recycled polypropylene; KH: kapok husk.

Figure 4.

Stabilization torque of unmodified and modified rPP/KH composites with different filler content. rPP: recycled polypropylene; KH: kapok husk.

Figure 5.

The reduction of KH agglomeration after filler modification with SA. KH: kapok husk; SA: stearic acid.

Tensile properties

The effect of filler content on tensile strength of unmodified and modified rPP/KH composites is shown in Figure 6. The incorporation of KH decreased the tensile strength of both composites. A similar trend was found in our previous work.⁴ Besides, the poor wettability between hydrophilic filler and matrix was usually contributed to poor dispersion and weak filler–matrix adhesion. This due to hydrophobic rPP was hardly to wet the unmodified KH during the compounding by penetrating crevices on KH surface, which lead to weak interfacial bonding and interfacial voids (as shown in Figure 7(a)). Therefore, the efficiency of stress transfer was reduced in the presence of weak interfacial bonding and voids. As a result, the tensile strength of composites decreased. On the other hand, modified KH had long alkyl chains (from SA) covalent bonded on its surface, leading to increase the wettability with rPP matrix and it enhanced the interfacial bonding with greater surface interlocking as illustrated in Figure 7(b). At 40 wt% of filler content, the tensile strength of modified rPP/KH composites with SA (17.95 MPa) was slightly higher than modified rPP/coconut shell powder (CSP) composite with sodium dodecyl sulfate (SDS, 17.02 MPa) as found in previous study.⁴

Figure 6.

Effect of filler content on tensile strength of unmodified and modified rPP/KH composites. rPP: recycled polypropylene; KH: kapok husk.

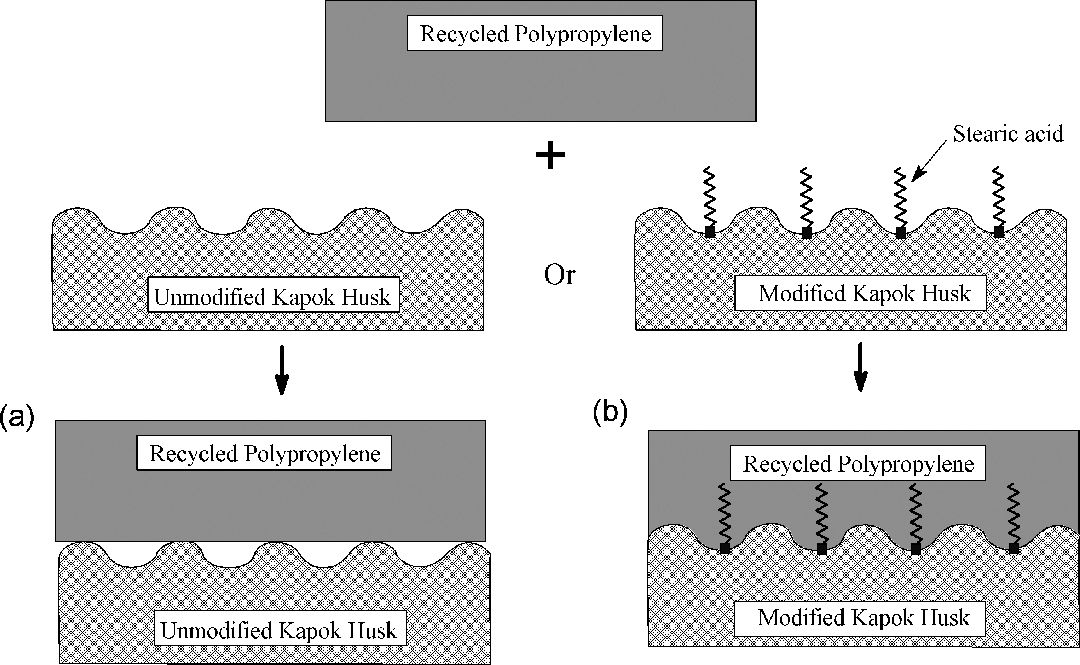

Figure 7.

(a) Unmodified rPP/KH eco-composites with poor wettability due to rPP matrix unable to penetrate the asperities on KH surface and (b) modified rPP/KH composites with good interfacial interlocking. rPP: recycled polypropylene; KH: kapok husk.

Figure 8 shows the elongation at break of unmodified and modified rPP/KH composites. It can be seen that the elongation at break decreased when the KH was added. The presence of KH reduced the polymer chain flexibility induced to more rigid and brittle composites. This was a commons trend that also found in our previous work and other researchers.¹ ^– ^4,7,22,25 Nevertheless, filler modification had decreased the elongation at break of rPP/KH composites. As discussed before, the modified KH had better interfacial bonding with rPP matrix, resulting in the ductility of rPP/KH composites was decreased by the strong interfacial bonding. Modified rPP composites with KH or CSP⁴ exhibited lower elongation at break compared to unmodified rPP composites.

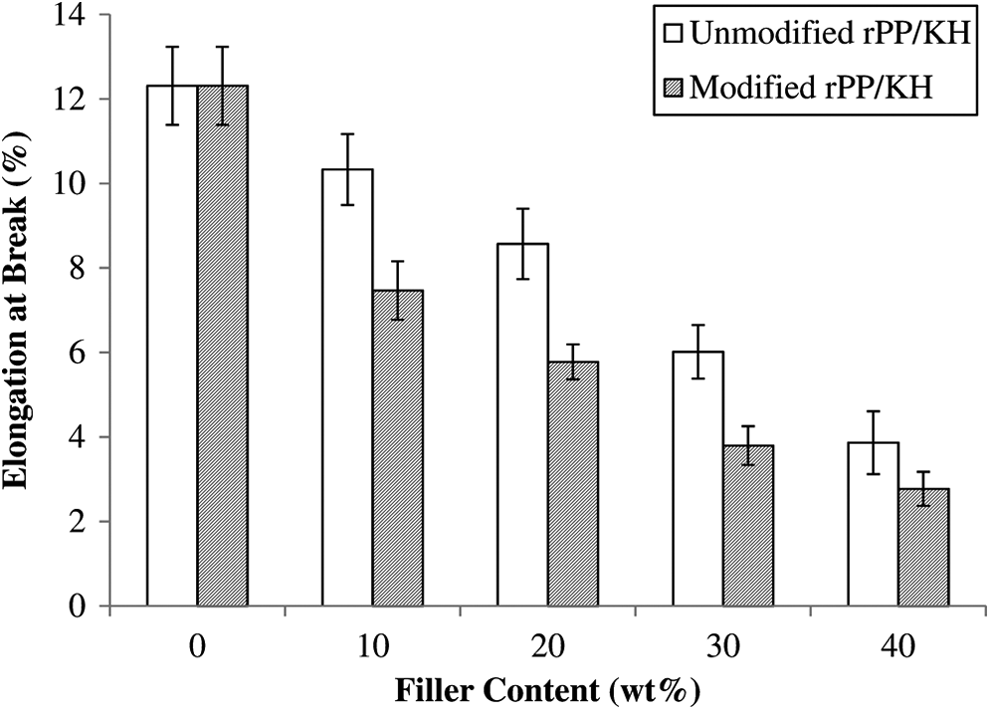

Figure 8.

Effect of filler content on elongation at break of unmodified and modified rPP/KH composites. rPP: recycled polypropylene; KH: kapok husk.

However, the increasing of KH content increased the tensile modulus of unmodified and modified rPP/KH composites was displayed in Figure 9. This is attributed by the friction between KH particles and rPP matrix generated a rigid interface, which inhibited the polymer chain mobility. Chun et al.⁹ also report that the increased of the filler content increased the tensile modulus of polypropylene/cocoa pod husk eco-composites. As the friction area increased with increases of filler content, the stiffness of eco-composites also increased. Moreover, the stiffness of modified rPP/KH composites is higher than unmodified rPP/KH composites. This might be due to the improvement of filler–matrix interaction with SA modification. At similar filler content, the modified rPP/KH composites with SA has 20% lower tensile modulus compared with modified rPP/CSP composites with SDS as reported in previous study.⁴

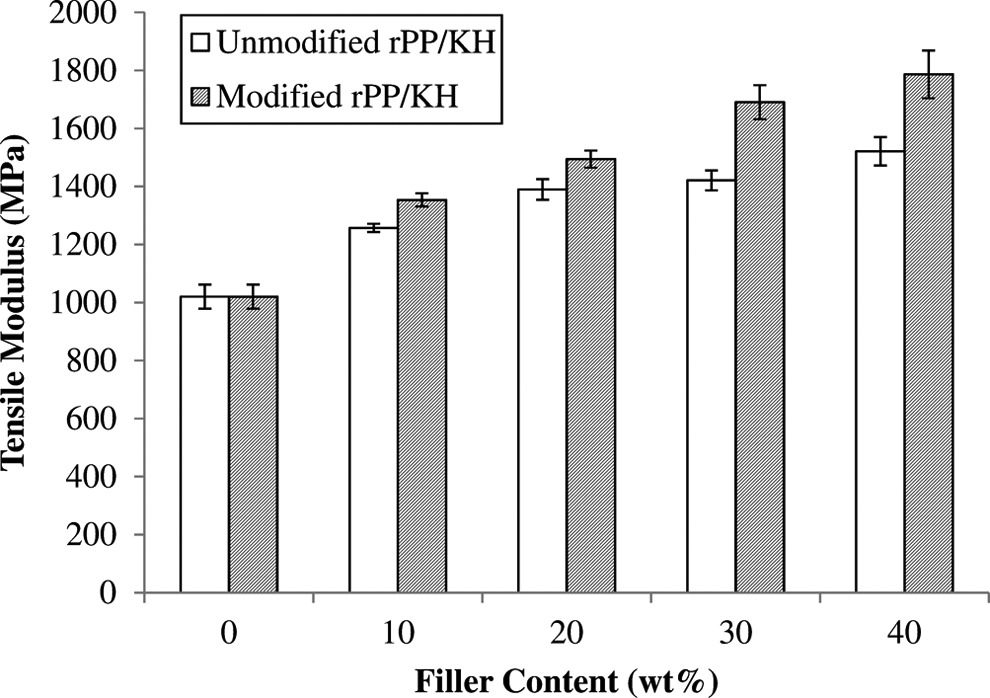

Figure 9.

Effect of filler content on tensile modulus of unmodified and modified rPP/KH composites. rPP: recycled polypropylene; KH: kapok husk.

The relationship between filler modification and interfacial adhesion can be expressed quantitatively by using Pukánszky’s model.³² The model (equation (3)) included the three important factors affecting the tensile strength of composites as following: (i) λⁿ is the change of specimen dimensions during the deformation and the raise of tensile strength due to strain hardening; (ii) (1 - ϕ)/(1 + 2.5ϕ) is the effect of reducing load bearing cross section of matrix due to addition of filler; and (iii) exp (Bφ) represented the interfacial adhesion.^32,33

σ_{T} = σ_{T 0} λ^{n} \frac{1 - ϕ}{1 + 2.5 ϕ} exp (B ϕ),

where σ_T and σ_T₀ represent the true strength of the composite and the polymer matrix, respectively (σ_T = σλ, where σ is the measured engineering tensile strength), λ is relative elongation (λ = L/L₀, where L₀ is the original length and L is length at the failure point), n is related to strain hardening exponent of polymer matrix, φ is the volume fraction of filler, and B is a parameter expresses the load-bearing capacity of filler, which is related to the effect of interfacial adhesion. Equation (4) can be rewritten and expressed in linear form:

ln σ_{T r e d} = ln \frac{σ_{T}}{λ^{n}} \frac{1 + 2.5 ϕ}{1 - ϕ} = ln σ_{T 0} + B ϕ

The graph of ln-reduced tensile strength (σ_Tred) versus filler content will give a straight line with a slope of parameter B. The plot of ln σ_Tred as function of filler content of unmodified and modified rPP/KH composites is displayed in Figure 10. The results show a two straight linear correction line. This means that the parameter B related to interfacial adhesion and stress transfer can be measured with more accuracy. The slope of line represent unmodified and modified rPP/KH composites was different, where the parameter B of modified rPP/KH composites (2.85) was higher compared to unmodified rPP/KH composites (2.29). This indicates the adhesion between KH and rPP matrix was improved due to the filler modification using SA. Thus, the stress transfer at the interfacial region was enhanced, which result in a significant increase of the tensile strength.

Figure 10.

Reduced tensile strength of unmodified and modified rPP/KH composites plotted against filler content. rPP: recycled polypropylene; KH: kapok husk.

Morphological properties

Figure 11(a) and (b) shows the scanning electron microscopic (SEM) micrograph of tensile fracture surface of unmodified rPP/KH composites with 20 wt% and 40 wt% of filler content. Regarding the SEM micrograph, there are discontinuouss phase presence between KH particles and rPP matrix. This indicates the poor wetting between hydrophilic filler and hydrophobic matrix. There were numerous voids caused by filler pull-out from matrix. This proves that the poor interfacial adhesion occurred in unmodified rPP/KH composites. The SEM micrograph of modified rPP/KH composites in Figure 12(a) and (b) exhibited better wettability and adhesion between KH filler and rPP matrix.

Figure 11.

SEM micrographs of unmodified rPP/KH composites with (a) 20 wt%, and (b) 40 wt% filler content. SEM: scanning electron microscopic; rPP: recycled polypropylene; KH: kapok husk.

Figure 12.

SEM micrographs of modified rPP/KH composites with (a) 20 wt%, and (b) 40 wt% filler content. SEM: scanning electron microscopic; rPP: recycled polypropylene; KH: kapok husk.

FTIR analysis

The FTIR spectra of unmodified and modified KH are shown in Figure 13. The characteristic peaks of unmodified and modified KH were summarized in Table 2. The broad peak at 3000–3800 cm⁻¹ was attributed by the hydroxyl groups (–OH) of KH. According to Table 3, the peak intensity of the –OH groups absorption band was significantly reduced after KH modified with SA. This means that the hydrophilicity of KH was reduced while the –OH groups react with SA. The peak intensity at 2920 cm⁻¹ and 2850 cm⁻¹were also increased after the KH modified with SA. The change of peak intensity at 2800–2950 cm⁻¹ was assigned to the C–H groups of long alkyl chain from SA, which chemically bonded on KH surface. Furthermore, the increase of peak intensity at 1724 cm⁻¹ indicated the presence of ester bonding (C–O) occur between SA and KH. The proposed schematic reaction between SA and KH is illustrated in Figure 14.

Figure 13.

FTIR curves of unmodified and modified rPP/KH composites. FTIR: Fourier transform infrared; rPP: recycled polypropylene; KH: kapok husk.

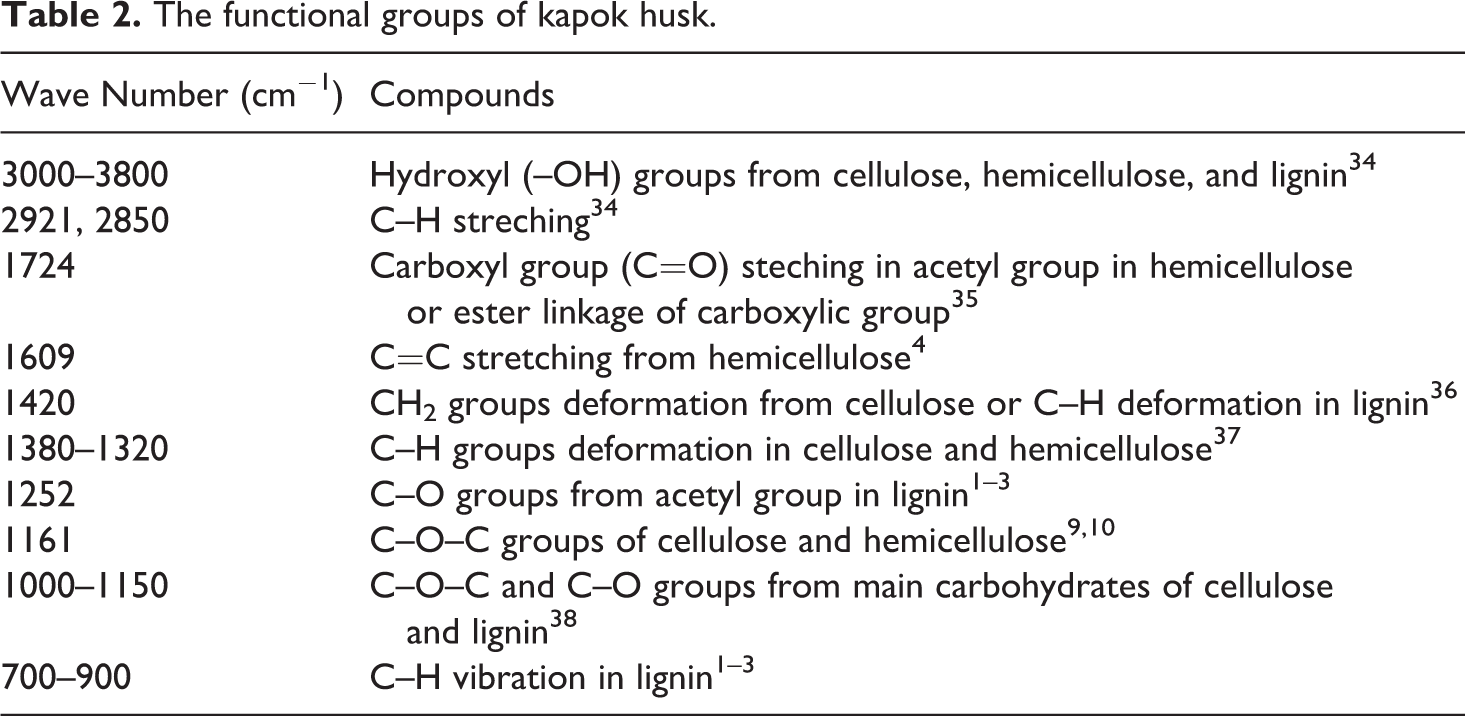

Table 2.

The functional groups of kapok husk.

Wave Number (cm⁻¹)	Compounds
3000–3800	Hydroxyl (–OH) groups from cellulose, hemicellulose, and lignin³⁴
2921, 2850	C–H streching³⁴
1724	Carboxyl group (C=O) steching in acetyl group in hemicellulose or ester linkage of carboxylic group³⁵
1609	C=C stretching from hemicellulose⁴
1420	CH₂ groups deformation from cellulose or C–H deformation in lignin³⁶
1380–1320	C–H groups deformation in cellulose and hemicellulose³⁷
1252	C–O groups from acetyl group in lignin¹ ^– ³
1161	C–O–C groups of cellulose and hemicellulose^9,10
1000–1150	C–O–C and C–O groups from main carbohydrates of cellulose and lignin³⁸
700–900	C–H vibration in lignin¹ ^– ³

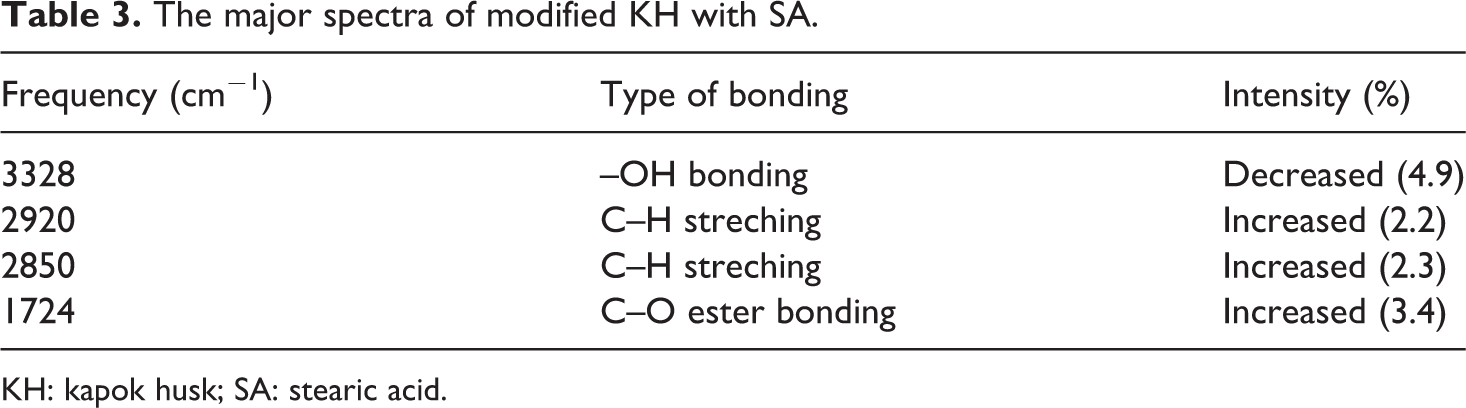

Table 3.

The major spectra of modified KH with SA.

Frequency (cm⁻¹)	Type of bonding	Intensity (%)
3328	–OH bonding	Decreased (4.9)
2920	C–H streching	Increased (2.2)
2850	C–H streching	Increased (2.3)
1724	C–O ester bonding	Increased (3.4)

KH: kapok husk; SA: stearic acid.

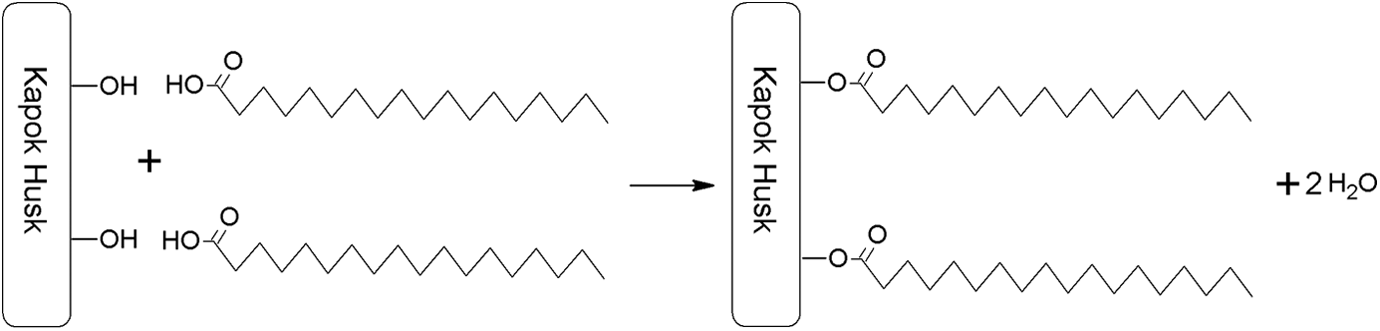

Figure 14.

Proposed schematic reaction between KH and SA. KH: kapok husk; SA: stearic acid.

Thermogravimetric analysis

The derivative TG and TGA curves of neat rPP, unmodified, and modified rPP/KH composites are illustrated in Figures 15 and 16, respectively. The TGA data of samples was summarized in Table 4. Figure 12 shows that the neat rPP was decomposed in single step at temperature 250–500°C. The unmodified and modified rPP/KH composites decomposed in the following three steps: (i) loss of moisture at temperature 30–150°C, (ii) decompose of hemicellulose at temperature 200–350°C, and (iii) decompose of lignocellulose at temperature 350–400°C and along with decompose of rPP matrix. The weight loss of rPP/KH eco-composites at 100°C was increased with the increase of KH content. This is assigned to the increase of moisture content as KH content increased. However, the moisture content of composites was decreased with the SA modification. An early thermal decomposition of unmodified and modified of rPP/KH composites can be found around temperature 300°C. This weight loss at temperature 300°C was referring to the weight loss of decomposed hemicellulose. Therefore, the weight loss at 300°C increased at more KH content. The decomposition temperature at maximum rate (T_dmax) of neat rPP was found to be at 412°C. The T_dmax was shifted to higher temperature with increased residue at 700°C as the content of KH increased. This indicated that the addition of KH increased the thermal stability of rPP matrix at higher temperature. It can also be explained by the presence of high thermal stability pyrolysis product from early thermal decomposition, given rPP matrix a thermal protecting layer and delay the thermal decomposition. This statement was agreed by other researchers.¹ ^– ³ In addition, the modified rPP/KH composites showed better thermal stability than unmodified rPP/KH composites. It can be observed that from the decrease of weight loss at 300°C, T_dmax and residual at 700°C increases. This might be due to the improvement of filler dispersion and filler–matrix interaction. According to Koay et al.,⁴ the modified CSP with SDS has improved the thermal stability of rPP composites.

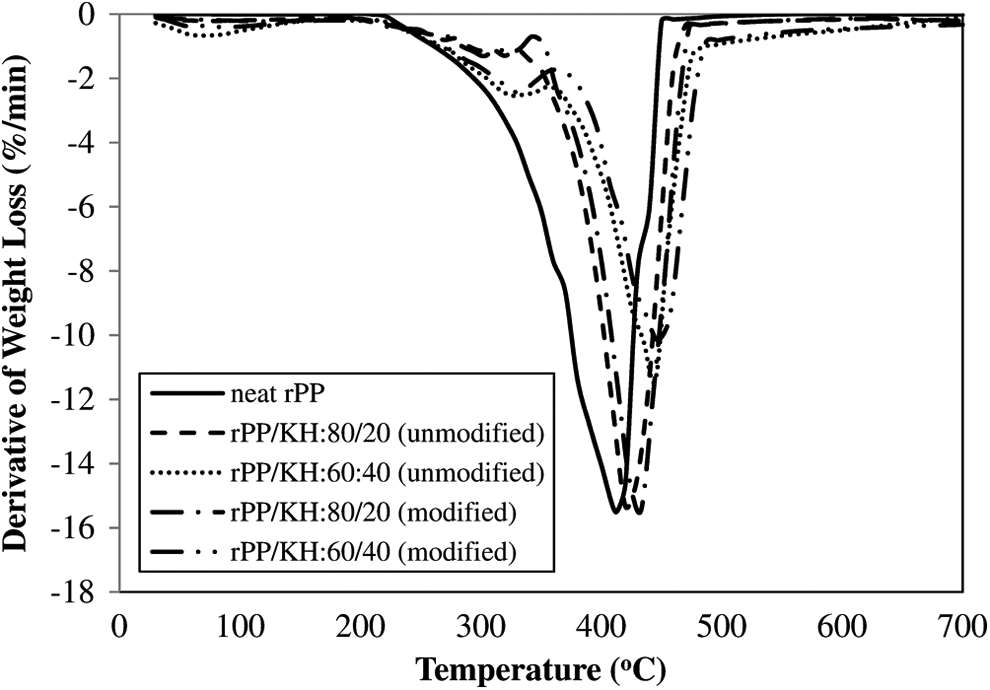

Figure 15.

DTG curves of unmodified and modified rPP/KH composites. DTG: derivative thermogravimetric; rPP: recycled polypropylene; KH: kapok husk.

Figure 16.

TGA curves of unmodified and modified rPP/KH composites. TGA: thermogravimetric analysis; rPP: recycled polypropylene; KH: kapok husk.

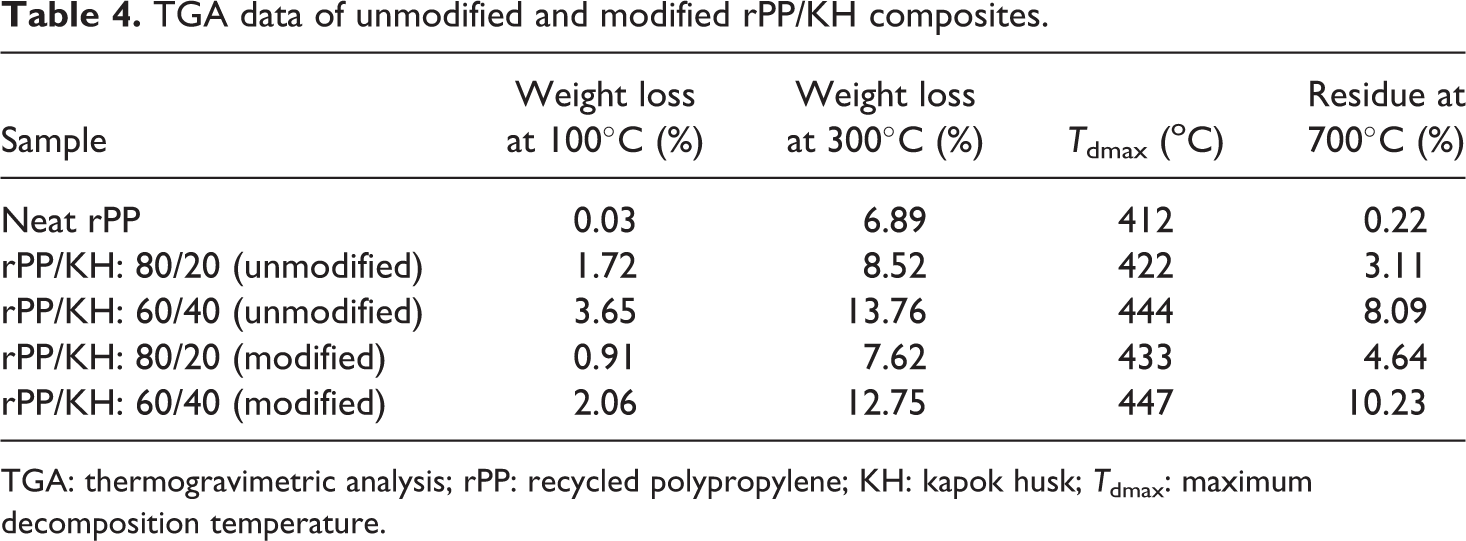

Table 4.

TGA data of unmodified and modified rPP/KH composites.

Sample	Weight loss at 100°C (%)	Weight loss at 300°C (%)	T_dmax (^oC)	Residue at 700°C (%)
Neat rPP	0.03	6.89	412	0.22
rPP/KH: 80/20 (unmodified)	1.72	8.52	422	3.11
rPP/KH: 60/40 (unmodified)	3.65	13.76	444	8.09
rPP/KH: 80/20 (modified)	0.91	7.62	433	4.64
rPP/KH: 60/40 (modified)	2.06	12.75	447	10.23

TGA: thermogravimetric analysis; rPP: recycled polypropylene; KH: kapok husk; T_dmax: maximum decomposition temperature.

Differential scanning calorimetry

The DSC curves of unmodified and modified rPP/KH composites are shown in Figure 17. The DSC data of both composites are summarized in Table 5. The increase of KH content decreased the crystallinity (X_c) of rPP/KH composites. However, the X_rPP of composites was slightly increased at 20 wt% of KH content. This is because of nucleating effect of natural filler. Similar results are also reported by other researchers.^9,10 At 40 wt% of filler content, an endothermic peak 50–120°C can be observed due to the evaporation of the moisture in KH. The presence of moisture probably forms hydrogen bonding among the KH particles and it influences adhesion with rPP matrix. As mentioned early, the KH tends to form agglomeration at higher filler content. Thus, the results show the addition of more KH hindered the crystallization of the rPP matrix, especially at 40 wt% of KH content. The decrease of X_rPP is probably due to the poor filler dispersion and poor adhesion between unmodified KH and rPP matrix. Most of the literatures reported that the crystallinity of composites usually affected by filler content, filler dispersion, and filler–matrix interaction.^1,4,7,21 ^– ²³ However, the modified rPP/KH composites exhibited higher crystallinity than unmodified rPP/KH composites (Table 5). The hydrophilicity of KH has reduced after the modification with SA, which improves the filler dispersion and adhesion at interface between KH and rPP matrix. The improvement of interfacial adhesion enhanced the migration and diffusion of rPP chain to form crystalline structure. Moreover, a better filler dispersion provided more nucleating site for initiation of spherulites growth. Thus, modified KH showed nucleating effect on the rPP/KH composites. The results show the melting temperature (T_m) of rPP/KH composites remains unchanged with the increasing of KH content or filler modification. In general, the T_m of semi-crystallinity polymer increased with increase of crystallinity due to the larger spherulites size.³⁹ The addition of particulate filler often increases crystallinity of semi-crystalline polymer by increasing the number of spherulites, but the size of spherulites is smaller.^40,41 As a result the T_m of composites might not significantly change by filler content or filler modification.^42,43

Figure 17.

DSC curves of unmodified and modified rPP/KH composites. DSC: differential scanning calorimetry; rPP: recycled polypropylene; KH: kapok husk.

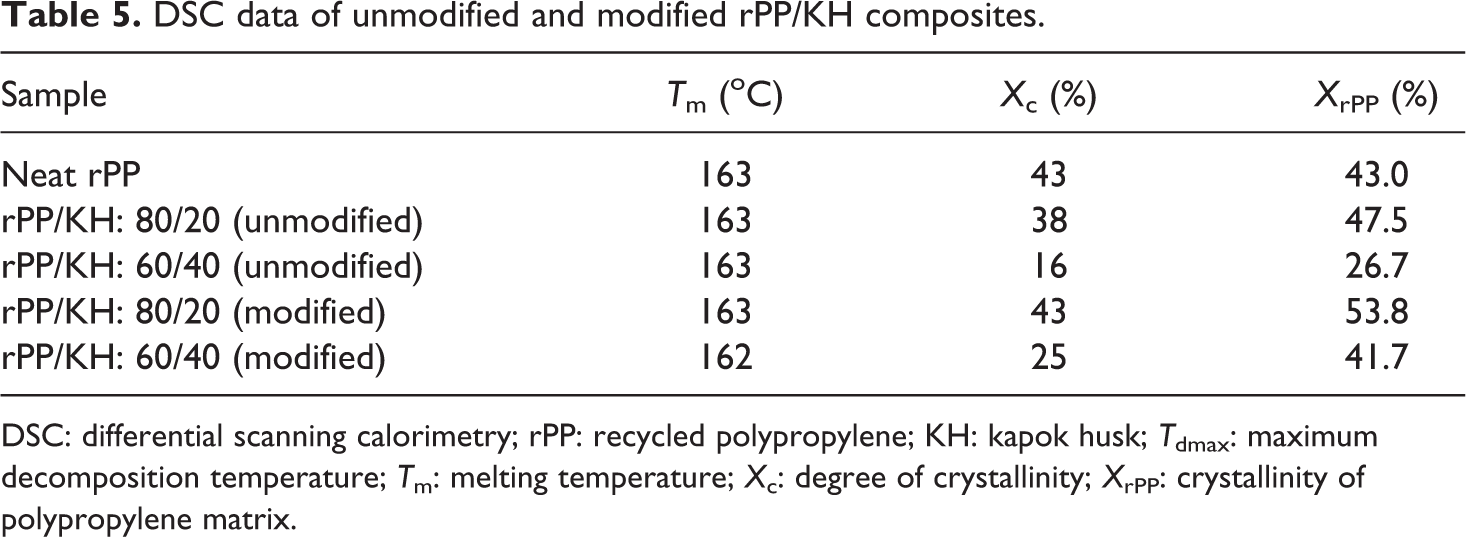

Table 5.

DSC data of unmodified and modified rPP/KH composites.

Sample	T_m (^oC)	X_c (%)	X_rPP (%)
Neat rPP	163	43	43.0
rPP/KH: 80/20 (unmodified)	163	38	47.5
rPP/KH: 60/40 (unmodified)	163	16	26.7
rPP/KH: 80/20 (modified)	163	43	53.8
rPP/KH: 60/40 (modified)	162	25	41.7

DSC: differential scanning calorimetry; rPP: recycled polypropylene; KH: kapok husk; T_dmax: maximum decomposition temperature; T_m: melting temperature; X_c: degree of crystallinity; X_rPP: crystallinity of polypropylene matrix.

Conclusion

The addition of KH in rPP composites showed higher stabilization torque. However, filler modification with SA reduced the dispersive resistance of KH particles resulting in lower stabilization torque compared to unmodified rPP/KH composites. The increase of KH content decreased the tensile strength and elongation at break, but it increased the tensile modulus rPP/KH composites. The modified rPP/KH composites have higher tensile strength and modulus compared with unmodified rPP/KH composites. The modified rPP/KH shows higher tensile strength but lowers tensile modulus compared to modified rPP/CSP composites. The thermal stability of rPP/KH composites improved with presence of KH as the T_dmax and residual at 700°C increase. The thermal stability of rPP/KH composites was further enhanced by SA treatment. The crystallinity of rPP/KH composites decreased with increasing of the KH content. The filler modification wit SA improved the nucleating effect of KH and increased the crystallinity of rPP/KH composites. The improvement of tensile and thermal properties due to the enhanced interfacial bonding between KH and rPP matrix is proved by SEM micrograph. The development of such green composites in this study can be used as a material in producing injection-molded furniture.

Footnotes

Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

References

Chun

Husseinsyah

Osman

. Mechanical and thermal properties of coconut shell powder filled polylactic acid biocomposites: effect of the filler content and silane coupling agent. J Polym Res 2012; 19: 1–8.

Salmah

Koay

Hakimah

. Surface modification of coconut shell powder filled polylactic acid biocomposites. J Thermoplast Compos Mater 2013; 26: 809–819.

Chun

Husseinsyah

Osman

. Properties of coconut shell powder-filled polylactic acid ecocomposites: effect of maleic acid. Polym Eng Sci 2013; 53: 1109–1116.

Chun

Husseinsyah

Azizi

. Characterization and properties of recycled polypropylene/coconut shell powder composites: effect of sodium dodecyl sulphate modification. Polym Plast Technol Eng 2013; 52: 287–294.

Ibrahim

Hashim

Rahman

MZA

Mechanical properties and morphology of oil palm empty fruit bunch-polypropylene composites: effect of adding ENGAGE^TM7467. J Thermoplast Compos Mater 2011; 24: 713–732.

Ishidi

Adamu

Kolawale

Flammability and thermal characteristic of alkaline aqueous solution treated groundnut shell-HDPE composites. J Thermoplast Compos Mater 2011; 24: 875–888.

Hussiensyah

Chun

Hadi

Effect of filler loading and coconut oil coupling agent on properties of low-density polyethylene and palm kernel shell eco-composites. J Vinyl Addit Technol. Epub ahead of print 29 July 2014 . DOI: 10.1002/vnl.21423.

Smitthipong

Tantatherdtam

Chollakup

. Effect of pineapple leaf fiber-reinforced thermoplastic starch/poly(lactic acid) green composite: mechanical, viscosity, and water resistance properties. J Thermoplast Compos Mater. Epub ahead of print 18 June 2013. DOI: 10.1177/0892705713489701.

Chun

Husseinsyah

Osman

. Modified cocoa pod husk-filled polypropylene composites by using methacrylic acid. BioResources 2013; 8: 3260–3275.

10.

Koay

Salmah

Hakimah

. Ultilization of cocoa pod husk as filler in polypropylene biocomposites: effect of maleated polypropylene. J Thermoplast Compos Mater. Epub ahead of print 26 November 2013. DOI: 10.1177/0892705713513291.

11.

Chun

Husseinsyah

. Polylactic acid/corn cob eco-composites: effect of new organic coupling agent. J Thermoplast Compos Mater. 2014; 27: 1667–1678.

12.

Yeng

Husseinsyah

Ting

. Chitosan/corn cob biocomposite films by cross-linking with glutaraldehyde. BioResources 2013; 2: 2910–2923.

13.

Yeng

Husseinsyah

Ting

. Modified corn cob filled chitosan biocomposite films. Polym Plast Technol Eng 2013; 52: 1496–1502.

14.

Husseinsyah

Yeng

Kassim

Kapok husk-reinforced soy protein isolate biofilms: tensile properties and enzymatic hydrolysis. BioResources 2014; 9: 5636–5651.

15.

Broad

. Modern technology of oils, fats & its derivatives. Delhi: Asia Pacific Business Press, 2002.

16.

Jacob

Jospeh

Prothan

A study of advances in charaterization of interfaces and fiber surfaces in lignocellulosic fiber-reinforced composites. Compos Interfaces 2005; 112: 95–124.

17.

Pothan

George

Thomas

. Effect of fiber surface treatments on the fiber-matrix interaction in banana fiber reinforced polyester composites. Compos Interfaces 2002; 9: 335–352.

18.

Gwon

Lee

Chun

Effect of chemical treatment of hybrid fillers on the physical and thermal properties of wood plastic composites. Compos A 2010; 42: 1491–1497.

19.

Zhang

Xue

Toghiani

Modification of wood flour surfaces by esterification with acid chlorides: use in HDPE/wood flour composites. Compos Interfaces 2009; 16: 671–686.

20.

Ismail

Abu Bakar

. The effect of chemical modification of paper sludge filled polypropylene (PP)/ethylene propylene diene terpolymer (EPDM) composites. J Reinforc Plast Compos 2006; 25: 43–58.

21.

Salmah

Faisal

Kamarudin

. The mechanical and thermal properties of chitosan filled polypropylene composites: the effect of acrylic acid. J Vinyl Addit Technol 2011; 17: 125–131.

22.

Ismail

Abu Bakar

. Properties of paper sludge filled polypropylene (PP)/ethylene propylene diene terpolymer (EPDM) composites: the effect of silane-based coupling agent. Int J Polym Mater 2006; 55: 643–662.

23.

Salmah

Faisal

Kamaruddin

. Chemical modification of chitosan filled polypropylene composites: the effect 3-aminopropyltriethoxysilane on mechanical and thermal properties. Int J Polym Mater 2011; 60: 429–440.

24.

Sameni

Ahmad

Zakaria

. Performance of rubberwood fiber-thermoplastic natural rubber composites. Polym Plast Technol Eng 2003; 42: 139–152.

25.

Vineta

Gordana

Maurizio

Utilization of recycled polypropylene for production of eco-composites. Polym Plast Technol Eng 2009; 48: 1113–1120.

26.

Salmah

Ismail

. The effect of filler loading and maleated polypropylene on properties of rubber wood filled polypropylene/natural rubber composites. J Reinforc Plast Compos 2008; 27: 1867–1876.

27.

Husseinsyah

Azmin

Ismail

. Effect of maleic anhydride-grafted-polyethylene (MAPE) and silane on properties of recycled polyethylene/chitosan biocomposites. Polym Plast Technol Eng 2013; 52: 168–174.

28.

Kalaprasad

Francis

Thomas

Effect of fibre length and chemical modification on the tensile properties of intimately mixed short sisal/glass hybrid fibre reinforced low density polyethylene composites. Polym Int 2004; 53: 1624–1638.

29.

Torres

Ubillas

. Study of the interfacial properties of natural fibre reinforced polyethylene. Polym Test 2005; 24: 694–698.

30.

Enriquez

JKEDV

Santiago

PJM

Ong

Frabication and charaterization of high-density polyethylene-coconut coir composites with stearic acid as compatibilizer. J Thermoplast Compos Mater 2010; 23: 361–373.

31.

ASTM Standard D638. Standard test method for tensile properties of plastics. West Conshohocken: ASTM International, 2010. DOI: 10.1520/D0638-10.

32.

Pukánszky

. Influence of interface interaction on the ultimate tensile properties of polymer composites. Composites 1990; 21: 255–262.

33.

Danyadi

Renner

Moczo

Wood flour filled polypropylene composites: interfacial adhesion and micromechanical deformations. Polym Eng Sci 2007; 47: 1246–1255.

34.

Khalil

HPSA

Ismail

Rozman

The effect of acetylation on interfacial shear strength between plant fiber and various matrices. Eur Polym J 2001; 37: 1037–1045.

35.

Alemdar

Sain

. Isolation and characterization of nanofibers from agricultural residues-wheat straw and soy hulls. Biores Technol 2008; 99: 1664–1671.

36.

Sgriccia

Hawley

Misra

. Characterization of natural fiber surfaces and natural fiber composites. Compos A 2008; 39: 1632–1637.

37.

Troedec

Sedan

Peyratout

Influence of various chemical treatments on the composition and structure of hemp fibres. Compos A 2008; 39: 514–522.

38.

Nacos

Katapodis

Pappas

Kenaf xylan – a source of biologically active acidic oligosaccharides. Carbohyd Polym 2006; 66: 126–134.

39.

Daniels

. Polymers: structure and properties. Lancaster: CRC Press, 1989.

40.

Ning

Zhang

Realizing the enhancement of interfacial interaction in semicrystalline polymer/filler composites via interfacial crystallization. Prog Polym Sci 2012; 37: 1425–1455.

41.

Ning

Yin

Luo

Crystallization behavior and mechanical properties of polypropylene/halloysite composites. Polymer 2007; 48: 7374–7384.

42.

Mattos

Misso

Cadematartori

PHG

Properties of polypropylene composites filled with a mixture of household waste of mate-tea and wood particles. Constr Build Mater 2014; 61: 60–68.

43.

Parparita

Darie

Popescu

Structure–morphology–mechanical properties relationship of some polypylene/lignocellulosic composites. Mater Des 2014; 56: 763–772.
