Properties of kapok husk-filled linear low-density polyethylene ecocomposites

Abstract

This research focuses on utilization of kapok husk (KH) as a natural filler in linear low-density polyethylene (LLDPE) ecocomposites. The effect of KH content and coupling agent on tensile properties, thermal properties, water absorption behavior, and morphology of ecocomposites were studied. The addition of KH had increased tensile modulus and water absorption of ecocomposites, whereas tensile strength and elongation at break decreased. However, the polyethylene-grafted acrylic acid (PEAA) was used as a polymeric-coupling agent to enhance the properties of LLDPE/KH ecocomposites. The incorporation of PEAA improved the tensile strength, tensile modulus, crystallinity, and thermal stability as well as reduced the water absorption of LLDPE/KH ecocomposites. The improvement of those properties was caused by the enhanced interfacial bonding, which was evidenced by scanning electron microscopy. The Fourier transmission infrared spectra also confirmed the presence of ester linkage between PEAA and KH.

Keywords

Kapok husk linear low-density polyethylene ecocomposites polyethylene-grafted acrylic acid coupling agent

Introduction

In Malaysia, kapok (Ceiba pentandra) tree is heavily cultivated to obtain the kapok cotton and seed. In kapok industry, the kapok cotton is used to fill pillows and mattress, and kapok seeds are processed to obtain seed oil that has similar properties to cotton seed oil. However, the kapok husk (KH) is the outer hard shell of kapok fruit and most of it discarded as waste material. The resource of KH is readily abundant but it does not have any economic value; thus, the research to comprehensively utilize KH as a filler for plastic materials is underway.

Nowadays, ecocomposite materials made from agricultural waste and plastic material have garnered interest among researchers and industries ecological and economic advantage.^1

–4 In recent years, there are numerous eco-friendly products made from ecocomposite materials that have been successfully marketed. The most well-known example, such as IKEA injection molded furniture using wood flour-filled polypropylene composite material.^1,5 In Malaysia, eco-tableware made from rice husk-filled plastic ecocomposites had been marketed by Melsom Biodegradable Enterprise.^4,6 Currently, the developments of linear low-density polyethylene (LLDPE)/KH ecocomposites have potential to produce eco-friendly packaging product in our university (as displayed in Figure 1).

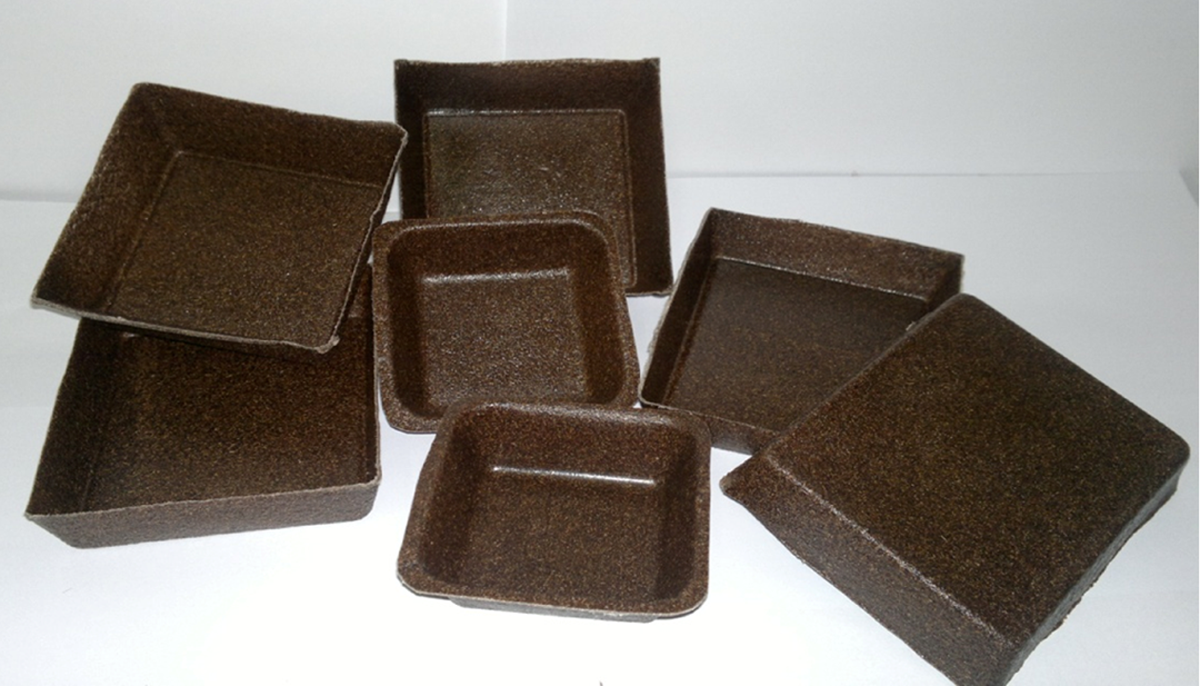

Figure 1.

Eco-friendly packaging product from LLDPE/KH ecocomposites. LLDPE: linear low-density polyethylene; KH: kapok husk.

Commonly, the poor filler dispersion and weak filler–matrix adhesion are always the main issues during compounding of natural filler and plastic material.^{1–2,7

–10} Usually, reactive copolymer is used as a coupling agent in the production of natural filler-based ecocomposites, such as grafted polymer with maleic anhydride^{6,11

–18} or acrylic acid.^19
–21 Those coupling agents are highly reactive to hydroxyl group on natural filler at high processing temperature. The reaction between filler and coupling agent generated a covalent linkage, which allowed the long polymer chains to attach on the filler surface, providing a strong interfacial bonding between natural filler and matrix. Many researchers reported that the addition of polyethylene (PE)-grafted acrylic acid (PEAA) had significantly enhanced the properties of ecocomposites with palm kernel shell^17–18 and wood flour.²¹

Recently, the utilization of KH in ecocomposites has not been fully explored. Against this background, the current research has been undertaken to utilize KH as a natural filler in LLDPE ecocomposites. The present study is to evaluate the effect of PEAA on the tensile, thermal, water absorption, and morphology properties of LLDPE/KH ecocomposites.

Experimental

Materials

The KH was collected from kapok plantation, Perlis, Malaysia. First, the KH was dried in a circulated air flow oven at 80°C for 24 h. Then, the KH was crushed and ground into fine powder. The average particle size of KH was 80 µm, which was analyzed using Malvem Particle Size Analyzer Instrument (Italy). The LLDPE with grade of LL0220SR (melt flow index value: 2 g 10 min⁻¹ at 190°C) was supplied by PT Titan Petrokimia Nusantara (Indonesia). The PEAA was supplied by Sigma Aldrich (Penang, Malaysia). The composition of PEAA was 80 wt% PE and 20 wt% acrylic acid.

Compounding and molding procedures

The LLDPE/KH ecocomposites were prepared using Z-Blaze mixer (MCN ELEC Co., Taiwan) with counter-rotating mode at 160°C and 50 r min⁻¹. The LLDPE/KH biocomposites were compounded according to the formulation given in Table 1. The compounding sequences involved were as follows: (i) the LLDPE resin was transferred into a compounding chamber for 7 min until it fully melted and (ii) the KH was incorporated to melt LLDPE and compounded for 8 min. The total compounding time used was 15 min. All the LLDPE/KH compounds weremade into thin sheets with 1 mm thickness using hotpress machine model GT 7014A (Gotech, Taiwan). The molding cycles involved were as follows: (i) the compound was preheated at 160°C for 4 min; (ii) the compound was compressed under pressure at 100 kgf cm⁻² for 1 min; and (iii) cooling under similar pressure for 5 min. Next, the LLDPE/KH ecocomposite sheets were cut into tensile bars using a dumbbell cutter with dimensions according to ASTM D638 type IV.²²

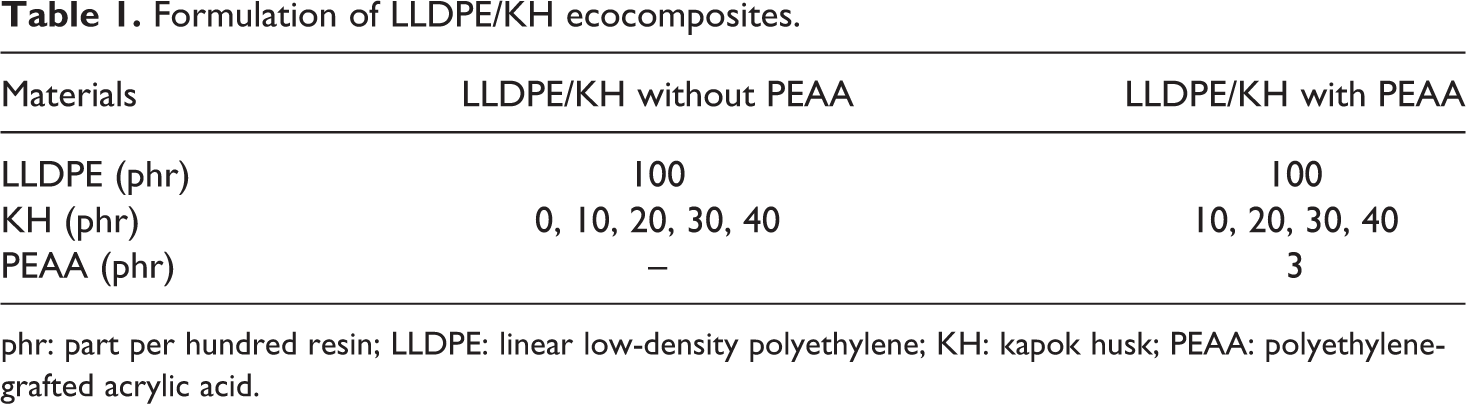

Table 1.

Formulation of LLDPE/KH ecocomposites.

Materials	LLDPE/KH without PEAA	LLDPE/KH with PEAA
LLDPE (phr)	100	100
KH (phr)	0, 10, 20, 30, 40	10, 20, 30, 40
PEAA (phr)	–	3

phr: part per hundred resin; LLDPE: linear low-density polyethylene; KH: kapok husk; PEAA: polyethylene-grafted acrylic acid.

Tensile testing

The tensile testing was carried out using an Instron Universal Testing machine (model 5566; Norwood, Massachusetts, USA). The test was performed at 23 ± 2°C with crosshead speed of 30 mm min⁻¹ according to ASTM D638.²² The values for tensile properties were the mean of measurements performed on seven samples.

Water absorption

The samples of LLDPE/KH ecocomposites with dimension 30 × 25 × 1 mm³ were immersed in distilled water at room temperature (25°C). The water absorption was determined by weighing the sample at regular intervals. A Mettler Balance Model AJ150 (Columbus, Ohio, USA) with precision of ±1 mg was used. The percentage of water absorption (moisture content (M _t)) was calculated by the formulation given below:

M_{t} = \frac{W_{n} - W_{d}}{W_{d}} \times 100 %,

where W _d and W _n are original dry weight and weight after exposure, respectively.

Morphological analysis

The tensile fracture surfaces of the LLDPE/KH ecocomposites were sputter coated with a thin layer of palladium. The samples were analyzed using a scanning electron microscope (SEM) model JEOL JSM-6460 LA (Japan) at 15 keV.

FTIR spectroscopy

PerkinElmer Spectrum Fourier transmission infrared (FTIR; Model Paragon 1000, Germany) was used to characterize functional groups in LLDPE/KH biocomposites with and without PEAA. The attenuated total reflectance method was used. The specimens were recorded with four scans in the frequency range of 4000–650 cm⁻¹ with a resolution of 4 cm⁻¹.

DSC analysis

Differential scanning calorimetric (DSC) analysis was evaluated using a DSC Q10 (Research Instruments, Lebanon, Oregon, USA). The LLDPE/KH ecocomposites were cut into small pieces and placed in close aluminum pan with the weight in the range of 7 ± 2 mg. The specimen was heated from 30°C to 150°C with the heating rate of 10°C min⁻¹ under nitrogen environment. The nitrogen gas flow rate was 50 ml min⁻¹. The degree of crystallinity of ecocomposite (X _c) can be evaluated from DSC data by the following equation:

X_{c} = (\frac{Δ H_{f}}{Δ H_{f}^{0}}) \times 100,

where ΔH _f was the heat fusion of the ecocomposites and $Δ H_{f}^{0}$ was the heat fusion for 100% crystalline LLDPE (ΔH100 = 288 J g⁻¹).²³

Thermogravimetric analysis

Thermogravimetric analysis (TGA) was evaluated using TGA Pyris Diamond PerkinElmer apparatus. The sample was cut into small pieces about 7 ± 2 mg in weight and was placed into a platinum crucible. Then, the sample was heated from 30°C to 700°C at a heating rate of 10°C min⁻¹ under nitrogen atmosphere condition with the nitrogen gas flow rate of 50 ml min⁻¹.

Results and discussion

Tensile properties

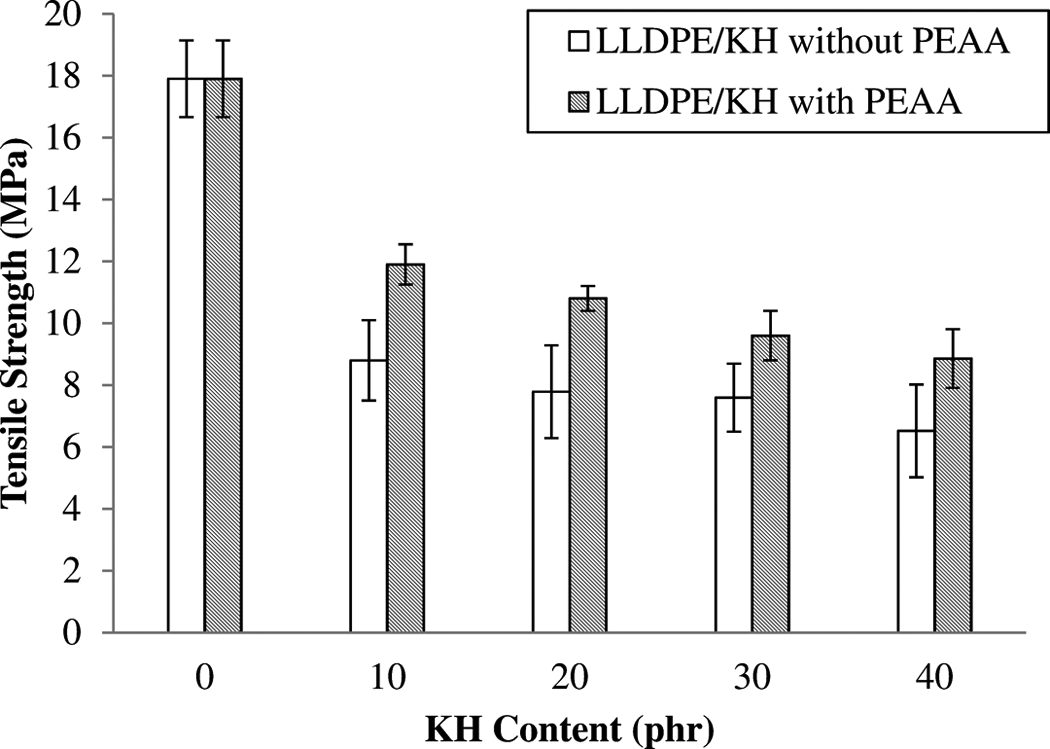

Figure 2 illustrates the effect of KH content and PEAA on tensile strength of LLDPE/KH ecocomposites. The incorporation of KH decreased the tensile strength of LLDPE/KH ecocomposites. This result trend is similar to that of previous study on ecocomposites with particle natural filler.^{1

–4,6
–8} Generally, natural filler in form of particles has low aspect ratio and its efficiency of stress transfer is poor.^1,7 Therefore, the addition of KH reduced the tensile strength of LLDPE matrix. Moreover, the weak interfacial bonding between hydrophilic KH and hydrophobic LLDPE matrix also assigned to poor stress transfer between filler–matrix. However, the LLDPE/KH ecocomposites with PEAA exhibited higher tensile strength than LLDPE/KH ecocomposites without PEAA. The increases of tensile strength of ecocomposites are due to the coupling effect of PEAA. The PEAA probably covalently bonded or hydrogen bonded to KH surface and enhanced the interfacial bonding between the filler and thematrix.^17–18

Figure 2.

The effect of PEAA on tensile strength of LLDPE/KH ecocomposites. LLDPE: linear low-density polyethylene; KH: kapok husk; PEAA: polyethylene-grafted acrylic acid.

The elongation at break of LLDPE/KH ecocomposites with and without PEAA is shown in Figure 3. It can be observed that the elongation at break dramatically dropped due to the addition of KH. This can be explained by the presence of KH particles as stress concentrator, which might initiate the micro-crack when the stress was applied. Thus, the LLDPE/KH ecocomposites are easily fractured after a little elongation at break. This was a common observation that was also found in previous study and other researchers.^{11–12,24,25} Nevertheless, the addition of PEAA further decreased the elongation at break of LLDPE/KH ecocomposites. This is because the PEAA enhanced the interfacial interaction between KH and LLDPE matrix, which generated a stronger interface bonding that inherent the polymer chain mobility. As a result, the ductility of LLDPE matrix reduced.

Figure 3.

The effect of PEAA on elongation at break of LLDPE/KH ecocomposites. LLDPE: linear low-density polyethylene; KH: kapok husk; PEAA: polyethylene-grafted acrylic acid.

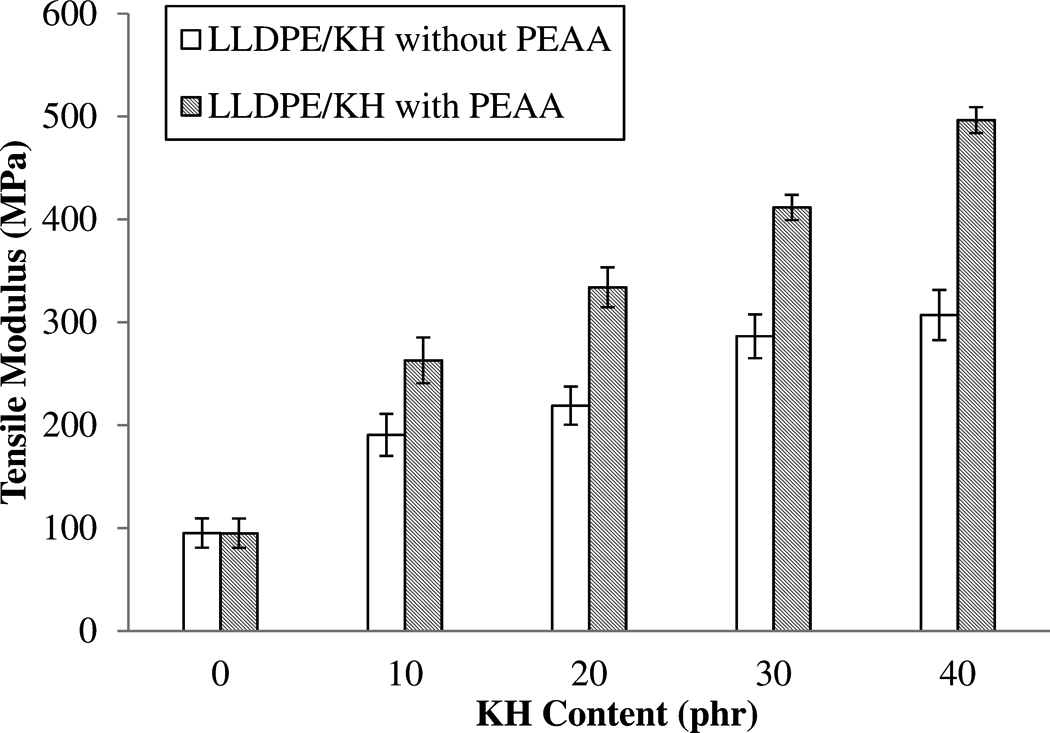

Alternatively, the increases in amount of KH content caused an increase in tensile modulus of LLDPE/KH ecocomposites (as shown in Figure 4). The tensile modulus probably increased with KH content because of the filler being more rigid than the matrix, which attributed to stiffer and rigid ecocomposites. A similar result was also reported by other researchers.^{13–14,17,18} Consequently, the tensile modulus of LLDPE/KH ecocomposites was increased by the addition of PEAA. The increment of tensile modulus is due to the improvement of interfacial bonding between KH and LLDPE matrix. Salmah et al.¹⁸ also reported that the tensile modulus of palm kernel shell-filled low-density PE ecocomposites was enhanced by PEAA.

Figure 4.

The effect of PEAA on tensile modulus of LLDPE/KH ecocomposites. LLDPE: linear low-density polyethylene; KH: kapok husk; PEAA: polyethylene-grafted acrylic acid.

Morphological properties

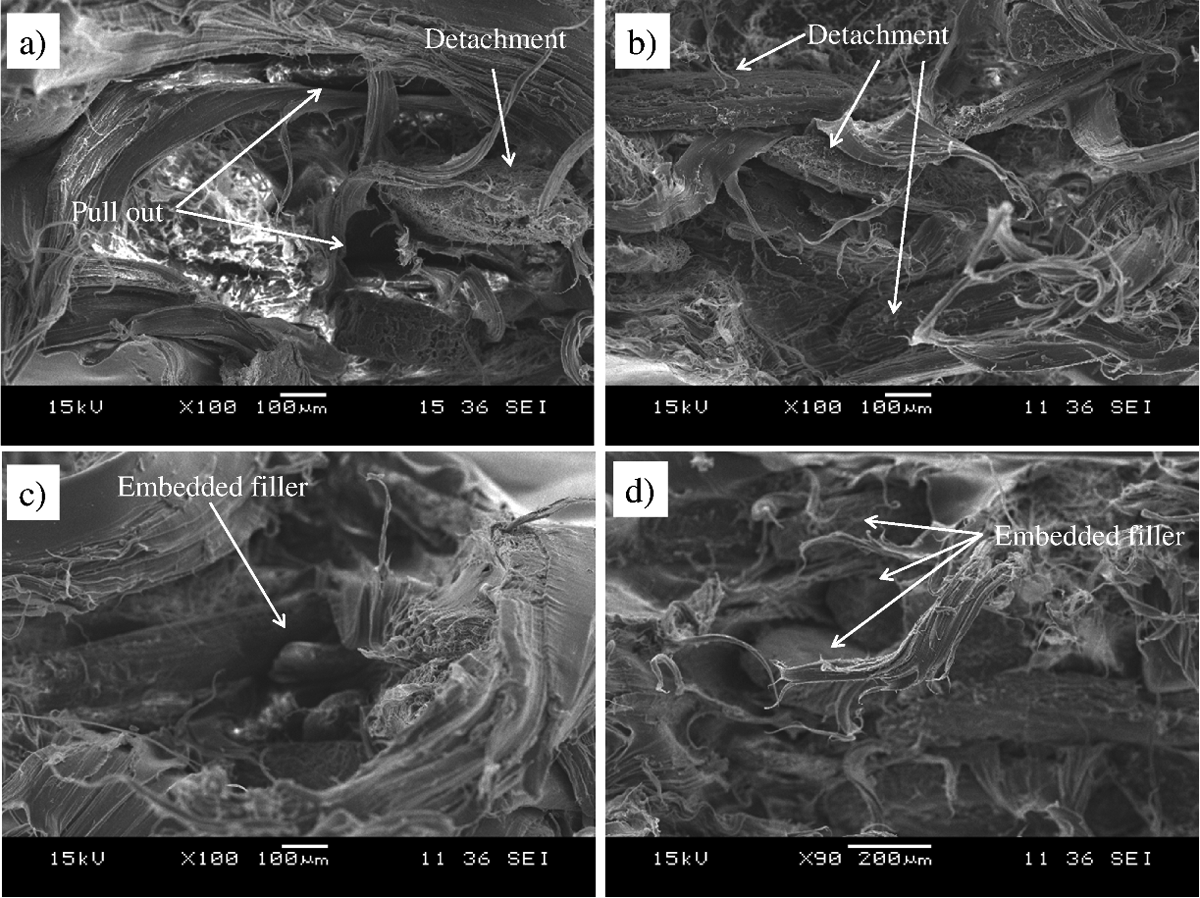

The SEM micrograph of tensile fracture surface of LLDPE/KH ecocomposites with PEAA at 20 and 40 part per hundred resin (phr) of KH content is illustrated in Figure 5(a) and (b), respectively. The SEM micrographs show the detachment of KH and filler pull out from matrix. This indicated poor filler–matrix interaction between KH and LLDPE matrix. Figure 5(c) and (d) illustrates the SEM micrograph of LLDPE/KH ecocomposites with PEAA at 20 and 40 phr of KH content, respectively. The SEM micrographs showed that the KH was embedded in the matrix and less filler pull out can be observed. It can be seen that the KH bonded with PEAA had better wetting with LLDPE matrix. This indicated the strong interfacial bonding between KH and LLDPE matrix.

Figure 5.

SEM micrographs of tensile fracture surface: (a) LLDPE/KH: 100/20 without PEAA; (b) LLDPE/KH: 100/40 without PEAA; (c) LLDPE/KH: 100/20 with PEAA; and (d) LLDPE/KH: 100/40 with PEAA. LLDPE: linear low-density polyethylene; KH: kapok husk; PEAA: polyethylene-grafted acrylic acid; SEM: scanning electron microscopic.

Water absorption

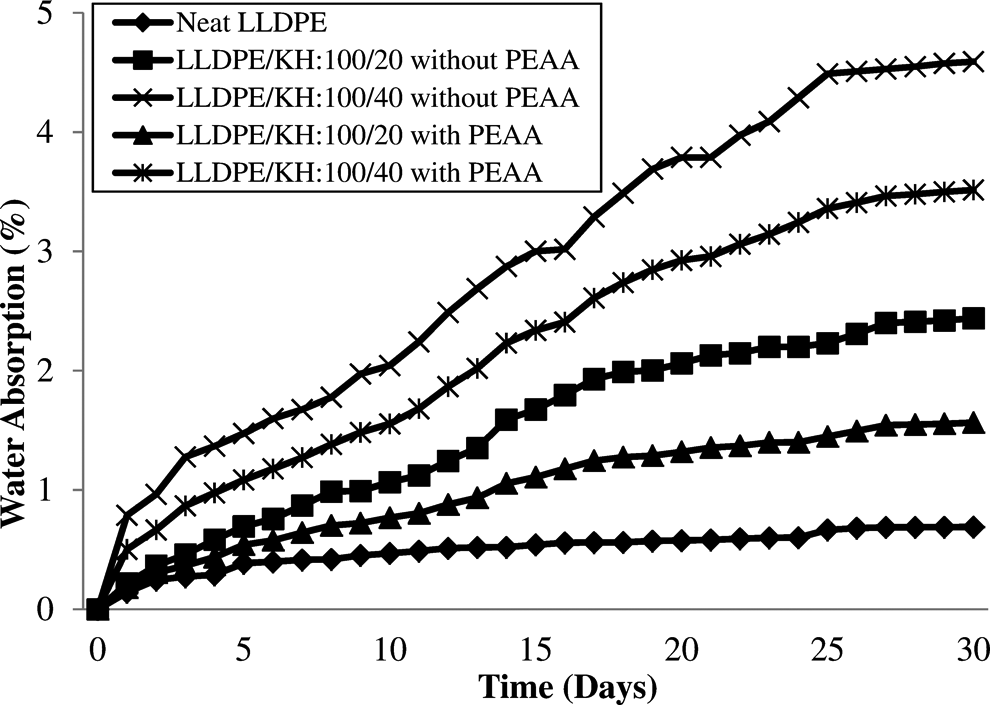

Figure 6 displays the water absorption of LLDPE/KH ecocomposites with and without PEAA. It can be seen that the water absorption of both LLDPE/KH ecocomposites rose with increasing KH content and immersion time. This is a common phenomenon for natural filler-based ecocomposites.^{3,12,25
–27} It is because of the chemical structure of KH rich with hydroxyl groups that provides the hydrophilic behavior to ecocomposites, which is due to high water absorbability. Thus, the increase of KH content increased the water uptake ability of LLDPE/KH ecocomposites. Besides, the presence of micro-cracks between KH and LLDPE due to poor interfacial adhesion might increase water uptake by capillary action. The incorporation of PEAA reduced and altered hydrophilic properties of KH by forming covalent bond or hydrogen bond with the hydroxyl groups of KH via esterification. As a result, the reduction of hydrophilic behavior of KH by PEAA was significant, and the improvement of interfacial bonding decreased the water absorption of LLDPE/KH ecocomposites.

Figure 6.

Water absorption of neat LLDPE and LLDPE/KH ecocomposites with and without PEAA. LLDPE: linear low-density polyethylene; KH: kapok husk; PEAA: polyethylene-grafted acrylic acid.

FTIR analysis

The FTIR spectra of LLDPE/KH ecocomposites with and without PEAA are shown in Figure 7. The main characteristic peak of LLDPE/KH biocomposites is listed in Table 2. The peak at 3389 cm⁻¹ was assigned to hydroxyl groups (−OH) of hemicellulose, lignin, and cellulose in KH. This peak also indicated the hydrophilicity of LLDPE/KH ecocomposites. The intensity of absorption band at 3380 cm⁻¹ was significantly reduced in LLDPE/KH ecocomposites with PEAA. This is because of the hydrophoxyl groups of KH, which were chemically bonded with PEAA. In addition, the peak at 1741 cm⁻¹ was attributed to the presence of ester linkage (C–O) between KH and PEAA. This shows the evidence that the PEAA had covalently bonded with KH. The schematic reaction of PEAA and KH is illustrated in Figure 8.

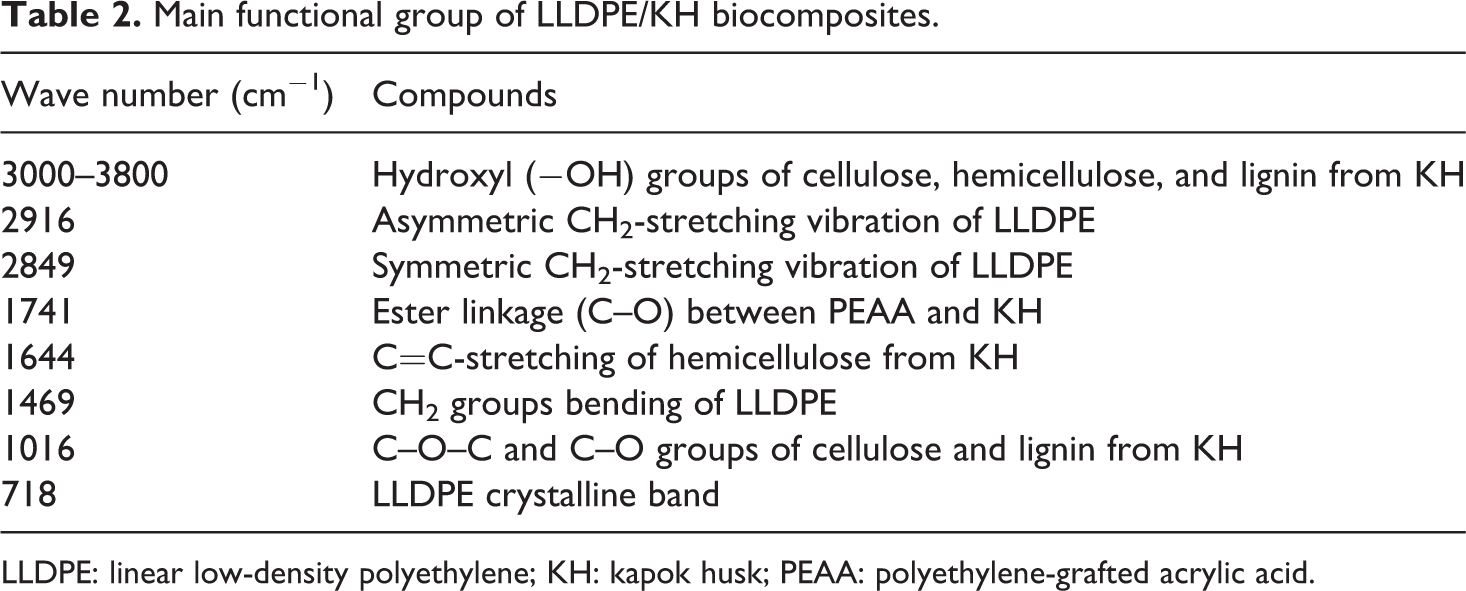

Table 2.

Main functional group of LLDPE/KH biocomposites.

Wave number (cm⁻¹)	Compounds
3000–3800	Hydroxyl (−OH) groups of cellulose, hemicellulose, and lignin from KH
2916	Asymmetric CH₂-stretching vibration of LLDPE
2849	Symmetric CH₂-stretching vibration of LLDPE
1741	Ester linkage (C–O) between PEAA and KH
1644	C=C-stretching of hemicellulose from KH
1469	CH₂ groups bending of LLDPE
1016	C–O–C and C–O groups of cellulose and lignin from KH
718	LLDPE crystalline band

LLDPE: linear low-density polyethylene; KH: kapok husk; PEAA: polyethylene-grafted acrylic acid.

Figure 7.

FTIR spectra of LLDPE/KH ecocomposites with and without PEAA. LLDPE: linear low-density polyethylene; KH: kapok husk; PEAA: polyethylene-grafted acrylic acid; FTIR: Fourier transmission infrared.

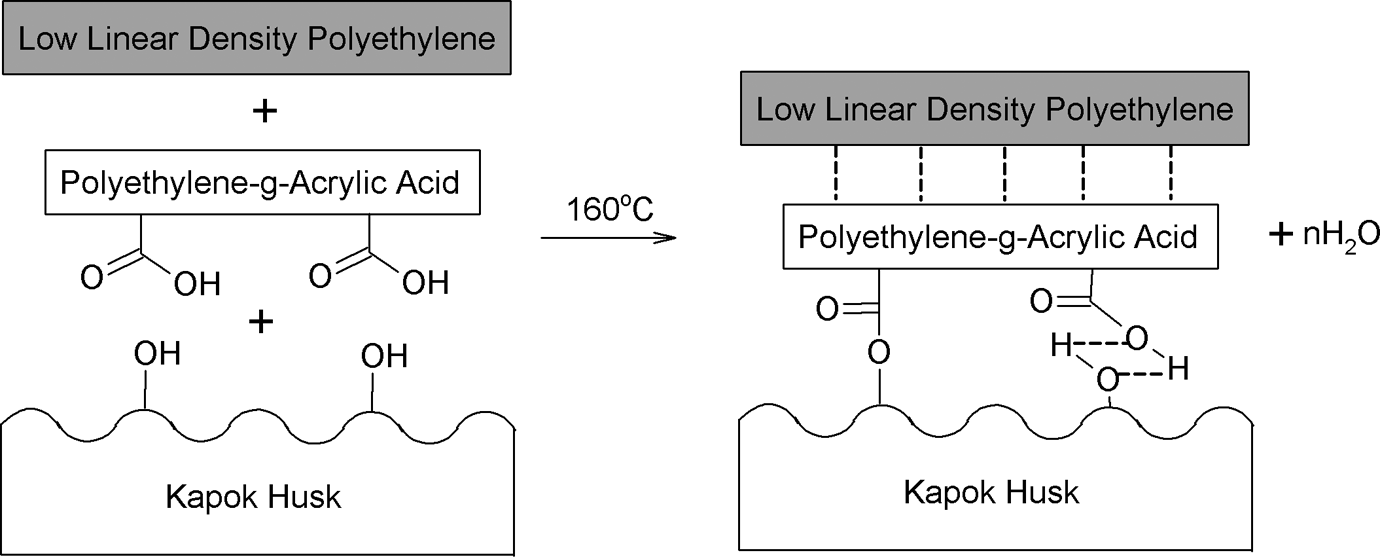

Figure 8.

The schematic hypothetical reaction of PEAA and KH. KH: kapok husk; PEAA: polyethylene-grafted acrylic acid.

Differential scanning calorimetry

Figure 9 shows the DSC curves of LLDPE/KH ecocomposites with and without PEAA. The DSC data of both ecocomposites are summarized in Table 3. The increase of KH content reduced the crystallinity of LLDPE/KH ecocomposites. This phenomenon is due to the addition of KH that constrained the mobility of PE chains from the process of crystallization. This result was consistent with a previous study.³ Furthermore, the LLDPE/KH ecocomposites with PEAA showed higher crystallinity compared with the LLDPE/KH ecocomposites without PEAA. This indicated that the presence of PEAA increased the crystallinity of ecocomposites by promoting the migration and diffusion of PE chain to form transcrystalline around the KH surface. Most findings have shown that for ecocomposites, the addition of copolymer-coupling agent can increase the crystallinity of biocomposites.^{11,18,28
–30} However, the melting temperature of LLDPE/KH ecocomposites was not influenced by KH content and PEAA. The similar observation also found by other researchers.^11,24,31

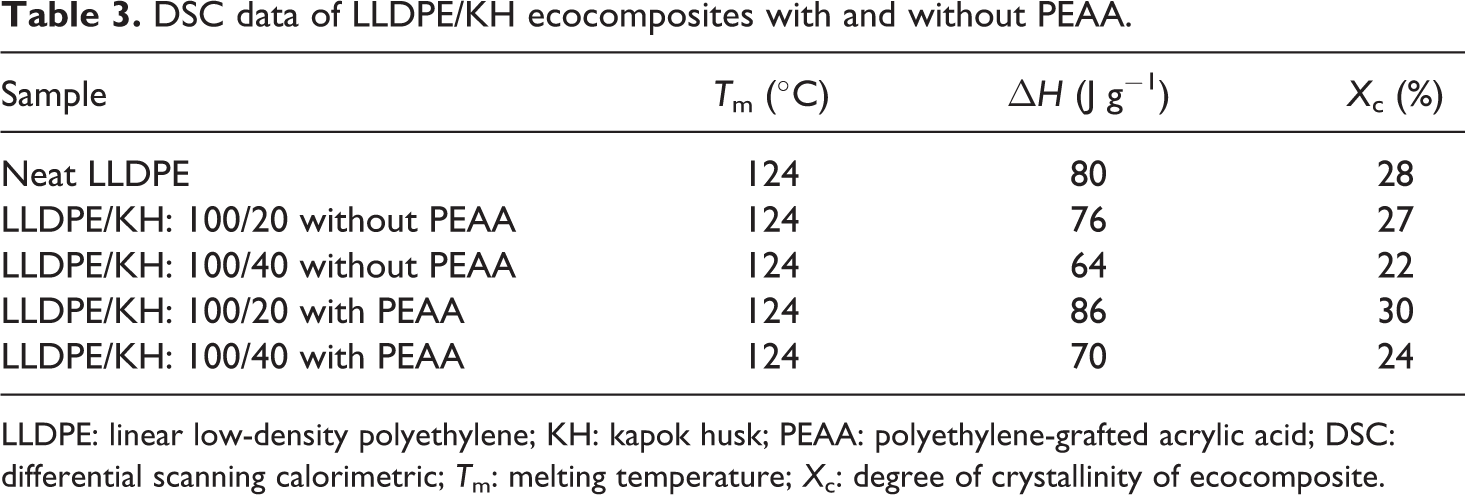

Table 3.

DSC data of LLDPE/KH ecocomposites with and without PEAA.

Sample	T _m (°C)	▵H (J g⁻¹)	X _c (%)
Neat LLDPE	124	80	28
LLDPE/KH: 100/20 without PEAA	124	76	27
LLDPE/KH: 100/40 without PEAA	124	64	22
LLDPE/KH: 100/20 with PEAA	124	86	30
LLDPE/KH: 100/40 with PEAA	124	70	24

LLDPE: linear low-density polyethylene; KH: kapok husk; PEAA: polyethylene-grafted acrylic acid; DSC: differential scanning calorimetric; T _m: melting temperature; X _c: degree of crystallinity of ecocomposite.

Figure 9.

DSC curves of neat LLDPE and LLDPE/KH ecocomposites with and without PEAA. LLDPE: linear low-density polyethylene; KH: kapok husk; PEAA: polyethylene-grafted acrylic acid; DSC: differential scanning calorimetric.

Thermogravimetric analysis

Derivative TGA (DTG) and TGA curves of neat LLDPE and LLDPE/KH ecocomposites with and without PEAA are shown in Figures 10 and 11, respectively. The data from DTG and TGA curves are listed in Table 4. The DTG curve (Figure 10) shows that the neat LLDPE was decomposed in single step above temperature 330°C. The LLDPE/KH ecocomposites was decomposed in two steps, which include (i) decomposition of hemicellulose in KH and (ii) decomposition of lignin and cellulose in KH as well as LLDPE matrix. According to Table 4, LLDPE/KH ecocomposites exhibited an early thermal degradation as showed in temperature at 5% weight loss (T _d5%). The increase of KH content decreased the T _d5% of LLDPE/KH ecocomposites. The early thermal decomposition of LLDPE/KH ecocomposites was attributed by the weight loss of volatile compound and hemicellulose in KH. In regard to decomposition temperature at maximum rate (T _dmax), the LLDPE/KH ecocomposites at 20 phr KH content showed a poor thermal stability, but the increase of KH content to 40 phr shifted the T _dmax of LLDPE/KH ecocomposites to higher temperature. This is because the amount of pyrolysis materials formed from high KH content is sufficient to act as thermal protective barrier and inhibits the thermal degradation of ecocomposites.^3,7 Therefore, the thermal decomposition of LLDPE/KH ecocomposites at 40 phr of KH content is delayed. From Table 4, the residue of LLDPE/KH ecocomposites at 700°C increased with increasing KH content. As discussed, the residue was the pyrolysis materials generated from thermal decomposition of KH. Thus, change of the residue is corresponded to content of KH. Moreover, the addition of PEAA improved the thermal stability of LLDPE/KH ecocomposites, as it can be observed from the increment of T _d5%, T _dmax, and residue at 700°C. The PEAA was covalently bonded on KH surface and it gave better thermal stability to KH. As a result, the KH bonded with PEAA is more resistant to thermal decomposition and it improved the thermal stability of LLDPE/KH ecocomposites. According to Salmah et al.,^17,18 the LDPE/palm kernel shell ecocomposites exhibited better thermal properties with PEAA.

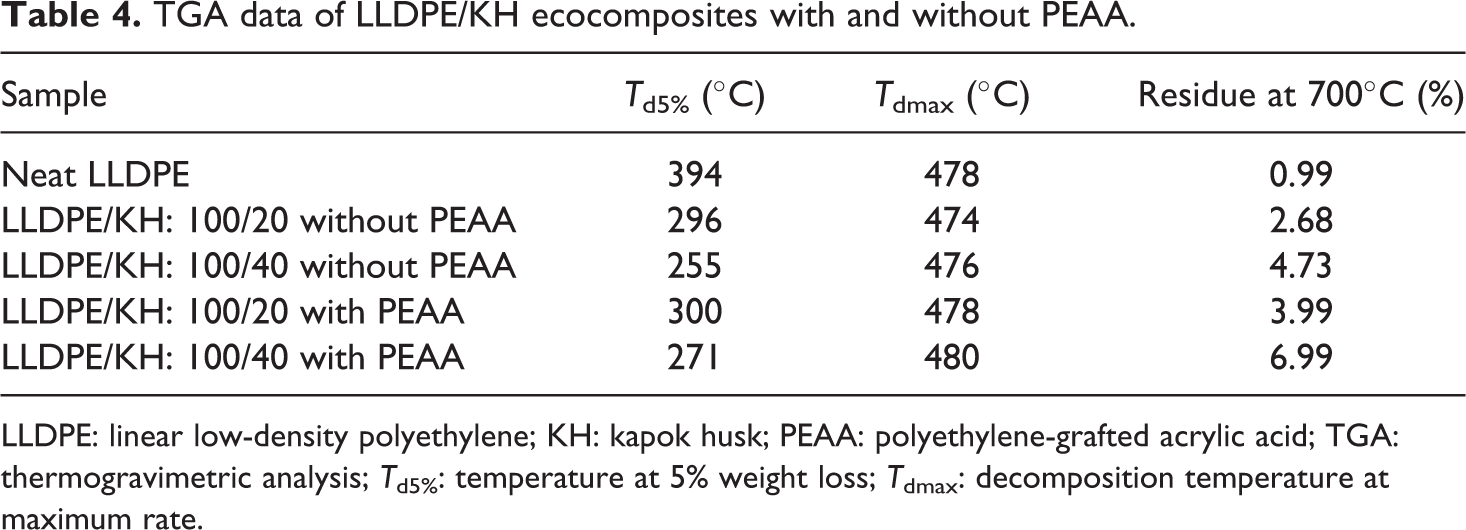

Table 4.

TGA data of LLDPE/KH ecocomposites with and without PEAA.

Sample	T _d5% (°C)	T _dmax (°C)	Residue at 700°C (%)
Neat LLDPE	394	478	0.99
LLDPE/KH: 100/20 without PEAA	296	474	2.68
LLDPE/KH: 100/40 without PEAA	255	476	4.73
LLDPE/KH: 100/20 with PEAA	300	478	3.99
LLDPE/KH: 100/40 with PEAA	271	480	6.99

LLDPE: linear low-density polyethylene; KH: kapok husk; PEAA: polyethylene-grafted acrylic acid; TGA: thermogravimetric analysis; T _d5%: temperature at 5% weight loss; T _dmax: decomposition temperature at maximum rate.

Figure 10.

DTG curves of neat LLDPE and LLDPE/KH ecocomposites with and without PEAA. LLDPE: linear low-density polyethylene; KH: kapok husk; PEAA: polyethylene-grafted acrylic acid; DTG: derivative thermogravimetric.

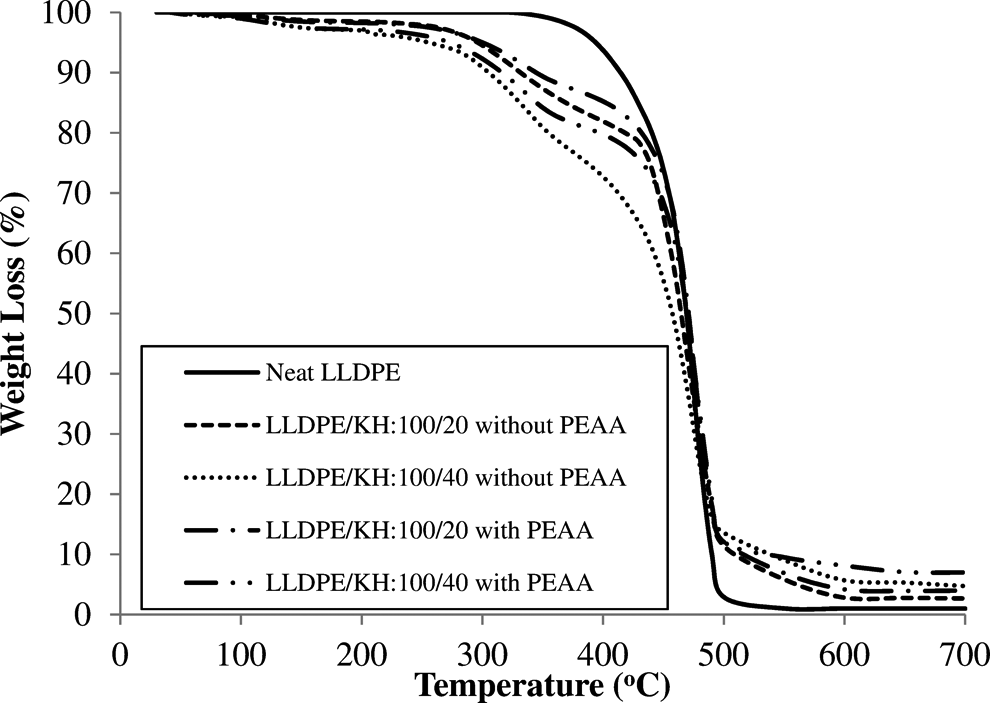

Figure 11.

TGA curves of neat LLDPE and LLDPE/KH ecocomposites with and without PEAA. LLDPE: linear low-density polyethylene; KH: kapok husk; PEAA: polyethylene-grafted acrylic acid; TGA: thermogravimetric analysis.

Conclusion

It was found that the increase of KH content reduced the tensile strength and elongation at break, but it increased the tensile modulus of LLDPE/KH ecocomposites. The water absorption of LLDPE/KH ecocomposites increased with the change of KH content and immersion time, due to the influence of hydroxyl group from KH. The SEM micrograph also showed the poor interfacial bonding between KH particles and LLDPE matrix. The addition of KH induced poor thermal properties of LLDPE/KH ecocomposites. Whereas, the incorporation of PEAA provided a coupling effect to the LLDPE/KH ecocomposites. The presence of PEAA had significantly improved the tensile strength, tensile modulus, crystallinity, and thermal stability as well as reduced the water absorption of LLDPE/KH ecocomposites. The interfacial bonding that enhanced by the presence PEAA was proved by SEM study.

Footnotes

Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

References

Chun

Husseinsyah

Osman

. Modified cocoa pod husk-filled polypropylene composites by using methacrylic acid. Bioresources 2013; 8: 3260–3275.

Salmah

Koay

Hakimah

. Surface modification of coconut shell powder filled polylactic acid biocomposites. J Thermoplast Compos Mater 2013; 26: 809–819.

Chun

Husseinsyah

Azizi

. Characterization and properties of recycled polypropylene/coconut shell powder composites: effect of sodium dodecyl sulphate modification. Polym Plast Technol Eng 2013; 52: 287–294.

Chun

Husseinsyah

. Polylactic acid/corn cob eco-composites: effect of new organic coupling agent. J Thermoplast Compos Mater. Epub ahead of print 24 February 2013. doi: 10.1177/0892705712475008.

Niskanen

(ed). Mechanics of paper products. Deutsche: Walter de Gruyter GmbH & Co, 2011.

Chun

Husseinsyah

Osman

. Tensile properties of polypropylene/cocoa pod husk biocomposites: effect of maleated polypropylene. Adv Mater Res 2013; 747: 645–648.

Chun

Husseinsyah

Osman

. Properties of coconut shell powder-filled polylactic acid ecocomposites: effect of maleic acid. Polym Eng Sci 2013; 53: 1109–1116.

Chun

Husseinsyah

Osman

. Mechanical and thermal properties of coconut shell powder filled polylactic acid biocomposites: effect of the filler content and silane coupling agent. J Polym Res 2012; 19: 1–8.

Yeng

Husseinsyah

Ting

. Chitosan/corn cob biocomposite films by cross-linking with glutaraldehyde. Bioresources 2013; 2: 2910–2923.

10.

Yeng

Husseinsyah

Ting

. Modified corn cob filled chitosan biocomposite films. Polym Plast Technol Eng 2013; 52: 1496–1502.

11.

Salmah

Azieyanti

. Properties of recycled polyethylene/chitosan composites: the effect polyethylene graft maleic anhydride (MAPE). J Reinf Plast Compos 2011; 30: 195–202.

12.

Salmah

Ismail

. The effect of filler loading and maleated polypropylene on properties of rubber wood filled polypropylene/natural rubber composites. J Reinf Plast Compos 2008; 27: 1867–1876.

13.

Bledzki

Faruk

Huque

. Physico-mechanical studies of wood fiber reinforced composites. Polym Plast Technol Eng 2002; 41: 435–451.

14.

Sombatsompop

Yotinwattanakumtorn

Thongpin

. Influence of type and concentration of maleic anhydride grafted polypropylene and impact modifiers on mechanical properties of PP/wood sawdust composites. J Appl Polym Sci 2005; 97: 475–484.

15.

Sobczak

Bruggemann

Putz

. Polyolefin composites with natural fibers and wood-modification of the fiber/filler-matrix interaction. J Appl Polym Sci 2013; 127: 1–17.

16.

Moresco

Rosa

SML

Santos

. Agrofillers in polypropylene composites: a relationship between the density and the mechanical properties. J Appl Polym Sci 2010; 117: 400–408.

17.

Salmah

Bee Ying

Teh

. Melt rheology behavior and thermal properties of low density polyethylene/palm kernel shell composites: effect of polyethylene acrylic acid. Int J Polym Mater 2012; 61: 1091–1101.

18.

Salmah

Romisuhani

Akmal

. Properties of low-density polyethylene/palm kernel shell composites: effect of polyethylene co-acrylic acid. J Thermoplast Compos Mater 2013; 26: 3–15.

19.

Poletto

Zeni

Zattera

. Effect of wood flour addition and coupling agent content on mechanical properties of recycled polystyrene/wood flour composites. J Thermoplast Compos Mater 2012; 25: 821–833.

20.

Ismail

Nizam

Abdul Khalil

HPS

. The effect of a compatibilizer on the mechical properties and mass swell of white rice husk ash filled natural rubber/linear low density polyethylene blends. Polym Test 2001; 20: 125–133.

21.

La Mantia

Morreale

. Mechanical properties of recycled polyethylene ecocomposites filled with natural organic fillers. Polym Eng Sci 2006; 46: 1131–1139.

22.

ASTM Standard D638. Standard test method for tensile properties of plastics. West Conshohocken: ASTM International, 2010.

23.

Wunderlich

Cormier

. Heat of fusion of polyethylene. J Polym Sci A-2 1967; 5: 987–988.

24.

Salmah

Faisal

Kamarudin

. The mechanical and thermal properties of chitosan filled polypropylene composites: the effect of acrylic acid. J Vinyl Add Technol 2011; 17: 125–131.

25.

Rozman

Lee

Kumar

. The effect of chemical modification of rice husk with gycidyl methacrylate on the mechanical and physical properties of rice husk-polystyrene composites. J Wood Chem Technol 2000; 20: 93–109.

26.

Mishra

Naik

Patil

. Studies on swelling properties of wood/polymer composites based on agro-waste and novolac. Adv Polym Technol 2004; 23: 46–50.

27.

Viskne

Berzina

Andersone

. Study of plastic compounds containing polypropylene and wood derived fillers from waste of different origin. J Appl Polym Sci 2010; 117: 368–377.

28.

Salemane

Luyt

. Thermal and mechanical properties of polypropylene-wood powder composites. J Appl Polym Sci 2006; 100: 4173–4180.

29.

Sanadi

Caulfield

. Transcrystalline interphases in natural fiber-PP composites: effect of coupling agent. Compos Interf 2000; 7: 31–43.

30.

Borysiak

. Fundamental studies on lignocellulose/polypropylene composites: effects of wood treatment on the trancrystalline morphology and mechanical properties. J Appl Polym Sci 2013; 127: 1309–1322.

31.

Salmah

Faisal

Kamarudin

. Chemical modification of chitosan filled polypropylene composites: the effect 3-aminopropyltriethoxysilane on mechanical and thermal properties. Int J Polym Mater 2011; 60: 429–440.
