Theoretical modeling of tensile properties of thermoplastic composites developed from novel unidirectional recycled carbon fiber tape structure

Abstract

This paper aims to conduct theoretical modeling of tensile properties of thermoplastic composites developed from novel unidirectional recycled carbon fiber tapes. Unidirectional recycled carbon fiber tape structure is an innovative, sustainable and cost-efficient prepreg structure designed to develop carbon fiber reinforced plastics with the highest resource efficiency. In order to do modeling, existing theoretical models of tensile properties of unidirectional composites were reviewed in the first part of this paper. Subsequently, reviewed theoretical models were further modified by considering the tensile properties of fibers, fiber length, fiber orientation, fiber volume content and short fiber content to predict the tensile properties of composites based on novel tape structure. The results of this study reveal that the proposed theoretical models are in good agreement with the experimental results.

Keywords

Theoretical modeling tensile properties thermoplastic composites recycled carbon fiber and unidirectional tape structure

Introduction

Composite tensile properties play a critical role in component design and its application for multiple engineering fields including aerospace, automotive and wind energy sectors.^1–3 Generally, the tensile properties of composites are assessed by using experimental technique based on standard tensile test methods. In addition, theoretical models are also widely used to estimate the composite tensile properties. It is well established in the literature that theoretical modeling show good approximation for unidirectional composites based on continuous fibers. It is because unidirectional composites based on continuous fibers have homogeneous, uniform and periodic representative volume elements.^4–6

Besides this, recycled carbon fiber are discontinuous in nature and fiber orientation in composite structure is influenced by the processing technology and its associated technological parameters. For instance, composite structure based on injection molding, nonwovens and hybrid yarn techniques possess random, partial and angled orientation rather than unidirectional orientation. In addition to this, fiber length distribution and fiber volume content in composite structure is also non-uniform.^7–10 Therefore, composites based on discontinuous recycled carbon fibers possess heterogeneous, non-uniform and non-repeating representative volume elements. Consequently, estimation of tensile properties of composites through theoretical modeling is a challenging task.

Recently, a novel tape manufacturing technology has been developed in the Institute of Textile Machinery (ITM) and High-Performance Material Technology, TU Dresden that delivers novel tape structure based on recycled carbon and polyamide fibers with unidirectional fiber orientation. This novel, unidirectional and thermally staple prepreg structure is termed as “Unidirectional recycled carbon fiber tape”. This novel technology comprises of fiber opening, special carding, modified drawing and innovative tape forming processes that transformed recycled carbon and polyamide fibers into unidirectional tape structure as shown in the Figure 1. Subsequently, this novel tape structure were stacked and converted into thermoplastic composite through consolidation. The technology-structure-property relationship established that optimum combinations of technological, structural and consolidation parameters deliver composite structure with outstanding composite tensile properties. Further analysis reveals that fiber length, fiber orientation and short fiber content (SFC) have a significant relation with the composite tensile properties.^11,12

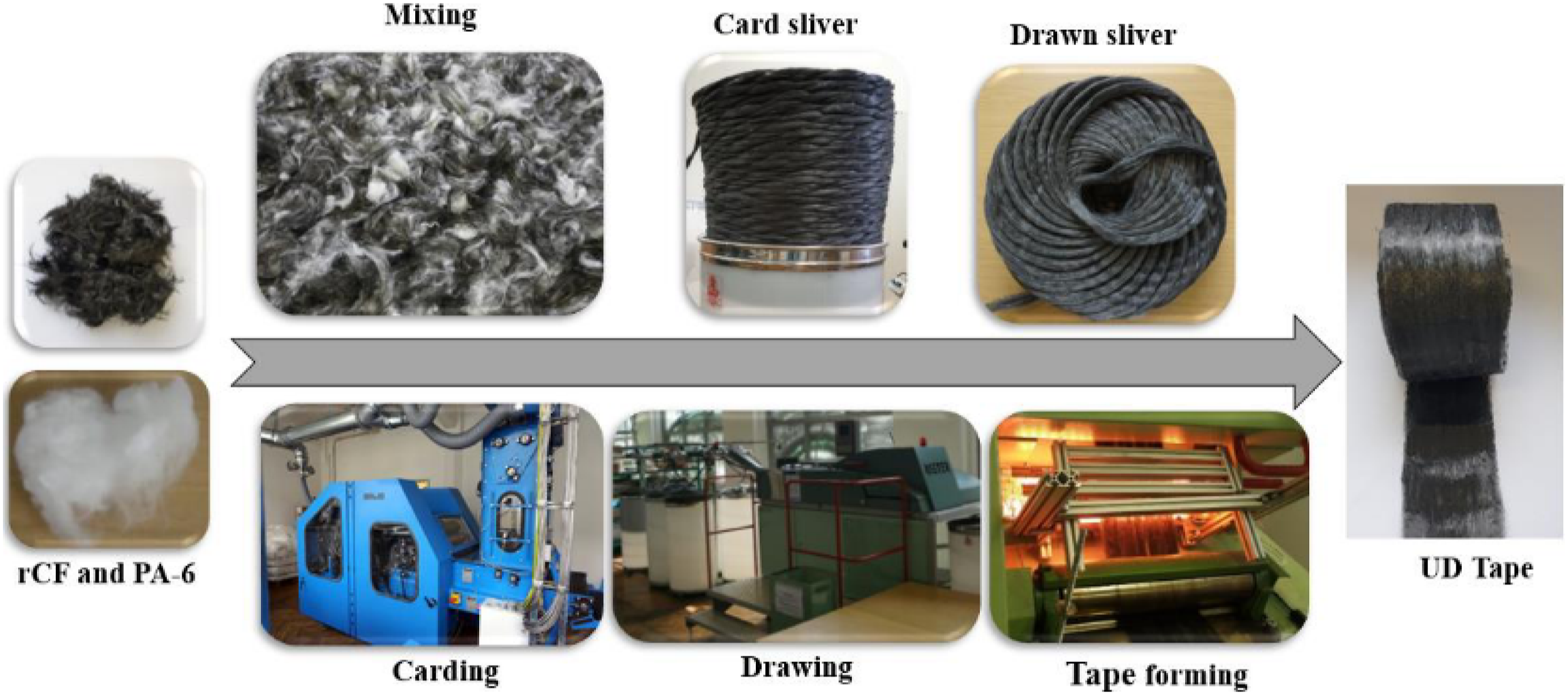

Figure 1.

Innovative technology for the developing unidirectional recycled carbon fiber tape structure.

Fiber length, fiber orientation, fiber volume content and tensile properties of individual constituent are the established factors as reported in the literature to estimate the composite tensile properties. While the origination of short carbon fibers and its behavior during processing is an emerging concern that affect the composite tensile properties by disturbing the fiber orientation and uniformity in the structure. Therefore, there is strong need to modify existing theoretical models to estimate the composite tensile properties by considering short fibers content as an additional factor. Therefore, the aim of this research paper is to develop models that precisely predict tensile properties of fiber reinforced plastics fabricated through unidirectional recycled carbon fiber tape structure. For this purpose, existing theoretical models are reviewed and a modified model is proposed to predict tensile properties of unidirectional thermoplastic composite. Following section presents an overview on current theoretical modeling utilized for predicting tensile properties of unidirectional composites.

Theoretical modeling of unidirectional composites

Unidirectional composites are a transversely isotropic material where all fibers are oriented in loading direction. In order to predict tensile modulus and strength of continuous and discontinuous unidirectional fiber reinforced composites, multiple theoretical models are reported in literature. An overview of important theoretical modeling of tensile properties of unidirectional composites is presented in this section.

Rule of Mixture (ROM) known as Voight and Reuss model is one of the simplest micromechanical models used to determine tensile strength and modulus of composites.¹³ The equations of the respective model are as follows:

E_{11} = V_{f} . E_{11}^{f} + V_{m} . E^{m}

(1.1)

σ_{11} = V_{f} . σ_{11}^{f} + V_{m} . σ^{m}

(1.2)

Here,

E_{11}^{f}

and

E^{m}

refer to fiber modulus and matrix modulus, while

V_{f}

σ_{11}^{f}

and

σ^{m}

represent fiber volume content, fiber strength and matrix strength respectively.

This model mainly considers fiber volume content to determine tensile modulus ( $E_{11}$ ) and strength ( $σ_{11}$ ) of composites. It is well established that fiber orientation is also important parameters that determine mechanical properties of discontinuous fiber reinforced plastics. Therefore, ROM model is modified by introducing the fiber orientation factor $η_{o}$ (Mod. ROM) as shown in equations (2.1) and (2.2).

E_{11} = η_{o} . V_{f} . E_{11}^{f} + V_{m} . E^{m}

(2.1)

σ_{11} = {η_{o} . V}_{f} . σ_{11}^{f} + V_{m} . σ^{m}

(2.2)

A theoretical model that considers fiber length as a factor to predict tensile modulus and strength of composites is Cox model^13,14 as given in equations (3.1)–(3.4):

E_{11} = η_{l} . V_{f} . E_{11}^{f} + V_{m} . E^{m}

(3.1)

σ_{11} = {η_{l} . V}_{f} . σ_{11}^{f} + V_{m} . σ^{m}

(3.2)

In Cox model, $η$ _l indicates fiber length factor that can be measured by shear lag theory presented by Cox et al.¹⁵ while the rest of the terminologies are similar in this equation as reported by ROM. In this model, $η$ _l can be estimated by using following equation:

η_{l} = 1 - \frac{\tanh (n s)}{n s}

(3.3)

Here, “s” represents the fiber aspect ratio and “n” represents a constant that can be calculated by using following expression:

n = \sqrt \frac{2 E^{m}}{E_{11}^{f} (1 + v_{m}) \ln (1 / V_{f})}

(3.4)

Later on, Cox model is modified by introducing the fiber orientation factor in the equation. This modified model is termed as modified Cox (Mod. Cox) model as shown in equations (4.1) and (4.2).

E_{11} = η_{o} . (1 - \frac{\tanh (n s)}{n s}) . V_{f} . E_{11}^{f} + V_{m} . E^{m}

(4.1)

σ_{11} = {η_{o} . (1 - \frac{\tanh (n s)}{n s}) . V}_{f} . σ_{11}^{f} + V_{m} . σ^{m}

(4.2)

Kelly and Tyson present the relationship between fiber length embedded in the matrix, fiber strength, fiber diameter and interfacial shear strength as given in equation (5):

l_{c} = \frac{σ_{11}^{f} . D}{2 τ}

(5)

Based on this relationship, stress transfer from fiber to matrix in composites depends on the critical fiber length. The critical fiber length is defined as the fiber length, at which stress can reach the tensile strength of the fiber. In the case fiber length is higher than the critical fiber length, the stress is transferred from fiber to matrix and composite properties linearly follow the strength of the fibers in tensile loading.

Based on Kelly and Tyson theory, theoretical model K-T⁵ is developed by introducing critical length relationship in ROM as given in

E_{11} = {(1 - \frac{l c}{2 L}) . V}_{f} . E_{11}^{f} + V_{m} . E^{m}

(6.1)

σ_{11} = {(1 - \frac{l c}{2 L}) . V}_{f} . σ_{11}^{f} + V_{m} . σ^{m}

(6.2)

In this model, $l_{c}$ is the critical fiber length that can be calculated from equation (5) and the term L represents the mean fiber length in the composite. The rest of the parameters are similar as reported in ROM model.

Further, Kelly and Tyson model was also modified (Mod. K-T) by introducing fiber orientation factor as in

E_{11} = η_{o} {. (1 - \frac{l c}{2 L}) . V}_{f} . E_{11}^{f} + V_{m} . E^{m}

(7.1)

σ_{11} = {η_{o} . (1 - \frac{l c}{2 L}) . V}_{f} . σ_{11}^{f} + V_{m} . σ^{m}

(7.2)

A semi empirical model, known as Halpin-Tsai model (H-T), also accounts for fiber length to predict the modulus and strength of discontinuous fiber reinforced plastics.^5,16 The equations of this model are as follows:

E_{11} = E^{m} (\frac{1 + ζ . η^{*} . V_{f}}{1 - η^{*} . V_{f}})

(8.1)

σ_{11} = σ^{m} (\frac{1 + ζ . η . V_{f}}{1 - η . V_{f}})

(8.2)

In these equations, ζ, η,

η^{*}

are the correction or shape fitting parameters. These parameters can be determined by using following expressions (8.3)–(8.5). Here, L represents the fiber length in composites and D represents the diameters of the fiber.

η = \frac{\frac{σ_{11}^{f}}{σ^{m}} - 1}{\frac{σ_{11}^{f}}{σ^{m}} + ζ}

(8.3)

η^{*} = \frac{\frac{E_{11}^{f}}{E^{m}} - 1}{\frac{E_{11}^{f}}{E^{m}} + ζ}

(8.4)

ζ = \frac{2 L}{D}

(8.5)

Halpin-Tsai model was also modified (Mod. H-T) by introducing the fiber arrangements ( $ψ$ ) factor.⁵ In this case, composite tensile properties are calculated by using equations (9.1) and (9.2)

E_{11} = E^{m} (\frac{1 + ζ . η^{*} . V_{f}}{1 - η^{*} . ψ . V_{f}})

(9.1)

σ_{11} = σ^{m} (\frac{1 + ζ . η . V_{f}}{1 - η . {ψ . V}_{f}})

(9.2)

Bridging model^4,17 is a homogenized model to estimates tensile properties of unidirectional composite. This model is based on a strength theory, in which a composite is considered to fail when any constituent of the composite (fiber or matrix) reaches its ultimate strength. This model estimates tensile modulus by using the ROM model while the ultimate strength of composites can be estimated by using following equation:

σ_{11} = \min {\frac{σ_{u}^{f} - (α_{e 1}^{f} - α_{p 1}^{f}) σ_{1}^{0}}{α_{p 1}^{f}}, \frac{σ_{u}^{m} - (α_{e 1}^{m} - α_{p 1}^{m}) σ_{1}^{0}}{α_{p 1}^{m}}}

(10.1)

In this model,

σ_{u}^{f}

and

σ_{u}^{m}

represent the ultimate tensile strength of fiber and matrix while the other parameters can be calculated by using following equations:

σ_{1}^{0} = {\frac{σ_{u}^{m}}{α_{e 1}^{m}}, \frac{σ_{u}^{f}}{α_{e 1}^{f}}}

(10.2)

α_{e 1}^{f} = \frac{E_{11}^{f}}{V_{f} E_{11}^{f} (1 - V_{f}) E^{m}}

(10.3)

α_{e 1}^{m} = \frac{E^{m}}{V_{f} E_{11}^{f} (1 - V_{f}) E^{m}}

(10.4)

α_{p 1}^{f} = \frac{E_{11}^{f}}{V_{f} E_{11}^{f} (1 - V_{f}) E_{T}^{m}}

(10.5)

α_{p 1}^{m} = \frac{E_{T}^{m}}{V_{f} E_{11}^{f} (1 - V_{f}) E_{T}^{m}}

(10.6)

Experimental methodology

Material

Recycled carbon fibers, obtained from dry waste of the composite industry (Type-I), and crimped polyamide fibers (PA-6) were used as a raw materials for the development of unidirectional recycled carbon fibers tapes. The detail of developed material combinations, including supplier names, fiber lengths of carbon and polyamide fibers and fiber volume content are tabulated in the Table 1.

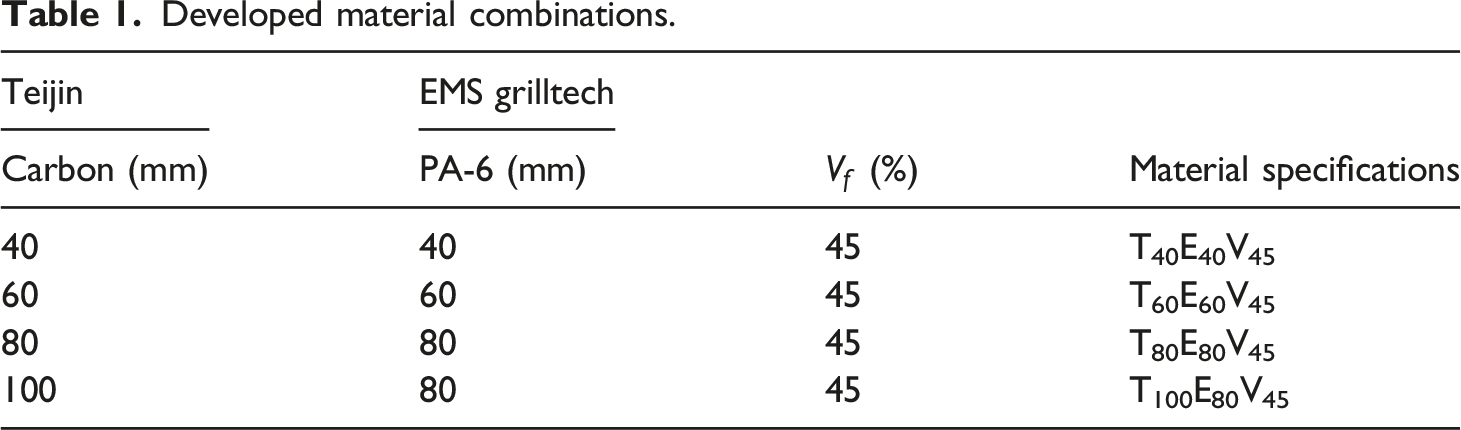

Table 1.

Developed material combinations.

Teijin	EMS grilltech	$V_{f}$ (%)	Material specifications
Carbon (mm)	PA-6 (mm)	$V_{f}$ (%)	Material specifications
40	40	45	T₄₀E₄₀V₄₅
60	60	45	T₆₀E₆₀V₄₅
80	80	45	T₈₀E₈₀V₄₅
100	80	45	T₁₀₀E₈₀V₄₅

Fabrication of tape and composite structure

Innovative tape manufacturing technology, shown in the Figure 1, was utilized to develop unidirectional recycled carbon fiber tapes from different material combinations as reported in Table 1. Later on, multiple layers of the tapes were stacked in [0]_s direction and consolidation was carried out by utilizing a laboratory scale press machine (P 300 PV from Dr Collin GmbH, Germany) to develop a unidirectional thermoplastic composite. The fabrication of thermoplastic composites from unidirectional recycled carbon fiber tapes structure is shown in the Figure 2.

Figure 2.

Development of thermoplastic composites.

Material properties measurements

The tensile modulus ( $E_{11}^{f}$ ), strength ( $σ_{11}^{f}$ ) and elongation ( $ε_{11}^{f}$ ) of recycled carbon fibers were measured using FAVIMAT, single fiber tensile tester from Textechno Herbert Stein GmbH and Co. KG, Germany. Furthermore, FIMATEST tester from Textechno Herbert Stein GmbH and Co. KG, Germany measures the interfacial shear strength of carbon and polyamide fibers.

Fiber length assessment

Thermoplastic composite developed in this study is composed of multiple layer of novel tape structure. Therefore, mean fiber length and SFC of recycled carbon fibers was measured from the developed unidirectional tape structure. For this purpose, tape structure without thermal fixation was developed and subjected to image analysis method^18,19 for the assessment of mean fiber length present in the structure.

In image analysis method, tape structure ranging from 0.8-0.9 grams was used to develop a fiber beard. The fiber beard in a range of 150 ± 20 milligrams was scanned and grayscale densities of different class lengths were employed to draw a staple length diagram as shown in the Figure 3(b).

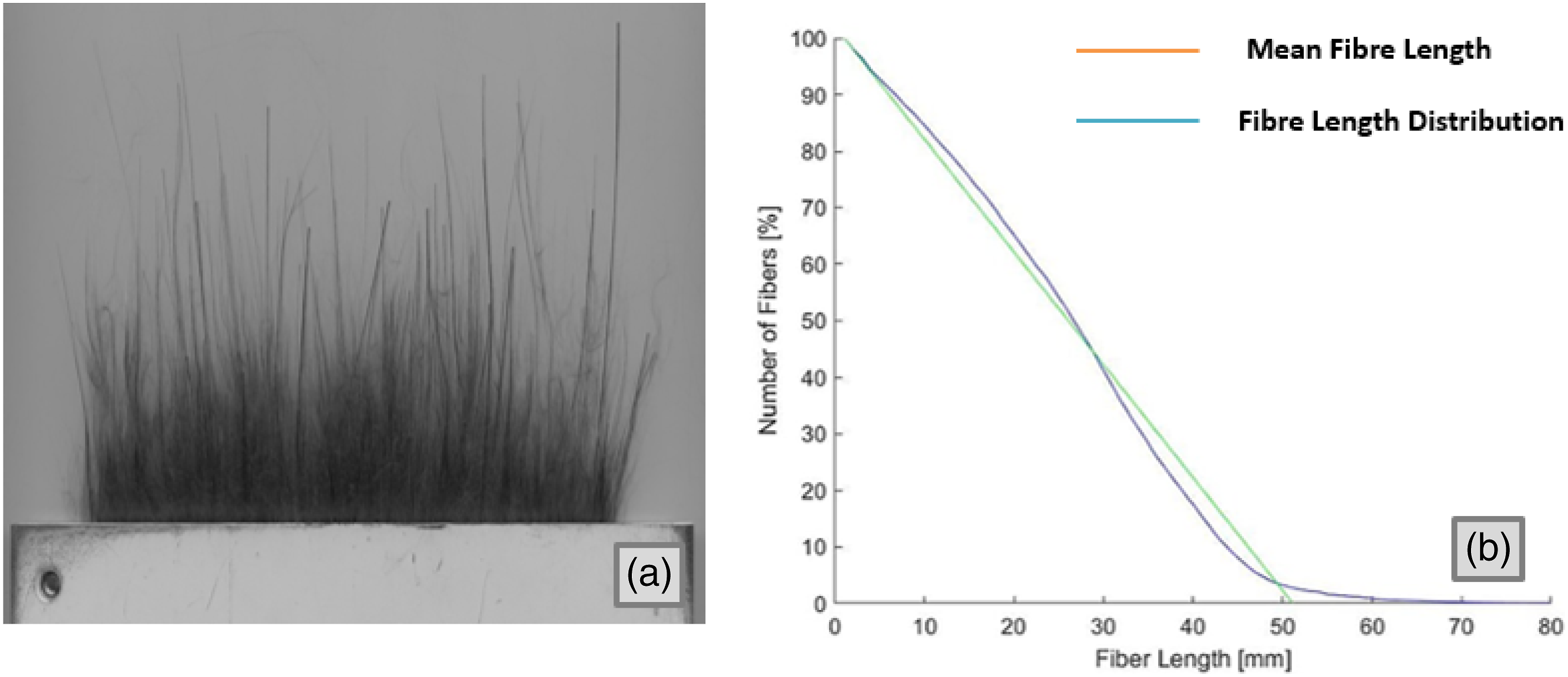

Figure 3.

Image analysis method (a) fibre beard (b) fibre length distribution.^18,19

Assessment of SFC

In order to measure short carbon fibers in the developed tape structure, weight of combed fibers (C) originated from the beard preparation process and the beard weight of carbon fibers (B), as shown in the Figure 4(a), were used to estimate the percentage of short carbon fibers present in the tape structure though equation (11).

S h o r t f i b e r c o n t e n t (%) = \frac{C}{B} \times 100

(11)

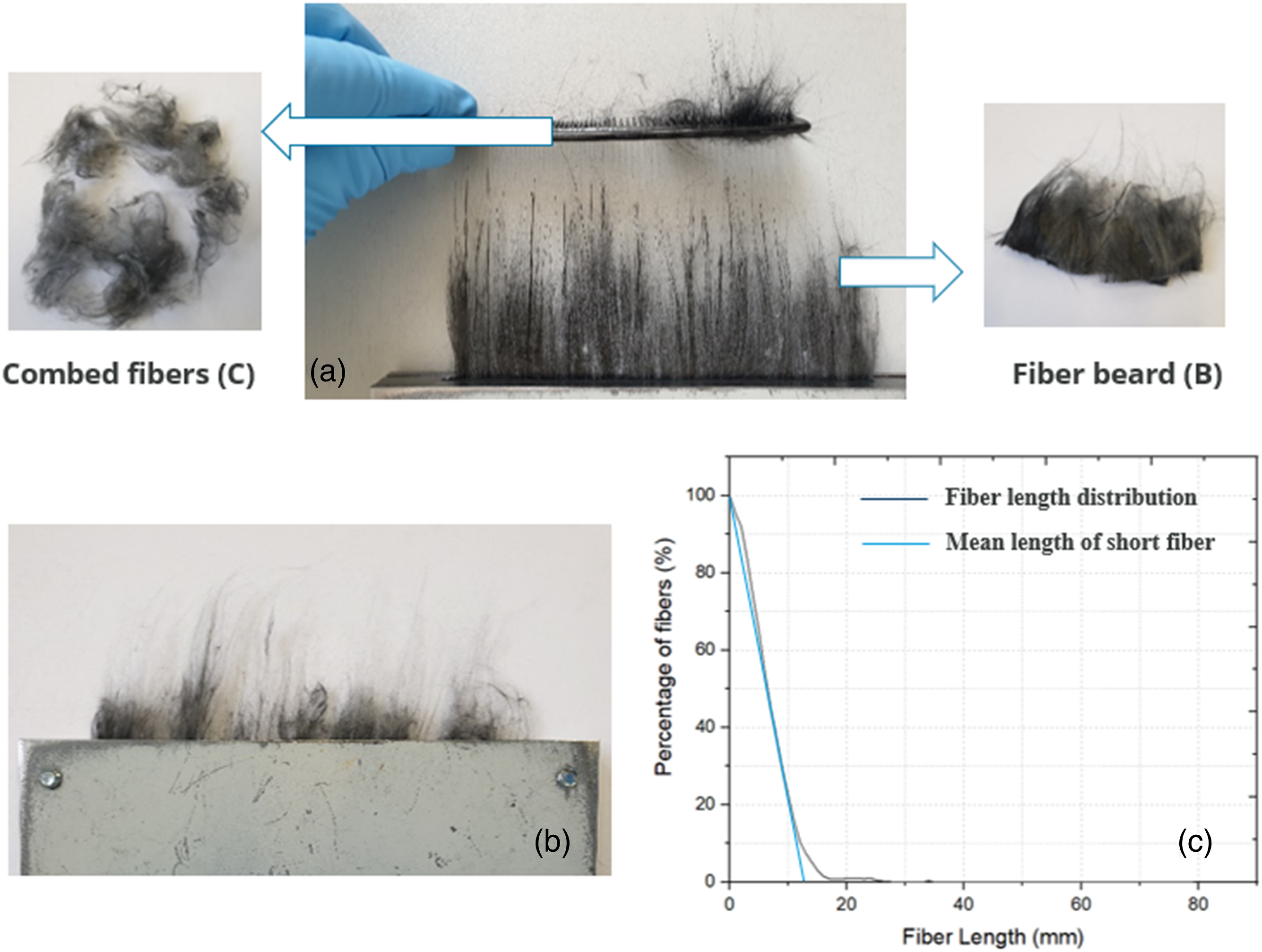

Figure 4.

Measurement of short carbon fiber content (a) beard preparation process (b) beard of short carbon fibers (c) staple diagram of short fibers.

Later, combed fibers were further subjected to image analysis method to determine the length of the short carbon fibers as shown in the Figure 4(c). The staple diagram of the short carbon fibers confirms that the mean length of the comber fibers is 12.7 mm.

Fiber orientation determination

In this study, fiber orientation was measured in the unidirectional recycled carbon fiber tapes and composites structures. In the tape structure, fiber orientation was measured in the machine direction. For this purpose, tape structure without thermal fixation was subjected to Lindsley method for the determination of fiber orientation index. Lindsley method is composed of three metallic plates, one bottom plate termed as working plate and two top plates termed as clapping plate in addition to a cutting plate as shown in the Figures 5(a) to (d). The systematic procedure to determine the fiber orientation is reported in.^19,20 The weight of extended fibers (E) and Normal fibers (N) in forward direction was used in equation (12) to estimate fiber orientation.

O r i e n t a t i o n I n d e x = (1 - \frac{E}{N}) \times 100

(12)

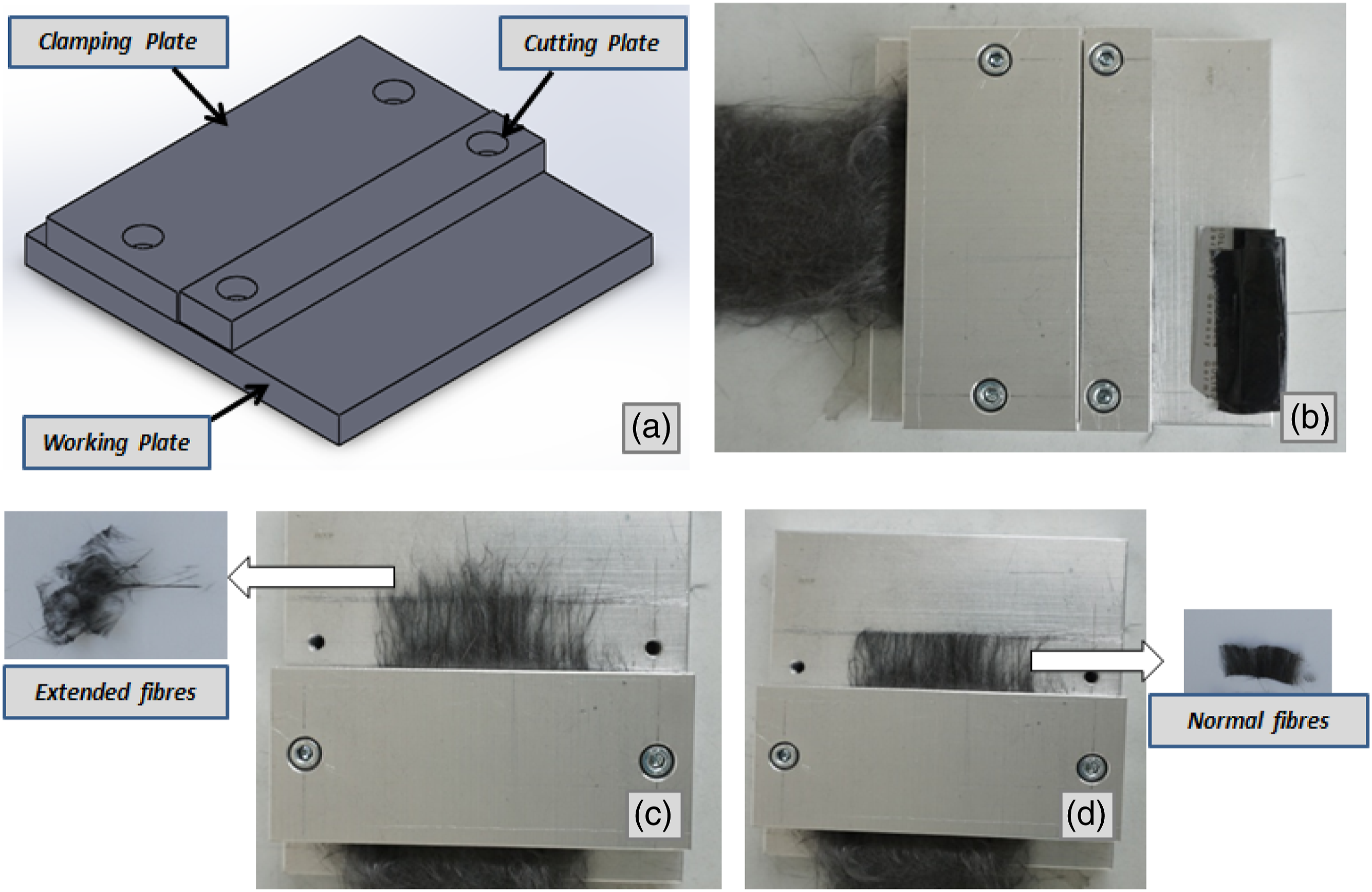

Figure 5.

Principle of Lindsley method (a) Lindsley apparatus (b) fiber placed under plates (c) extended fibers (d) normal fibers.

In case of composite, fiber orientation distribution in the structure was measured by using image-processing approach.²¹ In this technique, composite cross-section was examined under the Axio Imager M1m microscope (Carl Zeiss, Germany). Later on, the major and minor axis of the fibers was determined by Image J software. In the end, the data of approximately 800 fibers was used to calculate the fiber orientation distribution (in degree angle) by using equation (13). The complete process of fiber orientation measurement is presented in Figure 6.

θ = {(\cos}^{- 1} (m i n o r / m a j o r)) * (180 / π)

(13)

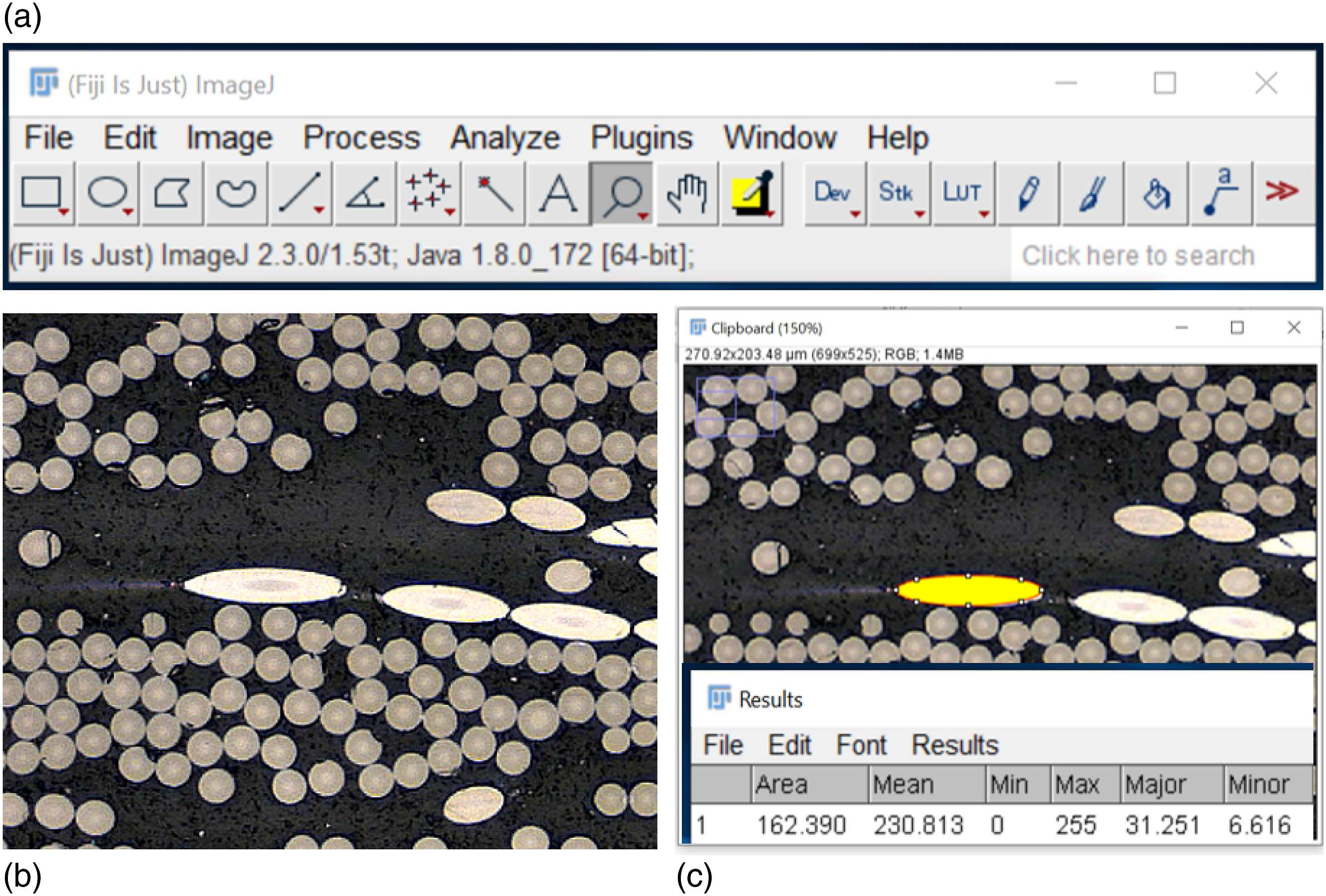

Figure 6.

Image-processing approach (a) Image J software (b) original composite cross-section (c) Measurement of highlighted fiber and its result for example.

Composites properties determination

The tensile properties of thermoplastic composites based on unidirectional recycled carbon fiber tape structure were carried out by DIN EN ISO 527–5 test method. For this purpose, specimens of 250 mm × 15 mm × 1 mm (l × w × h) were subjected to Zwick type Z 100 (Zwick GmbH and Co., Germany) testing machine. Furthermore, the fiber volume fraction in composite structure is determined according to DIN EN ISO 1172-1998 standard test method.

Development of theoretical model for composite based on unidirectional recycled carbon fiber tape structure

Current theoretical models, as reported earlier, estimate the tensile modulus and strength of composites by considering material properties (modulus and strength), composition (fiber volume content), and structural parameters (fiber orientation and fiber length). In contrast, recent study in the development of recycled carbon fiber reinforced plastics based on novel unidirectional tape structures also confirms the impact of SFC on tensile properties of composites.¹¹ Therefore, development of theoretical models is a focus of current research paper.

The process chain utilized for the development of unidirectional thermoplastic composites comprises of fiber preparation, carding, drawing, tape forming and consolidation processes as reported earlier. The carding, shearing and stripping actions of inherently brittle, non-crimped and shear sensitive fibers causes damage to the carbon fibers and originates short carbon fibers (less than 12 mm). Subsequently, these short fibers act like floating fibers in the drafting zones of drawing and tape forming processes and introduce an unpredictable motion that disturbs fiber orientation and fiber length distribution in the tape structure. It is also well established that short fibers float in fiber bundles under drafting circumstances. Investigations shows that amount of short fiber increases with increased infeed length of carbon fiber. The reason is the bending tendency of staple fibers that enhance fiber entanglement during carding. Ultimately, short fibers possess random orientation also become a part of the tape and composite structure.¹¹

In addition to this, short carbon fibers are responsible for non-uniform fibers distribution in the structure. This non-uniform distribution nucleates void content in the composite structure and it plays a critical role for the composite tensile properties.²² Therefore, the new function short fibers ( $η_{s f c}$ ) is introduced and implemented into Rule of Mixture, Cox and K-T models. These modified models are referred to as ROM-SFC, Cox-SFC and K-T-SFC models. The equations are given as follows.

ROM-SFC model

E_{11} = η_{o} . η_{l} . η_{s f c} . V_{f} . E_{11}^{f} + V_{m} . E^{m}

(14.1)

σ_{11} = {η_{o} . η_{l} . η_{s f c} . V}_{f} . σ_{11}^{f} + V_{m} . σ^{m}

(14.2)

Cox-SFC model

E_{11} = η_{o} . (1 - \frac{\tanh (n s)}{n s}) . η_{s f c} . V_{f} . E_{11}^{f} + V_{m} . E^{m}

(15.1)

σ_{11} = {η_{o} . (1 - \frac{\tanh (n s)}{n s}) . η_{s f c} . V}_{f} . σ_{11}^{f} + V_{m} . σ^{m}

(15.2)

K-T SFC model

E_{11} = η_{o} {. (1 - \frac{l c}{2 L}) . η_{s f c} . V}_{f} . E_{11}^{f} + V_{m} . E^{m}

(16.1)

σ_{11} = {η_{o} . (1 - \frac{l c}{2 L}) . η_{s f c} . V}_{f} . σ_{11}^{f} + V_{m} . σ^{m}

(16.2)

Here,

η

_sfc denotes the short fiber function. It refers as percentage of SFC present in the tape structure. The equation of the short fiber function is

η_{s f c} = 1 - \tanh (S F C)

(17)

SFC for the modulus and strength are calculated by using following functions

SFC = $\frac{100 - % a g e o f s h o r t f i b e r s}{100}$ and SFC = $\frac{100 - (2 \times % a g e o f s h o r t f i b e r s)}{100}$ , respectively.

Results and discussion

Structural parameters of composites

The tensile properties of unidirectional composites based on discontinuous fibers are depends on different structural parameters including material properties, fiber orientation, fiber length and fiber volume fraction present in the structure. Latest study on innovative unidirectional recycled carbon fiber tape structure reveals that SFC as structural parameter also play a significant role in the composite properties. Therefore, this section presents the results of structural parameters present in the thermoplastic composites based on unidirectional recycled carbon fiber tape structure.

Material properties

The distribution curve of tensile strength and modulus of Type-I recycled carbon fibers is presented in Figure 7. The curves shows that average tensile strength and E-Modulus of recycled carbon fiber used in this study are 3404 ± 683 MPa and 222 ± 16 GPa respectively. In case of polyamide, tensile properties were measured by developing a polyamide composite (in consolidation form) based on staple fibers. The summary of the material properties including interfacial shear strength is presented in the Table 2.

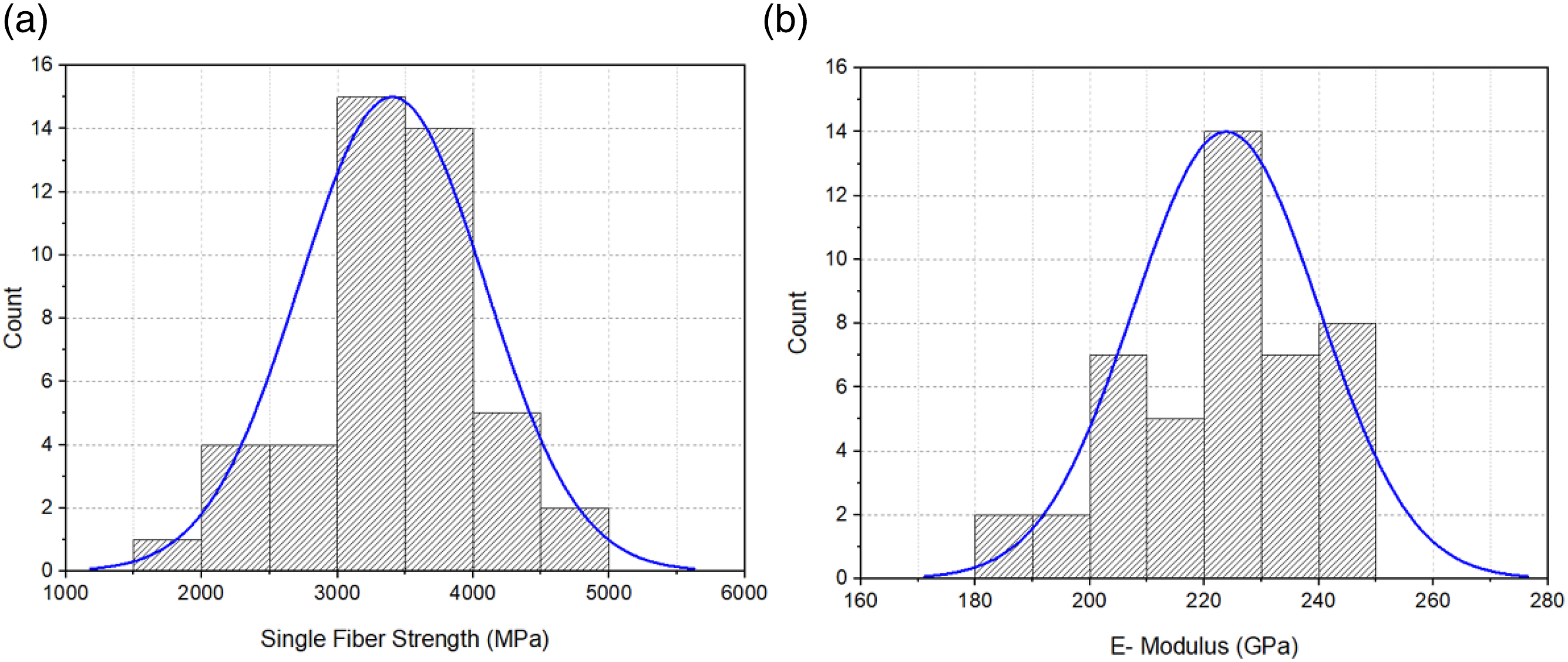

Figure 7.

Tensile properties of Type-I recycled carbon fibers (a) strength distribution (b) modulus distribution.

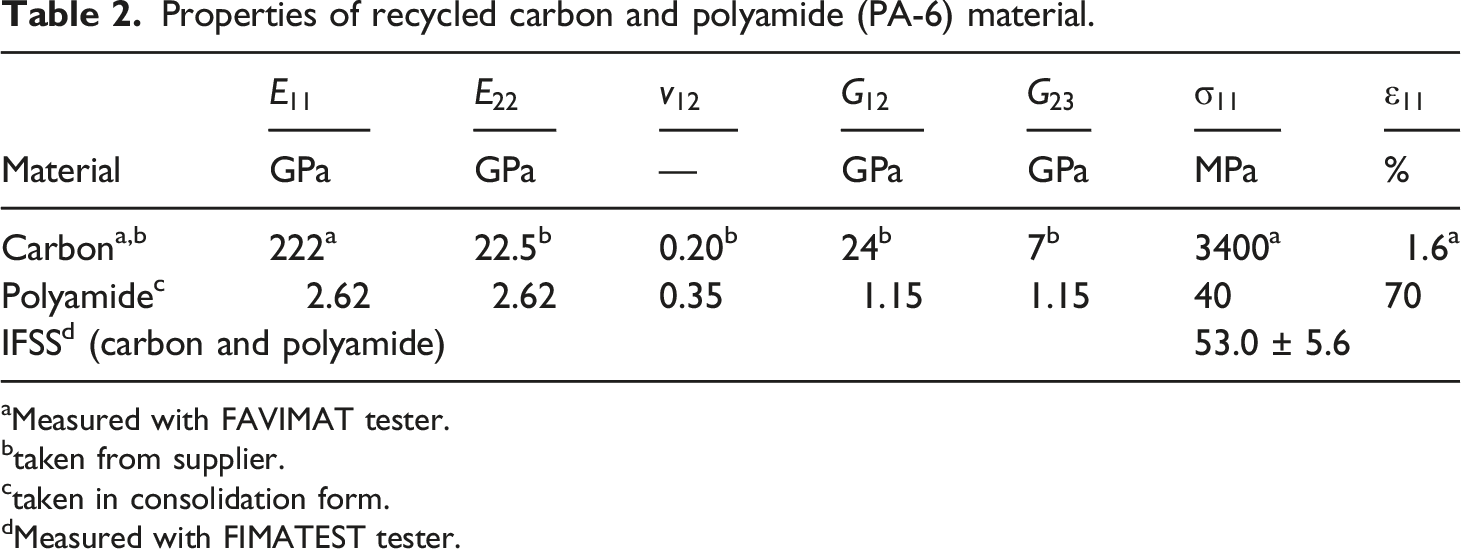

Table 2.

Properties of recycled carbon and polyamide (PA-6) material.

Material	$E_{11}$	$E_{22}$	$v_{12}$	$G_{12}$	$G_{23}$	$σ_{11}$	$ε_{11}$
Material	GPa	GPa	—	GPa	GPa	MPa	%
Carbon^a,b	222^a	22.5^b	0.20^b	24^b	7^b	3400^a	1.6^a
Polyamide^c	2.62	2.62	0.35	1.15	1.15	40	70
IFSS^d (carbon and polyamide)						53.0 ± 5.6

^aMeasured with FAVIMAT tester.

^btaken from supplier.

^ctaken in consolidation form.

^dMeasured with FIMATEST tester.

Fiber length

The results of mean length of the recycled carbon fibers embedded in the thermoplastic composites are shown in Figure 8(a). It is clearly seen from the graph that mean length of carbon fiber embedded in the T₄₀E₄₀V₄₅, T₆₀E₆₀V₄₅, T₈₀E₈₀V₄₅ and T₁₀₀E₈₀V₄₅ composites are 38 ± 2.4, 54 ± 3.4, 60 ± 1.8 and 78 ± 2.6 mm respectively. It is concluded from the results that length of carbon fibers shorten in the tape manufacturing process. This fiber shortening introduce short fibers in the tape structure that also become a part of the composite. The results of the SFC present in the tape structure are presented in the Figure 8(b). The graph shows that composite fabricated from T₄₀E₄₀V₄₅ combination has negligible SFC.

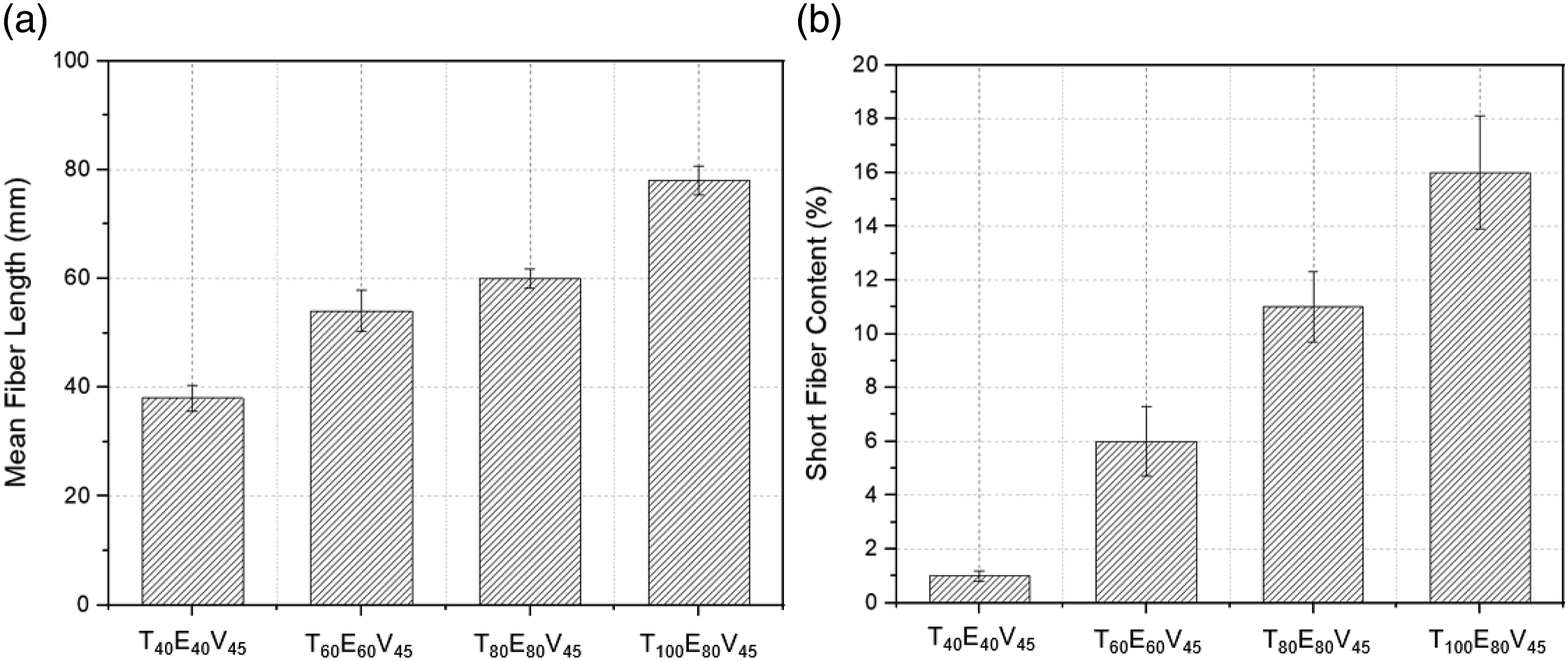

Figure 8.

Fiber length distribution (a) Mean fiber length (b) Short fiber content.

Fiber orientation

In this study, fiber orientation was assessed with two different techniques (Lindsley and Image processing) as reported earlier. Figure 9(a) presents the results of fiber orientation index present in the tape structure, which subsequently incorporated into the composite structure. The results disclose that fiber orientation index in the T₄₀E₄₀V₄₅ tape structure is around 93 ± 1.5%. It reflect that around 93% of the carbon fibers embedded in the composite structure are unidirectional. Further data disclose that fiber orientation embedded in the T₆₀E₆₀V₄₅, T₈₀E₈₀V₄₅ and T₁₀₀E₈₀V₄₅ composites are 90 ± 1.6, 87 ± 2.5 and 85 ± 2.4% respectively. This data reveals that fiber orientation showing downward trend compared to the length embedded in the composite.

Figure 9.

Fiber orientation distribution (a) Orientation index (b) Orientation angle.

Figure 9(b) presents the results of orientation distribution in different composite structure based on image processing technique. The microscopic images of the respective composites also given in the appendix (Figure A1). The results disclose that fiber orientation distribution in the developed composite structures are relatively unidirectional. Majority of the carbon fibers present in the T₄₀E₄₀V₄₅ composite are found in the range of 0–10 degree. Besides, T₆₀E₆₀V₄₅, T₈₀E₈₀V₄₅ and T₁₀₀E₈₀V₄₅ composites have both unidirectional and scattered fibers. In scattered fibers, it is found that dominant orientation peaks of the random bundles of carbon fibers are 21–30 and 31–40 degrees. It reflect that longer unidirectional fibers present in the composite structure lies in 0–10 degree range while the floated short carbon fibers bundles scattered in the range of 21–30 and 31–40 degrees.

Fiber volume content

The fiber volume content of the developed composites was measured according to the standard test method. The results disclosed that fiber volume content of T₄₀E₄₀V₄₅, T₆₀E₆₀V₄₅, T₈₀E₈₀V₄₅ and T₁₀₀E₈₀V₄₅ are 45.6 ± 2.2, 44.4 ± 1.3, 45.7 ± 1.5 and 45.5 ± 1.9 respectively.

Validation of developed theoretical models

The result of tensile properties of thermoplastic composites, fabricated from unidirectional recycled carbon fiber tape structure, including experimentally measured structural parameters are presented in Table 3. The tabulated results show that thermoplastic composites developed with T₄₀E₄₀V₄₅ material combination contain highest composite properties, dominated fiber orientation and negligible SFC. In case of T₆₀E₆₀V₄₅, T₈₀E₈₀V₄₅ and T₁₀₀E₈₀V₄₅, composite and structural properties showing decline tendency.

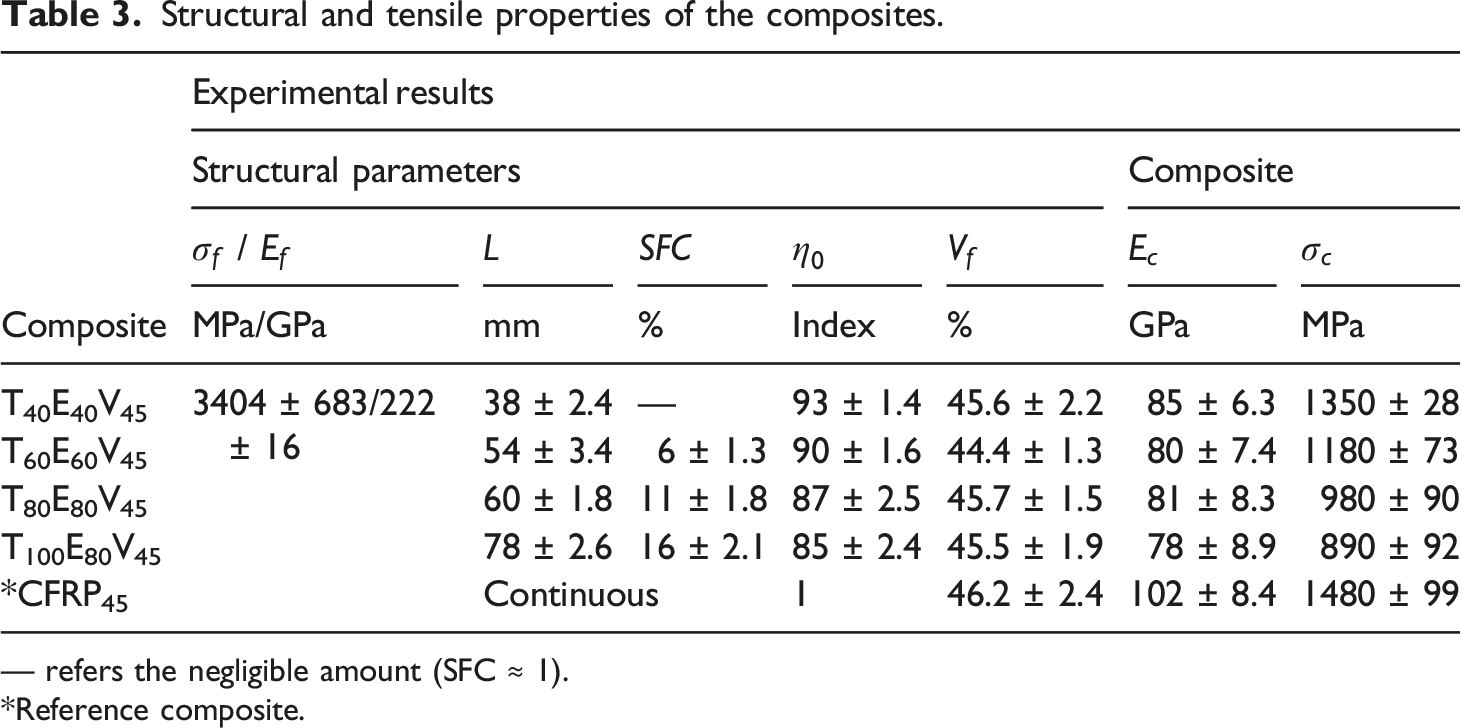

Table 3.

Structural and tensile properties of the composites.

Composite	$E x p e r i m e n t a l r e s u l t s$
	Structural parameters					Composite
	$σ_{f}$ / $E_{f}$	$L$	$S F C$	$η_{0}$	$V_{f}$	$E_{c}$	$σ_{c}$
	MPa/GPa	mm	%	Index	%	GPa	MPa
T₄₀E₄₀V₄₅	3404 ± 683/222 ± 16	38 ± 2.4	—	93 ± 1.4	45.6 ± 2.2	85 ± 6.3	1350 ± 28
T₆₀E₆₀V₄₅		54 ± 3.4	6 ± 1.3	90 ± 1.6	44.4 ± 1.3	80 ± 7.4	1180 ± 73
T₈₀E₈₀V₄₅		60 ± 1.8	11 ± 1.8	87 ± 2.5	45.7 ± 1.5	81 ± 8.3	980 ± 90
T₁₀₀E₈₀V₄₅		78 ± 2.6	16 ± 2.1	85 ± 2.4	45.5 ± 1.9	78 ± 8.9	890 ± 92
*CFRP₄₅		Continuous		1	46.2 ± 2.4	102 ± 8.4	1480 ± 99

— refers the negligible amount (SFC ≈ 1).

*Reference composite.

Based on the tabulated data, theoretical models are employed to estimate tensile modulus and strength of composites and a comparison is carried out with experimental results. Figure 10 presents composite tensile modulus versus fiber length embedded in unidirectional composites. The comparison shows that composite tensile modulus estimated from ROM, Cox, K-T, H-T, Bridging and Mod. H-T models is 15–30% higher than the experimental results. The range of modulus estimated from these theoretical models is 97–101 GPa. The Cox, K-T and H-T models are based on fiber length; Bridging model is based on homogenization technique while the H-T and Mod. H-T models are semi empirical models. The estimated composite modulus based on these models suggest that change in fiber length (from 40 mm to 100 mm) in composite has a slightly positive effect. The estimated value of composite modulus increases from 97 to 101 GPa with varying the carbon fiber length in composites.

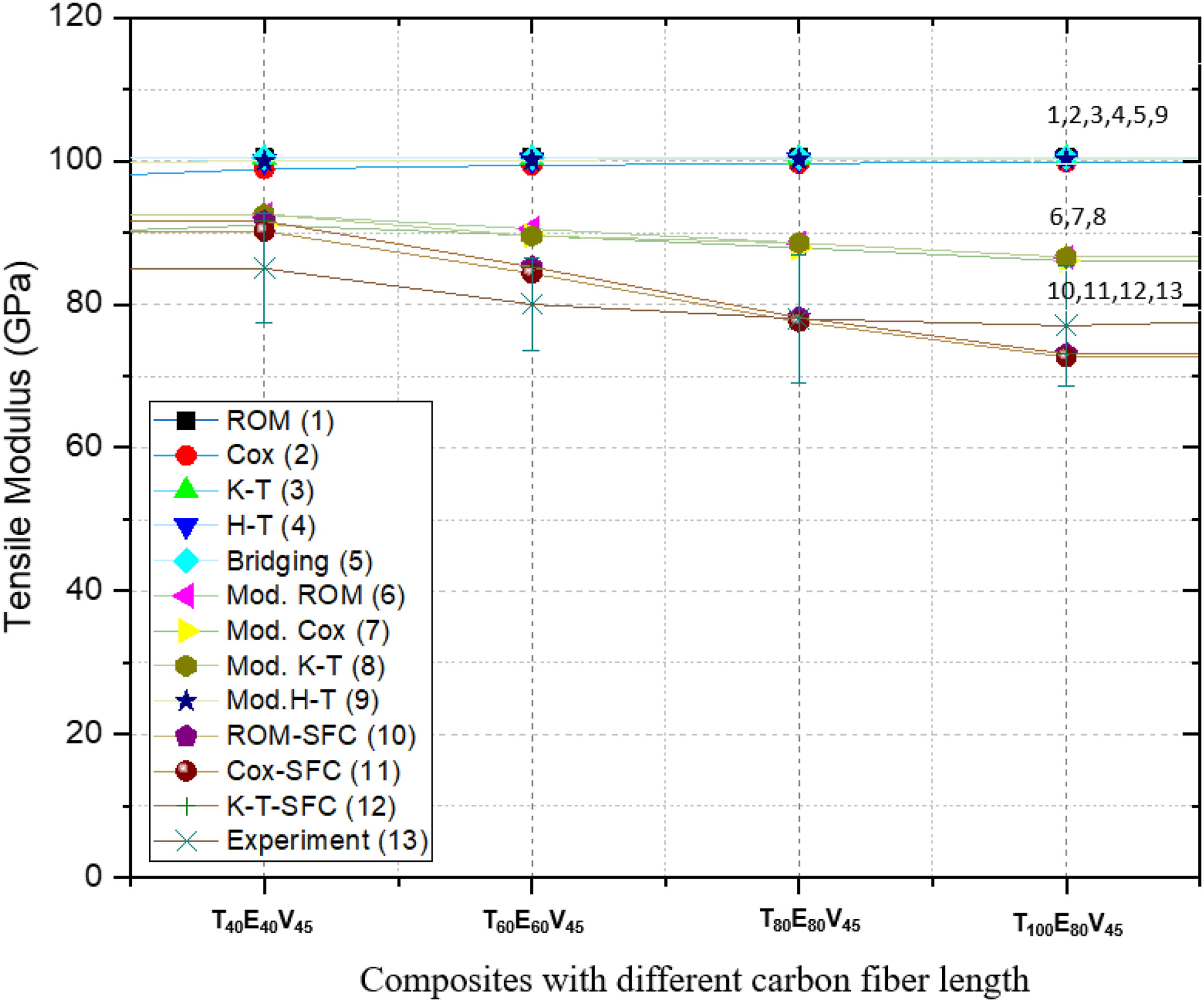

Figure 10.

Theoretical and experimental analysis of tensile modulus of composites.

Furthermore, modulus of unidirectional composite estimated from modified models containing fiber orientation and fiber length functions such as Mod. ROM, Mod. Cox and Mod. K-T models show-decreasing trend. It can be correlated with the orientation of short fibers which is decreased with increases the infeed fiber length. These results also show that aforementioned theoretical models overestimated the modulus of the T₆₀E₆₀V₄₅, T₈₀E₈₀V₄₅ and T₁₀₀E₈₀V₄₅ composites. Therefore, these models are further modified by introducing a SFC factor. The results show that composite modulus estimated from modified models contain fiber length, fiber orientation and short fiber factors (ROM-SFC, Cox-SFC and K-T-SFC models) predict the values ranging from 89 to 73 GPa, In fact, experimental results are also in the same range. From the analysis, it can be concluded that developed theoretical models, which include the factors fiber orientation, fiber length, fiber volume content and SFC accurately predict tensile properties of composite based on tapes structures. It is also concluded from the analysis that SFC in composite is as important as fiber length and fiber orientation and fiber volume content.

Figure 11 presents the composite tensile strength versus fiber length embedded in unidirectional composites. Results show that ROM, Cox, K-T, H-T, bridging and Mod. H-T models overestimate composite tensile strength as compared to experimental findings. The composite tensile strength predicted from these five models are in a similar range. It is because these models measured the composite strength by considering the fiber length and unidirectional fiber orientation. In contrast, the maximum orientation index in composites is around 93% in loading direction (Table 3) and it shows a decreasing trend with respect to fiber length embedded in the composite. Therefore, these models are unable to predict the composite tensile properties fabricated from unidirectional recycled carbon fiber tapes. Furthermore, modified models including fiber length and actual fiber orientation data has been exercised to predict composite strength. Curves show that Mod. ROM, Mod. Cox and Mod. K-T models also overestimate composite tensile strength especially for T₆₀E₆₀V₄₅, T₈₀E₈₀V₄₅ and T₁₀₀E₈₀V₄₅ composites fabricated with 60–100 mm long carbon fibers. This is caused by the random fiber orientation of the short carbon fibers present in fiber-reinforced plastics. In contrast, T₄₀E₄₀V₄₅ composite fabricated with 40 mm carbon fibers contain very low amount of short carbon fibers and models show adequate approximation with respect to experimental results.

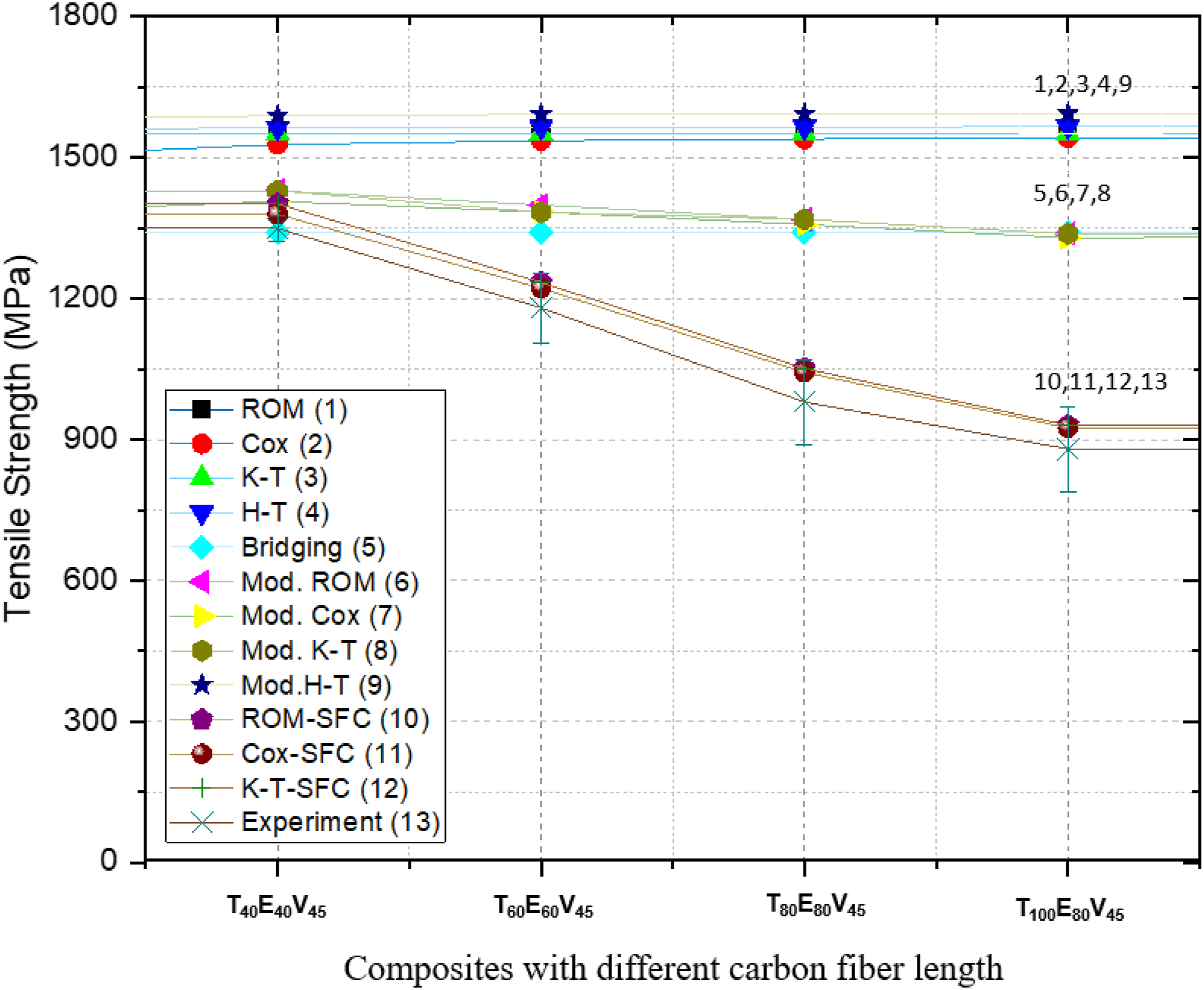

Figure 11.

Theoretical and experimental analysis of tensile strength of composites.

Theoretical model developed in this study by introducing the additional factor SFC, i.e. ROM-SFC, Cox-SFC and K-T-SFC, are utilized to predict composite tensile properties. The respective curves shown in Figure 9 indicate that proposed model show good approximation compared to experimental results. Analysis reveals that tensile strength of fiber reinforced plastics fabricated from tape structure depends on fiber orientation, fiber length, fiber volume content and percentage of short carbon fibers present in the composite. The results also emphasized that gentle processing of recycled carbon fibers is much more important compared to traditional processing and prevention of fiber damage helps to sustain composite tensile properties. The theoretical and experimental analysis confirm that tensile response of a high performance composite containing negligible content of short carbon fibers (T₄₀E₄₀V₄₅) is comparable with reference composite fabricated with continuous carbon fibers (CFRP₄₅) as reported in Table 3.

Conclusion

In this study, an attempt is carried out to estimate the tensile properties of fiber reinforced plastics developed from unidirectional recycled carbon fiber tape structure. For this purpose, theoretical models of unidirectional fiber reinforced plastics were further developed. The results show that developed theoretical models (ROM-SFC, Cox-SFC and K-T-SFC) based on material properties, composition, fiber orientation, fiber length and SFC functions accurately estimate the tensile properties of unidirectional composites based on recycled carbon fiber tape structure. The theoretical and experimental analysis also disclose that composite fabricated with novel unidirectional tape structure, containing negligible content of short carbon fibers, has similar tensile response as reference composite fabricated with continuous carbon fibers.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This article presents parts of the results from the research program of German Federal Environmental Foundation [AZ-33809/01] and Industrial Collaborative Research [IGF-20515 BR] at the Technical University Dresden. The author would also like to acknowledge the Graduate Academy, Technical University of Dresden for providing a short-term “completion and wrap-up phase” grant.

ORCID iD

Muhammad F Khurshid

Appendix

Figure A1.

Microscopic view of composites (a) T40E40V45 (b) T60E60V45 (c) T80E80V45 (d) T100E80V45.

References

Fentahun

Savas

. Materials used in automotive manufacture and material selection using Ashby charts. Int J Mater Eng 2018; 8(3): 40–54.

Taub

De Moor

Luo

, et al. Materials for automotive lightweighting. Annu Rev Mater Res 2019; 49(1): 327–359.

Galán

Samek

Verleysen

, et al. Advanced high strength steels for automotive industry. Revista de Metalurgia 2012; 48(2): 118–131.

Heidari-Rarani

Bashandeh-Khodaei-Naeini

Mirkhalaf

. Micromechanical modeling of the mechanical behavior of unidirectional composites – a comparative study. J Reinf Plast Compos 2018; 37(16): 1051–1071.

Aruan Efendy

Pickering

. Comparison of strength and Young modulus of aligned discontinuous fibre PLA composites obtained experimentally and from theoretical prediction models. Compos Struct 2019; 208: 566–573.

Wang

Huang

. Analytical micromechanics models for elastoplastic behavior of long fibrous composites: a critical review and comparative study. Materials 2018; 11(10): 1919.

Khurshid

Hengstermann

Hasan

MMB

, et al. Recent developments in the processing of waste carbon fibre for thermoplastic composites – a review. J Compos Mater 2020; 54(14): 1925–1944.

Pimenta

Pinho

. Recycling carbon fibre reinforced polymers for structural applications: technology review and market outlook. Waste Manag 2011; 31(2): 378–392.

Barnett

Ghossein

. A review of recent developments in composites made of recycled carbon fiber textiles. Textiles 2021; 1(3): 433–465.

10.

Hengstermann

. Entwicklung von hybridgarnen aus recycelten carbonfasern und polyamid 6-fasern für thermoplastische verbundbauteile mit hohem leistungsvermögen. Dresden, Germany: Doctorate, Institut für Textilmaschinen und Textile Hochleistungswerkstofftechnik, Techncial University of Dresden, 2019.

11.

Khurshid

Hasan

MMB

Abdkader

, et al. Processing of waste carbon and polyamide fibers for high performance thermoplastic composites: a novel manufacturing technology for unidirectional tapes structure. J Ind Text 2022; 51(4S): 7256S–7276S.

12.

Khurshid

. Innovative unidirectional recycled carbon fiber tape structure for high performance thermoplastic composites: technological developments, technology-structure-property relationship and modeling of composite tensile properties. Doctor engineer, Germany: Faculty of mechanical Science and Engineering, Institute of Textile Machinery and High Performance Material Technology (ITM) Technical Univeristy of Dresden, 2022.

13.

S-Y

Lauke

Mai

Y-W

, Science and engineering of short fi bre reinforced polymer composites, Cornwall, UK: Woodhead Publishing Limited, 2009, p. 352.

14.

Potter

Wisnom

. A novel manufacturing method for aligned discontinuous fibre composites (high performance-discontinuous fibre method). Compos - A: Appl Sci Manuf 2014; 65: 175–185.

15.

Strength of composites. In. An Introduction to Composite Materials, 2nd ed., Cambridge: Cambridge University Press, 1996, pp. 158–207.

16.

Kalaprasad

Joseph

Thomas

, et al. Theoretical modelling of tensile properties of short sisal fibre-reinforced low-density polyethylene composites. J Mater Sci 1997; 32: 4261–4267.

17.

Huang

Z-M

. Micromechanical prediction of ultimate strength of transversely isotropic fibrous composites. Int J Solids Struct 2001; 38: 4147–4172.

18.

Hengstermann

Kopelmann

Nocke

, et al. Development of a new hybrid yarn construction from recycled carbon fibres for high-performance composites: part IV: measurement of recycled carbon fibre length. J Eng Fibers Fabr 2020; 15: 155892502091072.

19.

Khurshid

Abdkader

Cherif

. Processing of waste carbon and polyamide fibres for high performance thermoplastic composites: Influence of carding parameters on fibre orientation, fibre length and sliver cohesion force. J Text Inst 2020; 111(9): 1277–1287.

20.

Lindsley

. Measurement of fiber orientation. Text Res J 1951; 21: 39–46.

21.

Blanc

Germain

costa

, et al. Fiber orientation measurements in composite materials. Compos - A: Appl Sci Manuf 2006; 37(2): 197–206.

22.

Vaxman

Narkis

Siegmann

, et al. Void formation in short-fiber thermoplastic composites. Polym Compos 1989; 10(6): 449–453.
