Experimental investigation of tribological performance of 3D printed textured journal bearings for various polymers

Abstract

In this study, the 3D-printed textured journal bearings (TJBs) are developed by fused deposition modelling (FDM) process with three different polymers such as ABS, PLA and nylon. For the study, the process parameters such as texture depth (TD), rotor speed (S) and load (L) are considered as input parameters. The experimental analysis of 3D-printed TJB is performed based on the response surface methodology (RSM). With the RSM technique, the influence of these input parameters on the tribological performance of 3D-printed TJBs. The tribological performance of 3D-printed TJBs are wear resistance (WR) and wear temperature (WT). Further, the GRA analysis is performed to evaluate the optimum value of these process parameters for ABS, PLA and nylon polymer. These results demonstrate that the wear resistance (WR) of TJBs is first increases with the texture depth and then starts decreasing. Among all the polymers, the ABS polymer is the most significant, and nylon is the least significant polymer for the 3D-printed TJBs. The maximum WR (i.e. 76.576 m/mm³) of 3D-printed TJBs is observed for the PLA polymer. Whereas, nylon provides the least WR (i.e. 9.572 m/mm³) of 3D-printed TJBs. At the optimal value of process parameters (TD = 1.5 mm, S = 500 r/min and L = 10N), the WR and WT of 3D-printed TJBs (for ABS polymer) are 62.126 m/mm³ and 323.75 K respectively.

Keywords

Textured journal bearings wear resistance wear temperature grey relational analysis polymers

Introduction

In the recent technology, the applications of additive manufacturing (AM) printed parts are increasing. This is because the additive manufacturing have high geometrical accuracy with less wastage compared to conventional technique. All these features can be obtained only in fabricated products by additive manufacturing. The major benefits of additive manufacturing are: design freedom, distributed manufacturing, energy and material wastage is reduced, less prototype cost and eco-friendly.^1,2 However, there are various power and frictional loss in high-speed machinery. To overcome it, many industries such as automobile, medical etc. adopted surface texture. This is because the surface texture improves the tribological performance of contact surfaces. To take benefit of both these techniques (additive manufacturing and surface texture), the textures are incorporated in the journal bearings that are fabricated by the additive manufacturing technique.

In the current scenario, additive manufacturing is the most innovative technology for developing the complex products with higher accuracy.³ Consequently, the applications of 3D printed parts in various areas (medical, agriculture, automotive) are increasing significantly to meet the power requirement with less wear loss. In addition, these 3D printed materials are eco-friendly with lesser cost, leading to increase its applications. In any high-speed rotating system, one of the major components is the bearing. To develop it with the higher strength, 3D printing is the most suitable technique compared to conventional techniques. In additive manufacturing techniques, fused deposition modelling is widely employed among all the additive manufacturing methods.⁴ In this study, author developed the ball bearings by 3D printing technique with three different polymers such as ABS, PLA and Nylon 66. Here, the printed ball bearings are developed by the fused deposition modelling (FDM) process. Similarly, other researchers evaluated the effect of FDM process parameters on the mechanical characteristics of the printed specimen by Taguchi (L8) optimization. In this study, the authors considered the polyamide 12 (PA12) material to print the sample due to its wide applications in industry.⁵ Whereas, some researchers optimized these FDM process parameters for improving the tribological characteristics of printed sample.⁶ With the FDM methods, the composite structure is also developed to improve the mechanical characteristics of the sample.^7–9 Kam et al.¹⁰ developed the 3D printed metal/polymer composite sleeve bearing and analyzed its damping capabilities. In this study, authors considered 27 pairs of composite (PLA, PLA+20%Bronze and PLA+20% Copper) with various printing structures such as honeycomb, spiral and chords with different filling %. This study shows that vibration amplitude decreases with an increase in % filling of metal/composite bearing (copper-reinforced sleeve bearing). In addition, the vibration absorption increases with the 3D honeycomb structure of metal/composite bearings. Çevik and Kam¹¹ comprehensively review the mechanical characteristics of the 3D-printed products developed by the FDM and metal/polymer composite filament. In this study, authors describe the influence of polymer and metal/polymer composite on the printed sample's mechanical and thermal properties (impact resistance, strength, thermal resistance). The study shows that the printed sample produced with the composite filament has higher strength than the pure filament. The improvement in thermal and mechanical characteristics of printed samples is majorly dependent upon the ratio of additives in the composite filament. Atakok et al.¹² briefly describe the printed sample's thermal and mechanical characteristics developed by the recycled filament. With the use of recycled filament, the wastage of filament is reduced which helps to minimize environmental pollution and maximize the availability of filament. Further, Atakok et al.¹³ statistically investigated the FDM printing parameters such as layer thickness, filling% and filling pattern on the printed sample's mechanical characteristics (tensile strength, bending strength and impact strength). The authors developed the printed sample with PLA and recycled PLA material. This study results show that recycled filament is feasible for 3D printing. Moreover, the vibration of 3D printers also influences the mechanical properties (tensile strength) and surface roughness of printed sample.^14,15

Farajjan et al.¹⁶ incorporates the multi-wall nanotubes (MWNT) in the PBT/ABS blend with different filling percentage (01, 03 and 0.5 wt %). The authors evaluated the effect of PBT/ABS/MWNT nanocomposite on the mechanical properties of 3D printed sample by performing the tensile test, three-point flexural and impact test. This study results show that the mechanical properties of PBT/ABS/MWNT nanocomposite is improved with 0.3 wt % MWNT. Chávez et al.¹⁷ developed the three hybrid composite (metal-polymer) by the FDM process. This study adds tin-bismuth in three different thermoplastic such as ABS, PLA and a hybrid composite (ABS and styrene-ethylene-butylene-styrene). Gohar et al.¹⁸ investigated the mechanical properties of the printed sample (made with FDM process) made in a honeycomb sandwich structure. In this study, authors developed various types of sandwich structures with different combinations such as ABS core with composite (PLA+15% carbon), ABS core with pure PLA, TPU core with composite and TPU core with PLA. This study results show that the ABS core with composite (with FDM process) provides adequate mechanical properties which can used in the industrial application. Veeman and Palaniyappan¹⁹ analyzed the influence of FDM process parameter on the compressive strength of PLA/almond shell composite. This study result shows that printing orientation and infill density has significant impact on the compressive properties of PLA/almond composite. Aravind et al.²⁰ analyzed the thermal and tensile properties of hybrid composite (ABS-glass fibre, ABS-glass fibre-carbon fibre). This study result shows that the tensile strength of ABS/GF and ABD/GF/CF is higher than that of the ABS. Whereas, the thermal expansion of ABD/GF/CF< ABS/GF<ABS. This ABS-based composite is applied in various areas: automobile, vessel, aircraft etc. Similarly, Kumar et al.²¹ investigated the tensile, flexural and thermal properties of dual thermoplastic (ABS and PLA) sample developed with FDM process. In this study, authors developed the FDM printed sample with alternative layers of different thermoplastic. The fracture surface analysis of this dual printed parts with photomicrograph. This study shows that the mechanical properties of dual-based 3D printed parts are reduced compared to single polymer printed parts. This is because dual-material printed parts have more porosity than single-material-printed parts.

Due to the higher dimensional accuracy, the additive manufacturing technique is widely used to developed the texture on the 3D printed specimen. Huang et al.²² investigated the texture properties on the printed sample by using the responses surface methodology based BBD model. Similarly, Reddy et al.²³ analysed the FDM process variable (infill, foil thickness and print quality) and built inclination on the surface texture properties by using Taguchi, S/N ratio and regression statistical technique. This study shows that the printed sample is surface quality significantly depends upon the layer thickness and built orientation. Saharudin et al.²⁴ analysed the quality of surface texture and its mechanical properties of printed samples developed by the FDM and CFF process. In this study, authors considered the PLA with carbon-reinforced filament to print the sample. By performing the tensile test on the universal testing machine, it is observed that adding carbon fiber with polymer increases the strength of the printed sample. Moreover, it is also observed that the surface waviness of the printed sample developed with CFF is much smaller than the FDM sample. Dezaki et al.²⁵ analysed the infill pattern (of CAD software and FDM printer) and infill density on the mechanical characteristics (surface roughness and tensile strength) of printed FDM sample. To investigate it, the dog-bone shape sample is developed with PLA polymer. This study results shows that the pattern generated by the FDM printer has higher strength than the CAD software. However, the surface texture generated with CAD is better than the FDM printer. This study results show that both infill pattern and infill density has significant impact on surface quality and mechanical characteristics of printed sample.

Moreover, the wear characteristics of printed samples also depend upon the FDM process and additives in polymers. Phogat et al.²⁶ analyzed the wear of FDM printed sample with PLA, ABS and multi-material by using the combined approach of genetic algorithm and artificial neural network. To investigate the wear behavior of the printed sample, author considered the response surface method and then performed the experiment on pin-on-disk. The study result shows that the minimum wear rate of PLA sample is obtained at 95.207% infill density, speed = 40.043 Chávezmm/s and temperature 220.009°C. Boparai et al.²⁷ performed the comparative investigation on the wear and friction behaviour of FDM printed sample made of composite and ABS polymer. The dry friction test is performed at different load (5–20N) and time duration (5–10Chávezmin) on pin on disk tribo-tester. However, some researchers also investigated the wear and scratch resistance of polymers for various polymers.²⁸ This study shows that the scratch resistance of these analysed polymers are: polyamide > polyetheretherketone > polyparaphenylene> polybenzimidazole. This study correlates the scratch depth with the sample's mechanical properties such as young modulus, tensile strength and hardness. To measure the scratch depth, laser profilometer micrograph is used. Wong et al.²⁹ proposed a new methodology (polypropylene (PP) system) to evaluate the scratch resistance of polymers. In this study, the author assessed the scratch behaviour of polymers under three different conditions: increase load with constant speed, constant load with constant speed and increase speed with constant load. In polymers, there are various factors that can affect the scratch resistance of printed parts such as scratch speed and load,^30,31 the geometry of printed sample,³² friction coefficient and additives in polymers.^33–35 In addition, the scratch hardness is also an essential factor for scratch resistance.³⁶ However, some researchers briefly describe the nanofillers in the polymers to improve the scratch and wear resistance of 3D printed sample.^37,38 Wetzel et al.³⁹ investigated the influence of low filler printed samples on their impact and wear resistance properties. In this study, author incorporates the micro and nanoparticles in the epoxy-polymer matrix to improve its wear resistance properties. This study shows that printed parts' stiffness and impact strength is significantly enhanced with TiO₂ nano-particles (4%). Böhm et al.⁴⁰ discuss about the different types of wear of polymers such as cavitation erosion, particle erosion, sliding wear and abrasion. Briscoe and Sinha⁴¹ comprehensively overview the progressive wear of polymers. The authors describe that the wear of polymers depends upon the contact condition, lubricant properties and mechanical properties of polymers. Briscoe⁴² also briefly details the wear of polymers. Moreover, some researchers investigated the FDM process parameters such as layer thickness and layer orientation on the wear, friction and hardness of 3D printed sample (PLA polymer).⁴³ Bahrami et al.⁴⁴ developed the Fe-ABS composite to improve the wear properties of printed sample developed by the FDM process. In this study, authors add the Fe particles in ABS polymer within three wt. % such as 10, 20 and 30. By performing the pin on disk test, authors evaluate the wear properties of FDM printed sample. Some other researchers investigated the wear behaviour of FDM printed sample for various other applications such as gear.^45,46

The above literature shows that the tribological performance of 3D printed samples are majorly dependent upon the process parameters and the thermo-physical properties of a polymer. The novelty of this work is that the wear resistance (WR) characteristics of 3D-printed TJBs are not yet analyzed in the previously published literature. Moreover, the wear temperature (WT) of 3D printed bearings are also not yet analysed. Furthermore, both these tribological performance (WR and WT) are optimized by using the GRA technique in the present study. The 3D-printed TJBs with ABS, PLA and Nylon polymer are fabricated and analysed its tribological performance in the present study. Moreover, the effect of process parameters such as TD, S and L on the tribological performance of 3D-printed TJBs are evaluated. The tribological performance of 3D-printed TJBs are optimized by the GRA technique for ABS, PLA and nylon polymer.

Research methodology

Modelling

The 3D-printed TJBs model is developed using the Solidworks software. The inner and outer diameters of these TJBs are 20 mm and 30 mm respectively.^47,48 The groove is designed on the outer surface of texture journal bearings whose width and height is 0.5 mm, as shown in Figure. The width of TJBs is 10 mm.⁴⁹ The CAD model of TJBs with hexagonal surface texture are shown in Figure 1.

Figure 1.

The CAD model of textured journal bearings (TJBs).

Polymers and texture dimensions

Three different polymers are considered to fabricate and analyze the tribological performance of TJBs. These three polymers are ABS, PLA and Nylon. In this study, hexagonal texture shapes is considered for the analysis.⁵⁰ As we know, the tribological performance of sliding surfaces is majorly dependent upon the surface texture.⁵¹ Thus, the author considered hexagonal texture shapes to fabricate the TJBs by using the 3D printing technique. The schematic view of the hexagonal texture shape with dimensions are shown in Figure 2.

Figure 2.

Dimensions of surface texture.

Fabrication process

In this study, the texture journal bearings (for ABS, PLA and nylon) are developed based on the fused deposition modelling (FDM) process.⁵² The major advantage of employing FDM is that its cost to develop the sample is less than other method.⁵³ The Ultimaker 2 + 3D printer fabricate the textured journal bearings. In the fabrication process, the first step is to set the printing parameters based on the literature. The FDM printing parameters are considered for developing the TJBs, as shown in Table 1. The 3D-printed journal bearings are initially developed with ABS polymer, as shown in Figure 3(a). The nozzle diameter to develop these TJBs is 0.25 mm.

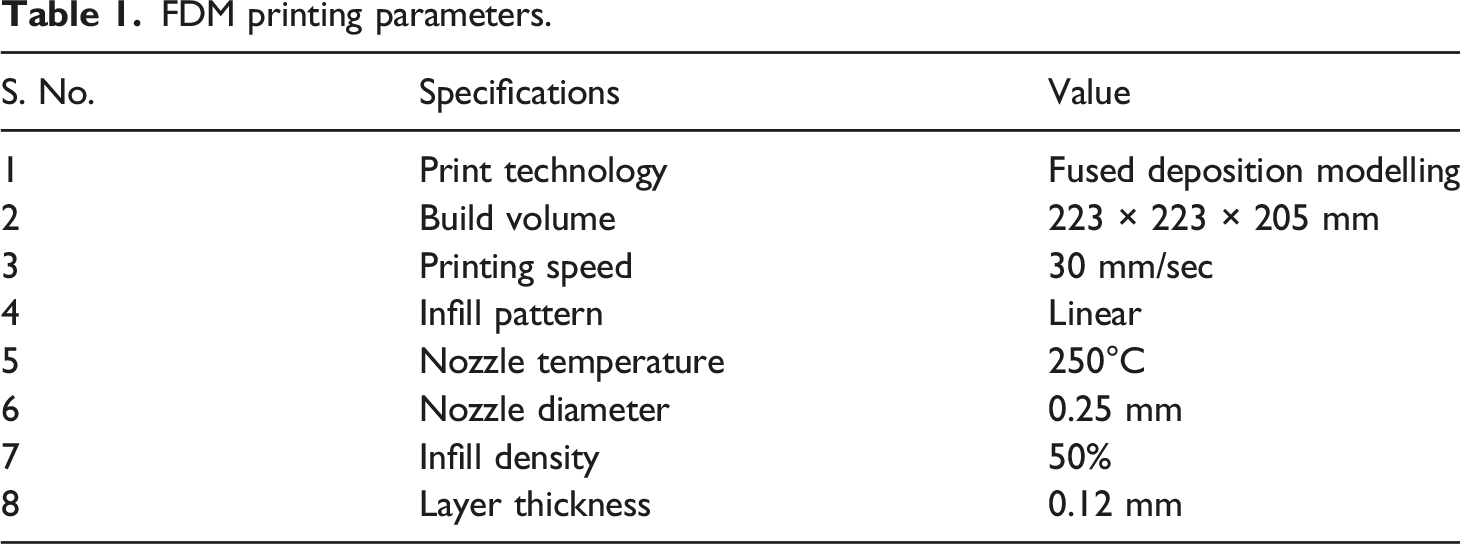

Table 1.

FDM printing parameters.

S. No.	Specifications	Value
1	Print technology	Fused deposition modelling
2	Build volume	223 × 223 × 205 mm
3	Printing speed	30 mm/sec
4	Infill pattern	Linear
5	Nozzle temperature	250°C
6	Nozzle diameter	0.25 mm
7	Infill density	50%
8	Layer thickness	0.12 mm

Figure 3.

3D-printed TJBs with various polymers: (a) ABS (b) PLA (c) nylon.

With the FDM process, the 3D-printed TJBs are developed with three different polymers (ABS, PLA and Nylon), (Figure 3). From this, it is found that the 3D printed journal bearings with Nylon is much smoother and shiny compared to other polymers (ABS and PLA). This is because the Nylon polymer is less hard than the other polymers. Moreover, the nylon is lighter than the other polymer.

The step-by-step procedure to fabricate the TJBs are discussed briefly in the above section. This fabrication process involves various steps such as developing CAD model, setting FDM process parameters, adhesive on the printer bed and fused deposition modelling (3D printing). The flow chart represents the fabrication process of TJBs, (Figure 4).

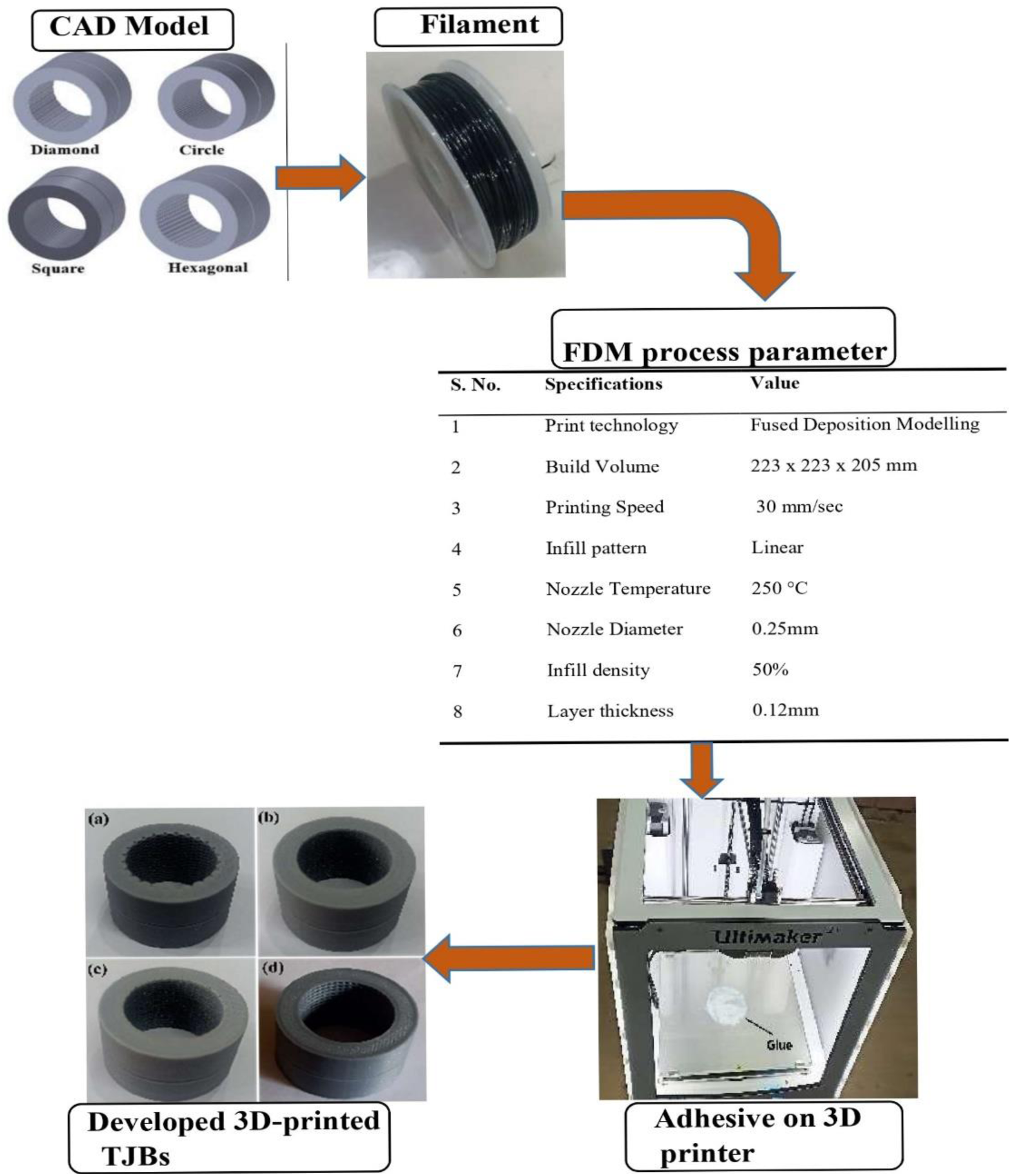

Figure 4.

Flow chart of development of 3D printed TJBs.

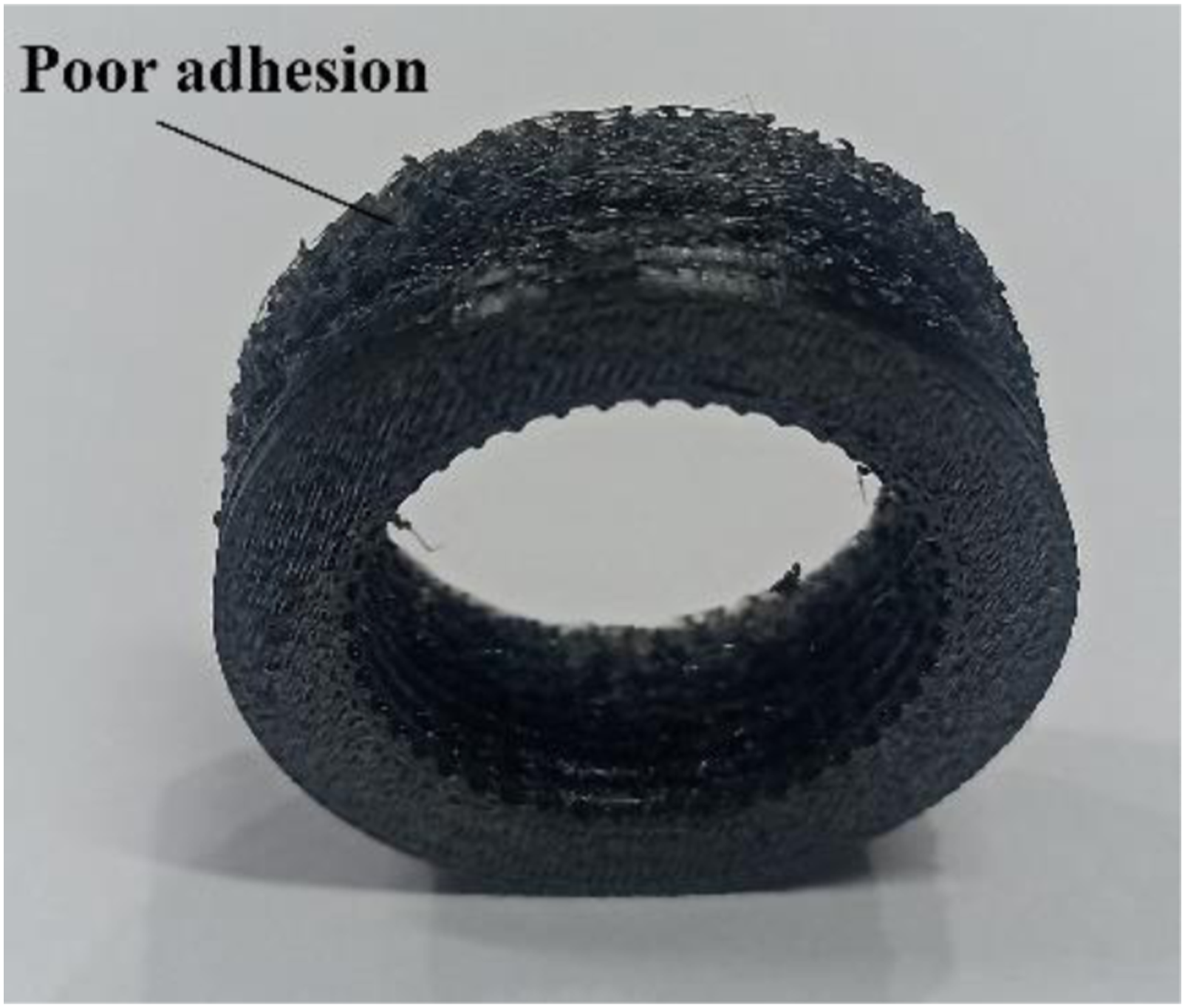

Moreover, it is observed that the poor adhesion problem is observed for the nylon polymer, as shown in Figure 5. This error may be due to moisture/humidity or contaminated particles. To overcome these defects, glue is used on the printer bed. However, some researchers analyzed the manufacturing error in journal bearings along with their effect on the performance characteristics of bearings.^54,55

Figure 5.

Poor adhesion in 3D-printed TJBs.

Analysis and optimization

Process parameter

In the present study, the process parameters of 3D printed TJBs such as TD, S and P are considered as independent parameters. The WR and WT are dependent parameters. Based on the Box-Behnken design (BBD) matrix, the RSM model of these process parameters are developed. Then, the tribological performance (WR and WT) of 3D printed TJBs are evaluated by the experimental study, as shown in Figure 6. Moreover, the 3D-printed TJBs are developed with three different polymers: PLA, ABS and nylon.

Figure 6.

RSM model for 3D printed texture journal bearings.

From the previous published literature survey, the range of input variables are considered for the analysis. The rotor speed (S) and load vary from 500 to 1500 r/min and 10–30N⁵⁶ Whereas, the range of TD is considered from 0.5 mm to 1.5 mm.⁵⁷ Table 2 represents the range of process parameters. The relationship between the coded values and the process parameters are shown below:

T e x t u r e d e p t h (T D) : A = \frac{[T D 1 - (T D 1_{\max} + T D_{\min}) / 2]}{[(T D_{\max} - T D_{\min}) / 2]}

(1)

S p e e d (S) : B = \frac{[S 1 - (S 1_{\max} + S 1_{\min}) / 2]}{[(S 1_{\max} - S 1_{\min}) / 2]}

(2)

L o a d (L) : C = \frac{[L 2 - (L 2_{\max} + L 2_{\min}) / 2]}{[(L 2_{\max} - L 2_{\min}) / 2]}

(3)

In the above equation, the TD, S and L are represented in the coded term. With the BBD design matrix (3 factors with three levels), a total number of experimental runs for the present study is 17, as shown in Table 3.

Table 2.

The range of input variable parameter.

Process parameter	Unit	Range	Level
Process parameter	Unit	Range	-1	0	+1
TD	mm	0.5-1.5	0.5	1	1.5
S	rpm	500-1500	500	1000	1500
L	N	10-30	10	20	30

Table 3.

Output responses of 3D printed TJBs.

Run no.	Process parameters			Tribological performance
	Process parameters			PLA		ABS		Nylon
	TD	S	L	WR_PLA	WT_PLA	WR_ABS	WT_ABS	WR_Ny	WT_Ny
1	1	1000	20	49.081	324.65	51.051	337.55	13.923	327.85
2	1	1000	20	49.081	324.65	51.051	337.55	13.923	327.85
3	1.5	1000	10	79.526	331.35	76.577	327.55	22.526	331.75
4	1.5	1000	30	4.666	337.85	30.631	335.55	41.051	337.65
5	1	1000	20	49.081	324.65	51.051	337.55	13.923	327.85
6	0.5	1000	30	3.354	350.65	21.879	338.15	16.94	340.85
7	0.5	500	20	25.525	329.25	28.144	330.35	9.572	328.35
8	1	1500	10	114.865	325.25	90.432	326.65	16.409	327.45
9	0.5	1000	10	51.051	334.75	76.577	329.25	30.631	330.35
10	1	1000	20	49.081	324.65	51.051	337.55	13.923	327.85
11	1.5	500	20	38.288	326.05	29.144	326.85	9.88	329.45
12	1	1000	20	49.081	324.65	51.051	337.55	13.923	327.85
13	1	1500	30	2.978	354.15	28.716	342.25	14.94	338.95
14	0.5	1500	20	15.315	337.15	38.288	337.15	8.144	336.65
15	1	500	10	76.576	326.15	76.576	325.85	9.572	324.75
16	1.5	1500	20	51.051	322.15	41.051	327.85	21.923	330.35
17	1	500	30	51.051	328.55	38.051	326.85	13.923	327.15

Experimental setup

After developing the design matrix (i.e. 17 experimental runs) with the Design-Expert software, the experiment study needs to perform to evaluate the tribological performance of 3D-printed TJBs. The experimental setup consists of developed 3D-printed TJBs, shaft, string, weight and lathe, (Figure 7). Based on the literature, the time of each experiment analysis is kept constant at 300s.⁵⁶ However, a string is used to carry the weight over the 3D-printed journal bearing. For this, the groove is developed during the FDM process.

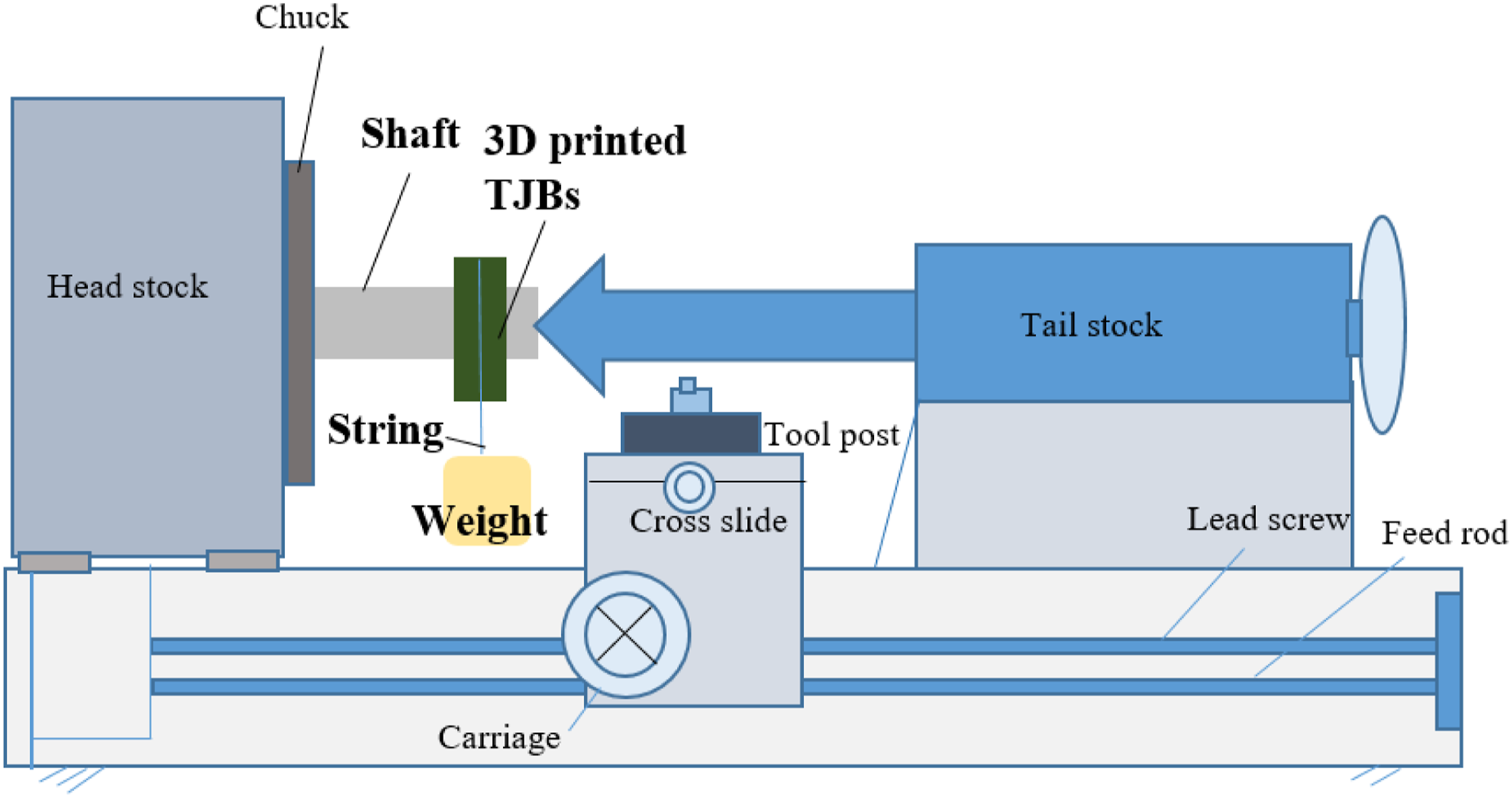

Figure 7.

Experimental setup for the analysis of 3D printed TJBs.

The experimental study evaluated the tribological performance of TJBs for all 17 experimental runs. During the experimental study, the inner part of 3D-printed TJBs is affected due to rubbing action. The two important tribological performance of 3D-printed TJBs such as WR and WT, are evaluated. Firstly, the WR of TJBs is need to analyze. This is because the 3D-printed TJBs are made of polymer, which is soft material. To obtain the higher reliability, the WR of 3D printed TJBs is need to maximize. To evaluate the WR of 3D printed TJBs, the following steps are used:⁵⁶

(i) Determine the rotor sliding speed (RS)

R S = \frac{π \times d \times n}{60} m / s

(4)

Table 4.

GRA results for ABS.

S. No.	Output response		Norm		DS		G_GRC		G_GRG	Rank
S. No.	WR (m/mm³)	WT (K)	N_WR	N_WT	D_WR	D_WT	GRC_WR	GRC_WT	G_GRG	Rank
1	51.051	337.55	0.4255	0.2866	0.5745	0.7134	0.4653	0.4121	0.4387	9
2	51.051	337.55	0.4255	0.2866	0.5745	0.7134	0.4653	0.4121	0.4387	10
3	76.577	327.55	0.7979	0.8963	0.2021	0.1037	0.7121	0.8283	0.7702	3
4	30.631	335.55	0.1277	0.4085	0.8723	0.5915	0.3643	0.4581	0.4112	14
5	51.051	337.55	0.4255	0.2866	0.5745	0.7134	0.4653	0.4121	0.4387	11
6	21.879	338.15	0.0000	0.2500	1.0000	0.7500	0.3333	0.4000	0.3667	16
7	28.144	330.35	0.0914	0.7256	0.9086	0.2744	0.3550	0.6457	0.5003	8
8	90.432	326.65	1.0000	0.9512	0.0000	0.0488	1.0000	0.9111	0.9556	1
9	76.577	329.25	0.7979	0.7927	0.2021	0.2073	0.7121	0.7069	0.7095	4
10	51.051	337.55	0.4255	0.2866	0.5745	0.7134	0.4653	0.4121	0.4387	12
11	29.144	326.85	0.1060	0.9390	0.8940	0.0610	0.3587	0.8913	0.6250	6
12	51.051	337.55	0.4255	0.2866	0.5745	0.7134	0.4653	0.4121	0.4387	13
13	28.716	342.25	0.0997	0.0000	0.9003	1.0000	0.3571	0.3333	0.3452	17
14	38.288	337.15	0.2394	0.3110	0.7606	0.6890	0.3966	0.4205	0.4086	15
15	76.576	325.85	0.7979	1.0000	0.2021	0.0000	0.7121	1.0000	0.8561	2
16	41.051	327.85	0.2797	0.8780	0.7203	0.1220	0.4097	0.8039	0.6068	7
17	38.051	326.85	0.2359	0.9390	0.7641	0.0610	0.3955	0.8913	0.6434	5

Unit of diameter (d) = m and speed (n) = rpm

(ii) Find out the rotor sliding distance (RD)

R D = R S \times T = \frac{π \times d \times n}{60} \times T m

(5)

Unit of time (T) = sec

(iii) Calculate the rubbing volume (RV) of 3D printed TJBs

R V = R u b b i n g d e p t h (R D) \times t h i c k n e s s \times l e n g t h {m m}^{3}

(6)

(iv) Evaluate the WR of 3D-printed TJBs

W e a r r e s i s t a n c e = \frac{R o t o r s l i d i n g d i s t a n c e (R D)}{R u b b i n g v o l u m e (R V)} m / {m m}^{3}

(7)

During the experimental study, the wear in 3D-printed TJBs is occurs at the top inner surface of 3D printed TJBs. This is because the load on 3D printed TJBs is acting in radial direction during the experiment study (Figure 8). To measure the wear depth, the digital Vernier caliper (1112-150) is used with an accuracy of 0.03 mm. Whereas, the other important wear characteristic of 3D-printed TJBs is WT. To measure it, a pocket thermal imager (FLUKE PTi 120) is used. During the experiment, the temperature (between the bearing surface and rotor) increases due to continuous wear of the inner surface of 3D-printed TJBs. To obtain the better tribologiocal performance of 3D-printed TJBs, the WT is need to minimize.

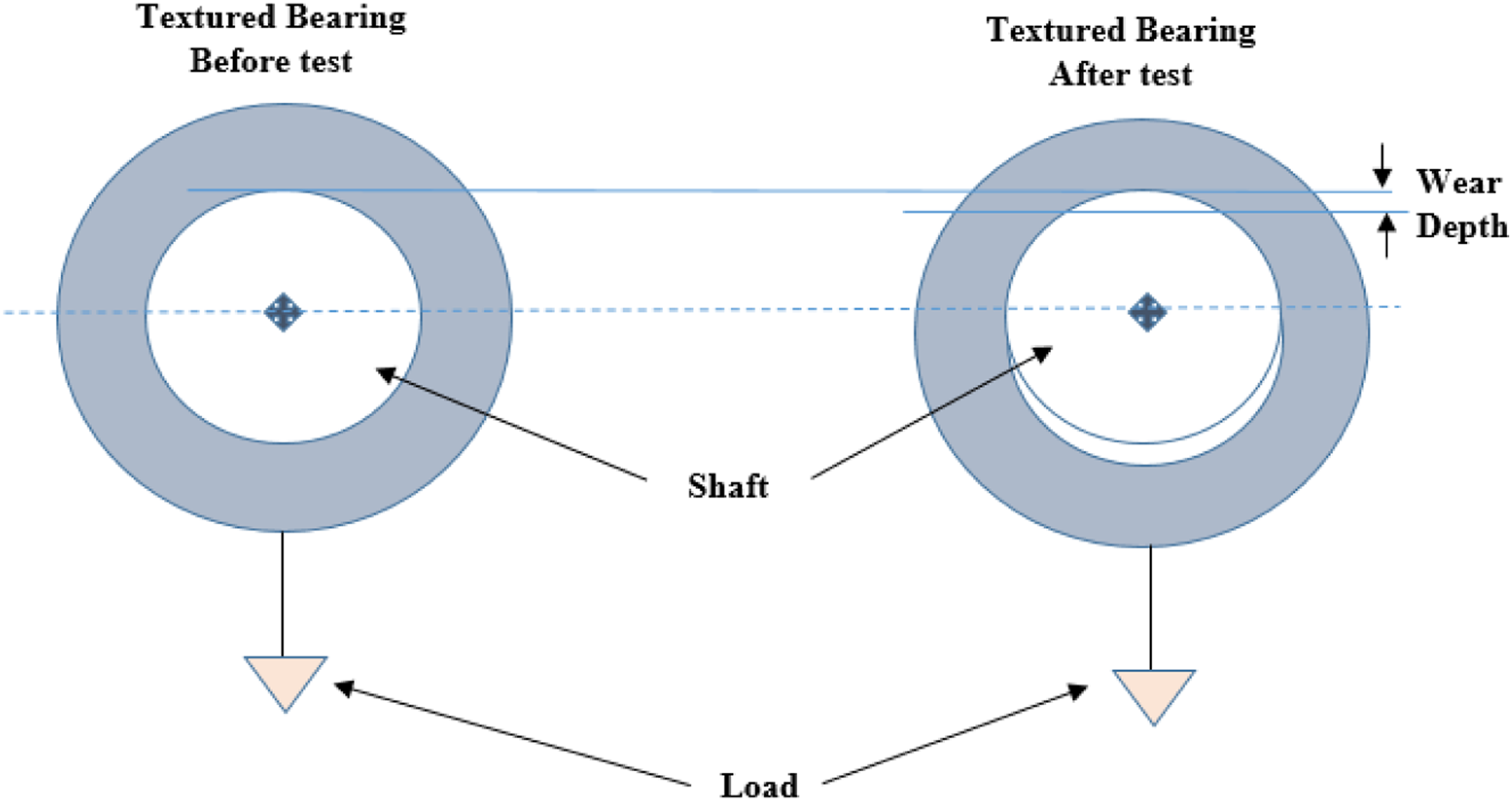

Figure 8.

Wear mechanism in 3D printed TJBs.

Grey relational analysis

The major aim of this experimental investigation is to improve WR and reduce WT of 3D-printed TJBs. To achieve it, the GRA optimization technique is used. Moreover, the significant process parameter are evaluated for the 3D-printed TJBs for each polymer (ABS, PLA and Nylon). The procedure of grey relational analysis (GRA) are as follows:

(I) Norm. (N)

The first step is to normalize the output responses whose value lies vary within 0 to 1. The normalization for WR and WT are given below:

(a) WR (higher-the-better)

T_{i}^{*} (n) = \frac{T_{i} (m) - \min [T_{i} (m)]}{\max [T_{i} (m)] - \min [T_{i} (m)]}

(8)

(b) WT (lower-the-better)

T_{i}^{*} (n) = \frac{\max [T_{i} (m)] - T_{i} (m)}{\max [T_{i} (m)] - \min [T_{i} (m)]}

(9)

(II) Dev. Seq. (DS)

It is calculated by using the equation (10).

Δ_{o t} (m) = | T_{o}^{*} (m) - T_{i}^{*} (m) |

(10)

(III) Grey relation coefficient (GRC)

The value of GRC is calculated by using the equation (11).

ψ_{i} (m) = \frac{Δ_{\min} + ε Δ_{\max}}{Δ_{i}^{*} (m) + ε Δ_{\max}}

(11)

Here, the WR and WT of 3D-printed TJBs are considered equally important.⁴⁸ Therefore, the ɛ = 0.5 is considered.

(IV) Grey relation grade

It is a mean of all the GRC value which is evaluated by using equation (12).

G R G = \frac{1}{m} \sum_{j = 1}^{n} ψ_{i} (m)

(12)

All these above grey relational analysis (GRA) steps for calculating the optimized process parameters are shown in Figure 9.^58,59

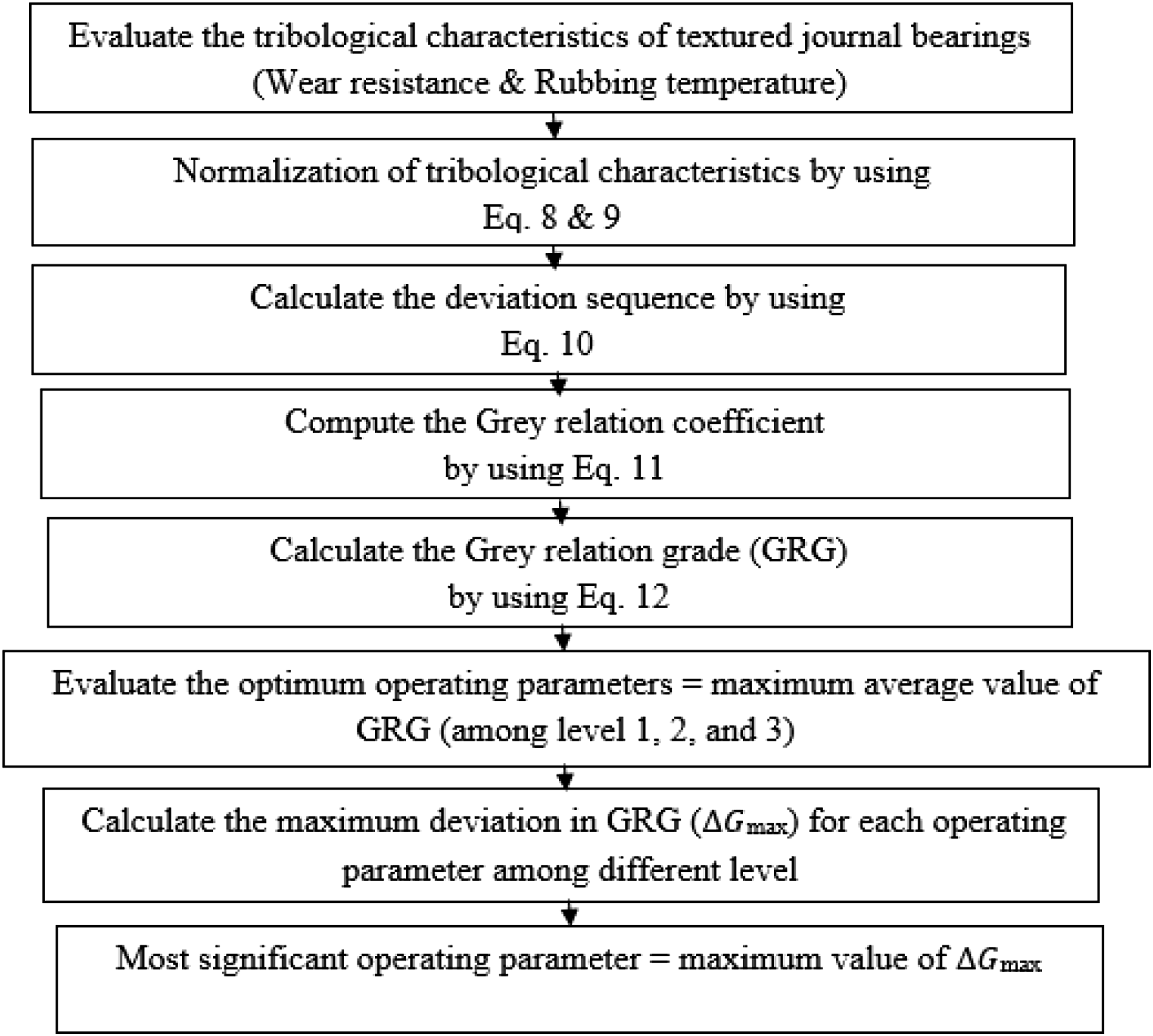

Figure 9.

Flow chart for GRA technique.

Results and discussion

The 3D-printed TJBs are developed with the FDM process. The three different polymers are considered for the fabrication of TJBs: PLA, ABS, and Nylon. After developing it, the experimental analysis is performed to analyse the tribological performance (WR and WT) of 3D-printed TJBs. The influence of process parameters (TD, S and L) on the tribological performance of 3D-printed TJBs are analyzed for three polymers such as ABS, PLA and Nylon.

Process parameter

In this study, the effect of three process parameters (i.e. TD, S and L) on the tribological performance (i.e. WR and WT) of TJBs are analyzed, which are discussed briefly as follows:

Texture depth

For the rubbing surfaces, the texture depth is an essential factor that can affect the tribological performance of sliding surfaces. At the middle value of other process parameter (S = 1000 r/min, L = 20N), the WR and WT of 3D-printed TJBs is evaluated at a range of TD from 0.5 mm to 1.5 mm, as shown in Figure 10. From these results, it is observed that the WR firstly increases with the texture depth and then starts decreasing. This is because the higher value of texture depth reduces the strength of journal bearings. Whereas, the WT of TJBs is slightly increased and then significantly decreases with the increase in texture depth. This is because the thin air film (due to hydrodynamic action) is developed between the rotating rotor and the inner surface of 3D-printed TJBs, which separates the contact between the rotor and the bearing surface.

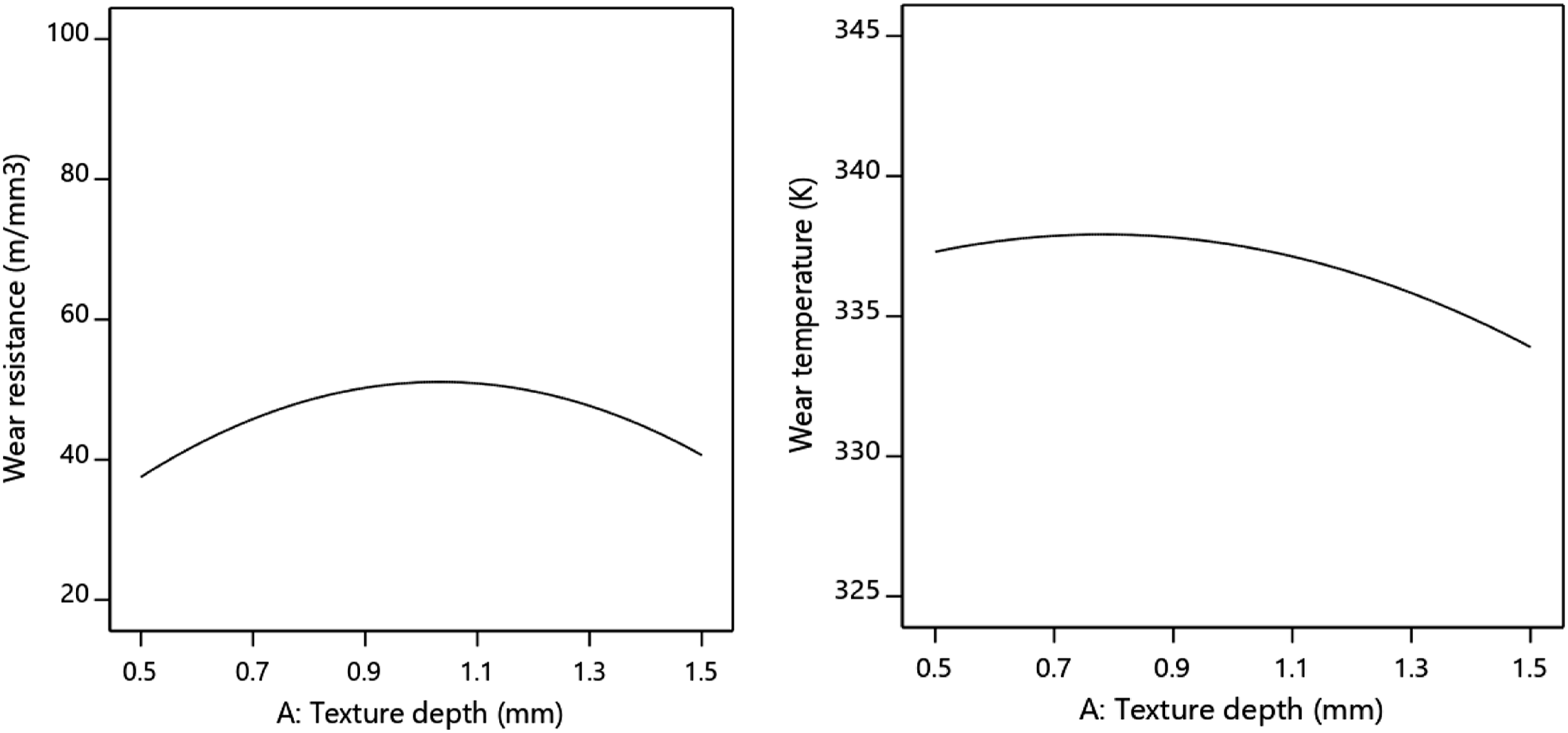

Figure 10.

Effect of texture depth on (a) WR (b) WT of TJBs.

Rotor speed

The rotor speed is also an important process parameter for the tribological performance of journal bearings. At the middle value of other process parameter (TD = 1 mm, L = 20N), the WR and WT of 3D-printed TJBs are evaluated at rotor speed from 500 r/min to 1500 r/min. From these results, the WR of TJBs is initially increase and then becomes constant with the rotor speed, as shown in Figure 11(a). This is because the thickness of minimum air film (due to hydrodynamic action) increases with the increase in rotor speed that minimizes the wear depth of TJBs. The wear depth is inversely proportional to WR. Thus, WR increases and then is constant with the rotor speed. Whereas, the WT of 3D-printed TJBs first increases and then decreases with rotor speed, as shown in Figure 11(b). The air film lubricant is developed after a certain rotor speed (due to hydrodynamic action) that separates the contact between the rotor and the bearing surface. Consequently, the WT starts decreasing after a certain rotor speed.

Figure 11.

Effect of speed on (a) WR (b) WT of TJBs.

Load

In addition to texture depth and rotor speed, the load is also an essential factor for the tribological performance of journal bearings. At the middle value of other process parameter (TD = 1 mm and S = 1000 r/min), the WR and WT of 3D printed TJBs is evaluated at load from 10N to 30N. These results show that the WR of 3D-printed TJBs is significantly decrease with the increase in load, (Figure 12(a)). This is because the wear volume of 3D-printed TJBs increases with the load. Whereas, the WT increases significantly with an increase in load, (Figure 12(b)). This is because the wear of textured bearings increases with an increase in load.

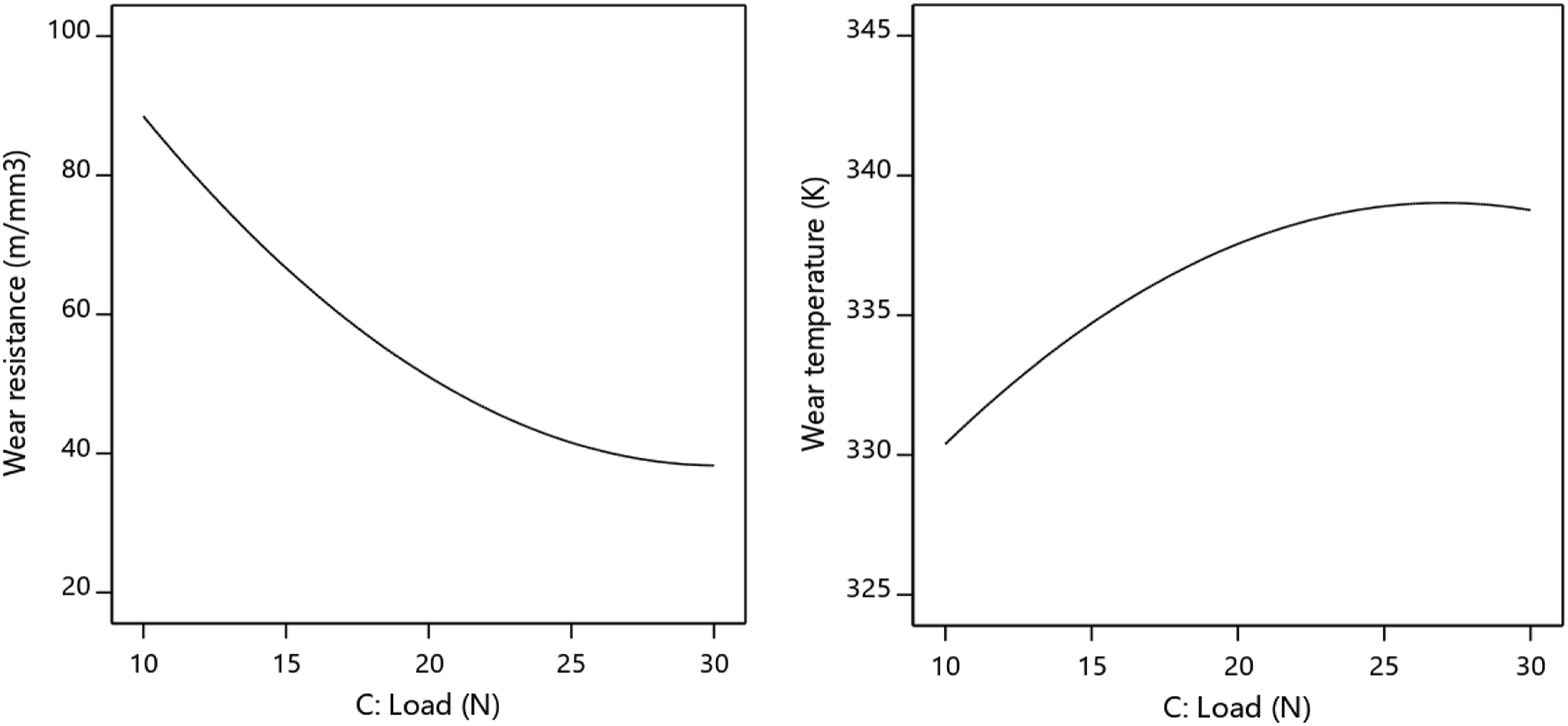

Figure 12.

Effect of load on (a) WR (b) WT of TJBs.

Polymers

The tribological performance of 3D printed TJBs such as WR and WT are evaluated for various polymers such as ABS, PLA and Nylon. Here, the WR and WT are considered the two important tribological performance of 3D-printed TJBs. As we know that polymer is soft material compared to metal and alloy. Thus, the WR of TJBs is needed to maximize for obtaining higher reliability. Whereas, the WT of TJBs needs to be minimized. This is because the melting point of polymer is comparatively low. As a consequence, the tribological performance of TJBs can be influenced. Thus, these two tribological performance (WR and WT) of 3D-printed TJBs are considered for the present study.

Acrylonitrile butadiene styrene

For the ABS polymer, the GRG value is evaluated by following the GRA steps (Figure 9). This GRG value shows the mutual impact of increasing WR and decreasing WT. The first rank is given to the highest GRG value and the last rank to the lowest GRG value, (Table 4). The run no. 8 obtained the first rank due to its highest GRG value (0.9556). Consequently, run no. 8 is considered the most significant combination of process parameters. But, it is not essential that the best results is the optimum results; it may or may not be.

The mean value of GRG is calculated at different levels (i.e. -1, 0, +1) to obtain the optimum result. For the texture depth, the highest mean GRG value is found at +1 level (Figure 13(a)). At this level, the value of texture depth is 1.5 mm. The highest mean GRG value for the rotor speed and load is found at level -1 (Figure 13(b) and (c)). At level -1, the rotor speed (S) and load value is 500 r/min and 10N respectively. Thus, the optimum value of texture depth for the ABS polymer is 1.5 mm. The optimum value of rotor speed and load are 500 r/min and 10N respectively. For acrylonitrile butadiene styrene (ABS), the optimum texture depth, rotor speed (S) and load (L) are 1.5 mm, 500 r/min and 10N respectively. Under this optimum condition, the WR and WT of TJBs (for ABS polymer) are 62.126 m/mm³ and 323.75 K respectively. For the ABS polymer, the variation of tribological performance of 3D printed journal bearings (developed by ABS) with significant process parameters (speed and Load) (Figure 14). However, the significant process parameter for TJBs (for ABS polymer) is calculated based on the ΔGRG value, (Table 5). At this optimum value of process parameter (Td = 1.5 mm, S = 500 r/min and L = 10N), the worn of 3D printed TJBs (made with ABS polymer) with corresponding WT, (Figure 15).

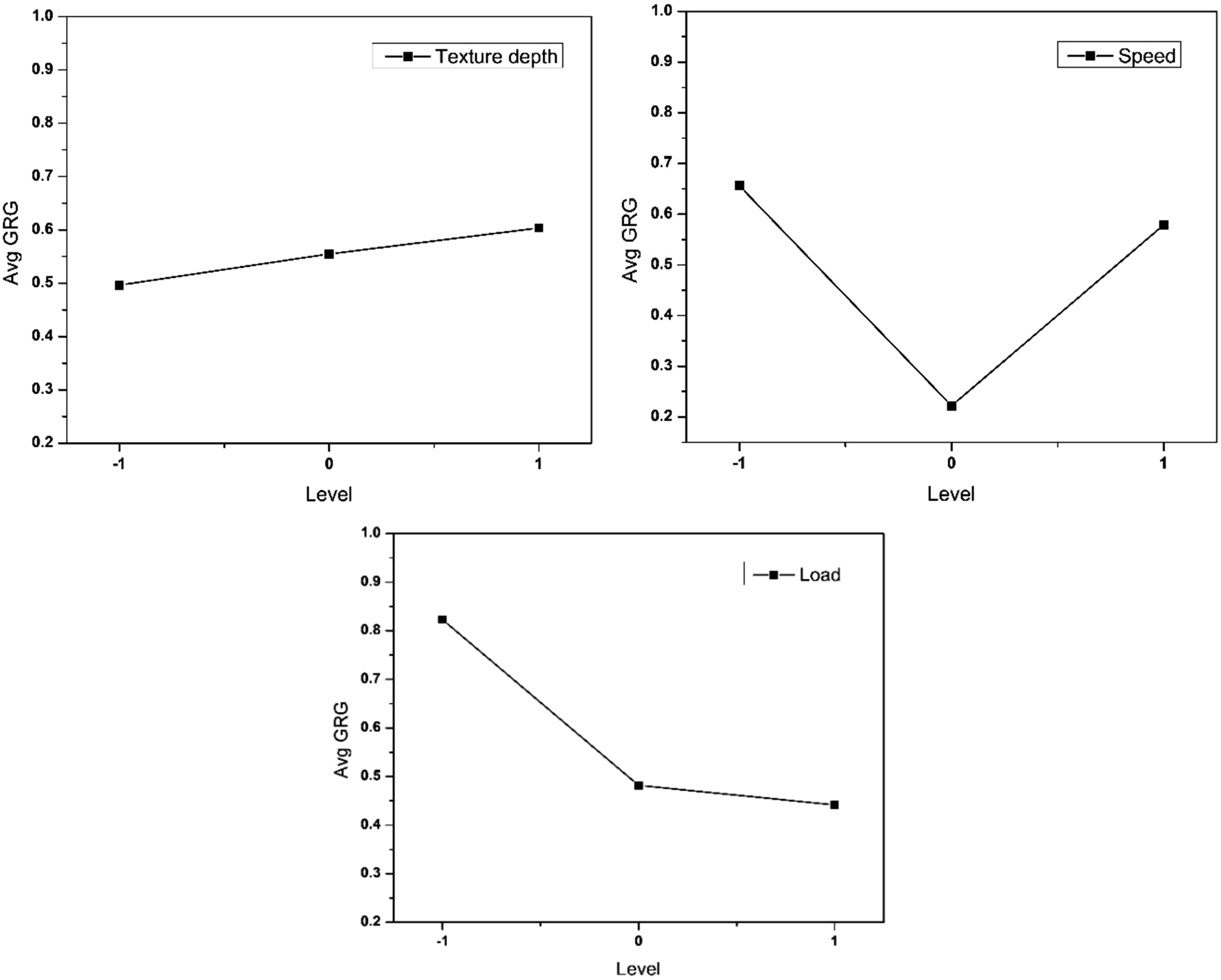

Figure 13.

Effect of process variable (a) Texture depth (b) speed and (c) Load on the tribological performance of 3D printed TJBs.

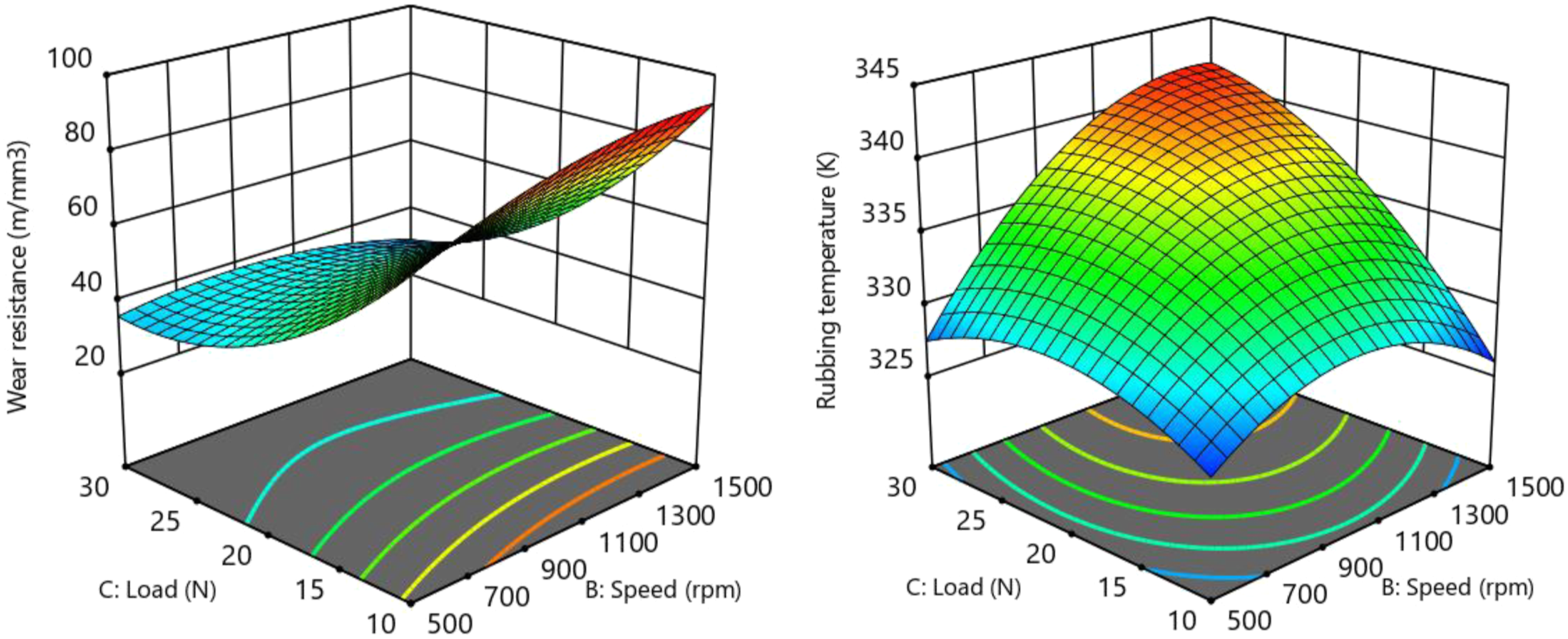

Figure 14.

3D plot of WR and WT of 3D printed TJBs (ABS polymer).

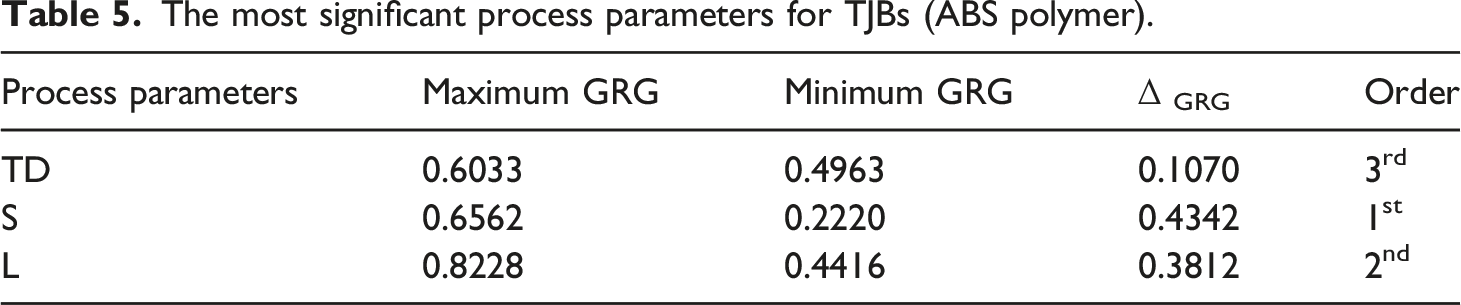

Table 5.

The most significant process parameters for TJBs (ABS polymer).

Process parameters	Maximum GRG	Minimum GRG	$∆$ _GRG	Order
TD	0.6033	0.4963	0.1070	3^rd
S	0.6562	0.2220	0.4342	1^st
L	0.8228	0.4416	0.3812	2^nd

Figure 15.

(a) Wear of 3D-printed TJBs (b) Wear temperature at optimal process parameters (ABS polymer).

Poly-Lactic acid

Similarly, the GRG value is evaluated for the PLA polymer, (Table 6). Table 10 shows the run no. 8 obtained the maximum GRG value (0.9188). Thus, run no. 8 considered the best combination of process parameters. However, the GRG value is calculated at each level to obtain optimal results. For the texture depth and rotor speed, the highest mean GRG value is found at level 0 and -1 respectively (Figure 16(a) and (b)). At these levels, the texture depth and rotor speed (S) value are 1 mm and 500 r/min respectively. The highest mean GRG value for load is found at level -1 (Figure 16(c)). The corresponding load value at this level (-1) is 10N. Under this optimum condition (TD = 1 mm, S = 500 r/min & L = 10N), the WR and WT of printed texture journal bearings for the PLA polymer are 76.576 m/mm³ and 326.15 K respectively. However, the significant process parameters for TJBs (for PLA polymer) is evaluated based on the deviation in GRG value, as shown in Table 7. For the poly-lactic acid (PLA), the variation of tribological performance such as WR and WT of 3D-printed TJBs with the significant process parameters (speed and load) are shown in Figure 17. At this optimum value of process parameter (Td = 1 mm, S = 500 r/min and L = 10N), the worn of 3D printed TJBs (made with PLA polymer) with corresponding WT are shown in Figure 18.

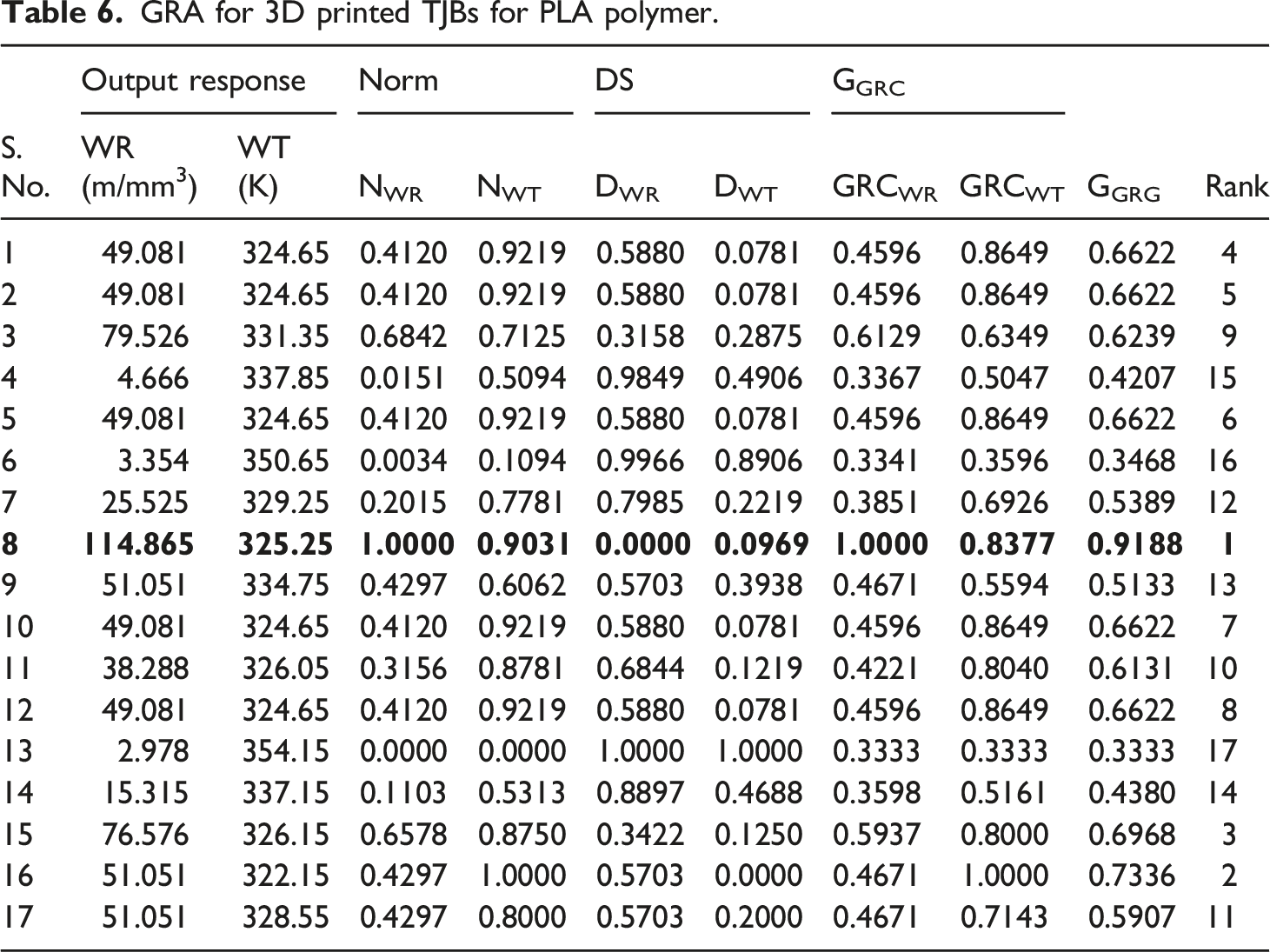

Table 6.

GRA for 3D printed TJBs for PLA polymer.

S. No.	Output response		Norm		DS		G_GRC		G_GRG	Rank
S. No.	WR (m/mm³)	WT (K)	N_WR	N_WT	D_WR	D_WT	GRC_WR	GRC_WT	G_GRG	Rank
1	49.081	324.65	0.4120	0.9219	0.5880	0.0781	0.4596	0.8649	0.6622	4
2	49.081	324.65	0.4120	0.9219	0.5880	0.0781	0.4596	0.8649	0.6622	5
3	79.526	331.35	0.6842	0.7125	0.3158	0.2875	0.6129	0.6349	0.6239	9
4	4.666	337.85	0.0151	0.5094	0.9849	0.4906	0.3367	0.5047	0.4207	15
5	49.081	324.65	0.4120	0.9219	0.5880	0.0781	0.4596	0.8649	0.6622	6
6	3.354	350.65	0.0034	0.1094	0.9966	0.8906	0.3341	0.3596	0.3468	16
7	25.525	329.25	0.2015	0.7781	0.7985	0.2219	0.3851	0.6926	0.5389	12
8	114.865	325.25	1.0000	0.9031	0.0000	0.0969	1.0000	0.8377	0.9188	1
9	51.051	334.75	0.4297	0.6062	0.5703	0.3938	0.4671	0.5594	0.5133	13
10	49.081	324.65	0.4120	0.9219	0.5880	0.0781	0.4596	0.8649	0.6622	7
11	38.288	326.05	0.3156	0.8781	0.6844	0.1219	0.4221	0.8040	0.6131	10
12	49.081	324.65	0.4120	0.9219	0.5880	0.0781	0.4596	0.8649	0.6622	8
13	2.978	354.15	0.0000	0.0000	1.0000	1.0000	0.3333	0.3333	0.3333	17
14	15.315	337.15	0.1103	0.5313	0.8897	0.4688	0.3598	0.5161	0.4380	14
15	76.576	326.15	0.6578	0.8750	0.3422	0.1250	0.5937	0.8000	0.6968	3
16	51.051	322.15	0.4297	1.0000	0.5703	0.0000	0.4671	1.0000	0.7336	2
17	51.051	328.55	0.4297	0.8000	0.5703	0.2000	0.4671	0.7143	0.5907	11

Figure 16.

Effect of process variable on the tribological performance of 3D printed TJBs (for PLA polymer).

Table 7.

The most significance process parameters for TJBs (PLA polymer).

Process parameters	Maximum GRG	Minimum GRG	$∆$ _GRG	Order
TD	0.6522	0.4592	0.1930	3^rd
S	0.6099	0.2518	0.3581	1^st
L	0.6882	0.4229	0.2653	2^nd

Figure 17.

3D plot of WR and WT of 3D printed journal bearings (PLA) with process parameters speed and load.

Figure 18.

(a) Wear of 3D-printed TJBs (b) Wear temperature at optimal process parameters (PLA polymer).

Nylon

Similarly, the GRG value is evaluated for the nylon polymer, (Table 8). Table 10 shows that the run no. Four obtained the maximum GRG value (0.6921). Thus, run no. Four is considered the greatest combination of process parameters. However, the mean value of GRG for nylon polymer is calculated at different levels (i.e. -1, 0, +1) to obtain the optimum result. The highest GRG value is found at 0 level for the texture depth. The corresponding value of texture depth at 0 level is 1 mm. Whereas, for the rotor speed and load, the highest mean GRG value are found at level -1 (Figure 19). At level -1, the rotor speed and load value are 500 r/min and 10N respectively. Thus, the optimum value of texture depth, rotor speed and load for the better tribological performance of 3D printed texture journal bearings are 1 mm, 500 r/min and 10N. Under this optimum condition, the WR and WT of printed TJBs are 9.572 m/mm³ and 324.75 K respectively. However, the significant process parameters for TJBs (for Nylon polymer) is evaluated based on the deviation in GRG value, as shown in Table 9. The 3D plot of WR and WT of TJBs (for nylon polymer) with the process parameters (speed and load), are shown in Figure 20. At this optimum value of process parameter (Td = 1 mm, S = 500 r/min and L = 10N), the worn of 3D printed TJBs (made with nylon polymer) with corresponding WT are shown in Figure 21.

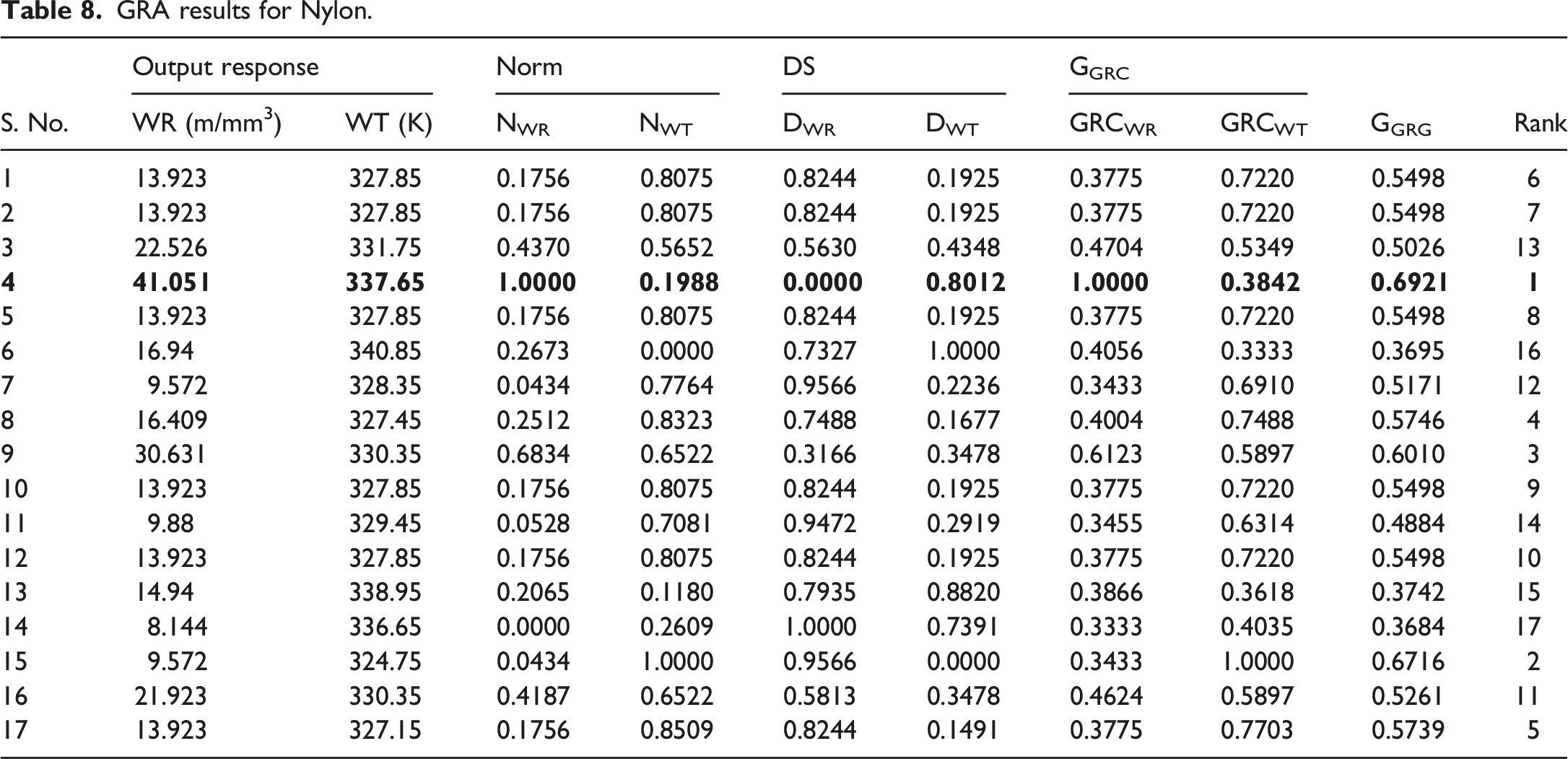

Table 8.

GRA results for Nylon.

S. No.	Output response		Norm		DS		G_GRC		G_GRG	Rank
S. No.	WR (m/mm³)	WT (K)	N_WR	N_WT	D_WR	D_WT	GRC_WR	GRC_WT	G_GRG	Rank
1	13.923	327.85	0.1756	0.8075	0.8244	0.1925	0.3775	0.7220	0.5498	6
2	13.923	327.85	0.1756	0.8075	0.8244	0.1925	0.3775	0.7220	0.5498	7
3	22.526	331.75	0.4370	0.5652	0.5630	0.4348	0.4704	0.5349	0.5026	13
4	41.051	337.65	1.0000	0.1988	0.0000	0.8012	1.0000	0.3842	0.6921	1
5	13.923	327.85	0.1756	0.8075	0.8244	0.1925	0.3775	0.7220	0.5498	8
6	16.94	340.85	0.2673	0.0000	0.7327	1.0000	0.4056	0.3333	0.3695	16
7	9.572	328.35	0.0434	0.7764	0.9566	0.2236	0.3433	0.6910	0.5171	12
8	16.409	327.45	0.2512	0.8323	0.7488	0.1677	0.4004	0.7488	0.5746	4
9	30.631	330.35	0.6834	0.6522	0.3166	0.3478	0.6123	0.5897	0.6010	3
10	13.923	327.85	0.1756	0.8075	0.8244	0.1925	0.3775	0.7220	0.5498	9
11	9.88	329.45	0.0528	0.7081	0.9472	0.2919	0.3455	0.6314	0.4884	14
12	13.923	327.85	0.1756	0.8075	0.8244	0.1925	0.3775	0.7220	0.5498	10
13	14.94	338.95	0.2065	0.1180	0.7935	0.8820	0.3866	0.3618	0.3742	15
14	8.144	336.65	0.0000	0.2609	1.0000	0.7391	0.3333	0.4035	0.3684	17
15	9.572	324.75	0.0434	1.0000	0.9566	0.0000	0.3433	1.0000	0.6716	2
16	21.923	330.35	0.4187	0.6522	0.5813	0.3478	0.4624	0.5897	0.5261	11
17	13.923	327.15	0.1756	0.8509	0.8244	0.1491	0.3775	0.7703	0.5739	5

Figure 19.

Effect of process variable on the tribological performance of 3D printed TJBs (for Nylon polymer).

Table 9.

The most significant process parameters for 3D printed journal bearings (Nylon polymer).

Process parameters	Maximum GRG	Minimum GRG	$∆$ _GRG	Order
TD	0.5523	0.4640	0.0883	2^nd
S	0.5628	0.2658	0.2969	1^st
L	0.5875	0.5024	0.0850	3^rd

Figure 20.

3D plot of WR and WT of 3D printed journal bearings (Nylon) with process parameters.

Figure 21.

(a) Wear of 3D-printed TJBs (b) Wear temperature at optimal process parameters (Nylon polymer).

From these overall results of Table 7, 9 and 11, the maximum ΔGRG value is found for the rotor speed (0.4342). The second highest ΔGRG value is found for the load (0.3812). From these observations, we can conclude that the rotor speed is the most significant process parameter for the TJBs followed by load. Whereas, the texture depth is comparatively less significant.

Comparative study

The above study evaluated the optimum value of process parameters (TD, S and L) for 3D-printed texture journal bearings for each polymer such as ABS, PLA and Nylon. For ABS polymer, the optimum value of process parameters is TD = 1.5 mm, S = 500 r/min and L = 10N. At this optimum value, the tribological performance such as WR and WT of TJBs are 62.126 m/mm³ and 323.75 K respectively. Similarly, the optimum value of process parameters for both PLA and Nylon are obtained at TD = 1 mm, S = 500 r/min and L = 10N. The tribological performance (WR and WT) of 3D-printed TJBs for PLA and Nylon are 76.576 m/mm³ and 326.15 K & 9.572 m/mm³ and 324.75 K respectively, (Table 10). These results show that the maximum WR of 3D-printed TJBs is observed for PLA. Whereas, the least WR of TJBs is observed for the Nylon polymer. This is because nylon is a soft polymer and the strength of nylon is lesser than the other polymer (ABS and PLA). In addition, the strength of PLA is greater than the ABS and Nylon. As a results, the WR of TJBs for PLA is better than the ABS and Nylon. However, the thermal resistance property of PLA is significantly less. As a result, the thermal deformation in 3D-printed TJBs for the PLA polymer is minimum. The minimum WT is found for the ABS polymers. As a results, we have not obtained a specific polymer for the better tribological performance of textured bearings. A GRA technique is used to obtain it, (Table 10). From Table 10, it is found that the ABS polymer obtained the highest GRG value (0.8493). Therefore, ABS is found to be the most significant polymer for 3D-printed TJBs followed by PLA polymer. Whereas, the nylon polymer (0.4394) is least significant polymer.

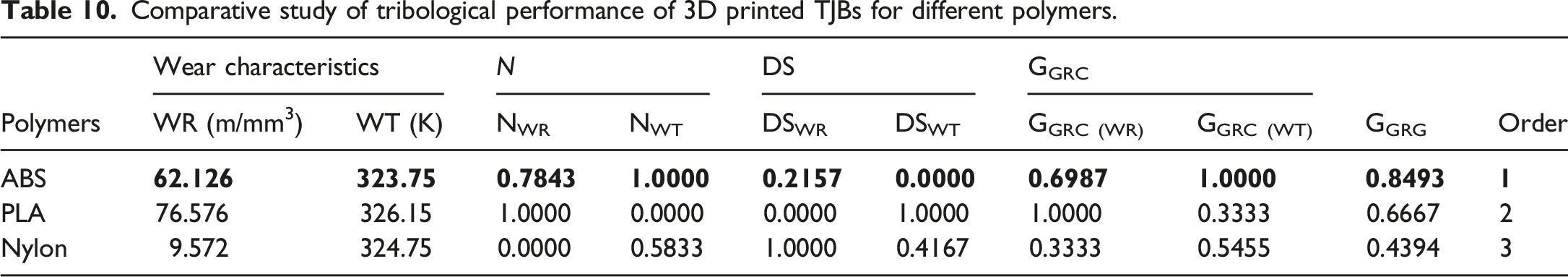

Table 10.

Comparative study of tribological performance of 3D printed TJBs for different polymers.

Polymers	Wear characteristics		N		DS		G_GRC		G_GRG	Order
Polymers	WR (m/mm³)	WT (K)	N_WR	N_WT	DS_WR	DS_WT	G_{GRC (WR)}	G_{GRC (WT)}	G_GRG	Order
ABS	62.126	323.75	0.7843	1.0000	0.2157	0.0000	0.6987	1.0000	0.8493	1
PLA	76.576	326.15	1.0000	0.0000	0.0000	1.0000	1.0000	0.3333	0.6667	2
Nylon	9.572	324.75	0.0000	0.5833	1.0000	0.4167	0.3333	0.5455	0.4394	3

Regression study

To validate the experimental results, a regression study is performed. The regression study formulated the mathematical correlation between the process parameters (TD, S and L) and the tribological performance (i.e., WR and WT) of 3D-printed TJBs. The developed mathematical equation for WR and WT by the regression study are given below:

\begin{array}{l} W e a r r e s i s t a n c e (W R) = 50.0365 + 98.81675 * T D + 0.0693 * S - 6.28191 * L - 0.00116 * S * L \\ - 47.844 * T D^{2} - 0.00002 * S^{2} + 0.12326 * L^{2} \end{array}

(13)

\begin{array}{l} Wear temperature (W T) = 303.9 + 12.2 * T D + 0.025675 * S + 0.87875 * L + 0.00073 * S * L \\ - 7.8 * T D^{2} - 0.000017 * S^{2} - 0.02975 * L^{2} \end{array}

(14)

The experimental study calculates the WR and WT of 3D printed TJBs (for ABS polymer) for 17 combinations of process parameters and compares them with the predicted regression results (Figure 22). The experimental results show good agreement with the mathematical regression results. At the optimum process parameters (TD = 1.5 mm, S = 500 r/min and L = 10N), the regression and experimental results variation is within 3% (Table 11).

Figure 22.

Experimental and regression output for (a) WR (b) WT.

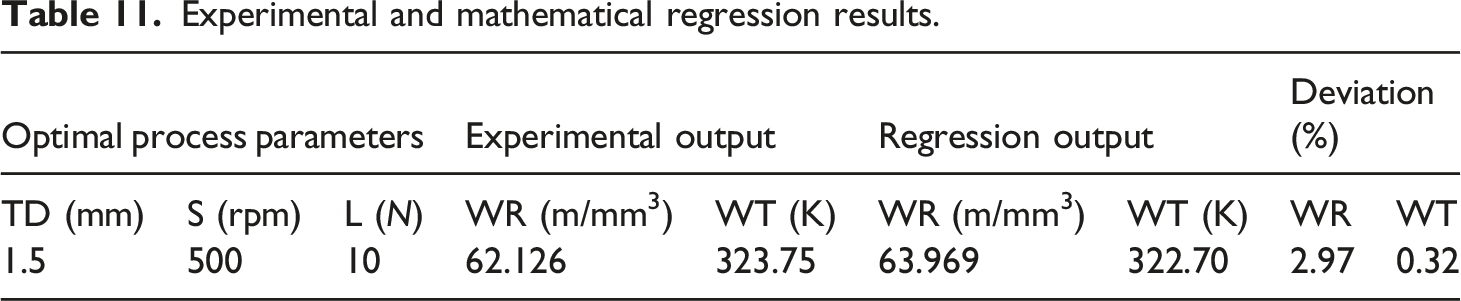

Table 11.

Experimental and mathematical regression results.

Optimal process parameters			Experimental output		Regression output		Deviation (%)
TD (mm)	S (rpm)	L (N)	WR (m/mm³)	WT (K)	WR (m/mm³)	WT (K)	WR	WT
1.5	500	10	62.126	323.75	63.969	322.70	2.97	0.32

Conclusion

In the present study, the 3D-printed TJBs are developed with various polymers such as ABS, PLA and Nylon. The tribological performance of 3D-printed TJBs such as wear resistance (WR) and wear temperature (WT) are evaluated by experimental analysis. From this experimental study, it is concluded that

• The wear resistance firstly increases and then decreases with the rotor speed. Whereas, the Wear temperature of 3D-printed TJBs decreases with the texture depth.

• The wear resistance of 3D-printed TJBs increases with the rotor speed and then decreases.

• The wear resistance of 3D-printed TJBs decreases significantly with the load. Whereas, the wear temperature of TJBs increases with the load.

• For ABS polymer, the optimal value of wear resistance and wear temperature is 62.126 m/mm³ and 323.75 K respectively.

• For PLA and Nylon polymer, the optimal WR and WT of 3D-printed TJBs are 76.576 m/mm³ & 326.15 K and 9.572 m/mm³ and 324.75 K respectively.

• The maximum WR (i.e. 76.576 m/mm³) of 3D-printed TJBs is observed for the PLA polymer. Whereas, nylon provides the least WR (i.e. 9.572 m/mm³) of 3D-printed TJBs.

• The comparative analysis shows that the ABS polymer is the most significant polymer for the better tribological performance of 3D-printed TJBs. For ABS polymer, the optimal value of process parameters for the better tribological performance of 3D-printed TJBs are TD = 1.5 mm, S = 500 rpm and L = 10N.

Application and future work

The 3D printed TJBs can be used in various areas such as business: printer, photostat machine, computer, sorter, projector, paper handling equipment; industry: robotic arm, toys; medical: stretcher, MRI equipment, dental lighting; automobile: car, truck, off-side vehicle; lawn/garden tools: tracker mowers, saws, drill etc. In future work, the load-carrying capacity (LCC) and coefficient of friction (COF) of 3D-printed TJBs will be calculated for ABS, PLA and nylon polymers. In addition, the influence of FDM process parameters on the LCC and COF of 3D-printed TJBs can also be calculated.

Footnotes

Declaration of Conflicting Interests

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iD

Vishal Mourya

Appendix

References

Shahrubudin

Lee

Ramlan

RJPM

. An overview on 3D printing technology: technological, materials, and applications. Procedia Manuf 2019; 35: 1286–1296.

Jiménez

Romero

Domínguez

, et al. Additive manufacturing technologies: an overview about 3D printing methods and future prospects. Complexity 2019; 2019: 9656938.

Doshi

Mahale

Singh

, et al. Printing parameters and materials affecting mechanical properties of FDM-3D printed parts: perspective and prospects. Mater Today Proc 2022; 50: 2269–2275.

Harikrishnan

Soundarapandian

. Fused deposition modelling based printing of full complement bearings. Procedia Manuf 2018; 26: 818–825.

Kam

İpekçi

Şengül

. Investigation of the effect of FDM process parameters on mechanical properties of 3D printed PA12 samples using Taguchi method. J Thermoplast Compos Mater 2023; 36(1): 307–325. DOI: 10.1177/08927057211006459.

Mourya

Bhore

Wandale

. Multiobjective optimization of tribological characteristics of 3D printed texture surfaces for ABS and PLA polymers. J Thermoplast Compos Mater 2023; 9: 1185710. DOI: 10.1177/08927057231185710.

Andrzejewski

Gronikowski

Aniśko

. A novel Manufacturing concept of LCP fiber-reinforced GPET-based sandwich structures with an FDM 3D-printed core. Materials 2022; 15(15): 5405. DOI: 10.3390/ma15155405.

Wickramasinghe

Tran

. FDM-based 3D printing of polymer and associated composite: a review on mechanical properties, defects and treatments. Polymers 2020; 12(7): 1529. DOI: 10.3390/polym12071529.

Dudek

PFDM

. FDM 3D printing technology in manufacturing composite elements. Arch Metall Mater 2013; 58(4): 1415–1418. DOI: 10.2478/amm-2013-0186.

10.

Kam

Saruhan

İpekçi

. Experimental investigation of vibration damping capabilities of 3D printed metal/polymer composite sleeve bearings. J Thermoplast Compos Mater 2023; 36(6): 2505–2522. DOI: 10.1177/08927057221094984.

11.

Ümit

Menderes

. A review study on mechanical properties of obtained products by FDM method and metal/polymer composite filament production. J Nanomater 2020; 5: 1–9. DOI: 10.1155/2020/6187149.

12.

Atakok

Kam

Koc

. A review of mechanical and thermal properties of products printed with recycled filaments for use in 3D printers. Surf Rev Lett 2022; 29(02): 2230002. DOI: 10.1142/S0218625X22300027.

13.

Atakok

Kam

Koc

. Tensile, three-point bending and impact strength of 3D printed parts using PLA and recycled PLA filaments: a statistical investigation. J Mater Res Technol 2022; 18: 1542–1554. DOI: 10.1016/j.jmrt.2022.03.013.

14.

Menderes

KAM

Saruhan

Ipekci

. Investigation the effects of 3D printer system vibrations on mechanical properties of the printed products. Sigma J Eng Nat Sci 2018; 36(3): 655–666.

15.

Menderes

KAM

Saruhan

İpekçi

. Investigation the effect of 3D printer system vibrations on surface roughness of the printed products. Düzce Üniversitesi Bilim ve Teknoloji Dergisi 2019; 7(2): 147–157. DOI: 10.29130/dubited.441221.

16.

Farajian

Alipanahi

Mahboubkhah

. Analyses of mechanical properties and morphological behavior of additively manufactured ABS polymer, ABS/PBT blend, and ABS/PBT/CNT nanocomposite parts. J Thermoplast Compos Mater 2023; 36(6): 2390–2411. DOI: 10.1177/08927057221092952.

17.

Chávez

Quiñonez

Roberson

. Hybrid metal/thermoplastic composites for FDM-type additive manufacturing. J Thermoplast Compos Mater 2021; 34(9): 1193–1212. DOI: 10.1177/0892705719864150.

18.

Gohar

Hussain

Ali

, et al. Mechanical performance of honeycomb sandwich structures built by FDM printing technique. J Thermoplast Compos Mater 2023; 36(1): 182–200. DOI: 10.1177/0892705721997892.

19.

Veeman

Palaniyappan

. Process optimisation on the compressive strength property for the 3D printing of PLA/almond shell composite. J Thermoplast Compos Mater 2023; 36(6): 2435–2458. DOI: 10.1177/08927057221092327.

20.

Aravind

Krishnasamy

Rajini

, et al. Thermal and tensile properties of 3D printed ABS-glass fibre, ABS-glass fibre-carbon fibre hybrid composites made by novel hybrid manufacturing technique. J Thermoplast Compos Mater 2023; 9: 1170805. DOI: 10.1177/08927057231170805.

21.

Kumar

Singh

, et al. Three-dimensional printing of dual thermoplastic materials with different layer combinations: Tensile, flexural, and fractured surface investigations. J Thermoplast Compos Mater 2022; 35(6): 826–845. DOI: 10.1177/0892705720925123.

22.

Huang

Zhang

Bhandari

. Assessing the 3D printing precision and texture properties of brown rice induced by infill levels and printing variables. Food Bioprocess Technol 2019; 12: 1185–1196. DOI: 10.1007/s11947-019-02287-x.

23.

Reddy

Flys

Chaparala

, et al. Study on surface texture of fused deposition modeling. Procedia Manuf 2018; 25: 389–396.

24.

Saharudin

Hajnys

Kozior

, et al. Quality of surface texture and mechanical properties of PLA and PA-based material reinforced with carbon fibers manufactured by FDM and CFF 3D printing technologies. Polymers 2021; 13(11): 1671. DOI: 10.3390/polym13111671.

25.

Lalegani Dezaki

Ariffin

MKAM

Serjouei

, et al. Influence of infill patterns generated by CAD and FDM 3D printer on surface roughness and tensile strength properties. Appl Sci 2021; 11(16): 7272. DOI: 10.3390/app11167272.

26.

Phogat

Chhabra

Sindhu

, et al. Analysis of wear assessment of FDM printed specimens with PLA, multi-material and ABS via hybrid algorithms. Mater Today Proc 2022; 62: 37–43.

27.

Boparai

Singh

. Wear behavior of FDM parts fabricated by composite material feed stock filament. Rapid Prototyp J 2016; 22(2): 350–357. DOI: 10.1108/RPJ-06-2014-0076.

28.

Friedrich

Sue

Liu

, et al. Scratch resistance of high performance polymers. Tribol Int 2011; 44(9): 1032–1046. DOI: 10.1016/j.triboint.2011.04.008.

29.

Wong

Lim

Moyse

, et al. A new test methodology for evaluating scratch resistance of polymers. Wear 2004; 256(11-12): 1214–1227. DOI: 10.1016/j.wear.2003.10.027.

30.

Briscoe

Evans

Pellilo

, et al. Scratching maps for polymers. Wear 1996; 200(1-2): 137–147. DOI: 10.1016/S0043-1648(96)07314-0.

31.

Briscoe

Pelillo

Sinha

. Scratch hardness and deformation maps for polycarbonate and polyethylene. Polym Eng Sci 1996; 36(24): 2996–3005. DOI: 10.1002/pen.10702.

32.

Xiang

Sue

Chu

, et al. Scratch behavior and material property relationship in polymers. J Polym Sci B Polym Phys 2001; 39(1): 47–59.

33.

Kody

Martin

. Quantitative characterization of surface deformation in polymer composites using digital image analysis. Polym Eng Sci 1996; 36(2): 298–304. DOI: 10.1002/pen.10416.

34.

Chu

Xiang

Sue

, et al. Scratch resistance of mineral‐filled polypropylene materials. Polym Eng Sci 2000; 40(4): 944–955. DOI: 10.1002/pen.11222.

35.

Chu

Rumao

Coleman

. Scratch and mar resistance of filled polypropylene materials. Polym Eng Sci 1998; 38(11): 1906–1914. DOI: 10.1002/pen.10361.

36.

Williams

. Analytical models of scratch hardness. Tribol Int 1996; 29(8): 675–694. DOI: 10.1016/0301-679X(96)00014-X.

37.

Brostow

Lobland

HEH

Hnatchuk

, et al. Improvement of scratch and wear resistance of polymers by fillers including nanofillers. Nanomaterials 2017; 7(3): 66. DOI: 10.3390/nano7030066.

38.

Dasari

Mai

. Fundamental aspects and recent progress on wear/scratch damage in polymer nanocomposites. Mater Sci Eng R Rep 2009; 63(2): 31–80. DOI: 10.1016/j.mser.2008.10.001.

39.

Wetzel

Haupert

Friedrich

, et al. Impact and wear resistance of polymer nanocomposites at low filler content. Polym Eng Sci 2002; 42(9): 1919–1927. DOI: 10.1002/pen.11084.

40.

Böhm

Betz

Ball

. The wear resistance of polymers. Tribol Int 1990; 23(6): 399–406. DOI: 10.1016/0301-679X(90)90055-T.

41.

Briscoe

Sinha

. Wear of polymers. Proc IME J J Eng Tribol 2002; 216(6): 401–413. DOI: 10.1243/135065002762355325.

42.

Briscoe

. Wear of polymers: an essay on fundamental aspects. Tribol Int 1981; 14(4): 231–243. DOI: 10.1016/0301-679X(81)90050-5.

43.

Zhiani Hervan

Altınkaynak

Parlar

. Hardness, friction and wear characteristics of 3D-printed PLA polymer. Proc IME J J Eng Tribol 2021; 235(8): 1590–1598. DOI: 10.1177/1350650120966407.

44.

Bahrami

Ehteshamfar

Adibi

. The effect, prediction, and optimization of Fe particles on wear behavior of Fe–ABS composites fabricated by fused deposition modeling. Arabian J Sci Eng 2023; 2: 1–16. DOI: 10.1007/s13369-023-08077-0.

45.

Zhang

Purssell

Mao

, et al. A physical investigation of wear and thermal characteristics of 3D printed nylon spur gears. Tribol Int 2020; 141: 105953. DOI: 10.1016/j.triboint.2019.105953.

46.

Harsha

Rao

. Comparison of wear behaviour of polymer spur gears using FDM process. In: IOP Conference Series: Materials Science and Engineering, Greater Noida, India, July 2021: IOP Publishing, Vol. 1168, No. 1, p. 012028.

47.

Šimek

. Application of a new type of aerodynamic tilting pad journal bearing in power gyroscope. Eng Mech 2012; 19(5): 359–368.

48.

Pink

Stout

. Design procedures for orifice compensated gas journal bearings based on experimental data. Tribol Int 1978; 11(1): 63–75. DOI: 10.1016/0301-679X(78)90118-4.

49.

Duman

Kaplan

Cuvalcı

. Stress analysis and fatigue behaviour of PTFE-bronze layered journal bearing under real-time dynamic loading. In: IOP Conference Series: Materials Science and Engineering, Nevsehir, Turkey, 2018: IOP Publishing. Vol. 295, No. 1, p. 012024.

50.

Siripuram

Stephens

. Effect of deterministic asperity geometry on hydrodynamic lubrication. J. Trib 2004; 126(3): 527–534. DOI: 10.1115/1.1715104.

51.

Mao

Siddaiah

Liao

, et al. Laser surface texturing and related techniques for enhancing tribological performance of engineering materials: a review. J Manuf Process 2020; 53: 153–173. DOI: 10.1016/j.jmapro.2020.02.009.

52.

Qattawi

Alrawi

Guzman

. Experimental optimization of fused deposition modelling processing parameters: a design-for-manufacturing approach. Procedia Manuf 2017; 10: 791–803.

53.

Cano-Vicent

Tambuwala

Hassan

, et al. Fused deposition modelling: current status, methodology, applications and future prospects. Addit Manuf 2021; 47: 102378. DOI: 10.1016/j.addma.2021.102378.

54.

Mourya

Bhore

. Design and fabrication errors of foil bearings: a review. Advances in Materials and Mechanical Engineering: Select Proceedings of ICFTMME 2021; 2020: 205–220.

55.

Mourya

Bhore

. Effect of corrosion pit on the structural characteristics of foil journal bearings. In: Gas Turbine India Conference , Online, December 2021: American Society of Mechanical Engineers. DOI: 10.1115/GTINDIA2021-76028.

56.

Mourya

Bhore

. Experimental investigation and optimization of tribological characteristics of wooden journal bearings. Biotribology 2023; 2023: 100241. DOI: 10.1016/j.biotri.2023.100241.

57.

White

Ward

Jamieson

. Field evaluation of a handheld laser meter for pavement surface macro texture measurement. Int J Pavement Eng 2021; 22(8): 950–959. DOI: 10.1080/10298436.2019.1654103.

58.

Mourya

Bhore

. Modelling, analysis and optimization of design parameter of bump-type gas foil journal bearing. Engineering Research Express 2022; 4(2): 025005. DOI: 10.1088/2631-8695/ac6121.

59.

Mourya

Bhore

. Investigation and optimization for performance characteristics of bump-type foil journal bearings with various foil materials. Tribology in Industry 2022; 44(4): 664. DOI: 10.24874/ti.1334.07.22.11.
