Fracture morphology and strength characteristics of poly-lactic acid and poly-ethylene terephthalate glycol composites combined with taguchi method and response surface methodology

Abstract

The emergence of additive manufacturing has enabled scientists to efficiently construct complex geometries, facilitating the development of novel, high-impact energy-absorbing structures suitable for a wide range of industrial applications. The present study conducted flexural and impact test to quantitatively assess the energy absorption capabilities of polymer composites fabricated through fused filament fabrication. Specifically, the polymer composites investigated were multi-walled carbon nanotubes reinforced poly-lactic acid, carbon fibre reinforced poly-ethylene terephthalate glycol, and carbon fibre reinforced poly-lactic acid. The investigation also examined the influence of different infill patterns and nozzle hole diameters on the polymer composites. The investigation depicts that by altering the process parameters, the flexural strength is improved from 21.079 MPa to 70.653 MPa by 235.18%. The experimental study of impact specimens utilising the Izod impact test demonstrates that the rectilinear infill pattern and a nozzle hole diameter of 0.6 mm result in the highest energy absorption of 37.76 kJ/m² for carbon fibre reinforced poly-lactic acid. The study revealed that the energy absorption of the specimens was significantly influenced by both the independent and interaction effects of process variables. The application of the fused filament fabrication demonstrates an improved energy absorption, making it suitable for manufacturing of vehicle and aircraft components.

Keywords

Additive manufacturing flexural impact fused filament fabrication polymer composites izod impact test

Introduction

The adaptability, design flexibility, low volume production, waste reduction, and other benefits of 3-D Printing also known as additive manufacturing have led to its widespread use during the past decade.^1,2 Producing high-quality products with complicated geometries, optimised topologies, increased interior structures, and multi-material combinations is all possible with this technology. In particular, it may be indicating an increasing interest in developing functioning parts that are subjected to complicated mechanical and thermal loading conditions while they are in service. Therefore, in order to guarantee the continued success of things that have been additively manufactured, it is important to go deep into the topic for the association between the parameters and the mechanical performance of the product. Stereolithography (SLA), fused filament fabrication (FFF), laser assisted bioprinting (LAB), selective laser sintering (SLS), and robotic assisted deposition (RAD) are additive manufacturing technologies. Each technology has advantages and disadvantages in terms of processing capacity, cost, print quality, and performance. Most of these methods use a slice model of a solid product where each layer is deposited on the previous one. FFF builds solid objects from layers following a specified design.^3,4 The filament is heated and extruded through a tiny nozzle hole to deposit layers of fused material, Figure 1. To ensure printing quality, filament must tolerate mechanical and thermal stress from feeding and melting.^5,6

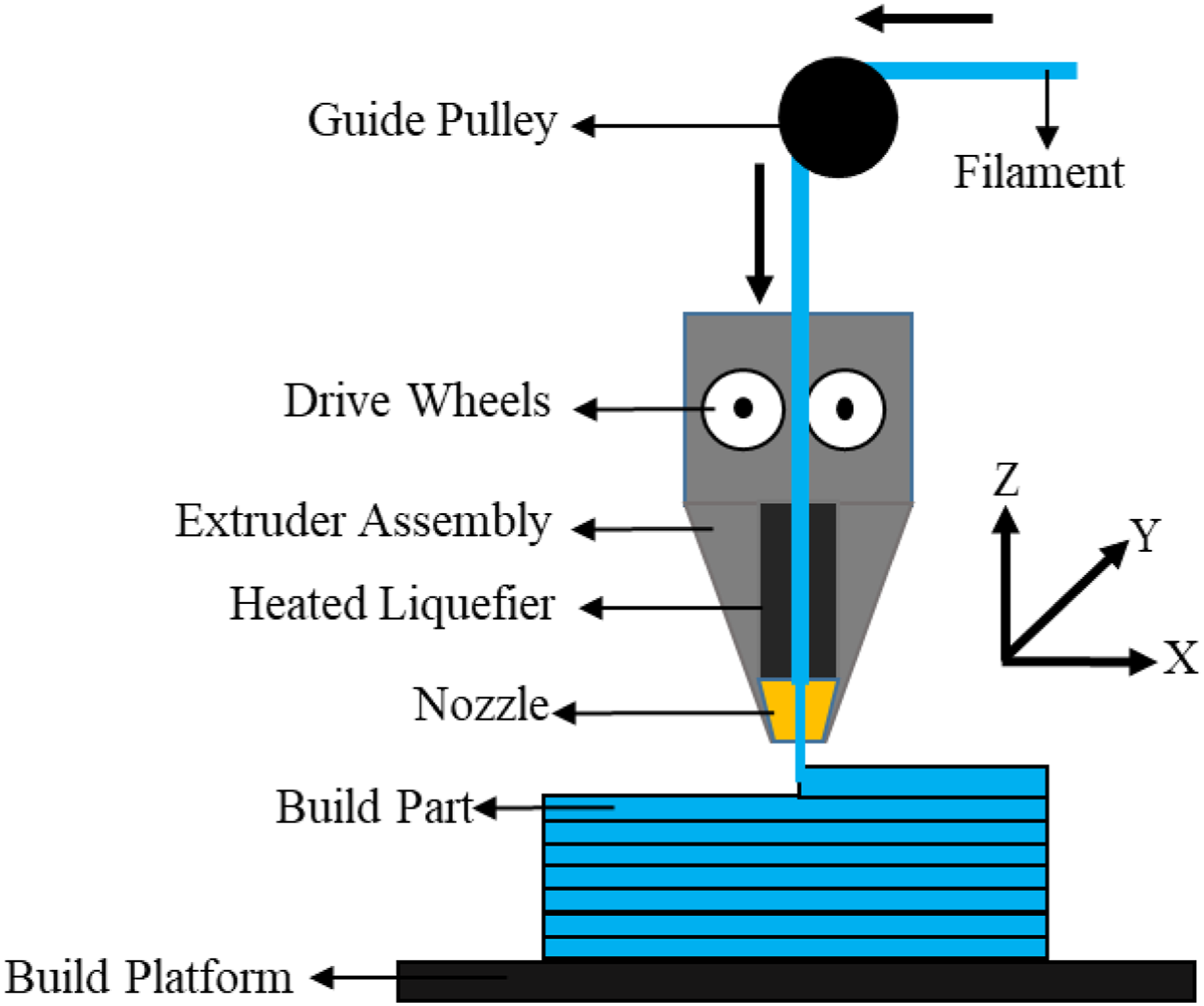

Figure 1.

Schematic representation of the FFF process.

The mechanical performance of fabricated products depends on the following factors: fabricating material, liquefier temperature, fabrication speed, layer positioning, layer height, layer to layer adhesion, raster width, infill percentage, mesostructure, and air void.^7–9 Experimental data, established testing techniques, and theoretical models are needed to understand the parameter-property relationship. Poly-lactic acid (PLA),^10–14 acrylonitrile butadiene styrene (ABS),^12,15 high density poly-ethylene (HDPE),¹⁶ polycarbonate (PC),^11,17 thermoplastic poly-urethane (TPU),^18,19 poly-ether ether ketone (PEEK),²⁰ poly-hydroxy-alkanoate (PHA),¹⁰ polyphenylene sulphide (PPS)²¹ and their blends and composites are popular fabrication materials for FFF due to their functional characteristics. One of the most significant developments is the reinforcement of the polymer matrix.²² Reinforcing poly-ethylene terephthalate glycol (PETG) and PLA filament with materials like copper,²³ bamboo,²⁴ wood fibre,²⁵ oil palm fibre,²⁶ glass fibre,²⁷ single walled carbon nanotubes, graphene,^13,28 multi walled carbon nanotubes (MWCNTs),¹⁶ and carbon fibre (CF)^29–31 improves their mechanical, electrical, and thermal characteristics.^30,32–34 The physical, electrical and mechanical properties of goods made using FFF fabrication methods benefit substantially from the use of carbonaceous reinforced polymer composites.^35,36 Also, Polymer metal composites can replace metal components due to their lightweight, corrosion resistance, and strength. Examples include carbon fiber-reinforced polymers in aerospace (e.g., Boeing 787) and polymer-coated metal implants (e.g., orthopaedic devices) for improved performance and durability.

Impact testing is an excellent way to begin investigating how the mesostructure affects the fracture behaviour of fabricating materials.^37,38 While the Izod impact test have been well created for testing various materials, and preferable for assessing various polymer and their composites. Impact test is great for learning about a material's fundamental fracture mechanics since they quantify the measure of energy absorbed by the material just prior to failure under high-strain-rate conditions. The fracture mechanism is investigated in this work, which measures the total energy needed to commence a fracture in the specimen via impact. Clearly, additional research is needed to properly comprehend the crack behaviour in fabricated specimens, but an impact test is a fast and simple technique to collect preliminary findings that may be used to make preliminary comparisons between materials and orientations. Because of this, a sizable dataset may be generated at low cost, that can be utilised to influence product design outcomes and potential studies into the fracture behaviour for the different materials.

Fused filament fabrication structural durability depends on the infill pattern (IFP) and infill density. The filament deposition direction and rate determine the IFP of FFF-fabricated products. Wiggle, rectilinear, honeycomb, octet, cross, and triangular are some popular IFPs.³⁹ The IFPs alter heat transmission between bonded layers while affecting strength, material use, and production time. Except for small objects, the infill occupies greater space than the external shell and dominates. On the other hand, extrusion and layer deposition are governed by nozzle hole diameter (NHD) in the FFF process.⁴⁰ How layers are built up and how quickly filaments are deposited have a direct impact on the mechanical properties of the structures made with FFF. Effective molecular fusion at bonded interlayers contributes to greater mechanical strength in the final manufactured components.⁴¹ The endurance of FFF-fabricated parts under impact load is one of the primary challenges because these parts are often made for functional purposes. There have been a limited number of studies done to investigate how impact behaviour is affected by the variables that are involved in the FFF process.

Mechanical performance of filaments created from ABS, PLA, and PLA/PHA were studied by Oviedo et al.¹⁰ In order to limit the anisotropic functionality of additively manufactured specimens, a morphological study showed that a fused and dense IFP paired with thick double oriented rasters would be useful.¹⁰ Patterson et al¹¹ examined the relationship between printing orientation and raster angle for the impact behaviour of several FFF materials. The impact resistance of brittle FFF materials is more coherent, but they are also weak. Stronger, but less predictable, impact characteristics can be found in materials that plastically bend greatly before cracking.¹¹ Atakok et al⁴² used the Taguchi approach to analyse the results of varying the layer height, occupancy rate, and IFP of FFF constraints on the structural behaviour of additively manufactured PLA and recycled PLA test parts. According to Czyzewski et al,⁴³ the percentage of air gaps between the print channels was noticed to rise with NHDs, as determined by microscopic examination of the fractures in the samples. Values for impact strength is varied with the voids between the courses of the polymer material, indicating that these occurrences may affect the impact strength.⁴³ Wang et al⁴⁴ examined how layer height and bed temperature affect PLA's impact strength. Fractography of printed PLA indicated that 0.2 mm layer height and 160°C plate temperature reduced voids due to diffusion. Tezel et al¹⁷ reported that all materials and layer heights combinations had the lowest impact strength while upright orientation. According to Mishra et al,⁴⁵ impact strength is strictly dependent on the mesostructure, which balances stress intensity and crack propagation. The concentric pattern's stress concentration increased the mesostructure’s produced stress, causing it to shatter with less energy than others. Mesostructure layer delamination interrupts impact crack propagation. The fracture region's crack propagation stoppage gradually boosts the structure's energy-absorbing capabilities.

The input parameters of the FFF were optimised using several experimental designs, including ANOVA, full factorial design, fuzzy logic, the bacterium forging method, response surface methodology (RSM),^8,46 and the Taguchi approach.^13,25,47,48 Due to its robustness, tolerance, and dimension control, Taguchi's design of experiments methodology was commonly used to optimise FFF parameters. Taguchi experimental design enhances quality and provides strong design solutions.⁴⁹ Compared to other methods, this one has the added benefit of optimising multiple aspects at once and getting more quantitative data out of fewer trials in the experiment. Experimental designs can take several shapes, but RSM is a versatile approach for assessing the impacts of diverse factors and forecasting the most crucial input parameters.^50,51

Very few researchers work on the energy absorption characteristics of polymer composites. The energy absorption capabilities of polymer composites are an area that needs more investigation and improvement. This is especially true considering the widespread use of these materials in the aerospace and automotive sectors. The concurrent investigation of IFP and NHD on polymer composites within reviewed papers may indeed represent an unexplored research area. In order to increase safety and performance in aerospace and automotive sectors, it is necessary to do a focused study on these qualities. By improving and tailoring these features, it will produce innovative composite materials with better crashworthiness, impact resistance, and structural integrity.

In this study, the effect of polymer composites and process constraints on the mechanical behaviour namely flexural and impact behaviour of FFF-fabricated specimens is investigated. In view of this, an assessment of the mechanical behaviour of carbon fibre reinforced poly-lactic acid (CF-PLA), carbon fibre reinforced poly-ethylene terephthalate glycol (CF-PETG), and multi walled carbon nano tubes reinforced poly-lactic acid (MWCNTs-PLA) is carried out by altering selected parameters such as IFP and NHD, and then high-resolution microscopy is carried out for the fracture surfaces to comprehend more about the failure mechanisms. The results of the impact testing are analysed using Taguchi's technique and RSM to investigate how the mechanical behaviour depends on the selected process factors.

Material and method

The selected reinforcement particles and the polymers purchased from Augment 3Di, India.

CF: Diameter 4–7 µm, length 190–210 µm, and >98% purity.

MWCNTs: Diameter 8–15 nm, length 1–3 µm, and purity of >90%.

PLA: Melt Flow Index 14 g/10 min, melting temperature 150°C, and purity of >95%.

PETG: Melt Flow Index 8 g/10 min, melting temperature 135°C, and purity of >95%.

Mechanical agitation was used to create polymer composite materials of selected reinforcement particles and the polymers (purchased from Augment 3Di, India) with mass fractions of 20%.

A hot air oven set at 50°C to eliminate excess moisture from the polymer pellets. Using a sealed environment and magnetic stirring for 12 hours, the polymer pellets were dissolved in the right amount of chloroform solvent according to predefined proportions. After the reinforcement particles were dissolved entirely, they were added to the mixture while it was still being agitated for 5 hours. This was the procedure for combining the solutions. The resulting cake batter was dried out in a continuous temperature drying oven at 80°C for 15 minutes in a glass drier. The cake batter was then frozen and sliced into small pellets for melt mixing. The blended material was sheared and extruded at a temperature range of 190°C–220°C with a screw speed of 70 revolutions per minute using a filament fabricating machine, Figure 2(a). After the melt was cooled and strained into a wire, three different polymer composite filament with 1.75 mm diameter was formed:

1. CF-PLA: PLA reinforced with 20% CF by weight and has the density of 1307 kg/m³ and the melting temperature in the range of 200°C–220°C.

2. CF-PETG: PETG reinforced with 20% CF by weight and has the density of 1345 kg/m³ and the melting temperature in the range of 195°C–230°C.

3. MWCNTs-PLA: PLA reinforced with 20% MWCNTs by weight and has the density of 1438 kg/m³ and the melting temperature in the range of 190°C–220°C.

Figure 2.

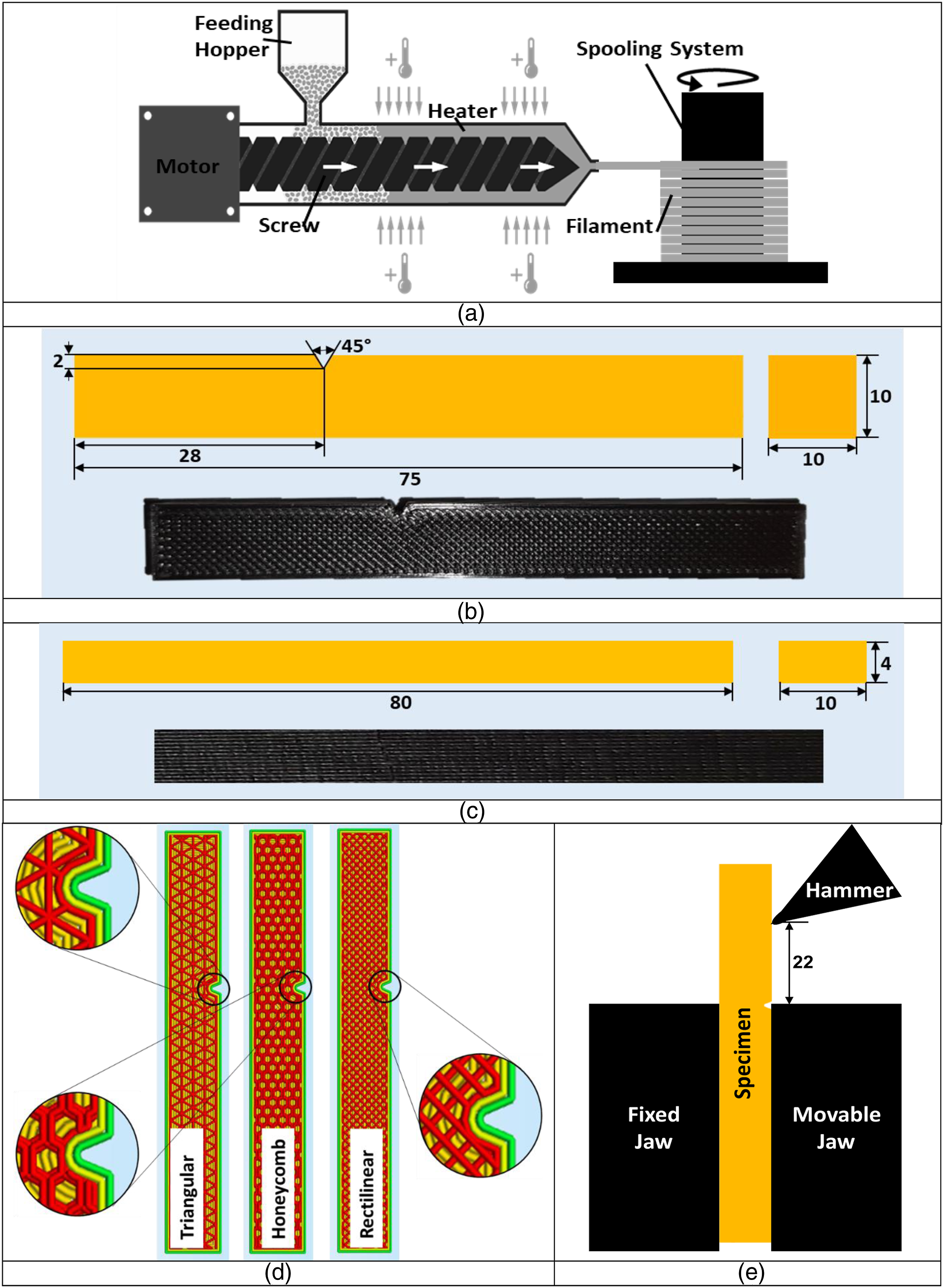

(a) Schematic view of filament fabricating machine (b) ASTM D256 specimen (c) ASTM D790 specimen (d) Selected IFPs (e) Schematic representation of Izod impact test.

The test specimen is produced according to the dimension of Izod impact and flexural testing standard ASTM D256 and ASTM D790, respectively, illustrates in Figure 2(b) and 2(c). Following the creation of specimens in Solidworks, the Simplify3D programme was used to convert the files to G-code, which was then fed into the FFF setup. With the help of a Cubic3D CUB 5.5 FFF setup, impact test specimens were made from three different polymer composites. The 36 flexural specimens were produced utilising CF-PLA, CF-PETG, and MWCNTs-PLA with different IFP (line, triangle, honeycomb, and rectilinear) and NHD (0.2 mm, 0.4 mm, and 0.6 mm) with fixed process parameters, Table 1. Following flexural testing, data analysis is carried out to determine the top three IFP based on the flexural strength at a specific NHD, Table 2. As a result, 27 different combinations of the process parameters are determined, and based on those combinations, impact test specimens built of the filaments CF-PLA, CF-PETG, and MWCNTs-PLA are created.

Table 1.

Process parameters.

Fixed process parameters			Variable process parameters
Parameter	Value	Unit	Parameter	Values	Unit
Liquefier temperature	210	°C	Nozzle holeDiameter	0.6	mm
Bed temperature	60	°C		0.4	mm
Build orientation	XY	—		0.2	mm
External infill pattern	Concentric	—	Internal fillingPattern	Rectilinear	—
Infill density	60	%		Honeycomb	—
Feed rate	40	mm/s		Triangular	—
Layer height	0.15	mm

Table 2.

Testing data for different polymer composites.

S. No.	Filament material	NHD	IFP	Flexural strength	Selected specimen	Energy absorbed	Impact strength	Standard deviation
S. No.	Filament material	(mm)	IFP	(MPa)	Selected specimen	(kg-m)	(kJ/m²)	(kJ/m²)
F01	CF-PLA	0.2	Line	28.339	-	-	-	-
F02			Triangular	46.631	A1	0.41	24.97	0.47
F03			Honeycomb	53.119	A2	0.39	23.75	0.54
F04			Rectilinear	45.387	A3	0.45	27.41	0.46
F05		0.4	Line	28.456	-	-	-	-
F06			Triangular	48.980	A4	0.52	31.67	0.48
F07			Honeycomb	53.797	A5	0.45	27.41	0.75
F08			Rectilinear	48.856	A6	0.55	33.5	0.47
F09		0.6	Line	30.405	-	-	-	-
F10			Triangular	51.364	A7	0.55	33.5	0.55
F11			Honeycomb	57.135	A8	0.50	30.45	0.77
F12			Rectilinear	50.283	A9	0.62	37.76	0.51
F13	CF-PETG	0.2	Line	27.024	-	-	-	-
F14			Triangular	46.052	B1	0.38	23.14	0.71
F15			Honeycomb	50.864	B2	0.40	24.36	0.47
F16			Rectilinear	46.714	B3	0.45	27.41	0.81
F17		0.4	Line	33.292	-	-	-	-
F18			Triangular	53.971	B4	0.40	24.36	0.54
F19			Honeycomb	54.876	B5	0.42	25.58	0.44
F20			Rectilinear	51.787	B6	0.53	32.28	0.63
F21		0.6	Line	37.588	-	-	-	-
F22			Triangular	65.489	B7	0.51	31.06	0.68
F23			Honeycomb	63.976	B8	0.55	33.5	0.69
F24			Rectilinear	58.884	B9	0.59	35.94	0.67
F25	MWCNTs-PLA	0.2	Line	21.079	-	-	-	-
F26			Triangular	39.277	C1	0.42	25.58	0.68
F27			Honeycomb	41.090	C2	0.56	34.11	0.30
F28			Rectilinear	46.408	C3	0.53	32.28	0.67
F29		0.4	Line	26.476	-	-	-	-
F30			Triangular	42.641	C4	0.47	28.63	0.83
F31			Honeycomb	45.765	C5	0.59	35.94	0.54
F32			Rectilinear	47.845	C6	0.56	34.11	0.66
F33		0.6	Line	30.902	-	-	-	-
F34			Triangular	52.401	C7	0.49	29.84	0.56
F35			Honeycomb	61.308	C8	0.61	37.15	0.30
F36			Rectilinear	70.653	C9	0.58	35.33	0.39

In this analysis, 27 specimens (set of 5) were created using three filaments of diameter 1.75 mm with fixed and variable process parameters, Table 1. Figure 2(d) depicts the three selected IFPs (triangular, honeycomb, and rectilinear) that were considered for this study. For the impact test specimen, the infill density employed is 60%. The fabricated specimens already have the notch built into them since it was part of the original specimen design, Figure 2(d).

The impact testing of the fabricated specimens was conducted using an Izod impact testing machine. Its pendulum measures 0.9949 m in length and 16.6 kg in weight, with a striking velocity of 3.2 m/s. Figure 2(e) depicts a diagrammatic representation of the impact test.

Table 2 displays the results of impact testing performed on CF-PLA, CF-PETG, and MWCNTs-PLA specimens. The effects of altering the parameters of the process and the materials utilized in the fabrication are analysed and compared. A filament material's fracture morphology is analysed and compared for better knowledge of failure mechanisms. To learn more about how changing process factors affect mechanical behaviour, the impact test data is analysed using ANOVA with the Taguchi method and RSM.

Results and discussion

Number of specimens used for each process parameter combination, including IFP (line, triangular, honeycomb, and rectilinear) and NHD (0.2 mm, 0.4 mm, and 0.6 mm) with CF-PLA, CF-PETG, and MWCNTs-PLA as the fabricating material, is illustrated in Table 2. For flexural behaviour of several specimens, the variation of stress against strain is depicted graphically in Figure 3.

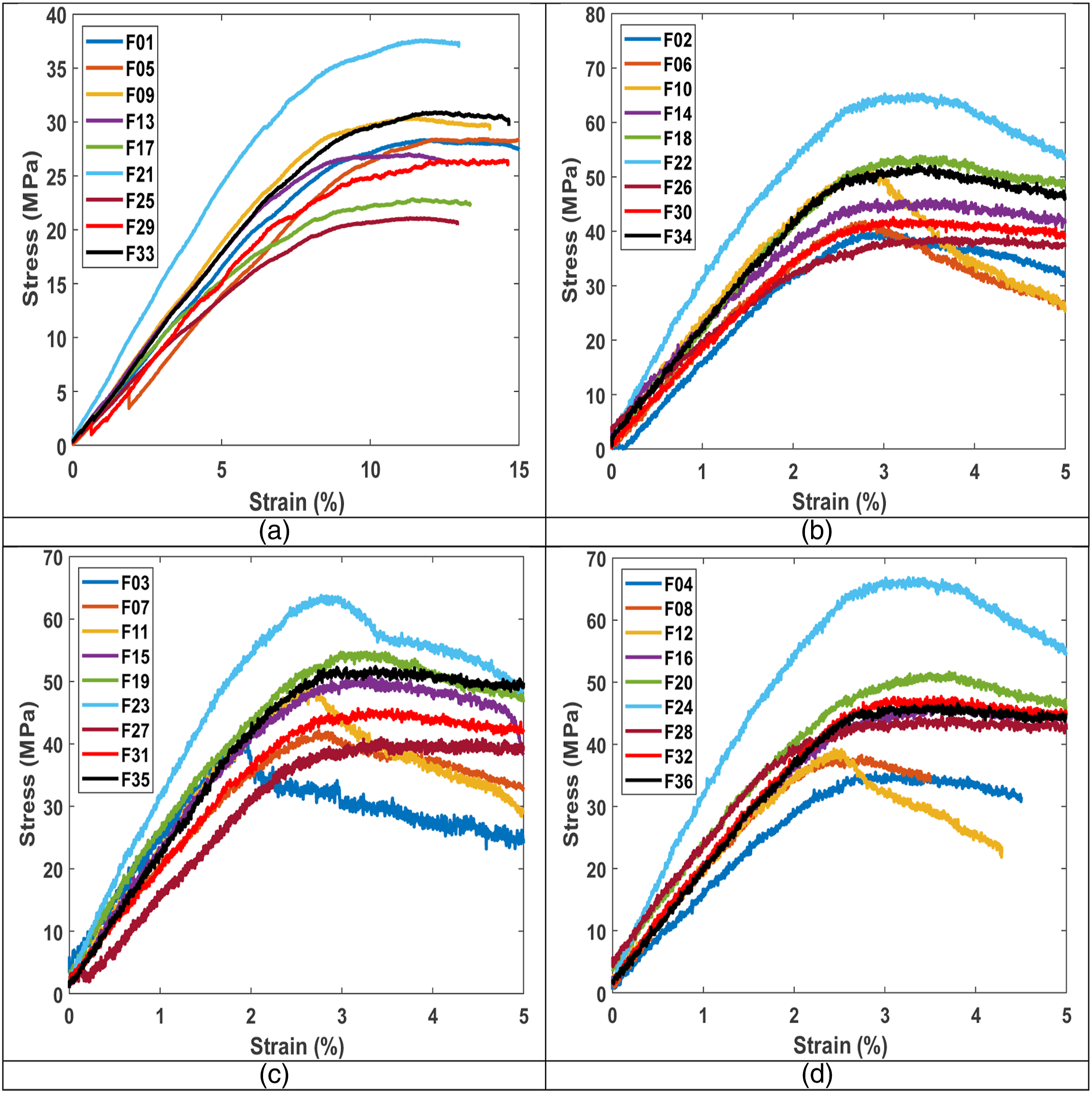

Figure 3.

Stress strain graph for flexural behaviour at different IFPs (a) Line, (b) Triangular, (c) Honeycomb, (d) Rectilinear.

The minimum flexural strength obtained is 21.079 MPa at NHD 0.2 mm and line IFP for MWCNTs-PLA and the maximum flexural strength obtained is 70.653 MPa at NHD 0.6 mm and rectilinear IFP for MWCNTs-PLA, hence flexural strength is enhanced by 235.18% by varying the selected process parameters.

The examination of impact behaviour for a specific NHD involves the selection of the top three IFPs, which are determined based on their flexural strength. Further, this section covers the comparative experimental, fractographic, and statistical analysis of the impact test specimen that was caused by a change in the NHD and selected top three IFPs.

Experimental analysis

The discussion for this part will focus on the effect that NHD and IFP have on the impact strength of the fabricated specimen. Figure 4 illustrates the impact strength variation for different impact specimen.

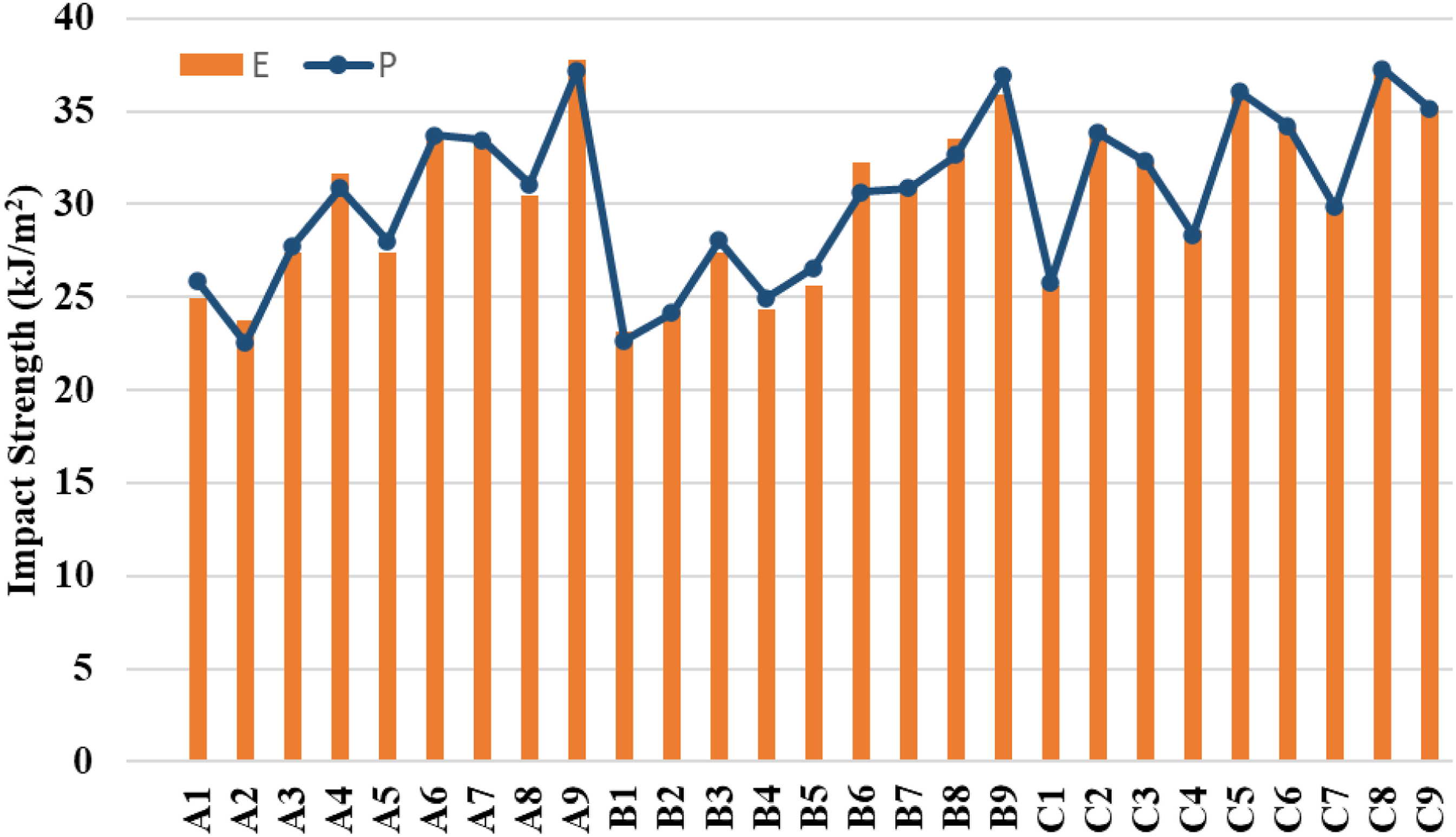

Figure 4.

Impact strength variation for different specimens.

Effect of nozzle hole diameter

Three different values of NHD viz 0.2 mm, 0.4 mm, and 0.6 mm are utilized in this experiment. NHD is the factor that decides both the possible layer height and, by extension, the fabrication speed in an indirect manner. In the following section, a comparison of the impact strength is carried out at various NHDs for a specific IFP.

Carbon fibre reinforced poly-lactic acid

The impact strength attained for specimen A3 is 27.41 kJ/m² at NHD 0.2 mm for rectilinear IFP, and this increases by 22.22% and 37.76%, when the NHD is increased to 0.4 mm (33.50 kJ/m², A6) and 0.6 mm (37.76 kJ/m², A9), respectively. The impact strength is increased by 34.16% and 26.83% on altering the NHD from 0.2 mm (A1, 24.97 kJ/m²) to 0.6 mm (A7, 33.50 kJ/m²) and 0.4 mm (A4, 31.67 kJ/m²), respectively while IFP is triangular, Figure 4. By expanding the bonding area between neighbouring rasters, the NHD increment improves the impact behaviour while all other parameters are held fixed.

For CF-PLA, larger NHD allowed the deposition of a greater volume of filament material per layer. This increased material flow rate can facilitate better alignment and distribution of the CFs within the printed part. Improved fibre alignment enhanced the load-bearing capability and impact resistance of the CF-PLA, resulting in higher impact strength.

Carbon fibre reinforced poly-ethylene terephthalate glycol

For CF-PETG specimens with honeycomb IFP, the impact strength is enhanced by 37.52% and 5.01% on adjusting the NHD from 0.2 mm (B2, 24.36 kJ/m²) to 0.6 mm (B8, 33.50 kJ/m²) and 0.4 mm (B5, 25.58 kJ/m²), respectively. The impact strength observed for specimen B3 is 27.41 kJ/m² at NHD 0.2 mm for rectilinear IFP, and this improves by 22.22% and 37.76%, when the NHD is modified to 0.4 mm (32.28 kJ/m², B6) and 0.6 mm (35.94 kJ/m², B9), respectively, Figure 4. Due to their high degree of fusion and sparse distribution of voids, the CF-PETG specimens' impact strength is improved by an elevation in NHD.

Using a larger NHD can significantly reduce the print time compared to smaller NHD. Reduced print time can have a positive impact on the interlayer bonding of the CF-PETG, as there is less time for each layer to cool and solidify prior to the subsequent layer is deposited. Improved interlayer bonding contributes to increased impact strength.

Multi walled carbon nano tubes reinforced poly-lactic acid

The impact strength accomplished for specimen C2 is 34.11 kJ/m² at NHD 0.2 mm and boosted by 5.36% and 8.91% for honeycomb IFP when raising the NHD to 0.4 mm (35.94 kJ/m², C5) and 0.6 mm (37.15 kJ/m², C8), respectively. Because internal angles in honeycomb structures are greater, that helps to disperse the impact force inside the body more evenly. For MWCNTs-PLA specimens with triangular IFP, the impact strength is enhanced by 16.65% and 11.92% on adjusting the NHD from 0.2 mm (C1, 25.58 kJ/m²) to 0.6 mm (C7, 29.84 kJ/m²) and 0.4 mm (C4, 28.63 kJ/m²), respectively, Figure 4. Since the impact strength of the MWCNTs-PLA specimens grows with the specific gravity of the produced specimens, increasing the NHD while keeping the other process variables constant raises resistance to the impact force.

With a larger nozzle diameter, the MWCNTs-PLA material can flow more easily and smoothly through the nozzle during the printing process. This improved material flow can minimize issues such as clogging and uneven extrusion, which could adversely affect the structural integrity and impact strength of the fabricated part.

Effect of infill pattern

The experiment employs three distinct IFPs, including triangular, honeycomb and rectilinear. IFP is the determining factor for the impact strength of the different specimens, which is compared for different IFPs for a given NHD in this section.

Carbon fibre reinforced poly-lactic acid

The impact strength accomplished for specimen A4 is 27.41 kJ/m² for honeycomb IFP and boosted by 15.54% and 22.22% at NHD 0.2 mm on altering the IFP to triangular (31.67 kJ/m², A5) and rectilinear (33.50 kJ/m², A6), respectively, Figure 4. The CF-PLA specimens with the honeycomb IFP had the least impact strength of 23.75 kJ/m² (A2) with NHD 0.2 mm. This can be linked to different ways of breaking inside the structure. In contrast to other designs, which are made up of transversely continuing lines, this one is made up of lines that zigzag across one another, creating linkages between them. These connections are notoriously weaker than the lines themselves and may lead to a breakdown.

It is also observed that CF-PLA specimens with rectilinear IFP exhibit better resistance to delamination. The continuous parallel lines in the IFP act as barriers, restricting crack propagation and minimizing the risk of interlayer separation. Delamination can be a critical mode of failure during impact testing, and the rectilinear IFP facilitates to mitigate this issue, thereby increasing the impact strength.

Carbon fibre reinforced poly-ethylene terephthalate glycol

With an NHD of 0.2 mm, the CF-PETG specimens with triangular IFP, B1 exhibited the lowest impact strength, at 23.14 kJ/m². Because the triangular IFP produces a simpler structure without any internal redundancies, it has the lowest impact resistance. Additionally, because cracks would put considerably higher strain on the interior structure, it is more prone to failure. For CF-PETG specimens at NHD 0.6 mm, the impact strength is enhanced by 7.86% and 15.71% on modifying the IFP from triangular (B7, 31.06 kJ/m²) to honeycomb (B8, 33.50 kJ/m²) and rectilinear (B9, 35.94 kJ/m²), respectively, Figure 4.

Rectilinear IFP enhances interlayer bonding, increasing contact area for better adhesion. Its parallel lines distribute impact forces, elevating structural integrity by efficient load transfer. This pattern outperforms triangular and honeycomb IFPs, forming interconnected ribs for effective energy distribution, reducing localized failures, and boosting impact strength.

Multi walled carbon nano tubes reinforced poly-lactic acid

The impact strength for specimen C4 is observed to be 28.63 kJ/m² for triangular IFP. Switching the IFP to rectilinear (34.11 kJ/m², C6) and (35.94 kJ/m², C5) increases the impact strength by 19.14% and 25.53% at NHD 0.2 mm, respectively, Figure 4. With an NHD of 0.6 mm, the MWCNTs-PLA specimens with honeycomb IFP, C8 exhibited the highest impact strength of 37.15 kJ/m². Because internal angles in honeycomb structures are greater, that helps to disperse the impact force inside the body more evenly.

The honeycomb IFP enhances energy absorption in impact tests for MWCNTs-PLA. Its hexagonal cells deform under stress, dispersing impact energy and distributing forces, boosting impact strength. The geometric configuration grants structural stability, resisting deformation and reinforcing the part against impacts, surpassing triangular or rectilinear IFP in impact resistance.

Fracture analysis

In this section, the high-end microscopic images are examined for various mechanisms of failure, such as raster failure, weak bonding, voids, layer separation, delamination, and raster separation, for selected tested specimens. Understanding how well a fabricating material and process parameters prevents failure is important when analysing its impact behaviour. It is clear, as demonstrated by the fractography of the tested specimens, that different breaking fracture modes are discernible for the different IFP and NHD. During a standard Izod impact test, the load influence might be affected by the geometry of the IFP. Additionally, the NHD has a significant effect on bonding between adjacent rasters and layers. For comparative examination, the high-end microscopy is performed for the specimen with maximum impact strength at particular IFP.

Carbon fibre reinforced poly-lactic acid

The effects of IFP on the failure mechanism of the CF-PLA specimens are illustrated in Figure 5. The failure of specimen A7 is oblique to the notch due to individual raster failure with CF pullout, Figure 5(a), resulting in an impact strength of 33.50 kJ/m², at NHD 0.6 mm and triangular IFP. Specimen A8 had minimum impact strength of 30.45 kJ/m² at NHD 0.6 mm with honeycomb IFP due to its failure, which was predominantly caused by rupture of raster without pulling and necking, Figure 5(b). Failure in specimen A9 was induced parallel to the notch mostly by breaking of raster and CFs with sufficient pulling and necking, Figure 5(c), resulting in maximum impact strength of 37.76 kJ/m² at NHD 0.6 mm and rectilinear IFP. This is due to structure-breaking methods. Unlike triangular and rectilinear IFPs, the honeycomb has zigzag lines in its structure. These connections are often weaker than the continuous lines.

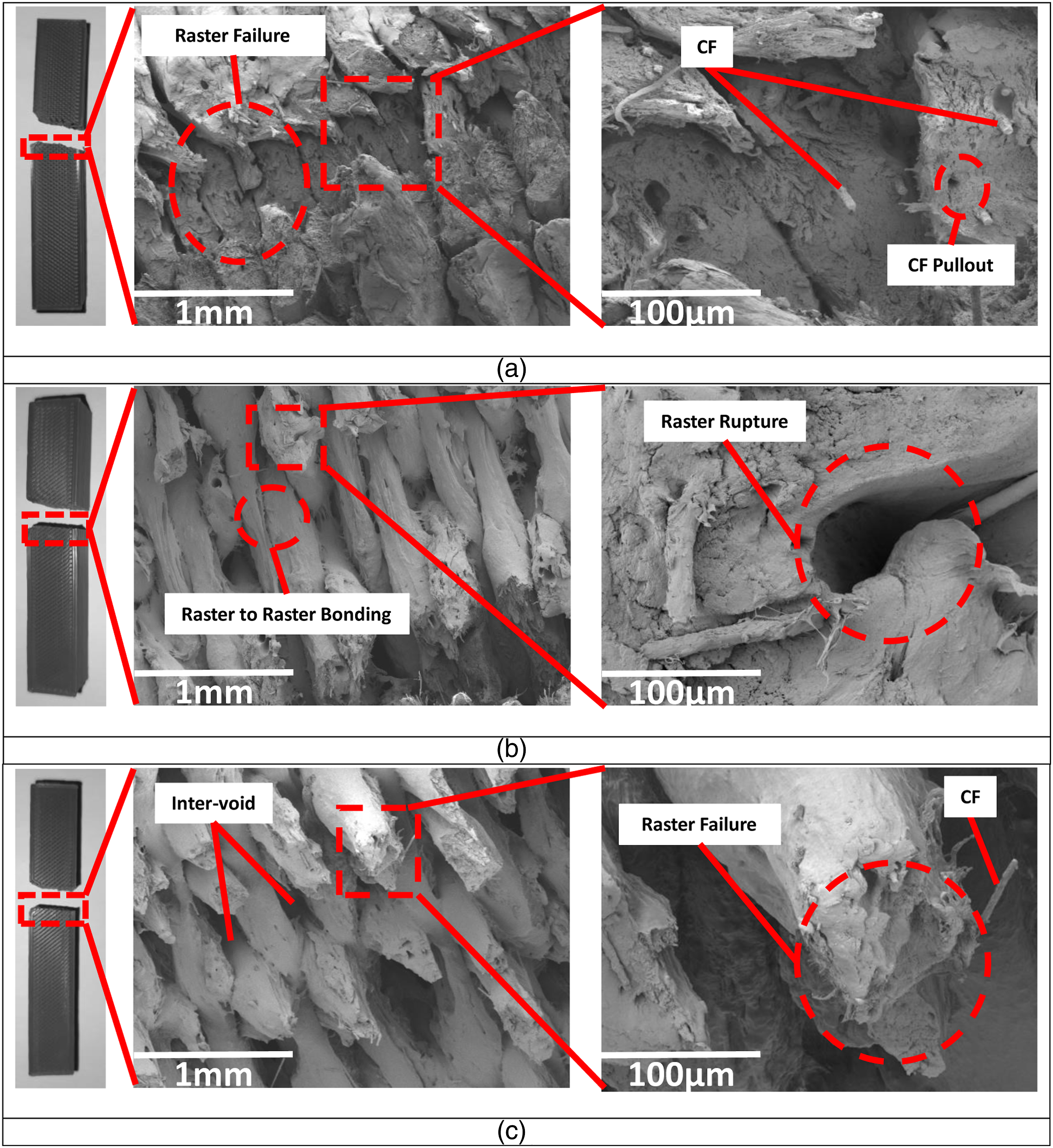

Figure 5.

Fracture surface of the CF-PLA specimens at NHD 0.6 mm with different IFPs (a) triangular-A7, (b) honeycomb-A8, (c) rectilinear-A9.

Weak raster bonding refers to insufficient adhesion between the layers, resulting in reduced strength and structural integrity. Adjusting these parameters including liquefier temperature, layer height, and IFP improve the bonding between the layers and enhance the impact strength of the CF-PLA specimens.

Carbon fibre reinforced poly-ethylene terephthalate glycol

Figure 6 illustrates the effects of IFP on the various failure modes that were seen in the CF-PETG specimens. CF-PETG specimens have failure oblique to the notch. The failure of specimen B8 is predominantly caused by intra-voids of the raster with CF pullout, Figure 6(b). Consequently, the specimen had an impact strength of 33.50 kJ/m² at NHD 0.6 mm and honeycomb IFP. The failure in specimen B9 was caused mostly by the breaking of raster and CFs, Figure 6(c), which resulted in maximum impact strength of 37.76 kJ/m² at NHD 0.6 mm and rectilinear IFP. Because of its failure, Specimen B7 had a minimum impact strength of 31.06 kJ/m² at NHD 0.6 mm with triangular IFP. This was attributable to the fact that the voids between the neighbouring rasters and the CFs pullout weaken the raster, Figure 6(a), which was the primary reason for the failure. The triangular IFP has the lowest impact resistance because it generates a more straightforward structure that is devoid of any redundant elements on the inside, which would make it more susceptible to failure.

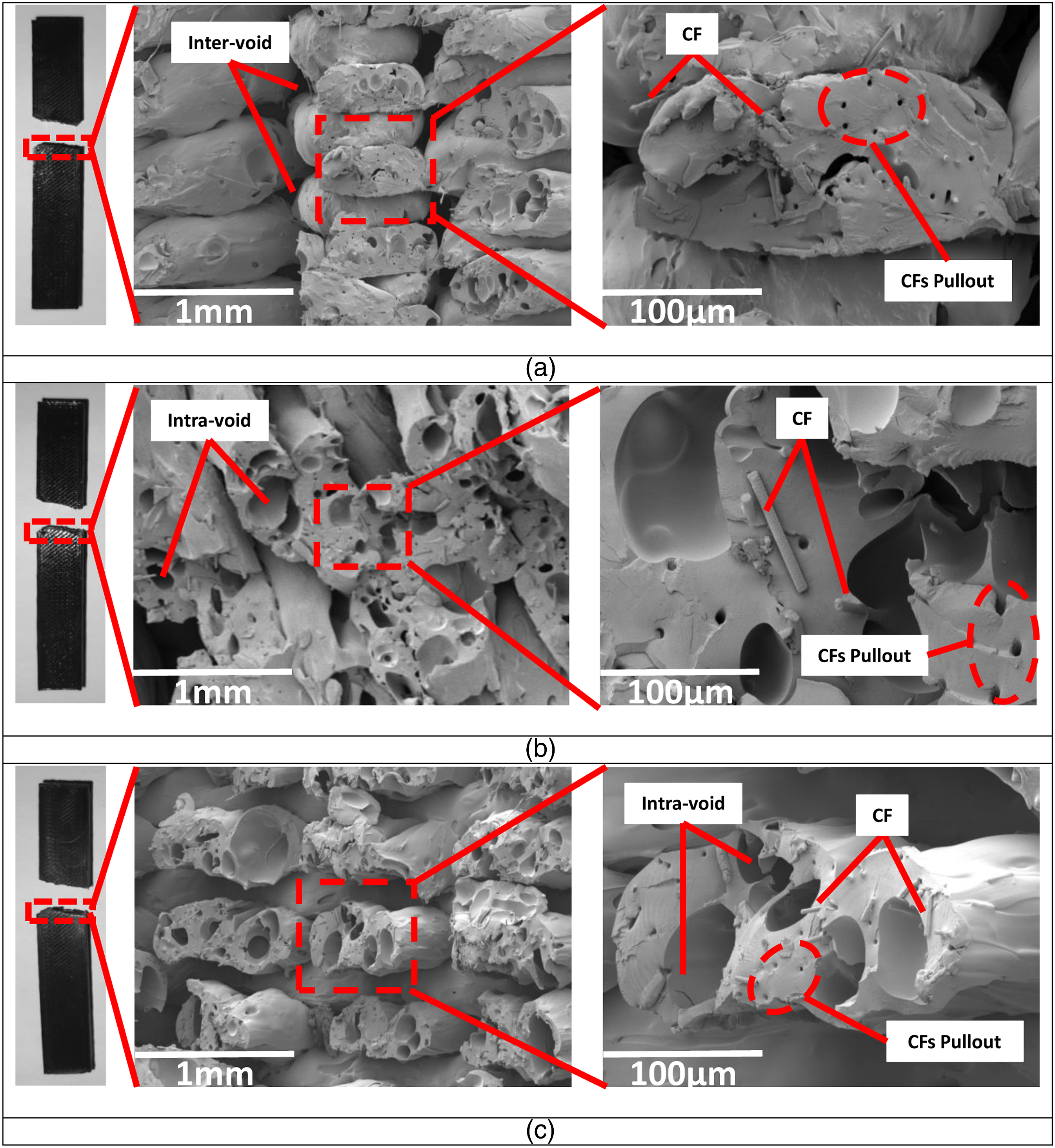

Figure 6.

Fracture surface of the CF-PETG specimens at NHD 0.6 mm with different IFPs (a) triangular-B7, (b) honeycomb-B8, (c) rectilinear-B9.

CFs of the CF-PETG filament provides increased strength and stiffness. The orientation and load sustaining capacity of the CFs within the printed part can greatly affect its impact behaviour. Optimizing the print parameters, such as IFP and NHD, provide the desired fibre alignment, minimize voids, and maximize impact resistance.

Multi walled carbon nano tubes reinforced poly-lactic acid

In Figure 7, the impacts of IFP on the various failure modes that were observed in the MWCNTs-PLA specimens are depicted with mostly failure oblique to the notch. Figure 7(a) illustrates that voids between the adjacent rasters are the primary cause of the brittle failure of specimen C7. As a direct result of this, the specimen had a minimum impact strength of 29.84 kJ/m² when measured for triangular IFP and NHD 0.6 mm. Figure 7(c) reveals that the failure in specimen C9 was mostly caused by the breaking of raster depicting combination of ductile and brittle failure with impact strength of 35.33 kJ/m² at NHD 0.6 mm and rectilinear IFP. Specimen C8 had a maximum impact strength of 37.15 kJ/m² at NHD 0.6 mm with triangular IFP. This is because the specimen has more necking of the individual raster before failure in comparison to the other specimen, Figure 7(b). Honeycomb IFP, which have higher internal angles than other types of structures, help to distribute the force of an impact more equally throughout the specimen.

Figure 7.

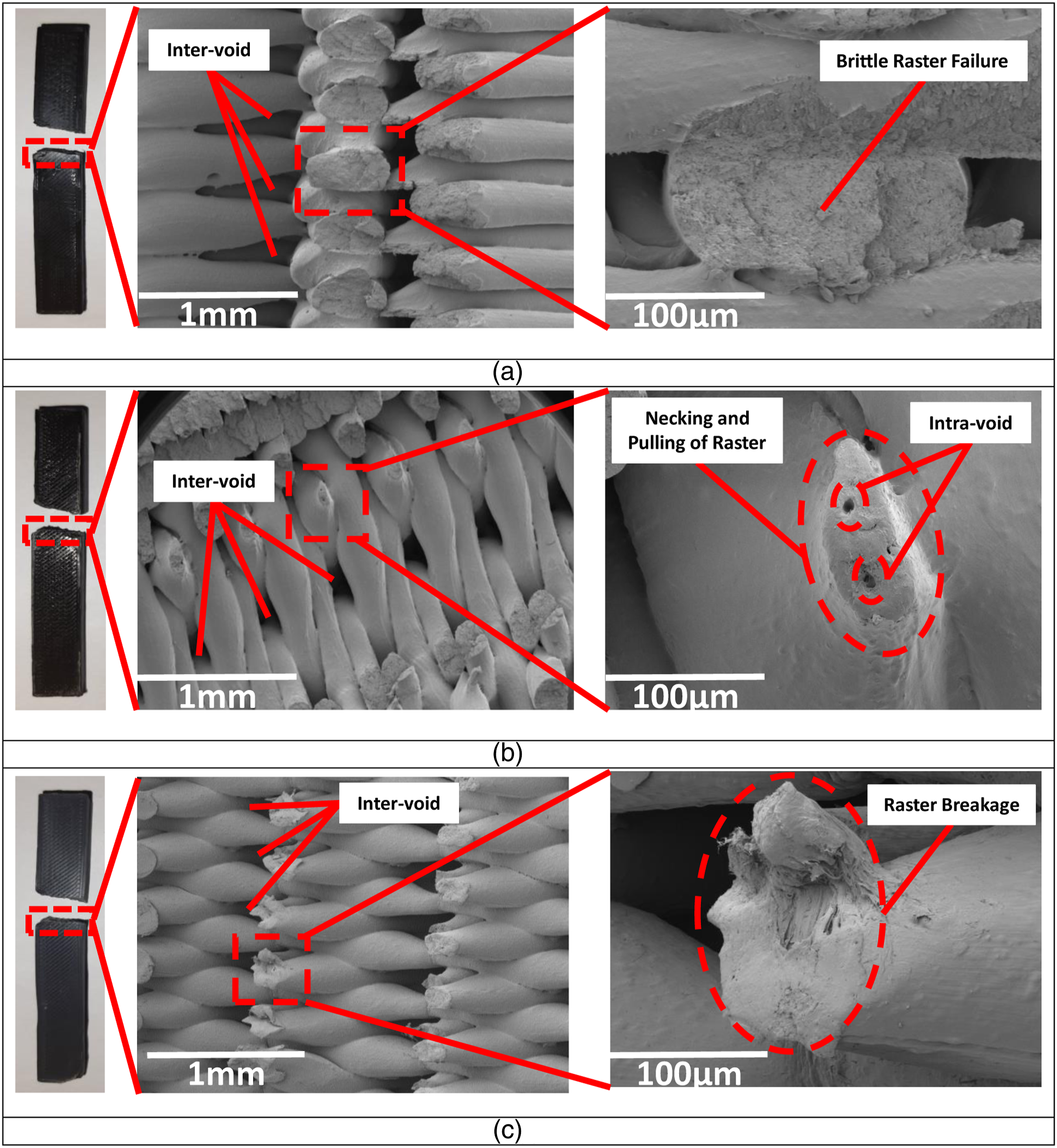

Fracture surface of the MWCNTs-PLA specimens at NHD 0.6 mm with different IFPs (a) triangular-C7, (b) honeycomb-C8, (c) rectilinear-C9.

The addition of MWCNTs to PLA is intended to enhance impact behaviour. However, the concentration and dispersion of MWCNTs within the PLA matrix can significantly affect its impact behaviour. It is important to ensure that the MWCNTs are uniformly distributed and properly dispersed throughout the PLA filament to enhance the impact behaviour with improved toughness and reduced brittleness.

The fractography images shown in Figures 5–7 has different type of voids detected in the different specimens. Inter-voids occur recurringly as a result of raster spreading. Caused by the peculiarities of the flow of the fused material and the design of the nozzle. However, intra-voids develop within the raster. The existence of these voids affects the impact behaviour of the generated specimen and can be mitigated by modifying the proper process parameters.

Statistical analysis

The statistical analysis is performed for evaluating and comparing the influence of selected process parameters (NHD and IFP) to the target factor (impact strength) using Taguchi method and response surface method. The Table 3 illustrates the design of experiments combinations for different fabricating materials.

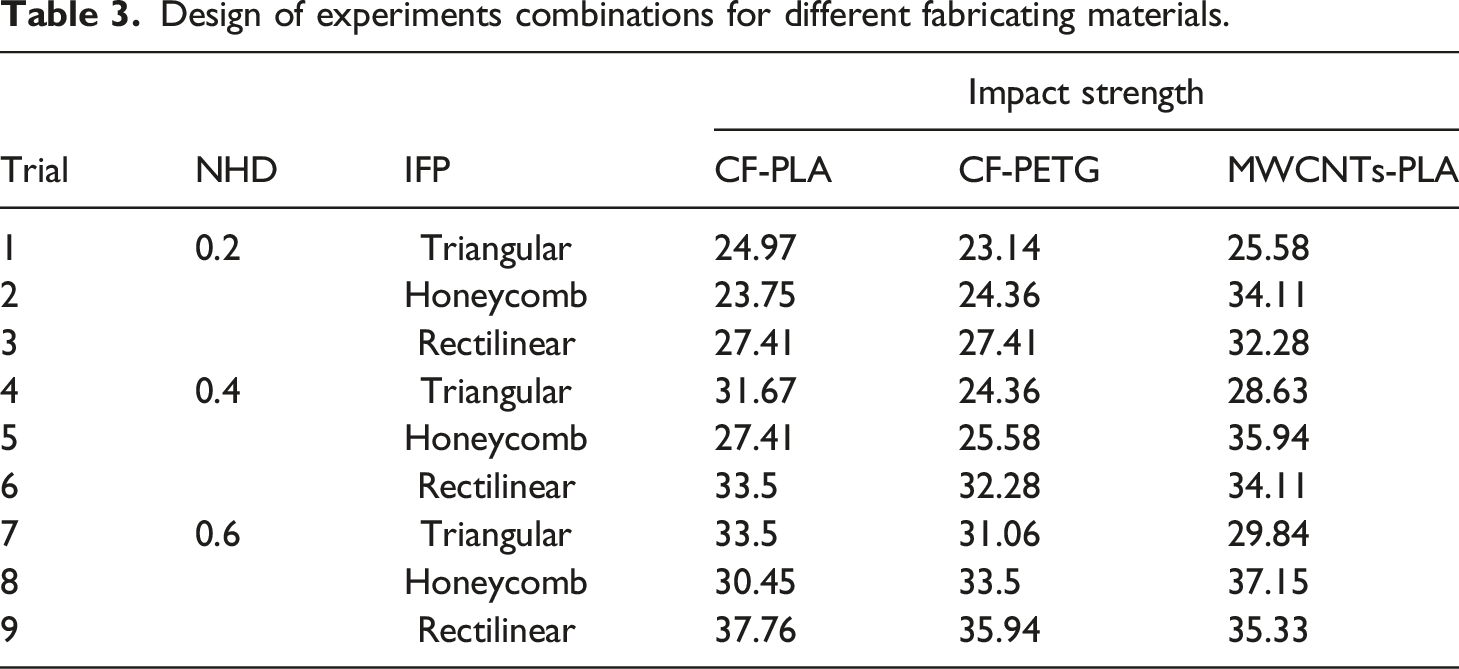

Table 3.

Design of experiments combinations for different fabricating materials.

Trial	NHD	IFP	Impact strength
Trial	NHD	IFP	CF-PLA	CF-PETG	MWCNTs-PLA
1	0.2	Triangular	24.97	23.14	25.58
2		Honeycomb	23.75	24.36	34.11
3		Rectilinear	27.41	27.41	32.28
4	0.4	Triangular	31.67	24.36	28.63
5		Honeycomb	27.41	25.58	35.94
6		Rectilinear	33.5	32.28	34.11
7	0.6	Triangular	33.5	31.06	29.84
8		Honeycomb	30.45	33.5	37.15
9		Rectilinear	37.76	35.94	35.33

ANOVA with Taguchi method

Taguchi analysis uses S/N ratio diagrams for data interpretation. As the determination of this study was to find the best combination of attributes, namely NHD, including 0.2 mm, 0.4 mm, and 0.6 mm, and IFP, including triangular (T), honeycomb (H), and rectilinear (R), to achieve the highest possible impact resistance, all S/N ratio diagram parameters were analysed using a “the larger, the better” criterion. The best scenario is depicted by the S/N ratio's peak point on the graph. Impact strength S/N ratio diagrams are shown in Figures 8, 10, and 12 for CF-PLA, CF-PETG, and MWCNTs-PLA specimens, respectively. The experimental results are examined using the MINITAB 21 programme.

Figure 8.

S/N ratio diagram for impact behaviour of CF-PLA specimens.

Carbon fibre reinforced poly-lactic acid

According to the p-value from Table 4, NHD has the highest influence on impact strength for CF-PLA specimens, followed by IFP with R² value of 98.30%. Referring to Figure 8, impact behaviour in the range of NHD of 0.2 mm to 0.4 mm changed more in comparison to the range of 0.4 mm to 0.6 mm. As a result, as the NHD increases, the layers penetrate each other more deeply, increasing interlayer strength. Therefore, at higher NHD impact behaviour improve. For CF-PLA, rectilinear IFP provides the maximum strength in comparison to triangular and honeycomb IFP. The best process parameter combination to maximise the impact resistance of the CF-PLA specimens was NHD 0.6 mm and rectilinear IFP. Observing Figure 9, it is clear that the impact behaviour of the CF-PLA specimens is significantly depending on the NHD and IFP. The NHD affects the bonding between layers. With a larger NHD, the deposited filament is leading to better interlayer adhesion. This results in stronger, more robust parts. The IFP decides the internal structure of the fabricated part, influencing its strength and weight.

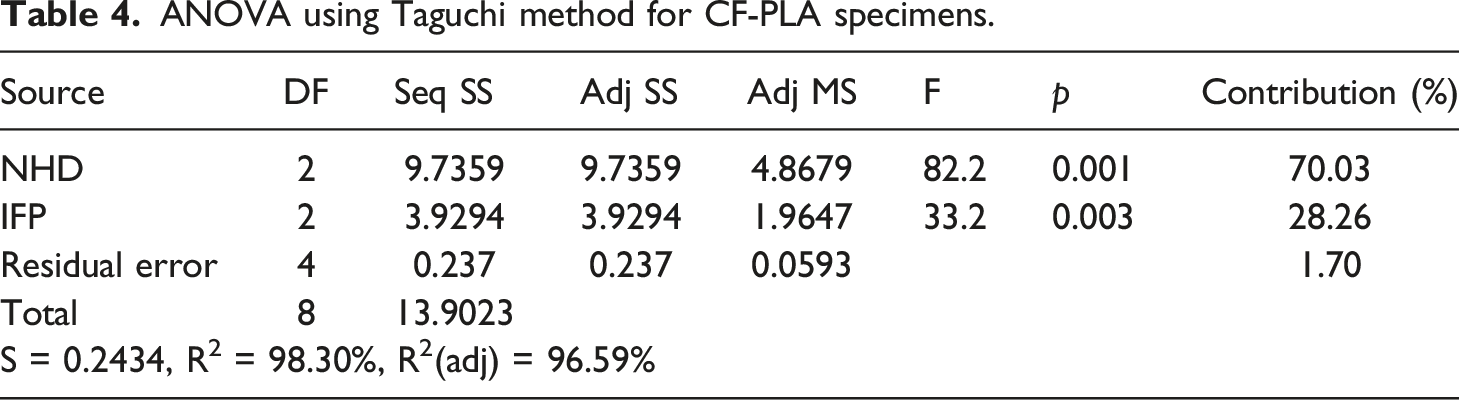

Table 4.

ANOVA using Taguchi method for CF-PLA specimens.

Source	DF	Seq SS	Adj SS	Adj MS	F	p	Contribution (%)
NHD	2	9.7359	9.7359	4.8679	82.2	0.001	70.03
IFP	2	3.9294	3.9294	1.9647	33.2	0.003	28.26
Residual error	4	0.237	0.237	0.0593			1.70
Total	8	13.9023
S = 0.2434, R² = 98.30%, R²(adj) = 96.59%

Figure 9.

Interaction plot for impact behaviour of CF-PLA specimens.

Carbon fibre reinforced poly-ethylene terephthalate glycol

When comparing the impact behaviour at NHDs of 0.4 mm to 0.6 mm using Figure 10, it is clear that the 0.4 mm to 0.6 mm range experienced more variation. Since the raster-to-raster bonding improves. Thus, better impact behaviour is shown at greater NHD influence. When comparing rectilinear IFP to triangular and honeycomb IFP, rectilinear IFP is the best alternative for CF-PETG. NHD 0.6 mm and rectilinear IFP were found to be the best combination of parameters for maximising the impact resistance of the CF-PETG specimens. Based on Figure 11, It is evident that the NHD and IFP play a crucial role in determining how the CF-PETG specimens react to an impact. Based on the p-value from Table 5, NHD has the highest influence on impact strength for CF-PETG specimens, trailed by IFP with R² value of 96.01%. While the IFP does play a role in print quality and strength, it is typically a secondary consideration compared to the NHD. The rectilinear IFP of CF-PETG specimens contributed to improved impact behaviour by allowing the load to distribute more evenly throughout the specimen, reducing the risk of localized stress concentrations with proper layer adhesion with NHD 0.6 mm.

Figure 10.

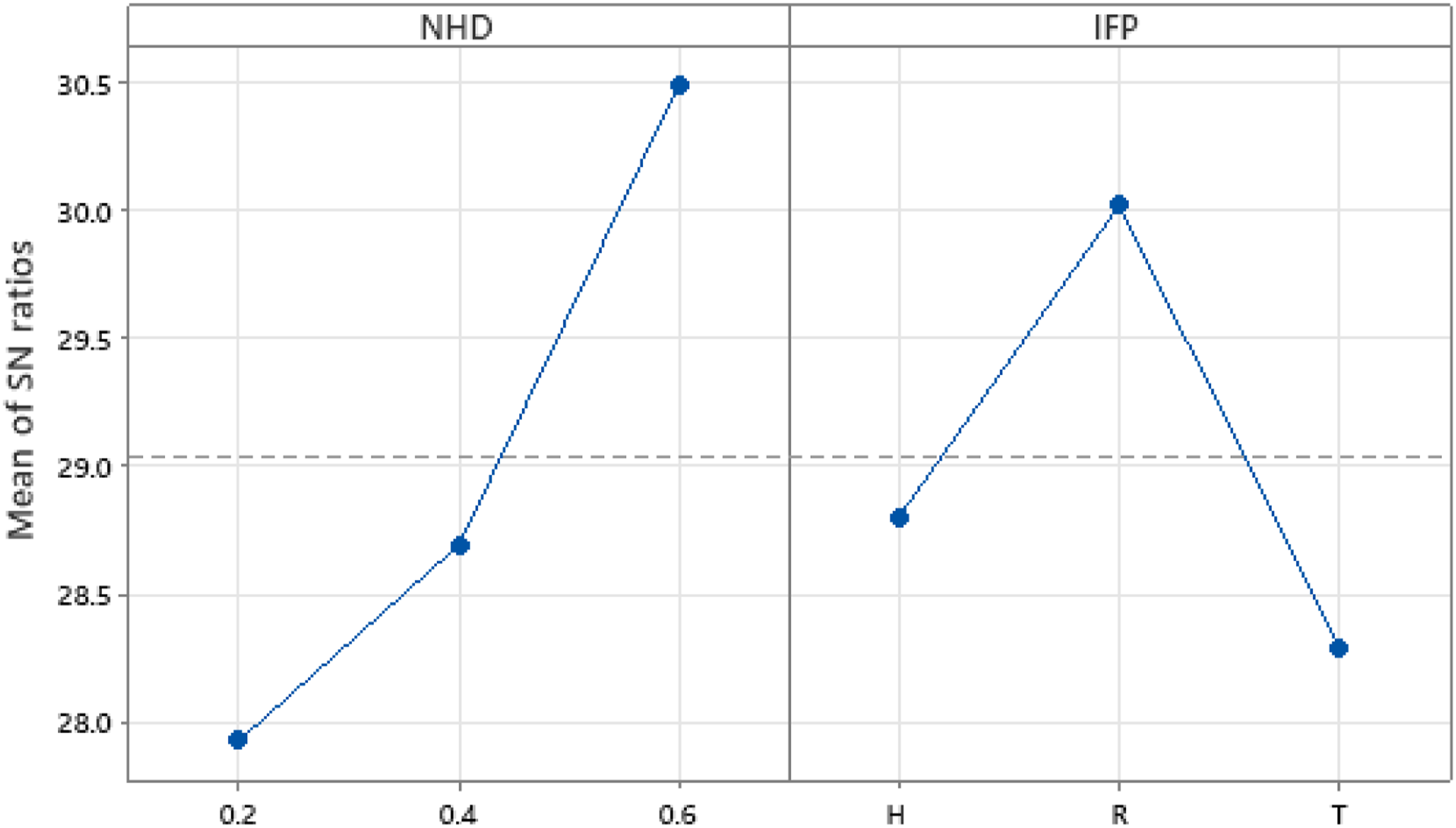

S/N ratio diagram for impact behaviour of CF-PETG specimens.

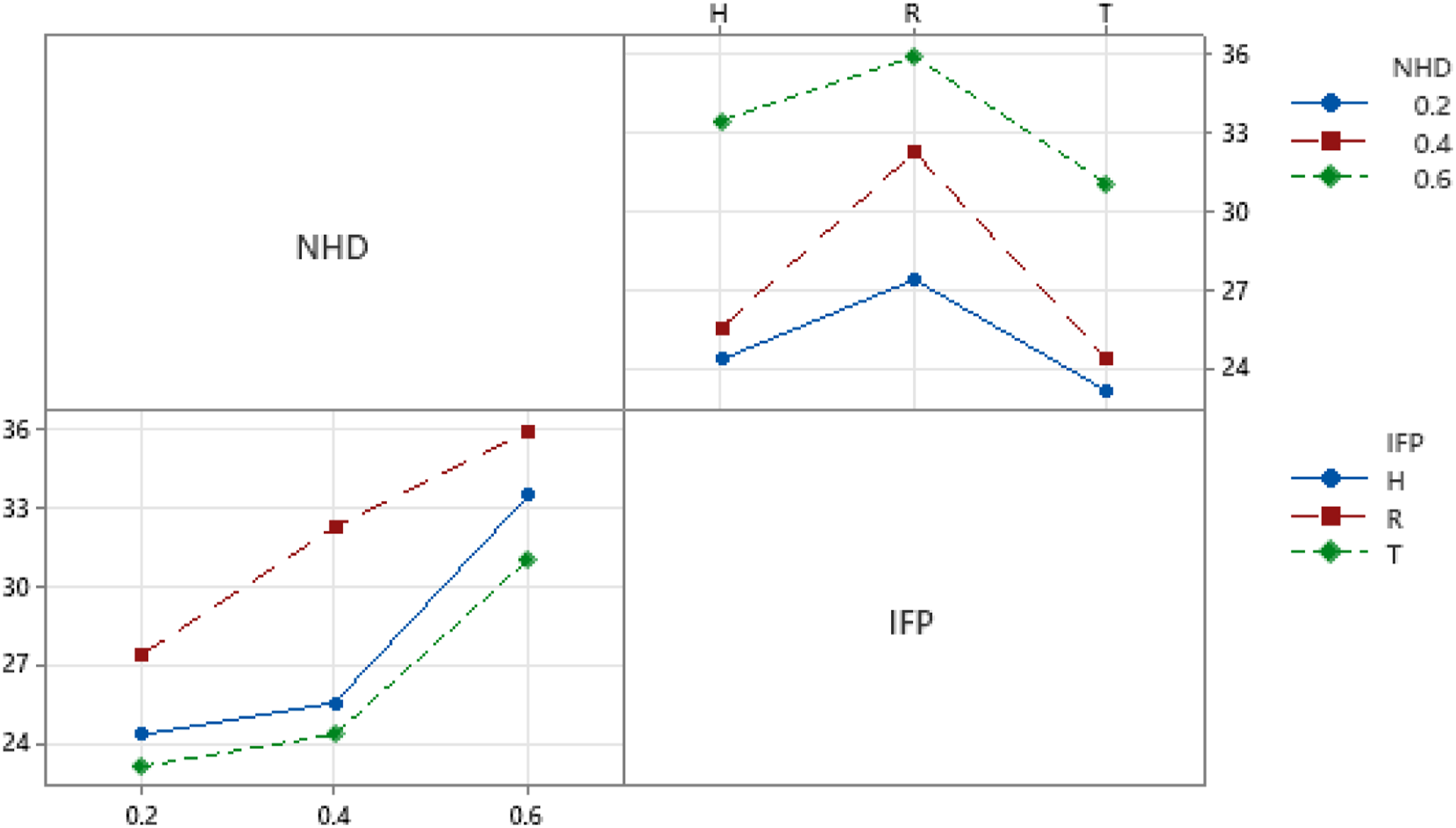

Figure 11.

Interaction plot for impact behaviour of CF-PETG specimens.

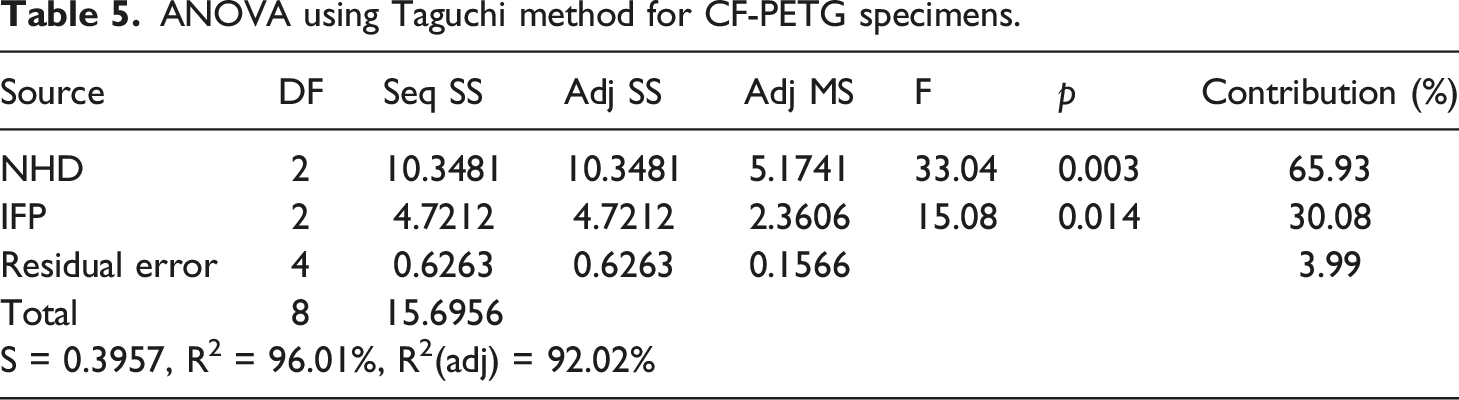

Table 5.

ANOVA using Taguchi method for CF-PETG specimens.

Source	DF	Seq SS	Adj SS	Adj MS	F	p	Contribution (%)
NHD	2	10.3481	10.3481	5.1741	33.04	0.003	65.93
IFP	2	4.7212	4.7212	2.3606	15.08	0.014	30.08
Residual error	4	0.6263	0.6263	0.1566			3.99
Total	8	15.6956
S = 0.3957, R² = 96.01%, R²(adj) = 92.02%

Multi walled carbon nano tubes reinforced poly-lactic acid

Corresponding to the p-value, IFP has the highest influence on impact strength for MWCNTs-PLA specimens, trailed by NHD with R² value of 98.53%, Table 6. Referring to Figure 12, it can be seen that impact behaviour in the range of NHD of 0.2 mm to 0.4 mm improved more in comparison to the range of 0.4 mm to 0.6 mm. When comparing honeycomb IFP to triangular and rectilinear IFP, honeycomb IFP is the best choice for improving the impact resistance of MWCNTs-PLA specimens. The best process parameter combination to enhance the impact resistance of the MWCNTs-PLA specimens was NHD 0.6 mm and honeycomb IFP. Figure 13 illustrate the interactive effect of NHD and IFP over the impact resistance for the MWCNTs-PLA specimens. The IFP affects the distribution of the MWCNTs within the fabricated part. Achieving a uniform dispersion of MWCNTs throughout the PLA matrix is crucial for maximizing the mechanical behaviour of the fabricated specimen. The honeycomb IFP and 0.6 mm NHD evenly dispersed and aligned the MWCNTs, which enhances the overall strength and stiffness of the fabricated part.

Table 6.

ANOVA using Taguchi method for MWCNTs-PLA specimens.

Source	DF	Seq SS	Adj SS	Adj MS	F	p	Contribution (%)
NHD	2	1.4182	1.4182	0.7091	21.3	0.007	15.65
IFP	2	7.5117	7.5117	3.7559	113	0	82.88
Residual error	4	0.1331	0.1331	0.0333			1.47
Total	8	9.0631
S = 0.1824, R² = 98.53%, R²(adj) = 97.06%

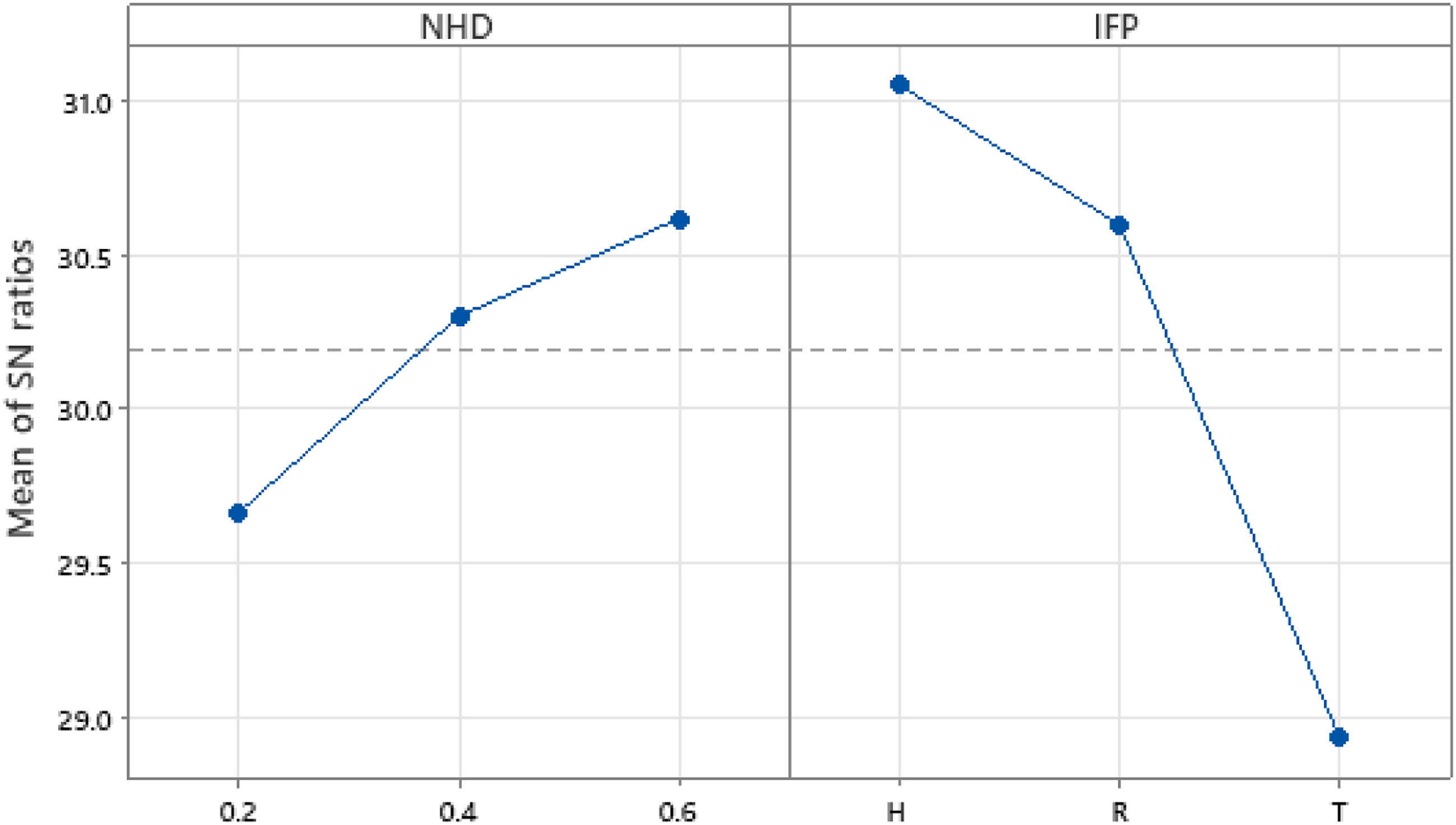

Figure 12.

S/N ratio diagram for impact behaviour of MWCNTs-PLA specimens.

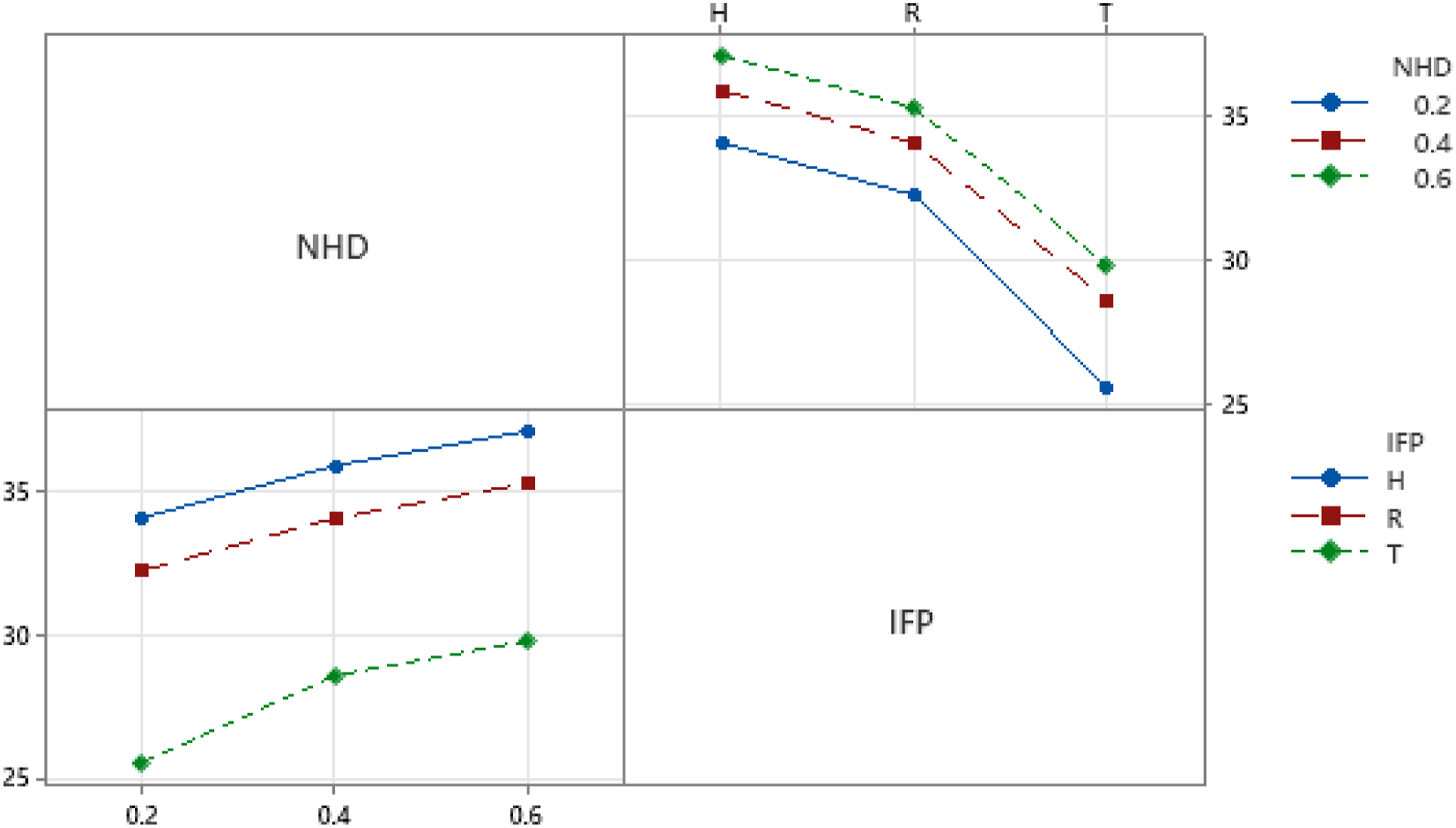

Figure 13.

Interaction plot for impact behaviour of MWCNTs-PLA specimens.

ANOVA with response surface method

This study also used a response surface method statistical technique for its design of experiment. MINITAB 21 was utilised for the statistical analysis. The software's primary function is to conduct statistical assessment of the influence of selected parameters on the impact behaviour of produced polymer composites. This research used a 95% confidence interval to establish the significance of the influence of the IFP and NHD. In statistical terms, this corresponds to an alpha value of 0.05. On the other hand, this response surface methodology can be utilised to model and analyse problems, as well as enhance results via the model created. Overarchingly, the goal of analysis is to find the optimal value for a set of inputs that enhances impact strength (IS).

The ANOVA was performed to find the relative importance of the various input process parameters and their effect on the final outcome of the experiment. Adjusted sum of squares (Linear (NHD, and IFP), Square (NHD × NHD, and IFP × IFP), and 2-way interaction (NHD × IFP)) were used to determine what percentage of variation in each input process parameter resulted in the observed variation in the response. For regression analysis, the values used for IFP are 1, 2, and 3 for triangular, honeycomb, and rectilinear, respectively.

Carbon fibre reinforced poly-lactic acid

It can be determined from Table 7 that the NHD contributes 67.01%, square of IFP contributes 22.36% and the IFP contributes 7.45% to the impact behaviour for CF-PLA specimens. The surface plot, Figure 14, are employed to visualise and confirm the interaction effects of selected input parameters of FFF on the response. The regression equation, equation (1), is the basis of the surface response plot. The plot reveals that impact strength increases with increasing NHD. For IFPs, rectilinear pattern achieved the highest impact strength in comparison to the other IFPs.

IS = 30.65 + 41.2 \times NHD - 16.55 \times IFP - 30.5 \times NHD \times NHD + 4.265 \times IFP \times IFP + 2.27 \times NHD \times IFP

(1)

Table 7.

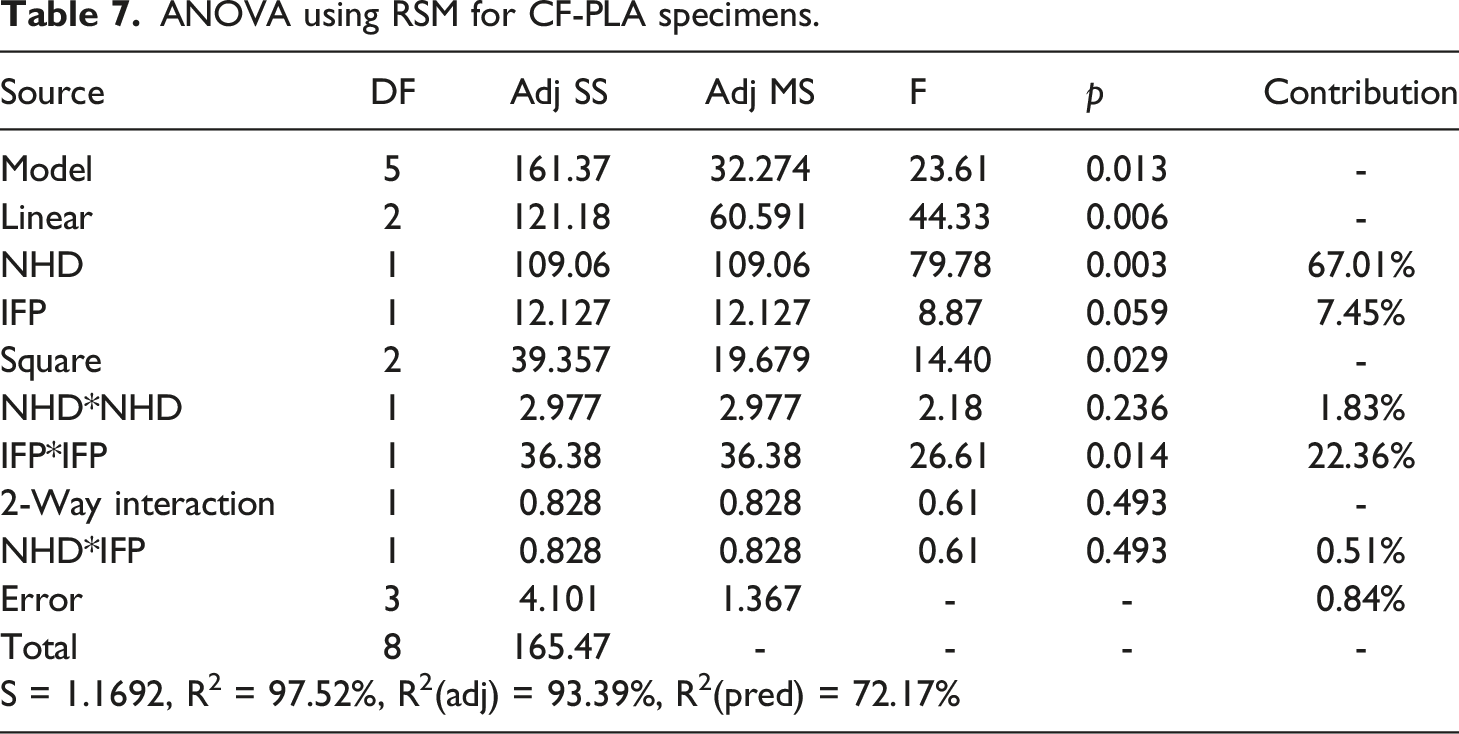

ANOVA using RSM for CF-PLA specimens.

Source	DF	Adj SS	Adj MS	F	p	Contribution
Model	5	161.37	32.274	23.61	0.013	-
Linear	2	121.18	60.591	44.33	0.006	-
NHD	1	109.06	109.06	79.78	0.003	67.01%
IFP	1	12.127	12.127	8.87	0.059	7.45%
Square	2	39.357	19.679	14.40	0.029	-
NHD*NHD	1	2.977	2.977	2.18	0.236	1.83%
IFP*IFP	1	36.38	36.38	26.61	0.014	22.36%
2-Way interaction	1	0.828	0.828	0.61	0.493	-
NHD*IFP	1	0.828	0.828	0.61	0.493	0.51%
Error	3	4.101	1.367	-	-	0.84%
Total	8	165.47	-	-	-	-
S = 1.1692, R² = 97.52%, R²(adj) = 93.39%, R²(pred) = 72.17%

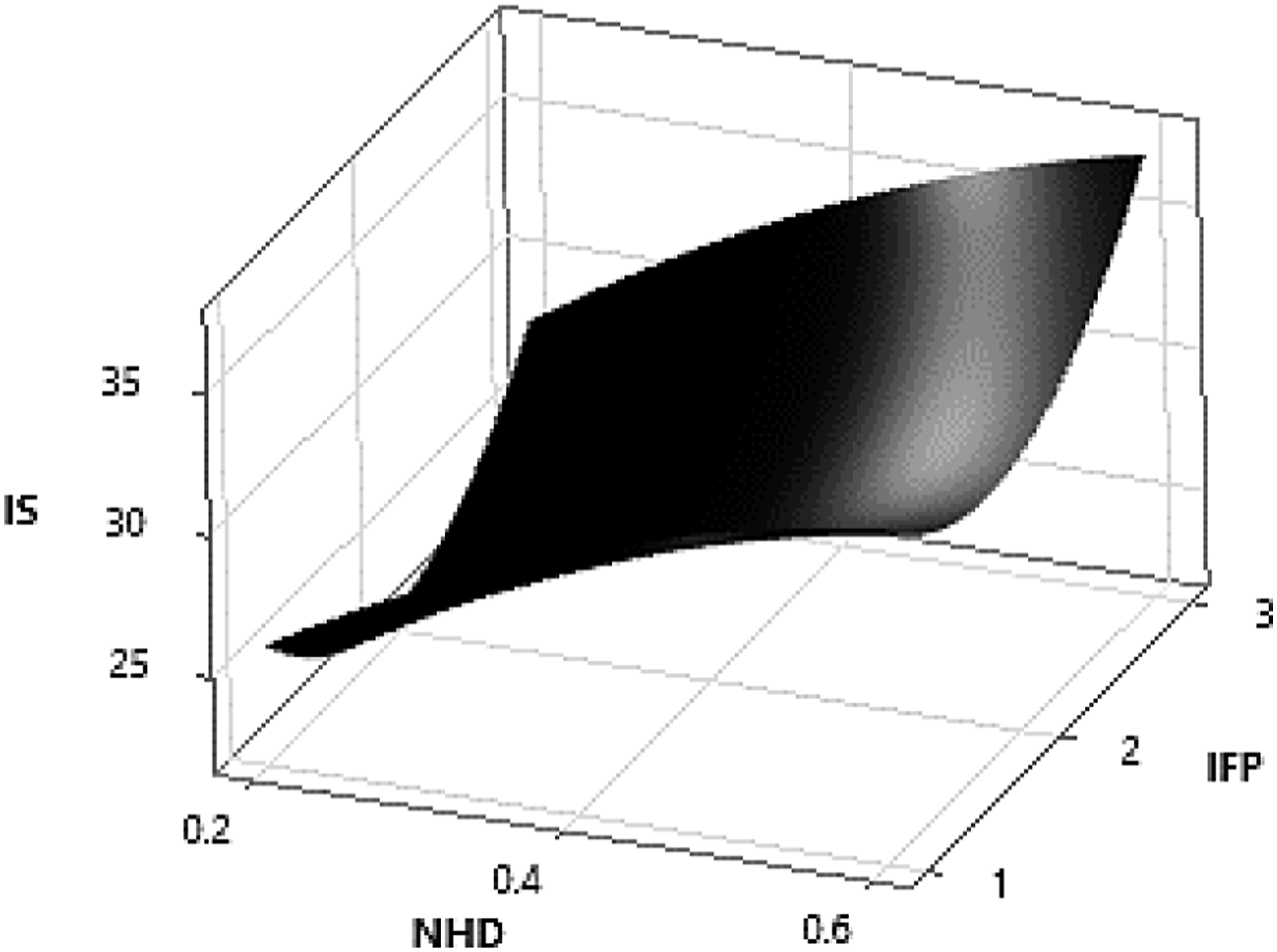

Figure 14.

Surface plot for impact behaviour of CF-PLA specimens.

Carbon fibre reinforced poly-ethylene terephthalate glycol

Table 8 reveals that the NHD accounts for 64.37% of the impact behaviour of CF-PETG specimens, while the square of the IFP accounts for 28.64%. Figure 15 illustrates a surface plot used to examine and confirm the interaction effects of specific parameters on the target factor. The surface response plot, Figure 15, can be attributed to the regression equation, equation (2), as its basis. The surface plot demonstrates a positive correlation between the impact strength and the growing NHD. The rectilinear pattern exhibited the highest level of impact resistance among the other IFPs.

IS = 25.17 - 16.8 \times NHD - 2.33 \times IFP + 45.7 \times NHD \times NHD + 1.22 \times IFP \times IFP + 0.76 \times NHD \times IFP

(2)

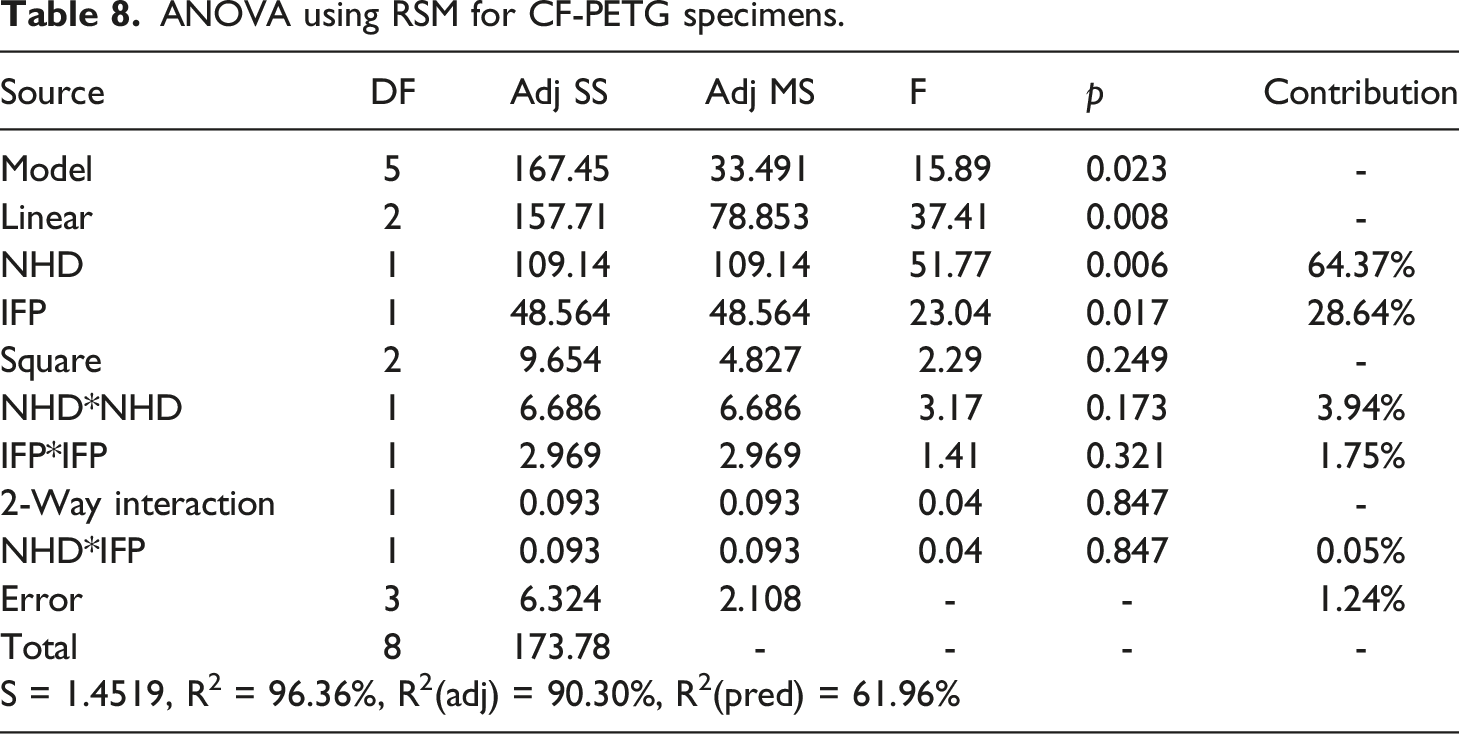

Table 8.

ANOVA using RSM for CF-PETG specimens.

Source	DF	Adj SS	Adj MS	F	p	Contribution
Model	5	167.45	33.491	15.89	0.023	-
Linear	2	157.71	78.853	37.41	0.008	-
NHD	1	109.14	109.14	51.77	0.006	64.37%
IFP	1	48.564	48.564	23.04	0.017	28.64%
Square	2	9.654	4.827	2.29	0.249	-
NHD*NHD	1	6.686	6.686	3.17	0.173	3.94%
IFP*IFP	1	2.969	2.969	1.41	0.321	1.75%
2-Way interaction	1	0.093	0.093	0.04	0.847	-
NHD*IFP	1	0.093	0.093	0.04	0.847	0.05%
Error	3	6.324	2.108	-	-	1.24%
Total	8	173.78	-	-	-	-
S = 1.4519, R² = 96.36%, R²(adj) = 90.30%, R²(pred) = 61.96%

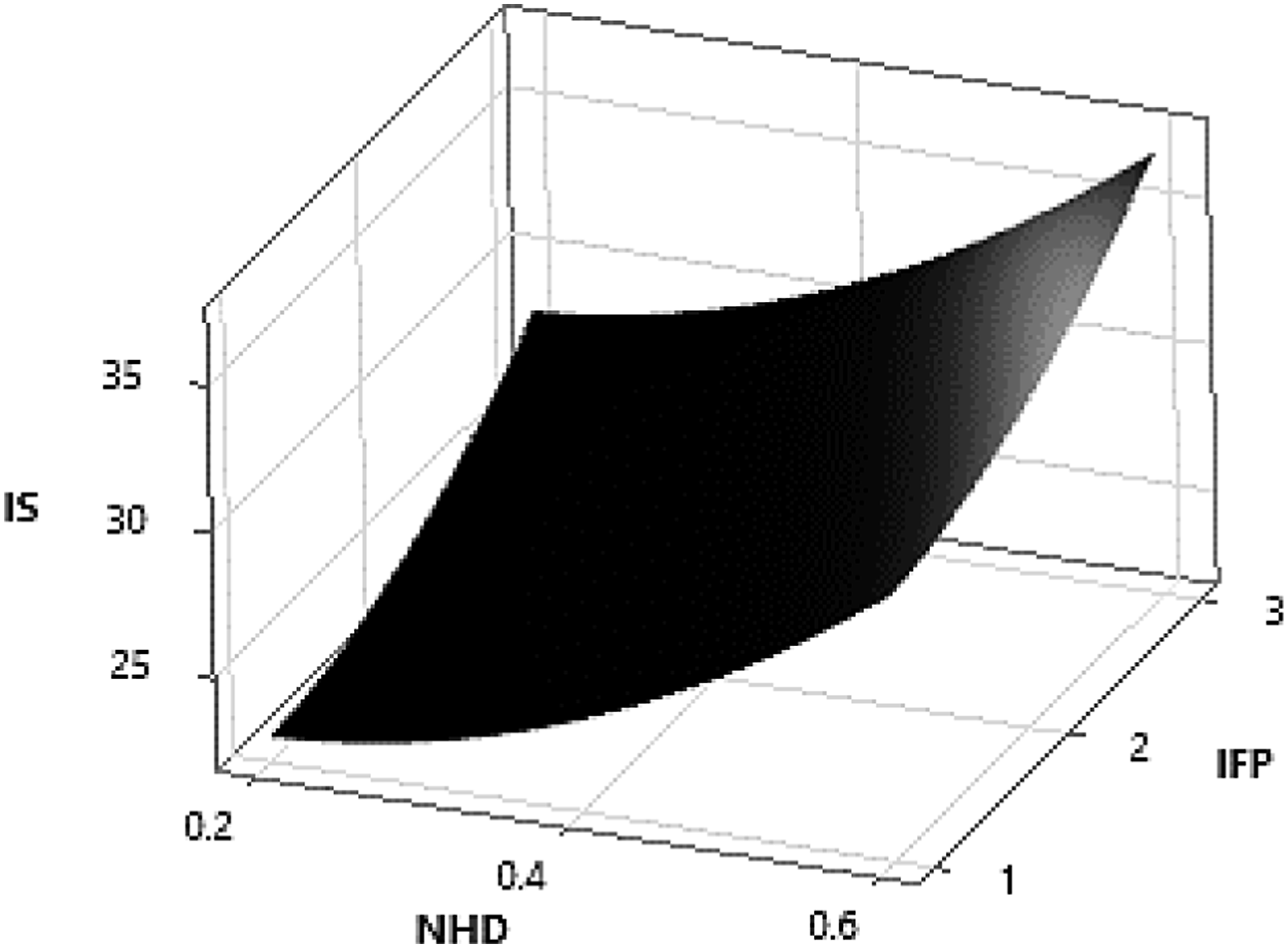

Figure 15.

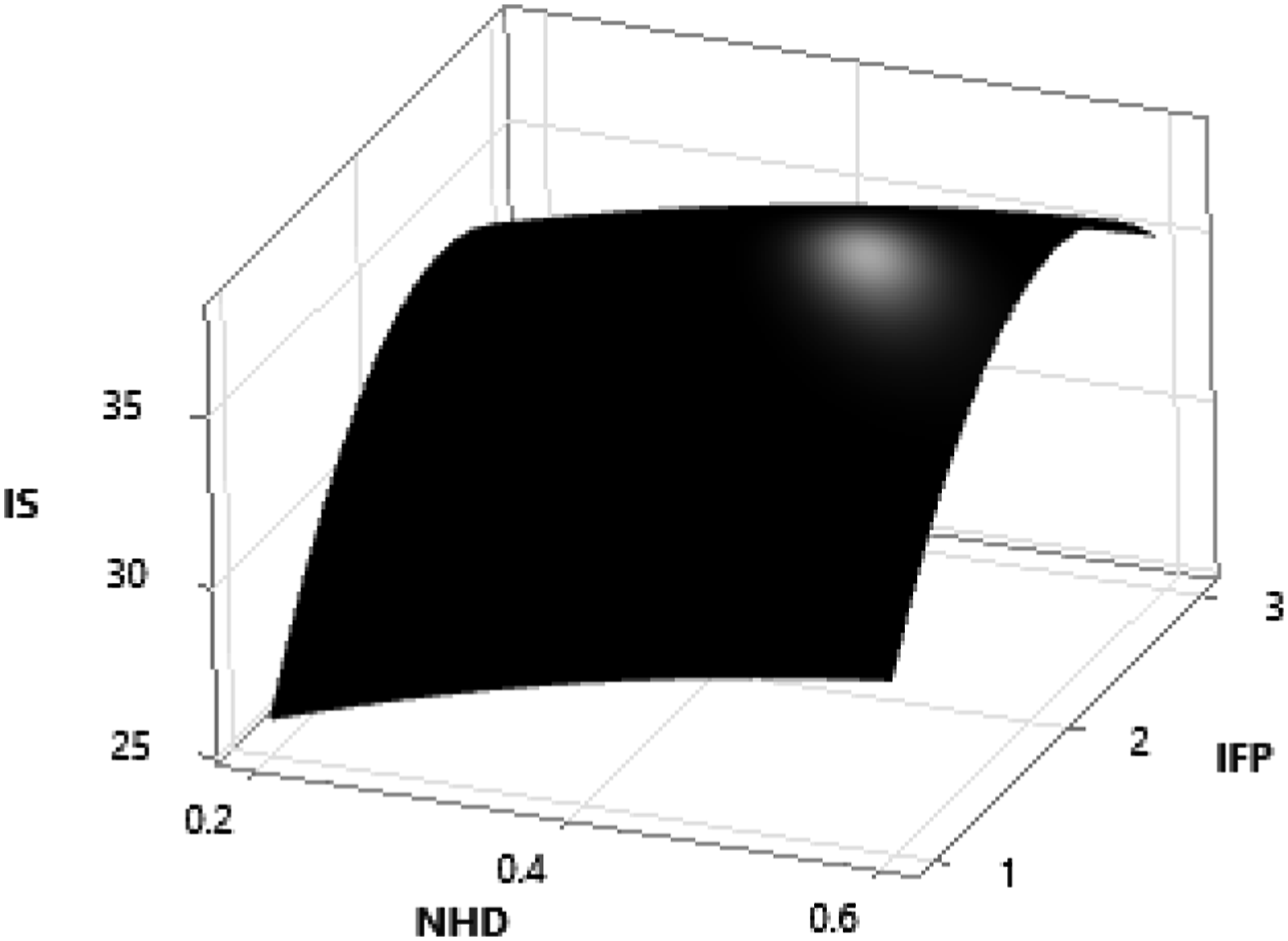

Surface plot for impact behaviour of CF-PETG specimens.

Multi walled carbon nano tubes reinforced poly-lactic acid

According to the data shown in Table 9, it can be inferred that the IFP (44.70%) and the square of IFP (39.12%) are the primary factors influencing the impact performance of the MWCNTs-PLA specimens. Figure 16 displays a surface plot that visualises and validates the interaction effects of NHD and IFP on impact behaviour. The surface plot is derived from the regression equation, represented by equation (3). The surface plot, Figure 16, illustrates a direct correlation between the impact strength and the NHD value. The honeycomb design exhibited the highest impact strength among the other IFPs for MWCNTs-PLA specimens. By selecting honeycomb IFP and NHD 0.6 mm, the impact strength, stiffness, and overall quality of the FFF-fabricated parts is improved with MWCNTs-PLA material.

IS = 4.39 + 21.88 \times NHD + 22.637 \times IFP - 12.79 \times NHD \times NHD - 4.772 \times IFP \times IFP - 1.513 \times NHD \times IFP

(3)

Table 9.

ANOVA using RSM for MWCNTs-PLA specimens.

Source	DF	Adj SS	Adj MS	F	p	Contribution
Model	5	116.32	23.264	238.34	0	-
Linear	2	69.892	34.946	358.03	0	-
NHD	1	17.854	17.854	182.92	0.001	15.34%
IFP	1	52.038	52.038	533.14	0	44.70%
Square	2	46.061	23.031	235.95	0.001	-
NHD*NHD	1	0.524	0.524	5.36	0.103	0.45%
IFP*IFP	1	45.538	45.538	466.54	0	39.12%
2-Way interaction	1	0.366	0.366	3.75	0.148	-
NHD*IFP	1	0.366	0.366	3.75	0.148	0.31%
Error	3	0.293	0.098	-	-	0.08%
Total	8	116.61	-	-	-	-
S = 0.3124, R² = 99.75%, R²(adj) = 99.33%, R²(pred) = 97.10%

Figure 16.

Surface plot for impact behaviour of MWCNTs-PLA specimens.

Based on employed statistical techniques TM and RSM for impact strength of various fabricating materials with variations in selected process parameters, it can be concluded that the NHD is the primary contributor to the impact behaviour for CF-PLA and CF-PETG specimens, while the IFP is the primary contributor for MWCNTs-PLA specimens. It also illustrates that with the increased NHD, the impact strength is improved, and the effect of IFP also varies the impact performance of the fabricated polymer composites significantly. Table 10 displays the results of an evaluation between the experimental data (E) and the predicted data (P) for the responses IS. Figure 17 illustrate the impact strength variation for experimental and predicted values.

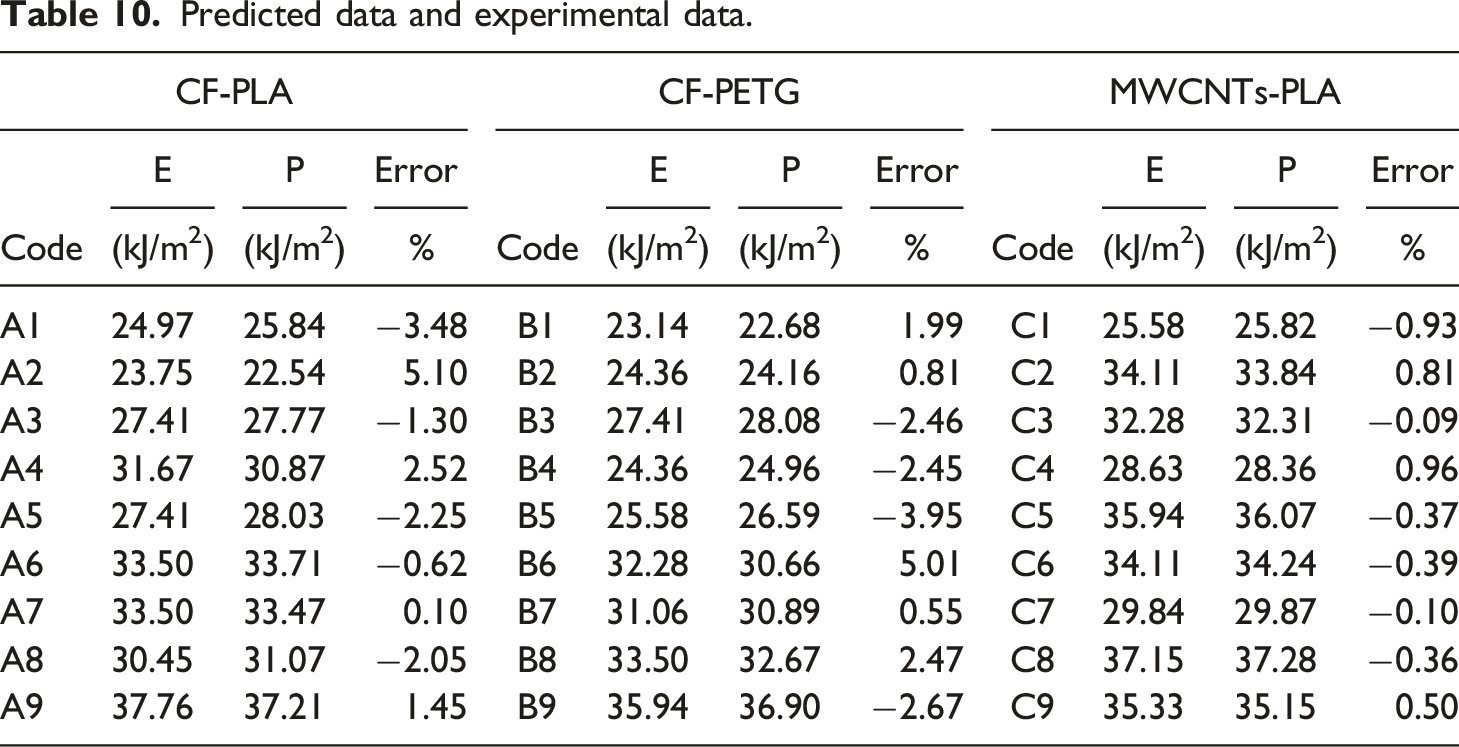

Table 10.

Predicted data and experimental data.

CF-PLA				CF-PETG				MWCNTs-PLA
Code	E	P	Error	Code	E	P	Error	Code	E	P	Error
Code	(kJ/m²)	(kJ/m²)	%	Code	(kJ/m²)	(kJ/m²)	%	Code	(kJ/m²)	(kJ/m²)	%
A1	24.97	25.84	−3.48	B1	23.14	22.68	1.99	C1	25.58	25.82	−0.93
A2	23.75	22.54	5.10	B2	24.36	24.16	0.81	C2	34.11	33.84	0.81
A3	27.41	27.77	−1.30	B3	27.41	28.08	−2.46	C3	32.28	32.31	−0.09
A4	31.67	30.87	2.52	B4	24.36	24.96	−2.45	C4	28.63	28.36	0.96
A5	27.41	28.03	−2.25	B5	25.58	26.59	−3.95	C5	35.94	36.07	−0.37
A6	33.50	33.71	−0.62	B6	32.28	30.66	5.01	C6	34.11	34.24	−0.39
A7	33.50	33.47	0.10	B7	31.06	30.89	0.55	C7	29.84	29.87	−0.10
A8	30.45	31.07	−2.05	B8	33.50	32.67	2.47	C8	37.15	37.28	−0.36
A9	37.76	37.21	1.45	B9	35.94	36.90	−2.67	C9	35.33	35.15	0.50

Figure 17.

Experimental vs Predicted impact strength variation.

The statistical analysis performed using Taguchi method and RSM for the impact behaviour of polymer composites in the present work. Both techniques exhibit similar outcome for the effect of NHD and IFP to the impact strength while having significant level above 95%. At NHD 0.6 mm and rectilinear IFP, the CF-PLA specimen accomplishes a maximum impact strength of 37.76 kJ/m². It is 175% more than the results stated by Atakok et al.,⁴² who observed the impact strength of pure PLA 13.7 kJ/m² for same layer height and IFP. The impact strength of a material is measured to ascertain whether, when subjected to suddenly imposed loads, the material will behave in a brittle or ductile manner.

Conclusion

In summation, this research work yielded a wealth of knowledge and understanding about the mechanics of anisotropic FFF components. Major takeaways from the research are as follows:

The minimum flexural strength achieved is 21.079 MPa at a NHD of 0.2 mm and using a IFP for MWCNTs-PLA. Conversely, the maximum flexural strength obtained is 70.653 MPa at NHD 0.6 mm and employing a rectilinear IFP for MWCNTs-PLA. Consequently, the flexural strength is boosted by 235.18% by the manipulation of the chosen process parameters. This study's findings suggest that careful IZOD testing is a reliable way for evaluating the mechanical behaviour of FFF-fabricated materials. The material's fracture characteristics are profoundly influenced by the IFP and NHD of the during the fabrication of the specimens. The impact resistance is enhanced with increasing NHD. Impact behaviour of FFF-fabricated specimens is directly influenced by IFP. The honeycomb IFP exhibits the highest impact strength for MWCNTs-PLA specimens, whereas the rectilinear IFP is best for CF-PLA and CF-PETG specimens.

The statistical investigation utilising the Taguchi method and RSM of polymer composite impact behaviour exhibited similar results for the influence of NHD and IFP on impact strength, with significant levels above 95%. On analysing the variation in impact strength, IFP is the primary contributor for MWCNTs-PLA specimens, but for CF-PLA and CF-PETG specimens, the primary contribution is NHD. Modifying a process parameter has different effects on the target factor depending on the material being used to make it. At NHD 0.6 mm and rectilinear IFP, the CF-PLA specimen accomplishes the highest impact strength of 37.76 kJ/m² due to adequate pulling and necking, primarily resulting in the breaking of raster and CFs.

Footnotes

Acknowledgements

Support from FESEM lab., Department of Chemistry, DEI is highly appreciated for fractography analysis. We are also thankful to the grant received from AICTE (file no. 8-88/FDC/RPS (POLICY-1)/2019-20).

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iDs

Ankit Sahai

Akash Jain

Rahul Swarup Sharma

References

Singhal

Tyagi

Raj

, et al. Analysis of multiple print-head displacement mechanisms in 3D space for material extrusion machine. 3D Print Addit Manuf 2023. DOI: 10.1089/3dp.2023.0096.

Jain

Upadhyay

Sahai

, et al. Comparing the flexural and morphological properties of dissimilar FFF-fabricated polymer composites. J Thermoplast Compos Mater 2023. DOI: 10.1177/08927057231170790.

Singh

Prakash

Kumar

, et al. 3D printed flame retardant, ABS-C4H8N6O composite as energy storage device. Arabian J Sci Eng 2023; 48: 2995–3007. DOI: 10.1007/s13369-022-07106-8.

Marșavina

Vălean

Mărghitaș

, et al. Effect of the manufacturing parameters on the tensile and fracture properties of FDM 3D-printed PLA specimens. Eng Fract Mech 2022; 274: 108766. DOI: 10.1016/j.engfracmech.2022.108766.

Patel

Taufik

. Extrusion-based technology in additive manufacturing: a comprehensive review. Arabian J Sci Eng 2022. DOI: 10.1007/s13369-022-07539-1.

Rezaeian

Ayatollahi

Nabavi-Kivi

, et al. Effect of printing speed on tensile and fracture behavior of ABS specimens produced by fused deposition modeling. Eng Fract Mech 2022; 266: 108393. DOI: 10.1016/j.engfracmech.2022.108393.

Dave

Patadiya

Prajapati

, et al. Effect of infill pattern and infill density at varying part orientation on tensile properties of fused deposition modeling-printed poly-lactic acid part. Proc Inst Mech Eng Part C J Mech Eng Sci 2021; 235: 1811–1827. DOI: 10.1177/0954406219856383.

Samykano

. Mechanical property and prediction model for FDM-3D printed polylactic acid (PLA). Arabian J Sci Eng 2021; 46: 7875–7892. DOI: 10.1007/s13369-021-05617-4.

Hart

Wetzel

. Fracture behavior of additively manufactured acrylonitrile butadiene styrene ( ABS ) materials. Eng Fract Mech 2017; 177: 2017.

10.

Oviedo

Puente

Bernal

, et al. Mechanical evaluation of polymeric filaments and their corresponding 3D printed samples. Polym Test 2020; 88: 106561. DOI: 10.1016/j.polymertesting.2020.106561.

11.

Patterson

Pereira

Allison

, et al. IZOD impact properties of full-density fused deposition modeling polymer materials with respect to raster angle and print orientation. Proc Inst Mech Eng Part C J Mech Eng Sci 2021; 235: 1891–1908. DOI: 10.1177/0954406219840385.

12.

AL-Khafaji

AbdulAmeer

Husain

, et al. On mechanical behavior and optimization of elliptical-rectangular absorbers made by ABS and PLA in both experimental and numerical methods. J Brazilian Soc Mech Sci Eng 2023; 45: 1–14. DOI: 10.1007/s40430-023-04199-6.

13.

Jain

Mishra

Dubey

, et al. Mechanical characteristics and failure morphology of FFF-printed poly lactic acid composites reinforced with carbon fibre, graphene and MWCNTs. J Thermoplast Compos Mater 2023; 36(9): 3618–3643. DOI: 10.1177/08927057221133089.

14.

Jain

Upadhyay

Sahai

, et al. Reinforcement-material effects on the compression behavior of polymer composites. J Appl Polym Sci 2023; 140: e53722. DOI: 10.1002/app.53722.

15.

Joseph

Mahesh

. Effect of loading rates on the in-plane compressive properties of additively manufactured ABS and PLA-based hexagonal honeycomb structures. J Thermoplast Compos Mater 2023; 36: 1113–1134. DOI: 10.1177/08927057211051416.

16.

Kumar

Ramesh

Jeyaraj

, et al. Buckling and dynamic responses of 3D printed nanocomposites and their graded variants. Compos Struct 2023; 316: 117031.

17.

Tezel

Ozenc

Kovan

. Impact properties of 3D-printed engineering polymers. Mater Today Commun 2021; 26: 102161. DOI: 10.1016/j.mtcomm.2021.102161.

18.

Jayswal

Liu

Harris

, et al. Creep behavior of 3D printed polymer composites. Polym Eng Sci 2023; 37: 934–940. DOI: 10.1002/pen.26486.

19.

Darnal

Shahid

Deshpande

, et al. Tuning mechanical properties of 3D printed composites with PLA:TPU programmable filaments. Compos Struct 2023; 318: 117075.

20.

Sharma

Vuppuluri

Suresh

. Essential work of fracture studies of 3D Printed PEEK (Poly-ether-ether-ketone) polymer. Eng Fract Mech 2022; 271: 108656. DOI: 10.1016/j.engfracmech.2022.108656.

21.

Wang

Zhou

, et al. Flexural property characterization and structure analysis of graphene‐reinforced polyphenylene sulfide prepared via low‐cost pellet‐based material extrusion additive manufacturing. Polym Eng Sci 2023; 63: 3382–3397. DOI: 10.1002/pen.26453.

22.

Mahesh

Joseph

Mahesh

, et al. Investigation on the mechanical properties of additively manufactured PETG composites reinforced with OMMT nanoclay and carbon fibers. Polym Compos 2021; 42: 2380–2395. DOI: 10.1002/pc.25985.

23.

Butt

Oxford

Sadeghi-Esfahlani

, et al. Hybrid manufacturing and mechanical characterization of Cu/PLA composites. Arabian J Sci Eng 2020; 45: 9339–9356. DOI: 10.1007/s13369-020-04778-y.

24.

Yilmaz

Gul

Eyri

, et al. Comprehensive characterization of 3D‐printed bamboo/poly(lactic acid) bio composites. Polym Eng Sci 2023; 63: 2958–2972. DOI: 10.1002/pen.26419.

25.

Dong

Milentis

Pramanik

. Additive manufacturing of mechanical testing samples based on virgin poly (lactic acid) (PLA) and PLA/wood fibre composites. Adv Manuf 2018; 6: 71–82. DOI: 10.1007/s40436-018-0211-3.

26.

Ahmad

Wahid

Maidin

, et al. Mechanical characteristics of oil palm fiber reinforced thermoplastics as filament for fused deposition modeling (FDM). Adv Manuf 2020; 8: 72–81. DOI: 10.1007/s40436-019-00287-w.

27.

Makarian

Taghvaei

, et al. Design, manufacturing, and elastic analysis of digital light processing 3D printed fiber reinforced sandwich beams with thermosetting polymer matrix Kamran. Compos Struct 2023; 318: 117108.

28.

Bedi

Mallesha

Mahesh

, et al. Investigation of low-percentage graphene reinforcement on the mechanical behaviour of additively manufactured polyethylene terephthalate glycol composites. J Thermoplast Compos Mater 2023; 1–21. DOI: 10.1177/08927057231188025.

29.

Zhou

Zhang

Ning

. Joining of carbon fiber reinforced polymer/titanium stacks using directed energy deposition additive manufacturing. Compos Struct 2023; 310: 116775.

30.

Jain

Sahai

Sharma

. Enhancing the mechanical behaviour of fused filament fabricated carbon fibre-reinforced poly-lactic acid. J Inst Eng Ser D 2023; 1–8. DOI: 10.1007/s40033-023-00498-3.

31.

Mishra

Jagadesh

. Investigations into flexural behavior of additively manufactured short and continuous fiber CFRP composites. J Brazilian Soc Mech Sci Eng 2023; 45: 1–17. DOI: 10.1007/s40430-023-04085-1.

32.

Casamento

Padovano

Pappalardo

, et al. Development of polypropylene-based composites through fused filament fabrication: the effect of carbon-based fillers. Compos Part A Appl Sci Manuf 2023; 164: 107308. DOI: 10.1016/j.compositesa.2022.107308.

33.

Yan

Lai

Huang

, et al. Manufacturing-oriented topological design of CFRC structures with variable fiber volume and orientation. Compos Struct 2023; 310: 116779.

34.

Trivedi

Gurrala

. Investigations on the effect of orientations on mechanical properties in fused filament fabrication parts using numerical model. J Brazilian Soc Mech Sci Eng 2022; 44: 1–18. DOI: 10.1007/s40430-022-03422-0.

35.

Jain

Kumar

Singh

, et al. Comparative study of impact behavior of fused filament fabrication-printed polylactic acid composites. Nano World J 2023; 9: 470–475. DOI: 10.17756/nwj.2023-s1-090.

36.

Garofalo

Walczyk

. In situ impregnation of continuous thermoplastic composite prepreg for additive manufacturing and automated fiber placement. Compos Part A Appl Sci Manuf 2021; 147: 106446. DOI: 10.1016/j.compositesa.2021.106446.

37.

Raut

Kolekar

. Experimental analysis of 3D printed specimens with different printing parameters for Izod impact strength. Mater Today Proc 2022; 80: 156–162. DOI: 10.1016/j.matpr.2022.11.029.

38.

Pavan

Balamurugan

Srinivasadesikan

, et al. Impact and shear behavior of PLA/12%Cu reinforced composite filament printed at different FDM conditions. Arabian J Sci Eng 2021; 46: 12709–12720. DOI: 10.1007/s13369-021-05980-2.

39.

Xia

Liu

, et al. Mechanical properties and energy absorption of 3D printed double-layered helix honeycomb under in-plane compression. Compos Struct 2023; 315: 116982.

40.

Buj-Corral

Bagheri

Domínguez-Fernández

, et al. Influence of infill and nozzle diameter on porosity of FDM printed parts with rectilinear grid pattern. Procedia Manuf 2019; 41: 288–295. DOI: 10.1016/j.promfg.2019.09.011.

41.

Baich

Manogharan

Maire

. Study of infill print design on production cost-time of 3D printed ABS parts. Int J Rapid Manuf 2015; 5: 308–319.

42.

Atakok

Kam

Koc

. Tensile, three-point bending and impact strength of 3D printed parts using PLA and recycled PLA filaments: a statistical investigation. J Mater Res Technol 2022; 18: 1542–1554. DOI: 10.1016/j.jmrt.2022.03.013.

43.

Czyżewski

Marciniak

Nowinka

, et al. Influence of Extruder’s Nozzle Diameter on the Improvement of Functional Properties of 3D-Printed PLA Products. Polymers, 2022; 14: 356. DOI: 10.3390/polym14020356.

44.

Wang

Gramlich

Gardner

. Improving the impact strength of Poly(lactic acid) (PLA) in fused layer modeling (FLM). Polymer (Guildf) 2017; 114: 242–248. DOI: 10.1016/j.polymer.2017.03.011.

45.

Mishra

Senthil

Adarsh

, et al. An investigation to study the combined effect of different infill pattern and infill density on the impact strength of 3D printed polylactic acid parts. Compos Commun 2021; 24: 100605 DOI: 10.1016/j.coco.2020.100605.

46.

Raj Mohan

Venkatraman

Raghuraman

. Experimental analysis on density, micro-hardness, surface roughness and processing time of acrylonitrile butadiene styrene (ABS) through fused deposition modeling (FDM) using box behnken design (BBD). Mater Today Commun 2021; 27: 102353. DOI: 10.1016/j.mtcomm.2021.102353.

47.

Yao

Zhu

, et al. Taguchi design and optimization of the PLA/PCL composite filament with plasticizer and compatibilizer additives for optimal 3D printing. Polym Eng Sci 2023; 63: 3743–3761. DOI: 10.1002/pen.26481.

48.

Jain

Kant

Singh

, et al. Process parameter tailored evaluation of FFF-fabricated carbon fibre based poly-lactic-acid composites. J Thermoplast Compos Mater 2023; 36: 4365–4387. DOI: 10.1177/08927057231155858.

49.

Mihankhah

Azdast

Mohammadzadeh

, et al. Fused filament fabrication of biodegradable polylactic acid reinforced by nanoclay as a potential biomedical material. J Thermoplast Compos Mater 2023; 36: 961–983. DOI: 10.1177/08927057211044185.

50.

Hasanzadeh

Mojaver

Azdast

, et al. Developing gasification process of polyethylene waste by utilization of response surface methodology as a machine learning technique and multi-objective optimizer approach. Int J Hydrogen Energy 2023; 48: 5873–5886. DOI: 10.1016/j.ijhydene.2022.11.067.

51.

Hasanzadeh

Mojaver

Azdast

, et al. A novel systematic multi-objective optimization to achieve high-efficiency and low-emission waste polymeric foam gasification using response surface methodology and TOPSIS method. Chem Eng J 2022; 430: 132958. DOI: 10.1016/j.cej.2021.132958.
