Computer Audio-Recorded Interviewing as a Tool for Survey Research

Preparation for a Computer-Based Survey

Prior to beginning data collection, system developers create or configure infrastructure to support data collection; social scientists design the questionnaire and operations; instrumentation specialists program and test the questionnaire; and statisticians select the sample population. When all is ready, data collection can begin.

Questionnaire programmers typically use a product such as Blaise (http://www.blaise.com) as shown in Figure 2, Computer-assisted Survey Execution System (CASES; http://cases.berkeley.edu/software.html), or other software. Blaise and CASES are specialty packages intended specifically for survey administration. Blaise supports audio recording through configurable built-in functionality, and CASES allows it through user-programmable extensions. The programmed questionnaire, called an instrument, controls the flow of interview administration by using conditional constructs, looping elements, and fills (insertion of respondent-specific or locale-specific information within the question) in conjunction with built-in consistency checks and computations. The instrument may also branch to other software to initiate and terminate calendar entries, global positioning system data capture, recordings, or screenshots as part of the data.

OPEN IN VIEWER

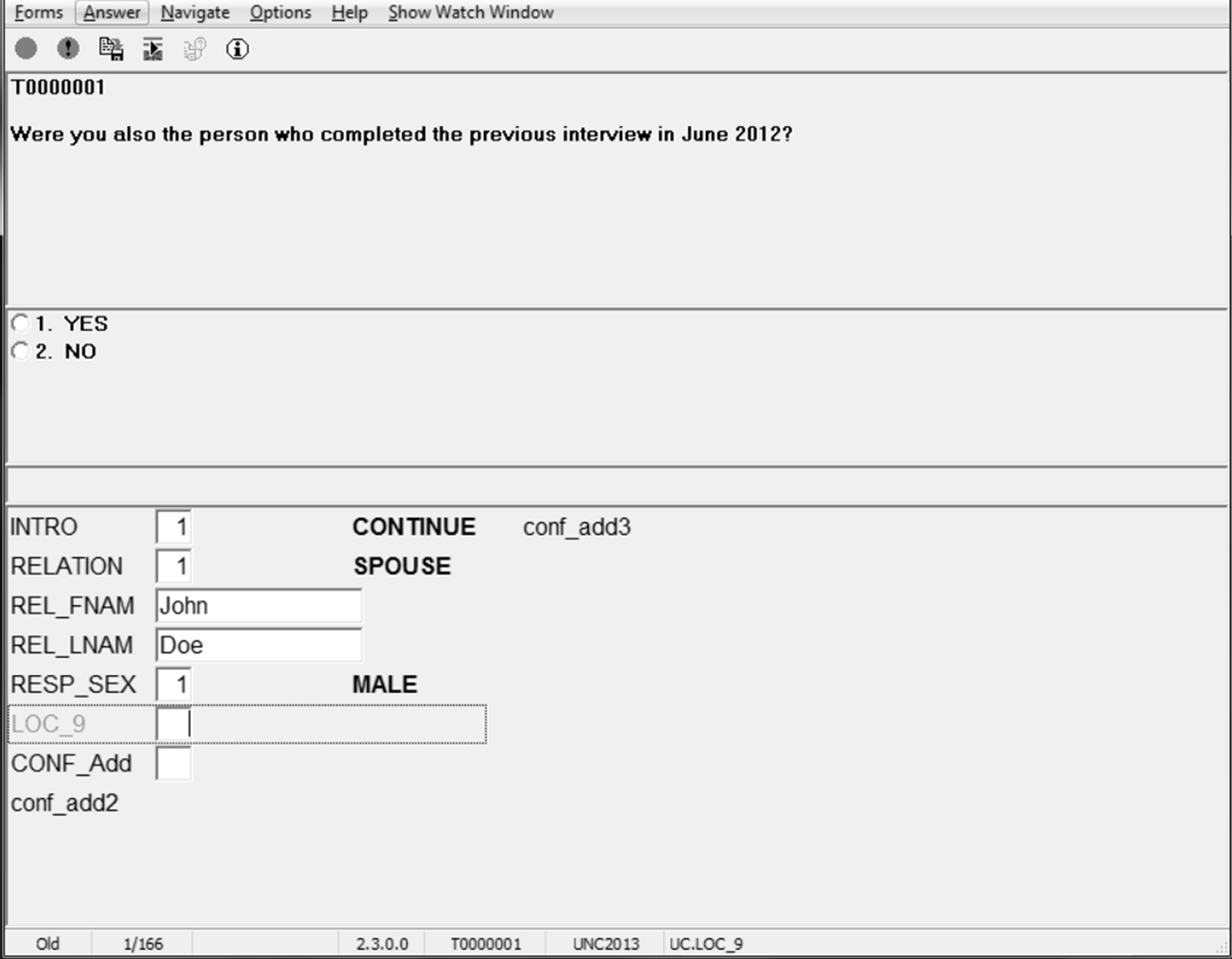

Figure 2.

Example of a questionnaire item programmed with Blaise software, as it would appear during the interview.

When audio recording is employed, the instrument must be programmed to activate and deactivate a microphone at specific times via configuration files or logical control. With Blaise software, for example, the programmer sets configuration parameters for which questions to record. With CASES software, the programmer calls a custom-built external application which in turn manages the recorder. The software tags recordings by respondent, question, and time stamp, in case a particular question is presented more than once to the same respondent. Not all survey software has the capability of recording, but many support custom extensions, allowing a developer to activate/deactivate the computer’s recording capabilities on demand.

Each survey uses one or more data collection modes, a term that refers to the approach for gathering data:

In person, with the interviewer and respondent physically together, often called computer-assisted personal interviewing (CAPI);

The choice of which questions or sections to record depends more on survey methodology than on technical concerns. For some purposes, recording a single question and response from the beginning, one in the middle and one at the end may be adequate. Longer recordings, such as whole sections of the questionnaire, provide a better basis for managing interviewer performance or confirming data entry. Targeted selections may prove desirable, if certain questions are key for data analysis and therefore need a higher level of data quality control, or if certain questions or sets of questions are under evaluation for how well the phrasing elicits valuable responses.

A nontechnical concern of great importance is the legality of recording. In the United States, laws vary from state to state as to whether just one or all parties must give consent. National survey organizations usually opt to collect informed consent from interviewers as an employment requirement and from respondents at the time of data collection. Instrument software configuration must allow the respondent to refuse recording without declining to participate in the interview.

Once the instrument has been programmed and background case-specific data sent to the field laptops or scheduled for the call center, the routine of production data collection is ready to begin. Many systems interoperate to support interviewing and subsequent processes, as shown in Figure 3. Though it is a detailed figure, the systems within it can be understood best by looking at the three vertical sections: on the left, the interviewer’s desktop, laptop, or mobile system; in the center, movement of information to and from a central repository; and on the right, systems for reviewing the gathered data. Thus, the illustration spans both geographical location and groups of users. For software developers, it is important to understand full system integration, even when working on only a subsystem. Hardware, software, and communications systems may vary from one CARI implementation to another, but this diagram describes the common and fundamental concepts and components. A generalized survey system such as this must be flexible and comprehensive enough to enable all expected modes of usage and to survive generations of hardware and software.

OPEN IN VIEWER

Figure 3.

Data flow and systems that support CARI data collection, transfer, and review. Dashed lines indicate optional processes, and shaded background indicates CARI-related functionality. CARI = computer audio-recorded interviewing.

Data Collection

In Figure 3, the left panel corresponds to software and processes taking place on the interviewer’s workstation, corresponding to the data collection activities of a survey. CAPI survey fieldwork and telephone interviewing both start with case management software that presents preloaded contact information and other details that may be needed for reaching the subject and encouraging participation, analogous to customer management systems used by sales force staff to reach buyers and close a deal. The preprogrammed survey instrument presents question text and response options. It follows programmed skip logic, routing the interview on an appropriate path through the possible questions, based on answers to branch-point questions. For example, the instrument would skip pregnancy and childbirth questions for male respondents.

Interviewers are trained to read each questionnaire item exactly as displayed, which may be as simple as the example shown earlier in Figure 2 or very complex, depending on the subject matter. Although interviewers are trained in reading verbatim and the response options are usually limited, the conversational exchange between interviewer and respondent often contains a wealth of information not captured by the response data. For example, when the words are difficult to read, as in surveys of medical conditions, the interviewer may stumble. If the text of the question or response list is lengthy or unwieldy, the interviewer may be inclined to paraphrase, affecting data quality. Respondents often ask for clarification of the questions, express hesitation before responding, or elaborate on their answers. Audio recording captures the nuances of the exchange, enriching the data entered by the interviewer.

As the interview progresses, audio files may be recorded for some or all questions and responses according to configuration of the instrument. Some surveys may record the entire interview, while others select a few specific questions or a probabilistic sampling of some parts. The recordings are tagged with identification fields and stored along with response data. It is important that neither interviewers nor respondents play an active role in the process of recording once they have completed initial procedures of providing consent to record. Neither person is allowed to be aware of the timing or extent of recording. Otherwise, a shortcutting interviewer (Ericksen, Kadane, & Tukey, 1989) might attempt to turn off recording during malfeasance, or a respondent’s answers might be biased or at least distracted by the start and stop of audio recording.

After the interviewing session ends, all collected data files are assembled, typically compressed and encrypted, and prepared for transfer to a central location. Transfer processes may occur immediately in telephone call centers that have full connectivity, or somewhat later for interviewing systems that lack continuous connectivity, such as CAPI laptops. Whether synchronous or asynchronous, the transfer process begins on the interviewer’s computer, as shown at the bottom of the left panel of Figure 3, and continues with Internet or intranet data transfer, shown in the middle panel, delivering data to centralized storage in the rightmost panel, where it becomes available for review and evaluation.

Data Storage

Four types of data are received and stored at the home office or data facility:

Response data: answers to the survey questions;

Data storage requirements depend on several characteristics of the survey: the instrumentation software, system employed for audio review, the size of the survey’s subject pool and the size of the response, metadata, paradata, and auxiliary data sets. Auxiliary data such as recorded audio may be stored alongside or separate from response data. In a file-based system, the database only holds links or locations of the audio recordings, and playback software must locate and retrieve the external files. In a database system with relational object storage, audio recordings may be packaged along with response data in binary large objects (blobs), and the review software must unpack the blobs prior to playback. The chosen method typically meshes with the data transfer system for receipt and storage on a flow basis, allowing quick turnaround of review and feedback. At the small end of the scale, an interviewer’s workstation may hold MySQL files that are moved to a central location periodically. At the large end of the scale, the U.S. Census Bureau employs Oracle databases with blobs for storage of response data, auxiliary files, and paradata together (Nguyen, Thissen, Siege, & Bikmal, 2010).

The size of audio files places a load on storage, bandwidth, and tracking systems, compared with data collection that omits recordings. Such burden may be diminished by compression and judicious archiving or deletion policies. Fortunately, the cost of storage has declined in recent years as a significant fraction of operational expense, though data transfer of large files remains a challenge in areas lacking broadband.

Quality and Operational Review

CARI review processes take place in the rightmost panel of Figure 3. Data stored at the central site are made available to quality monitors through special-purpose software, usually known as a CARI review system. Review may include all or a subset of the audio recordings, perhaps supplemented by screen capture images or any other information collected during the interview. Often the review takes place as a codification of qualitative observations, providing a systematic synopsis that serves as a basis for scaled comparisons. CARI review is a synthetic method related to those described by Barnett-Page and Thomas (2009) for summarizing other types of qualitative observations in a semiquantitative form.

The reviewing system may be as simple as use of a file share with playback software and a mechanism for keeping notes, as used by Crichton and Childs (2008) for in-depth qualitative research on a modest scale. It may be as complex as a large commercial relational database with a role-based web application for playback, coding, and tracking of the cases and their audio segments, along with functionality for management of the review operation itself, as is found at the U.S. Census Bureau. It may fall in between, as does the QUEST system at RTI International, with a single coding interface and a versatile scoring scheme (Kinsey, 2012).

Although the process of recording may come to mind first, the review step is the heart of CARI’s value. With review and feedback, the data gathered during the interview can inform a variety of uses beyond simple responses, and it provides a basis for intervention and control of the data collection processes when needed. In many ways, collecting and storing the recordings present a lesser challenge than implementing software for the review stage. Design and specification of a CARI review system may present a major software development challenge, especially since such systems have only recently been requested by survey organizations and potential users are uncertain as to their exact requirements. To guide others who may need to build such a system, insight into design options is provided later in this article.

Feedback

Of the data collection cycle, only the action of delivering feedback to interviewing staff, questionnaire designers, and data analysts is done without software mediation, generally being presented in person or by telephone. Yet, the feedback would lose effectiveness without input from the CARI system. The results of audio review pass to data collection supervisors who recognize and encourage accomplishments or address concerns. The process offers guidance for the interviewing staff and a mechanism for influencing and controlling future data collection quality. CARI evaluations may also inform improvement of the questionnaire or correction of data issues, influencing the data product directly or indirectly.

Scalability

Expectations of scale shape CARI review system design in several ways. One interview may yield many minutes of audio recording, even if statistical sampling algorithms are used to reduce the total number of questions recorded or to limit the number of recordings reviewed. For example, a survey may choose only to record a few questions and answers during the interview, selecting those of greatest analytic importance to the outcome data set, or those placed strategically for managing interviewing performance, such as recording a few each from beginning, middle, and end. Multiplied by hundreds or thousands of interviews per survey, and again by the number of surveys, the quantity of audio files to be tracked, stored, and processed in a CARI review system can quickly overwhelm a simple design.

The number of system users usually grows with the number of recordings. If each CARI reviewer plays 10 min of recording per interview and spends a few minutes making notes, for example, that reviewer can evaluate up to four cases per hour. If the organization must review 100 interviews per day, perhaps three reviewers can handle the workload. Do those reviewers themselves need to be monitored? If so, a fourth user may be needed, in a supervisory role. To monitor 1,000 interviews per day, the number of simultaneous users might approach 40 or 50. If the amount of time per review exceeds 10 min, those numbers expand proportionally.

At the smallest scale and simplest design, observations might be stored as free-form text commentary, with no software development at all. For very small operations, CARI reviewers could employ a free audio player and pair it with a spreadsheet for recording notes. However, such a system cannot handle more than a very low flow of interviews, cannot provide easy summaries, offers no security or linkage features, and would be subject to the inconsistencies inherent in most manual operations. For organizations serious about adopting CARI for the long term, more planning and investment is needed.

Confidentiality and Security

Role-based system design can streamline process management, particularly for large operations. To manage the system, security, progress of CARI reviewing, and outcomes of review, users may be assigned to specific roles:

System administrator role, to create new survey entries, manage user accounts, archive old data, and automate data input;

Configurability

Organizations sponsor surveys for a multitude of reasons. In some cases, the purpose is to capture a quick snapshot of health, activities, knowledge, or demographics. In other cases, the purpose may be to explore an experimental hypothesis, to probe the underpinnings of an aspect of society, or to define variations among subpopulations such as eating habits. Some surveys are conducted to test the survey questions themselves or the effectiveness of the protocol. Because the goals vary, the information sought from audio recordings varies accordingly.

At this time, audio recording for surveys tends to be used in one of the three ways: for evaluating the performance of interviewing staff, for evaluating the questionnaire and survey protocol, or for confirming data quality and authenticity. Other potential uses are for primary data capture, as in recordings transcribed later, or for editing and correcting data entered by the interviewer. Consider how to extract such information from a collection of audio recordings: The generally accepted approach is through coding. The monitor, or audio reviewer, listens to the recording while selecting codes from a list of target characteristics. For example, in the case of performance monitoring, one desired behavior could be correct reading of the questionnaire items. Codes could indicate verbatim reading, minor change, major change, or other descriptions. Thus, the CARI review system should support a variety of coding schemes, likely with associated algorithms and weights for producing evaluation scores.

If the system supports multiple surveys with nonoverlapping or partially overlapping staff assignments, the CARI review administrator will need tools for setting up users with specific rights and privileges, account activation, deactivation, and change. Similarly, each new survey requires some degree of setup, perhaps identical for all surveys but potentially differing by sponsor, organizational branch, or other external constraint.

At system design time, this need for configurability affects database structure, interface functionality, display dynamics, and other fundamental system requirements. It may be possible to retrofit a flexible account management or coding scheme onto a non-configurable system, but the preferred practice is to lay the groundwork early and avoid rework.

Interface Design

Central to any CARI system is an interface for reviewing recordings. The CARI monitor needs to be able to listen to the audio, view any other required information such as question text, response or ancillary data, and enter review notes. Linkages among the notes, audio files, question, interviewer, respondent, reviewer, and other information are preserved in the supporting database, often in a many-to-many relationship, as a question may be recorded multiple times, and a single recording might pertain to multiple questionnaire items.

When CARI is used to manage interviewer performance, the system normally presents the reviewer with one recording at a time and stores an assessment of positive and negative interviewing attributes, with comments in free-form text. That approach is currently in use at RTI International’s QUEST system (Sattaluri, Spain, Nguyen, & Thissen, 2010) and is shown in Figure 4. QUEST supports a counting mechanism, in which reviewers count the number of occurrences of specific behaviors that are heard, and the system computes performance scores based on those counts. The option of entering counts, as opposed to a Boolean choice of present/not-present, allows refinement of the CARI-based metrics by including a factor of intensity. QUEST categorizes behaviors into groups that can be expanded or collapsed on screen to reduce screen space or skipped entirely if not relevant to a specific survey. Parts of the interface not shown provide identification information, a playback button that activates the user’s audio player, and navigation to other parts of the system.

OPEN IN VIEWER

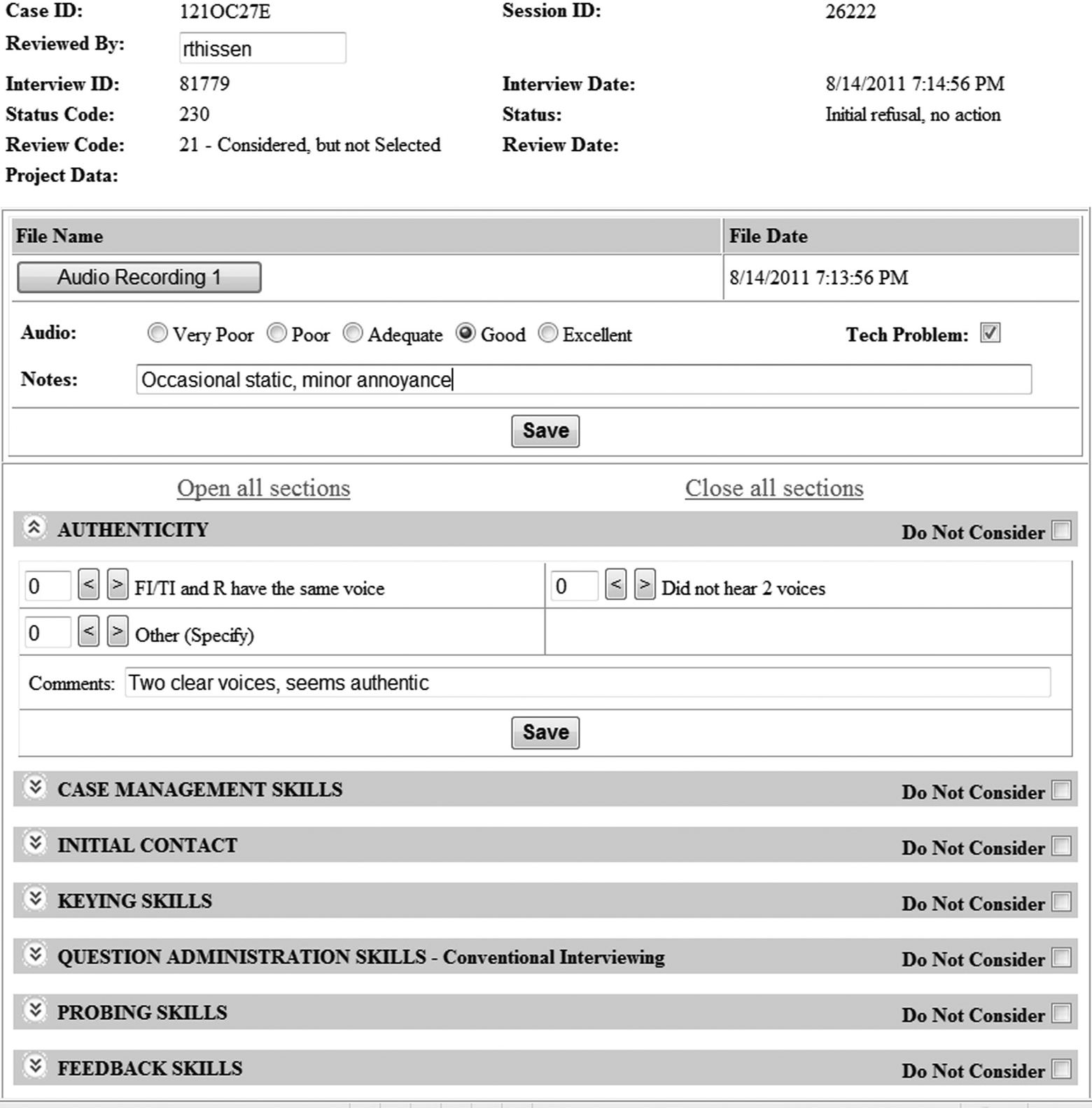

Figure 4.

Coding screen design with expandable sections for categories of behavior.

Figure 5 shows an alternate CARI interface designed for the U.S. Census Bureau. In this system, a playback list is accompanied by an image of the interviewer’s computer screen, showing the wording of the question, response options, and any keyed information. The review page presents an embedded image of the interviewing screen at full resolution in an expandable window with scrollbars, so that the reviewer can inspect as much detail as needed. Alongside the image, a playback system allows several recordings to be played in sequence. Just below the screen image and playback list, a hierarchical set of assessment categories with one or more subgroups appear on screen dynamically when the coder selects any of the top-level categories (Nguyen et al., 2010). To preserve screen space for lower resolution screens, without losing the richness of available data, this system employs a tabbed design with the primary functionality on the main tab (shown) and less-frequently needed information and operational capabilities on the other tabs.

OPEN IN VIEWER

Figure 5.

Coding screen with dynamic coding categories showing tabbed page design for greater information density.

Other Concerns

For any CARI system, the review and coding screen is the core of the review but is not the only interface. Common activities, each with separate screens or sets of screens, include system management, user management, survey management, case assignment, workload access, statistical sampling, summary reports, data export, archiving, security review, and other role-dependent operations. Such screens are not visible to users who are not authorized to access them.

Additional overall system design, development, and support requirements may arise, such as a need to support simultaneous users working from different locations or in multiple time zones, mechanisms for evaluating the fairness of the review process itself, data flow into and out of the CARI review database, and maintenance of data linkage without divulging identities of individuals. In the future, CARI systems may be adapted to new technologies, such as new data collection hardware, cloud storage, or speech analytics.

Behavior of the Interviewer

Survey personnel require training and monitoring to minimize certain errors that can arise from the way the interview is presented:

Failure to adhere to protocol, causing bias or variations in survey responses from person to person;

One very difficult task is obtaining proof of authenticity or, conversely, the degree of data falsification and shortcutting. An interviewer may finesse a questionnaire to skip lengthy sections by falsifying the response to gateway questions, those such as “Did you ever smoke?” that lead to a subsequent series of more detailed questions. An interviewer in need of funds may not bother to contact the subject at all, instead completing a fictitious interview and pocketing the payment while charging hours at the expected level. However, the CARI reviewer can confirm validity by noting the behaviors on key questions, the sound of two distinct voices and reasonable answer patterns. Suspicions about specific circumstances can be flagged for more intensive review.

Some individuals raise concerns about resistance of data collectors toward CARI monitoring. Few studies have been done, but in one, a debriefing of interviewers on a national CAPI survey, 82% of the interviewers reported feeling extremely positive, somewhat positive, or neutral about the overall use of CARI. Approximately 90% of the interviewers felt extremely positive, somewhat positive, or neutral about using CARI as a way to evaluate and provide feedback to interviewers, and even more accepted it as a falsification detection method (Biemer et al., 2000). Another study indicated that levels of acceptance or resistance to CARI might depend on how the technology was introduced or on geographic differences (Arceneaux, 2007).

Behavior of the Respondent

Errors relating to the respondent’s actions also come in several forms:

Deliberate falsification, perhaps due to a preference not to reveal certain information, fatigue, or giving erroneous answers that fit societal expectations;

Performance of the Questionnaire

Good design of survey questionnaires and even of individual items depends on many factors, some of them fixed across surveys and some relating to the population being examined. A well-designed question captures correctly and comprehensively the information desired by the survey writer. However, it is not easy to achieve. Errors relating to the design of the questionnaire include the following:

Cognitive effects, in which ambiguous wording or abstruse vocabulary may not be understood well by the respondents;
