Overview of Riociguat and Its Role in the Treatment of Pulmonary Hypertension

Introduction

Pulmonary hypertension (PH) is a progressive condition of multifactorial etiology. ¹ PH is associated with markedly decreased exercise capacity and reduced quality of life. ² Despite the availability of treatments, the natural history and prognosis are variable and patients with PH may progress to right heart failure and death.^1,3 Five groups have been defined for clinical classification that categorize PH based on the underlying cause of elevated pulmonary pressures.^4,5 Pulmonary arterial hypertension (PAH) represents Group 1 and includes the following subgroups: idiopathic, heritable, drug- and toxin-induced, persistent PH of the newborn, and associated PAH. ⁵ Most recently, 2 additional subgroups have been added to Group 1 to account for differences in treatment considerations—PAH long-term responders to calcium channel blockers and PAH with overt features of venous involvement. ⁴ PH due to pulmonary artery obstruction represents Group 4 and includes chronic thromboembolic pulmonary hypertension (CTEPH).

This article reviews the epidemiology and pathophysiology of these 2 groups—PAH and CTEPH—as well as the pharmacology, pharmacokinetics, dosing, and clinical efficacy and safety of riociguat; the utilization of riociguat in treating patients with PH; and the role of the pharmacist in the appropriate and safe use of therapies for PAH and CTEPH.

Pathophysiology and Epidemiology

The complex pathophysiology of PAH (Group 1 PH) is characterized by the remodeling of small pulmonary arteries via proliferation of smooth muscle and endothelial cells. ⁶ This leads to a reduction in the size of the pulmonary artery lumen and reactivity of the vascular bed, an increase in pulmonary vascular resistance (PVR), and elevated pressure in the pulmonary circulation. ³ Treatments approved for PAH target key pathways of endothelial dysfunction involving endothelin-1, nitric oxide, and prostacyclin.^6,7

PAH is rare, with prevalence estimates in the range of 10.6 to 52 per million people.^8-10 PAH predominantly affects women (female: male ratio of 4:1). ¹¹ PH is a common complication of connective tissue diseases (CTDs), with prevalence as high as 12% in patients with systemic sclerosis (SSc). ¹² Survival rates have improved considerably compared with the National Institutes of Health registry cohort for patients with a diagnosis of PAH in the 1980s.^1,13 The median survival has been estimated to be 85% at 1 year and 58% at 5 years. ¹ In fact, 30% of SSc-related deaths are due to PAH, which remains the leading cause of morbidity and mortality in this population. ¹² Although overall mortality rates in patients with PAH have improved, the morbidity and mortality associated with the condition remain unacceptably high.

Although the exact pathogenesis is uncertain, CTEPH (Group 4 PH) primarily occurs after an acute pulmonary embolism (PE) and is thought to be the result of single or recurrent PE arising from venous thrombosis.^6,14,15 CTEPH may also be caused by in situ thrombosis in the lung as a result of primary arteriopathy and endothelial dysfunction, similar to PAH. Ultimately, CTEPH results from mechanical obstruction of the pulmonary arteries. This obstruction is caused by the presence of organized fibrotic thrombi tightly attached to the medial layer of the elastic pulmonary arteries, replacing the normal intima. ¹⁶ The consequences of this occlusion include restricted blood flow and increased PVR.^6,17 Progressive pulmonary vascular remodeling (eg, thrombi organization, fibrous stenosis, microvascular changes) obstructs pulmonary arteries, leading to PH and right heart failure.^3,14

The epidemiology of CTEPH is not well established, but the incidence of CTEPH after symptomatic acute PE is reported to range from 0.4% to 6.2%; however, the true incidence of CTEPH may be higher, because the disease is often underdiagnosed due to variable rates of prior acute PE and non-specific symptoms.^18-21 The prognosis is especially poor in patients with untreated CTEPH, with 3-year mortality rates approaching 90%. ²²

Clinical Management and Treatment Guidelines

The overall goal in the treatment of PH (including PAH and CTEPH) is to improve risk status and long-term outcomes.^23,24 Additional goals of therapy may include improvements in exercise tolerance, delay in clinical worsening, and factors related to quality of life. Management considerations include type of PH, treatment goals, presence and type of comorbidities, risk profiles, and patient preference for treatment.^24,25

PAH

Historically, individual indicators of prognosis, such as World Health Organization Functional Class (WHO FC) (Table 1), have been used to guide decisions about appropriate therapy; however, additional considerations now include a risk-based approach, with the development of multiple risk stratification strategies. ²⁴ The current European Society of Cardiology/European Respiratory Society (ESC/ERS) guidelines recommend that treatment decisions should be guided by a comprehensive, multiparameter risk assessment. ⁵ These guidelines provide a summary of risk determinants based on prognostic relevance, which includes clinical signs of right heart failure, progression of symptoms, syncope, 6-minute walking distance (6MWD), cardiopulmonary exercise testing, biomarkers, imaging, and hemodynamics. ⁵ According to this assessment, the patient can be classified as having low, intermediate, or high risk for estimated 1-year mortality of <5%, 5% to 10%, or >10%, respectively. ⁵ This approach is supported by recently published recommendations from the 6th World Symposium on Pulmonary Hypertension (WSPH). ²⁶

OPEN IN VIEWER

Table 1.

WHO FC.

WHO FC	Description
I	No limitation of physical activity; ordinary physical activity does not cause undue dyspnea or fatigue, chest pain, or near syncope
II	Slight limitation of physical activity, but no symptoms at rest; ordinary physical activity causes undue dyspnea or fatigue, chest pain, or near syncope
III	Marked limitation of physical activity, but no symptoms at rest; less than ordinary physical activity causes undue dyspnea or fatigue, chest pain, or near syncope
IV	Inability to perform any physical activity without discomfort; symptoms may be present at rest; signs of right-sided heart failure present

Abbreviation: WHO FC, World Health Organization Functional Class.

Source: Galiè N, et al (2015). ²⁴

Treatment goals for patients with PAH include attaining low-risk status to achieve improvements in exercise capacity, quality of life, and right ventricular (RV) function, as well as lowering mortality risk. ⁵ Multiparameter goals of treatment have been proposed based on a set of prognostic indicators (ie, improvement in FC [I or II]; normal/near-normal RV size and function; hemodynamic parameters showing normalization of RV function; 6MWD >380 to 440 m; cardiopulmonary exercise testing, including peak oxygen consumption >15 mL/min/kg and ventilatory equivalent for CO₂ [EqCO₂] <45 L/min; and normal brain natriuretic peptide [BNP] levels). ²³

The 2015 ESC/ERS guidelines offer recommendations for pharmacologic management of PAH based on WHO FC. ⁵ Oral monotherapies for patients with WHO FC II symptoms with an endothelin receptor antagonist (ERA) (ie, bosentan, ambrisentan, or macitentan), a phosphodiesterase-5 inhibitor (PDE-5i; ie, sildenafil or tadalafil), a soluble guanylate cyclase (sGC) stimulator (ie, riociguat), or a selective IP receptor agonist (ie, selexipag) all receive Class I recommendations. For patients with WHO FC III symptoms, additional Class I recommendations include prostacyclin analogues (ie, IV epoprostenol, inhaled iloprost, or inhaled or SC treprostinil). ⁵ In addition to recommendations for monotherapy, the guidelines include recommendations for both up-front and sequential combination therapies. Up-front combination therapy with ambrisentan and tadalafil received a Class I recommendation in patients with WHO FC II or III symptoms. Several sequential combination therapies for WHO FC II and III received Class I recommendations, including macitentan added to sildenafil, riociguat added to bosentan, and selexipag added to an ERA and/or to a PDE-5i. Sildenafil added to epoprostenol also has a Class I recommendation for WHO FC III patients only. ⁵

The 6th WSPH, held in Nice, France, in 2018, updated recommendations for patients with PAH, including medical therapy. ²⁷ A treatment algorithm provided an overview of initial strategies based on the severity of PAH, assessed by a multiparametric risk stratification approach. The task force recommends that after confirmation of the diagnosis of PAH, the initial approach and initial monotherapy for treatment-naïve patients should follow the 2015 ESC/ERS PH guidelines. ²⁶ Based on these guidelines, further treatment escalation is required if low-risk status is not achieved in scheduled follow-up assessments. ²⁶

The 2018 American College of Chest Physicians (CHEST) guidelines and expert panel report on pharmacotherapy also provide recommendations on pharmacologic therapy for PAH. ²⁸ These guidelines suggest that management should be based on WHO FC and previous exposure to PAH-targeted therapies, with additional consideration for prognosis. In addition, patients should be evaluated at a PH center before therapy is initiated. A new recommendation from the expert panel suggests that treatment-naïve patients with WHO FC II or III symptoms should be started on first-line oral combination therapy with ambrisentan and tadalafil. For those unwilling or unable to tolerate combination therapy, up-front oral monotherapy is recommended as an alternative with an ERA (ie, bosentan, ambrisentan, or macitentan), a PDE-5i (ie, sildenafil or tadalafil), or an sGC stimulator (ie, riociguat). ²⁸ Initiation of a parenteral prostanoid is suggested for patients with WHO FC III symptoms, evidence of rapid progression, and markers of poor prognosis. ²⁸ Referral to an expert center for management is also recommended. For patients with WHO FC IV symptoms, initiation of therapy with a parenteral prostanoid is recommended; intravenous epoprostenol is generally regarded as the therapy of choice. ²⁸ The second new recommendation states that patients with stable or symptomatic PAH on background therapy with ambrisentan should have tadalafil added. ²⁸

CTEPH

CTEPH is the only potentially curable form of PH, through pulmonary endarterectomy (PEA) surgery.^5,29 For patients with CTEPH who are eligible for PEA, the goal of treatment is to cure the disease. For this reason, all patients with CTEPH should be evaluated for surgery, and PEA should be offered to those who are eligible.^5,21 These are both class 1 recommendations according to the 2015 ESC/ERS guidelines. ⁵ Unfortunately, with up to 50% of CTEPH patients ineligible for surgery because of comorbidities or inaccessible distal location of pulmonary vascular obstructions, a substantial need for medical therapy remains.^30,31 According to the ESC/ERS guidelines, riociguat has a class 1 recommendation for use in symptomatic patients with persistent/recurrent CTEPH after PEA, or for patients with inoperable CTEPH as determined by a specialist team that includes at least 1 experienced PEA surgeon. ⁵

For patients who are ineligible for PEA, balloon pulmonary angioplasty (BPA) has emerged as an alternative; however, BPA should be reserved for use at expert centers. ²¹ A large UK national cohort study reported that 51% of patients had mean pulmonary artery pressure (mPAP) ≥25 mmHg 3 months to 6 months following PEA. ³² In patients who are not candidates or who have persistent or recurrent PH symptoms following PEA, targeted medical therapy—with or without BPA—is recommended.^5,29 Additionally, all patients should be treated with lifelong anticoagulation therapy, regardless of surgical candidacy.

Role of Riociguat in Therapy

Riociguat was approved by the FDA in October 2013 as the first medication from the novel class of sGC stimulators and is the only treatment approved for both PAH and CTEPH. As an sGC stimulator with a dual mode of action, riociguat acts in synergy with endogenous nitric oxide and directly stimulates sGC independently of nitric oxide availability. This increased production of cyclic guanosine monophosphate (cGMP) results in vasorelaxation and antiproliferative and antifibrotic effects^33,34 (Figure 1).

OPEN IN VIEWER

Figure 1.

Riociguat mechanism of action.^33,34 Riociguat has a dual mode of action and sensitizes, soluble guanylate cyclase (sGC) to endogenous nitric oxide (NO) in the presence of NO (left) and acts independently of NO to directly stimulate SGC via a different binding site (right).

Pharmacotherapy Considerations for Riociguat

Drug-Drug Interactions

Drug-drug interactions associated with riociguat include increased risk of hypotension with concomitant administration of nitrates, nitric oxide donors, and PDE-5i. Concurrent use with any drug in these classes is contraindicated. When transitioning from a PDE-5i, sildenafil and tadalafil should be discontinued for a minimum of 24 hours and 48 hours, respectively, before riociguat is initiated. Additional important drug-drug interactions are summarized in Table 2. ⁴³

OPEN IN VIEWER

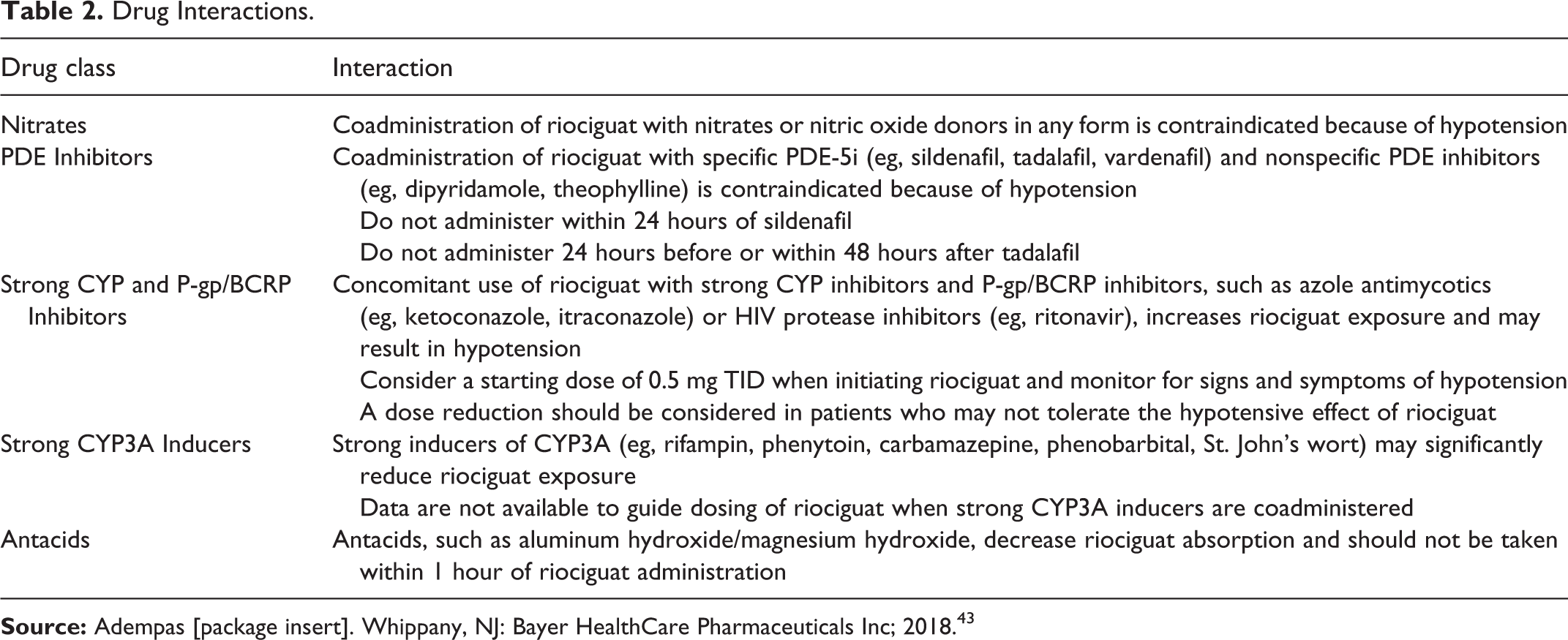

Table 2.

Drug Interactions.

Drug class	Interaction
Nitrates	Coadministration of riociguat with nitrates or nitric oxide donors in any form is contraindicated because of hypotension
PDE Inhibitors	Coadministration of riociguat with specific PDE-5i (eg, sildenafil, tadalafil, vardenafil) and nonspecific PDE inhibitors (eg, dipyridamole, theophylline) is contraindicated because of hypotension Do not administer within 24 hours of sildenafil Do not administer 24 hours before or within 48 hours after tadalafil
Strong CYP and P-gp/BCRP Inhibitors	Concomitant use of riociguat with strong CYP inhibitors and P-gp/BCRP inhibitors, such as azole antimycotics (eg, ketoconazole, itraconazole) or HIV protease inhibitors (eg, ritonavir), increases riociguat exposure and may result in hypotension Consider a starting dose of 0.5 mg TID when initiating riociguat and monitor for signs and symptoms of hypotension A dose reduction should be considered in patients who may not tolerate the hypotensive effect of riociguat
Strong CYP3A Inducers	Strong inducers of CYP3A (eg, rifampin, phenytoin, carbamazepine, phenobarbital, St. John’s wort) may significantly reduce riociguat exposure Data are not available to guide dosing of riociguat when strong CYP3A inducers are coadministered
Antacids	Antacids, such as aluminum hydroxide/magnesium hydroxide, decrease riociguat absorption and should not be taken within 1 hour of riociguat administration

Source: Adempas [package insert]. Whippany, NJ: Bayer HealthCare Pharmaceuticals Inc; 2018. ⁴³

Risk Evaluation and Mitigation Strategy Program

Because of the risk of embryofetal toxicity, specific requirements have been established to demonstrate compliance with the riociguat risk evaluation and mitigation strategy (REMS) program (Table 3). ⁴³ Riociguat is available only to females through this program. All females, regardless of their reproductive potential, must be enrolled in the REMS program; prescribers and certified pharmacies must also be enrolled in the program. FRP must be able to comply with pregnancy testing and contraception requirements of the program. FRP include girls who have entered puberty and all females who have a uterus and have not passed through menopause. Reliable contraception must be used during treatment and for 1 month following discontinuation. ⁴³ Males are not required to enroll in the REMS program.

OPEN IN VIEWER

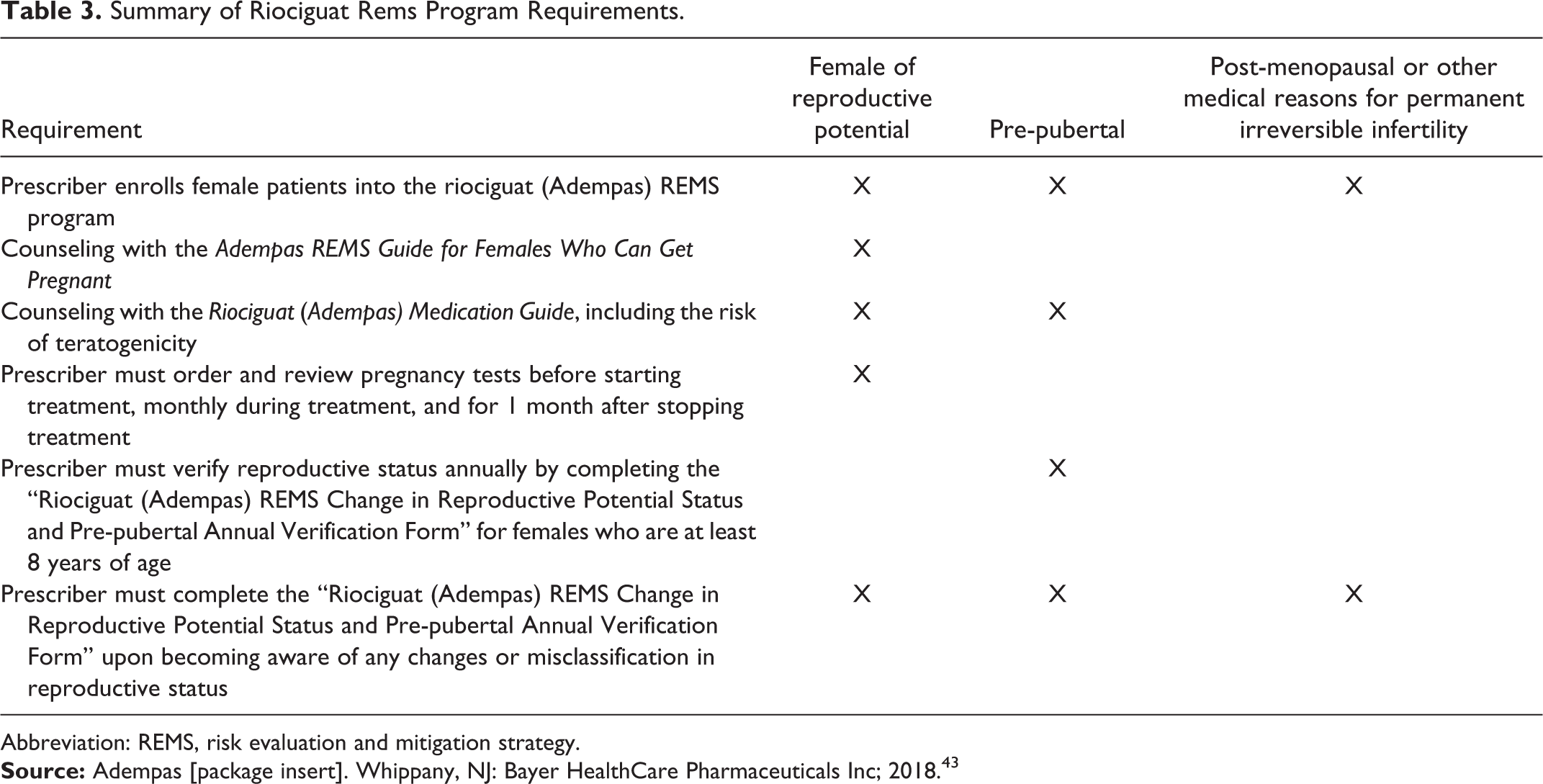

Table 3.

Summary of Riociguat Rems Program Requirements.

Requirement	Female of reproductive potential	Pre-pubertal	Post-menopausal or other medical reasons for permanent irreversible infertility
Prescriber enrolls female patients into the riociguat (Adempas) REMS program	X	X	X
Counseling with the Adempas REMS Guide for Females Who Can Get Pregnant	X
Counseling with the Riociguat (Adempas) Medication Guide, including the risk of teratogenicity	X	X
Prescriber must order and review pregnancy tests before starting treatment, monthly during treatment, and for 1 month after stopping treatment	X
Prescriber must verify reproductive status annually by completing the “Riociguat (Adempas) REMS Change in Reproductive Potential Status and Pre-pubertal Annual Verification Form” for females who are at least 8 years of age		X
Prescriber must complete the “Riociguat (Adempas) REMS Change in Reproductive Potential Status and Pre-pubertal Annual Verification Form” upon becoming aware of any changes or misclassification in reproductive status	X	X	X

Abbreviation: REMS, risk evaluation and mitigation strategy.

Source: Adempas [package insert]. Whippany, NJ: Bayer HealthCare Pharmaceuticals Inc; 2018. ⁴³

The Role of the Pharmacist

Pharmacists are well positioned to ensure appropriate use of therapies for PAH and CTEPH. ⁴⁷ It is essential for pharmacists to understand the management of these conditions, which requires knowledge of the drugs in each class, their roles, and considerations for use, such as adverse effects, drug-drug interactions, and administration issues. These topics are highly relevant for patient education and engagement to help promote treatment adherence and improve outcomes.

Most pharmacotherapies used to treat PH are classified as specialty medications and are accessible only through specialty pharmacies. Specialty medicines are often associated with higher costs, sensitive requirements for administration, and intensive clinical monitoring. ⁴⁷ In many cases, important considerations for medication access may include determination of medical necessity, financial assessment for affordability, prior authorization, and REMS program enrollment (for physicians, pharmacies, and female patients). From an inpatient perspective, pharmacists play a key role in formulary management and assurance of medication safety. Formulary decisions must be made based on frequency of admission of patients on PH medications and cost considerations in selecting dosage forms and strengths for each medication. Pharmacists are involved in creating and maintaining the use of electronic order sets that are designed to provide clinical decision support to ensure the safe ordering and administration of these therapies. These order set features may include requirements for input of safety information to comply with REMS program requirements, automated calculations, and dosing limits. Pharmacists are also involved in therapy transitions in cases where alternate routes of administration are required or for management of adverse effects, dosing regimen simplification, escalation of therapy, or minimization of medication costs.

Discussion

PAH and CTEPH are progressive conditions that, if left untreated, result in progressive right heart failure and death. The importance of multidisciplinary care is highlighted in current treatment guidelines, which recommend early referral to expert centers to provide timely and accurate diagnosis, as well as prompt initiation of therapy. ⁵ A multidisciplinary team consisting of physicians, pharmacists, advanced practice providers, nurses, and psychologists with social work support operates collaboratively to provide emergency care, diagnostics, and intensive therapy. Key functions of expert centers include assessing underlying causes of PH, managing PAH-specific therapies, and working collectively with other healthcare providers to optimize patient outcomes. ⁴⁸

Pharmacists serve a valuable role as part of the multidisciplinary team in the care of patients with PH, many of whom may have comorbidities that contribute to high costs and resource utilization. ⁴⁸ To help meet the complex needs of this population, pharmacists ensure appropriate and safe use of therapies, manage formulary decision-making, and provide clinical decision support. In light of limited data supporting a single, first-line approach to treatment of PH, familiarity with the data supporting available recommended therapies and their use can help ensure optimal care based on clinical guidelines and other evidence-based protocols. Pharmacists are uniquely positioned to communicate evidence both to the multidisciplinary healthcare team and to patients as part of a shared decision-making process for therapy management.

Riociguat is a first-in-class medication that is the only approved treatment for both PAH and CTEPH. In clinical trials, riociguat has demonstrated favorable efficacy and is well tolerated. Riociguat is a valuable addition to the armamentarium of options for treating patients with PH.
