Machine learning for improved medical device management: A focus on dialysis machines

Abstract

Background

Dialysis is a very complex treatment that is received by around 3 million people annually. Around 10% of the death cases in the presence of the dialysis machine were due to the technical errors of dialysis devices. One of the ways to maintain dialysis devices is by using machine learning and predictive maintenance in order to reduce the risk of patient's death, costs of repairs and provide a higher quality treatment.

Objective

Prediction of dialysis machine performance status and errors using regression models.

Method

The methodology includes seven steps: data collection, processing, model selection, training, evaluation, fine-tuning, and prediction. After preprocessing 1034 measurements, twelve machine learning models were trained to predict dialysis machine performance, and temperature and conductivity error values.

Results

Each model was trained 100 times on different splits of the dataset (80% training, 10% testing, 10% evaluation). Logistic regression achieved the highest accuracy in predicting dialysis machine performance. For temperature predictions, Lasso regression had the lowest MSE on training data (0.0058), while Linear regression showed the highest R² (0.59). For conductivity predictions, Lasso regression provided the lowest MSE (0.134), with Decision tree achieving the highest R² (0.2036). SVM attained the lowest MSE on testing dataset, with 0.0055 for temperature and 0.1369 for conductivity.

Conclusion

The results of this study demonstrate that clinical engineering (CE) and health technology management (HTM) departments in healthcare institutions can benefit from proposed automated systems for advanced management of dialysis machines.

Keywords

Medical device performance assessment clinical engineering dialysis machines post-market surveillance

1. Introduction

Medical devices often have a very complex design. Because of their complexity, medical devices might often contribute to the medical error. Device-related errors may cause several problems, especially in a very critical field such as medicine. Every 10th patient is harmed every year as a result of such medical errors. Medical errors can also result in high financial cost.¹ According to an FDA report, early dialysis devices were exposed to technical problems, which led to the development and application of international safety standards. Those safety standards are nowadays implemented by all medical device manufacturers.² Medical devices can be classified based on the potential risk that a patient is exposed to with the usage of such devices. European Union classifies dialysis devices as Class IIa³ which indicates that dialysis devices have a moderate to high risk and require special controls. Dialysis machines are also classified as measuring devices, since they contain sensors that measure and process different measurements and have a crucial role in the overall device quality.^4–6

Dialysis is the most widely used and recognized way of treating the patients with renal disease. During dialysis, the patient's blood is passed through an artificial kidney, a hemodialyzer. While the blood flows on one side of the hemodialyzer, an electrolyte solution is continuously produced on the other side of the device, which is used to normalize the abnormalities in the patient's blood. This process includes the removal of impurities and excess water. Nowadays, this process is performed by commercially produced equipment made by several medical equipment producers, including Fresenius, Gambro, and B. Braun.² Globally, around 3 million people receive dialysis treatment.⁷ Around 370,000 people in the US receive dialysis treatment annually, which costs about $11.1 billion.⁸ Renal disease is considered to be in end-stage when the kidneys work at less than 10%–15% of normal capacity,⁹ and the usage of dialysis devices is necessary for keeping the patient alive.¹⁰ Around 50,000 people die each year due to kidney failure.⁸ It is reported in the MDR data base that from 1992 to 1996 there have been 47 reported death cases in the presence of a dialysis machine. In 10% of these cases, it was reported that the death was caused by a technical error of the dialysis device.¹¹ Even though the current dialysis devices are life sustaining, they have cannot match the functionality of a healthy kidney. Conventional dialysis treatments can result in poor clinical outcomes, high mortality, and low quality of life of patients, due to their inadequacy. Due to the advancements in technology, new ways of treating kidney diseases are under development. New devices that challenge the current dialysis treatment paradigms are smaller, lighter, and usable outside of the clinics.⁷

It is crucial to properly maintain dialysis devices in order to provide quality care, reduce costs and prevent problems. There are various maintenance techniques which can be classified as either corrective, preventive or predictive maintenance.^12–17 Predictive maintenance focuses on predicting how the device will function based on the data collected in real time.^18–20 In recent years, there have been rapid advancements of the data driven approaches. These approaches utilize the technology of machine learning in order to help with making decisions based on the provided data. This can provide benefits such as reducing maintenance costs, reduce repair stops, improve user safety, increase production and life span of the device, and reduce costs. Despite the potential benefits and a great potential to bring improvements, this technology is still in its early stage of adoption in healthcare.

This paper discusses the usage of machine learning models in order to predict the level of error of various dialysis devices in order to test if the device is adhering to the international safety standards. Since our goal is to determine the error value, which is a real number, we will use regression models. In order to achieve this goal, the paper proposes the usage of the following three regression models: Linear regression, Random Forest regression and Lasso regression. We compare how accurate each model was at predicting the actual errors using the given dataset.

2. Materials and methods

The complete process of developing the machine learning models in order to predict the measurement errors of dialysis devices is represented in the seven steps as follows:

Data collection - The data is being collected from one or more sources. The quality, as well as the quantity of the data is very important for the final result and performance of the model.

Data preparation - It is important that data is in the correct format, well balanced, standardized and additionally processed in order to ensure the highest performances of the model.

Model selection - Model is selected based on the goal that we are trying to accomplish.

Model training - The processed data is being loaded into the model, which needs to find a relationship between the input data and the output of the model.

Model evaluation - After the model is done training, we need to test its performance on the data that was not previously loaded into the model. This ensures that the model will be able to work with real data.

Fine-tuning the model - In a lot of cases we can further improve the performance of the model by changing some of its hyperparameters.

Prediction - After the model is done training and we are satisfied with the results it achieved, we can use the model to predict values using real data.

The researchers were provided with an Excel spreadsheet file which contained information about various measurements of different dialysis devices. The provided dataset contains information about 1034 different dialysis device measurements obtained from healthcare institutions in Bosnia and Herzegovina using etalon, MessaLabs 90 XL, over a 7 year period. Each measurement contains the following data:

Manufacturer of the device. There are a total of four manufacturers in the dataset - Fresenius, B. Braun, Nipro and Baxter.

Device model name. There are a total of five different device models in the dataset - 5008, 4008, Dialog, Surdial and Artis Physio Plus.

A field which indicates whether the device passed the verification.

External inspection 1–4.

Measured value, expected value, their difference (error) and the allowed size of error. If error value is greater than the allowed size, then the measurement is marked as aligned. These values are provided for both temperature and conductivity measurements.

There is also a field that contains additional notes if provided.

Out of 1034 measurements, there were:

23 (2.22%) measurements that did not pass the verification.

12 (1.16%) measurements that did not pass the first external examination, 17 (1.64%) measurements that did not pass the second external examination, 12 (1.16%) measurements that did not pass the third external examination and 17 (1.64%) measurements that did not pass the fourth external examination.

2 (0.19%) measurements were not aligned in the terms of temperature, and 4 measurements were not aligned in the terms of conductivity.

2 (0.19%) measurements where temperature was aligned and conductivity was not, 0 measurements where conductivity was aligned and temperature was not, 1030 cases where both were aligned and 2 cases where neither temperature nor conductivity were aligned.

1011 (97.77%) measurements that passed verification, had also passed all external examinations and both temperature and conductivity values were aligned.

4 (0.38%) measurements did not pass verification because either temperature or conductivity were not aligned.

19 (1.83%) measurements did not pass verification because they did not pass at least one external check.

There were 22 (2.12%) rows that are labeled as ‘not measured’.

Only the measurements that passed all examination checks, as well had both temperature and conductivity aligned managed to pass the verification. On the other side, the measurements where at least one examination check failed, or temperature or conductivity values did not align, did not pass the validation check.

For all of the measurements, the maximum permissible error is ±0.3°C, and the allowed conductivity error is ±1.5 mS/mm. For temperature measurements the mean error is 0.165°C, standard deviation is 0.155°C, minimal error recorded is 0.00°C and maximal error recorded is 4.22°C. For conductivity measurements the mean error is 0.658 mS/mm, standard deviation is 1.451 mS/mm, minimal error recorded is 0.00 mS/mm and maximal error recorded is 44.54 mS/mm.

The two measurements of temperature that were greater than the allowed error value (±0.3°C) were 0.8°C and 4.22°C. The three measurements of conductivity that were greater than the allowed error value (±1.5 mS/mm) were 5.7 mS/mm, 2.44 mS/mm and 44.54 mS/mm. The following figure represents a histogram of all measurement errors of temperature and conductivity that are lesser than the allowed value.

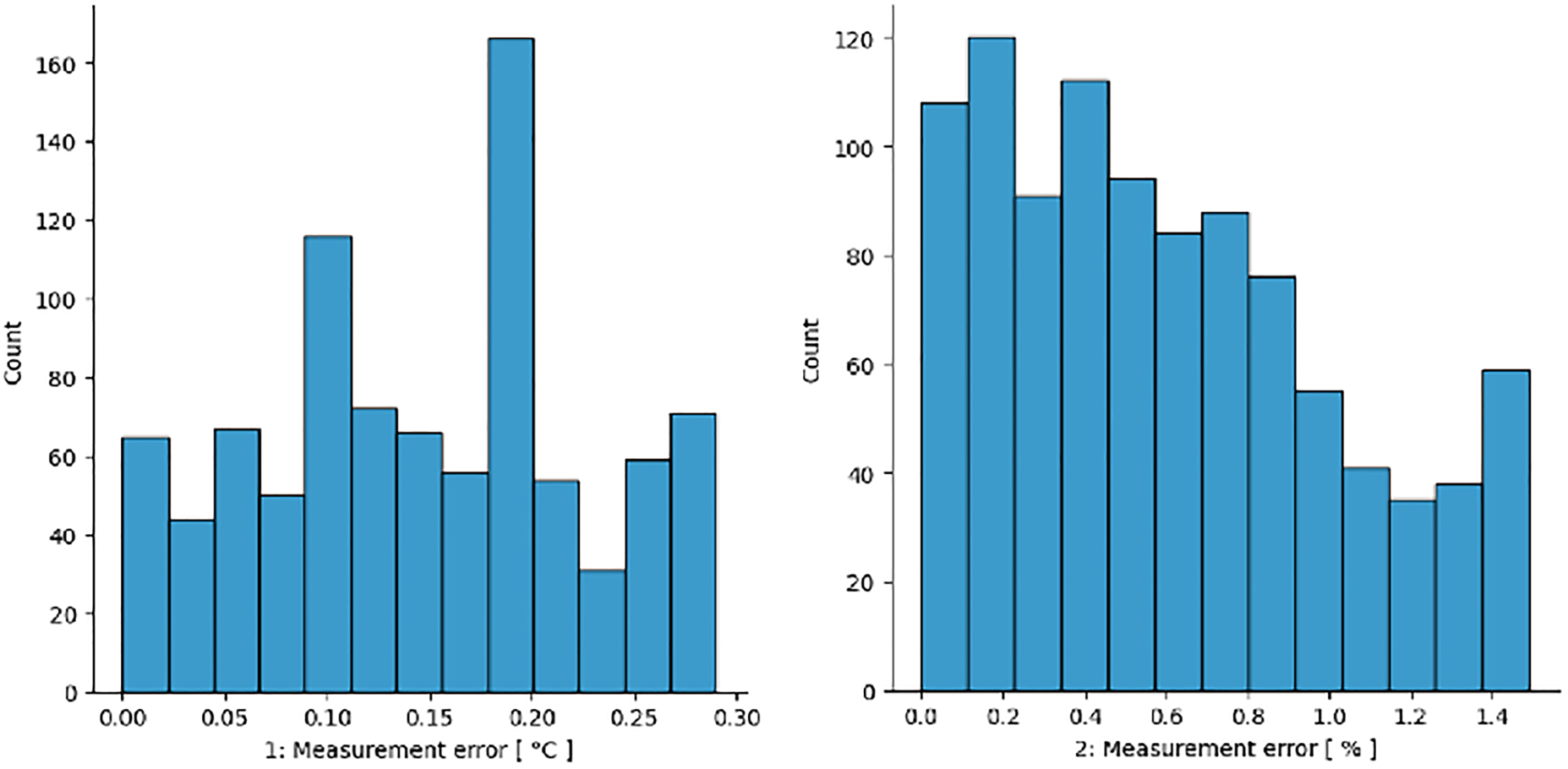

Figure 1.

Histograms of measurement errors.

2.1. Data preprocessing

Before loading the data into the machine learning model, it should be properly preprocessed. For convenient data manipulation, the provided Excel spreadsheet file was converted to comma-separated value (CSV) format. The resulting CSV file contains 1034 rows and 21 columns. Columns that contained the same value for each record were dropped, since they do not contribute to the final prediction. For example, the column that indicates the type of measurement (e.g., Temperature) and its allowed error value is the same for all of the rows. The rows that contain Yes or No values were converted to 1 and 0. The rows that had missing measurements were dropped and converted to numeric format. Manufacturer name and device model name were converted to numeric values using Label encoder, which labels each unique value in a column with a different number. We renamed the devices’ manufacturer and model names to ensure consistency. For example, devices labeled with “5008S” and “5008 S” would be considered a different device if not properly renamed, even though they are meant to represent the devices with the same model.

The goal is to predict whether the model will pass the verification or not. Provided that the device had passed all of the external examinations, the verification status will depend on the measurement error of temperature and conductivity. That being said, the model should be able to predict the error values of each measurement. Since the model needs to predict a value that is numeric and continuous, we need to use a regression model.

For the purpose of our research 10 machine learning models in total were trained. The models are as following:

Decision tree model to predict dialysis machine performance status

Random forest model to predict dialysis machine performance status

Support vector machine model to predict dialysis machine performance status

Logistic regression model to predict dialysis machine performance status

Linear regression model to predict temperature error

Linear regression model to predict conductivity error

Random forest model to predict temperature error

Random forest model to predict conductivity error

Lasso regression model to predict temperature error

Lasso regression model to predict conductivity error

In order to predict the performance status of the dialysis device, all measurements of temperature and conductivity as well as visual inspection status were taken into account. In order to predict the temperature error we have used the device model, expected value of temperature, expected value of conductivity, measured value of conductivity and error of conductivity measurement. Similarly, in order to predict the conductivity error we have used the device model, expected value of conductivity, expected value of temperature, measured value of temperature and error of temperature measurement.

3. Results and discussion

The specific parameter settings chosen for each algorithm were based on randomized values that could potentially achieve the desired results. These parameters are crucial in determining the accuracy and performance of the model, and their selection requires careful consideration to obtain the best results. Below are the Confusion Matrix tables (Table 1, 2, 3 and 4) which depict the results that were achieved when implementing the selected machine learning algorithms. The results achieved across all four implemented algorithms are presented in Table 5, which shows results of the accuracy, precision and sensitivity.

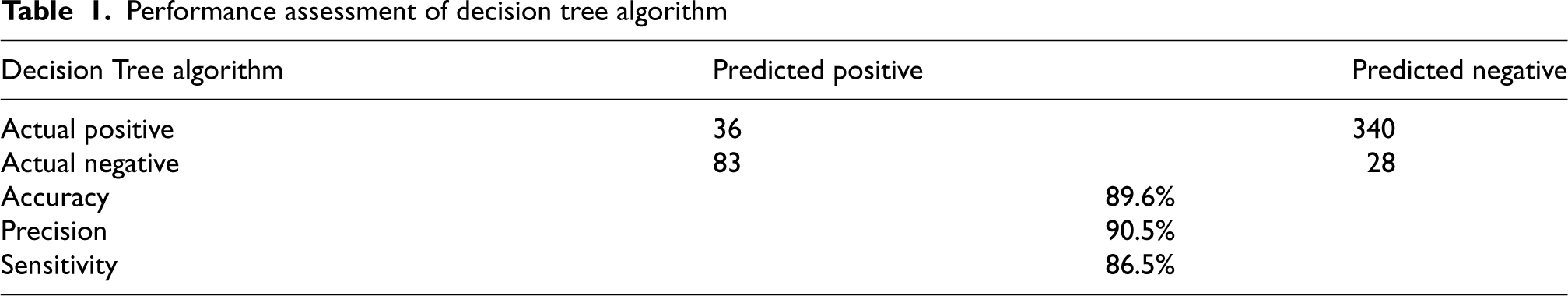

Table 1.
Performance assessment of decision tree algorithm

Decision Tree algorithm Predicted positive Predicted negative

Actual positive 36 340

Actual negative 83 28

Accuracy 89.6%

Precision 90.5%

Sensitivity 86.5%

Decision Tree algorithm	Predicted positive	Predicted negative
Actual positive	36	340
Actual negative	83	28
Accuracy	89.6%
Precision	90.5%
Sensitivity	86.5%

Table 2.

Performance assessment of random forest algorithm

Random Forest algorithm	Predicted positive	Predicted negative
Actual positive	30	347
Actual negative	89	21
Accuracy	91.3%
Precision	92.6%
Sensitivity	87.3%

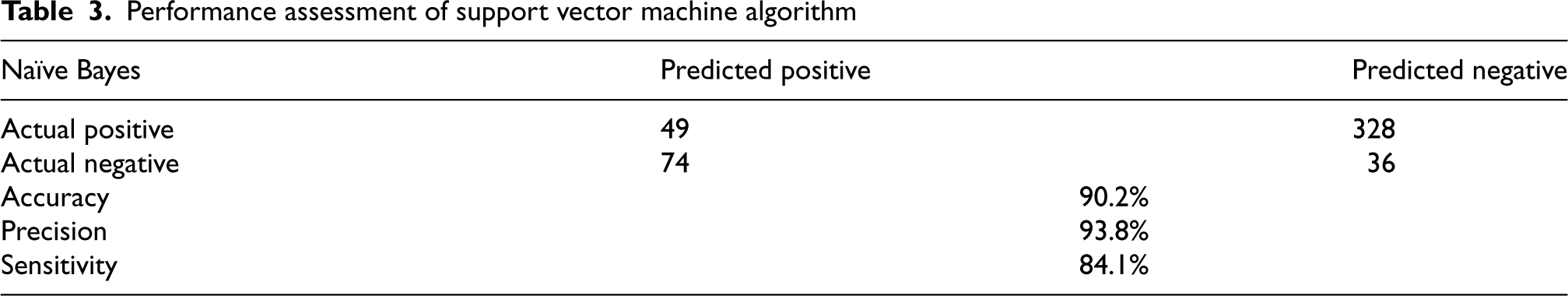

Table 3.

Performance assessment of support vector machine algorithm

Naïve Bayes	Predicted positive	Predicted negative
Actual positive	49	328
Actual negative	74	36
Accuracy	90.2%
Precision	93.8%
Sensitivity	84.1%

Table 4.

Performance assessment of logistic regression algorithm

Linear Regression	Predicted positive	Predicted negative
Actual positive	39	338
Actual negative	87	23
Accuracy	91.1%
Precision	89.4%
Sensitivity	88.2%

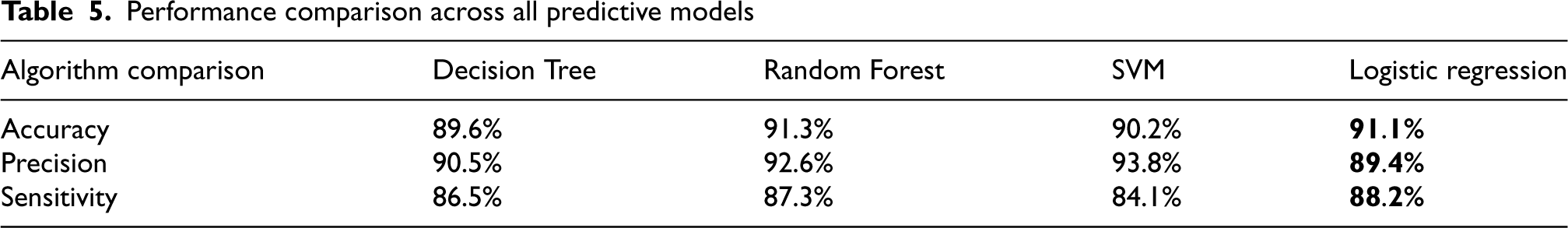

Table 5.

Performance comparison across all predictive models

Algorithm comparison	Decision Tree	Random Forest	SVM	Logistic regression
Accuracy	89.6%	91.3%	90.2%	91.1%
Precision	90.5%	92.6%	93.8%	89.4%
Sensitivity	86.5%	87.3%	84.1%	88.2%

As it can be inferred from Tables 1–5, logistic regression model achieved the highest performance in terms of predicting dialysis machine performance status. A step further was taken and the remaining 6 machine learning algorithms were used to predict temperature and conductivity error of dialysis machines on the basis of their previous performance.

Each model was trained 100 times. During each training both datasets were split into training, test and evaluation data, with the data being shuffled each time. We have allocated 80% of the used data to the training dataset, and 10% of the used data to the training and validation datasets each. Achieved results are represented in the Table 6 below.

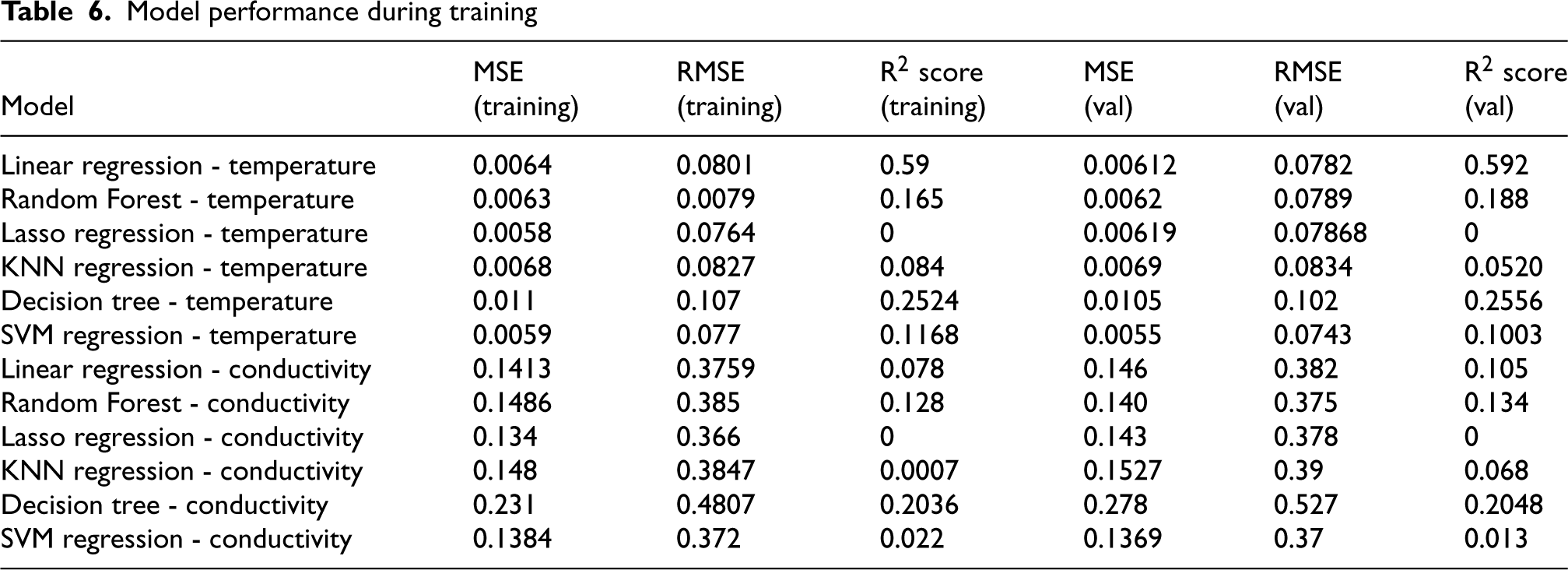

Table 6.

Model performance during training

	MSE	RMSE	R² score	MSE	RMSE	R² score
Model	(training)	(training)	(training)	(val)	(val)	(val)
Linear regression - temperature	0.0064	0.0801	0.59	0.00612	0.0782	0.592
Random Forest - temperature	0.0063	0.0079	0.165	0.0062	0.0789	0.188
Lasso regression - temperature	0.0058	0.0764	0	0.00619	0.07868	0
KNN regression - temperature	0.0068	0.0827	0.084	0.0069	0.0834	0.0520
Decision tree - temperature	0.011	0.107	0.2524	0.0105	0.102	0.2556
SVM regression - temperature	0.0059	0.077	0.1168	0.0055	0.0743	0.1003
Linear regression - conductivity	0.1413	0.3759	0.078	0.146	0.382	0.105
Random Forest - conductivity	0.1486	0.385	0.128	0.140	0.375	0.134
Lasso regression - conductivity	0.134	0.366	0	0.143	0.378	0
KNN regression - conductivity	0.148	0.3847	0.0007	0.1527	0.39	0.068
Decision tree - conductivity	0.231	0.4807	0.2036	0.278	0.527	0.2048
SVM regression - conductivity	0.1384	0.372	0.022	0.1369	0.37	0.013

Both MSE and RMSE indicate the mean error that the model makes when making predictions. Hence, the aim of the development phase is to bring the two parameters to the lowest possible extent. As mentioned previously, 100 iterations were run for each model in order to accommodate the possible variations in hyperparameters as well as take into account the computational infrastructure that may influence model's performance. Lasso regression achieved the lowest MSE and RMSE on training data in both conductivity and temperature error prediction, while SVM regression achieved the lowest MSE and RMSE on validation data in both conductivity and temperature error prediction.

R² as a parameter is an indicator of correlation between the result predicted by the algorithm and the target outcome. The range of R² consequently is between 0 and 1 where closeness to 1 indicates a higher degree of correlation. Linear regression performed much better in terms of R² score than the other two models at temperature error prediction, while Random Forest achieved a higher R² score at predicting conductivity measurement errors. The following figures represent the RMSE value and R² score of both training and validation datasets during all 100 times the model was trained using Linear regression model.

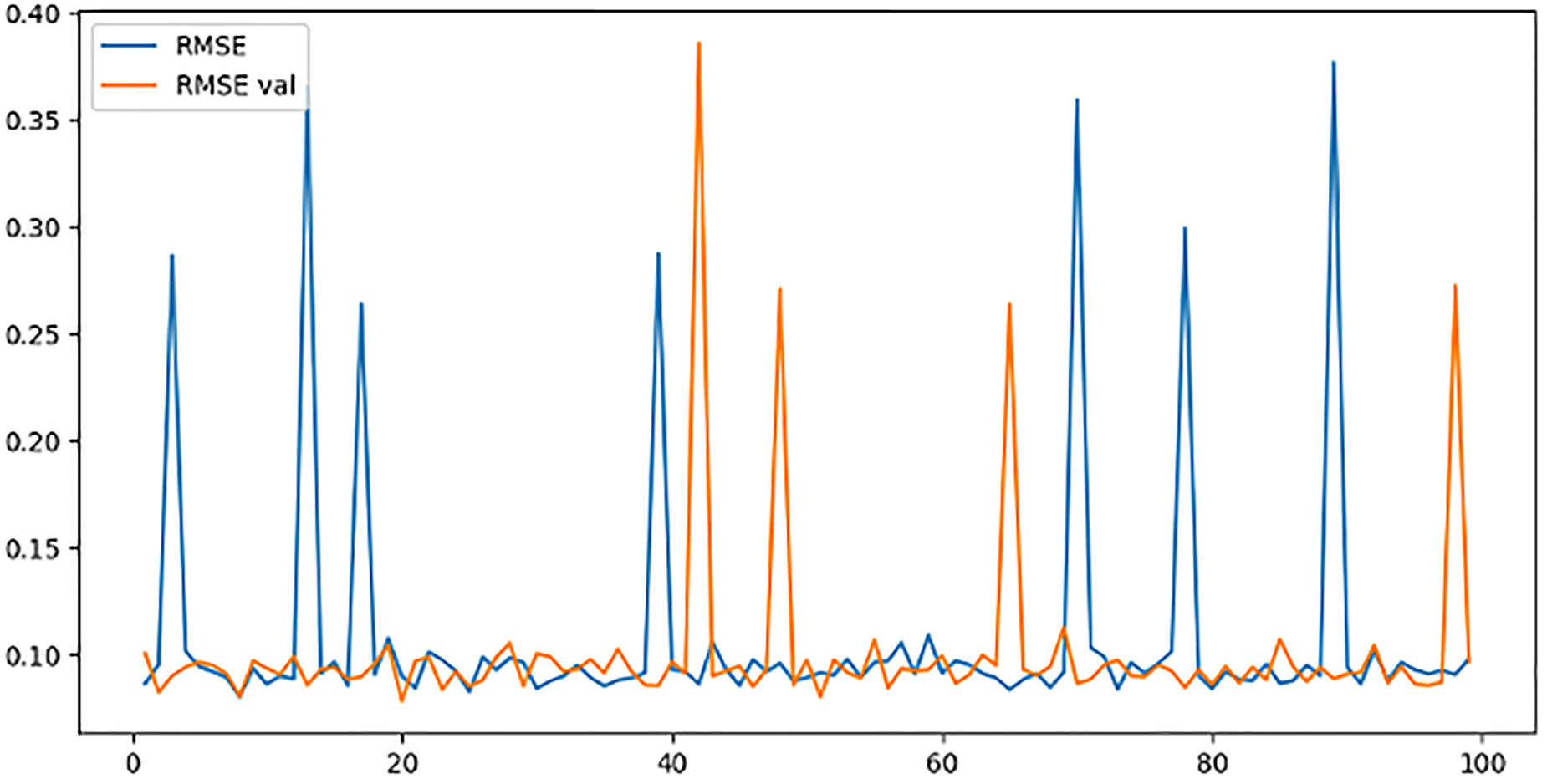

Figure 2.

RMSE value of lasso regression model.

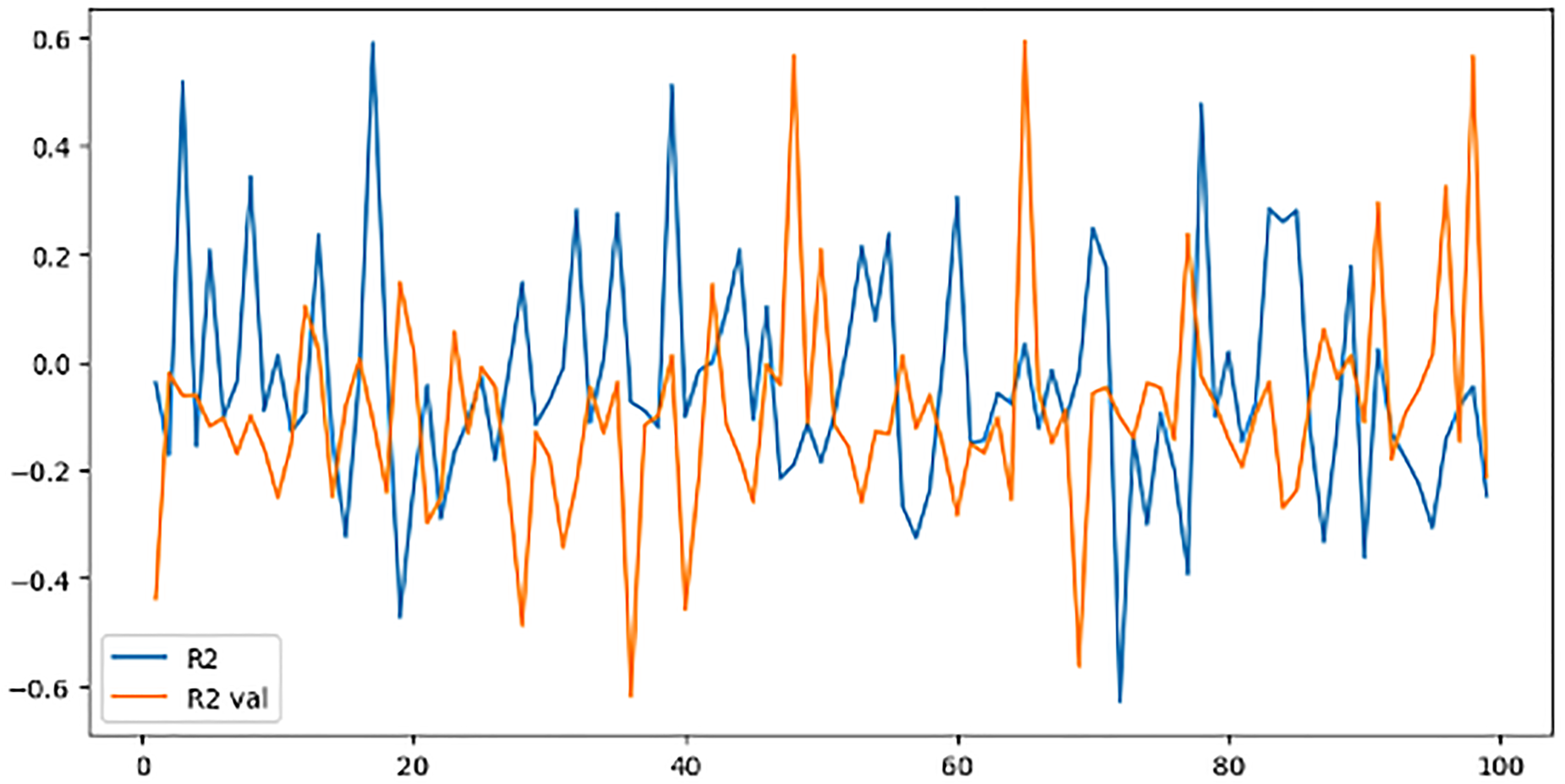

Figure 3.

R² value of lasso regression model.

As it can be seen from the figures, both RMSE and R² values varied significantly over 100 iterations during the development phase and no convergence can be observed between training and validation datasets. Due to the nature of the dataset, especially due to the relatively small number of devices that were not aligned, none of the models had shown a satisfying performance in predicting the value of an error. Due to the nature of the dataset, the proposed performance metrics could be considered misleading. To further expand onto this research, future researchers could use different performance metrics, as well as a more balanced dataset.

4. Conclusion

The paper aimed to show how well the error in the temperature and conductivity measurements of dialysis devices can be predicted. This study shows that the errors that occur in the measurements of dialysis devices cannot be easily estimated with a high accuracy with the provided data. This indicates that the error is unrelated to various parameters such as device model, and measurements of other values.

One of the main problems that this paper indicates is the trustworthiness of AI, especially in the fields such as healthcare, where it is very important to have very accurate and trustworthy data. The proposed models did not manage to explain why large measurements errors occur in dialysis devices. This problem could also be further expanded on by applying the techniques of Explainable AI (XAI), which aims to provide an understandable reasoning why the models come to such conclusions.

Footnotes

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

Conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

References

Hyman

. Errors in the use of medical equipment. Human error in medicine. CRC Press, 2018, pp.327–347.

Hoenich

Levin

. Hemodialysis machines. Biomed Instrum Technol. 2007; 41: 215–218.

Badnjević

Pokvić

Deumić

, et al. Post-market surveillance of medical devices: a review. Technol Health Care. 2022; 30: 1315–1329.

Badnjevic

Deumic

Biskovic

, et al. A novel method for conformity assessment testing of dialysis machines for post-market surveillance purposes. Technol Health Care. 2023; 31: 357–365.

Gurbeta

Alic

Dzemic

, et al. editors. Testing of dialysis machines in healthcare institutions in Bosnia and Herzegovina. In: EMBEC & NBC 2017: Joint Conference of the European Medical and Biological Engineering Conference (EMBEC) and the Nordic-Baltic Conference on Biomedical Engineering and Medical Physics (NBC), Tampere, Finland, June 2017. Springer, 2018, pp.470–473.

Gurbeta

Vukovic

Džemic

, et al. editors. Legal metrology procedures for increasing safety and performance characteristics with cost benefits analysis: case study dialysis machines. In: World Congress on Medical Physics and Biomedical Engineering 2018: June 3–8, 2018, Prague, Czech Republic (Vol 2). Springer, 2019, pp.55–59.

van Gelder

Mihaila

Jansen

, et al. From portable dialysis to a bioengineered kidney. Expert Rev Med Devices. 2018; 15: 323–336.

Health NIo. National institute of diabetes and digestive and kidney diseases. US Renal Data System, USRDS 1998 Annual Data Report. 2010.

Levey

Coresh

Bolton

, et al. K/DOQI clinical practice guidelines for chronic kidney disease: evaluation, classification, and stratification. Am J Kidney Dis. 2002; 39: i-ii+ S1–S266.

10.

Kusiak

Dixon

Shah

. Predicting survival time for kidney dialysis patients: a data mining approach. Comput Biol Med. 2005; 35: 311–327.

11.

Roy

. Patients’ safety and haemodialysis devices. Nephrol Dial Transplant. 2001; 16: 2138–2142.

12.

Badnjevic

. Evidence-based maintenance of medical devices: current shortage and pathway towards solution. Technol Health Care. 2023; 31: 293–305.

13.

Badnjević

Pokvić

. Medical devices maintenance. In: Clinical engineering handbook. Elsevier, 2020. pp.520–526.

14.

Manchadi

Ben-Bouazza

F-e

Jioudi

. Predictive maintenance in healthcare system: a survey. IEEE Access 2023; 11: 61313–61330.

15.

Pokvic

Spahic

Badnjevic

. Chapter 23: implementation of industry 4.0 in transformation of medical device maintenance systems. Handbook of Research on Integrating Industry 2020; 4: 512–532.

16.

Pokvić

Deumić

Softić

, et al. Application of artificial intelligence for management of maintenance and prediction of performances. Inspection of medical devices: for regulatory purposes. Springer, 2023, pp.115–138.

17.

Pokvic

Spahic

Badnjevic

. Implementation of industry 4.0 in transformation of medical device maintenance systems. In: Handbook of research on integrating industry 40 in business and manufacturing. IGI Global, 2020, pp.512–532.

18.

Badnjević

Pokvić

Hasičić

, et al. Evidence-based clinical engineering: machine learning algorithms for prediction of defibrillator performance. Biomed Signal Process Control. 2019; 54: 101629.

19.

Kovačević

Gurbeta Pokvić

Spahić

, et al. Prediction of medical device performance using machine learning techniques: infant incubator case study. Health Technol (Berl). 2020; 10: 151–155.

20.

Spahić

Kurta

Ćordić

, et al., editors. Machine learning techniques for performance prediction of medical devices: infant incubators. In: CMBEBIH 2019: Proceedings of the International Conference on Medical and Biological Engineering, 16–18 May 2019, Banja Luka, Bosnia and Herzegovina. Springer, 2020, pp.483–490.
