Development of a novel high-speed dynamic length measurement system for mobile and large-scale cylinder workpiece

Abstract

A high-speed length measuring system for mobile and large-scale cylinder workpiece was designed and constructed. This measuring system is characterized by two stationary laser scanning systems placed on two sides of workpiece responsible for the acquisition of points of key parts. Meanwhile, for making the measuring process faster and more flexible, the virtual measurement datum planes play an important role, and are step-by-step generated according to various features of measured surface in an online virtual inspection environment. Moreover, modeling and identification of end point of workpiece are established based on height variations in its nearest neighborhood. The three-dimensional dynamic length measurement data are then obtained by calculating the displacement between end point and corresponding datum plane. The prototypal system has been tested on different real cases with several typical cylinder workpieces (length 1000 ± 20 mm, diameter 50 ± 25 mm). Compared with the measurement results of coordinate measuring machine, the root-mean-square errors of the measurement data are smaller than 0.035 mm. The system measurement uncertainty is better than ±0.040 mm. The measuring time is less than 2 s. The proposed measuring system features high automation and high efficiency, and is most promising for on-machine applications in large geometric dimensional measurement.

Keywords

Dynamic length measurement three-dimensional laser scanning virtual measurement datum plane end points

Introduction

In industrial manufacturing processes, the geometrical dimensional inspection of large-scale workpieces is critical and challenging, and is directly associated with subsequent assembly and terminal product quality.^1,2 The length measurement of large-scale workpieces is one of the crucial fundamental quantities to ensure their conformity to design specifications serving a range of industries, from automotive and aerospace industries to house applications.^3,4 Consequently, the broad diversity of large-scale metrology applications, involving numerous manufacturing areas, brings out the interest in designing innovative and efficient measuring systems for large-scale workpieces. Meanwhile, this ever-increasing demand for faster and more accurate dimensional measurements of large-scale workpiece has already initiated the search for new solutions in large-scale measuring system, coupled with an incessant development of the existing ones, but a constant need for simple, safe, low-cost and effective solutions that would satisfy the modern industrial requirements still persists.

In the production line, conventional length measurements are via coordinate measuring machine (CMM) equipped with touch-trigger probes.^5,6 Although this method provides high precision, its inherent slow speed and specialized operators are very difficult to satisfy the measurement requirements. To solve this problem, a new promising trend in the field of dimensional metrology is to integrate multi-type of noncontact sensors into the CMM, such as moiré topography projectors, image sensors and structured-light sensors, which are employed to get more accurate and reliable information only on key parts of target because of the restriction of measurement efficiency.^7–10 But till now, there are no efficient measuring systems, which can be widespread for large-scale workpiece geometrical inspection with high accuracy and flexibility. Moiré topography projectors have the advantages of high measurement efficiency and large depth of field in detecting large-scale workpiece, and they are widely used for some simple-structured large parts but cannot identify the fine structure of key parts owing to their working principle.^11,12 Image sensors are mainly exploited in machine vision for online dimensions measurement of some kinds of large-scale workpieces in mechanical industry, and they have a high geometrical resolution but are slow and deficient in terms of computation source.¹³ Moreover, those sensors have to suffer from geometric or radiometric constraint problems.¹⁴

Recently, within the family of industrial vision-based sensors, the development of Light-Structured-Based systems (LSB) based on the laser triangulation to obtain three-dimensional (3D) measurement model has gained abundant attention and popularity due to their price affordability, relative reliability, high precision and fast shape acquisition in a reasonable duration of time.^15,16 In particular, nowadays, laser line scanning 3D digitizing system is the most commonly utilized in online traditional large-scale dimensional metrology. Associated to high-speed, high-resolution and noncontact nature, laser scanning technology has numerous applications in civil engineering, manufacturing, defense and environment studies for sensing and imaging of mobile objects and dynamic process.^17–20 In addition, in the engine production process, laser scanning systems have been mounted on different platforms, that is, computer numerically controlled (CNC) milling machines, mechanical or robotic arms and CMMs.^21–23

This article aims at studying and developing an innovative approach using 3D laser scanners for online automatic length measurement of similar regular large-scale workpieces. In the design system, in order to harmonize the desired high precision with the low time consumption and costs, automation and simplification of whole measuring process are imperative using a suitable method. Two difficulties are encountered in establishing the 3D displacement field for mobile and large two-dimensional (2D) cylinder workpieces. First, the datum plane is required to real-time adapt to the features of measured surface of workpiece. Second, the end points of workpiece to be determined may not be distributed on the same plane so that it is difficult to describe the measuring system by a unified accurate mode in 3D space.

The growing application of virtual datum models may support the achievement of the first sight as they not only characterize geometrical information but also assemble features, parameters and rules of formalizing the design knowledge.^24–27 A virtual measurement datum plane (VMDP) can be step-by-step generated according to the features of measured surface of target. Also, it is convenient to import a 3D measurement model containing the specific requirements into a virtual inspection environment. On the other hand, according to the laser triangulation principle, light stripes are distorted by the height variation.²⁸ Hence, height fluctuation in the nearest neighborhood of end point can serve as a criterion to locate its position.

In practice, error self-correction mode is an imperative part of improving the measurement accuracy online.^29,30 Therefore, identifying and analyzing all the possible errors linked to the measurement process are fully considered. The influence of the errors which may be enclosed in the process of producing VMDP can be eliminated by the use of 2D error separation method.³¹ Moreover, it is also important to calibrate the measuring system by a cylinder standard workpiece, which would allow for improving the measurement control processes, as well as to allow for system error compensation.

The remainder of the article is organized as follows. First, 3D virtual measuring mode that is based on VMDP and 2D error correct techniques is developed in section “3D virtual measuring mode.” Second, in section “Establishment of 3D displacement field,” modeling and identification of the position of end points of workpiece are discussed, and 3D displacement field is established. Then, section “Experiments” presents the measuring system set-up used to test the proposed approach in detail and demonstrates experiment results and analysis. Finally, conclusions are given in section “Conclusion.”

3D virtual measuring mode

The considered measuring system consists of two laser scanners LJ-G030 (Keyence Co. in Japan) with a standoff of 30 mm, a depth of field of 20 mm and a scan width of 25 mm. They achieve the highest sampling speed less than 5 ms. The principle of those scanners is based on active triangulation (see Figure 1), whose resolutions are 5 and 1 µm in the X-axis and Z-axis, respectively.

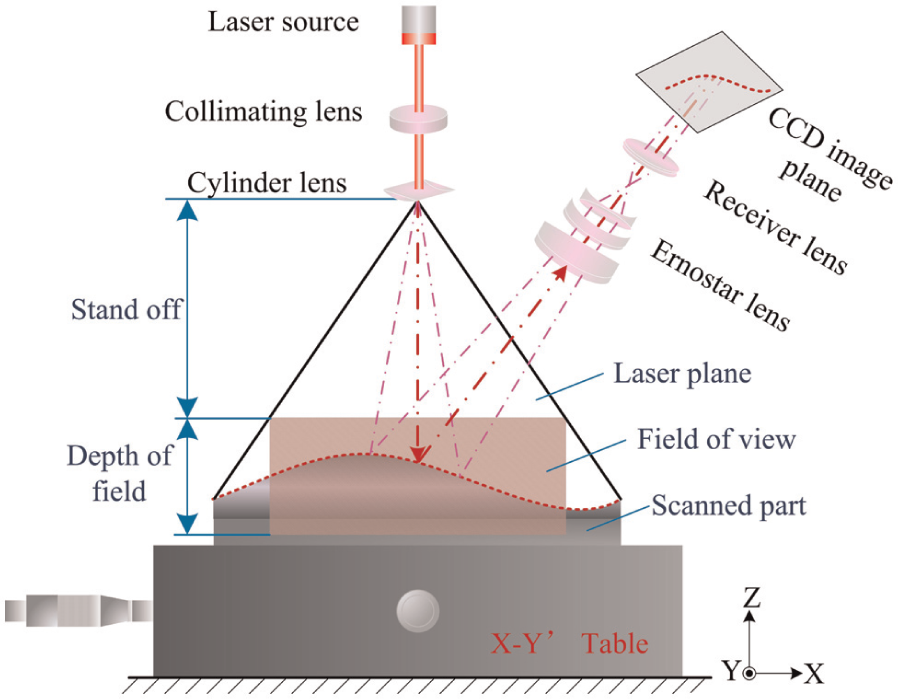

Figure 1.

The principle diagram of laser scanning.

Measurement procedure

As shown in Figure 1, the laser plane, whose centerline is always perpendicular to the measured surface, is reflected on the surface of the scanned part. Then, a line is generated at the intersection of the laser plane and measured surface. The line segment in the field of view with a relatively dense point cloud (about 800 digitized points) is captured by the scanning system.

In the 3D measuring system, two stationary scanning systems respectively arranged to place on both ends of large-scale workpiece are to capture only a small part of its top surface (Figure 2). The linear movement of the workpiece along the Y-axis allows to obtain two-point clouds (two independent sets of scanning lines) corresponding to the considered surfaces.

Figure 2.

Schematic diagram of constructing 3D measuring system.

Establishment of VMDP

The idea of the proposed VMDP set-up is straightforward: (1) VMDP should be step-by-step dynamically synthesized by producing new virtual measurement line in the online inspection process in terms of demand; (2) each virtual measurement line is independent and has its own virtual registered site; (3) if points on the workpiece are measured by laser scanning system, the absolute position of these points should be independent of the relative position of the scanner to the VMDP.

As stated previously, the scanning system is stable in time. Thus, it is possible to generate virtual measurement datum line closely linked with virtual registered sites that may be reproduced in another repeated measurement. The virtual sites should be registered in such a way that they cover evenly the whole measured surface of workpiece. According to specific demands of measuring system, virtual datum planes are classified into two types (Figure 2). Type A-VMDP ( $ϕ_{A}$ ) is a linearly independent set in 3D space and is perpendicular to the XY-plane. Type B-VMDP ( $ϕ_{B}$ ) can be divided into a series of independent straight lines along the X-axis, which correspond to the height variations of measured surface.

As a basis for creating this mode, a Matrix Method, developed by Mailhe et al.,²⁴ is efficiently implemented in establishing large-scale VMDP. The virtual measurement lines of Type A-VMDP and Type B-VMDP are characterized by the vectors $\bar{ϕ_{a}}$ and $\bar{ϕ_{b}}$ , respectively. Each virtual measurement line, of index $i$ , can be represented by a family of three components, presented in the following form

\bar{ϕ_{ai}} = {\bar{(x_{i}, y_{i}, z_{i})}, \bar{ϕ_{ai}^{t}}, \bar{ϕ_{ai}^{o}}}^{T}

(1)

\bar{ϕ_{bi}} = {\bar{(x_{i}, y_{i}, z_{i})}, \bar{ϕ_{bi}^{t}}, \bar{ϕ_{bi}^{o}}}^{T}

(2)

where the first component $\bar{(x_{i}, y_{i}, z_{i})}$ is the position vector of virtual site that forms the construction basis, the second vector defines the translation direction of the virtual measurement line and the third vector characterizes the orientation of virtual measurement line in the local scanning system.

During the construction phase, a connection between the different virtual measurement datum lines should be realized. In the case of Type A-VMDP, in order to reduce the operation time, a linear interpolation is actually performed to online generate a static plane containing the entire virtual registered sites. Thus, the Type A-VMDP can be described by the following formula

ϕ_{A} = {[\bar{ϕ_{a 1}} \cdot \cdot \cdot \bar{ϕ_{ai}} \cdot \cdot \cdot \bar{ϕ_{an}}]}^{T}

(3)

To the contrary, as in the case of Type B-VMDP, a corresponding height variation along the Z-axis between the neighboring basis vectors $\bar{ϕ_{bi}}$ and $\bar{ϕ_{bi + 1}}$ is recorded. The automatic construction of Type B-VMDP is a dynamical accumulation process by merging the whole basis vectors in 3D measuring volume, and can be written as

ϕ_{B} = [\begin{matrix} \bar{ϕ_{b 1}} & 0 & 0 & 0 \\ 0 & \bar{ϕ_{b 2}} & 0 & 0 \\ 0 & 0 & ⋱ & 0 \\ 0 & 0 & 0 & \bar{ϕ_{bn}} \end{matrix}]

(4)

where $n$ denotes the total number of scanned lines.

In practice, the establishment of VMDPs can be generally divided into four steps. As presented in Figure 2, primitive point clouds representing a measured surface are online obtained by laser scanning devices. The first step is to identify the smooth top surface of gauge block based on its continuous nonvariant height feature. Next, for facility and stability, a virtual site is registered on this regulated surface and keeps a fixed distance relative to the stationary laser scanning coordinate. Then, the virtual measurement lines $\bar{ϕ_{ai}}$ and $\bar{ϕ_{bi}}$ are derived according to equations (1) and (2), respectively. Also, it should be pointed out that, in fact, the directions of $\bar{ϕ_{ai}}$ and $\bar{ϕ_{bi}}$ are always parallel to the Z-axis and X-axis, respectively. On the other hand, the length of $\bar{ϕ_{ai}}$ is 1–2 mm longer than the width of depth of field of laser scanner, and the length of $\bar{ϕ_{bi}}$ is 1–2 mm longer than the length of laser stripe to ensure them easily accessible for blend together and to facilitate comparative measurement. After above phases, virtual measurement planes are automatically implemented by interpolating this new pair of virtual measurement lines according to equations (3) and (4). Thus, in this self-acting way, a large-scale 3D virtual measurement space is constructed.

2D error correction mode

In order to promote the accuracy of the measurement results, it is essential to identify and analyze all the possible errors linked to the measurement process, and to online self-correct the systematic errors by a simple and effective solution. To describe this system, Systematic Errors Function (SEF) has been used and is defined as follows. First, the error of scanner is dependent on the relative positioning $d$ that separates the scanner from the surface of the scanned part, and projected angle $α$ , between the direction of the laser plane and the normal vector of measured surface.³⁰ Second, the motion error, which is the deviation of the workpiece axis from the X-axis caused by the misalignment angle $β$ , is another critical issue. Thus, the function SEF can be described by the following formula

SEF = (d, α, β, e_{s}, e_{m})

(5)

where $e_{s}$ is the total error of the laser scanner and $e_{m}$ is the motion error of measuring system.

The variations of the first three parameters on the right of equation (5) have a considerable influence on the measurement errors. However, developing a theoretical model to determine those parameters during the calibration phase is difficult and impossible. As it was already mentioned, while describing VMDP in the local scanning system, the position of arbitrary sampling point in relation to the VMDP is independent. In such a case, it is possible and feasible to separate systematic errors into two orthogonal components $\bar{E_{a}}$ and $\bar{E_{b}}$ with respect to the plane $ϕ_{A}$ and $ϕ_{B}$ , respectively. Therefore, the work of systematic error compensation is transformed into removing the influences of both $\bar{E_{a}}$ and $\bar{E_{b}}$ . For practical purposes, the conventional two-point operation at two adjacent points on a single scanning line was introduced to real-time accurately correct those error components in a short time.³¹

If a local scanning system is specified in a two-dimensional space $U$ , then a vector field of systematic errors $\bar{U} (P_{ij})$ at a sampling position $(x_{ij}, z_{ij})$ can be written as

\bar{U} (P_{ij}) = \bar{E_{a}} (x_{ij}, z_{ij}) + \bar{E_{b}} (x_{ij}, z_{ij})

(6)

where $i$ is the ith laser scanning line, $j$ is the number of the jth sampling position, and $\bar{E_{a}} (x_{ij}, z_{ij})$ and $\bar{E_{b}} (x_{ij}, z_{ij})$ are the error components in the $X$ and $Z$ coordinate system, respectively.

According to the basic vectors for constructing the VMDP mentioned in section “Establishment of virtual measurement datum plane,” the final form of vector $\bar{U} (P_{ij})$ can be described as follows

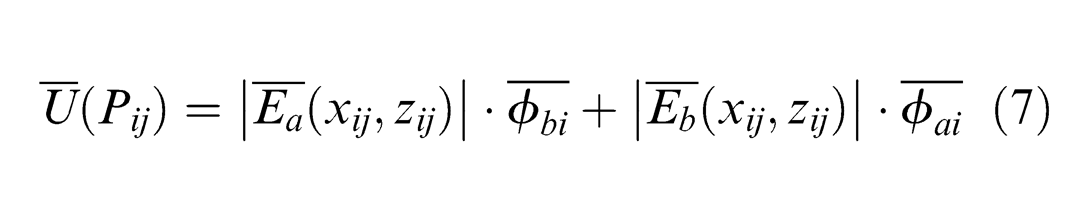

\bar{U} (P_{ij}) = | \bar{E_{a}} (x_{ij}, z_{ij}) | \cdot \bar{ϕ_{bi}} + | \bar{E_{b}} (x_{ij}, z_{ij}) | \cdot \bar{ϕ_{ai}}

(7)

Similarly, the vector field of systematic errors at its adjacent position could be obtained, as shown in equation (8)

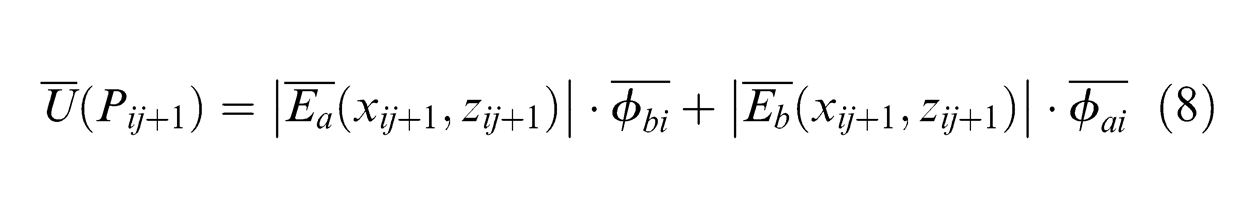

\bar{U} (P_{ij + 1}) = | \bar{E_{a}} (x_{ij + 1}, z_{ij + 1}) | \cdot \bar{ϕ_{bi}} + | \bar{E_{b}} (x_{ij + 1}, z_{ij + 1}) | \cdot \bar{ϕ_{ai}}

(8)

The difference between equations (7) and (8) can be represented by the following equation

\begin{matrix} \bar{U} (Δ_{ij}) & = | \bar{E_{a}} (x_{ij + 1}, z_{ij + 1}) - \bar{E_{a}} (x_{ij}, z_{ij}) | \cdot \bar{ϕ_{bi}} \\ + | \bar{E_{b}} (x_{ij + 1}, z_{ij + 1}) - \bar{E_{b}} (x_{ij}, z_{ij}) | \cdot \bar{ϕ_{ai}} \\ = Δ_{a} (x_{ij}, z_{ij}) \cdot \bar{ϕ_{bi}} + Δ_{b} (x_{ij}, z_{ij}) \cdot \bar{ϕ_{ai}} \end{matrix}

(9)

where $Δ_{a} (x_{ij}, z_{ij})$ and $Δ_{b} (x_{ij}, z_{ij})$ are the correction coefficients in the X-axis and the Z-axis, respectively.

Equation (9) indicates that if the correction coefficients $Δ_{a} (x_{ij}, z_{ij})$ and $Δ_{b} (x_{ij}, z_{ij})$ are sufficiently small, the systematic errors of the sampling position $(x_{ij}, z_{ij})$ can be completely removed. According to the description of the SEF, the basis for the correction coefficients lies in three parameters ( $d_{ij}$ , $α_{ij}$ , $β_{i}$ ) of a single measuring point. In the case of two parameters $d_{ij}$ and $α_{ij}$ , the correction coefficients $Δ_{a} (x_{ij}, z_{ij})$ and $Δ_{b} (x_{ij}, z_{ij})$ depend on the space resolutions following the X-axis and Z-axis, respectively. If the scanner has a high resolution, the correction coefficients can be sufficiently approximate to zero. Generally, the resolution of this scanning system depends on the density of point cloud. However, it should be noted that the more the points, the greater effort and longer time are required to develop this process. In another case of misalignment angle $β_{i}$ , as shown in Figure 3, any sampling position has almost the same misalignment angle as that of the ith scanning line, so that it has no immediate adverse effect on the correction coefficients.

Figure 3.

2D error correction mode.

Establishment of 3D displacement field

Modeling and identification of the position of end points of workpiece

Two gauge blocks with flat ends and smooth top surface are attached wholly to the two ends of workpiece, respectively (see Figure 2), in order to develop a module responsible for quickly and reliably determining the position of end points independent of the quality of the measured surface of workpiece. This module concentrates on continuous height variations in the nearest neighborhood of end point in a 2D space. To model those end points, several typical height features of end points have been investigated to constitute prototypes that facilitate the identification procedure (Figure 4).

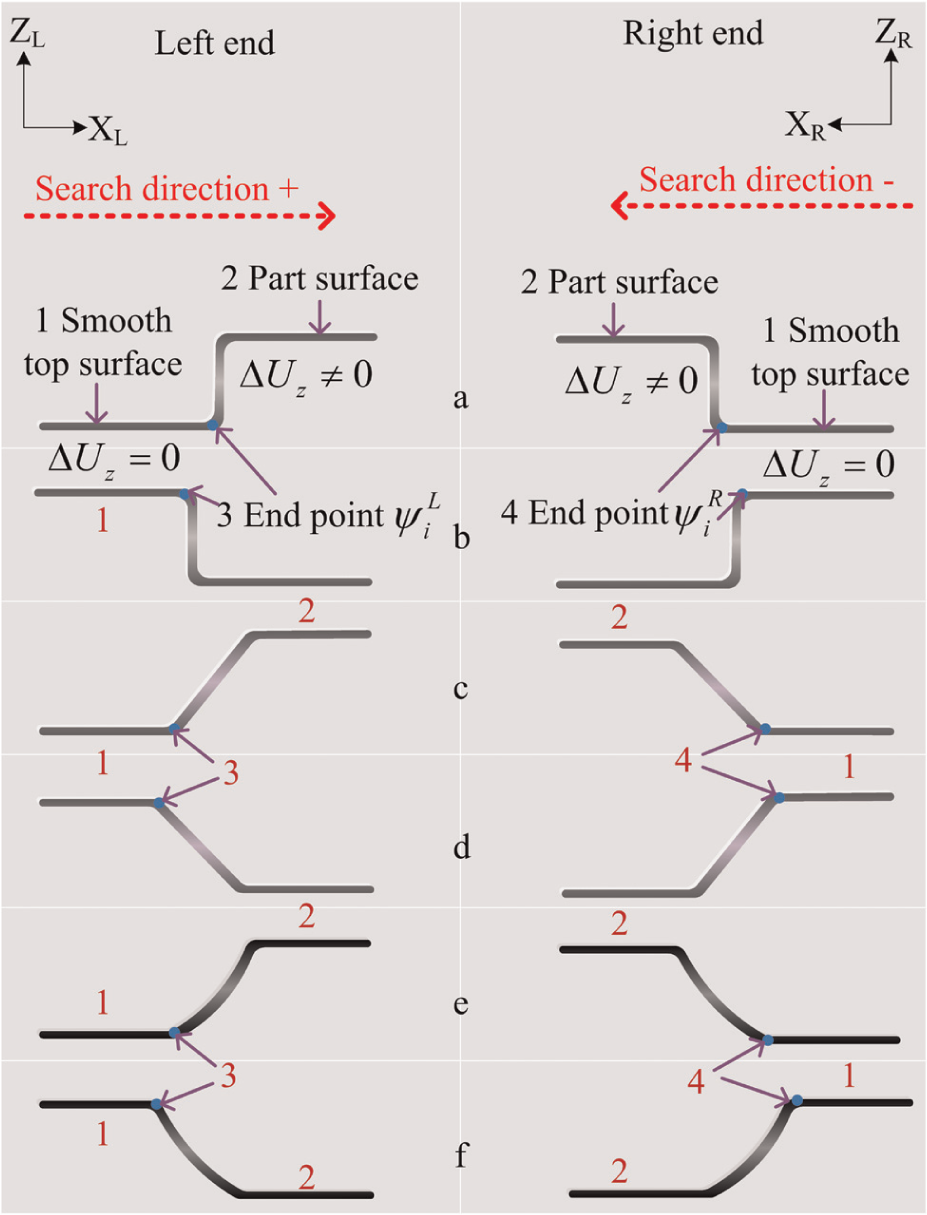

Figure 4.

Different prototypes of the position of end point of workpiece with flat end (a) and (b), inclined end (c) and (d), curved end (e) and (f), and higher ((a), (c) and (e)) and lower ((b), (d) and (f)) than gauge block.

As shown in Figure 4, in the case of the whole smooth top surface of gauge block, the height gradients along the X-axis are stable and remain about zero all the time. In contrast, as in the case of part surface in the nearest neighborhood of end points, the height gradients seem particularly changeable and exhibit no obvious regular rules. Then, in the prescribed 2D space $U$ , the height distribution in the nearest neighborhood of end point can be approximately expressed by

Δ U_{z} = | \bar{U_{z}} (x_{iw + v}) - \bar{U_{z}} (x_{iw + v + 1}) | = {\begin{matrix} h v = 0, 1, . . . k \\ 0 v = - k, 1 - k, . . . - 1 \end{matrix}

(10)

where $w$ marks the position of end point on the ith scanning line, $2 k$ is the width of the nearest neighborhood of end point and $h$ is the relative height difference between two adjacent points.

From equation (10), height variation in the nearest neighborhood of end point can be considered as a criterion to distinguish the end point from the measured surface of workpiece. In such a situation, it is easy to locate the position of end point along the X-axis direction using less cost and lesser time consumption in an inspection process.

In order to make the model complete, another important problem must be investigated in addition to the factor analysis of location accuracy that has been achieved with preceding methodology. In an ideal case, it is conventional to identify the height feature to determine where the end points actually lie in a virtual inspection environment. But this determination may be potentially influenced by several factors such as subtle changes in optical properties according to the changeable morphology of end plane, the reflectivity from the side wall of gauge. Figure 5 shows the data acquired near the intersection of the side wall of gauge and an end plane. Notice that if the laser beam is inside the intersection zone, some portion of the converging beam strikes to the surface of end plane and is reflected to the side wall of gauge. The light scattered from the side wall is then sensed and formed the image by the scanner. The located position of end point is therefore not consistent with predicted value implied by the identified mode sufficiently, thus producing a large error with respect to true end point. It is also noted that the deeper and more complicated the intersection zone, the more significant the impact of location error.

Figure 5.

Influence of the possible secondary reflection problem on the localization accuracy of end points.

From above analysis, it comes out that secondary reflection in the intersection zone has considerable influence on distinguishing the position of end point and this problem nevertheless exists in many practical applications. Hence, an attempt to diminish the effect of multiple reflection lights is necessary to meet online measurement requirements. As a first step, a simple four-point moving average filter is applied to analyze the measurement data in this work. The main advantage of this filter lies in the fact that it does not only effectively reduce the impact of random noise, but also highlights the middle-term fluctuation, as well as suffers from a small delay that may lead to potentially large error in end-point location.³² In the next step, in the case of previously identified mode, once the artificial point has been successfully localized, the search procedure continues until finding the closest point that has a minimal value along the Z-axis in its neighborhood (see Figure 5). Thus, instead of artificial point, the novel localized point can greatly solve the possible secondary reflection problem in the intersection zone by a simple yet robust way, and maintain a reasonably small location error. On the other hand, it should be pointed out that a calibrated workpiece with the same properties such as material, color, reflectivity, and so on should be implemented to further improve the location precision.

Finally, by combining equations (1) and (3), the distance relationship $D_{i}$ between Type A-VMDP ( $ϕ_{A}$ ) and end point ( $ψ_{i}$ ) on the ith scanning line is calculated by the following formula

D_{i} = | ψ_{i} - ϕ_{A} | = | \bar{U} (x_{iw}, z_{iw}) - \bar{ϕ_{ai}} |

(11)

Displacement field calculation

The coordinate relationship between the global workpiece positioning system (GWPS) and the scanning systems must be established. According to the system described in section “Measurement procedure,” two scanning systems are arranged in a linearly independent way. In this case, the laser planes $(X_{L}, Z_{L})$ and $(X_{R}, Z_{R})$ are approximately parallel to the cross-section $(X, Z)$ of the GWPS. All the obtained points with scanning system can be stitched by linear shift in the GWPS. Thus, both VMDPs, Type A-VMDP ( $ϕ_{A}^{L}$ ) of left-end scanning system and Type A-VMDP ( $ϕ_{A}^{R}$ ) of right-end scanning system, can completely remain parallel during the on-machine measuring phase (see Figure 2). Meanwhile, the distance ( $l_{static}$ ) between those two planes can remain constant to serve as a reference length regardless of freeform measured surfaces of workpiece.

According to equation (11), the displacement between the end point and its corresponding Type A-VMDP can be calculated, and then two displacement sets ${D_{i}^{L}}$ and ${D_{i}^{R}}$ ( $i = 1, . . ., n$ ) can be online tracked and acquired in a dynamic mode in the GWPS. However, the displacement sets have to be fast processed and optimized in order to real-time update the maximum length of workpiece. Therefore, as a next step, the minimum displacement criterion has been adopted for definition of length of workpiece included in the ISO/TS 15530 standard. Thus, a pair of optimum dynamic displacements can be described as follows

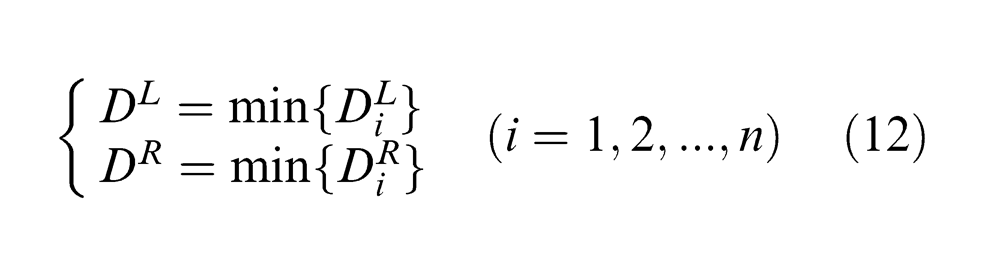

{\begin{matrix} D^{L} = min {D_{i}^{L}} \\ D^{R} = min {D_{i}^{R}} \end{matrix} (i = 1, 2, . . ., n)

(12)

where $n$ denotes the total number of scanned lines.

Consequently, the dynamic length of mobile and large-scale workpiece can be obtained by

l_{dynamic} = l_{static} - (D^{L} + D^{R})

(13)

Additionally, a workpiece of the same type, already measured by CMM, is chosen to calibrate the distance $l_{static}$ beforehand for onsite measurement under the same working environment.

Experiments

For the purpose of high-speed automatic length measurement of a mobile and large-scale workpiece, the resources in the whole measurement system, including two scanning systems, the precision carriage slide structure, the cross-slide structure, the stepper motor driving system, the pneumatic driving system, gauge block, V-blocks and the computer used for control operations and data processing, were integrated technically, as shown in Figure 6. The scanning systems and gauge block have been described above in sections “Measurement procedure” and “Modeling and identification of the position of end points of workpiece,” respectively. The carriage slide is driven by stepper motor and has a maximum travel range of 2100 mm. The cross-slide is driven by pneumatic equipment and has a maximum travel range of 400 mm. The workpiece was supported by two V-blocks and fixed close to the Bessel points in order to minimize the influence of bending on the length measurements. An automatic measurement program, written in VC++6.0 and ran on a personal computer (PC) with an Intel Core i5 Duo CPU 2.26 GHz and 2GB RAM, was developed to control the whole measuring course, and to process the measured data of the scanning systems. The step-by-step trigger event was performed to control the scanning systems, and the duration of event was about 50 ms.

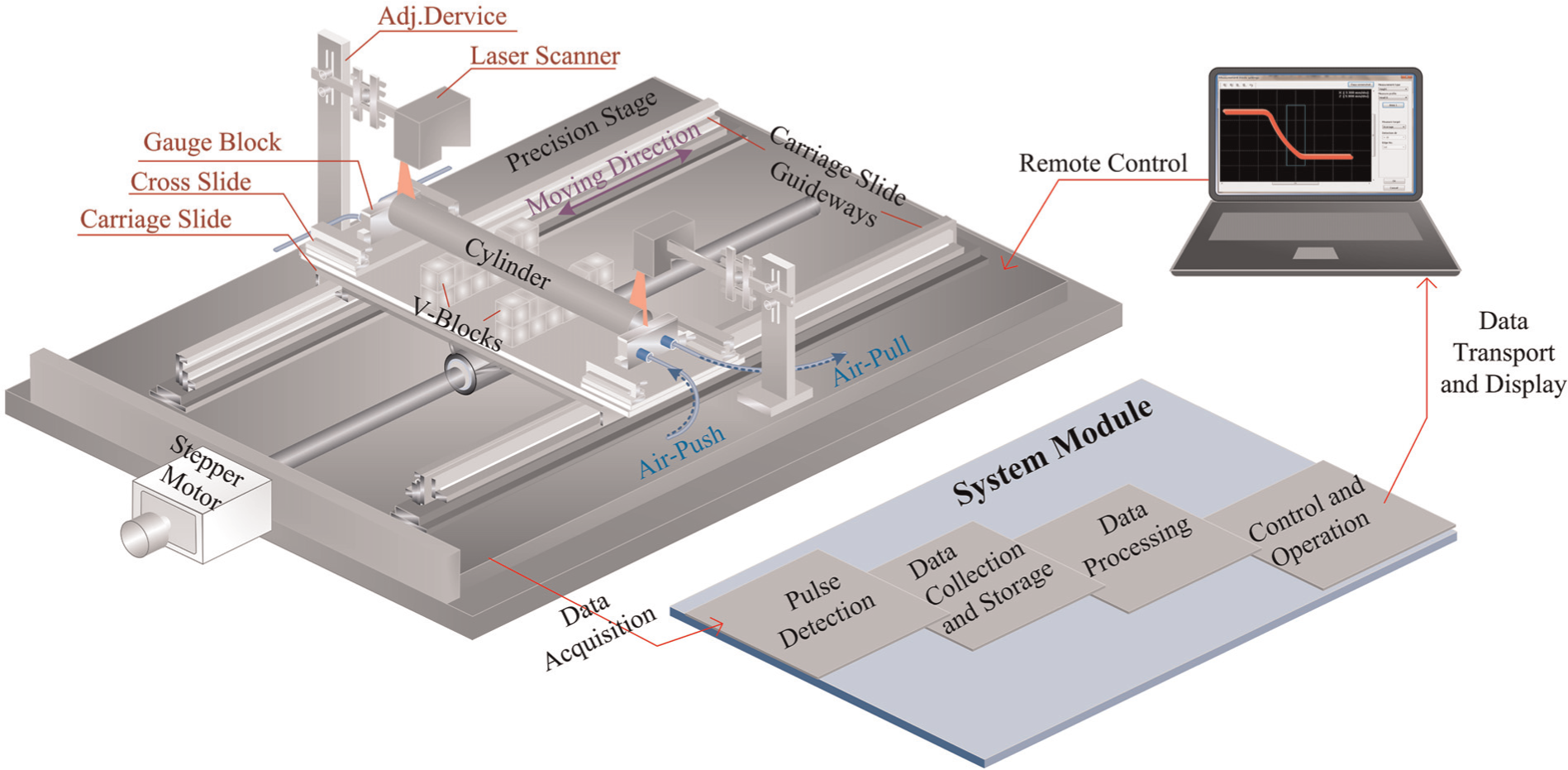

Figure 6.

Schematic illustration of the developed length measurement system by integrating two scanners.

A representative cylinder workpiece (diameter 50.046 mm and length 1000.050 mm) with two flat ends was selected to calibrate the distance $l_{static}$ beforehand for onsite measurement in a standard measuring room with the temperature control of 25 ± 0.5 °C. Five repetitive experiments were executed onsite using calibrated workpiece in order to test measurements of the displacement between end point and corresponding Type A-VDMP in accordance with the module in section “Establishment of 3D displacement field.” The calibrated workpiece kept the moving speed at 20 mm/s in the experiments. Figure 7 displays five repetitive 2D measurement data at $y = 1 mm$ in the intersection zone of gauge block and edge profile of workpiece. It can be observed that while the curvature and twist of edge profile become greater and the intersection zone becomes deeper, the discrepancy between each corresponding measurement data becomes more exaggerated, but still less than 10 µm. Then, 3D digitized data for five different edge profiles in the intersection zone are compared, as depicted in Figure 8. To be consistent, Figures 9 and 10 show the results of displacement measurements of left end and right end, respectively. Finally, the statistical results of the displacement field are given in Table 1 where both third column and fifth column indicate the corresponding position of selected end point along the Y-axis in the GWPS. In terms of end-point localization, it is evident from Figures 7 –10 that the proposed mode performs flexibly and provides a high location accuracy and repeatability, as well as it can be easily implemented online. Also, from the results presented in Figures 9 and 10 and Table 1, it can be observed that the differences between each displacement measurement are small enough to state that this developed module can be regarded as valid and stable.

Figure 7.

Five times repeated 2D measurement data at $y = 1 mm$ in the intersection zone: (a) gauge block and edge profile of left end; (b) gauge block and edge profile of right end.

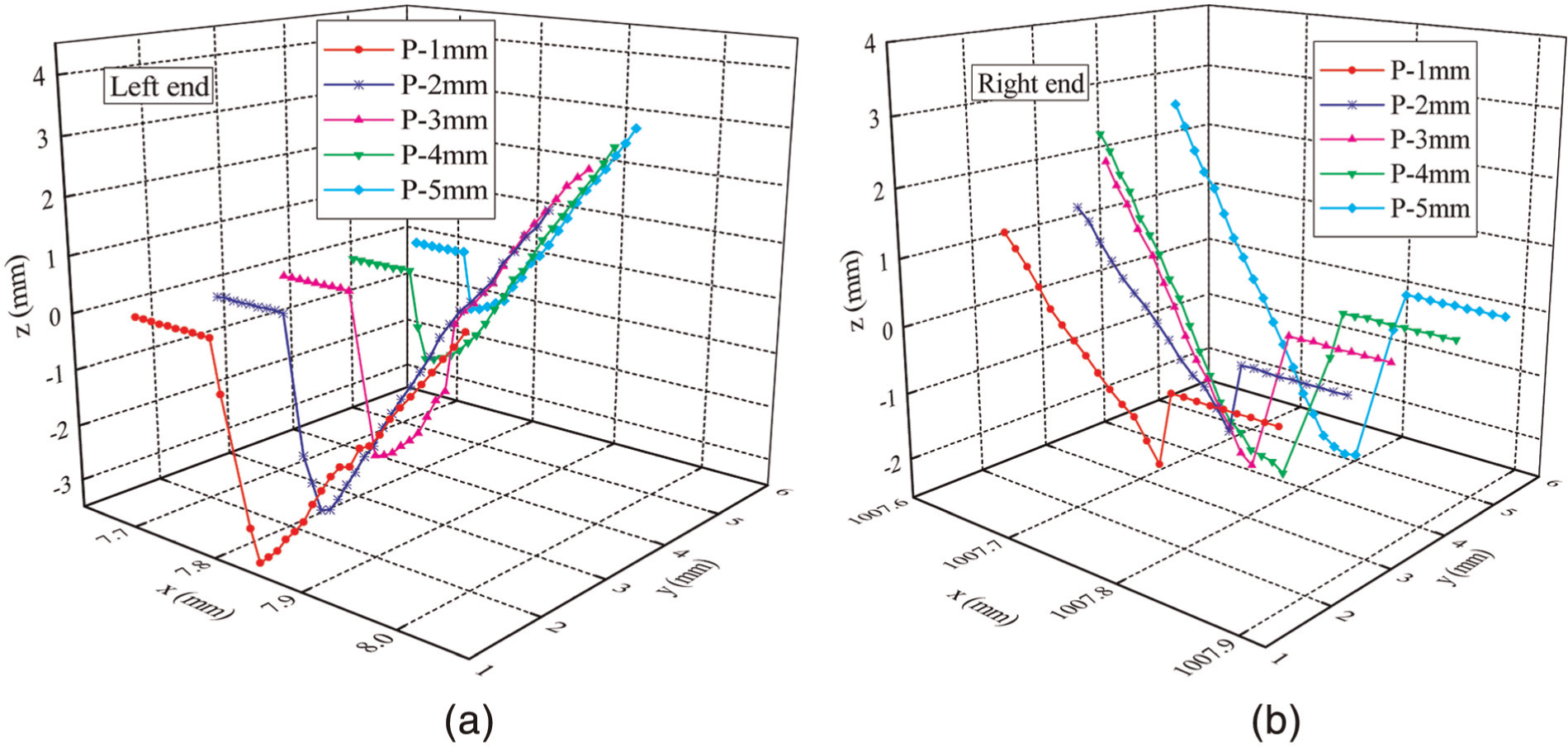

Figure 8.

3D digitized data for five different positions in the intersection zone (at $y = 1 mm$ , $y = 2 mm$ , $y = 3 mm$ , $y = 4 mm$ and $y = 5 mm$ ): (a) gauge block and edge profiles of left end; (b) gauge block and edge profiles of right end.

Figure 9.

Results of displacement measurements (left end of calibrated workpiece).

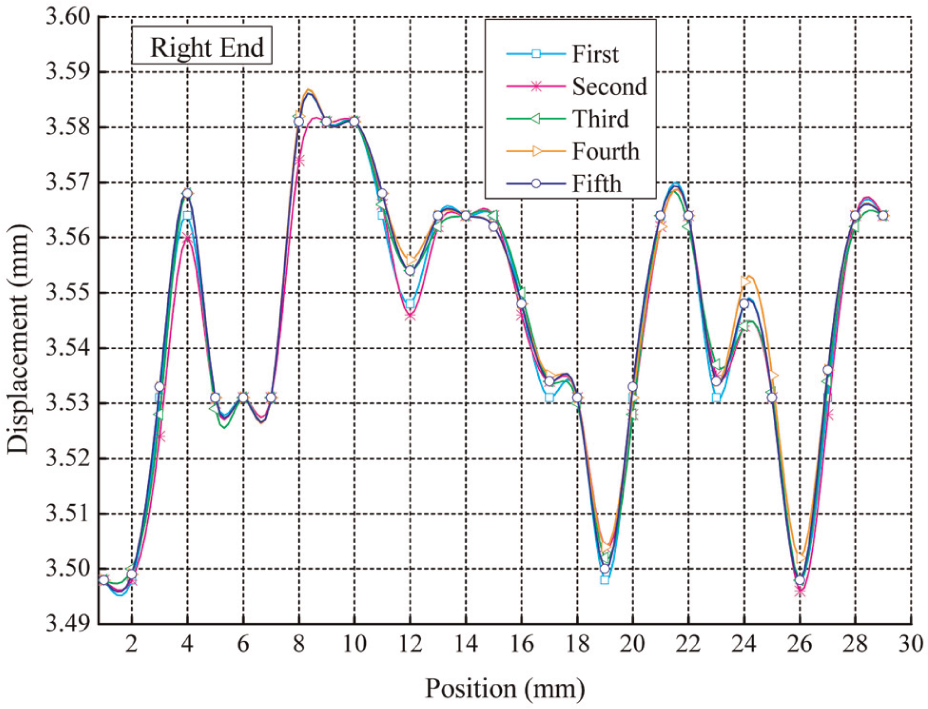

Figure 10.

Results of displacement measurements (right end of calibrated workpiece).

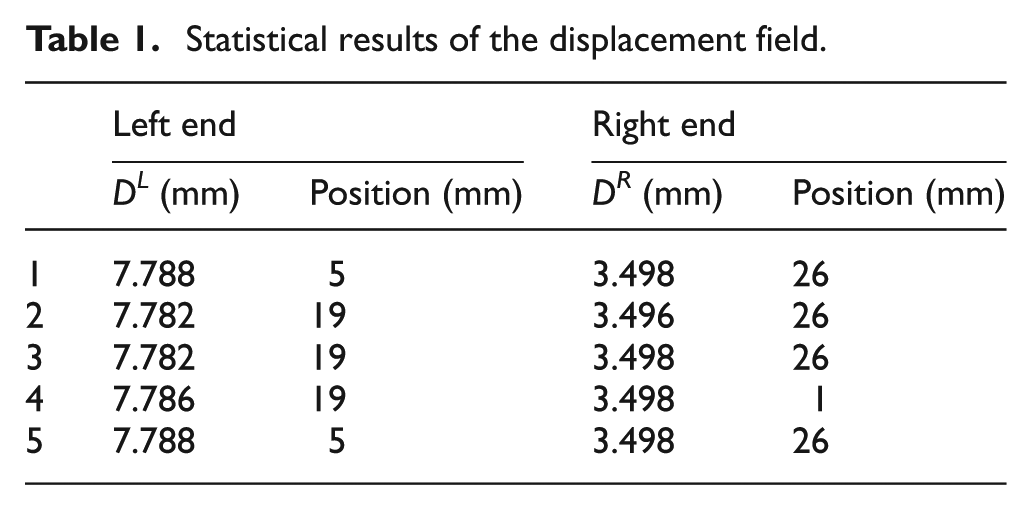

Table 1.

Statistical results of the displacement field.

	Left end		Right end
	D^L (mm)	Position (mm)	D^R (mm)	Position (mm)
1	7.788	5	3.498	26
2	7.782	19	3.496	26
3	7.782	19	3.498	26
4	7.786	19	3.498	1
5	7.788	5	3.498	26

For the verification of length measurements, four other typical cylinder workpieces (sequentially represented by WT1, WT2, WT3 and WT4) with same material were chosen and measured under this environmental condition, as listed in Table 2. Comparative measurements of four different workpieces between the developed system and the CMM have been carried out and are shown in Figure 11. Table 3 presents the statistical results of the length measurement data. It was observed that the repeated data of WT 2 and WT 4 had a wider range of fluctuation and dispersion than those of WT 1 and WT 3. All root-mean-square errors (RMSE) were better than 0.030 mm. The result of the maximum deviation from standard value measured by CMM was about 0.060 mm. The measuring time was less than 2 s.

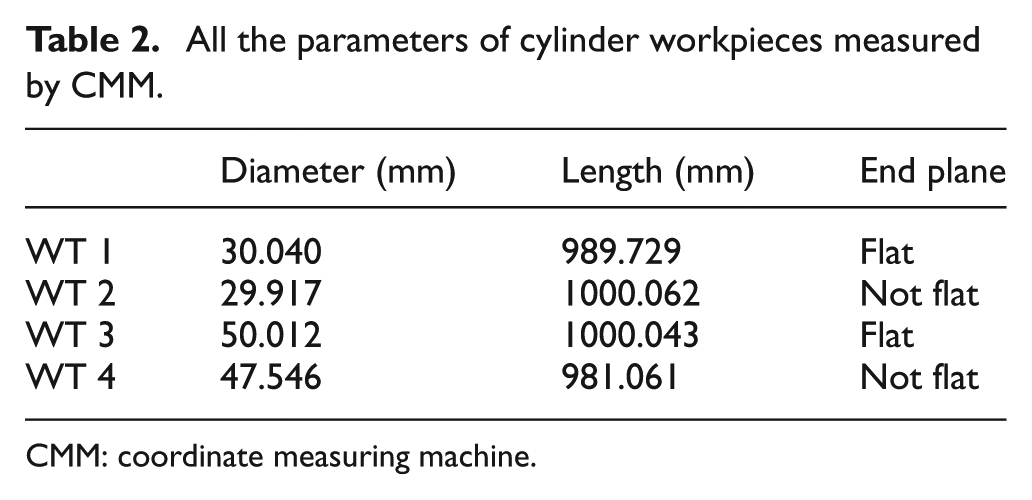

Table 2.

All the parameters of cylinder workpieces measured by CMM.

	Diameter (mm)	Length (mm)	End plane
WT 1	30.040	989.729	Flat
WT 2	29.917	1000.062	Not flat
WT 3	50.012	1000.043	Flat
WT 4	47.546	981.061	Not flat

CMM: coordinate measuring machine.

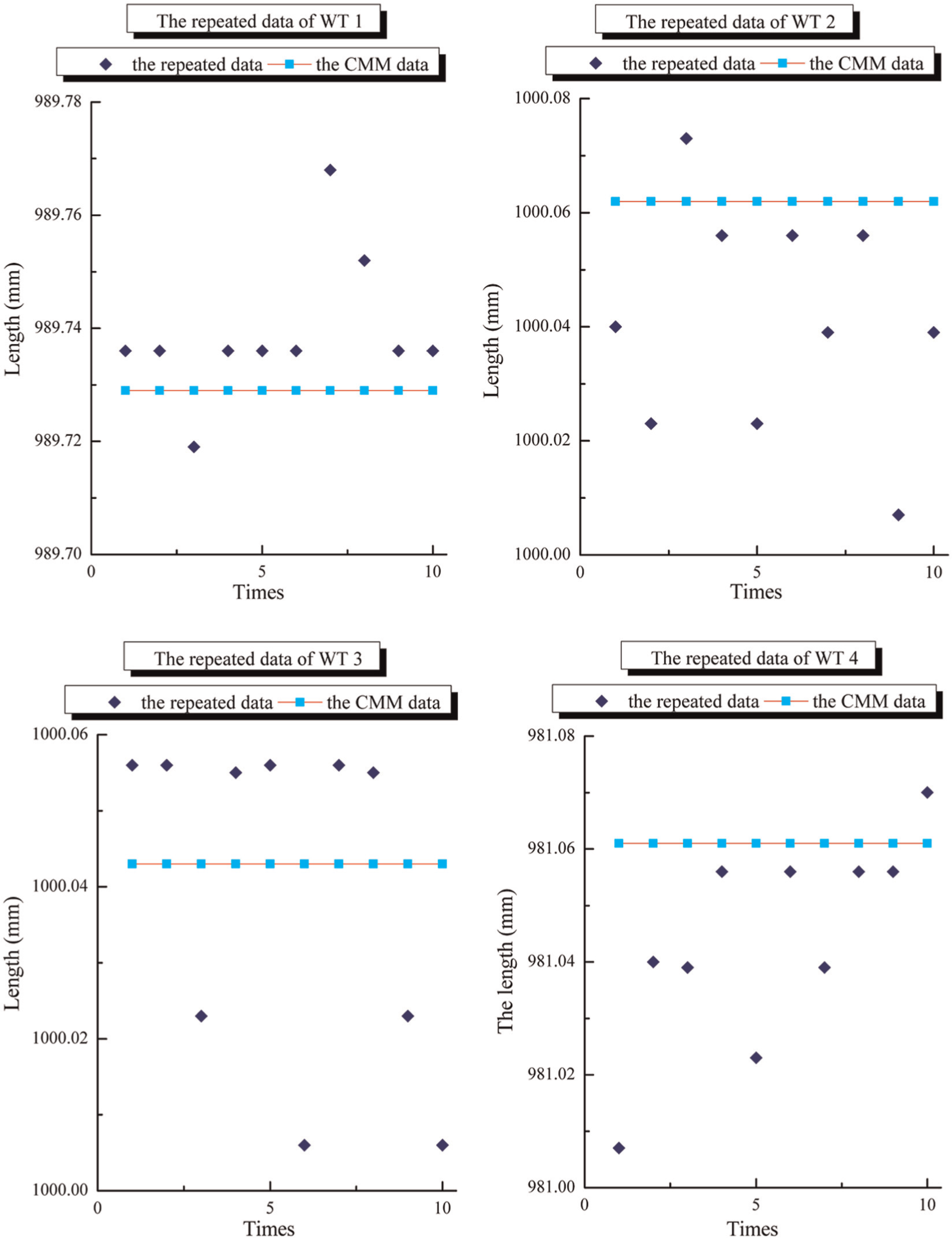

Figure 11.

A total of 10 repetitive length measurement results of WT 1, WT 2, WT 3 and WT 4.

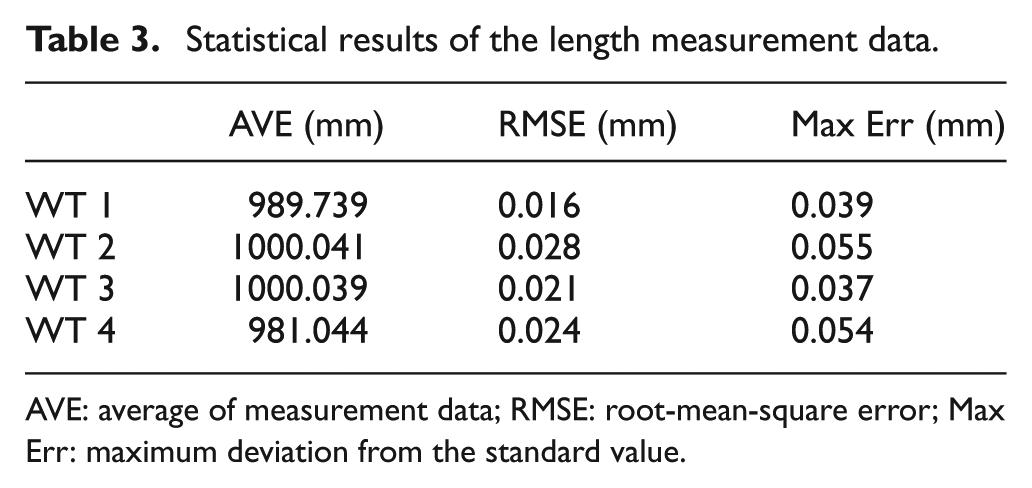

Table 3.

Statistical results of the length measurement data.

	AVE (mm)	RMSE (mm)	Max Err (mm)
WT 1	989.739	0.016	0.039
WT 2	1000.041	0.028	0.055
WT 3	1000.039	0.021	0.037
WT 4	981.044	0.024	0.054

AVE: average of measurement data; RMSE: root-mean-square error; Max Err: maximum deviation from the standard value.

In addition, for each measurement, the standard uncertainty should be taken into account by the classical method that is in accordance with the ISO Guide to the Expression of Uncertainty of Measurement (GUM) and ISO 14253. Determination of the measurement uncertainty is a very complex task because of many uncertainty factors involved in this system which can be divided into the following: the scanning system, calibrated workpiece, the system mechanism, the illumination, sampling strategy and the measurement algorithm. In this experimental phase, sampling strategy as a major uncertainty element was investigated.

Generally stated, the more the end points are obtained accurately, the smaller the length measurement uncertainty will be. In this case, a uniform sampling interval along the Y-axis is certainly proportional to the speed of workpiece. Figure 12 shows the comparisons of the results of length measurements with corresponding standard uncertainties at the uniform speed of 20 and 40 mm/s, respectively. It was noted that the standard uncertainties were becoming greater with accelerated speed that resulted in the loss of specified end points. Therefore, a reasonable moving speed of workpiece and an optimized measurement algorithm should be considered and are consistent with the recommendations of online measurement.

Figure 12.

Comparisons of the results of length measurements with corresponding standard uncertainty at the uniform speed of 20 and 40 mm/s, respectively.

Conclusion

This article presents a simple, high-speed length measurement system for mobile and large-scale 2D cylinder workpiece based on 3D laser scanning technologies. First, two scanning systems placed on the two ends of workpiece grab point clouds of its key parts. Second, according to the provided features of measured surface, the VMDPs are step-by-step generated. Third, a 2D error self-correct mode is developed to reduce the influence of systematic errors. Then, a 3D virtual measuring mode is built in a virtual inspection environment. Meanwhile, modeling and identification of the position of end points of workpiece are designed by a simple yet effective method in this 3D virtual measuring environment. Finally, the 3D dynamic length measurement data of workpiece are obtained by calculating the displacement between the end point and its corresponding datum plane. The performance tests on different real cases with several representative cylinder workpieces (length 1000 ± 20 mm and diameter 50 ± 25 mm) have been carried out. Compared with the measurement results of CMM, the RMSE of the measurement data are smaller than 0.035 mm, and the maximum deviation from standard value is less than 0.060 mm. The system measurement uncertainty is better than ±0.040 mm and the whole measuring process takes less than 2 s. The proposed length measuring system features high automation and high efficiency, and is most promising for on-machine applications in large geometric dimensional measurement.
