Kinematics analysis and numerical simulation of a novel underactuated robot wrist

Abstract

The kinematics of robot wrist refers to the motion information of a manipulator, such as positions, velocities, and accelerations. It is very crucial for analysing the behaviour of robot wrist using a suitable kinematics model with a result of many valuable contributions. However, current researches always focus on full-actuated robot wrist. The proposed underactuated robot wrist is a novel mechanism with small volume, lightweight, low cost, low energy consumption, and high flexibility, thus designing a robot wrist with fewer actuators than the degrees of freedom becomes an important issue. This article is devoted to kinematics analysis model of a novel underactuated robot wrist. After the novel understated robot wrist was introduced, the inverse kinematics analysis and forward kinematic analysis of the underactuated robot wrist with numerical simulation based on virtual prototyping were discussed in detail. The verification of the forward kinematic analysis and inverse kinematics analysis is used to demonstrate the proposed methodology.

Keywords

Kinematics analysis numerical simulation underactuated mechanism parallel mechanism robot wrist

Introduction

The manipulator kinematics^1,2 is involved in the position and orientation relationship between the end of the actuator and joint variables, which relates to the position^3,4 and gesture of moving objects.^5,6 The manipulator kinematics includes forward kinematics⁷ and inverse kinematics.⁸ The former is to solve the position and orientation of the end of the manipulator actuator with joint variables, while the latter is to solve manipulator joint angles with the position and orientation of the end of the manipulator actuator to the trajectory planning and motion control.^6,9

According to the relationship between the degrees of freedom (DOFs) and the number of actuators, the mechanism can be divided into full-actuated mechanism, redundant-actuated mechanism, and underactuated mechanism.^10,11 In a traditional full-actuated robot, motors are always fixed in the joints with the most weight of the whole robot. Thus, it might have some difficulties to apply a heavy multi-joint robot in some extreme industrial applications. Optimization and lightweight materials are general approaches to the lightweight of the robot. While the underactuated mechanism is a new approach to this topic, as its mechanical system has fewer actuators than its DOFs,^12,13 with small volume, lightweight, low cost, low energy consumption, and high flexibility, thus causing widespread concerns in space robots, underwater robots, other flexible robots, and so on. The robot’s capabilities to achieve a certain posture in the workspace through a robot arm, while the robot wrist with serial mechanism¹⁴ or parallel mechanism,^15

–19 is an important connection between arm and end effector. Existing robot wrist has generally 3 DOFs with three motors. Generally, many underactuated robots²⁰ consist of underactuated mechanisms,¹² such as differential mechanisms,²¹ compliant mechanisms,²² triggered mechanisms,²³ and passive mechanisms.²⁴

However, current researches always focus on full-actuated robot wrist, while the underactuated robot wrist is a novel mechanism that has small volume, lightweight, low cost, low energy consumption, and high flexibility. Thus, to reduce bulk, lightweight, and expense, designing a robot wrist with fewer actuators than the DOFs becomes feasible by introducing mechanical elements that lead to non-holonomic constraints.^25,26 In any case, achieving a formulation for the kinematics of the underactuated robot wrist is essential to its applicability. The aim of kinematics analysis for underactuated robot wrist is to study the relationship between the input angle of the actuator and the pose (position and orientation) of the moving platform, which specifically includes forward kinematics analysis (FKA) and inverse kinematics analysis (IKA). The difference between kinematics of underactuated mechanisms and full-actuated mechanisms is that in the derivation on FKA of underactuated mechanism, free joint angle value (i.e. passive joints) is assumed as a driving variable, which requires a separated sensor to detect. The detection values of angle sensor and drive joint angle variable values derive FKA of the underactuated mechanism. In the IKA, the passive joint value is as value of desired angle sensor detection.

The remainder of this article is organized as follows. Section ‘Introduction of a novel underactuated robot wrist’ introduces a novel underactuated robot wrist. Section ‘IKA of the underactuated robot wrist’ provides IKA of the underactuated robot wrist. Section ‘FKA of the underactuated wrist’ provides FKA of the underactuated wrist. Section ‘Kinematics numerical simulation based on virtual prototyping’ simulates virtual prototyping–based kinematics model to verify the results of above kinematic analysis. Section ‘Conclusion’ concludes this article.

Introduction of a novel underactuated robot wrist

Introduction of underactuated robot wrist

The present mechanism, which has been authorized for patent by National Intellectual Property Office of China,²⁷ provides a 3-DOF underactuated robot wrist. The device is provided with two power sources, and its moving platform has 3 DOFs.

The present underactuated robot wrist was conceived as shown in Figure 1. The 3-DOF underactuated robot wrist device contains static platforms Q; moving platform P; and connecting branches L₁₁, L₂₁, L₃₁, L₂₁, L₂₂, L₂₃, L₃₁, L₃₂, and L₃₃. The static platform Q is connected via three branches with the moving platform P, branch 1: L₁₁, L₂₁, and L₃₁; branch 2: L₂₁, L₂₂, and L₂₃; and branch 3: L₃₁, L₃₂, and L₃₃. Two branches have driving sources, while the moving platform P can do a 3-DOF movement. A bent base end of the connecting link is assembled on the base surface by means of two screws and the other end of the connecting link to a corresponding branch. Each motor bracket is also assembled on the base surface by means of two screws, with interval 120° between motor connecting link and the base. Two motors are assembled to the motor bracket with bolts, respectively. Two connecting links are assembled from several hinge pins, with one end hinged to the base through the hinge pin and the other hinged to the moving platform through the hinge pin. In this way, three branches are established. Each end of three rods of the moving platform is fixed to the circular plate by screws under the surface of the moving platform, which has a uniform distribution angle of 120°. Another end of three rods of the moving platform is assembled with a hinge pin.

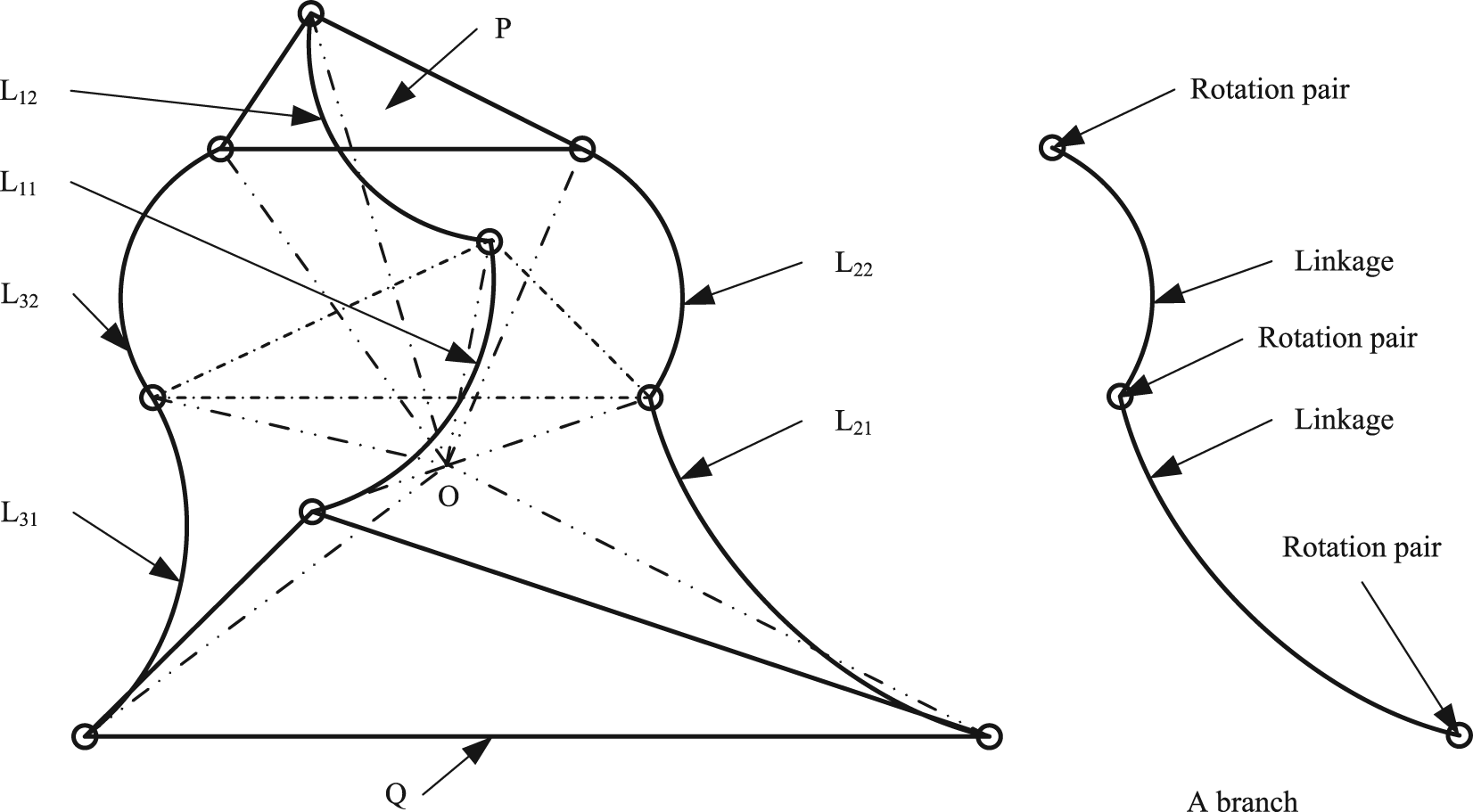

Figure 1.

Schematic diagram of underactuated robot wrist.

The coordinate system of underactuated robot wrist

Just like some spherical 3-DOF parallel 3-RRR (Revolute-Revolute-Revolute) mechanism,²⁸ as shown in Figure 2, the coordinate system O_ij-X_ijY_ijZ_ij (i, j = 1, 2, 3) is built, in which i, j is the jth rotation joint in the ith branch. Since the axes of 3-DOF underactuated robot wrist joint are all focused to one point,^13,29 the coordinate systems of each are selected at the same point, named point O.

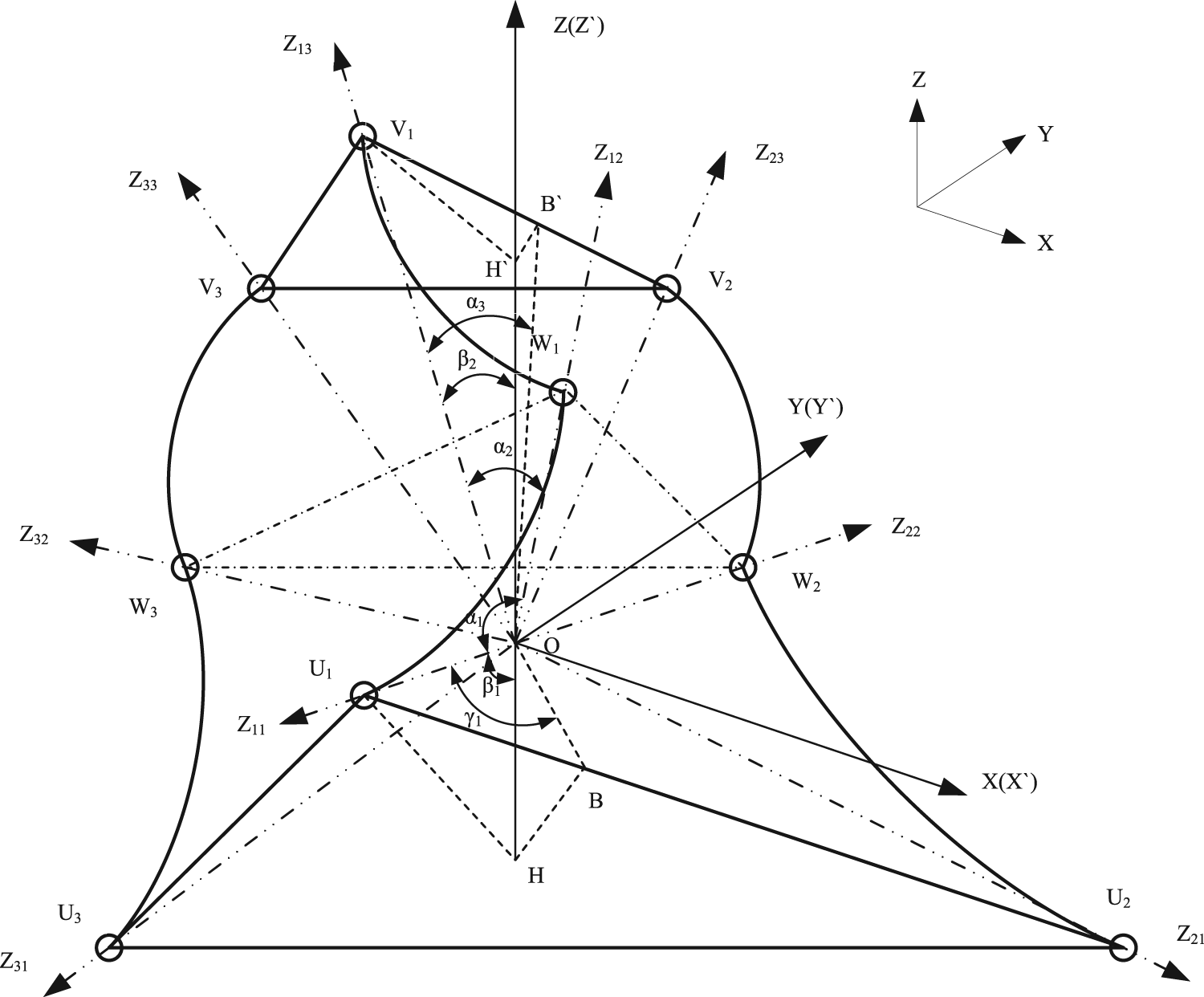

Figure 2.

The coordinate system of underactuated robot wrist.

The coordinate system of the jth rotation joint in the ith branch is set up as follows: when i = j = 1, the origin point of the coordinate system O-X₁₁Y₁₁Z₁₁ is O. The Z₁₁-axis is collinear with the axis of the joint outwards in the direction, and X₁₁-axis in the normal direction is defined by Z₁₁-axis and Z₁₂-axis, as X₁₁ = Z₁₁ × Z₁₂, and Y₁₁-axis is determined by the right-hand rule as Y₁₁ = ± X₁₁ × Z₁₁. Similarly, the coordinate system can be obtained in other joints. In order to analyse conveniently, the X_ij-axis and Y_ij-axis are omitted in Figure 2.

The coordinate system O-XYZ is fixed on the base platform, whose original point is coincident with O_ij-X_ijY_ijZ_ij, with the Z-axis vertically upwards, X-axis in the normal direction defined by Z-axis and Z₁₁-axis as X = Z × Z₁₁, and Y₁₁-axis determined by the right-hand rule, in Figure 2. The coordinate system O-X′Y′Z′ is fixed on mobile platform, whose origin point is coincident with O_ij-X_ijY_ijZ_ij, with the Z′-axis vertically upwards, X′-axis in the normal direction defined by Z′-axis and Z₁₃-axis, and Y′-axis determined by the right-hand rule, in Figure 1. In the initial position, the fixed coordinate system O-XYZ is coincident with O-X′Y′Z′.

Basic parameters of underactuated robot wrist

Because of the symmetry of the structure, the wrist has four basic design parameters:

1. α₁: the structure angle of the active link. It is the angle between Z_i1-axis and Z_i2-axis, i = 1, 2, 3.

2. α₂: the structure angle of the passive link. It is the angle between Z_i3-axis and Z_i2-axis, i = 1, 2, 3.

3. β₁: the semi-cone angle formed by the base platform. It is the angle between Z_i1-axis and Z-axis, as ∠U₁OH; the cone formed by the three joint axes of base platform is shown in Figure 2. When β₁ = 0, Z_i1-axes are all collinear; when β₁ = 90°, Z_i1-axes are all coplanar; when β₁ < 90°, the origin of spherical mechanism O is above the base platform; when β₁ > 90°, the origin of spherical mechanism O is below the base platform, which is not a spherical mechanism. So as to form a spherical mechanism, the range of β₁ is 0 ≤ β₁ ≤ 90°. In Figure 2, B is the centre of the conical bottom edge as γ₁ = ∠U₁OB. According to the solid geometry, β₁ and γ₁ are related as follows

\sin β_{1} = \frac{2 \sqrt{3}}{3} \sin γ_{1}

(1)

4. β₂: the semi-cone angle formed by the mobile platform. It is the angle between Z_i3-axis and Z′-axis; the range of β₂ is 0 ≤ β₂ ≤ 90°. α₃ is the angle between Z_i3-axis and Z_j3-axis (i, j = 1, 2, 3, i ≠ j), named as angle of mobile platform angle cone. Similarly, the relationship between β₂ and α₃ is as follows

\sin β_{2} = \frac{2 \sqrt{3}}{3} \sin \frac{α_{3}}{2}

(2)

IKA of the underactuated robot wrist

The aim of IKA is to solve input angle of drive joints Φ₁ and Φ₂ with the known platform pose.

Unit vector of joint axis on base platform: u₁ , u₂ , and u₃

Based on the geometric relations shown in Figure 2

u_{1} = {(0, - \sin β_{1}, - \cos β_{1})}^{T}

(3)

u_{i} = R_{δ_{i}} u_{1} = {(\sin δ_{i} \sin β_{1}, - \cos δ_{i} \sin β_{1}, - \cos β_{1})}^{T}

(4)

where

R_{δ_{i}} = [\begin{matrix} \cos δ_{i} & - \sin δ_{i} & 0 \\ \sin δ_{i} & \cos δ_{i} & 0 \\ 0 & 0 & 1 \end{matrix}], δ_{1} = 0 °, δ_{2} = 120 °, δ_{3} = 24 0^{°}

(5)

2. Unit vector of middle joint axis w₁ , w₂ , and w₃

The underactuated robot wrist is a spherical mechanism, whose unit vectors of three middle joint axes in each branch w₁ , w₂ , and w₃ (collinear to the Z₁₂-axis, Z₂₂-axis, and Z₃₂-axis, respectively) are extremely important to kinematic analysis. Therefore, the unit vectors of three middle joint axes are determined according to the theory of spherical geometry.

1. The direction cosine of unit vector w₁

In the fixed coordinate system O-XYZ, as shown in Figure 3, the angle between Z-axis and Z₁₁-axis is (π-β₁), and the angle between Z₁₁-axis and Z₁₂-axis is α₁, and the exterior angle of Z₁₁-axis is θ₁. According to triangle sine formula, sine–cosine formula, and cosine formula in the spherical geometry theory,³⁰ the direction cosine of the unit vector for three middle joint axes can be derived as

{\begin{matrix} w_{1 x} = s_{23} s_{2} = \sin α_{1} \sin θ_{1} \\ w_{1 y} = - (s_{12} c_{23} + c_{12} s_{23} c_{2}) = \\ - [\sin (π - β_{1}) \cos α_{1} + \cos (π - β_{1}) \sin α_{1} \cos θ_{1}] \\ = - \sin β_{1} \cos α_{1} + \cos β_{1} \sin α_{1} \cos θ_{1} \\ w_{1 z} = c_{12} c_{23} - s_{12} s_{23} c_{2} = \cos (π - β_{1}) \cos α_{1} \\ - \sin (π - β_{1}) \sin α_{1} \cos θ_{1} \\ = - \cos β_{1} \cos α_{1} - \sin β_{1} \sin α_{1} \cos θ_{1} \end{matrix}

(6)

In formula (6), s₂₃ and c₂₃ represent the sine and cosine of the angle between Z₁₁-axis and Z₁₂-axis, respectively; s₁₂ and c₁₂ represent sine and cosine of the angle between Z-axis and Z₁₁-axis, respectively; s₂ and c₂ represent sine and cosine of the exterior angle of Z-axis, respectively

w_{1} = [\begin{matrix} w_{1 x} \\ w_{1 y} \\ w_{1 z} \end{matrix}] = [\begin{matrix} \sin α_{1} \sin θ_{1} \\ - \sin β_{1} \cos α_{1} + \cos β_{1} \sin α_{1} \cos θ_{1} \\ - \cos β_{1} \cos α_{1} - \sin β_{1} \sin α_{1} \cos θ_{1} \end{matrix}]

(7)

Figure 3.

The direction cosine of unit vector w₁ .

2. The direction cosine of unit vector w₂

In another coordinate system O-X″Y″Z″, whose origin point is coincident with O-XYZ, Z″-axis is collinear with Z-axis and X″-axis in the normal direction defined by Z″-axis and Z₂₁-axis as X″ = Z′ × Z₂₁. In Figure 4, the angle between Z″-axis and Z₂₁-axis is (π-β₁), and the angle between Z₂₁-axis and Z₂₂-axis is α₁, and the exterior angle of Z₂₁-axis is θ₂. According to triangle sine formula, sine–cosine, and cosine formula in the spherical geometry theory, the direction cosine of the three middle joint axes unit vector ${w "}_{2 x}$ , ${w "}_{2 y}$ , and ${w "}_{2 z}$ can be derived

{w "}_{2} = [\begin{matrix} {w "}_{2 x} \\ {w "}_{2 y} \\ {w "}_{2 z} \end{matrix}] = [\begin{matrix} \sin α_{1} \sin θ_{2} \\ - \sin β_{1} \cos α_{1} + \cos β_{1} \sin α_{1} \cos θ_{2} \\ - \cos β_{1} \cos α_{1} - \sin β_{1} \sin α_{1} \cos θ_{2} \end{matrix}]

(8)

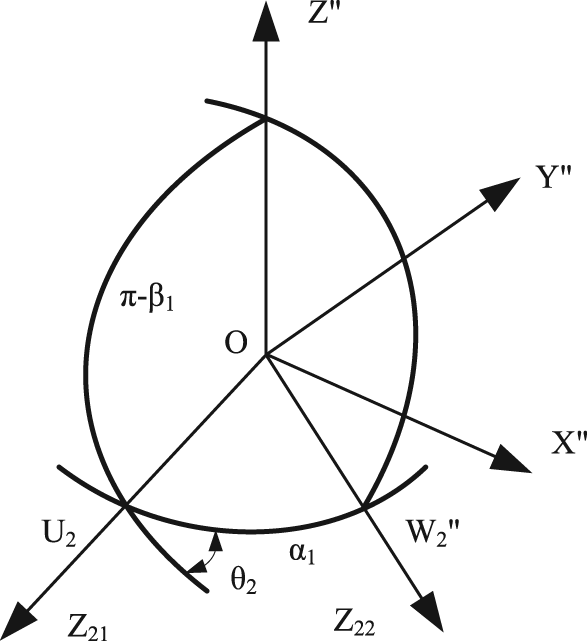

Figure 4.

The direction cosine of unit vector ${w "}_{2}$ .

Due to the fixed coordinate system, O-XYZ can be rotated 120° around Z-axis, to coincide with the reference coordinate system O-X″Y″Z″

\begin{matrix} w_{2} = R_{δ_{i}} {w "}_{2} \\ = [\begin{matrix} \cos δ_{i} \sin α_{1} \sin θ_{2} + \sin δ_{i} \sin β_{1} \cos α_{1} - \sin δ_{i} \cos β_{1} \sin α_{1} \cos θ_{2} \\ \sin δ_{i} \sin α_{1} \sin θ_{2} - \cos δ_{i} \sin β_{1} \cos α_{1} + \cos δ_{i} \cos β_{1} \sin α_{1} \cos θ_{2} \\ - \cos β_{1} \cos α_{1} - \sin β_{1} \sin α_{1} \cos θ_{2} \end{matrix}] \end{matrix}

(9)

where δ₂ = 120°.

3. The direction cosine of unit vector w₃

Similarly, it can be obtained as

w_{3} = [\begin{matrix} \cos δ_{i} \sin α_{1} \sin θ_{3} + \sin δ_{i} \sin β_{1} \cos α_{1} - \sin δ_{i} \cos β_{1} \sin α_{1} \cos θ_{3} \\ \sin δ_{i} \sin α_{1} \sin θ_{3} - \cos δ_{i} \sin β_{1} \cos α_{1} + \cos δ_{i} \cos β_{1} \sin α_{1} \cos θ_{3} \\ - \cos β_{1} \cos α_{1} - \sin β_{1} \sin α_{1} \cos θ_{3} \end{matrix}]

(10)

where δ₃ = 240°.

In order to calculate conveniently, the direction cosine of middle joint axis unit vectors w_i can be obtained as

w_{i} = [\begin{matrix} \cos δ_{i} \sin α_{1} \sin θ_{i} + \sin δ_{i} \sin β_{1} \cos α_{1} - \sin δ_{i} \cos β_{1} \sin α_{1} \cos θ_{i} \\ \sin δ_{i} \sin α_{1} \sin θ_{i} - \cos δ_{i} \sin β_{1} \cos α_{1} + \cos δ_{i} \cos β_{1} \sin α_{1} \cos θ_{i} \\ - \cos β_{1} \cos α_{1} - \sin β_{1} \sin α_{1} \cos θ_{i} \end{matrix}]

(11)

where δ₁ = 0°, δ₂ = 120°, and δ₃ = 240°.

4. Euler angles of the mobile platform

The orientation of the mobile platform is expressed by Euler parameters. The coordinate system O-X₀Y₀Z₀ is coincident with the coordinate system O-XYZ, as shown in Figure 5.

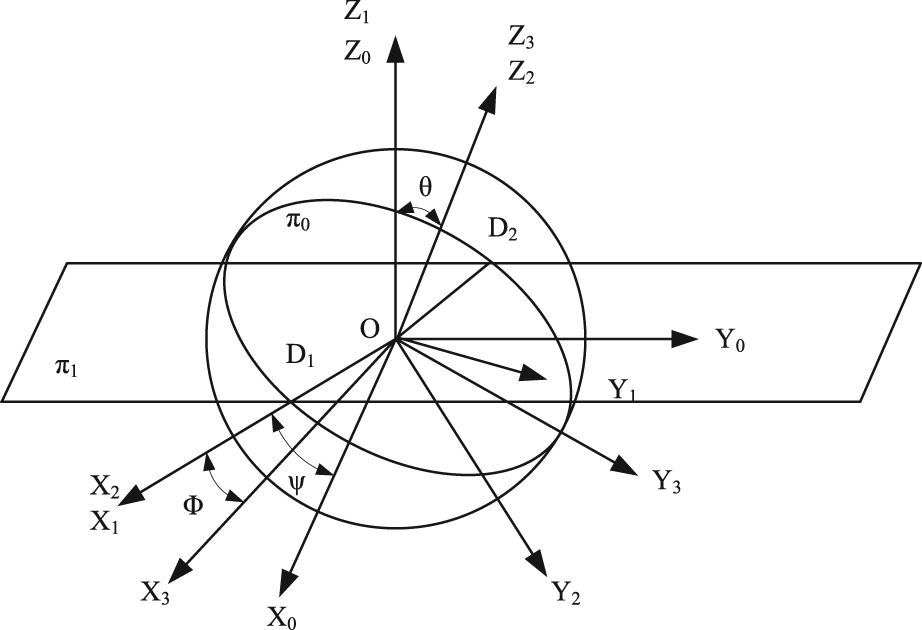

Figure 5.

Euler angles of the mobile platform.

First, set up a plane π₁ through the spherical centre O, which is parallel to the ground, crossing the spherical equatorial plane π₀(⋄OX₃Y₃) with the line D₁D₂.The plane π₁ rotates about the Z-axis of the coordinate system O-X₀Y₀Z₀ by the angle ψ (the angle between X₁-axis and OD₁), reaching the position of O-X₁Y₁Z₁; then rotates about X₁-axis by the angle θ, where axis Y₂∈π₀, reaching the position of O-X₂Y₂Z₂; and in the plane π₀, rotates about Z₂-axis by the angle Φ, reaching the position O-X₃Y₃Z₃, which is coincident with O-X′Y′Z′. Thus, ψ, θ, and Φ are the Euler angles of the mobile platform, where precession angle ψ = ∠XOD₁, nutation angle θ = ∠ZOZ₃, and self-rotation angle Φ = ∠D₁OX₃, which can only determine the orientation at an arbitrary time in the inertial coordinate system.

The conversion process is as follows

(O X_{0} Y_{0} Z_{0}) \to_{ψ}^{Z_{0}} (O X_{1} Y_{1} Z_{1}) \to_{θ}^{X_{1}} (O X_{2} Y_{2} Z_{2}) \to_{ϕ}^{Z_{2}} (O X_{3} Y_{3} Z_{3})

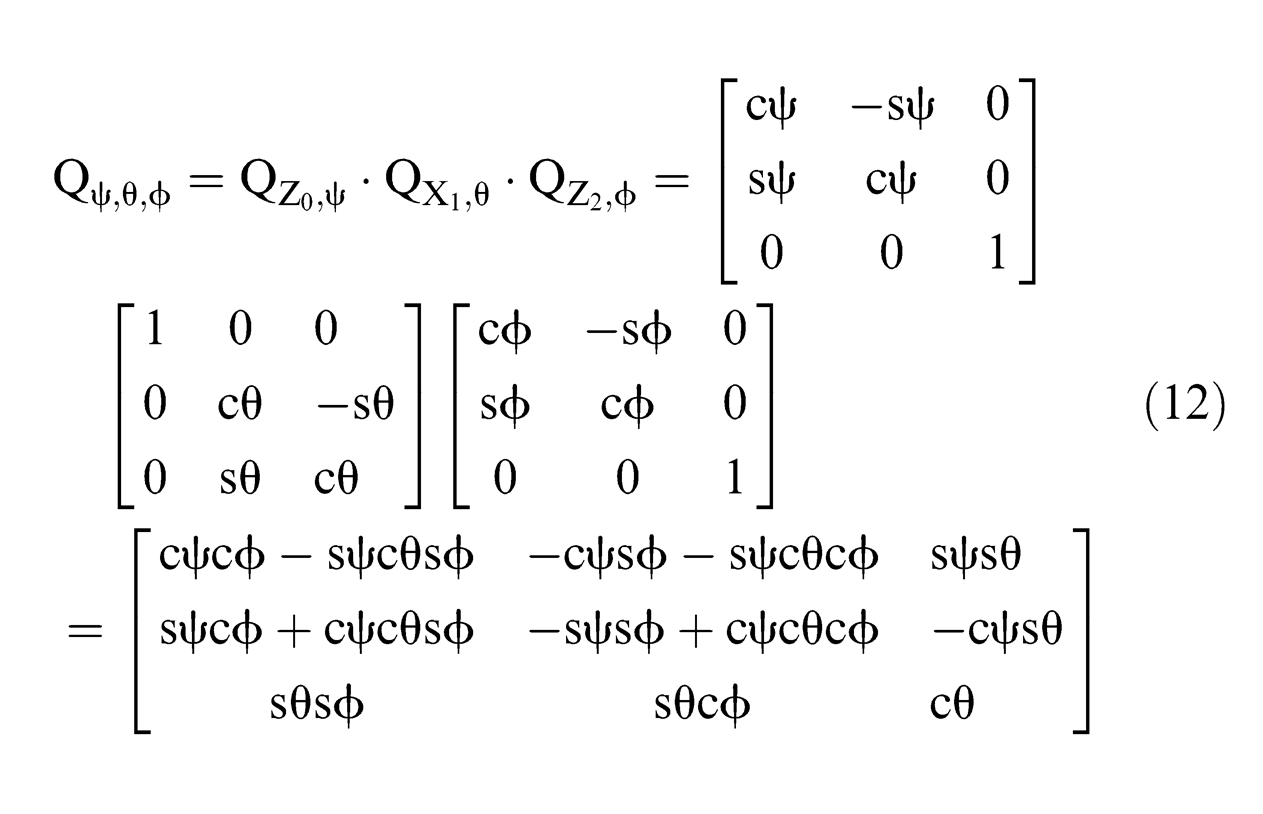

Thus, the transformation matrix between the coordinate system O-X′Y′Z′ and O-XYZ

\begin{matrix} Q_{ψ, θ, ϕ} = Q_{Z_{0}, ψ} \cdot Q_{X_{1}, θ} \cdot Q_{Z_{2}, ϕ} = [\begin{matrix} c ψ & - s ψ & 0 \\ s ψ & c ψ & 0 \\ 0 & 0 & 1 \end{matrix}] \\ [\begin{matrix} 1 & 0 & 0 \\ 0 & c θ & - s θ \\ 0 & s θ & c θ \end{matrix}] [\begin{matrix} c ϕ & - s ϕ & 0 \\ s ϕ & c ϕ & 0 \\ 0 & 0 & 1 \end{matrix}] \\ = [\begin{matrix} c ψ c ϕ - s ψ c θ s ϕ & - c ψ s ϕ - s ψ c θ c ϕ & s ψ s θ \\ s ψ c ϕ + c ψ c θ s ϕ & - s ψ s ϕ + c ψ c θ c ϕ & - c ψ s θ \\ s θ s ϕ & s θ c ϕ & c θ \end{matrix}] \end{matrix}

(12)

and cψ = cosψ and sψ = sinψ.

5. The direction cosine of the joint axis unit vector v₁ , v₂ , and v₃

The direction cosine of mobile platform joint axis unit vector v₁ , v₂ , and v₃ coincide with axes z₁₃, z₂₃, and z₃₃, which is expressed as $^{Q} v_{1}$ , $^{Q} v_{2}$ , and $^{Q} v_{3}$ in the fixed coordinate system, respectively, and expressed as $^{P} v_{1}$ , $^{P} v_{2}$ , and $^{P} v_{3}$ in the coordinate system of mobile platform, respectively.

Based on the theory of spherical geometry,³⁰ it can be easily obtained as

^{P} v_{i} = R_{δ_{i}} {(0, - \sin β_{2}, \cos β_{2})}^{T}

(13)

v_{i} =^{Q} v_{i} = Q_{ψ, θ, ϕ}^{P} v_{i}

(14)

From formula (14), with the known platform pose ψ, θ, and Φ, the demand driven source input angles v₁ , v₂ , and v₃ can be obtained.

6. Inverse kinematics

Since the angle between a branch in the middle joint and the joint of the mobile platform is fixed as α₂

w_{i} \cdot v_{i} = \cos α_{2}

(15)

In order to calculate conveniently, make

v_{i} = {(v_{ix}, v_{iy}, v_{iz})}^{T}

(16)

Formulas (11) and (14) are introduced into formula (15)

\begin{matrix} \cos α_{2} = (\cos δ_{i} \sin α_{1} \sin θ_{i} + \sin δ_{i} \sin β_{1} \cos α_{1} \\ - \sin δ_{i} \cos β_{1} \sin α_{1} \cos θ_{i}) v_{ix} \\ + (\sin δ_{i} \sin α_{1} \sin θ_{i} - \cos δ_{i} \sin β_{1} \cos α_{1} \\ + \cos δ_{i} \cos β_{1} \sin α_{1} \cos θ_{i}) v_{iy} \\ + (- \cos β_{1} \cos α_{1} - \sin β_{1} \sin α_{1} \cos θ_{1}) v_{iz} \end{matrix}

(17)

simplified as

A_{i} \sin θ_{i} + B_{i} \cos θ_{i} + C_{i} = 0

in which

{\begin{matrix} A_{i} = \cos δ_{i} \sin α_{1} v_{ix} + \sin δ_{i} \sin α_{1} v_{iy} \\ B_{i} = - \sin δ_{i} \cos β_{1} \sin α_{1} v_{ix} + \cos δ_{i} \\ \cos β_{1} \sin α_{1} v_{iy} - \sin β_{1} \sin α_{1} v_{iz} \\ C_{i} = \sin δ_{i} \sin β_{1} \cos α_{1} v_{ix} - \cos δ_{i} \sin β_{1} \\ \cos α_{1} v_{iy} - \cos β_{1} \cos α_{1} v_{iz} - \cos α_{2} \end{matrix}

(18)

Given $x_{i} = \tan θ_{i} / 2, \sin θ_{i} = 2 x_{i} / 1 + x_{i}^{2}, \cos θ_{i} = (1 - x_{i}^{2}) / (1 + x_{i}^{2})$ yields into formula (18)

(C_{i} - B_{i}) x_{i}^{2} + 2 A_{i} x_{i} + (B_{i} + C_{i}) = 0

(19)

\begin{matrix} Given a_{i} = C_{i} - B_{i}, b_{i} = A_{i}, c_{i} = B_{i} + C_{i} \\ then : a_{i} x_{i}^{2} + 2 b_{i} x_{i} + c_{i} = 0 \end{matrix}

(20)

solving quadratics

x_{i} = \frac{- 2 b_{i} \pm \sqrt{4 b_{i}^{2} - 4 a_{i} c_{i}}}{2 a_{i}} = \frac{- b_{i} \pm \sqrt{b_{i}^{2} - a_{i} c_{i}}}{a_{i}}

(21)

\begin{matrix} Given x_{i} = \tan \frac{θ_{i}}{2} \\ then : θ_{i} = 2 arc \tan (x_{i}) \end{matrix}

(22)

The result of θ_i is the exterior angle of Z_i1-axis, not Φ_i in IKA. The input angles of the motor are Φ₁ and Φ₂; Φ₃ is the angle of no driving source branch detected by the angle sensor. According to the right-hand rule, the counterclockwise rotation about Z_i1-axis is positive, and the clockwise rotation is negative. The relationship between Φ_i and θ_i

Φ_{i} = θ_{i} - θ_{0}

(23)

θ₀ is the value of θ_i at the initial position (ψ = 0, θ = 0, and Φ = 0).

The principles of selecting the only right group joint angles among eight solutions of IKA are as follows:

To satisfy the range of each joint angle in the mechanical wrist.

The angle is unlikely to occur to a large beating since the continuity of the movement.

The pose solution of the mechanical wrist is determined by the experiment, which must be also validated by the inverse kinematics analysis to ensure that the robot is not in a singular position.

According to this principle, the most appropriate group of the inverse kinematic solution is selected.

FKA of the underactuated wrist

The aim of FKA is to find the moving platform pose ψ, θ, and Φ, with two known input angles of drive joints, Φ₁ and Φ₂, and the angle of no driving source branch detected by angle sensor, Φ₃. Based on the relationship between Φ_i and θ_i and the relationship between v₁ , v₂ , v₃ , and ψ, θ, Φ, the problem of solving FKA of the underactuated wrist can be transferred to the solution of the relationship between θ_i and v_i shown in formula (15). And w_i is expressed by θ_i, which is known; v_i is expressed by ψ, θ, and Φ, which are to be solved.

The following method solves the forward kinematics by using θ_i to solve v_i and using v_i to solve ψ, θ, and Φ:

The direction cosine of joint axis unit vector v_i by θ_i

(a) The direction cosine of joint axis unit vector v₁

In fixed coordinate system O-XYZ, as shown in Figure 6, the angle between Z-axis and Z₁₁-axis is (π-β₁), the angle between Z₁₁-axis and Z₁₂-axis is α₁, the angle between Z₁₂-axis and Z₁₃-axis is α₂, the exterior angle of Z₁₁-axis is θ₁, and the exterior angle of Z₁₂-axis is ζ. According to spherical quadrilateral sine formula, sine–cosine formula, and cosine formula in the theory of spherical geometry, the direction cosine of the three joint axes unit vector v_1x, v_1y, and v_1z can be obtained as

\begin{matrix} v_{1} = [\begin{matrix} v_{1 x} \\ v_{1 y} \\ v_{1 z} \end{matrix}] = [\begin{matrix} X_{32} \\ Y_{32} \\ Z_{32} \end{matrix}] = [\begin{matrix} {\bar{X}}_{3} c_{2} - {\bar{Y}}_{3} s_{2} \\ c_{12} ({\bar{X}}_{3} s_{2} + {\bar{Y}}_{3} c_{2}) - s_{12} {\bar{Z}}_{3} \\ s_{12} ({\bar{X}}_{3} s_{2} + {\bar{Y}}_{3} c_{2}) + c_{12} {\bar{Z}}_{3} \end{matrix}] \\ {\bar{X}}_{3} = s_{34} s_{3}, {\bar{Y}}_{3} = - (s_{23} c_{34} + c_{23} s_{34} c_{3}), \\ {\bar{Z}}_{3} = c_{23} c_{34} - s_{23} s_{34} c_{3} \end{matrix}

(24)

and

{\begin{matrix} v_{1 x} = \sin α_{2} \sin ζ \cos θ_{1} + \sin α_{1} \cos α_{2} \sin θ_{1} \\ + \cos α_{1} \sin α_{2} \cos ζ \sin θ_{1} \\ v_{1 y} = - \cos β_{1} \sin α_{2} \sin ζ \sin θ_{1} + \sin α_{1} \\ \cos α_{2} \cos β_{1} \cos θ_{1} \\ + \cos α_{1} \sin α_{2} \cos ζ \cos β_{1} \cos θ_{1} - \sin β_{1} \\ \cos α_{1} \cos α_{2} \\ + \sin β_{1} \sin α_{1} \sin α_{2} \cos ζ \\ v_{1 z} = \sin β_{1} \sin α_{2} \sin ζ \sin θ_{1} - \sin α_{1} \\ \cos α_{2} \sin β_{1} \cos θ_{1} \\ - \cos α_{1} \sin α_{2} \cos ζ \sin β_{1} \cos θ_{1} \\ - \cos β_{1} \cos α_{1} \cos α_{2} \\ + \cos β_{1} \sin α_{1} \sin α_{2} \cos ζ \end{matrix}

(25)

where s₂ and c₂ represent the sine and cosine of the exterior angle θ₁, respectively; s₃ and c₃ represent the sine and cosine of the exterior angle ζ, respectively; s₁₂ and c₁₂ represent the sine and cosine of the angle (π-β₁) between Z-axis and Z₁₁-axis, respectively; s₂₃ and c₂₃ represent the sine and cosine of the angle α₁ between Z₁₁-axis and Z₁₂-axis, respectively; s₃₄ and c₃₄ represent the sine and cosine of the angle α₂ between Z₁₂-axis and Z₁₃-axis, respectively.

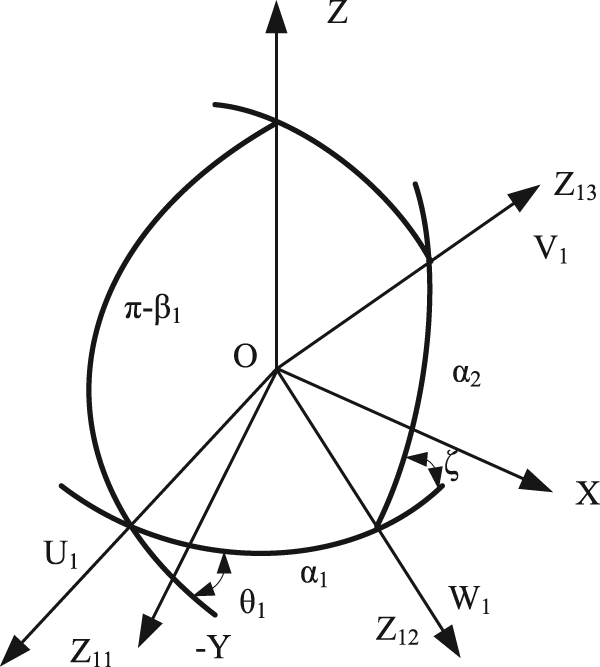

Figure 6.

Spherical quadrilateral of joint axis unit vector v₁ .

(b) The direction cosine of joint axis unit vector v₂

In fixed coordinate system O-XYZ, spherical pentagon is shown in Figure 7. The angle between Z-axis and Z₁₁-axis is (π-β₁), the angle between Z₁₁-axis and Z₁₂-axis is α₁, the angle between Z₁₂-axis and Z₁₃-axis is α₂, the angle between Z₁₃-axis and Z₂₃-axis is α₃, the exterior angle of Z₁₁-axis is θ₁, the exterior angle of Z₁₂-axis is ζ, and the exterior angle of Z₁₃-axis is η. According to spherical quadrilateral sine formula, sine–cosine formula, and cosine formula in the theory of spherical geometry, the direction cosine of the three joint axes unit vector v_2x, v_2y, and v_2z can be obtained as

v_{2} = [\begin{matrix} v_{2 x} \\ v_{2 y} \\ v_{2 z} \end{matrix}] = [\begin{matrix} X_{432} \\ Y_{432} \\ Z_{432} \end{matrix}] = [\begin{matrix} {\bar{X}}_{43} c_{2} - {\bar{Y}}_{43} s_{2} \\ c_{12} ({\bar{X}}_{43} s_{2} + {\bar{Y}}_{43} c_{2}) - s_{12} {\bar{Z}}_{43} \\ s_{12} ({\bar{X}}_{43} s_{2} + {\bar{Y}}_{43} c_{2}) + c_{12} {\bar{Z}}_{43} \end{matrix}]

(26)

[\begin{matrix} {\bar{X}}_{43} \\ {\bar{Y}}_{43} \\ {\bar{Z}}_{43} \end{matrix}] = [\begin{matrix} {\bar{X}}_{4} c_{3} - {\bar{Y}}_{4} s_{3} \\ c_{23} ({\bar{X}}_{4} s_{3} + {\bar{Y}}_{4} c_{3}) - s_{23} {\bar{Z}}_{4} \\ s_{23} ({\bar{X}}_{4} s_{3} + {\bar{Y}}_{4} c_{3}) + c_{23} {\bar{Z}}_{4} \end{matrix}]

(27)

{\bar{X}}_{4} = s_{45} s_{4}, {\bar{Y}}_{4} = - (s_{34} c_{45} + c_{34} s_{45} c_{4}), {\bar{Z}}_{4} = c_{34} c_{45} - s_{34} s_{45} c_{4}

(28)

{\begin{matrix} v_{2 x} = \cos ζ \cos θ_{1} \sin α_{3} \sin η + \cos α_{3} \cos θ_{1} \sin α_{2} \sin ζ \\ + \cos α_{2} \cos η \cos θ_{1} \sin α_{3} \sin ζ + \cos α_{3} \cos ζ \cos α_{1} \sin α_{2} \sin θ_{1} \\ - \cos η \sin α_{1} \sin θ_{1} \sin α_{2} \sin α_{3} - \cos α_{1} \sin α_{3} \sin η \sin ζ \sin θ_{1} \\ + \cos α_{2} \cos η \cos ζ \cos α_{1} \sin α_{3} \sin θ_{1} + \cos α_{2} \cos α_{3} \sin α_{1} \sin θ_{1} \\ v_{2 y} = - \cos ζ \cos β_{1} \sin α_{3} \sin η \sin θ_{1} + \cos α_{1} \cos η \sin β_{1} \sin α_{2} \sin α_{3} \\ - \cos β_{1} \cos α_{2} \cos η \sin α_{3} \sin ζ \sin θ_{1} - \cos α_{1} \cos θ_{1} \cos β_{1} \sin α_{3} \sin η \sin ζ \\ + \cos α_{3} \cos ζ \cos α_{1} \cos θ_{1} \cos β_{1} \sin α_{2} - \cos α_{3} \cos β_{1} \sin α_{2} \sin ζ \sin θ_{1} \\ + \cos α_{2} \cos α_{3} \cos θ_{1} \cos β_{1} \sin α_{1} - \cos η \cos θ_{1} \cos β_{1} \sin α_{2} \sin α_{3} \sin α_{1} \\ - \sin α_{3} \sin η \sin ζ \sin α_{1} \sin β_{1} + \cos α_{3} \cos ζ \sin α_{2} \sin α_{1} \sin β_{1} \\ + \cos α_{2} \cos η \cos ζ \sin α_{3} \sin α_{1} \sin β_{1} - \cos α_{1} \cos α_{2} \cos α_{3} \sin β_{1} \\ + \cos α_{2} \cos η \cos ζ \cos α_{1} \cos θ_{1} \cos β_{1} \sin α_{3} \\ v_{2 z} = \cos ζ \sin α_{3} \sin η \sin θ_{1} \sin β_{1} + \cos α_{3} \sin α_{2} \sin ζ \sin θ_{1} \sin β_{1} \\ + \cos α_{2} \cos η \sin α_{3} \sin ζ \sin θ_{1} \sin β_{1} + \cos θ_{1} \cos α_{1} \sin α_{3} \sin η \sin ζ \sin β_{1} \\ - \cos α_{3} \cos ζ \cos θ_{1} \cos α_{1} \sin α_{2} \sin β_{1} + \cos η \cos β_{1} \cos α_{1} \sin α_{2} \sin α_{3} \\ - \cos α_{2} \cos α_{3} \cos θ_{1} \sin α_{1} \sin β_{1} + \cos θ_{1} \cos η \sin α_{2} \sin α_{3} \sin α_{1} \sin β_{1} \\ - \cos β_{1} \sin α_{3} \sin η \sin ζ \sin α_{1} + \cos α_{3} \cos ζ \cos β_{1} \sin α_{2} \sin α_{1} \\ + \cos η \cos ζ \cos β_{1} \cos α_{2} \sin α_{3} \sin α_{1} - \cos α_{2} \cos α_{3} \cos β_{1} \cos α_{1} \\ - \cos α_{1} \cos α_{2} \cos η \cos ζ \cos θ_{1} \sin β_{1} \sin α_{3} \end{matrix}

(29)

Figure 7.

Spherical pentagon of joint axis unit vector v₂ .

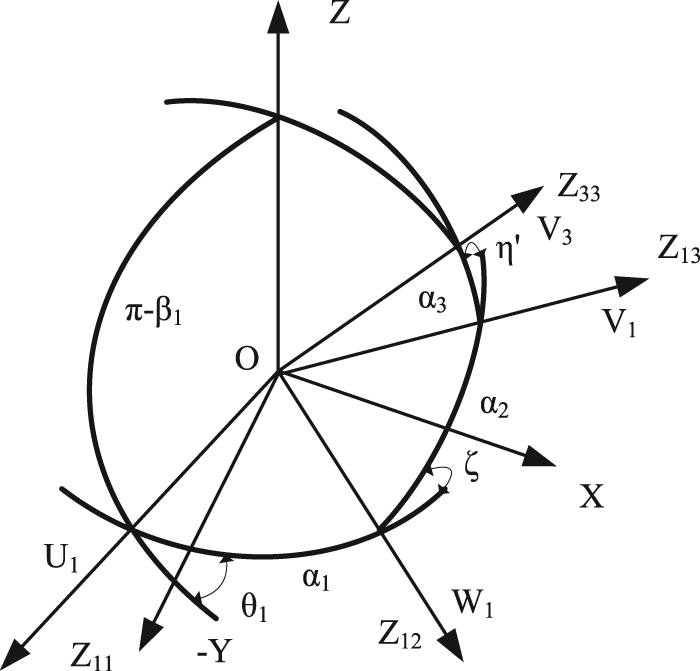

Similarly, a spherical pentagon is shown in Figure 8. It is obvious to obtain the direction cosine by replacing η with η′ (formula (29)) because of the similarity of the direction cosine of v₃ and v₂

{\begin{matrix} v_{3 x} = \cos ζ \cos θ_{1} \sin α_{3} \sin η' + \cos α_{3} \cos θ_{1} \sin α_{2} \sin ζ \\ + \cos α_{2} \cos η' \cos θ_{1} \sin α_{3} \sin ζ + \cos α_{3} \cos ζ \cos α_{1} \sin α_{2} \sin θ_{1} \\ - \cos η' \sin α_{1} \sin θ_{1} \sin α_{2} \sin α_{3} - \cos α_{1} \sin α_{3} \sin η' \sin ζ \sin θ_{1} \\ + \cos α_{2} \cos η' \cos ζ \cos α_{1} \sin α_{3} \sin θ_{1} + \cos α_{2} \cos α_{3} \sin α_{1} \sin θ_{1} \\ v_{3 y} = - \cos ζ \cos β_{1} \sin α_{3} \sin η' \sin θ_{1} - \cos α_{3} \cos β_{1} \sin α_{2} \sin ζ \sin θ_{1} \\ - \cos β_{1} \cos α_{2} \cos η' \sin α_{3} \sin ζ \sin θ_{1} + \cos α_{1} \cos η' \sin β_{1} \sin α_{2} \sin α_{3} \\ + \cos α_{3} \cos ζ \cos α_{1} \cos θ_{1} \cos β_{1} \sin α_{2} - \cos α_{1} \cos α_{2} \cos α_{3} \sin β_{1} \\ + \cos α_{2} \cos α_{3} \cos θ_{1} \cos β_{1} \sin α_{1} - \cos η' \cos θ_{1} \cos β_{1} \sin α_{2} \sin α_{3} \sin α_{1} \\ - \sin α_{3} \sin η' \sin ζ \sin α_{1} \sin β_{1} - \cos α_{1} \cos θ_{1} \cos β_{1} \sin α_{3} \sin η' \sin ζ \\ + \cos α_{2} \cos η' \cos ζ \sin α_{3} \sin α_{1} \sin β_{1} + \cos α_{3} \cos ζ \sin α_{2} \sin α_{1} \sin β_{1} \\ + \cos α_{2} \cos η' \cos ζ \cos α_{1} \cos θ_{1} \cos β_{1} \sin α_{3} \\ v_{3 z} = \cos ζ \sin α_{3} \sin η' \sin θ_{1} \sin β_{1} + \cos α_{3} \cos ζ \cos β_{1} \sin α_{2} \sin α_{1} \\ + \cos α_{2} \cos η' \sin α_{3} \sin ζ \sin θ_{1} \sin β_{1} + \cos α_{3} \sin α_{2} \sin ζ \sin θ_{1} \sin β_{1} \\ + \cos η' \cos β_{1} \cos α_{1} \sin α_{2} \sin α_{3} + \cos θ_{1} \cos α_{1} \sin α_{3} \sin η' \sin ζ \sin β_{1} \\ - \cos α_{2} \cos α_{3} \cos θ_{1} \sin α_{1} \sin β_{1} + \cos θ_{1} \cos η' \sin α_{2} \sin α_{3} \sin α_{1} \sin β_{1} \\ - \cos β_{1} \sin α_{3} \sin η' \sin ζ \sin α_{1} - \cos α_{3} \cos ζ \cos θ_{1} \cos α_{1} \sin α_{2} \sin β_{1} \\ + \cos η' \cos ζ \cos β_{1} \cos α_{2} \sin α_{3} \sin α_{1} - \cos α_{2} \cos α_{3} \cos β_{1} \cos α_{1} \\ - \cos α_{1} \cos α_{2} \cos η' \cos ζ \cos θ_{1} \sin β_{1} \sin α_{3} \end{matrix}

(30)

Figure 8.

Spherical pentagon of joint axis unit vector v₃ .

The spherical triangle is shown in Figure 9, the angle between Z₃₃-axis and Z₁₃-axis is α₃, the angle between Z₁₃-axis and Z₂₃-axis is α₃, the angle between Z₃₃-axis and Z₂₃-axis is α₃, and the exterior angle of Z₁₃-axis is µ.

Figure 9.

Spherical triangle.

The relationship between η′ and η can be obtained from Figure 9

η' = π - (μ - η)

(31)

Based on the theory of spherical geometry, it can be easily obtained as

c_{12} c_{23} - s_{12} s_{23} = c_{31}

(32)

Given $c_{12} = c_{23} = c_{31} = \cos α_{3}, s_{12} = s_{23} = \sin α_{3}, c_{2} = \cos μ$ yields into formula (32)

μ = arc \cos (\frac{\cos^{2} α_{3} - \cos α_{3}}{\sin^{2} α_{3}})

(33)

It is shown from formula (1) that

α_{3} = 2 arc \sin (\frac{\sqrt{3}}{2} \sin β_{2})

(34)

The direction cosine of joint axis unit vector v₁ is expressed by θ_i with parameters of θ₁ and ζ; v₂ is expressed with parameters of θ₂, ζ, and η; and v₃ is expressed with parameters of θ₃, ζ, and η. The values of ζ and η can be obtained by solving the equation, and then v₁ is expressed with θ_i.

2. FKA

Since the angle between a branch in the middle joint and the joint of the mobile platform is fixed as α₂

w_{i} \cdot v_{i} = \cos α_{2}

(35)

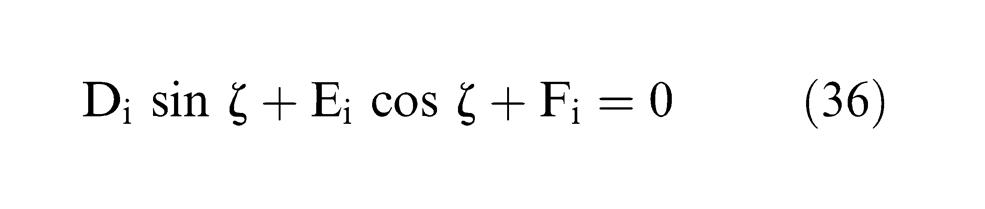

Formulas (10), (11), (20), and (21) introduced into formula (35) yield

D_{i} \sin ζ + E_{i} \cos ζ + F_{i} = 0

(36)

D_i, E_i, and F_i are formulas expressed by θ₁, θ₂, θ₃, and η; the following is the solution of η. From formula (36), the following can be obtained

{\begin{matrix} \sin ζ = \frac{E_{1} F_{2} - E_{2} F_{1}}{D_{1} E_{2} - D_{2} E_{1}} \\ \cos ζ = \frac{D_{1} F_{2} - D_{2} F_{1}}{D_{2} E_{1} - D_{1} E_{2}} \end{matrix}

(37)

According to the identity $\sin^{2} ζ + \cos^{2} ζ = 1$ , then

{(\frac{E_{1} F_{2} - E_{2} F_{1}}{D_{1} E_{2} - D_{2} E_{1}})}^{2} + {(\frac{D_{1} F_{2} - D_{2} F_{1}}{D_{2} E_{1} - D_{1} E_{2}})}^{2} = 1

(38)

when D₂E₁ − D₁E₂ ≠ 0, formula (38) is multiplied by (D₂E₁ − D₁E₂)² on both sides

E_{1}^{2} F_{2}^{2} + E_{2}^{2} F_{1}^{2} + D_{1}^{2} F_{2}^{2} + D_{2}^{2} F_{1}^{1} - D_{2}^{2} E_{1}^{2} - D_{1}^{2} E_{2}^{2} - 2 E_{1} F_{2} E_{2} F_{1} - 2 D_{1} F_{2} D_{2} F_{1} + 2 D_{2} E_{1} D_{1} E_{2} = 0

If parameters θ₁, θ₂, and θ₃ are known in the formula above, η is the only unknown parameter. For convenient solution, given $x = \tan η / 2, \sin η = 2 x / 1 + x^{2}, \cos η = (1 - x^{2}) / (1 + x^{2})$ , introduced into above formula, an eight-degree univariate polynomial equation about x is obtained

\sum_{i = 1}^{8} K_{i} x^{i} = 0

(39)

and K_i is a formula about θ₁, θ₂, and θ₃.

When the values of θ₁, θ₂, and θ₃ are known, x can be obtained easily, and then, η and ζ from formula (37). Then v₁ , v₂ , and v₃ are obtained.

Based on formula (14)

Q_{ψ, θ, ϕ} = V . {}^{P}V^{- 1}

(40)

And $V = (v_{1}, v_{2}, v_{3}),^{P} V = (^{p} v_{1},^{p} v_{2},^{p} v_{3})$ . Based on formula (13) and above formulas about v₁ , v₂ , and v₃ , it is obtained as follows

V {}^{P}V^{- 1} = [\begin{matrix} a_{11} & a_{12} & a_{13} \\ a_{21} & a_{22} & a_{23} \\ a_{31} & a_{32} & a_{33} \end{matrix}]

(41)

Compared with formula (12)

{\begin{matrix} c θ = \cos θ = a_{33} \\ s θ c ϕ = \sin θ \cos ϕ = a_{32} \\ s ψ s θ = \sin ψ \sin θ = a_{13} \end{matrix}

(42)

Then, ψ, θ, and Φ can be obtained as follows

θ = arc \cos (a_{33}), ϕ = arc \cos (\frac{a_{32}}{\sin θ}), ψ = arc \sin (\frac{a_{13}}{\sin θ})

(43)

Due to the various solutions to underactuated wrist FKA, it can refer to the select principle of the IKA. In order to make it clear, the solution of FKA is shown in Figure 10. As the kinematic model is complex, discretization method is applied to the forward kinematic solution. In this way, select a group of θ₁, θ₂, and θ₃, introduce into above formulas, and get the Euler angles ψ, θ, and Φ using MATLAB.

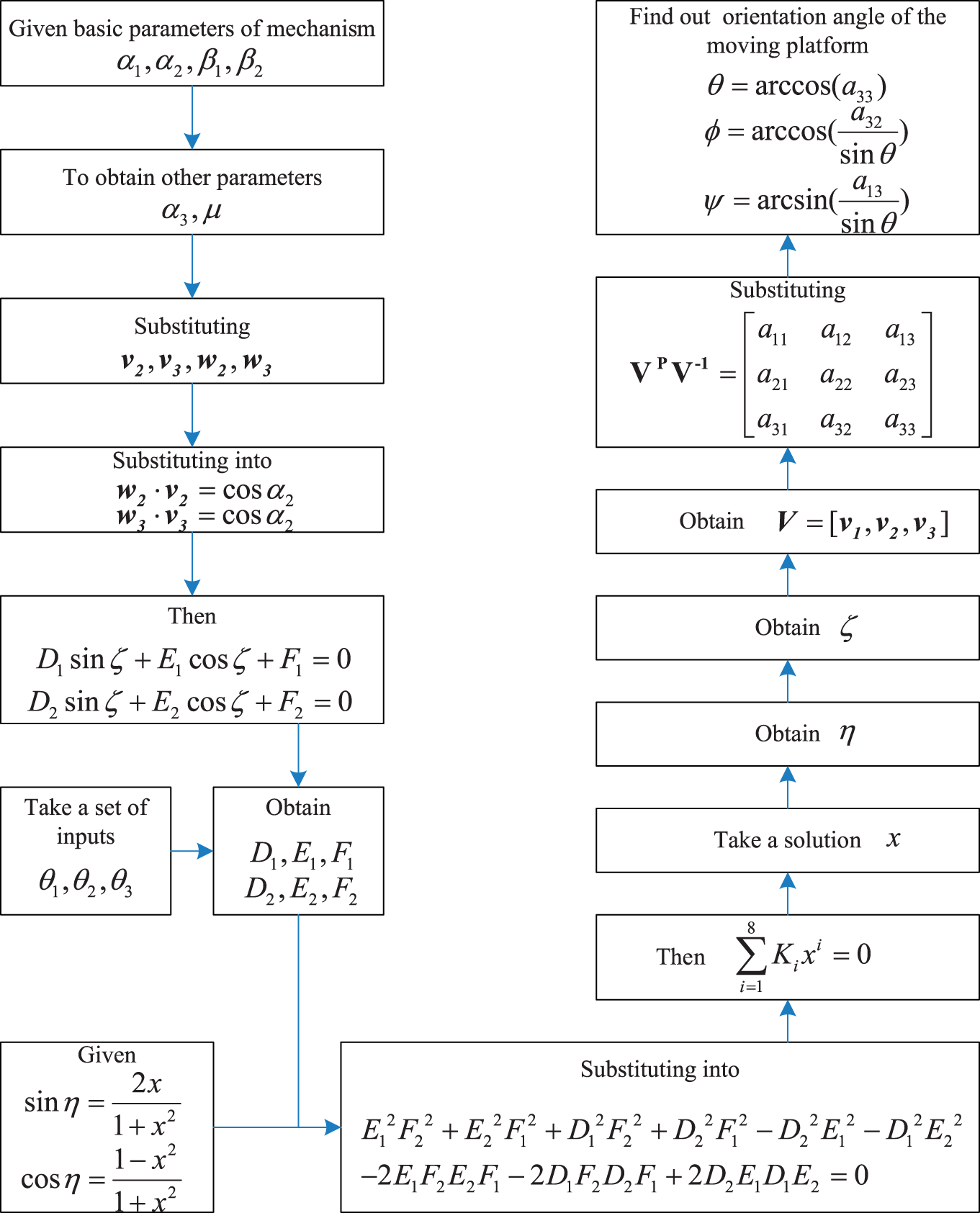

Figure 10.

The solving process of the forward kinematic analysis.

Kinematics numerical simulation based on virtual prototyping

The process of kinematics simulation

After three-dimensional (3D) model of the robot wrist was established, the simplified model as a Parasolid file was imported into ADAMS for further process.

1. Set the coordinate system

As the moving platform direction angle is represented by the Euler parameters, in order to study the relationship between the input angle and the direction angle of the moving platform, the spherical coordinate system was rotated as the order 313, whose centre coincides with the origin of the coordinate system of the body.

2. Set the gravity direction

Confirm the gravity settings as Y-axis direction.

3. Change the part name and colour

Change the colour and the name of each part, and also the transparency to facilitate observation and selection, as there are still a lot of parts.

4. Specify the part material

The material of each part must be specified. According to the material and geometry, the mass and moment of inertia of the main components are calculated. All the parts of the robot wrist are designated as 45 steel (density 7801.0 kg/m³).

5. Add constraints and kinematic pairs

Establish mutual relations among all the parts according to their motion relationships. A fixed connection is used between two relatively static parts, such as fixed platforms and ground fixed, while a rotate connection is used between links. There are also some friction constraints in the robot wrist.

6. Add driving movement

Finally, specify the drive mode of the joints to achieve a predetermined motion. Add drive (Rotational Joint Motion) to revolution joint and select the motion parameters from the menu Function (time). Motion function is mainly used for controlling joint movement with function STEP, which can not only be a design function but also be a runtime function. When it is used as a runtime function, the format is

STEP (x, Begin, Initial Value, End, Final Value)

which is a step function with a cubic polynomial structure, and x is the autonomous variable that decides the start (Begin, Initial Value) and the end (End, Final Value). The value is initial value when the time’s range is from 0 to Begin and then increases (or decreases) to Final Value by the time END.

Each input revolution joint driving function is as follows:

Motion 1: step (time, 0.0, 0.0, 5, −20d)

Motion 2: step (time, 0.0, 0.0, 5, −15d)

The initial position of the input joint angle is 140°. The drive function Motion 1 represents that one of the inputs is to rotate 20° at 0–5 s from the initial position to reach angle 120°. The drive function Motion 2 represents that another input is to rotate 15° at 0–5 s from the initial position to reach the angle 125°.

After these settings, virtual prototyping–based model was built up in ADAMS in Figure 11. In the simulation process, the base platform is fixed on the ground, while the motor is fixed on the base platform, so the motor model has no effect on simulation. Motors and connecting shaft between the joints are omitted in this virtual prototyping.

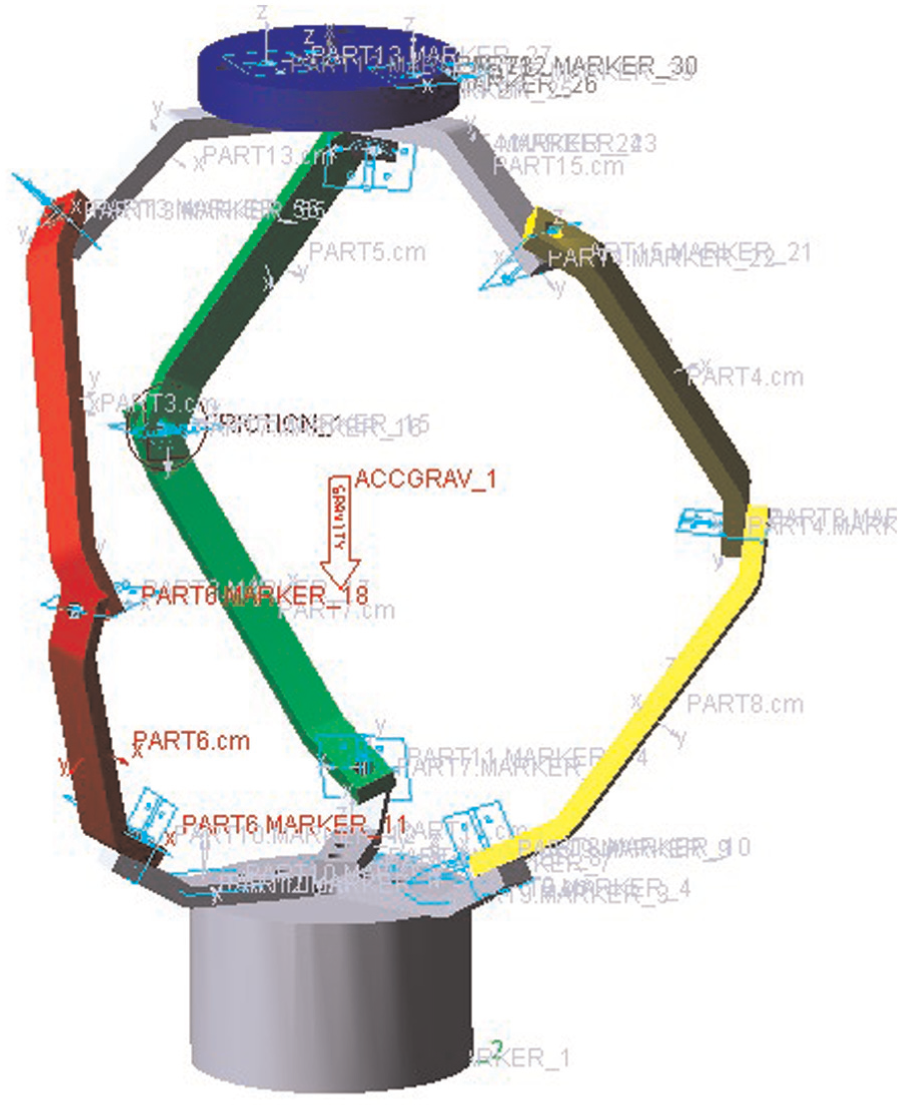

Figure 11.

Virtual prototyping–based underactuated mechanism.

Analysis of simulation results

With all the above settings, the simulation can start. The simulation time is set to t = 5 s, and the simulation step is set to steps = 50, which can be modified to compare the change to kinetic parameters of the robot wrist. The curves of joint angular velocity, angular acceleration, and joint torque of each joint angle are as shown in Figure 12.

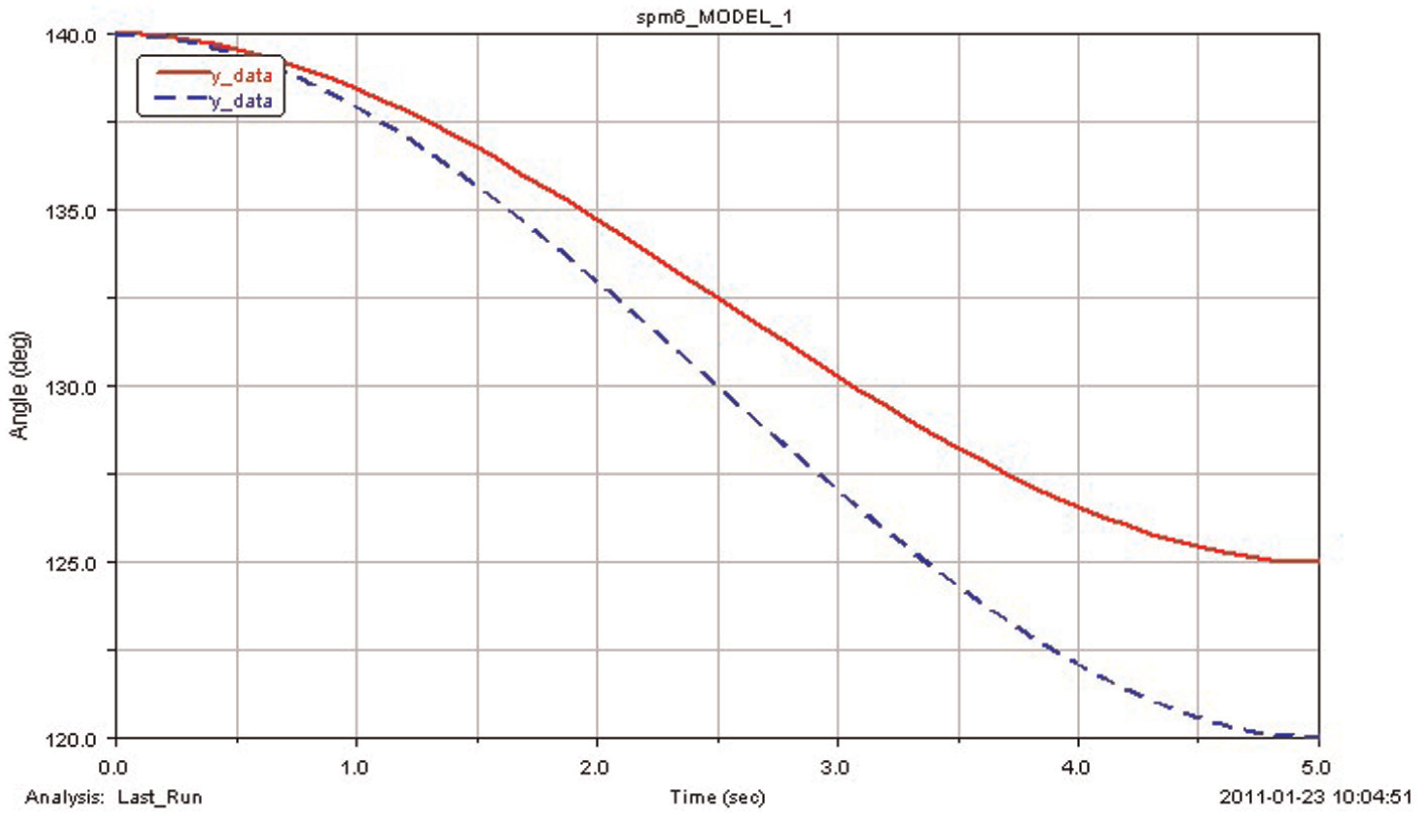

Figure 12.

Curves of two drive joint angles.

Underactuated wrist movement with mechanical friction

In order to study the mechanical friction s impact on the movement, a friction-free state was studied with the results of curves of passive joint angle and mobile platform direction angle, shown in Figure 13(a) and (b).

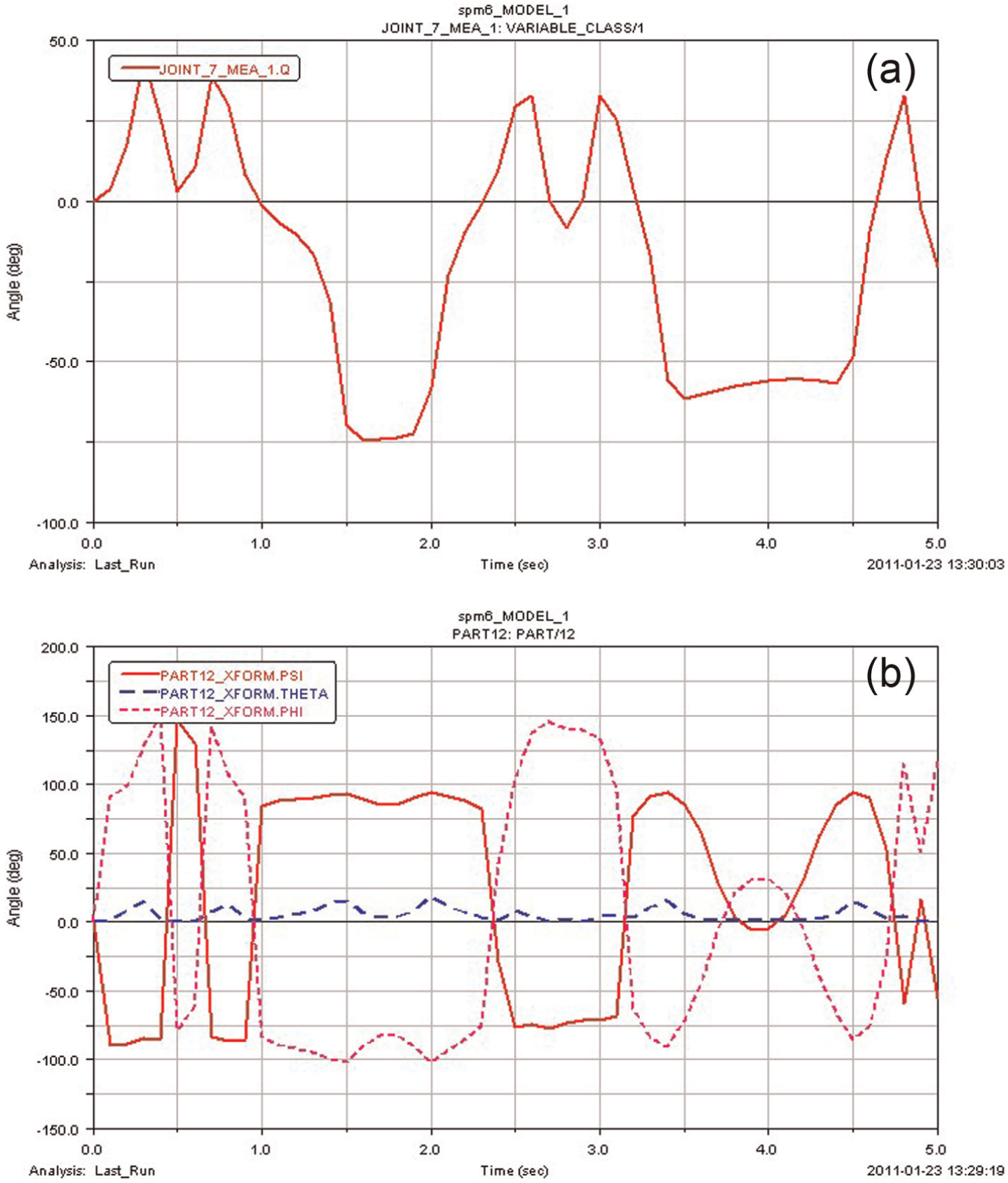

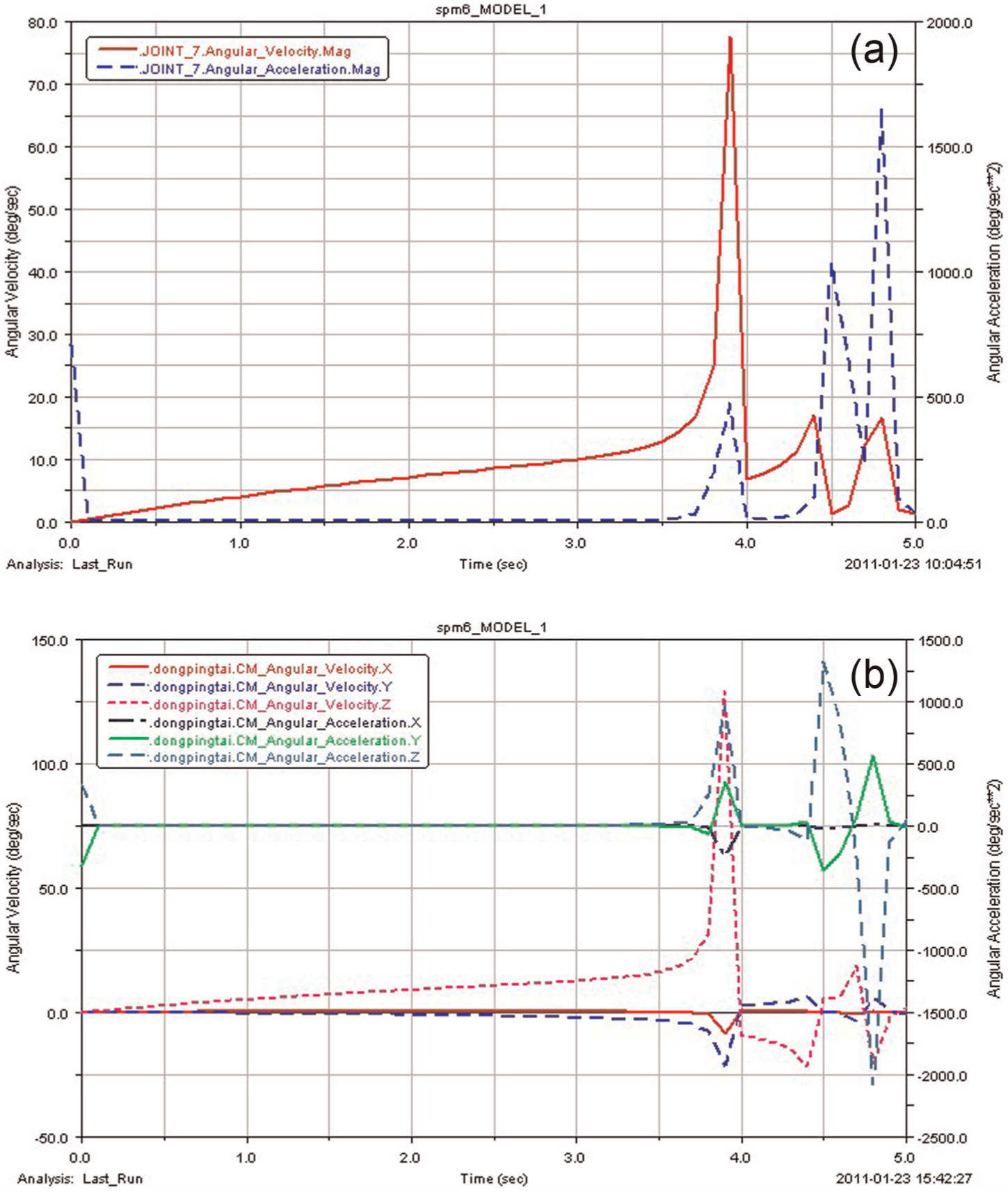

Figure 13.

(a) The vibration of passive angle and (b) the vibration of mobile platform direction angle.

From these figures, passive joint angles can be reciprocating vibration, and the direction angle of the mobile platform also can be reciprocating vibration. There will be a certain degree of vibration in passive joint with no drive.

For the realistic physical model, the joints cannot be without friction. So, set the kinetic friction factor of the revolution joint between driving bar and following bar of the passive branch as 0.1, and the static friction factor as 0.5. The curves of passive joint angle and mobile platform direction angle are as shown in Figure 14.

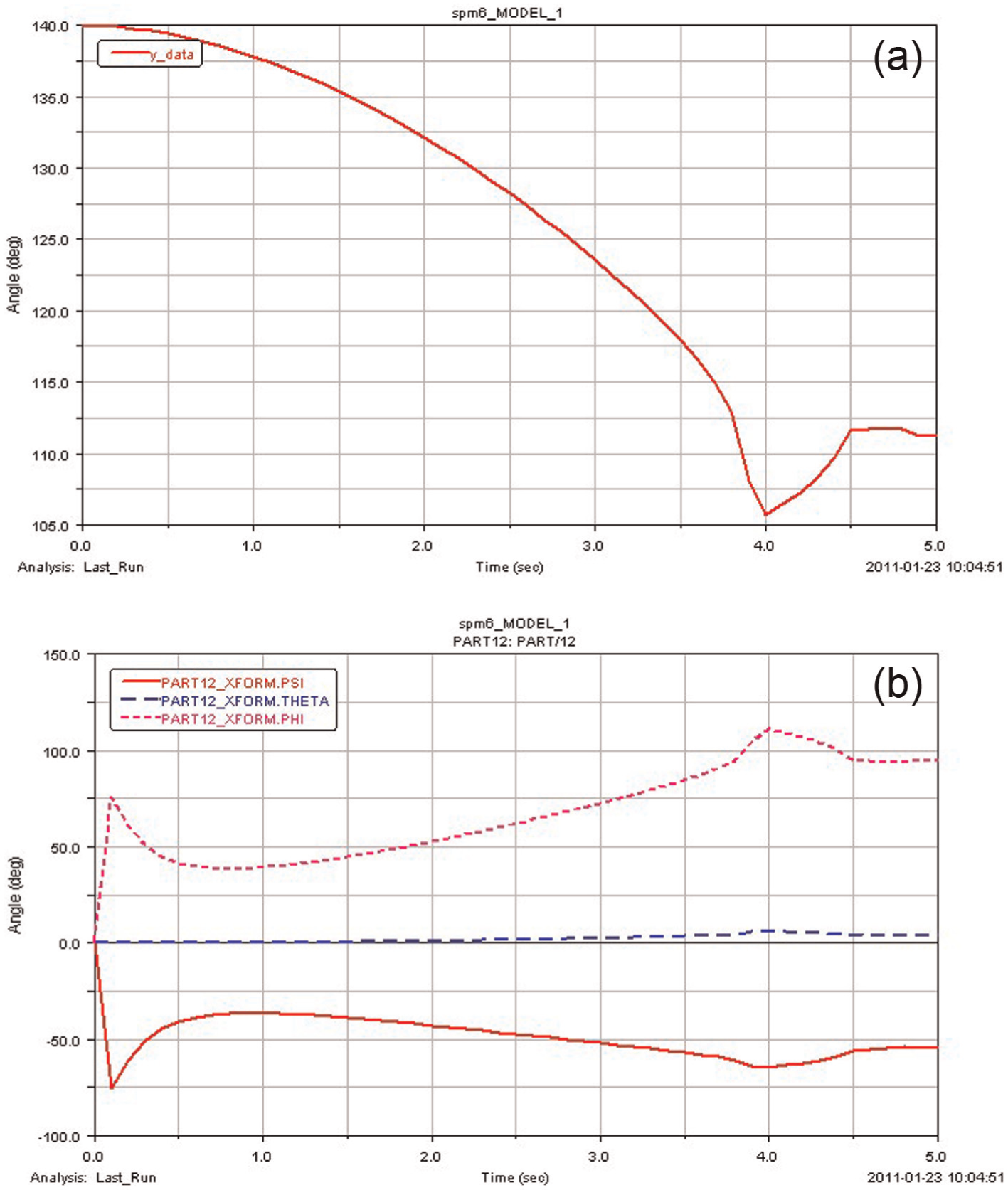

Figure 14.

(a) The vibration of passive angle and (b) the vibration of mobile platform direction angle.

Comparing Figure 13 with Figure 14, the passive joint angle and the direction angle of mobile platform changed steadily.

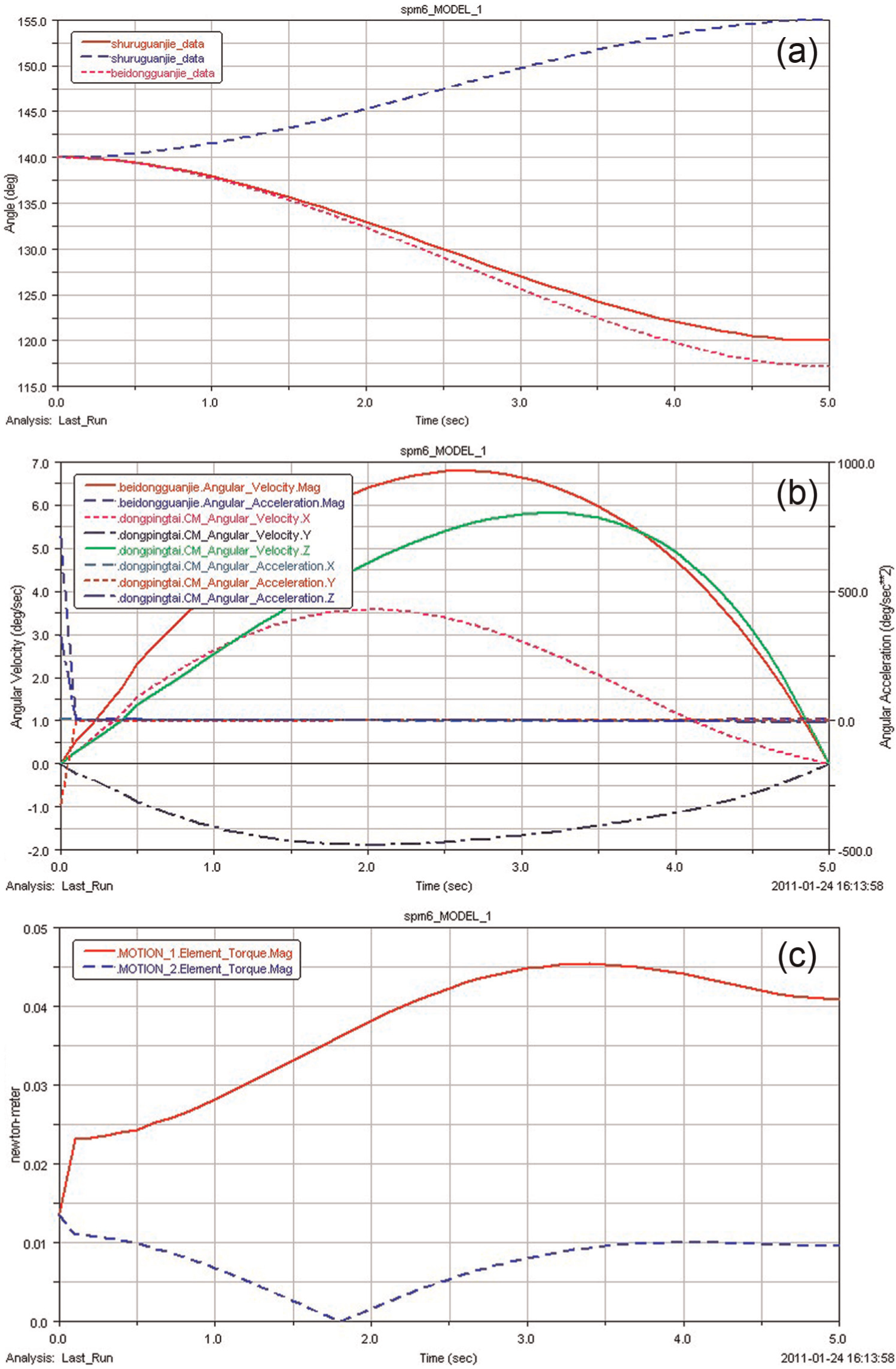

The angular velocity and angular acceleration changes of the two drive joints and passive joint are shown in Figure 15(a), while the angular velocity and angular acceleration changes of the mobile platform are shown in Figure 15(b).

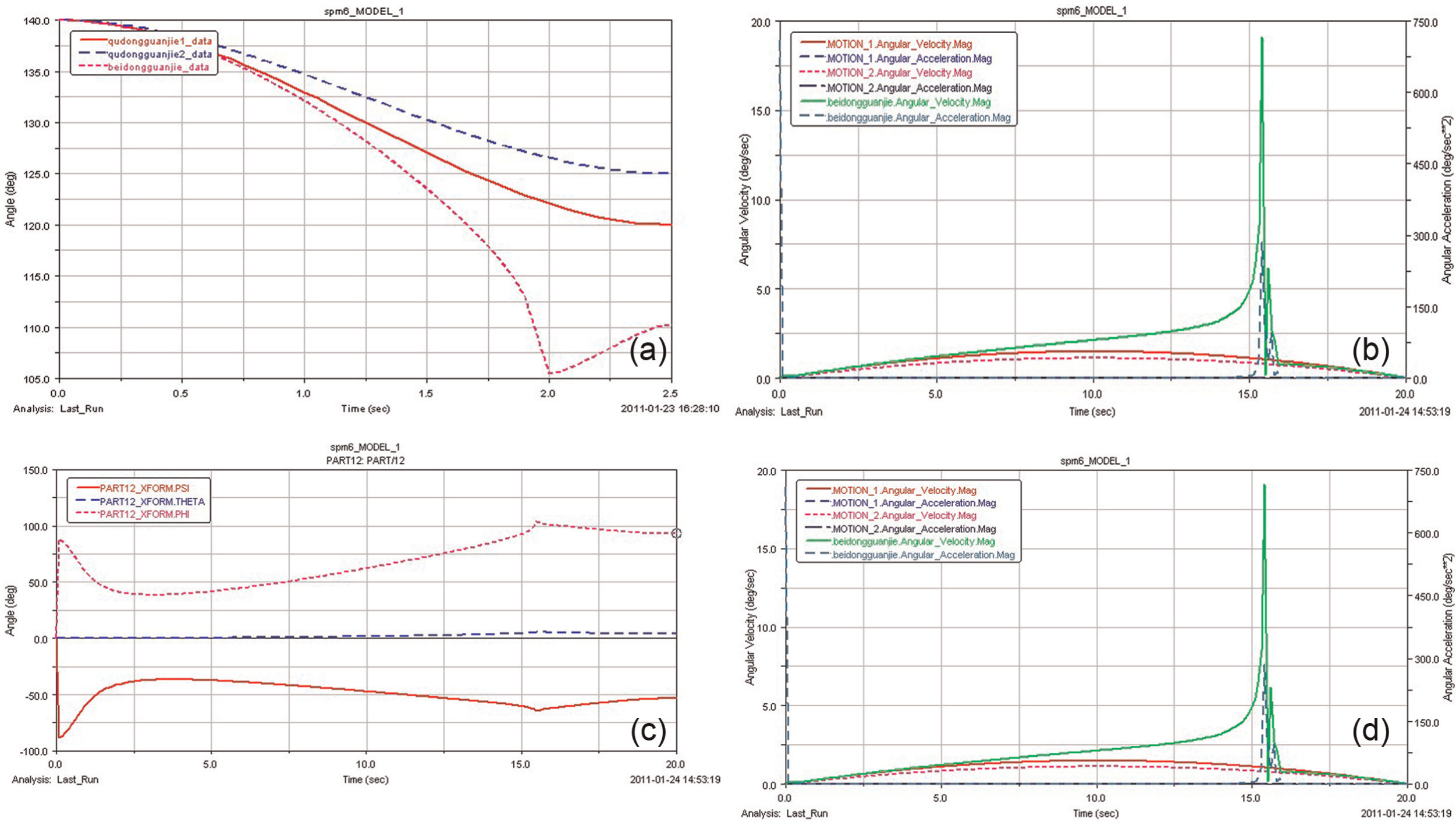

Figure 15.

(a) Angular velocity and angular acceleration changes of the two drive joints and one passive joint and (b) angular velocity and angular acceleration changes of the mobile platform.

In Figure 15, the angular velocity and angular acceleration of the two drive joints and passive joint and angular velocity and angular acceleration changes of the mobile platform, with vibration at 4–5 s without the drive, are shown.

Underactuated wrist movement with different driving speeds

In comparison, the end time of the two drive functions in ADAMS was changed, which is t = 20 s from the former value of t = 5 s as follows:

Motion 1: step (time, 0.0, 0.0, 20, −20d)

Motion 2: step (time, 0.0, 0.0, 20, −15d)

While the simulation time is set as 20 s with the same other conditions, simulate again and observe the results.

Comparing Figure 16(c) and (d) with Figure 15(a) and (b), because of the ever longer time with the same angle range, the angular velocity and angular acceleration of the two drive joints and passive joint are decreased, of which the vibration is also decreased at the end time. The angular velocity and angular acceleration of the mobile platform are also decreased. With the decreased vibration at the ending time, it shows that the different drive speeds have influence on the vibration strength of mobile platform and following bar.

Figure 16.

(a) Angular changes of the two drive joints and one passive joint when t = 20 s, (b) angular velocity and angular acceleration changes of the two drive joints and one passive joint when t = 20 s, (c) changes of mobile platform direction angle when t = 20 s, and (d) angular velocity and angular acceleration changes of the mobile platform when t = 20 s.

Comparing Figure 16(d) with Figure 14(b), the values of the mobile platform direction angle at different simulation times t = 5 s and t = 20 s are shown in Table 1.

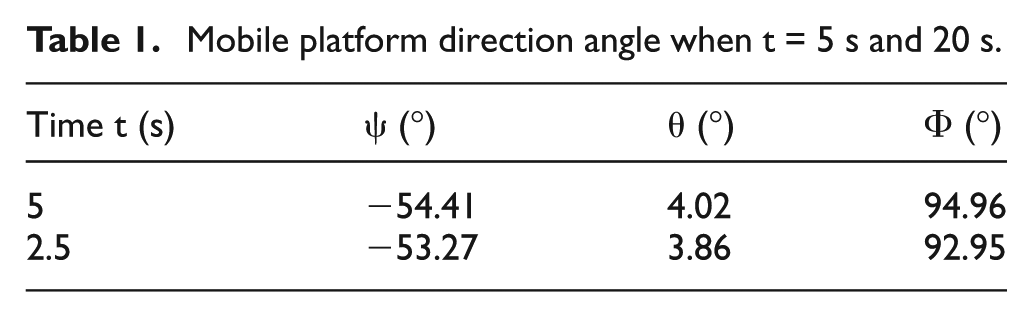

Table 1.

Mobile platform direction angle when t = 5 s and 20 s.

Time t (s)	ψ (°)	θ (°)	Φ (°)
5	−54.41	4.02	94.96
2.5	−53.27	3.86	92.95

In Table 1, the value of mobile platform direction angle is smaller when drive function with time t = 20 s, which shows that the smaller the drive angle, the smaller the mobile platform direction angle.

Underactuated wrist movement with different driving directions

For comparison, change the drive direction of the underactuated wrist in ADAMS, Motion 2 is in the opposite direction as follows

Motion 1: step (time, 0.0, 0.0, 5, −20d)

Motion 2: step (time, 0.0, 0.0, 5, 15d)

The other working conditions are the same as previously, and re-simulate the model, and then the results can be observed. Comparing Figure 17(b) and (c) with Figure 15(a) and (b), the angular velocity and angular acceleration of the passive joint and the mobile platform are always stable, with no cusp phenomenon.

Figure 17.

(a) Angular changes of the two drive joints and passive joint with inverse direction of Motion 2, (b) angular velocity and angular acceleration changes of passive joint and mobile platform with the inverse direction of Motion 2, and (c) torque changes of the two drive joints with the inverse direction of Motion 2.

The torque changes of the two drive joints are also stable at 4–5 s without the cusp phenomenon. It is shown that the process of simulation is stable all time, and the drive direction has great influence on the movement of the robot wrist.

Verification of FKA

Based on the FKA, the moving platform posture can be obtained with known input angle of drive source, which is solved by the above method shown in Figure 11. The basic initial parameters of the robot wrist are α₁ = 60°, α₂ = 60°, β₁ = 30°, and β₁ = 43.89°; the direction angle of the mobile platform is calculated by the method shown in Figure 11, and the results are shown in Table 2. θ₁, θ₂, and θ₃ represent the exterior angles of the three input angles, respectively. Based on Figures 12 and 14(a), θ₁, θ₂, and θ₃ at certain moments of t = 0 s, t = 0.1 s, t = 1 s, t = 2 s, t = 3 s, t = 4 s, and t = 5 s are picked to compare the results calculated by MATLAB.

Table 2.

η (°), ζ (°), ψ (°), θ (°), and Φ (°) with the change of θ₁, θ₂, and θ₃.

Time t (s)		0	0.1	1	2	3	4	5
θ₁ (°)		140.00	139.98	137.92	132.96	127.04	122.08	120.00
θ₂ (°)		140.00	139.98	138.44	134.72	130.28	126.56	125.00
θ₃ (°)		140.00	139.96	137.82	132.13	123.56	105.68	111.29
η (°)		−78.54	−78.54	−77.39	−72.80	−65.35	−38.41	−48.15
ζ (°)		45.29	45.29	45.86	45.86	44.71	30.96	36.69
ψ (°)	Simulation	0	−75.61	−36.60	−42.76	−51.96	−64.66	−54.41
	Calculation	0	−82.00	−36.01	−42.23	−51.45	−63.43	−53.74
θ (°)	Simulation	0	0.01	0.26	1.00	2.37	5.97	4.02
	Calculation	0	0.01	0.26	1.00	2.36	5.82	3.97
Φ (°)	Simulation	0	75.65	39.33	54.64	72.60	111.39	94.96
	Calculation	0	75.33	38.95	52.36	72.37	111.85	94.82

For instance, the values of θ₁ are 140.00°, 139.98°, 137.92°, 132.96°, 127.04°, 122.08°, and 120.00°; θ₂ are 140.00°, 139.98°, 38.44°, 134.72°, 130.28°, 126.56°, and 125.00°; and θ₃ are 140.00°, 139.96°, 137.82°, 132.13°, 123.56°, 105.68°, and 111.29° at 0, 0.1, 1, 2, 3, 4, and 5 s based on the above FKA method, and the values for ψ at 0, 0.1, 1, 2, 3, 4, and 5 s are calculated as −82.00°, −36.01°, −42.23°, −51.45°, −63.43°, and −53.74°, while the values of the simulation are 0°, −75.61°, −36.60°, −42.76°, −51.96°, −64.66°, and −54.41°, respectively.

The values of ψ, θ, and Φ are introduced into ADAMS to compare with the simulation results shown as follows. The solid line indicates the direction angle of the mobile platform theoretically, while the dotted line is the curve simulation in ADAMS.

From Figure 18, it can be observed that theoretical and simulated direction angles of the mobile platform are close to each other, showing the validity of the above theoretical analysis. Due to the rounding error in the calculation process, or the vibration of the motor in the initial state, or some fractions, the input angles in the table by methods of simulation and calculation are not exactly the same.

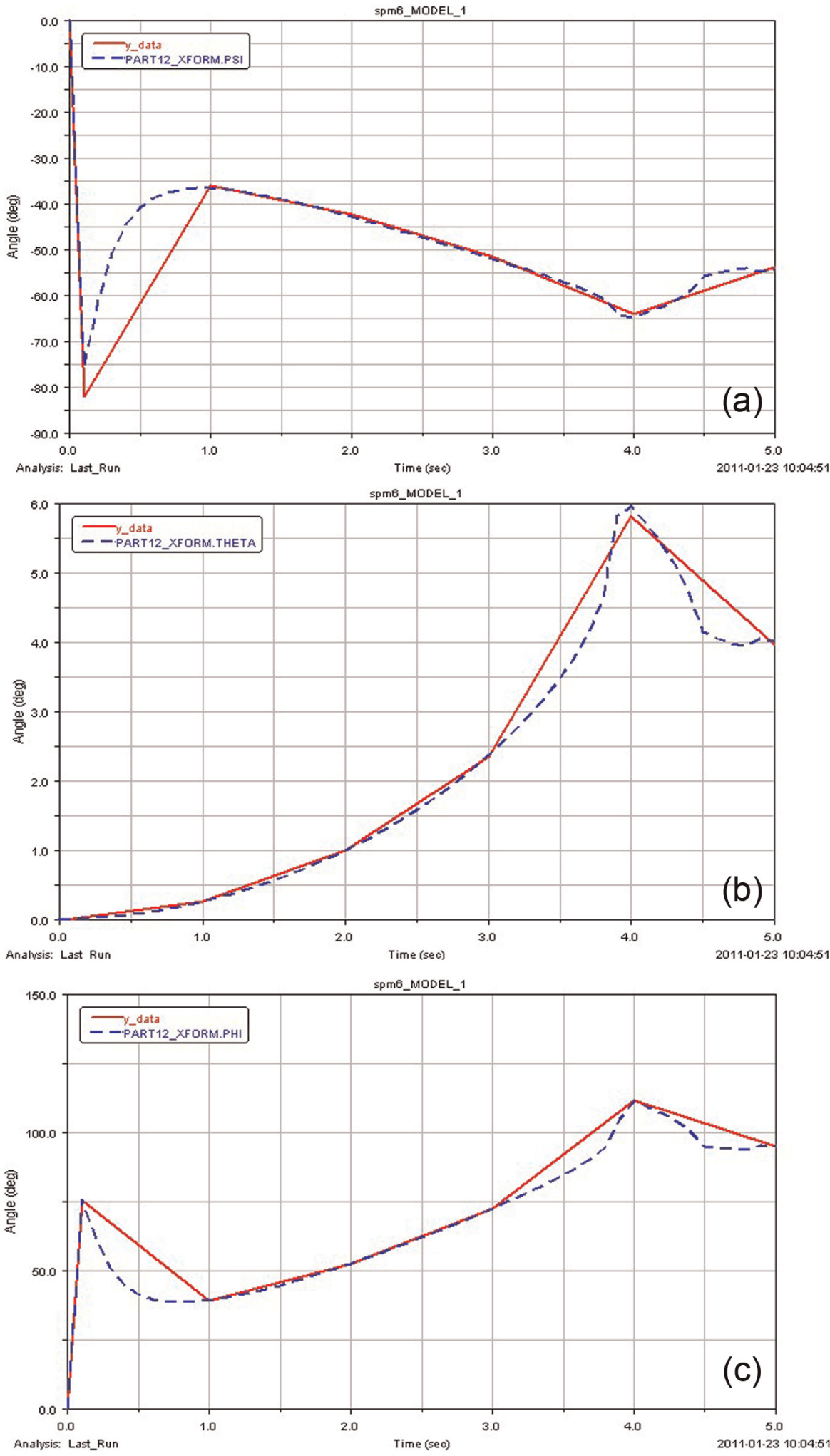

Figure 18.

(a) The theoretical and simulated direction angle ψ (°) of the mobile platform, (b) the theoretical and simulated direction angle θ (°) of the mobile platform, and (c) the theoretical and simulated direction angle Φ (°) of the mobile platform.

Verification of IKA

Based on the theory of IKA, the drive angle with the known platform pose can be obtained.

As the mapping between the direction angle of the mobile platform and the input joint angle is known from section ‘Verification of FKA’, each group of mobile platform direction angle, from Table 2, is introduced into the formulas of the IKA yielding the input angels to compare with the angles of the same group.

The results of inverse kinematic by MATLAB are shown in Table 3. For instance, the values of ψ at 0, 0.1, 1, 2, 3, 4, and 5 s are 0°, −36.01°, −42.23°, 51.45°, −63.43°, and −53.74°, respectively, and the values of θ are 0°, 0.26°, 1.00°, 2.36°, 5.82°, and 3.97°, and the values of Φ are 0°, 38.95°, 52.36°, 72.37°, 111.85°, and 94.82°, respectively. θ₁, θ₂, and θ₃ at certain moments of t = 0 s, t = 1 s, t = 2 s, t = 3 s, t = 4 s, and t = 5 s are calculated by introducing ψ, θ, and Φ into formulas (15)–(24).

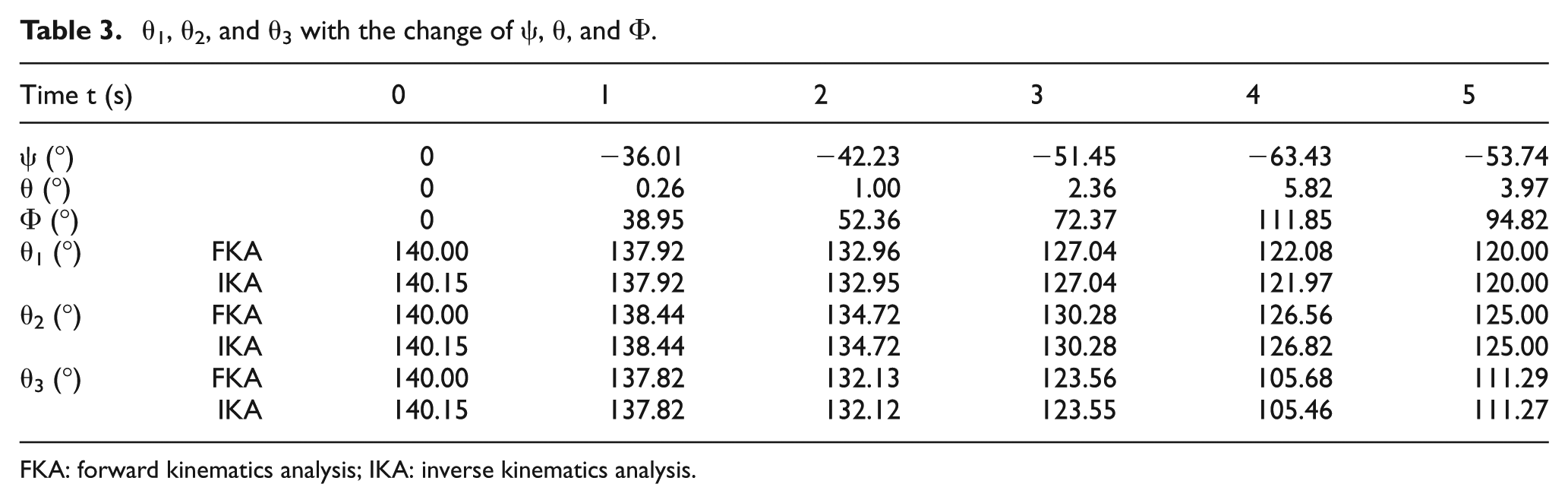

Table 3.

θ₁, θ₂, and θ₃ with the change of ψ, θ, and Φ.

Time t (s)		0	1	2	3	4	5
ψ (°)		0	−36.01	−42.23	−51.45	−63.43	−53.74
θ (°)		0	0.26	1.00	2.36	5.82	3.97
Φ (°)		0	38.95	52.36	72.37	111.85	94.82
θ₁ (°)	FKA	140.00	137.92	132.96	127.04	122.08	120.00
	IKA	140.15	137.92	132.95	127.04	121.97	120.00
θ₂ (°)	FKA	140.00	138.44	134.72	130.28	126.56	125.00
	IKA	140.15	138.44	134.72	130.28	126.82	125.00
θ₃ (°)	FKA	140.00	137.82	132.13	123.56	105.68	111.29
	IKA	140.15	137.82	132.12	123.55	105.46	111.27

FKA: forward kinematics analysis; IKA: inverse kinematics analysis.

In Table 3, the theoretical and simulated input angles are very close to each other, showing the validity of the theoretical analysis. Due to the rounding error in the calculation process, input angles in the table by methods of FKA and IKA are not exactly the same.

Conclusion

This article proposed kinematics analysis and numerical simulation of a novel underactuated robot wrist. After a novel understated robot wrist was proposed, the IKA and FKA of the underactuated robot wrist were proposed in detail. Then, the kinematics numerical simulation based on virtual prototyping was also put forward. After the underactuated wrist movements with mechanical frictions, with different driving speeds, and with different driving directions were discussed in detail, the FKA and IKA were verified, which are used to demonstrate the proposed methodology.

Footnotes

Appendix 1 Declaration of conflicting interests

The authors declare that there is no conflict of interest.

Funding

The work was supported by National Natural Science Foundation of China (no. 51305249) and Shanghai Science and Technology Commission Project (no. 12dz1125702).

References

Niku

. Introduction to robotics: analysis, control, applications. Upper Saddle River, NJ: Prentice Hall, 2001.

Wang

Chen

. Kinematics and workspace analysis of a six-degree-of-freedom optic fibre positioning stage using the Denavit-Hartenberg notation method. Proc IMechE, Part B: J Engineering Manufacture 2006; 220(5): 767–778.

Ong

Nee

AYC

. Design and development of 3-DOF modular micro parallel kinematic manipulator. Int J Adv Manuf Tech 2006; 31: 188–200.

Han

Wang

. Kinematics analysis and numerical simulation of a manipulator based on virtual prototyping. Int J Adv Manuf Tech 2014; 71: 943–963.

Boning

Dubowsky

. A kinematic approach to determining the optimal actuator sensor architecture for space robots. Int J Robot Res 2011; 30(9): 1194–1204.

Jardon

Stoelen

Bonsignorio

. Task-oriented kinematic design of a symmetric assistive climbing robot. IEEE T Robot 2011; 27(6): 1132–1137.

Karimi

Nategh

. Development of a novel adaptive nonuniform rational basis spline interpolator with limited kinematic error for hexapod machine tools. Proc IMechE, Part B: J Engineering Manufacture 2014; 228(3): 319–327.

Liu

Brown

Coghill

. Fuzzy qualitative robot kinematics. IEEE T Fuzzy Syst 2008; 16(3): 808–822.

Vosniakos

Chronopoulos

. Industrial robot path planning in a constraint-based computer-aided design and kinematic analysis environment. Proc IMechE, Part B: J Engineering Manufacture 2009; 223(5): 523–533.

10.

Bogelsack

. Terminology for the theory of machines and mechanisms. Oxford and New York: Pergamon Press, 1983.

11.

Birglen

Gosselin

Laliberté

. Underactuated robotic hands. Berlin: Springer, 2008.

12.

Liu

. A survey on underactuated mechanisms. In: Proceedings of the 2nd IEEE international conference on advanced computer control, Shenyang, China, 27–29 March 2010, pp.551–555. New York: IEEE.

13.

Hou

Deng

. Workspace analysis of a novel underactuated robot wrist based on virtual prototyping. Int J Adv Manuf Tech 2014; 72: 531–541.

14.

Chablat

Angeles

. The computation of all 4R serial spherical wrists with an isotropic architecture. J Mech Des: T ASME 2003; 125(2): 275–280.

15.

Xie

Liu

Wang

. Optimal design and development of a decoupled a/b-axis tool head with parallel kinematics. Adv Mech Eng 2010; 2010: 474602 (14 pp.).

16.

Bonev

Gosselin

. Analytical determination of the workspace of symmetrical spherical parallel mechanisms. IEEE T Robot 2006; 22(5): 1011–1017.

17.

Kwon

Hwang

. Hybrid-type spatial mask-panel alignment system for manufacturing flat panel displays. Proc IMechE, Part B: J Engineering Manufacture 2013; 227(11): 1724–1732.

18.

Carricato

Castelli

. A novel fully decoupled two-degrees-of-freedom parallel wrist. Int J Robot Res 2004; 23(6): 661–667.

19.

. Robust design and analysis of 4PUS–1RPU parallel mechanism for a 5-degree-of-freedom hybrid kinematics machine. Proc IMechE, Part B: J Engineering Manufacture 2011; 225(5): 685–698.

20.

Yao

Dai

. Workspace and orientation analysis of a parallel structure for robotic fingers. J Adv Mech Des Syst Manuf 2011; 5: 302–314.

21.

Carrozza

Rcera

Lazzarini

. The development of a novel prosthetic hand-ongoing research and preliminary result. IEEE: ASME T Mech 2002; 7: 108–114.

22.

Gosselin

Pelletier

Laliberté

An anthropomorphic underactuated robotic hand with 15 Dofs and a single actuator. In: Proceedings of the IEEE international conference on robotics and automation, Pasadena, CA, 19–23 May 2008, pp.749–754. New York: IEEE.

23.

Ulrich

. Methods and apparatus for mechanically intelligent grasping. US Patent 4,957,320, 1988.

24.

Spong

Block

. The Pendubot: a mechatronic systems for control research and education. In: Proceedings of the 34th IEEE conference of decision control, New Orleans, LA, 13–15 December 1995, pp.555–557. New York: IEEE.

25.

Gregorio

. Kinematic analysis of the (nS)-2SPU underactuated parallel wrist. J Mechanisms Robot 2012; 4: 031006.

26.

Jiang

Seneviratne

Earles

SWE

. Motion planning with reversal manoeuvres for a non-holonomic constrained robot. Proc IMechE, Part B: J Engineering Manufacture 1996; 210(5): 487–497.

27.

Liu

. A novel 3-DOF underactuated robot wrist. Patent of State Intellectual Property Office of China ZL201010610111.6, China, 2010.

28.

Zhan

. The analysis and design of a shoulder joint based on spherical manipulator. Master’s Thesis, Yanshan University, Beijing, China, 2005.

29.

Liu

. Design and analysis of 3-DOF underactuated robot wrist. Master’s Thesis, Shanghai University, Shanghai, China, 2011.

30.

Huang

Ding

. Theory of parallel mechanisms. Berlin: Springer, 2013.
