Enhanced assessment of a supplier selection problem by integration of soft sets and hesitant fuzzy linguistic term set

Abstract

Selecting the most appropriate supplier is a key issue in supply chain management and is linked to the success of the entire supply chain. Supplier selection is a multiple-criteria decision-making problem that has qualitative and quantitative factors. The traditional method by which this is calculated adopts a precise value or single linguistic terms to represent attribute data. However, real-life situations have many uncertainties and imprecise or missing data with regard to supplier selection. Moreover, experts equivocate between several values in assessing attribute data in real-world situations. These factors increase the difficulty selecting suppliers, causing decision-makers to make incorrect choices. To solve this issue, we present an integrated approach, using a soft set and hesitant fuzzy linguistic term set, for selecting the appropriate supplier in the supply chain. A practical example of liquid crystal display module supplier selection is presented to illustrate the proposed approach, the results of which are compared with those of the arithmetic average method and hesitant fuzzy linguistic term set method. The proposed approach effectively solves the problems of incomplete attribute data and expert hesitation in assessing attribute data.

Keywords

Supplier selection hesitant fuzzy linguistic term set soft set liquid crystal display

Introduction

Supply chain management has been one of the most widely discussed topics in the competitive business world. Many reports discuss supply chain as a related subject, such as network product manufacturing supply chain,¹ electronics supply chain,² multi-weapon production planning,³ semiconductor supply chain,⁴ and supply chain scheduling problems.⁵ In the global economy, selecting the most appropriate supplier can significantly enhance corporate competitiveness, constituting a key to business success. The traditional method adopts precise values or single linguistic terms to represent attribute data in supplier selection. However, unknown, missing, incomplete, or inexistent data increase the difficulty of supplier selection. Molodtsov⁶ first introduced the soft set theory as a completely generic mathematical tool for modeling uncertainties. The basic properties and operations of the soft set theory were developed by Maji et al.⁷ Research on the soft set and its applications is progressing rapidly, such as Aktas and Çagman⁸ who defined the notion of soft groups and derived their basic properties. They also compared soft sets with fuzzy sets and rough sets. Zou and Xiao⁹ proposed new data analysis approaches of soft sets for cases with incomplete information. Cagman and Enginoglu¹⁰ constructed a uni-int decision-making method that selects a set of optimum elements from the alternatives. Xiao et al.¹¹ extended classical soft sets and developed novel trapezoidal fuzzy soft sets, based on trapezoidal fuzzy numbers, that can handle linguistic assessments. Jiang et al.¹² proposed the interval-valued intuitionistic fuzzy soft set theory, combining an interval-valued intuitionistic fuzzy set theory and soft set theory. Today, the soft set has been adopted in many fields, such as forecasting export trade,¹³ decision-making,¹⁴ data clustering,¹⁵ risk assessment,¹⁶ and medical science.¹⁷

With regard to the supplier selection problem, little attention has been paid to experts’ hesitation when assessing attribute data, which occurs between several values in assessing attribute data in real-world situations. Torra¹⁸ introduced hesitant fuzzy sets, which permit the membership to have a set of possible values in a quantitative setting, and demonstrated that the envelope of a hesitant fuzzy set is an intuitionistic fuzzy set. Hesitant fuzzy sets are useful in dealing with situations in which people hesitate in providing their preferences for objects in a decision-making process. Hesitant fuzzy sets and their applications have recently been examined. For example, Rodriguez et al.¹⁹ proposed a hesitant fuzzy linguistic term set that is based on the fuzzy linguistic approach to address multicriteria linguistic decision-making problems. Wei²⁰ proposed a hesitant fuzzy prioritized weighted-average operator and hesitant fuzzy prioritized weighted geometric operator to solve hesitant fuzzy multiple-attribute decision-making problems.

In actual situations, input data are not always precise, rendering decision-making a complicated process. Objects with incomplete data are deleted directly from incomplete information systems in traditional data analysis methods, decreasing the number of samples and omitting valuable information.⁹ To overcome these problems, we propose integrating a soft set and hesitant fuzzy linguistic term set to solve supplier selection problems with incomplete information. To verify the proposed approach, a case of a liquid crystal display (LCD) module supplier selection is adopted. The proposed method is compared with the arithmetic average and hesitant fuzzy linguistic term set methods.¹⁹

The remainder of this article is organized as follows: section “Related work” reviews soft sets and hesitant fuzzy linguistic term sets. Section “Proposed integration of the soft set and hesitant fuzzy linguistic term set” presents the proposed approach, which integrates the soft set and hesitant fuzzy linguistic term set techniques for supplier selection problems; a case study of an LCD module example is adopted, and comparisons with other approaches are discussed in section “Case study: LCD module.” Concluding remarks are made in the last section.

Related work

Fuzzy soft set

Molodtsov⁶ first introduced the soft set theory as a new mathematical tool for handling uncertain, fuzzy, and imprecisely defined objects. Let U be an initial universe set and E be the set of all possible parameters. The power set of U is denoted by $P (U)$ , and A is a subset of E.

Definition 1⁶

A pair (F, A) is called a soft set, if and only if F is a mapping of A into the set of all subjects of the set U—that is, $P : A \to P (U)$ , where $P (U)$ is the power set of U.

Definition 2²¹

For two soft sets (F, A) and (G, B) over a common universe U. Then, (F, A) is called a soft subset of (G, B) if it satisfies the following:

$A \subset B$ .

$\forall x \in A$ , F(x), and G(x) are identical approximations.

This relationship is denoted by $(F, A) \tilde{\subset} (G, B)$ .

Definition 3⁷

A union of two soft sets (F, A) and (G, B) over a common universe U is defined as the soft set (H, C), where $C = A \cup B$ and $\forall x \in C$

H (x) = {\begin{matrix} F (x) & if x \in A - B \\ G (x) & if x \in B - A \\ F (x) \cup G (x) & if x \in A \cap B \end{matrix}

(1)

This is denoted by $(F, A) \tilde{\cup} (G, B) = (H, C)$ .

Definition 4⁷

An intersection of two soft sets (F, A) and (G, B) over a common universe U is defined as the soft set (H, C), where $C = A \cap B$ , $\forall x \in C$ , and $H (x) = F (x) \cap G (x)$ .

This is denoted by $(F, A) \tilde{\cap} (G, B) = (H, C)$ .

Definition 5^9,22

Let $P (U)$ represent the set of all fuzzy sets of U, $A_{i}$ and E are parameter sets, and $A_{i} \subset E$ . A pair $(F_{i}, A_{i})$ is called a fuzzy soft set over U, where $F_{i}$ is a mapping given by $F_{i} : A_{i} \to P (U)$ .

Definition 6⁹

Let $(G, B)$ be a fuzzy soft set, given $e \in A$ ; let ${\tilde{p}}_{e}$ be the average probability that an object belongs to $F (e)$ , and ${\tilde{p}}_{e}$ is defined as follows

{\tilde{p}}_{e} = \frac{\sum h_{ie}}{b}

(2)

Hesitant fuzzy linguistic term set

The hesitant fuzzy set is defined in terms of a function that returns a set of membership values for each element, based on Torra¹⁸ as follows.

Definition 7^18,23

Let X be a fixed set, a hesitant fuzzy set on X in terms of a function that, when applied to X, returns a subset of $[0, 1]$ , which can be represented as follows

E = {〈 x, h_{E} (x) 〉 | x \in X}

(3)

where $h_{E} (x)$ is a set of some values in [0, 1], denoting the possible membership degree of the element $x \in X$ to the set E.

Definition 8¹⁸

Let $M = {μ_{1}, μ_{2}, \dots, μ_{n}}$ be a set of n membership functions. The hesitant fuzzy set that is associated with M, $h_{M}$ is defined as follows

h_{M} (x) = ⋃_{μ \in M} {μ (x)}

(4)

Definition 9¹⁸

Given a hesitant fuzzy set h, its lower and upper bounds are defined as follows

\begin{matrix} lower bound h^{-} (x) = min h (x) \\ upper bound h^{+} (x) = max h (x) \end{matrix}

The hesitant fuzzy linguistic term set uses linguistic expression instead of single terms, based on the fuzzy linguistic approach and the hesitant fuzzy set.¹⁹

Definition 10¹⁹

The lower and upper bounds $(H_{S^{-}}, H_{S^{+}})$ of the hesitant fuzzy linguistic term set are defined as follows

\begin{matrix} H_{S^{+}} = max (s_{i}) = s_{j}, s_{i} \in H_{S} and s_{i} \leq s_{j} \forall i \\ H_{S^{-}} = min (s_{i}) = s_{j}, s_{i} \in H_{S} and s_{i} \geq s_{j} \forall i \end{matrix}

To rank alternatives, Rodriguez et al.¹⁹ used the nondominance degree (NDD) and degree of preference to address multicriteria linguistic decision-making problems. The related definition is as follows.

Definition 11^19,24

Let $P = [p_{ij}]$ be a preference relation on the set $X = {x_{1}, x_{2}, \dots, x_{n}}$ . For the alternative $x_{i}$ , its nondominance degree ${NDD}_{i}$ is defined as follows

{NDD}_{i} = min {1 - p_{ji}^{S}, j \neq i}

(5)

where $p_{ji}^{S} = max {p_{ji} - p_{ij}, 0}$ is represented as the degree to which $x_{i}$ is strictly dominated by $x_{j}$ .

Definition 12^19,25

Let $A = [a_{1}, a_{2}]$ and $B = [b_{1}, b_{2}]$ be two interval utilities; the degree of preference of A over B is defined as follows

P (A > B) = \frac{max (0, a_{2} - b_{1}) - max (0, a_{1} - b_{2})}{(a_{2} - a_{1}) + (b_{2} - b_{1})}

(6)

Proposed integration of the soft set and hesitant fuzzy linguistic term set

Supplier selection is a key issue in supply chain management that has qualitative and quantitative factors. However, real-life supplier selection situations usually have many uncertainties or incomplete information. Moreover, the decision-maker is typically unsure of the exact value of the evaluated attribute data, which increases the difficulty of supplier selection. To solve this issue, this report integrates a soft set and hesitant fuzzy linguistic term sets to enhance the assessment of supplier selection problems. The flowchart of the proposed method is shown in Figure 1.

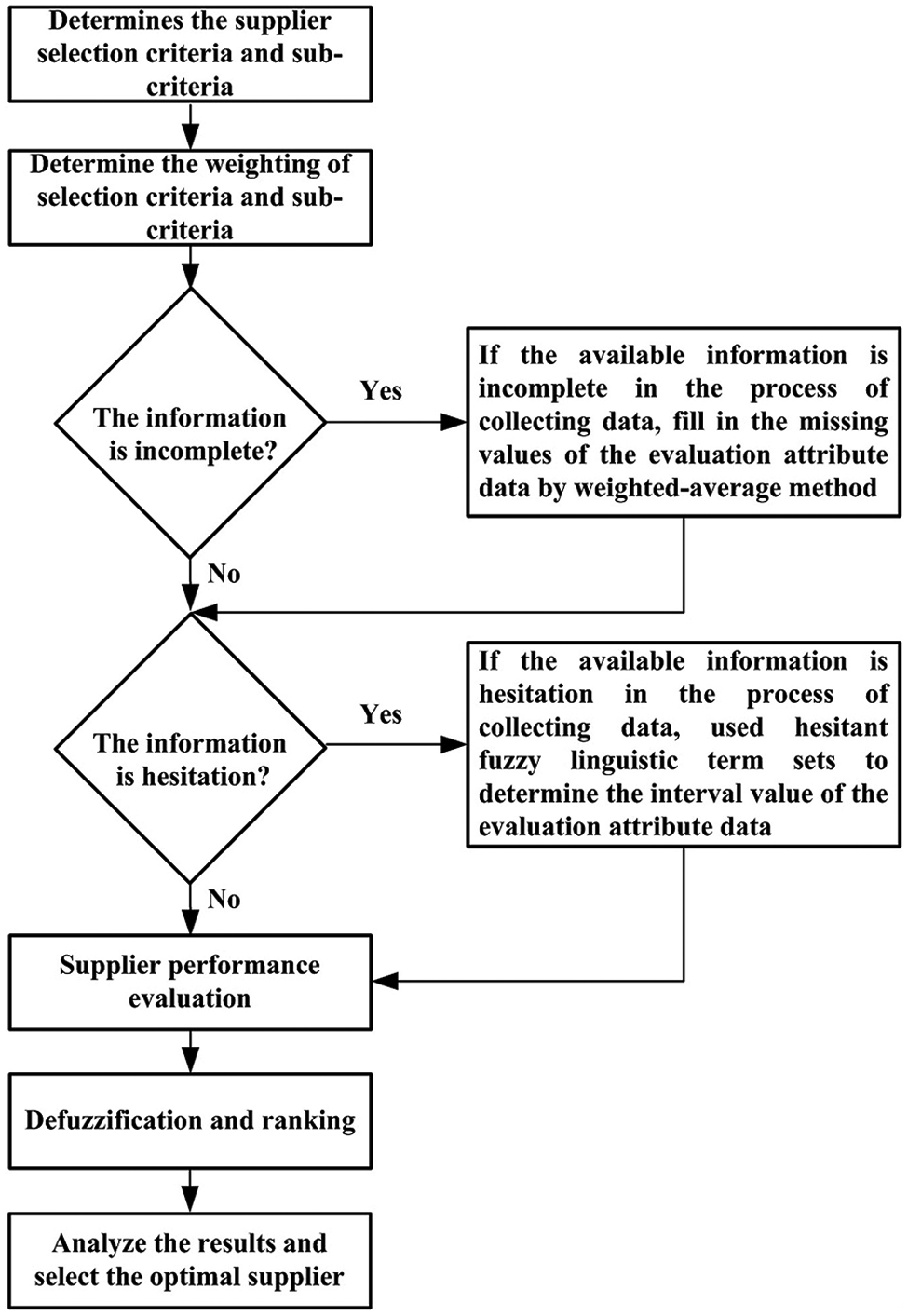

Figure 1.

Flowchart of the proposed method.

The proposed approach is organized into the following seven steps:

Step 1. Determine the supplier selection criteria and subcriteria.

Take full account of the decision-makers’ opinions to determine the supplier selection criteria and subcriteria.

Step 2. Determine the weight of the selection criteria and subcriteria.

Aggregate the decision-makers’ opinions to determine the weight of the selection criteria and subcriteria.

Step 3. Fill in the missing values of the evaluation attribute data.

If the available information is incomplete when collecting the data, fill in the missing values of the evaluation attribute data by weighted-average method; the weights are decided by these known data.

Step 4. Determine the hesitant values of the evaluation attribute data.

The decision-maker is usually unsure of the exact value of the evaluation attribute data, hesitating between several possible values. In this step, if the available information is equivocal, use hesitant fuzzy linguistic term sets to determine the interval value of the evaluation attribute data.

Step 5. Supplier performance evaluation.

This article used interval arithmetic operations to calculate the rating linguistic intervals of the supplier.

Step 6. Defuzzification and ranking.

The defuzzification method by parametric mean, calculated at $\bar{x}$ , is given by

\bar{x} = \frac{(a + b)}{2}

(7)

in which a is the left boundary and b is the right boundary. Use equation (7) to obtain crisp values, and the most appropriate supplier ranking is obtained.

Step 7. Analyze the results and select the optimal supplier.

Based on the results of Step 6, the results can be analyzed further to select the optimal supplier.

Case study: LCD module

In this section, this article uses a real example of selection of an LCD module supplier to demonstrate the proposed procedure. The case data are from a professional LCD manufacturing factory in Taiwan. After several meetings, they identified possible candidate suppliers: Suppliers 1, 2, and 3. The seven criteria were as follows: planning of product development (C1), realization of product development (C2), planning of process development (C3), realization of process development (C4), supplier/prematerial (C5), evaluation per process step production (C6), and customer service/customer satisfaction (C7). The subcriteria of the LCD module supplier selection problem are described in Table 1. In this example, we assigned the following semantics to a set of five terms (graphically, see Figure 2). The description of the supplier’s performance and score values of the subcriteria are shown in Table 2.

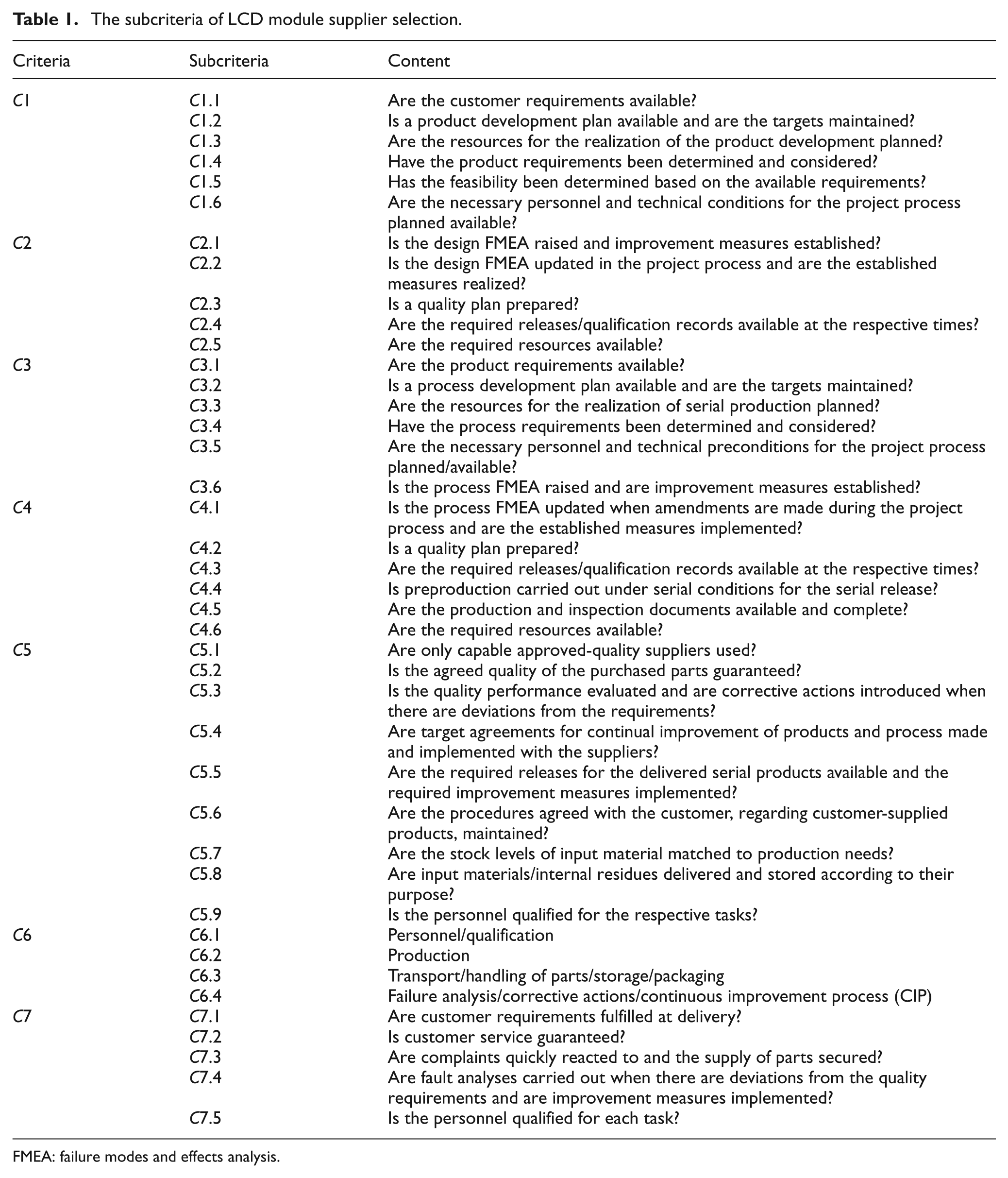

Table 1.

The subcriteria of LCD module supplier selection.

Criteria	Subcriteria	Content
C1	C1.1	Are the customer requirements available?
	C1.2	Is a product development plan available and are the targets maintained?
	C1.3	Are the resources for the realization of the product development planned?
	C1.4	Have the product requirements been determined and considered?
	C1.5	Has the feasibility been determined based on the available requirements?
	C1.6	Are the necessary personnel and technical conditions for the project process planned available?
C2	C2.1	Is the design FMEA raised and improvement measures established?
	C2.2	Is the design FMEA updated in the project process and are the established measures realized?
	C2.3	Is a quality plan prepared?
	C2.4	Are the required releases/qualification records available at the respective times?
	C2.5	Are the required resources available?
C3	C3.1	Are the product requirements available?
	C3.2	Is a process development plan available and are the targets maintained?
	C3.3	Are the resources for the realization of serial production planned?
	C3.4	Have the process requirements been determined and considered?
	C3.5	Are the necessary personnel and technical preconditions for the project process planned/available?
	C3.6	Is the process FMEA raised and are improvement measures established?
C4	C4.1	Is the process FMEA updated when amendments are made during the project process and are the established measures implemented?
	C4.2	Is a quality plan prepared?
	C4.3	Are the required releases/qualification records available at the respective times?
	C4.4	Is preproduction carried out under serial conditions for the serial release?
	C4.5	Are the production and inspection documents available and complete?
	C4.6	Are the required resources available?
C5	C5.1	Are only capable approved-quality suppliers used?
	C5.2	Is the agreed quality of the purchased parts guaranteed?
	C5.3	Is the quality performance evaluated and are corrective actions introduced when there are deviations from the requirements?
	C5.4	Are target agreements for continual improvement of products and process made and implemented with the suppliers?
	C5.5	Are the required releases for the delivered serial products available and the required improvement measures implemented?
	C5.6	Are the procedures agreed with the customer, regarding customer-supplied products, maintained?
	C5.7	Are the stock levels of input material matched to production needs?
	C5.8	Are input materials/internal residues delivered and stored according to their purpose?
	C5.9	Is the personnel qualified for the respective tasks?
C6	C6.1	Personnel/qualification
	C6.2	Production
	C6.3	Transport/handling of parts/storage/packaging
	C6.4	Failure analysis/corrective actions/continuous improvement process (CIP)
C7	C7.1	Are customer requirements fulfilled at delivery?
	C7.2	Is customer service guaranteed?
	C7.3	Are complaints quickly reacted to and the supply of parts secured?
	C7.4	Are fault analyses carried out when there are deviations from the quality requirements and are improvement measures implemented?
	C7.5	Is the personnel qualified for each task?

FMEA: failure modes and effects analysis.

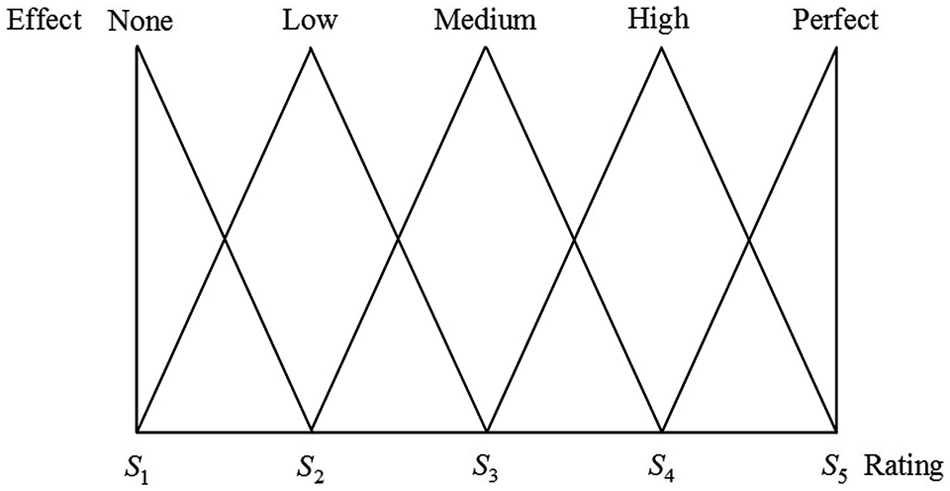

Figure 2.

A set of five linguistic terms with their semantics.

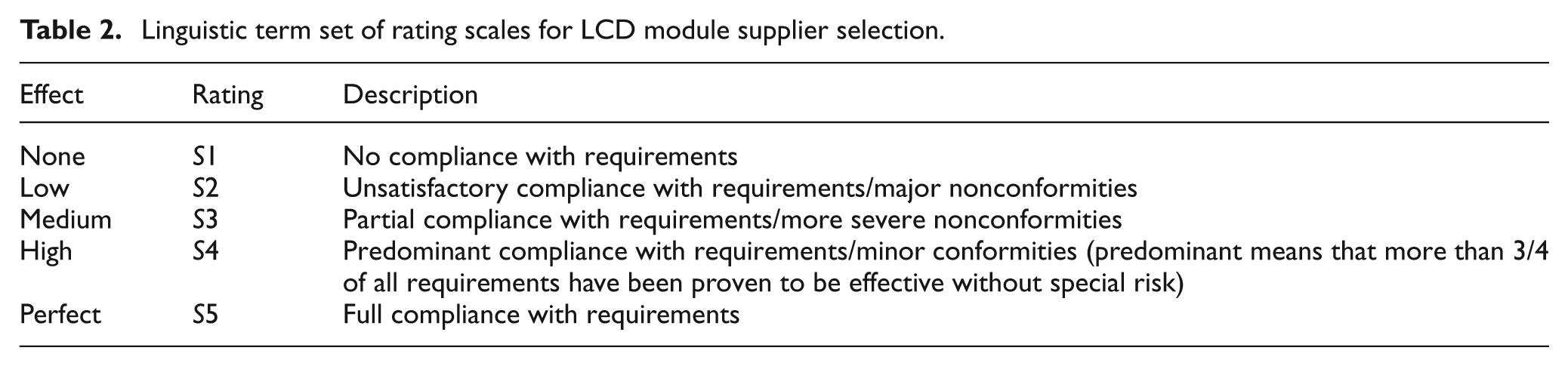

Table 2.

Linguistic term set of rating scales for LCD module supplier selection.

Effect	Rating	Description
None	S1	No compliance with requirements
Low	S2	Unsatisfactory compliance with requirements/major nonconformities
Medium	S3	Partial compliance with requirements/more severe nonconformities
High	S4	Predominant compliance with requirements/minor conformities (predominant means that more than 3/4 of all requirements have been proven to be effective without special risk)
Perfect	S5	Full compliance with requirements

This supplier selection team had three experts who provided the possible ranges in scores for the subcriteria based on the past experience. The attribute rating values for three suppliers are organized in Table 3.

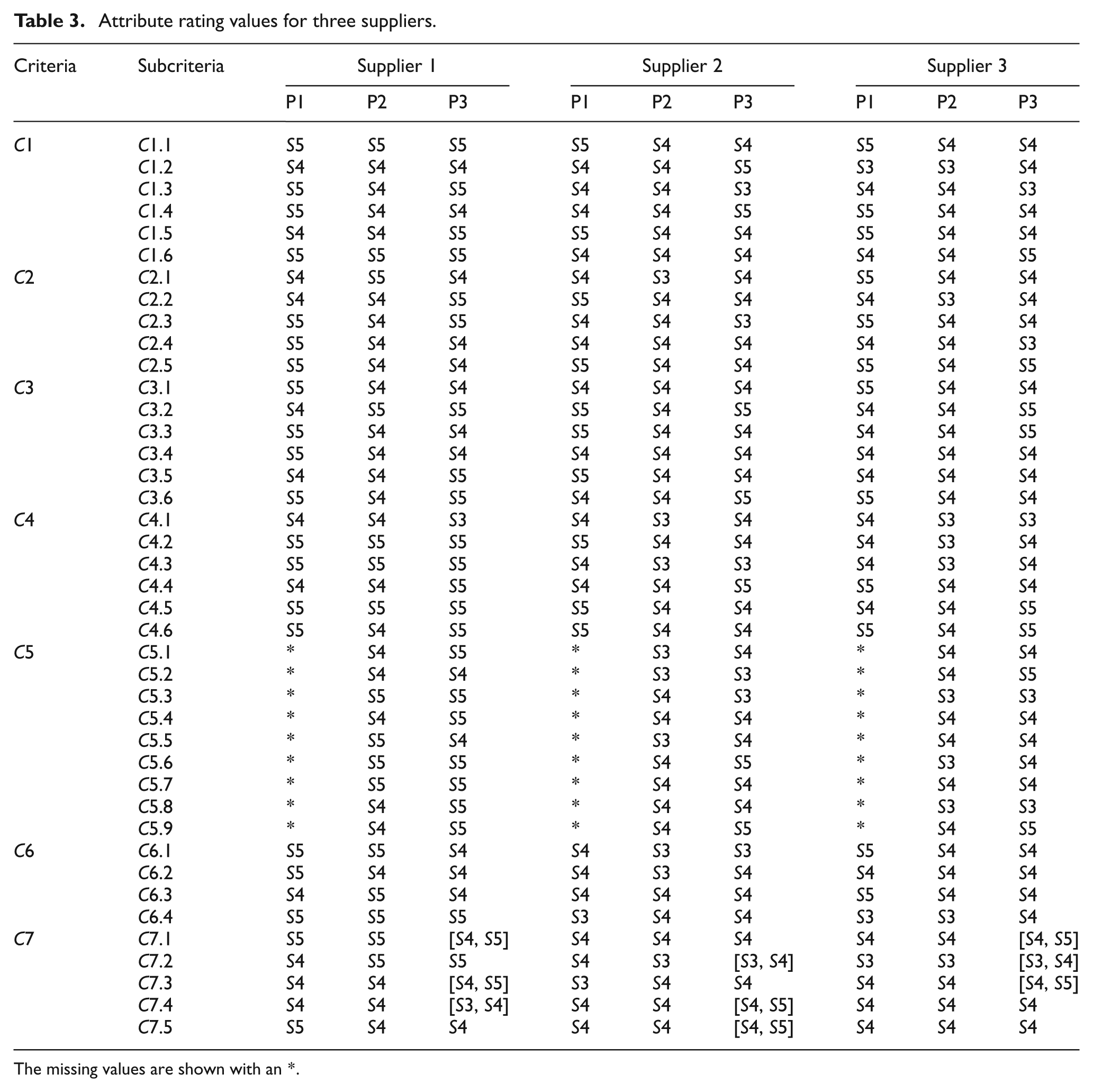

Table 3.

Attribute rating values for three suppliers.

Criteria	Subcriteria	Supplier 1			Supplier 2			Supplier 3
Criteria	Subcriteria	P1	P2	P3	P1	P2	P3	P1	P2	P3
C1	C1.1	S5	S5	S5	S5	S4	S4	S5	S4	S4
	C1.2	S4	S4	S4	S4	S4	S5	S3	S3	S4
	C1.3	S5	S4	S5	S4	S4	S3	S4	S4	S3
	C1.4	S5	S4	S4	S4	S4	S5	S5	S4	S4
	C1.5	S4	S4	S5	S5	S4	S4	S5	S4	S4
	C1.6	S5	S5	S5	S4	S4	S4	S4	S4	S5
C2	C2.1	S4	S5	S4	S4	S3	S4	S5	S4	S4
	C2.2	S4	S4	S5	S5	S4	S4	S4	S3	S4
	C2.3	S5	S4	S5	S4	S4	S3	S5	S4	S4
	C2.4	S5	S4	S4	S4	S4	S4	S4	S4	S3
	C2.5	S5	S4	S4	S5	S4	S4	S5	S4	S5
C3	C3.1	S5	S4	S4	S4	S4	S4	S5	S4	S4
	C3.2	S4	S5	S5	S5	S4	S5	S4	S4	S5
	C3.3	S5	S4	S4	S5	S4	S4	S4	S4	S5
	C3.4	S5	S4	S4	S4	S4	S4	S4	S4	S4
	C3.5	S4	S4	S5	S5	S4	S4	S4	S4	S4
	C3.6	S5	S4	S5	S4	S4	S5	S5	S4	S4
C4	C4.1	S4	S4	S3	S4	S3	S4	S4	S3	S3
	C4.2	S5	S5	S5	S5	S4	S4	S4	S3	S4
	C4.3	S5	S5	S5	S4	S3	S3	S4	S3	S4
	C4.4	S4	S4	S5	S4	S4	S5	S5	S4	S4
	C4.5	S5	S5	S5	S5	S4	S4	S4	S4	S5
	C4.6	S5	S4	S5	S5	S4	S4	S5	S4	S5
C5	C5.1	*	S4	S5	*	S3	S4	*	S4	S4
	C5.2	*	S4	S4	*	S3	S3	*	S4	S5
	C5.3	*	S5	S5	*	S4	S3	*	S3	S3
	C5.4	*	S4	S5	*	S4	S4	*	S4	S4
	C5.5	*	S5	S4	*	S3	S4	*	S4	S4
	C5.6	*	S5	S5	*	S4	S5	*	S3	S4
	C5.7	*	S5	S5	*	S4	S4	*	S4	S4
	C5.8	*	S4	S5	*	S4	S4	*	S3	S3
	C5.9	*	S4	S5	*	S4	S5	*	S4	S5
C6	C6.1	S5	S5	S4	S4	S3	S3	S5	S4	S4
	C6.2	S5	S4	S4	S4	S3	S4	S4	S4	S4
	C6.3	S4	S5	S4	S4	S4	S4	S5	S4	S4
	C6.4	S5	S5	S5	S3	S4	S4	S3	S3	S4
C7	C7.1	S5	S5	[S4, S5]	S4	S4	S4	S4	S4	[S4, S5]
	C7.2	S4	S5	S5	S4	S3	[S3, S4]	S3	S3	[S3, S4]
	C7.3	S4	S4	[S4, S5]	S3	S4	S4	S4	S4	[S4, S5]
	C7.4	S4	S4	[S3, S4]	S4	S4	[S4, S5]	S4	S4	S4
	C7.5	S5	S4	S4	S4	S4	[S4, S5]	S4	S4	S4

The missing values are shown with an *.

Solution based on arithmetic average method

The attribute rating values for suppliers must be certain and precise in the arithmetic average method. In this case, some data from expert P1 are incomplete, and some data from expert P3 are imprecise. Thus, only the complete information of expert P2 was considered. The results of the LCD module supplier by arithmetic average method are shown in Table 4, which indicates the supplier ranking: Supplier 1 > Supplier 2 > Supplier 3.

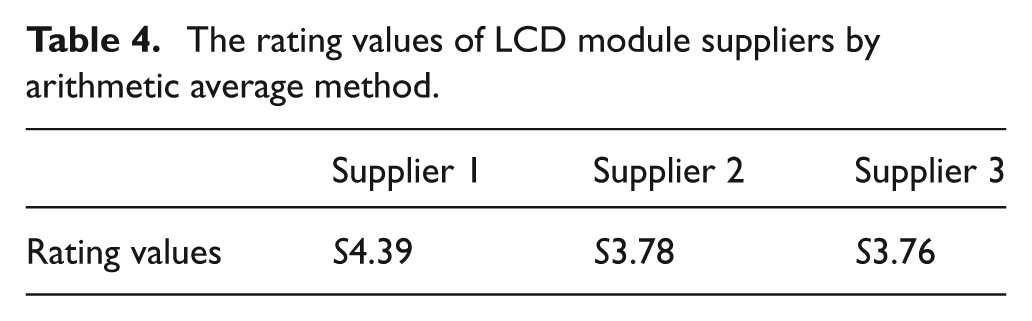

Table 4.

The rating values of LCD module suppliers by arithmetic average method.

	Supplier 1	Supplier 2	Supplier 3
Rating values	S4.39	S3.78	S3.76

Solution based on hesitant fuzzy linguistic term set¹⁹

The hesitant fuzzy linguistic term set method can deal with situations in which people hesitate in providing their preferences over objects in a decision-making process. In this case, data from expert P1 were missing or inexistent. Thus, only information from experts P2 (complete information) and P3 (hesitant information) were considered. The decision-making model of the hesitant fuzzy linguistic term set consists primarily of the following three phases: transformation, aggregation, and exploitation.¹⁹

Transformation phase

According to Table 2, the linguistic expressions that have been provided by experts are transformed into a hesitant fuzzy linguistic term set. Based on Table 3, the interval arithmetic operations are used to obtain the criteria rating values for three suppliers, as shown in Table 5.

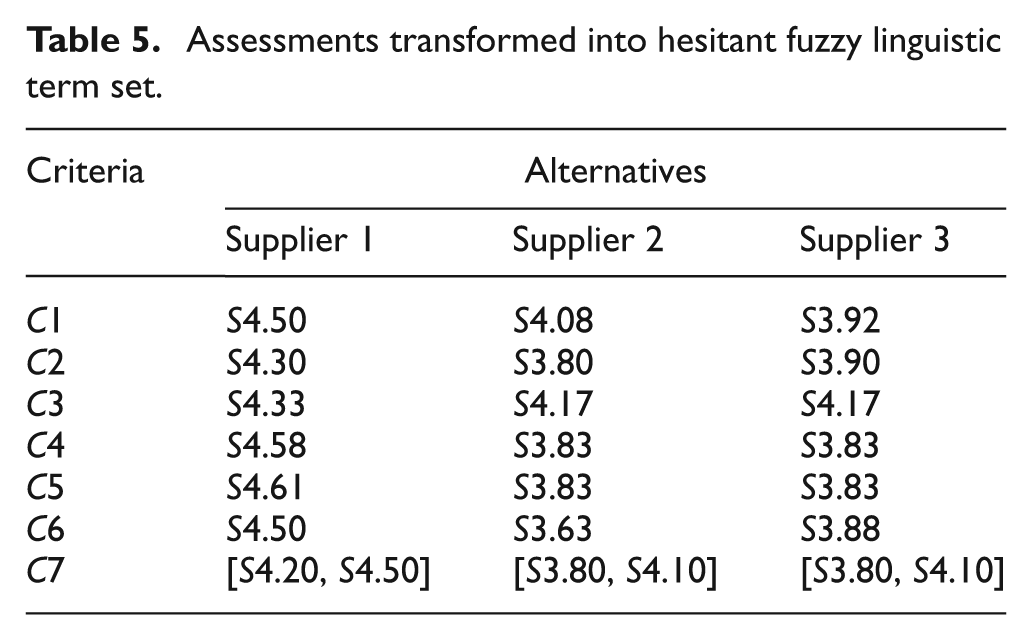

Table 5.

Assessments transformed into hesitant fuzzy linguistic term set.

Criteria	Alternatives
Criteria	Supplier 1	Supplier 2	Supplier 3
C1	S4.50	S4.08	S3.92
C2	S4.30	S3.80	S3.90
C3	S4.33	S4.17	S4.17
C4	S4.58	S3.83	S3.83
C5	S4.61	S3.83	S3.83
C6	S4.50	S3.63	S3.88
C7	[S4.20, S4.50]	[S3.80, S4.10]	[S3.80, S4.10]

Aggregation phase

The aggregation phase uses the “min_upper” and “max_lower” aggregation operators to obtain a linguistic interval. Let $X = {x_{1}, x_{2}, \dots, x_{n}}$ be a set of alternatives and $C = {c_{1}, c_{2}, \dots, c_{m}}$ be a set of criteria. min_upper and max_lower comprise the following two steps.¹⁹

Apply the upper bound $H_{S^{+}}$ and lower bound $H_{S^{-}}$ for each hesitant fuzzy linguistic term set that is associated with each alternative

\begin{matrix} H_{S^{+}} (x_{i}) = & {H_{S^{+}}^{1} (x_{i}), H_{S^{+}}^{2} (x_{i}), \dots, H_{S^{+}}^{m} (x_{i})}, \\ i \in {1, 2, \dots, n} \\ H_{S^{-}} (x_{i}) = & {H_{S^{-}}^{1} (x_{i}), H_{S^{-}}^{2} (x_{i}), \dots, H_{S^{-}}^{m} (x_{i})}, \\ i \in {1, 2, \dots, n} \end{matrix}

Obtain the minimum and maximum linguistic terms for each alternative

\begin{matrix} H_{S_{min}^{+}} (x_{i}) = & min {\frac{H_{S^{+}}^{j} (x_{i})}{j \in {1, 2, \dots, m}}}, \\ i \in {1, 2, \dots, n} \\ H_{S_{min}^{-}} (x_{i}) = & min {\frac{H_{S^{-}}^{j} (x_{i})}{j \in {1, 2, \dots, m}}}, \\ i \in {1, 2, \dots, n} \end{matrix}

In the aggregation phase, a linguistic interval for the alternatives must be built. The left limit and right limit are the minimum and the maximum of the hesitant fuzzy linguistic term set. The rating linguistic intervals for the three suppliers are shown in Table 6

\begin{matrix} H_{max}^{'} (x_{i}) = max {H_{S_{min}^{+}} (x_{i}), H_{S_{min}^{-}} (x_{i})} \\ H_{min}^{'} (x_{i}) = min {H_{S_{min}^{+}} (x_{i}), H_{S_{min}^{-}} (x_{i})} \\ H^{'} (x_{i}) = [H'_{min} (x_{i}), H'_{max} (x_{i})] \end{matrix}

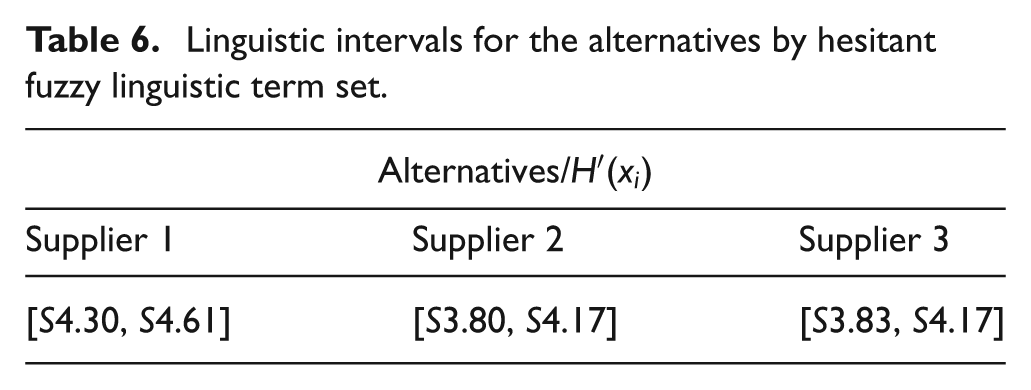

Table 6.

Linguistic intervals for the alternatives by hesitant fuzzy linguistic term set.

Alternatives/ $H' (x_{i})$
Supplier 1	Supplier 2	Supplier 3
[S4.30, S4.61]	[S3.80, S4.17]	[S3.83, S4.17]

Exploitation phase

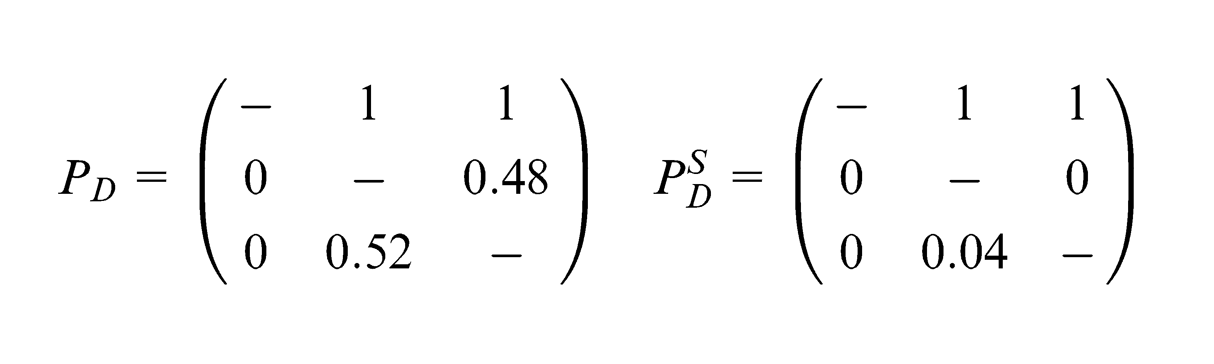

The exploitation phase is applied to the nondominance choice degree to rank the supplier. According to Definition 12, equation (6) is used to obtain the preference matrix $P_{D}$ . Moreover, the calculation of the matrix of $P_{D}^{S}$ is based on Definition 11

\begin{matrix} P_{D} = (\begin{matrix} - & 1 & 1 \\ 0 & - & 0.48 \\ 0 & 0.52 & - \end{matrix}) P_{D}^{S} = (\begin{matrix} - & 1 & 1 \\ 0 & - & 0 \\ 0 & 0.04 & - \end{matrix}) \end{matrix}

Once the matrix of $P_{D}^{S}$ is obtained, use equation (5) to calculate the value of the nondominance degree ${NDD}_{i}$

\begin{matrix} {NDD}_{1} = min {(1 - 0), (1 - 0)} = 1 \\ {NDD}_{2} = min {(1 - 1), (1 - 0.04)} = 0 \\ {NDD}_{3} = min {(1 - 1), (1 - 0)} = 0 \end{matrix}

The results show that the best supplier ranking is Supplier 1 > Supplier 2 = Supplier 3.

Solution based on the proposed integrates of soft sets and hesitant fuzzy linguistic term set method

The proposed method uses a soft set concept to solve the problem of incomplete information in supplier selection. In the example of the selection of an LCD module supplier, aggregate the decision-makers’ opinions to determine the supplier selection criteria and subcriteria, as shown in Table 1 (Step 1). The following procedure describes the remaining steps:

Step 2. Determine the weight of the selection criteria and subcriteria.

The decision-makers are assumed to be equally weighted with respect to the subcriteria in this LCD module supplier selection example.

Step 3. Fill in the missing values of the evaluation attribute data.

In this step, calculate all possible choice values for each attribute data, respectively, and then fill in the missing values of the evaluation attribute data by weighted-average method. The aggregated values of each attribute data are shown in Table 7.

Step 4. Determine the hesitant values of the evaluation attribute data.

If the available information is imprecise when collecting data, use hesitant fuzzy linguistic term sets to determine the interval value of the evaluation attribute data. The interval values of the evaluation attribute data are shown in Table 3.

Step 5. Supplier performance evaluation.

Based on Table 7, use the interval arithmetic operations to obtain the criteria rating values for the three suppliers, as shown in Table 8.

Step 6. Defuzzification and ranking.

In this step, we used the arithmetic average method to calculate the rating linguistic intervals for the three suppliers, as shown in Table 9. Use equation (7) to obtain the results of defuzzification.

Step 7. Analyze the results and select the optimal supplier.

The results show that the suppliers are ranked as follows, from best to worst: Supplier 1 > Supplier 3 > Supplier 2.

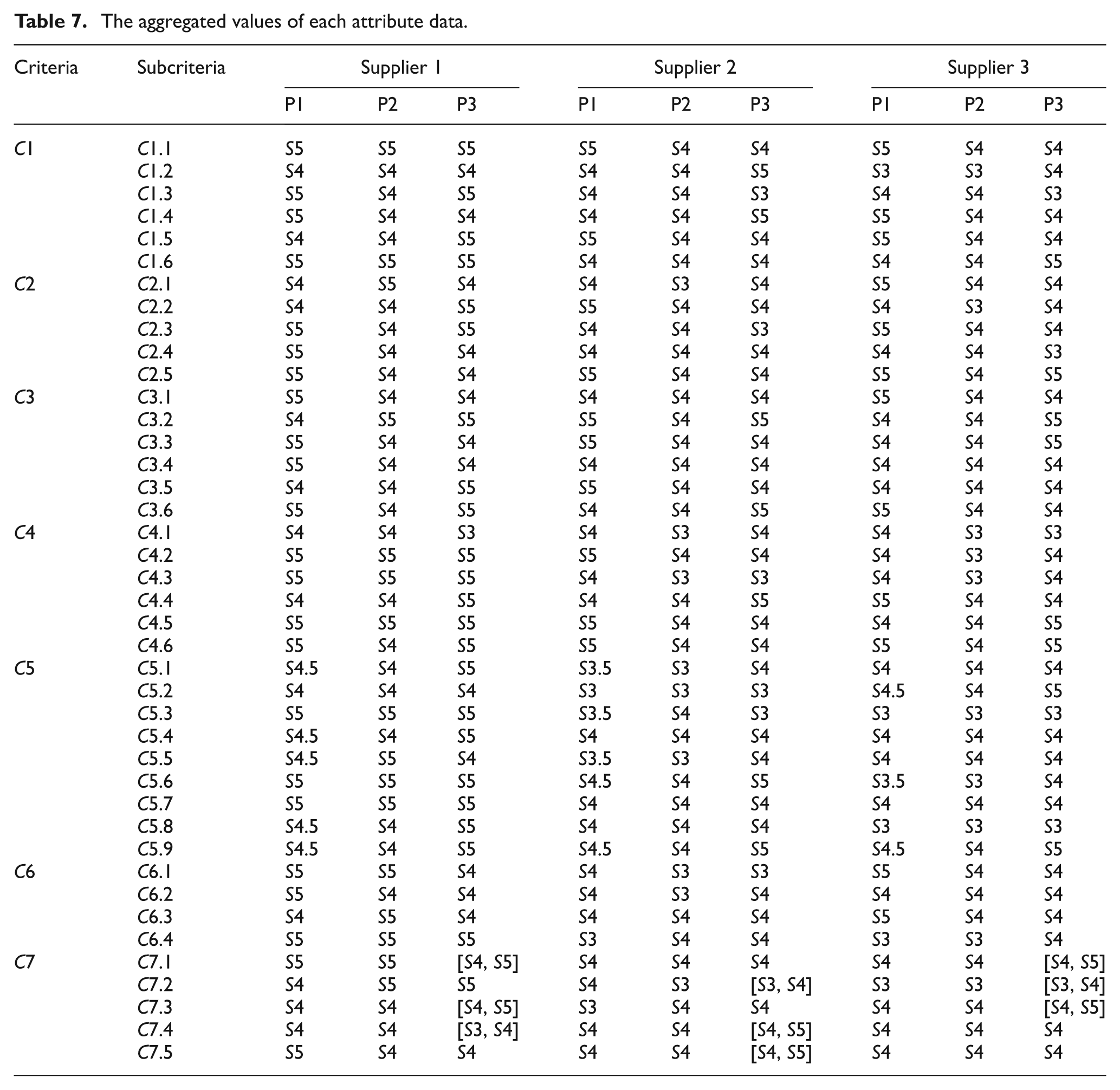

Table 7.

The aggregated values of each attribute data.

Criteria	Subcriteria	Supplier 1			Supplier 2			Supplier 3
Criteria	Subcriteria	P1	P2	P3	P1	P2	P3	P1	P2	P3
C1	C1.1	S5	S5	S5	S5	S4	S4	S5	S4	S4
	C1.2	S4	S4	S4	S4	S4	S5	S3	S3	S4
	C1.3	S5	S4	S5	S4	S4	S3	S4	S4	S3
	C1.4	S5	S4	S4	S4	S4	S5	S5	S4	S4
	C1.5	S4	S4	S5	S5	S4	S4	S5	S4	S4
	C1.6	S5	S5	S5	S4	S4	S4	S4	S4	S5
C2	C2.1	S4	S5	S4	S4	S3	S4	S5	S4	S4
	C2.2	S4	S4	S5	S5	S4	S4	S4	S3	S4
	C2.3	S5	S4	S5	S4	S4	S3	S5	S4	S4
	C2.4	S5	S4	S4	S4	S4	S4	S4	S4	S3
	C2.5	S5	S4	S4	S5	S4	S4	S5	S4	S5
C3	C3.1	S5	S4	S4	S4	S4	S4	S5	S4	S4
	C3.2	S4	S5	S5	S5	S4	S5	S4	S4	S5
	C3.3	S5	S4	S4	S5	S4	S4	S4	S4	S5
	C3.4	S5	S4	S4	S4	S4	S4	S4	S4	S4
	C3.5	S4	S4	S5	S5	S4	S4	S4	S4	S4
	C3.6	S5	S4	S5	S4	S4	S5	S5	S4	S4
C4	C4.1	S4	S4	S3	S4	S3	S4	S4	S3	S3
	C4.2	S5	S5	S5	S5	S4	S4	S4	S3	S4
	C4.3	S5	S5	S5	S4	S3	S3	S4	S3	S4
	C4.4	S4	S4	S5	S4	S4	S5	S5	S4	S4
	C4.5	S5	S5	S5	S5	S4	S4	S4	S4	S5
	C4.6	S5	S4	S5	S5	S4	S4	S5	S4	S5
C5	C5.1	S4.5	S4	S5	S3.5	S3	S4	S4	S4	S4
	C5.2	S4	S4	S4	S3	S3	S3	S4.5	S4	S5
	C5.3	S5	S5	S5	S3.5	S4	S3	S3	S3	S3
	C5.4	S4.5	S4	S5	S4	S4	S4	S4	S4	S4
	C5.5	S4.5	S5	S4	S3.5	S3	S4	S4	S4	S4
	C5.6	S5	S5	S5	S4.5	S4	S5	S3.5	S3	S4
	C5.7	S5	S5	S5	S4	S4	S4	S4	S4	S4
	C5.8	S4.5	S4	S5	S4	S4	S4	S3	S3	S3
	C5.9	S4.5	S4	S5	S4.5	S4	S5	S4.5	S4	S5
C6	C6.1	S5	S5	S4	S4	S3	S3	S5	S4	S4
	C6.2	S5	S4	S4	S4	S3	S4	S4	S4	S4
	C6.3	S4	S5	S4	S4	S4	S4	S5	S4	S4
	C6.4	S5	S5	S5	S3	S4	S4	S3	S3	S4
C7	C7.1	S5	S5	[S4, S5]	S4	S4	S4	S4	S4	[S4, S5]
	C7.2	S4	S5	S5	S4	S3	[S3, S4]	S3	S3	[S3, S4]
	C7.3	S4	S4	[S4, S5]	S3	S4	S4	S4	S4	[S4, S5]
	C7.4	S4	S4	[S3, S4]	S4	S4	[S4, S5]	S4	S4	S4
	C7.5	S5	S4	S4	S4	S4	[S4, S5]	S4	S4	S4

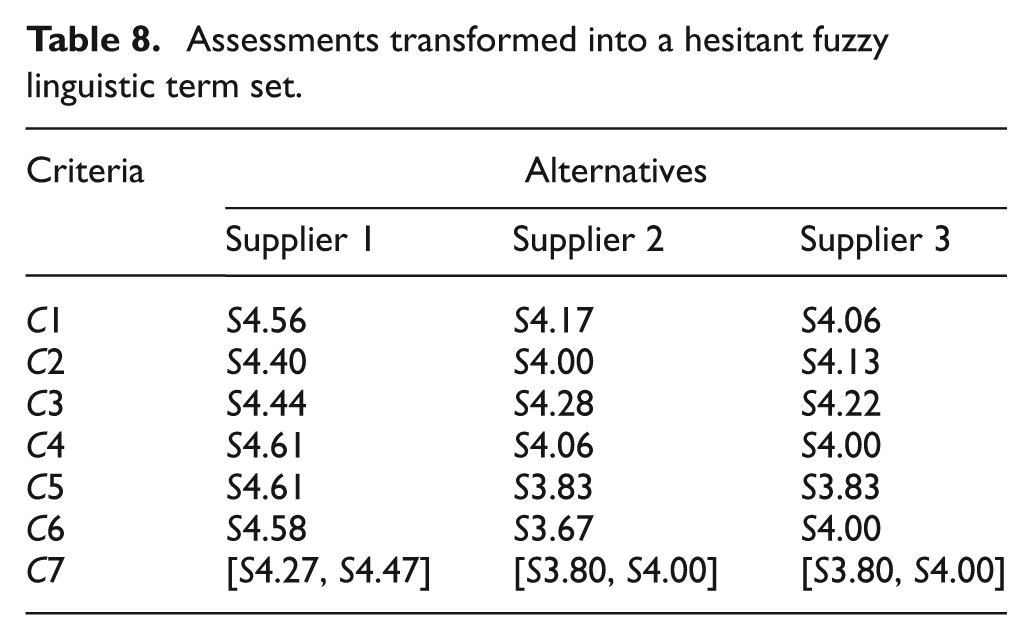

Table 8.

Assessments transformed into a hesitant fuzzy linguistic term set.

Criteria	Alternatives
Criteria	Supplier 1	Supplier 2	Supplier 3
C1	S4.56	S4.17	S4.06
C2	S4.40	S4.00	S4.13
C3	S4.44	S4.28	S4.22
C4	S4.61	S4.06	S4.00
C5	S4.61	S3.83	S3.83
C6	S4.58	S3.67	S4.00
C7	[S4.27, S4.47]	[S3.80, S4.00]	[S3.80, S4.00]

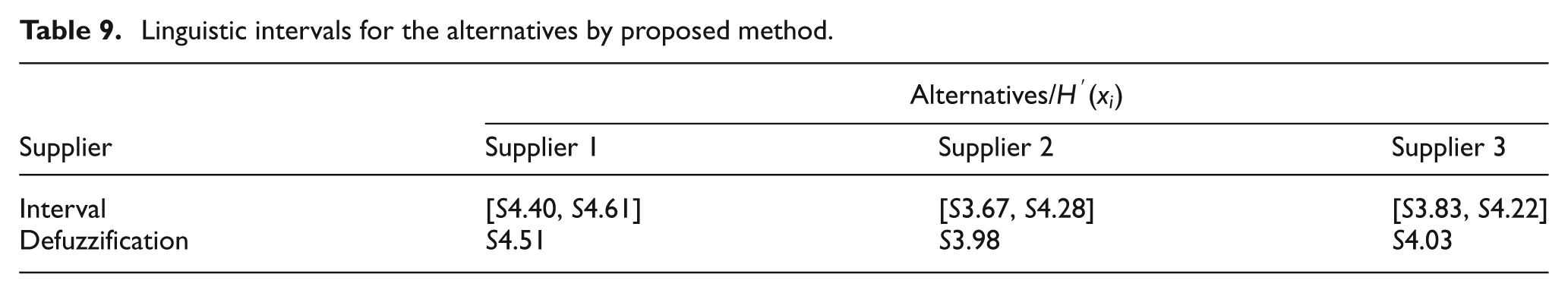

Table 9.

Linguistic intervals for the alternatives by proposed method.

	Alternatives/ $H^{'} (x_{i})$
Supplier	Supplier 1	Supplier 2	Supplier 3
Interval	[S4.40, S4.61]	[S3.67, S4.28]	[S3.83, S4.22]
Defuzzification	S4.51	S3.98	S4.03

Comparisons and discussion

To further illustrate the efficacy of the method, an LCD module case study was examined in section “Case study: LCD module,” comparing the proposed approach (integrated soft set and hesitant fuzzy linguistic term sets method) with the arithmetic average and hesitant fuzzy linguistic term set¹⁹ methods. The input data are shown in Tables 1 –3.

In the arithmetic average method, the attribute rating values for suppliers must be certain and precise. However, attribute data are usually incomplete in real-life situations, and experts are unsure of the exact values of the evaluation attribute data, deciding between values in supplier selection. For example, experts give a possible range of scores for subcriteria between S4 and S5. Thus, the arithmetic average method is unable to deal with incomplete or equivocal information in supplier selection. The hesitant fuzzy linguistic term set was proposed by Rodriguez et al.¹⁹ to address multicriteria linguistic decision-making problems, in which experts hesitate between several values to assess attribute data. However, there are missing, incomplete, or inexistent data in supplier selection that this method does not take into account.

The main differences in information that are considered between the three methods are shown in Table 10. “O” indicates that the related information is applicable, whereas “X” indicates that the related information is not applicable. The rankings of the arithmetic average, hesitant fuzzy linguistic term set, and the proposed methods are shown in Table 11.

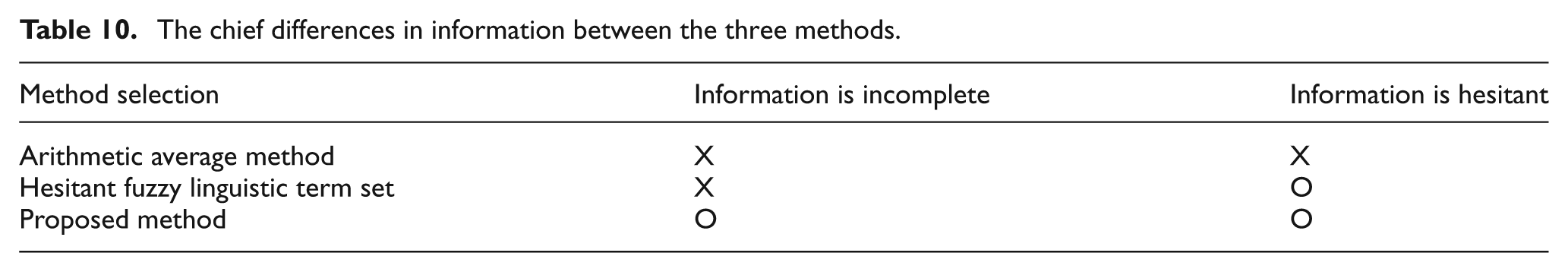

Table 10.

The chief differences in information between the three methods.

Method selection	Information is incomplete	Information is hesitant
Arithmetic average method	X	X
Hesitant fuzzy linguistic term set	X	O
Proposed method	O	O

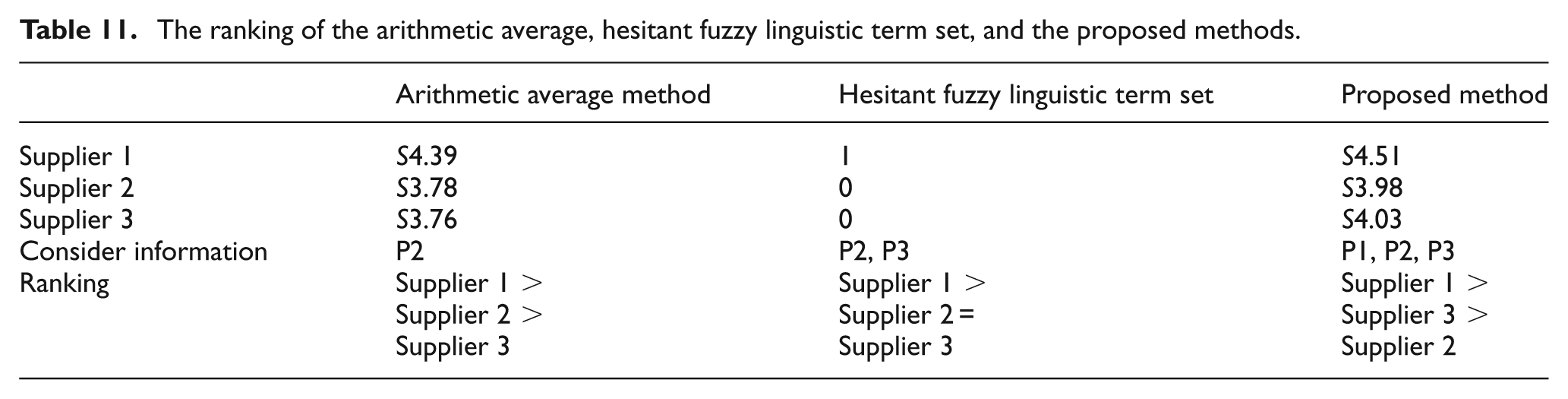

Table 11.

The ranking of the arithmetic average, hesitant fuzzy linguistic term set, and the proposed methods.

	Arithmetic average method	Hesitant fuzzy linguistic term set	Proposed method
Supplier 1	S4.39	1	S4.51
Supplier 2	S3.78	0	S3.98
Supplier 3	S3.76	0	S4.03
Consider information	P2	P2, P3	P1, P2, P3
Ranking	Supplier 1 > Supplier 2 > Supplier 3	Supplier 1 > Supplier 2 = Supplier 3	Supplier 1 > Supplier 3 > Supplier 2

From Tables 10 and 11, it is clear that the proposed approach has the following advantages. It can deal with incomplete information in supplier selection. Also, the proposed approach can deal with the experts’ hesitation in supplier selection. The rating scales for LCD module supplier selection are described by the linguistic term set, and the evaluation results are more reasonable in real-world situations. Finally, the proposed approach does not lose any valuable information.

Conclusion

Supplier selection is a key issue in supply chain management. However, real-life situations are usually accompanied by unknown or partly known data or hesitation by experts between several values in assessing attribute data in supplier selection. These factors will cause supplier selection problems to become more complicated and difficult. When the attribute rating values are uncertain, imprecise, or incomplete in supplier selection, the arithmetic average and hesitant fuzzy linguistic term set¹⁹ methods will delete incomplete data directly from incomplete information systems, causing the initial universe to change and partially useful information to go missing. This article proposes a novel integrated soft set and hesitant fuzzy linguistic term sets model using the soft set concept in a supplier selection problem. In contrast to other approaches, the proposed approach allows incomplete attribute data and hesitation by experts to identify the most appropriate supplier. Moreover, an LCD module supplier selection was used to compare the results of the arithmetic average method, hesitant fuzzy linguistic term set,¹⁹ and our proposed method.

The main advantages of this method are summarized as follows:

The proposed method can be executed for any number of suppliers and indicators for small, medium, and large companies.

The proposed method can solve problems when there are uncertainties and imprecise or missing data in supplier selection.

The proposed method takes into account the information that is provided by all experts and does not lose any valuable information.

The proposed method can deal with situations in which experts hesitate between several values in assessing attribute data in a decision-making process.

Footnotes

Declaration of conflicting interests

The author declares that there is no conflict of interest.

Funding

This work was supported, in part, by the National Science Council of the Republic of China under Contract Nos NSC 101-2410-H-145-001 and NSC 102-2410-H-145-001.

References

Lee

Chiu

Yeh

. Application of a fuzzy multilevel multiobjective production planning model in a network product manufacturing supply chain. Proc IMechE, Part B: J Engineering Manufacture 2012; 226(A12): 2064–2074.

Bindel

Rosamond

Conway

. Product life cycle information management in the electronics supply chain. Proc IMechE, Part B: J Engineering Manufacture 2012; 226(B8): 1388–1400.

Zhou

Jiang

Yang

. A hybrid approach for multi-weapon production planning with large-dimensional multi-objective in defense manufacturing. Proc IMechE, Part B: J Engineering Manufacture 2014; 228(2): 302–316.

Chang

Huang

. Integrate market demand forecast and demand-pull replenishment to improve the inventory management effectiveness of wafer fabrication. Proc IMechE, Part B: J Engineering Manufacture 2014; 228(4): 617–636.

Chang

. Applied column generation-based approach to solve supply chain scheduling problems. Int J Prod Res 2013; 51(13): 4070–4086.

Molodtsov

. Soft set theory—first results. Comput Math Appl 1999; 37(4–5): 19–31.

Maji

Biswas

Roy

. Soft set theory. Comput Math Appl 2003; 45(4–5): 555–562.

Aktas

Çagman

. Soft sets and soft groups. Inform Sciences 2007; 177(13): 2726–2735.

Zou

Xiao

. Data analysis approaches of soft sets under incomplete information. Knowl-Based Syst 2008; 21(8): 941–945.

10.

Cagman

Enginoglu

. Soft set theory and uni-int decision making. Eur J Oper Res 2010; 207(2): 848–855.

11.

Xiao

Xia

Gong

. The trapezoidal fuzzy soft set and its application in MCDM. Appl Math Model 2012; 36(12): 5844–5855.

12.

Jiang

Tang

Chen

. Interval-valued intuitionistic fuzzy soft sets and their properties. Comput Math Appl 2010; 60(3): 906–918.

13.

Xiao

Gong

Zou

. A combined forecasting approach based on fuzzy soft sets. J Comput Appl Math 2009; 228(1): 326–333.

14.

Guan

Feng

. A new order relation on fuzzy soft sets and its application. Soft Comput 2013; 17(1): 63–70.

15.

Qin

Zain

. A novel soft set approach in selecting clustering attribute. Knowl-Based Syst 2012; 36: 139–145.

16.

Chang

. A more general risk assessment methodology using soft sets based ranking technique. Soft Comput 2014; 18(1): 169–183.

17.

Basu

Mahapatra

Mondal

. A balanced solution of a fuzzy soft set based decision making problem in medical science. Appl Soft Comput 2012; 12(10): 3260–3275.

18.

Torra

. Hesitant fuzzy sets. Int J Intell Syst 2010; 25(6): 529–539.

19.

Rodriguez

Martinez

Herrera

. Hesitant fuzzy linguistic term sets for decision making. IEEE T Fuzzy Syst 2012; 20(1): 109–119.

20.

Wei

. Hesitant fuzzy prioritized operators and their application to multiple attribute decision making. Knowl-Based Syst 2012; 31: 176–182.

21.

Maji

Roy

Biswas

. An application of soft sets in a decision making problem. Comput Math Appl 2002; 44(8–9): 1077–1083.

22.

Roy

Maji

. A fuzzy soft set theoretic approach to decision making problems. J Comput Appl Math 2007; 203(2): 412–418.

23.

Xia

. Hesitant fuzzy information aggregation in decision making. Int J Approx Reason 2011; 52(3): 395–407.

24.

Orlovski

. Decision-making with a fuzzy preference relation. Fuzzy Set Syst 1978; 1(3): 155–167.

25.

Wang

Yang

. A preference aggregation method through the estimation of utility intervals. Comput Oper Res 2005; 32(8): 2027–2049.

Enhanced assessment of a supplier selection problem by integration of soft sets and hesitant fuzzy linguistic term set

Abstract

Keywords

Introduction

Related work

Fuzzy soft set

Definition 1 6

Definition 2 21

Definition 3 7

Definition 4 7

Definition 59,22

Definition 6 9

Hesitant fuzzy linguistic term set

Definition 718,23

Definition 8 18

Definition 9 18

Definition 10 19

Definition 1119,24

Definition 1219,25

Proposed integration of the soft set and hesitant fuzzy linguistic term set

Case study: LCD module

Solution based on arithmetic average method

Solution based on hesitant fuzzy linguistic term set 19

Transformation phase

Aggregation phase

Exploitation phase

Solution based on the proposed integrates of soft sets and hesitant fuzzy linguistic term set method

Comparisons and discussion

Conclusion

Footnotes

Declaration of conflicting interests

Funding

References

Definition 1⁶

Definition 2²¹

Definition 3⁷

Definition 4⁷

Definition 5^9,22

Definition 6⁹

Definition 7^18,23

Definition 8¹⁸

Definition 9¹⁸

Definition 10¹⁹

Definition 11^19,24

Definition 12^19,25

Solution based on hesitant fuzzy linguistic term set¹⁹
