Description logic–based knowledge merging for concrete- and fuzzy-domain ontologies

Abstract

Enterprises, especially virtual enterprises, are nowadays becoming more knowledge intensive and adopting efficient knowledge management systems to boost their competitiveness. The major challenge for knowledge management for virtual enterprises is to acquire, extract and integrate new knowledge with the existing source. Ontologies have been proved to be one of the best tools for representing knowledge with class, role and other characteristics. It is imperative to accommodate the new knowledge in the current ontologies with logical consistencies as it is tedious and costly to construct new ontologies every time after acquiring new knowledge. This article introduces a mechanism and a process to integrate new knowledge into the current system (ontology). Separate methods have been adopted for fuzzy- and concrete-domain ontologies. The process starts by finding the semantic and structural similarities between the concepts using WordNet and description logic. Description logic–based reasoning is used next to determine the position and relationships between the incoming and existing knowledge. The experimental results provided show the efficacy of the proposed method.

Keywords

Description logic fuzzy logic fuzzy-description logic knowledge merging knowledge management ontology

Introduction

In the current era of globalization, industries are facing stiff competition through shorter product life cycles, volatile markets and swift technological advancement. Under these circumstances, enterprises are collaborating to form large supply chain networks or virtual enterprises (VE). Such networks or VEs allow enterprises to provide advanced and multifaceted products or services to customers while focusing on their core competencies and collaborating for other complementary aspects to remain competitive in the market. However, managing and operating a successful VE can be more complex than managing the individual member enterprises, and strong communication, cooperation and collaboration in line with interoperability are required between the member enterprises.

A successful VE needs to develop a mechanism for seamless transfer of data, information and knowledge among member enterprises.¹ Information and communication technology (ICT) can help to achieve collaboration in VEs at a technical level,² while ontologies have been proved to be important tools at the semantic level. Generally, each individual enterprise builds its own ontology, based on the domain of their operation, to represent the enterprise’s knowledge. It is imperative that enterprise ontology should hold two features: (1) interoperability (current aspect): to be able to collaborate with other enterprises and (2) maintenance (continuous or ongoing aspect): to accommodate new knowledge. Interoperability means that information and knowledge transferred using ontologies need to be understood accurately, that is, with correct intention and extension.³ However, as ontologies may be developed independently to suit personal requirements, it is impossible to avoid heterogeneity in the terminology used for concepts and their relationships and mappings between ontologies are required to interrelate different concepts and to achieve interoperability. Many mapping techniques have been adopted and proposed, in the literature, to achieve uniformity and to tackle interoperability of the enterprise ontologies (current aspect).^4,5

Nowadays, knowledge has become one of the most precious resources for any enterprise. However, this knowledge is more valuable if it can be made inferable and deducible. The future success of enterprises is coupled with their knowledge assets, so enterprises need to accumulate knowledge (or create knowledge) from information, for example, by updating their knowledge in the form of an ontology. According to Mo and Zhou,⁶ knowledge is power, and its proper management is necessary to preserve valuable content, learn new things, solve problems, consolidate core competency and discover and implement new technologies. Enterprises should be able to maintain their ontologies to accommodate new knowledge, to stay competitive and successfully collaborate in VEs not only in the current time but also in the future. For this reason, maintenance of ontologies is termed as a continuous or ongoing aspect of VEs.

Ontologies definitely play important roles in knowledge management (KM),⁷ but the knowledge discovery possess is equally important to identify and accommodate new knowledge within existing ontologies. The discovered knowledge will not be useful unless it is mapped semantically and structurally with the existing ontologies. To merge knowledge correctly, both the syntax and semantics must be considered, in order to

Deduce similar or new concepts;

Deduce the possibility of merging concepts, that is, by restructuring an ontology;

Achieve logically consistent mappings.

This article tackles all three of these problems and develops a mechanism for ontology mapping in the same domain, that is, by enhancing the enterprises’ knowledge by accommodating new knowledge into an existing ontology. Moreover, this article tackles the above problem by using the description logic (DL) paradigm as enterprises are increasingly using OWL (Web ontology language) to store, use and transfer data and knowledge through the Web, and OWL is based on DL which is a fragment of first-order logic (FOL). The proposed approach can be widely applicable in E-Commerce,⁸ product design,⁹ product development¹⁰ and medical domain,¹¹ where new information is being gathered with time. Ontology-based knowledge merging approach, proposed here, will help in making their knowledge bases (KBs) coherent. Furthermore, nowadays, enterprises are moving from traditional product lifecycle management (PLM) to knowledge-based PLM, in which ontologies play a crucial role.¹² This approach can help enterprises in updating their KBs for improved and efficient knowledge-based PLM.

The next section reviews in detail the current progress in the area. Section “Theory of ontology” gives the preliminaries about ontology construction methods (DL, fuzzy logic, fuzzy-DL) and WordNet is used to identify the meaning and relationships of the words used for concept creation. Section “Ontology similarity” describes a method for finding similarity between concepts. The process of merging and reconfiguration is dealt with in section “Ontology merging and reconfiguration.” The proposed techniques have been implemented, and they are demonstrated through an example which is presented in section “Implementation method,” and section “Conclusion” concludes the article.

Literature survey

Exhaustive surveys have been carried out on KM^13,14 and its tools.¹⁵ KM in enterprises is mostly tackled at the subjective level, and this can be divided in three different stages: (1) knowledge creation, (2) ontology development for new knowledge and (3) merging new knowledge in to the existing sources.

Knowledge plays a significant role in the organizational performance.¹⁶ Due to the widespread application of different information systems, a large amount of different knowledge is accumulated during collaboration between enterprises. One of the most important factors in KM is knowledge discovery. Proliferation of data has created a completely new and different area of KM¹⁷ requiring the extraction of knowledge from abundant data and the organization and merging of this knowledge with existing knowledge. Existing knowledge supports organizations in creating new knowledge and updating the overall KB.¹⁸ Knowledge discovery includes discovering implicit knowledge from the data, often using data mining techniques to extract knowledge from data sources. Exhaustive literature surveys illustrate that KM frameworks, knowledge-based systems (KBS), ICT, artificial intelligence and expert systems, database technology and so on have all been adopted by enterprises to exploit knowledge in order to solve their current problems and enhance their expertise. A detailed review has been done by Liao.¹⁵ Pollalis and Dimitriou⁴ first proposed the different initiatives needed for knowledge creation and then developed the requirements at each stage of the KM life cycle.

Ontology-based frameworks have been proven to be the ideal tools for knowledge representation as they provide uniform frameworks to identify similarities and differences between different entities in the specific domain.⁹ Many researchers have proposed different methodologies for ontology creation from new knowledge. Huang and Diao¹⁹ proposed a methodology for creating a concept map–based ontology construction method for knowledge integration. This accumulates knowledge in the business processes, and rules and constraints are implemented using semantic Web rule language (SWRL). However, to implement this in the VE scenario, enterprises need to reconstruct their ontology every time they move to a new collaboration. Ling et al.²⁰ proposed an ontology-based method to build an integrated KB from heterogeneous sources operating in a single domain. Rajsiri et al.²¹ developed a knowledge-based ontology model for the collaborative business process model. A distributed enterprise system framework for KM is developed by Ho et al.²² Pirró et al.²³ developed a framework for creating, managing and sharing knowledge within an organization with a distributed functional system. Mo and Zhou⁶ developed tools and methods for managing the intangible knowledge of VE. Ling et al.²⁰ proposed an ontology-based method for knowledge integration in a collaborative environment. They used heterogeneous ontologies to build domain ontology, that is, by merging them and through inconsistency elimination. Chen et al.²⁴ used WordNet and fuzzy formal concept analysis for merging domain ontologies. Raunich and Rahm²⁵ proposed the automatic target-driven ontology merging (ATOM) for integration of multiple ontologies. The process was based on the equivalent relation between source and target taxonomy and merging them preserving the target taxonomy. PROMPT²⁶ uses the class-name similarities and relies on the user for specific merge operations, whereas OntoMerge²⁷ uses the bridge ontology concept for ontology merging.

It has been widely reported that classical ontologies are not appropriate to deal with imprecise and vague knowledge inherent to several real-world domains.²⁸ It is necessary to merge knowledge in an enterprise, not only for concrete domains but also for fuzzy domains. Recently, approaches have been reported for extending and reasoning with ontologies in fuzzy domains.^28–30

It is clear from the literature survey that the third stage of KM in enterprises, that is, merging new knowledge with existing knowledge, has been given little or no attention. This article introduces a method to map discovered knowledge with existing knowledge using an ontology and, if needed, reconfiguring the ontology.

Theory of ontology

This section describes the DL, fuzzy logic, fuzzy-DL and WordNet used in this article. DL is a decidable fragment of FOL which acts as a backbone for ontology development. Fuzzy logic and consequently fuzzy-DL deal with the vague knowledge. WordNet is helpful in finding semantic similarities between words. A detailed description of each of these approaches is given in the following section.

DL

DL provides a logical construction for KBs and is composed of concepts, roles and individuals as basic building blocks. DL has been proved to be most promising for processing, sharing and interpreting knowledge especially using the Web. Ontologies play a key role in constructing KBs in a hierarchical manner of concepts and roles in a particular domain.

The formation of a KB in DL starts by defining the atomic concepts and atomic roles. Atomic concepts and roles generally represent the domain-specific, self-explainable entities that are not defined using other concepts and roles (for more details, see Baader et al.³¹). Other general concepts and roles are defined using atomic concepts and general concepts, atomic roles and general roles and constructors (like union, intersection, quantifiers, etc.). For example, the concepts ( $C$ ) are formed from atomic concepts using top concept ( $T$ ), bottom concept ( $⊥$ ), negation ( $\neg A$ ), union ( $C_{1} ⊔ C_{2}$ ), intersection ( $C_{1} ⊓ C_{2}$ ), existential quantifier ( $\exists R . C$ ), universal quantifier ( $\forall R . C$ ), cardinality restriction ( $\geq_{n} R . C, \leq_{n} R . C$ ) and so on. Similarly, roles (R) are constructed from atomic roles ( $P$ ), negation ( $\neg R$ ), transitive ( $R^{+}$ ), inverse roles ( $R^{-}$ ) and so on. Concepts and roles in DL are seen as unary and binary relations such as: C(x) and R(y, z), where x satisfies the concept C and y and z are in relation R. However, simple DL is less appropriate in cases of imprecise definition of concepts and relations (roles), and therefore, fuzzy-DL, which is a mixture of fuzzy logic and DL, has been invented. Integrating KBs does not simply mean joining an existing KB with a new one. Rather, it requires a unified representation of entities (concepts, roles and individuals) in the merged KB. Moreover, an integrated KB must contain all the valuable knowledge and must be free from inconsistencies.

Fuzzy set and fuzzy logic

Fuzzy set theory and fuzzy logic³² are widely adopted for capturing vague knowledge. Unlike the crisp set, where an element is either a member of a set or not, that is, the binary (0 and 1) relation, a fuzzy set ( $X$ ) and its members ( $x_{1}, x_{2}, \dots$ ) are related with a membership function, $μ : X \to [0, 1]$ . In other words, an element is a member of the set with a degree between 0 and 1. In a broader sense, the crisp set can also be considered as a fuzzy set which takes only the boundary values 0 and 1.

Like DL, fuzzy logic also supports operations like complement, union, intersection, transitivity and so on with the help of strong mathematical principles. A fuzzy complement ( $c$ ) is a unary function defined by $c : [0, 1] \to [0, 1]$ with interpretation $I (\neg x) = Θ I (x)$ . A fuzzy complement satisfies the boundary conditions, that is, $c [0] = 1$ , $c [1] = 0$ , and is monotonically increasing, that is, $x \leq y \Rightarrow c (x) \geq c (y)$ . There are many complement functions defined in the literature, among them are Lukasiewicz negation: $c (x) = 1 - x$ and Godel complement $c (x) = 1$ if $x > 0$ , else $c (x) = 0$ .

Fuzzy intersection, termed as t-norm, is defined by the function $t : [0, 1] \times [0, 1] \to [0, 1]$ with interpretation $I (x \land y) = I (x) \otimes I (y)$ . Fuzzy intersection satisfies the boundary conditions: $t (x, 1) = x$ and $t (x, 0) = 0$ , monotonicity: $y \geq z \Rightarrow t (x, y) \geq t (x, z)$ and other set theoretic properties like, commutativity: $t (x, y) = t (y, x)$ and associativity: $t (x, t (y, z)) = t (t (x, y), z)$ . The most widely used t-norm functions are Lukasiewicz t-norm: $t (x, y) = max (0, x + y - 1)$ and product t-norm: $t (x, y) = x . y$ .

Fuzzy union, termed as t-conorm, is a function defined by $u : [0, 1] \times [0, 1] \to [0, 1]$ with interpretation $I (x \lor y) = I (x) \oplus I (y)$ . Similar to fuzzy complement and fuzzy intersection, fuzzy union also satisfies the boundary conditions: $u (x, 0) = x$ and $u (x, 1) = 1$ and monotonicity. It also follows the commutative and associative rules as in the case of fuzzy intersection. The most commonly used t-conorm functions are Lukasiewicz: $u (x, y) = min (1, x + y)$ and Godel: $u (x, y) = max (x, y)$ .

One of the most important operations in fuzzy logic relating to classical logic is fuzzy implication. Fuzzy implication is defined by the function: $I : [0, 1] \times [0, 1] \to [0, 1]$ with interpretation $I (x \to y) = I (x) \Rightarrow I (y)$ . In classical logic implication $A \to B$ is equivalent to $\neg A \lor B$ or max ${t \in {0, 1} | A \land t \leq B}$ . In classical logic, both are equivalent, but their extension in fuzzy logic leads to S-implication and R-implication, respectively. Fuzzy implication functions are Lukasiewicz: $I (x, y) = min (1, x + y - 1)$ and Godel: $I (x, y) = y$ if x > y, else $I (x, y) = 1$ .

Although there are many functions related to fuzzy logic, Lukasiewicz, Godel, product and so on, Bobillo and Straccia²⁹ showed the benefit of using Lukasiewicz function, and this article uses these functions for fuzzy interpretation.

Fuzzy-DL

Fuzzy-DL is an extended version of DL, where concepts (unary relation) and roles (binary relations) are extended to fuzzy set and fuzzy binary relations. DL-axioms are also extended into fuzzy set using degree of truth. Similar to DL, fuzzy-DL consists of fuzzy-T-box and fuzzy-A-box. Fuzzy-T-box consists of the concepts (C, D) and role names (P, R) along with the general inclusion axioms, that is, $〈 (C \subseteq D) \geq α 〉$ , which means that concept C is sub-concept of concept D with truth value $α$ , where $α \in [0, 1]$ . Similarly, for roles, $〈 (P \subseteq R) \geq β 〉$ with $β \in [0, 1]$ . The fuzzy A-box consists of the fuzzy assertion of individuals with concept and roles with fuzzy membership value in the form $◃ β$ , where $◃ \in {\geq, >, \leq, <}$ and $β \in [0, 1]$ . Similar to DL, an interpretation of fuzzy-DL $I_{f}$ is a pair $(Δ^{I_{f}}, \cdot^{I_{f}})$ , where $Δ^{I_{f}}$ is the fuzzy domain of interpretation and $\cdot^{I_{f}}$ is an interpretation function with the following characteristics.

For individual a, $a \in Δ^{I_{f}}$ ; for concept C, $C^{I} : Δ^{I_{f}} \to [0, 1]$ ; for role R, $R^{I_{f}} : Δ^{I_{f}} \times Δ^{I_{f}} \to [0, 1]$ . Comparisons between DL and fuzzy-DL interpretations with basic concepts, roles and constructors are shown in Table 1 (for more detailed explanations, see Stoilos et al.²⁸).

Table 1.

Comparison between DL and fuzzy-DL.

Concepts/roles	DL interpretation	Fuzzy-DL interpretation
Atomic concept: A	$A^{I} \subseteq Δ^{I}$	$A^{I} : Δ^{I} \to [0, 1]$
Top concept: T	$Δ^{I}$	$T^{I} (a) = 1$
Bottom concept: $⊥$	$ϕ$	$⊥^{I} (a) = 0$
Concept conjunction: $C ⊓ D$	$C^{I} \cap D^{I}$	${(C ⊓ D)}^{I} (x) = C^{I} (x) \otimes D^{I} (x)$
Concept disjunction: $C ⊔ D$	$C^{I} \cup D^{I}$	${(C ⊔ D)}^{I} (x) = C^{I} (x) \oplus D^{I} (x)$
Concept negation: $\neg C$	$Δ^{I} \ C^{I}$	$⊖ C^{I} (x)$
Atomic role: $R$	$R^{I} \subseteq Δ^{I} \times Δ^{I}$	$R^{I} : Δ^{I} \times Δ^{I} \to [0, 1]$
Inverse role: $R^{-}$	${(y, x) \in Δ^{I} \times Δ^{I} \| (x, y) \in R^{I}$	$R^{- I} (y^{I}, x^{I}) \equiv R^{I} (x^{I}, y^{I}) : Δ^{I} \times Δ^{I} \to [0, 1]$
Concept assertion: $a : C$	$a^{I} \in C^{I}$	$C^{I} (a^{I}) \to [0, 1]$
Concept subsumption: $C ⊑ D$	$C^{I} ⊑ D^{I}$	$inf_{x \in Δ^{I}} {C^{I} (x) \Rightarrow D^{I} (x)}$
Role assertion: (a,b):R	$(a^{I}, b^{I}) \in R^{I}$	$R^{I} (a^{I}, b^{I}) \to [0, 1]$

WordNet

WordNet (WordNet API),³³ created by Princeton University, is a dictionary of semantically similar English words, arranged structurally. Words are characterized based on the parts of speech, noun, verb, adjective and so on and linked together and categorized as synonyms, hyponyms and so on.

Ontology similarity

An ontology is the explicit specification of shared conceptualization.³⁴ In simple words, an ontology is a domain-specific knowledge representation specified in terms of concepts and their relations. An ontology can be represented as $O : = {C, R, A}$ , where $C$ is the set of concepts, $R$ is the set of roles and $A$ is the set of axioms. Similarly, a fuzzy ontology can be represented as $O_{F} : = {C, R^{F}, A^{F}}$ , where $R^{F}$ and $A^{F}$ additionally associate fuzzy membership values between [0, 1].

In this article, an ontology O ₁ is defined as the existing knowledge and O ₂ as the new knowledge. Let $C_{i}^{1}$ and $C_{j}^{2}$ be the ith and jth concepts of two ontologies O ₁ and O ₂, respectively, such that $C_{i}^{1} \in O_{1}$ and $C_{j}^{2} \in O_{2}$ . All other notations used in this section are as follows

\begin{matrix} {SynC}_{i}^{1} : Synonym set of C_{i}^{1}, Syn C_{j}^{2} : Synonym set of C_{j}^{2} \\ {HyperC}_{i}^{1} : Hypernym set of C_{i}^{1}, {HyperC}_{j}^{2} : Hypernym set of C_{j}^{2} \\ {HypoC}_{i}^{1} : Hyponym set of C_{i}^{1}, {HypoC}_{j}^{2} : Hyponym set of C_{j}^{2} \\ {SC}_{i}^{1} : Set of super - concepts of C_{i}^{1}, {sC}_{i}^{1} : Set of sub \\ - concepts of C_{i}^{1}, {SC}_{i}^{2} : Set of super - concepts of C_{i}^{2}, \\ {sC}_{i}^{2} : Set of sub - concepts of C_{i}^{2} \end{matrix}

The methodology adopted in this article for knowledge merging, that is, ontology mapping and ontology reconfiguration, is based on two steps. In the first step, a similarity matrix or index is calculated. In the second step, merging and reconfiguration are carried out based on logical arguments to get a consistent final ontology.

For calculating the similarity matrix, two parameters have been taken into account: semantic similarity and structural similarity. Semantic similarity determines how closely two concept names are linguistically associated, whereas structural similarity determines the hierarchical relationship (equivalent, super and sub) between new concepts and concepts of existing ontology. The next section illustrates the process of calculating semantic similarity, structural similarity and hence the similarity matrix.

Semantic similarity

The semantic similarity between concepts is defined by the function $ψ : {C_{i}^{1}, C_{j}^{2}} \to [0, 1]$ , where $C_{i}^{1} \in O_{1} and C_{j}^{2} \in O_{2}$ . In language, two words can be related to each other in various ways, for example, same root, antonyms and so on. However, the synonyms, hypernyms and hyponyms of two words imitate the equivalent, super and sub relationship of ontological concepts, and therefore, only synonym, hypernym and hyponym relations have been taken into account for calculating the semantic similarity. As concept names in general do not contain any fuzziness, rather instances and relations are fuzzy, this article does not take fuzziness in the semantic similarity into account. The procedure for semantic similarity calculation is as follows

\begin{matrix} Synonym : ψ_{1} (C_{i}^{1}, C_{j}^{2}) = 1, if \exists t_{1}, t_{2} | t_{1} = t_{2} and \\ t_{1} \in {SynC}_{i}^{1} and t_{2} \in {SynC}_{j}^{2}, ψ_{1} (C_{i}^{1}, C_{j}^{2}) = 0, otherwise \\ Hypernym : ψ_{2} (C_{i}^{1}, C_{j}^{2}) = β_{2}, β_{2} \in [0, 1]}, if \exists t_{1}, t_{2} | t_{1} \\ = t_{2} and t_{1} \in {HyperC}_{i}^{1} and t_{2} \in {HyperC}_{j}^{2}, ψ_{2} \\ (C_{i}^{1}, C_{j}^{2}) = 0, otherwise \\ Hyponym : ψ_{3} (C_{i}^{1}, C_{j}^{2}) = β_{2}, {β_{2} \in [0, 1]}, \\ if \exists t_{1}, t_{2} \exists t_{1}, t_{2} | t_{1} = t_{2} and t_{1} \in {HypoC}_{i}^{1} and \\ t_{2} \in {HypoC}_{j}^{2}, ψ_{2} (C_{i}^{1}, C_{j}^{2}) = 0, otherwise \end{matrix}

Here, $β_{2}$ and $β_{3}$ are weights given to Hypernym and Hyponym relation. The final semantic similarity index will be the maximum of all, that is, $ψ (C_{i}^{1}, C_{j}^{2}) = max {ψ_{1} (C_{i}^{1}, C_{j}^{2}), ψ_{2} (C_{i}^{1}, C_{j}^{2}), ψ_{3} (C_{i}^{1}, C_{j}^{2})}$ .

Structural similarity

The structural similarity between the concepts of two ontologies is the measurement of their association in terms of equivalence, super and sub relationships. The structural similarity is measured at three levels (equivalence, super and sub relation). As relationships between the concepts can be fuzzy, this article considers both the concrete domain (instance 1) and the fuzzy domain (instance 2) for structural similarity calculation. The procedure is explained next.

Equivalence relation similarity (ER)

Instance 1 (concrete domain)

In the concrete domain, an equivalence relation between two concepts is closely associated with the equivalence between their super and sub-concepts, respectively. Mathematically, the equivalence relation between concepts $C_{i}^{1}$ and $C_{j}^{2}$ can be given as

\begin{matrix} ER (C_{i}^{1}, C_{j}^{2}) = 0.5 {\frac{Sim ({SC}_{i}^{1}, {SC}_{j}^{2})}{| {SC}_{i}^{1} \cup {SC}_{j}^{2} |}}^{2} \\ + 0.5 {\frac{Sim ({sC}_{i}^{1}, {sC}_{j}^{2})}{| {sC}_{i}^{1} \cup {sC}_{j}^{2} |}}^{2} \end{matrix}

Here, function $Sim (., .)$ determines the number of similar elements in the two sets and $| A |$ is the cardinality of the set A. The first part of the equation calculates the similarity in terms of super concepts, and the second part calculates the similarity in terms of sub-concepts. Squaring the function gives more weightage to the structurally equivalent concepts as the ratio will never exceed the value 1. Equal weightage has been given to both the parts as two concepts are equivalent if their super and sub-concepts are equivalent, respectively.

Instance 2 (fuzzy domain)

In the fuzzy domain, the equivalence concept relation can be given as

\begin{matrix} ER (C_{i}^{1}, C_{j}^{2}) = 0.5 \frac{\sqrt{\sum_{{SC}_{i}^{2}} \sum_{{SC}_{j}^{2}} {μ Sim ({SC}_{i}^{1}, {SC}_{j}^{2})}^{2}}}{{{SC}_{i}^{1} \cup {SC}_{j}^{2}}} \\ + 0.5 \frac{\sqrt{\sum_{{sC}_{i}^{2}} \sum_{{sC}_{j}^{2}} {μ Sim ({sC}_{i}^{1}, {sC}_{j}^{2})}^{2}}}{{{sC}_{i}^{1} \cup {sC}_{j}^{2}}} \end{matrix}

where $μ Sim (., .)$ determines the fuzzy value or truth value of the equivalence relation of the two input concepts. Unlike concrete domain, square root of the function has been taken in the fuzzy case as the fuzzy value will not exceed the value 1, which will give more weightage to the structurally similar concepts.

Super relation similarity (SR)

A concept is said to be in a super concept relationship with another concept when its sub-concepts match with the super concepts of the other. In this article, super relation similarity between the two concepts has been identified for both the cases as follows.

Instance 1 (concrete domain)

In the concrete domain, super relation similarity between two concepts is the similarity of their super and sub-concepts. Mathematically, this can be stated as

SupR (C_{i}^{1}, C_{j}^{2}) = {\frac{Sim ({{sC}_{i}^{1} \cup C_{i}^{1}}, {{SC}_{j}^{2} \cup C_{j}^{2}})}{| {sC}_{i}^{1} \cup {SC}_{j}^{2} \cup C_{i}^{1} \cup C_{j}^{2} |}}^{2}

The super relation function (SupR) includes both concepts ( $C_{i}^{1}$ and $C_{j}^{2}$ ) in the denominator to get a closer evaluation.

Instance 2 (fuzzy domain)

For the fuzzy case, super relation similarity is

\begin{matrix} SupR (C_{i}^{1}, C_{j}^{2}) \\ = \frac{\sqrt{\sum \sum {μ Sim {({{sC}_{i}^{1} \cup C_{i}^{1}}, {{SC}_{j}^{2} \cup C_{j}^{2}})}}^{2}}}{{{sC}_{i}^{1} \cup {SC}_{j}^{2} \cup C_{i}^{1} \cup C_{j}^{2}}} \end{matrix}

and is a measurement of the equivalent fuzzy value or truth value for the super relation between the two input concepts.

Sub relation similarity (sR)

In contrast with super relation similarity, a concept is in a sub relationship similarity with another concept if its super concepts match with the sub-concepts of the other. For both cases, this can be calculated as follows.

Instance 1 (concrete domain)

In line with the argument given in the super relation, a concrete-domain sub relation can be given as

subR (C_{i}^{1}, C_{j}^{2}) = {\frac{Sim ({{SC}_{i}^{1} \cup C_{i}^{1}}, {{sC}_{j}^{2} \cup C_{j}^{2}})}{| {SC}_{i}^{1} \cup {sC}_{j}^{2} \cup C_{i}^{1} \cup C_{j}^{2} |}}^{2}

Instance 2 (fuzzy domain)

For fuzzy domain, it will be

\begin{matrix} SubR (C_{i}^{1}, C_{j}^{2}) \\ = \frac{\sqrt{\sum \sum {μ Sim ({{SC}_{i}^{1} \cup C_{i}^{1}}, {{sC}_{j}^{2} \cup C_{j}^{2}})}^{2}}}{{{SC}_{i}^{1} \cup {sC}_{j}^{2} \cup C_{i}^{1} \cup C_{j}^{2}}} \end{matrix}

Now the overall mapping relation based on semantic and structural similarity can be given as

1. Equivalence relation

ER (C_{i}^{1}, C_{j}^{2}) = k ψ (C_{i}^{1}, C_{j}^{2}) + (1 - k) ER (C_{i}^{1}, C_{j}^{2})

2. Super relation

SR (C_{i}^{1}, C_{j}^{2}) = k ψ (C_{i}^{1}, C_{j}^{2}) + (1 - k) Sup (C_{i}^{1}, C_{j}^{2})

3. Sub relation

sR (C_{i}^{1}, C_{j}^{2}) = k ψ (C_{i}^{1}, C_{j}^{2}) + (1 - k) Sub (C_{i}^{1}, C_{j}^{2})

The constant $k \in [0, 1]$ is the weight given to the semantic relation. The relational matrix obtained here is used for ontology merging and reconfiguration (explained in the next section). The relational matrix serves two purposes as it not only relates the closeness of two concepts from different ontologies but also explores the kind of relation, that is, equivalence, super and sub. The next section describes the process of ontology merging and reconfiguration.

Ontology merging and reconfiguration

The relational matrix obtained in the previous section is used for ontology merging and, if necessary, for ontology reconfiguration. This approach first determines the greatest similarity in terms of equivalence, super and sub relations between the concepts of the ontologies. The next step involves establishing logical consistency, that is, the formation of a logically consistent merged and reconfigured ontology. This process is different for both the concrete and fuzzy domains. This section begins by explaining the process for the concrete domain and later deals with the fuzzy domain.

Concrete domain

In the consistency checking part, two concepts of two different ontologies are compared. This process first finds the maximum of ${ER (C_{i}^{1}, C_{j}^{2}), SR (C_{i}^{1}, C_{j}^{2}), sR (C_{i}^{1}, C_{j}^{2})}$ (see Figure 20). In case two or more concepts have the maximum value, arbitrary selection is carried out. Separate reasoning is carried out for each equivalence, super and sub relation (as explained next). In case, no consistent relation is derived for the maximum value, then the process selects the next best value and so on until a solution is reached or no relation is found. In case no relation is found, it is added as a new concept. The detailed explanation is given next.

Equivalence relation

The easiest case is when the equivalence relation matrix is one (case 1) and the new concept $(C_{j}^{2})$ can be established in the existing ontology as shown in Figure 1.

Figure 1.

Case 1.

Case 2 (Figure 2) is where the equivalence relation matrix is less than one and a possible position for the new concept ( $C_{j}^{2}$ ) is as a sibling of concept ( $C_{i}^{1}$ ). This case arises when $C_{j}^{2}$ is the sub-concept of ${SC}_{i}^{1}$ , but $C_{i}^{1}$ and $C_{j}^{2}$ do not have any common sub-concepts. In this case, the equivalence relational matrix will have a greater value than the sub and super relational matrix.

Figure 2.

Case 2.

Sub relation

This is where the existing concept is in a sub-concept relation according to relational matrix, that is, $C_{i}^{1} \subseteq C_{j}^{2}$ . In this case, three positions are possible where the new concept can be merged in the ontology, as shown in Figures 3 –5.

Figure 3.

Case 3.

Figure 4.

Case 4.

Figure 5.

Case 5.

The first condition (case 3) arises when the new concept ( $C_{j}^{2}$ ) is equivalent to the super concept ( ${SC}_{i}^{1}$ ) of the compared concept ( $C_{i}^{1}$ ). The second condition (case 4) arises when the new concept ( $C_{j}^{2}$ ) is a super concept of the compared concept ( $C_{i}^{1}$ ) and is also a sub-concept of the super concept ( ${SC}_{i}^{1}$ ). This situation arises when a concept in an ontology is further subdivided or refined. The third condition (case 5) arises when the new concept ( $C_{j}^{2}$ ) is super concept of ( ${SC}_{i}^{1}$ ), as shown in Figure 5.

In this case, the position of $C_{j}^{2}$ is above ${SC}_{i}^{1}$ , but to get the exact place, $C_{j}^{2}$ must be compared with ${SC}_{i}^{1}$ and then the conditions (3) and (4) should be checked again.

Super relation

This is where the existing concept is in a super concept relation according to the relational matrix, that is, $C_{j}^{2} \subseteq C_{i}^{1}$ . In this case, possible positions where the new concept can be merged in the ontology are shown in Figures 6 –9.

Figure 6.

Case 6.

Figure 7.

Case 7.

Figure 8.

Case 8.

Figure 9.

Case 9.

The first condition (case 6) arises when $C_{j}^{2}$ is a sub-concept of $C_{i}^{1}$ and a super concept of ${sC}_{i}^{1}$ . The second condition (case 7) is when $C_{j}^{2}$ is a sub-concept of $C_{i}^{1}$ and is equivalent to ${sC}_{i}^{1}$ . The third condition (case 8) arises when $C_{j}^{2}$ is a sub-concept of $C_{i}^{1}$ and is disjoint with ${sC}_{i}^{1}$ . This scenario describes the condition when a concept is redefined with the addition of new concepts (or new characteristics).

The last condition (case 9) describes the situation when $C_{j}^{2}$ is a subclass of ${sC}_{i}^{1}$ (Figure 9). In this condition, to get the exact position of $C_{j}^{2}$ , it must be compared with ${sC}_{i}^{1}$ and further evaluated for conditions 6–8.

Although this approach has considered all possible conditions for equivalence, sub and super relations, it may also be possible that the new concept has no defined position or possibly has no relation with existing concepts (including cases 5 and 9). In this scenario, merging and reconfiguration is carried out using the super concept of the new concept. Let ${SC}_{j}^{2}$ be the super concept of $C_{j}^{2}$ , and the relational matrix is obtained in the same manner as in the case of $C_{i}^{1}$ and $C_{j}^{2}$ . The following conditions can be obtained in line with the previous explanations (Prefix“Super” ( $\overset{\cdot}{S}$ ) has been used to emphasize that super concept of a new concept is compared to get the relational matrix).

Super equivalence relation

In a super equivalence relation, the mapping of a new concept ( $C_{j}^{2}$ ) in terms of its super concept ( ${SC}_{j}^{2}$ ) with respect to $C_{i}^{1}$ follows the same procedure as the mapping between $C_{i}^{1}$ and $C_{j}^{2}$ . The simplest condition is when ${SC}_{j}^{2}$ is equivalent to $C_{i}^{1}$ (condition $\overset{\cdot}{S}$ 1). This is depicted in Figure 10. As no relation is found between $C_{j}^{2}$ and the existing ontology, this is simply added as a sub-concept of ${SC}_{j}^{2}$ in the merged ontology. Similar to condition 2, condition $\overset{\cdot}{S}$ 2 arises (Figure 11) when a new concept ${SC}_{j}^{2}$ is added in the ontology as a sub-concept of ${SC}_{i}^{1}$ and $C_{j}^{2}$ is added in the ontology accordingly.

Figure 10.

Case $\overset{\cdot}{S}$ 1.

Figure 11.

Case $\overset{\cdot}{S}$ 2.

Super-sub relation

Super-sub relation mapping is carried out when the relational matrix entails that ${SC}_{j}^{2}$ is closer to the sub-concept of the $C_{i}^{1}$ . Conditions $\overset{\cdot}{S}$ 3 (Figure 12) and $\overset{\cdot}{S}$ 4 (Figure 13) have same logical base as cases 3 and 4, respectively. Similar to condition 5, in the case of condition $\overset{\cdot}{S}$ 5 (Figure 14), the super concept of ${SC}_{j}^{2}$ is checked with $C_{i}^{1}$ for conditions $\overset{\cdot}{S}$ 3 and $\overset{\cdot}{S}$ 4.

Figure 12.

Case $\overset{\cdot}{S}$ 3.

Figure 13.

Case $\overset{\cdot}{S}$ 4.

Figure 14.

Case $\overset{\cdot}{S}$ 5.

Super-super relation

Super-super relation mapping occurs when the relational matrix intimates that $C_{i}^{1}$ is the super class of ${SC}_{j}^{2}$ . All possible places where ${SC}_{j}^{2}$ and $C_{j}^{2}$ can fit have been shown in Figures 15 –18. Conditions $\overset{\cdot}{S}$ 6, $\overset{\cdot}{S}$ 7 and $\overset{\cdot}{S}$ 8 have similar logical explanations as conditions 6, 7 and 8, respectively.

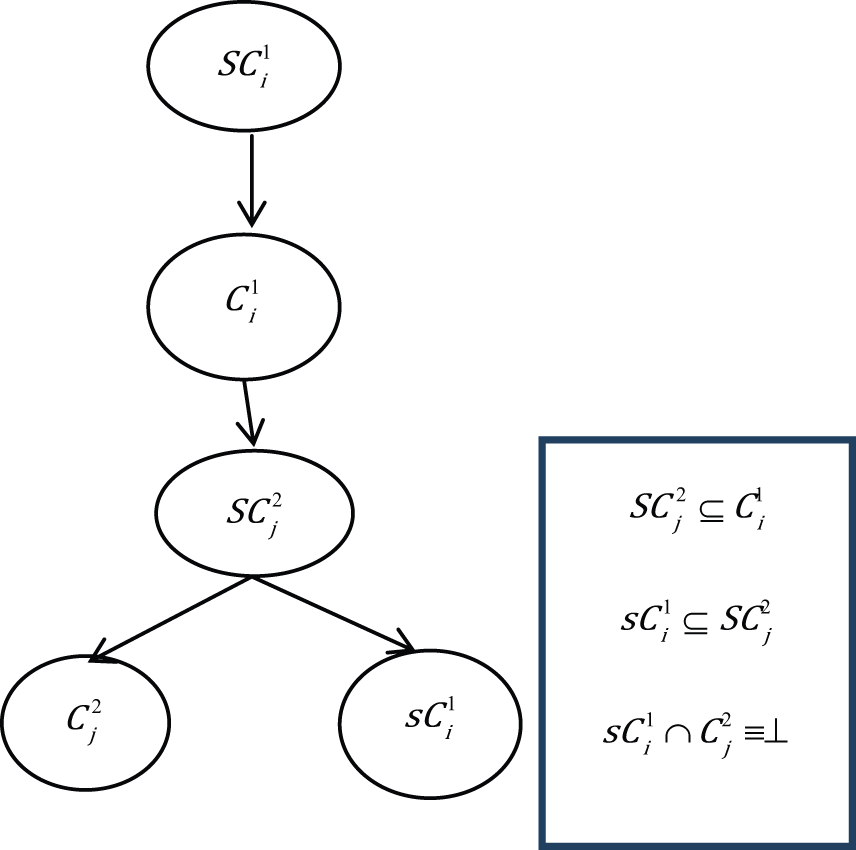

Figure 15.

Case $\overset{\cdot}{S}$ 6.

Figure 16.

Case $\overset{\cdot}{S}$ 7.

Figure 17.

Case $\overset{\cdot}{S}$ 8.

Figure 18.

Case $\overset{\cdot}{S}$ 9.

Similar to condition 9, in condition $\overset{\cdot}{S}$ 9, the exact position of ${SC}_{j}^{2}$ cannot be determined. It is compared with ${sC}_{i}^{1}$ , and conditions 6, 7 and 8 are checked with respect to ${sC}_{i}^{1}$ and ${SC}_{j}^{2}$ .

If none of the conditions (cases 1–9 and cases $\overset{\cdot}{S}$ 1– $\overset{\cdot}{S}$ 9) are satisfied in this process, then it is clear that a new concept needs to be added in the ontology. For this, the process finds the super most concepts, unrelated to the existing ontology, as a new concept and adds its sub-concepts accordingly.

Fuzzy domain

In fuzzy-DL, two concrete concepts or even an assertion of individual in concrete concepts and roles are related with the fuzzy value or truth value as described in section “Theory of ontology.” Unlike the concrete domain, as explained earlier, a fuzzy-domain ontology not only requires mapping and reconfiguration of the ontology but also requires a fuzzy value or truth value to be calculated for the merged or reconfigured concept with the concepts of the existing ontology. The first step for fuzzy-domain ontology mapping and reconfiguration is similar to the concrete domain (i.e. finding the maximum). The second step is implemented in two stages: the first stage determines the position of the new ontology within the existing one (similar to case 1 to case $\overset{\cdot}{S}$ 9), and the second stage recalculates the fuzzy value or truth value for different relations among the concepts.

Considering case 4 as shown in Figure 4, the following fuzzy values are available

SubR (C_{i}^{1}, C_{j}^{2}) \equiv C_{i}^{1} ⊑ C_{j}^{2} = μ

(1)

SubR ({SC}_{i}^{1}, C_{i}^{1}) \equiv C_{j}^{2} ⊑ {SC}_{i}^{1} = ω

(2)

From equations (1) and (2), it is clear that $C_{i}^{1} ⊑ C_{j}^{2} ⊑ {SC}_{i}^{1}$ . This step merges or reconfigures the ontologies and introduces the intermediate concept $C_{j}^{2}$ . This reconfiguration or introduction of the new concept needs to identify the fuzzy sub-concept value between $C_{j}^{2}$ and ${SC}_{i}^{1}$ . Assuming

C_{j}^{2} ⊑ {SC}_{i}^{1} = λ

(3)

Now the sub-concept relation $C_{i}^{1} ⊑ {SC}_{i}^{1}$ is the implication of two sub-concept relations $C_{i}^{1} ⊑^{} C_{j}^{2}$ and $C_{j}^{2} ⊑ SC_{j}$ , that is

C_{i}^{2} ⊑ {SC}_{i}^{1} \equiv (C_{i}^{1} ⊑^{} C_{j}^{2}) \to (C_{j}^{2} ⊑ {SC}_{i}^{1})

(4)

Using the Lukasiewicz implication function and equations (1)–(4)

ω = min (1, 1 - μ + λ)

The method shown above for truth value recalculation has considered only truth values equal to some constant, but a similar approach can be used in cases where the truth value is greater than or less than some constant value. The rest of the ontology mapping and reconfiguration in fuzzy cases can be obtained for all cases (case 1–case $\overset{\cdot}{S}$ 9) in a similar way.

Implementation method

The proposed methodology for ontology merging and reconfiguration for both concrete and fuzzy domains can be created in an OWL API such as Protege³⁵ and its plug-in fuzzy-DL.³⁶ Merging and reconfiguration is carried out in Java. The overall implementation method is summarized in Figure 19. Jena parser, a Java API, is used as the Ontology API to get the concept names without the namespace. WordNet API³³ (WordNet) is used to get the synonym, hyponym and hypernym of the concepts for carrying out the word similarity and finally calculating the Lexicon similarity matrix. A structural similarity matrix is calculated as previously described. Pellet reasoner³⁷ is used to find the relationship between concepts (i.e. equivalence, super, sub). As the two ontologies considered here are from the same domain, the assumption that they are built on the same base ontology is valid. This assumption has been used for building the T-box and A-box for reasoners.

Figure 19.

Merged/reconfigured ontology.

The semantic similarity matrix and structural similarity matrix are used to calculate the relational similarity matrix. The next steps, merging, reconfiguration and consistency checks, are illustrated in Figure 20.

Figure 20.

Procedure for ontology merging and reconfiguration.

Example

Concrete domain

In order to illustrate the overall procedure, two ontologies in the concrete domain of car manufacturing have been developed from different car parts websites availables on the Internet. As shown in Figure 21, the Car ontology describes the current knowledge of the field, whereas the New Car ontology represents new knowledge in the field of car manufacturing. In order to merge the two ontologies, reconfigure an existing ontology (Car ontology) or incorporate the new knowledge (New Car ontology), the process as described in the previous section is carried out.

Figure 21.

Input ontologies.

With the help of the Jena parser, concept names are identified. The next step involves calculating the similarity matrix. This step comprises of calculating the Lexicon similarity matrix and structural similarity. Consider the two concepts: Water from the Car ontology (C: Water) and Oil from the New Car ontology (NC: Oil). As there is no similarity between the two concepts in terms of synonyms, hypernyms and hyponyms, their lexicon similarity

ψ (C : Water, NC : Oil) = 0

For calculating the structural similarity, super and sub-concepts need to be identified

\begin{matrix} S (C : Water) = {Cooling, Engine, Car} \\ s (C : Water) = ϕ \\ S (NC : Oil) = {Cooling, Engine, Car} \\ s (NC : Oil) = ϕ \end{matrix}

As both child concepts are empty sets

\begin{matrix} ER (C : Water, NC : Oil) = 0.5 {\frac{Sim ({SC}_{i}^{1}, {SC}_{j}^{2})}{| {SC}_{i}^{1} \cup {SC}_{j}^{2} |}}^{2} \\ + 0.5 {\frac{Sim ({sC}_{i}^{1}, {sC}_{j}^{2})}{| {sC}_{i}^{1} \cup {sC}_{j}^{2} |}}^{2} = {(\frac{3}{3})}^{2} = 1 \end{matrix}

As both child concepts are empty sets it follows that

Sup (C : Water, NC : Oil) = 0

and

Sub (C : Water, NC : Oil) = 0

Now, considering equal weightage for semantic similarity and structural similarity

\begin{matrix} ER (C : Water, NC : Oil) = 0.5 ψ (C : Water, NC : Oil) \\ + 0.5 ER (C : Water, NC : Oil) = 0.5 \end{matrix}

Similarly

\begin{matrix} SR (C : Water, NC : Oil) = 0 and SR (C : Water, \\ NC : Oil) = 0 \end{matrix}

In a similar manner, the similarity matrix is calculated between “ $NC : Oil$ ”and all the concepts of Car ontology. The nonzero values obtained are

\begin{matrix} ER (C : Water, NC : Oil) = 0.5 and \\ ER (C : Air, NC : Oil) = 0.5 \end{matrix}

The next step involves the merging of the new concept into the existing concept. As both the similarity matrix indexes have the same value, that is, 0.5, the algorithm arbitrarily selects one of them and tries to merge it logically into the existing concept as explained in section “Ontology merging and reconfiguration.” Taking “C: Water,” the logical relations obtained are

C : Cooling \equiv NC : Cooling (from T - Box similarity)

(5)

NC : Oil \subseteq {NC : Cooling \equiv C : Cooling}

(6)

NC : Oil \cap C : Water \equiv ⊥

(7)

Clearly, conditions (5), (6) and (7) lead to the case (2), and “ $NC : Oil \subseteq C : Cooling$ ” is established as shown in Figure 22. Table 2 depicts the overall result obtained in this process. In the case of the same similarity index occurring between more than one concept, a random selection process is adopted.

Figure 22.

Merged/reconfigured ontology.

Table 2.

Merging process outcome.

New concept	Maximum similarity with existing concept	Type of similarity	Logical case	Final relation
NC: Car	C: Car	T-Box	–	Equivalent
NC: Brake	C: Brake	T-Box	–	Equivalent
NC: Drum_Brake	C: Drum_Brake	T-Box	–	Equivalent
NC: Double_Edge	C: Single_Leading_Edge	Equivalent	Case 2	$⊑ C$ : Drum_Brake
NC: Power_Brake	C: Power_Brake	T-Box	–	Equivalent
NC: Electro_Hydraulic	C: Air_Suspended	Equivalent	Case 2	$⊑ C$ : Power_Brake
NC: Hydraulic	C: Vacuum_Suspended	Equivalent	Case 2	$⊑ C$ : Power_Brake
NC: Engine	C: Engine	T-Box	–	Equivalent
NC: Cooling	C: Cooling	T-Box	–	Equivalent
NC: Oil	C: Air	Equivalent	Case 2	$⊑ C$ : Cooling
NC: Fuel_Injector	C: Fuel_Injector	T-Box	–	Equivalent
NC: Multi_Point_Injector	C: Direct_Injection	Equivalent	Case 2	$⊑ C$ : Fuel_Injector
NC: Valve	C: Valve	T-Box	–	Equivalent
NC: Tapped_Valve	C: Spring_Valve	Equivalent	Case 2	$⊑ C$ : Valve
NC: Safety	C: Safety	T-Box	–	Equivalent
NC: Anti_Skid_Brake	C: Seat_Belt	Equivalent	Case 2	$⊑ C$ : Safety
NC: Back_Camera	C: Air_Bags	Equivalent	Case 2	$⊑ C$ : Safety
NC: Fog_Light	C: Seat_Belt	Equivalent	Case 2	$⊑ C$ : Safety
NC: Reverse_Backup_Camera	C: Automated_Braking	Equivalent	Case 2	$⊑ C$ : Safety
NC: Steering_Wheel_Control	C: Air_Bags	Equivalent	Case 2	$⊑ C$ : Safety
NC: Steering	C: Steering	T-Box	–	Equivalent
NC: Power_Steering	C: Steering	Sub-class	Case $\overset{\cdot}{S}$ 1	$⊑ C$ : Steering
NC: Pump	C: Steering	Sub-class	Case $\overset{\cdot}{S}$ 1	$⊑$ C: Power_Steering
NC: Reservoir	C: Steering	Sub-class	Case $\overset{\cdot}{S}$ 1	$⊑ C$ : Power_Steering
NC: Rotary_Valve	C: Steering	Sub-class	Case $\overset{\cdot}{S}$ 1	$⊑ C$ : Power_Steering
NC: Steering_System	C: Steering_System	T-Box	–	Equivalent
NC: Cam_and_Lever	C: Rack_and_Pinion	Equivalent	Case 2	$⊑ C$ : Steering_System
NC: Worm_and_Roller	C: Worm_and_Nut	Equivalent	Case 2	$⊑ C$ : Steering_System

Although the example presented here describes the knowledge merging process within an enterprise, this process can be extended in the case of merging two different enterprises with different ontology-based databases built for the same domain.

Fuzzy domain

In the case of a fuzzy ontology, the process of finding the similarity index and determining the position of merging of a new concept with the existing ontology has been explained in sections “Ontology similarity” and “Ontology merging and reconfiguration.” In this process, fuzzy-domain ontologies differ from concrete-domain ontologies only in the step comparing the fuzzy values of the new concept with the existing ones.

Taking an example as shown in Figure 23, a concept “Engine failure” has different sub-concepts with different fuzzy values, for example, “Low fuel $⊑_{0.3} Engine failure$ Engine failure,” and in the new knowledge as shown in Figure 24, “Low air pressure $⊑_{0.9}$ Clogged air filter.” These two ontologies are first compared for similarity and then to determine the position of the new concept within the new merged ontology, the same process is followed as described earlier. The results obtained identify “Low air pressure $⊑ Clogged air filter ⊑$ Engine failure.” Regarding the fuzzy values the following information is available

Low air pressure ⊑_{0.8} Engine failure

(8)

Low air pressure ⊑_{0.9} Clogged air filter

(9)

Figure 23.

Fuzzy existing knowledge.

Figure 24.

Fuzzy new knowledge.

The unified ontology needs to find the fuzzy value of “ Clogged air filter $⊑_{β}$ Engine failure” (assume β). As explained in section “Ontology merging and reconfiguration”

\begin{matrix} Low air pressure ⊑_{0.8} Engine failure \\ = (Low air pressure ⊑_{0.9} Clogged air filter) \\ \to (Clogged air filter ⊑_{β} Engine failure) \end{matrix}

Using the Lukasiewicz implication function: 0.8 = min (1, 1 − 0.9 + β) = min (1, 0.1 + β), clearly, β = 0.7 as shown in Figure 25. Using this process, all other fuzzy values for the fuzzy relation can be defined.

Figure 25.

Fuzzy merged knowledge.

Conclusion

This article addresses the issues related to combining new and existing knowledge in the form of an ontology. The advantage of the proposed method is that enterprises need not reconstruct their existing ontology to accommodate newly acquired knowledge. This methodology merges the new knowledge into an existing ontology using ontology merging and reconfiguration. It also checks for any inconsistencies. The process of merging and reconfiguration first identifies the similarity between the concepts of two ontologies and then, with the help of reasoning, identifies the positions where the new concepts will fit into the existing ontology without any inconsistencies. This approach not only considers the concrete domain but also the fuzzy domain. The proposed approach can also be used in any ontology-based KB with different application domains such as product data management (PDM), PLM¹² and product development.¹⁰ OWL representations of knowledge have been presented by many researchers,^10,38,39 and in all such cases, new knowledge can be merged into the existing database in the form of an ontology, built in the same domain, using this approach.

Footnotes

Declaration of conflicting interests

The authors declare that there is no conflict of interest.

Funding

This research received no specific grant from any funding agency in the public, commercial or not-for-profit sectors.

References

Kim

Lee

Kim

. A modeling framework for agile and interoperable virtual enterprises. Comput Ind 2006; 57(3): 204–217.

Singh

. Collaborative networks as determinants of knowledge diffusion patterns. Manage Sci 2005; 51(5): 756–770.

Gold-Bernstein

Ruh

. Enterprise integration: the essential guide to integration solutions. Boston, MA: Addison-Wesley, 2005.

Pollalis

Dimitriou

. Knowledge management in virtual enterprises: a systemic multi-methodology towards the strategic use of information. Int J Inform Manage 2008; 28(4): 305–321.

Kumar

Harding

. Ontology mapping using description logic and bridging axioms. Comput Ind 2013; 64(1): 19–28.

JPT

Zhou

. Tools and methods for managing intangible assets of virtual enterprise. Comput Ind 2003; 51(2): 197–210.

Wensley

Kao

. Ontology-based knowledge management for joint venture projects. Expert Syst Appl 2008; 35(1–2): 187–197.

Das

Mcguinness

. Industrial strength ontology management. In: Proceedings of the first semantic web working symposium, SWWS-01, Stanford University, California, USA, 30 July-1 August 2001. Amsterdam: IOS Press.

Zhang

Liu

Chen

. Knowledge flow in engineering design: an ontological framework. Proc IMechE, Part C: J Mechanical Engineering Science 2012; 227(4): 760–770.

10.

Sun

Fan

Shen

. Ontology-based interoperation model of collaborative product development. J Netw Comput Appl 2012; 35(1): 132–144.

11.

Ivanović

Budimac

. An overview of ontologies and data resources in medical domains. Expert Syst Appl 2014; 41(11): 5158–5166.

12.

Raza

Kirkham

Harrison

. Knowledge based flexible and integrated PLM system at Ford. J Inform Syst Manag 2011; 1(1): 8–16.

13.

Gunasekaran

Ngai

EWT

. Knowledge management in 21st century manufacturing. Int J Prod Res 2007; 45(11): 2391–2418.

14.

Kebede

. Knowledge management: an information science perspective. Int J Inform Manage 2010; 30(5): 416–424.

15.

Liao

. Knowledge management technologies and applications—literature review from 1995 to 2002. Expert Syst Appl 2003; 25(2): 155–164.

16.

Brockman

Morgan

. The role of existing knowledge in new product innovativeness and performance. Decision Sci 2003; 34(2): 385–419.

17.

Sun

. Notice of violation of IEEE publication principles, knowledge discovery from virtual enterprise model based on semantic annotation. In: 2008 fifth international conference on fuzzy systems and knowledge discovery, Jinan, China, 18–20 October 2008, pp.546–551. New York: IEEE.

18.

Korposh

Lee

Wei

. Modeling the effects of existing knowledge on the creation of new knowledges. Concurrent Eng: Res A 2011; 19(3): 225–234.

19.

Huang

Diao

. Ontology-based enterprise knowledge integration. Robot Cim: Int Manuf 2008; 24(4): 562–571.

20.

Ling

Wang

. An ontology-based method for knowledge integration in a collaborative design environment. Int J Adv Manuf Tech 2007; 34(9–10): 843–856.

21.

Rajsiri

Lorré

J-P

Bénaben

. Knowledge-based system for collaborative process specification. Comput Ind 2010; 61(2): 161–175.

22.

Chen

. Developing a distributed knowledge model for knowledge management in collaborative development and implementation of an enterprise system. Robot Cim: Int Manuf 2004; 20(5): 439–456.

23.

Pirró

Mastroianni

Talia

. A framework for distributed knowledge management: design and implementation. Future Gener Comp Sy 2010; 26(1): 38–49.

24.

Chen

Bau

Yeh

. Merging domain ontologies based on the WordNet system and Fuzzy Formal Concept Analysis techniques. Appl Soft Comput 2011; 11(2): 1908–1923.

25.

Raunich

Rahm

. ATOM: automatic target-driven ontology merging. In: 2011 IEEE 27th international conference on data engineering, Hannover, 11–16 April 2011, pp.1276–1279. New York: IEEE.

26.

Noy

Musen

. PROMPT: algorithm and tool for automated ontology merging and alignment. In: Proceedings of the seventeenth national conference on artificial intelligence and twelfth conference on innovative applications of artificial intelligence, Texas, USA, 30 July-3 August 2000, pp.450–455. Palo Alto, CA: AAAI Press.

27.

Dou

Mcdermott

. Ontology translation by ontology merging and automated reasoning. In: EKAW2002 workshop on ontologies for multi-agent systems, OMAS 2002, Siguenza, Spain, 30 September 2002, pp.3–18.

28.

Stoilos

Stamou

Pan

. Fuzzy extensions of OWL: logical properties and reduction to fuzzy description logics. Int J Approx Reason 2010; 51(6): 656–679.

29.

Bobillo

Straccia

. Reasoning with the finitely many-valued Łukasiewicz fuzzy Description Logic SROIQ. Inform Sciences 2011; 181(4): 758–778.

30.

Zhou

. Reasoning within extended fuzzy description logic. Knowl Based Syst 2009; 22(1): 28–37.

31.

Baader

Calvanese

McGuinness

. (eds). The description logic handbook. Cambridge: Cambridge University Press, 2003.

32.

Zadeh

. Fuzzy sets. Inform Control 1965; 8(3): 338–353.

33.

Wordnet. http://wordnet.princeton.edu/

34.

Gruber

. A translation approach to portable ontology specifications. Knowl Acquis 1993; 5(2): 199–220.

35.

Protege. http://protege.stanford.edu/

36.

FuzzyDL systems. http://gaia.isti.cnr.it/straccia./software/FuzzyOWL/index.html

37.

Pellet: OWL 2 reasoner for Java. http://clarkparsia.com/pellet/

38.

Sarigecili

Roy

Rachuri

. Interpreting the semantics of GD&T specifications of a product for tolerance analysis. Comput Des 2014; 47: 72–84.

39.

Borsato

. Bridging the gap between product lifecycle management and sustainability in manufacturing through ontology building. Comput Ind 2014; 65(2): 258–269.
