Ultrasonic machining of WC–Co composite material: Experimental investigation and optimization using statistical techniques

Abstract

In manufacturing industries, WC–Co composite material is highly demanded due to its excellent properties such as toughness with hardness, good dimensional stability, and higher mechanical strength. However, the difficulties in its machining restrict the application and competitiveness of this material. This investigation is aimed at studying the impact of different experimental conditions (by varying cobalt content, thickness of workpiece, tool geometry, tool material, abrasive grit size, and power rating) on responses of interest (cutting ratio, overcut, and taper angle) in ultrasonic drilling of WC–Co composite material. The experiments have been planned using Taguchi’s L-36 orthogonal array, and analytic hierarchy process–based technique for order preference by similarity to ideal solution has been applied for optimization of multiple responses. Analysis of variance is also employed to identify the significant factors and the optimized process settings for the different responses. The experimental results showed that abrasive grit size and power rating are most influential for cutting ratio, overcut, and taper angle.

Keywords

analysis of variance cutting ratio optimization overcut Taguchi method taper angle technique for order preference by similarity to ideal solution WC–Co composite

Introduction

Composite materials are exclusively known for their superior mechanical, thermal, and chemical properties as well as for high strength-to-weight ratio. Tungsten carbide–cobalt (WC–Co) composite is one of the important metal matrix composite (MMC) materials manufactured by a process called as “powder metallurgy.”¹ WC–Co composite materials possess excellent hardness with toughness, high mechanical strength and wear resistance, and good dimensional stability. Owing to their superior properties, these materials cover a wide range of industrial applications, for example, cutting and drilling tools, manufacturing of wear parts, and die and punch manufacturing. WC–Co composite material is also termed as cemented carbide, hard metal, and, in some cases, cermets.

Machining of WC–Co materials using thermal-based non-conventional process (such as electrical discharge machining (EDM), wire electrical discharge machining (WEDM), and laser beam machining (LBM)) results in deteriorated surface quality (cracks, recast layer, and heat-affected zone) and alteration of mechanical properties.^1–12 The problem in EDM is related to the differences in the physical properties of WC and Co such as melting and evaporation temperatures, thermal expansion and contraction coefficients, and electrical conductivity. Problems mainly in terms of dislodging of WC grains and agglomeration of graphite (carbon) and WC grains make the discharge condition unstable and prone to arcing. Machining of WC–Co composite with EDM also causes a significant amount of cracks and spalling on the machined surface.^2,3,10,11 These defects result in decrease in wear resistance, hardness, and corrosion resistance of machined surface and also affect the product quality.

Ultrasonic machining (USM) is a modern machining method usually employed for processing materials with higher hardness/brittleness such as quartz, semiconductor materials, and ceramics.¹³ USM is also termed as ultrasonic drilling, ultrasonic abrasive machining, ultrasonic grinding, ultrasonic cutting, ultrasonic dimension machining, and slurry drilling. In USM, high-frequency electrical energy is converted into mechanical vibrations via a transducer/booster combination, which are then transmitted to an energy-focusing as well as amplifying device known as horn or sonotrode. This causes tool to vibrate along its longitudinal axis at high frequency, usually greater than 20 kHz with amplitude of 12–50 µm. The power ratings range from 50 to 3000 W, and a controlled static load is applied to the tool to provide feed in the longitudinal direction. Abrasive slurry, which is a mixture of abrasive materials such as silicon carbide, boron carbide, and alumina suspended in water or some suitable carrier medium, is continuously pumped across the gap between the tool and work. The vibration of the tool causes the abrasive particles held in the slurry to impact the work surface leading to material removal by micro-chipping.

Various investigators have reported the effects of process variables on machining characteristics in USM process. Abrasive grit size and power rating have been revealed as the main significant factors which affect machining characteristics.^14–16 Lalchhuanvela et al.¹⁷ presented a study of the material removal rate (MRR) and surface roughness (SR) in machining of ceramics (alumina based), and the results showed that the higher level of every input parameter gives higher MRR. Kumar et al.¹⁸ reported that the tool material and power rating affect the tool wear to a significant extent, while slurry concentration has no appreciable effect on tool wear rate (TWR). Adithan and Venkatesh¹⁹ reported that an increase in the static load results in reduction in the oversize. The rectangular tools produce more oversize as compared to circular tools. Komaraiah and Reddy,²⁰ Kumar and Khamba,²¹ and Dam et al.²² assessed the impact of work material properties on machining characteristics in USM. Results reported that work materials with higher fracture toughness and hardness tend to be machined at higher removal rates. Kumar²³ investigated SR and micro-hardness of machined surface of titanium, and results show that grit size was the most significant factor. Cheema et al.²⁴ reported that power rating and grit size are the factors of high significance which affect the SR, hole oversize, and wear ratio. Table 1 shows a review of selected investigations on USM of ceramics and other hard/brittle materials.

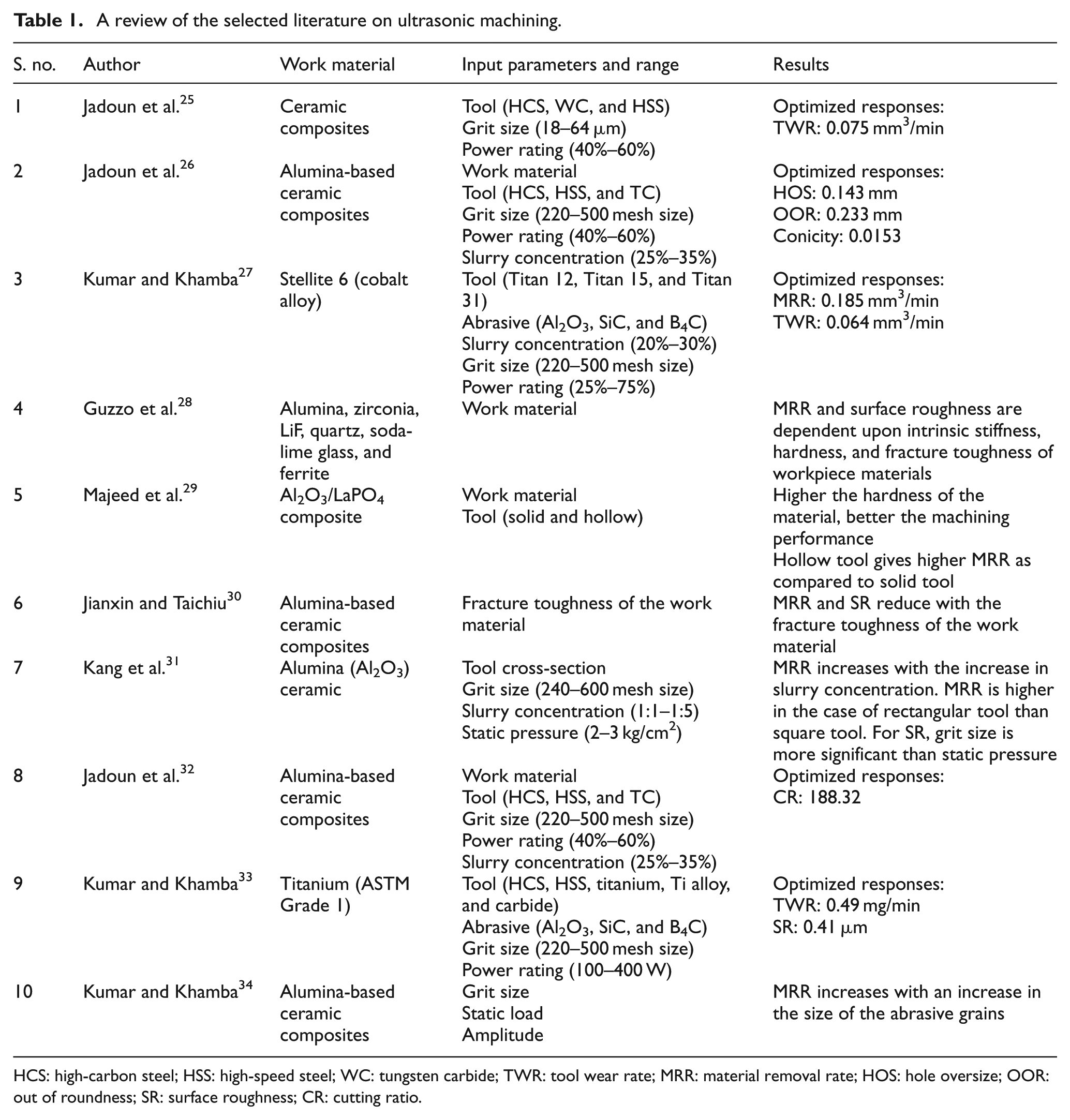

Table 1.

A review of the selected literature on ultrasonic machining.

S. no.	Author	Work material	Input parameters and range	Results
1	Jadoun et al.²⁵	Ceramic composites	Tool (HCS, WC, and HSS) Grit size (18–64 µm) Power rating (40%–60%)	Optimized responses: TWR: 0.075 mm³/min
2	Jadoun et al.²⁶	Alumina-based ceramic composites	Work material Tool (HCS, HSS, and TC) Grit size (220–500 mesh size) Power rating (40%–60%) Slurry concentration (25%–35%)	Optimized responses: HOS: 0.143 mm OOR: 0.233 mm Conicity: 0.0153
3	Kumar and Khamba²⁷	Stellite 6 (cobalt alloy)	Tool (Titan 12, Titan 15, and Titan 31) Abrasive (Al₂O₃, SiC, and B₄C) Slurry concentration (20%–30%) Grit size (220–500 mesh size) Power rating (25%–75%)	Optimized responses: MRR: 0.185 mm³/min TWR: 0.064 mm³/min
4	Guzzo et al.²⁸	Alumina, zirconia, LiF, quartz, soda-lime glass, and ferrite	Work material	MRR and surface roughness are dependent upon intrinsic stiffness, hardness, and fracture toughness of workpiece materials
5	Majeed et al.²⁹	Al₂O₃/LaPO₄ composite	Work material Tool (solid and hollow)	Higher the hardness of the material, better the machining performance Hollow tool gives higher MRR as compared to solid tool
6	Jianxin and Taichiu³⁰	Alumina-based ceramic composites	Fracture toughness of the work material	MRR and SR reduce with the fracture toughness of the work material
7	Kang et al.³¹	Alumina (Al₂O₃) ceramic	Tool cross-section Grit size (240–600 mesh size) Slurry concentration (1:1–1:5) Static pressure (2–3 kg/cm²)	MRR increases with the increase in slurry concentration. MRR is higher in the case of rectangular tool than square tool. For SR, grit size is more significant than static pressure
8	Jadoun et al.³²	Alumina-based ceramic composites	Work material Tool (HCS, HSS, and TC) Grit size (220–500 mesh size) Power rating (40%–60%) Slurry concentration (25%–35%)	Optimized responses: CR: 188.32
9	Kumar and Khamba³³	Titanium (ASTM Grade 1)	Tool (HCS, HSS, titanium, Ti alloy, and carbide) Abrasive (Al₂O₃, SiC, and B₄C) Grit size (220–500 mesh size) Power rating (100–400 W)	Optimized responses: TWR: 0.49 mg/min SR: 0.41 µm
10	Kumar and Khamba³⁴	Alumina-based ceramic composites	Grit size Static load Amplitude	MRR increases with an increase in the size of the abrasive grains

HCS: high-carbon steel; HSS: high-speed steel; WC: tungsten carbide; TWR: tool wear rate; MRR: material removal rate; HOS: hole oversize; OOR: out of roundness; SR: surface roughness; CR: cutting ratio.

Important gaps observed from the literature review

Most of the work has been focused on USM of work materials such as zirconia ceramics, titanium and its alloys, alumina-based ceramic composites, and glass. There is almost no investigation reported on the machinability of WC–Co composite using USM in the available literature.

Some important input parameters related to work material either have not been investigated or need to be investigated to proper extent (i.e. composition of work material and thickness of work samples). Similarly, there is a critical lack of investigation on the effect of tool geometry on the machining performance (i.e. solid and hollow).

Very few studies have focused on the investigation of production inaccuracies (such as oversize and taper angle (TA)) and cutting ratio (CR). Figure 1 shows a summary of the responses considered in the past studies.

Only few studies were available in the literature which investigated hole accuracy; however, even these studies have missed some productivity-based outcomes like MRR and TWR. Both hole accuracy and productivity are deeply correlated and must be optimized simultaneously. In addition, the previous researches also omitted some crucial parameters that may affect the quality of drilled hole such as work material composition, thickness of work, and geometry of tool.

Most of the studies were reported on the single-response optimization. In USM, responses are correlated and contrasting, and it is highly desirable to optimize multiple responses simultaneously to solve real problems of the industry.

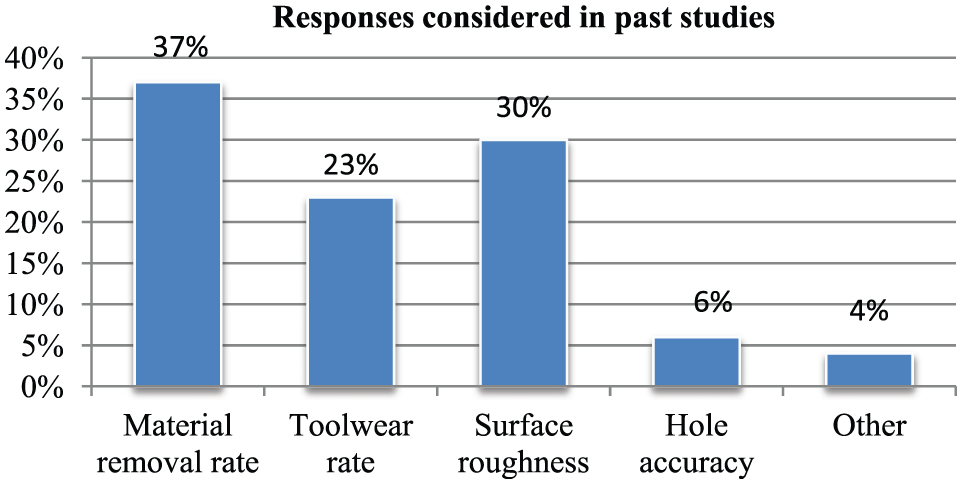

Figure 1.

Responses investigated in the literature of ultrasonic machining.

Scope of this work

As per the current trends in manufacturing, WC and its composite (WC–Co) are of great importance in the production of cutting tools, dies, and other special tools. These applications include drilling as one of the most important operations. USM could be a potential solution for addressing the problems related to machinability of WC–Co material. The machined surface produced by USM is found to be free from any surface defects (heat-affected zone, cracks, recast layer, etc.), in contrast to the thermal-based machining processes.¹⁴ However, the simultaneous optimization of hole accuracy and CR becomes imperative when we deal with real-life problems. Only 6% of investigations have been found to consider hole accuracy as a process response (as shown in Figure 1). So, this current investigation is targeted to study the influence of cobalt content (in work material), work material thickness, geometry of tool, tool material, abrasive grit size, and power rating on three responses of interest: CR, overcut, and TA. Analytic hierarchy process (AHP)-based technique for order preference by similarity to ideal solution (TOPSIS) method is used for multi-response optimization. Figure 2 shows the verdict model of USM process parameter selection.

Figure 2.

Verdict model of USM process parameter selection.

Experimentation

The experiments were performed on an “AP-450 model” (Sonic-Mill, Albuquerque, NM, USA) USM setup. The different components of USM setup such as abrasive slurry supply system, transducer, coupler, horn, dial assembly, converter, and coupler clamp. In ultrasonic machine, the power supply is more accurately characterized as a high-power sine wave generator that offers the user control over the frequency and power of the generated signal. It converts low-frequency (50–60 Hz) electric power to high frequency (20–25 kHz). This electric signal is applied to transducer which further converts it into vibration. Transducers convert the electrical energy into mechanical energy. In ultrasonic machine tool, there are two types of transducers based on their principle of operation: piezoelectric, and magnetostrictive. In piezoelectric transducer, the mechanical motion is achieved by piezoelectric effect generated from certain materials such as quartz or lead zirconate titanate. On the other hand, another type of transducer is generally constructed from a laminated stack of nickel or nickel alloy sheets. Magnetostrictive-type transducer results in high electrical losses and low efficient process (about 55%–60%), while piezoelectric transducers possess high efficiency (90%–96%). The function of the horn is to attach and hold the tool to the transducer and also transmits energy to the tool. Tool holders are attached to the transducers by means of a large, loose-fitting screw. Horns are available in two configurations: amplifying and non-amplifying. Generally used materials for making horns are monel, titanium, stainless steel, aluminum, and so on. The designing of tool should be done in such a manner that can provide the maximum vibration amplitude at the free end at a given frequency. For this work, the drawing of used horn is shown in Figure 3. Titanium alloy horn was used during the experimental work. The tool material should possess mechanical properties such as high wear resistance and good elastic and fatigue strength. Commonly applicable materials for tool are mild steel, tungsten carbide, silver steel, and monel. The tool can be attached to the horn by soldering, brazing, or screw/taper fitting. The enlarged view of machining zone containing workpiece, fixture, and tool is also depicted in Figure 4.

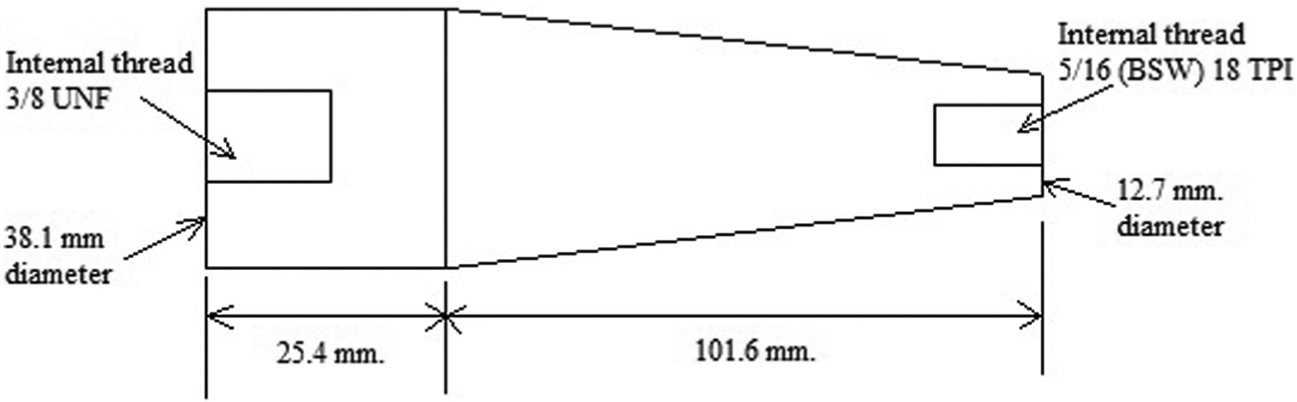

Figure 3.

Drawing of horn used.

Figure 4.

Different components of USM setup and cutting zone.

Work materials with the cobalt content of 6% and 24% (WC with medium grain and cobalt with 0.9–1.2 µm), in two different configurations in terms of thickness (3 and 5 mm with diameter of 20 mm), were selected. For these work samples, compaction pressure used was 70–175 MPa and sintering temperature ranged from 1350 °C to 1500 °C. The porosity for 6% Co and 24% Co work samples was at A00 scale. Both the samples were having microstructure free from graphite and ETA phase. The mechanical properties of work materials are shown in Table 2. The materials used for fabricating the tools were stainless steel (18-8 type), silver steel (C, 1%; S and P, 0.05%; Si, 0.3%; Mn, 0.35%; and Fe, balance), and nimonic-80A. Tools were designed to have same mass (9 g), the value of which was derived to obtain the resonant frequency. Two geometry of tools, namely, hollow and solid, were fabricated. Figure 5 shows the detailed drawing of the tools. Boron carbide was used as abrasive, with three levels for mean particle size (mesh 200, 320, and 500). The concentration of the abrasive slurry was decided to be fixed at 25%. Power rating was selected at three discrete levels as 40%, 60%, and 80%. The levels of the input factors were decided on the basis of the analysis of trends of influences of these parameters obtained in a “pilot experiment,” conducted using “one factor at a time” approach. Table 3 shows the details of input parameters considered for the investigation.

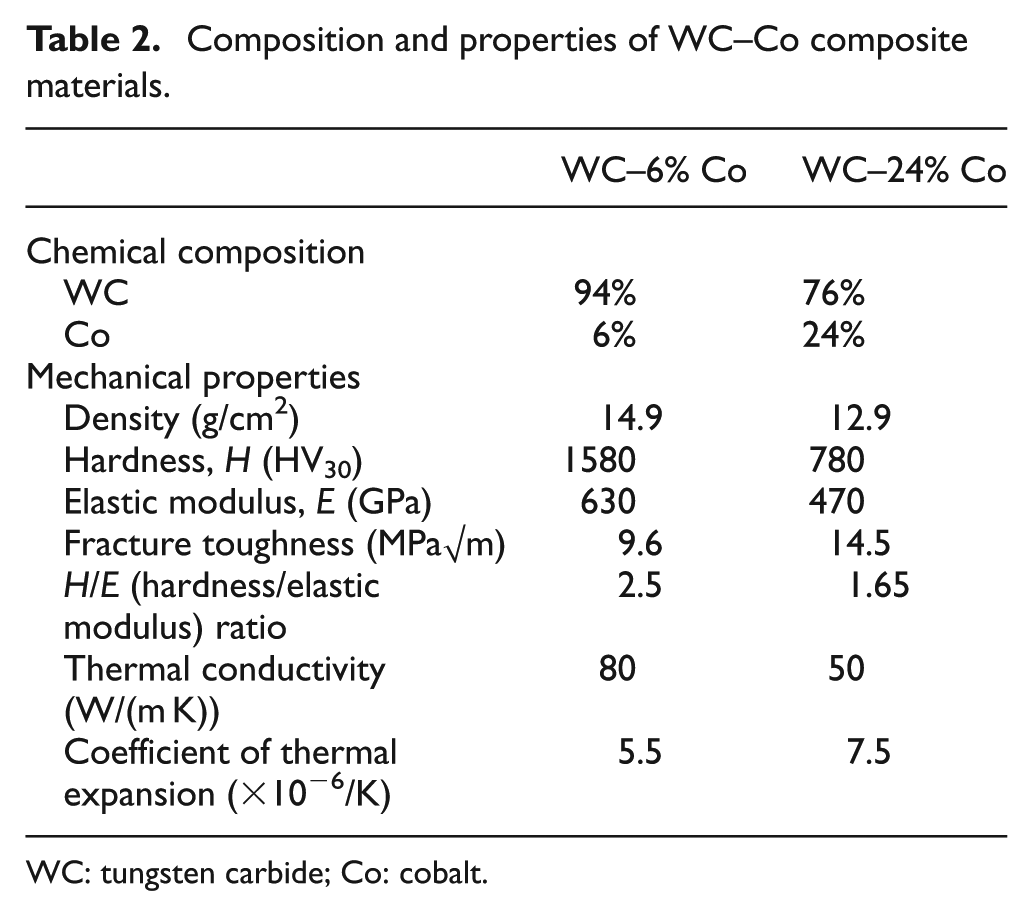

Table 2.

Composition and properties of WC–Co composite materials.

	WC–6% Co	WC–24% Co
Chemical composition
WC	94%	76%
Co	6%	24%
Mechanical properties
Density (g/cm²)	14.9	12.9
Hardness, H (HV₃₀)	1580	780
Elastic modulus, E (GPa)	630	470
Fracture toughness (MPa√m)	9.6	14.5
H/E (hardness/elastic modulus) ratio	2.5	1.65
Thermal conductivity (W/(m K))	80	50
Coefficient of thermal expansion (×10⁻⁶/K)	5.5	7.5

WC: tungsten carbide; Co: cobalt.

Figure 5.

Detailed drawing of tools.

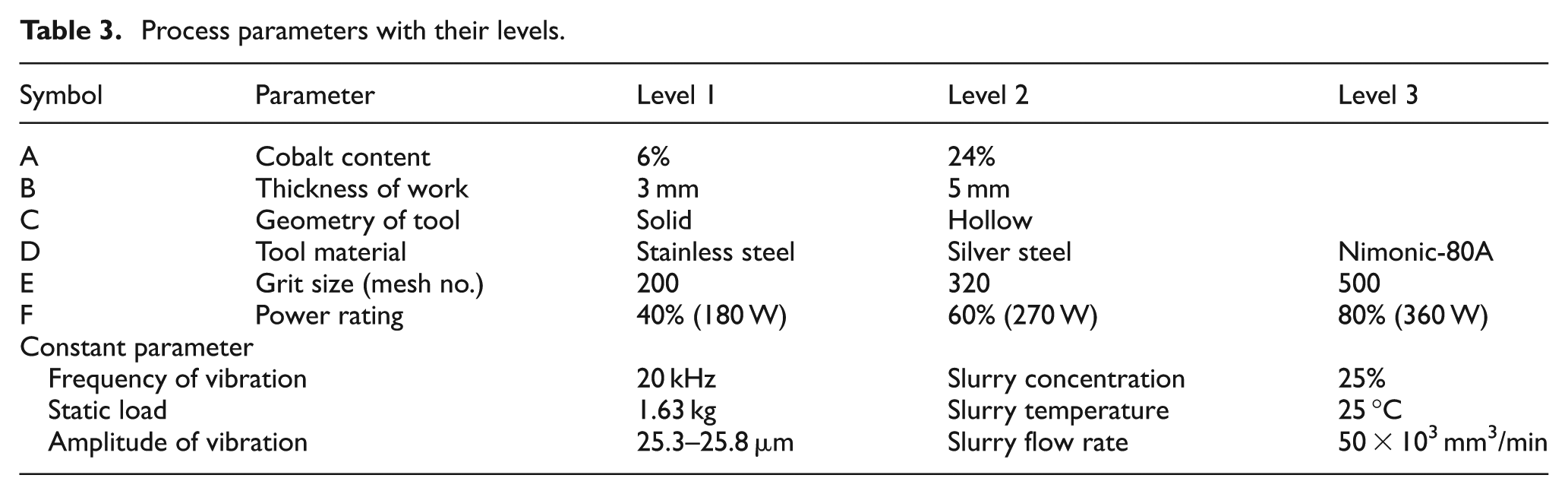

Table 3.

Process parameters with their levels.

Symbol	Parameter	Level 1	Level 2	Level 3
A	Cobalt content	6%	24%
B	Thickness of work	3 mm	5 mm
C	Geometry of tool	Solid	Hollow
D	Tool material	Stainless steel	Silver steel	Nimonic-80A
E	Grit size (mesh no.)	200	320	500
F	Power rating	40% (180 W)	60% (270 W)	80% (360 W)
Constant parameter
Frequency of vibration		20 kHz	Slurry concentration	25%
Static load		1.63 kg	Slurry temperature	25 °C
Amplitude of vibration		25.3–25.8 µm	Slurry flow rate	50 × 10³ mm³/min

The CR, overcut, and TA are computed using the following formulae

CR = \frac{w_{b} - w_{a}}{t_{b} - t_{a}}

(1)

Overcut (in mm) = \frac{d_{i} - d_{t}}{2}

(2)

TA (\circ) = \frac{(d_{i} - d_{o}) \times 180}{2 t Π}

(3)

where $w_{b}$ is the weight of work before machining, $w_{a}$ is the weight of work after machining, $t_{b}$ is the weight of tool before machining, $t_{a}$ is the weight of tool after machining, $d_{t}$ is the diameter of tool, $d_{i}$ is the diameter of drilled hole at entry side, $d_{o}$ is the diameter of drilled hole at exit side, and $t$ is the thickness of work.

This study makes use of Taguchi’s L-36 OA for design of the experimental plan. There are three factors with two levels and remaining factors have three levels. In addition, three interactions (A × D, B × D, and C × D) are also required to be evaluated. Therefore, the degrees of freedom (DOFs) of L-36 array (35 DOFs) are adequately enough for the problem under consideration (with required DOF being 15). The experimental plan is exhibited in Table 4. Two replicates were run for the full experiment, and all of the trials were completely randomized to entertain the nuisance factors. Following relations are utilized for assessment of the Signal to noise ratio (S/N ratio)³⁵

Larger the best

{(\frac{S}{N})}_{LB} = - 10 \log (\frac{1}{R} \sum_{j = 1}^{R} \frac{1}{y_{j}^{2}})

(4)

Smaller the best

{(\frac{S}{N})}_{SB} = - 10 \log (\frac{1}{R} \sum_{j = 1}^{R} y_{j}^{2})

(5)

where $y_{j}$ is the response value recorded in jth observation. Here, for CR, “larger the best,” and for overcut and TA, “smaller the best” type S/N ratios were computed. Minitab-16 software has been utilized for analyzing the results.

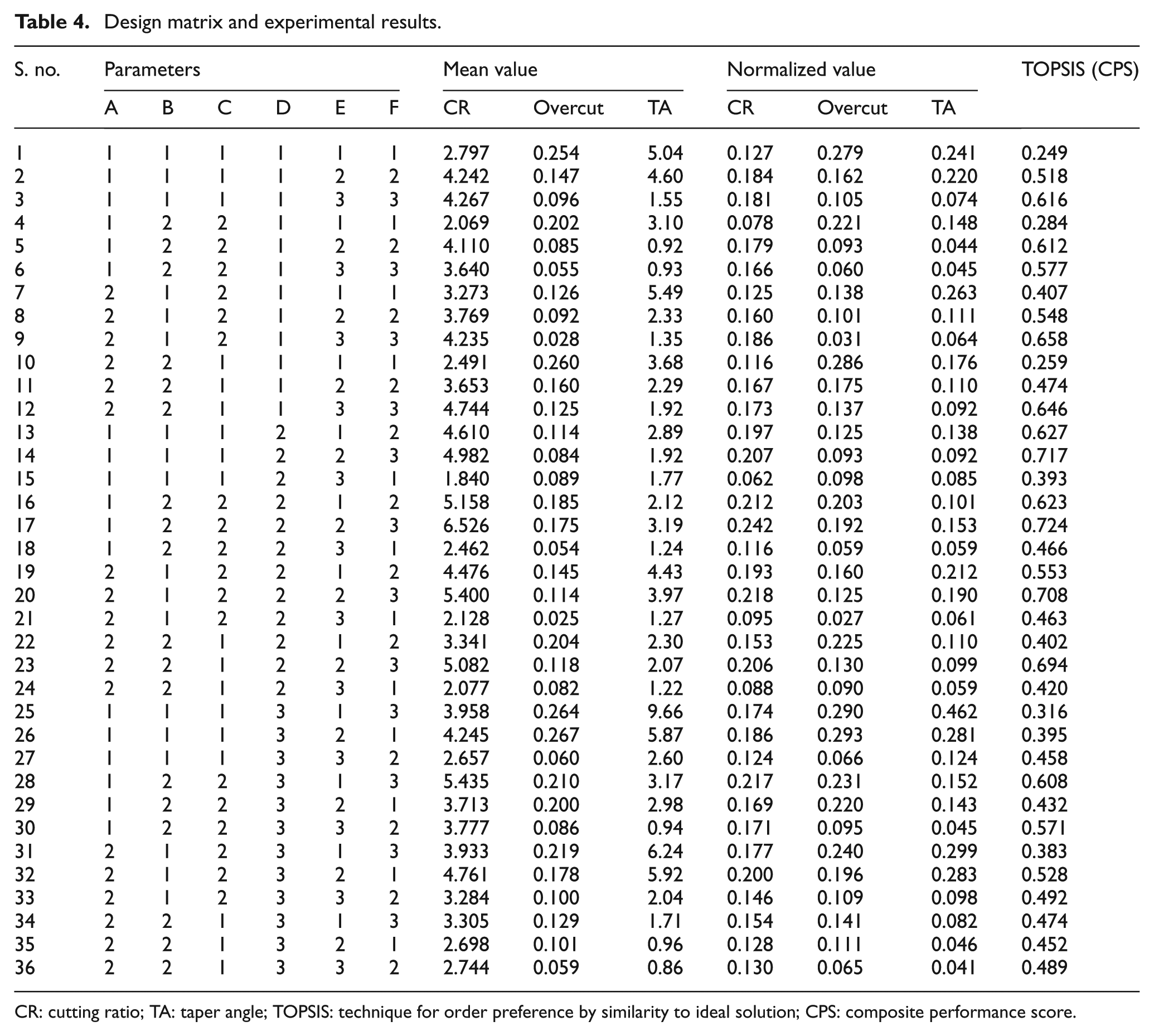

Table 4.

Design matrix and experimental results.

S. no.	Parameters						Mean value			Normalized value			TOPSIS (CPS)
S. no.	A	B	C	D	E	F	CR	Overcut	TA	CR	Overcut	TA	TOPSIS (CPS)
1	1	1	1	1	1	1	2.797	0.254	5.04	0.127	0.279	0.241	0.249
2	1	1	1	1	2	2	4.242	0.147	4.60	0.184	0.162	0.220	0.518
3	1	1	1	1	3	3	4.267	0.096	1.55	0.181	0.105	0.074	0.616
4	1	2	2	1	1	1	2.069	0.202	3.10	0.078	0.221	0.148	0.284
5	1	2	2	1	2	2	4.110	0.085	0.92	0.179	0.093	0.044	0.612
6	1	2	2	1	3	3	3.640	0.055	0.93	0.166	0.060	0.045	0.577
7	2	1	2	1	1	1	3.273	0.126	5.49	0.125	0.138	0.263	0.407
8	2	1	2	1	2	2	3.769	0.092	2.33	0.160	0.101	0.111	0.548
9	2	1	2	1	3	3	4.235	0.028	1.35	0.186	0.031	0.064	0.658
10	2	2	1	1	1	1	2.491	0.260	3.68	0.116	0.286	0.176	0.259
11	2	2	1	1	2	2	3.653	0.160	2.29	0.167	0.175	0.110	0.474
12	2	2	1	1	3	3	4.744	0.125	1.92	0.173	0.137	0.092	0.646
13	1	1	1	2	1	2	4.610	0.114	2.89	0.197	0.125	0.138	0.627
14	1	1	1	2	2	3	4.982	0.084	1.92	0.207	0.093	0.092	0.717
15	1	1	1	2	3	1	1.840	0.089	1.77	0.062	0.098	0.085	0.393
16	1	2	2	2	1	2	5.158	0.185	2.12	0.212	0.203	0.101	0.623
17	1	2	2	2	2	3	6.526	0.175	3.19	0.242	0.192	0.153	0.724
18	1	2	2	2	3	1	2.462	0.054	1.24	0.116	0.059	0.059	0.466
19	2	1	2	2	1	2	4.476	0.145	4.43	0.193	0.160	0.212	0.553
20	2	1	2	2	2	3	5.400	0.114	3.97	0.218	0.125	0.190	0.708
21	2	1	2	2	3	1	2.128	0.025	1.27	0.095	0.027	0.061	0.463
22	2	2	1	2	1	2	3.341	0.204	2.30	0.153	0.225	0.110	0.402
23	2	2	1	2	2	3	5.082	0.118	2.07	0.206	0.130	0.099	0.694
24	2	2	1	2	3	1	2.077	0.082	1.22	0.088	0.090	0.059	0.420
25	1	1	1	3	1	3	3.958	0.264	9.66	0.174	0.290	0.462	0.316
26	1	1	1	3	2	1	4.245	0.267	5.87	0.186	0.293	0.281	0.395
27	1	1	1	3	3	2	2.657	0.060	2.60	0.124	0.066	0.124	0.458
28	1	2	2	3	1	3	5.435	0.210	3.17	0.217	0.231	0.152	0.608
29	1	2	2	3	2	1	3.713	0.200	2.98	0.169	0.220	0.143	0.432
30	1	2	2	3	3	2	3.777	0.086	0.94	0.171	0.095	0.045	0.571
31	2	1	2	3	1	3	3.933	0.219	6.24	0.177	0.240	0.299	0.383
32	2	1	2	3	2	1	4.761	0.178	5.92	0.200	0.196	0.283	0.528
33	2	1	2	3	3	2	3.284	0.100	2.04	0.146	0.109	0.098	0.492
34	2	2	1	3	1	3	3.305	0.129	1.71	0.154	0.141	0.082	0.474
35	2	2	1	3	2	1	2.698	0.101	0.96	0.128	0.111	0.046	0.452
36	2	2	1	3	3	2	2.744	0.059	0.86	0.130	0.065	0.041	0.489

CR: cutting ratio; TA: taper angle; TOPSIS: technique for order preference by similarity to ideal solution; CPS: composite performance score.

Results and discussion

CR

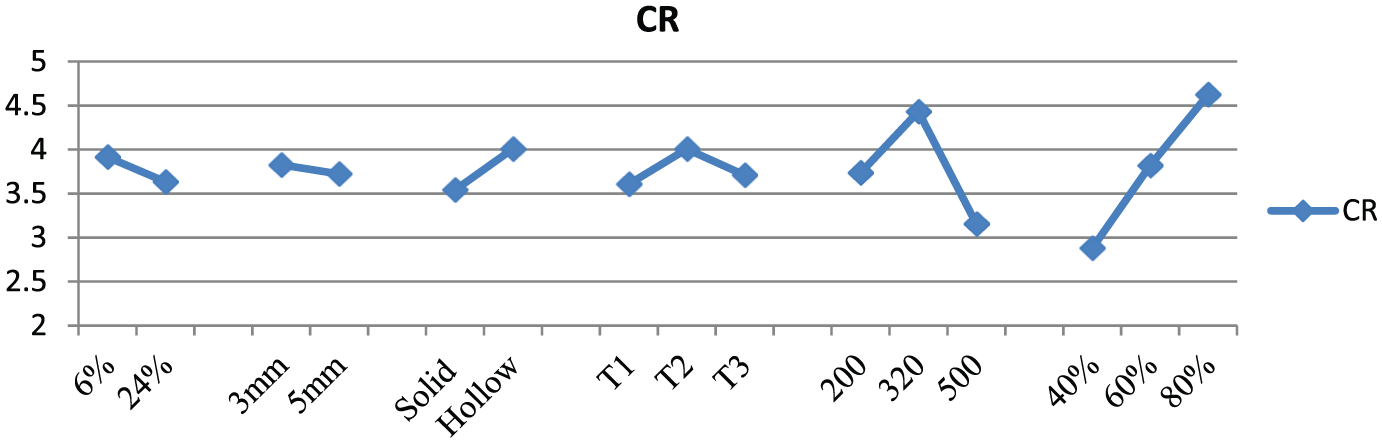

Figure 6 shows the main effect plot for CR. Increase in the cobalt content in work material results in a corresponding increase in its fracture toughness. A material which has higher fracture toughness requires more energy for crack propagation as the resistance to crack formation is higher. Thickness of workpiece has no appreciable effect on CR. Hollow tools provide higher CR because they possess better inertia and effective distribution of abrasive particles during the machining. Similar results have been reported by Kumar and Khamba²¹ and Kataria et al.¹⁶ Silver steel tool gives the better performance for CR. The tool materials could be ranked (in order of decreasing CR) as silver steel, nimonic-80A, and stainless steel.

Figure 6.

Main effect plot for cutting ratio.

Power rating is also a significant parameter for CR. An increment in the power rating augments the energy of the abrasives against the work surface; therefore, the energy-rich particles create cracks of larger dimensions on the work surface and material is eroded in the form of larger chunks. This phenomenon ultimately leads to enhancement of CR. These results are found consistent with the findings of other researchers.^21,27,33

CR is a “larger the best” type response. So, the highest value of CR is considered as desirable. As shown in Figure 6, the optimal parametric setting for CR is A1 B1 C2 D2 E2 F3.

Overcut

A higher cobalt content in work material results in enhanced fracture toughness. Higher fracture toughness resists the cutting in lateral direction, which decisively controls the overcut. Thickness of work has no significant effect on overcut. Hollow tools produce less overcut as compared to solid ones because they acquire efficient flow of abrasive particles through the machining zone. Similar findings were observed from past researches.¹⁶ The tool materials can be ranked (decreasing overcut) as nimonic-80A > stainless steel > silver steel. Nimonic-80A tool endorses cutting of the work material in lateral direction as it owns superior hardness as compared to other tools. Only amplitude and static load could not completely stifle the lateral vibrations in USM. Overcut increases with an increase in abrasive grit size. Larger abrasive particles wear away bigger chunks of material from the lateral surface, which conclusively reported into higher overcut. Kataria et al.¹⁶ and Jadoun et al.²⁶ have also reported the same influence of grit size on overcut. Overcut is also being significantly affected by power rating. Overcut is higher at both (low and high) extreme levels of power rating and minimum at mid level.

Overcut is “smaller the best” type response. So, the smaller value of overcut is considered as the desirable. The optimal parametric setting for overcut is A2 B1 C2 D2 E3 F2, as depicted in Figure 7.

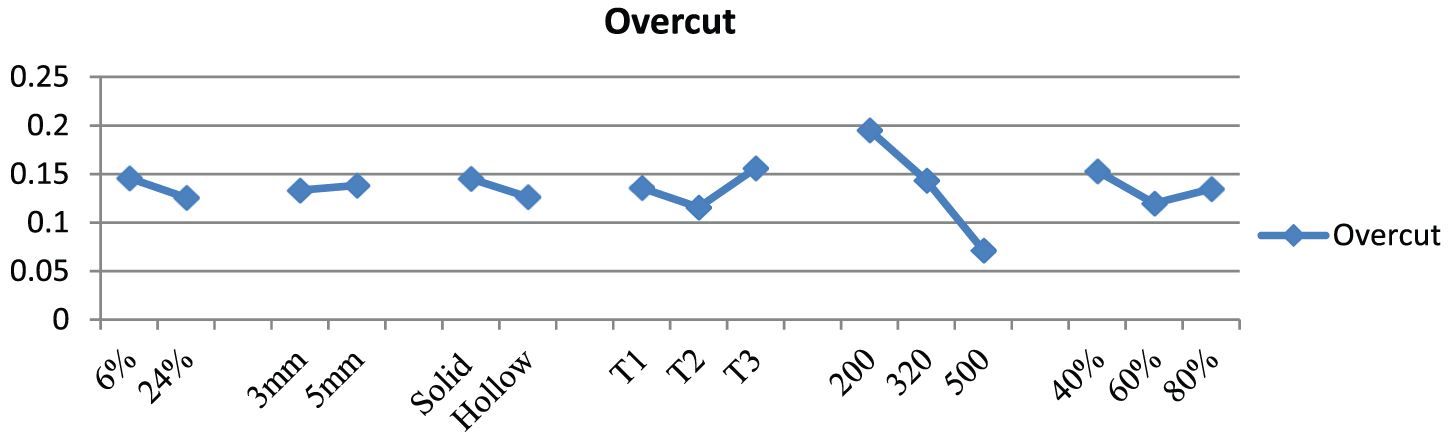

Figure 7.

Main effect plot for overcut.

TA

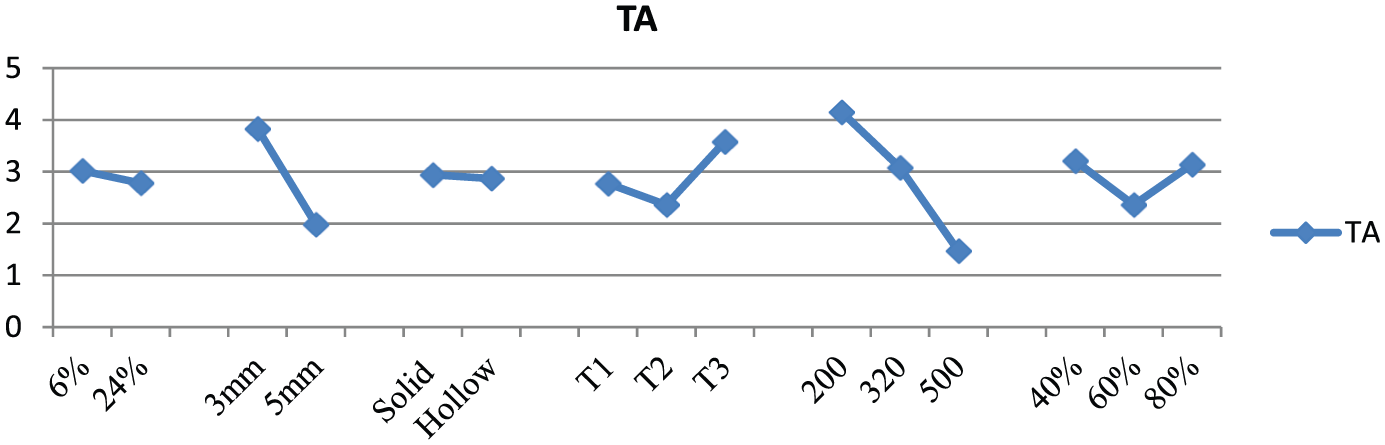

Figure 8 illustrates the main effect plot for TA. Cobalt content has been found to possess no appreciable effect on taper, whereas thickness of work has significant effect on TA. TA increases as thickness of work decreases. This occurs on account of the effects of longer machining time being dominated by increased drilled depth. TA is not being affected by the geometry of tool. Silver steel as tool material confers better performance in a view to reduce the TA, while grit size has significant effect on the TA. Any decrement in the grit size is reported to produce decreased TA; therefore, fine grains have lesser overcut. At both the extreme levels of power rating, higher TA is produced, whereas at mid level, TA is found to be smaller.

Figure 8.

Main effect plot for taper angle.

TA is “smaller the best” type response. So, the smallest value of TA is considered as the desirable. The optimal parametric setting for TA is A2 B2 C2 D2 E3 F2, as illustrated in Figure 8.

Analysis of variance results

Analysis of variance (ANOVA) test was performed for raw data to evaluate the significance of the variables that contribute to the variation in CR, oversize, and TA. Table 5 depicts the results of ANOVA test for raw data (CR, overcut, and TA). Power rating and grit size are the main significant parameters for all three responses considered. In addition, no interaction is found to be significant for CR, whereas interactions between cobalt content and tool material, workpiece thickness and tool material, and tool profile and tool material are significant for oversize and TA.

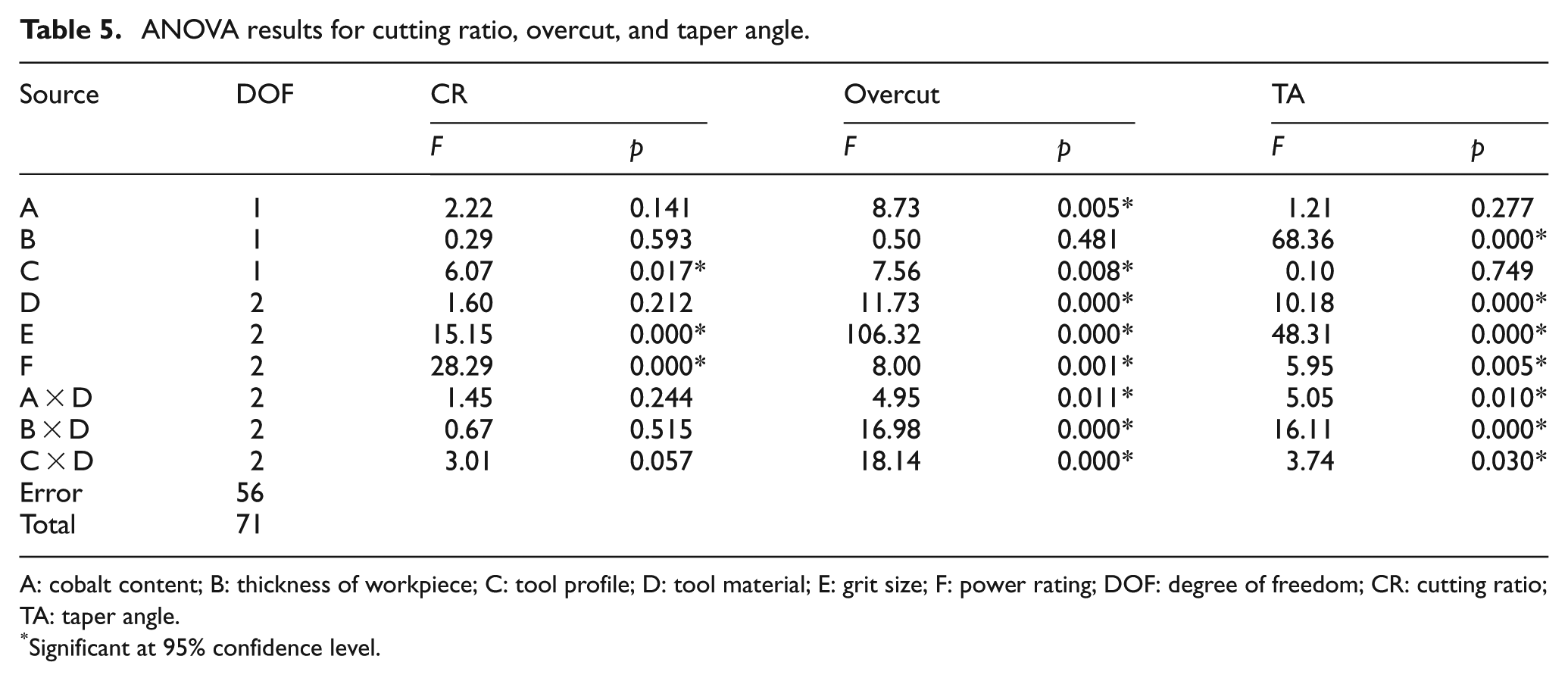

Table 5.

ANOVA results for cutting ratio, overcut, and taper angle.

Source	DOF	CR		Overcut		TA
Source	DOF	F	p	F	p	F	p
A	1	2.22	0.141	8.73	0.005*	1.21	0.277
B	1	0.29	0.593	0.50	0.481	68.36	0.000*
C	1	6.07	0.017*	7.56	0.008*	0.10	0.749
D	2	1.60	0.212	11.73	0.000*	10.18	0.000*
E	2	15.15	0.000*	106.32	0.000*	48.31	0.000*
F	2	28.29	0.000*	8.00	0.001*	5.95	0.005*
A × D	2	1.45	0.244	4.95	0.011*	5.05	0.010*
B × D	2	0.67	0.515	16.98	0.000*	16.11	0.000*
C × D	2	3.01	0.057	18.14	0.000*	3.74	0.030*
Error	56
Total	71

A: cobalt content; B: thickness of workpiece; C: tool profile; D: tool material; E: grit size; F: power rating; DOF: degree of freedom; CR: cutting ratio; TA: taper angle.

Significant at 95% confidence level.

Surface topography

Scanning electron microscope (LEO, model-435VP) was employed to investigate the surface characteristics of selected machined samples. Power rating and grit size mainly affect the surface characteristics in USM.²¹Figure 9 shows the surface of WC–24% Co and WC–6% Co material at 1000× magnification before machining. The grains are equiaxed and thus reflect a fair machinability with a mechanical processing method such as USM. The microstructure of the machined surface at 1000× is depicted in Figure 10, for a sample machined using coarse grit size and higher level of power rating (experiment no. 34). Therefore, the rate of input energy to the tool or abrasive is relatively high. It can be observed from Figure 10 that cleavage type of fracture took place. Figure 11 illustrates the edge quality (inlet) of hole for experiment no. 36 and also shows the site where Figure 12 has been taken.

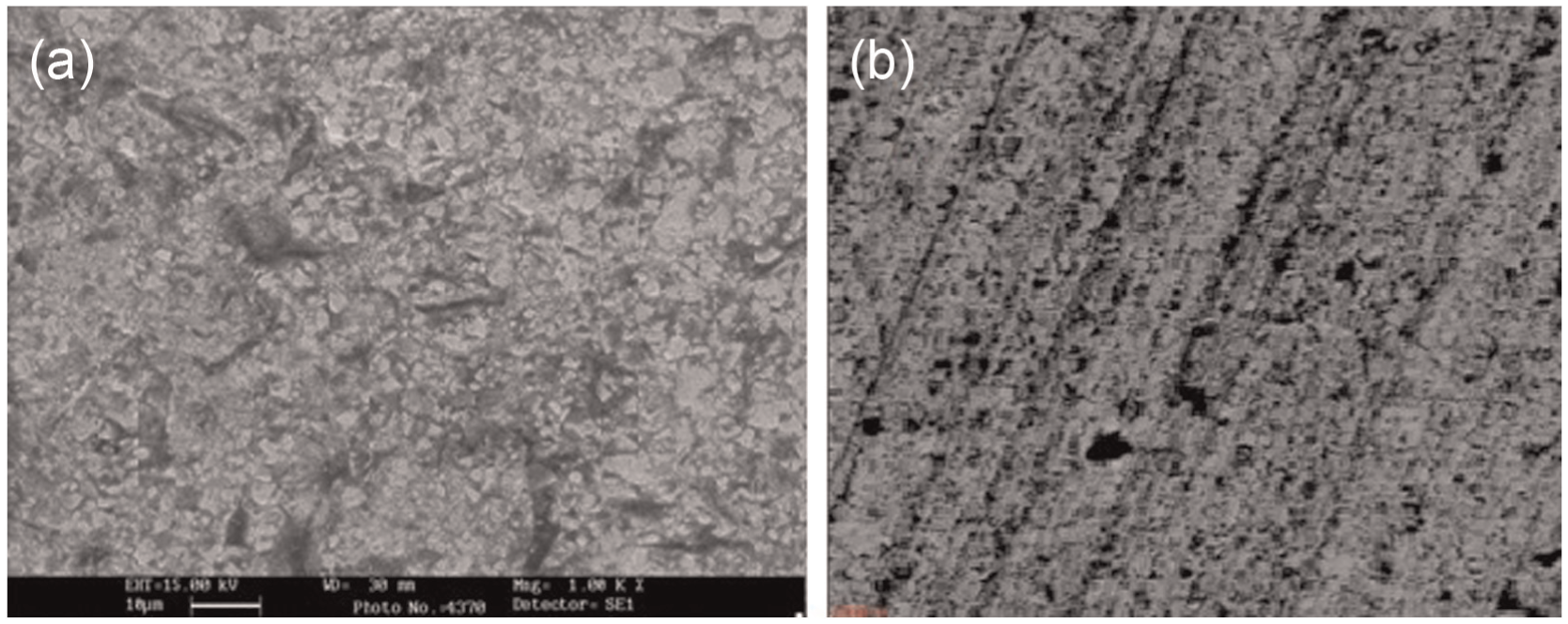

Figure 9.

SEM image of work material before machining: (a) 24% cobalt and (b) 6% cobalt.

Figure 10.

SEM image for machined sample (experiment no. 34).

Figure 11.

Edge quality of hole.

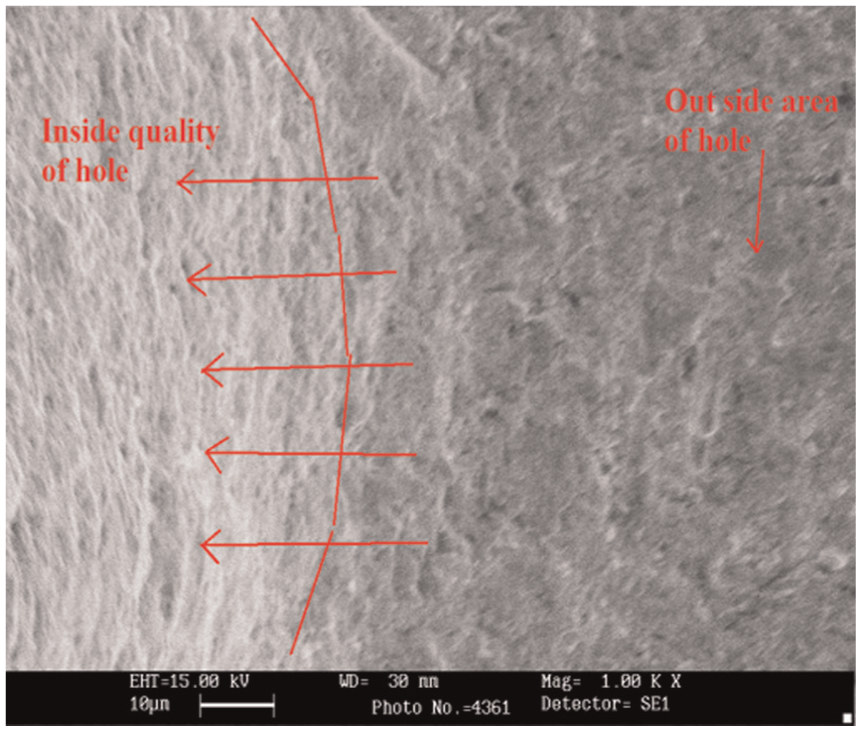

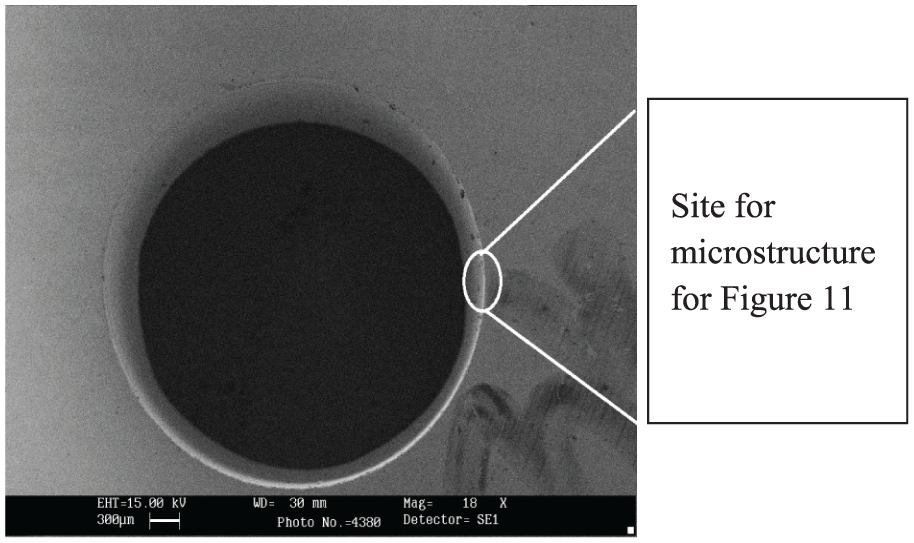

Figure 12.

Surface quality at rim of hole (inside area of hole).

Figure 12 shows that the surface quality at rim of hole appeared to be good. There was no evidence of any micro-cracking or any other defects in this region.

Multi-response optimization using AHP-based TOPSIS method

The TOPSIS method was originated by Yoon and Hwang.³⁶ This concept is basically based on the notion that the considered alternative should have the shortest Euclidean distance from the best solution and farthest from the negative best solution. TOPSIS thus confers a resolution that is closest to hypothetically best and farthest to the hypothetically worst solution. The basic procedure of the TOPSIS method consists of the following steps (Kataria and Kumar³⁷):

The normalized values $(R_{jy})$ are obtained as

R_{jy} = \frac{m_{jy}}{{[\sum_{y = 1}^{p} m_{jy}^{2}]}^{1 / 2}}

(6)

A set of weights w_y such that Σw_y = 1 may be decided upon. In this article, weights are being computed employing AHP technique. The weights for CR, overcut, and TA are 0.58, 0.28, and 0.14, respectively, as determined by AHP technique. Then, further weighted normalized decision matrix is obtained. The weighted normalized value V_jy is calculated as

V_{jy} = w_{y} R_{jy}

(7)

The ideal and negative ideal solutions can be expressed as

\begin{matrix} V^{+} = {(\max . V_{jy} / y \in Y), (\min . V_{jy} / y \in Y')}; \\ = {V_{1}^{+}, V_{2}^{+}, V_{3}^{+}, \dots, V_{n}^{+}} \end{matrix}

(8)

\begin{matrix} V^{-} = {(\min . V_{jy} / y \in Y), (\max . V_{jy} / y \in Y')}; \\ = {V_{1}^{-}, V_{2}^{-}, V_{3}^{-}, \dots, V_{n}^{-}} \end{matrix}

(9)

where Y = (y = 1, 2, 3, …, p)/y is associated with beneficial attributes and Y′ = (y = 1, 2, 3, …, p)/y is associated with non-beneficial attributes.

The separation of each alternative from the ideal and worst one is given as

S_{j}^{+} = {\sum_{y = 1}^{p} {(V_{jy} - V_{y}^{+})}^{2}}^{1 / 2}, j = 1, 2, \dots, m

(10)

S_{j}^{-} = {\sum_{y = 1}^{p} {(V_{jy} - V_{y}^{-})}^{2}}^{1 / 2}, j = 1, 2, \dots, m

(11)

The relative closeness of a particular alternative to the ideal solution, P_i, can be expressed as follows

P_{j} = \frac{S_{j}^{-}}{(S_{j}^{+} + S_{j}^{-})}

(12)

P_j may also be called the overall or composite performance score (CPS) of the corresponding alternative.

Figure 13 depicts the mean effect plots for CPS. For, CPS, the highest value is desirable. So, as shown in Figure 13, the optimal parametric setting for multi-response optimization is A1 B2 C2 D2 E2 F3.

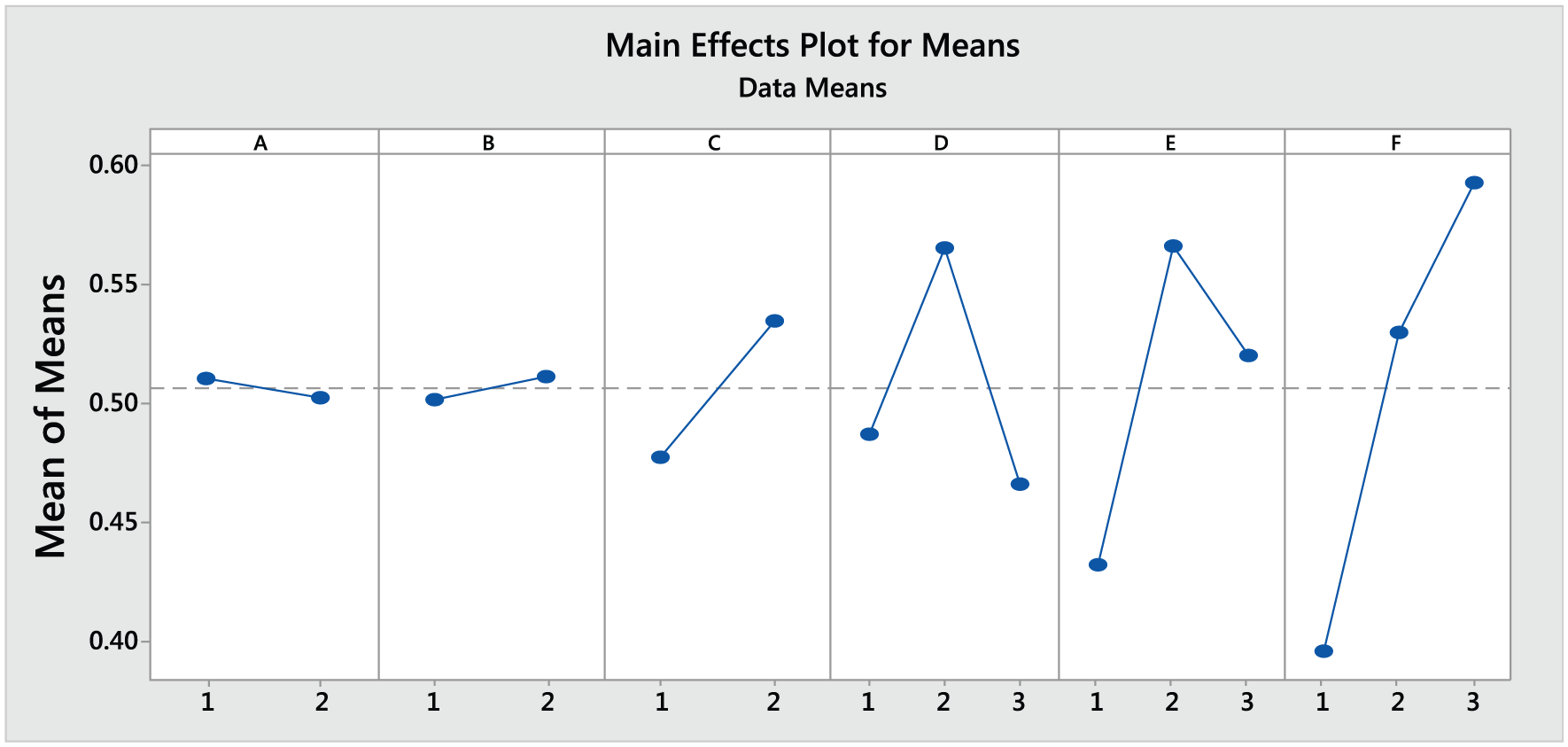

Figure 13.

Main effect plot for composite performance score.

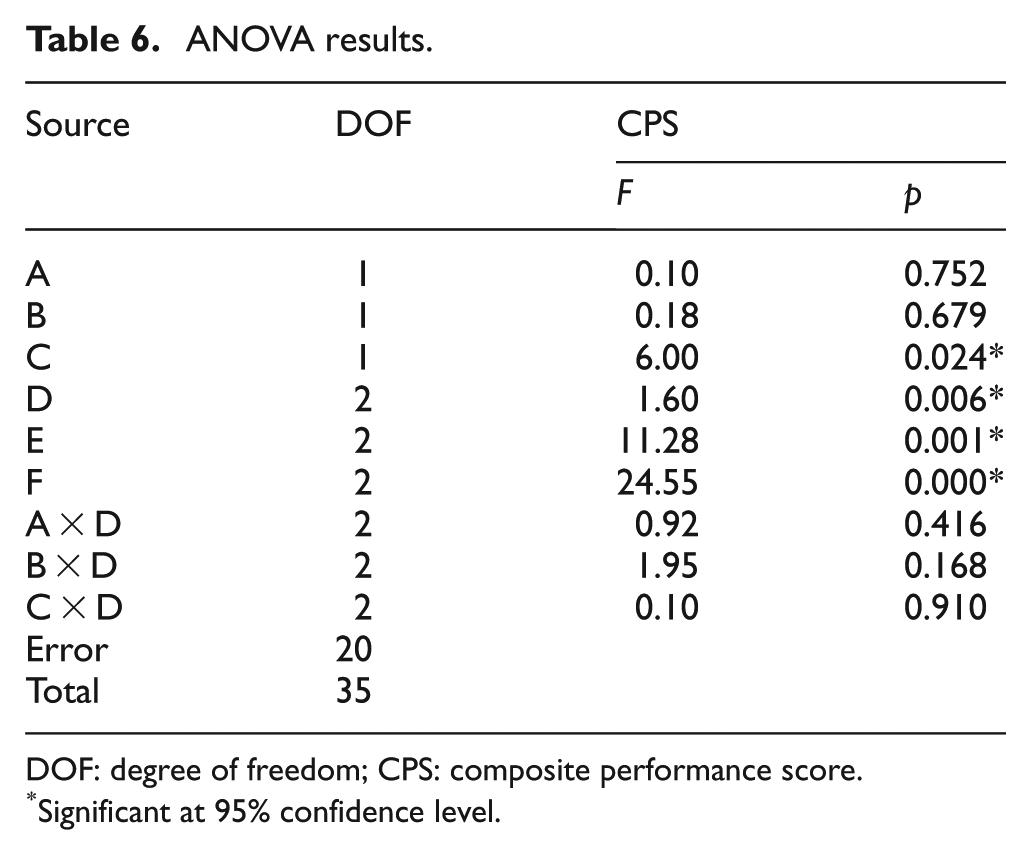

The ANOVA results (Table 6) show that power rating, grit size, and tool material have most significant effects for CPS (for multi-response optimization). The variables could be sequenced in descending order of their significance as power rating (41%), grit size (19), tool material (11%), and tool geometry (5%).

Table 6.

ANOVA results.

Source	DOF	CPS
Source	DOF	F	p
A	1	0.10	0.752
B	1	0.18	0.679
C	1	6.00	0.024*
D	2	1.60	0.006*
E	2	11.28	0.001*
F	2	24.55	0.000*
A × D	2	0.92	0.416
B × D	2	1.95	0.168
C × D	2	0.10	0.910
Error	20
Total	35

DOF: degree of freedom; CPS: composite performance score.

Significant at 95% confidence level.

Confirmation experiments were conducted at optimized setting (A1, B2, C2, D2, E2, and F3). Table 7 shows the results. The results validate the expected improvement in the values of responses of interest over the initial process setting.

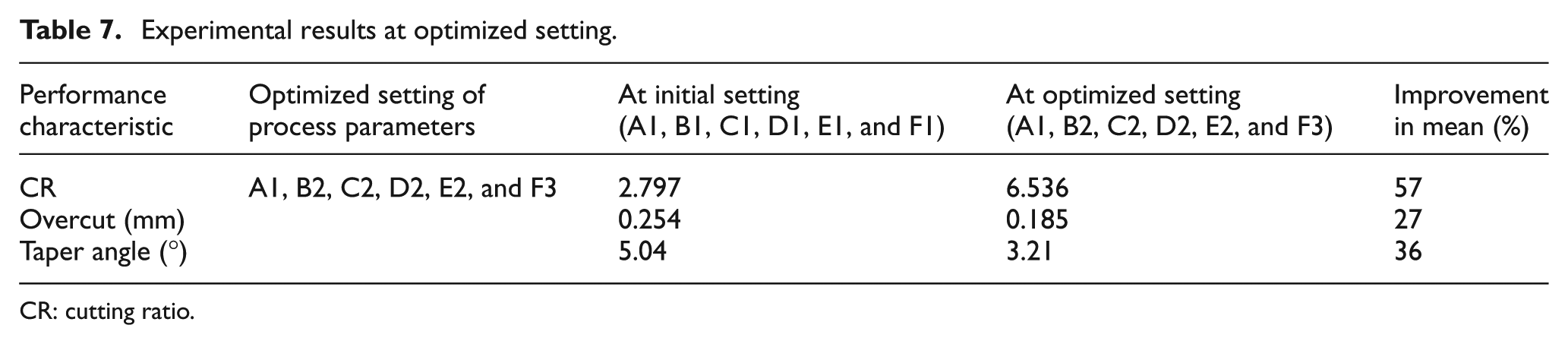

Table 7.

Experimental results at optimized setting.

Performance characteristic	Optimized setting of process parameters	At initial setting (A1, B1, C1, D1, E1, and F1)	At optimized setting (A1, B2, C2, D2, E2, and F3)	Improvement in mean (%)
CR	A1, B2, C2, D2, E2, and F3	2.797	6.536	57
Overcut (mm)		0.254	0.185	27
Taper angle (°)		5.04	3.21	36

CR: cutting ratio.

Table 8 illustrates a comparison of results obtained in this study with other investigations from the past research work. It is revealed from the literature that there is a vast range of materials that can be machined with USM. It can also be concluded that most of the responses in USM processes are well affected with the proper selection of process variables. The results presented in this article somehow differ from past investigations, and this can be due to the incorporation of some parameters, that is, tool geometry, different work thickness, and properties, which were almost omitted in past literature. Table 9 represents the comparative view of results obtained with USM and EDM processes. It is revealed that with USM machined surface is found to be free from any defects such as heat-affected zone and recast layer which usually occur in thermal-based processes.

Table 8.

A comparative presentation of results obtained for different materials machined with USM.

S. no.	Author	Input parameters and range	Work material	Results at optimized setting
1	This study	Cobalt content (6% and 24%)Work thickness (3 and 5 mm)Tool geometry (solid and hollow)Tool material (SS, silver steel, and nimonic 80 A)Grit size (200–500 mesh size)Power rating (40%–80%)	WC–6% Co and WC–24% Co	CR: 6.536Overcut: 0.185Taper angle: 3.21
2	Cheema et al.²⁴	Work materialGrit size (220–500 mesh size)Slurry concentration (25%–35%)Power rating (40%–80%)Tool (HCS, HSS, and WC)	Titanium (ASTM Grade 2) and titanium (ASTM Grade 5)	SR: 1.13 µmHOS: 0.338 mmWR: 2.2
3	Jadoun et al.²⁶	Work materialTool (HCS, HSS, and TC)Grit size (220–500 mesh size)Power rating (40%–60%)Slurry concentration (25%–35%)	Alumina-based ceramic composites	HOS: 0.143 mmOOR: 0.233 mmConicity: 0.0153
4	Kumar and Khamba²⁷	Tool (Titan 12, Titan 15, and Titan 31)Abrasive (Al₂O₃, SiC, and B₄C)Slurry concentration (20%–30%)Grit size (220–500 mesh size)Power rating (25%–75%)	Stellite 6 (cobalt alloy)	CR: 2.89 (MRR/TWR)MRR: 0.185 mm³/minTWR: 0.064 mm³/min
5	Ramulu³⁸	Abrasive (Al₂O₃)Grit size (for Al₂O₃: 220 and for SiC and B₄C: 120, 220, and 400)	Silicon carbideTitanium diboride/silicon carbide (TiB₂/SiC)	Overcut and taper angle increased with an increase in grit size for SiC work material. TiB₂/SiC has good machining characteristics as compared to SiC as work material in USM
6	Adithan and Venkatesh¹⁹	Static loadMachining time	Glass	Increase in the static load and machining time reduces the oversize of hole. Oversize also depends upon brittle fracture characteristics and the grain structure of the work material. At higher static loads and longer operating times, conicity and out of roundness decreases
7	Kumar and Khamba³⁹	Tool (HCS, HSS, titanium, Ti alloy, and carbide)Abrasive (Al₂O₃, SiC, and B₄C)Grit size (220–500 mesh size)Power rating (100–400 W)	Titanium (ASTM Grade 1)	CR: 41.75 (MRR/TWR)MRR: 1.67 mm³/minTWR: 0.04 mm³/minSR: 0.31 µm

HCS: high-carbon steel; HSS: high-speed steel; WC: tungsten carbide; CR: cutting ratio; SR: surface roughness; HOS: hole oversize; WR: wear ratio; OOR: out of roundness; MRR: material removal rate; SS: stainless steel; TWR: tool wear rate; USM: ultrasonic machining.

Table 9.

A comparative presentation of machining performance of this study and other previously reported studies.

S. no.	Author	Work material composition	Process	Results at optimized setting
1	This study	WC–6% Co and WC–24% Co	Ultrasonic machining	CR: 6.536Overcut: 0.185Taper angle: 3.21
2	Singh et al.⁴⁰	Al–10% SiC_P	Electrical discharge machining	CR: 0.785 (MRR/TWR)MRR: 0.0511 g/minTWR: 0.0651 g/minTaper: 84 minOvercut: 0.2917 mmSR: 7.400 µm
3	Singh et al.⁴¹	En-31 tool steel	Electrical discharge machining	MRR: 57 mm³/minEW: 7.5%SR: 3.5 µmDiameter overcut: 0.025 mm
4	Natarajan and Arunachalam⁴²	304 Stainless steel	Micro-electrical discharge machining	CR: 1.267 (MRR/TWR)MRR: 17.2614 mg/minTWR: 13.6240 mg/minOvercut: 110.800 µm
5	Assarzadeh and Ghoreishi⁶	WC–6% Co	Electrical discharge machining	CR: 4.908MRR: 0.187 mm³/minTWR: 0.0381 mm³/minSR: 2.48 µm
6	Mahamat et al.¹¹	WC–6% Co	Electrical discharge machining	MRR: 0.007243 g/minEW: 0.0003474 g/minTWR: 0.165370%SR: 3.6 µm
7	Singh et al.¹²	WC–10% Co	Spark-assisted diamond face grinding	MRR: 0.3845 mm³/minWWR: 0.007042 g/minASR: 3.606 µm
8	Janmanee and Muttamara¹⁰	WC–10% Co	Electrical discharge machining	MRR: 2.731 mm³/minEWR: 37.234 mm³/minMCD: 183.87 µm/mm²

WC: tungsten carbide; CR: cutting ratio; MRR: material removal rate; TWR: tool wear rate; SR: surface roughness; EW: electrode wear; WWR: wheel wear rate; ASR: Average surface roughness; EWR: electrode wear rate; MCD: micro-crack density.

Conclusion

Composite material (WC–Co) with higher cobalt content (24%) exhibited lower CR owing to the higher value of fracture toughness that resists the development and propagation of cracks. Silver steel tool performed best in terms of CR. Tools with hollow geometry yielded superior performance in terms of CR. Power rating and abrasive grit size were found to be the most significant parameters for CR.

For overcut, the significant parameters are grit size, tool material, power rating, cobalt content, and geometry of the tool, while for TA, the significant parameters are thickness of work material, grit size, tool material, and power rating. All the two-factor interactions considered were found to be significant for overcut and TA.

Larger overcut was reported for coarse size particles as compared to finer ones. The fracture toughness of work samples was observed to be well related to overcut. The performance of hollow tools was found to be superior in regard to overcut. Owing to lower hardness, silver steel tool demonstrated preeminent performance, therefore producing less indentation on the lateral surface.

Work samples of higher thickness exhibit smaller TA. Power rating at mid level (60%) has revealed superior performance for TA, whereas silver steel tool has also produced the least TA.

The optimal parametric settings for CR, overcut, and TA are identified as A1 B1 C2 D2 E2 F3, A2 B1 C2 D2 E3 F2, and A2 B2 C2 D2 E3 F2, respectively. For multi-response optimization, the optimal parametric setting is A1 B2 C2 D2 E2 F3.

At optimized setting for multiple responses, there is an improvement in CR of the order of 57% and reduction in overcut and TA is 27% and 36%, respectively.

Footnotes

Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

References

Kataria

Kumar

Machining of WC-Co composites: a review. Mater Sci Forum 2015; 808: 51–64.

Mahdavinejad

ED machining of WC-Co. J Mater Process Tech 2005; 162–163: 637–643.

Lin

Chen

Lin

. Electrical discharge machining (EDM) characteristics associated with electrical discharge energy on machining of cemented tungsten carbide. Mater Manuf Process 2008; 23: 391–399.

Yang

Oden

Joesaar

MPJ

. Grinding effect on surface integrity and mechanical strength of WC-Co cemented carbide. Proced CIRP 2014; 13: 257–263.

Gadalla

Tsai

Machining of WC-Co composites. Mater Manuf Process 1989; 4: 411–423.

Assarzadeh

Ghoreishi

Statistical modeling and optimization of process parameters in electro-discharge machining of cobalt-bonded tungsten carbide composite (WC/6%Co). Proced CIRP 2013; 6: 464–469.

Muthuraman

Ramakrishnan

Multi parametric optimization of WC-Co composites using desirability approach. Proced Eng 2012; 38: 3381–3390.

Yadav

SKS

Yadav

. Experimental investigations to study electrical discharge diamond cutoff grinding (EDDCG) machinability of cemented carbide. Mater Manuf Process 2013; 28: 1077–1081.

Bhavsar

Aravindan

Rao

Machinability study of cemented carbide using focused ion beam (FIB) milling. Mater Manuf Process 2012; 27: 1029–1034.

10.

Janmanee

Muttamara

Optimization of electrical discharge machining of composite 90WC-10Co base on Taguchi approach. Eur J Sci Res 2011; 64(3): 426–436.

11.

Mahamat

ATZ

Rani

AMA

Husain

Machining of cemented tungsten carbide using EDM. J Appl Sci 2011; 11(10): 1784–1790.

12.

Singh

Yadav

Kumar

Diamond face grinding of WC-Co composite with spark assistance: experimental study and parameter optimization. Int J Precis Eng Man 2010; 11: 509–518.

13.

Agarwal

On the mechanism and mechanics of material removal in ultrasonic machining. Int J Mach Tool Manu 2015; 96: 1–14.

14.

Kumar

Ultrasonic machining: a comprehensive review. Mach Sci Technol 2013; 17(3): 325–379.

15.

Goswami

Chakraborty

Parametric optimization of ultrasonic machining process using gravitational search and fireworks algorithms. Ain Shams Eng J 2015; 6(1): 315–331.

16.

Kataria

Kumar

Pabla

BS.

Experimental investigation into the hole quality in ultrasonic machining of WC-Co composite. Mater Manuf Process 2015; 30(7): 921–933.

17.

Lalchhuanvela

Doloi

Battacharyya

Enabling and understanding ultrasonic machining of engineering ceramics using parametric analysis. Mater Manuf Process 2012; 27: 443–448.

18.

Kumar

Khamba

Mohapatra

SK.

Investigating and modeling tool-wear rate in the ultrasonic machining of titanium. Int J Adv Manuf Tech 2009; 41: 1107–1117.

19.

Adithan

Venkatesh

VC.

Production accuracy of holes in ultrasonic drilling. Wear 1976; 40(3): 309–318.

20.

Komaraiah

Reddy

PN.

A study on the influence of workpiece properties in ultrasonic machining. Int J Mach Tool Manu 1993; 33(3): 495–505.

21.

Kumar

Khamba

JS.

An investigation into the effect of work material properties, tool geometry and abrasive properties on performance indices of ultrasonic machining. Int J Mach Mach Mater 2009; 5(2/3): 347–366.

22.

Dam

Schreiber

Quist

Productivity, surface quality and tolerances in ultrasonic machining of ceramics. J Mater Process Tech 1995; 51(1/4): 358–368.

23.

Kumar

Investigations into the surface quality and micro-hardness in the ultrasonic machining of titanium (ASTM GRADE-1). J Braz Soc Mech Sci 2014; 36: 807–823.

24.

Cheema

Dvivedi

Sharma

AK.

A hybrid approach to multi criteria optimization based on user’s preference rating. Proc IMechE, Part B: J Engineering Manufacture 2013; 227: 1733–1742.

25.

Jadoun

Kumar

Mishra

. Manufacturing process optimization for tool wear rate in ultrasonic drilling of engineering ceramics using Taguchi method. Int J Mach Mach Mater 2006; 1(3/4): 94–114.

26.

Jadoun

Kumar

Mishra

BK.

Taguchi’s optimization of process parameters for production accuracy in ultrasonic drilling of engineering ceramics. Prod Eng Res Dev 2009; 3: 243–253.

27.

Kumar

Khamba

JS.

Parametric optimization of ultrasonic machining of co-based super alloy using the Taguchi multi-objective approach. Prod Eng Res Dev 2009; 3: 417–425.

28.

Guzzo

Shinohara

Raslan

AA.

A comparative study on ultrasonic machining of hard and brittle materials. J Braz Soc Mech Sci 2004; 26(1): 56–64.

29.

Majeed

Vijayaraghvan

Malhotra

. Ultrasonic machining of Al₂O₃/LaPO₄ composites. Int J Mach Tool Manu 2008; 48: 40–46.

30.

Jianxin

Taichiu

Ultrasonic machining of alumina-based ceramic composites. J Eur Ceram Soc 2002; 22(8): 1235–1241.

31.

Kang

Kim

Seo

. An experimental study on the ultrasonic machining characteristics of engineering ceramics. J Mech Sci Technol 2006; 20(2): 227–233.

32.

Jadoun

Kumar

Mishra

. Optimization of process parameters for ultrasonic drilling (USD) of advanced engineering ceramics using Taguchi approach. Eng Optimiz 2006; 38(7): 771–787.

33.

Kumar

Khamba

JS.

An experimental study on ultrasonic machining of pure titanium using designed experiments. J Braz Soc Mech Sci 2008; 30(3): 231–238.

34.

Kumar

Khamba

JS.

Experimental investigation of ultrasonic machining of an alumina-based ceramic composite. J Am Ceram Soc 2006; 89(8): 2413–2417.

35.

Ross

PJ.

Taguchi techniques for quality engineering. New York: McGraw-Hill, 1996.

36.

Yoon

Hwang

CL.

Multiple attribute decision making: an introduction. Thousand Oaks, CA: SAGE, 1995.

37.

Kataria

Kumar

A comparison of the different multiple response optimization techniques for turning operation of AISI O1 tool steel. J Eng Res 2014; 2(4): 161–184.

38.

Ramulu

Ultrasonic machining effects on the surface finish and strength of silicon carbide ceramics. Int J Manuf Tech Manag 2005; 7(2/3/4): 107–125.

39.

Kumar

Khamba

JS.

Multi-response optimization in ultrasonic machining of titanium using Taguchi’s approach and utility concept. Int J Manuf Res 2010; 5(2): 139–160.

40.

Singh

Raghukandan

Pai

BC.

Optimization by Grey relational analysis of EDM parameters on machining Al–10% SiC_P composites. J Mater Process Tech 2004; 155: 1658–1661.

41.

Singh

Maheshwari

Pandey

PC.

Some investigations into the electric discharge machining of hardened tool steel using different electrode materials. J Mater Process Tech 2004; 149(1): 272–277.

42.

Natarajan

Arunachalam

RM.

Optimization of micro-EDM with multiple performance characteristics using Taguchi method and Grey relational analysis. J Sci Ind Res India 2011; 70(7): 500–505.
