A numerical method for evaluating effects of installation errors of grinding wheel on rotor profile in screw rotor grinding

Abstract

The profile accuracy of screw rotor affects the performance of screw compressor directly. In precision form grinding, installation errors of grinding wheel are the crucial factors affecting profile accuracy of screw rotors. A numerical method for quantifying profile error of screw rotor was proposed to evaluate effects of installation errors of grinding wheel on rotor profile. Coordinate transformation and engagement theory were applied to generate rotor profile, and the error model of rotor profile was established by comparing the generated rotor profile with the original one. Furthermore, the error evaluation procedure was presented based on the discrete rotor profile points. Three kinds of installation errors of grinding wheel are analyzed including installation angle error, center distance error and axial position error in the numerical cases. By inputting installation errors of grinding wheel, the effects on rotor profile are evaluated considering both single-factor installation errors and coupled-factor installation errors of grinding wheel. The evaluated results provide a theoretical basis for error tracking and error compensation in screw rotor grinding. Grinding experiments were performed for female rotor with different installation errors. The experimental results verify the correctness of the evaluated results.

Keywords

Error model rotor profile installation errors profile error screw rotor grinding

Introduction

Screw rotors are core parts in screw compressors as well as screw pumps. Profile accuracy of screw rotors affects the performance of screw compressor directly.¹ Accordingly, rotor profile requires an accurate manufacturing method for optimum performance.² To improve machining accuracy, the precision form grinding or form milling technology³ is used to machine screw rotors. Park et al.² investigated a machining method by utilizing formed tools based on the feature of rotor shape for improving machining accuracy of asymmetric rotors.

Most of the researches have concentrated on machine tool accuracy for improving profile accuracy of screw rotors. Shen et al.⁴ analyzed the error sources of machine tool as external errors and internal errors, and provided a novel method of error tracing and compensation on the basis of the limited sample trials, which effectively reduced the machined errors of rotor profile due to machine tool errors. Tian et al.⁵ presented a general and systematic approach for geometric error modeling of machine tools, which enabled the source errors affecting position and orientation accuracy of the machine tool to be explicitly separated. In order to understand the relationship between grinding motion and the machined screw rotor surface, grinding process simulation has been studied. Wu and Fan⁶ established a general coordinate system for the screw rotor form grinding and connected it to a vertical five-axis computerized numerical control form grinder to simulate the affection produced by the error curves of the grinder feed motion on the machined rotor geometry. Furthermore, Guo⁷ reported that the influence of machine tool motion errors on rotor profile depends on the offset angle. In other words, the same machine tool motion accuracy under different offset angles will lead to different rotor profile error. Therefore, he concentrated on the selection of the offset angle to reduce the influence of process errors on the rotor profile.

The grinding wheel is also an important factor affecting the profile accuracy of the machined screw rotor. The researches on profile design of tool have been widely carried out. Wei and Zhang⁸ developed a mathematical model on how to design the axial profiles of the cubic boron nitride (CBN) grinding wheel for precision grinding of screw rotors based on gear engagement theory. Tang et al.⁹ proposed a new design method (form-position geometric method (FPGM)) for forming cutters on the basis of acquiring cutter tooth profile by meshing principle and spline interpolation method. This method avoided the solution to the derivatives at each discrete point when solving the equation of contact line by gear meshing theory and solved the accurate design problem of the cutter at the cusp of the screw tooth profile curve. Wu et al.¹⁰ proposed a numerical radial-ray shooting method to instinctively generate the tool profile, the corresponding machine settings and the ground tooth profile. Shen et al.¹¹ presented a digital graphic scanning (DGS) method, based on computer scanning graphics, to generate the profile of grinding wheel, which can avoid the difficulties appeared from the complex nonlinear equations of the contact line by analytical gearing envelope method. Chen et al.¹² introduced an image-based method for examining the profile accuracy of grinding wheels used for micro-drill fluting, which was also suitable for screw rotor grinding. Tool wear always occurs during the machining of screw rotors. Stosic¹³ presented a geometric approach to calculate tool wear in screw rotor machining. The envelope theory of gearing has been applied here as a meshing requirement for crossed helical gears to calculate the stock distribution, which would result in the uniform wear of a finishing tool. These studies mainly focused on the influence of profile design of grinding wheel and tool wear on the profile accuracy of the machined screw rotor, and little attention was paid to tool installation condition.

Grinding wheel installation has significant effect on grinding precision. Wang et al.¹⁴ established an error analysis model of face gear grinding for reducing the face gear tooth profile errors induced by installation errors. For screw rotor grinding, Guo and Tang^15,16 reported effective tool installation conditions should be used as the design criteria for the rotor tooth profile. Furthermore, the influence of manufacturing process variation on rotor profile considering setup conditions was analyzed. Stosic and colleagues^17,18 presented a reverse tool to rotor transformation to evaluate the influence of the tool set errors on the machined screw rotor. It was also proved that a tool to rotor transformation procedure was useful to determine the effect of tool setting errors upon machined screw rotor profiles.

However, the errors of rotor profile were analyzed by geometrically qualitative comparison between the original rotor profile and the machined rotor profile in these studies, and the specific method for quantifying the errors of rotor profile has not been provided. Furthermore, to reduce tooth profile errors of screw rotors induced by mounting errors of CBN wheel, Wei et al.¹⁹ established a mathematical model of the error analysis, and the influence curves of the profile errors affected by mounting errors and radius error of grinding wheel were obtained. However, this error model was limited to the situation that the number of data points of the machined rotor profile should equal to that of the original rotor profile, and the influence of coupled errors on rotor profile has not been studied.

The objective of the article was to propose a numerical method to evaluate the effects of installation errors of grinding wheel on rotor profile. First, the rotor profile generation model is introduced based on coordinate transformation and engagement theory. And then, by comparing the original rotor profile with the machined one, the error model of rotor profile can be established and the corresponding error evaluation procedure will be presented. The numerical cases for installation angle error, center distance error and axial position error of grinding wheel are used to verify the proposed method. The evaluated effects on rotor profile contribute to error tracking and error compensation caused by installation errors of grinding wheel in screw rotor grinding. And grinding experiments for female rotor with installation errors were performed by SK7032 grinder to verify the theory analysis of error.

Rotor profile generation model

In order to evaluate the effects of installation errors of grinding wheel on rotor profile, rotor profile generation model is required to be established by grinding wheel to screw rotor coordinate transformation and engagement theory.

As with the movement of screw rotor grinding, the rotor rotates around its axis; the grinding wheel rotates around its own axis at a high speed and moves along the axis of screw rotor at a constant speed. When the rotor rotates a circle, the grinding wheel moves a lead. For conveniently establishing rotor profile generation model, the relative movements between the grinding wheel and rotor are assumed that the grinding wheel is stationary, and the rotor rotates around its own axis and simultaneously moves along its axis with lead P. The coordinate systems for defining the rotor and grinding wheel geometry are given in Figure 1.

Figure 1.

Rotor and grinding wheel coordinate systems.

In Figure 1, the moving coordinate system XOY, which rotates together with the rotor and moves along the Z-axis, and the coordinates $x_{j}$ and $y_{j}$ define the profile of the screw rotor in XOY coordinate system. The fixed coordinate system $X_{h} Y_{h} Z_{h}$ is obtained by the helical motion of the screw rotor profile in the moving coordinate system XOY, where the coordinates $x_{h j}$ , $y_{h j}$ and $z_{h j}$ define the helicoid surface of the screw rotor. $Z_{h}$ and Z both denote the axis of the screw rotor. $θ$ is the rotor rotation angle, which is also the intersection angle between $X_{h} O_{h} Y_{h}$ and XOY. $X_{t} O_{t} Y_{t}$ is the fixed coordinate system of grinding wheel. $R_{t}$ is the radius of grinding wheel. $Z_{t}$ is the axis of grinding wheel. The axes of the rotor and grinding wheel are non-parallel and non-intersecting, and the angle between them, denoted by $Φ$ in Figure 1, is the installation angle of grinding wheel.

Given coordinates of grinding wheel profile, $z_{t j}$ and $R_{t j}$ , the angle parameter which is the angle between the grinding wheel radius and the $- X_{t}$ axis can be obtained by the envelope meshing condition of the screw rotor and grinding wheel as shown in equation (1)

(R_{t j} + z_{t j} m_{t j}) \cos τ_{j} - (\frac{P}{2 π + A_{d} \cot Φ}) m_{t j} \sin τ_{j} + \frac{P \cot Φ}{2 π - A_{d}} = 0

(1)

where $A_{d}$ is the center distance between screw rotor and grinding wheel, $m_{t j}$ is the first-order derivative of coordinates of grinding wheel, $m_{t j} = d z_{t j} / d R_{t j}, j = {1, 2, \dots, n}$ , n is the number of data points of the grinding wheel profile.

When $τ_{j}$ is obtained from equation (1), the coordinates of rotor helicoidal surface $x_{h j}$ , $y_{h j}$ and $z_{h j}$ can be, respectively, calculated from equation (2)

{\begin{matrix} x_{h j} = - R_{t j} \cos τ_{j} + A_{d} \\ y_{h j} = R_{t j} \sin τ_{j} \cos Φ - z_{t j} \sin Φ \\ z_{h j} = R_{t j} \sin τ_{j} \sin Φ + z_{t j} \cos Φ \end{matrix}

(2)

The transverse coordinates $x_{j}$ and $y_{j}$ of rotor in XOY can be calculated by equation (3)

{\begin{matrix} x_{j} = x_{h j} \cos θ + y_{h j} \sin θ \\ y_{j} = - x_{h j} \sin θ + y_{h j} \cos θ \\ θ = z_{h j} / P \end{matrix}

(3)

Error model of rotor profile

Error calculation method of rotor profile

Rotor profile errors can be obtained by comparing the machined rotor profile with the original rotor profile. The preprocessing of rotor profile was needed for this comparison as shown in Figure 2. In XOY coordinate system, the origin point is selected as the reference point. Both the center of the machined rotor profile and the original one should be moved to the reference point for comparison. Meanwhile, the root radius of the machined rotor profile and the original one are required to rotate to the same contrast position which is parallel to Y-axis as shown in Figure 2.

Figure 2.

Preprocessing of rotor profile for comparison.

If the original profile and the machined profile cannot be aligned on the ends, as shown in Figure 2, the extra profile of the original rotor should be rotated with the divide angle $360 \circ / z^{*}$ ( $z^{*}$ is the tooth number of screw rotor) and moved to the left end of the original rotor profile. Since rotor profile is constituted by discrete data points, normal profile error of rotor is a set of normal error of each point of rotor profile. The original rotor profile is regarded as the benchmark to calculate normal profile error by comparing with the machined rotor profile. Figure 3 depicts the schematic diagram of normal error calculation for point A on the original rotor profile which can be regarded as any point of the original rotor profile.

Figure 3.

Schematic diagram of normal error calculation for point A.

The coordinates of point A are denoted by ${x_{o}}_{i} and {y_{o}}_{i} (i = {1, 2, \dots, m_{o}}$ , $m_{o}$ is the number of data points of the original rotor profile). n is the normal vector of point A, which can be formulated as follows

n = d {x_{o}}_{i} \cdot i + d {y_{o}}_{i} \cdot j

(4)

where $i$ and $j$ represent the unit vectors of X-axis and Y-axis, respectively.

Supposing that point C is the intersection point between the machined rotor profile and the normal vector of point A, $\bar{AC}$ is normal profile error of point A. Points B and D in Figure 3 are the data points of the machined rotor profile adjacent to the intersection point C. The coordinates of point B are denoted by $(x_{m q}, y_{m q})$ , and the coordinates of point C are $(x_{m q + 1}, y_{m q + 1})$ ₍ $q = {1, 2, \dots, m_{m}}$ , $m_{m}$ is the number of data points of the machined rotor profile).

Since points B and D were the discrete points of the machined rotor profile, the machined rotor profile between points B and point D can be fitted by cubic parameter splines. The fitted rotor profile between points B and D was formulated as follows

y_{f} = a (x_{f} - x_{m q})^{3} + b (x_{f} - x_{m q})^{2} + c (x_{f} - x_{m q}) + d

(5)

where a, b, c and d are the coefficient of the fitted curve, which are dependent on the coordinates of points B and D.

Based on equations (4) and (5), the coordinates of the intersection point C $({x_{e}}_{i}, {y_{e}}_{i})$ can be obtained. According to the obtained coordinates of point C, the normal profile error $e_{i}$ of point A can be calculated by the following equation (6)

e_{i} = \pm \sqrt{{({x_{e}}_{i} - {x_{o}}_{i})}^{2} + {({y_{e}}_{i} - {y_{o}}_{i})}^{2}}

(6)

where if ${y_{e}}_{i} < {y_{o}}_{i}$ , choose “+” for $e_{i}$ ; otherwise, choose “−” for $e_{i}$ , which means the machined rotor profile is smaller comparing with the original rotor profile.

To clearly observe the normal profile error of rotor, the coefficient $λ$ is introduced to magnify the coordinates of the intersection point C as follows

{\begin{matrix} {x'_{e}}_{i} = {x_{o}}_{i} + d {x_{o}}_{i} \cdot λ \cdot e_{i} \\ {y'_{e}}_{i} = {y_{o}}_{i} + d {y_{o}}_{i} \cdot λ \cdot e_{i} \end{matrix}

(7)

Furthermore, based on the normal profile error $e_{i}$ , average normal profile error of rotor $\bar{E}$ , maximum normal profile error $E_{max}$ , minimum normal profile error $E_{min}$ and the difference between maximum error and minimum error $Δ E$ can be calculated as follows

\bar{E} = \frac{e_{i}}{m_{o}}

(8)

Δ E = | E_{max} - E_{min} |

(9)

Point interval search for the intersection point

The intersection point through which the normal vector of the original profile point passes is located in a unique point interval of the machined rotor profile. Therefore, the point interval should be determined for the coordinate calculation of intersection point first. For example, in Figure 3, the determination of point interval was to obtain the coordinates of points B and D, which were the necessary parameters for coordinate calculation of intersection point C.

If the rotor profile can be conveniently obtained from three-dimensional coordinate measuring instrument, the number of data points for the machined rotor profile may not equal the original one. Thus, isometric interpolation was used to solve this problem. By the cubic parameter spline function with equal interval $Δ x$ , where $Δ x = | x_{m m_{m}} - x_{m 1} | / (m_{m} - 1)$ , the number of data points of the machined rotor profile was interpolated into the same number of data points of the original rotor profile. The coordinates of fitted profile of machined rotor are denoted by $x_{f k}$ and $y_{f k}$ , where $k = {1, 2, \dots, m_{o}}$ .

In order to shorten search time of point interval, the points of original rotor profile were divided into three kinds of region for point interval search of the intersection point according to angle $α_{i}$ as shown in Figure 4. $α_{i}$ is the angle between X-axis and the line of two adjacent points and is calculated with equation (10)

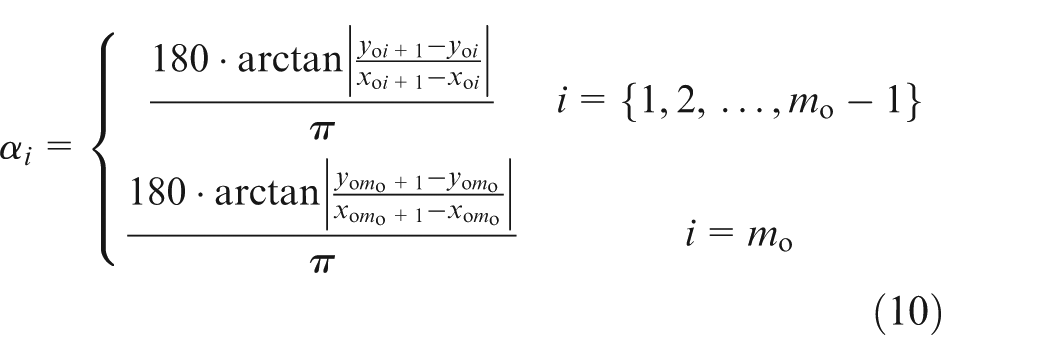

α_{i} = {\begin{matrix} \frac{180 \cdot \arctan | \frac{y_{o i + 1} - y_{o i}}{x_{o i + 1} - x_{o i}} |}{π} & i = {1, 2, \dots, m_{o} - 1} \\ \frac{180 \cdot \arctan | \frac{y_{o m_{o} + 1} - y_{o m_{o}}}{x_{o m_{o} + 1} - x_{o m_{o}}} |}{π} & i = m_{o} \end{matrix}

(10)

Note that for equation (10), if $i = m_{o}$ , that means the point is the last endpoint of original rotor profile, the point $(x_{o m_{o} + 1}, y_{o m_{o} + 1})$ is obtained by rotating the point $(x_{o 2}, y_{o 2})$ around the center of the rotor profile with the divide angle $360 \circ / z^{*}$ .

Figure 4.

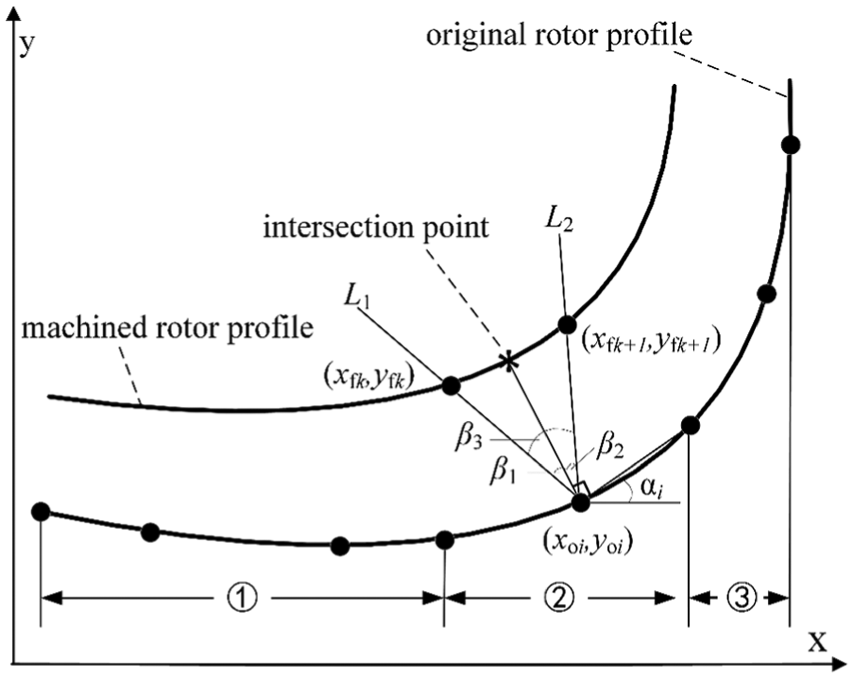

Point region for point interval search of the intersection point.

As shown in Figure 4, threshold for the angle $α_{i}$ is set to divide the point region of the rotor profile. When $α_{i} \leq ζ_{1}$ , the points belong to region ①, region ② is divided with condition $ζ_{1} < α_{i} < ζ_{2}$ , and $α_{i} \geq ζ_{2}$ is used to divide region ③. Three kinds of methods were, respectively, used for point interval search in three types of region.

In region ① ( $α_{i} \leq ζ_{1}$ ), since the curve of rotor profile is gentle, the variation of the points in Y-coordinate is relatively small, and the variation of the points in X-coordinate is significant as shown in Figure 4. Thus, the X-coordinate values of points were selected as the condition for point interval search. If the following condition (11) was satisfied, the point interval for the intersection point of point $(x_{o i}, y_{o i})$ can be determined

(x_{o i} - x_{f k}) (x_{o i} - x_{f k + 1}) < 0

(11)

In region ③ ( $α_{i} \geq ζ_{2}$ ), since the curve of rotor profile is steep, the variation of the points in X-coordinate is relatively small, and the variation of the points in Y-coordinate is significant as shown in Figure 4. Similarly, the Y-coordinate values of points were selected as the condition for point interval search. If the following condition (12) was satisfied, the point interval for the intersection point of point $(x_{o i}, y_{o i})$ can be determined

(y_{o i} - y_{f k}) (y_{o i} - y_{f k + 1}) < 0

(12)

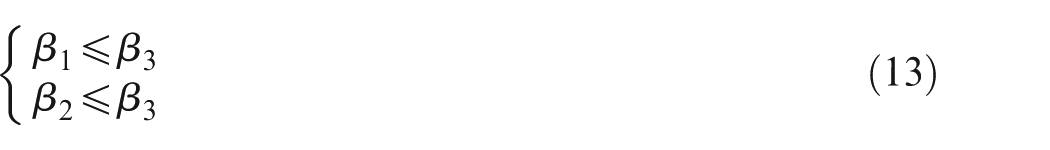

In region ② ( $ζ_{1} < α_{i} < ζ_{2}$ ), the variations of the points in both X-coordinate and Y-coordinate are significant, and the point interval search method for region ② was as follows. In Figure 5, point $(x_{f k}, y_{f k})$ and point $(x_{f k + 1}, y_{f k + 1})$ are two adjacent points. The line passing through point $(x_{o i}, y_{o i})$ and point $(x_{f k}, y_{f k})$ is denoted by $L_{1}$ , and the line passing through point $(x_{o i}, y_{o i})$ and point $(x_{f k + 1}, y_{f k + 1})$ is denoted by $L_{2}$ . $β_{3}$ is the intersection angle between line $L_{1}$ and line $L_{2}$ . The intersection angle between line $L_{1}$ and the normal line of point $(x_{o i}, y_{o i})$ is depicted with $β_{1}$ , and the intersection angle between line $L_{2}$ and the normal line of point $(x_{o i}, y_{o i})$ is depicted with $β_{2}$ . If the condition (13) was satisfied, the point interval for the intersection point of point $(x_{o i}, y_{o i})$ can be determined as follows

{\begin{matrix} β_{1} \leq β_{3} \\ β_{2} \leq β_{3} \end{matrix}

(13)

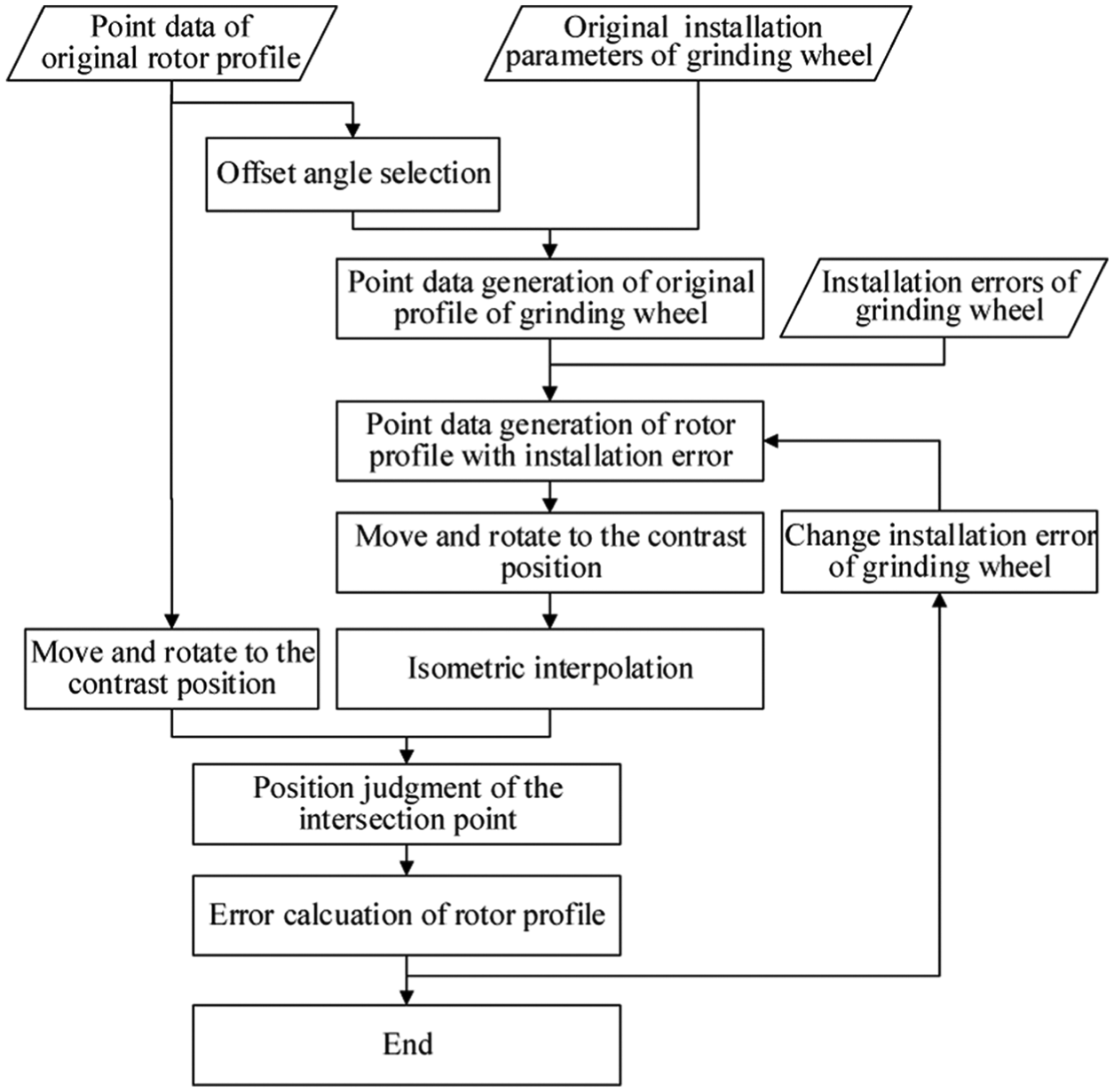

Figure 5.

Error evaluation procedure of rotor profile.

Error evaluation procedure

The main procedure for error evaluation was presented in Figure 5. First, point data of original rotor profile with offset angle selection and original installation parameters of grinding wheel were input to generate point data of original profile of grinding wheel. In order to obtain the machined rotor profile with installation errors, the rotor profile model presented in section “Rotor profile generation model” was then used to combine the installation errors of grinding wheel with original profile of grinding wheel.

Subsequently, for the comparison between the original rotor profile and the machined rotor profile, the contrast position should be specified by moving and rotating both of them based on the preprocessing method in section “Error calculation method of rotor profile.” According to section “Point interval search for the intersection point,” in the situation of unequal numbers of data points for the two rotor profiles, isometric interpolation was used to interpolate the machined rotor profile by the cubic parameter spline function with equal interval. And then, formulas (11)–(13) were applied to judge the position of the intersection point by point interval search. When the position of the intersection point was obtained, the errors of rotor profile can be evaluated based on equations (6)–(9). The evaluated errors included normal errors of profile, average normal profile error, maximum normal profile error, minimum normal profile error and difference between maximum error and minimum error. If necessary, installation errors of grinding wheel can be varied to evaluate rotor profile errors in the evaluation procedure.

Numerical cases

In the numerical cases, a couple of intermeshing screw rotors was used to validate the error evaluation method. The design parameters of rotors are listed in Table 1.

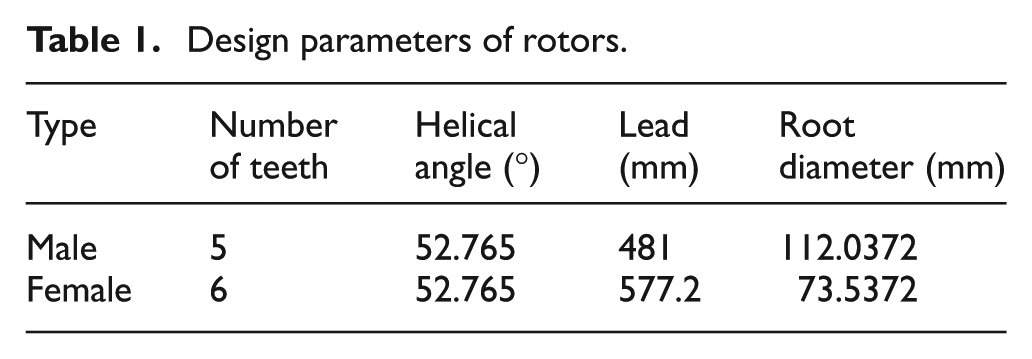

Table 1.

Design parameters of rotors.

Type	Number of teeth	Helical angle (°)	Lead (mm)	Root diameter (mm)
Male	5	52.765	481	112.0372
Female	6	52.765	577.2	73.5372

The outer diameters of grinding wheels for machining the male and female rotors are designed as 500 mm. Three kinds of installation errors of grinding wheel were considered including installation angle error $Δ Φ$ , center distance error $Δ A_{d}$ and axial position error $Δ z_{t}$ . The effects on profile error of rotor were evaluated by considering both single-factor installation errors and coupled-factor installation errors of grinding wheel.

Effects of single-factor installation errors of grinding wheel on rotor profile

Effects of installation angle error $Δ Φ$ on rotor profile

Three different installation angle errors of grinding wheel were considered as listed in Table 2, namely, $Δ Φ$ is, respectively, set as 3′, 6′, 9′. The actual angle $Φ + Δ Φ$ was imported into the evaluation procedures. The machined rotor profile with installation angle error was obtained as shown in Figure 6. Table 2 presents the calculated rotor profile errors according to equations (6)–(9).

Table 2.

Rotor profile errors with installation angle error.

Type		$Δ Φ$ (′)
		3′	6′	9′
Male, ×10⁻² mm	$\bar{E}$	2.4	4.79	7.16
	$E_{max}$	4.1	8.2	12.31
	$E_{min}$	0.32	0.6	0.82
	$Δ E$	3.78	7.6	11.49
Female, ×10⁻² mm	$\bar{E}$	3.85	7.69	11.53
	$E_{max}$	4.4	8.79	13.2
	$E_{min}$	1.4	2.19	3.21
	$Δ E$	3	6.6	9.99

Figure 6.

Effects of installation angle error on rotor profile: (a) male rotor and (b) female rotor.

As shown in Figure 6 and Table 2, both the male rotor profile and the female one are enlarged with the increment of installation angle. The increased amplitude of normal profile error is proportional to that of installation angle error. The effect of installation angle error on the male rotor profile is more significant than that on the female rotor profile.

Effects of center distance error $Δ A_{d}$ on rotor profile

The center distance between grinding wheel and rotor equals the sum of grinding wheel outer radius and rotor root radius. Due to wear of grinding wheel in rotor machining, center distance $A_{d}$ would be reduced, that is, $Δ A_{d} \leq 0$ . Thus, three different center distance errors were considered as −0.01, −0.02 and −0.03 mm. Figure 7 shows the machined rotor profile with center distance error. Table 3 lists the calculated rotor profile errors with center distance errors.

Figure 7.

Effects of center distance error on rotor profile: (a) male rotor and (b) female rotor.

Table 3.

Rotor profile errors with center distance errors.

Type		$Δ A_{d}$ (mm)
		−0.01	−0.02	−0.03
Male, ×10⁻² mm	$\bar{E}$	−0.52	−1.02	−1.53
	$E_{max}$	−0.09	−0.18	−0.27
	$E_{min}$	−0.74	−1.46	−2.18
	$Δ E$	0.65	1.28	1.91
Female, ×10⁻² mm	$\bar{E}$	−0.52	−1.06	−1.58
	$E_{max}$	−0.012	−0.22	−0.36
	$E_{min}$	−0.72	−1.45	−2.16
	$Δ E$	0.708	1.23	−1.8

As illustrated in Figure 7 and Table 3, both the male rotor profile and the female one are smaller with the decrement of center distance. The reduced amplitude of normal profile error is proportional to the reduced amplitude of center distance error. The effect degree of center distance error on the male rotor is the same as that of the female rotor.

Effects of axial position error $Δ z_{t}$ on rotor profile

Considering three axial position errors of 2, 4 and 6 mm as input parameters, the machined rotor profile with axial position error was obtained as shown in Figure 8. Comparing the original rotor profile with the machined one introducing axial position error in Figure 8, the deflection angle between the two rotor profiles can be obviously observed. Therefore, when introducing axial position error, deflection angle $γ$ was used to evaluate the rotor profile error instead of normal profile error. Similarly, average deflection angle $\bar{γ}$ , maximum deflection angle $γ_{max}$ and minimum deflection angle $γ_{min}$ were calculated as shown in Table 4.

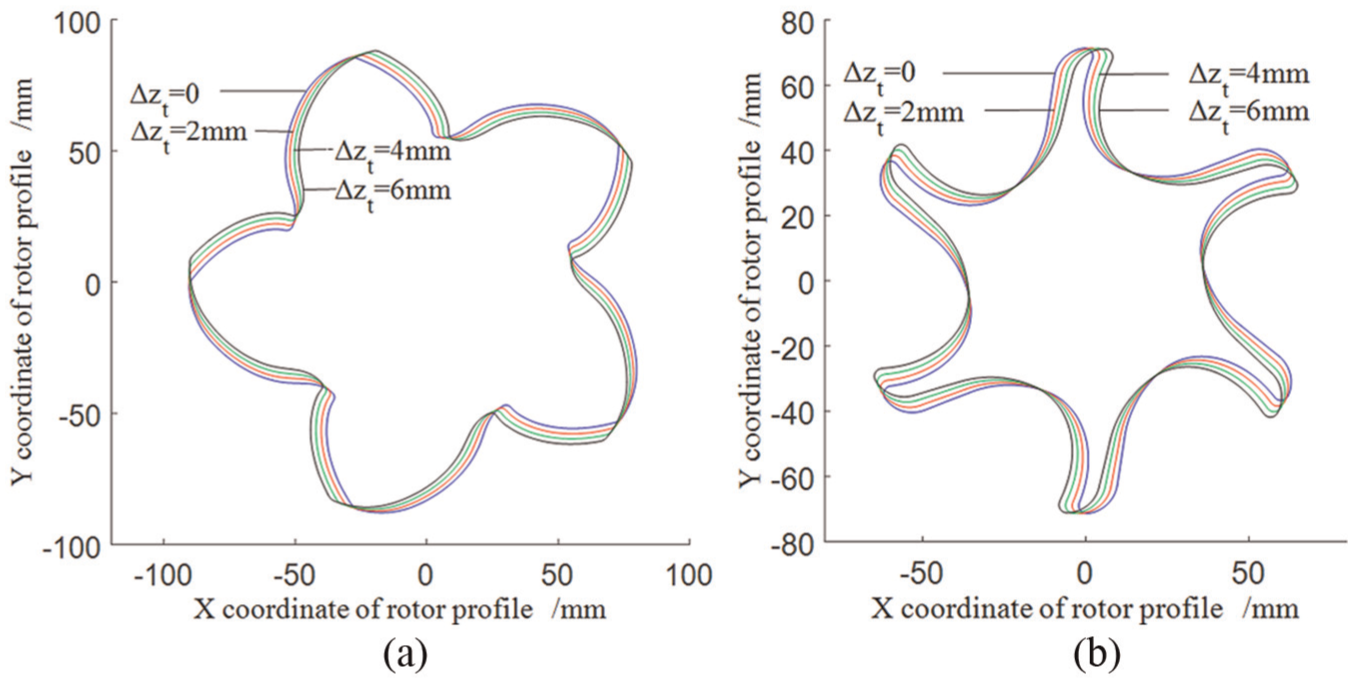

Figure 8.

Effects of axial position error on rotor profile: (a) male rotor and (b) female rotor.

Table 4.

Rotor profile error with axial position error.

Type		$Δ z_{t}$ (mm)
		2	4	6
Male (°)	$\bar{γ}$	2.0364	4.0723	6.1074
	$γ_{max}$	2.105	4.203	6.2942
	$γ_{min}$	1.9741	3.9484	5.9227
Female (°)	$\bar{γ}$	1.7283	3.4561	5.1830
	$γ_{max}$	1.7623	3.525	5.2937
	$γ_{min}$	1.6416	3.2865	4.9343

As shown in Figure 8 and Table 4, when the axial position of grinding wheel is increased, the rotor profile rotates clockwise with a deflection angle $γ$ . The increased amplitude of the deflection angle is proportional to the increased amplitude of axial position error of the grinding wheel.

Effects of coupled-factor errors with installation angle error $Δ Φ$ and center distance error $Δ A_{d}$ on rotor profile

According to the analyzed effects on rotor profile for single-factor installation error evaluation of grinding wheel in section “Effects of single-factor installation errors of grinding wheel on rotor profile,” both installation angle error $Δ Φ$ and center distance error $Δ A_{d}$ were the dominant factors causing the deformation of rotor profile, while axial position error $Δ z_{t}$ mainly caused rotor profile deflection instead of the deformation. Therefore, the coupled-factor errors with installation angle error $Δ Φ$ and center distance error $Δ A_{d}$ were considered to evaluate the effects on rotor profile. Based on the analyzed effects for single-factor installation error in section “Effects of single-factor installation errors of grinding wheel on rotor profile,” four cases were designed as shown in Table 5. For cases (1)–(3), the enlargement of rotor profile caused by installation angle error ( $Δ Φ > 0$ ) was designed while the opposite effects, rotor profile shrinkage caused by center distance error ( $Δ A_{d} < 0$ ) was also considered. Furthermore, in case (1), the value of installation angle error is relatively high and fixed, and the value of center distance error is varied. On the contrary, in case (2), the value of installation angle error is varied and the value of center distance error is relatively high and fixed. For case (3), the values of the two kinds of errors are varied. In case (4), both installation angle error and center distance error were considered to evaluate the shrinkage effects on rotor profile, namely $Δ Φ < 0$ and $Δ A_{d} < 0$ , and the values of the two kinds of errors are varied.

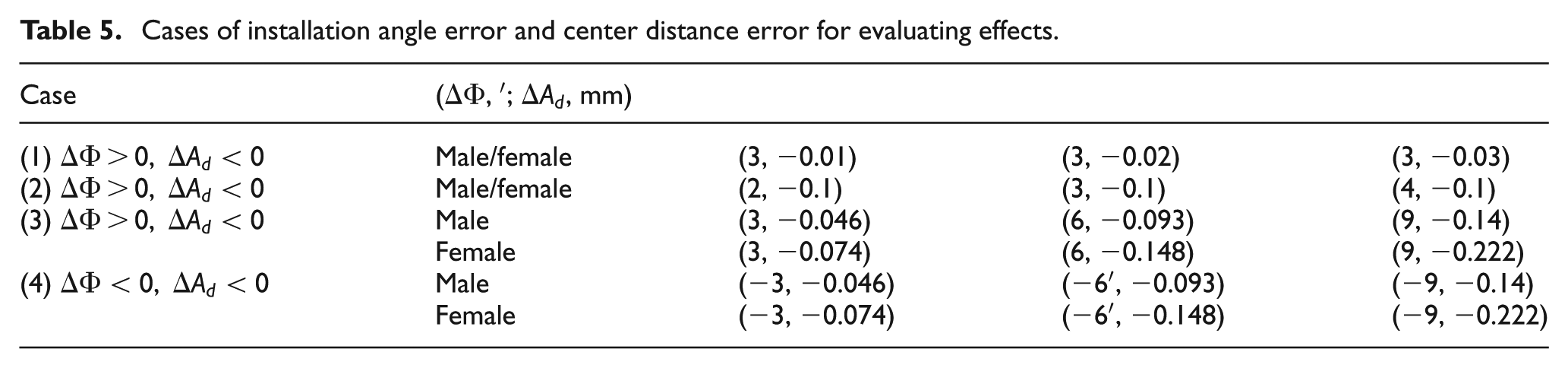

Table 5.

Cases of installation angle error and center distance error for evaluating effects.

Case	( $Δ Φ$ , ′; $Δ A_{d}$ , mm)
(1) $Δ Φ > 0, Δ A_{d} < 0$	Male/female	(3, −0.01)	(3, −0.02)	(3, −0.03)
(2) $Δ Φ > 0, Δ A_{d} < 0$	Male/female	(2, −0.1)	(3, −0.1)	(4, −0.1)
(3) $Δ Φ > 0, Δ A_{d} < 0$	Male	(3, −0.046)	(6, −0.093)	(9, −0.14)
	Female	(3, −0.074)	(6, −0.148)	(9, −0.222)
(4) $Δ Φ < 0, Δ A_{d} < 0$	Male	(−3, −0.046)	(−6′, −0.093)	(−9, −0.14)
	Female	(−3, −0.074)	(−6′, −0.148)	(−9, −0.222)

Effects on rotor profile for case (1)

Taking case (1) in Table 5 as imported parameters, the effects on rotor profile were obtained as shown in Figure 9, and the calculated rotor profile errors with the coupled-factor errors were presented in Table 6. In Figure 9, it is observed that the machined rotor profile and its normal profile error curves with coupled-factor errors are similar to the ones with single-factor error of installation angle in Figure 6. It indicates that installation angle error is the dominant factor affecting normal profile error of male rotor and female rotor in case (1). And also, in Table 6, the decrement of the center distance results in the reduction of the average normal profile error as well as the difference between the maximum error and minimum error.

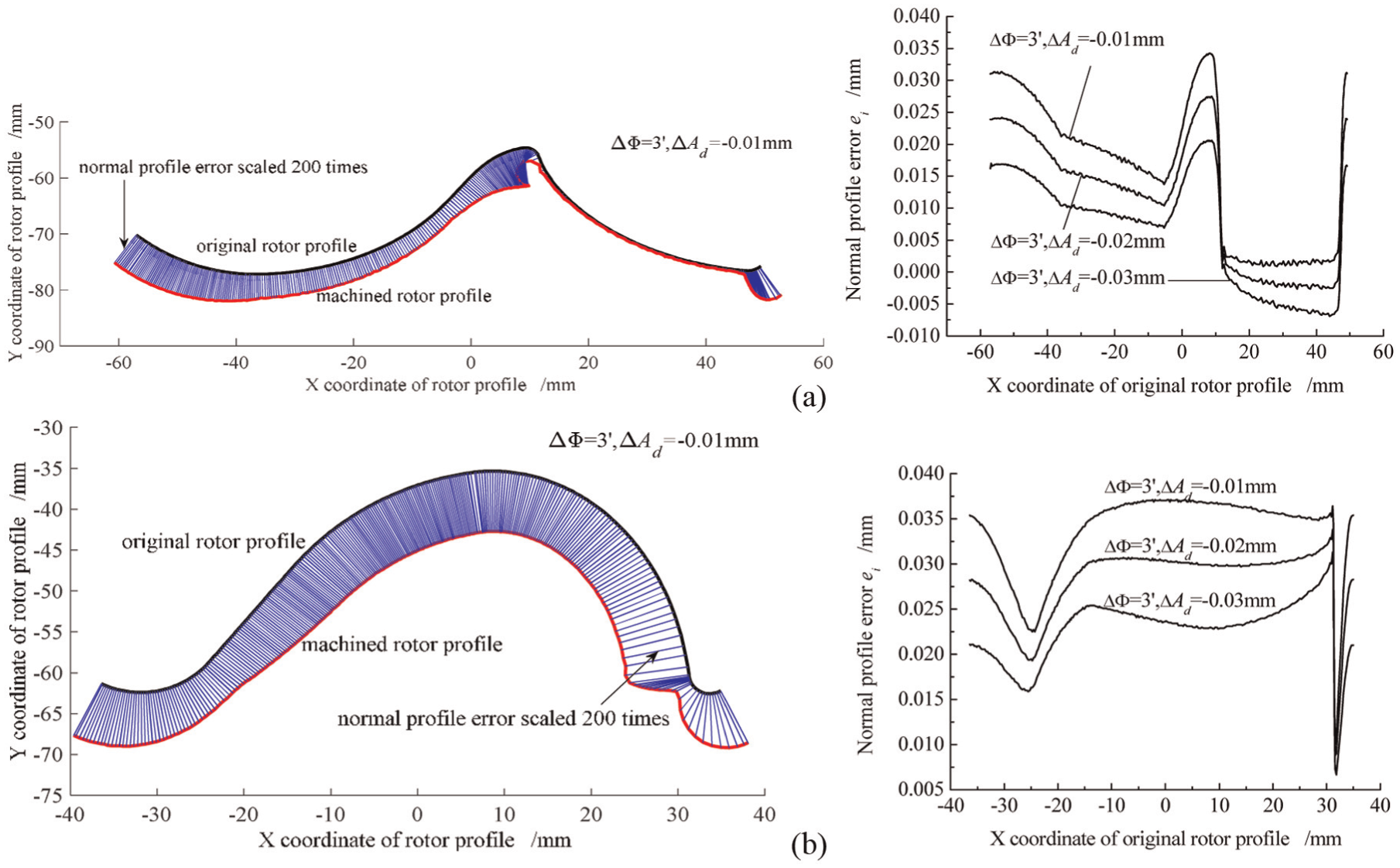

Figure 9.

Effects of installation angle error and center distance error on rotor profile in case (1): (a) male rotor and (b) female rotor.

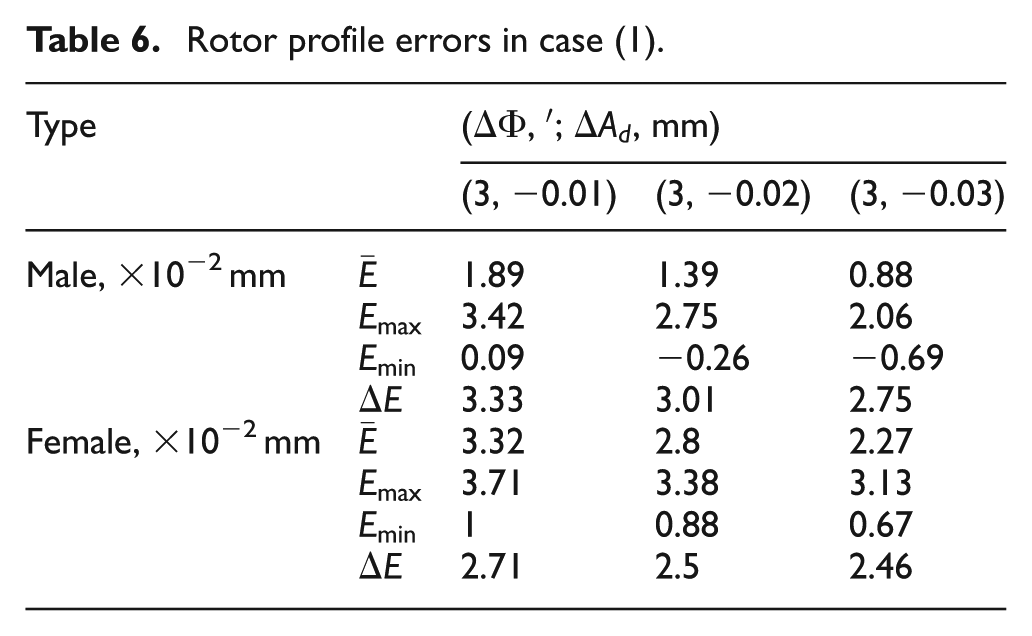

Table 6.

Rotor profile errors in case (1).

Type		( $Δ Φ$ , ′; $Δ A_{d}$ , mm)
		(3, −0.01)	(3, −0.02)	(3, −0.03)
Male, ×10⁻² mm	$\bar{E}$	1.89	1.39	0.88
	$E_{max}$	3.42	2.75	2.06
	$E_{min}$	0.09	−0.26	−0.69
	$Δ E$	3.33	3.01	2.75
Female, ×10⁻² mm	$\bar{E}$	3.32	2.8	2.27
	$E_{max}$	3.71	3.38	3.13
	$E_{min}$	1	0.88	0.67
	$Δ E$	2.71	2.5	2.46

The coupling effects on normal profile error for the installation angle error and the center distance error were further evaluated as shown in Figure 10. In Figure 10(a), the curve $C 1$ is the normal profile error curve with single-factor error of installation angle ( $Δ Φ = 3'$ ), and the curve $C 3$ is the normal profile error curve with single-factor error of the center distance ( $Δ A_{d} = - 0.01 mm$ ). The curve $C 2$ was calculated by adding curve $C 1$ into curve $C 3$ . Comparing the curve $C 2$ with the normal profile error curve for the coupled-factor errors ( $Δ Φ = 3'$ , $Δ A_{d} = - 0.01 mm$ ) in Figure 9, the difference between the two curves can be obtained as shown in Figure 10(b). The difference varies at the range of [−0.0005 mm, 0.0003 mm] for male rotor, which is very small. It indicates that the normal profile errors with the coupled-factor errors in Figure 9 almost equal those in the curve $C 2$ obtained by adding curve $C 1$ into curve $C 3$ with single-factor error. Therefore, there were linearly superposition effects on normal profile error of rotor for the installation angle error and the center distance error. The similar effects were also observed for female rotor as shown in Figure 10(c) and (d).

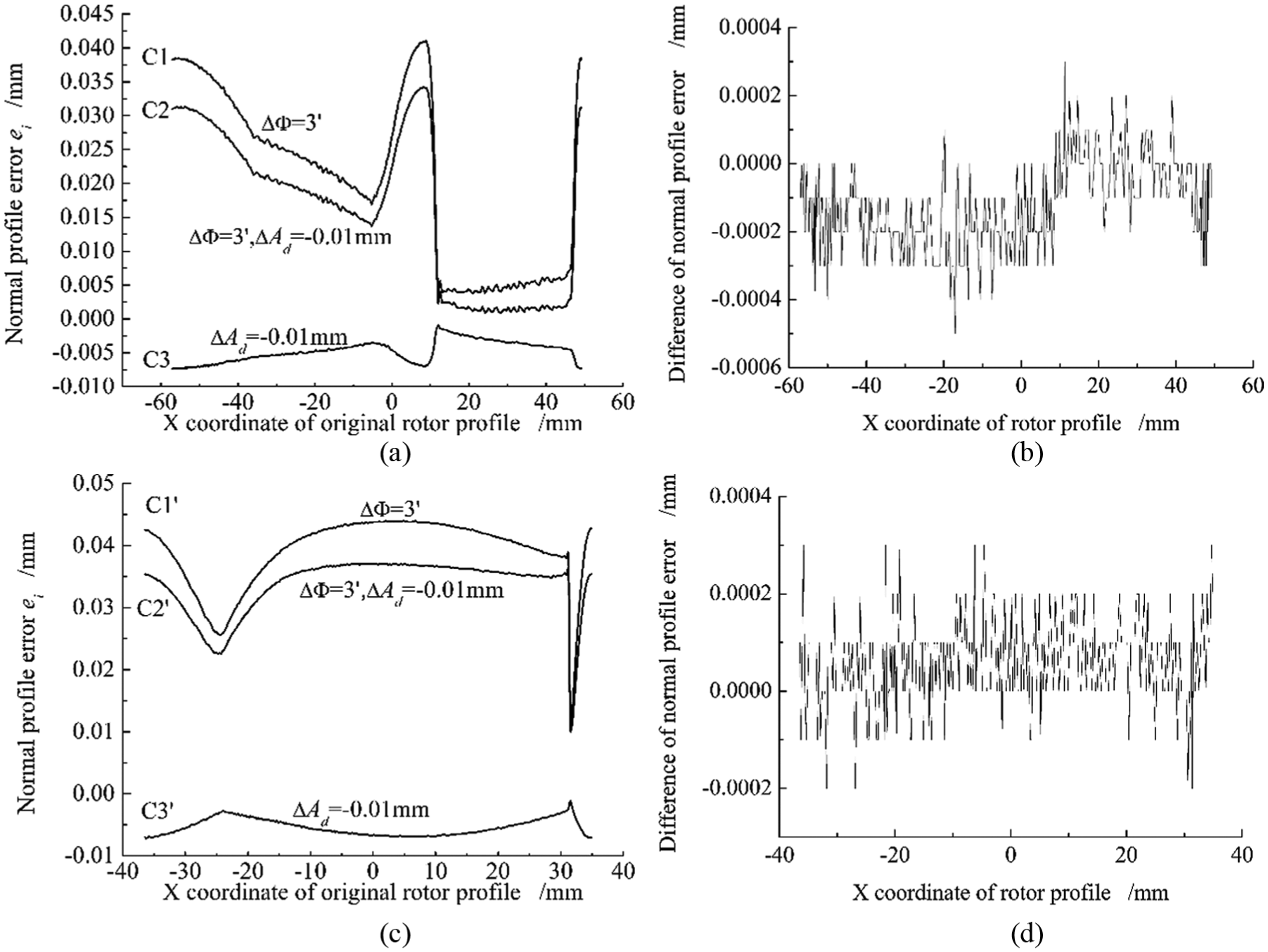

Figure 10.

Coupling effects on normal profile error of rotor in case (1): (a) male rotor, (b) male rotor, (c) female rotor and (d) female rotor.

Effects on rotor profile for case (2)

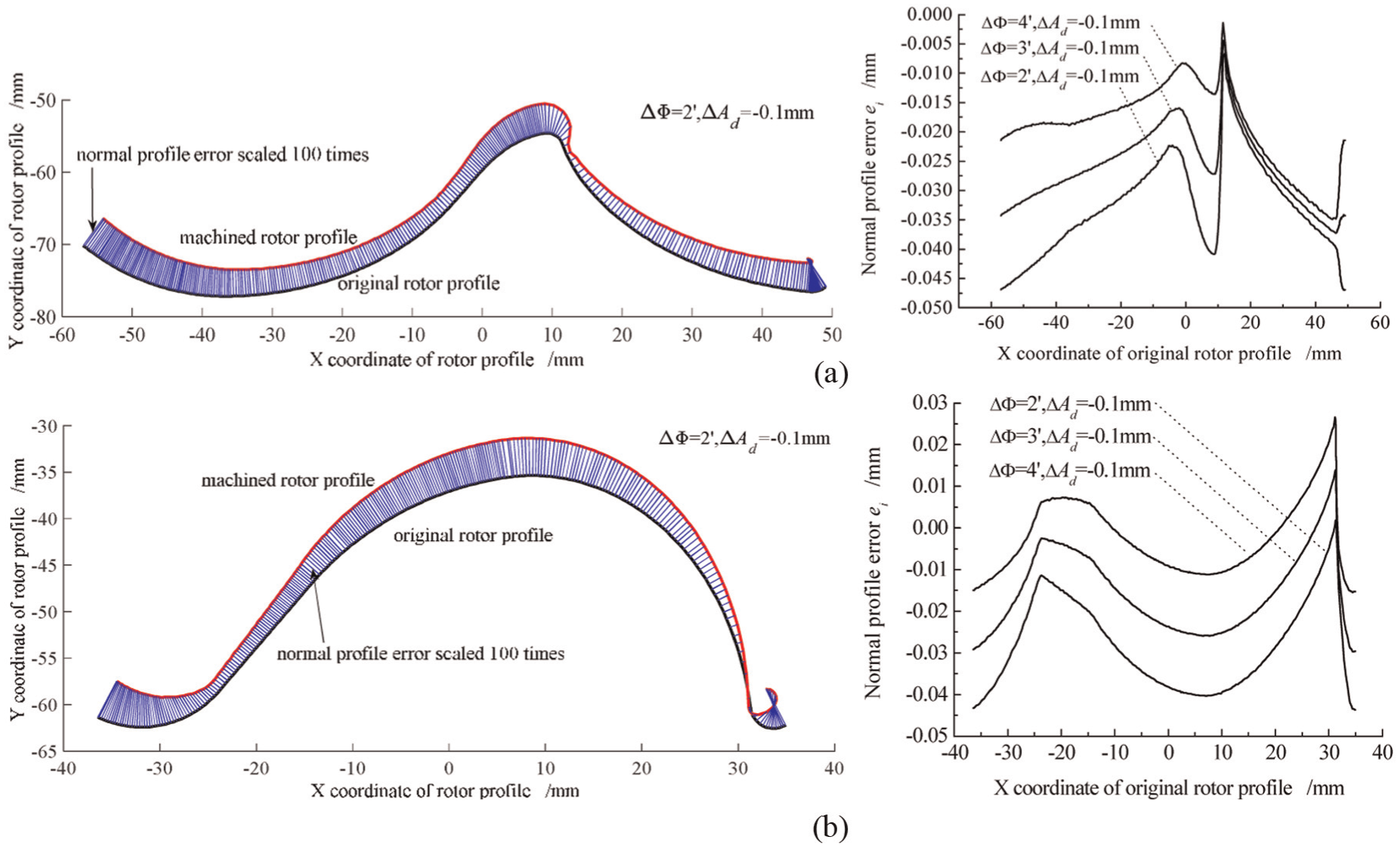

For case (2), Figure 11 depicts the effects on rotor profile with the coupled-factor errors. Table 7 presents the rotor profile errors with the coupled-factor errors. Similar to case (1), comparing Figure 12 with Figure 7, it can be seen that the dominant factor affecting normal profile error of male rotor and female rotor was the center distance error in case (2). According to Table 7, the average normal profile error as well as the difference between the maximum error and minimum error is decreased with the increment of the installation angle.

Figure 11.

Effects of installation angle error and center distance error on rotor profile in case (2): (a) male rotor and (b) female rotor.

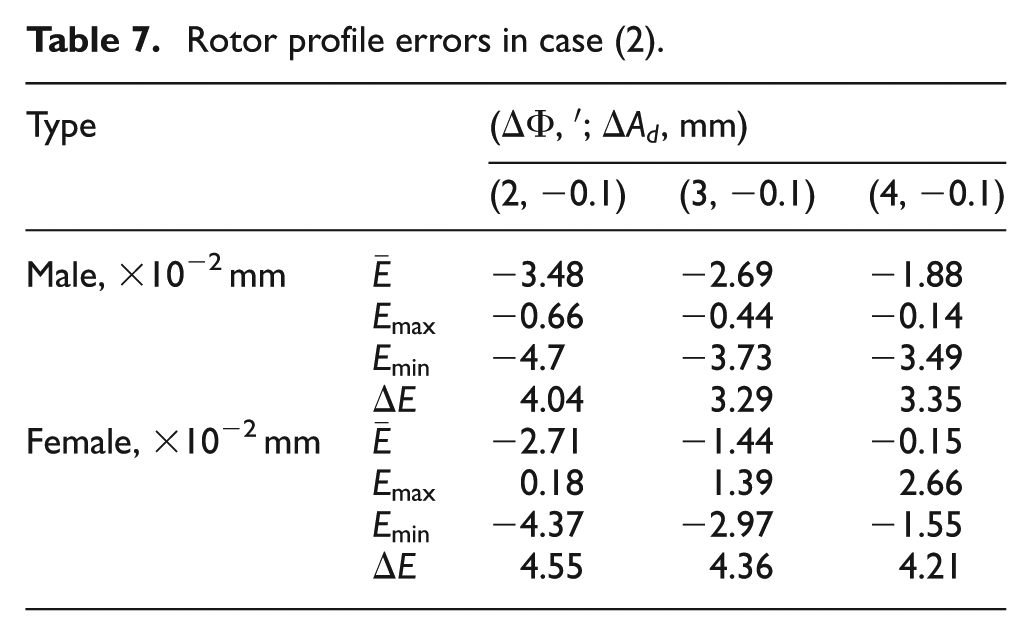

Table 7.

Rotor profile errors in case (2).

Type		( $Δ Φ$ , ′; $Δ A_{d}$ , mm)
		(2, −0.1)	(3, −0.1)	(4, −0.1)
Male, ×10⁻² mm	$\bar{E}$	−3.48	−2.69	−1.88
	$E_{max}$	−0.66	−0.44	−0.14
	$E_{min}$	−4.7	−3.73	−3.49
	$Δ E$	4.04	3.29	3.35
Female, ×10⁻² mm	$\bar{E}$	−2.71	−1.44	−0.15
	$E_{max}$	0.18	1.39	2.66
	$E_{min}$	−4.37	−2.97	−1.55
	$Δ E$	4.55	4.36	4.21

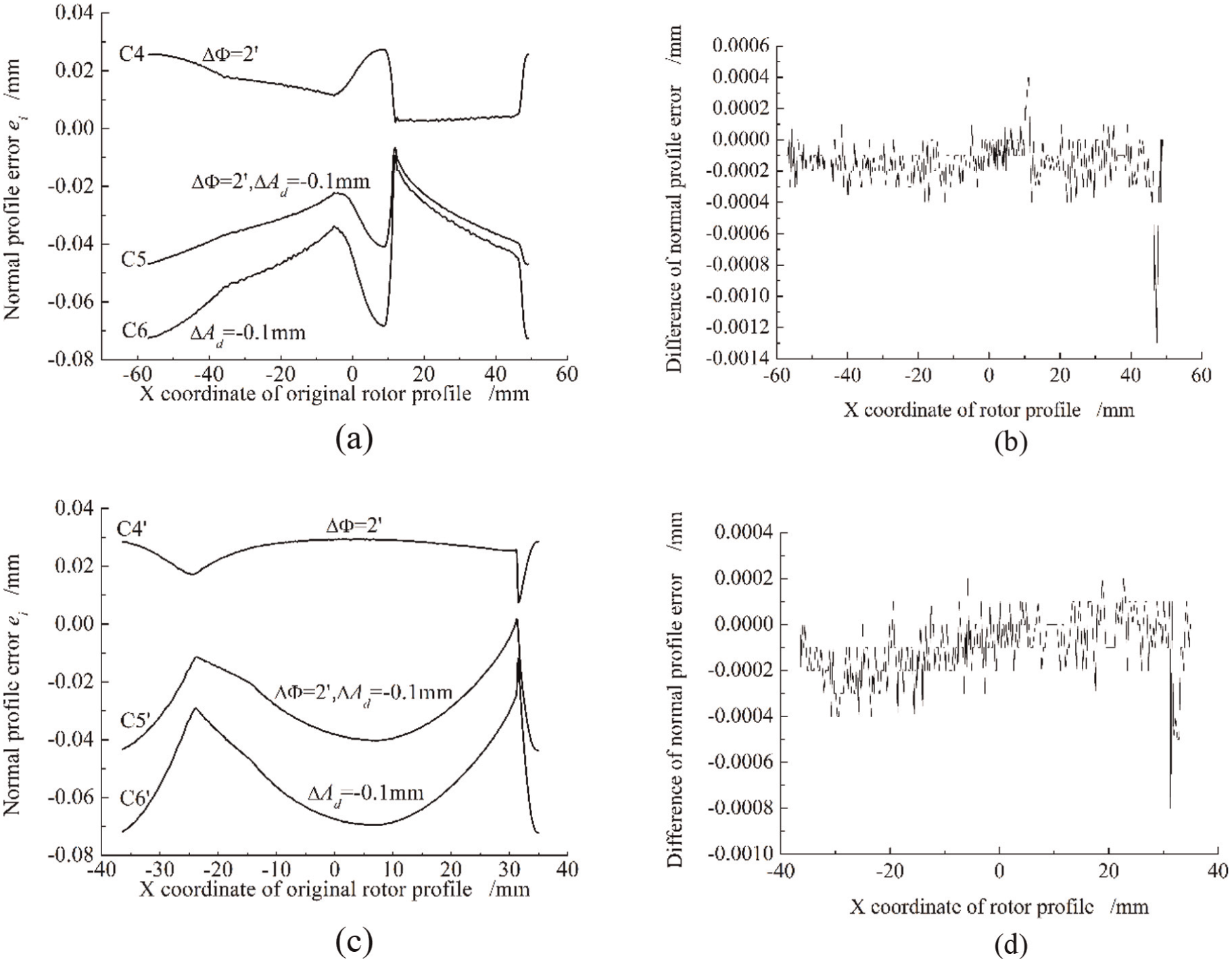

Figure 12.

Coupling effects on normal profile error of rotor in case (2): (a) male rotor, (b) male rotor, (c) female rotor and (d) female rotor.

Figure 12 shows the coupling effects on normal profile error for case (2). Similarly, for normal profile errors of the male rotor in Figure 12(a), the curve $C 4$ is the normal profile error for $Δ Φ = 2'$ , and the curve $C 6$ is the normal profile error curve for $Δ A_{d} = - 0.1 mm$ . The curve $C 5$ was obtained by adding the curve $C 4$ into the curve $C 6$ . The difference between the curve $C 5$ and the curve of normal profile errors for the coupled-factor errors ( $Δ Φ = 2'$ , $Δ A_{d} = - 0.1 mm$ ) in Figure 11(a) is in the range of [−0.0013 mm, 0.0004 mm] for male rotor, as shown in Figure 12(b). The similar effects were also observed for female rotor as shown in Figure 12(c) and (d). It is illustrated that there were also linearly superposition effects on normal profile error of rotor for the installation angle error and the center distance error in case (2).

Effects on rotor profile for case (3)

For case (3) with the varied values of the two coupled factors, the effects on rotor profile were presented in Figure 13. As shown in Figure 13, the normal profile error curve with the coupled-factor errors was different from the one with single-factor error for installation angle in Figure 6 as well as for center distance in Figure 7. It indicated that both of the two coupled factors have effects on normal profile error of rotor in case (3). For the male rotor in Figure 13(a), after introducing the coupled-factor errors ( $Δ Φ = 3'$ , $Δ A_{d} = - 0.046 mm$ ), the outer diameter and root diameter of the machined rotor profile are increased comparing with the original rotor profile. In the X-coordinate, the machined rotor profile at the interval of [−70.174 mm, 12.024 mm] is enlarged, the profile at the interval of [12.024 mm, 47.757 mm] is smaller, and the one at the interval [47.757 mm, 49.126 mm] is also enlarged. For the female rotor in Figure 13(b), it is observed that the addendum and root diameter of the machined rotor profile are smaller, and the tooth thickness is increased.

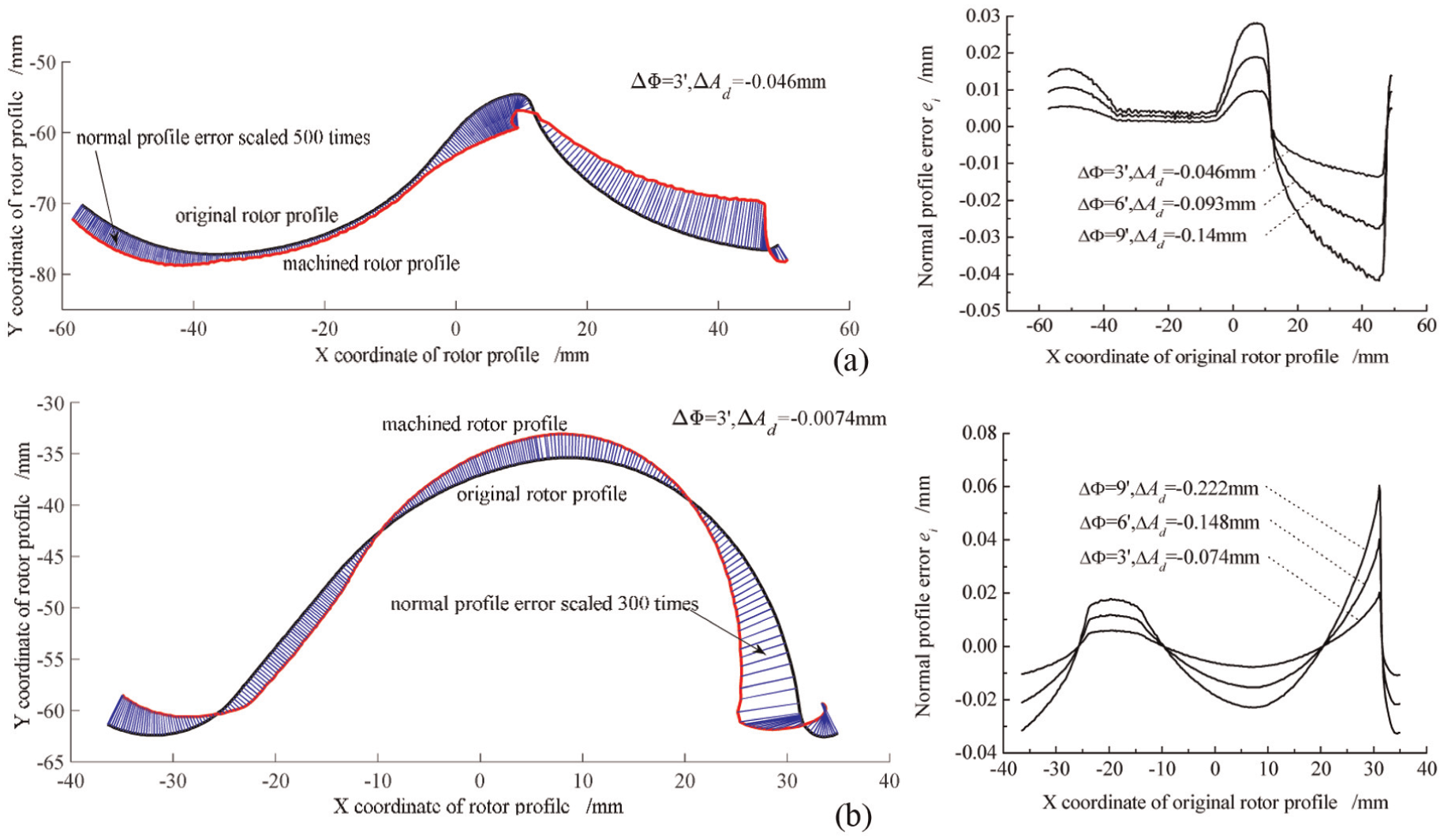

Figure 13.

Effects of installation angle error and center distance error on rotor profile in case (3): (a) male rotor and (b) female rotor.

Table 8 provides the calculated rotor profile errors with the coupled-factor errors for case (3). It can be seen that with the increment of the installation angle and the decrement of the center distance, the difference between the maximum normal profile error and minimum normal profile error $Δ E$ is increased sharply.

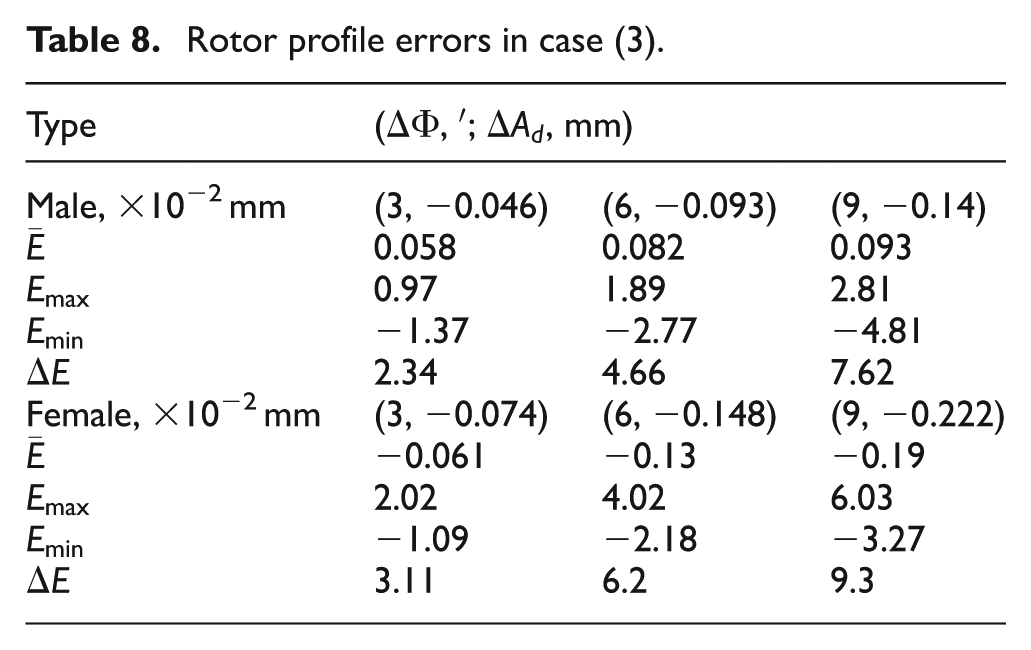

Table 8.

Rotor profile errors in case (3).

Type	( $Δ Φ$ , ′; $Δ A_{d}$ , mm)
Male, ×10⁻² mm	(3, −0.046)	(6, −0.093)	(9, −0.14)
$\bar{E}$	0.058	0.082	0.093
$E_{max}$	0.97	1.89	2.81
$E_{min}$	−1.37	−2.77	−4.81
$Δ E$	2.34	4.66	7.62
Female, ×10⁻² mm	(3, −0.074)	(6, −0.148)	(9, −0.222)
$\bar{E}$	−0.061	−0.13	−0.19
$E_{max}$	2.02	4.02	6.03
$E_{min}$	−1.09	−2.18	−3.27
$Δ E$	3.11	6.2	9.3

Figure 14 presents the coupling effects on normal profile error for case (3). The linearly superposition effects on normal profile error of rotor for the coupled-factor errors were also observed for both male rotor and female rotor, as shown in Figure 14(a) and (b) for male rotor and Figure 14(c) and (d) for female rotor. For example, the difference between the curve $C 8$ and the curve of normal profile errors for the coupled-factor errors ( $Δ Φ = 3'$ , $Δ A_{d} = - 0.046 mm$ ) in Figure 13(a) is in the range of [−0.0015 mm, 0.0005 mm] for male rotor, which is very small and can be neglected.

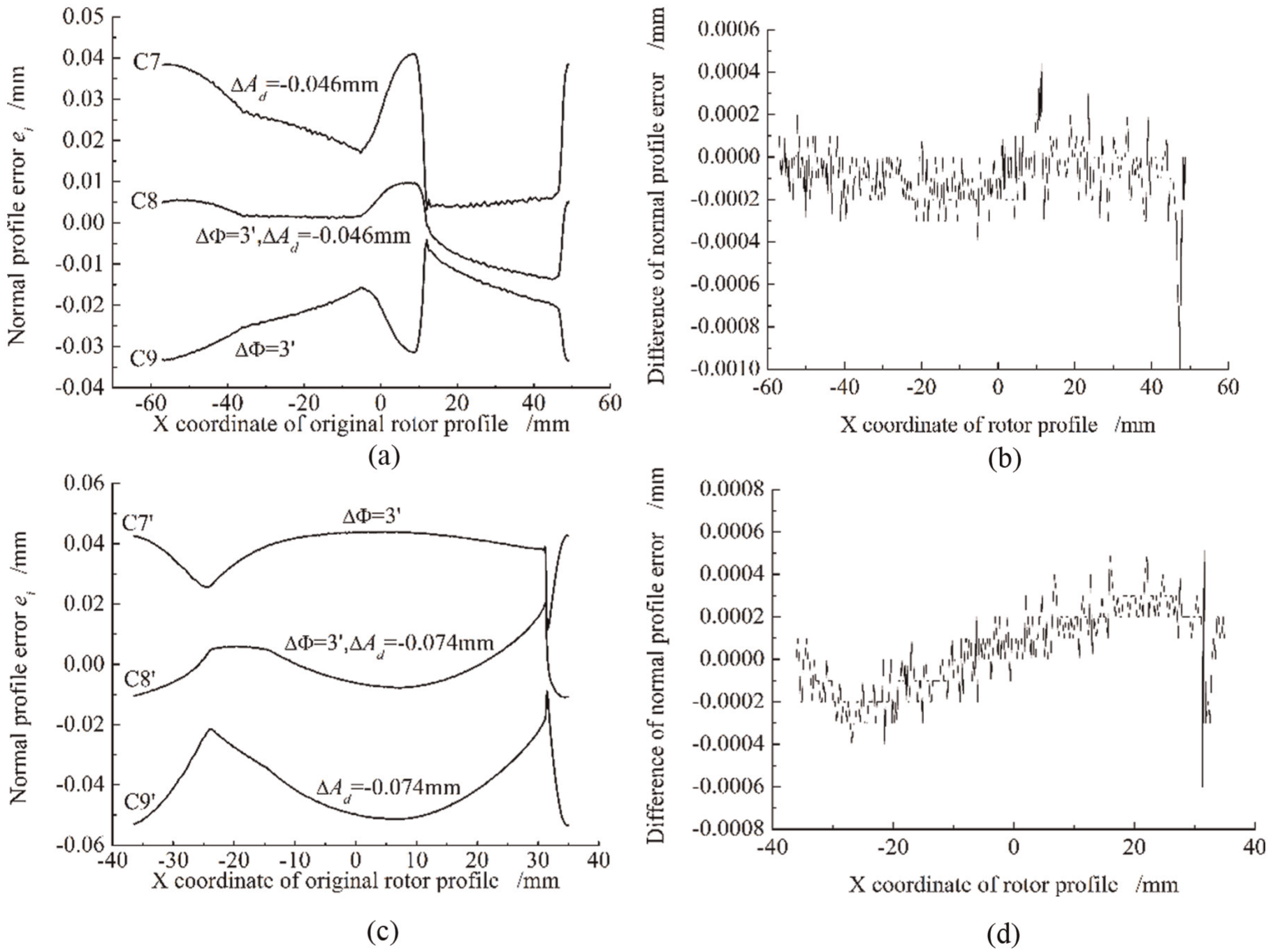

Figure 14.

Coupling effects on normal profile error of rotor in case (3): (a) male rotor, (b) male rotor, (c) female rotor and (d) female rotor.

Effects on rotor profile for case (4)

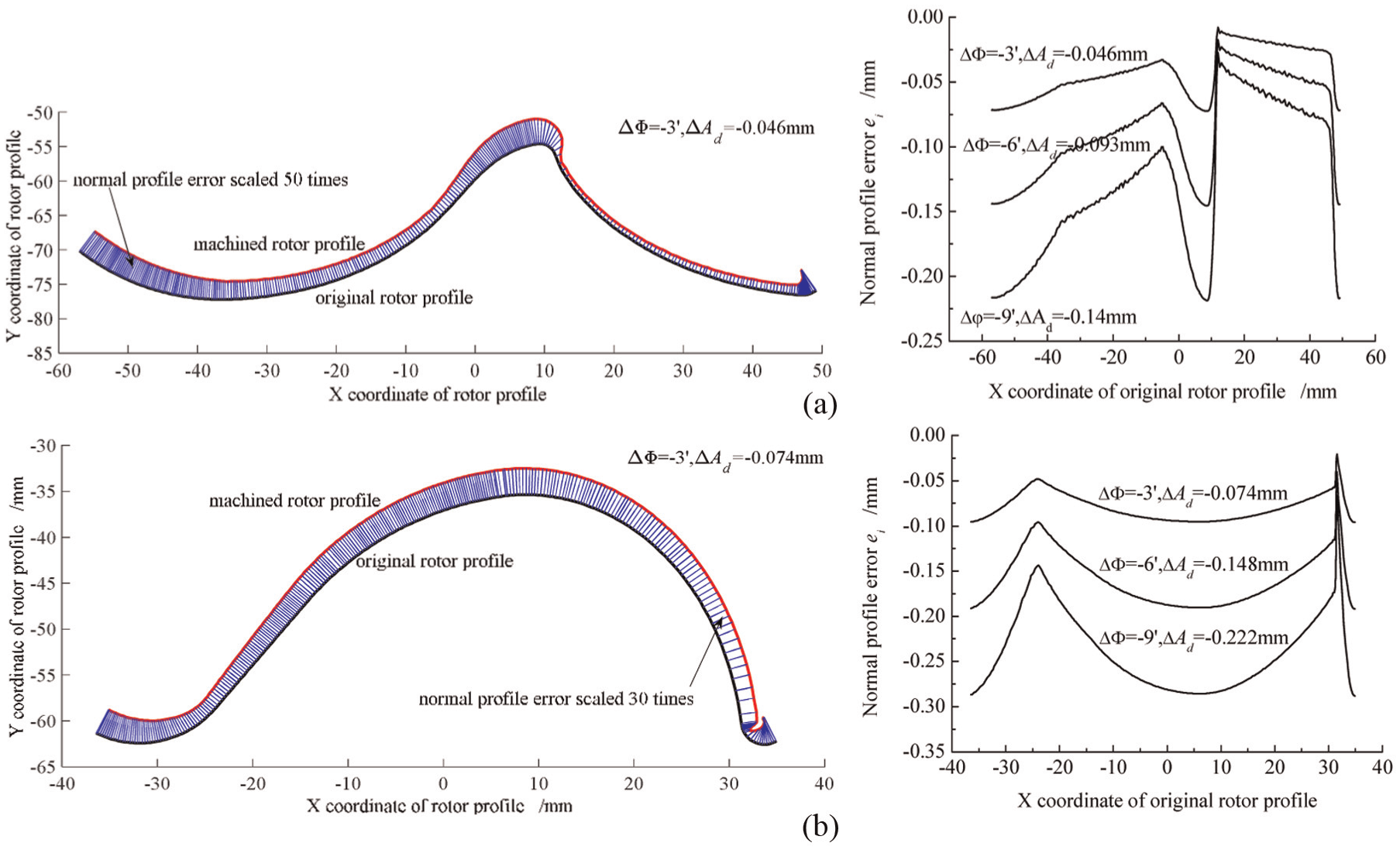

For case (4), Figure 15 shows the effects on rotor profile with the coupled-factor errors of grinding wheel. The shrinkage effects on the machined rotor profile are observed caused by both installation angle error and center distance error.

Figure 15.

Effects of installation angle error and center distance error on rotor profile in case (4): (a) male rotor and (b) female rotor.

Table 9 shows the rotor profile errors with the coupled-factor errors for case (4). The decrement of the installation angle and the center distance increases the difference between the maximum normal profile error and minimum error normal profile error $Δ E$ sharply.

Table 9.

Rotor profile errors in case (4).

Type	( $Δ Φ$ , ′; $Δ A_{d}$ , mm)
Male, ×10⁻² mm	(−3, −0.046)	(−6, −0.093)	(−9, −0.14)
$\bar{E}$	−4.77	−9.62	−14.49
$E_{max}$	−0.81	−1.74	−2.77
$E_{min}$	−7.25	−14.55	−21.85
$Δ E$	6.44	12.81	19.08
Female, ×10⁻² mm	(−3, −0.074)	(−6, −0.148)	(−9, −0.222)
$\bar{E}$	−7.79	−15.61	−23.43
$E_{max}$	−2.06	−4.06	−6.62
$E_{min}$	−9.6	−19.2	−28.8
$Δ E$	7.54	15.14	22.18

Figure 16 presents the coupling effects on normal profile error for case (4), Figure 16(a) and (b) are for male rotor, Figure 16(c) and (d) are for female rotor. Since the difference between the curve $C 12$ and the curve of normal profile errors ( $Δ Φ = - 3'$ , $Δ A_{d} = - 0.046 mm$ ) is observed in the range of [−0.0007 mm, 0.0029 mm] for male rotor, it is proved that there were linearly superposition effects on normal profile error of rotor for the coupled-factor errors in case (4).

Figure 16.

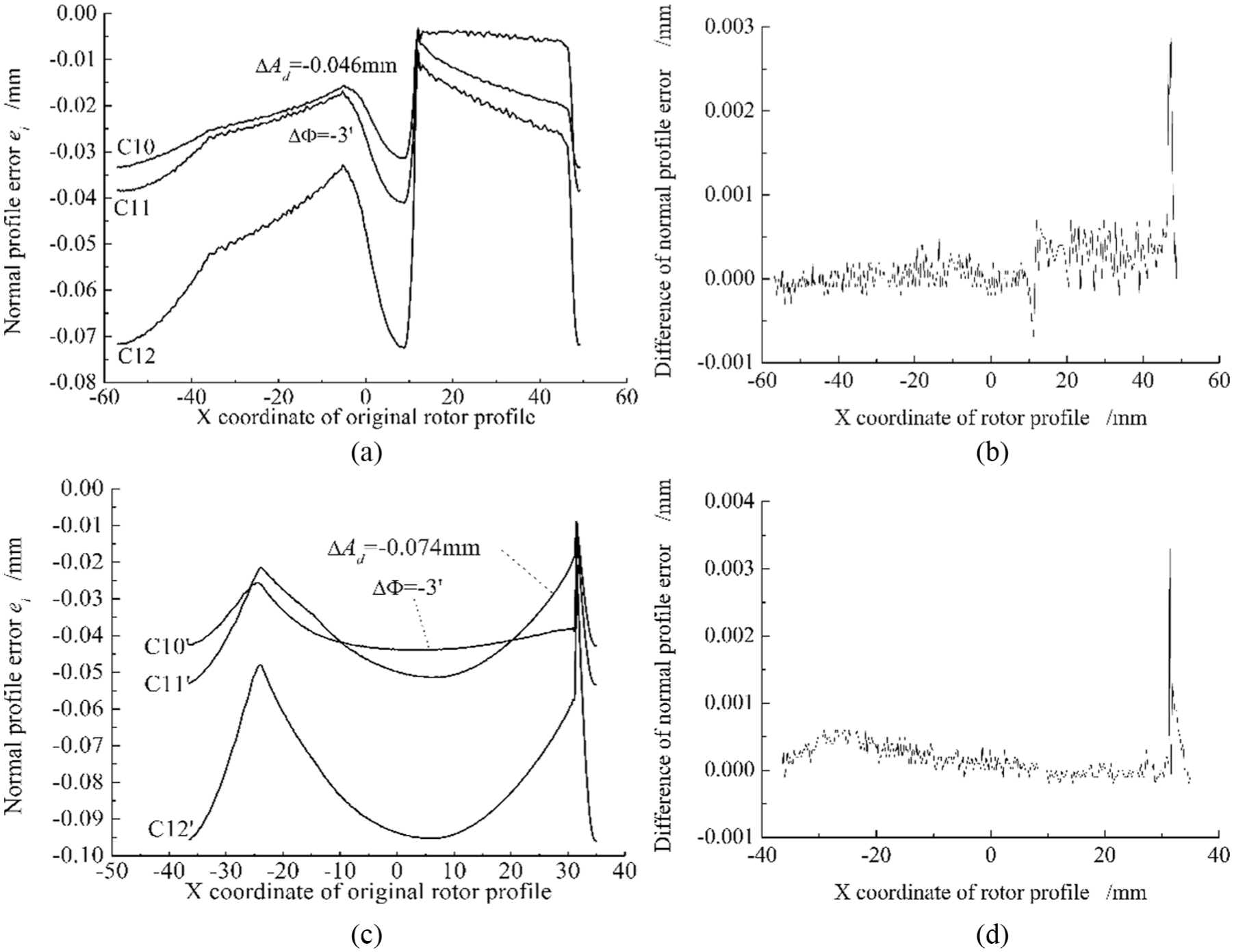

Coupling effects on normal profile error of rotor in case (4): (a) male rotor, (b) male rotor, (c) female rotor and (d) female rotor.

Discussions

According to the above analysis, the installation errors of grinding wheel, including installation angle error, center distance error and axial position error had effects on screw rotor profile. The detailed discussions on the effects were presented in the following.

In the single-factor installation error evaluation, rotor profile was smaller with the decrement of installation angle or center distance, and the reduced amplitude of normal profile error of rotor was proportional to the reduced amplitude of installation angle error or center distance error. The increment of axial position of grinding wheel caused rotor profile to clockwise rotation with a deflection angle.

In coupled-factor error evaluation with installation angle error and center distance error, the effects on rotor profile can be discussed from three aspects. For the opposite effects on rotor profile caused by the increment of installation angle and the decrement of center distance, if one kind of errors was obviously the dominant factor as shown in cases (1) and (2), the effects on rotor profile caused by the coupled-factor error can be regarded as the ones caused by the dominant single-factor error; otherwise, the machined rotor profile was affected as the enlargement of partial profile curve and shrinkage of partial profile curve as shown in case (3). For the same effects on rotor profile caused by the decrement of installation angle and the decrement of center distance, the rotor profile errors are increased significantly in case (4). For the four cases, the linearly superposition effects on normal profile error of rotor with the coupled-factor errors were observed for the installation angle error and the center distance error.

The evaluated effects provide a theoretical basis for error tracking and error compensation caused by installation errors of grinding wheel. For example, if the machined rotor profile is measured to be smaller, it can be inferred that the decrement of installation angle or center distance probably results in the smaller rotor profile based on the above discussions. Since center distance adjustment is often costly and time-consuming, installation angle can be first considered to compensate the profile error. Based on the discussion result that the reduced amplitude of normal profile error of rotor is proportional to the reduced amplitude of installation angle error, the installation angle can be adjusted iteratively until the profile error satisfies the error requirement. If the profile error is still not satisfied with installation angle adjustment, the coupled installation parameters of grinding wheel should be further considered to compensate the profile error. It should be noted that installation parameter adjustment is to compensate rotor profile error as a whole, and it cannot be applicable to local error compensation of screw rotor profile.

Experiment

To verify the above effects of installation errors of grinding wheel on rotor profile, screw rotor grinder named SK7032 from Hanjiang Machine Tool Company was used to machine the female rotor mentioned in Table 1 with installation errors of grinding wheel, as shown in Figure 17. Table 10 provides the three cases of installation parameters of grinding wheel.

Figure 17.

Female rotor grinding with SK7032 grinder from Hanjiang Machine Tool Company.

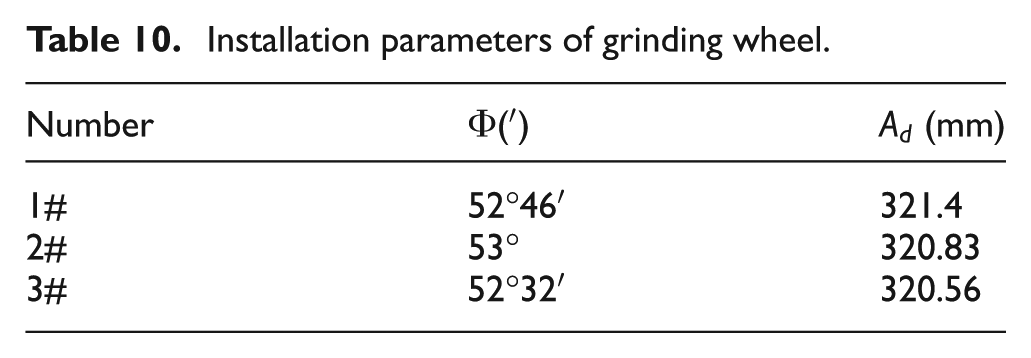

Table 10.

Installation parameters of grinding wheel.

Number	$Φ$ (′)	$A_{d}$ (mm)
1#	52°46′	321.4
2#	53°	320.83
3#	52°32′	320.56

Figure 18 shows the machined female rotor with installation errors of grinding wheel. Profile of the machined female rotor was measured by three-coordinate measuring machine P65 from Klingelnberg Company, as shown in Figure 19.

Figure 18.

Machined female rotor.

Figure 19.

Three-coordinate measuring machine P65.

Comparing parameter 2# with parameter 1#, installation angle error $Δ Φ$ is $14'$ , and center distance error $Δ A_{d}$ is −1.14 mm. According to the analysis in section “Numerical cases,” rotor profile should be smaller caused by the decrement of installation angle or center distance, and the reduced amplitude of normal profile error of rotor should be proportional to the reduced amplitude of installation angle error. Therefore, the increased amplitude of normal profile error of rotor caused by the installation angle error $Δ Φ = 14'$ should equal to that caused by center distance error $Δ A_{d} = 0.345 mm$ which is inferred from Tables 2 and 3. However, the center distance error $Δ A_{d}$ is −1.14 mm; thus, it can be inferred that the center distance error is the dominant factor affecting normal profile error of female rotor. The rotor profile under parameter 2# should be smaller comparing with the 1# one. Similarly, compared with parameter 1# or parameter 2#, the rotor profile under parameter 3# should be smaller.

Comparing parameter 3# with parameter 1#, installation angle error $Δ Φ$ is −14′, and center distance error is −1.68 mm. So the profile under parameter 3# should be smaller.

Three machined profiles of female rotors measured by P65 are shown in Figure 20. Rotor profile under parameter 1# is considered as “datum profile,” and rotor profiles under parameter 2# and parameter 3# are considered as “compared profile.” By comparing “compared profile” with the “datum profile,” the rotor profile errors of experiments and simulation are shown in Table 11.

Figure 20.

Comparison of rotor profiles under parameters 1#–3#.

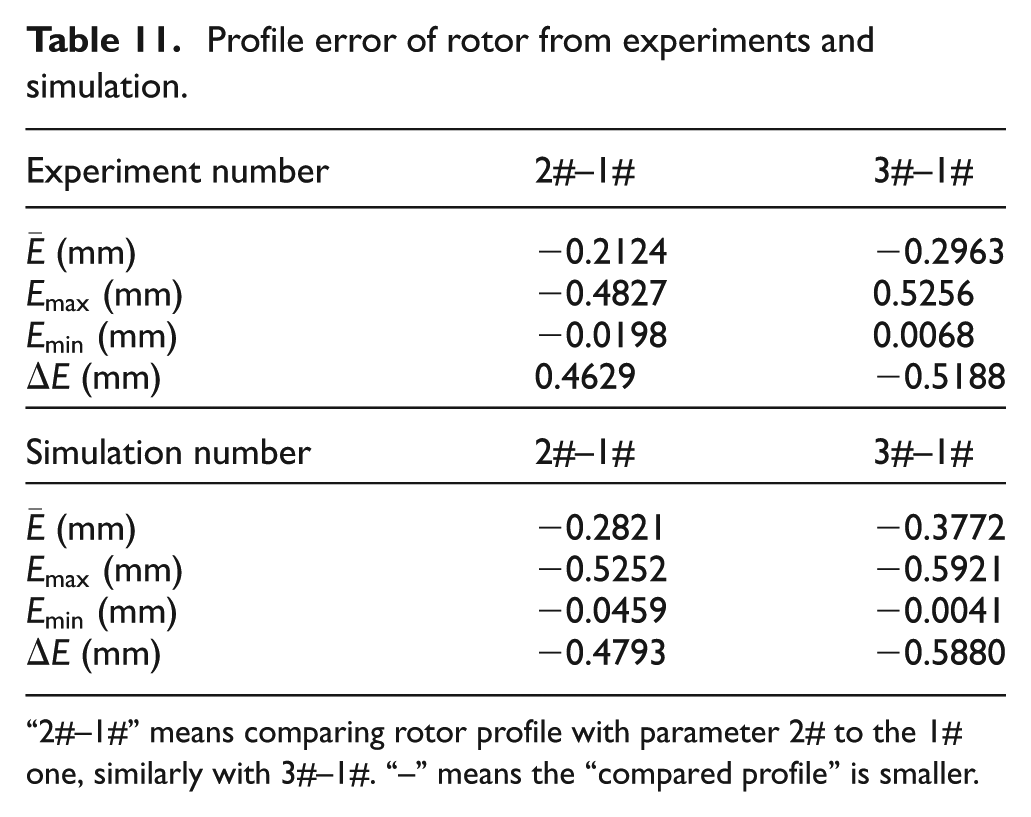

Table 11.

Profile error of rotor from experiments and simulation.

Experiment number	2#–1#	3#–1#
$\bar{E}$ (mm)	−0.2124	−0.2963
$E_{max}$ (mm)	−0.4827	0.5256
$E_{min}$ (mm)	−0.0198	0.0068
$Δ E$ (mm)	0.4629	−0.5188
Simulation number	2#–1#	3#–1#
$\bar{E}$ (mm)	−0.2821	−0.3772
$E_{max}$ (mm)	−0.5252	−0.5921
$E_{min}$ (mm)	−0.0459	−0.0041
$Δ E$ (mm)	−0.4793	−0.5880

“2#–1#” means comparing rotor profile with parameter 2# to the 1# one, similarly with 3#–1#. “–” means the “compared profile” is smaller.

Figure 20 shows that with the changes of installation parameters, from parameters 1# to 3#, the rotor profile is smaller, which is consistent with the above analytical results. In Table 11, although the rotor profile errors from simulation are greater than the ones from experiment due to other errors during grinding process, the change trend of rotor profile by experiment is consistent with that by simulation. This means the simulation analysis of the effects of installation errors on rotor profile in this article is valuable.

Conclusion

This article proposed a numerical method to evaluate the effects of installation errors of grinding wheel on rotor profile. The screw rotor profile was generated and its error model was established based on coordinate transformation and engagement theory. Depending on the profile error calculation of the obtained models, the detailed error evaluation procedure was presented with discrete rotor profile points. The numerical cases for a couple of intermeshing screw rotors showed the effects of installation errors of grinding wheel on rotor profile by considering both single-factor installation errors and coupled-factor installation errors. And grinding experiments for female rotor by introducing different installation errors were performed to verify the analysis of the numerical cases. Some conclusions were obtained as follows:

The installation errors of grinding wheel, including installation angle error, center distance error and axial position error have effects on screw rotor profile.

Rotor profile is smaller with the decrement of installation angle or center distance, while it is rotated clockwise with a deflection angle caused by the increment of axial position.

If there is a dominant factor in the coupled-factor errors, the effects on rotor profile caused by the coupled-factor errors can be regarded as the ones for the single-factor error.

The linearly superposition effects on normal profile error of rotor are observed for the coupled-factor errors of the installation angle error and the center distance error of grinding wheel.

The above cases show that the proposed numerical method is useful to evaluate the effects of installation errors of grinding wheel on rotor profile. It can be further used to carry out error tracking and error compensation for screw rotor grinding. In the future work, how to obtain adjustment values of the installation parameters should be further studied for efficiently implement this approach in error compensation process. On the other hand, other errors affecting the rotor profile as well as installation parameter errors should also be considered comprehensively to improve accuracy of error compensation for screw rotor. Additionally, the practical evaluation software for this approach can be developed to improve the efficiency of error analysis.

Footnotes

Appendix 1 Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the National Natural Science Foundation of China (51475244), Chongqing Research Program of Basic Research and Frontier Technology (No.cstc2015 jcyjBX0088), “Six Talent Peaks” Project in Jiangsu Province (2014-ZBZZ-006) and “excellence plans-zijin star” Foundation of Nanjing University of Science and Technology (2015-zijin-07).

References

Stosic

Smith

Kovacevic

. Review of mathematical models in performance calculation of screw compressors. Int J Fluid Mach Syst 2011; 4: 271–288.

Park

Lee

Yang

. A study on the machining of compressor rotors using formed tools. Int J Precis Eng Man 2010; 11: 195–200.

Karunakaran

Dhande

SG.

Computer aided design of cutters for helicoidal surfaces. Proc IMechE, Part B: J Engineering Manufacture 1998; 212: 373–382.

Shen

Yao

Chen

. A novel rotor profile error tracing and compensation strategy for high precision machining of screw rotor based on trial cutting of limited samples. Shock Vib 2015; 2015: 978325 (9 pp.).

Tian

Gao

Zhang

. A general approach for error modeling of machine tools. Int J Mach Tool Manu 2014; 79: 17–23.

Fan

CW.

Mathematical modeling for screw rotor form grinding on vertical multi-axis computerized numerical control form grinder. J Manuf Sci E: T ASME 2013; 135: 051020.

Guo

CS.

Reduce the influence of process errors on rotor profile by optimizing rotor offset angle. Mach Sci Technol 2005; 9: 453–462.

Wei

Zhang

GH.

A precision grinding method for screw rotors using CBN grinding wheel. Int J Adv Manuf Tech 2010; 48: 495–503.

Tang

Zhang

Jiang

. Design method for screw forming cutter based on tooth profile composed of discrete points. J Mech Design 2015; 137: 085002.

10.

Fong

Zhang

ZX.

Simulation of a cylindrical form grinding process by the radial-ray shooting (RRS) method. Mech Mach Theory 2010; 45: 261–272.

11.

Shen

Yao

Teng

. Generating grinding profile between screw rotor and forming tool by digital graphic scanning (DGS) method. Int J Precis Eng Man 2016; 17: 35–41.

12.

Chen

Chang

Shen

. Examining the profile accuracy of grinding wheels used for microdrill fluting by an image-based contour matching method. Proc IMechE, Part B: J Engineering Manufacture 2010; 224: 899–911.

13.

Stosic

A geometric approach to calculating tool wear in screw rotor machining. Int J Mach Tool Manu 2006; 46: 1961–1965.

14.

Wang

Lan

Hou

. A precision generating grinding method for face gear using CBN wheel. Int J Adv Manuf Tech 2015; 79: 1839–1848.

15.

Guo

Tang

Screw rotor profile manufacturability. Mach Sci Technol 2003; 7: 53–64.

16.

Guo

Tang

Influence of process parameters on screw rotor profiles. Mach Sci Technol 2003; 7: 105–118.

17.

Stosic

Evaluating errors in screw rotor machining by tool to rotor transformation. Proc IMechE, Part B: J Engineering Manufacture 2006; 220: 1589–1596.

18.

Stosic

Smith

Kovacevic

. Geometry of screw compressor rotors and their tools. J Zhejiang Univ: Sc A 2011; 12: 310–326.

19.

Wei

Zhang

. Study on precision grinding of screw rotors using CBN wheel. Int J Precis Eng Man 2011; 11: 651–658.

A numerical method for evaluating effects of installation errors of grinding wheel on rotor profile in screw rotor grinding

Abstract

Keywords

Introduction

Rotor profile generation model

Error model of rotor profile

Error calculation method of rotor profile

Point interval search for the intersection point

Error evaluation procedure

Numerical cases

Effects of single-factor installation errors of grinding wheel on rotor profile

Effects of installation angle error Δ Φ on rotor profile

Effects of center distance error Δ A d on rotor profile

Effects of axial position error Δ z t on rotor profile

Effects of coupled-factor errors with installation angle error Δ Φ and center distance error Δ A d on rotor profile

Effects on rotor profile for case (1)

Effects on rotor profile for case (2)

Effects on rotor profile for case (3)

Effects on rotor profile for case (4)

Discussions

Experiment

Conclusion

Footnotes

Appendix 1

Declaration of Conflicting Interests

Funding

References

Effects of installation angle error $Δ Φ$ on rotor profile

Effects of center distance error $Δ A_{d}$ on rotor profile

Effects of axial position error $Δ z_{t}$ on rotor profile

Effects of coupled-factor errors with installation angle error $Δ Φ$ and center distance error $Δ A_{d}$ on rotor profile
