A fuzzy technique for order preference by similarity to an ideal solution–based quality function deployment for prioritizing technical attributes of new products

Abstract

Quality function deployment is a cross-functional decision-making tool that converts customer needs into technical attributes of new products. Fuzzy numbers are usually adopted to evaluate the customer need importance and the customer need–technical attribute relationships. However, the weighted normalized customer need–technical attribute relationship matrix is not always full rank. If the different fuzzy numbers of two technical attributes are defined as the fuzzy negative ideal solutions, both the closeness coefficients are 0, and the traditional technique for order preference by similarity to an ideal solution cannot prioritize the two technical attributes. Actually, the rankings of different fuzzy numbers are not identical. To solve this problem, we present a new technique for order preference by similarity to an ideal solution to prioritize technical attributes in the fuzzy quality function deployment. The fuzzy positive ideal solution, fuzzy negative ideal solution, and distance measurement of the new technique for order preference by similarity to an ideal solution are improved. As a result, the proposed method not only prioritizes various forms of numbers without considering the lower and upper limits, the median, and boundary interval but also deals with the nonfull rank matrix. Besides, the Theory of Inventive Problem Solving is used to solve technical conflicts which are identified by the line-fitting method. The prioritization results from the proposed method can help to reasonably allocate design and manufacturing resources. Finally, a case on phone shell is given to illustrate the application of the proposed quality function deployment method.

Keywords

Quality function deployment fuzzy technique for order preference by similarity to an ideal solution Theory of Inventive Problem Solving triangular fuzzy number line fitting

Introduction

Understanding customer needs (CNs) plays an essential role in the global competitive market. It is necessary to satisfy CNs from the perspective of product development. Quality function deployment (QFD) is a famous decision-making tool which translates CNs into technical attributes (TAs).¹ It originated in the late 1960s in Japan and has been widely used to analyze CNs in various industries.² To provide customer-oriented products, CNs are mapped into TAs in the house of quality (HOQ) which is the first basic building block of QFD.

Initially, the input of QFD is treated as crisp numbers which represent the objective evaluation. Chan and Wu³ and Lin et al.⁴ used traditional technique for order preference by similarity to an ideal solution (TOPSIS) to prioritize TAs in the QFD. However, some information in the QFD, such as the CN importance and CN–TA relationship, is derived from human linguistic assessments.⁵ People tend to use linguistic and numerical judgments to express their thoughts. The crisp number describes the subjective information difficultly. When Zadeh⁶ presented the concept of fuzzy set, the fuzzy set theory seems to be more appropriate to express the linguistic information. Triangular fuzzy numbers (TFNs) are adopted to evaluate the imprecise and vague information in the QFD planning process. Chan et al.⁷ and Chan and Wu⁵ compared the bounds or/and median of TFNs to prioritize TAs. If the median of TFNs is identical, this method is invalid. In order to make the evaluation more reasonable, TOPSIS is integrated into fuzzy QFD to prioritize TAs. Malekly et al.⁸ and Li et al.⁹ integrated TOPSIS into QFD to obtain the ranking order of TAs in the fuzzy environment. These methods handle the imprecise and vague information effectively. However, the CN–TA relationship matrix is not always full rank in the fuzzy QFD. When the different fuzzy numbers are defined as the fuzzy negative ideal solutions (FNISs), the traditional QFD cannot prioritize TAs. Moreover, the Euclidean distance employed by the traditional QFD calculates fuzzy numbers inaccurately.¹⁰ Besides, the interdependent among TAs is also considered. Especially, technical conflicts (TCs) among TAs seriously affect the planning of product development¹¹ and must be solved.

To overcome these challenges, this article proposes a novel TOPSIS method to prioritize interdependent TAs in the fuzzy QFD. The proposed method uses symmetrical triangular fuzzy numbers (STFNs) to evaluate the CN importance and CN–TA relationships, the new TOPSIS method to prioritize TAs, the line-fitting method to identify TCs, and the Theory of Inventive Problem Solving (TRIZ, Russian acronym) theory to solve TCs. Therefore, interdependent TAs without conflicts are prioritized. The proposed QFD can transform qualitative and vague CNs into TAs (e.g. product shape, precision, and material), which will ultimately provide specific requirements for the manufacturing process. In this respect, it ensures that the manufactured products can meet CNs. Furthermore, the proposed QFD can also help to reduce the manufacturing costs of products¹² by planning TAs in the early development phase.

This article is organized as follows: section “Literature review” states literature review of QFD and TOPSIS, section “Proposed QFD method based on fuzzy TOPSIS” provides a detailed process for integrating the new TOPSIS into fuzzy QFD to prioritize interdependent TAs, and section “Case study” uses phone shell to illustrate the proposed method. Comparisons between the proposed TOPSIS and traditional TOPSIS, and the proposed QFD and traditional QFD are also made in this section. In section “Conclusion and suggestions,” we conclude this article and give some suggestions for future work.

Literature review

QFD

QFD translates CNs into TAs in the HOQ originally, and the result is mapped to parts planning, process planning, and production planning to complete new product development.¹³ In the four inter-linked processes, the outputs of each process (HOWs), which are generated from the inputs of this process (WHATs), are the new inputs of the next process (new WHATs). Although the four inter-linked processes satisfy CNs step by step, the first process is the most important. It links CNs to TAs and maps TAs to other processes. Moreover, the structures of other three processes are essentially the same as HOQ. QFD is studied in the product design¹⁴ and manufacturing.¹⁵

In the HOQ, CNs are collected by the market survey. Experts analyze CNs and identify TAs to satisfy them. Customers evaluate the CN importance, and experts assess the CN–TA relationship. Zhang et al.¹⁶ adopted crisp numbers to prioritize TAs in the HOQ. The traditional QFD deals with the crisp information effectively. However, some information is often imprecise and vague in the HOQ planning process. For example, CN_n is very important; the relationship between CN_i and TA_j is weak. The traditional QFD handles the imprecise and vague information inefficiently. Some methods, such as the fuzzy set theory and the rough set theory, are integrated into the traditional QFD to deal with the fuzzy information. Chan and Wu⁵ suggested STFNs to capture the linguistic evaluation and introduced the entropy to determine priority ratings. Chen et al.¹⁷ proposed the fuzzy weighted average method and fuzzy expected value operator to rank TAs in fuzzy QFD. A fuzzy weighted average method and a consensus ordinal ranking technique are integrated to address human perception and customer heterogeneity simultaneously.¹⁸ Zhai et al.^19,20 used rough numbers to express the imprecise information and support product development. They compared the bounds or/and median to prioritize TAs. If the median of fuzzy or rough numbers is identical, the order preference of TAs is not determined. The TOPSIS method ranks various forms of numbers without considering the median, the lower and upper limits, and so on. Besides, the correlations among TAs are also important in the HOQ. The negative correlation is defined as design bottleneck that needs to be solved in the new product development. Ko et al.²¹ and Liu and Cheng²² adopted the TRIZ to address design conflicts. Therefore, TOPSIS and the TRIZ are integrated into fuzzy QFD to prioritize interdependent TAs. The proposed QFD not only prioritizes TAs but also solves TCs among TAs.

TOPSIS

TOPSIS which is presented by Hwang and Yoon²³ is a multiple criteria decision-making tool. The basic principle is to choose the alterative which should have the shortest distance from the positive ideal solution (PIS) and the farthest distance from the negative ideal solution (NIS).²⁴ The flowchart of TOPSIS is shown in Figure 1, and the calculation process is as follows:^25,26

Step 1: normalize the decision matrix. The decision matrix is normalized with the following formula

r_{ij} = \frac{x_{ij}}{\sqrt{\sum_{i = 1}^{m} x_{ij}^{2}}}, i = 1, 2, \dots, m; j = 1, 2, \dots, n

(1)

where r_ij represents the normalized value, and x_ij is the evaluation value of the ith alternative with respect to the jth criterion.

Step 2: calculate the weighted normalized decision matrix. The weighted normalized value t_ij is

t_{ij} = ω_{j} \cdot r_{ij}

(2)

where $ω_{j}$ is the weight of the jth criterion, and $\sum_{j = 1}^{n} ω_{j} = 1$ .

Step 3: define the PIS and NIS. The PIS and NIS are defined as

A^{+} = {υ_{1}, υ_{2}, \dots, υ_{n}}

(3)

A^{-} = {μ_{1}, μ_{2}, \dots, μ_{n}}

(4)

where for the benefit criterion

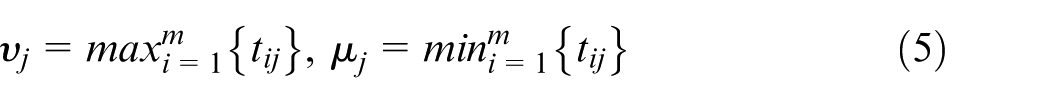

υ_{j} = \max_{i = 1}^{m} {t_{ij}}, μ_{j} = \min_{i = 1}^{m} {t_{ij}}

(5)

and for the cost criterion

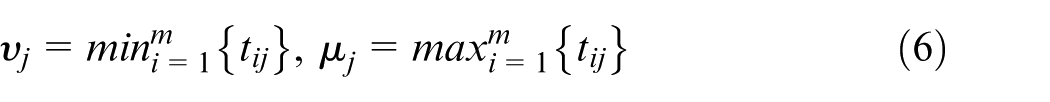

υ_{j} = \min_{i = 1}^{m} {t_{ij}}, μ_{j} = \max_{i = 1}^{m} {t_{ij}}

(6)

Step 4: calculate the Euclidean distance of different alternative versus the PIS and NIS. The distance between each alternative and the PIS is calculated as

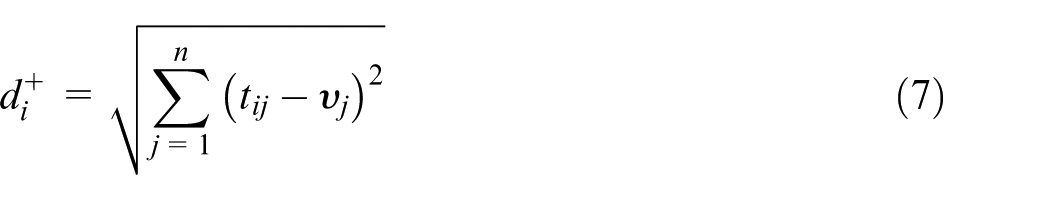

d_{i}^{+} = \sqrt{\sum_{j = 1}^{n} {(t_{ij} - υ_{j})}^{2}}

(7)

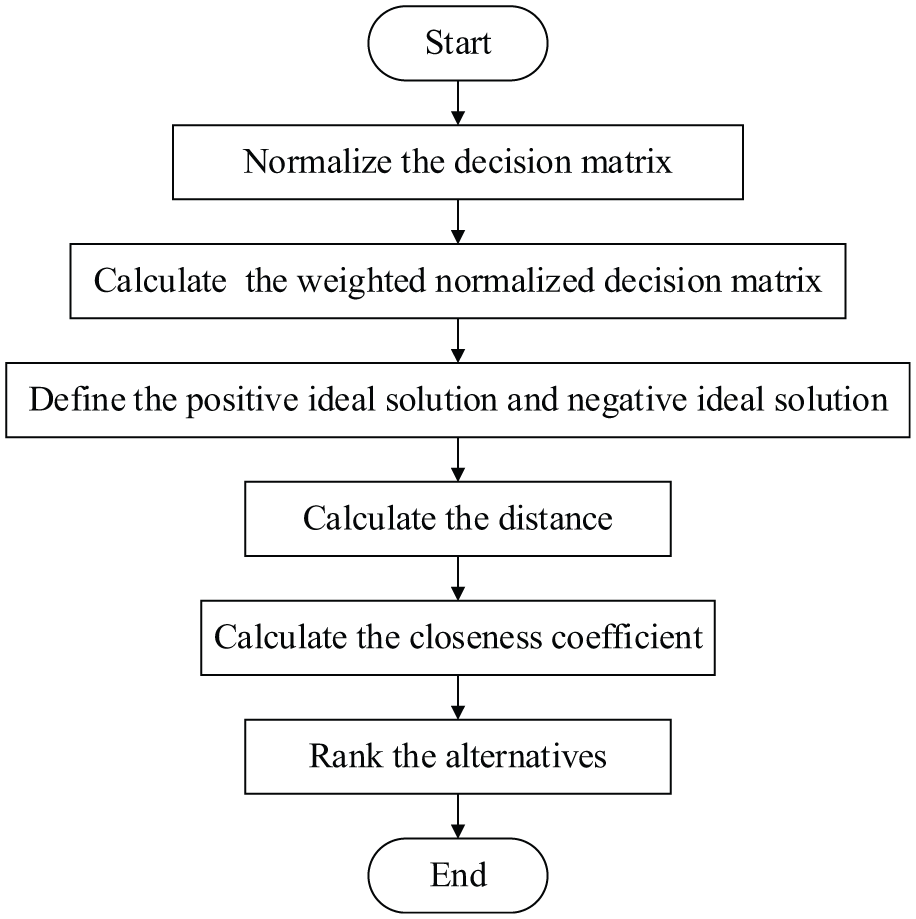

Figure 1.

Flowchart of TOPSIS.

Similarly, the distance between each alternative and the NIS is

d_{i}^{-} = \sqrt{\sum_{j = 1}^{n} {(t_{ij} - μ_{j})}^{2}}

(8)

Step 5: calculate the closeness coefficient (CC). The CC of the ith alternative is calculated as

C C_{i} = \frac{d_{i}^{-}}{d_{i}^{+} + d_{i}^{-}}

(9)

Step 6: rank the alternatives. According to equation (9), the ranking order of alternatives is determined. The larger the CC, the better the alternative. So, the alternative, which is closer to the PIS and farther from the NIS, is the optimal one.

Traditionally, the decision matrix and the weights of criteria are given as crisp numbers in the TOPSIS.^27–30 However, crisp numbers are inadequate to describe real problems. A fuzzy method which expresses the decision matrix and the weight by linguistic judgment is developed. Chen,³¹ Chu and Lin,³² and Remery et al.³³ presented fuzzy TOPSIS to determine the ranking order of TFNs. Zandi and Tavana,³⁴ Park et al.,³⁵ and Zhang et al.³⁶ extended fuzzy TOPSIS to rank trapezoidal fuzzy numbers. These fuzzy TOPSIS methods calculate the preference order of fuzzy numbers effectively. However, the CN–TA relationship matrix is not always full rank in the fuzzy QFD. If the different fuzzy numbers of two TAs are defined as the FNISs, the CC will be 0. The two TAs are not prioritized. Besides, Tran and Duckstein¹⁰ verified that the Euclidean distance is not suitable for calculating all fuzzy numbers. The fuzzy positive ideal solution (FPIS), FNIS, and distance measurement of TOPSIS are modified. Therefore, a new TOPSIS is proposed to solve the problems.

From the above literature review, the contribution and limitations of these methods are summarized (as shown in Table 1). The proposed method, which integrates the new TOPSIS into fuzzy QFD, not only prioritizes TAs without considering the median, boundary interval, and lower and upper limits of fuzzy numbers but also deals with the fuzzy information in the nonfull matrix. Besides, TCs among TAs are identified by the line-fitting method and solved by the TRIZ.

Table 1.

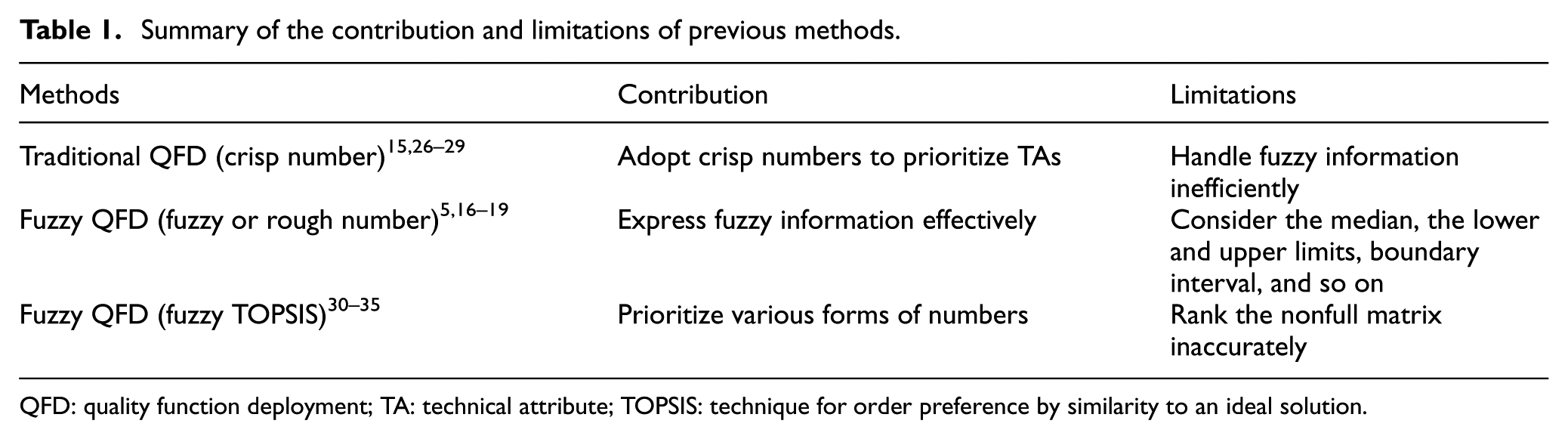

Summary of the contribution and limitations of previous methods.

Methods	Contribution	Limitations
Traditional QFD (crisp number)^15,26–29	Adopt crisp numbers to prioritize TAs	Handle fuzzy information inefficiently
Fuzzy QFD (fuzzy or rough number)^5,16–19	Express fuzzy information effectively	Consider the median, the lower and upper limits, boundary interval, and so on
Fuzzy QFD (fuzzy TOPSIS)^30–35	Prioritize various forms of numbers	Rank the nonfull matrix inaccurately

QFD: quality function deployment; TA: technical attribute; TOPSIS: technique for order preference by similarity to an ideal solution.

Proposed QFD method based on fuzzy TOPSIS

In order to determine the ranking order of interdependent TAs, the new TOPSIS and the TRIZ are integrated into fuzzy QFD, as shown in Figure 2. First, CNs are classified, and TAs are identified to satisfy them. Second, TAs are prioritized by the proposed TOPSIS. Customers evaluate the CN importance and experts judge the CN–TA relationships. These linguistic evaluations are converted into STFNs. The fuzzy CN–TA relationship matrix is weighted and normalized. So, the decision matrix is constructed in the fuzzy TOPSIS. The FPIS and FNIS are determined and then the distances of each STFN versus the FPIS and FNIS are calculated. The CC is subsequently calculated, and TAs are prioritized. Finally, TCs among TAs are solved by the TRIZ. The decision system is constructed and then the performances of two TAs are retrieved in the same situation. The lines are fitted by the least square method. So, the average slope is calculated, and TCs are identified. In the contradiction matrix, the TCs are translated into the improved and damaged parameters. The crossing contains some inventive principles. According to the conditions of design, manufacturing, and service, the optimal inventive principle is determined to solve the TC. Besides, the definitions of TA and TC are given in Table 2.

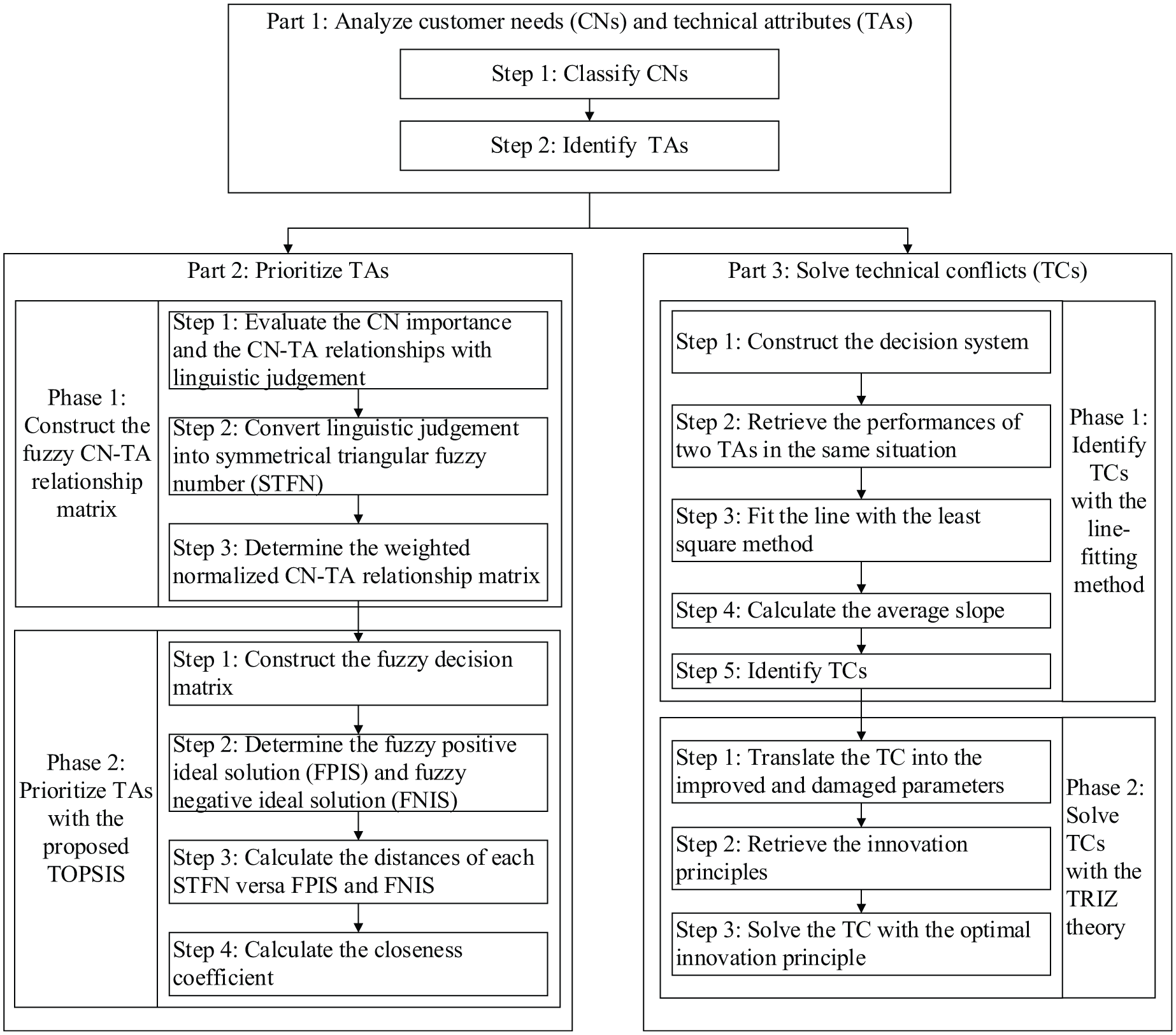

Figure 2.

Proposed QFD framework based on fuzzy TOPSIS.

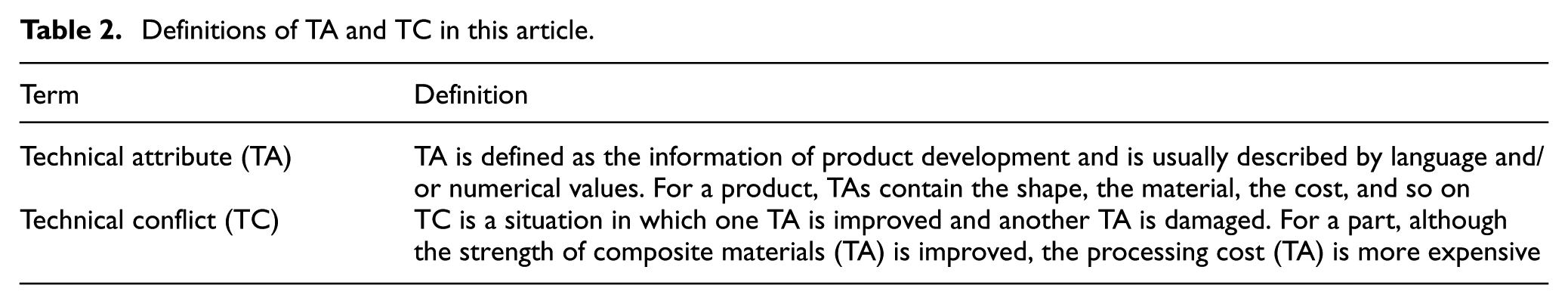

Table 2.

Definitions of TA and TC in this article.

Term	Definition
Technical attribute (TA)	TA is defined as the information of product development and is usually described by language and/or numerical values. For a product, TAs contain the shape, the material, the cost, and so on
Technical conflict (TC)	TC is a situation in which one TA is improved and another TA is damaged. For a part, although the strength of composite materials (TA) is improved, the processing cost (TA) is more expensive

Analyze CNs and TAs

It is necessary to satisfy CNs from the perspective of product development, as well as developing new products from the perspective of customers. Usually, CNs are obtained from the market survey and are classified by some methods and then experts identify TAs to them.

Step 1: classify CNs. CNs, which are also called the voice of customer (VoC),³⁷ are collected by individual interviews, watching, listening, and so on. Generally, CNs are too general or too detailed to be directly used for new product development. Many methods are chosen to structure CNs into different hierarchical levels, such as an affinity diagram,³⁸ cluster analysis,³⁹ Kano et al.’s⁴⁰ model, and so on. In order to classify CNs, an affinity diagram is used. CNs are defined as follows

CN = {C N_{1}, C N_{2}, \dots, C N_{i}}

where CN_i represents the ith CN for the new product. $\forall C N_{i}, C N_{j}, \exists C N_{i} \cap C N_{j} = \emptyset (i \neq j)$ .

Step 2: identify TAs. To satisfy CNs, TAs of the new product are identified. TAs are expressed as follows

TA = {T A_{1}, T A_{2}, \dots, T A_{i}}

where TA_i represents the ith TA of the new product. $\forall T A_{i}, T A_{j}, \exists T A_{i} \cap T A_{j} = \emptyset (i \neq j)$ .

In addition, experts define one-to-one and one-to-many relationships to analyze CNs and TAs. The details are described in the following section.

Prioritize TAs

TAs of new product are prioritized by the proposed TOPSIS. According to the fuzzy CN importance and fuzzy CN–TA relationships, the weighted normalized CN–TA relationship matrix is constructed. Then, the ranking order of TAs is determined by the proposed TOPSIS.

Construct the fuzzy CN–TA relationship matrix

The construction of the CN–TA relationship matrix is summarized in three steps as follows:

Step 1: evaluate the CN importance and the CN–TA relationships with linguistic judgment. Customers perceive the CN importance with the 5-point subscale (1, 3, 5, 7, and 9). For example, the numbers 1, 3, 5, 7, and 9 represent very low (VL), low (L), moderate (M), high (H), and very high (VH) importance, respectively. Similarly, experts assess the relationships between CNs and TAs with the 5-point subscale including very weak (VW), weak (W), moderate (M), strong (S), and very strong (VS) relationship.⁴¹ So, the linguistic evaluation of the CN importance and the CN–TA relationships is acquired.

Step 2: convert the linguistic evaluation into STFNs. STFNs are adopted to express the linguistic evaluation. An STFN, in the form of [N^L, N^H], is one of fuzzy numbers that represents the fuzzy information, where N^L and N^H are the lower and upper bounds, respectively, and (N^H–N^L) is the scope. The membership function is the triangular function which is calculated using the following formula

μ (x) = {\begin{matrix} \frac{x - n_{1}}{n_{2} - n_{1}}, n_{1} ⩽ x ⩽ n_{2} \\ \frac{n_{3} - x}{n_{3} - n_{2}}, n_{2} < x ⩽ n_{3} \\ 0, others \end{matrix}

(10)

where x is a possible value, n₂ is a target value, and n₁ and n₃ are the lower and upper bounds, respectively.

The linguistic evaluation of the CN importance and the CN–TA relationships is converted into STFNs. They are mathematically represented as follows

ω_{i}^{k} = [ω_{i}^{kL}, ω_{i}^{kU}]

(11)

r_{ij}^{s} = [r_{ij}^{sL}, r_{ij}^{sU}]

(12)

where $ω_{i}^{k}$ represents the kth customer’s evaluation on the importance of the ith CN, and $r_{ij}^{s}$ represents the sth expert’s evaluation on the relationship between the ith CN and the jth TA.

Step 3: determine the weighted normalized CN–TA relationship matrix. The fuzzy group importance of the ith CN is integrated as follows

ω'_{i}^{L} = \sum_{k = 1}^{M} \frac{ω_{i}^{kL}}{M}, ω'_{i}^{U} = \sum_{k = 1}^{M} \frac{ω_{i}^{kU}}{M}

(13)

where M is the number of customers.

To make the fuzzy weight in [0, 1], it is normalized as follows

ω_{i}^{L} = \frac{ω'_{i}^{L}}{\max_{i = 1}^{m} {\max [ω'_{i}^{L}, ω'_{i}^{U}]}}, ω_{i}^{U} = \frac{ω'_{i}^{U}}{\max_{i = 1}^{m} {\max [ω'_{i}^{L}, ω'_{i}^{U}]}}

(14)

Similarly, the fuzzy group CN–TA relationships are aggregated

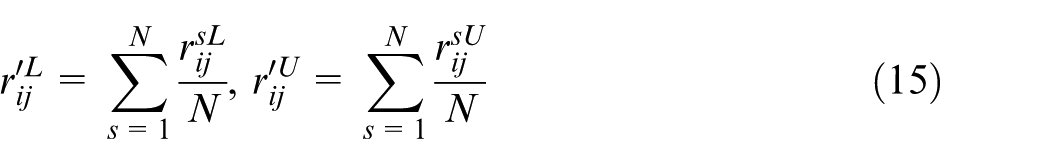

r'_{ij}^{L} = \sum_{s = 1}^{N} \frac{r_{ij}^{sL}}{N}, r'_{ij}^{U} = \sum_{s = 1}^{N} \frac{r_{ij}^{sU}}{N}

(15)

where N is the number of experts.

The fuzzy CN–TA relationships are normalized as follows

t_{ij}^{L} = \frac{t'_{ij}^{L}}{\max_{j = 1}^{n} {\max [t'_{ij}^{L}, t'_{ij}^{U}]}}, t_{ij}^{U} = \frac{t'_{ij}^{U}}{\max_{j = 1}^{n} {\max [t'_{ij}^{L}, t'_{ij}^{U}]}}

(16)

The weighted CN–TA relationships are calculated as follows

t_{ij}^{L} = ω_{i}^{L} \times r_{ij}^{L}, i = 1, 2, \dots, m; j = 1, 2, \dots, n

(17)

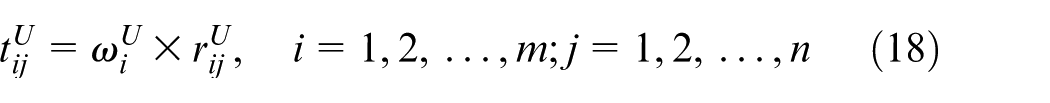

t_{ij}^{U} = ω_{i}^{U} \times r_{ij}^{U}, i = 1, 2, \dots, m; j = 1, 2, \dots, n

(18)

Therefore, the weighted normalized CN–TA relationship matrix is obtained.

Prioritize TAs with the proposed TOPSIS

Calculate the distance between two interval forms

The distance between two interval forms is calculated in the following.

Definition 1

The distance d(x, y) between two points satisfies the following three conditions:

d(x, y) ⩾ 0. d(x, y) = 0 iff x = y;

d(x, y) = d(y, x);

d(x, y) ⩽ d(x, z) + d(z, y).

where $\forall x, y, z \in R (R \neq \emptyset)$

Definition 2

The Euclidean distance d(x, y) between two interval forms is given by

d (x, y) = \sqrt{{(x^{L} - y^{L})}^{2} + {(x^{U} - y^{U})}^{2}}

(19)

where x = [x^L, x^U] and y = [y^L, y^U].

The two identical interval forms are defined as follows

x = y \Leftrightarrow x^{L} = y^{L} and x^{U} = y^{U}

(20)

However, the Euclidean distance is not suitable for all interval forms. For example, three interval forms are x = [0, 0], y = [−1, 2], and z = [1, 2], respectively. According to equation (19), $d (x, y) = d (x, z) = \sqrt{5}$ . Actually, x is inside of y and outside of z. The distance from x to y should be smaller than the one from x to z. Tran and Duckstein¹⁰ presented a new method to calculate the distance between two interval forms.

Definition 3

The distance between two interval forms is¹⁰

d^{2} (x, y) = \int_{- \frac{1}{2}}^{\frac{1}{2}} \int_{- \frac{1}{2}}^{\frac{1}{2}} {{[\frac{x^{L} + x^{U}}{2} + α (x^{U} - x^{L})] - [\frac{y^{L} + y^{U}}{2} + β (y^{U} - y^{L})]}}^{2} d α d β = {(\frac{x^{L} + x^{U}}{2} - \frac{y^{L} + y^{U}}{2})}^{2} + \frac{1}{3} [{(\frac{x^{U} - x^{L}}{2})}^{2} + {(\frac{y^{U} - y^{L}}{2})}^{2}]

(21)

Equation (21) satisfies the conditions which include d(x, y) ⩾ 0, and if d(x, y) = 0, then x = y. Moreover, for the three interval forms, $d (x, y) = 1 < d (x, z) = \sqrt{7 / 3}$ . The result is reasonable.

However, equation (21) cannot satisfy the condition d(x, y) = 0 iff x = y. For instance, two interval forms x = [−1, 2] and y = [−1, 2], $d (x, y) = \sqrt{3 / 2} \neq 0$ . So, the new method of distance measurement is proposed.

Definition 4

The proposed method of distance measurement is defined as follows

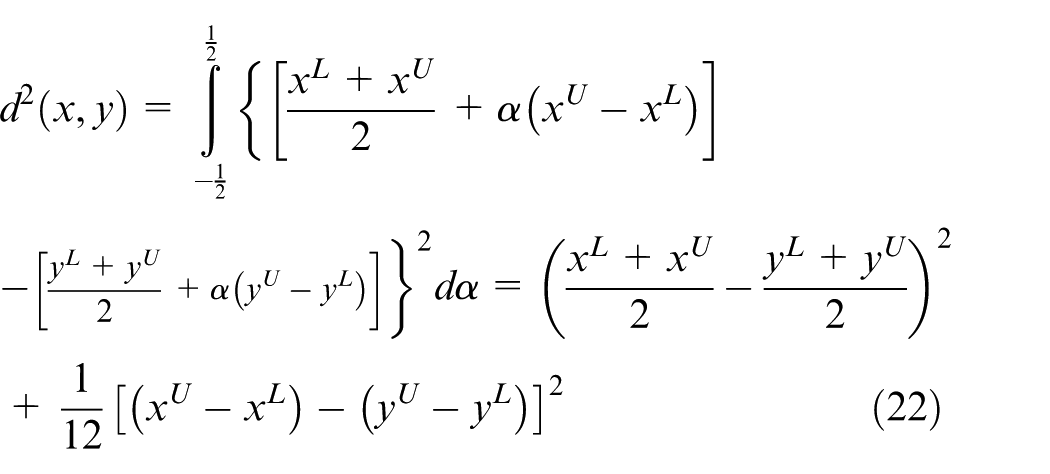

d^{2} (x, y) = \int_{- \frac{1}{2}}^{\frac{1}{2}} {[\frac{x^{L} + x^{U}}{2} + α (x^{U} - x^{L})] - [\frac{y^{L} + y^{U}}{2} + α (y^{U} - y^{L})]}^{2} d α = {(\frac{x^{L} + x^{U}}{2} - \frac{y^{L} + y^{U}}{2})}^{2} + \frac{1}{12} {[(x^{U} - x^{L}) - (y^{U} - y^{L})]}^{2}

(22)

Equation (22) can satisfy the three conditions 1–3, and the proved process is given in the following.

For any three interval forms x = [x^L, x^U], y = [y^L, y^U], and z = [z^L, z^U], $\forall α \in [- 1 / 2, 1 / 2]$

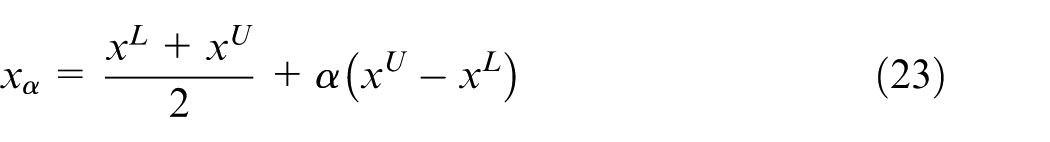

x_{α} = \frac{x^{L} + x^{U}}{2} + α (x^{U} - x^{L})

(23)

y_{α} = \frac{y^{L} + y^{U}}{2} + α (y^{U} - y^{L})

(24)

z_{α} = \frac{z^{L} + z^{U}}{2} + α (z^{U} - z^{L})

(25)

where $x_{α} \in x, y_{α} \in y, and z_{α} \in z$ .

According to equation (22)

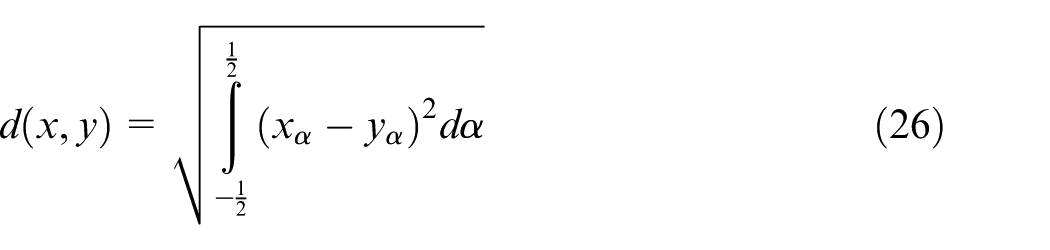

d (x, y) = \sqrt{\int_{- \frac{1}{2}}^{\frac{1}{2}} {(x_{α} - y_{α})}^{2} d α}

(26)

Obviously, equation (26) satisfies two conditions 1 and 2 easily. Here, the Cauchy–Buniakowskii–Schwarz inequality is used to prove that equation (26) satisfies condition 3

d (x, y) = \sqrt{\int_{- \frac{1}{2}}^{\frac{1}{2}} {(x_{α} - y_{α})}^{2} d α} = \sqrt{\int_{- \frac{1}{2}}^{\frac{1}{2}} {[(x_{α} - z_{α}) + (z_{α} - y_{α})]}^{2} d α ⩽} \sqrt{\int_{- \frac{1}{2}}^{\frac{1}{2}} {(x_{α} - z_{α})}^{2} d α} + \sqrt{\int_{- \frac{1}{2}}^{\frac{1}{2}} {(z_{α} - y_{α})}^{2} d α} = d (x, z) + d (z, y)

(27)

Therefore, Definition 4 fully satisfies the three conditions 1–3.

Determine the ranking order of TAs with the proposed TOPSIS

The ranking order of TAs is determined by the proposed TOPSIS in the following steps:

Step 1: construct the fuzzy decision matrix. The fuzzy decision matrix is the transfer matrix of the weighted normalized CN–TA relationship matrix

D = [\begin{matrix} \begin{matrix} [t_{11}^{L}, t_{11}^{U}] \\ [t_{21}^{L}, t_{21}^{U}] \\ \dots \end{matrix} \\ [t_{n 1}^{L}, t_{n 1}^{U}] \end{matrix} \begin{matrix} \begin{matrix} [t_{12}^{L}, t_{12}^{U}] \\ [t_{22}^{L}, t_{22}^{U}] \\ \dots \end{matrix} \\ [t_{n 2}^{L}, t_{n 2}^{U}] \end{matrix} \begin{matrix} \begin{matrix} \dots \\ \dots \\ \dots \end{matrix} \\ \dots \end{matrix} \begin{matrix} \begin{matrix} [t_{1 m}^{L}, t_{1 m}^{U}] \\ [t_{2 m}^{L}, t_{2 m}^{U}] \\ \dots \end{matrix} \\ [t_{nm}^{L}, t_{nm}^{U}] \end{matrix}]

(28)

Step 2: determine the FPIS and FNIS. The FPIS and FNIS are defined as follows

A^{+} = {[υ_{1}^{L}, υ_{1}^{U}], [υ_{2}^{L}, υ_{2}^{U}], \dots, [υ_{m}^{L}, υ_{m}^{U}]}

(29)

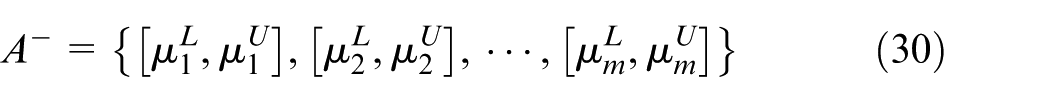

A^{-} = {[μ_{1}^{L}, μ_{1}^{U}], [μ_{2}^{L}, μ_{2}^{U}], \dots, [μ_{m}^{L}, μ_{m}^{U}]}

(30)

where for the benefit criterion

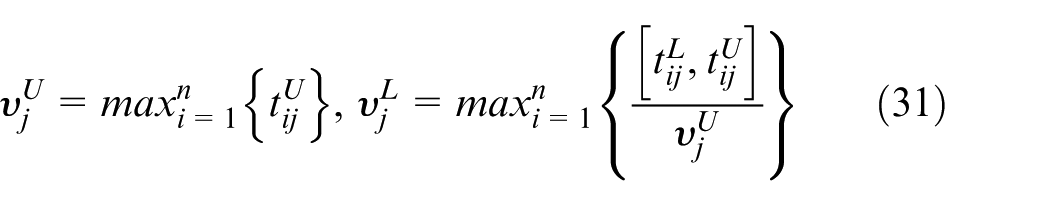

υ_{j}^{U} = \max_{i = 1}^{n} {t_{ij}^{U}}, υ_{j}^{L} = \max_{i = 1}^{n} {\frac{[t_{ij}^{L}, t_{ij}^{U}]}{υ_{j}^{U}}}

(31)

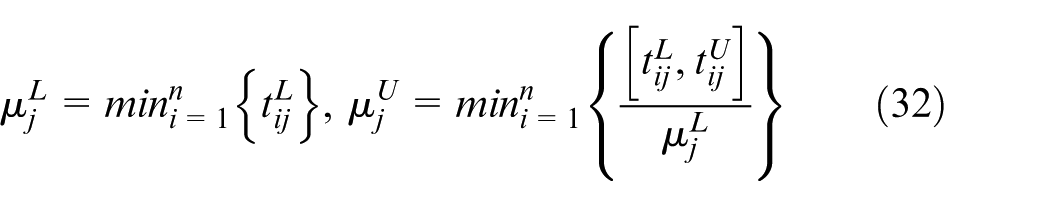

μ_{j}^{L} = \min_{i = 1}^{n} {t_{ij}^{L}}, μ_{j}^{U} = \min_{i = 1}^{n} {\frac{[t_{ij}^{L}, t_{ij}^{U}]}{μ_{j}^{L}}}

(32)

and for the cost criterion

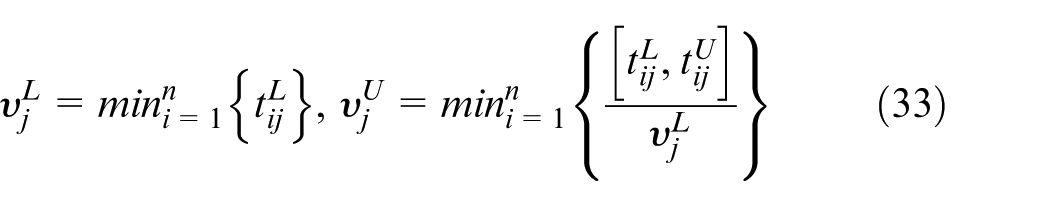

υ_{j}^{L} = \min_{i = 1}^{n} {t_{ij}^{L}}, υ_{j}^{U} = \min_{i = 1}^{n} {\frac{[t_{ij}^{L}, t_{ij}^{U}]}{υ_{j}^{L}}}

(33)

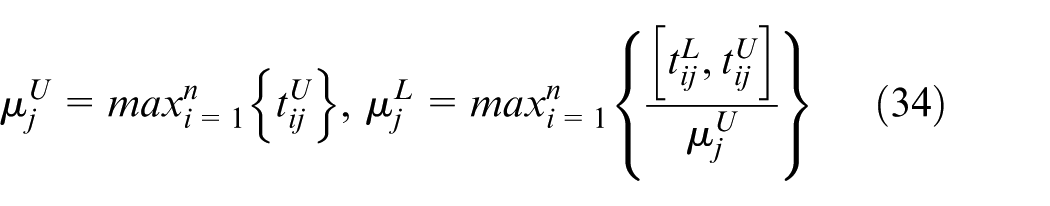

μ_{j}^{U} = \max_{i = 1}^{n} {t_{ij}^{U}}, μ_{j}^{L} = \max_{i = 1}^{n} {\frac{[t_{ij}^{L}, t_{ij}^{U}]}{μ_{j}^{U}}}

(34)

Step 3: calculate the distances of each STFN versus the FPIS and FNIS. The distance between each STFN and the FPIS is calculated

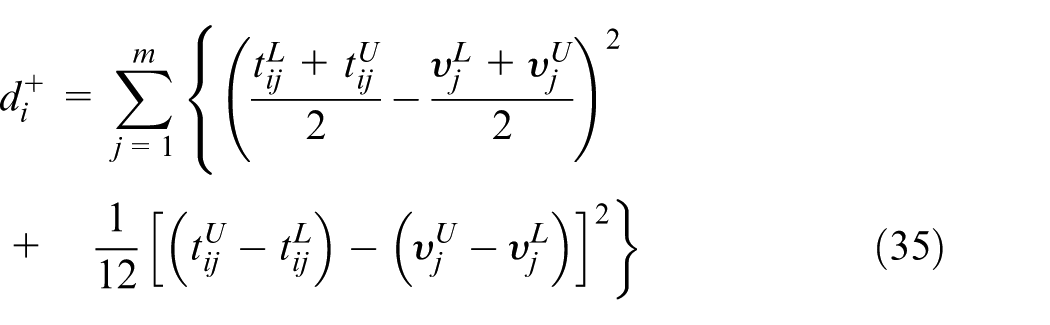

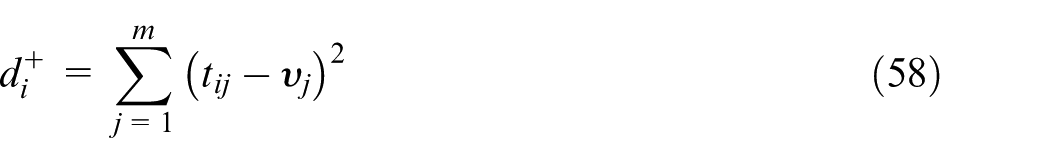

d_{i}^{+} = \sum_{j = 1}^{m} {{(\frac{t_{ij}^{L} + t_{ij}^{U}}{2} - \frac{υ_{j}^{L} + υ_{j}^{U}}{2})}^{2} + \frac{1}{12} {[(t_{ij}^{U} - t_{ij}^{L}) - (υ_{j}^{U} - υ_{j}^{L})]}^{2}}

(35)

Similarly, the distance between each STFN and the FNIS is calculated

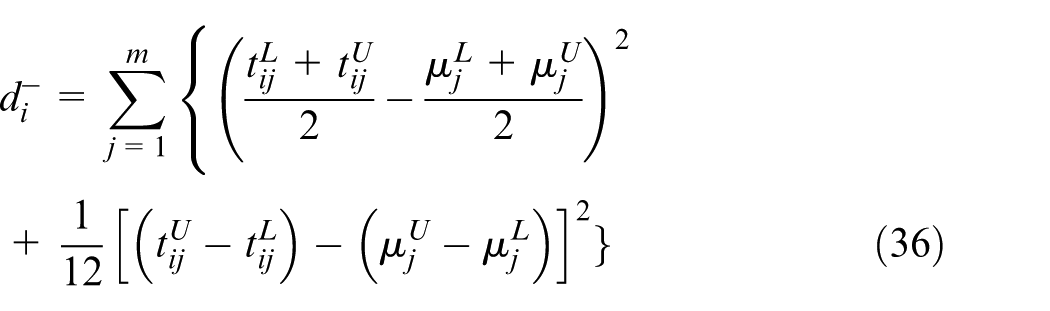

d_{i}^{-} = \sum_{j = 1}^{m} {{(\frac{t_{ij}^{L} + t_{ij}^{U}}{2} - \frac{μ_{j}^{L} + μ_{j}^{U}}{2})}^{2} + \frac{1}{12} {[(t_{ij}^{U} - t_{ij}^{L}) - (μ_{j}^{U} - μ_{j}^{L})]}^{2}}

(36)

Step 4: calculate the CC. The CC is calculated as follows

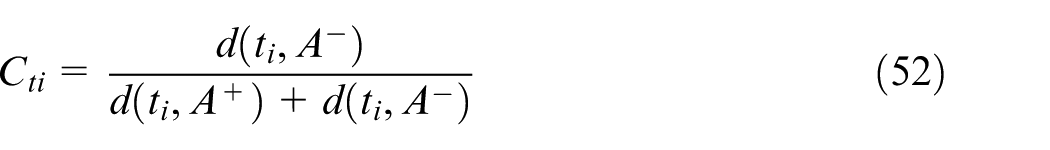

C C_{i} = \frac{d_{i}^{-}}{d_{i}^{+} + d_{i}^{-}}

(37)

Solve TC

After prioritizing TAs of new product, TCs among TAs are identified by the line-fitting method and then solved by the TRIZ.

Identify TC with the line-fitting method

The correlations among TAs are classified as positive correlations, neutral correlations, and negative correlations. That is, in the same situation, if the performance of TA_i is improved or damaged, and the performance of TA_j would be improved or damaged, respectively, TA_i and TA_j are a positive correlation. If the performance of TA_i is improved or damaged, and the performance of TA_j would be unchanged, TA_i and TA_j are a neutral correlation. If the performance of TA_i is improved or damaged, and the performance of TA_j would be damaged or improved, respectively, TA_i and TA_j are a negative correlation. In this article, the first two correlations are ignored, and the last is identified as TCs by the line-fitting method:

Step 1: construct the decision system. Assume that TA_i is defined as a decision attribute, while TA_n − i, which is a set excluding TA_i (TA_n − i = TA₁, TA₂,…, TA_i − 1, TA_i + 1,…, TA_n), is a conditional attribute. The results, from which different performances of TA_n − i affect the performance of TA_i, are composed of the decision system. Similarly, experts use the 5-point subscale to judge the performances of TAs. The numbers 1, 3, 5, 7, and 9 represent very poor, poor, moderate, good, and very good performance, respectively.

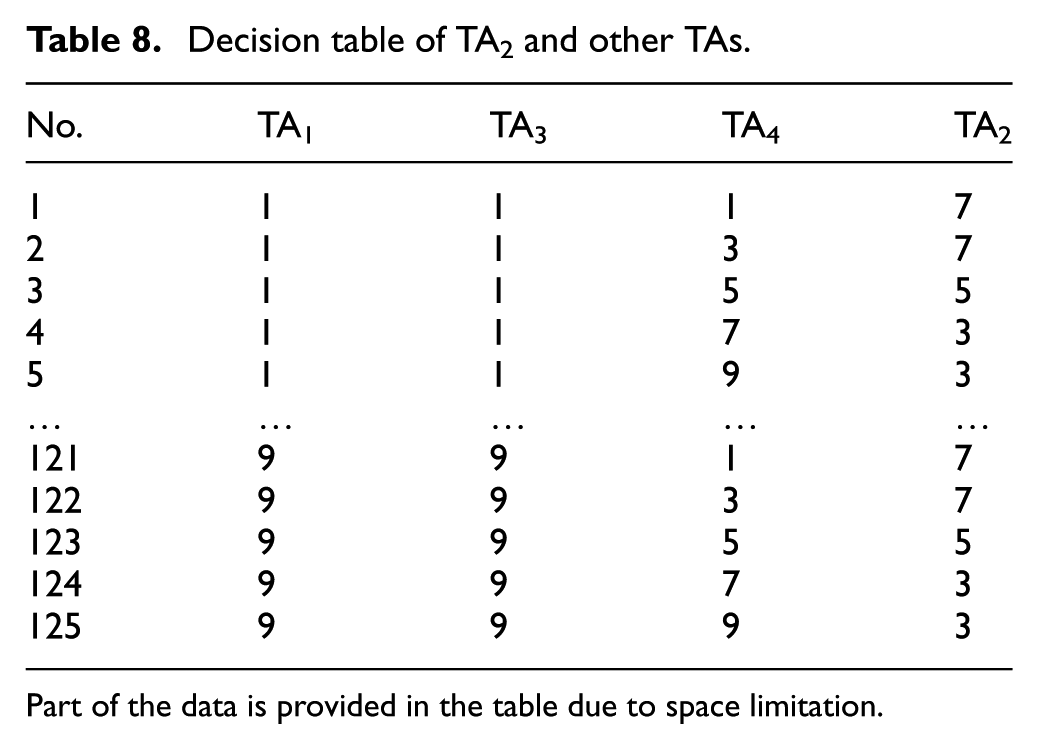

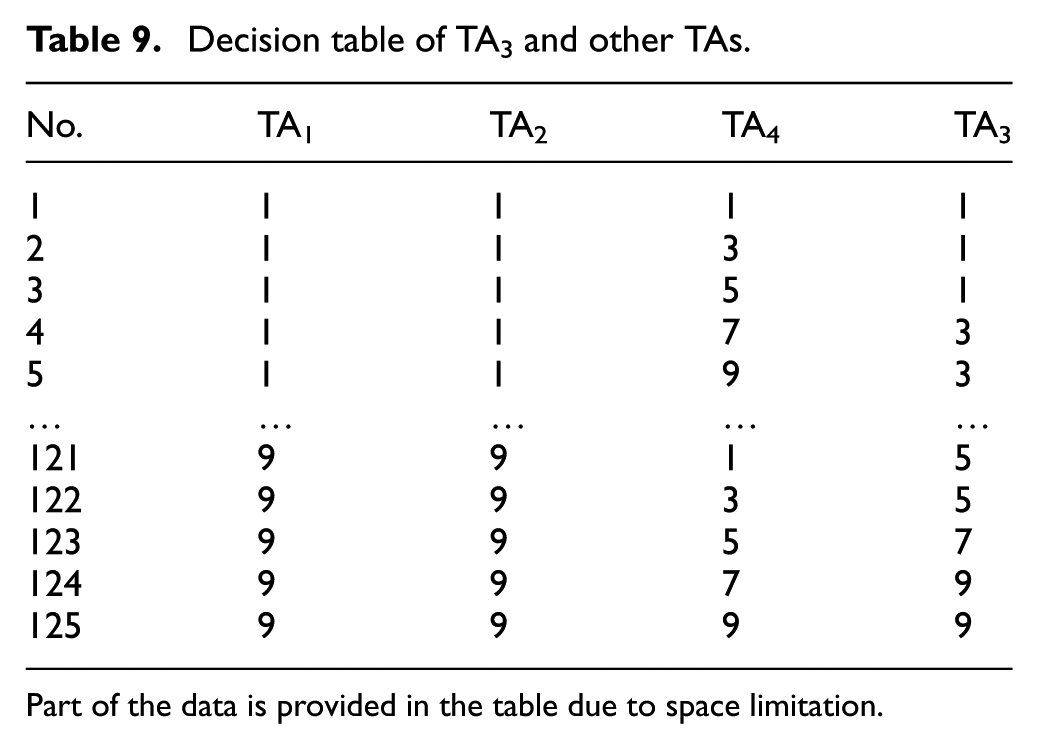

Step 2: retrieve the performances of two TAs under the same situation. The performances of both TA_i and TA_j are retrieved when the performances of other TAs are all identical. Moreover, the retrieved performances are defined as the coordinates of a line.

Step 3: fit the line with the least square method. The least square method is adopted to fit the line. Suppose that the equation of the line is

y = k_{p} x + h

(38)

where y represents the performance of TA_i, x represents the performance of TA_j, and k_p is the slope of the pth line.

The deviation d_q between y_q and (k_px_q + h) is defined as follows

d_{q} = y_{q} - (k_{p} x_{q} + h)

(39)

The sum of the square of the deviations is

D = \sum_{q = 1}^{Q} d_{q}^{2} = \sum_{q = 1}^{Q} {[y_{q} - (k_{p} x_{q} + h)]}^{2}

(40)

where Q is the number of the performances.

According to equation (40), partial derivatives of k_p and h are calculated, respectively, and the results are equal to 0

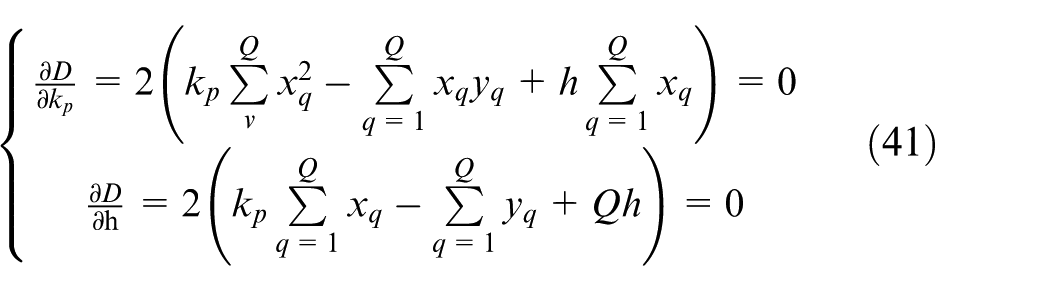

{\begin{matrix} \frac{\partial D}{\partial k_{p}} = 2 (k_{p} \sum_{v}^{Q} x_{q}^{2} - \sum_{q = 1}^{Q} x_{q} y_{q} + h \sum_{q = 1}^{Q} x_{q}) = 0 \\ \frac{\partial D}{\partial h} = 2 (k_{p} \sum_{q = 1}^{Q} x_{q} - \sum_{q = 1}^{Q} y_{q} + Q h) = 0 \end{matrix}

(41)

Equation (41) is solved out

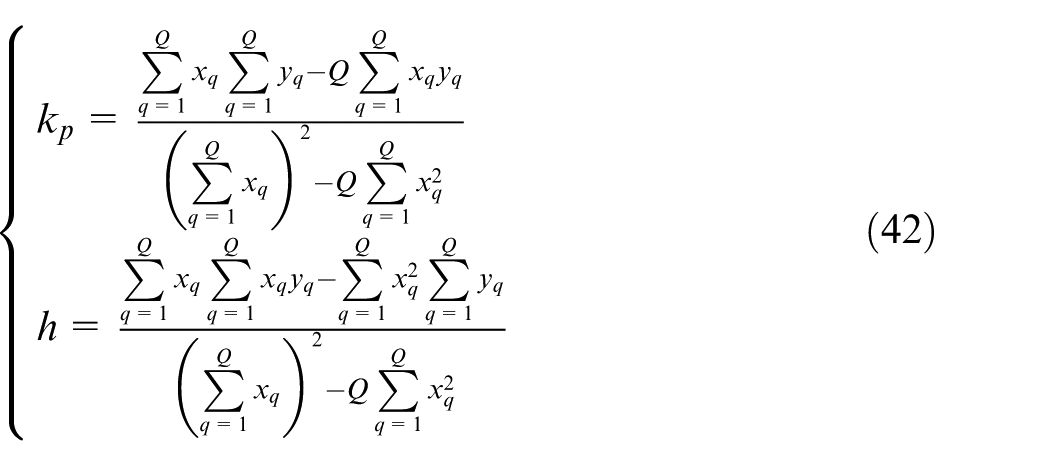

{\begin{matrix} k_{p} = \frac{\sum_{q = 1}^{Q} x_{q} \sum_{q = 1}^{Q} y_{q} - Q \sum_{q = 1}^{Q} x_{q} y_{q}}{{(\sum_{q = 1}^{Q} x_{q})}^{2} - Q \sum_{q = 1}^{Q} x_{q}^{2}} \\ h = \frac{\sum_{q = 1}^{Q} x_{q} \sum_{q = 1}^{Q} x_{q} y_{q} - \sum_{q = 1}^{Q} x_{q}^{2} \sum_{q = 1}^{Q} y_{q}}{{(\sum_{q = 1}^{Q} x_{q})}^{2} - Q \sum_{q = 1}^{Q} x_{q}^{2}} \end{matrix}

(42)

Step 4: calculate the average slope. Repeating steps 2 and 3 until all lines are fitted successfully. The average slope is

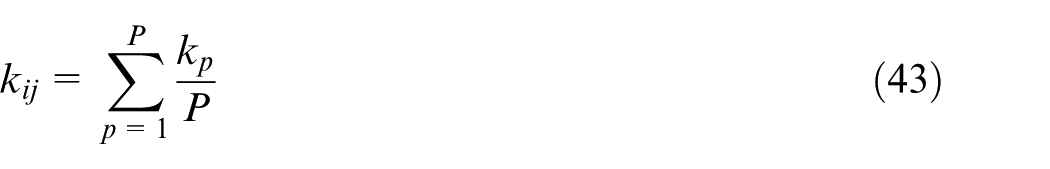

k_{ij} = \sum_{p = 1}^{P} \frac{k_{p}}{P}

(43)

where k_ij represents the average slope and P is the number of lines.

Step 5: identify TCs. TCs are identified by the average slope. If k_ij > 0, TA_i and TA_j are a positive correlation. If k_ij = 0, there is a neutral correlation between TA_i and TA_j. If k_ij < 0, the TC between TA_i and TA_j is identified.

Solve TC with the TRIZ

TCs among TAs are solved by the contradiction matrix which is a problem-solving tool in the TRIZ. The TRIZ, which is first presented by Altshuller and Shulyak⁴² in the former USSR, is originated from the analysis of >2 million patents. Altshuller identified 39 engineering parameters to represent all contradictions and concluded 40 inventive principles to solve technical problems in the whole technical fields. When TCs among TAs occur, the contradiction matrix is used. The process is as follows:⁴³

Step 1: translate the TC into the improved and damaged parameters. When the improved performance of TA_i would damage the performance of TA_j, the improved performance of TA_i is translated into the improved parameter, and the damaged performance of TA_j is the damaged parameter.

Step 2: retrieve the innovation principles. The crossing between the improved parameter and the damaged one contains 1, 2, 3, or 4 inventive principles. These inventive principles are prioritized depending on the importance (statistical results of the patent analysis).

Step 3: solve the TC with the optimal innovation principle. Although the inventive principles in the front are preferred, their implementations are limited by the design, manufacturing, service, and so on. The optimal inventive principle should be determined to solve the TC. Note that the optimal inventive principle gives some good directions to explore instead of some solutions.

Case study

To validate the application of the proposed method, the design of phone shell (see Figure 3) in the company H is taken as an example. Company H is a famous cell phone manufacturer in China, and it develops cell phones for 30 years. Currently, it is one of the top 500 enterprises in the world. The phone shell is one of the important components. It can not only protect other systems but also attract the attention of customers. Especially, the beautiful appearance attracts customers to buy. Therefore, the quality and shape are two key factors when designing the phone shell. The information is provided by company H. We spent nearly 3 months to collect the data by several interviews with the engineers in the company H. Besides the interviews, analysis of available reports (e.g. market analysis report and customer survey) was used to collect data.

Figure 3.

Phone shell.

Analyze CNs and TAs of phone shell

Step 1: classify CNs for phone shell. In company H, CNs are collected by interviews, observation, questionnaire, and so on. The statistics shows that customers pay more attention to multi-style (CN₁), comfortable touching (CN₂), and the durability (CN₃). So, the three key CNs are analyzed.

Step 2: identify TAs of phone shell. Five experts, who are from different teams and develop phone shell >15 years, are invited to participate in the design of phone shell. They identify four key TAs to satisfy the three key CNs, such as the shape (TA₁), color (TA₂), precision (TA₃), and material (TA₄).

Prioritize TAs of phone shell

Step 1: evaluate the CN importance and the CN–TA relationships with linguistic judgment. Five sales managers, who are from different companies and sell phones over 10 years, are interviewed. They give the subjective evaluation of CNs with the 5-point subscale (see Table 3). Similarly, the five experts also give their subjective evaluation of the CN–TA relationships with the 5-point subscale, as shown in Table 4.

Step 2: convert the linguistic evaluation into STFNs. In STFNs, [0.0, 0.2] represents very low importance or very weak relationship, [0.2, 0.4] represents low importance or weak relationship, [0.4, 0.6] represents moderate importance or moderate relationship, [0.6, 0.8] represents high importance or strong relationship, and [0.8, 1.0] represents very high importance or very strong relationship. Therefore, the linguistic evaluation of the CN importance and the CN–TA relationships is converted into STFNs.

Step 3: calculate the weighted normalized CN–TA relationship matrix. The weighted normalized CN–TA relationship matrix is calculated using formulas (13)–(18), as shown in Table 5.

Step 4: construct the fuzzy decision matrix. The fuzzy decision matrix is as follows

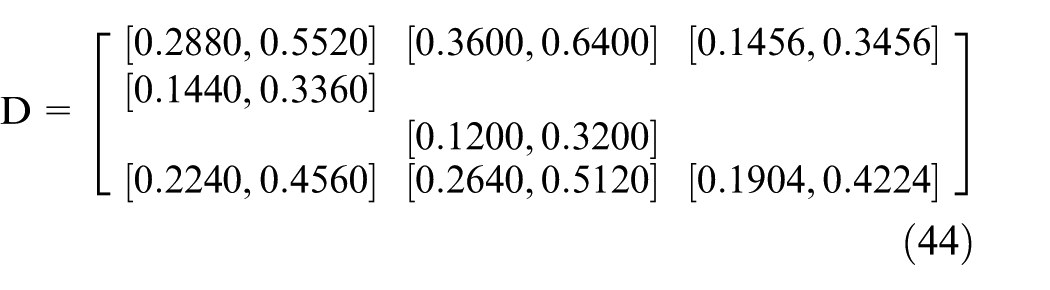

D = [\begin{matrix} [0.2880, 0.5520] & [0.3600, 0.6400] & [0.1456, 0.3456] \\ [0.1440, 0.3360] \\ [0.1200, 0.3200] \\ [0.2240, 0.4560] & [0.2640, 0.5120] & [0.1904, 0.4224] \end{matrix}]

(44)

Step 5: determine the FPIS and FNIS. In accordance with equations (28)–(33), the FPIS and FNIS are determined

\begin{array}{l} A^{+} = {[0.4560, 0.5520], [0.5120, 0.6400], [0.3456, 0.4224]} \\ A^{-} = {[0.1440, 0.2240], [0.1200, 0.2640], [0.1456, 0.1904]} \end{array}

Step 6: calculate the distances of each STFN versus the FPIS and FNIS. The distances between each STFN and the FPIS and each STFN and the FNIS are calculated using formulas (35) and (36), as shown in Table 6.

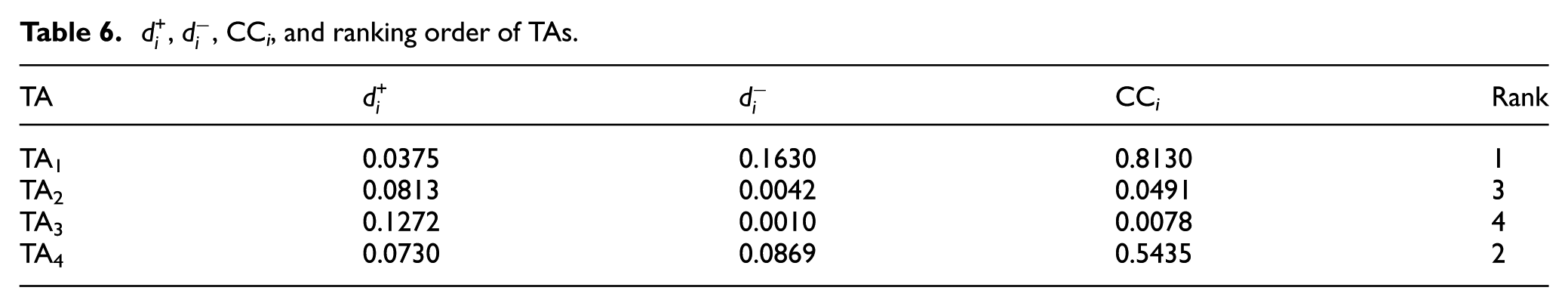

Step 7: calculate the CC. The CC is calculated using formula (37) (see Table 6), and the priority of TAs is listed in Table 6. It can be clearly seen that the ranking order of TAs is as follows: $T A_{1} ≻ T A_{4} ≻ T A_{2} ≻ T A_{3}$ , $where “ ≻ ”$ means “more important than.”

Table 3.

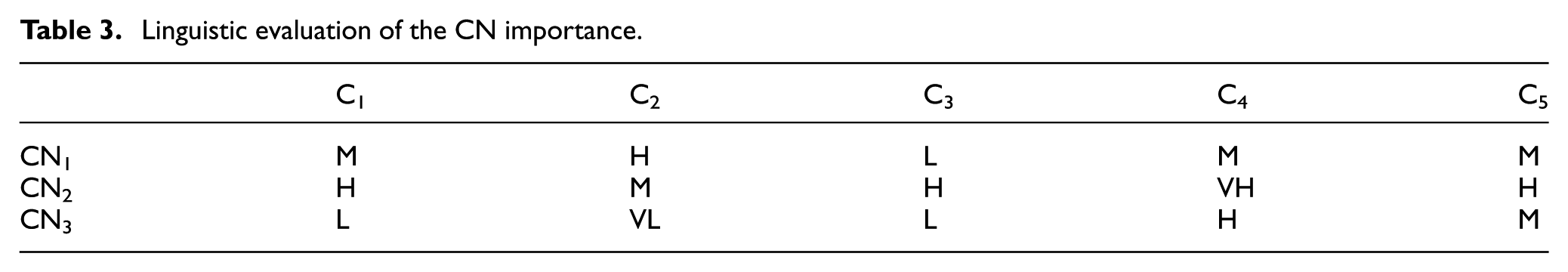

Linguistic evaluation of the CN importance.

	C₁	C₂	C₃	C₄	C₅
CN₁	M	H	L	M	M
CN₂	H	M	H	VH	H
CN₃	L	VL	L	H	M

Table 4.

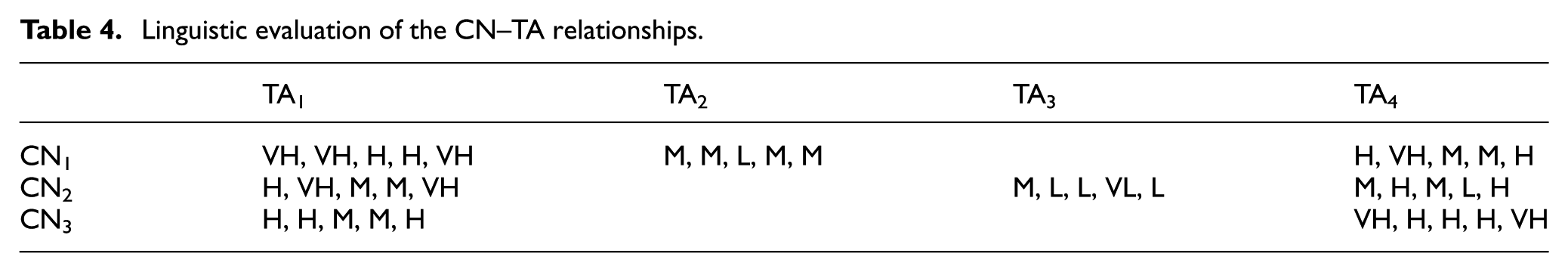

Linguistic evaluation of the CN–TA relationships.

	TA₁	TA₂	TA₃	TA₄
CN₁	VH, VH, H, H, VH	M, M, L, M, M		H, VH, M, M, H
CN₂	H, VH, M, M, VH		M, L, L, VL, L	M, H, M, L, H
CN₃	H, H, M, M, H			VH, H, H, H, VH

Table 5.

Weighted normalized CN–TA relationship matrix.

	TA₁	TA₂	TA₃	TA₄
CN₁	[0.2880, 0.5520]	[0.1440, 0.3360]		[0.2240, 0.4560]
CN₂	[0.3600, 0.6400]		[0.1200, 0.3200]	[0.2640, 0.5120]
CN₃	[0.1456, 0.3456]			[0.1904, 0.4224]

Table 6.

$d_{i}^{+}$ , $d_{i}^{-}$ , CC_i, and ranking order of TAs.

TA	$d_{i}^{+}$	$d_{i}^{-}$	CC_i	Rank
TA₁	0.0375	0.1630	0.8130	1
TA₂	0.0813	0.0042	0.0491	3
TA₃	0.1272	0.0010	0.0078	4
TA₄	0.0730	0.0869	0.5435	2

Solve TCs of phone shell

Step 1: construct the decision system. The performances of TAs are described. The error between theoretical and manufacturing shapes represents the performance of TA₁, and the numbers 1 and 9 represent very more and less, respectively. Similarly, the number of colors is the performance of TA₂, and the numbers 1 and 9 represent very few and many, respectively. For TA₃, the numbers 1 and 9 represent very low and high, respectively. The mechanical property is the performance of TA₄, and the numbers 1 and 9 represent very weak and strong, respectively.

H company has spent nearly 10 years to investigate >1000 cases (the development of phone shells) which are provided by 50 companies and obtained the decision tables (see Tables 7 –9). Tables 7 –9 represent the correlations between TA₁ and other TAs, TA₂ and other TAs, and TA₃ and other TAs, respectively. Note that only some of the information is listed due to space limitations.

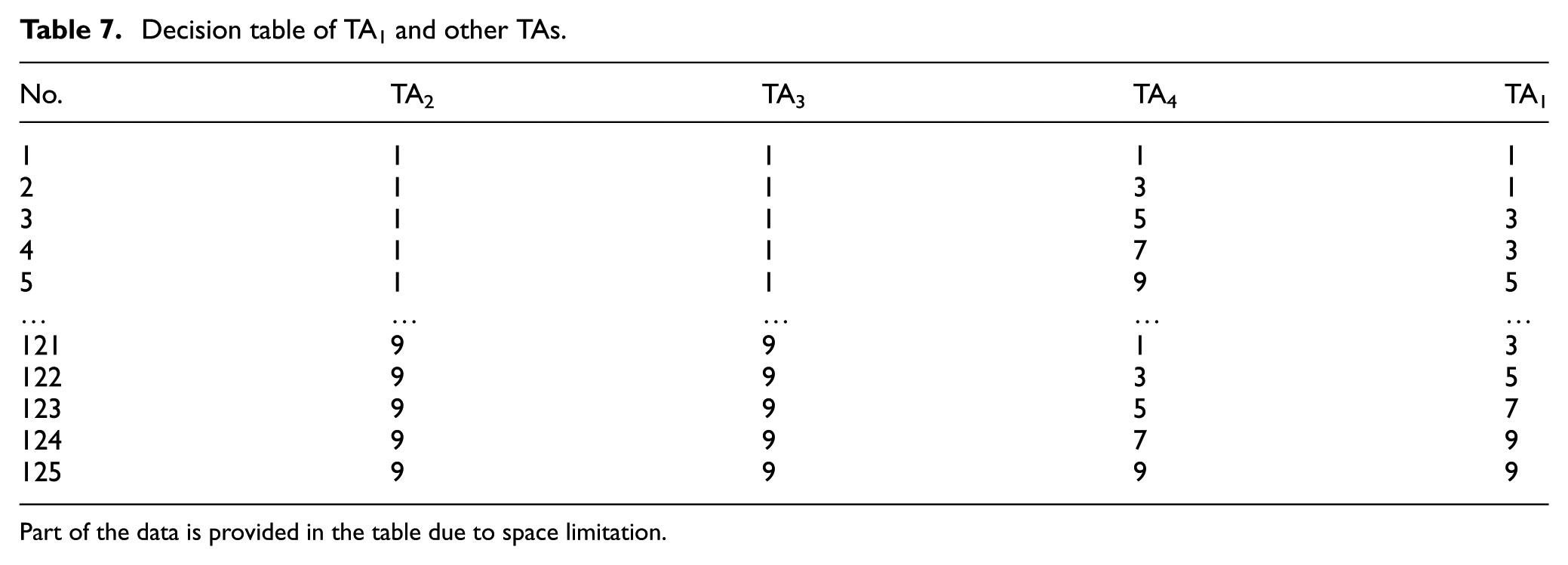

Table 7.

Decision table of TA₁ and other TAs.

No.	TA₂	TA₃	TA₄	TA₁
1	1	1	1	1
2	1	1	3	1
3	1	1	5	3
4	1	1	7	3
5	1	1	9	5
…	…	…	…	…
121	9	9	1	3
122	9	9	3	5
123	9	9	5	7
124	9	9	7	9
125	9	9	9	9

Part of the data is provided in the table due to space limitation.

Table 8.

Decision table of TA₂ and other TAs.

No.	TA₁	TA₃	TA₄	TA₂
1	1	1	1	7
2	1	1	3	7
3	1	1	5	5
4	1	1	7	3
5	1	1	9	3
…	…	…	…	…
121	9	9	1	7
122	9	9	3	7
123	9	9	5	5
124	9	9	7	3
125	9	9	9	3

Part of the data is provided in the table due to space limitation.

Table 9.

Decision table of TA₃ and other TAs.

No.	TA₁	TA₂	TA₄	TA₃
1	1	1	1	1
2	1	1	3	1
3	1	1	5	1
4	1	1	7	3
5	1	1	9	3
…	…	…	…	…
121	9	9	1	5
122	9	9	3	5
123	9	9	5	7
124	9	9	7	9
125	9	9	9	9

Part of the data is provided in the table due to space limitation.

Step 2: retrieve the performances of two TAs under the same condition. TA₁ and TA₂ in Table 7 are taken as an example. When TA₃ = 1 and TA₄ = 1, the performances of TA₁ and TA₂ are revealed in Table 10. Similarly, the performances of TA₁ and TA₂ are retrieved under other conditions, such as TA₃ = 1 and TA₄ = 3, TA₃ = 1 and TA₄ = 5, and so on.

Step 3: calculate the slope. According to Table 8 and equation (42), the slope is calculated, and k = 0. Similarly, other slopes are calculated, as shown in Table 11. The average slope is also calculated using formula (43), as shown in Table 11.

Step 4: identify the TC. When k₃₁ > 0, k₄₁ > 0, and k₄₃ > 0, TA₁ and TA₃, TA₄, and TA₃ and TA₄ are positive correlations. When k₂₁ = 0 and k₃₂ = 0, TA₁, TA₂, and TA₃ are neutral correlations. When k₄₂ < 0, TA₂ and TA₄ are a negative correlation. So, the TC between TA₂ and TA₄ is identified.

Step 5: translate the TC into the improved and damaged parameters. Generally, a type of material has only one color. When customers require multicolor, designers change the color of the material without changing mechanical property. In this situation, a new color is added, and more time is consumed. So, parameter 26 “amount of substance” is an improved parameter, and parameter 25 “waste of time” is a damaged parameter.

Step 6: solve the TC with the optimal inventive principle. In the contradiction matrix, the crossing between parameters 26 and 25 contains four inventive principles in the following order: 35, 36, 18, and 16. Principle 35 “transformation of the physical and chemical states of an object” is chosen, and designers paint the material to change the color.

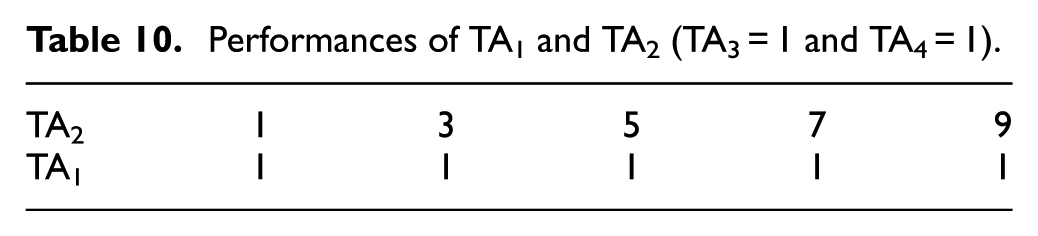

Table 10.

Performances of TA₁ and TA₂ (TA₃ = 1 and TA₄ = 1).

TA₂	1	3	5	7	9
TA₁	1	1	1	1	1

Table 11.

Values of slopes.

Slope	TA_m = 1, TA_n = 1	TA_m = 1, TA_n = 3	…	TA_m = 9, TA_n = 7	TA_m = 9, TA_n = 9	Average slope
k ₂₁	0.0	0.0	…	0.0	0.0	0.0
k ₃₁	0.3	0.5	…	0.7	0.6	0.54
k ₄₁	0.5	0.5	…	0.7	0.8	0.64
k ₃₂	0.0	0.0	…	0.0	0.0	0.0
k ₄₂	−0.6	−0.6	…	−0.6	−0.6	−0.6
k ₄₃	0.3	0.3	…	0.6	0.6	0.5

Part of the data is provided in the table due to space limitation.

Comparisons and discussion

To reveal the effectiveness of the proposed method, both the traditional TOPSIS and QFD (using crisp number) are applied in this section.

Proposed TOPSIS and traditional TOPSIS

The traditional TOPSIS is described in section “TOPSIS” and used as follows:

Step 1: determine the FPIS and FNIS. In the traditional TOPSIS, the FPIS and FNIS are determined using formulas (29) and (30). For the benefit criterion

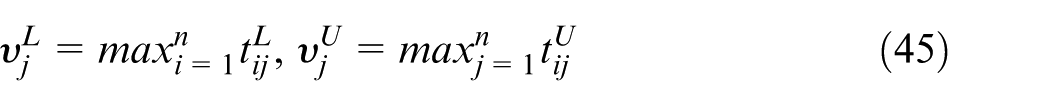

υ_{j}^{L} = \max_{i = 1}^{n} t_{ij}^{L}, υ_{j}^{U} = \max_{j = 1}^{n} t_{ij}^{U}

(45)

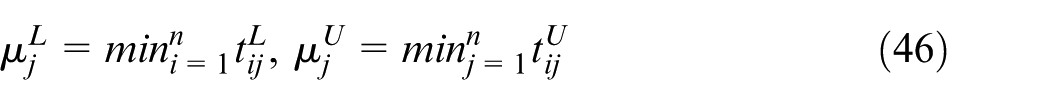

μ_{j}^{L} = \min_{i = 1}^{n} t_{ij}^{L}, μ_{j}^{U} = \min_{j = 1}^{n} t_{ij}^{U}

(46)

For the cost criterion

υ_{j}^{L} = \min_{i = 1}^{n} t_{ij}^{L}, υ_{j}^{U} = \min_{j = 1}^{n} t_{ij}^{U}

(47)

μ_{j}^{L} = \max_{i = 1}^{n} t_{ij}^{L}, μ_{j}^{U} = \max_{j = 1}^{n} t_{ij}^{U}

(48)

So, A⁺ = ([0.2880, 0.5520], [0.3600, 0.6400], [0.1904, 0.4224]) and A⁻ = ([0.1440, 0.3360], [0.1200, 0.3200], [0.1456, 0.3456]).

Step 2: calculate the distances of each STFN versus the FPIS and FNIS. According to (7)–(8), the distances between each STFN and the FPIS, and the distances between each STFN and the FNIS are

d_{i}^{+} = \sqrt{\sum_{j = 1}^{m} {(t_{ij}^{L} - υ_{j}^{L})}^{2} + \sum_{j = 1}^{m} {(t_{ij}^{U} - υ_{j}^{U})}^{2}}

(49)

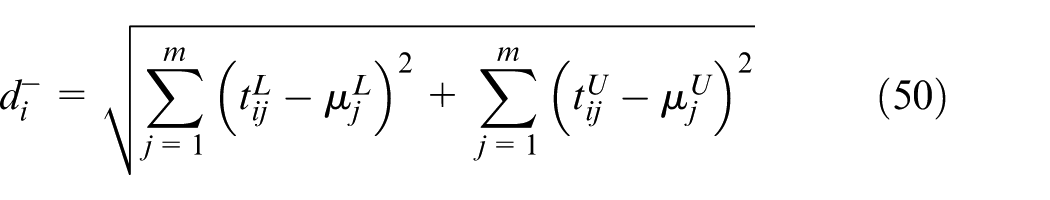

d_{i}^{-} = \sqrt{\sum_{j = 1}^{m} {(t_{ij}^{L} - μ_{j}^{L})}^{2} + \sum_{j = 1}^{m} {(t_{ij}^{U} - μ_{j}^{U})}^{2}}

(50)

The results are shown in Table 12.

Table 12.

$d_{i}^{+}$ , $d_{i}^{-}$ , CC_i, and ranking order of TAs.

TA	$d_{i}^{+}$	$d_{i}^{-}$	CC_i	Rank
TA₁	0.0889	0.4769	0.8429	1
TA₂	0.2884	0.0000	0.0000	3
TA₃	0.4000	0.0000	0.0000	3
TA₄	0.1973	0.2938	0.5982	2

Step 3: calculate the CC. The CC is calculated using formula (37), as shown in Table 12. The ranking order of TAs is $T A_{1} ≻ T A_{4} ≻ T A_{2} = T A_{3}$ .

Obviously, the ranking order of TAs is not reasonable in the traditional TOPSIS (see Table 12). The proposed TOPSIS and conventional TOPSIS are compared and discussed, and the advantages of the proposed TOPSIS are summarized.

The FPIS, FNIS, and distance measurement of the proposed TOPSIS are more accurate than that of the traditional TOPSIS. The FPIS and FNIS provided by the proposed TOPSIS can eliminate $d_{i}^{-} = 0$ when the fuzzy decision matrix is not full rank, such as TA₂ and TA₃. However, in the traditional TOPSIS, when the fuzzy decision matrix is not full rank (see formula (44)), the alternatives are FNISs according to equations (44) and (46), such as $[μ_{1}^{L}, μ_{1}^{U}] = [0.1440, 0.3360]$ (TA₂) and $[μ_{2}^{L}, μ_{2}^{U}] = [0.1200, 0.3200]$ (TA₃). The distances between the alternatives and FNISs are both 0 using formula (50). So, the ranking is identical (shown in Table 12). Actually, [0.1440, 0.3360] > [0.1200, 0.3200], so $T A_{2} ≻ T A_{3}$ . The ranking is not reasonable in Table 10, and the result from the proposed TOPSIS is reasonable. Moreover, the proposed distance measurement is more accurate than the Euclidean distance.

The change in the CC obtained by the proposed TOPSIS is more than that of the traditional TOPSIS. The CC of the proposed TOPSIS is

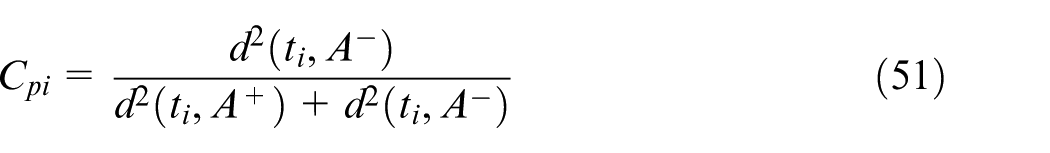

C_{pi} = \frac{d^{2} (t_{i}, A^{-})}{d^{2} (t_{i}, A^{+}) + d^{2} (t_{i}, A^{-})}

(51)

The CC of the traditional TOPSIS is

C_{ti} = \frac{d (t_{i}, A^{-})}{d (t_{i}, A^{+}) + d (t_{i}, A^{-})}

(52)

$d^{2} (t_{i}, A^{-})$ is solved using formula (51)

d^{2} (t_{i}, A^{+}) = \frac{1 - C_{pi}}{C_{pi}} d^{2} (t_{i}, A^{-})

(53)

Similarly, $d (t_{i}, A^{+})$ is solved using formula (52)

d (t_{i}, A^{+}) = \frac{1 - C_{ti}}{C_{ti}} d (t_{i}, A^{-})

(54)

In accordance with equations (53) and (54), C_pi is calculated

C_{pi} = \frac{C_{ti}^{2}}{C_{ti}^{2} + {(1 - C_{ti})}^{2}}

(55)

The first and second derivatives of C_ti are calculated using formula (55)

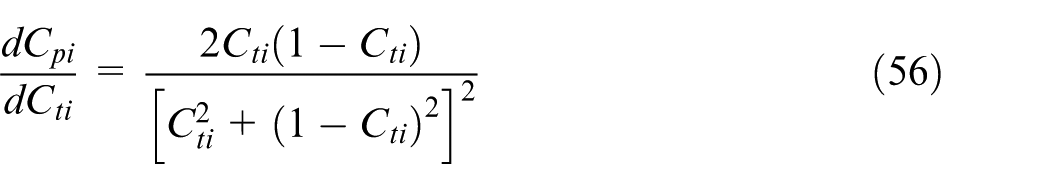

\frac{d C_{pi}}{d C_{ti}} = \frac{2 C_{ti} (1 - C_{ti})}{{[C_{ti}^{2} + {(1 - C_{ti})}^{2}]}^{2}}

(56)

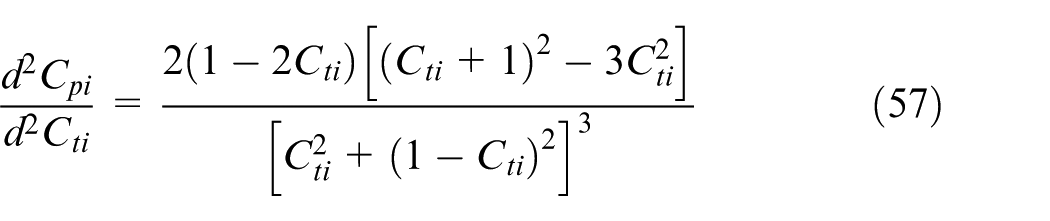

\frac{d^{2} C_{pi}}{d^{2} C_{ti}} = \frac{2 (1 - 2 C_{ti}) [{(C_{ti} + 1)}^{2} - 3 C_{ti}^{2}]}{{[C_{ti}^{2} + {(1 - C_{ti})}^{2}]}^{3}}

(57)

When $C t_{i} \in [0, 1]$ , $d C_{pi} / d C_{ti} ⩾ 0$ . So, equation (55) is a monotonically increasing function. When $d^{2} C_{pi} / d^{2} C_{ti} = 0$ , C_ti = 0.5. Therefore, when $C t_{i} \in [0, 0.5]$ , $d^{2} C_{pi} / d^{2} C_{ti} > 0$ , and when $C t_{i} \in (0.5, 1]$ , $d^{2} C_{pi} / d^{2} C_{ti} < 0$ . The relationship between $C_{p}$ and $C_{t}$ is shown in Figure 4 that the change in the proposed CC C_p is more than that of the traditional one C_t.

Figure 4.

Function of C_p and C_t.

Proposed QFD and traditional QFD

In the traditional QFD, the numbers 0.1, 0.3, 0.5, 0.7, and 0.9 represent very low, low, moderate, high, and very high importance, respectively, or represent very weak, weak, moderate, strong, and very strong relationship, respectively. According to Tables 3 and 4, the weighted normalized CN–TA relationship matrix is determined, as shown in Table 13. The PIS and NIS are calculated using formulas (3)–(6). In accordance with equations (35) and (36), the distances between each STFN and the FPIS and each STFN and the FNIS are determined

d_{i}^{+} = \sum_{j = 1}^{m} {(t_{ij} - υ_{j})}^{2}

(58)

d_{i}^{-} = \sum_{j = 1}^{m} {(t_{ij} - μ_{j})}^{2}

(59)

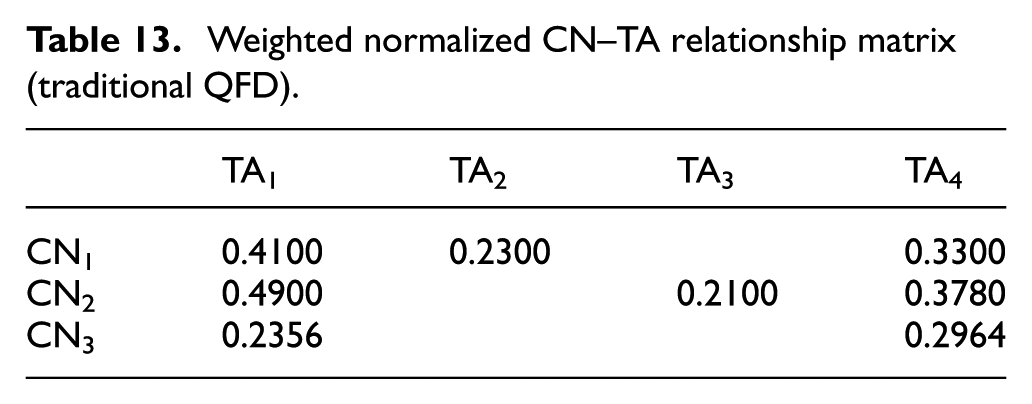

Table 13.

Weighted normalized CN–TA relationship matrix (traditional QFD).

	TA₁	TA₂	TA₃	TA₄
CN₁	0.4100	0.2300		0.3300
CN₂	0.4900		0.2100	0.3780
CN₃	0.2356			0.2964

The distances are calculated using formulas (58) and (59), and the CC is also calculated using formula (37), as shown in Table 14. So, the ranking order of TAs is $T A_{1} ≻ T A_{4} ≻ T A_{2} = T A_{3}$ . The result is inaccurate because the traditional QFD prioritizes TAs without considering the subjectivity and vagueness. Similarly, in the traditional QFD, when the decision matrix, which is the transfer matrix of the weighted normalized CN–TA relationship matrix, is not full rank (see Table 13), the alternatives are NISs according to equation (5), such as $μ_{1} = 0.2300$ (TA₂) and $μ_{2} = 0.2300$ (TA₃). Although the proposed TOPSIS is adopted, both the distances TA₂ and NIS ( $μ_{1}$ ) and TA₃ and NIS ( $μ_{2}$ ) are 0 using formula (59). The ranking is identical (see Table 14). Obviously, TA₂ (0.2300) > TA₃ (0.2100). The result is not accurate in Table 12, and the ranking from the proposed QFD is accurate. Therefore, the proposed QFD is more practical than the traditional QFD.

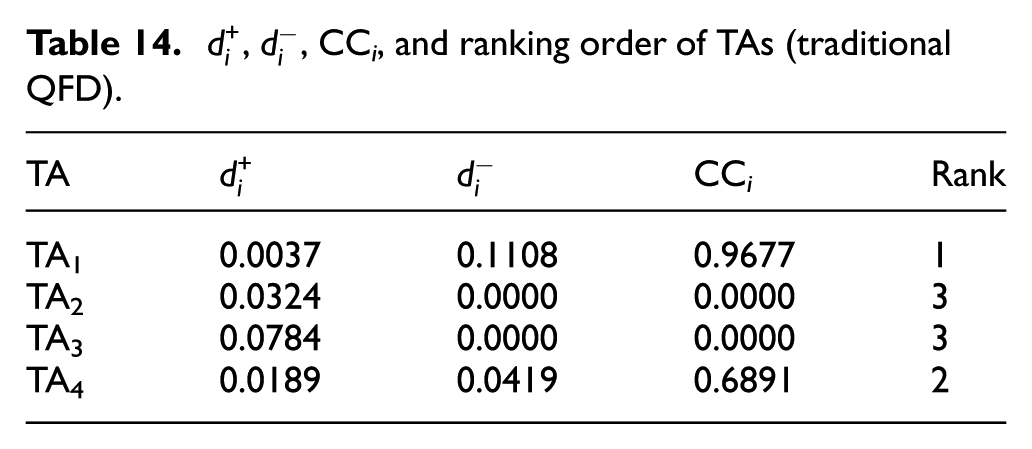

Table 14.

$d_{i}^{+}$ , $d_{i}^{-}$ , CC_i, and ranking order of TAs (traditional QFD).

TA	$d_{i}^{+}$	$d_{i}^{-}$	CC_i	Rank
TA₁	0.0037	0.1108	0.9677	1
TA₂	0.0324	0.0000	0.0000	3
TA₃	0.0784	0.0000	0.0000	3
TA₄	0.0189	0.0419	0.6891	2

According to Tables 6, 12, and 14, the CCs (CC_i) of TAs from the proposed QFD, the traditional TOPSIS, and the traditional QFD are shown in Figure 5. The larger the CC, the more important the TA. So, the ranking order of TAs is determined. From Figure 5, the ranking from the proposed QFD is $T A_{1} ≻ T A_{4} ≻ T A_{2} ≻ T A_{3}$ , the ranking from the traditional TOPSIS is $T A_{1} ≻ T A_{4} ≻ T A_{2} = T A_{3}$ , and the ranking from the traditional QFD is $T A_{1} ≻ T A_{4} ≻ T A_{2} = T A_{3}$ . Although the alternatives (TA₂, TA₃) are FNISs in the nonfull matrix, and the traditional TOPSIS and the traditional QFD cannot prioritize them, the proposed QFD ranks them effectively.

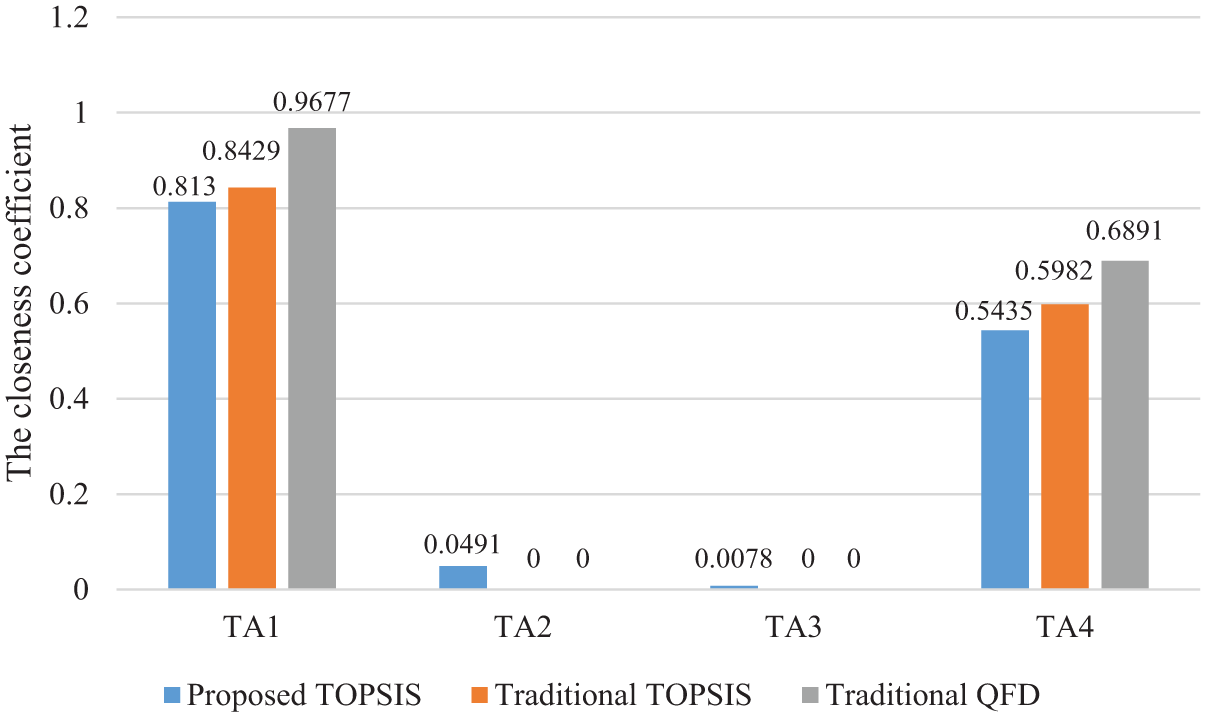

Figure 5.

Ranking order of TAs.

Conclusion and suggestions

This article uses STFNs to deal with the vague information, fuzzy TOPSIS to prioritize TAs, the line-fitting method to identify TCs, and the TRIZ to solve TCs. Through integrating the proposed TOPSIS and the TRIZ into fuzzy QFD, the priority of interdependent TAs is determined. The proposed method is an effective decision-making tool for new product development and reveals the following aspects:

In the fuzzy QFD, STFN is adopted to evaluate the CN importance and CN–TA relationships. It is more effective to express the subjective and vague evaluation from customers and experts.

The proposed TOPSIS prioritizes TAs in the nonfull matrix. When the fuzzy decision matrix is not full rank and the alternatives are the FNISs, the traditional TOPSIS cannot rank the alternatives, even if fuzzy numbers of the alternatives are different. The proposed TOPSIS improves the FPIS and FNIS and then avoids the identical ranking. That is, if different fuzzy numbers of the alternatives are the FNIS, the proposed TOPSIS ranks them. Besides, distance measurement of the proposed TOPSIS is modified. It is suitable for calculating all fuzzy numbers.

The line-fitting method is used to identify TCs among TAs. In the decision table, when the performances of other TAs are identical, the performances of two TAs are retrieved. These performances are fitted lines. If the average slope of fitting lines is >0, the two TAs are a negative correlation. So, the TC occurs.

The TRIZ is employed to solve the TC. The TC is translated into the improved and damaged parameters. The contradiction matrix proposes 1–4 inventive principles to solve the TC.

Although the proposed method can provide assistance when developing new products, it has some limitations that need to be studied in future research.

To obtain more detailed information of phone shell, the three key CNs and the four key TAs should be subdivided into more CNs and TAs, respectively. Furthermore, more customers are invited to evaluate the CN importance, and more experts from different companies evaluate the CN–TA relationships.

More information from different companies is collected to verify the decision tables (Tables 7 –9). So, a lot of test working will be done.

Footnotes

Acknowledgements

The authors would like to thank the editor and the anonymous reviewers for their helpful comments and suggestions on this article.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: The work described in this paper was supported by the National Natural Science Foundation of China (Grant No. 71501006). It was also partially supported by the National Natural Science Foundation of China (Grant Nos 71332003, 71632003 and 71420107025) and Shanghai Pujiang Program (Grant No. 16PJ1404500).

References

Darlington

Culley

SJ.

Current research in the engineering design requirement. Proc IMechE, Part B: J Engineering Manufacture 2002; 216(3): 375–388.

Akao

Quality function deployment: integrating customer requirements into product design. New York: Productivity Press, 1990.

Chan

ML.

Prioritizing the technical measures in quality function deployment. Qual Eng 1998; 10(3): 467–479.

Lin

Wang

Chen

. Using AHP and TOPSIS approaches in customer-driven product design process. Comput Ind 2008; 59(1): 17–31.

Chan

ML.

A systematic approach to quality function deployment with a full illustrative example. Omega 2005; 33(2): 119–139.

Zadeh

LA.

Fuzzy sets. Inform Control 1965; 8(3): 338–353.

Chan

Kao

ML.

Rating the importance of customer needs in quality function deployment by fuzzy and entropy methods. Int J Prod Res 1999; 37(11): 2499–2518.

Malekly

Mousavi

Hashemi

A fuzzy integrated methodology for evaluating conceptual bridge design. Expert Syst Appl 2010; 37(7): 4910–4920.

Jin

Wang

A new MCDM method combining QFD with TOPSIS for knowledge management system selection from the user’s perspective in intuitionistic fuzzy environment. Appl Soft Comput 2014; 21: 28–37.

10.

Tran

Duckstein

Comparison of fuzzy numbers using a fuzzy distance measure. Fuzzy Set Syst 2002; 130(3): 331–341.

11.

Tang

Chin

. A rough set approach for estimating correlation measures in quality function deployment. Inform Sciences 2012; 189: 126–142.

12.

Olhager

West

BM.

The house of flexibility: using the QFD approach to deploy manufacturing flexibility. Int J Oper Prod Man 2002; 22(1): 50–79.

13.

Tung

Wang

MH.

Comparison of environmental performance between plastic and steel fuel tanks. Proc IMechE, Part B: J Engineering Manufacture 2002; 216(11): 1443–1457.

14.

Zhao

Peng

Development of a paper-bag-folding machine using open architecture for adaptability. Proc IMechE, Part B: J Engineering Manufacture 2015; 229(1 Suppl.): 155–169.

15.

Chang

Chen

. Steps for the advanced product quality planning approach to improve product quality: a case of fastener manufacturing. Proc IMechE, Part B: J Engineering Manufacture 2011; 225: 1621–1635.

16.

Zhang

Eres

Baron

. Replacing target setting by value models in the “house of quality” for value-based requirements specifications. Proc IMechE, Part B: J Engineering Manufacture 2014; 228: 2033–2044.

17.

Chen

Fung

Tang

Rating technical attributes in fuzzy QFD by integrating fuzzy weighted average method and fuzzy expected value operator. Eur J Oper Res 2006; 174(3): 1553–1566.

18.

Kwong

Chen

. A novel fuzzy group decision-making approach to prioritising engineering characteristics in QFD under uncertainties. Int J Prod Res 2011; 49(19): 5801–5820.

19.

Zhai

Khoo

Zhong

ZW.

A rough set based QFD approach to the management of imprecise design information in product development. Adv Eng Inform 2009; 23(2): 222–228.

20.

Zhai

Khoo

Zhong

ZW.

Towards a QFD-based expert system: a novel extension to fuzzy QFD methodology using rough set theory. Expert Syst Appl 2010; 37(12): 8888–8896.

21.

Chen

Yang

. Modelling a contradiction-oriented design approach for innovative product design. Proc IMechE, Part B: J Engineering Manufacture 2015; 229: 199–211.

22.

Liu

Cheng

HS.

An improved grey quality function deployment approach using the grey TRIZ technique. Comput Ind Eng 2015; 92: 57–71.

23.

Hwang

Yoon

Multiple Attribute Decision Making: Methods and Application. New York, NY: Springer, 1981.

24.

Zhou

Jiang

Yang

. A hybrid approach for multi-weapon production planning with large-dimensional multi-objective in defense manufacturing. Proc IMechE, Part B: J Engineering Manufacture 2014; 228: 302–316.

25.

Yurdakul

Cogun

Development of a multi-attribute selection procedure for non-traditional machining processes. Proc IMechE, Part B: J Engineering Manufacture 2003; 217(7): 993–1009.

26.

Rao

RV.

Evaluation of environmentally conscious manufacturing programs using multiple attribute decision-making methods. Proc IMechE, Part B: J Engineering Manufacture 2008; 222(3): 441–451.

27.

Chakladar

Chakraborty

A combined TOPSIS-AHP-method-based approach for non-traditional machining processes selection. Proc IMechE, Part B: J Engineering Manufacture 2008; 222(12): 1613–1623.

28.

Wang

ST.

Integrating the Taguchi method and the multiattribute decision-making method to optimize the surface mount technology solder paste printing thickness process. Proc IMechE, Part B: J Engineering Manufacture 2013; 227(8): 1209–1217.

29.

Balaji

Kumar

SV.

Evaluation and selection of lean resourced employee in the manufacturing industries using the TOPSIS-Simos method. Proc IMechE, Part B: J Engineering Manufacture. Epub ahead of print 11 March 2016. DOI: 10.1177/0954405416635069.

30.

Jin

Zhang

Shao

. A study on the impact of periodic and event-driven rescheduling on a manufacturing system: an integrated process planning and scheduling case. Proc IMechE, Part B: J Engineering Manufacture. Epub ahead of print 16 February 2016. DOI: 10.1177/0954405416629585.

31.

Chen

CT.

Extensions of the TOPSIS for group decision-making under fuzzy environment. Fuzzy Set Syst 2000; 114(1): 1–9.

32.

Chu

Lin

YC.

An interval arithmetic based fuzzy TOPSIS model. Expert Syst Appl 2009; 36(8): 10870–10876.

33.

Remery

Mascle

Agard

A new method for evaluating the best product end-of-life strategy during the early design phase. J Eng Design 2012; 23(6): 419–441.

34.

Zandi

Tavana

A fuzzy group quality function deployment model for e-CRM framework assessment in agile manufacturing. Comput Ind Eng 2011; 61(1): 1–19.

35.

Park

Kwun

. Extension of the TOPSIS method for decision making problems under interval-valued intuitionistic fuzzy environment. Appl Math Model 2011; 35(5): 2544–2556.

36.

Zhang

Yang

Liu

Using integrated quality function deployment and theory of innovation problem solving approach for ergonomic product design. Comput Ind Eng 2014; 76: 60–74.

37.

Griffin

Hauser

JR.

The voice of the customer. Market Sci 1993; 12(1): 1–27.

38.

Kwong

Bai

Determining the importance weights for the customer requirements in QFD using a fuzzy AHP with an extent analysis approach. IIE Trans 2003; 35(7): 619–626.

39.

Hosseini

SMS

Maleki

Gholamian

MR.

Cluster analysis using data mining approach to develop CRM methodology to assess the customer loyalty. Expert Syst Appl 2010; 37(7): 5259–5264.

40.

Kano

Seraku

Takahashi

. Attractive quality and must-be quality. J Jpn Soc Qual Control 1984; 14(2): 147–156.

41.

Hanna

Backhouse

Burns

ND.

Linking employee behaviour to external customer satisfaction using quality function deployment. Proc IMechE, Part B: J Engineering Manufacture 2004; 218(9): 1167–1177.

42.

Altshuller

Shulyak

And suddenly the inventor appeared: TRIZ, the theory of inventive problem solving. Worcester, MA: Technical Innovation Center, Inc., 1996.

43.

Bariani

Berti

Lucchetta

A combined DFMA and TRIZ approach to the simplification of product structure. Proc IMechE, Part B: J Engineering Manufacture 2004; 218(8): 1023–1027.

No.	TA₂	TA₃	TA₄	TA₁
1	1	1	1	1
2	1	1	3	1
3	1	1	5	3
4	1	1	7	3
5	1	1	9	5
…	…	…	…	…
121	9	9	1	3
122	9	9	3	5
123	9	9	5	7
124	9	9	7	9
125	9	9	9	9

No.	TA₁	TA₃	TA₄	TA₂
1	1	1	1	7
2	1	1	3	7
3	1	1	5	5
4	1	1	7	3
5	1	1	9	3
…	…	…	…	…
121	9	9	1	7
122	9	9	3	7
123	9	9	5	5
124	9	9	7	3
125	9	9	9	3

No.	TA₁	TA₂	TA₄	TA₃
1	1	1	1	1
2	1	1	3	1
3	1	1	5	1
4	1	1	7	3
5	1	1	9	3
…	…	…	…	…
121	9	9	1	5
122	9	9	3	5
123	9	9	5	7
124	9	9	7	9
125	9	9	9	9

No.	TA₂	TA₃	TA₄	TA₁
1	1	1	1	1
2	1	1	3	1
3	1	1	5	3
4	1	1	7	3
5	1	1	9	5
…	…	…	…	…
121	9	9	1	3
122	9	9	3	5
123	9	9	5	7
124	9	9	7	9
125	9	9	9	9

No.	TA₁	TA₃	TA₄	TA₂
1	1	1	1	7
2	1	1	3	7
3	1	1	5	5
4	1	1	7	3
5	1	1	9	3
…	…	…	…	…
121	9	9	1	7
122	9	9	3	7
123	9	9	5	5
124	9	9	7	3
125	9	9	9	3

No.	TA₁	TA₂	TA₄	TA₃
1	1	1	1	1
2	1	1	3	1
3	1	1	5	1
4	1	1	7	3
5	1	1	9	3
…	…	…	…	…
121	9	9	1	5
122	9	9	3	5
123	9	9	5	7
124	9	9	7	9
125	9	9	9	9

No.	TA₂	TA₃	TA₄	TA₁
1	1	1	1	1
2	1	1	3	1
3	1	1	5	3
4	1	1	7	3
5	1	1	9	5
…	…	…	…	…
121	9	9	1	3
122	9	9	3	5
123	9	9	5	7
124	9	9	7	9
125	9	9	9	9

No.	TA₁	TA₃	TA₄	TA₂
1	1	1	1	7
2	1	1	3	7
3	1	1	5	5
4	1	1	7	3
5	1	1	9	3
…	…	…	…	…
121	9	9	1	7
122	9	9	3	7
123	9	9	5	5
124	9	9	7	3
125	9	9	9	3

No.	TA₁	TA₂	TA₄	TA₃
1	1	1	1	1
2	1	1	3	1
3	1	1	5	1
4	1	1	7	3
5	1	1	9	3
…	…	…	…	…
121	9	9	1	5
122	9	9	3	5
123	9	9	5	7
124	9	9	7	9
125	9	9	9	9
