Optimal control simulation of elliptical shaft center orbit with the hydraulic servo system

Abstract

To bore elliptical hole, the present research proposes hydraulic servo system and the control method to control the shaft center movement orbit. Considering the control difficulty when there are a small number of collocation points, the present research uses optimal control method to solve the control difficulty. Gauss pseudospectral method, which is often used in aerospace field, is applied to obtain relation between shaft center coordinate and load capacity of bearing. And the relation between load capacity and servo valve spool displacement is deduced with flow continuity equation. After the two steps above, the mathematic relation between shaft center coordinate and spool displacement is eventually obtained. The simulation results indicate that compared to the Eulerian control method, optimal control method has better self-adaptation, faster control rate, and higher control accuracy. Even if the starting movement point of shaft center is not on the expected elliptical orbit, or shaft is disturbed by instantaneous external force or dynamical force, the optimal control method still makes the shaft center orbit quickly get close to the expected ellipse. The present research lays theoretical foundation for new boring method of elliptical hole.

Keywords

Elliptical hole shaft center movement orbit optimal control method

Introduction

As mechanical equipment power and rotation speed increase, the hole in mechanical equipment has to stand increasingly high loading strength. An experiment¹ indicates that ordinary circular hole can generate severe stress concentration in hole’s inner side, which greatly reduces hole’s working lifespan. The fatigue resistance of non-circular piston pin hole is 30% larger than that of circular pin hole,² which has numerous advantages in technology and economy. Elliptical hole, such as pin hole of piston,^3,4 is one kind of non-circular holes. And there are some kinds of traditional machining methods for elliptical hole, such as mechanical copying method and intelligence boring bar method based on piezoceramics. German KS (a machine company) applied mechanical copying structure to the machining of elliptical hole.⁵ The key to precisely machining elliptical hole depends on precise radial feeding mechanism.⁶ Kim et al.⁷ and Gosiewski et al.⁸ presented the machining methods of non-circular holes based on the electromagnetic actuation and conducted the fine boring experiments of elliptical pin hole. Weck and colleagues^9,10 and Pasek and colleagues,^11,12 respectively, developed their own rapid cutting tool servo mechanisms on the basis of piezoceramics. Moller¹³ and Kim et al.⁷ applied magnetic bearing to manufacturing process of elliptical hole. This kind of magnetic bearing system can be applied to bore non-circular holes with any shape, but requires a rather complicated structure with high control precision because of the unstable open-loop property of electromagnetic bearing.

Currently, there are those conventional processing approaches (mechanical copying method, intelligence boring bar method based on piezoceramics, etc.) for elliptical hole. But they all, except Moller’s¹³ and Kim et al.’s,⁷ need aided feeding device fixed on boring bar. Therefore, some disadvantages are inevitable for those traditional approaches, such as complex mechanism, small installation interspace of boring bar, and highly difficult control in precision. Thus, it is necessary to find a new processing approach. The literature¹⁴ brought up a novel and interesting boring approach for elliptical hole and obtained the following conclusion: When movement orbit of shaft center is an ellipse, motion synthesis between the shaft center’s revolution orbit and cutting tool’s rotation orbit is able to form the elliptical tool nose orbit. Elliptical hole’s processing will be realized. So, as long as the orbit of shaft center is an expected ellipse, elliptical hole is able to be processed. In the previous research, literature¹⁵ adopted Eulerian method to control shaft center orbit and made the orbit approach the expected ellipse. Though the control precision of Eulerian method is good, the number of collocation points (i.e. control points) for Eulerian method is up to 300. To complete a lap of the ellipse, the shaft center should move following the 300 collocation points on expected ellipse, which means that the control parameters (i.e. spool displacements of four electro-hydraulic servo valves) should change 300 times per lap. And if the rotation speed of shaft is 50 rps, then the frequency response of electro-hydraulic servo valve will reach up to 15,000 Hz. Such high-frequency response (15,000 Hz) servo valve will make the hydraulic control system’s cost very high, for the price of electro-hydraulic servo valve increases as its frequency response increases. In order to reduce the cost of hydraulic control system, the number of collocation points should be small. Therefore, it is necessary to find a control method which can still maintain high precision under the condition of small number of collocation points, and that is the aim of the present research. It should be noted that the new method should control the shaft center orbit to approach the expected ellipse with less collocation points (i.e. control points). Optimal control method based on Gauss pseudospectral method (GPM) is a method with high precision¹⁶ applied in the present research. Furthermore, the control mechanism of shaft center in the present research may be helpful to the research on rotor vibration abatement.

GPM^17,18 is one kind of direct collocation methods, and the method has been widely applied in aerospace field, such as orbital transfer and trajectory design. The reason why that method is widely applied is that GPM has advantages of good accuracy¹⁶ and fast convergence rate¹⁹ in complicated optimal control problems. Huntington et al.²⁰ worked out the optimal control issue of tetrahedral formation flying with GPM. The results demonstrated the good precision as well as excellent applicability of the GPM for that issue. A new method²¹ combining model predictive control and the GPM was successfully applied to nonlinear optimal issue. Huntington and Rao²² used GPM to work out the issue of determining fuel-optimal trajectories.

GPM is primarily applied to trajectory optimization in spaceflight field, and almost no literature about its application in the control of shaft center movement orbit has been found. In the present research, the expected (or reference) movement orbit of shaft center is an ellipse and very similar to satellite movement orbit. Therefore, the present research attempts to apply the optimal control method based on Gauss pseudospectral theory to the active control of shaft center movement orbit.

Based on the previous work,¹⁴ in order to bore elliptical hole and control shaft center movement orbit to form an ellipse, the present research puts forward hydraulic control scheme and builds mathematic model of bearing-rotor system. And this research adopts GPM to obtain optimal state variables (shaft center coordinates and velocities) and optimal control variable (load capacity of bearing). Electro-hydraulic servo valve is a key to realize the active control of shaft center movement orbit, and the spool displacement of servo valve influences bearing load.^23–25 So, it is necessary to establish the relation between the two parameters (spool displacement and bearing load). The above two steps can build the relation between shaft center movement coordinate and spool displacement of electro-hydraulic servo valve. In order to research the advantages of optimal method in controlling the shaft center orbit, the shaft center orbits controlled by the two methods (optimal control method and Eulerian control method) are compared. The compared results indicate that optimal control method has advantages of better self-adaptation, faster control rate, and higher control accuracy. The present research not only discusses the feasibility of realizing new boring method¹⁴ with hydrostatic bearing system but also provides a reference for rotor vibration abatement using the optimal control method.

Analysis

Hydraulic control scheme

In the present research, the shaft center orbit is controlled to form an expected ellipse using a hydraulic system. Figure 1 shows the hydraulic control system of shaft center movement orbit. Compared to previous hydraulic control system with four servo valves in literature,¹⁵ the new system in the present research has only two servo valves. The new scheme not only simplifies the control system but also decreases the cost of the system. Therefore, the new scheme improves the feasibility of machining method.¹⁴ In Figure 1, servo valve $x_{s}$ (or $y_{s}$ ) is an electro-hydraulic servo valve, all restrictors are capillary restrictors, and $p_{s}$ is supply pressure. With servo valve $x_{s}$ as example, the system’s working principle is as follows: When spool displacement of servo valve $x_{s}$ is zero, servo valve works at meso-position, and no lubricant passes through servo valve, so hydraulic system feeds recess lubricant only through four capillary restrictors. When valve core of servo valve $x_{s}$ moves in the positive direction, port P connects with port A, and the flow of lubricant flowing into pocket 1 is composed of two sections (i.e. flow through capillary restrictor $x_{r 1}$ and flow through servo valve $x_{s}$ ), and pressure of pocket 1 increases. Port B connects with port T, a part of flow through capillary restrictor $x_{r 2}$ flows back into oil tank through servo valve $x_{s}$ , and the left part flows into pocket 3. So, pressure of pocket 3 decreases. Therefore, there is pressure difference between pocket 1 and pocket 3, pushing shaft to move in left direction. In a similar way, when valve core moves into negative direction, shaft moves in right direction. There are two servo valves in hydraulic control system, which can control shaft’s movement in x and y directions, achieving expected elliptical orbit of shaft center. In this control system, the input or control parameters are the spool displacements of servo valves ( $x_{s}$ and $y_{s}$ ), and the output parameters are the movement coordinates of shaft center. In the following parts, the bearing load will be taken as intermediate variable for constructing the relationship between spool displacements and coordinates of shaft center. First, the relationship between coordinates of shaft center and bearing load will be built up. Second, the relationship between bearing load and spool displacements will be deduced. Finally, the relationship between coordinates of shaft center and spool displacements can be obtained according to the equations in the above two steps.

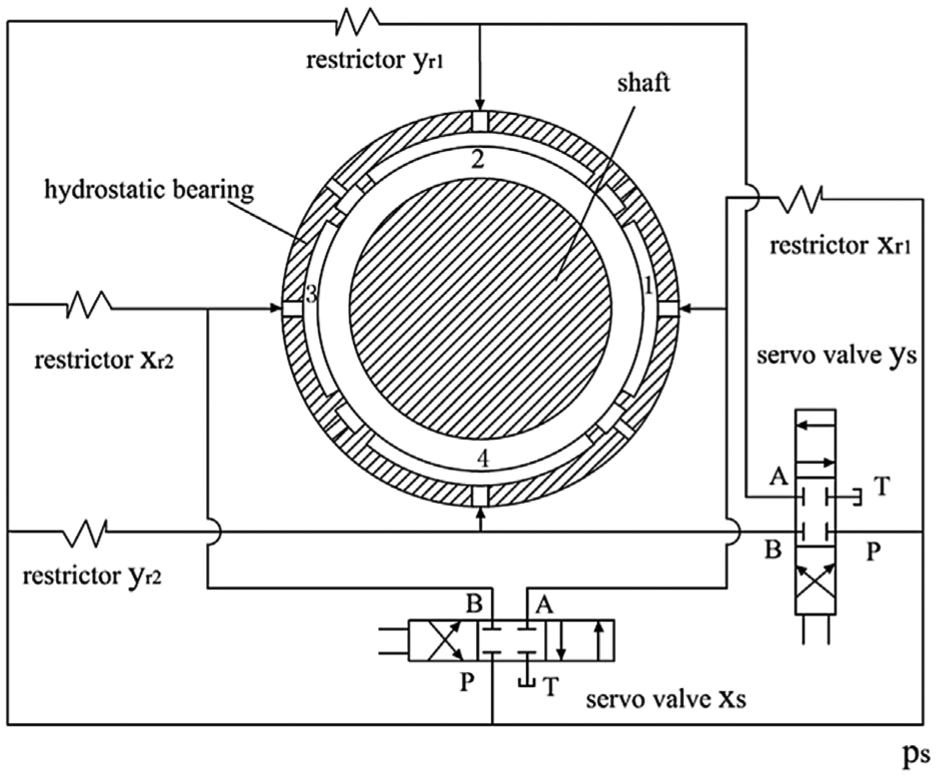

Figure 1.

Hydraulic control scheme.

Mathematical model

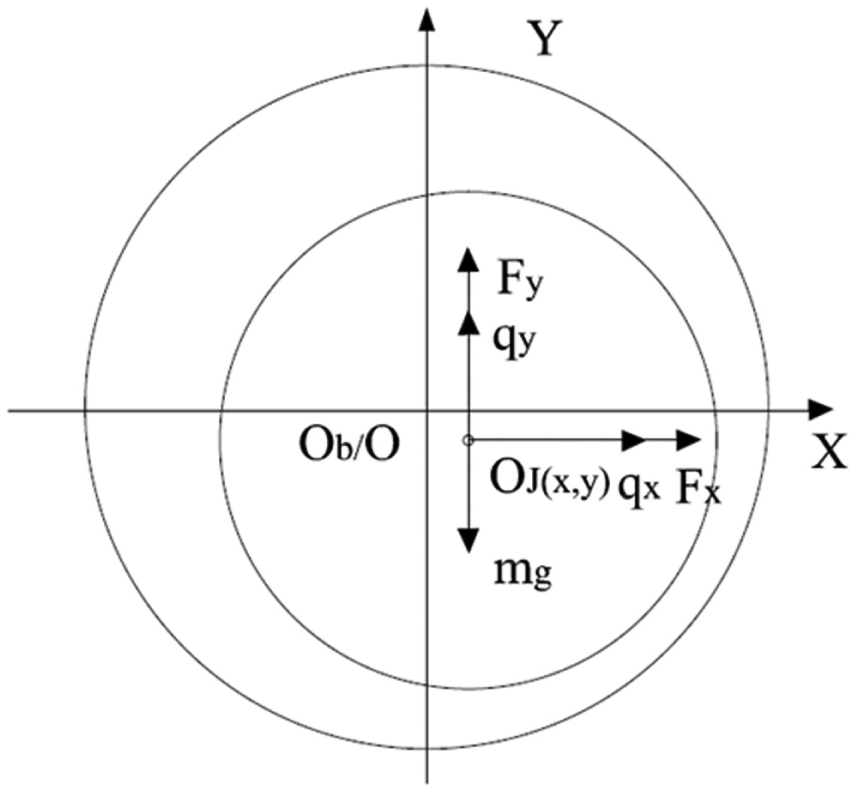

Figure 2 demonstrates the force analysis of shaft in bearing. In this figure, $m$ is the shaft mass (in kg), $g$ is the gravitational acceleration (in ms⁻²), $(F_{x}, F_{y})$ are the component forces of bearing load, $(q_{x}, q_{y})$ are the component forces of external force, $O_{J} (x, y)$ is the journal center (i.e. shaft center), and $O_{b}$ is the bearing center.

Figure 2.

Force analysis of shaft.

The relations between shaft center coordinates $(x, y)$ and velocities $(v_{x}, v_{y})$ can be expressed as

{\begin{matrix} \overset{\cdot}{x} = v_{x} \\ \overset{\cdot}{y} = v_{y} \end{matrix}

(1)

where $(\overset{\cdot}{x}, \overset{\cdot}{y})$ are the first-order derivatives of shaft center coordinates $(x, y)$ .

Governing dynamic equations of shaft in bearing can be written as

{\begin{matrix} {\overset{\cdot}{v}}_{x} = \frac{F_{x} + q_{x}}{m} \\ {\overset{\cdot}{v}}_{y} = \frac{F_{y} + q_{y} - mg}{m} \end{matrix}

(2)

where $({\overset{\cdot}{v}}_{x}, {\overset{\cdot}{v}}_{y})$ are the shaft center accelerations.

If collocation point number is N, $(x'_{k}, y'_{k})$ are the coordinates of kth collocation point located in expected movement orbit (i.e. the small ellipse) of shaft center, and $(x_{k}, y_{k})$ are the coordinates of kth collocation point located in optimal movement orbit of shaft center. To make the optimal movement orbit close to expected small ellipse, the performance index J should be the smallest

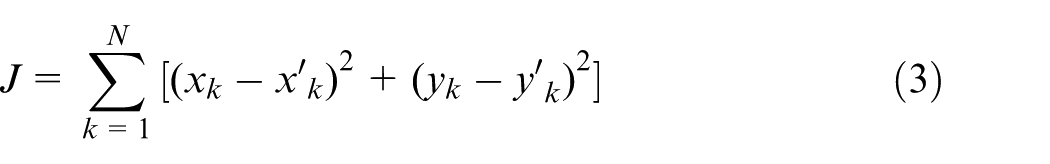

J = \sum_{k = 1}^{N} [{(x_{k} - {x'}_{k})}^{2} + {(y_{k} - {y'}_{k})}^{2}]

(3)

Based on equations (1) and (2), equation (4) can be obtained and given as follows

{\begin{matrix} {\overset{\cdot}{x}}_{k} = v_{xk} \\ \begin{matrix} {\overset{\cdot}{y}}_{k} = v_{yk} \\ \begin{matrix} {\overset{\cdot}{v}}_{xk} = \frac{F_{xk} + q_{xk}}{m} \\ {\overset{\cdot}{v}}_{yk} = \frac{F_{yk} + q_{yk} - mg}{m} \end{matrix} \end{matrix} \end{matrix}, k = 1, 2, \dots, N

(4)

where $(v_{xk}, v_{yk})$ are the shaft center velocities when shaft center is on the kth optimal collocation point, $(F_{xk}, F_{yk})$ are the component forces of control force (i.e. bearing load), and $(q_{xk}, q_{yk})$ are the component forces of external force.

Because shaft moves inside the bearing, shaft center coordinates satisfy the following inequations

{\begin{matrix} - c < x < c \\ - c < y < c \end{matrix}

(5)

where c is the bearing radial clearance.

For convenience, the above discussion is summed up as the issue of optimal control

min J = Ψ (w (t), t)

(6)

s . t . \overset{\cdot}{w} = f (w (t), u (t), t)

(7)

C_{m} (w (t), u (t), t) \leq 0

(8)

where t is the time, $w (t) = [x (t), y (t), v_{x} (t), v_{y} (t)]^{T}$ is the state variable, and $u (t) = [F_{x} (t), F_{y} (t)]$ is the control variable. Performance index (equation (6)) can be gained from equation (3), differential constraint (equation (7)) can be obtained using equation (4), and the inequality constraint (equation (8)) can be obtained from equation (5).

With the following GPM, the above optimal control issue will be converted into the issue of nonlinear programming (NLP).

GPM

GPM, an excellent optimal control method, is widely applied in spaceflight field. In the present research, when the expected movement orbit of shaft center is an ellipse, GPM will be used to optimize coordinates and velocities of shaft center, and bearing load.

Trajectory optimization problem’s temporal interval is $t \in [t_{0}, t_{f}]$ , $t_{0}$ is the initial time, and $t_{f}$ is the final time. But time range of GPM is $τ \in [- 1, 1]$ . The conversion formula for $t$ and $τ$ is

τ = \frac{2 t - (t_{f} + t_{0})}{t_{f} - t_{0}}

(9)

The number of interpolating points of trajectory optimization problem is N + 2, and interpolating points are $τ_{0}, τ_{1}, \dots, τ_{k}, \dots, τ_{N}, τ_{f}$ , respectively. There exist equations $τ_{0} = - 1$ and $τ_{f} = 1$ . And $τ_{k} (1 \leq k \leq N)$ is null point (i.e. L-G point) of N order Legendre multinomial.

The expression of N order Legendre multinomial can be written as

P_{N} (τ) = \frac{1}{2^{N} N!} \frac{d^{N}}{d τ^{N}} [(τ^{2} - 1)^{N}]

(10)

With L-G points and $τ_{0} = - 1$ as interpolating points, state variable is dealt with using Lagrange interpolation, and approximate expression of state variable can be written as

w (τ) \approx W (τ) = \sum_{i = 0}^{N} L_{i} (τ) W (τ_{i})

(11)

where $L_{i} (τ) = Π_{j = 0, j \neq i}^{N} \frac{τ - τ_{j}}{τ_{i} - τ_{j}}$ is the Lagrange interpolation primary function.

Based on the above method, control variable $u (τ)$ is also dealt with using Lagrange interpolation on L-G points, and approximate expression of control variable is

u (τ) \approx U (τ) = \sum_{i = 1}^{N} {\tilde{L}}_{i} (τ) U (τ_{i})

(12)

{\tilde{L}}_{i} (τ) = Π_{j = 1, j \neq i}^{N} \frac{τ - τ_{j}}{τ_{i} - τ_{j}}

(13)

The first-order derivative of equation (11) can be calculated, and the approximate value of $\overset{\cdot}{w} (τ)$ is expressed as

\overset{\cdot}{w} (τ_{k}) \approx \overset{\cdot}{W} (τ_{k}) = \sum_{i = 0}^{N} {\overset{\cdot}{L}}_{i} (τ_{k}) W (τ_{i}), (k = 1, 2, \dots, N)

(14)

Differential matrix $D_{ki} = {\overset{\cdot}{L}}_{i} (τ_{k})$ is defined, and the matrix is only related to the number N of Legendre multinomial null points. The expression of differential matrix is

\begin{matrix} D_{ki} = {\overset{\cdot}{L}}_{i} (τ_{k}) \\ = {\begin{matrix} \frac{(1 + τ_{k}) {\overset{\cdot}{P}}_{N} (τ_{k}) + P_{N} (τ_{k})}{(τ_{k} - τ_{i}) [(1 + τ_{i}) {\overset{\cdot}{P}}_{N} (τ_{i}) + P_{N} (τ_{i})]}, i \neq k \\ \frac{(1 + τ_{k}) {\overset{\cdot\cdot}{P}}_{N} (τ_{i}) + 2 {\overset{\cdot}{P}}_{N} (τ_{i})}{2 [(1 + τ_{i}) {\overset{\cdot}{P}}_{N} (τ_{i}) + P_{N} (τ_{i})]}, i = k \end{matrix} \end{matrix}

(15)

where ${\overset{\cdot}{P}}_{N}$ is the first-order derivative of $P_{N}$ , and ${\overset{\cdot\cdot}{P}}_{N}$ is the second-order derivative of $P_{N}$ .

Thus, dynamic constraint (equation (7)) can be rewritten as

\begin{array}{l} \sum_{i = 0}^{N} D_{k i} W (τ_{i}) - \frac{t_{f} - t_{0}}{2} f (W (τ_{k}), U (τ_{k}), τ_{k}; t_{0}, t_{f}) = 0, \\ (k = 1, 2, \dots, N) \end{array}

(16)

As to a function $f_{1} (τ)$ whose independent variable range is [−1, 1], its definite integral can be approximately solved using Gauss integral formula, which is

\int_{- 1}^{1} f_{1} (τ) d τ \approx \sum_{i = 1}^{N} g_{i} f_{1} (τ_{i})

(17)

where $g_{i}$ is the Gauss weight of the ith L-G point, and $g_{i}$ is only related to the number of L-G points. The computational formula is

g_{i} = \int_{- 1}^{1} Π_{k = 1, k \neq i}^{N} \frac{τ - τ_{k}}{τ_{i} - τ_{k}} d τ

(18)

Terminal status satisfies kinetic equation constraint, that is

w (t_{f}) = w (t_{0}) + \int_{t_{0}}^{t_{f}} f (w (t), u (t), t) dt

(19)

Combining the equations (17) and (19), one can obtain equation (20) as

\begin{array}{l} W (τ_{f}) - W (τ_{0}) - \frac{t_{f} - t_{0}}{2} \\ \sum_{k = 1}^{N} g_{k} f (W (τ_{k}), U (τ_{k}), τ_{k}; t_{0}, t_{f}) = 0 \end{array}

(20)

After above conversions, the optimal control problem is changed into NLP problem. The expression of NLP can be given as

min J = F (M)

(21)

s . t . h_{i} (M) = 0, = 1, 2, \dots, r

(22)

g_{j} (M) \leq 0, j = r + 1, r + 2, \dots, s

(23)

where $M$ is a variable, which contains state variables x(τ_k) (k = 0,…,N), x(τ_f), y(τ_k) (k = 0,…,N), y(τ_f), v_x(τ_k) (k = 0,…,N), v_x(τ_f), v_y(τ_k) (k = 0,……N), v_y(τ_f), and control variables F_x(τ_k) (k = 1,…,N), F_y(τ_k) (k = 1,…,N). Performance index (equation (21)) can be obtained from equation (3), equation constraint (equation (22)) can be gained using equations (16) and (20), and inequation constraint (equation (23)) can be obtained through equation (5). So, the form for NLP can be rewritten as

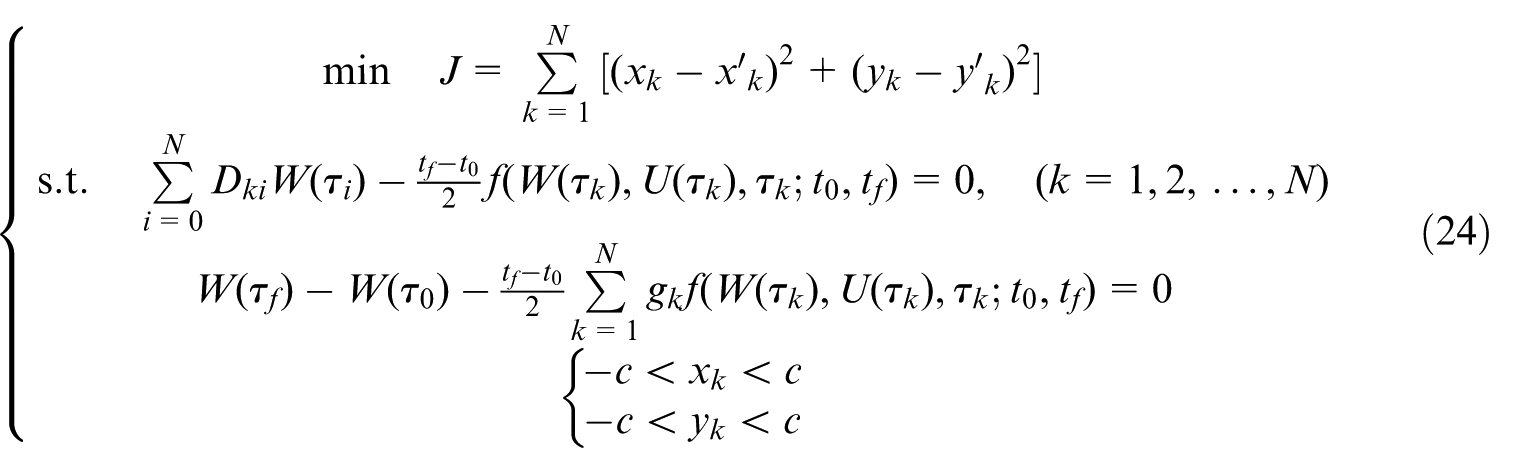

{\begin{matrix} min J = \sum_{k = 1}^{N} [{(x_{k} - {x'}_{k})}^{2} + {(y_{k} - {y'}_{k})}^{2}] \\ s . t . \sum_{i = 0}^{N} D_{ki} W (τ_{i}) - \frac{t_{f} - t_{0}}{2} f (W (τ_{k}), U (τ_{k}), τ_{k}; t_{0}, t_{f}) = 0, (k = 1, 2, \dots, N) \\ W (τ_{f}) - W (τ_{0}) - \frac{t_{f} - t_{0}}{2} \sum_{k = 1}^{N} g_{k} f (W (τ_{k}), U (τ_{k}), τ_{k}; t_{0}, t_{f}) = 0 \\ {\begin{matrix} - c < x_{k} < c \\ - c < y_{k} < c \end{matrix} \end{matrix}

(24)

At present, there are many methods for solving NLP problem, and sequential quadratic programming (SQP) is considered as one of the most effective methods.

SQP method is used to generate a sequence { $M_{k}$ } converging to the desired solution by means of iteratively solving the quadratic programming problem²⁶

min \nabla F (M_{k})^{T} d_{k} + \frac{1}{2} d_{k}^{T} H_{k} d_{k}

(25)

s . t . \nabla h_{i} (M_{k})^{T} d_{k} + h_{i} (M_{k}) = 0, i = 1, 2, \dots, r

(26)

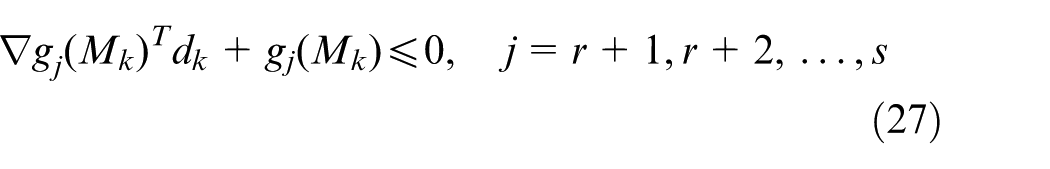

\nabla g_{j} (M_{k})^{T} d_{k} + g_{j} (M_{k}) \leq 0, j = r + 1, r + 2, \dots, s

(27)

where $\nabla F (M_{k})$ , $\nabla h_{i} (M_{k})$ , and $\nabla g_{j} (M_{k})$ are the gradient vectors; $d_{k} = M - M_{k}$ , $H_{k}$ is intended to be an approximation of Hessian matrix, and the iterative formula of $H_{k}$ is provided by Broyden–Fletcher–Goldfarb–Shanno (BFGS) formula²⁷

H_{k + 1} = H_{k} + \frac{s_{k} {(s_{k})}^{T}}{{(s_{k})}^{T} δ_{k}} - \frac{(H_{k} δ_{k}) {(H_{k} δ_{k})}^{T}}{{(H_{k} δ_{k})}^{T} δ_{k}}

(28)

where $s_{k} = θ g_{k} + (1 - θ) H_{k} δ_{k}$ , $0 \leq θ \leq 1$ ; $g_{k} = \nabla L_{y} (M_{k + 1}, λ_{k}) - \nabla L_{y} (M_{k}, λ_{k})$ ; $L_{y} (M_{k}, λ_{k}) = F (M_{k}) - {λ_{k}}^{T} b (M_{k})$ , $λ_{k}$ is the Lagrange parameter, the components of $b (M_{k})$ are the constraint values $h (M_{k})$ and $g (M_{k})$ ; $δ_{k} = M_{k + 1} - M_{k} = α_{k} d_{k}$ , $α_{k}$ is the step-length and $d_{k}$ is the search direction. The algorithm is stated as follows:

Step 1. Start with an initial estimate $M_{0}$ and an estimate $H_{0}$ of the Hessian matrix of the Lagrangian.

Step 2. Set k = 0;

Step 3. Find the solutions of search direction $d_{k}$ and step-length $α_{k}$ , and calculate the new iteration point with the equation $M_{k + 1} = M_{k} + α_{k} d_{k}$ ;

Step 4. If some convergence criterion such as $‖ M_{k + 1} - M_{k} ‖ \leq ε$ is satisfied for some small preassigned positive number $ε$ , the optimal value of equation (25) is equal to $M_{k + 1}$ , stop; otherwise, go to step 5;

Step 5. Update $H_{k + 1}$ , then set $k = k + 1$ and go to step 3.

With the above steps, the optimal parameters of equation (25) can be obtained. When the simulations are carried out, the present research will use SQP method to solve NLP problem by directly using Quadprog function in MATLAB software, getting optimal control parameters.

In this part, GPM can be adopted to establish relations between optimal movement coordinates ( $x_{k}, y_{k}$ ) of shaft center and optimal control forces ( $F_{x}, F_{y}$ ). In the following part, the relations between load capacity ( $F_{x}, F_{y}$ ) and spool displacements will be established.

Mathematic relation between load capacity and spool displacement

As seen in Figure 1, hydraulic system can control recess pressure and bearing load by adjusting spool displacement of electro-hydraulic servo valve, so it is necessary to obtain the mathematic relation between load capacity ( $F_{x}, F_{y}$ ) and spool displacement ( ${x_{v}}_{1}, x_{v 2}$ ). ${x_{v}}_{1}$ is the spool displacement of the first servo valve (that controls shaft center movement orbit in x-axis direction), and $x_{v 2}$ is the spool displacement of the second servo valve (that controls shaft center movement orbit in y-axis direction).

When bearing land of hydrostatic bearing is very small,^28,29 hydrodynamic effect exerted on the bearing land is very low and can even be neglected. Oil-film force of bearing land is obtained through linearization assignment method,²⁹ and analytical expression of recess pressure can be solved with flow continuity equation. Moreover, from the literature,²⁹ the analytic formula for pocket pressure has not only wide application but also high computational accuracy.

The bearing structure can be seen in Figure 3, and the structure parameters (such as $a_{b}$ and $L_{1}$ ) in this figure are explained in Table 1 and Appendix 1. Figure 4 shows the schematic diagram of the boundary flow of bearing pocket. In Figure 4, $θ$ and $z$ represent the circumferential direction and axial direction, respectively. The lubricant flow ( $Q_{ir}$ ) flowing from ith recess is composed of two sections, that is, axial flow (Q₃, Q₄) and circumferential flow (Q₁, Q₂). Γ₃ and Γ₄ symbolize the pocket’s axial boundaries. Γ₁ and Γ₂ symbolize the pocket’s circumferential boundaries. Here, bearing land’s area is very small, so hydrodynamic effect upon bearing land can be neglected.²⁹ Lubricant flow flowing from the ith pocket can be expressed as²⁸

\begin{matrix} Q_{ir} & = Q_{1} + Q_{2} + 2 Q_{4} \\ = (\frac{h_{il}^{3}}{12 η r} \frac{p_{ir}}{θ_{2}} - \frac{ω_{J} r h_{il}}{2}) L_{1} \\ + (\frac{h_{it}^{3}}{12 η r} \frac{p_{ir}}{θ_{2}} + \frac{ω_{J} r h_{it}}{2}) L_{1} + \frac{Δ}{6 η} \frac{p_{ir}}{a_{b}} r \end{matrix}

where $h_{il}$ and $h_{it}$ are the oil-film thicknesses of circumferential boundaries ( $Γ_{1}, Γ_{2}$ ), $p_{ir}$ is the ith recess pressure, $η$ is the lubricant dynamic viscosity, $r$ is the journal radius, and $ω_{J}$ is the journal rotational speed.

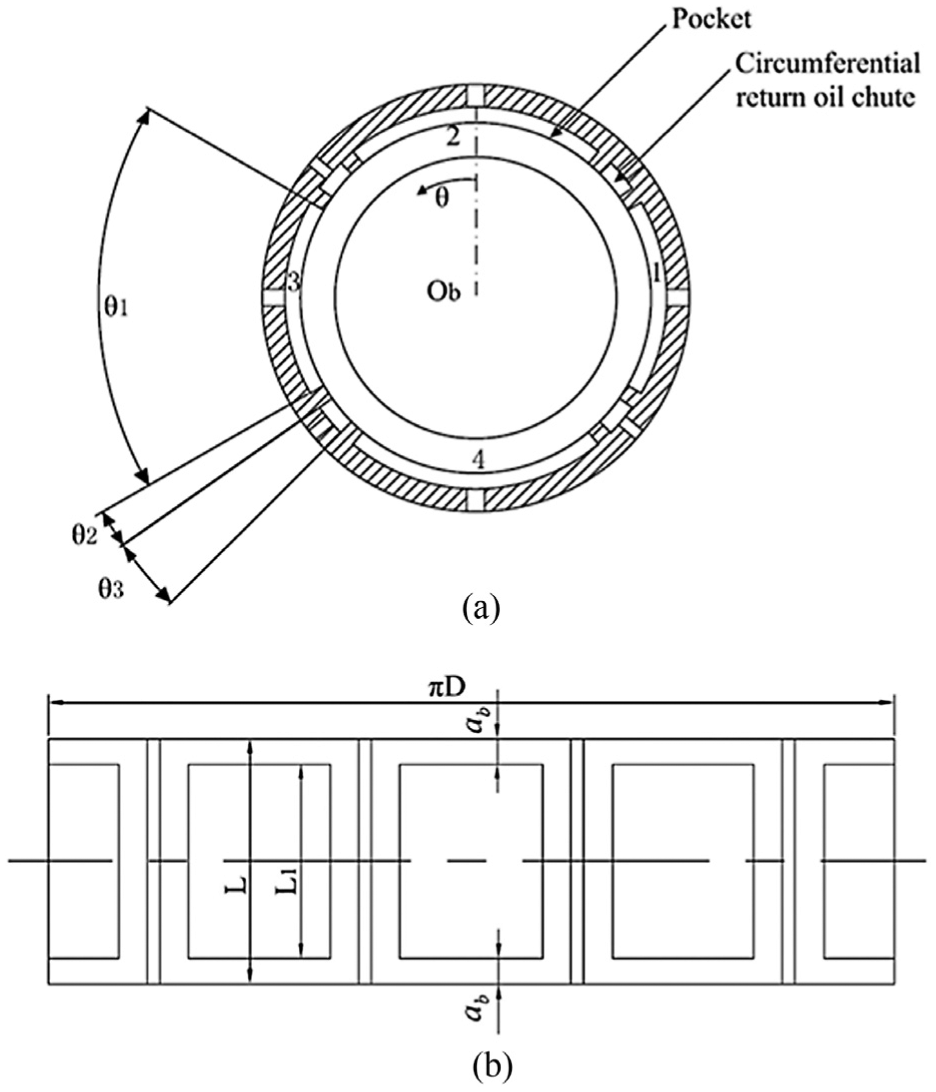

Figure 3.

(a) Journal bearing and (b) developed journal bearing.

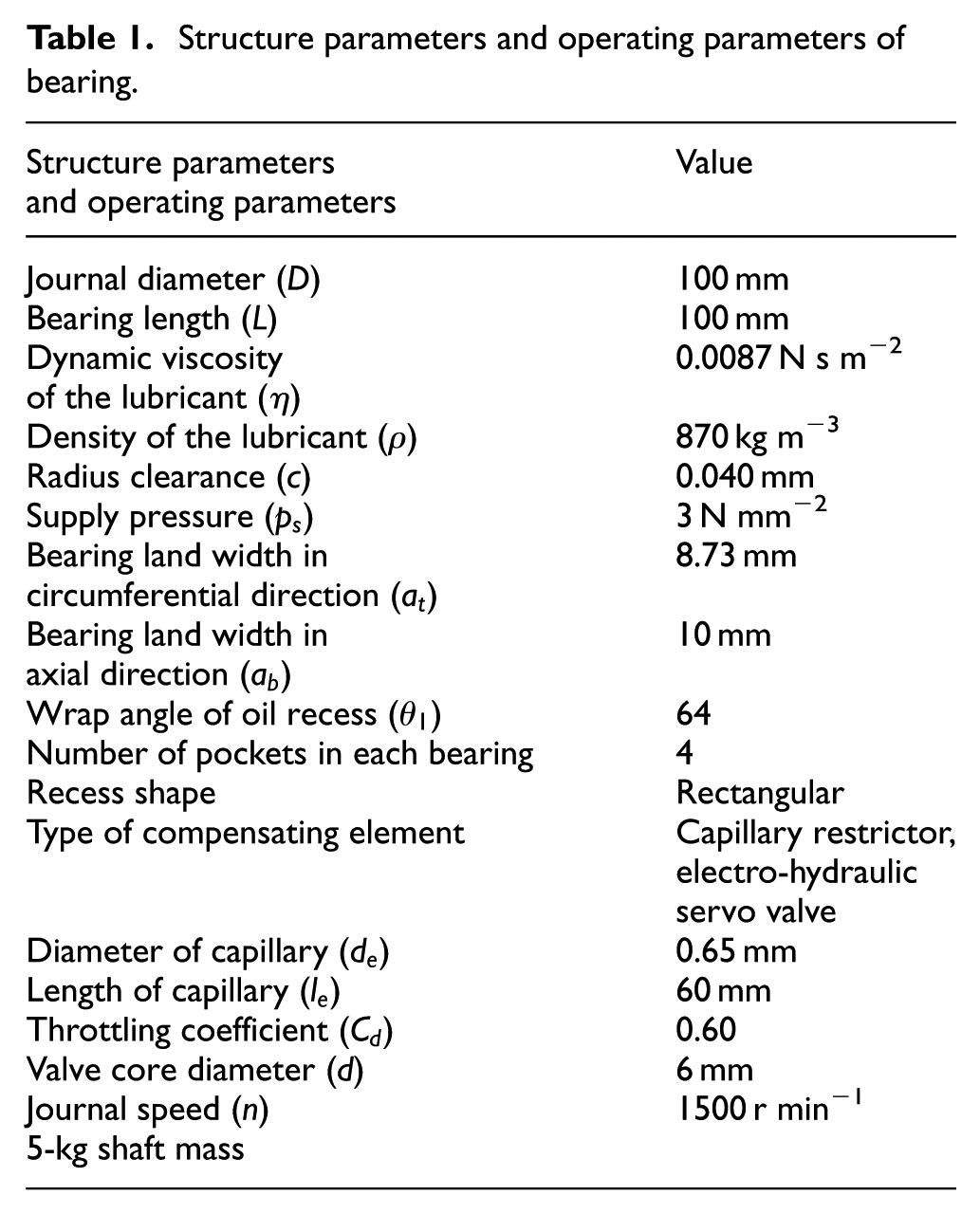

Table 1.

Structure parameters and operating parameters of bearing.

Structure parameters and operating parameters	Value
Journal diameter ( $D$ )	100 mm
Bearing length ( $L$ )	100 mm
Dynamic viscosity of the lubricant ( $η$ )	0.0087 N s m⁻²
Density of the lubricant ( $ρ$ )	870 kg m⁻³
Radius clearance ( $c$ )	0.040 mm
Supply pressure ( $p_{s}$ )	3 N mm⁻²
Bearing land width in circumferential direction ( $a_{t}$ )	8.73 mm
Bearing land width in axial direction ( $a_{b}$ )	10 mm
Wrap angle of oil recess ( $θ_{1}$ )	64
Number of pockets in each bearing	4
Recess shape	Rectangular
Type of compensating element	Capillary restrictor, electro-hydraulic servo valve
Diameter of capillary ( $d_{e}$ )	0.65 mm
Length of capillary ( $l_{e}$ )	60 mm
Throttling coefficient ( $C_{d}$ )	0.60
Valve core diameter ( $d$ )	6 mm
Journal speed ( $n$ )	1500 r min⁻¹
5-kg shaft mass

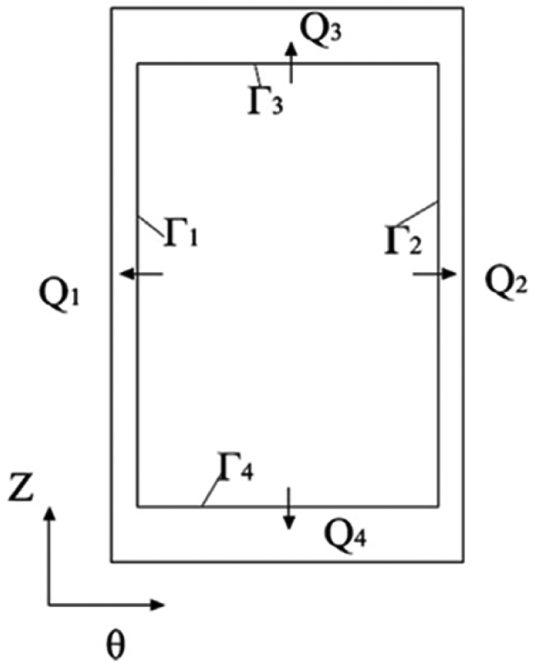

Figure 4.

Schematic diagram of boundary flow of bearing pocket.

Variable $Δ$ can be approximately expressed using three-point Gauss–Legendre integral formula.²⁹ And the expression is

\begin{array}{l} Δ \approx \frac{θ_{i t} - θ_{i l}}{2} \\ [\frac{5}{9} Ω (- \frac{\sqrt{15}}{5} \frac{θ_{i t} - θ_{i l}}{2} + \frac{θ_{i t} + θ_{i l}}{2}) + \frac{8}{9} Ω (\frac{θ_{i t} + θ_{i l}}{2}) + \frac{5}{9} Ω (\frac{\sqrt{15}}{5} \frac{θ_{i t} - θ_{i l}}{2} + \frac{θ_{i t} + θ_{i l}}{2})] \end{array}

where $θ_{il}$ and $θ_{it}$ are the circumferential coordinates of circumferential boundaries ( $Γ_{1}$ and $Γ_{2}$ ), $Ω (θ) = (c + x \sin θ - y \cos θ)^{3}$ .

When valve core position is different, the expression of flow through servo valve is also different, that is

Q_{iv} = {\begin{matrix} C_{d} x_{vj} π d \sqrt{\frac{2 (p_{s} - p_{ir})}{ρ}} if x_{vj} \geq 0 \\ C_{d} x_{vj} π d \sqrt{\frac{2 p_{ir}}{ρ}} if x_{vj} < 0 \end{matrix}

(29)

where $Q_{iv}$ is the flow through servo valve, $C_{d}$ is the throttling coefficient, $d$ is the valve core diameter, $ρ$ is the lubricant density, and $x_{vj} (j = 1, 2)$ is the spool displacement of jth servo valve. When the flow of pockets 1 and 3 is calculated, spool displacement in the equation (29) is $x_{v 1}$ . But when the flow of pockets 2 and 4 is calculated, spool displacement in the equation (29) is $x_{v 2}$ .

The expression of flow through capillary restrictor is given as follows

Q_{ic} = \frac{π d_{e}^{4} (p_{s} - p_{ir})}{128 η l_{e}}

(30)

where $Q_{ic}$ is the flow through capillary restrictor, $d_{e}$ is the capillary diameter, and $l_{e}$ is the capillary length.

The equation of flow flowing into the ith pocket is

Q_{iw} = Q_{ic} + Q_{iv}

(31)

According to the flow continuity equation, the flow into the ith pocket is equal to the flow out of the ith pocket. Therefore, the flow continuity equation can be expressed as

Q_{iw} = Q_{ir}

(32)

If the values of $x_{vj}$ are different, expressions of $Q_{iw}$ are also different. So, these different situations are discussed in the following part. When inequation $x_{vj} \geq 0$ exists, combine equations (29), (30), (31), and (32), the following equation is obtained as follows

\begin{array}{l} C_{d} x_{v j} π d \sqrt{\frac{2 (p_{s} - p_{i r})}{ρ}} + \frac{π d_{e}^{4} (p_{s} - p_{i r})}{128 η l_{e}} \\ = (\frac{h_{i l}^{3}}{12 η r} \frac{p_{i r}}{θ_{2}} - \frac{ω_{J} r h_{i l}}{2}) L_{1} \\ + (\frac{h_{i t}^{3}}{12 η r} \frac{p_{i r}}{θ_{2}} + \frac{ω_{J} r h_{i t}}{2}) L_{1} + \frac{Δ}{6 η} \frac{p_{i r}}{a_{b}} r \end{array}

(33)

Defining $k_{1} = C_{d} π d \sqrt{\frac{2}{ρ}}, k_{2} = \frac{h_{il}^{3}}{12 η r} \frac{1}{θ_{2}} L_{1} + \frac{h_{it}^{3}}{12 η r} \frac{1}{θ_{2}} L_{1} + \frac{Δ}{6 η} \frac{1}{a_{b}} r + \frac{π d_{e}^{4}}{128 η l_{e}}$ , and $k_{3} = \frac{ω_{J} r h_{it}}{2} L_{1} - \frac{ω_{J} r h_{il}}{2} L_{1} - \frac{π d_{e}^{4} p_{s}}{128 η l_{e}}$ yields the simplified form of equation (33) as

k_{1} x_{vj} \sqrt{p_{s} - p_{ir}} = k_{2} p_{ir} + k_{3}

(34)

Solving equation (34), one can obtain the recess pressure expression as

p_{ir} = \frac{- (k_{1}^{2} x_{vj}^{2} + 2 k_{2} k_{3}) \pm \sqrt{k_{1}^{4} x_{vj}^{4} + 4 k_{1}^{2} x_{vj}^{2} k_{2} k_{3} + 4 k_{2}^{2} k_{1}^{2} x_{vj}^{2} p_{s}}}{2 k_{2}^{2}}

(35)

When the inequation $x_{vj} < 0$ exists, combining equations (29), (30), (31), and (32) gives

\begin{array}{l} C_{d} x_{v j} π d \sqrt{\frac{2 p_{i r}}{ρ}} + \frac{π d_{e}^{4} (p_{s} - p_{i r})}{128 η l_{e}} \\ = (\frac{h_{i l}^{3}}{12 η r} \frac{p_{i r}}{θ_{2}} - \frac{ω_{J} r h_{i l}}{2}) L_{1} + (\frac{h_{i t}^{3}}{12 η r} \frac{p_{i r}}{θ_{2}} + \frac{ω_{J} r h_{i t}}{2}) L_{1} \\ + \frac{Δ}{6 η} \frac{p_{i r}}{a_{b}} r \end{array}

(36)

According to definitions of variables $k_{1}, k_{2}, k_{3}$ , equation (36) can be simplified as

k_{1} x_{vj} \sqrt{p_{ir}} = k_{2} p_{ir} + k_{3}

(37)

Solving the above equation gives

p_{ir} = \frac{- (2 k_{2} k_{3} - k_{1}^{2} x_{vj}^{2}) \pm \sqrt{k_{1}^{4} x_{vj}^{4} - 4 k_{1}^{2} x_{vj}^{2} k_{2} k_{3}}}{2 k_{2}^{2}}

(38)

The recess pressure analytical expressions can be obtained by combining equations (35) and (38) as

p_{ir} = {\begin{matrix} \frac{- (k_{1}^{2} x_{vj}^{2} + 2 k_{2} k_{3}) \pm \sqrt{k_{1}^{4} x_{vj}^{4} + 4 k_{1}^{2} x_{vj}^{2} k_{2} k_{3} + 4 k_{2}^{2} k_{1}^{2} x_{vj}^{2} p_{s}}}{2 k_{2}^{2}}, x_{vj} \geq 0 \\ \frac{- (2 k_{2} k_{3} - k_{1}^{2} x_{vj}^{2}) \pm \sqrt{k_{1}^{4} x_{vj}^{4} - 4 k_{1}^{2} x_{vj}^{2} k_{2} k_{3}}}{2 k_{2}^{2}}, x_{vj} < 0 \end{matrix}

(39)

To simplify the calculation, pressure on bearing land will be neglected and only recess pressure will be considered. Therefore, the expressions of load capacity generated by the ith pocket are

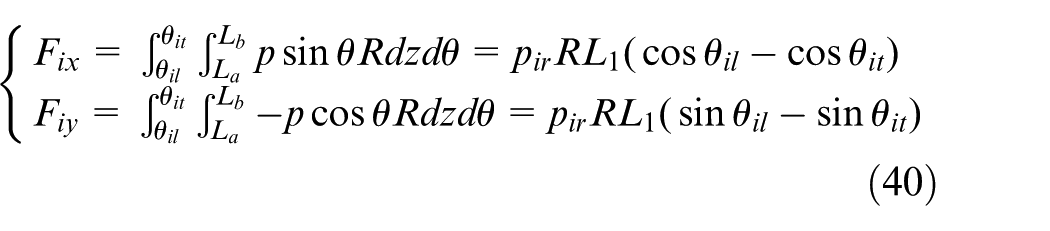

{\begin{matrix} F_{ix} = \int_{θ_{il}}^{θ_{it}} \int_{L_{a}}^{L_{b}} p \sin θ Rdz d θ = p_{ir} R L_{1} (\cos θ_{il} - \cos θ_{it}) \\ F_{iy} = \int_{θ_{il}}^{θ_{it}} \int_{L_{a}}^{L_{b}} - p \cos θ Rdz d θ = p_{ir} R L_{1} (\sin θ_{il} - \sin θ_{it}) \end{matrix}

(40)

where $p$ is the oil-film pressure, $p_{ir}$ is the ith pocket pressure, $θ$ is the circumferential coordinate, $z$ is the axial coordinate, $R$ is the bearing radius, $L_{1}$ is the axial length of pocket (seen in Figure 3), $L_{a} = \frac{L - L_{1}}{2}$ , $L_{b} = \frac{L + L_{1}}{2}$ .

The expressions of load capacity generated by four pockets are¹⁵

{\begin{matrix} F_{x} = \sum_{i = 1}^{4} [p_{ir} R L_{1} (\cos θ_{il} - \cos θ_{it})] \\ F_{y} = \sum_{i = 1}^{4} [p_{ir} R L_{1} (\sin θ_{il} - \sin θ_{it})] \end{matrix}

(41)

Thus, combining equations (39) and (41) can establish the relationship between spool displacement ( $x_{vj}$ ) and load capacity ( $F_{x}, F_{y}$ ). Moreover, recess pressure and load capacity can be solved without resorting to computers, that is, the two parameters can be obtained by manual computation with equations (39) and (41).

Results

The whole computational process is as follows: first, GPM is used to get optimal coordinates of shaft center and optimal load capacity, and then equations (39) and (41) are adopted to gain relation between load capacity and spool displacement. After the two steps, mathematic relation between the spool displacement and the optimal coordinates of shaft center will be obtained.

In the following part, an example is used to show the feasibility and controlling effects of optimal control method in the control of shaft center orbit.

Here, suppose elliptic equations of expected movement orbit of shaft center to be

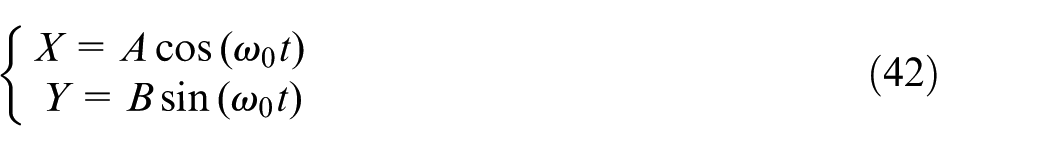

{\begin{matrix} X = A \cos (ω_{0} t) \\ Y = B \sin (ω_{0} t) \end{matrix}

(42)

where $(X, Y) = (x, y) / c$ are the non-dimensional shaft center coordinates; (A, B) are the non-dimensional length of the expected ellipse’s semi-major axis and semi-minor axis, respectively; and $c$ is the radial clearance of bearing.

In order to implement the control of shaft center movement orbit, a certain number of control points (i.e. collocation points) on expected ellipse orbit of shaft center need be selected. The present research selects only 10 collocation points (i.e. N = 10). According to equation (10), Legendre multinomial equation of 10 collocation points is

P_{10} (τ) = \frac{1}{2^{10} 10!} \frac{d^{10}}{d τ^{10}} [(τ^{2} - 1)^{10}]

In total, 10 null points of Legendre multinomial equation can be obtained by solving the equation $P_{10} (τ) = 0$ , and the null points are $τ_{1} = - 0.9739$ , $τ_{2} = - 0.8650$ , $τ_{3} = - 0.6794$ , $τ_{4} = - 0.4334$ , $τ_{5} = - 0.1489$ , $τ_{6} = 0.1489$ , $τ_{7} = 0.4334$ , $τ_{8} = 0.6794$ , $τ_{9} = 0.8650$ , and $τ_{10} = 0.9739$ . Here, suppose that equations $t_{0} = 0$ and $t_{f} = 0.04 (s)$ exist, 10 time points corresponding with the null points can be obtained according to equation (9). And the 10 time points are $t_{1} = 0.0005$ , $t_{2} = 0.0027$ , $t_{3} = 0.0064$ , $t_{4} = 0.0113$ , $t_{5} = 0.0170$ , $t_{6} = 0.0230$ , $t_{7} = 0.0287$ , $t_{8} = 0.0336$ , $t_{9} = 0.0373$ , and $t_{10} = 0.0395$ , respectively.

In equation (42), variables A and B are set as 0.5 and 0.25, respectively. The shaft rotation speed is 1500 r min⁻¹, and the rotational speed $ω_{0}$ in equation (42) is 50 rad s⁻¹. Substituting the equation $ω_{0}$ = 50 rad s⁻¹ into equation (42) yields the expected orbit equation of shaft center. The above 10 time points (t₁–t₁₀) can be substituted into equation (42) to calculate the non-dimensional coordinates of 10 collocation points. The coordinates of 10 collocation points are (0.4975, 0.0200), (0.4550, 0.1025), (0.2675, 0.2100), (−0.1025, 0.2450), (−0.4450, 0.1125), (−0.4450, −0.1125), (−0.1025, −0.2450), (0.2675, −0.2100), (0.4550, −0.1025), and (0.4975, −0.0200), respectively. The 10 collocation points’ positions on expected elliptical orbit are shown in Figure 5. In the machining process of elliptical hole, if the shaft center moves from point 1 to point 10, the expected elliptical orbit of shaft center can be obtained. It should be noted that the shaft center movement from one point to another is achieved by changing input parameter (spool displacement). So, provided that the collocation points’ (located on the expected elliptical orbit) number is large, the frequency response of servo valve will be high. For example, if 10 collocation points are chosen and the rotation speed of shaft is 25 rps, then the frequency response of servo valve should be 250 Hz, and there are some servo valve products which can meet the response requirement. But if collocation points’ number is 20, the frequency response of servo valve will reach up to 500 Hz, and very few valve products can meet the high-frequency response requirement and the cost will be very high. The small number of collocation points is helpful for decreasing frequency response of servo valve and system cost. Therefore, the less the collocation points, the more feasible the new machining method.¹⁴

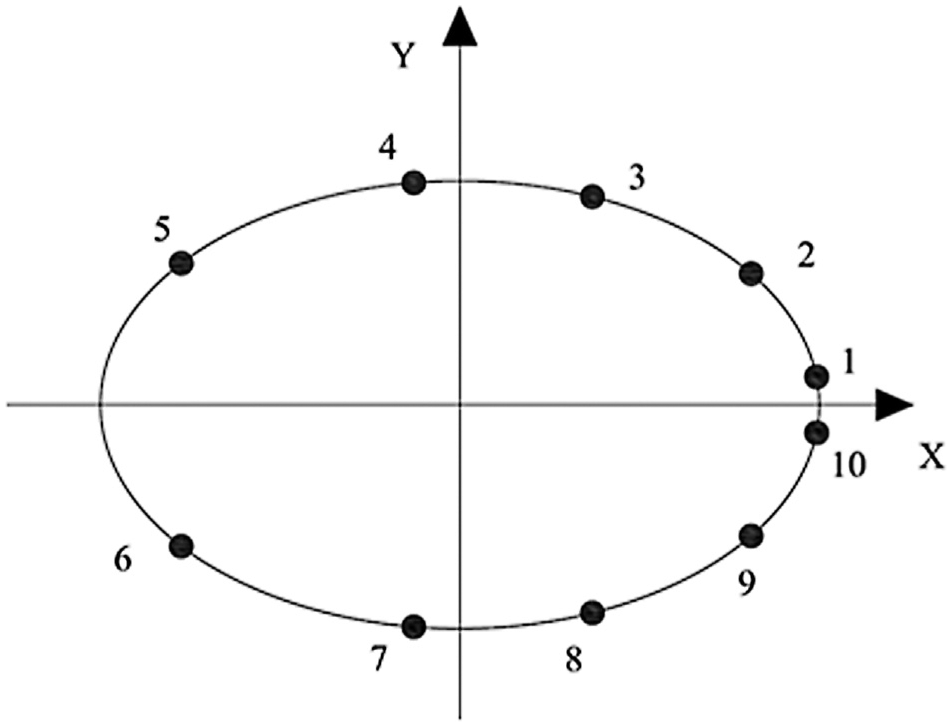

Figure 5.

Ten collocation points on elliptical shaft center orbit.

In the present research, the ultimate object of optimal control is to make the optimal coordinates of shaft center approach the expected points’ coordinates (i.e. the collocation points in Figure 5). Table 1 indicates the structure and operating parameters of hydrostatic bearing system in Figure 3. Combining equations (24), (39), and (41) can establish the relations between shaft center’s optimal movement coordinates ( $x, y$ ) and electro-hydraulic servo valves’ spool displacements ( $x_{vj}$ ). When the shaft center moves following the expected ellipse (equation (42)), the change laws of spool displacements ( $x_{vj}$ ) of electro-hydraulic servo valves are shown in Figure 6. It can be seen that the two spool displacement curves are like a leading phase sine curve or a cosine curve.

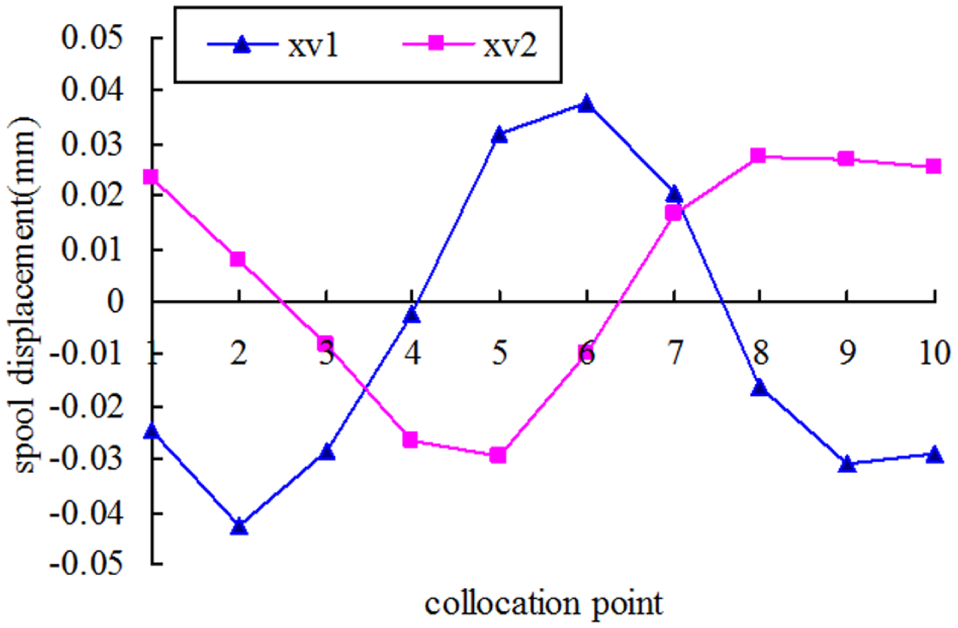

Figure 6.

Variations of spool displacements of servo valves.

The present research first studies the control simulation of shaft center movement orbit (seen in Figure 7) when there is no external force, that is, the equations $q_{x}$ = 0 and $q_{y}$ = 0 exist in equation (2). In Figure 7(a), the blue ellipse is the expected movement orbit of shaft center. Point O is the starting movement point of shaft center, and coordinates of point O is $(0.25, - 0.25)$ . With the optimal control method, shaft center will move from point 1′ to point 10′ in turns, and shaft center orbit is marked by pink line segments. It can be seen that the pink line segments are very close to the expected elliptical orbit (i.e. blue ellipse in Figure 7(a)). When the Eulerian control method is used, the movement orbit of shaft center is from point 1′′ to point 10′′, and shaft center orbit is marked by black line segments. There is a big deviation between the black line segments and blue ellipse. In the previous research,¹⁵ with a large number of collocation points, Eulerian control method can be used to control shaft and make the shaft center orbit get close to the expected ellipse. But the control precision of Eulerian method becomes obviously worse with fewer collocation points, and the Eulerian method is not suitable for this situation in the present research. From Figure 7(a), the precision of optimal method is much higher than Eulerian method. The starting point O is set arbitrarily and is not on the expected ellipse, but the optimal control method still makes the shaft center orbit close to the expected ellipse, which indicates that the optimal method can control shaft center orbit and realize the elliptical shaft center orbit no matter where the starting point is. The X and Y coordinates of shaft center orbit can be seen in Figure 7(b) and (c), respectively. The collocation points (point 1 to point 10) on blue line segment in Figure 7(b) and (c) are the points on the expected ellipse in Figure 5. As is shown in Figure 7(b) and (c), with optimal method, X and Y coordinates of shaft center are always close to the expected coordinates (blue line segment); but when the Eulerian method is used, the X and Y coordinates of shaft center are far away from the expected coordinates. Furthermore, though the starting point (i.e. point O) of shaft center is not on the expected ellipse, the optimal method can still make the shaft center coordinates get close to the expected coordinates from point 2, which demonstrates the fast control rate of optimal method.

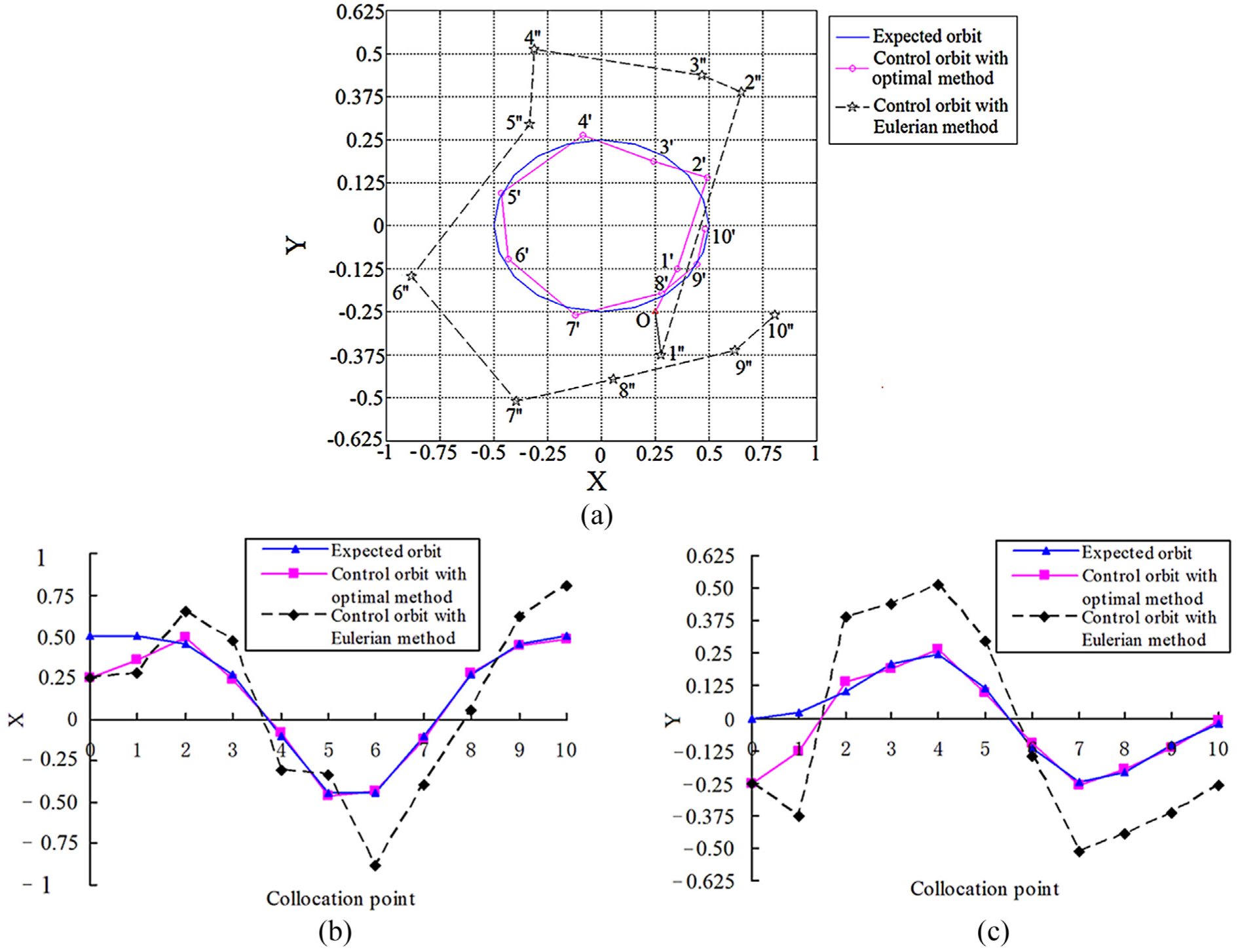

Figure 7.

(a) Control simulations of shaft center movement orbit ( $q_{x}$ = 0, $q_{y}$ = 0) and (b) X-coordinate of shaft center, and (c) Y-coordinate of shaft center.

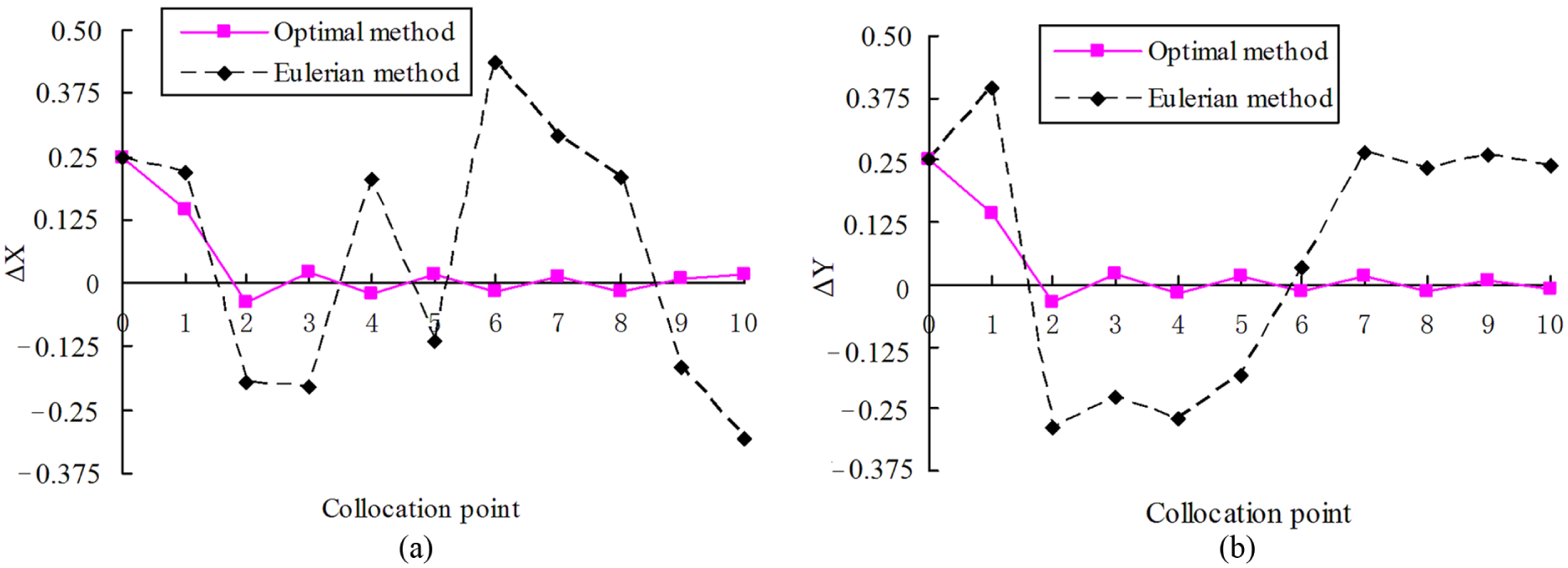

Figure 8 shows the tracking errors of shaft center coordinates in X-direction (seen in Figure 7(b)) and Y-direction (seen in Figure 7(c)). It can be seen that the optimal control method has much smaller tracking errors than Eulerian control method. When utilizing the optimal method, the tracking error curve of shaft center orbit can be divided into short adjustment stage (from collocation point 1 to point 2) and long steady stage (point 2 to point 10). There are small tracking errors in the steady stage. For example, in the steady stage, the biggest absolute error of shaft center coordinate in X-direction is 0.0233, and the biggest relative error is 4.66%; the biggest absolute error of shaft center coordinate in Y-direction is 0.0219, and the biggest relative error is 4.38%. But with Eulerian method, the tracking errors of shaft center coordinate are very large. For instance, the biggest relative errors of shaft center coordinate in X-direction and Y-direction are 87.11% and 54.35%, respectively. From Figures 7 and 8, though the starting movement point of shaft center is not on the expected ellipse, the optimal control method still makes the coordinates of shaft center get close to the expected ellipse orbit quickly.

Figure 8.

(a) Tracking errors of shaft center coordinates in X-direction ( $q_{x}$ = 0, $q_{y}$ = 0) and (b) tracking errors of shaft center coordinates in Y-direction ( $q_{x}$ = 0, $q_{y}$ = 0).

When shaft rotates in a bearing, shaft center movement orbit may be disturbed by instantaneous external force. Figure 9 shows the shaft center movement orbit with the two control methods when the shaft is disturbed by instantaneous external force. In Figure 9, the instantaneous external force $q_{x}$ = 500 N and $q_{y}$ = −500 N, and instantaneous external force works when t = 0.0170 s. It means that external force is operated on shaft system when shaft center moves on collocation point 5. It can be seen from Figure 9 that the shaft center orbits with two methods are disturbed at point 5′ and point 5′′ respectively. But after the short adjustment, the shaft center keeps on moving following the two original orbits (pink line segments and black line segments in Figure 7(a)). It also can be found that the optimal method has better robustness than Eulerian method by comparing Figures 9(a) and 7(a). From the Figures 9(b), (c), and 7(b), (c), the shaft center orbit is disturbed at point 5, but optimal method makes the shaft center orbit quickly get close to expected ellipse orbit again at point 6.

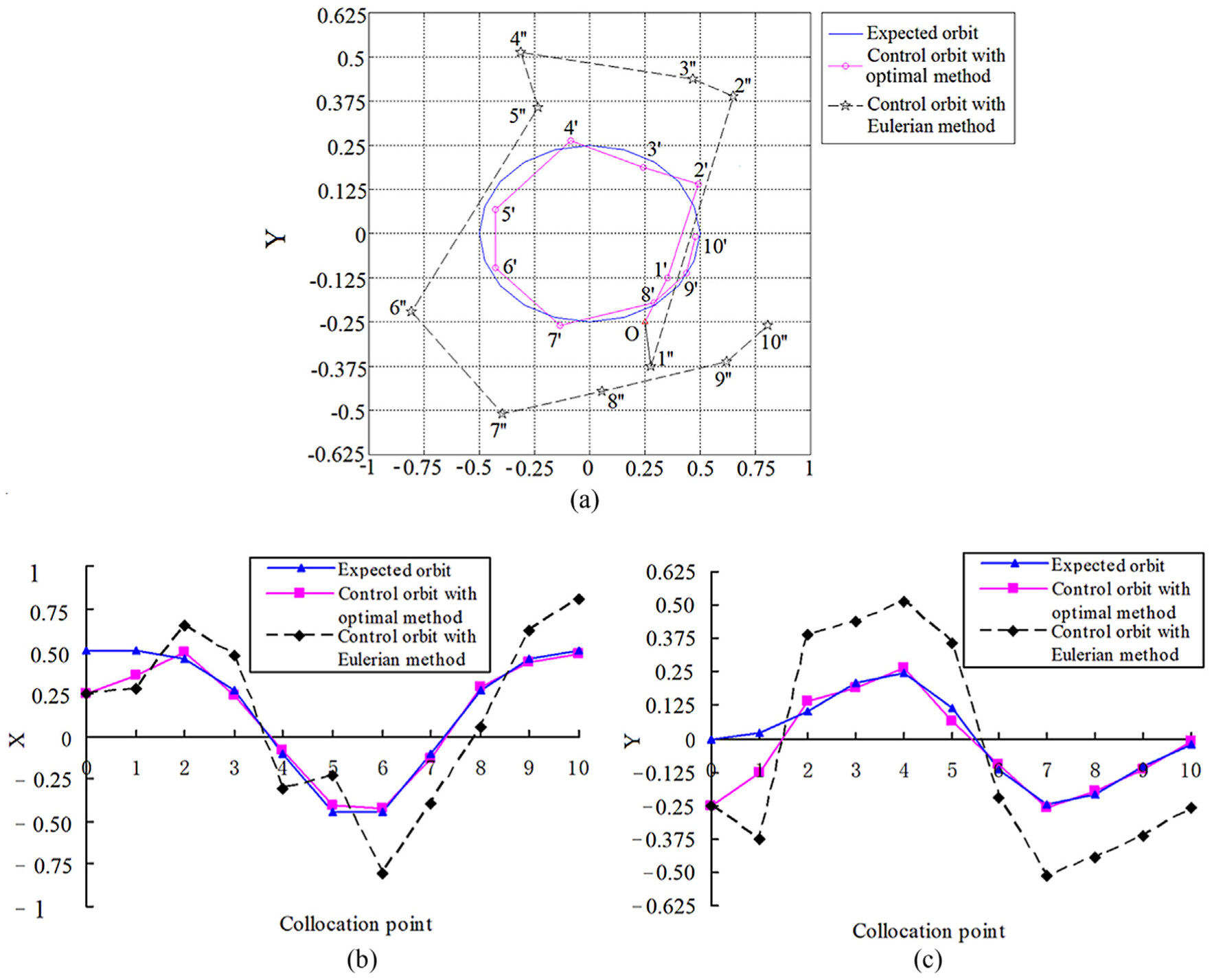

Figure 9.

(a) Control simulations of shaft center movement orbit ( $q_{x}$ = 500 N, $q_{y}$ = −500 N), (b) X-coordinate of shaft center, and (c) Y-coordinate of shaft center.

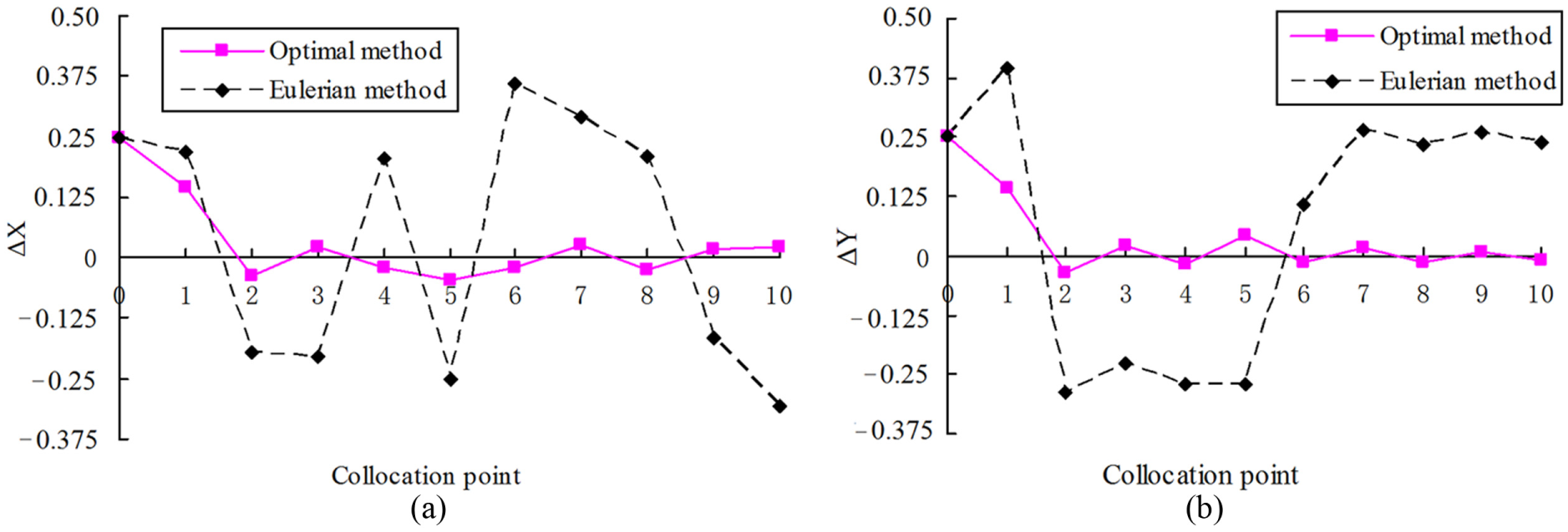

Figure 10 presents the tracking errors of Figure 9(b) and (c). As can be seen from Figure 10, with the optimal control method, the tracking errors of coordinates when shaft center moves on point 5 are the biggest in the steady stage (point 2 to point 10), and the biggest relative errors of shaft center coordinate in X-direction and Y-direction are 9.05% and 8.36%, respectively. But when shaft center moves on other points (from point 2 to point 10, excluding point 5), the relative tracking errors of coordinates are smaller than 5.82%. With the comparison of Figures 10 and 8, when Eulerian method is used, the tracking errors of shaft center coordinates on point 5 become bigger because of instantaneous external force, and the relative tracking errors of shaft center coordinates in X-direction and Y-direction are 52.24% and 55.22%, respectively, in Figure 10. From Figures 9 and 10, when the shaft is disturbed by instantaneous external force the shaft center orbit is also disturbed, but optimal method can make the shaft center orbit quickly approach the expected ellipse again. The instantaneous external force does not have big effects on the shaft center orbit with the optimal control method.

Figure 10.

(a) Tracking errors of shaft center coordinates in X-direction ( $q_{x}$ = 500 N, $q_{y}$ = −500 N) and (b) tracking errors of shaft center coordinates in Y-direction ( $q_{x}$ = 500 N, $q_{y}$ = −500 N).

When shaft rotates in a bearing, the shaft may be also disturbed by dynamical force whose value and direction change with time. Therefore, the present research operates control simulation of shaft center orbit under the dynamical force. In Figure 11, the dynamical force conditions are $q_{x} = q_{0} \cos ω_{0} t$ , $q_{y} = q_{0} \sin ω_{0} t$ , and $q_{0} = 200 N$ . With comparison of Figures 11(a) and 7(a), when the optimal method is used, the dynamical force makes the shaft center orbit away from the expected ellipse at some individual points (such as point 8′), but the shaft center orbits (pink line segment) in these two figures are the same and large. This indicates good robustness and self-adaption of optimal method. Comparing Figures 11(b) and (c) with 7(b) and (c), it can be found that the maximum amplitude of X-coordinate of shaft center orbit (black line segment) becomes bigger because of the dynamical force.

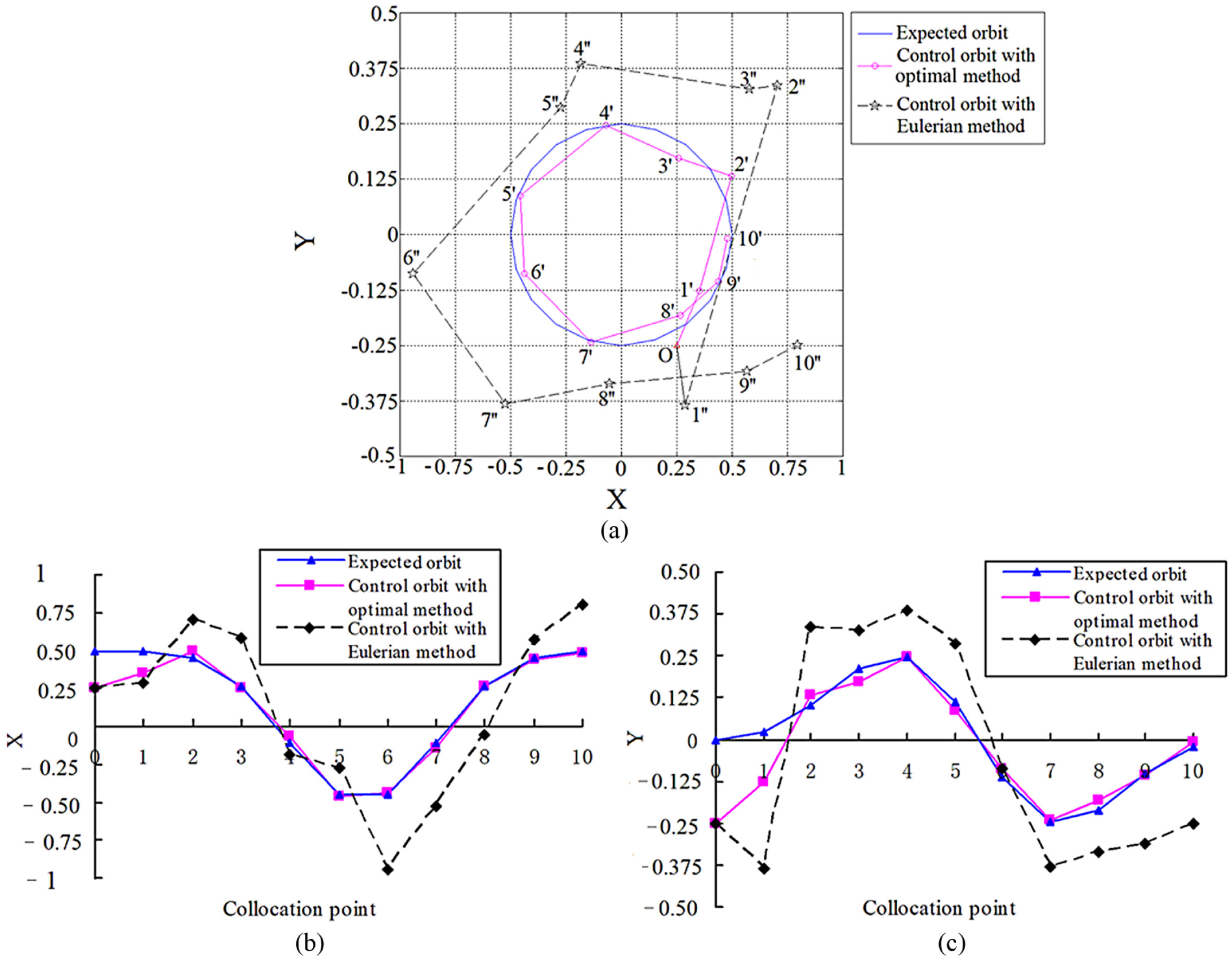

Figures 11.

(a) Control simulations of shaft center movement orbit ( $q_{x} = q_{0} \cos ω t$ , $q_{y} = q_{0} \sin ω t$ , $q_{0} = 200 N$ ), (b) X-coordinate of shaft center, and (c) Y-coordinate of shaft center.

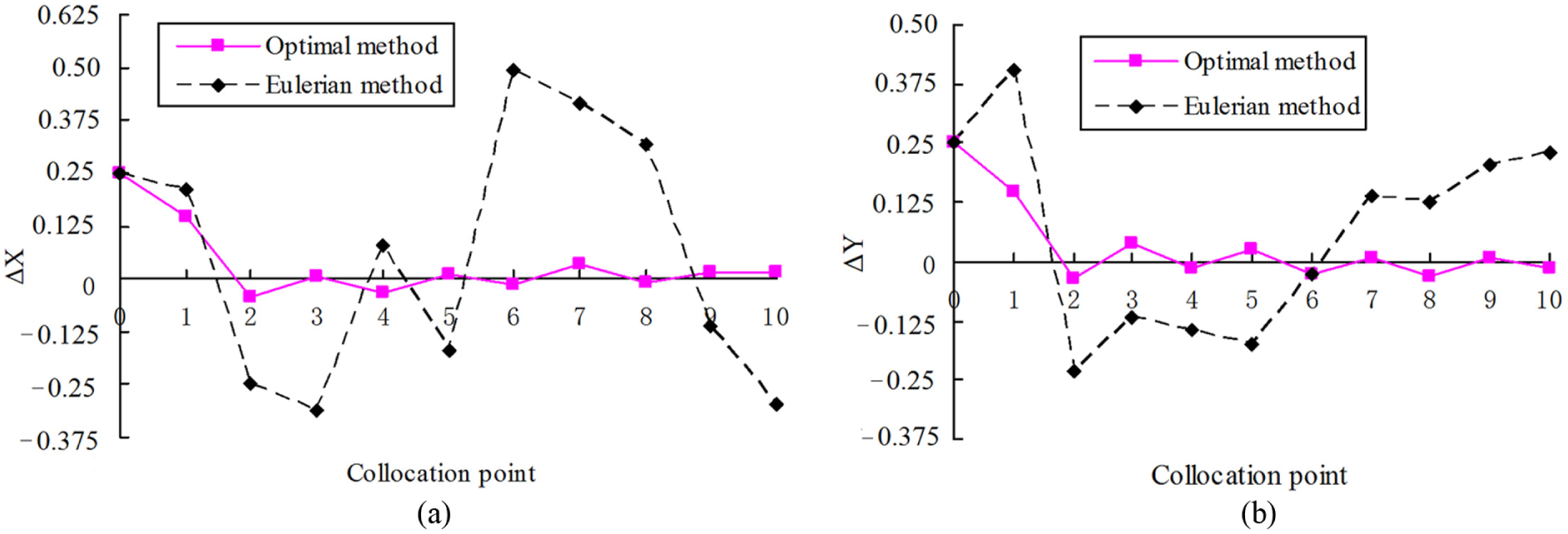

Figure 12 shows the tracking errors of Figure 11(b) and (c). It can be seen that the tracking errors of shaft center orbit with optimal method become a little larger by comparing Figures 8 and 12. For example, the biggest relative errors of shaft center orbit (pink line segment) in the X-direction and Y-direction are 7.31% and 7.19%, respectively, in Figure 12. Because of the effects of dynamical force, the tracking errors of shaft center orbit with Eulerian method also become bigger. For instance, the biggest relative error of shaft center orbit coordinate in X-direction reaches up to 98.52%. From Figures 11 and 12, when the shaft is disturbed by dynamical force and the optimal control method is used, the relative tracking errors of shaft center orbits can keep within 7.31% in the steady stage. And the dynamical force does not have large effects on the control precision of optimal control method.

Figure 12.

(a) Tracking errors of shaft center coordinates in X-direction ( $q_{x} = q_{0} \cos ω t$ , $q_{y} = q_{0} \sin ω t$ , $q_{0} = 200 N$ ) and (b) tracking errors of shaft center coordinates in Y-direction ( $q_{x} = q_{0} \cos ω t$ , $q_{y} = q_{0} \sin ω t$ , $q_{0} = 200 N$ ).

Conclusion

Based on preliminary work,^14,15,28,29 the present research researches the hydraulic control scheme to bore elliptical hole and uses optimal control method based on GPM to realize control simulation of shaft center movement orbit. The present research not only discusses the feasibility of realizing new boring method¹⁴ with hydrostatic bearing system but also provides a reference for rotor vibration abatement with the optimal control mechanism of shaft center. The conclusions are as follows:

Based on similarity between the movement orbit of shaft center and the satellite movement orbit, the present research applies the optimal control approach based on GPM in aerospace field to shaft center orbit control. Compared to Eulerian control method,¹⁵ optimal control method can control the shaft center orbit with very few collocation points, which can decrease the frequency response requirements of electro-hydraulic servo valve and system cost. And the comparison results also show better feasibility and more advantages of optimal control method in the application of the new machining method.¹⁴

Compared to Eulerian control method, optimal control method has higher control accuracy. When the shaft is disturbed by instantaneous external force, the biggest relative errors of shaft center orbit in the steady stage (point 2 to point 10) in X-direction and Y-direction are 9.05% and 8.36%, respectively, with the optimal control method. But the biggest relative errors of shaft center orbit with Eulerian method in X-direction and Y-direction are 52.24% and 55.22%, respectively. When the shaft is disturbed by dynamical force and the optimal control method is used, the relative tracking errors of shaft center orbit can keep within 7.31% at most of points. But the tracking errors of shaft center orbit with Eulerian method is very big, and the biggest relative error of shaft center coordinates in X-direction reaches up to 98.52%.

Compared to Eulerian control method, optimal control method has faster control rate. The simulation results prove that when shaft center’s starting movement point is not on the expected ellipse, optimal method can get the subsequent points coordinates to quickly approach their expected coordinates only through short adjustment stage (from point 1 to point 2). But by the long adjustment stage (from point 1 to point 6), when the Eulerian control method is used, the subsequent points’ coordinates are still far away from their expected coordinates.

Compared to Eulerian control method, optimal control method has better self-adaptation. Even though the starting point O is not on the expected elliptical orbit, the optimal control method still makes the shaft center orbit quickly get close to the expected ellipse. The simulation results show that instantaneous external force and dynamical force do not have great effects on shaft center orbit with optimal control method. But it can be seen that with Eulerian method, dynamical force makes the tracking errors of shaft center orbit much bigger.

The hydrodynamic effect of bearing land is ignored, the distribution of oil film pressure on bearing land is obtained by linear valuating method,²⁹ and analytical expressions of recess pressure and load capacity can be deduced. The method (using the analytical expressions to compute recess pressure and load capacity) is simple and convenient, and need not resort to computers.

The optimal control method proposed in the present research also has limitations. When optimal control method is used to obtain the optimal value, the initial iteration value should be given first. But if the initial value is not given properly, the convergence of optimal control method may not be good. A combination between optimal control method and other methods (such as numerical continuation method) is in progress to solve this problem.

Footnotes

Appendix 1 Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This paper was funded by the National Natural Science Foundation of China (nos 51505245 and 51375275).

References

Zhai

Zhang

Lan

. Study on development trend and machining technology of odd-shaped pinhole of automotive high-load piston. Automob Technol 2006; 3: 39–43.

Tian

. Variable oval convex surface of the piston-type CNC turning technology innovation into research. Master’s Thesis, Shandong University, Jinan, China, 2014.

Huang

Quan

Zhang

. Development of a dual-acting axial piston pump for displacement-controlled system. Proc IMechE, Part B: J Engineering Manufacture 2014; 228: 606–616.

Wang

. Experimental studies on the overall efficiency performance of axial piston motor with a laser surface textured valve plate. Proc IMechE, Part B: J Engineering Manufacture 2013; 227: 1049–1056.

Sander

Kelm

. Formgedrehte Bohrungen zur Bolzenlagerung hochbelasteter Kolben. MTZ 1981; 42: 409–412.

Lee

Hui

Jin

. Design and manufacture of a carbon fiber epoxy rotating boring bar. Compos Struct 2003; 60: 115–124.

Kim

Higuchi

Mizuno

et al . Application of a magnetic bearing spindle to non-circular fine boring. In: International symposium on magnetic bearings, Cambridge, MA, 5–7 August 1998, pp.22–31. London: Taylor & Francis Group.

Gosiewski

Sawicki

Bischof

. Control of magnetic bearing spindles during N-waved machining. In: ASME design engineering technical conference, Pittsburgh, PA, 9–12 September 2001, pp.3111–3118. New York: ASME.

Weck

Leifhelm

Zimmerschitt-halbig

. Intelligent boring tool-iBo. In: Euspen conference, Eindhoven, 26–30 May 2002, pp.357–360. Munich: Fraunhofer-Gesellschaft.

10.

Weck

Zimmerschitt-halbig

. High dynamic intelligence-boring tool with local integrated control system. In: Euspen international topical conference on precision engineering, micro technology, measurement techniques and equipment, Aachen, 19–20 May 2003, pp.145–148. Munich: Fraunhofer-Gesellschaft.

11.

Pasek

Min

Koren

et al . Strategies to enhance agility and machining accuracy in line boring. In: IFAC conference on mechatronic systems, Berkeley, CA, 9–11 December 2002, pp.563–568. Amsterdam: Elsevier.

12.

Pasek

Szuba

. Intelligent agile line boring station. In: ASME international mechanical engineering congress and exposition, Anaheim, CA, 15–20 November 1998, pp.439–446. New York: ASME.

13.

Moller

. Using high-speed electrospindles with active magnetic bearing for boring of noncircular shape. In: International symposium on magnetic bearings, Tokyo, Japan, 12–14 July 1990, pp.189–196. Tokyo, Japan: University of Tokyo.

14.

Liang

Ding

et al . Study on movement forming methods for the machining of elliptic-shaped holes. Proc IMechE, Part B: J Engineering Manufacture 2014; 228: 515–526.

15.

Liang

Yang

et al . Open-loop control of elliptical shaft center orbit. Proc IMechE, Part B: J Engineering Manufacture 2016; 230: 1818–1833.

16.

Zhang

Gao

Chen

et al . Multi-objective global optimal parafoil homing trajectory optimization via Gauss pseudospectral method. Nonlinear Dynam 2013; 72: 1–8.

17.

Benson

Huntington

Thorvaldsen

et al . Direct trajectory optimization and costae estimation via an orthogonal collocation method. J Guid Control Dynam 2006; 29: 1435–1440.

18.

Huntington

. Advancement and analysis of Gauss pseudospectral transcription for optimal control problems. PhD Thesis, Massachusetts Institute of Technology, Cambridge, MA, 2007.

19.

Benson

. A Gauss pseudospectral transcription for optimal control. PhD Thesis, Massachusetts Institute of Technology, Cambridge, MA, 2005.

20.

Huntington

Benson

Rao

. Post-optimality evaluation and analysis of a formation flying problem via a Gauss pseudospectral method. In: Proceedings of the 2005 AAS/AIAA astrodynamics specialist conference and exhibit, Lake Tahoe, CA, 7–11 August 2005, pp.320–338. San Diego, CA: AAS.

21.

Yang

Zhou

Chen

. Application of linear gauss pseudospectral method in model predictive control. Acta Astronaut 2014; 96: 175–187.

22.

Huntington

Rao

. Optimal configuration of spacecraft formations via a Gauss pseudospectral method. Adv Astronaut Sci 2005; 120: 33–50.

23.

Singh

Sinhasan

Ghai

. Finite element analysis of orifice-compensated hydrostatic journal bearings. Tribol Int 1976; 9: 281–284.

24.

Ghosh

. Load and flow characteristics of a capillary-compensated hydrostatic journal bearing. Wear 1973; 23: 377–386.

25.

Sugimoto

Danjo

Kitagawa

et al . Development of ultraprecise positioning X–Y stage composed of pneumatic servo bearing actuators. Proc IMechE, Part J: J Engineering Tribology 2011; 225: 655–662.

26.

Han

. A globally convergent method for nonlinear programming. J Optimiz Theory App 1977; 22: 297–309.

27.

Powell

MJD

. A fast algorithm for nonlinearly constrained optimization calculations. Numer Anal 1978; 630: 144–157.

28.

Liang

Ding

et al . A method for measuring the hydrodynamic effect on the bearing land. Tribol Int 2013; 67: 146–153.

29.

Liang

Pan

et al . A new method for calculating the static performance of hydrostatic journal bearing. Tribol Int 2014; 77: 72–77.
